Webinar IoT Cloud Platforms and Middleware for Rapid Application Development

IoT Cloud Platforms and
Middleware for Rapid
Application Development

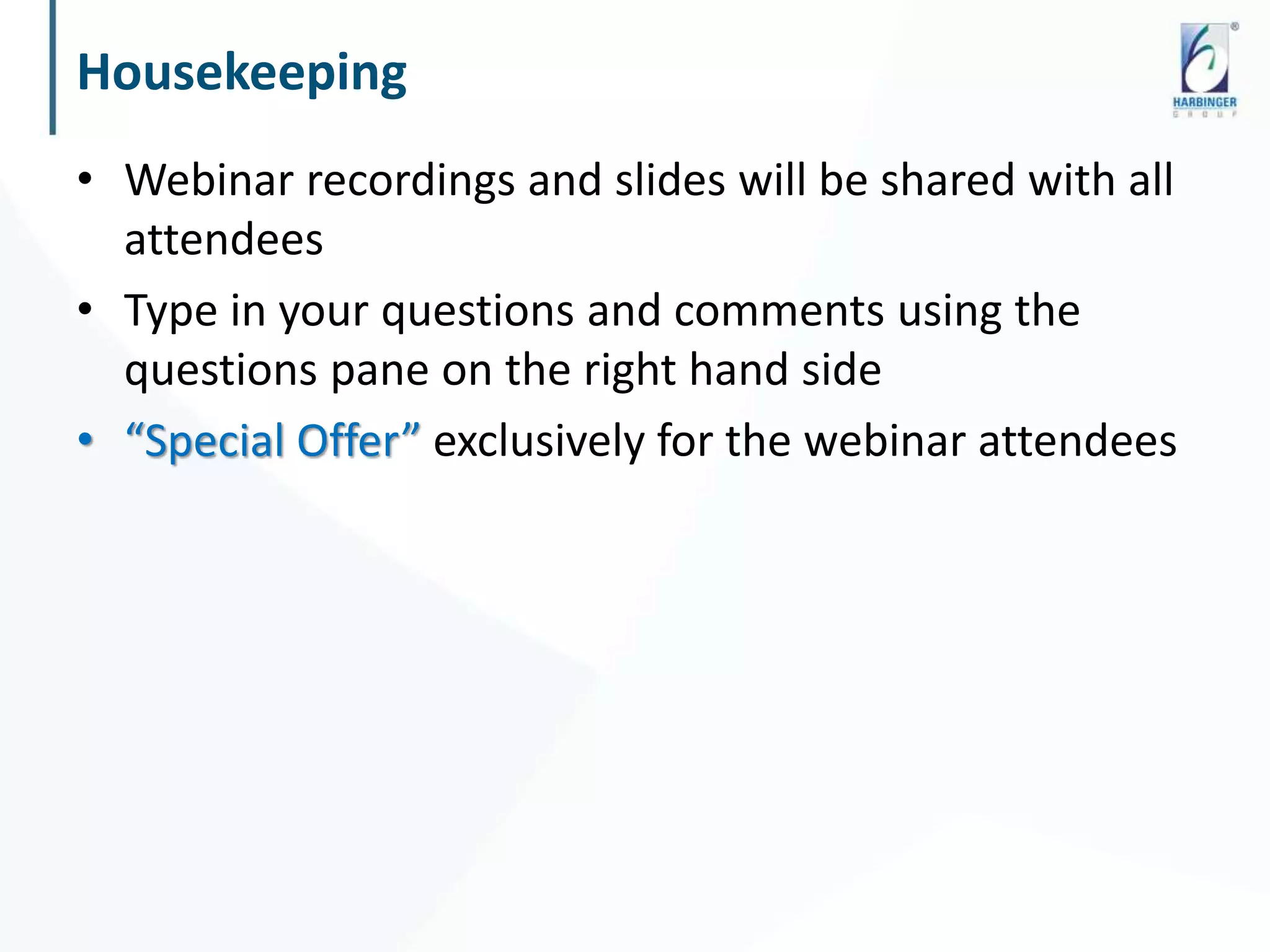

Housekeeping
• Webinar recordings and slides will be shared with all
attendees
• Type in your questions and comments using the
questions pane on the right hand side
• “Special Offer” exclusively for the webinar attendees

Presenters
© Harbinger Systems | www.harbinger-systems.com
Prashant Sachdev
New Practice Positioning
Harbinger Systems
Sayali Doshi
Associate Technical Lead
Harbinger Systems

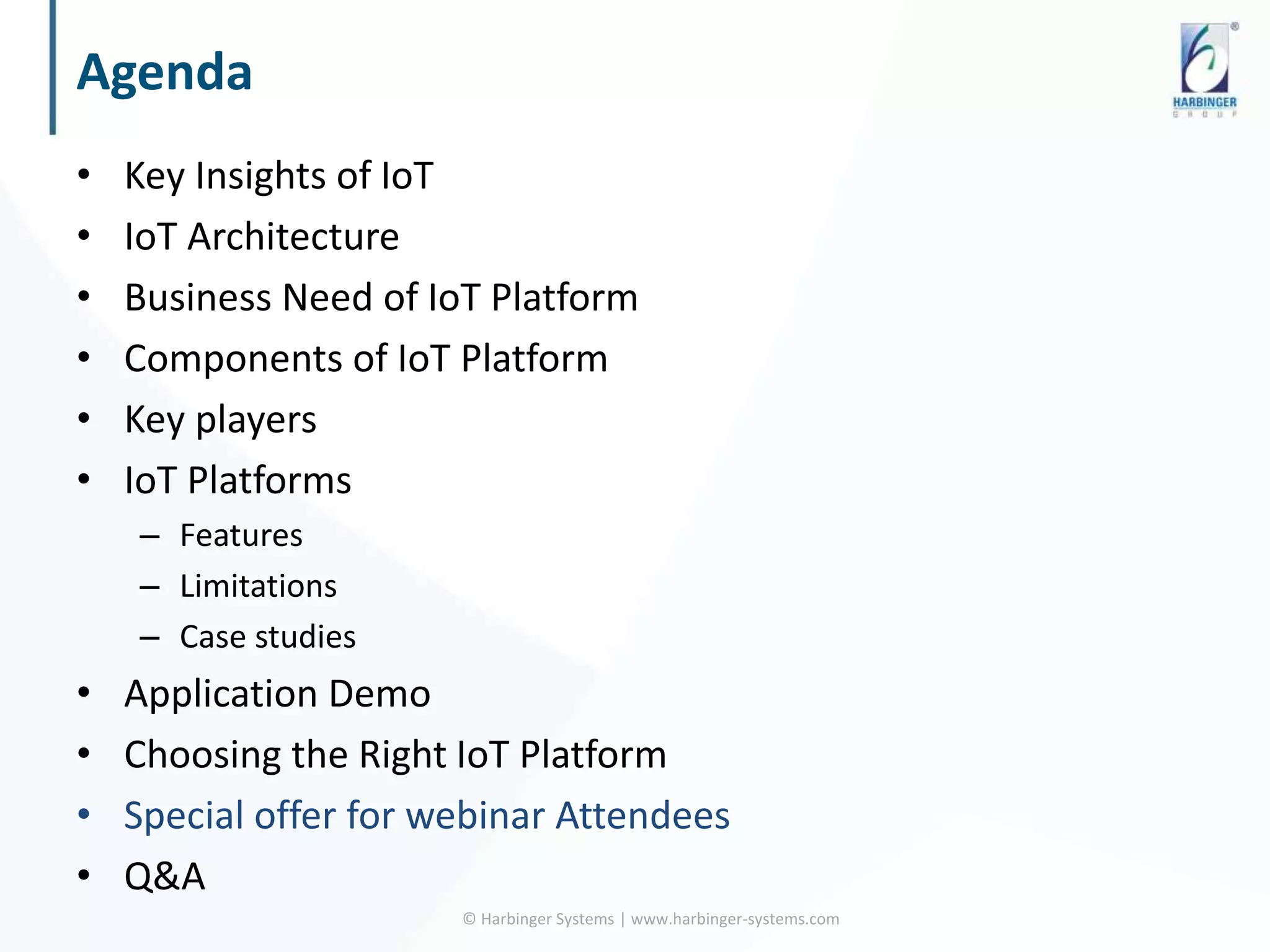

Agenda
• Key Insights of IoT
• IoT Architecture
• Business Need of IoT Platform
• Components of IoT Platform
• Key players
• IoT Platforms
– Features
– Limitations
– Case studies
• Application Demo
• Choosing the Right IoT Platform
• Special offer for webinar Attendees
• Q&A

Key Insights of IoT

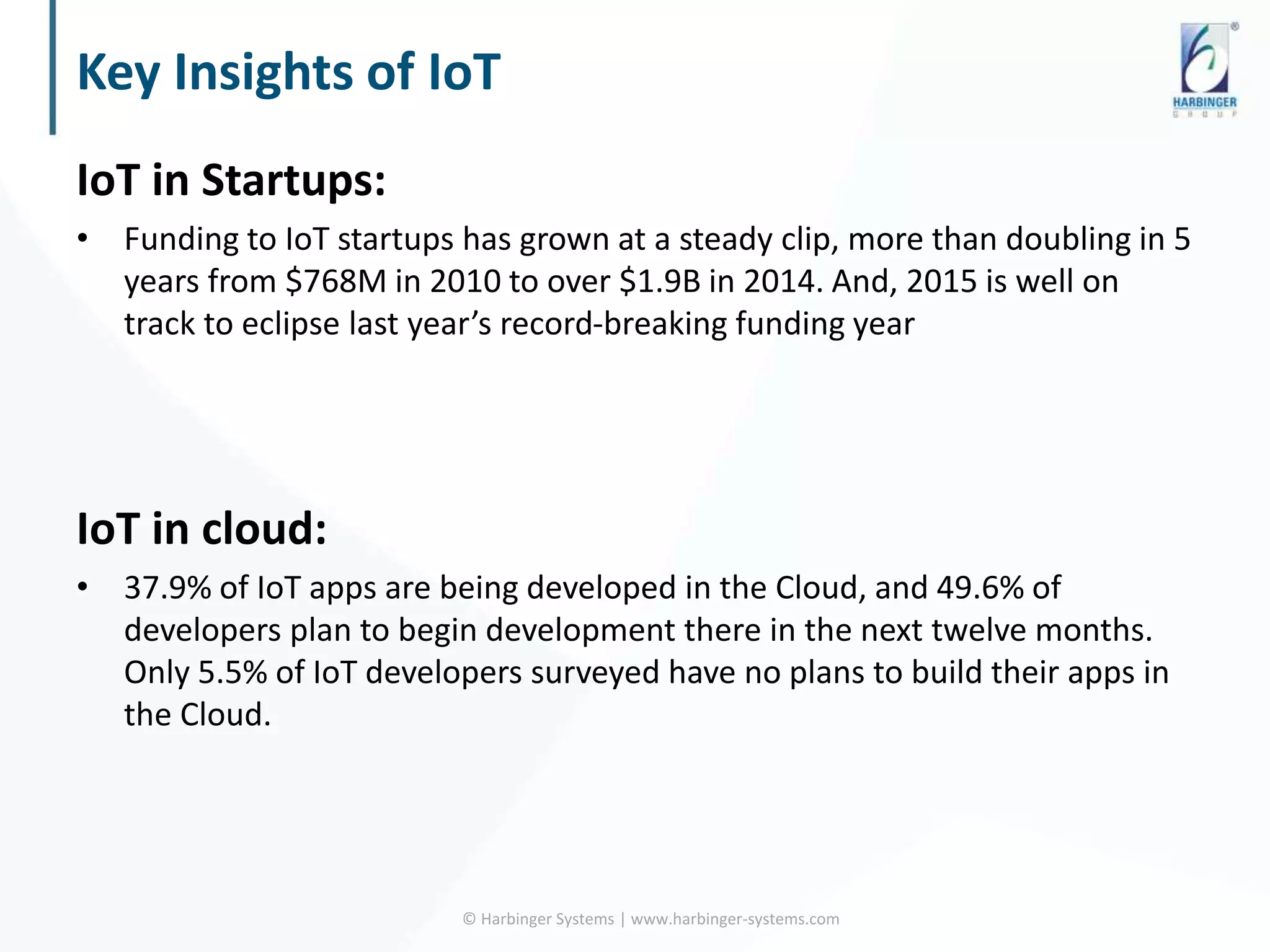

Key Insights of IoT
IoT in Startups:
• Funding to IoT startups has grown at a steady clip, more than doubling in 5
years from $768M in 2010 to over $1.9B in 2014. And, 2015 is well on
track to eclipse last year’s record-breaking funding year
IoT in cloud:
• 37.9% of IoT apps are being developed in the Cloud, and 49.6% of
developers plan to begin development there in the next twelve months.
Only 5.5% of IoT developers surveyed have no plans to build their apps in
the Cloud.

IoT Architecture

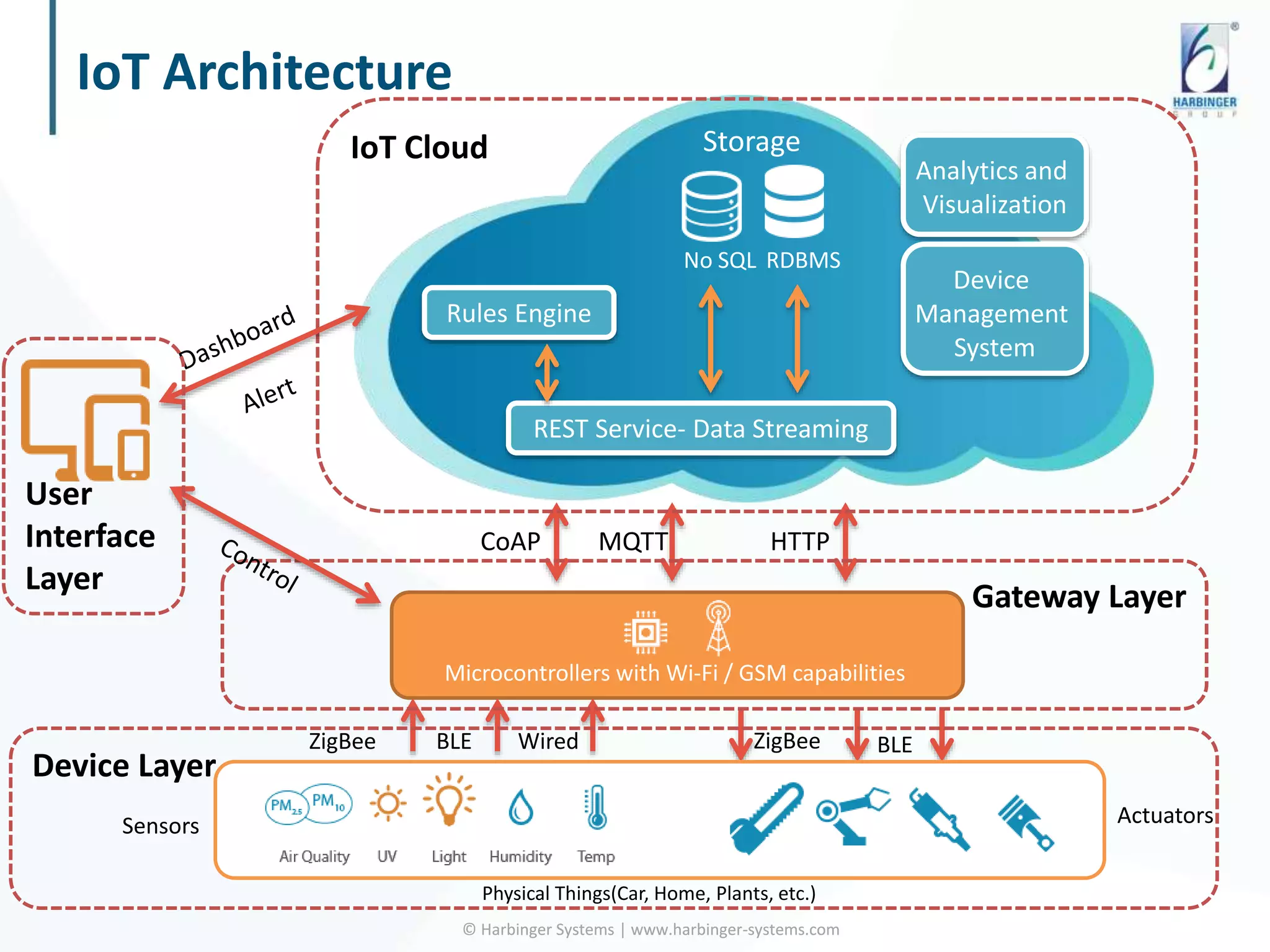

IoT Architecture
© Harbinger Systems | www.harbinger-systems.com© Harbinger Systems | www.harbinger-systems.com
Storage
MQTTCoAP HTTP
No SQL RDBMS
Rules Engine
REST Service- Data Streaming
Analytics and
Visualization
Device
Management
System
IoT Cloud
ZigBee BLE Wired ZigBee BLE
Microcontrollers with Wi-Fi / GSM capabilities
Gateway Layer
Sensors
Physical Things(Car, Home, Plants, etc.)
Actuators
Device Layer
User
Interface
Layer

Business Need of IoT Platform

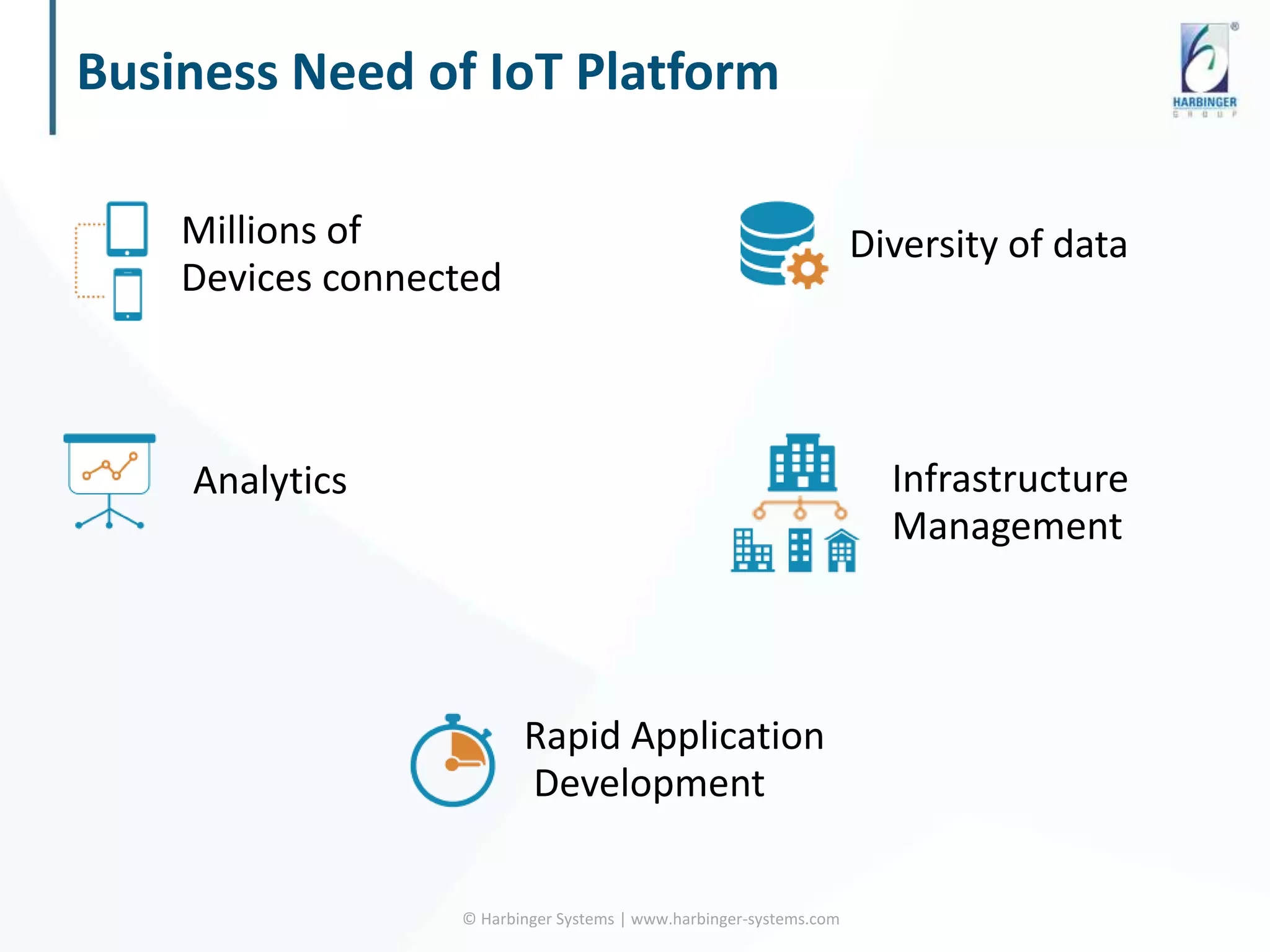

Business Need of IoT Platform
Millions of
Devices connected
Diversity of data
Analytics
Rapid Application
Development
Infrastructure
Management

Components of IoT Platform

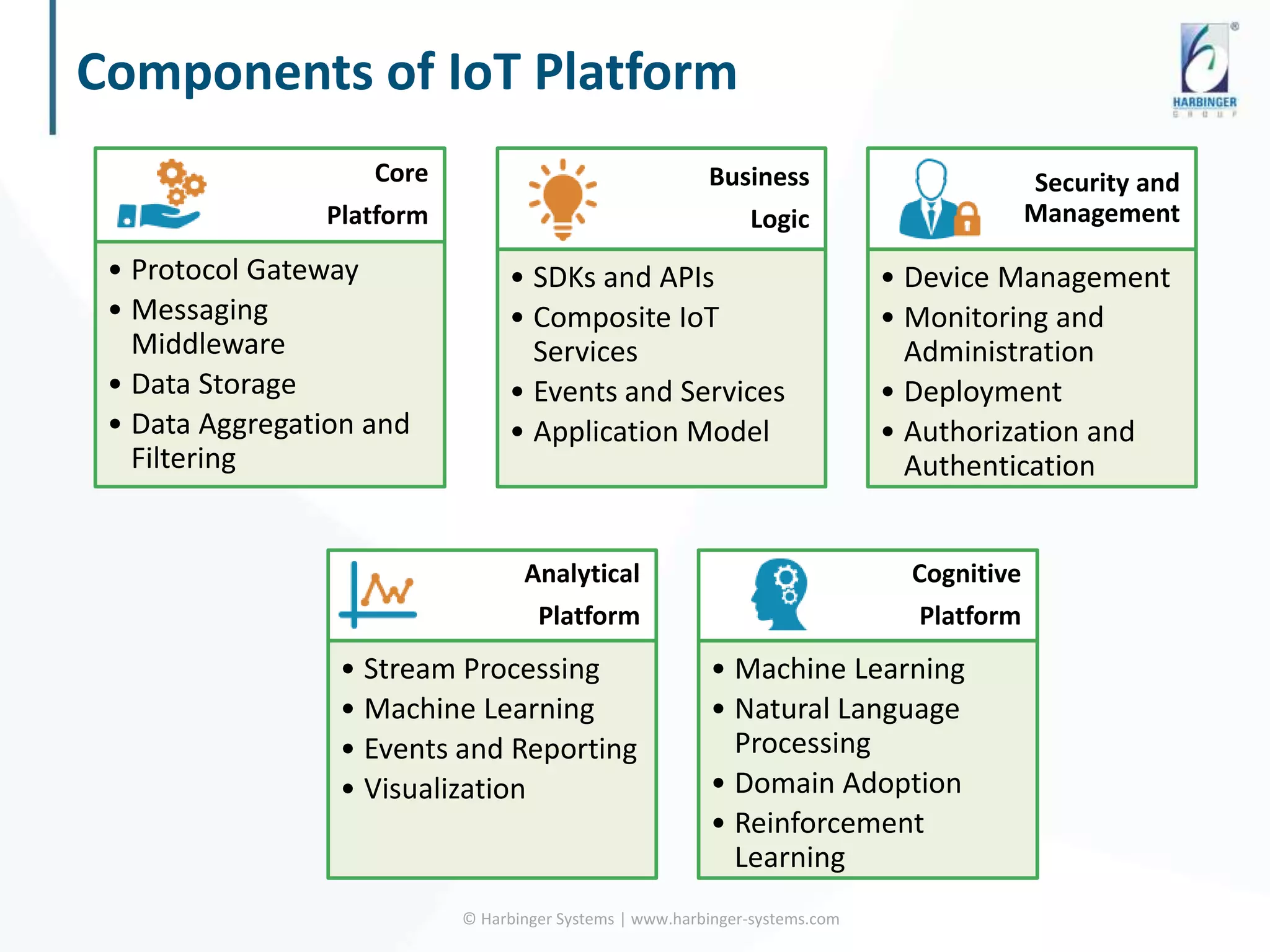

Components of IoT Platform
Core
Platform
• Protocol Gateway
• Messaging
Middleware
• Data Storage
• Data Aggregation and
Filtering
Analytical
Platform
• Stream Processing
• Machine Learning
• Events and Reporting
• Visualization
Cognitive
Platform
• Machine Learning
• Natural Language
Processing
• Domain Adoption
• Reinforcement
Learning
Business
Logic
• SDKs and APIs
• Composite IoT
Services
• Events and Services
• Application Model
Security and
Management
• Device Management
• Monitoring and
Administration
• Deployment
• Authorization and
Authentication

Key Players

Key Players
Disclaimer: Brand names, logos and trademarks used herein remain the property of their respective owners.

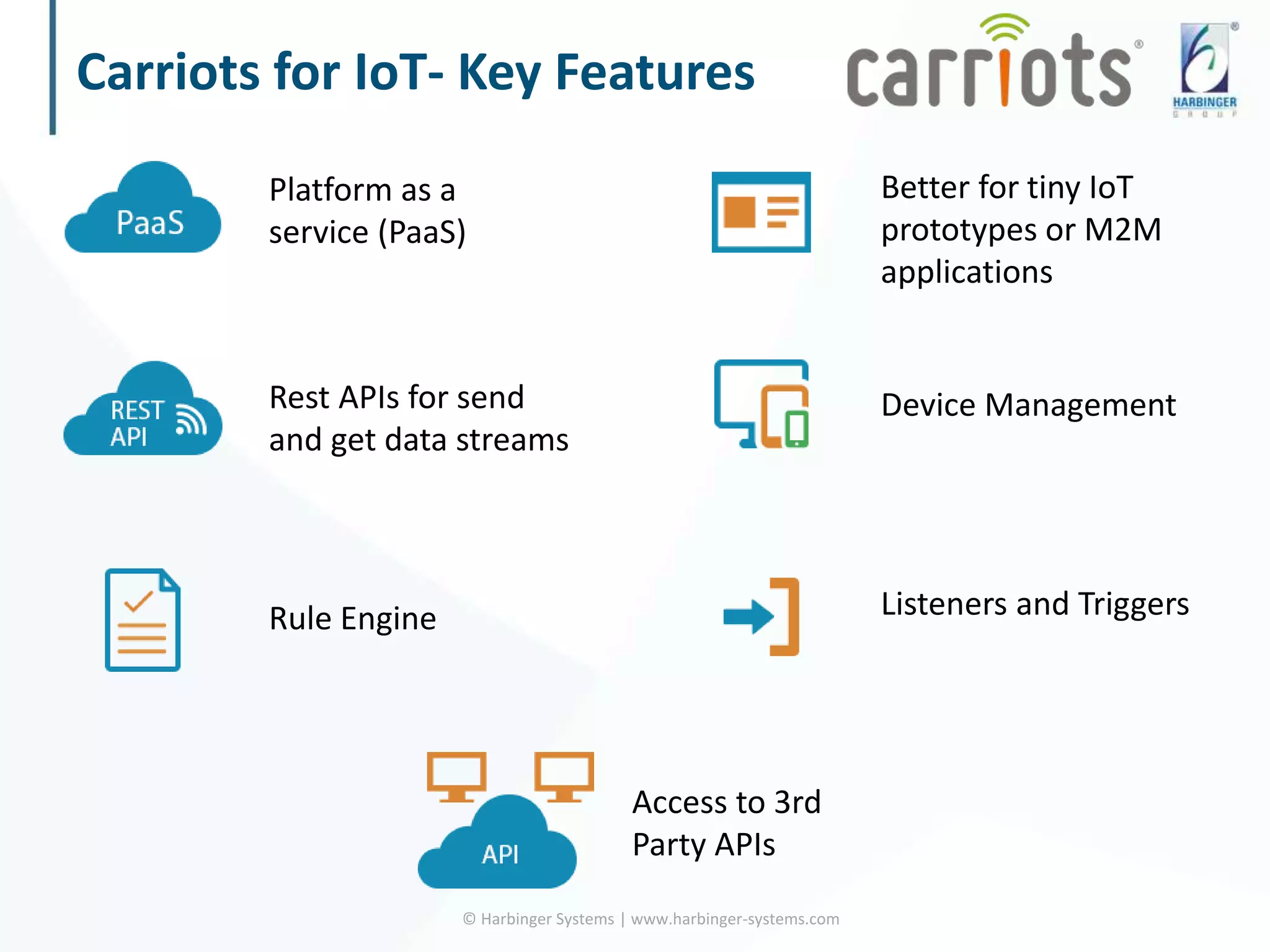

Carriots for IoT- Key Features
Platform as a
service (PaaS)
Rest APIs for send
and get data streams
Rule Engine
Access to 3rd
Party APIs
Better for tiny IoT
prototypes or M2M
applications
Device Management
Listeners and Triggers

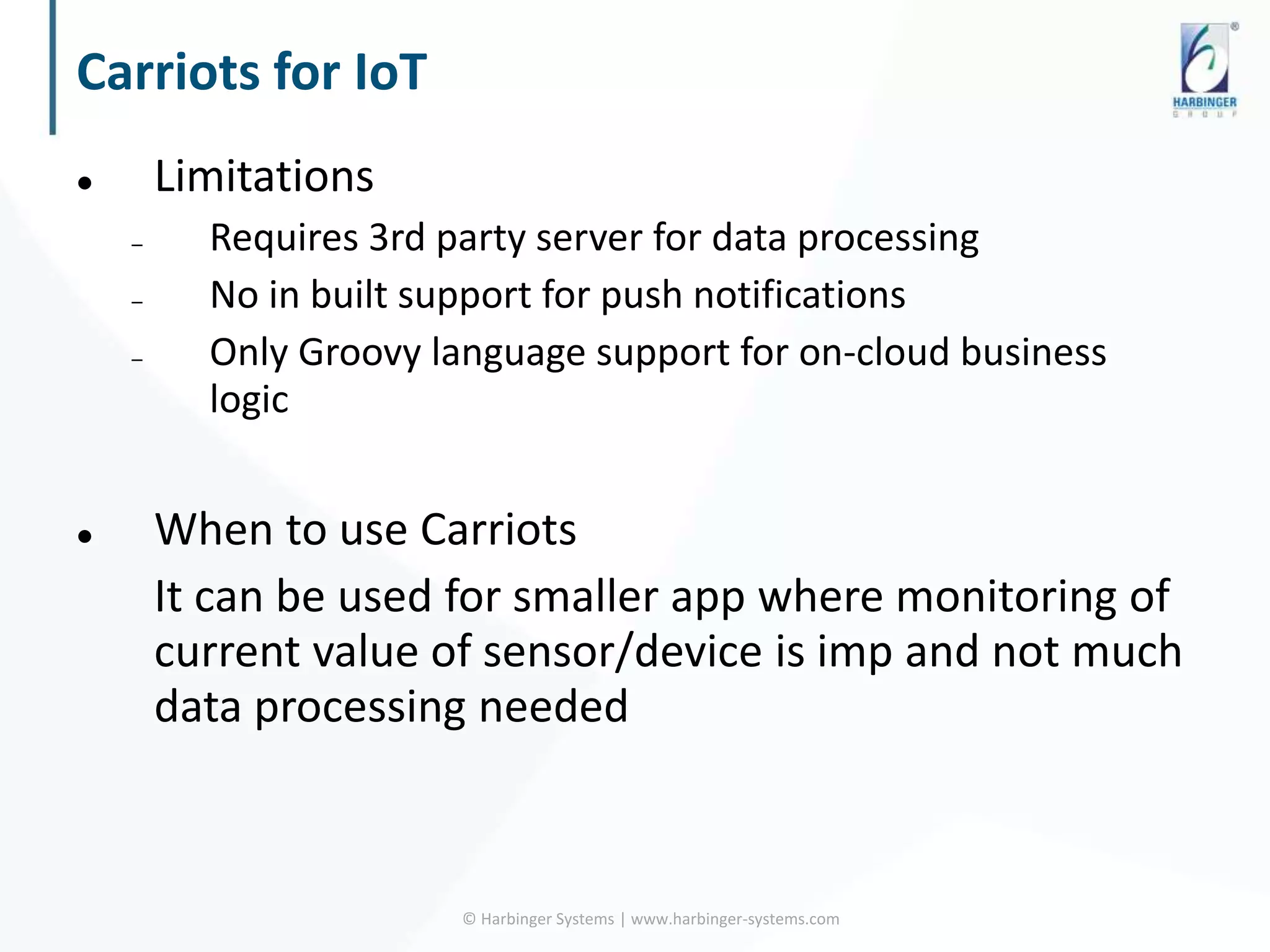

Carriots for IoT
 Limitations
– Requires 3rd party server for data processing
– No in built support for push notifications
– Only Groovy language support for on-cloud business
logic
 When to use Carriots
It can be used for smaller app where monitoring of
current value of sensor/device is imp and not much
data processing needed

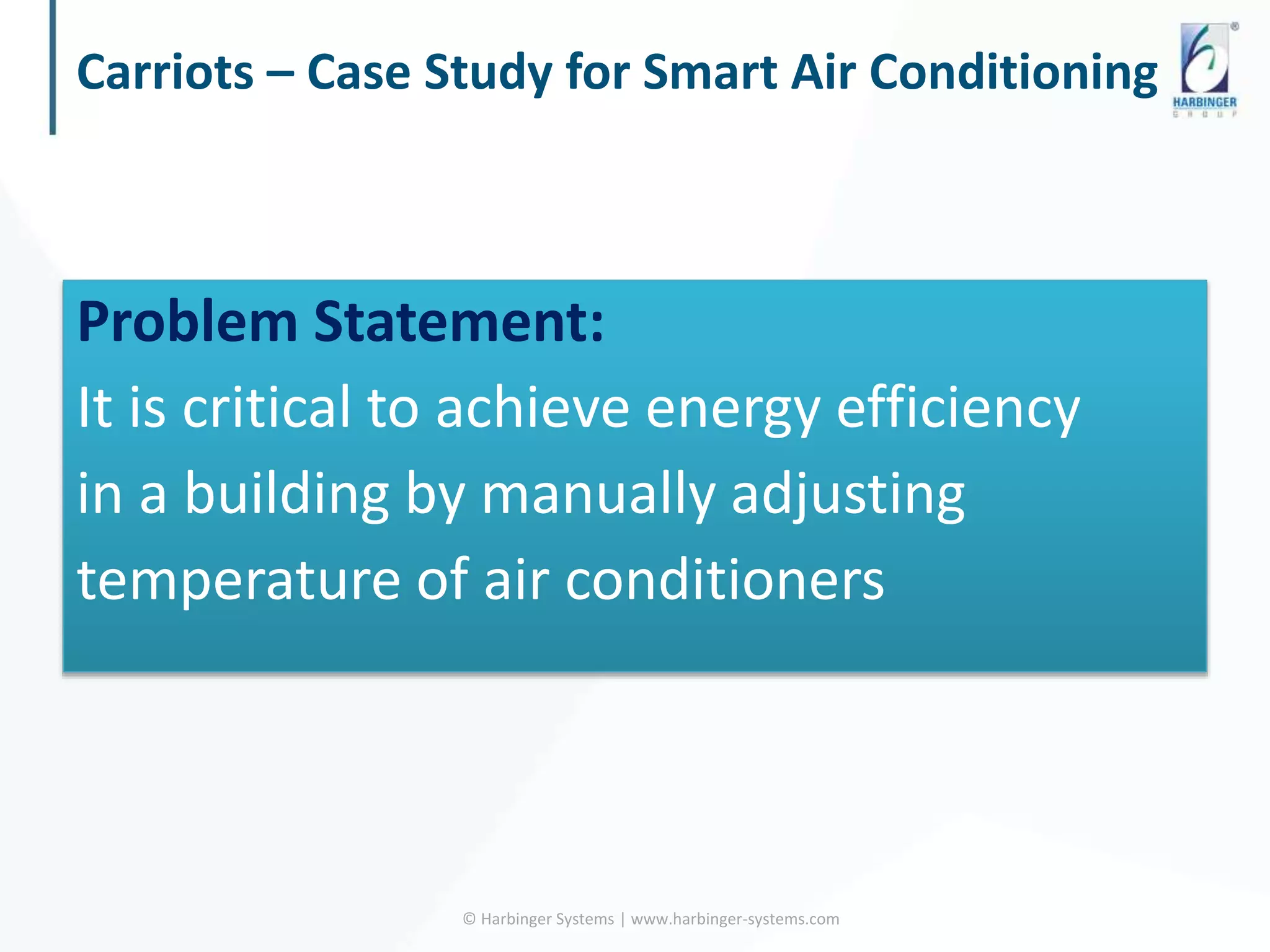

Carriots – Case Study for Smart Air Conditioning
Problem Statement:
It is critical to achieve energy efficiency
in a building by manually adjusting
temperature of air conditioners

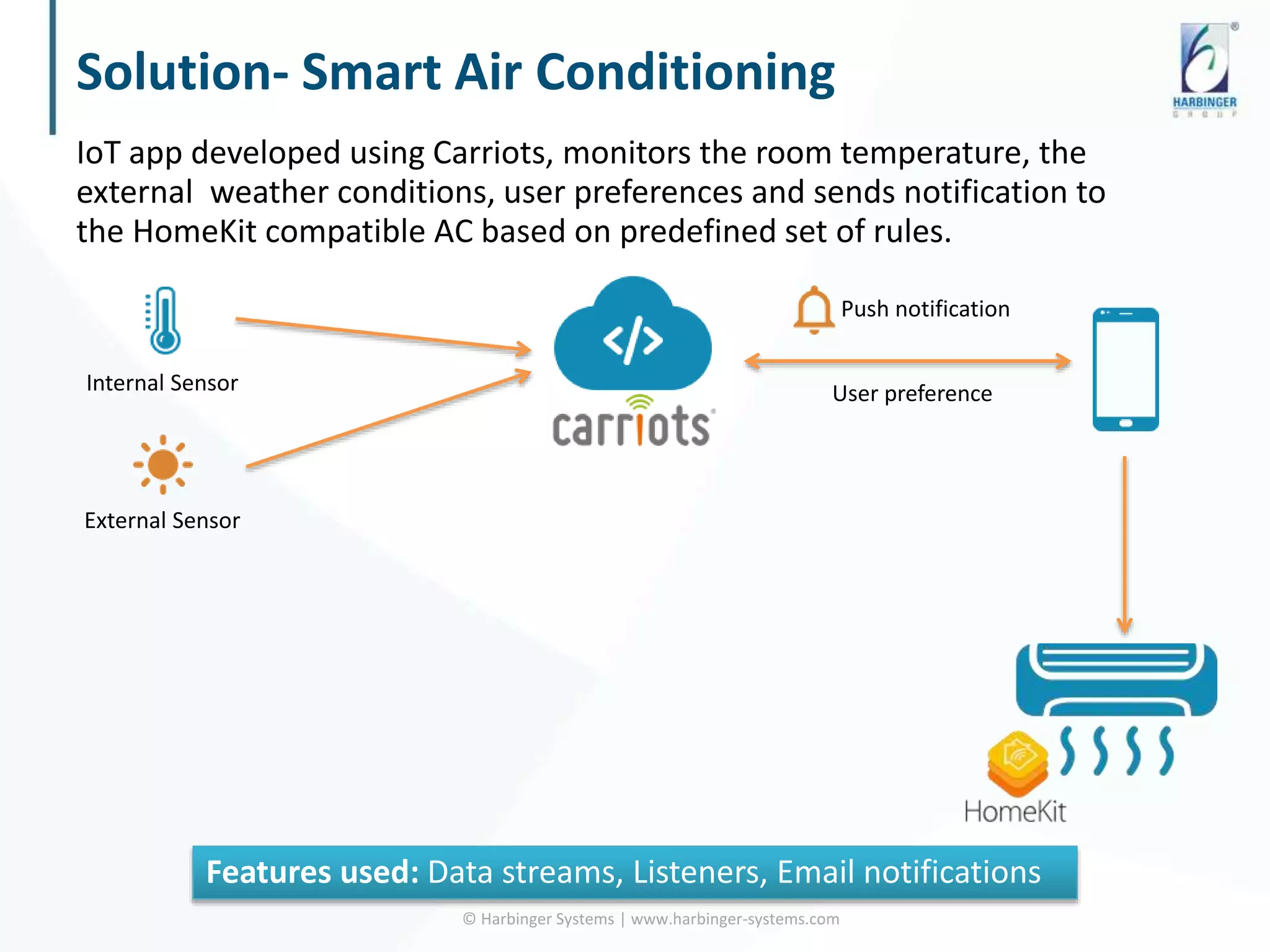

Solution- Smart Air Conditioning
IoT app developed using Carriots, monitors the room temperature, the
external weather conditions, user preferences and sends notification to
the HomeKit compatible AC based on predefined set of rules.
Features used: Data streams, Listeners, Email notifications
Internal Sensor
External Sensor
Push notification
User preference

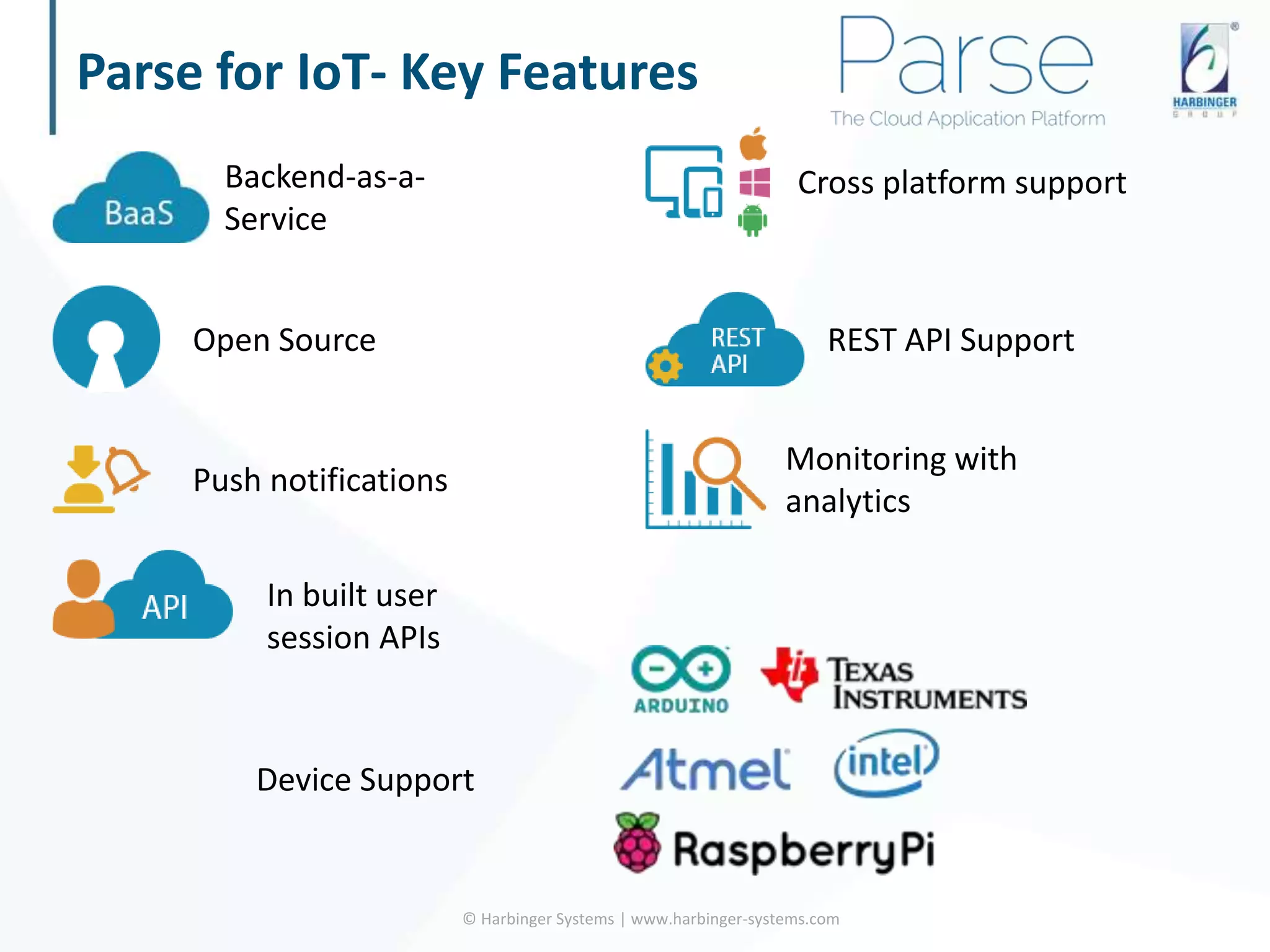

Parse for IoT- Key Features
Backend-as-a-
Service
Open Source
Push notifications
In built user
session APIs
Cross platform support
REST API Support
Monitoring with
analytics
Device Support

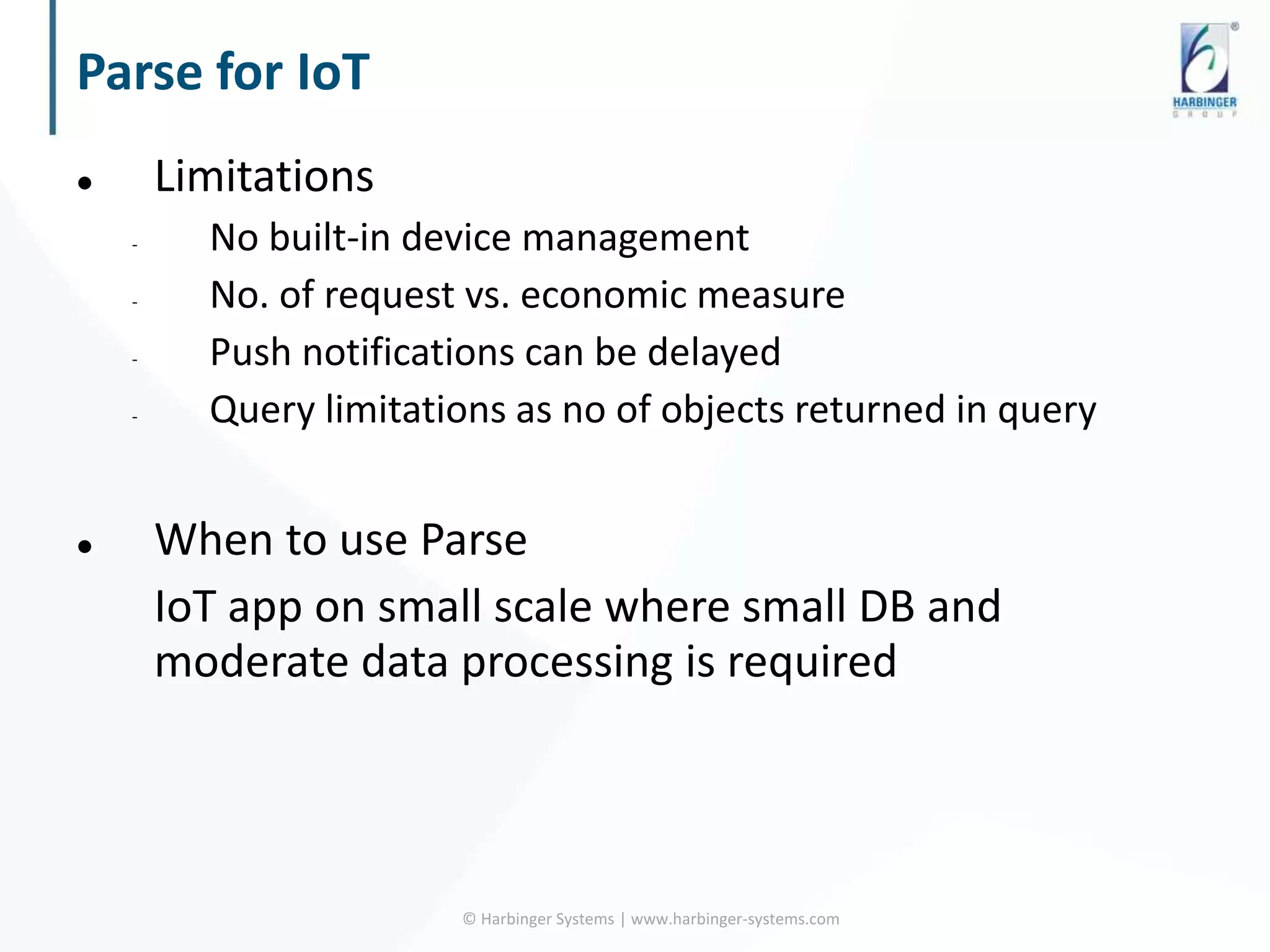

Parse for IoT
 Limitations
- No built-in device management
- No. of request vs. economic measure
- Push notifications can be delayed
- Query limitations as no of objects returned in query
 When to use Parse
IoT app on small scale where small DB and
moderate data processing is required

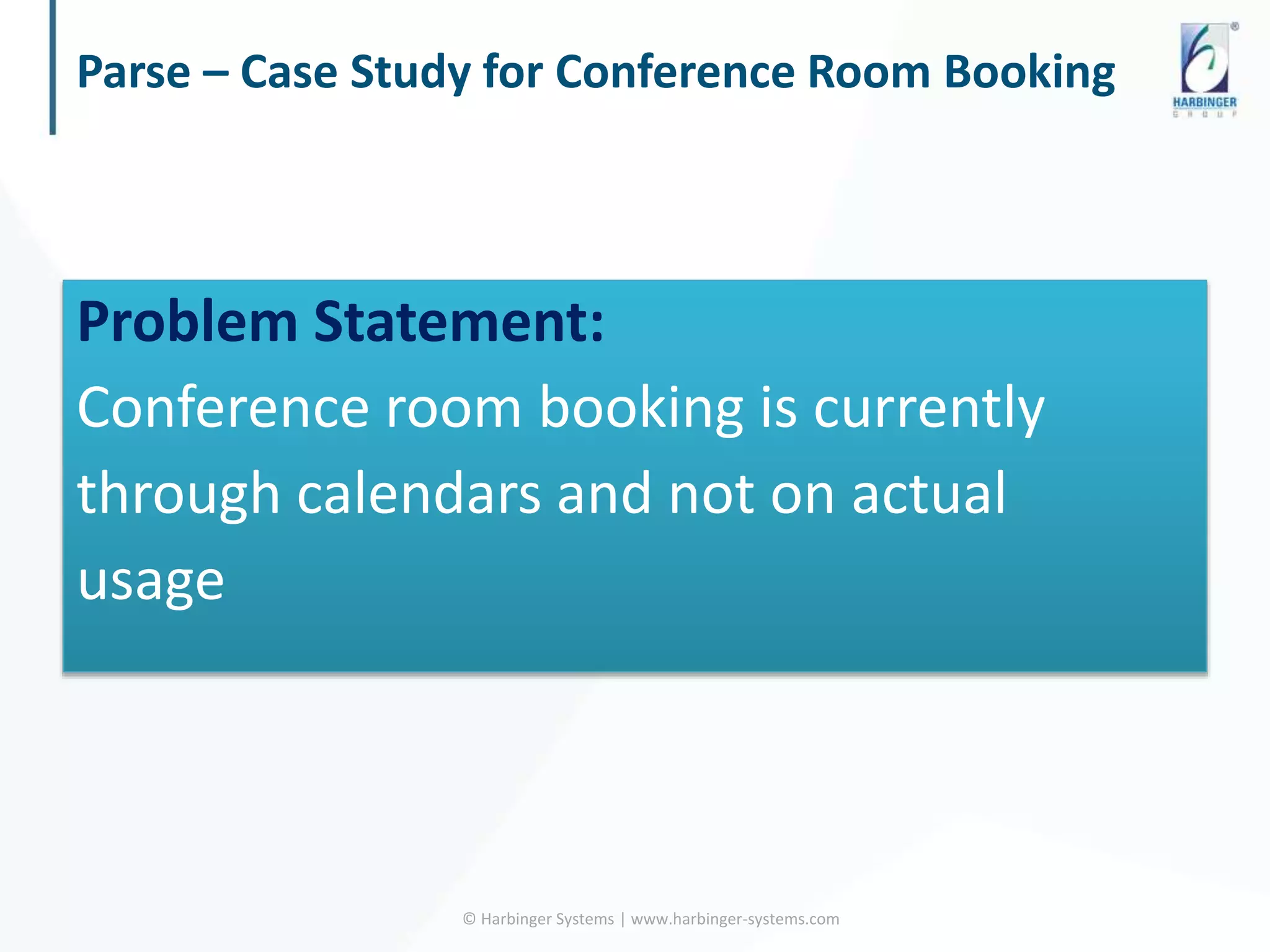

Parse – Case Study for Conference Room Booking
Problem Statement:
Conference room booking is currently
through calendars and not on actual
usage

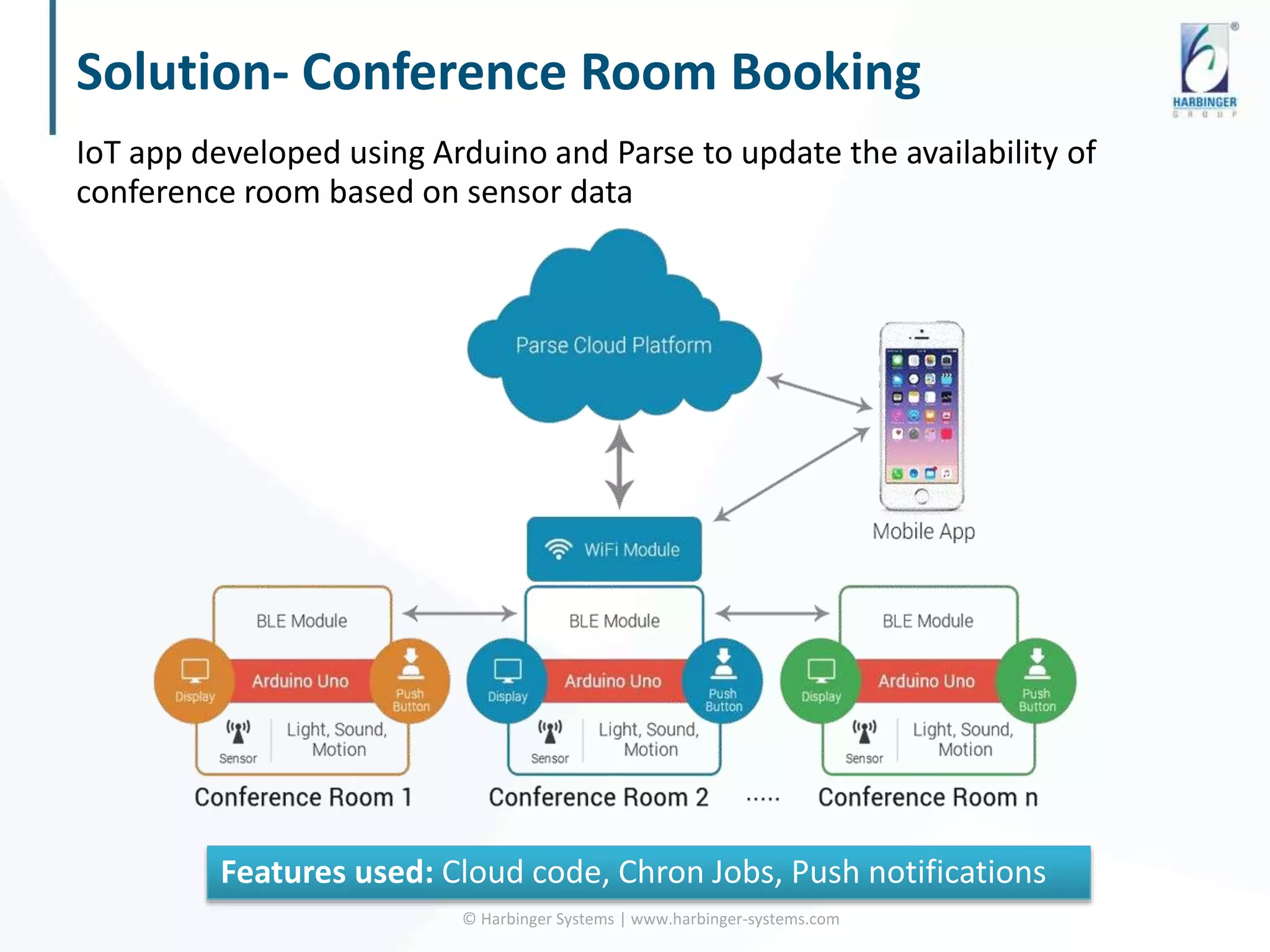

Solution- Conference Room Booking
IoT app developed using Arduino and Parse to update the availability of
conference room based on sensor data
Features used: Cloud code, Chron Jobs, Push notifications

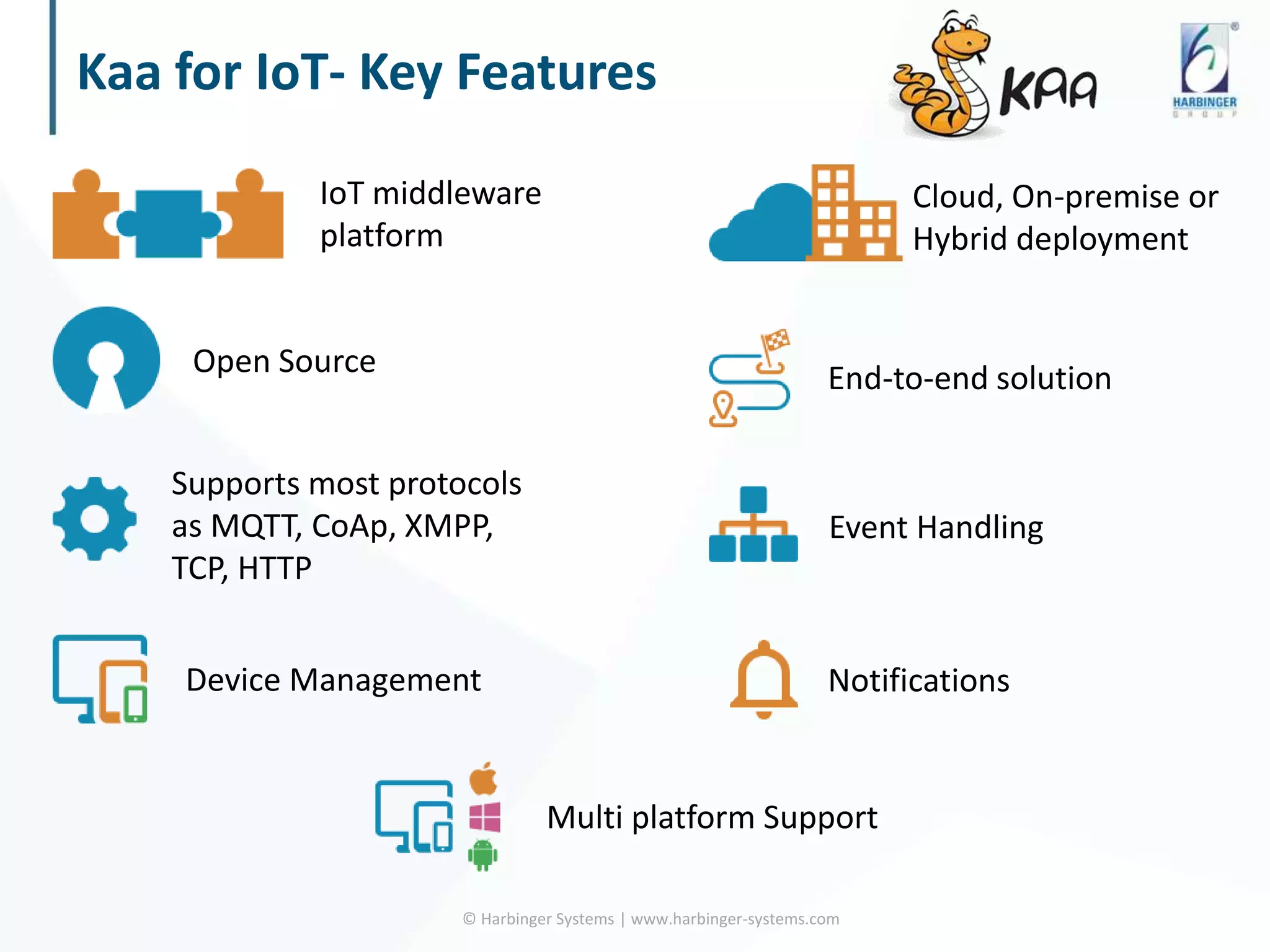

Kaa for IoT- Key Features
Device Management
Multi platform Support
Open Source
Notifications
Event Handling
End-to-end solution
Supports most protocols
as MQTT, CoAp, XMPP,
TCP, HTTP
Cloud, On-premise or
Hybrid deployment
IoT middleware
platform

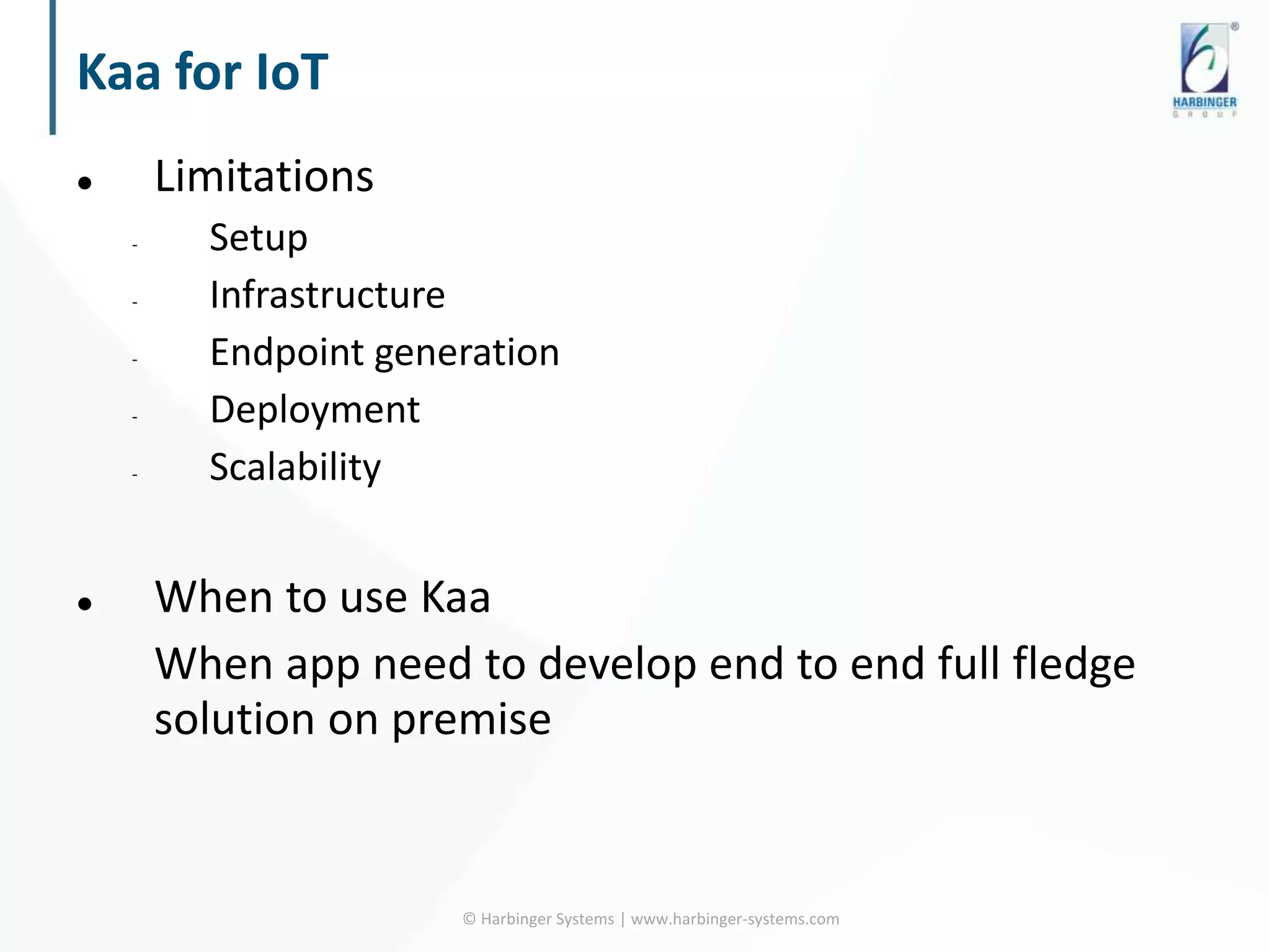

Kaa for IoT
 Limitations
- Setup
- Infrastructure
- Endpoint generation
- Deployment
- Scalability
 When to use Kaa
When app need to develop end to end full fledge
solution on premise

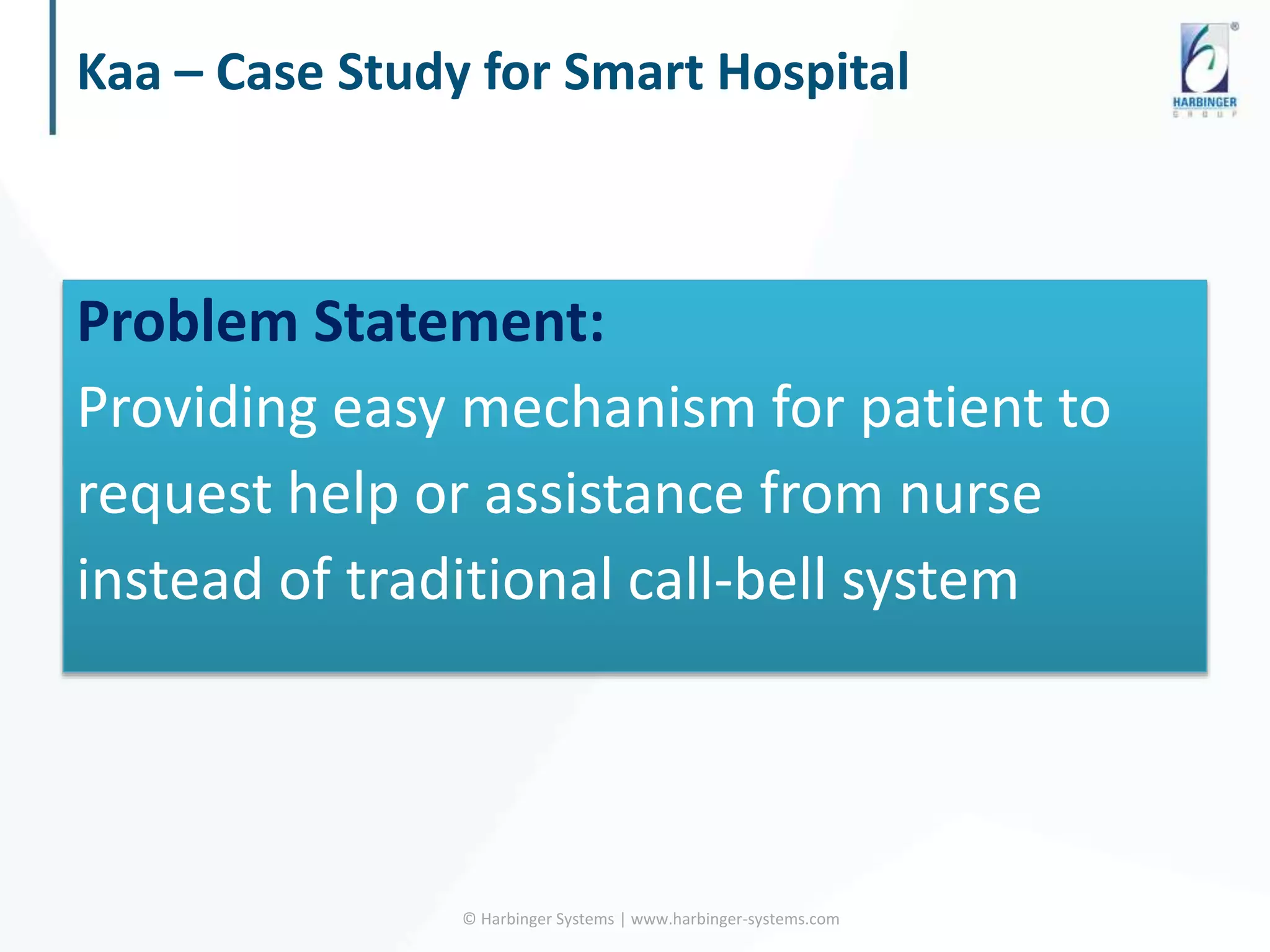

Kaa – Case Study for Smart Hospital
Problem Statement:
Providing easy mechanism for patient to
request help or assistance from nurse
instead of traditional call-bell system

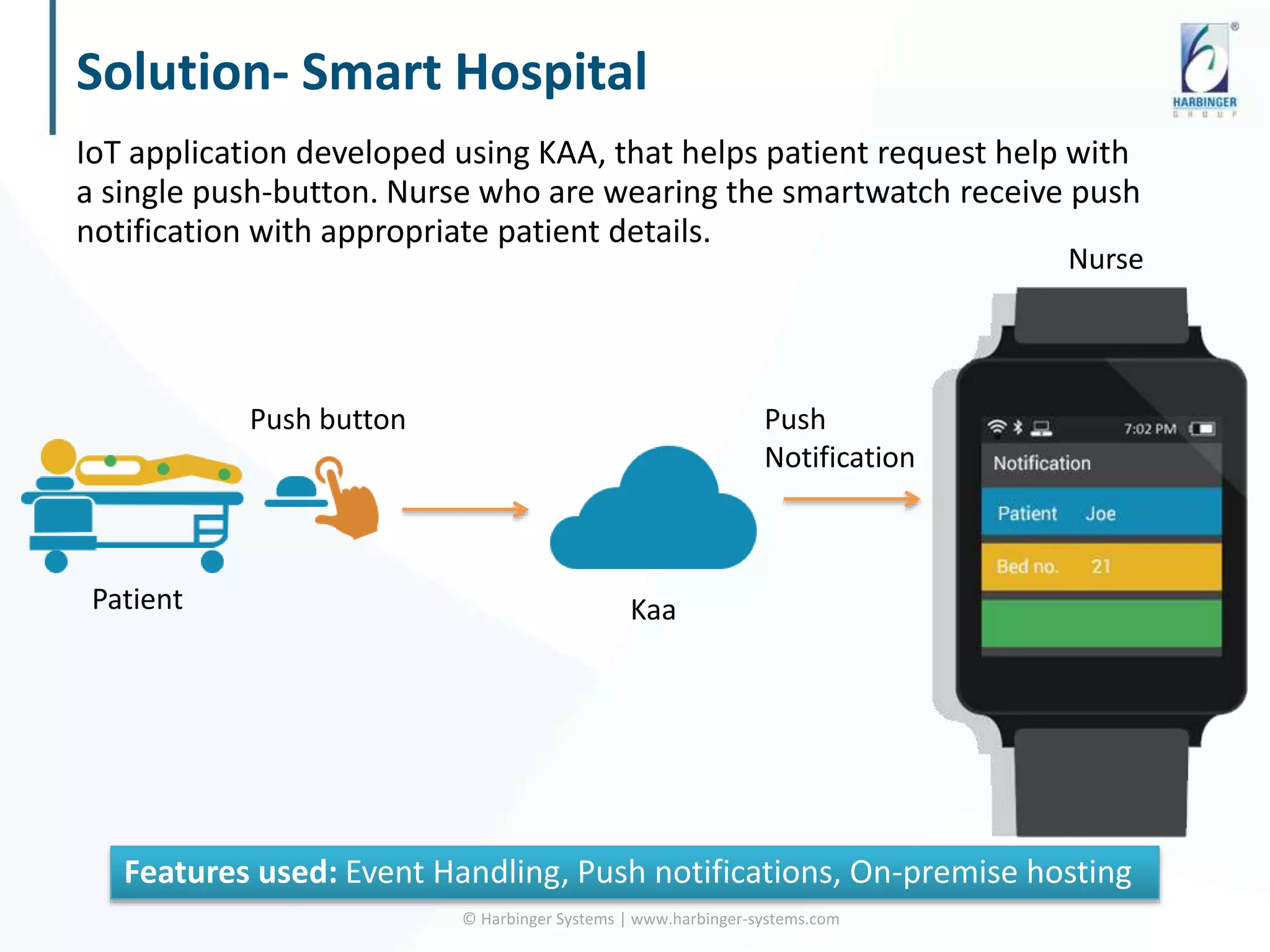

Solution- Smart Hospital
IoT application developed using KAA, that helps patient request help with
a single push-button. Nurse who are wearing the smartwatch receive push
notification with appropriate patient details.
Features used: Event Handling, Push notifications, On-premise hosting
Push button
Patient Kaa
Push
Notification
Nurse

Choosing the Right IoT Cloud

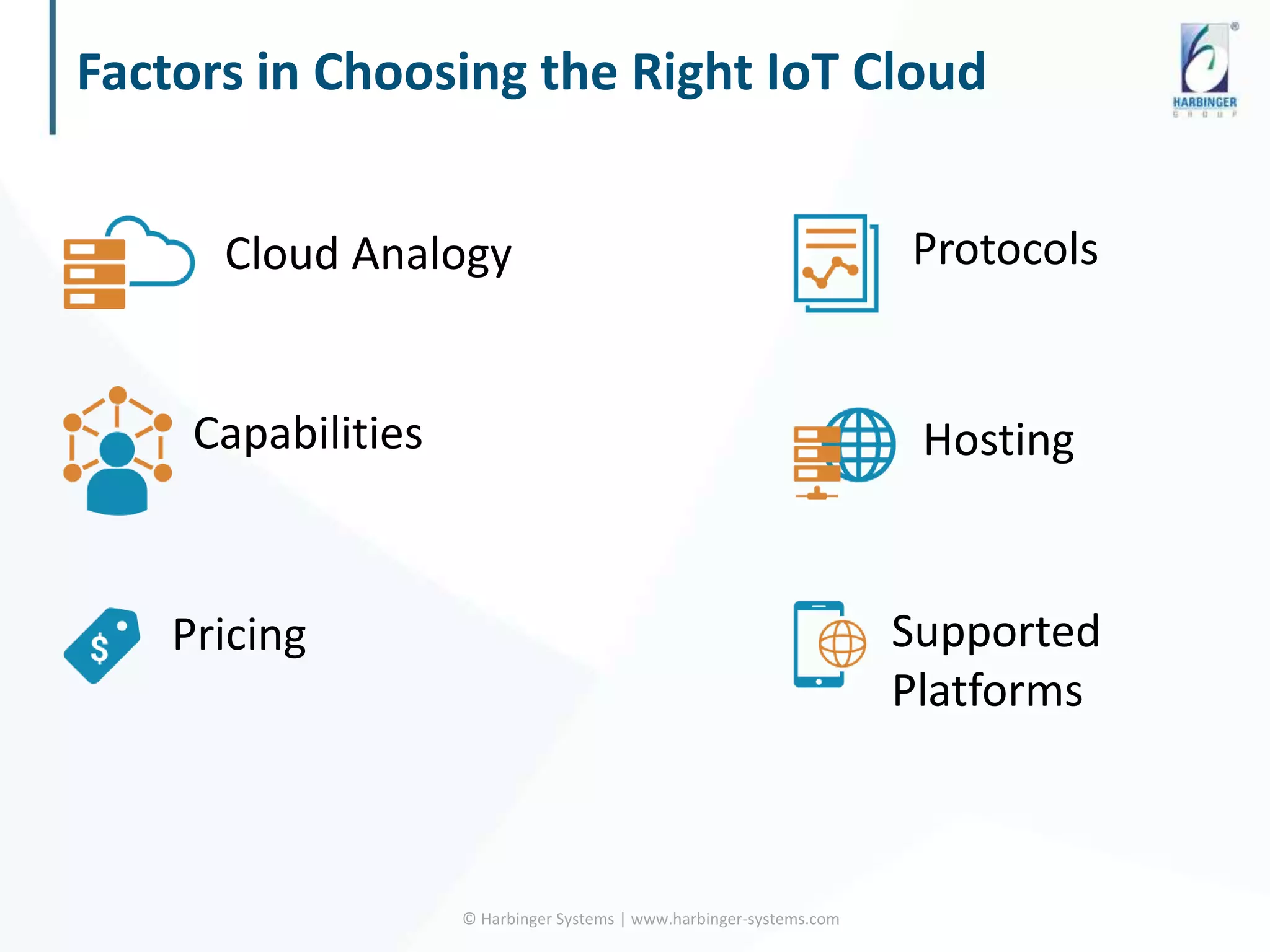

Factors in Choosing the Right IoT Cloud
Protocols
Capabilities Hosting
Pricing Supported
Platforms
Cloud Analogy

Conference Room Booking App Demo

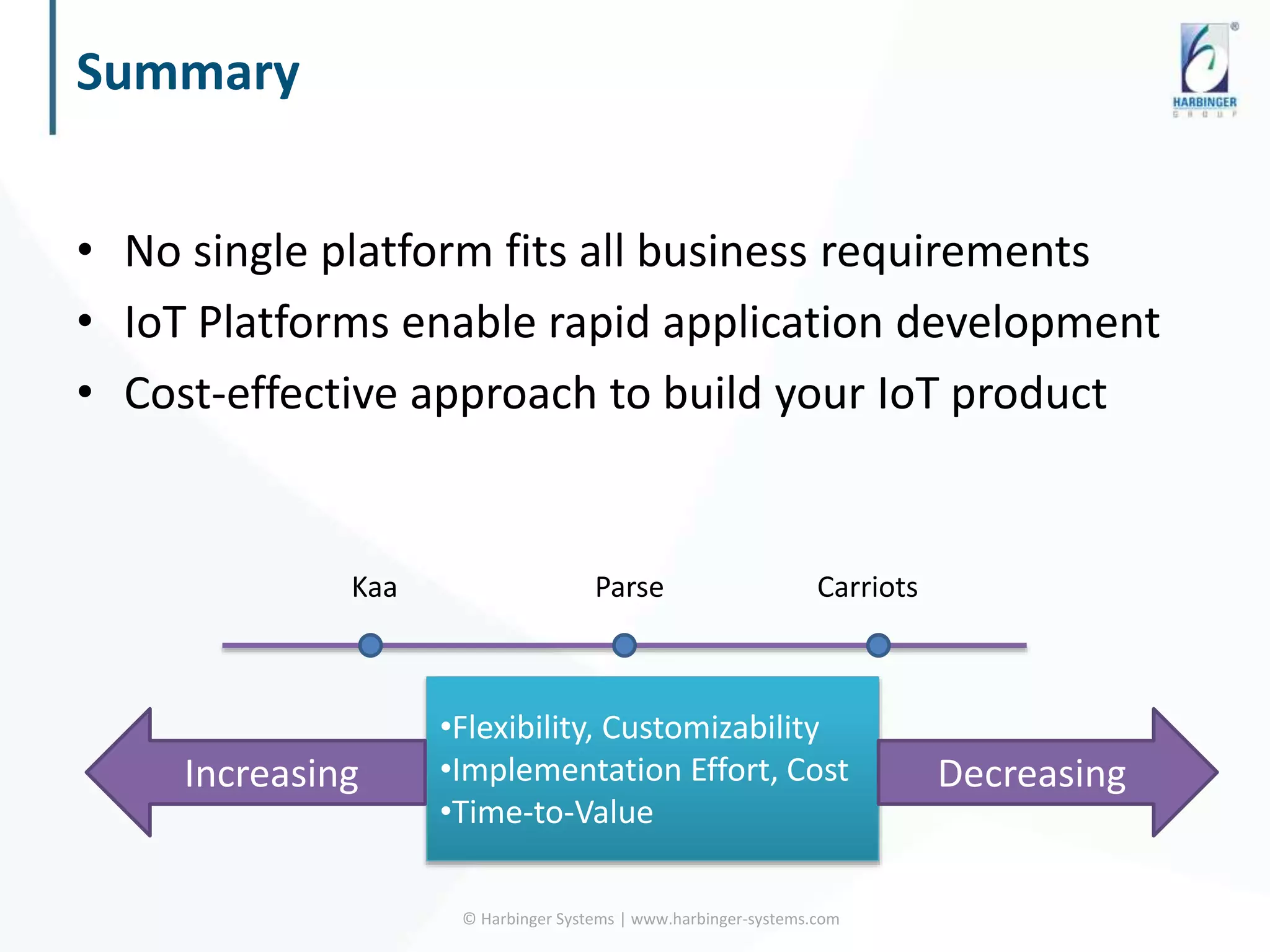

Summary

Summary
• No single platform fits all business requirements
• IoT Platforms enable rapid application development
• Cost-effective approach to build your IoT product
Kaa Parse Carriots
•Flexibility, Customizability
•Implementation Effort, Cost
•Time-to-Value
Increasing Decreasing

Q&A

Special Offer for Webinar Attendees
Special
Offer
First 10 folks to request consultation on specific
technical challenge related to IoT, shall receive 2
weeks consultation over email.
One lucky attendee, selected in a blind selection,
gets hands-on-support from a developer for a
week!
Write to us at hsinfo@harbingergroup.com to avail this
exciting opportunity.
