JLX Valve specializes in the manufacture of a wide range of industrial ball valves, including floating, trunnion, and special designs, catering to various sectors like food, chemical, and oil & gas. With over thirty years of experience, the company prioritizes customer satisfaction through innovation, quality certifications, and tailored services for valve installations and modifications. Their product offerings feature a variety of materials and configurations, ensuring reliable solutions for diverse operational needs.

1. BALL
VALVES

2. The information in this catalog is correct except for error or omission and could be changed without notice.
Ref.: BALL-28082014

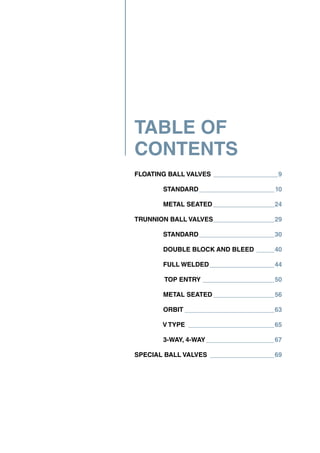

3. TABLE OF
CONTENTS
FLOATING BALL VALVES___________________9
STANDARD______________________10
METAL SEATED__________________24
TRUNNION BALL VALVES__________________29
STANDARD______________________30
DOUBLE BLOCK AND BLEED �����40
FULL WELDED___________________44
TOP ENTRY_____________________50
METAL SEATED__________________56
ORBIT__________________________63
V TYPE_________________________65
3-WAY, 4-WAY____________________67
SPECIAL BALL VALVES___________________69

4. BROAD BUSSINESS
EXPERIENCE

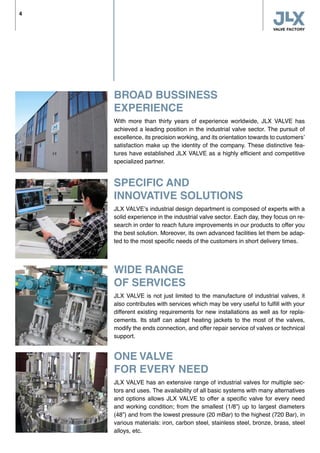

With more than thirty years of experience worldwide, JLX VALVE has
achieved a leading position in the industrial valve sector. The pursuit of
excellence, its precision working, and its orientation towards to customers’
satisfaction make up the identity of the company. These distinctive fea-
tures have established JLX VALVE as a highly efficient and competitive
specialized partner.
SPECIFIC AND
INNOVATIVE SOLUTIONS
JLX VALVE’s industrial design department is composed of experts with a
solid experience in the industrial valve sector. Each day, they focus on re-
search in order to reach future improvements in our products to offer you
the best solution. Moreover, its own advanced facilities let them be adap-
ted to the most specific needs of the customers in short delivery times.
WIDE RANGE
OF SERVICES
JLX VALVE is not just limited to the manufacture of industrial valves, it
also contributes with services which may be very useful to fulfill with your
different existing requirements for new installations as well as for repla-
cements. Its staff can adapt heating jackets to the most of the valves,
modify the ends connection, and offer repair service of valves or technical
support.
ONE VALVE
FOR EVERY NEED
JLX VALVE has an extensive range of industrial valves for multiple sec-
tors and uses. The availability of all basic systems with many alternatives
and options allows JLX VALVE to offer a specific valve for every need
and working condition; from the smallest (1/8”) up to largest diameters
(48”) and from the lowest pressure (20 mBar) to the highest (720 Bar), in
various materials: iron, carbon steel, stainless steel, bronze, brass, steel
alloys, etc.
4

5. CERTIFICATES
MANUFACTURERS PRODUCTS APPROVALS
• ISO 9001 : 2008 certified
• API Q1 certified
• PED 97 / 23 / EC certified
MANUFACTURING PROGRAM
• API 6D certified
• CE Marking (Module H, Category III) in accordance with PED 97 / 23 / EC
• Fire Safe Available According:
- ISO 10497
- API 607
- BS 6755
• GOST “R” certified
• ATEX
SECTORS OF APPLICATION
Monobloc 2 pieces 3 pieces Split body Trunnion
General Processes
Food & Beverage
Automotive
Chemical
Mining
Nuclear
Onshore
Oil & Gas
Offshore
Petrochemical
Power generation
Shipbuilding / Marine
Waste incineration
HVAC- Air conditioning
Refineries
Pulp & Paper
SECTORS
OF APPLICATION
SpecificApplicationOptionalApplication
www.jlx-valve.com 5
TYPE OF VALVES

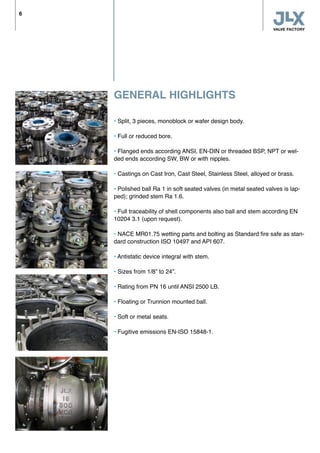

6. GENERAL HIGHLIGHTS
• Split, 3 pieces, monoblock or wafer design body.
• Full or reduced bore.
• Flanged ends according ANSI, EN-DIN or threaded BSP, NPT or wel-
ded ends according SW, BW or with nipples.
• Castings on Cast Iron, Cast Steel, Stainless Steel, alloyed or brass.
• Polished ball Ra 1 in soft seated valves (in metal seated valves is lap-
ped); grinded stem Ra 1.6.
• Full traceability of shell components also ball and stem according EN
10204 3.1 (upon request).
• NACE MR01.75 wetting parts and bolting as Standard fire safe as stan-
dard construction ISO 10497 and API 607.
• Antistatic device integral with stem.
• Sizes from 1/8” to 24”.
• Rating from PN 16 until ANSI 2500 LB.
• Floating or Trunnion mounted ball.
• Soft or metal seats.
• Fugitive emissions EN-ISO 15848-1.
6

7. SERVICES
CAPACITY

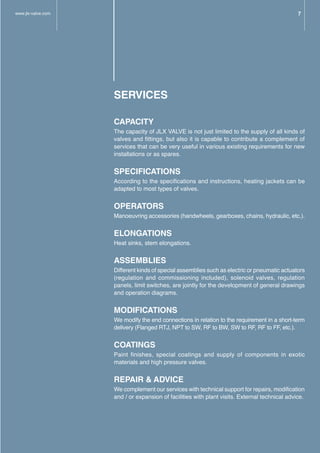

The capacity of JLX VALVE is not just limited to the supply of all kinds of
valves and fittings, but also it is capable to contribute a complement of
services that can be very useful in various existing requirements for new
installations or as spares.
SPECIFICATIONS
According to the specifications and instructions, heating jackets can be
adapted to most types of valves.
OPERATORS
Manoeuvring accessories (handwheels, gearboxes, chains, hydraulic, etc.).
ELONGATIONS
Heat sinks, stem elongations.
ASSEMBLIES
Different kinds of special assemblies such as electric or pneumatic actuators
(regulation and commissioning included), solenoid valves, regulation
panels, limit switches, are jointly for the development of general drawings
and operation diagrams.
MODIFICATIONS
We modify the end connections in relation to the requirement in a short-term
delivery (Flanged RTJ, NPT to SW, RF to BW, SW to RF, RF to FF, etc.).
COATINGS
Paint finishes, special coatings and supply of components in exotic
materials and high pressure valves.
REPAIR & ADVICE
We complement our services with technical support for repairs, modification
and / or expansion of facilities with plant visits. External technical advice.
www.jlx-valve.com 7

8. BALL VALVES
FLOATING BALL VALVES
8

9. 9www.jlx-valve.com
FLOATING
BALL VALVE

10. FLOATING BALL VALVE
1/2” to 8” | Class 150 - 1500/ PN 16 - 40
BILL OF MATERIALS
ASTM A216WCB ASTM A351 CF8 ASTM A351 CF8M ASTM A351 CF3 ASTM A351 CF3M
A193 B7M A320 B8 A320 B8M A320 B8 A320 B8M
PTFE/NYLON/PEEK/PPL
ASTM A105 • ENP ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
SST+Graphite
ASTM A216WCB ASTM A351 CF8 ASTM A351 CF8M ASTM A351 CF3 ASTM A351 CF3M
A194 2HM A194-8 A194-8M A194-8 A194-8M
Combined parts Combined parts Combined parts Combined parts Combined parts
ASTM A182 F6a ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
PTFE
PTFE
Graphite
ASTM A182 F6a ASTM A182 F6a ASTM A182 F6a ASTM A182 F6a ASTM A182 F6a
ASTM A216WCB ASTM A216WCB ASTM A216WCB ASTM A216WCB ASTM A216WCB
A193 B7M A193B7M A193B7M A193B7M A193B7M
A3.Zn A3.Zn A3.Zn A3.Zn A3.Zn
65Mn 65Mn 65Mn 65Mn 65Mn
Description
Body
Stud
Seat
Ball
Anti-fire gasket
Bonnet
Hexagon nut
Anti-static device
Stem
Thrust bearing
Sliding bearing
Packing
Packing bushing
Packing gland
Socket head cap screw
Stopper
Retainer ring
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Carbon steel Stainless steel
CAST STEEL FLOATING BALL VALVE Class 150 - Class 300 BFL1FB/BFL1RB

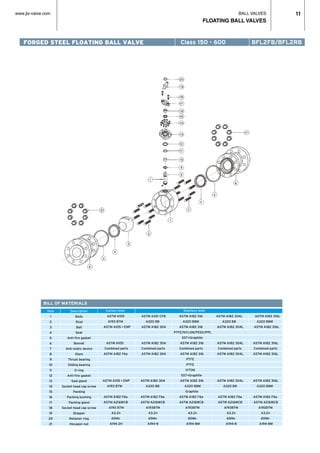

11. BALL VALVES
FLOATING BALL VALVES
11www.jlx-valve.com
BILL OF MATERIALS
Carbon steel Stainless steel
FORGED STEEL FLOATING BALL VALVE
ASTM A105 ASTM A351 CF8 ASTM A182 316 ASTM A182 304L ASTM A182 316L
A193 B7M A320 B8 A320 B8M A320 B8 A320 B8M
ASTM A105 • ENP ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
PTFE/NYLON/PEEK/PPL
SST+Graphite
ASTM A105 ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
Combined parts Combined parts Combined parts Combined parts Combined parts
ASTM A182 F6a ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
PTFE
PTFE
VITON
SST+Graphite
ASTM A105 • ENP ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
A193 B7M A320 B8 A320 B8M A320 B8 A320 B8M
Graphite
ASTM A182 F6a ASTM A182 F6a ASTM A182 F6a ASTM A182 F6a ASTM A182 F6a
ASTM A216WCB ASTM A216WCB ASTM A216WCB ASTM A216WCB ASTM A216WCB
A193 B7M A193B7M A193B7M A193B7M A193B7M
A3.Zn A3.Zn A3.Zn A3.Zn A3.Zn
65Mn 65Mn 65Mn 65Mn 65Mn
A194 2H A194-8 A194-8M A194-8 A194-8M
Description
Body
Stud
Ball
Seat
Anti-fire gasket
Bonnet
Anti-static device
Stem
Thrust bearing
Sliding bearing
O ring
Anti-fire gasket
Seal gland
Socket head cap screw
Packing
Packing bushing
Packing gland
Socket head cap screw
Stopper
Retainer ring
Hexagon nut
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
Class 150 - 600 BFL2FB/BFL2RB

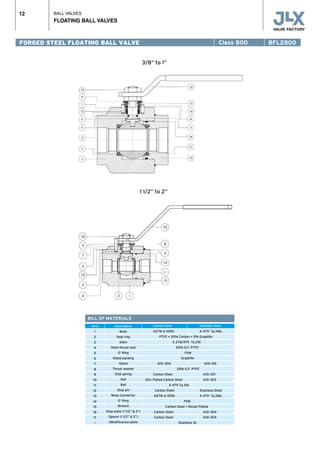

12. BALL VALVES
FLOATING BALL VALVES
12
BILL OF MATERIALS
Carbon steel Stainless steel
ASTM A-105N A 479 Tp.316L
PTFE + 20% Carbon + 5% Graphite
A 276/479 Tp.316
25% G.F. PTFE
FKM
Graphite
AISI 304 AISI 316
25% G.F. PTFE
Carbon Steel AISI 301
Zinc Plated Carbon Steel AISI 303
A 479 Tp.316
Carbon Steel Stainless Steel
ASTM A-105N A 479 Tp.316L
FKM
Carbon Steel + Nickel Plated
Carbon Steel AISI 304
Carbon Steel AISI 304
Stainless St.
Description
Body
Seat ring
Stem
Stem thrust seal
O’ Ring
Gland packing
Gland
Thrust washer
Disk spring
Nut
Ball
Stop pin
Body Connector
O’ Ring
Wrench
Stop plate (1 1/2” & 2”)
Spacer (1 1/2” & 2”)
Identificacion plate
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
--
3/8” to 1”
1 1/2” to 2”
FORGED STEEL FLOATING BALL VALVE Class 800 BFL2800

13. BALL VALVES
FLOATING BALL VALVES
13www.jlx-valve.com

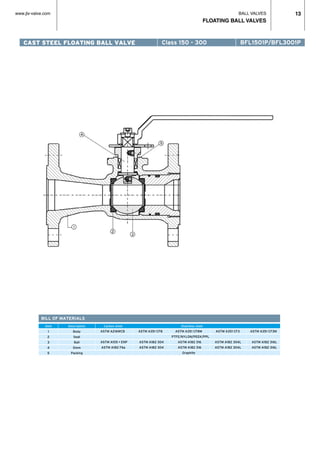

CAST STEEL FLOATING BALL VALVE Class 150 - 300
BILL OF MATERIALS
Item
1
2
3
4
5
Description
Body
Seat
Ball
Stem
Packing
ASTM A216WCB ASTM A351 CF8 ASTM A351 CF8M ASTM A351 CF3 ASTM A351 CF3M
PTFE/NYLON/PEEK/PPL
ASTM A105 • ENP ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
ASTM A182 F6a ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
Graphite
Carbon steel Stainless steel
BFL1501P/BFL3001P

14. BALL VALVES
FLOATING BALL VALVES
14

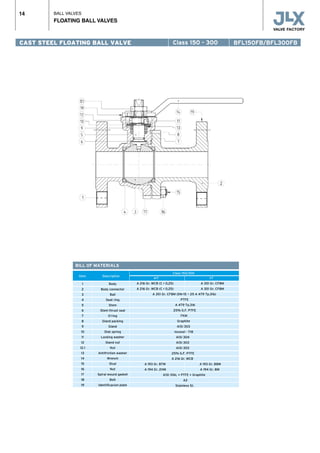

CAST STEEL FLOATING BALL VALVE Class 150 - 300
BILL OF MATERIALS
Class 150/300
AIT IIT
Body
Body connector
Ball
Seat ring
Stem
Stem thrust seal
O’ring
Gland packing
Gland
Disk spring
Locking washer
Gland nut
Nut
Antifriction washer
Wrench
Stud
Nut
Spiral wound gasket
Bolt
Identificacion plate
1
2
3
4
5
6
7
8
9
10
11
12
12.1
13
14
15
16
17
18
19
A 216 Gr. WCB (C < 0,25) A 351 Gr. CF8M
A 216 Gr. WCB (C < 0,25) A 351 Gr. CF8M
A 351 Gr. CF8M (DN-15 ~ 25 A 479 Tp.316)
PTFE
A 479 Tp.316
25% G.F. PTFE
FKM
Graphite
AISI 303
Inconel - 718
AISI 304
AISI 303
AISI 303
25% G.F. PTFE
A 216 Gr. WCB
A 193 Gr. B7M A 193 Gr. B8M
A 194 Gr. 2HM A 194 Gr. 8M
AISI 316L + PTFE + Graphite
A2
Stainless St.
Item Description
BFL150FB/BFL300FB

15. BALL VALVES
FLOATING BALL VALVES
15www.jlx-valve.com

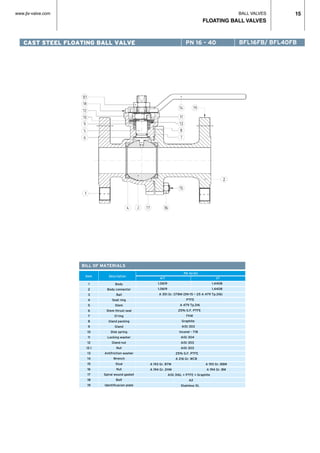

CAST STEEL FLOATING BALL VALVE PN 16 - 40
BILL OF MATERIALS
PN 16/40
AIT IIT
Body
Body connector
Ball
Seat ring
Stem
Stem thrust seal
O’ring
Gland packing
Gland
Disk spring
Locking washer
Gland nut
Nut
Antifriction washer
Wrench
Stud
Nut
Spiral wound gasket
Bolt
Identificacion plate
1
2
3
4
5
6
7
8
9
10
11
12
12.1
13
14
15
16
17
18
19
Item Description
1.0619 1.4408
1.0619 1.4408
A 351 Gr. CF8M (DN-15 ~ 25 A 479 Tp.316)
PTFE
A 479 Tp.316
25% G.F. PTFE
FKM
Graphite
AISI 303
Inconel - 718
AISI 304
AISI 303
AISI 303
25% G.F. PTFE
A 216 Gr. WCB
A 193 Gr. B7M A 193 Gr. B8M
A 194 Gr. 2HM A 194 Gr. 8M
AISI 316L + PTFE + Graphite
A2
Stainless St.
BFL16FB/ BFL40FB

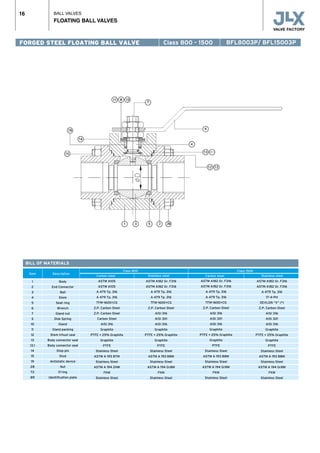

16. BALL VALVES
FLOATING BALL VALVES
16
FORGED STEEL FLOATING BALL VALVE Class 800 - 1500
BILL OF MATERIALS
Class 800
Stainless steel
Body
End Connector
Ball
Stem
Seat ring
Wrench
Gland nut
Disk Spring
Gland
Gland packing
Stem trhust seal
Body connector seal
Body connector seal
Stop pin
Stud
Antistatic device
Nut
O’ring
Identification plate
1
2
3
4
5
6
7
S
10
11
12
13
13.1
14
15
19
28
72
89
ASTM A105
ASTM A105
A 479 Tp. 316
A 479 Tp. 316
TFM-1600+CG
Z.P. Carbon Steel
Z.P. Carbon Steel
Carbon Steel
AISI 316
Graphite
PTFE + 25% Graphite
Graphite
PTFE
Stainless Steel
ASTM A 193 B7M
Stainless Steel
ASTM A 194 2HM
FKM
Stainless Steel
Item Description
Carbon steel Stainless steelCarbon steel
ASTM A182 Gr. F316
ASTM A182 Gr. F316
A 479 Tp. 316
A 479 Tp. 316
TFM-1600+CG
Z.P. Carbon Steel
AISI 316
AISI 301
AISI 316
Graphite
PTFE + 25% Graphite
Graphite
PTFE
Stainless Steel
ASTM A 193 B8M
Stainless Steel
ASTM A 194 Gr8M
FKM
Stainless Steel
ASTM A182 Gr. F316
ASTM A182 Gr. F316
A 479 Tp. 316
A 479 Tp. 316
TFM-1600+CG
Z.P. Carbon Steel
AISI 316
AISI 301
AISI 316
Graphite
PTFE + 25% Graphite
Graphite
PTFE
Stainless Steel
ASTM A 193 B8M
Stainless Steel
ASTM A 194 Gr8M
FKM
Stainless Steel
ASTM A182 Gr. F316
ASTM A182 Gr. F316
A 479 Tp. 316
17-4-PH
DEVLON “V” (*)
Z.P. Carbon Steel
AISI 316
AISI 301
AISI 316
Graphite
PTFE + 25% Graphite
Graphite
PTFE
Stainless Steel
ASTM A 193 B8M
Stainless Steel
ASTM A 194 Gr8M
FKM
Stainless Steel
Class 1500
BFL8003P/ BFL15003P

17. BALL VALVES
FLOATING BALL VALVES
17www.jlx-valve.com

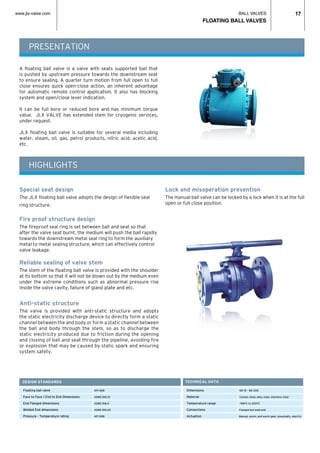

Special seat design
The JLX floating ball valve adopts the design of flexible seal
ring structure.
Fire proof structure design
The fireproof seal ring is set between ball and seat so that
after the valve seat burnt, the medium will push the ball rapidly
towards the downstream metal seal ring to form the auxiliary
metal to metal sealing structure, which can effectively control
valve leakage.
Reliable sealing of valve stem
The stem of the floating ball valve is provided with the shoulder
at its bottom so that it will not be blown out by the medium even
under the extreme conditions such as abnormal pressure rise
inside the valve cavity, failure of gland plate and etc.
Anti-static structure
The valve is provided with anti-static structure and adopts
the static electricity discharge device to directly form a static
channel between the and body or form a static channel between
the ball and body through the stem, so as to discharge the
static electricity produced due to friction during the opening
and closing of ball and seat through the pipeline, avoiding fire
or explosion that may be caused by static spark and ensuring
system safety.
Lock and misoperation prevention
The manual ball valve can be locked by a lock when it is at the full
open or full close position.
DESIGN STANDARDS
Floating ball valve API 608
Face to Face / End to End Dimensions ASME B16.10
End Flanged dimensions ASME B16.5
Welded End dimensions ASME B16.25
Pressure - Temperature rating API 598
PRESENTATION
HIGHLIGHTS
A floating ball valve is a valve with seats supported ball that
is pushed by upstream pressure towards the downstream seat
to ensure sealing. A quarter turn motion from full open to full
close ensures quick open-close action, an inherent advantage
for automatic remote control application. It also has blocking
system and open/close lever indication.
It can be full bore or reduced bore and has minimum torque
value. JLX VALVE has extended stem for cryogenic services,
under request.
JLX floating ball valve is suitable for several media including
water, steam, oil, gas, petrol products, nitric acid, acetic acid,
etc.
TECHNICAL DATA
Dimensions ND 15 - ND 200
Material Carbon steel, alloy steel, stainless steel
Temperature range -196ºC to 220ºC
Connections Flanged but weld end
Actuation Manual, worm, and worm gear, pneumatic, electric

18. BALL VALVES
FLOATING BALL VALVES
18

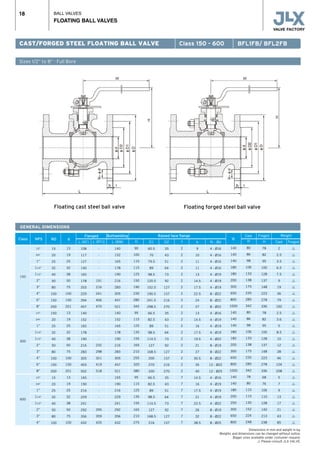

CAST/FORGED STEEL FLOATING BALL VALVE
GENERAL DIMENSIONS
Dimensions in mm and weight in kg.
Weights and dimensions can be changed without notice.
Bigger sizes available under costumer request.
r Please consult JLX VALVE.
Sizes 1/2” to 8” · Full Bore
Class 150 - 600 BFL1FB/ BFL2FB
Floating cast steel ball valve Floating forged steel ball valve
Class NPS ND
Flanged Buttwelding Raised face flange
150
300
600
1/2”
3/4”
1”
11/4”
11/2”
2”
3”
4”
6”
8”
1/2”
3/4”
1”
11/4”
11/2”
2”
3”
4”
6”
8”
1/2”
3/4”
1”
11/4”
11/2”
2”
3”
4”
15
20
25
32
40
50
80
100
150
200
150
20
25
32
40
50
80
100
150
200
15
20
25
32
40
50
80
100
13
19
25
32
38
50
75
100
150
201
13
19
25
32
38
50
75
100
150
201
13
19
25
32
38
50
75
100
d
L (RF)
108
117
127
140
165
178
203
229
394
457
140
152
165
178
190
216
283
305
403
502
165
190
216
229
241
292
356
432
L (RTJ)
-
-
-
-
-
191
216
241
406
470
-
-
-
-
-
232
298
321
419
518
-
-
-
-
-
295
359
435
L (BW)
140
152
165
178
190
216
283
305
457
521
140
152
165
178
190
216
283
305
457
521
165
190
216
229
241
292
356
432
D
90
100
110
115
125
150
190
230
280
345
95
115
125
135
155
165
210
255
320
380
95
115
125
135
155
165
210
275
D1
60.5
70
79.5
89
98.5
120.5
152.5
190.5
241.5
298.5
66.5
82.5
89
98.5
114.5
127
168.5
200
270
330
66.5
82.5
89
98.5
114.5
127
168.5
216
D2
35
43
51
64
73
92
127
157
216
270
35
43
51
64
73
92
127
157
216
270
35
43
51
64
73
92
127
157
f
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
7
7
7
7
7
7
7
7
b
9
10
11
11
13
14.5
17.5
22.5
24
27
13
14.5
16
17.5
19.5
21
27
30.5
35
40
14.5
16
17.5
21
22.5
26
32
38.5
N - Ød
4 - Ø16
4 - Ø16
4 - Ø16
4 - Ø16
4 - Ø19
4 - Ø19
4 - Ø19
8 - Ø22
8 - Ø22
8 - Ø22
4 - Ø16
4 - Ø19
4 - Ø19
4 - Ø19
4 - Ø22
8 - Ø19
8 - Ø22
8 - Ø22
12 - Ø22
12 - Ø25
4 - Ø16
4 - Ø19
4 - Ø19
4 - Ø19
4 - Ø22
8 - Ø19
8 - Ø22
8 - Ø25
140
140
140
180
180
200
300
650
800
1000
140
140
140
180
180
200
300
650
800
1000
140
140
180
200
250
300
650
800
H
80
86
98
106
133
138
175
235
285
342
80
86
98
106
133
138
175
235
285
342
78
80
110
115
135
152
224
248
H
78
82
95
100
128
137
148
223
278
336
78
82
95
100
128
137
148
223
278
336
68
76
106
110
128
140
213
238
Cast
2
2.5
3.5
6.5
7.5
9
19
36
79
160
2.5
3.6
5
8.5
10
12
28
46
104
208
5
7
9
13
17
21
43
85
Forged
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
W
Cast Forged Weight

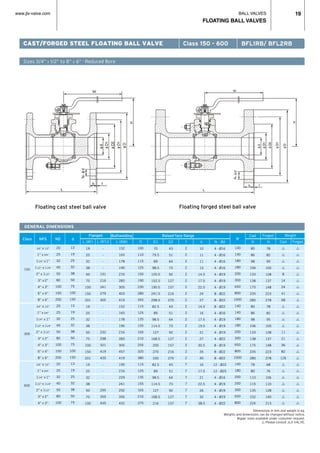

19. BALL VALVES
FLOATING BALL VALVES
19www.jlx-valve.com
Floating cast steel ball valve Floating forged steel ball valve
GENERAL DIMENSIONS
Dimensions in mm and weight in kg.
Weights and dimensions can be changed without notice.
Bigger sizes available under costumer request.
r Please consult JLX VALVE.
Class NPS ND
Flanged Buttwelding Raised face flange
150
300
600
3/4” x 1/2”
1” x 3/4”
11/4” x 1”
11/2” x 11/4”
2” x 11/2”
3” x 2”
4” x 3”
6” x 4”
8” x 6”
3/4” x 1/2”
1” x 3/4”
11/4” x 1”
11/2” x 11/4”
2” x 11/2”
3” x 2”
4” x 3”
6” x 4”
8” x 6”
3/4” x 1/2”
1” x 3/4”
11/4” x 1”
11/2” x 11/4”
2” x 11/2”
3” x 2”
4” x 3”
20
25
32
40
50
80
100
150
200
20
25
32
40
50
80
100
150
200
20
25
32
40
50
80
100
13
19
25
32
38
50
75
100
150
13
19
25
32
38
50
75
100
150
13
19
25
32
38
50
75
d
L (RF)
19
25
32
38
50
75
100
150
201
19
25
32
38
50
75
100
150
201
19
25
32
38
50
75
100
L (RTJ)
-
-
-
-
191
216
241
279
305
-
-
-
-
232
298
321
419
435
-
-
-
-
295
359
435
L (BW)
152
165
178
190
216
283
305
403
419
152
165
178
190
216
283
305
457
419
190
216
229
241
292
356
432
D
100
110
115
125
150
190
230
280
345
115
125
135
155
165
210
255
320
380
115
125
135
155
165
210
275
D1
70
79.5
89
98.5
120.5
152.5
190.5
241.5
298.5
82.5
89
98.5
114.5
127
168.5
200
270
330
82.5
89
98.5
114.5
127
168.5
216
D2
43
51
64
73
92
127
157
216
270
43
51
64
73
92
127
157
216
270
43
51
64
73
92
127
157
f
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
7
7
7
7
7
7
7
b
10
11
11
13
14.5
17.5
22.5
24
27
14.5
16
17.5
19.5
21
27
30.5
35
40
16
17.5
21
22.5
26
32
38.5
N - Ød
4 - Ø16
4 - Ø16
4 - Ø16
4 - Ø16
4 - Ø19
4 - Ø19
4 - Ø19
8 - Ø22
8 - Ø22
8 - Ø22
4 - Ø16
4 - Ø19
4 - Ø19
4 - Ø19
4 - Ø22
8 - Ø19
8 - Ø22
8 - Ø22
12 - Ø22
12 - Ø25
4 - Ø16
4 - Ø19
4 - Ø19
4 - Ø19
4 - Ø22
140
140
180
180
200
300
650
800
1000
140
140
180
180
200
300
650
800
1000
140
180
200
250
300
650
800
H
80
86
98
106
133
138
175
235
285
80
86
98
106
133
138
175
235
285
78
80
110
115
135
152
224
H
78
82
95
100
128
137
148
223
278
78
82
95
100
128
137
148
223
278
68
76
106
110
128
140
213
Cast
r
r
r
r
8
14
24
41
68
r
r
r
r
11
21
36
82
126
r
r
r
r
r
r
r
Forged
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
W
Cast Forged Weight
CAST/FORGED STEEL FLOATING BALL VALVE
Sizes 3/4” X 1/2” to 8” X 6” · Reduced Bore
Class 150 - 600 BFL1RB/ BFL2RB

20. BALL VALVES
FLOATING BALL VALVES
20
GENERAL DIMENSIONS
Dimensions in mm and weight in kg.
Weights and dimensions can be changed without notice.
Bigger sizes available under costumer request.
r Please consult JLX VALVE.
Class
800
DN
3/8”
1/2”
3/4”
1”
11/2”
2”
L
70
72
90
95
130
140
L1
35
36
45
47,5
65
70
ØP
9,5
15
20
25
40
50
h
25
30
32,5
36
60
72,5
N
25
30
32,5
36
60
72,5
H
86,5
92
94,5
9805
119
134
M
159
159
159
159
201
326
B
16
18,7
19,2
19,7
37,5
41
C
8,5
10,8
11,3
11,3
18,1
18,9
I
10
12
12
12
18
22
J
6
8
8
8
13
16
R1
3/8” NPT
1/2” NPT
3/4” NPT
1” NPT
1 1/2” NPT
2” NPT

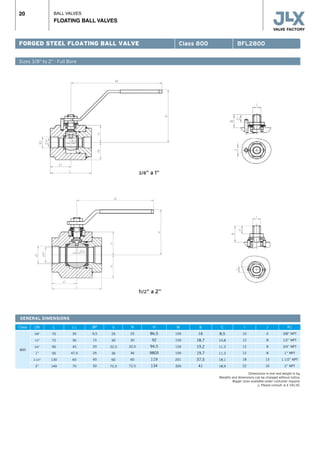

FORGED STEEL FLOATING BALL VALVE
Sizes 3/8” to 2” · Full Bore
Class 800 BFL2800
3/8” a 1”
11/2” a 2”

21. BALL VALVES
FLOATING BALL VALVES
21www.jlx-valve.com
CAST STEEL FLOATING BALL VALVE ONE PIECE
GENERAL DIMENSIONS
Dimensions in mm and weight in kg.
Weights and dimensions can be changed without notice.
Bigger sizes available under costumer request.
r Please consult JLX VALVE.
Sizes 11/2” X 11/4” to 6” X 4” · Reduced Bore
Class 150 - 300 BFL1501P/BFL3001P
Class NPS ND d1
Raised face flange
150
300
11/2”” x 1/2”
2” x 11/2”
3” x 2”
4” x 3”
6” x 4”
11/2” x 11/4”
2” x 11/2”
3” x 2”
4” x 3”
6” x 4”
40
50
80
100
150
40
50
80
100
150
32
38
50
75
100
32
38
50
75
100
d
38
50
75
100
150
38
50
75
100
150
165
178
203
229
394
190
216
283
305
403
D
125
150
190
230
280
155
165
210
255
320
D1
98.5
120.5
152.5
190.5
241.5
114.5
127
168.5
200
270
D2
73
92
127
157
216
73
92
127
157
216
f
2
2
2
2
2
2
2
2
2
2
b
13
14.5
17.5
22.5
24
19.5
21
27
30.5
35
N - Ød
4 - Ø16
4 - Ø19
4 - Ø19
8 - Ø19
8 - Ø22
4 - Ø22
8 - Ø19
8 - Ø22
8 - Ø22
12 - Ø22
150
200
300
350
500
150
200
300
350
500
H
100
132
163
178
230
100
132
163
178
230
6
8
15
29
54
9
11
22
40
81
W
Cast
L Weight

22. BALL VALVES
FLOATING BALL VALVES
22
CAST STEEL FLOATING BALL VALVE
Sizes ND 15 to ND 200 · Full Bore
PN 16 - 40 BFL16FB/ BFL40FB
GENERAL DIMENSIONS
Dimensions in mm and weight in kg.
Weights and dimensions can be changed without notice.
Bigger sizes available under costumer request.
r Please consult JLX VALVE.
PN
16
40
ND
65
80
100
125
150
200
15
20
25
32
40
50
65
80
100
125
150
ØP
65
78
100
125
151
203
15
20
25
32
40
50
65
78
100
125
151
L
170
180
190
325
350
400
115
120
125
130
140
150
170
180
190
325
350
L1
72
73
83
120
135
200
53
52
52
54
55
61
72
73
83
120
135
ØQ
122
138
158
188
212
268
45
58
68
78
88
102
122
138
158
188
212
ØR
145
160
180
210
240
295
65
75
85
100
110
125
145
160
190
220
250
n x ØS
4 x 18
8 x 18
8 x 18
8 x 18
8 x 22
12 x 22
4 x 14
4 x 14
4 x 14
4 x 18
4 x 18
4 x 18
8 x 18
8 x 18
8 x 22
8 x 26
8 x 26
ØT
185
200
220
250
285
340
95
105
115
140
150
165
185
200
235
270
300
X
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Y
16
18
18
20
20
21
14
16
16
16
16
18
20
22
22
24
26
h
104
118,5
144
184
203
250
41
43
58,5
63,5
86,5
91,5
104
118,5
144
184
203
N
78
87
108
134
152
202
31
33
39
43
48
63
78
87
108
134
152
H
140
190
192,5
240
259
319
68
70
86
89,5
122,5
127,5
140
190
192,5
240
259
M
350
450
466
775
775
845
170
170
170
170
215
215
350
450
466
775
775
Weight
13,3
19,1
25,6
47,6
63,5
115,3
2,4
3,2
4,1
5,8
8,1
10,6
14,8
20,6
29,2
53,6
74,7

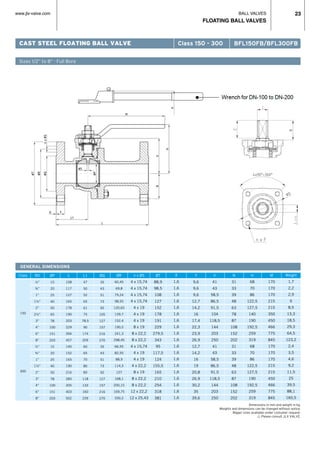

23. BALL VALVES
FLOATING BALL VALVES
23www.jlx-valve.com
CAST STEEL FLOATING BALL VALVE
Sizes 1/2” to 8” · Full Bore
Class 150 - 300 BFL150FB/BFL300FB
GENERAL DIMENSIONS
Dimensions in mm and weight in kg.
Weights and dimensions can be changed without notice.
Bigger sizes available under costumer request.
r Please consult JLX VALVE.
Class
150
300
ND
½”
¾”
1”
1½”
2”
2½”
3”
4”
6”
8”
½”
¾”
1”
1½”
2”
3”
4”
6”
8”
ØP
15
20
25
40
50
65
78
100
151
203
15
20
25
40
50
78
100
151
203
L
108
117
127
165
178
190
203
229
394
457
140
152
165
190
216
283
305
403
502
L1
47
50
52
65
61
75
78,5
90
174
209
60
65
70
80
83
118
133
160
239
ØQ
35
43
51
73
92
105
127
157
216
270
35
43
51
73
92
127
157
216
270
ØR
60,45
69,8
79,24
98,55
120,65
139,7
152,4
190,5
241,3
298,45
66,55
82,55
88,9
114,3
127
168,1
200,15
169,75
330,2
n x ØS
4 x 15,74
4 x 15,74
4 x 15,74
4 x 15,74
4 x 19
4 x 19
4 x 19
8 x 19
8 x 22,2
8 x 22,2
4 x 15,74
4 x 19
4 x 19
4 x 22,2
8 x 19
8 x 22,2
8 x 22,2
12 x 22,2
12 x 25,43
ØT
88,9
98,5
108
127
152
178
191
229
279,5
343
95
117,5
124
155,5
165
210
254
318
381
X
1,6
1,6
1,6
1,6
1,6
1,6
1,6
1,6
1,6
1,6
1,6
1,6
1,6
1,6
1,6
1,6
1,6
1,6
1,6
Y
9,6
9,6
9,6
12,7
14,2
16
17,4
22,3
23,9
26,9
12,7
14,2
16
19
20,8
26,9
30,2
35
39,6
h
41
43
58,5
86,5
91,5
104
118,5
144
203
250
41
43
58,5
86,5
91,5
118,5
144
203
250
N
31
33
39
48
63
78
87
108
152
202
31
33
39
48
63
87
108
152
202
H
68
70
86
122,5
127,5
140
190
192,5
259
319
68
70
86
122,5
127,5
190
192,5
259
319
M
170
170
170
215
215
350
450
466
775
845
170
170
170
215
215
450
466
775
845
Weight
1,7
2,2
2,9
6
8,5
13,3
18,5
29,3
64,5
123,2
2,4
3,5
4,6
9,2
11,5
25
39,5
88,1
160,5

24. BALL VALVES
FLOATING BALL VALVES
24

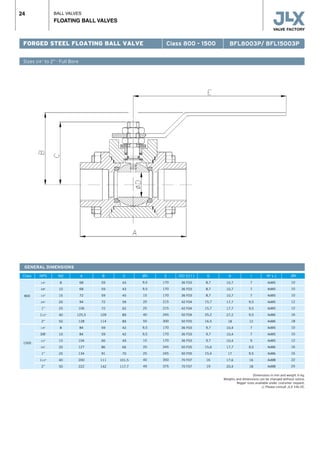

FORGED STEEL FLOATING BALL VALVE
Sizes 1/4” to 2” · Full Bore
Class 800 - 1500 BFL8003P/ BFL15003P
GENERAL DIMENSIONS
Dimensions in mm and weight in kg.
Weights and dimensions can be changed without notice.
Bigger sizes available under costumer request.
r Please consult JLX VALVE.
Class
800
1500
NPS
1/4”
3/8”
1/2”
3/4”
1”
11/2”
2”
1/4”
3/8”
1/2”
3/4”
1”
11/2”
2”
ND
8
10
15
20
25
40
50
8
10
15
20
25
40
50
A
68
68
72
94
106
125,5
128
84
84
104
127
134
200
222
B
59
59
59
72
72
109
114
59
59
66
86
91
111
142
C
43
43
45
59
62
89
89
42
42
49
66
70
101,5
117,7
ØD
9,5
9,5
15
20
25
40
50
9,5
9,5
15
20
25
40
49
E
170
170
170
215
215
245
300
170
170
170
245
245
350
375
ISO 5211
36 F03
36 F03
36 F03
42 F04
42 F04
50 F04
50 F05
36 F03
36 F03
36 F03
50 F05
50 F05
70 F07
70 F07
G
8,7
8,7
8,7
15,7
15,7
25,2
16,5
9,7
9,7
9,7
15,6
15,4
16
19
H
10,7
10,7
10,7
17,7
17,7
27,2
18
10,4
10,4
10,4
17,7
17
17,6
20,4
I
7
7
7
9,5
9,5
9,5
12
7
7
9
9,5
9,5
16
18
Nº x J
4xM5
4xM5
4xM5
4xM5
4xM5
4xM6
4xM6
4xM5
4xM5
4xM5
4xM6
4xM6
4xM8
4xM8
ØK
10
10
10
12
12
16
18
10
10
12
16
16
22
25

25. BALL VALVES
FLOATING BALL VALVES
25www.jlx-valve.com
NOTES

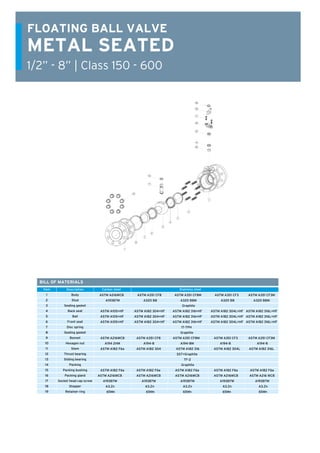

26. BALL VALVES
FLOATING BALL VALVES
26
METAL SEATED
1/2” - 8” | Class 150 - 600
FLOATING BALL VALVE
BILL OF MATERIALS
Carbon steel Stainless steelItem
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
Description
Body
Stud
Sealing gasket
Back seat
Ball
Front seat
Disc spring
Sealing gasket
Bonnet
Hexagon nut
Stem
Thrust bearing
Sliding bearing
Packing
Packing bushing
Packing gland
Socket head cap screw
Stopper
Retainer ring
ASTM A216WCB ASTM A351 CF8 ASTM A351 CF8M ASTM A351 CF3 ASTM A351 CF3M
A193B7M A320 B8 A320 B8M A320 B8 A320 B8M
Graphite
ASTM A105+HF ASTM A182 304+HF ASTM A182 316+HF ASTM A182 304L+HF ASTM A182 316L+HF
ASTM A105+HF ASTM A182 304+HF ASTM A182 316+HF ASTM A182 304L+HF ASTM A182 316L+HF
ASTM A105+HF ASTM A182 304+HF ASTM A182 316+HF ASTM A182 304L+HF ASTM A182 316L+HF
17-7PH
Graphite
ASTM A216WCB ASTM A351 CF8 ASTM A351 CF8M ASTM A351 CF3 ASTM A351 CF3M
A194 2HM A194-8 A194-8M A194-8 A194-8
ASTM A182 F6a ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
SST+Graphite
TF-2
Graphite
ASTM A182 F6a ASTM A182 F6a ASTM A182 F6a ASTM A182 F6a ASTM A182 F6a
ASTM A216WCB ASTM A216WCB ASTM A216WCB ASTM A216WCB ASTM A216 WCB
A193B7M A193B7M A193B7M A193B7M A193B7M
A3.Zn A3.Zn A3.Zn A3.Zn A3.Zn
65Mn 65Mn 65Mn 65Mn 65Mn

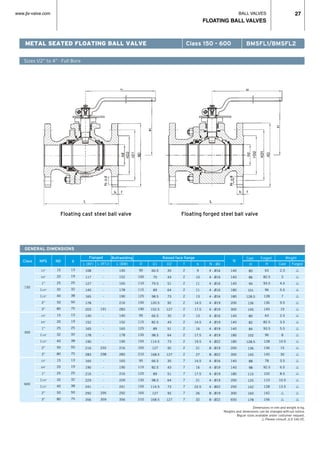

27. BALL VALVES
FLOATING BALL VALVES
27www.jlx-valve.com
Sizes 1/2” to 4” · Full Bore
METAL SEATED FLOATING BALL VALVE Class 150 - 600 BMSFL1/BMSFL2
GENERAL DIMENSIONS
Class NPS ND
Flanged Buttwelding Raised face flange
d
WeightCast
W
Floating cast steel ball valve Floating forged steel ball valve
Forged
150
300
600
1/2”
3/4”
1”
11/4”
11/2”
2”
3”
1/2”
3/4”
1”
11/4”
11/2”
2”
3”
1/2”
3/4”
1”
11/4”
11/2”
2”
3”
15
20
25
32
40
50
80
15
20
25
32
40
50
80
15
20
25
32
40
50
80
13
19
25
32
38
50
75
13
19
25
32
38
50
75
13
19
25
32
38
50
75
L (RF)
108
117
127
140
165
178
203
140
152
165
178
190
216
283
165
190
216
229
241
292
356
L (RTJ)
-
-
-
-
-
-
191
-
-
-
-
-
232
298
-
-
-
-
-
295
359
L (BW)
140
152
165
178
190
216
283
140
152
165
178
190
216
283
165
190
216
229
241
292
356
D
90
100
110
115
125
150
190
95
115
125
135
155
165
210
95
115
125
135
155
165
210
D1
60.5
70
79.5
89
98.5
120.5
152.5
66.5
82.5
89
98.5
114.5
127
168.5
66.5
82.5
89
98.5
114.5
127
168.5
D2
35
43
51
64
73
92
127
35
43
51
64
73
92
127
35
43
51
64
73
92
127
f
2
2
2
2
2
2
2
2
2
2
2
2
2
2
7
7
7
7
7
7
7
b
9
10
11
11
13
14.5
17.5
13
14.5
16
17.5
19.5
21
27
14.5
16
17.5
21
22.5
26
32
N - Ød
4 - Ø16
4 - Ø16
4 - Ø16
4 - Ø16
4 - Ø16
4 - Ø19
4 - Ø19
4 - Ø16
4 - Ø19
4 - Ø19
4 - Ø19
4 - Ø22
8 - Ø19
8 - Ø22
4 - Ø16
4 - Ø19
4 - Ø19
4 - Ø19
4 - Ø22
8 - Ø19
8 - Ø22
140
140
140
180
180
200
300
140
140
140
180
180
200
300
140
140
180
200
250
300
650
H
80
86
95
101
128.5
136
145
80
82
84
102
128.5
136
145
88
98
115
125
142
160
178
H
63
82.5
93.5
96
128
136
145
63
82.5
93.5
96
128
136
145
78
92.5
102
110
128
142
156
Cast
2.3
3
4.5
5.5
7
9.5
19
2.5
3.5
5.5
8
10.5
15
30
3.5
6.5
8.5
10.5
13.5
r
r
Forged
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
Dimensions in mm and weight in kg.
Weights and dimensions can be changed without notice.
Bigger sizes available under costumer request.
r Please consult JLX VALVE.

28. BALL VALVES
FLOATING BALL VALVES
28
Sizes 4” to 8” · Full Bore

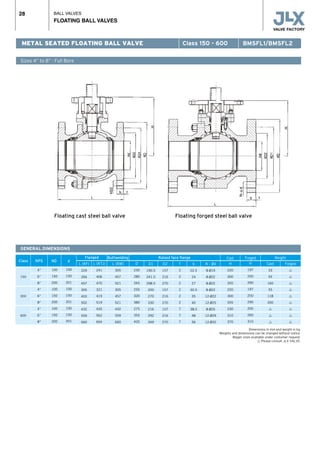

METAL SEATED FLOATING BALL VALVE Class 150 - 600 BMSFL1/BMSFL2
GENERAL DIMENSIONS
Class NPS ND
Flanged Buttwelding Raised face flange
d
WeightCast
Floating cast steel ball valve Floating forged steel ball valve
Forged
150
300
600
4”
6”
8”
4”
6”
8”
4”
6”
8”
100
150
200
100
150
200
100
150
200
100
150
201
100
150
201
100
150
201
L (RF)
229
394
457
305
403
502
432
559
660
L (RTJ)
241
406
470
321
419
519
435
562
664
L (BW)
305
457
521
305
457
521
432
559
660
D
230
280
345
255
320
380
275
355
420
D1
190.5
241.5
298.5
200
270
330
216
292
349
D2
157
216
270
157
216
270
157
216
270
f
2
2
2
2
2
2
7
7
7
b
22.5
24
27
30.5
35
40
38.5
48
56
N - Ød
8-Ø19
8-Ø22
8-Ø22
8-Ø22
12-Ø22
12-Ø25
8-Ø25
12-Ø29
12-Ø32
H
220
300
355
220
300
355
230
310
370
H
197
250
290
197
250
290
205
260
310
Cast
33
93
160
55
118
200
r
r
r
Forged
r
r
r
r
r
r
r
r
r
Dimensions in mm and weight in kg.
Weights and dimensions can be changed without notice.
Bigger sizes available under costumer request.
r Please consult JLX VALVE.

29. BALL VALVES
FLOATING BALL VALVES
29www.jlx-valve.com
NOTES

30. BALL VALVES
TRUNNION BALL VALVES
30

31. 31www.jlx-valve.com
TRUNNION
BALL VALVES

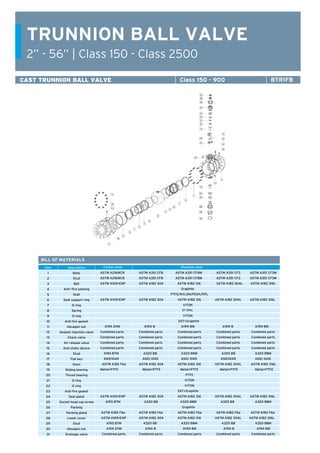

32. TRUNNION BALL VALVE
2” - 56” | Class 150 - Class 2500
CAST TRUNNION BALL VALVE
BILL OF MATERIALS
Carbon steel Stainless steel
ASTM A216WCB ASTM A351 CF8 ASTM A351 CF8M ASTM A351 CF3 ASTM A351 CF3M
ASTM A216WCB ASTM A351 CF8 ASTM A351 CF8M ASTM A351 CF3 ASTM A351 CF3M
ASTM A105•ENP ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
Graphite
PTFE/NYLON/PEEK/PPL
ASTM A105•ENP ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
VITON
17-7PH
VITON
SST+Graphite
A194 2HM A194-8 A194-8M A194-8 A194-8M
Combined parts Combined parts Combined parts Combined parts Combined parts
Combined parts Combined parts Combined parts Combined parts Combined parts
Combined parts Combined parts Combined parts Combined parts Combined parts
Combined parts Combined parts Combined parts Combined parts Combined parts
A193 B7M A320 B8 A320 B8M A320 B8 A320 B8M
ANS11045 ANSI 1045 ANSI 1045 ANS11045 ANSI 1045
ASTM A182 F6a ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
Metal+PTFE Metal+PTFE Metal+PTFE Metal+PTFE Metal+PTFE
PTFE
VITON
VITON
SST+Graphite
ASTM A105•ENP ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
A193 B7M A320 B8 A320 B8M A320 B8 A320 B8M
Graphite
ASTM A182 F6a ASTM A182 F6a ASTM A182 F6a ASTM A182 F6a ASTM A182 F6a
ASTM A105•ENP ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
A193 B7M A320 B8 A320 B8M A320 B8 A320 B8M
A194 2HM A194-8 A194-8M A194-8 A194-8M
Combined parts Combined parts Combined parts Combined parts Combined parts
Description
Body
Stud
Ball
Anti—fire packing
Seat
Seat support ring
O ring
Spring
O ring
Anti-fire gasket
Hexagon nut
Sealant Injection valve
Check valve
Air release valve
Anti-static device
Stud
Flat key
Stem
Sliding bearing
Thrust bearing
O ring
O ring
Anti-fire gasket
Seal gland
Socket head cap screw
Packing
Packing gland
Lower cover
Stud
Hexagon nut
Drainage valve
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
Class 150 - 900 BTR1FB

33. BALL VALVES
TRUNNION BALL VALVES
www.jlx-valve.com 33

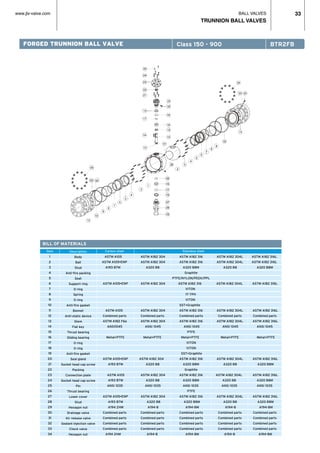

FORGED TRUNNION BALL VALVE
BILL OF MATERIALS
Carbon steel Stainless steel
ASTM A105 ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
ASTM A105•ENP ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
A193 B7M A320 B8 A320 B8M A320 B8 A320 B8M
Graphite
PTFE/NYLON/PEEK/PPL
ASTM A105•ENP ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
VITON
17-7PH
VITON
SST+Graphite
ASTM A105 ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
Combined parts Combined parts Combined parts Combined parts Combined parts
ASTM A182 F6a ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
ANS11045 ANSI 1045 ANSI 1045 ANSI 1045 ANSI 1045
PTFE
Metal+PTFE Metal+PTFE Metal+PTFE Metal+PTFE Metal+PTFE
VITON
VITON
SST+Graphite
ASTM A105•ENP ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
A193 B7M A320 B8 A320 B8M A320 B8 A320 B8M
Graphite
ASTM A105 ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
A193 B7M A320 B8 A320 B8M A320 B8 A320 B8M
ANSI 1035 ANSI 1035 ANSI 1035 ANSI 1035 ANSI 1035
PTFE
ASTM A105•ENP ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
A193 B7M A320 B8 A320 B8M A320 B8 A320 B8M
A194 2HM A194-8 A194-8M A194-8 A194-8M
Combined parts Combined parts Combined parts Combined parts Combined parts
Combined parts Combined parts Combined parts Combined parts Combined parts
Combined parts Combined parts Combined parts Combined parts Combined parts
Combined parts Combined parts Combined parts Combined parts Combined parts
A194 2HM A194-8 A194-8M A194-8 A194-8M
Description
Body
Ball
Stud
Anti-fire packing
Seat
Support ring
O ring
Spring
O ring
Anti-fire gasket
Bonnet
Anti-static device
Stem
Flat key
Thrust bearing
Sliding bearing
O ring
O ring
Anti-fire gasket
Seal gland
Socket head cap screw
Packing
Connection plate
Socket head cap screw
Pin
Thrust bearing
Lower cover
Stud
Hexagon nut
Drainage valve
Air release valve
Sealant injection valve
Check valve
Hexagon nut
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
Class 150 - 900 BTR2FB

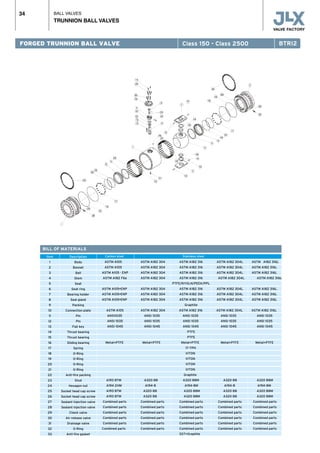

34. BALL VALVES
TRUNNION BALL VALVES
34
BILL OF MATERIALS
Carbon steel Stainless steelItem
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
Description
Body
Bonnet
Ball
Stem
Seat
Seat ring
Bearing holder
Seal gland
Packing
Connection plate
Pin
Pin
Flat key
Thrust bearing
Thrust bearing
Sliding bearing
Spring
O-Ring
O-Ring
O-Ring
O-Ring
Anti-fire packing
Stud
Hexagon nut
Socket head cap screw
Socket head cap screw
Sealant Injection valve
Sealant injection valve
Check valve
Air release valve
Drainage valve
O-Ring
Anti-fire gasket
ASTM A105 ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
ASTM A105 ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
ASTM A105 · ENP ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
ASTM A182 F6a ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
PTFE/NYOLN/PEEK/PPL
ASTM A105•ENP ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
ASTM A105•ENP ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
ASTM A105•ENP ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
Graphite
ASTM A105 ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
ANS11035 ANSI 1035 ANSI 1035 ANSI 1035 ANSI 1035
ANSI 1035 ANSI 1035 ANSI 1035 ANSI 1035 ANSI 1035
ANSI 1045 ANSI 1045 ANSI 1045 ANSI 1045 ANSI 1045
PTFE
PTFE
Metal+PTFE Metal+PTFE Metal+PTFE Metal+PTFE Metal+PTFE
17-7PH
VITON
VITON
VITON
VITON
Graphite
A193 B7M A320 B8 A320 B8M A320 B8 A320 B8M
A194 2HM A194-8 A194-8M A194-8 A194-8M
A193 B7M A320 B8 A320 B8M A320 B8 A320 B8M
A193 B7M A320 B8 A320 B8M A320 B8 A320 B8M
Combined parts Combined parts Combined parts Combined parts Combined parts
Combined parts Combined parts Combined parts Combined parts Combined parts
Combined parts Combined parts Combined parts Combined parts Combined parts
Combined parts Combined parts Combined parts Combined parts Combined parts
Combined parts Combined parts Combined parts Combined parts Combined parts
Combined parts Combined parts Combined parts Combined parts Combined parts
SST+Graphite
FORGED TRUNNION BALL VALVE Class 150 - Class 2500 BTRI2

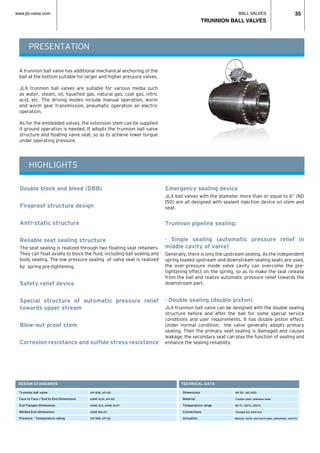

35. BALL VALVES
TRUNNION BALL VALVES
www.jlx-valve.com 35
Double block and bleed (DBB)
Fireproof structure design
Anti-static structure
Reliable seat sealing structure
The seat sealing is realized through two floating seat retainers.
They can float axially to block the fluid, including ball sealing and
body sealing. The low pressure sealing of valve seat is realized
by spring pre-tightening.
Safety relief device
Special structure of automatic pressure relief
towards upper stream
Blow-out proof stem
Corrosion resistance and sulfide stress resistance
Emergency sealing device
JLX ball valves with the diameter more than or equal to 6” (ND
150) are all designed with sealant injection device on stem and
seat.
Trunnion pipeline sealing:
· Single sealing (automatic pressure relief in
middle cavity of valve)
Generally, there is only the upstream sealing. As the independent
spring loaded upstream and downstream sealing seats are used,
the over-pressure inside valve cavity can overcome the pre-
tightening effect on the spring, so as to make the seat release
from the ball and realize automatic pressure relief towards the
downstream part.
· Double sealing (double piston)
JLX trunnion ball valve can be designed with the double sealing
structure before and after the ball for some special service
conditions and user requirements. It has double piston effect.
Under normal condition, the valve generally adopts primary
sealing. Then the primary seat sealing is damaged and causes
leakage, the secondary seat can play the function of sealing and
enhance the sealing reliability.
PRESENTATION
HIGHLIGHTS
A trunnion ball valve has additional mechanical anchoring of the
ball at the bottom suitable for larger and higher pressure valves.
JLX trunnion ball valves are suitable for various media such
as water, steam, oil, liquefied gas, natural gas, coal gas, nitric
acid, etc. The driving modes include manual operation, worm
and worm gear transmission, pneumatic operation an electric
operation.
As for the embedded valves, the extension stem can be supplied
if ground operation is needed. It adopts the trunnion ball valve
structure and floating valve seat, so as to achieve lower torque
under operating pressure.
DESIGN STANDARDS
Trunnion ball valve API 608, API 6D
Face to Face / End to End Dimensions ASME 16.10, API 6D
End Flanged dimensions ASME 16.5, ASME 16.47
Welded End dimensions ASME B16.25
Pressure - Temperature rating API 598, API 6D
TECHNICAL DATA
Dimensions ND 50 - ND 1400
Material Carbon steel, stainless steel
Temperature range 80 ºC, 120ºC, 250ºC
Connections Flanged but weld end
Actuation Manual, worm, and worm gear, pneumatic, electric

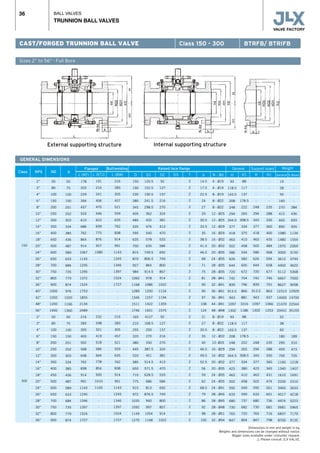

36. BALL VALVES
TRUNNION BALL VALVES
36
Sizes 2” to 56” · Full Bore
CAST/FORGED TRUNNION BALL VALVE Class 150 - 300 BTRFB/ BTRIFB
GENERAL DIMENSIONS
Class NPS ND
Flanged Buttwelding Raised face flange
d
General Weight
External supporting structure Internal supporting structure
L (RTJ)
191
216
241
406
470
546
622
699
775
876
927
1080
-
-
-
-
-
-
-
-
-
232
298
321
419
518
584
664
778
854
930
1010
1165
-
-
-
-
-
Support board
150
300
2”
3”
4”
6”
8”
10”
12”
14”
16”
18”
20”
24”
26”
28”
30”
32”
36”
40”
42”
48”
56”
2”
3”
4”
6”
8”
10”
12”
14”
16”
18”
20”
24”
26”
28”
30”
32”
36”
50
80
100
150
200
250
300
350
400
450
500
600
650
700
750
800
900
1000
1050
1200
1400
50
80
100
150
200
250
300
350
400
450
500
600
650
700
750
800
900
50
75
100
150
201
252
303
334
385
436
487
589
633
684
735
779
874
976
1020
1166
1360
50
75
100
150
201
252
303
334
385
436
487
589
633
684
735
779
874
L (RF)
178
203
229
394
457
533
610
686
762
864
914
1067
1143
1245
1295
1372
1524
1753
1855
2134
2489
216
283
305
403
502
568
648
762
838
914
991
1143
1245
1346
1397
1524
1727
L (BW)
216
283
305
457
521
559
635
762
838
914
991
1143
1245
1346
1397
1524
1727
-
-
-
-
216
283
305
457
521
559
635
762
838
914
991
1143
1245
1346
1397
1524
1727
D
150
190
230
280
345
405
485
535
595
635
700
815
870
927
984
1060
1168
1289
1346
1511
1746
165
210
255
320
380
445
520
585
650
710
775
915
972
1035
1092
1149
1270
D1
120.5
152.5
190.5
241.5
298.5
362
432
476
540
578
635
749.5
806.5
864
914.5
978
1086
1200
1257
1422
1651
4127
168.5
200
270
330
387.5
451
514.5
571.5
628.5
686
813
876.5
940
997
1054
1168
D2
92
127
157
216
270
324
381
413
470
533
584
692
749
800
857
914
1022
1124
1194
1359
1575
92
127
157
216
270
324
381
413
470
533
584
692
749
800
857
914
1022
D3
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
f
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
b
14.5
17.5
22.5
24
27
29
30.5
33.5
35
38.5
41.5
46.5
68
71
75
81
90
90
97
108
124
21
27
30.5
35
40
46.5
49.5
52.5
56
59
62
68.5
79
86
92
98
105
N - Ød
4 - Ø19
4 - Ø19
8 - Ø19
8 - Ø22
8 - Ø22
12 - Ø25
12 - Ø25
12 - Ø29
16 - Ø29
16 - Ø32
20 - Ø32
20 - Ø35
24 - Ø35
28 - Ø35
28 - Ø35
28 - Ø41
32 - Ø41
36 - Ø41
36 - Ø41
44 - Ø41
48 - Ø48
8 - Ø19
8 - Ø22
8 - Ø22
12 - Ø22
12- Ø25
16 - Ø29
16 - Ø32
20 - Ø32
20 - Ø35
24 - Ø35
24 - Ø35
24 - Ø41
28 - Ø45
28 - Ø45
28 - Ø48
28 - Ø51
32 - Ø54
H
93
118.5
143.5
208
248
294
344.5
377
418
463
502
586
626
644
720
742
839
913.5
943
1097
1302
93
118.5
143.5
208
248
294
344.5
377
423
463
502
592
633
680
730
765
847
H1
88
117
137
178.5
222
265
308.5
334
375
410
458
534
582
605
672
704
796
866
881
1016
1186
88
117
137
178.5
222
265
308.5
334
380
410
458
549
590
737
682
720
804
H
-
-
-
-
248
294
345
377
418
463
502
586
626
644
720
742
839
913.5
943
1097
1302
-
-
-
-
248
294
345
377
423
463
502
592
633
680
730
765
847
H1
-
-
-
-
235
288
330
360
400
435
484
568
594
658
677
746
791
863
937
1066
1253
-
-
-
-
235
288
330
360
345
431
474
561
601
736
681
716
798
General
19
28
50
160
270
415
660
890
1080
1480
1970
3000
3612
4402
5112
6667
8627
12313
14000
21470
33431
22
38
60
180
295
450
700
1160
1340
1610
2200
3460
4017
4974
5681
6837
8700
S Board
-
-
-
-
284
436
693
935
1134
1554
2069
3150
3793
4622
5368
7000
9058
12929
14700
22544
35103
-
-
-
189
310
473
735
1218
1407
1691
2310
3633
4218
5223
5965
7179
9135
Dimensions in mm and weight in kg.
Weights and dimensions can be changed without notice.
Bigger sizes available under costumer request.
r Please consult JLX VALVE.

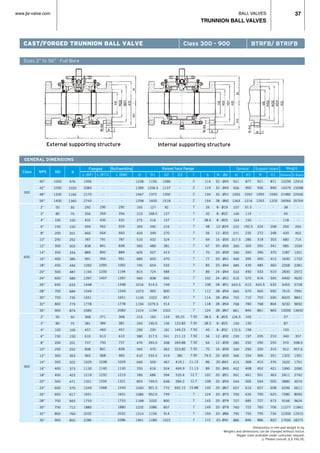

37. BALL VALVES
TRUNNION BALL VALVES
www.jlx-valve.com 37
Sizes 2” to 56” · Full Bore
CAST/FORGED TRUNNION BALL VALVE Class 300 - 900 BTRFB/ BTRIFB
GENERAL DIMENSIONS
Class NPS ND
Flanged Buttwelding Raised face flange
d
General Weight
External supporting structure Internal supporting structure
Support board
Dimensions in mm and weight in kg.
Weights and dimensions can be changed without notice.
Bigger sizes available under costumer request.
r Please consult JLX VALVE.
L (RTJ)
-
-
-
-
295
359
435
562
664
791
841
892
994
1095
1200
1407
-
-
-
-
-
371
384
460
613
740
841
968
1038
1140
1232
1334
1568
-
-
-
-
-
40”
42”
48”
56”
2”
3”
4”
6”
8”
10”
12”
14”
16”
18”
20”
24”
26”
28”
30”
32”
36”
2”
3”
4”
6”
8”
10”
12”
14”
16”
18”
20”
24”
26”
28”
30”
32”
36”
1000
1050
1200
1400
50
80
100
150
200
250
300
350
400
450
500
600
650
700
750
800
900
50
80
100
150
200
250
300
350
400
450
500
600
650
700
750
800
900
976
1020
1166
1360
50
75
100
150
201
252
303
334
385
436
487
589
633
684
735
779
874
50
75
100
150
201
252
303
322
373
423
471
570
617
665
712
760
855
L (RF)
1956
2083
2170
2743
292
356
432
559
660
787
838
889
991
1092
1194
1397
1448
1549
1651
1778
2083
368
381
457
610
737
838
965
1029
1130
1219
1321
1549
1651
1753
1880
2032
2286
L (BW)
-
-
-
-
292
356
432
559
660
787
838
889
991
1092
1194
1397
1448
1549
1651
1778
2083
368
381
457
610
737
838
965
1029
1130
1219
1321
1549
1651
1753
1880
2032
2286
D
1238
1289
1467
1708
165
210
275
355
420
510
560
605
685
745
815
940
1016
1073
1130
1194
1314
215
240
290
380
470
545
610
640
705
785
855
1040
1086
1168
1232
1314
1461
D1
1156
1206.5
1372
1600
127
168.5
216
292
349
432
489
527
603
654
724
838
914.5
965
1022
1079.5
1194
165
190.5
235
317.5
393.5
470
533.5
559
616
686
749.5
901.5
952.5
1022
1086
1156
1289
D2
1086
1137
1302
1518
92
127
157
216
270
324
381
413
470
533
584
692
749
800
857
914
1022
124
156
181
241
308
362
419
467
524
594
648
772
749
800
857
914
1022
D3
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
95.25
123.83
149.23
211.12
269.88
323.85
381
419.1
469.9
533.4
584.2
692.15
-
-
-
-
-
f
2
2
2
2
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7.92
7.92
7.92
7.92
7.92
7.92
7.92
11.13
11.13
12.7
12.7
15.88
7
7
7
7
7
b
114
119
134
154
26
32
38.5
48
56
64
67
70
77
83
89
102
108
112
114
118
124
38.5
38.5
45
56
64
70
79.5
86
89
102
108
140
124
143
149
159
172
N - Ød
32 - Ø45
32 - Ø45
32 - Ø51
28 - Ø60
8 - Ø19
8 - Ø22
8 - Ø25
12- Ø29
12 - Ø32
16 - Ø35
20 - Ø35
20 - Ø39
20 - Ø41
20 - Ø44
24 - Ø44
24 - Ø51
28 - Ø51
28 - Ø54
28 - Ø54
28 - Ø54
28 - Ø67
8 - Ø25
8 - Ø25
8 - Ø32
12 - Ø32
12 - Ø39
16 - Ø39
20 - Ø39
20 -Ø42
20 - Ø45
20 - Ø51
20 - Ø54
20 - Ø67
20 - Ø73
20 - Ø79
20 - Ø79
20 - Ø86
20- Ø92
H
921
936
1093
1263
107
140
164
222
271
317.5
360
390
440
485
533
616
643.5
665
753
768
861
126.5
150
172.5
230
285
330
366
415
452
501
544
657
700
727
760
795
886
H1
877
900
1052
1216
91.5
119
150
192.5
235
280
320
350
395
439
490
573
612
670
710
780
840
105
130
158
197
250
294
334
368
408
461
506
616
635
685
722
755
846
H
921
936
1093
1263
-
-
-
224
272
318
355
390
400
485
533
616
643.5
665
753
768
861
-
-
-
235
290
330
366
415
452
501
544
657
700
727
760
795
886
H1
871
890
1040
1203
-
-
-
208
248
303
341
370
415
460
510
595
635
692
690
804
865
-
-
-
210
255
316
351
376
421
463
505
608
625
673
706
734
822
General
12299
14379
21482
34066
38
65
118
250
430
680
985
1287
1640
2268
2830
4400
5455
7610
8420
9230
13000
57
87
193
340
570
912
1325
1620
1990
2611
3880
6296
7280
9166
11277
12300
17500
S Board
12914
15098
22556
35769
-
-
-
263
452
714
1034
1351
1722
2381
2972
4620
5728
7991
8841
9692
13650
-
-
-
357
598.5
957.6
1391
1701
2090
2742
4074
6611
8050
9624
11841
12915
18375
300
600
900

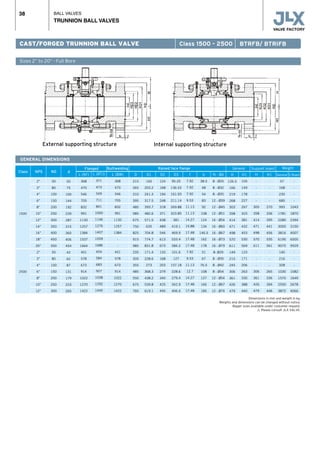

38. BALL VALVES
TRUNNION BALL VALVES
38
Sizes 2” to 20” · Full Bore
CAST/FORGED TRUNNION BALL VALVE Class 1500 - 2500 BTRFB/ BTRIFB
GENERAL DIMENSIONS
Class NPS ND
Flanged Buttwelding Raised face flange
d
General Weight
External supporting structure Internal supporting structure
L (RTJ)
371
473
549
711
841
1000
1146
1276
1407
1559
1686
454
584
683
927
1038
1292
1445
Support board
1500
2500
2”
3”
4”
6”
8”
10”
12”
14”
16”
18”
20”
2”
3”
4”
6”
8”
10”
12”
50
80
100
150
200
250
300
350
400
450
500
50
80
100
150
200
250
300
50
75
100
144
192
239
287
315
360
406
454
42
62
87
131
179
223
265
L (RF)
368
470
546
705
832
991
1130
1257
1384
1537
1664
451
578
673
914
1022
1270
1422
L (BW)
368
470
546
705
832
991
1130
1257
1384
-
-
451
578
673
914
1022
1270
1422
D
215
265
310
395
485
585
675
750
825
915
985
235
305
355
485
550
675
760
D1
165
203.2
241.3
317.5
393.7
482.6
571.5
635
704.8
774.7
831.8
171.4
228.6
273
368.3
438.2
539.8
619.1
D2
124
168
194
248
318
371
438
489
546
613
673
133
168
203
279
340
425
495
D3
95.25
136.53
161.93
211.14
269.88
323.85
381
419.1
469.9
533.4
584.2
101.6
127
157.18
228.6
279.4
342.9
406.4
f
7.92
7.92
7.92
9.53
11.13
11.13
14.27
15.88
17.48
17.48
17.48
7.92
9.53
11.13
12.7
14.27
17.48
17.48
b
38.5
48
54
83
92
108
124
134
146.5
162
178
51
67
76.5
108
127
166
185
N - Ød
8 - Ø25
8 - Ø32
8 - Ø35
12 - Ø39
12 - Ø45
12 - Ø51
16 - Ø54
16 - Ø60
16 - Ø67
16 - Ø73
16 - Ø79
8- Ø29
8 - Ø35
8 - Ø42
8 - Ø54
12 - Ø54
12 - Ø67
12 - Ø74
H
126.5
166
219
268
303
358
414
471
498
570
611
149
215
245
306
361
426
479
H1
105
149
178
227
267
323
381
432
453
530
569
123
171
206
263
330
388
440
H
-
-
-
-
305
358
414
471
498
570
611
-
-
-
306
361
426
479
H1
-
-
-
-
270
336
395
441
456
535
561
-
-
-
265
336
394
446
General
57
168
230
685
993
1781
2280
3000
3816
6195
9075
140
216
328
1030
1570
2550
3872
S Board
-
-
-
-
1043
1870
2394
3150
4007
6505
9529
-
-
-
1082
1649
2678
4066
Dimensions in mm and weight in kg.
Weights and dimensions can be changed without notice.
Bigger sizes available under costumer request.
r Please consult JLX VALVE.

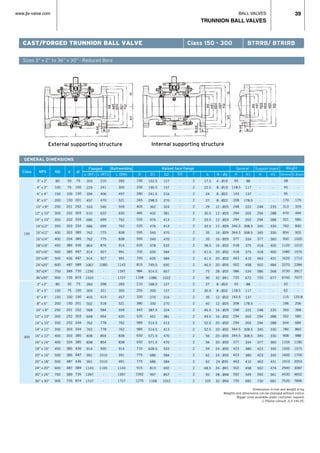

39. BALL VALVES
TRUNNION BALL VALVES
www.jlx-valve.com 39
Sizes 3” x 2” to 36” x 30” · Reduced Bore
CAST/FORGED TRUNNION BALL VALVE Class 150 - 300 BTRRB/ BTRIRB
External supporting structure Internal supporting structure
GENERAL DIMENSIONS
Class NPS ND
Flanged Buttwelding Raised face flange
d
General Weight
L (RTJ)
216
241
406
470
546
622
699
699
775
775
876
927
927
1080
-
-
298
321
419
518
584
664
778
778
854
854
930
1010
1010
1165
-
-
Support board
150
300
3” x 2”
4” x 3”
6” x 4”
8” x 6”
10” x 8”
12” x 10”
14” x 10”
14”x12”
16”x12”
16”x14”
18”x16”
20”x16”
20”x18”
24”x20”
30”x24”
36”x30”
3” x 2”
4” x 3”
6” x 4”
8” x 6”
10” x 8”
12” x 10”
14” x 10”
14” x 12”
16” x 12”
16” x 14”
18” x 16”
20” x 16”
20” x 18”
24” x 20”
30” x 24”
36” x 30”
80
100
150
200
250
300
350
350
400
400
450
500
500
600
750
900
80
100
150
200
250
300
350
350
400
400
450
500
500
600
750
900
50
75
100
150
201
252
252
303
303
334
385
385
436
487
589
735
50
75
100
150
201
252
252
303
303
334
385
385
487
487
589
735
L (RF)
203
229
394
457
533
610
686
686
762
762
864
914
914
1067
1295
1524
283
305
403
502
568
648
762
762
838
838
914
991
991
1143
1397
1727
L (BW)
283
305
457
521
559
635
762
762
838
838
914
991
991
1143
1397
1727
283
305
457
521
559
635
762
762
838
838
914
991
991
1143
1397
1727
D
190
230
280
345
405
485
535
535
595
595
635
700
700
815
984
1168
210
255
320
380
445
520
585
585
650
650
710
775
775
915
1092
1270
D1
152.5
190.5
241.5
298.5
362
432
476
476
540
540
578
635
635
749.5
914.5
1086
168.5
200
270
330
387.5
451
514.5
514.5
571.5
571.5
628.5
686
686
813
997
1168
D2
127
157
216
270
324
381
413
413
470
470
533
584
584
692
857
1022
127
157
216
270
324
381
413
413
470
470
533
584
584
692
857
1022
D3
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
f
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
b
17.5
22.5
24
27
29
30.5
33.5
33.5
35
35
38.5
41.5
41.5
46.5
75
90
27
30.5
35
40
46.5
49.5
52.5
52.5
56
56
59
62
62
68.5
92
105
N - Ød
4 - Ø19
8 - Ø19
8 - Ø22
8 - Ø22
12 - Ø25
12 - Ø25
12 - Ø29
12 - Ø29
16 - Ø29
16 - Ø29
16 - Ø32
20 - Ø32
20 - Ø32
20 - Ø35
28 - Ø35
32 - Ø41
8 - Ø22
8 - Ø22
12 - Ø22
12 - Ø25
16 - Ø29
16 - Ø32
20 - Ø32
20 - Ø32
20 - Ø35
20 - Ø35
24 - Ø35
24 - Ø35
24 -Ø35
24 - Ø41
28 - Ø48
32 - Ø54
H
93
118.5
143
208
248
294
294
344.5
344.5
377
418
418
463
502
586
720
93
118.5
143.5
208
248
294
294
344.5
344.5
377
423
423
463
502
592
730
H1
88
117
137
178.5
222
265
265
308.5
308.5
334
375
375
410
458
534
672
88
117
137
178.5
222
265
265
308.5
308.5
334
380
380
410
458
549
682
H
-
-
-
-
248
294
294
345
345
377
418
418
463
502
586
720
-
-
-
-
248
294
294
345
345
377
423
423
463
502
592
730
H1
-
-
-
-
235
288
288
330
330
360
400
400
431
484
568
677
-
-
-
-
235
288
288
330
330
360
345
345
431
474
561
681
General
28
45
95
170
313
470
521
760
834
930
1120
1480
1620
2270
3730
6740
42
62
115
196
350
552
644
780
908
1105
1500
1600
1910
2940
4430
7520
S Board
-
-
-
179
329
494
580
840
920
1020
1210
1570
1710
2384
3917
7077
-
-
120.8
206
368
580
684
860
988
1180
1575
1700
2053
3087
4652
7896
d1
75
100
150
201
252
303
334
334
385
385
436
487
487
589
735
874
75
100
150
201
252
303
334
334
385
385
436
487
436
589
735
874
Dimensions in mm and weight in kg.
Weights and dimensions can be changed without notice.
Bigger sizes available under costumer request.
r Please consult JLX VALVE.

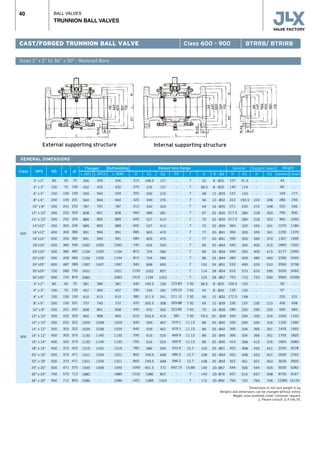

40. BALL VALVES
TRUNNION BALL VALVES
40
Sizes 3” x 2” to 36” x 30” · Reduced Bore
CAST/FORGED TRUNNION BALL VALVE Class 600 - 900 BTRRB/ BTRIRB
External supporting structure Internal supporting structure
GENERAL DIMENSIONS
Class NPS ND
Flanged Buttwelding Raised face flange
d
General Weight
L (RTJ)
359
435
562
664
791
841
892
892
994
994
1095
1200
1200
1407
-
-
384
460
613
740
841
968
1038
1038
1140
1140
1232
1334
1334
1568
-
-
Support board
600
900
3” x 2”
4” x 3”
6” x 4”
8” x 6”
10” x 8”
12” x 10”
14” x 10”
14”x12”
16”x12”
16”x14”
18”x16”
20”x16”
20”x18”
24”x20”
30”x24”
36”x30”
3” x 2”
4” x 3”
6” x 4”
8” x 6”
10” x 8”
12” x 10”
14” x 10”
14” x 12”
16” x 12”
16” x 14”
18” x 16”
20” x 16”
20” x 18”
24” x 20”
30” x 24”
36” x 30”
80
100
150
200
250
300
350
350
400
400
450
500
500
600
750
900
80
100
150
200
250
300
350
350
400
400
450
500
500
600
750
900
50
75
100
150
201
252
252
303
303
334
385
385
436
487
589
735
50
75
100
150
201
252
252
303
303
322
373
373
373
471
570
712
L (RF)
356
432
559
660
787
838
889
889
991
991
1092
1194
1194
1397
1651
2083
381
457
610
737
838
965
1029
1029
1130
1130
1219
1321
1321
1549
1880
2286
L (BW)
356
432
559
660
787
838
889
889
991
991
1092
1194
1194
1397
1651
2083
381
457
610
737
838
965
1029
1029
1130
1130
1219
1321
1321
1549
1880
2286
D
210
275
355
420
510
560
605
605
685
685
745
815
815
940
1130
1314
240
290
380
470
545
610
640
640
705
705
785
855
855
1040
1232
1461
D1
168.5
216
292
349
432
489
527
527
603
603
654
724
724
838
1022
1194
190.5
235
317.5
393.5
470
533.5
559
559
616
616
686
749.5
749.5
901.5
1086
1289
D2
127
157
216
270
324
381
413
413
470
470
533
584
584
692
857
1022
156
181
241
308
362
419
467
467
524
524
594
648
648
772
857
1022
D3
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
123.83
149.23
211.12
269.88
323.85
381
419.1
419.1
469.9
469.9
533.4
584.2
584.2
692.15
-
-
f
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7.92
7.92
7.92
7.92
7.92
7.92
11.13
11.13
11.13
11.13
12.7
12.7
12.7
15.88
7
7
b
32
38.5
48
56
64
67
70
70
77
77
83
89
89
102
114
124
38.5
45
56
64
70
79.5
86
86
89
89
102
108
108
140
149
172
N - Ød
8 - Ø22
8 - Ø25
12 - Ø29
12 - Ø32
16 - Ø35
20 - Ø35
20 - Ø39
20 - Ø39
20- Ø41
20 - Ø41
20 - Ø44
24 - Ø44
24 - Ø44
24 - Ø51
28 - Ø54
28 - Ø67
8 - Ø25
8 - Ø32
12 - Ø32
12 - Ø39
16 - Ø39
20 - Ø39
20 - Ø42
20 - Ø42
20 - Ø45
20 - Ø45
20 - Ø51
20 - Ø54
20 - Ø54
20- Ø67
20- Ø79
20- Ø92
H
107
140
167
222
271
317.5
317.5
360
360
390
440
440
485
533
616
753
126.5
150
172.5
230
285
330
330
366
366
415
452
452
501
544
657
760
H1
91.5
119
150
192.5
235
280
280
320
320
350
395
395
439
490
573
710
105
130
158
197
250
294
294
334
334
368
408
408
461
506
616
722
H
-
-
-
224
272
318
318
355
355
390
400
400
485
533
616
753
-
-
-
235
290
330
330
366
366
415
452
452
501
544
657
760
H1
-
-
-
208
248
303
303
341
341
370
415
415
460
510
595
690
-
-
-
210
255
316
316
351
351
376
421
421
463
505
608
706
General
44
85
169
280
520
790
960
1070
1250
1367
1840
2177
2390
3560
5200
9900
56
97
220
436
650
1050
1230
1435
1700
1820
2550
2630
3630
5030
8730
15385
S Board
-
-
177
294
546
830
1050
1180
1370
1490
1932
2340
2540
3738
5460
10395
-
-
231
458
683
1103
1390
1565
1820
2080
2678
2765
3900
5282
9167
16154
d1
75
100
150
201
252
303
334
334
385
385
436
487
484
589
735
874
75
100
150
201
252
303
322
322
373
373
423
471
471
570
712
855
Dimensions in mm and weight in kg.
Weights and dimensions can be changed without notice.
Bigger sizes available under costumer request.
r Please consult JLX VALVE.

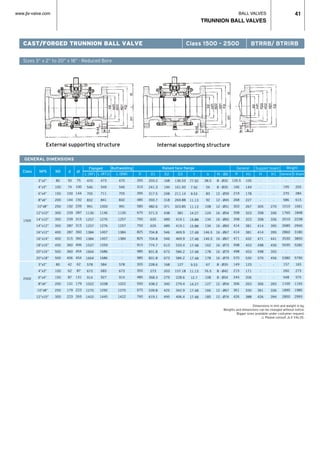

41. BALL VALVES
TRUNNION BALL VALVES
www.jlx-valve.com 41
Sizes 3” x 2” to 20” x 18” · Reduced Bore
CAST/FORGED TRUNNION BALL VALVE Class 1500 - 2500 BTRRB/ BTRIRB
External supporting structure Internal supporting structure
GENERAL DIMENSIONS
Class NPS ND
Flanged Buttwelding Raised face flange
d
General Weight
L (RTJ)
473
549
711
841
1000
1146
1276
1276
1407
1407
1559
1686
1686
584
683
927
1038
1292
1445
Support board
1500
2500
3”x2”
4”x3”
6”x4”
8”x6”
10”x8”
12”x10”
14”x10”
14”x12”
16”x12”
16”x14”
18”x16”
20”x16”
20”x18”
3”x2”
4”x3”
6”x4”
8”x6”
10”x8”
12”x10”
80
100
150
200
250
300
350
350
400
400
450
500
500
80
100
150
200
250
300
50
74
100
144
192
239
239
287
287
315
360
360
406
42
62
87
131
179
223
L (RF)
470
546
705
832
991
1130
1257
1257
1384
1384
1537
1664
1664
578
673
914
1022
1270
1422
L (BW)
470
546
705
832
991
1130
1257
1257
1384
1384
-
-
-
578
673
914
1022
1270
1422
D
265
310
395
485
585
675
750
750
825
825
915
985
985
305
355
485
550
675
760
D1
203.2
241.3
317.5
393.7
482.6
571.5
635
635
704.8
704.8
774.7
831.8
831.8
228.6
273
368.3
438.2
539.8
619.1
D2
168
194
248
318
371
438
489
489
546
546
613
673
673
168
203
279
340
425
495
D3
136.53
161.93
211.14
269.88
323.85
381
419.1
419.1
469.9
469.9
533.4
584.2
584.2
127
157.18
228.6
279.4
342.9
406.4
f
77.92
7.92
9.53
11.13
11.13
14.27
15.88
15.88
17.48
17.48
17.48
17.48
17.48
9.53
11.13
12.7
14.27
17.48
17.48
b
38.5
54
83
92
108
124
134
134
146.5
146.5
162
178
178
67
76.5
108
127
166
185
N - Ød
8 - Ø32
8 - Ø35
12 - Ø39
12 - Ø45
12 - Ø51
16 - Ø54
16 - Ø60
16 - Ø60
16 - Ø67
16 - Ø67
16 - Ø73
16 - Ø79
16 - Ø79
8 - Ø35
8 - Ø42
8 - Ø54
12 - Ø54
12 - Ø67
12 - Ø74
H
126.5
166
219
268
303
358
358
414
414
471
498
498
570
149
215
245
306
361
426
H1
105
149
178
227
267
323
323
381
381
432
453
453
530
123
171
206
263
330
388
H
-
-
-
-
305
358
358
414
414
471
498
498
570
-
-
-
306
361
426
H1
-
-
-
-
270
336
336
395
395
441
456
355
456
-
-
-
265
336
394
General
-
195
270
586
1010
1760
2010
2680
2860
3530
5030
-
5380
157
260
548
1100
1890
2850
S Board
-
205
284
615
1061
1848
2238
2940
3180
3850
5282
-
5790
165
273
575
1155
1985
2993
d1
75
100
144
192
239
287
315
315
360
360
406
454
454
62
87
131
179
223
265
Dimensions in mm and weight in kg.
Weights and dimensions can be changed without notice.
Bigger sizes available under costumer request.
r Please consult JLX VALVE.

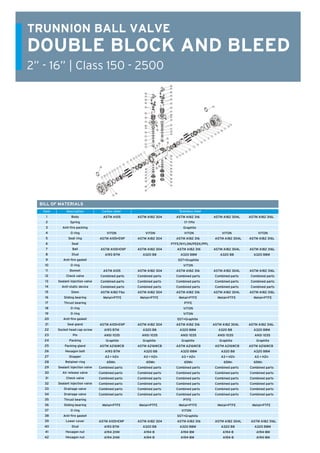

42. DOUBLE BLOCK AND BLEED
2” - 16” | Class 150 - 2500
TRUNNION BALL VALVE
BILL OF MATERIALS
Carbon steel Stainless steelItem
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
Description
Body
Spring
Anti-fire packing
O ring
Seat ring
Seat
Ball
Stud
Anti-fire gasket
O ring
Bonnet
Check valve
Sealant injection valve
Anti-static device
Stem
Sliding bearing
Thrust bearing
O ring
O ring
Anti-fire gasket
Seal gland
Socket head cap screw
Pin
Packing
Packing gland
Hexagon bolt
Stopper
Retainer ring
Sealant injection valve
Air release valve
Check valve
Sealant injection valve
Drainage valve
Drainage valve
Thrust bearing
Sliding bearing
O ring
Anti-fire gasket
Lower cover
Stud
Hexagon nut
Hexagon nut
ASTM A105 ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
17-7PH
Graphite
VITON VITON VITON VITON VITON
ASTM A105•ENP ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
PTFE/NYLON/PEEK/PPL
ASTM A105•ENP ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
A193 B7M A320 B8 A320 B8M A320 B8 A320 B8M
SST+Graphite
VITON
ASTM A105 ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
Combined parts Combined parts Combined parts Combined parts Combined parts
Combined parts Combined parts Combined parts Combined parts Combined parts
Combined parts Combined parts Combined parts Combined parts Combined parts
ASTM A182 F6a ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
Metal+PTFE Metal+PTFE Metal+PTFE Metal+PTFE Metal+PTFE
PTFE
VITON
VITON
SST+Graphite
ASTM A105•ENP ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
A193 B7M A320 B8 A320 B8M A320 B8 A320 B8M
ANSI 1035 ANSI 1035 ANSI 1035 ANSI 1035 ANSI 1035
Graphite Graphite Graphite Graphite Graphite
ASTM A216WCB ASTM A216WCB ASTM A216WCB ASTM A216WCB ASTM A216WCB
A193 B7M A320 B8 A320 B8M A320 B8 A320 B8M
A3 • HZn A3 • HZn A3 • HZn A3 • HZn A3 • HZn
65Mn 65Mn 65Mn 65Mn 65Mn
Combined parts Combined parts Combined parts Combined parts Combined parts
Combined parts Combined parts Combined parts Combined parts Combined parts
Combined parts Combined parts Combined parts Combined parts Combined parts
Combined parts Combined parts Combined parts Combined parts Combined parts
Combined parts Combined parts Combined parts Combined parts Combined parts
Combined parts Combined parts Combined parts Combined parts Combined parts
PTFE
Metal+PTFE Metal+PTFE Metal+PTFE Metal+PTFE Metal+PTFE
VITON
SST+Graphite
ASTM A105•ENP ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
A193 B7M A320 B8 A320 B8M A320 B8 A320 B8M
A194 2HM A194-8 A194-8M A194-8 A194-8M
A194 2HM A194-8 A194-8M A194-8 A194-8M

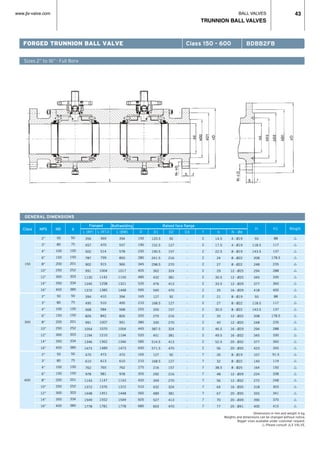

43. BALL VALVES
TRUNNION BALL VALVES
www.jlx-valve.com 43
Sizes 2” to 16” · Full Bore
FORGED TRUNNION BALL VALVE Class 150 - 600 BDBB2FB
GENERAL DIMENSIONS
Dimensions in mm and weight in kg.
Weights and dimensions can be changed without notice.
Bigger sizes available under costumer request.
r Please consult JLX VALVE.
Class NPS ND
Flanged Buttwelding Raised face flange
d WeightH1H
150
300
600
2”
3”
4”
6”
8”
10”
12”
14”
16”
2”
3”
4”
6”
8”
10”
12”
14”
16”
2”
3”
4”
6”
8”
10”
12”
14”
16”
50
80
100
150
200
250
300
350
400
50
80
100
150
200
250
300
350
400
50
80
100
150
200
250
300
350
400
50
75
100
150
201
252
303
334
385
50
75
100
150
201
252
303
334
385
50
75
100
150
201
252
303
334
385
L (RF)
356
457
502
787
902
991
1130
1245
1372
394
495
568
826
991
1054
1194
1346
1473
470
610
762
978
1143
1372
1448
1549
1778
L (RTJ)
369
470
514
799
915
1004
1142
1258
1385
410
510
584
842
1007
1070
1210
1362
1489
473
613
765
981
1147
1376
1451
1552
1781
L (BW)
394
537
578
850
966
1017
1155
1321
1448
394
495
568
826
991
1054
1194
1346
1473
470
610
762
978
1143
1372
1448
1549
1778
D
150
190
230
280
345
405
485
535
595
165
210
255
320
380
445
520
585
650
165
210
275
355
420
510
560
605
685
D1
120.5
152.5
190.5
241.5
298.5
362
432
476
540
127
168.5
200
270
330
387.5
451
514.5
571.5
127
168.5
216
292
349
432
489
527
603
D2
92
127
157
216
270
324
381
413
470
92
127
157
216
270
324
381
413
470
92
127
157
216
270
324
381
413
470
D3
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
f
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
7
7
7
7
7
7
7
7
7
b
14.5
17.5
22.5
24
27
29
30.5
33.5
35
21
27
30.5
35
40
46.5
49.5
52.5
56
26
32
38.5
48
56
64
67
70
77
N - Ød
4 - Ø19
4 - Ø19
8 - Ø19
8 - Ø22
8 - Ø22
12 - Ø25
12 - Ø25
12 - Ø29
16 - Ø29
8 - Ø19
8 - Ø22
8 - Ø22
12 - Ø22
12 - Ø25
16 - Ø29
16 - Ø32
20 - Ø32
20 - Ø35
8 - Ø19
8 - Ø22
8 - Ø25
12 - Ø29
12 - Ø32
16 - Ø35
20 - Ø35
20 - Ø39
20 - Ø41
93
118.5
143.5
208
248
294
345
377
418
93
118.5
143.5
208
248
294
345
377
423
107
140
164
224
272
318
355
390
400
88
117
137
178.5
235
288
330
360
400
88
117
137
178.5
235
288
330
360
345
91.5
119
150
208
248
303
341
370
415
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r

44. BALL VALVES
TRUNNION BALL VALVES
44
Sizes 2” to 16” · Full Bore
FORGED TRUNNION BALL VALVE Class 900 - 2500 BDBB2FB
GENERAL DIMENSIONS
Class NPS ND
Flanged Buttwelding Raised face flange
d WeightH1H
150
300
600
2”
3”
4”
6”
8”
10”
12”
14”
16”
2”
3”
4”
6”
8”
10”
12”
14”
16”
2”
3”
4”
6”
8”
50
80
100
150
200
250
300
350
400
50
80
100
150
200
250
300
350
400
50
80
100
150
200
50
75
100
150
201
252
303
322
373
50
75
100
144
192
239
287
315
360
42
62
87
131
179
L (RF)
610
660
826
1054
1295
1473
1651
1880
1930
610
826
965
1232
1448
1778
2083
2286
2422
762
1029
1143
1549
1880
L (RTJ)
613
663
829
1057
1298
1476
1654
1889
1940
613
829
968
1238
1457
1787
2099
2305
2445
765
1153
1562
1559
1896
L (BW)
610
660
826
1054
1295
1473
1651
1880
1930
610
826
965
1232
1448
1778
2083
2286
2422
762
1029
1143
1549
1880
D
215
240
290
380
470
545
610
640
705
215
265
310
395
485
585
675
750
825
235
305
355
485
550
D1
165
190.5
235
317.5
393.5
470
533.5
559
616
165
203.2
241.3
317.5
393.7
482.6
571.5
635
704.8
171.4
228.6
273
368.3
438.2
D2
124
156
181
241
308
362
419
467
524
124
168
194
248
318
371
438
489
546
133
168
203
279
340
D3
95.25
123.83
149.23
211.12
269.88
323.85
381
419.1
469.9
95.25
136.53
161.93
211.14
269.88
323.85
381
419.1
469.9
101.6
127
157.18
228.6
279.4
f
7.92
7.92
7.92
7.92
7.92
7.92
7.92
11.13
11.13
7.92
7.92
7.92
9.53
11.13
11.13
14.27
15.88
17.48
7.92
9.53
11.13
12.7
14.27
b
38.5
38.5
45
56
64
70
79.5
86
89
38.5
48
54
83
92
108
124
134
146.5
51
67
76.5
108
127
N - Ød
8 - Ø25
8 - Ø25
8 - Ø32
12 - Ø32
12 - Ø39
16 - Ø39
20 - Ø39
20 - Ø42
20 - Ø45
8 - Ø25
8 - Ø32
8 - Ø35
12 - Ø39
12 - Ø45
12 - Ø51
16 - Ø54
16 - Ø60
16 - Ø67
8 - Ø29
8 - Ø35
8 - Ø42
8 - Ø54
12 - Ø54
126.5
150
172.5
230
290
330
366
415
452
126.5
166
219
268
305
358
414
471
498
149
215
245
306
361
105
130
158
210
255
316
351
376
421
105
149
178
234
270
336
395
441
456
123
171
206
265
336
Dimensions in mm and weight in kg.
Weights and dimensions can be changed without notice.
Bigger sizes available under costumer request.
r Please consult JLX VALVE.
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r

45. BALL VALVES
TRUNNION BALL VALVES
www.jlx-valve.com 45
NOTES

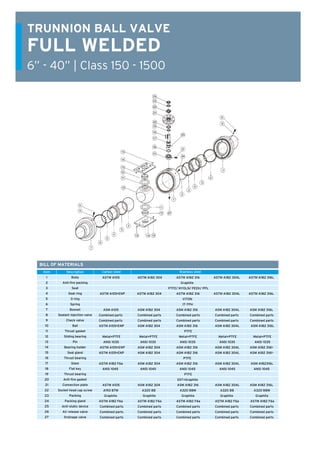

46. BALL VALVES
TRUNNION BALL VALVES
46
FULL WELDED
6” - 40” | Class 150 - 1500
TRUNNION BALL VALVE
BILL OF MATERIALS
Carbon steel Stainless steelItem
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
Description
Body
Anti-fire packing
Seat
Seat ring
0 ring
Spring
Bonnet
Sealant injection valve
Check valve
Ball
Thrust gasket
Sliding bearing
Pin
Bearing holder
Seal gland
Thrust bearing
Stem
Flat key
Thrust bearing
Anti-fire gasket
Connection plate
Socket head cap screw
Packing
Packing gland
Anti-static device
Air release valve
Drainage valve
ASTM A105 ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
Graphite
PTFE/ NYOLN/ PEEK/ PPL
ASTM A105•ENP ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
VITON
17-7PH
ASM A105 ASM A182 304 ASM A182 316 ASM A182 304L ASM A182 316L
Combined parts Combined parts Combined parts Combined parts Combined parts
Combined parts Combined parts Combined parts Combined parts Combined parts
ASTM A105•ENP ASM A182 304 ASM A182 316 ASM A182 304L ASM A182 316L
PTFE
Metal+PTFE Metal+PTFE Metal+PTFE Metal+PTFE Metal+PTFE
ANSI 1035 ANSI 1035 ANSI 1035 ANSI 1035 ANSI 1035
ASTM A105•ENP ASM A182 304 ASM A182 316 ASM A182 304L ASM A182 3161-
ASTM A105•ENP ASM A182 304 ASM A182 316 ASM A182 304L ASM A182 3161-
PTFE
ASTM A182 F6a ASM A182 304 ASM A182 316 ASM A182 304L ASM A182316L
ANSI 1045 ANSI 1045 ANSI 1045 ANSI 1045 ANSI 1045
PTFE
SST+Graphite
ASTM A105 ASM A182 304 ASM A182 316 ASM A182 304L ASM A182 316L
A193 B7M A320 B8 A320 B8M A320 B8 A320 B8M
Graphite Graphite Graphite Graphite Graphite
ASTM A182 F6a ASTM A182 F6a ASTM A182 F6a ASTM A182 F6a ASTM A182 F6a
Combined parts Combined parts Combined parts Combined parts Combined parts
Combined parts Combined parts Combined parts Combined parts Combined parts
Combined parts Combined parts Combined parts Combined parts Combined parts

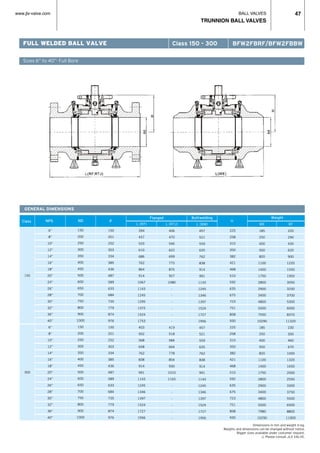

47. BALL VALVES
TRUNNION BALL VALVES
www.jlx-valve.com 47
FULL WELDED BALL VALVE
Sizes 6” to 40”· Full Bore
GENERAL DIMENSIONS
Class NPS ND
Flanged Buttwelding
d
Weight
H
Dimensions in mm and weight in kg.
Weights and dimensions can be changed without notice.
Bigger sizes available under costumer request.
r Please consult JLX VALVE.
150
300
6”
8”
10”
12”
14”
16”
18”
20”
24”
26”
28”
30”
32”
36”
40”
6”
8”
10”
12”
14”
16”
18”
20”
24”
26”
28”
30”
32”
36”
40”
150
200
250
300
350
400
450
500
600
650
700
750
800
900
1000
150
200
250
300
350
400
450
500
600
650
700
750
800
900
1000
150
201
252
303
334
385
436
487
589
633
684
735
779
874
976
150
201
252
303
334
385
436
487
589
633
684
735
779
874
976
L (RF)
394
457
533
610
686
762
864
914
1067
1143
1245
1295
1372
1524
1753
403
502
568
648
762
838
914
991
1143
1245
1346
1397
1524
1727
1956
L (RTJ)
406
470
546
622
699
775
876
927
1080
-
-
-
-
-
-
419
518
584
664
778
854
930
1010
1165
-
-
-
-
-
-
L (BW)
457
521
559
635
762
838
914
991
1143
1245
1346
1397
1524
1727
1956
457
521
559
635
762
838
914
991
1143
1245
1346
1397
1524
1727
1956
225
258
310
350
382
421
468
510
592
635
675
723
751
858
930
225
258
310
350
382
421
468
510
592
635
675
723
751
858
930
WE
185
250
400
550
820
1100
1400
1750
2800
2900
3400
4800
5500
7550
10290
185
250
400
550
820
1100
1400
1750
2800
2900
3400
4800
5500
7980
10290
RF
220
290
430
620
900
1220
1550
1950
3050
3250
3700
5300
6000
8370
11320
230
300
460
670
1000
1320
1650
2000
2550
3300
3750
5500
6500
8800
11900
Class 150 - 300 BFW2FBRF/BFW2FBBW

48. BALL VALVES
TRUNNION BALL VALVES
48
FULL WELDED BALL VALVE
Sizes 6” to 36” · Full Bore
GENERAL DIMENSIONS
Class NPS ND
Flanged Buttwelding
d
Weight
H
6”
8”
10”
12”
14”
16”
18”
20”
24”
26”
28”
30”
32”
36”
6”
8”
10”
12”
14”
16”
18”
20”
24”
6”
8”
10”
12”
14”
150
200
250
300
350
400
450
500
600
650
700
750
800
900
150
200
250
300
350
400
450
500
600
150
200
250
300
350
150
201
252
303
334
385
436
487
589
633
684
735
779
874
150
201
252
303
322
373
423
471
570
144
192
239
287
315
L (RF)
559
660
787
838
889
991
1092
1194
1397
1448
1549
1651
1778
2083
610
737
838
965
1029
1130
1219
1321
1549
705
832
991
1130
1257
L (RTJ)
562
664
791
841
892
994
1095
1200
1407
-
-
-
-
-
613
740
841
968
1038
1140
1232
1334
1568
711
841
1000
1146
1276
L (BW)
559
660
787
838
889
991
1092
1194
1397
1448
1549
1651
1778
2083
610
737
838
965
1029
1130
1219
1321
1549
705
832
991
1130
1257
255
290
320
380
410
435
495
535
642
665
704
745
785
875
255
290
320
380
410
435
495
535
642
255
290
320
380
410
WE
250
340
570
850
1100
1350
2100
2600
3700
3900
4200
6000
6800
9570
330
400
640
900
1020
1350
2600
3700
4400
375
415
525
780
1145
RF
330
450
710
1000
1370
1650
2400
3000
4300
4500
4900
6900
8000
10850
430
520
820
1050
1400
2050
3400
4200
5400
565
505
640
950
1380
Class 600 - 1500 BFW2FBRF/BFW2FBBW
600
900
1500
Dimensions in mm and weight in kg.
Weights and dimensions can be changed without notice.
Bigger sizes available under costumer request.
r Please consult JLX VALVE.

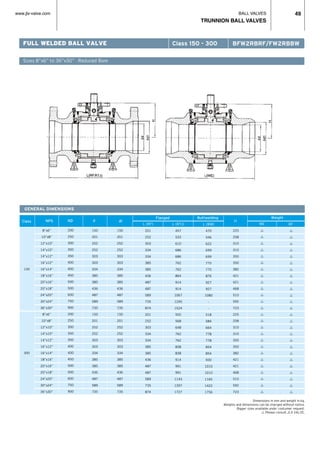

49. BALL VALVES
TRUNNION BALL VALVES
www.jlx-valve.com 49
FULL WELDED BALL VALVE
Sizes 8”x6” to 36”x30” · Reduced Bore
GENERAL DIMENSIONS
Class NPS ND
Flanged Buttwelding
d1
Weight
H
Dimensions in mm and weight in kg.
Weights and dimensions can be changed without notice.
Bigger sizes available under costumer request.
r Please consult JLX VALVE.
150
300
8”x6”
10”x8”
12”x10”
14”x10”
14”x12”
16”x12”
16”x14”
18”x16”
20”x16”
20”x18”
24”x20”
30”x24”
36”x30”
8”x6”
10”x8”
12”x10”
14”x10”
14”x12”
16”x12”
16”x14”
18”x16”
20”x16”
20”x18”
24”x20”
30”x24”
36”x30”
200
250
300
350
350
400
400
450
500
500
600
750
900
200
250
300
350
350
400
400
450
500
500
600
750
900
150
201
252
252
303
303
334
385
385
436
487
589
735
150
201
252
252
303
303
334
385
385
436
487
589
735
L (RF)
201
252
303
334
334
385
385
436
487
487
589
735
874
201
252
303
334
334
385
385
436
487
487
589
735
874
L (RTJ)
457
533
610
686
686
762
762
864
914
914
1067
1295
1524
502
568
648
762
762
838
838
914
991
991
1143
1397
1727
L (BW)
470
546
622
699
699
775
775
876
927
927
1080
-
-
518
584
664
778
778
854
854
930
1010
1010
1165
1422
1756
225
258
310
310
350
350
382
421
421
468
510
592
723
225
258
310
310
350
350
382
421
421
468
510
592
723
WE
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
RF
Class 150 - 300 BFW2RBRF/FW2RBBW
150
201
252
252
303
303
334
385
385
436
487
589
735
150
201
252
252
303
303
334
385
385
436
487
589
735
d
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r

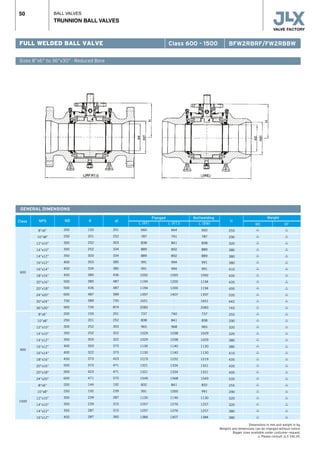

50. BALL VALVES
TRUNNION BALL VALVES
50
FULL WELDED BALL VALVE
Sizes 8”x6” to 36”x30” · Reduced Bore
Class 600 - 1500 BFW2RBRF/FW2RBBW
GENERAL DIMENSIONS
Class NPS ND
Flanged Buttwelding
d1
Weight
H
Dimensions in mm and weight in kg.
Weights and dimensions can be changed without notice.
Bigger sizes available under costumer request.
r Please consult JLX VALVE.
WE RF
d
600
900
1500
8”x6”
10”x8”
12”x10”
14”x10”
14”x12”
16”x12”
16”x14”
18”x16”
20”x16”
20”x18”
24”x20”
30”x24”
36”x30”
8”x6”
10”x8”
12”x10”
14”x10”
14”x12”
16”x12”
16”x14”
18”x16”
20”x16”
20”x18”
24”x20”
8”x6”
10”x8”
12”x10”
14”x10”
14”x12”
16”x12”
200
250
300
350
350
400
400
450
500
500
600
750
900
200
250
300
350
350
400
400
450
500
500
600
200
250
300
350
350
400
150
201
252
252
303
303
334
385
385
436
487
589
735
150
201
252
252
303
303
322
373
373
423
471
144
192
239
239
287
287
201
252
303
334
334
385
385
436
487
487
589
735
874
201
252
303
322
322
373
373
423
471
471
570
192
239
287
315
315
360
L (RF)
660
787
838
889
889
991
991
1092
1194
1194
1397
1651
2083
737
838
965
1029
1029
1130
1130
1219
1321
1321
1549
832
991
1130
1257
1257
1384
L (RTJ)
664
791
841
892
892
994
994
1095
1200
1200
1407
-
-
740
841
968
1038
1038
1140
1140
1232
1334
1334
1568
841
1000
1146
1276
1276
1407
L (BW)
660
787
838
889
889
991
991
1092
1194
1194
1397
1651
2083
737
838
965
1029
1029
1130
1130
1219
1321
1321
1549
832
991
1130
1257
1257
1384
255
290
320
380
380
380
410
435
435
495
535
642
745
255
290
320
320
380
380
410
435
435
495
535
255
290
320
320
380
380
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r

51. BALL VALVES
TRUNNION BALL VALVES
www.jlx-valve.com 51
NOTES

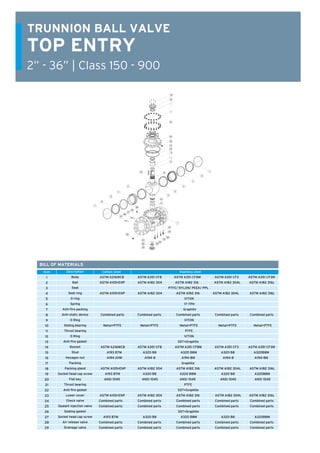

52. TOP ENTRY
2” - 36” | Class 150 - 900
TRUNNION BALL VALVE
BILL OF MATERIALS
Carbon steel Stainless steelItem
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
ASTM A216WCB ASTM A351 CF8 ASTM A351 CF8M ASTM A351 CF3 ASTM A351 CF3M
ASTM A105•ENP ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
PTFE/ NYLON/ PEEK/ PPL
ASTM A105•ENP ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
VITON
17-7PH
Graphite
Combined parts Combined parts Combined parts Combined parts Combined parts
VITON
Metal+PTFE Metal+PTFE Metal+PTFE Metal+PTFE Metal+PTFE
PTFE
VITON
SST+Graphite
ASTM A216WCB ASTM A351 CF8 ASTM A351 CF8M ASTM A351 CF3 ASTM A351 CF3M
A193 B7M A320 B8 A320 B8M A320 B8 A320B8M
A194 2HM A194-8 A194-8M A194-8 A194-8M
Graphite
ASTM A105•ENP ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
A193 B7M A320 B8 A320 B8M A320 B8 A320B8M
ANSI 1045 ANSI 1045 ANSI 1045 ANSI 1045 ANSI 1045
PTFE
SST+Graphite
ASTM A105•ENP ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
Combined parts Combined parts Combined parts Combined parts Combined parts
Combined parts Combined parts Combined parts Combined parts Combined parts
SST+Graphite
A193 B7M A320 B8 A320 B8M A320 B8 A320B8M
Combined parts Combined parts Combined parts Combined parts Combined parts
Combined parts Combined parts Combined parts Combined parts Combined parts
Description
Body
Ball
Seat
Seat ring
0 ring
Spring
Anti-fire packing
Anti-static device
O Ring
Sliding bearing
Thrust bearing
O Ring
Anti-fire gasket
Bonnet
Stud
Hexagon nut
Packing
Packing gland
Socket head cap screw
Flat key
Thrust bearing
Anti-fire gasket
Lower cover
Check valve
Sealant injection valve
Sealing gasket
Socket head cap screw
Air release valve
Drainage valve

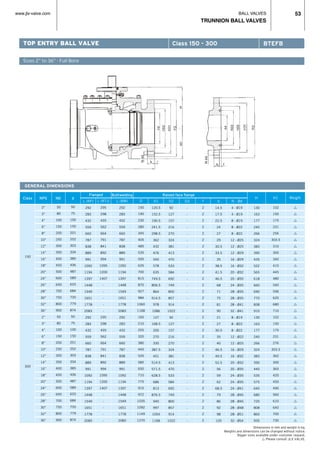

53. BALL VALVES
TRUNNION BALL VALVES
www.jlx-valve.com 53
GENERAL DIMENSIONS
Dimensions in mm and weight in kg.
Weights and dimensions can be changed without notice.
Bigger sizes available under costumer request.
r Please consult JLX VALVE.
Class NPS ND
Flanged Buttwelding Raised face flange
d WeightH1H
TOP ENTRY BALL VALVE
Sizes 2” to 36” · Full Bore
Class 150 - 300 BTEFB
150
300
50
80
100
150
200
250
300
350
400
450
500
600
650
700
750
800
900
50
80
100
150
200
250
300
350
400
450
500
600
650
700
750
800
900
50
75
100
150
201
252
303
334
385
436
487
589
633
684
735
779
874
50
75
100
150
201
252
303
334
385
436
487
589
633
684
735
779
874
L (RF)
292
283
432
559
660
787
838
889
991
1092
1194
1397
1448
1549
1651
1778
2083
292
283
432
559
660
787
838
889
991
1092
1194
1397
1448
1549
1651
1778
2083
102
150
175
231
256
303.5
310
300
340
410
445
480
540
596
620
680
710
102
150
175
231
276
303.5
362
300
365
420
450
490
560
610
640
700
730
2”
3”
4”
6”
8”
10”
12”
14”
16”
18”
20”
24”
26”
28”
30”
32”
36”
2”
3”
4”
6”
8”
10”
12”
14”
16”
18”
20”
24”
26”
28”
30”
32”
36”
L (RTJ)
295
298
435
562
664
791
841
892
994
1095
1200
1407
-
-
-
-
-
295
298
435
562
664
791
841
892
994
1095
1200
1407
-
-
-
-
-
L (BW)
292
283
432
559
660
787
838
889
991
1092
1194
1397
1448
1549
1651
1778
2083
292
283
432
559
660
787
838
889
991
1092
1194
1397
1448
1549
1651
1778
2083
D
150
190
230
280
345
405
485
535
595
635
700
815
870
927
984
1060
1168
165
210
255
320
380
445
520
585
650
710
775
915
972
1035
1092
1149
1270
D1
120.5
152.5
190.5
241.5
298.5
362
432
476
540
578
635
749.5
806.5
864
914.5
978
1086
127
168.5
200
270
330
387.5
451
514.5
571.5
628.5
686
813
876.5
940
997
1054
1168
D2
92
127
157
216
270
324
381
413
470
533
584
692
749
800
857
914
1022
92
127
157
216
270
324
381
413
470
533
584
692
749
800
857
914
1022
D3
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
f
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
b
14.5
17.5
22.5
24
27
29
30.5
33.5
35
38.5
41.5
46.5
68
71
75
81
90
21
27
30.5
35
40
46.5
49.5
52.5
56
59
62
68.5
79
86
92
98
105
N - Ød
4 - Ø19
4 - Ø19
8 - Ø19
8 - Ø22
8 - Ø22
12 - Ø25
12 - Ø25
12 - Ø29
16 - Ø29
16 - Ø32
20 - Ø32
20 - Ø35
24 - Ø35
28 - Ø35
28 - Ø35
28 - Ø41
32 - Ø41
8 - Ø19
8 - Ø22
8 - Ø22
12 - Ø22
12 - Ø25
16 - Ø29
16 - Ø32
20 - Ø32
20 - Ø35
24 - Ø35
24 - Ø35
24 - Ø41
28 - Ø45
28 - Ø45
28 - Ø48
28- Ø51
32 - Ø54
130
163
177
240
266
324
383
390
435
522
565
618
660
690
770
838
910
130
163
177
240
266
324
383
390
440
535
575
640
680
720
808
860
935
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r

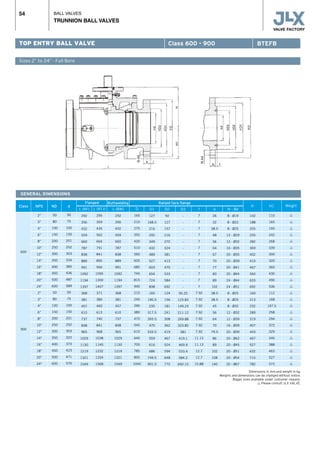

54. BALL VALVES
TRUNNION BALL VALVES
54
GENERAL DIMENSIONS
Class NPS ND
Flanged Buttwelding Raised face flange
d WeightH1H
TOP ENTRY BALL VALVE
Sizes 2” to 24” · Full Bore
Class 600 - 900 BTEFB
600
900
50
80
100
150
200
250
300
350
400
450
500
600
50
80
100
150
200
250
300
350
400
450
500
600
50
75
100
150
201
252
303
334
385
436
487
589
50
75
100
150
201
252
303
322
373
423
471
570
L (RF)
292
356
432
559
660
787
838
889
991
1092
1194
1397
368
381
457
610
737
838
965
1029
1130
1219
1321
1549
110
165
193
242
268
339
300
320
360
430
490
536
112
168
197.5
258
294
372
329
345
388
463
527
573
2”
3”
4”
6”
8”
10”
12”
14”
16”
18”
20”
24”
2”
3”
4”
6”
8”
10”
12”
14”
16”
18”
20”
24”
L (RTJ)
295
359
435
562
664
791
841
892
994
1095
1200
1407
371
384
460
613
740
841
968
1038
1140
1232
1334
1568
L (BW)
292
356
432
559
660
787
838
889
991
1092
1194
1397
368
381
457
610
737
838
965
1029
1130
1219
1321
1549
D
165
210
275
355
420
510
560
605
685
745
815
940
215
240
290
380
470
545
610
640
705
785
855
1040
D1
127
168.5
216
292
349
432
489
527
603
654
724
838
165
190.5
235
317.5
393.5
470
533.5
559
616
686
749.5
901.5
D2
92
127
157
216
270
324
381
413
470
533
584
692
124
156
181
241
308
362
419
467
524
594
648
772
D3
-
-
-
-
-
-
-
-
-
-
-
-
95.25
123.83
149.23
211.12
269.88
323.85
381
419.1
469.9
533.4
584.2
692.15
f
7
7
7
7
7
7
7
7
7
7
7
7
7.92
7.92
7.92
7.92
7.92
7.92
7.92
11.13
11.13
12.7
12.7
15.88
b
26
32
38.5
48
56
64
67
70
77
83
89
102
38.5
38.5
45
56
64
70
79.5
86
89
102
108
140
N - Ød
8 - Ø19
8 - Ø22
8 - Ø25
12 - Ø29
12 - Ø32
16 - Ø35
20 - Ø35
20 - Ø39
20 - Ø41
20 - Ø44
24 - Ø44
24 - Ø51
8 - Ø25
8 - Ø25
8 - Ø32
12 - Ø32
12 - Ø39
16 - Ø39
20 - Ø39
20 - Ø42
20 - Ø45
20 - Ø51
20 - Ø54
20 - Ø67
142
188
205
255
282
369
402
410
467
560
633
692
160
213
232
289
319
407
443
467
527
632
715
782
Dimensions in mm and weight in kg.
Weights and dimensions can be changed without notice.
Bigger sizes available under costumer request.
r Please consult JLX VALVE.
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r

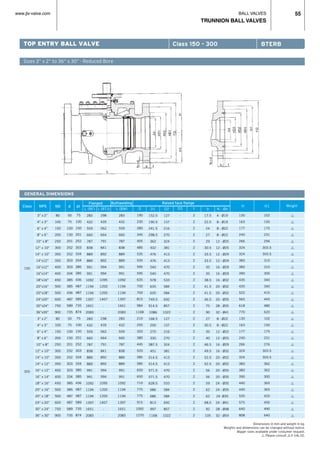

55. BALL VALVES
TRUNNION BALL VALVES
www.jlx-valve.com 55
GENERAL DIMENSIONS
Class NPS ND
Flanged Buttwelding Raised face flange
d H Weight
L (RTJ)
298
435
562
664
791
841
892
892
994
994
1095
1200
1200
1407
-
-
298
435
562
664
791
841
892
892
994
994
1095
1200
1200
1407
-
-
H1
150
300
3” x 2”
4” x 3”
6” x 4”
8” x 6”
10” x 8”
12” x 10”
14” x 10”
14”x12”
16”x12”
16”x14”
18”x16”
20”x16”
20”x18”
24”x20”
30”x24”
36”x30”
3” x 2”
4” x 3”
6” x 4”
8” x 6”
10” x 8”
12” x 10”
14” x 10”
14” x 12”
16” x 12”
16” x 14”
18” x 16”
20” x 16”
20” x 18”
24” x 20”
30” x 24”
36” x 30”
80
100
150
200
250
300
350
350
400
400
450
500
500
600
750
900
80
100
150
200
250
300
350
350
400
400
450
500
500
600
750
900
50
75
100
150
201
252
252
303
303
334
385
385
436
487
589
735
50
75
100
150
201
252
252
303
303
334
385
385
487
487
589
735
L (RF)
283
432
559
660
787
838
889
889
991
991
1092
1194
1194
1397
1651
2083
283
432
559
660
787
838
889
889
991
991
1092
1194
1194
1397
1651
2083
L (BW)
283
432
559
660
787
838
889
889
991
991
1092
1194
1194
1397
1651
2083
283
432
559
660
787
838
889
889
991
991
1092
1194
1194
1397
1651
2083
D
190
230
280
345
405
485
535
535
595
595
635
700
700
815
984
1168
210
255
320
380
445
520
585
585
650
650
710
775
775
915
1092
1270
D1
152.5
190.5
241.5
298.5
362
432
476
476
540
540
578
635
635
749.5
914.5
1086
168.5
200
270
330
387.5
451
514.5
514.5
571.5
571.5
628.5
686
686
813
997
1168
D2
127
157
216
270
324
381
413
413
470
470
533
584
584
692
857
1022
127
157
216
270
324
381
413
413
470
470
533
584
584
692
857
1022
D3
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
f
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
b
17.5
22.5
24
27
29
30.5
33.5
33.5
35
35
38.5
41.5
41.5
46.5
75
90
27
30.5
35
40
46.5
49.5
52.5
52.5
56
56
59
62
62
68.5
92
105
N - Ød
4 - Ø19
8 - Ø19
8 - Ø22
8 - Ø22
12 - Ø25
12 - Ø25
12 - Ø29
12 - Ø29
16 - Ø29
16 - Ø29
16 - Ø32
20 - Ø32
20 - Ø32
20 - Ø35
28 - Ø35
32 - Ø41
8 - Ø22
8 - Ø22
12 - Ø22
12 - Ø25
16 - Ø29
16 - Ø32
20 - Ø32
20 - Ø32
20 - Ø35
20 - Ø35
24 - Ø35
24 - Ø35
24 -Ø35
24 - Ø41
28 - Ø48
32 - Ø54
130
163
177
240
266
324
324
383
383
390
435
435
522
565
618
770
130
163
177
240
266
324
324
383
383
390
440
440
535
575
640
808
102
150
175
231
256
303.5
303.5
310
310
300
340
340
410
445
480
620
102
150
175
231
276
303.5
303.5
362
362
300
365
365
420
450
490
640
d1
75
100
150
201
252
303
334
334
385
385
436
487
487
589
735
874
75
100
150
201
252
303
334
334
385
385
436
487
487
589
735
874
TOP ENTRY BALL VALVE
Sizes 3” x 2” to 36” x 30” · Reduced Bore
Class 150 - 300 BTERB
Dimensions in mm and weight in kg.
Weights and dimensions can be changed without notice.
Bigger sizes available under costumer request.
r Please consult JLX VALVE.
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r

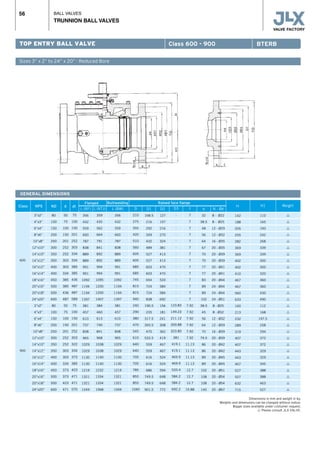

56. BALL VALVES
TRUNNION BALL VALVES
56
GENERAL DIMENSIONS
Class NPS ND
Flanged Buttwelding Raised face flange
d H Weight
L (RTJ)
359
435
562
664
791
841
892
892
994
994
1095
1200
1200
1407
384
460
613
740
841
968
1038
1038
1140
1140
1232
1334
1334
1568
H1
3”x2”
4”x3”
6”x4”
8”x6”
10”x8”
12”x10”
14”x10”
14”x12”
16”x12”
16”x14”
18”x16”
20”x16”
20”x18”
24”x20”
3”x2”
4”x3”
6”x4”
8”x6”
10”x8”
12”x10”
14”x10”
14”x12”
16”x12”
16”x14”
18”x16”
20”x16”
20”x18”
24”x20”
80
100
150
200
250
300
350
350
400
400
450
500
500
600
80
100
150
200
250
300
350
350
400
400
450
500
500
600
50
75
100
150
201
252
252
303
303
334
385
385
436
487
50
75
100
150
201
252
252
303
303
334
373
373
423
471
L (RF)
356
432
559
660
787
838
889
889
991
991
1092
1194
1194
1397
381
457
610
737
838
965
1029
1029
1130
1130
1219
1321
1321
1549
L (BW)
356
432
559
660
787
838
889
889
991
991
1092
1194
1194
1397
381
457
610
737
838
965
1029
1029
1130
1130
1219
1321
1321
1549
D
210
275
355
420
510
560
605
605
685
685
745
815
815
940
240
290
380
470
545
610
640
640
705
705
785
855
855
1040
D1
168.5
216
292
349
432
489
527
527
603
603
654
724
724
838
190.5
235
317.5
393.5
470
533.5
559
559
616
616
686
749.5
749.5
901.5
D2
127
157
216
270
324
381
413
413
470
470
533
584
584
692
156
181
241
308
362
419
467
467
524
524
594
648
648
772
D3
-
-
-
-
-
-
-
-
-
-
-
-
-
-
123.83
149.23
211.12
269.88
323.85
381
419.1
419.1
469.9
469.9
533.4
584.2
584.2
692.2
f
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7.92
7.92
7.92
7.92
7.92
7.92
11.13
11.13
11.13
11.13
12.7
12.7
12.7
15.88
b
32
38.5
48
56
64
67
70
70
77
77
83
89
89
102
38.5
45
56
64
70
79.5
86
86
89
89
102
108
108
140
N - Ød
8 - Ø22
8 - Ø25
12 - Ø29
12 - Ø32
16 - Ø35
20 - Ø35
20 - Ø39
20 - Ø39
20 - Ø41
20 - Ø41
20 - Ø44
24 - Ø44
24 - Ø44
24 - Ø51
8 - Ø25
8 - Ø32
12 - Ø32
12 - Ø39
16 - Ø39
20 - Ø39
20 - Ø42
20 - Ø42
20 - Ø45
20 - Ø45
20 - Ø51
20 - Ø54
20 - Ø54
20 - Ø67
142
188
205
255
282
369
369
402
402
410
467
467
560
633
160
213
232
289
319
407
407
443
443
467
527
527
632
715
110
165
193
242
268
339
339
300
300
320
360
360
430
490
112
168
197.5
258
294
372
372
329
329
345
388
388
463
527
d1
75
100
150
201
252
303
334
334
385
385
436
487
487
589
75
100
150
201
252
303
322
334
373
385
423
471
471
570
TOP ENTRY BALL VALVE
Sizes 3” x 2” to 24” x 20” · Reduced Bore
Class 600 - 900 BTERB
Dimensions in mm and weight in kg.
Weights and dimensions can be changed without notice.
Bigger sizes available under costumer request.
r Please consult JLX VALVE.
600
900
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r

57. BALL VALVES
TRUNNION BALL VALVES
www.jlx-valve.com 57
NOTES

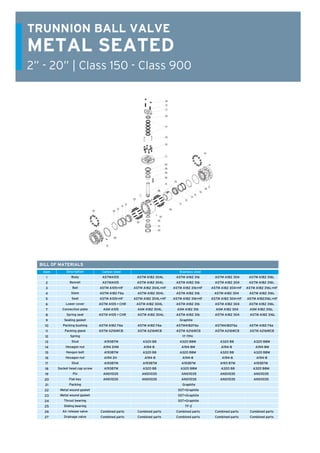

58. METAL SEATED
2” - 20” | Class 150 - Class 900
TRUNNION BALL VALVE
BILL OF MATERIALS
Carbon steel Stainless steelItem
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
ASTMA105 ASTM A182 304L ASTM A182 316 ASTM A182 304 ASTM A182 316L
ASTMA105 ASTM A182 304L ASTM A182 316 ASTM A182 304 ASTM A182 316L
ASTM A105+HF ASTM A182 304L+HF ASTM A182 316+HF ASTM A182 304+HF ASTM A182 316L+HF
ASTM A182 F6a ASTM A182 304L ASTM A182 316 ASTM A182 304 ASTM A182 316L
ASTM A105+HF ASTM A182 304L+HF ASTM A182 316+HF ASTM A182 304+HF ASTM A182316L+HF
ASTM A105 • CHR ASTM A182 304L ASTM A182 316 ASTM A182 304 ASTM A182 316L
ASM A105 ASM A182 304L ASM A182 316 ASM A182 304 ASM A182 316L
ASTM A105 • CHR ASTM A182 304L ASTM A182 316 ASTM A182 304 ASTM A182 316L
Graphite
ASTM A182 F6a ASTM A182 F6a ASTMA182F6a ASTMA182F6a ASTM A182 F6a
ASTM A216WCB ASTM A216WCB ASTM A216WCB ASTM A216WCB ASTM A216WCB
17-7PH
A193B7M A320 B8 A320 B8M A320 B8 A320 B8M
A194 2HM A194-8 A194-8M A194-8 A194-8M
A193B7M A320 B8 A320 B8M A320 B8 A320 B8M
A194 2H A194-8 A194-8 A194-8 A194-8
A193B7M A193B7M A193B7M A193 B7M A193B7M
A193B7M A320 B8 A320 B8M A320 B8 A320 B8M
ANS11035 ANS11035 ANS11035 ANS11035 ANS11035
ANS11035 ANS11035 ANS11035 ANS11035 ANS11035
Graphite
SST+Graphite
SST+Graphite
SST+Graphite
TF-2
Combined parts Combined parts Combined parts Combined parts Combined parts
Combined parts Combined parts Combined parts Combined parts Combined parts
Description
Body
Bonnet
Ball
Stem
Seat
Lower cover
Connection plate
Spring seat
Sealing gasket
Packing bushing
Packing gland
Spring
Stud
Hexagon nut
Hexgon bolt
Hexagon nut
Stud
Socket head cap screw
Pin
Flat key
Packing
Metal wound gasket
Metal wound gasket
Thrust bearing
Sliding bearing
Air release valve
Drainage valve

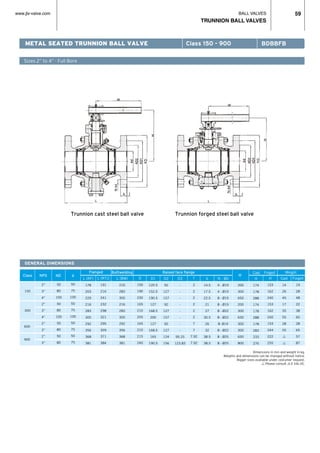

59. BALL VALVES
TRUNNION BALL VALVES
www.jlx-valve.com 59
Sizes 2” to 4” · Full Bore
METAL SEATED TRUNNION BALL VALVE Class 150 - 900 BDBBFB
GENERAL DIMENSIONS
Dimensions in mm and weight in kg.
Weights and dimensions can be changed without notice.
Bigger sizes available under costumer request.
r Please consult JLX VALVE.
Class NPS ND
Flanged Buttwelding Raised face flange
d
WeightCast
W
150
300
2”
3”
4”
2”
3”
4”
2”
3”
2”
3”
50
80
100
50
80
100
50
80
50
80
50
75
100
50
75
100
50
75
50
75
L (RF)
178
203
229
216
283
305
292
356
368
381
L (RTJ)
191
216
241
232
298
321
295
359
371
384
L (BW)
216
283
305
216
283
305
292
356
368
381
D
150
190
230
165
210
255
165
210
215
240
D1
120.5
152.5
190.5
127
168.5
200
127
168.5
165
190.5
D2
92
127
157
92
127
157
92
127
124
156
D3
-
-
-
-
-
-
-
-
95.25
123.83
f
2
2
2
2
2
2
7
7
7.92
7.92
b
14.5
17.5
22.5
21
27
30.5
26
32
38.5
38.5
N - Ød
4 - Ø19
4 - Ø19
8 - Ø19
8 - Ø19
8 - Ø22
8 - Ø22
8- Ø19
8 - Ø22
8 - Ø25
8 - Ø25
200
300
650
200
300
650
300
300
650
800
Trunnion cast steel ball valve Trunnion forged steel ball valve
600
900
Forged
H
174
178
288
174
178
288
178
283
233
276
H
153
162
240
153
162
240
153
244
222
255
Cast
14
26
45
17
35
55
28
55
r
r
Forged
19
28
48
22
38
60
28
65
57
87

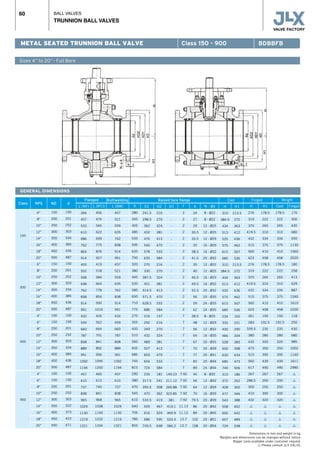

60. BALL VALVES
TRUNNION BALL VALVES
60
Sizes 4” to 20” · Full Bore
METAL SEATED TRUNNION BALL VALVE Class 150 - 900 BDBBFB
GENERAL DIMENSIONS
Dimensions in mm and weight in kg.
Weights and dimensions can be changed without notice.
Bigger sizes available under costumer request.
r Please consult JLX VALVE.
Class NPS ND
Flanged Buttwelding Raised face flange
d
WeightCast Forged
150
300
600
900
6”
8”
10”
12”
14”
16”
18”
20”
6”
8”
10”
12”
14”
16”
18”
20”
4”
6”
8”
10”
12”
14”
16”
18”
20”
4”
6”
8”
10”
12”
14”
16”
18”
20”
150
200
250
300
350
400
450
500
150
200
250
300
350
400
450
500
100
150
200
250
300
350
400
450
500
100
150
200
250
300
350
400
450
500
150
201
252
303
334
385
436
487
150
201
252
303
334
385
436
487
100
150
201
252
303
334
385
436
487
100
150
201
252
303
322
373
423
471
L (RF)
394
457
533
610
686
762
864
914
403
502
568
648
762
838
914
991
432
559
660
787
838
889
991
1092
1194
457
610
737
838
965
1029
1130
1219
1321
L (RTJ)
406
470
546
622
699
775
876
927
419
518
584
664
778
854
930
1010
435
562
664
791
841
892
994
1095
1200
460
613
740
841
968
1038
1140
1232
1334
L (BW)
457
521
559
635
762
838
914
991
457
521
559
635
762
838
914
991
432
559
660
787
838
889
991
1092
1194
457
610
737
838
965
1029
1130
1219
1321
D
280
345
405
485
535
595
635
700
320
380
445
520
585
650
710
775
275
355
420
510
560
605
685
745
815
290
380
470
545
610
640
705
785
855
D1
241.5
298.5
362
432
476
540
578
635
270
330
387.5
451
514.5
571.5
628.5
686
216
292
349
432
489
527
603
654
724
235
317.5
393.5
470
533.5
559
616
686
749.5
D2
216
270
324
381
413
470
533
584
216
270
324
381
413
470
533
584
157
216
270
324
381
413
470
533
584
181
241
308
362
419
467
524
595
648
D3
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
149.23
211.12
269.88
323.85
381
419.1
469.9
533.4
584.2
f
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
7
7
7
7
7
7
7
7
7
7.92
7.92
7.92
7.92
7.92
11.13
11.13
12.7
12.7
b
24
27
29
30.5
33.5
35
38.5
41.5
35
40
46.5
49.5
52.5
56
59
62
38.5
48
56
64
67
70
77
83
89
45
56
64
70
79.5
86
89
102
108
N - Ød
8 - Ø22
8 - Ø22
12 - Ø25
12 - Ø25
12 - Ø29
16 - Ø29
16 - Ø32
20 - Ø32
12 - Ø22
12 - Ø25
16 - Ø29
16 - Ø32
20 - Ø32
20 - Ø35
24 - Ø35
24 - Ø35
8 - Ø25
12 - Ø29
12 - Ø32
16 - Ø35
20 - Ø35
20 - Ø39
20 - Ø41
20 - Ø44
24 - Ø44
8 - Ø32
12 - Ø32
12 - Ø39
16 - Ø39
20 - Ø39
20 - Ø42
20 - Ø45
20 - Ø51
20 - Ø54
H
310
384.5
434
513
535
575
615
685
310
384.5
434
513
535
575
615
685
234
335
430
466
528
600
630
685
740
310
372
428
477
543
558
605
657
729
H
276
319
370
419.5
432
515
560
623
276
319
370
419.5
432
515
560
623
261
283
339.5
380
432
473
515
560
617
267
288.5
300
410
432
r
r
r
r
H1
178.5
222
265
310
334
375
410
458
178.5
222
265
310
334
375
410
458
150
192.5
235
280
320
350
395
439
490
267
200
250
300
320
r
r
r
r
Cast
178.5
222
265
310
334
375
410
458
178.5
222
265
310
334
375
410
458
150
192.5
235
280
320
350
395
439
490
267
200
250
300
320
r
r
r
r
H1
213.5
272
363
412
436
462
507
536
213.5
272
363
412
436
462
507
536
165
251
290
334
383
398
434
473
506
186
262
300
346
388
402
442
489
538
Forged
170
300
430
680
930
1130
1560
2020
180
258
413
629
887
1340
1610
2200
118
250
430
680
985
1002
1160
1611
2985
r
r
r
r
r
r
r
r
r

61. BALL VALVES
TRUNNION BALL VALVES
www.jlx-valve.com 61
NOTES

62. BALL VALVES
TRUNNION BALL VALVES
62

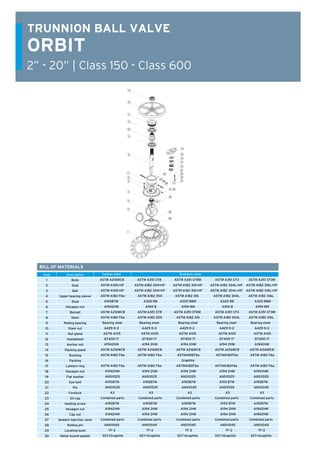

BILL OF MATERIALS
Carbon steel Stainless steel
ASTM A216WCB ASTM A351 CF8 ASTM A351 CF8M ASTM A351 CF3 ASTM A351 CF3M
ASTM A105+HF ASTM A182 304+HF ASTM A182 316+HF ASTM A182 304L+HF ASTM A182 316L+HF
ASTM A105+HF ASTM A182 304+HF ASTM A182 316+HF ASTM A182 304L+HF ASTM A182 316L+HF
ASTM A182 F6a ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
A193B7M A320 B8 A320 B8M A320 B8 A320 B8M
A1942HM A194-8 A194-8M A194-8 A194-8M
ASTM A216WCB ASTM A351 CF8 ASTM A351 CF8M ASTM A351 CF3 ASTM A351 CF3M
ASTM A182 F6a ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
Bearing steel Bearing steel Bearing steel Bearing steel Bearing steel
A429 D-2 A429 D-2 A429 D-2 A429 D-2 A429 D-2
ASTM A105 ASTM A105 ASTM A105 ASTM A105 ASTM A105
QT400-17 QT400-17 QT400-17 QT400-17 QT400-17
A1942HM A194 2HM A194 2HM A194 2HM A1942HM
ASTM A216WCB ASTM A216WCB ASTM A216WCB ASTM A216WCB ASTM A216WCB
ASTM A182 F6a ASTM A182 F6a ASTMA182F6a ASTMA182F6a ASTM A182 F6a
Graphite
ASTM A182 F6a ASTM A182 F6a ASTMA182F6a ASTMA182F6a ASTM A182 F6a
A1942HM A194 2HM A194 2HM A194 2HM A1942HM
ANS11025 ANS11025 ANS11025 ANS11025 ANS11025
A193B7M A193B7M A193B7M A193 B7M A193B7M
ANS11035 ANS11035 ANS11035 ANS11035 ANS11035
A3 A3 A3 A3 A3
Combined parts Combined parts Combined parts Combined parts Combined parts
A193B7M A193B7M A193B7M A193 B7M A193B7M
A1942HM A194 2HM A194 2HM A194 2HM A1942HM
A1942HM A194 2HM A194 2HM A194 2HM A1942HM
Combined parts Combined parts Combined parts Combined parts Combined parts
ANS11045 ANS11045 ANS11045 ANS11045 ANS11045
TF-2 TF-2 TF-2 TF-2 TF-2
SST+Graphite SST+Graphite SST+Graphite SST+Graphite SST+Graphite
Description
Body
Seat
Ball
Upper bearing sleeve
Stud
Hexagon nut
Bonnet
Stem
Rolling bearing
Stem nut
Nut gland
Handwheel
Anchor nut
Packing gland
Bushing
Packing
Lantern ring
Hexagon nut
Flat washer
Eye bolt
Pin
Forelock
Oil cap
Holding screw
Hexagon nut
Cap nut
Sealant injection valve
Rolling pin
Locating bush
Metal wound gasket
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
ORBIT
2” - 20” | Class 150 - Class 600
TRUNNION BALL VALVE

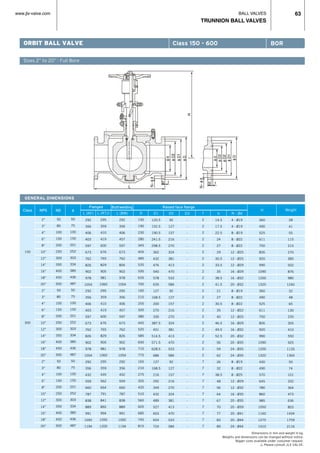

63. BALL VALVES
TRUNNION BALL VALVES
www.jlx-valve.com 63
GENERAL DIMENSIONS
Class NPS ND
Flanged Buttwelding Raised face flange
d WeightH
150
300
600
Dimensions in mm and weight in kg.
Weights and dimensions can be changed without notice.
Bigger sizes available under costumer request.
r Please consult JLX VALVE.
ORBIT BALL VALVE
Sizes 2” to 20” · Full Bore
Class 150 - 600 BOR
2”
3”
4”
6”
8”
10”
12”
14”
16”
18”
20”
2”
3”
4”
6”
8”
10”
12”
14”
16”
18”
20”
2”
3”
4”
6”
8”
10”
12”
14”
16”
18”
20”
50
80
100
150
200
250
300
350
400
450
500
50
80
100
150
200
250
300
350
400
450
500
50
80
100
150
200
250
300
350
400
450
500
50
75
100
150
201
252
303
334
385
436
487
50
75
100
150
201
252
303
334
385
436
487
50
75
100
150
201
252
303
334
385
436
487
L (RF)
292
356
406
403
597
673
762
826
902
978
1054
292
356
406
403
597
673
762
826
902
978
1054
292
356
432
559
660
787
838
889
991
1092
1194
L (RTJ)
295
359
410
419
600
676
765
829
905
981
1060
295
359
410
419
600
676
765
829
905
981
1060
295
359
435
562
664
791
841
892
994
1095
1200
L (BW)
292
356
406
457
597
673
762
826
902
978
1054
292
356
406
457
597
673
762
826
902
978
1054
292
356
432
559
660
787
838
889
991
1092
1194
D
150
190
230
280
345
405
485
535
595
635
700
160
210
255
320
380
445
520
585
650
710
775
165
210
275
355
420
510
560
605
685
745
815
D1
120.5
152.5
190.5
241.5
298.5
362
432
476
540
578
635
127
168.5
200
270
330
387.5
451
514.5
571.5
628.5
686
127
168.5
216
292
349
432
489
527
603
654
724
D2
92
127
157
216
270
324
381
413
470
533
584
92
127
157
216
270
324
381
413
470
533
584
92
127
157
216
270
324
381
413
470
533
584
D3
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
f
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
7
7
7
7
7
7
7
7
7
7
7
b
14.5
17.5
22.5
24
27
29
30.5
33.5
35
38.5
41.5
21
27
30.5
35
40
46.5
49.5
52.5
56
59
62
26
32
38.5
48
56
64
67
70
77
83
89
N - Ød
4 - Ø19
4 - Ø19
8 - Ø19
8 - Ø22
8 - Ø22
12 - Ø25
12 - Ø25
12 - Ø29
16 - Ø29
16 - Ø32
20 - Ø32
8 - Ø19
8 - Ø22
8 - Ø22
12 - Ø22
12 - Ø25
16 - Ø29
16 - Ø32
20 - Ø32
20 - Ø35
24 - Ø35
24 - Ø35
8 - Ø19
8 - Ø22
8 - Ø25
12 - Ø29
12 - Ø32
16 - Ø35
20 - Ø35
20 - Ø39
20 - Ø41
20 - Ø44
24 - Ø44
360
490
525
611
750
826
920
990
1090
1200
1320
360
490
525
611
750
826
920
990
1090
1200
1320
430
490
570
645
780
860
985
1050
1160
1275
1410
28
41
55
115
215
270
385
502
876
980
1240
32
48
65
130
235
305
410
550
925
1135
1365
50
74
101
202
364
473
636
853
1434
1759
2116

64. BALL VALVES
TRUNNION BALL VALVES
64

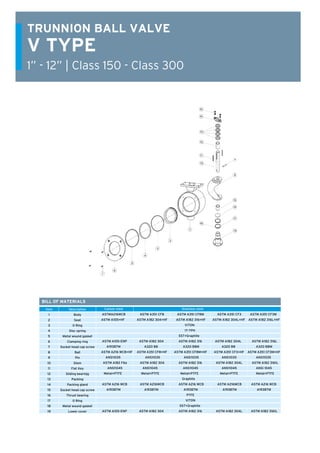

BILL OF MATERIALS
Carbon steel Stainless steel
V TYPE
1” - 12” | Class 150 - Class 300
TRUNNION BALL VALVE
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
Description
Body
Seat
0 Ring
Disc spring
Metal wound gasket
Clamping ring
Socket head cap screw
Ball
Pin
Stem
Flat Key
Sliding bearlnjg
Packing
Packing gland
Socket head cap screw
Thrust bearing
0 Ring
Metal wound gasket
Lower cover
ASTMA216WCB ASTM A351 CF8 ASTM A351 CF8M ASTM A351 CF3 ASTM A351 CF3M
ASTM A105+HF ASTM A182 304+HF ASTM A182 316+HF ASTM A182 304L+HF ASTM A182 316L+HF
VITON
17-7PH
SST+Graphite
ASTM A105-ENP ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
A193B7M A320 B8 A320 B8M A320 B8 A320 B8M
ASTM A216 WCB+HF ASTM A351 CF8+HF ASTM A351 CF8M+HF ASTM A351 CF3+HF ASTM A351 CF3M+HF
ANS11035 ANS11035 ANS11035 ANS11035 ANS11035
ASTM A182 F6a ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 3161L
ANS11045 ANS11045 ANS11045 ANS11045 ANSI 1045
Metal+PTFE Metal+PTFE Metal+PTFE Metal+PTFE Metal+PTFE
Graphite
ASTM A216 WCB ASTM A216WCB ASTM A216 WCB ASTM A216WCB ASTM A216 WCB
A193B7M A193B7M A193B7M A193B7M A193B7M
PTFE
VITON
SST+Graphite
ASTM A105-ENP ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 3161L

65. BALL VALVES
TRUNNION BALL VALVES
www.jlx-valve.com 65

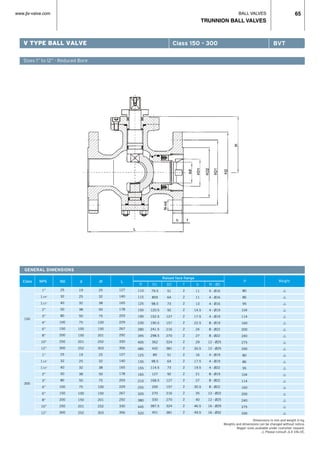

GENERAL DIMENSIONS
Class NPS ND d1
Raised face flange
d WeightH
Dimensions in mm and weight in kg.
Weights and dimensions can be changed without notice.
Bigger sizes available under costumer request.
r Please consult JLX VALVE.
150
300
1”
11/4”
11/2”
2”
3”
4”
6”
8”
10”
12”
1”
11/4”
11/2”
2”
3”
4”
6”
8”
10”
12”
25
32
40
50
80
100
150
200
250
300
25
32
40
50
80
100
150
200
250
300
19
25
32
38
50
75
100
150
201
252
19
25
32
38
50
75
100
150
201
252
L
80
86
95
104
114
160
200
240
275
330
80
86
95
104
114
160
200
240
275
330
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
25
32
38
50
75
100
150
201
252
303
25
32
38
50
75
100
150
201
252
303
127
140
165
178
203
229
267
292
330
356
127
140
165
178
203
229
267
292
330
356
D
110
115
125
150
190
230
280
345
405
485
125
135
155
165
210
255
320
380
445
520
D1
79.5
859
98.5
120.5
152.5
190.5
241.5
298.5
362
432
89
98.5
114.5
127
168.5
200
270
330
387.5
451
D2
51
64
73
92
127
157
216
270
324
381
51
64
73
92
127
157
216
270
324
381
f
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
b
11
11
13
14.5
17.5
22.5
24
27
29
30.5
16
17.5
19.5
21
27
30.5
35
40
46.5
49.5
N - Ød
4 - Ø16
4 - Ø16
4 - Ø16
4 - Ø19
4 - Ø19
8 - Ø19
8 - Ø22
8 - Ø22
12 - Ø25
12 - Ø25
4 - Ø19
4 - Ø19
4 - Ø22
8 - Ø19
8 - Ø22
8 - Ø22
12 - Ø22
12 - Ø25
16 - Ø29
16 - Ø32
V TYPE BALL VALVE
Sizes 1” to 12” · Reduced Bore
Class 150 - 300 BVT

66. BALL VALVES
TRUNNION BALL VALVES
66

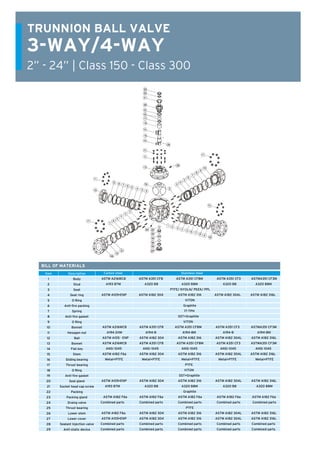

3-WAY/4-WAY
2” - 24” | Class 150 - Class 300
TRUNNION BALL VALVE
BILL OF MATERIALS
Carbon steel Stainless steel
ASTM A216WCB ASTM A351 CF8 ASTM A351 CF8M ASTM A351 CF3 ASTMA351 CF3M
A193 B7M A320 B8 A320 B8M A320 B8 A320 B8M
PTFE/ NYOLN/ PEEK/ PPL
ASTM A105•ENP ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
VITON
Graphite
17-7PH
SST+Graphite
VITON
ASTM A216WCB ASTM A351 CF8 ASTM A351 CF8M ASTM A351 CF3 ASTMA351 CF3M
A194 2HM A194-8 A194-8M A194-8 A194-8M
ASTM A105 · ENP ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
ASTM A216WCB ASTM A351 CF8 ASTM A351 CF8M ASTM A351 CF3 ASTMA351 CF3M
ANSI 1045 ANSI 1045 ANSI 1045 ANSI 1045 ANSI 1045
ASTM A182 F6a ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
Metal+PTFE Metal+PTFE Metal+PTFE Metal+PTFE Metal+PTFE
PTFE
VITON
SST+Graphite
ASTM A105•ENP ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
A193 B7M A320 B8 A320 B8M A320 B8 A320 B8M
Graphite
ASTM A182 F6a ASTM A182 F6a ASTM A182 F6a ASTM A182 F6a ASTM A182 F6a
Combined parts Combined parts Combined parts Combined parts Combined parts
PTFE
ASTM A182 F6a ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
ASTM A105•ENP ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
Combined parts Combined parts Combined parts Combined parts Combined parts
Combined parts Combined parts Combined parts Combined parts Combined parts
Description
Body
Stud
Seat
Seat ring
0 Ring
Anti-fire packing
Spring
Anti-fire gasket
0 Ring
Bonnet
Hexagon nut
Ball
Bonnet
Flat key
Stem
Sliding bearing
Thrust bearing
0 Ring
Anti-fire gasket
Seal gland
Socket head cap screw
Packing
Packing gland
Draing valve
Thrust bearing
Lower stem
Lower cover
Sealant Injection valve
Anti-static device
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

67. BALL VALVES
TRUNNION BALL VALVES
www.jlx-valve.com 67

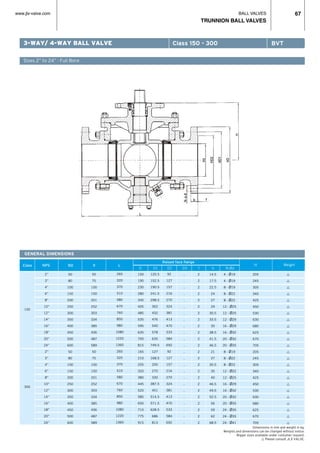

GENERAL DIMENSIONS
Class NPS ND
Raised face flange
d WeightH
Dimensions in mm and weight in kg.
Weights and dimensions can be changed without notice.
Bigger sizes available under costumer request.
r Please consult JLX VALVE.
L
3-WAY/ 4-WAY BALL VALVE
Sizes 2” to 24” · Full Bore
Class 150 - 300 BVT
2”
3”
4”
6”
8”
10”
12”
14”
16”
18”
20”
24”
2”
3”
4”
6”
8”
10”
12”
14”
16”
18”
20”
24”
150
300
50
75
100
150
201
252
303
334
385
436
487
589
50
75
100
150
201
252
303
334
385
436
487
589
50
80
100
150
200
250
300
350
400
450
500
600
50
80
100
150
200
250
300
350
400
450
500
600
260
320
370
510
580
670
760
850
980
1080
1220
1360
260
320
370
510
580
670
760
850
980
1080
1220
1360
150
190
230
280
345
405
485
535
595
635
700
815
165
210
255
320
380
445
520
585
650
710
775
915
120.5
152.5
190.5
241.5
298.5
362
432
476
540
578
635
749.5
127
168.5
200
270
330
387.5
451
514.5
571.5
628.5
686
813
92
127
157
216
270
324
381
413
470
533
584
692
92
127
157
216
270
324
381
413
470
533
584
692
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
14.5
17.5
22.5
24
27
29
30.5
33.5
35
38.5
41.5
46.5
21
27
30.5
35
40
46.5
49.5
52.5
56
59
62
68.5
4 - Ø19
4 - Ø19
8 - Ø19
8 - Ø22
8 - Ø22
12 - Ø25
12 - Ø25
12 - Ø29
16 - Ø29
16 - Ø32
20 - Ø32
20 - Ø35
8 - Ø19
8 - Ø22
8 - Ø22
12 - Ø22
12 - Ø25
16 - Ø29
16 - Ø32
20 - Ø32
20 - Ø35
24 - Ø35
24 - Ø35
24 - Ø41
D D1 D2 D3 f b N-Ød
205
245
305
340
425
450
530
630
680
625
670
705
205
245
305
340
425
450
530
630
680
625
670
705
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r

68. BALL VALVES
SPECIAL BALL VALVES
68

69. 69www.jlx-valve.com
SPECIAL
BALL VALVES

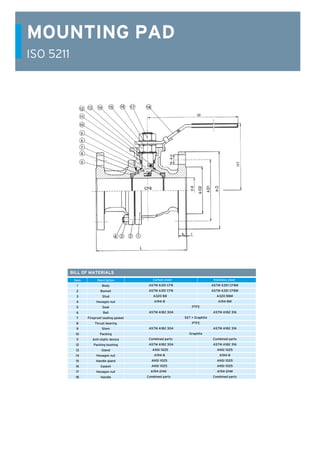

70. MOUNTING PAD
ISO 5211
BILL OF MATERIALS
Carbon steel Stainless steel
ASTM A351 CF8 ASTM A351 CF8M
ASTM A351 CF8 ASTM A351 CF8M
A320 B8 A320 B8M
A194-8 A194-8M
PTFE
ASTM A182 304 ASTM A182 316
SST + Graphite
PTFE
ASTM A182 304 ASTM A182 316
Graphite
Combined parts Combined parts
ASTM A182 304 ASTM A182 316
ANSI 1025 ANSI 1025
A194-8 A194-8
ANSI 1025 ANSI 1025
ANSI 1025 ANSI 1025
A194-2HM A194-2HM
Combined parts Combined parts
Description
Body
Bonnet
Stud
Hexagon nut
Seat
Ball
Fireproof sealing gasket
Thrust bearing
Stem
Packing
Anti-static device
Packing bushing
Gland
Hexagon nut
Handle gland
Gasket
Hexagon nut
Handle
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

71. BALL VALVES
SPECIAL BALL VALVES
71www.jlx-valve.com

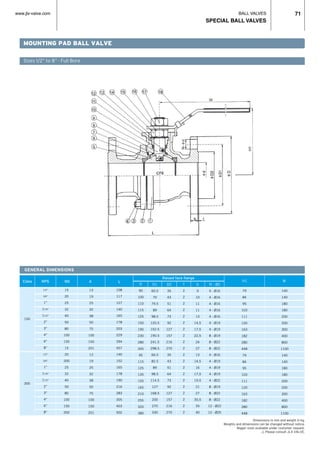

GENERAL DIMENSIONS
Class NPS ND
Raised face flange
d WH1
Dimensions in mm and weight in kg.
Weights and dimensions can be changed without notice.
Bigger sizes available under costumer request.
r Please consult JLX VALVE.
150
300
1/2”
3/4”
1”
11/4”
11/2”
2”
3”
4”
6”
8”
1/2”
3/4”
1”
11/4”
11/2”
2”
3”
4”
6”
8”
15
20
25
32
40
50
80
100
150
15
20
200
25
32
40
50
80
100
150
200
13
19
25
32
38
50
75
100
150
201
13
19
25
32
38
50
75
100
150
201
L
79
84
95
103
111
120
163
182
280
448
79
84
95
103
111
120
163
182
280
448
140
140
180
180
200
200
300
400
800
1100
140
140
180
180
200
200
300
400
800
1100
108
117
127
140
165
178
203
229
394
457
140
152
165
178
190
216
283
305
403
502
D
90
100
110
115
125
150
190
230
280
345
95
115
125
135
155
165
210
255
320
380
D1
60.5
70
79.5
89
98.5
120.5
152.5
190.5
241.5
298.5
66.5
82.5
89
98.5
114.5
127
168.5
200
270
330
D2
35
43
51
64
73
92
127
157
216
270
35
43
51
64
73
92
127
157
216
270
f
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
b
9
10
11
11
13
14,5
17,5
22,5
24
27
13
14,5
16
17,5
19,5
21
27
30,5
35
40
N - Ød
4 - Ø16
4 - Ø16
4 - Ø16
4 - Ø16
4 - Ø16
4 - Ø19
4 - Ø19
8 - Ø19
8 - Ø22
8 - Ø22
4 - Ø16
4 - Ø19
4 - Ø19
4 - Ø19
4 - Ø22
8 - Ø19
8 - Ø22
8 - Ø22
12 - Ø22
12 - Ø25
MOUNTING PAD BALL VALVE
Sizes 1/2” to 8” · Full Bore

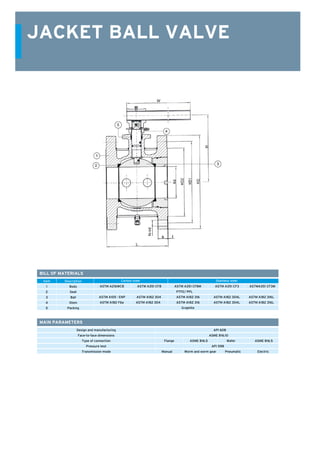

72. BALL VALVES
SPECIAL BALL VALVES
72
BILL OF MATERIALS
Carbon steel Stainless steel
MAIN PARAMETERS
API 608
ASME B16.10
Flange ASME B16.5 Wafer ASME B16.5
API 598
Manual Worm and worm gear Pneumatic Electric
JACKET BALL VALVE
Design and manufacturing
Face-to-face dimensions
Type of connection
Pressure test
Transmission mode
Item
1
2
3
4
5
Description
Body
Seat
Ball
Stem
Packing
ASTM A216WCB ASTM A351 CF8 ASTM A351 CF8M ASTM A351 CF3 ASTMA351 CF3M
PTFE/ PPL
ASTM A105 · ENP ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
ASTM A182 F6a ASTM A182 304 ASTM A182 316 ASTM A182 304L ASTM A182 316L
Graphite

73. BALL VALVES
SPECIAL BALL VALVES
73www.jlx-valve.com

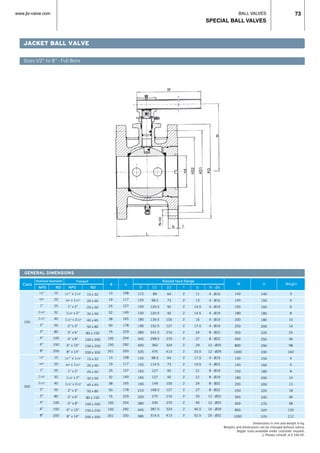

GENERAL DIMENSIONS
Class
NPS ND
Raised face flange
d WeightW
Dimensions in mm and weight in kg.
Weights and dimensions can be changed without notice.
Bigger sizes available under costumer request.
r Please consult JLX VALVE.
150
300
1/2”
3/4”
1”
11/4”
11/2”
2”
3”
4”
6”
8”
1/2”
3/4”
1”
11/4”
11/2”
2”
3”
4”
6”
8”
15
20
25
32
40
50
80
100
150
200
15
20
25
32
40
50
80
100
150
200
13
19
25
32
38
50
75
100
150
201
13
19
25
32
38
50
75
100
150
201
L
140
140
150
180
200
250
350
500
800
1000
140
140
150
180
200
250
350
500
800
1000
3
4
6
8
10
14
25
36
98
160
4
5
8
10
13
18
36
58
120
212
108
117
127
140
165
178
229
254
292
330
108
117
127
140
165
178
229
254
292
330
D
115
125
150
150
180
190
280
345
405
535
135
155
165
165
190
210
320
380
445
585
D1
89
98.5
120.5
120.5
139.5
152.5
241.5
298.5
362
476
98.5
114.5
127
127
149
168.5
270
330
387.5
514.5
D2
64
73
92
92
105
127
216
270
324
413
64
73
92
92
105
127
216
270
324
413
f
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
b
11
13
14.5
14.5
16
17.5
24
27
29
33.5
17.5
19.5
21
21
24
27
35
40
46.5
52.5
N - Ød
4 - Ø16
4 - Ø16
4 - Ø19
4 - Ø19
4 - Ø19
4 - Ø19
8 - Ø22
8 - Ø22
12 - Ø25
12 - Ø29
4 - Ø19
4 - Ø22
8 - Ø19
8 - Ø19
8 - Ø22
8 - Ø22
12 - Ø22
12 - Ø25
16 - Ø29
20 - Ø32
JACKET BALL VALVE
Sizes 1/2” to 8” · Full Bore
140
150
160
180
180
200
220
250
290
330
150
160
180
200
200
220
240
270
320
370
H
NPS ND
1/2”” x 11/4”
3/4” x 11/2”
1” x 2”
11/4” x 2”
11/2” x 21/2”
2” x 3”
3” x 6”
4” x 8”
6” x 10”
8” x 14”
1/2”” x 11/4”
3/4” x 11/2”
1” x 2”
11/4” x 2”
11/2” x 21/2”
2” x 3”
3” x 6”
4” x 8”
6” x 10”
8” x 14”
15 x 32
20 x 40
25 x 50
32 x 50
40 x 65
50 x 80
80 x 150
100 x 200
150 x 250
200 x 350
15 x 32
20 x 40
25 x 50
32 x 50
40 x 65
50 x 80
80 x 150
100 x 200
150 x 250
200 x 350
Nominal diameter Flanged

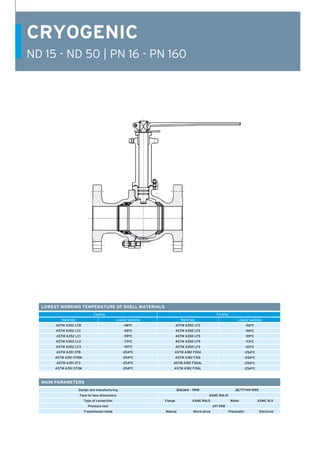

74. CRYOGENIC
ND 15 - ND 50 | PN 16 - PN 160
LOWEST WORKING TEMPERATURE OF SHELL MATERIALS
Casting Forging
Materials
ASTM A352 LCB
ASTM A352 LCC
ASTM A352 LC1
ASTM A352 LC2
ASTM A352 LC3
ASTM A351 CF8
ASTM A351 CF8M
ASTM A351 CF3
ASTM A351 CF3M
Lowest working
-46ºC
-46ºC
-59ºC
-73ºC
-101ºC
-254ºC
-254ºC
-254ºC
-254ºC
Materials
ASTM A350 LF2
ASTM A350 LF2
ASTM A350 LF5
ASTM A350 LF9
ASTM A350 LF3
ASTM A182 F304
ASTM A182 F316
ASTM A182 F304L
ASTM A182 F316L
Lowest working
-46ºC
-46ºC
-59ºC
-73ºC
-101ºC
-254ºC
-254ºC
-254ºC
-254ºC
MAIN PARAMETERS
BS6364 - 1998 JB/T7749-1995
ASME B16.10
Flange ASME B16.5 Wafer ASME 16.5
API 598
Manual Worm drive Pneumatic Electrical
Design and manufacturing
Face-to-face dimensions
Type of connection
Pressure test
Transmission mode

75. NOTES

76. NOTES

77. NOTES

78. NOTES

80. /
DELEGACIÓN ZONA CENTRO
Centro de Negocios La Garena
C/ Padre Granda, 4, 1* H
28806 Alcalá de Henares
(MADRID) SPAIN
T. (+34) 91 802 98 29
F. (+34) 91 802 98 29
info-centro@jlx-valve.com
EUA
6709 NW 84th Avenue
33166 Florida
MIAMI (EUA)
T. (+1) 305-717-6759
F. (+1) 786-369-1923
info-us@jlx-valve.com
VENEZUELA
Av. Francisco de Miranda
Centro Seguros La Paz
Piso 8, Ala Oeste, Oficina 360
La California Norte, 1071
CARACAS (VENEZUELA)
T. (+1) 305-717-6759
F. (+1) 786-369-1923
info-ve@jlx-valve.com
ECUADOR
Av. Interoceánica Oswaldo
Guayasamin Oe6-73 y González
Suarez, Edif. Picadilly Center
Oficina 107
TUMBACO (ECUADOR)
T. (+1) 305-717-6759
F. (+1) 786-369-1923
info-ec@jlx-valve.com
