VisiQuate: Azure cloud migration case study

Journey to Azure
WHATWE’VE LEARNED ALONGTHE
WAY
September 2020

© 2020 VisiQuate, Inc. All Rights Reserved.© 2020 VisiQuate, Inc. All Rights Reserved.

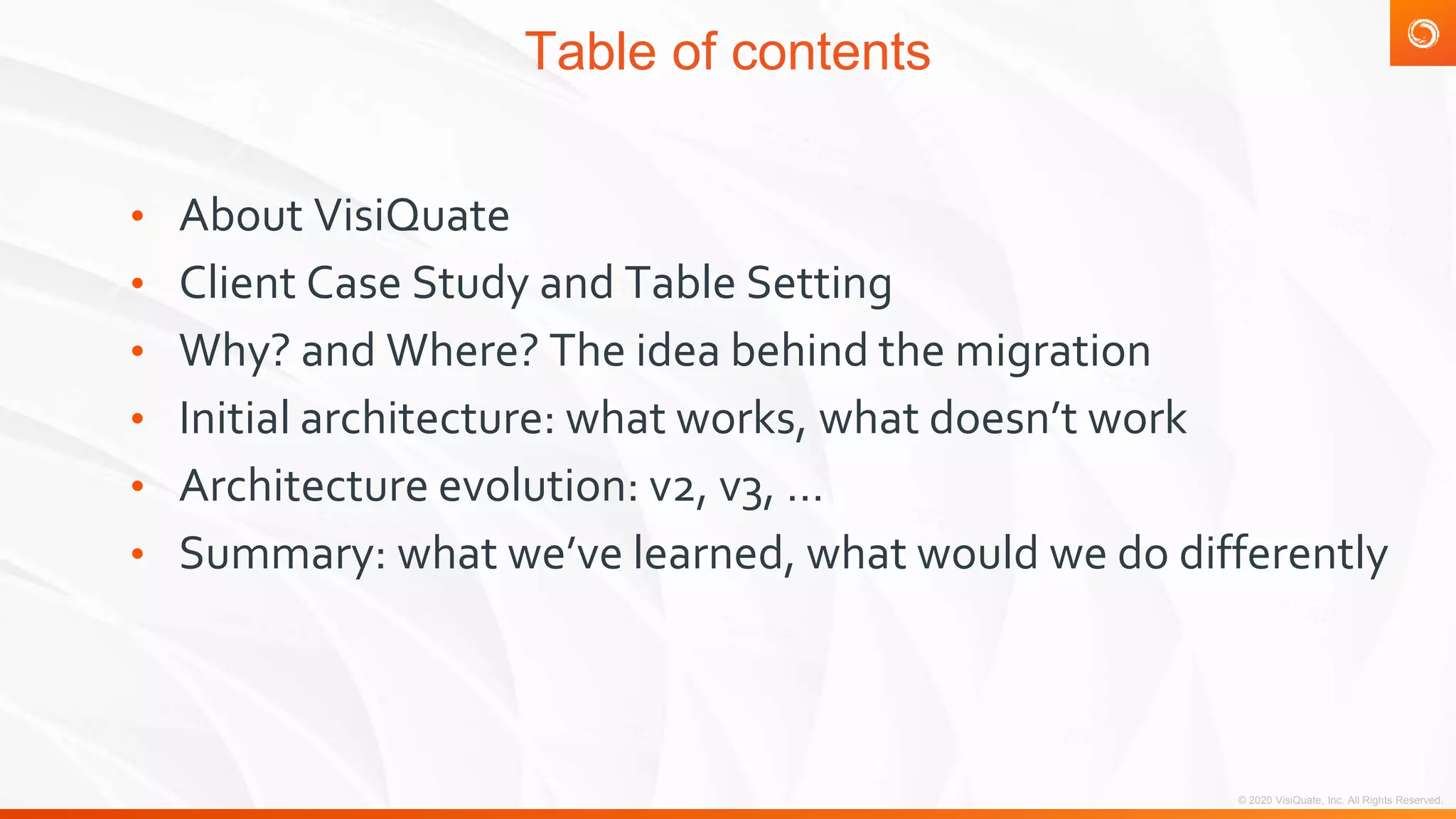

Table of contents
• About VisiQuate
• Client Case Study and Table Setting
• Why? and Where? The idea behind the migration
• Initial architecture: what works, what doesn’t work
• Architecture evolution: v2, v3, …
• Summary: what we’ve learned, what would we do differently

VisiQuate

VisiQuate is an
advanced
analytics service
that helps
enterprises
achieve peak
business health.
AI and ML Powered full stack
data platform
Powered by AI and machine learning, streaming
analytics from disparate data sources deliver leading
insights that alert the right users to problems and
opportunities
Value focused point solutions
Our cloud-based solutions target a 3-5x ROI within 12 months
and are non-invasive to Internal IT and is supported with white
glove service by our SME’s, technical experts and account
managers.
Velocity Consulting Services
Increase your speed to value and ROI withVelocity Data
Fanatics as a Service offerings.

© 2019 VisiQuate, Inc. All Rights Reserved.

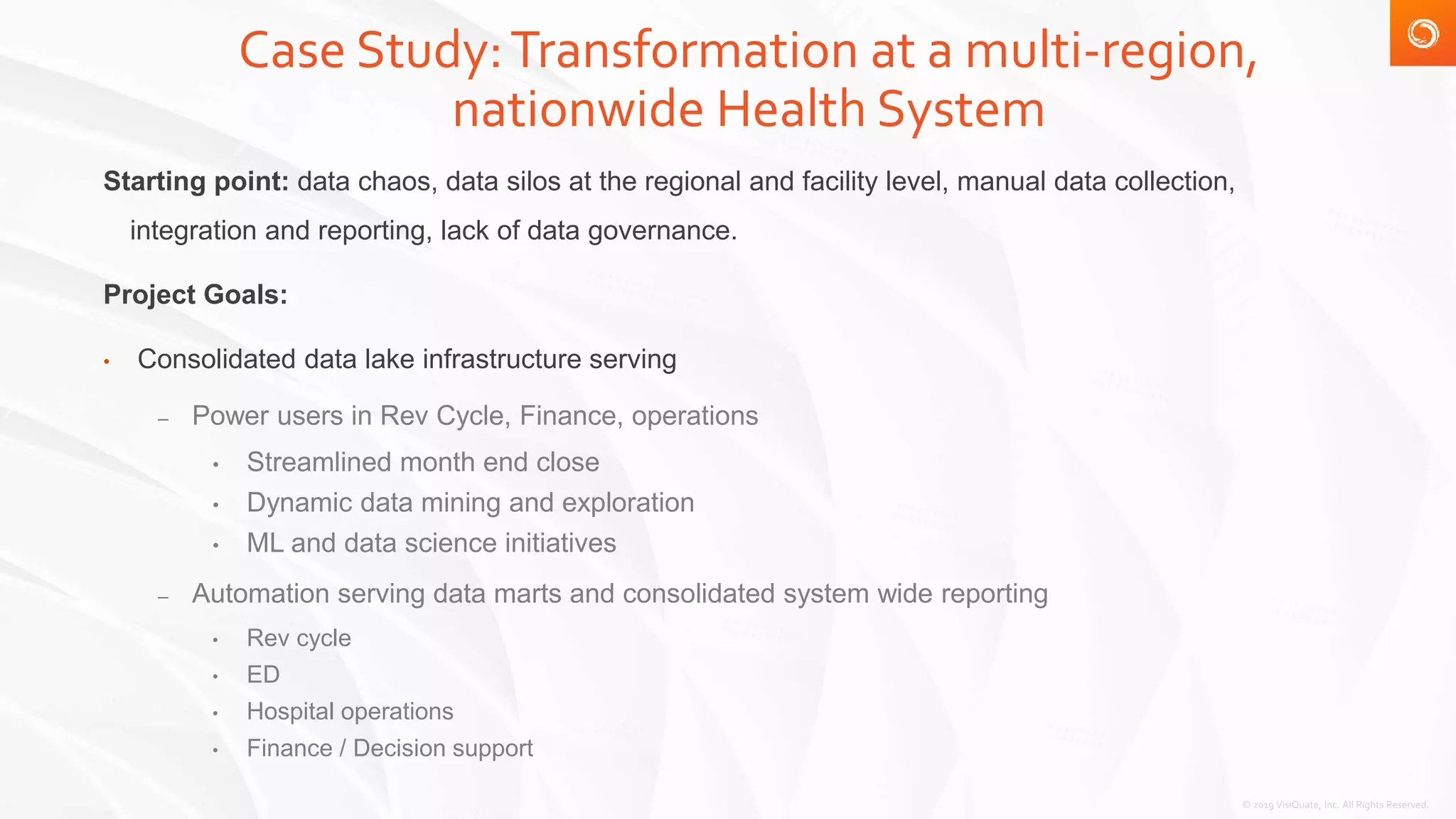

Case Study:Transformation at a multi-region,
nationwide Health System
Starting point: data chaos, data silos at the regional and facility level, manual data collection,
integration and reporting, lack of data governance.
Project Goals:
• Consolidated data lake infrastructure serving
– Power users in Rev Cycle, Finance, operations
• Streamlined month end close
• Dynamic data mining and exploration
• ML and data science initiatives
– Automation serving data marts and consolidated system wide reporting
• Rev cycle
• ED
• Hospital operations
• Finance / Decision support

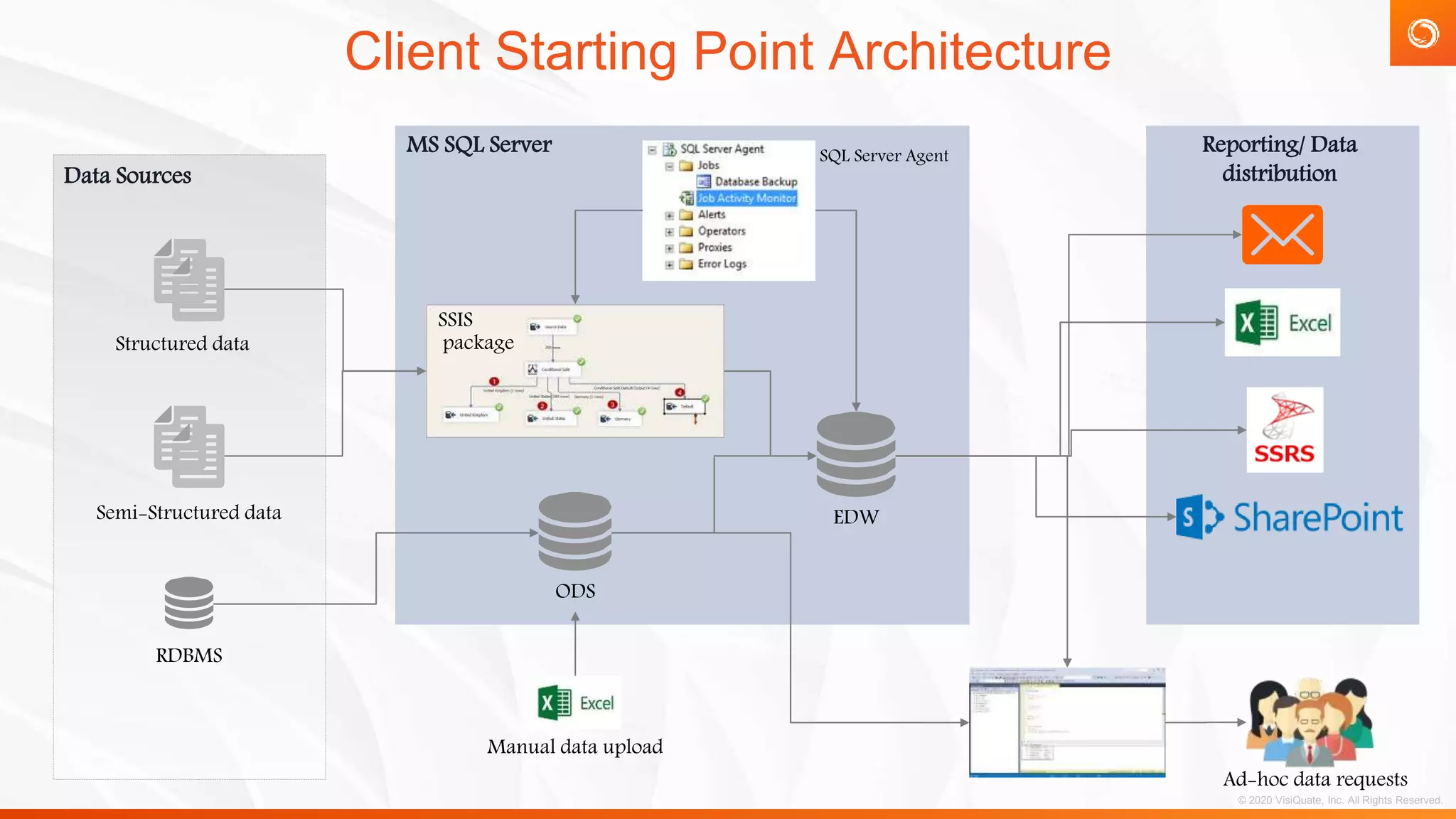

Client Starting Point Architecture
Data Sources
Structured data
Semi-Structured data
RDBMS
SSIS
package
ODS
EDW
MS SQL Server SQL Server Agent
Manual data upload
Ad-hoc data requests
Reporting/ Data
distribution

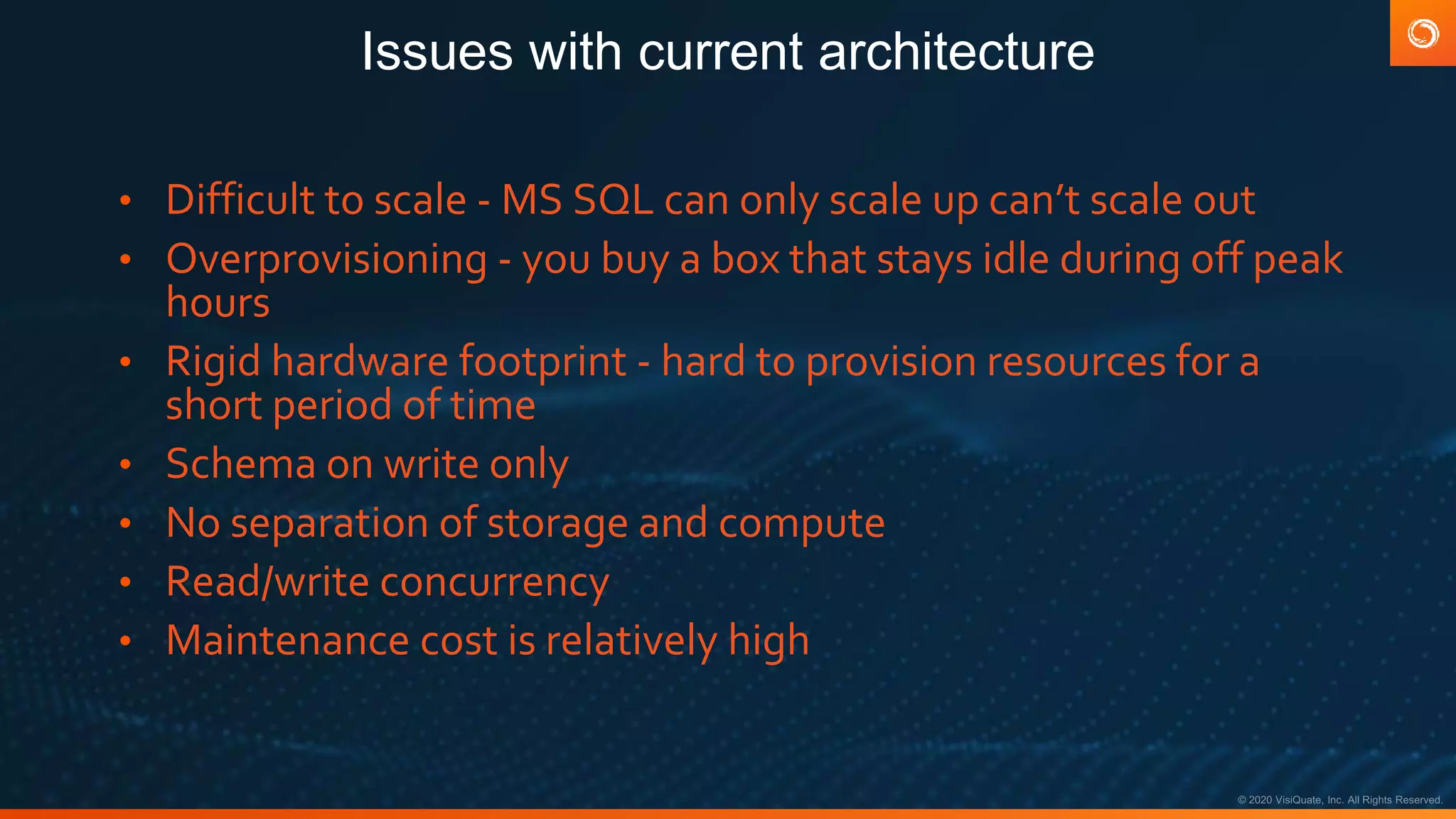

Issues with current architecture
• Difficult to scale - MS SQL can only scale up can’t scale out
• Overprovisioning - you buy a box that stays idle during off peak
hours
• Rigid hardware footprint - hard to provision resources for a
short period of time
• Schema on write only
• No separation of storage and compute
• Read/write concurrency
• Maintenance cost is relatively high

We can solve all our problems if we
migrate everything to a cloud
Client’s Big Idea

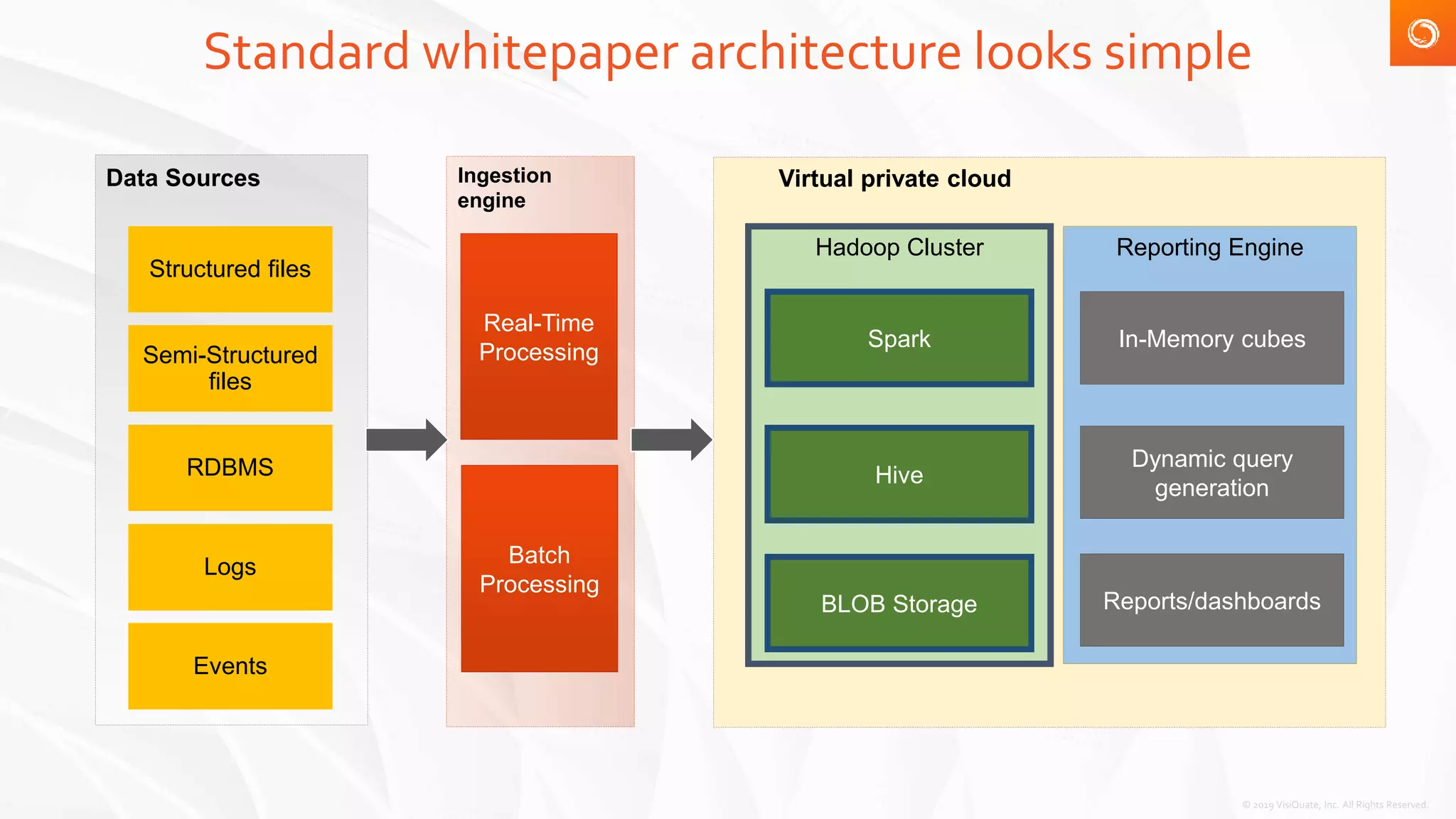

Standard whitepaper architecture looks simple
Ingestion
engine
Real-Time
Processing
Batch
Processing
Hadoop Cluster
Spark
Hive
BLOB Storage
Reporting Engine
In-Memory cubes
Reports/dashboards
Dynamic query
generation
Virtual private cloud
Structured files
Semi-Structured
files
RDBMS
Logs
Events
Data Sources

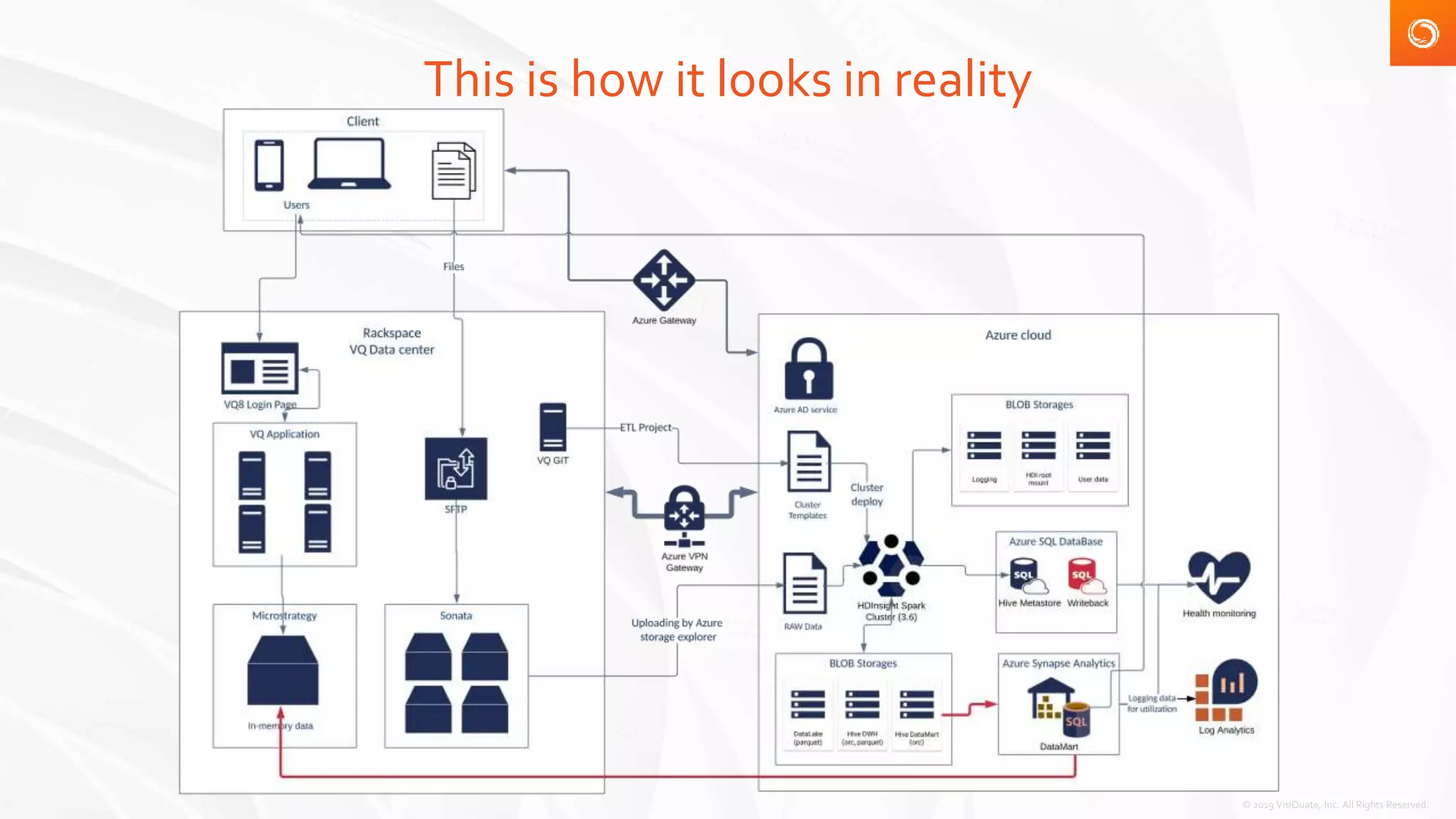

This is how it looks in reality

• Flexible, scalable and secure
infrastructure
• Ability to scale up and scale down
• Pay as you go
• Reduce maintenance
• Data Lake - schema on read model
• Getting ready for AI/ML data processing

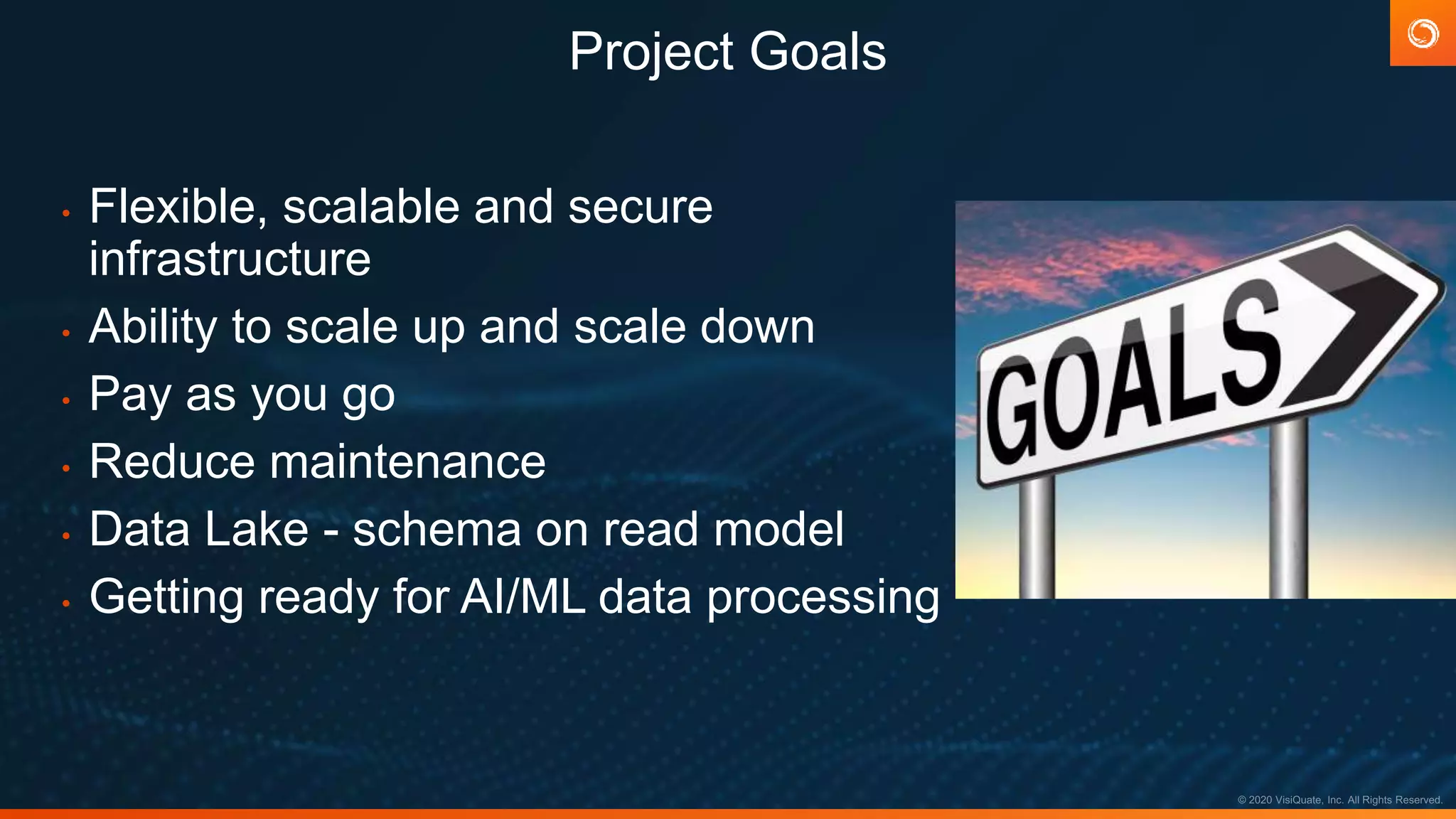

Project Goals

PROS
• Existing Microsoft products footprint: Office, SQL Server, etc
• Azure AD – leverage Office 365 subscription for Azure set up
• Native MS SQL Server support – different options for migration
• Power BI visualization as a part of Office 365
• Scalability
• Pay as you go model
• HIPAA compliant (for majority of services)
CONS
• Stability Issues due to rapid go to market strategy
• Not as many serverless services
• Open Source is not Native technology
• Developer community is not as strong as alternatives

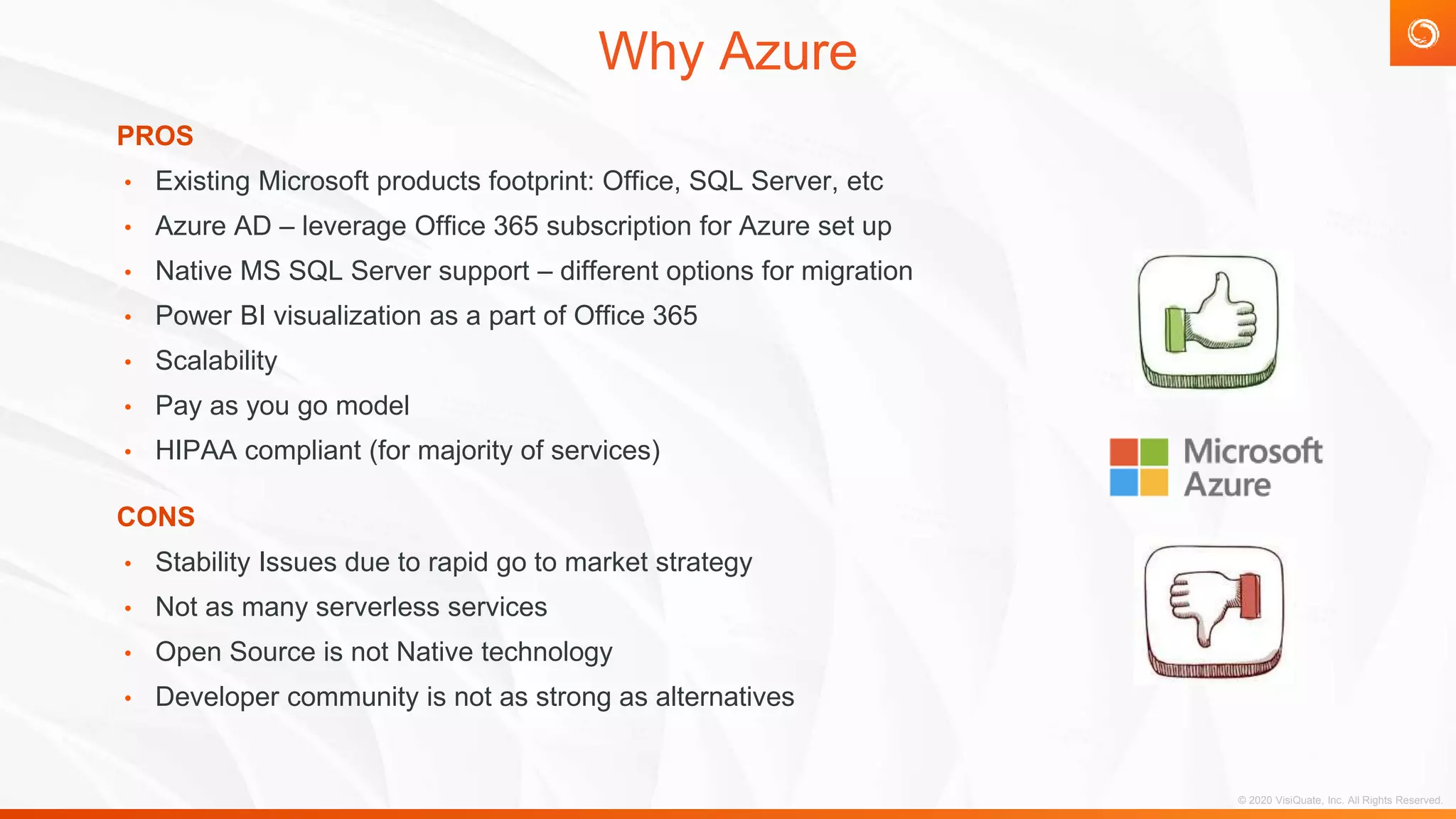

Why Azure

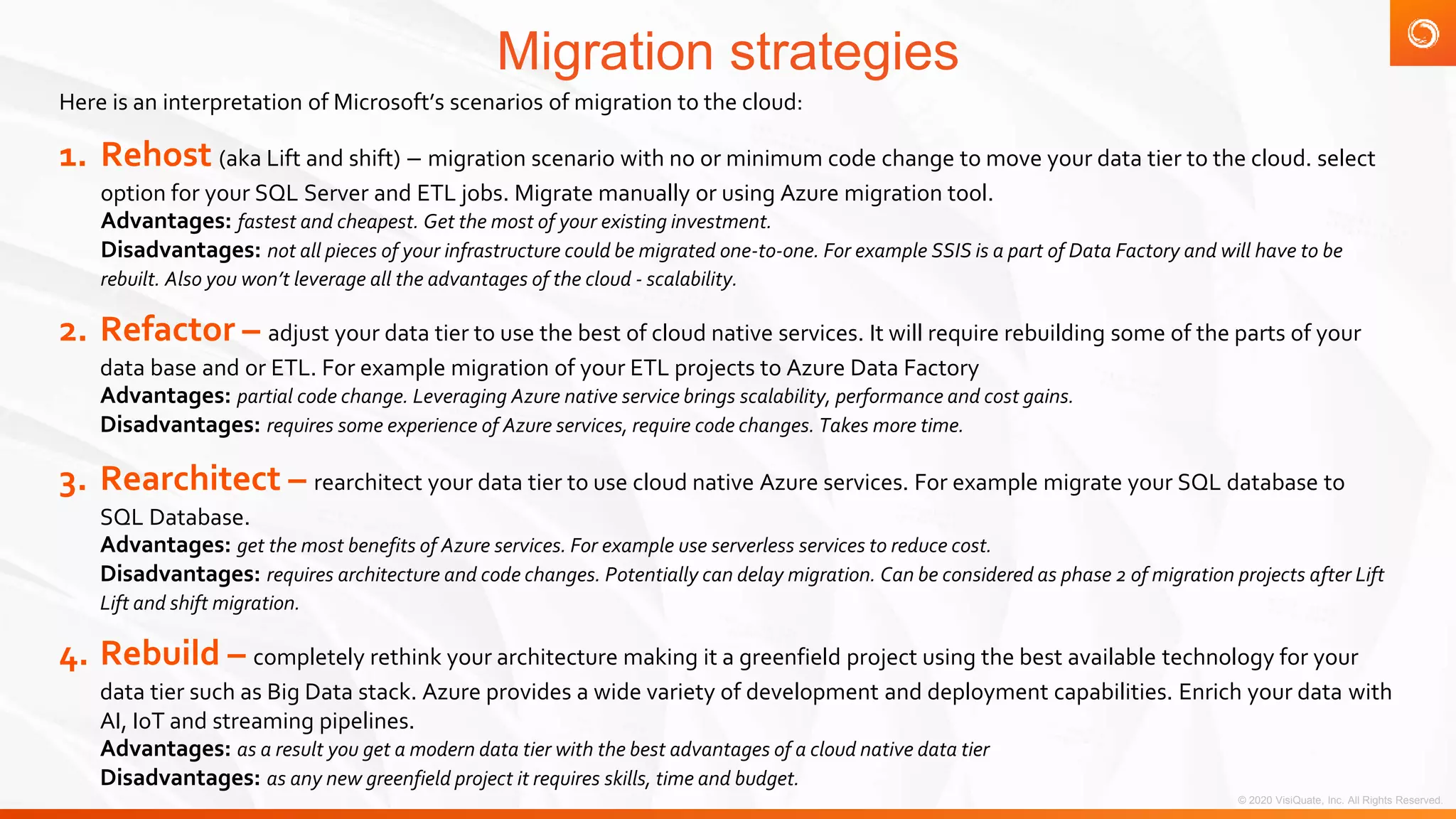

Migration strategies
Here is an interpretation of Microsoft’s scenarios of migration to the cloud:
1. Rehost (aka Lift and shift) – migration scenario with no or minimum code change to move your data tier to the cloud. select
option for your SQL Server and ETL jobs. Migrate manually or using Azure migration tool.
Advantages: fastest and cheapest. Get the most of your existing investment.
Disadvantages: not all pieces of your infrastructure could be migrated one-to-one. For example SSIS is a part of Data Factory and will have to be
rebuilt. Also you won’t leverage all the advantages of the cloud - scalability.
2. Refactor – adjust your data tier to use the best of cloud native services. It will require rebuilding some of the parts of your
data base and or ETL. For example migration of your ETL projects to Azure Data Factory
Advantages: partial code change. Leveraging Azure native service brings scalability, performance and cost gains.
Disadvantages: requires some experience of Azure services, require code changes. Takes more time.
3. Rearchitect – rearchitect your data tier to use cloud native Azure services. For example migrate your SQL database to
SQL Database.
Advantages: get the most benefits of Azure services. For example use serverless services to reduce cost.
Disadvantages: requires architecture and code changes. Potentially can delay migration. Can be considered as phase 2 of migration projects after Lift
Lift and shift migration.
4. Rebuild – completely rethink your architecture making it a greenfield project using the best available technology for your
data tier such as Big Data stack. Azure provides a wide variety of development and deployment capabilities. Enrich your data with
AI, IoT and streaming pipelines.
Advantages: as a result you get a modern data tier with the best advantages of a cloud native data tier
Disadvantages: as any new greenfield project it requires skills, time and budget.

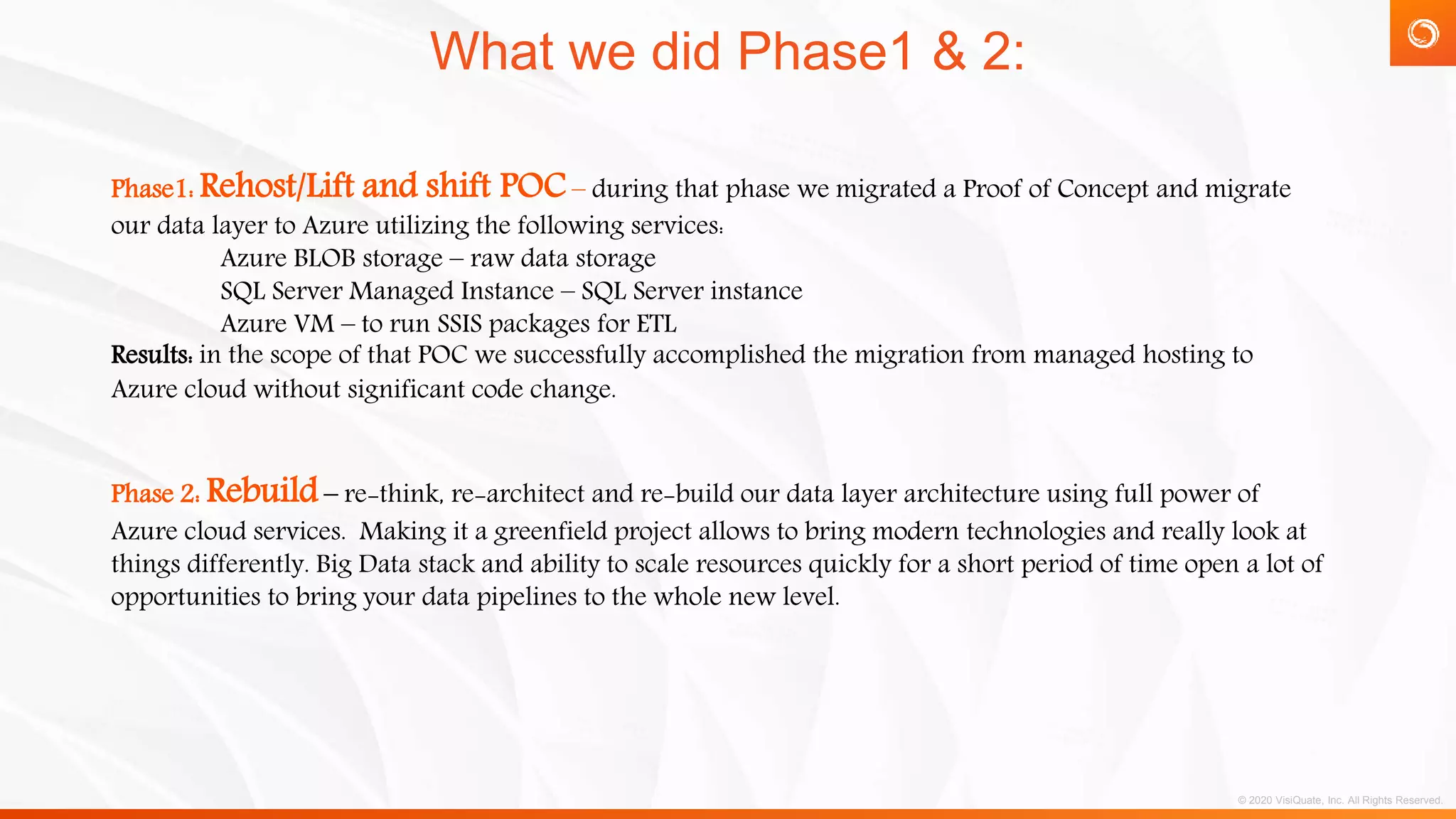

What we did Phase1 & 2:
Phase1: Rehost/Lift and shift POC – during that phase we migrated a Proof of Concept and migrate
our data layer to Azure utilizing the following services:
Azure BLOB storage – raw data storage
SQL Server Managed Instance – SQL Server instance
Azure VM – to run SSIS packages for ETL
Results: in the scope of that POC we successfully accomplished the migration from managed hosting to
Azure cloud without significant code change.
Phase 2: Rebuild – re-think, re-architect and re-build our data layer architecture using full power of
Azure cloud services. Making it a greenfield project allows to bring modern technologies and really look at
things differently. Big Data stack and ability to scale resources quickly for a short period of time open a lot of
opportunities to bring your data pipelines to the whole new level.

All typical risks associated with a greenfield project but
specifically:
• Lack of experience with certain technologies
• Lack of real-life case studies and white papers about Big
Data Azure deployments
• Azure developer community is not big
• Time and budget

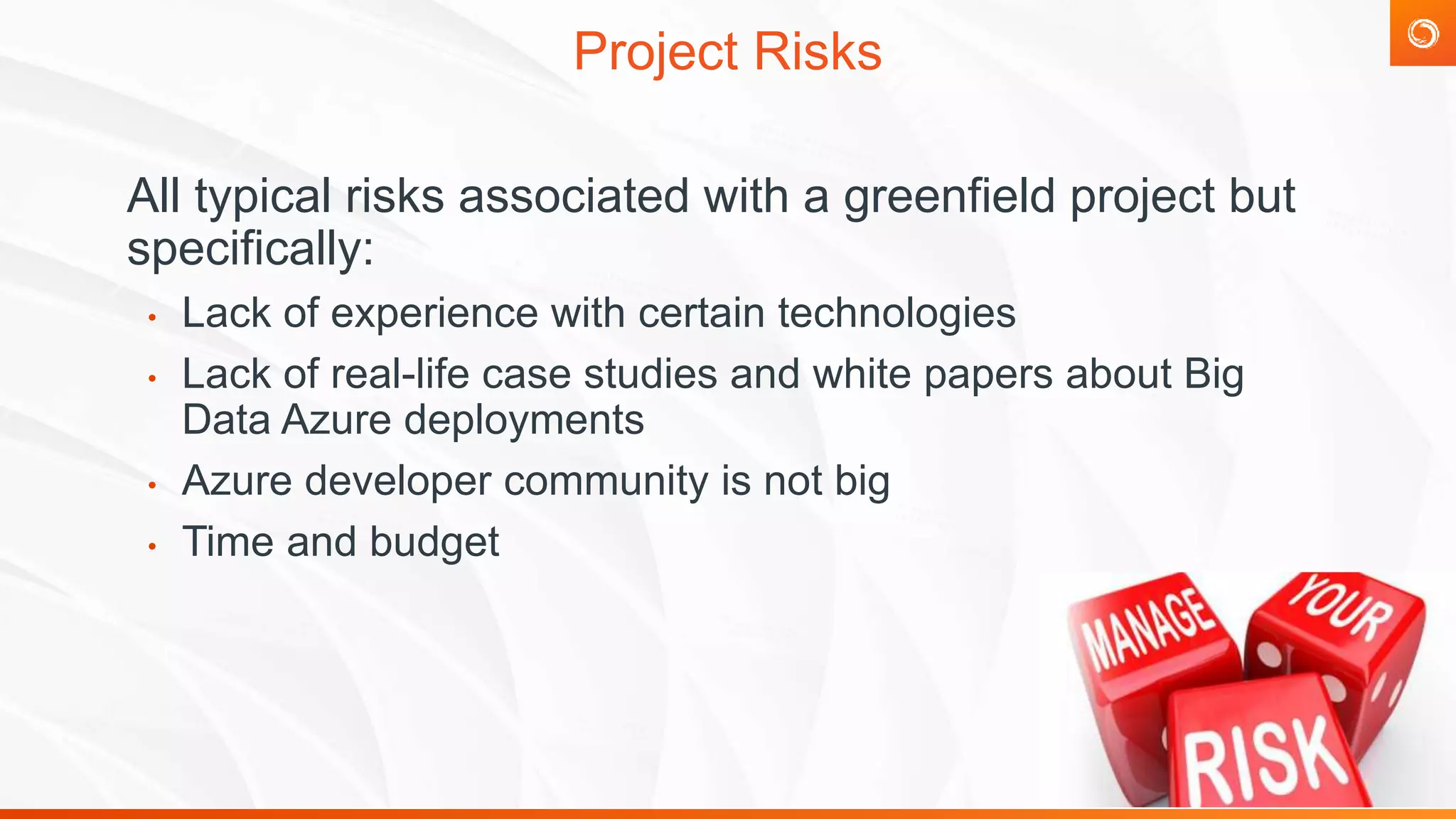

Project Risks

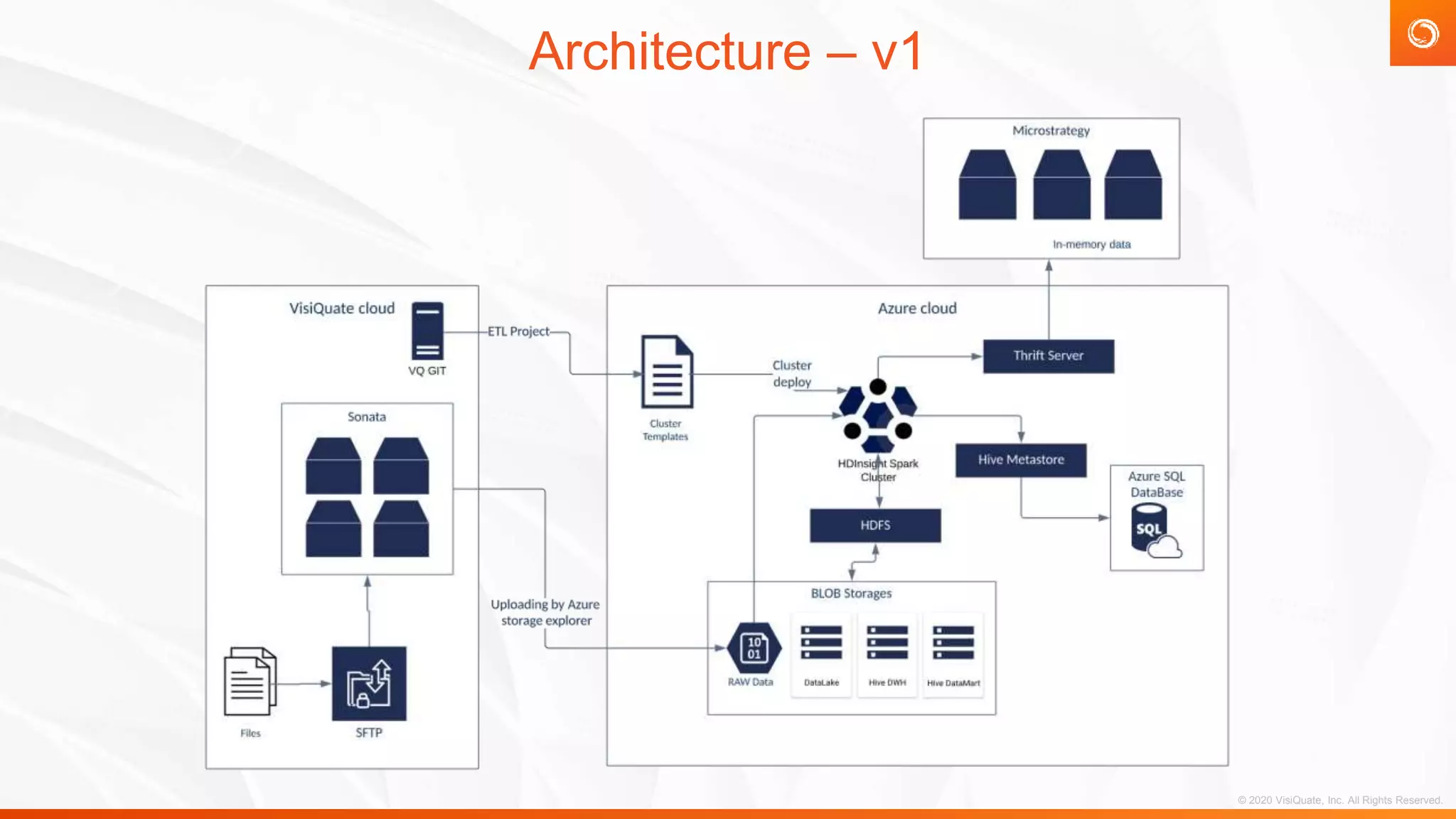

Architecture – v1

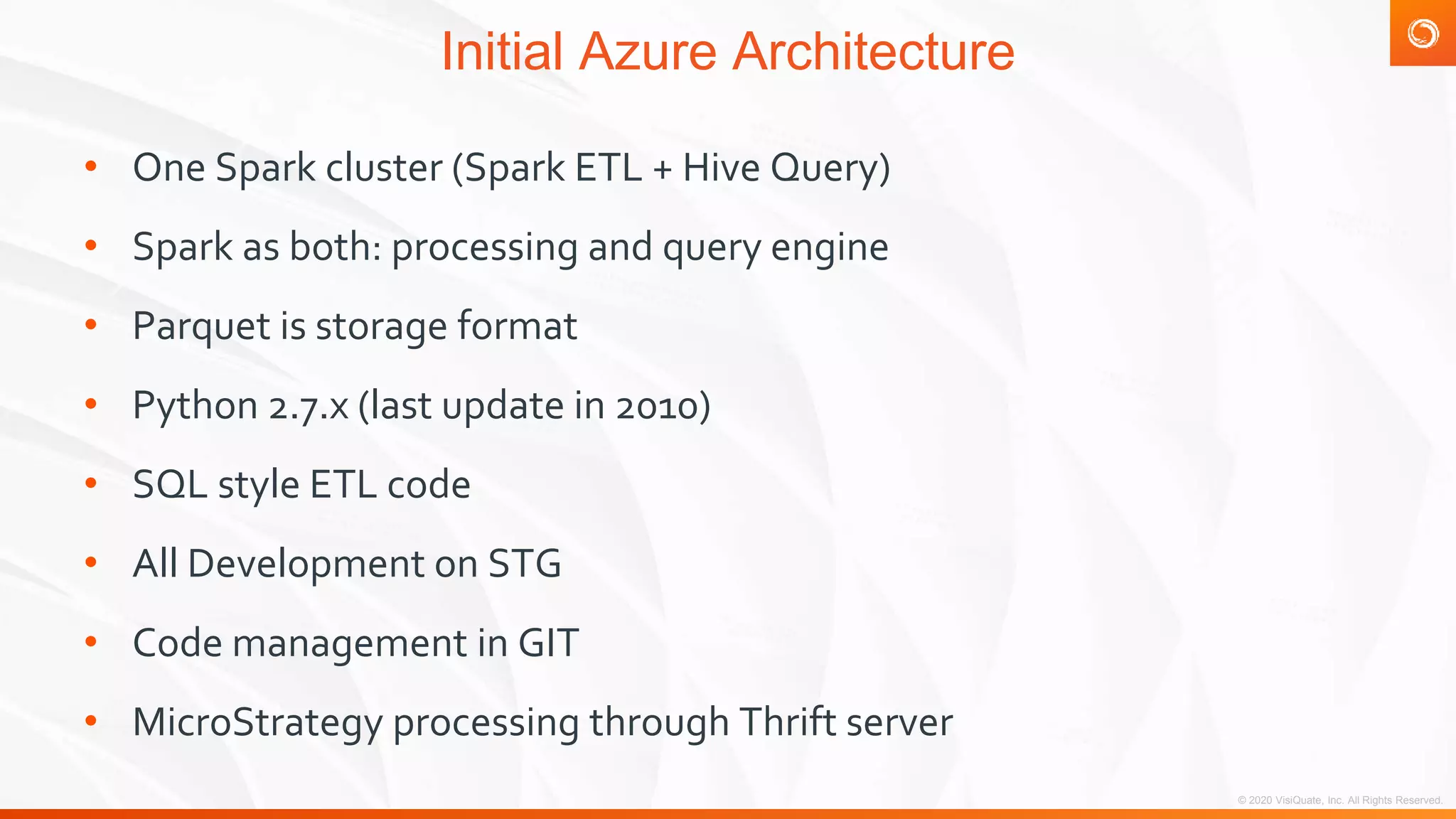

Initial Azure Architecture
• One Spark cluster (Spark ETL + Hive Query)
• Spark as both: processing and query engine
• Parquet is storage format
• Python 2.7.x (last update in 2010)
• SQL style ETL code
• All Development on STG
• Code management in GIT
• MicroStrategy processing through Thrift server

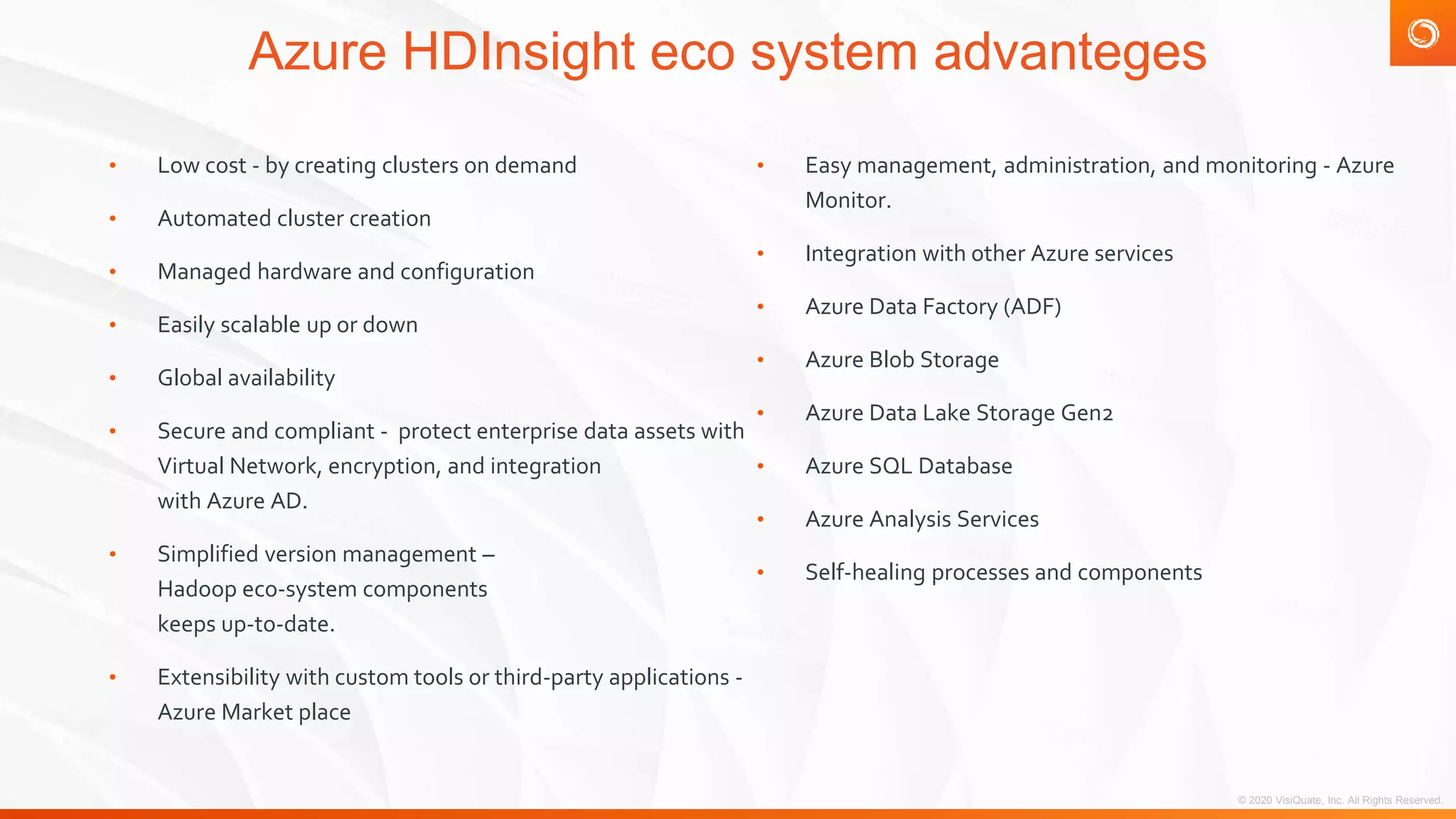

Azure HDInsight eco system advanteges
• Low cost - by creating clusters on demand
• Automated cluster creation
• Managed hardware and configuration
• Easily scalable up or down
• Global availability
• Secure and compliant - protect enterprise data assets with
Virtual Network, encryption, and integration
with Azure AD.
• Simplified version management –
Hadoop eco-system components
keeps up-to-date.
• Extensibility with custom tools or third-party applications -
Azure Market place
• Easy management, administration, and monitoring - Azure
Monitor.
• Integration with other Azure services
• Azure Data Factory (ADF)
• Azure Blob Storage
• Azure Data Lake Storage Gen2
• Azure SQL Database
• Azure Analysis Services
• Self-healing processes and components

• You CAN build that architecture from scratch and be in production
relatively fast.
• Azure can sometimes surprise you: network issues, lost connections,
background updates, documented features didn’t work, etc.
• Performance of certain queries (e.g. table-based queries) might require
additional attention
• Plan ahead for access and security configuration.
• Make sure you understand your concurrency to architect appropriatly.
• Sometimes documentation and community search take longer than
expected.

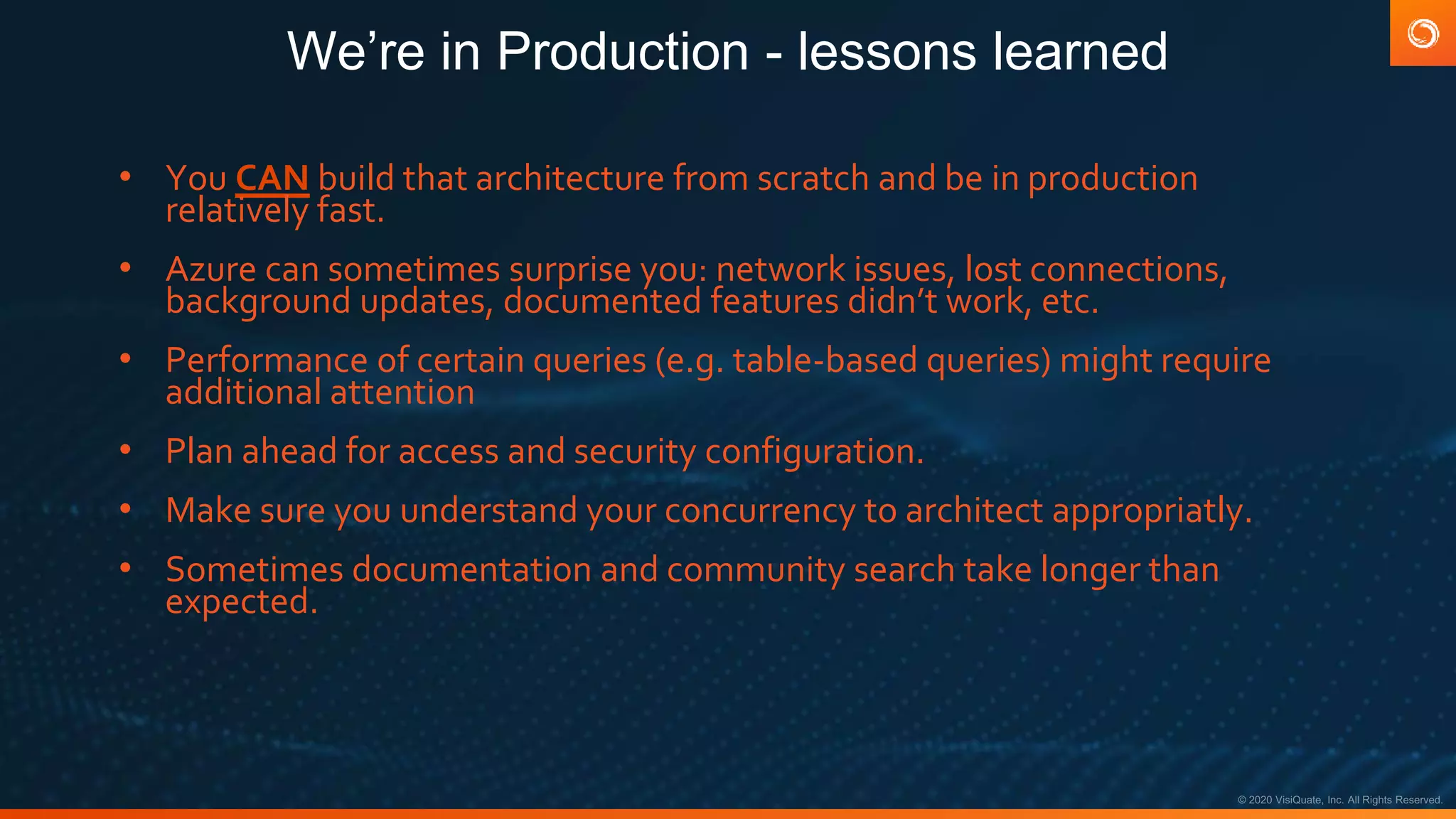

We’re in Production - lessons learned

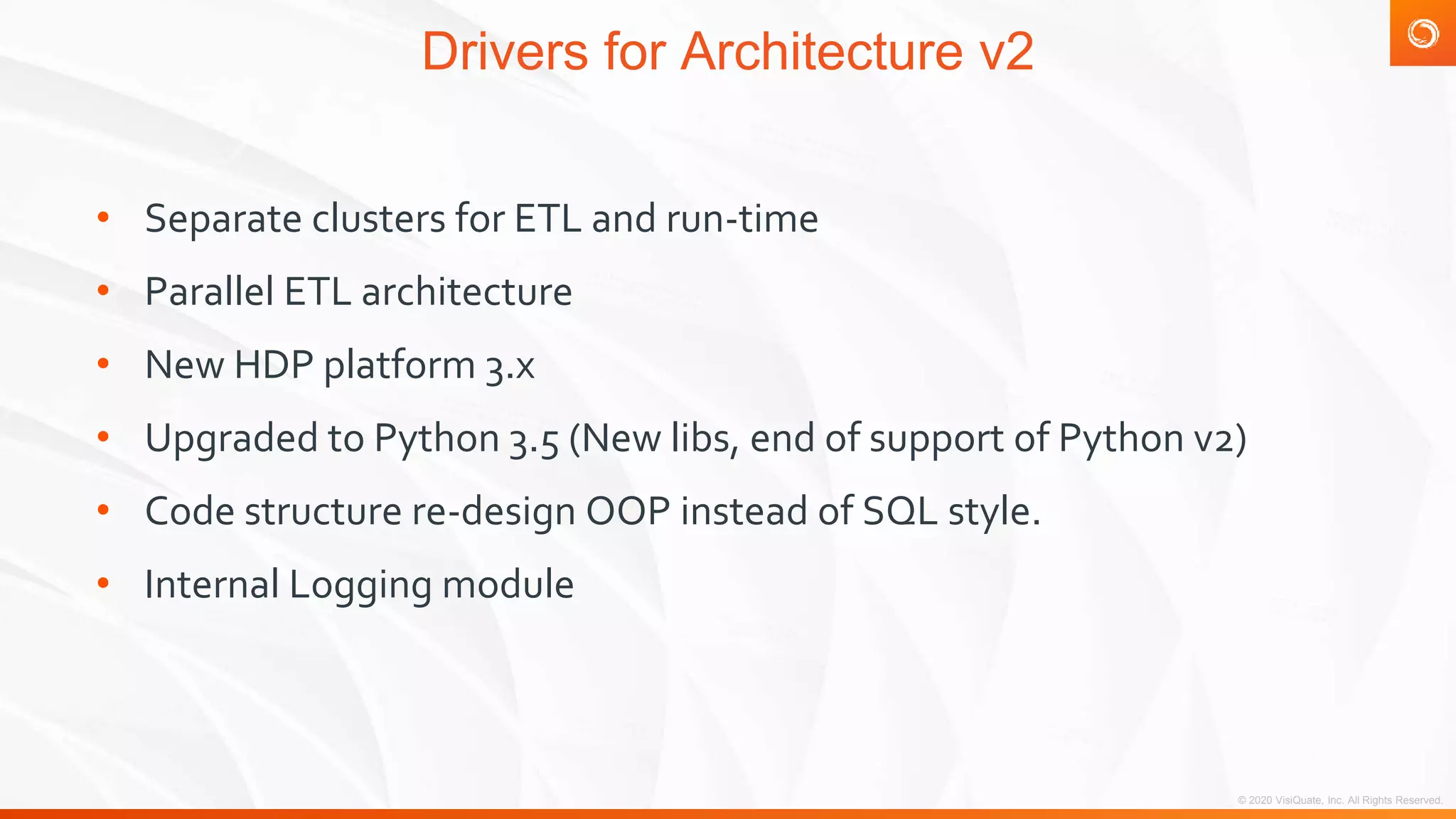

Drivers for Architecture v2
• Separate clusters for ETL and run-time
• Parallel ETL architecture
• New HDP platform 3.x
• Upgraded to Python 3.5 (New libs, end of support of Python v2)
• Code structure re-design OOP instead of SQL style.
• Internal Logging module

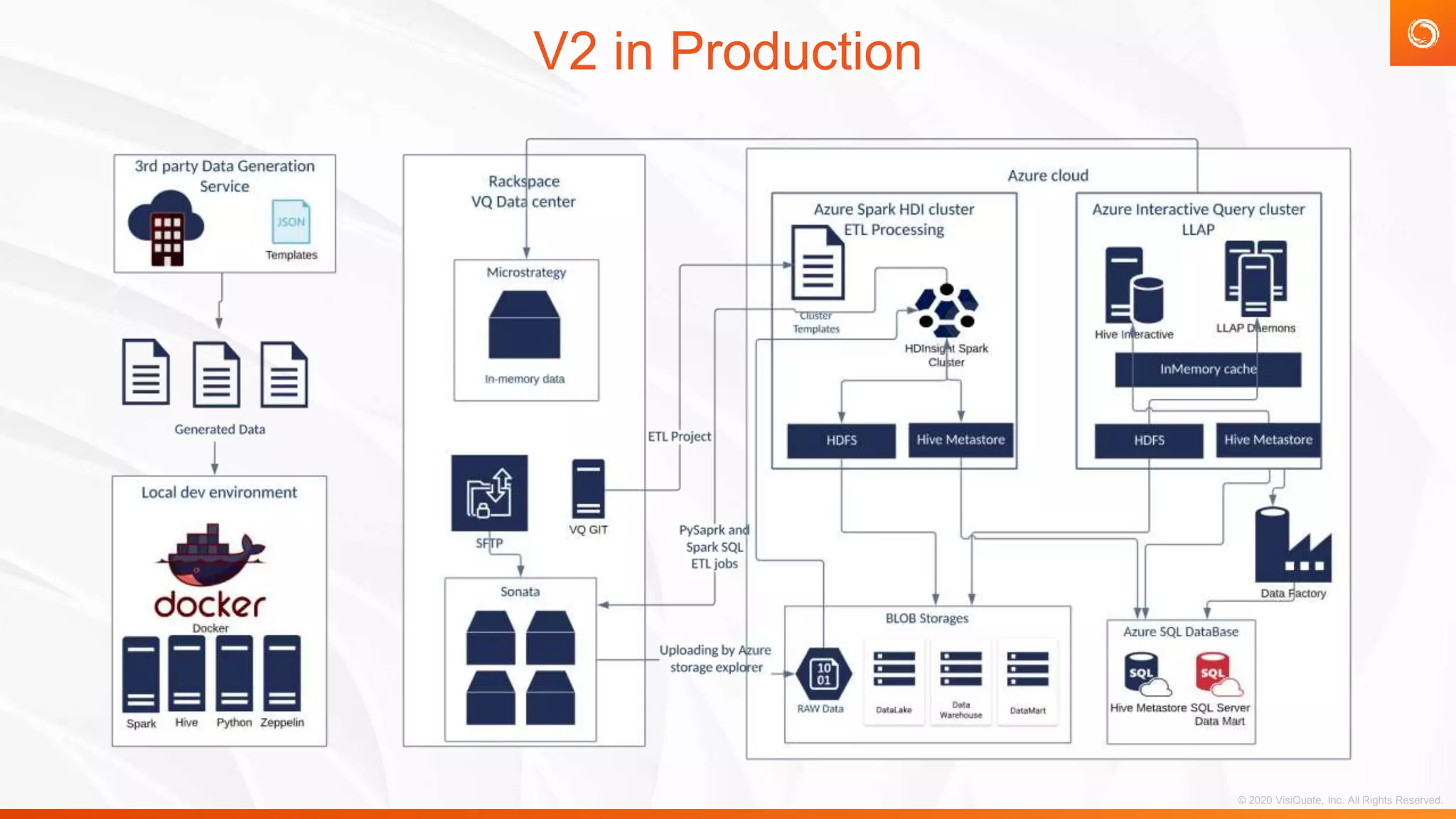

V2 in Production

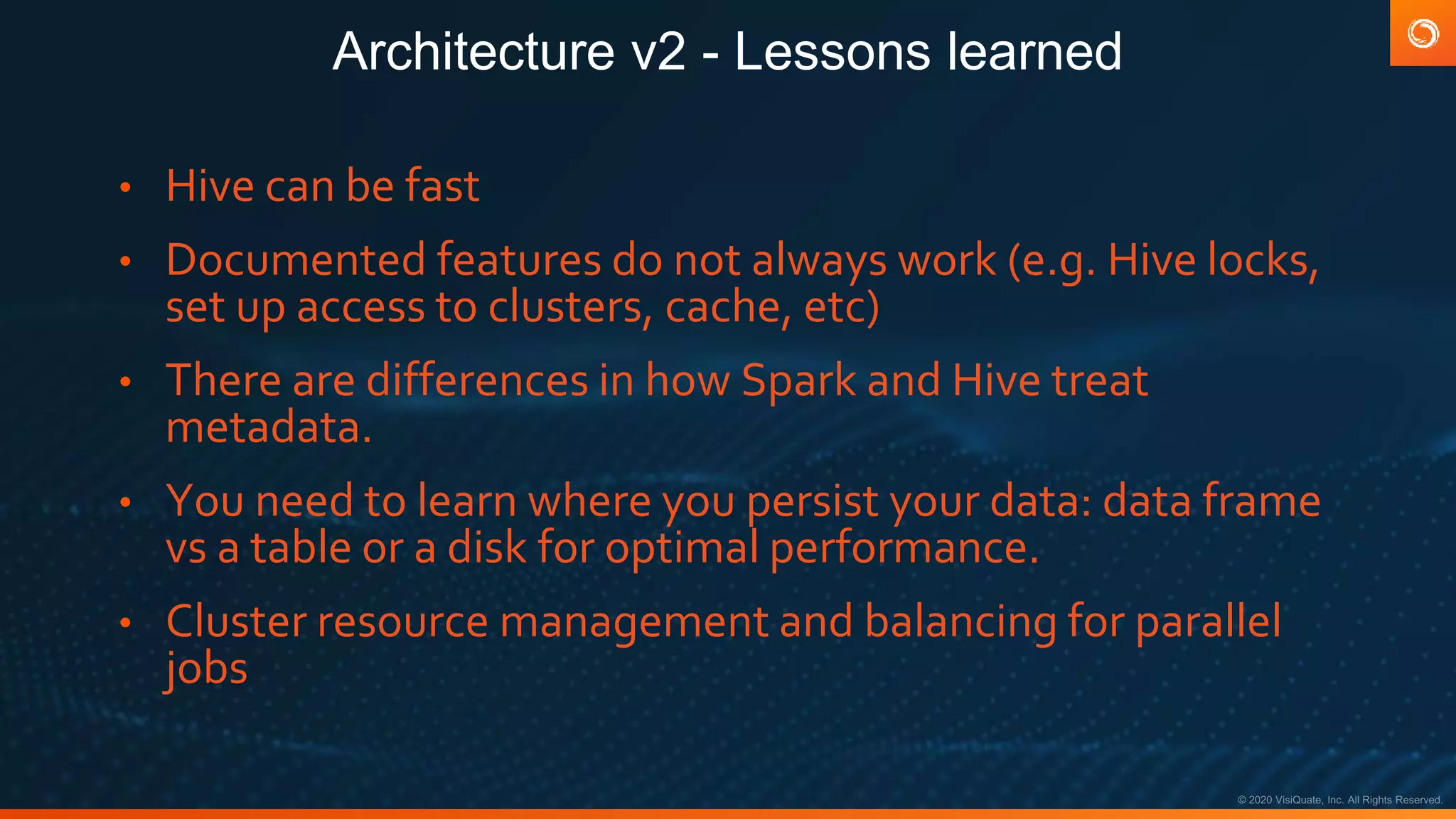

Architecture v2 - Lessons learned
• Hive can be fast
• Documented features do not always work (e.g. Hive locks,
set up access to clusters, cache, etc)
• There are differences in how Spark and Hive treat
metadata.
• You need to learn where you persist your data: data frame
vs a table or a disk for optimal performance.
• Cluster resource management and balancing for parallel
jobs

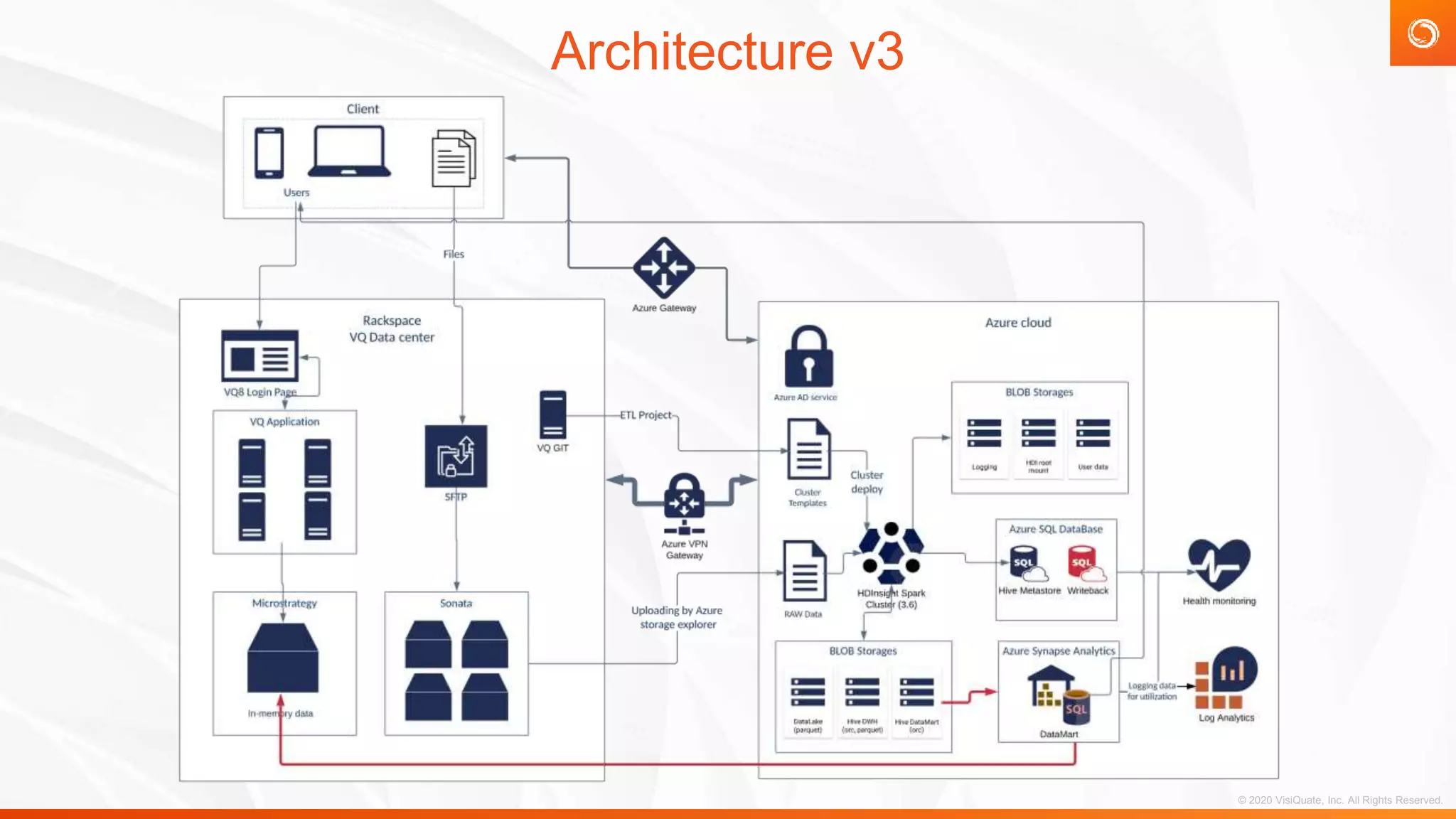

Architecture v3

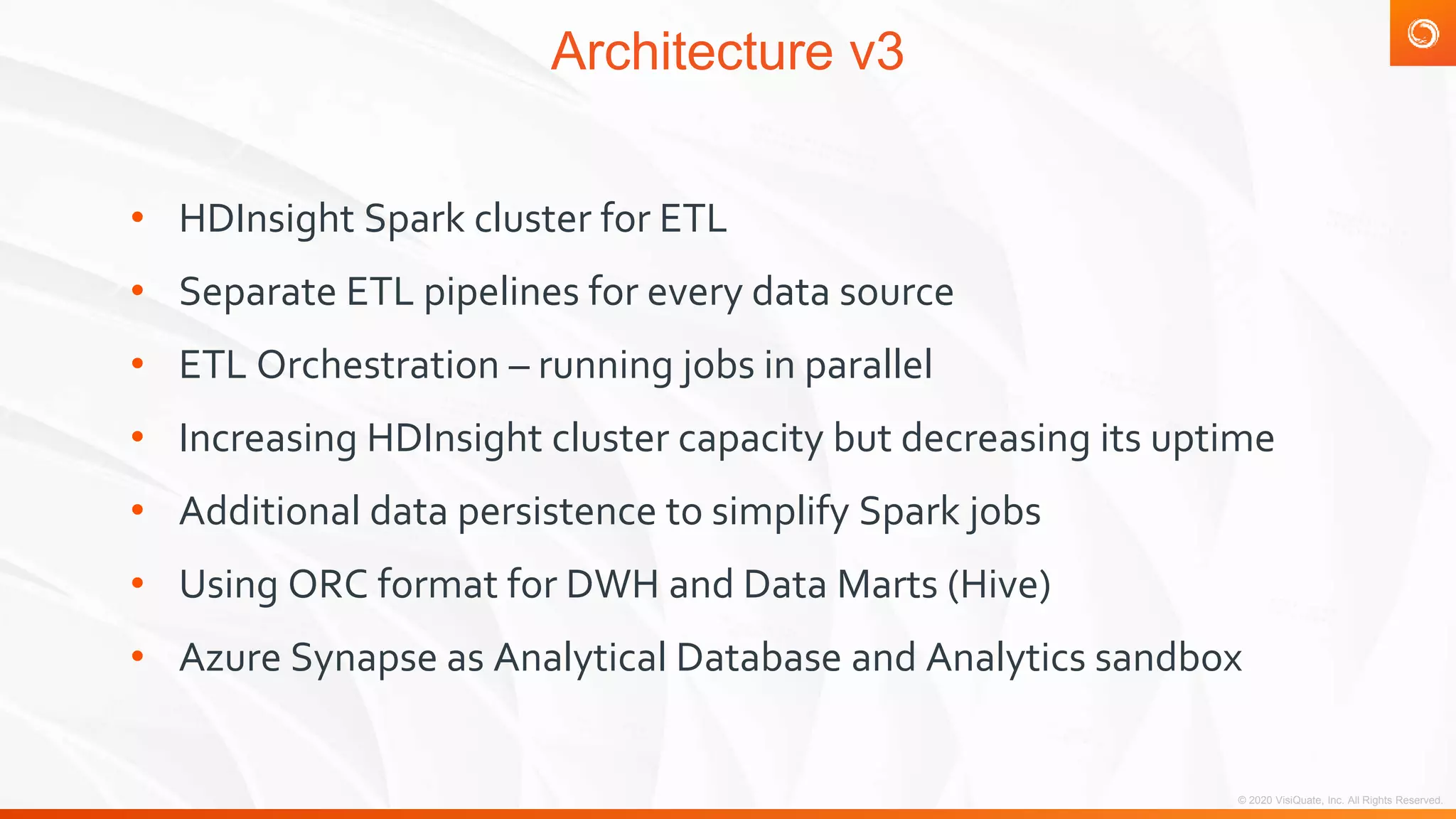

Architecture v3
• HDInsight Spark cluster for ETL
• Separate ETL pipelines for every data source
• ETL Orchestration – running jobs in parallel
• Increasing HDInsight cluster capacity but decreasing its uptime
• Additional data persistence to simplify Spark jobs
• Using ORC format for DWH and Data Marts (Hive)
• Azure Synapse as Analytical Database and Analytics sandbox

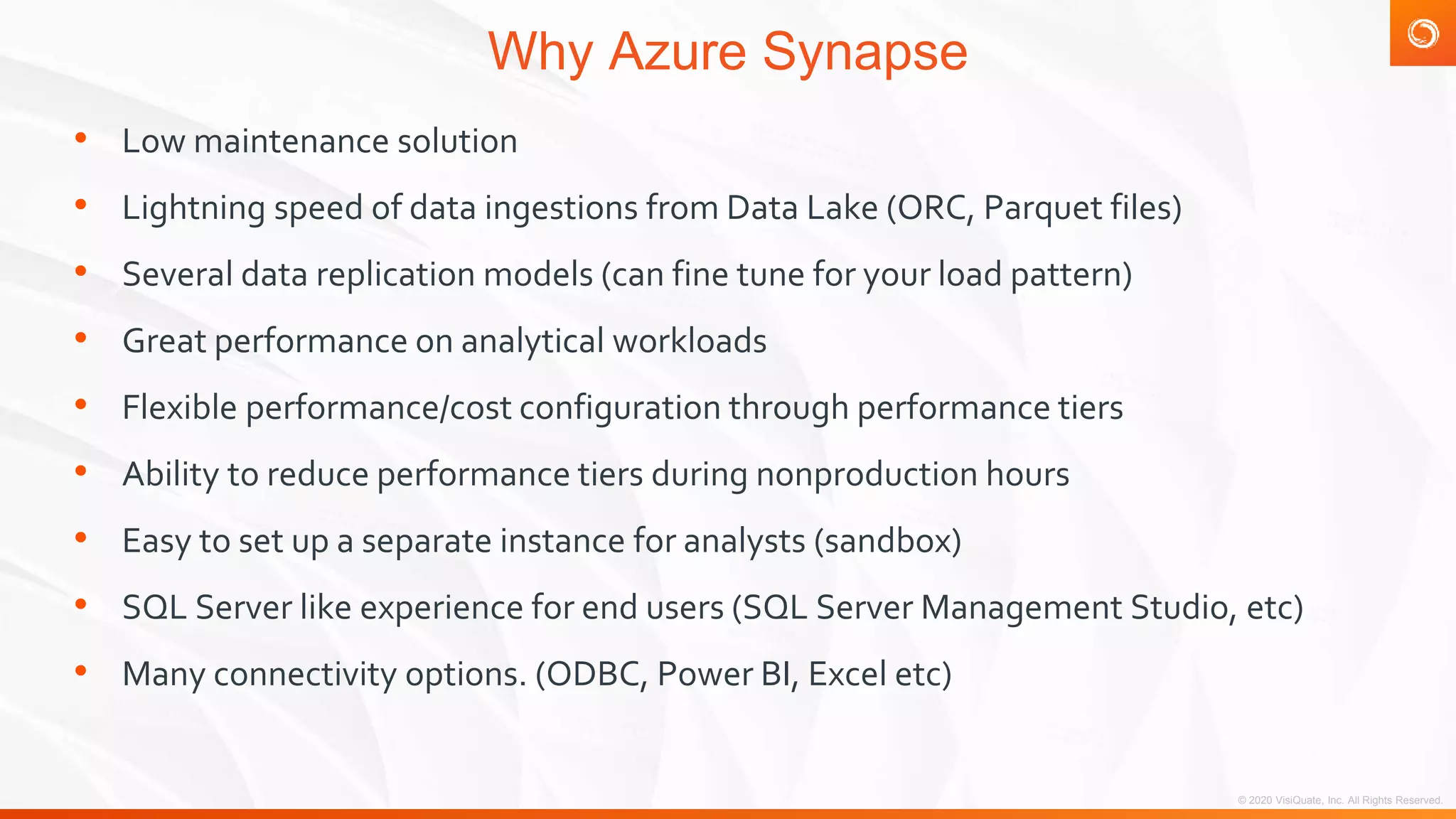

Why Azure Synapse
• Low maintenance solution
• Lightning speed of data ingestions from Data Lake (ORC, Parquet files)
• Several data replication models (can fine tune for your load pattern)
• Great performance on analytical workloads
• Flexible performance/cost configuration through performance tiers
• Ability to reduce performance tiers during nonproduction hours
• Easy to set up a separate instance for analysts (sandbox)
• SQL Server like experience for end users (SQL Server Management Studio, etc)
• Many connectivity options. (ODBC, Power BI, Excel etc)

Production system workload
0
2
4
6
8
10
12
Data Ready
HDI
Synapse
Work hoursADWH daily scaling:
• 100 DWU – off business hours
mode
• 1000 DWU – data refresh
• 300 DWH – run-time

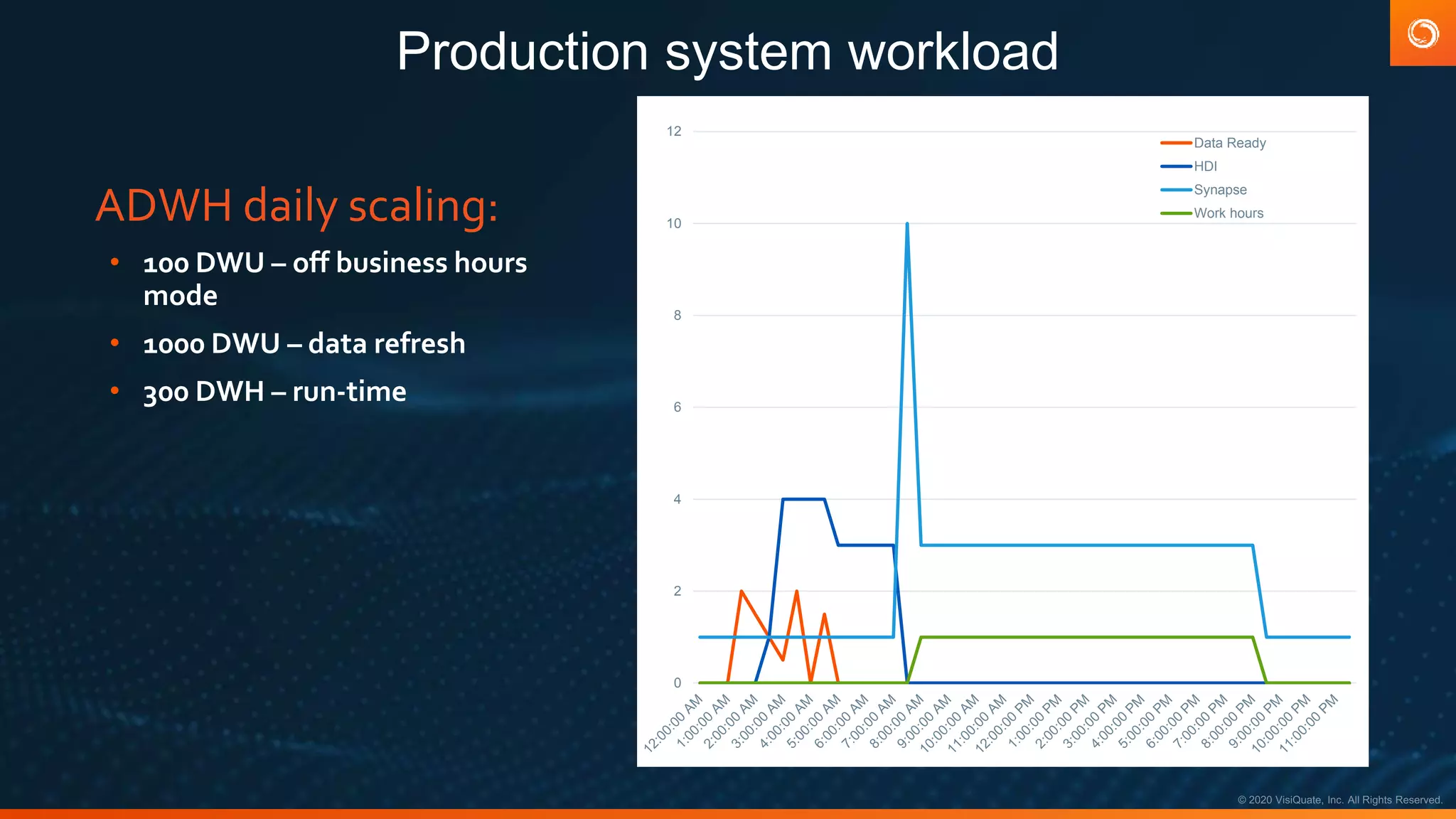

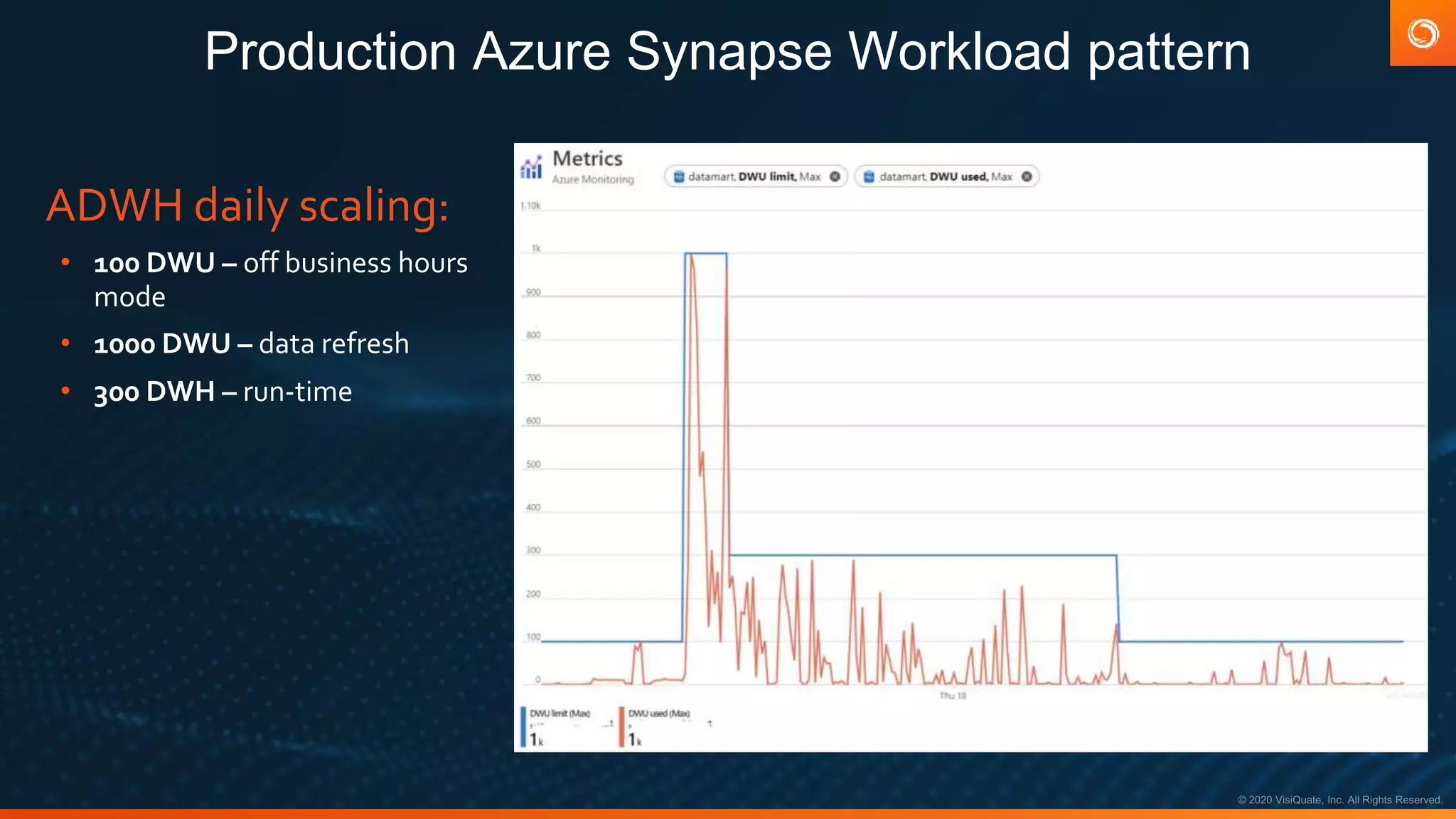

Production Azure Synapse Workload pattern
ADWH daily scaling:
• 100 DWU – off business hours
mode
• 1000 DWU – data refresh
• 300 DWH – run-time

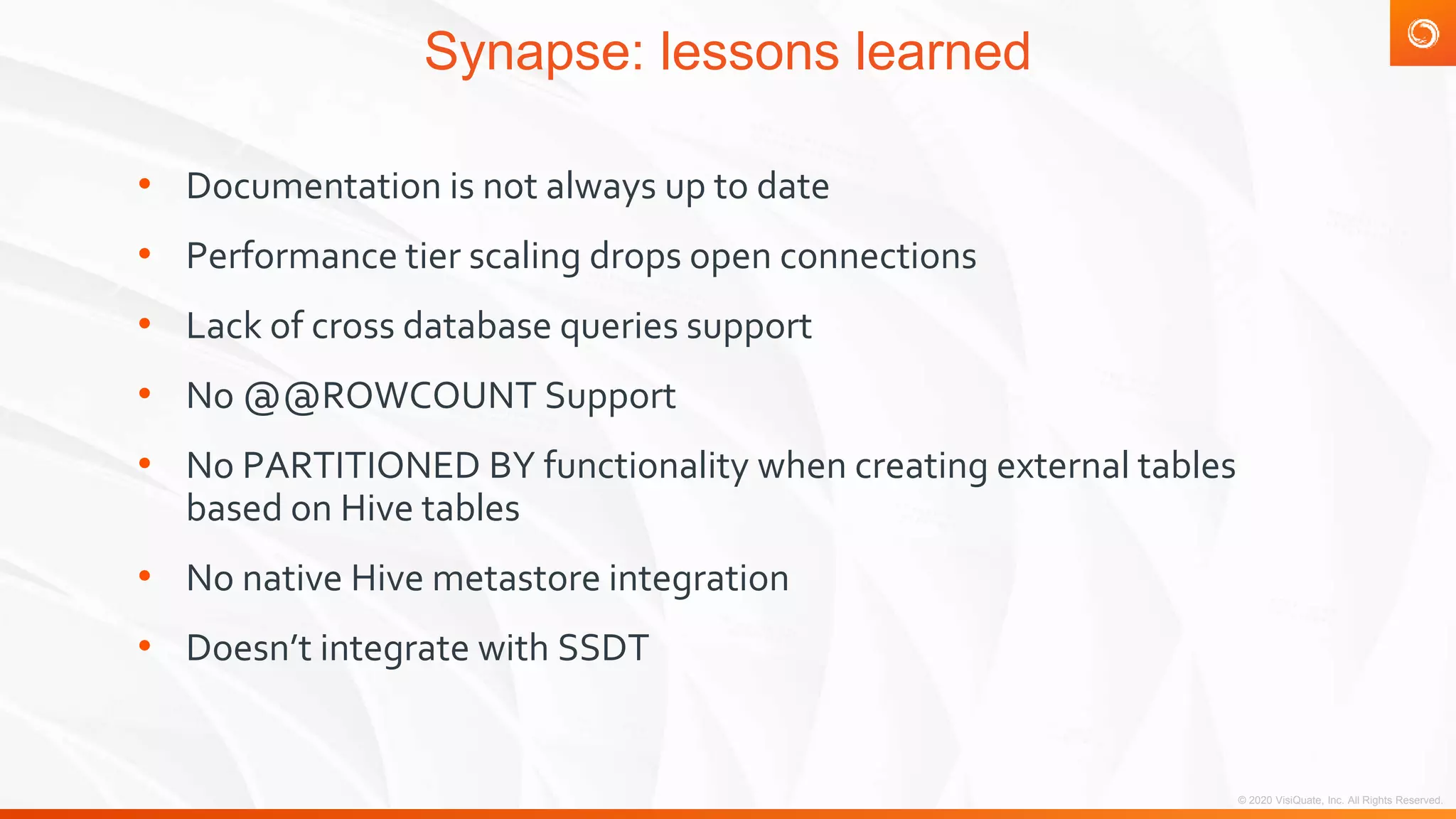

Synapse: lessons learned
• Documentation is not always up to date
• Performance tier scaling drops open connections
• Lack of cross database queries support
• No @@ROWCOUNT Support
• No PARTITIONED BY functionality when creating external tables
based on Hive tables
• No native Hive metastore integration
• Doesn’t integrate with SSDT

Summary

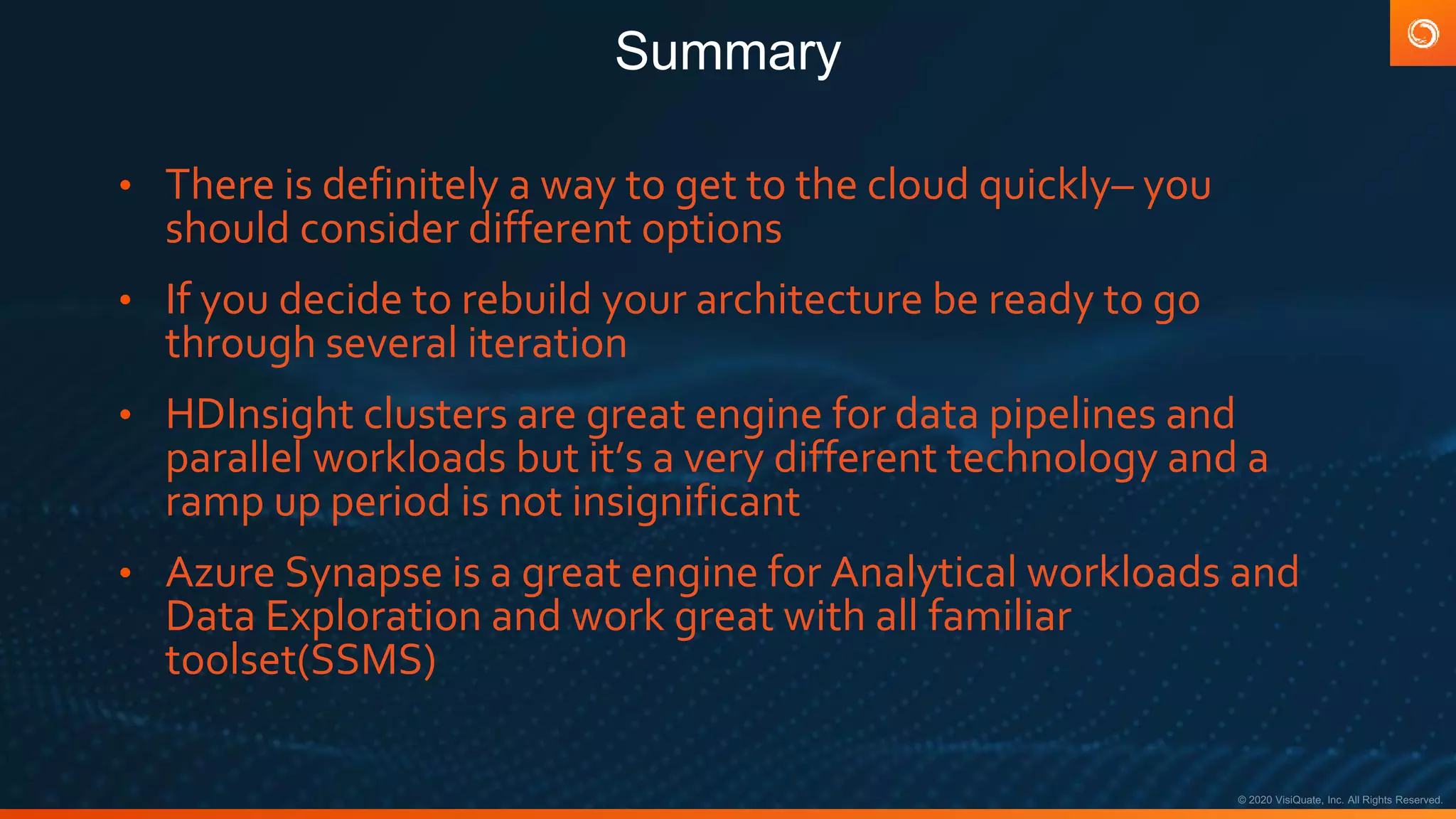

• There is definitely a way to get to the cloud quickly– you
should consider different options
• If you decide to rebuild your architecture be ready to go
through several iteration
• HDInsight clusters are great engine for data pipelines and
parallel workloads but it’s a very different technology and a
ramp up period is not insignificant
• Azure Synapse is a great engine for Analytical workloads and
Data Exploration and work great with all familiar
toolset(SSMS)

Leonid Nekhymchuk, Chief Technology Officer,
leonid.nekhymchuk@visiquate.com
Valeriy Zinovjev, Client Engineering Manager
valeriy.zinovjev@visiquate.com

Thank you.
Any Questions?
