4. VMotion Technology
VMotion Technology moves running virtual machines from one
host to another while maintaining continuous service availability
- Enables Resource Pools
- Enables High Availability
5. Resource Controls
Reservation
• Minimum service level guarantee (in MHz) Total Mhz
• Even when system is overcommitted
• Needs to pass admission control
Limit
Shares
• CPU entitlement is directly proportional to VM's Shares
shares and depends on the total number of apply
here
shares issued
• Abstract number, only ratio matters
Reservation
Limit
• Absolute upper bound on CPU entitlement (in MHz)
0 Mhz
• Even when system is not overcommitted

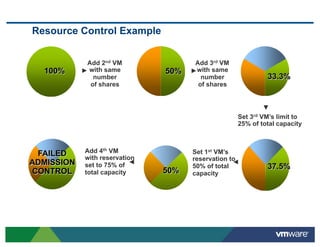

6. Resource Control Example
Add 2nd VM Add 3rd VM
100% ► with same 50% ►with same
number number 33.3%
of shares of shares
▼
Set 3rd VM’s limit to
25% of total capacity
FAILED Add 4th VM Set 1st VM’s
with reservation reservation to
ADMISSION set to 75% of ◄ ◄
50% of total 37.5%
CONTROL total capacity 50% capacity

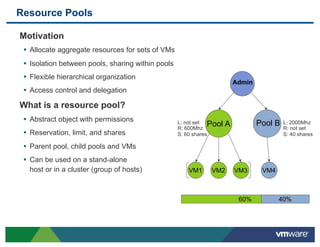

7. Resource Pools
Motivation
• Allocate aggregate resources for sets of VMs
• Isolation between pools, sharing within pools
• Flexible hierarchical organization
Admin
• Access control and delegation
What is a resource pool?
• Abstract object with permissions L: not set Pool A Pool B L: 2000Mhz
R: 600Mhz R: not set
• Reservation, limit, and shares S: 60 shares S: 40 shares
• Parent pool, child pools and VMs
• Can be used on a stand-alone
host or in a cluster (group of hosts) VM1 VM2 VM3 VM4
60% 40%
8. Example migration scenario 4_4_0_0 with DRS
1 2
HP
ProLiant
vCenter 1 2
HP
ProLiant
OVER DL380G6 OVER DL380G6
1 2 TEMP 1 5 1 2 TEMP 1 5
POWER POWER POWER POWER
SUPPLY SUPPLY INTER PL A Y ER SUPPLY SUPPLY INTER PL A Y ER
LOCK LOCK
POWER CAP POWER CAP
DIMMS DIMMS
1A 3G 5E 7C 9i 9i 7C 5E 3G 1A 1A 3G 5E 7C 9i 9i 7C 5E 3G 1A
2 6 2 6
2D 4B 6H 8F 8F 6H 4B 2D 2D 4B 6H 8F 8F 6H 4B 2D
ONLINE ONLINE
1 SPARE 2 1 SPARE 2
PROC PROC PROC PROC
MIRROR MIRROR
FANS FANS
3 7 3 7
1 2 3 4 5 6 1 2 3 4 5 6
4 8 4 8
Imbalanced
Balanced
Cluster
Cluster
POWER
SUPPLY
1
POWER CAP
POWER
SUPPLY
1
2
2
OVER
TEMP
INTER
LOCK
DIMMS
1 5
PL A Y ER
HP
ProLiant
DL380G6
Heavy Load POWER
SUPPLY
POWER CAP
1
1A 3G 5E 7C 9i
POWER
SUPPLY
1
2
2
OVER
TEMP
INTER
LOCK
DIMMS
9i 7C 5E 3G 1A
1 5
PL A Y ER
HP
ProLiant
DL380G6
1A 3G 5E 7C 9i 9i 7C 5E 3G 1A 2 6
2 6 2D 4B 6H 8F 8F 6H 4B 2D
ONLINE
1 SPARE 2
2D 4B 6H 8F 8F 6H 4B 2D
ONLINE PROC PROC
1 2 MIRROR
SPARE FANS
PROC PROC
3 7
MIRROR 1 2 3 4 5 6
FANS
3 7
1 2 3 4 5 6
4 8
4 8
Lighter Load

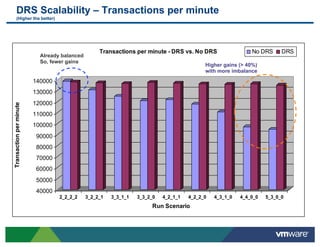

9. DRS Scalability – Transactions per minute
(Higher the better)
Transactions per minute - DRS vs. No DRS No DRS DRS
Already balanced
So, fewer gains
Higher gains (> 40%)
with more imbalance
140000
130000
120000
Transaction per minute
110000
100000
90000
80000
70000
60000
50000
40000
2_2_2_2 3_2_2_1 3_3_1_1 3_3_2_0 4_2_1_1 4_2_2_0 4_3_1_0 4_4_0_0 5_3_0_0
Run Scenario

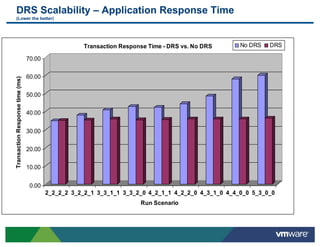

10. DRS Scalability – Application Response Time
(Lower the better)
Transaction Response Time - DRS vs. No DRS No DRS DRS
70.00
60.00
Transaction Response time (ms)
50.00
40.00
30.00
20.00
10.00
0.00
2_2_2_2 3_2_2_1 3_3_1_1 3_3_2_0 4_2_1_1 4_2_2_0 4_3_1_0 4_4_0_0 5_3_0_0
Run Scenario

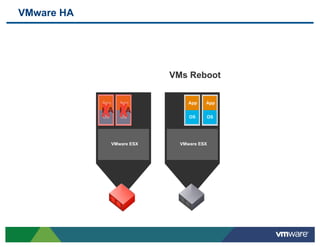

11. VMware HA
VMs Reboot
App App App App
HA HA
OS OS OS OS
VMware ESX VMware ESX

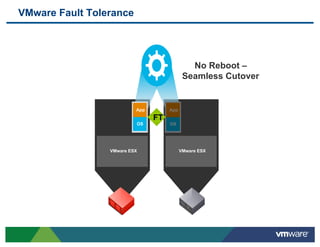

12. VMware Fault Tolerance
No Reboot –
Seamless Cutover
App App
FT
OS OS
VMware ESX VMware ESX

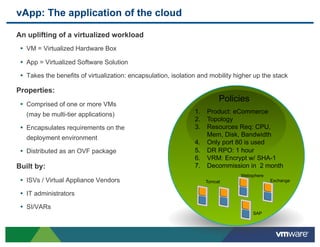

13. vApp: The application of the cloud
An uplifting of a virtualized workload
• VM = Virtualized Hardware Box
• App = Virtualized Software Solution
• Takes the benefits of virtualization: encapsulation, isolation and mobility higher up the stack
Properties:
Policies
• Comprised of one or more VMs
(may be multi-tier applications) 1. Product: eCommerce
2. Topology
• Encapsulates requirements on the 3. Resources Req: CPU,
Mem, Disk, Bandwidth
deployment environment
4. Only port 80 is used
• Distributed as an OVF package 5. DR RPO: 1 hour
6. VRM: Encrypt w/ SHA-1
Built by: 7. Decommission in 2 month
Websphere
• ISVs / Virtual Appliance Vendors Tomcat Exchange
• IT administrators
• SI/VARs
SAP

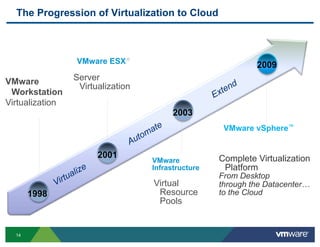

14. The Progression of Virtualization to Cloud
VMware ESX® 2009
VMware Server
Virtualization
Workstation
Virtualization
2003
VMware vSphere™
2001 Complete Virtualization
VMware
Infrastructure Platform
From Desktop
Virtual through the Datacenter…
1998 Resource to the Cloud
Pools
14
15. Datacenter of the Future – private cloud
• On-demand capacity
• Pooling, load balancing of server, storage, network
• Built-in availability, security and scalability
Resource Pools
A Compute
P factory
vSphere vSphere vSphere vSphere
I
17. Business-Critical Application Momentum
% of customers running apps in production on VMware
56% 53%
50%
36% 41% 34%
24% 27%
MS MS MS Oracle Oracle IBM IBM SAP
Exchange SQL SharePoint Middleware DB WebSphere DB2
Source: VMware customer survey, September 2008, sample size 1038
Data: Within subset of VMware customers running a specific app, % that have at least one instance of that app in production in a VM
In a recent Gartner poll, 73% of customers claimed to use x86
virtualization for mission critical applications in production
Source: Gartner IOM Conference (June 2008)
“Linux and Windows Server Virtualization Is Picking Up Steam” (ID Number: G00161702)

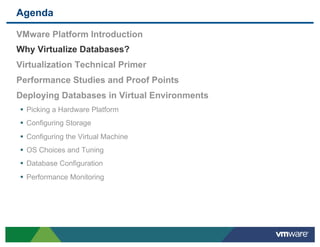

18. Agenda
VMware Platform Introduction
Why Virtualize Databases?
Virtualization Technical Primer
Performance Studies and Proof Points
Deploying Databases in Virtual Environments
• Picking a Hardware Platform
• Configuring Storage
• Configuring the Virtual Machine
• OS Choices and Tuning
• Database Configuration
• Performance Monitoring

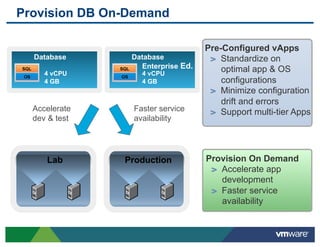

19. Provision DB On-Demand
Pre-Configured vApps
Database Database " Standardize on
SQL SQL Enterprise Ed. optimal app & OS
OS
4 vCPU OS
4 vCPU
4 GB 4 GB configurations
" Minimize configuration
drift and errors
Accelerate Faster service " Support multi-tier Apps
dev & test availability
Lab Production Provision On Demand
" Accelerate app
development
" Faster service
availability

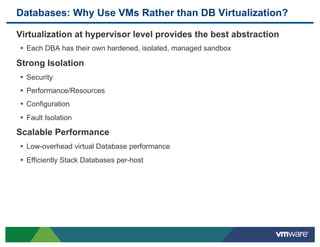

20. Databases: Why Use VMs Rather than DB Virtualization?
Virtualization at hypervisor level provides the best abstraction
• Each DBA has their own hardened, isolated, managed sandbox
Strong Isolation
• Security
• Performance/Resources
• Configuration
• Fault Isolation
Scalable Performance
• Low-overhead virtual Database performance
• Efficiently Stack Databases per-host

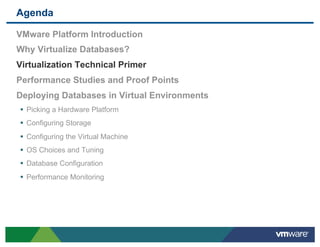

21. Agenda
VMware Platform Introduction
Why Virtualize Databases?
Virtualization Technical Primer
Performance Studies and Proof Points
Deploying Databases in Virtual Environments
• Picking a Hardware Platform
• Configuring Storage
• Configuring the Virtual Machine
• OS Choices and Tuning
• Database Configuration
• Performance Monitoring
22. VMware ESX Architecture
CPU is controlled by
scheduler and virtualized
File
System
by monitor
TCP/IP
Guest Guest
Monitor supports:
! BT (Binary Translation)
! HW (Hardware assist)
Monitor Monitor (BT, HW, PV)
! PV (Paravirtualization)
Virtual NIC Virtual SCSI
Memory is allocated by the
Memory
VMkernel
Scheduler Allocator
Virtual Switch File System VMkernel and virtualized
by the monitor
NIC Drivers I/O Drivers
Network and I/O devices
Physical are emulated and proxied
Hardware
though native device
drivers

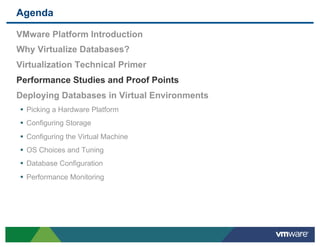

23. Agenda
VMware Platform Introduction
Why Virtualize Databases?
Virtualization Technical Primer
Performance Studies and Proof Points
Deploying Databases in Virtual Environments
• Picking a Hardware Platform
• Configuring Storage
• Configuring the Virtual Machine
• OS Choices and Tuning
• Database Configuration
• Performance Monitoring

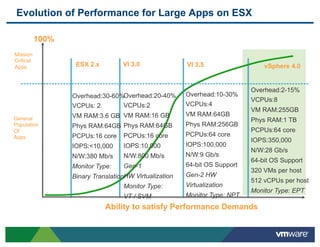

24. Evolution of Performance for Large Apps on ESX
100%
Mission
Critical
Apps ESX 2.x VI 3.0 VI 3.5 vSphere 4.0
Overhead:2-15%
Overhead:30-60%Overhead:20-40% Overhead:10-30%
VCPUs:8
VCPUs: 2 VCPUs:2 VCPUs:4
VM RAM:255GB
VM RAM:3.6 GB VM RAM:16 GB VM RAM:64GB
General Phys RAM:1 TB
Population Phys RAM:64GB Phys RAM:64GB Phys RAM:256GB
Of PCPUs:64 core
Apps PCPUs:16 core PCPUs:16 core PCPUs:64 core
IOPS:350,000
IOPS:<10,000 IOPS:10,000 IOPS:100,000
N/W:28 Gb/s
N/W:380 Mb/s N/W:800 Mb/s N/W:9 Gb/s
64-bit OS Support
Monitor Type: Gen-1 64-bit OS Support
320 VMs per host
Binary TranslationHW Virtualization Gen-2 HW
512 vCPUs per host
Monitor Type: Virtualization
Monitor Type: EPT
VT / SVM Monitor Type: NPT
Ability to satisfy Performance Demands

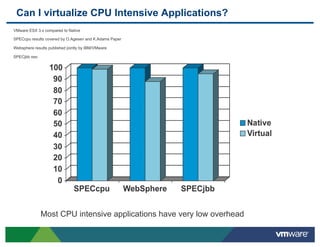

25. Can I virtualize CPU Intensive Applications?
VMware ESX 3.x compared to Native
SPECcpu results covered by O.Agesen and K.Adams Paper
Websphere results published jointly by IBM/VMware
SPECjbb results from recent internal measurements
Most CPU intensive applications have very low overhead
26. Debunking the myth: High Throughput, Low Overhead I/O
Maximum reported storage:
365K IOPS
• 100K on VI3
Maximum reported network:
16 Gb/s
• Measured on VI3

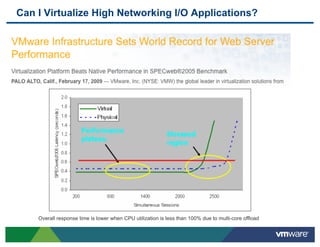

27. Can I Virtualize High Networking I/O Applications?
Overall response time is lower when CPU utilization is less than 100% due to multi-core offload

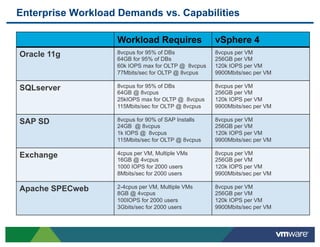

28. Enterprise Workload Demands vs. Capabilities
Workload Requires vSphere 4
Oracle 11g 8vcpus for 95% of DBs 8vcpus per VM
64GB for 95% of DBs 256GB per VM
60k IOPS max for OLTP @ 8vcpus 120k IOPS per VM
77Mbits/sec for OLTP @ 8vcpus 9900Mbits/sec per VM
SQLserver 8vcpus for 95% of DBs 8vcpus per VM
64GB @ 8vcpus 256GB per VM
25kIOPS max for OLTP @ 8vcpus 120k IOPS per VM
115Mbits/sec for OLTP @ 8vcpus 9900Mbits/sec per VM
SAP SD 8vcpus for 90% of SAP Installs 8vcpus per VM
24GB @ 8vcpus 256GB per VM
1k IOPS @ 8vcpus 120k IOPS per VM
115Mbits/sec for OLTP @ 8vcpus 9900Mbits/sec per VM
Exchange 4cpus per VM, Multiple VMs 8vcpus per VM
16GB @ 4vcpus 256GB per VM
1000 IOPS for 2000 users 120k IOPS per VM
8Mbits/sec for 2000 users 9900Mbits/sec per VM
Apache SPECweb 2-4cpus per VM, Multiple VMs 8vcpus per VM
8GB @ 4vcpus 256GB per VM
100IOPS for 2000 users 120k IOPS per VM
3Gbits/sec for 2000 users 9900Mbits/sec per VM
30. How large is your database instance? (one VM shown)

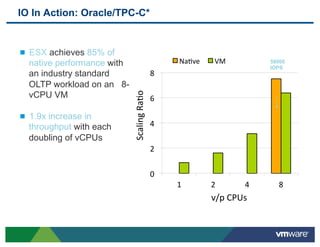

31. IO In Action: Oracle/TPC-C*
" ESX achieves 85% of
native performance with Na1ve# VM# 58000
IOPS
an industry standard 8#
OLTP workload on an 8-
Scaling#Ra1o#
vCPU VM 6#
" 1.9x increase in
throughput with each 4#
doubling of vCPUs
2#
0#
1# 2# 4# 8#
v/p#CPUs#

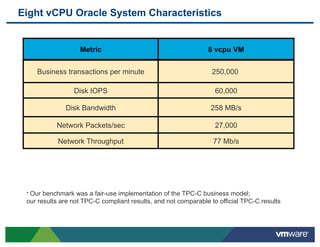

32. Eight vCPU Oracle System Characteristics
Metric 8 vcpu VM
Business transactions per minute 250,000
Disk IOPS 60,000
Disk Bandwidth 258 MB/s
Network Packets/sec 27,000
Network Throughput 77 Mb/s
* Our benchmark was a fair-use implementation of the TPC-C business model;
our results are not TPC-C compliant results, and not comparable to official TPC-C results

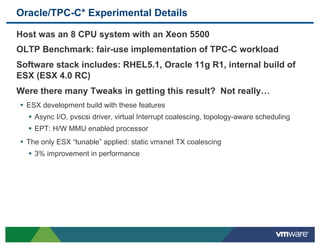

33. Oracle/TPC-C* Experimental Details
Host was an 8 CPU system with an Xeon 5500
OLTP Benchmark: fair-use implementation of TPC-C workload
Software stack includes: RHEL5.1, Oracle 11g R1, internal build of
ESX (ESX 4.0 RC)
Were there many Tweaks in getting this result? Not really…
• ESX development build with these features
! Async I/O, pvscsi driver, virtual Interrupt coalescing, topology-aware scheduling
! EPT: H/W MMU enabled processor
• The only ESX “tunable” applied: static vmxnet TX coalescing
! 3% improvement in performance

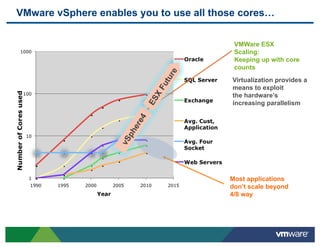

34. VMware vSphere enables you to use all those cores…
VMWare ESX
Scaling:
Keeping up with core
counts
Virtualization provides a
means to exploit
the hardware’s
increasing parallelism
Most applications
don’t scale beyond
4/8 way

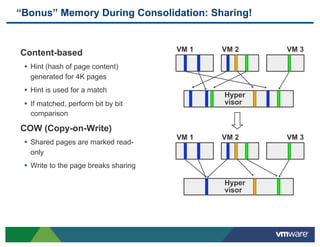

35. “Bonus” Memory During Consolidation: Sharing!
VM 1 VM 2 VM 3
Content-based
• Hint (hash of page content)
generated for 4K pages
• Hint is used for a match
Hyper
• If matched, perform bit by bit visor
comparison
COW (Copy-on-Write)
VM 1 VM 2 VM 3
• Shared pages are marked read-
only
• Write to the page breaks sharing
Hyper
visor

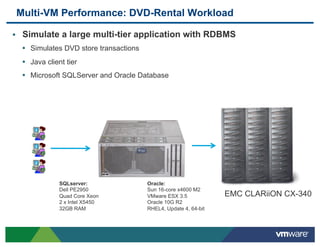

36. Multi-VM Performance: DVD-Rental Workload
! Simulate a large multi-tier application with RDBMS
• Simulates DVD store transactions
• Java client tier
• Microsoft SQLServer and Oracle Database
SQLserver: Oracle:
Dell PE2950 Sun 16-core x4600 M2
Quad Core Xeon VMware ESX 3.5 EMC CLARiiON CX-340
2 x Intel X5450 Oracle 10G R2
32GB RAM RHEL4, Update 4, 64-bit

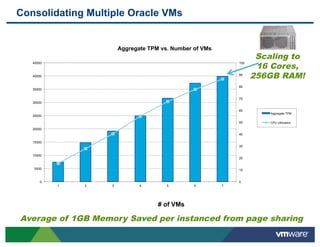

37. Consolidating Multiple Oracle VMs
Aggregate TPM vs. Number of VMs
Scaling to
16 Cores,
45000 100
40000 90
256GB RAM!
80
35000
70
30000
60
Aggregate TPM
25000
50 CPU Utilization
20000
40
15000
30
10000
20
5000 10
0 0
1 2 3 4 5 6 7
# of VMs
Average of 1GB Memory Saved per instanced from page sharing

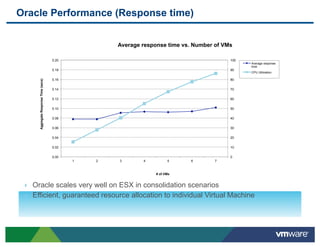

38. Oracle Performance (Response time)
Average response time vs. Number of VMs
0.20 100
Average response
time
0.18 90
CPU Utilization
0.16 80
Aggregate Response Time (secs)
0.14 70
0.12 60
0.10 50
0.08 40
0.06 30
0.04 20
0.02 10
0.00 0
1 2 3 4 5 6 7
# of VMs
! Oracle scales very well on ESX in consolidation scenarios
! Efficient, guaranteed resource allocation to individual Virtual Machine

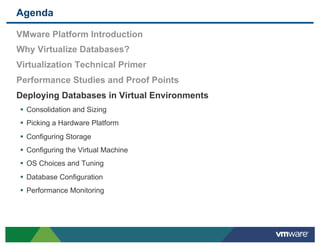

39. Agenda
VMware Platform Introduction
Why Virtualize Databases?
Virtualization Technical Primer
Performance Studies and Proof Points
Deploying Databases in Virtual Environments
• Consolidation and Sizing
• Picking a Hardware Platform
• Configuring Storage
• Configuring the Virtual Machine
• OS Choices and Tuning
• Database Configuration
• Performance Monitoring

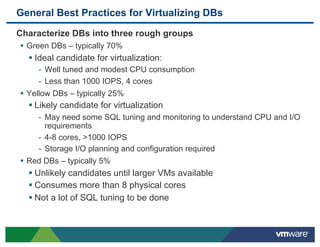

40. General Best Practices for Virtualizing DBs
Characterize DBs into three rough groups
• Green DBs – typically 70%
! Ideal candidate for virtualization:
- Well tuned and modest CPU consumption
- Less than 1000 IOPS, 4 cores
• Yellow DBs – typically 25%
! Likely candidate for virtualization
- May need some SQL tuning and monitoring to understand CPU and I/O
requirements
- 4-8 cores, >1000 IOPS
- Storage I/O planning and configuration required
• Red DBs – typically 5%
! Unlikely candidates until larger VMs available
! Consumes more than 8 physical cores
! Not a lot of SQL tuning to be done
41. Consolidation and Sizing
CPU Utilization Distribution
100000
10000
Consolidation targets are often
Number of Systems
<30% Utilized 1000
" Windows average utilization: 5-8% 100
" Linux/Unix average: 10-35% 10
1
0 20 40 60 80 100
% CPU Utilization

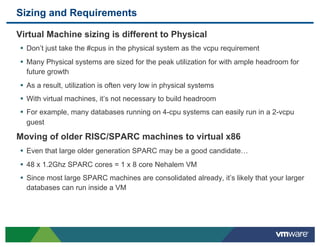

42. Sizing and Requirements
Virtual Machine sizing is different to Physical
• Don’t just take the #cpus in the physical system as the vcpu requirement
• Many Physical systems are sized for the peak utilization for with ample headroom for
future growth
• As a result, utilization is often very low in physical systems
• With virtual machines, it’s not necessary to build headroom
• For example, many databases running on 4-cpu systems can easily run in a 2-vcpu
guest
Moving of older RISC/SPARC machines to virtual x86
• Even that large older generation SPARC may be a good candidate…
• 48 x 1.2Ghz SPARC cores = 1 x 8 core Nehalem VM
• Since most large SPARC machines are consolidated already, it’s likely that your larger
databases can run inside a VM

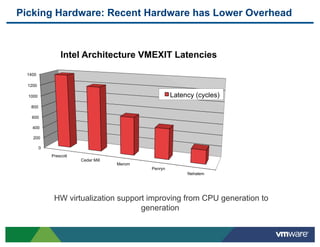

43. Picking Hardware: Recent Hardware has Lower Overhead
Intel Architecture VMEXIT Latencies
1400
1200
1000 Latency (cycles)
800
600
400
200
0
Prescott
Cedar Mill
Merom
Penryn
Nehalem
HW virtualization support improving from CPU generation to
generation

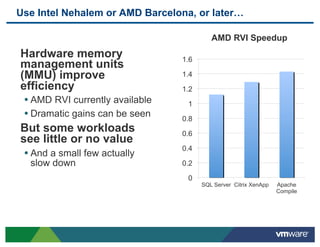

44. Use Intel Nehalem or AMD Barcelona, or later…
AMD RVI Speedup
Hardware memory 1.6
management units
(MMU) improve 1.4
efficiency 1.2
• AMD RVI currently available 1
• Dramatic gains can be seen 0.8
But some workloads 0.6
see little or no value
0.4
• And a small few actually
slow down 0.2
0
SQL Server Citrix XenApp Apache
Compile

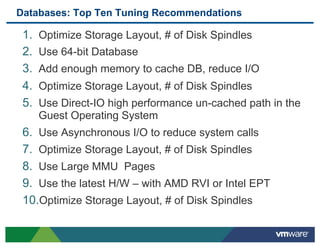

45. Databases: Top Ten Tuning Recommendations
1. Optimize Storage Layout, # of Disk Spindles
2. Use 64-bit Database
3. Add enough memory to cache DB, reduce I/O
4. Optimize Storage Layout, # of Disk Spindles

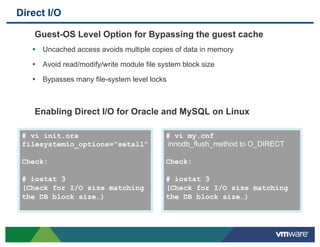

5. Use Direct-IO high performance un-cached path in the
Guest Operating System

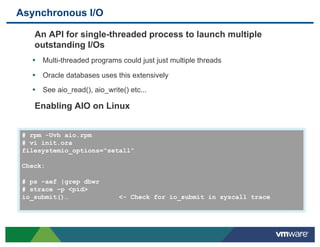

6. Use Asynchronous I/O to reduce system calls
7. Optimize Storage Layout, # of Disk Spindles

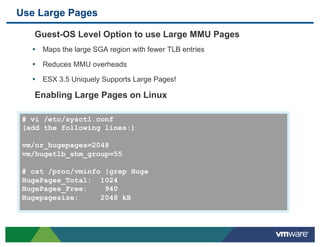

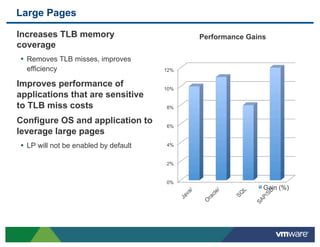

8. Use Large MMU Pages
9. Use the latest H/W – with AMD RVI or Intel EPT
10. Optimize Storage Layout, # of Disk Spindles
46. Databases: Workload Considerations
OLTP DSS
Short Transactions Long Transactions
Limited number of standardized queries Complex queries
Small amounts of data accessed Large amounts of data accessed
Combines data from different
Uses data from only one source sources
I/O Profile I/O Profile
• Small Synchronous reads/writes (2k->8k) • Large, Sequential I/Os (up to 1MB)
• Heavy latency-sensitive log I/O • Extreme Bandwidth Required
Memory and I/O intensive • Heavy ready traffic against data
volumes
• Little log traffic
CPU, Memory and I/O intensive
Indexing enables higher performance

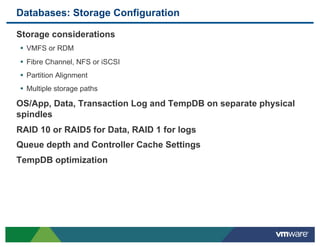

47. Databases: Storage Configuration
Storage considerations
• VMFS or RDM
• Fibre Channel, NFS or iSCSI
• Partition Alignment
• Multiple storage paths
OS/App, Data, Transaction Log and TempDB on separate physical
spindles
RAID 10 or RAID5 for Data, RAID 1 for logs
Queue depth and Controller Cache Settings
TempDB optimization
48. Disk Fundamentals
Databases are mostly random I/O access patterns
Accesses to disk are dominated by seek/rotate
• 10k RPM Disks: 150 IOPS max, ~80 IOPS Nominal
• 15k RPM Disks: 250 IOPS max, ~120 IOPS Nominal
Database Storage Performance is controlled by two primary factors
• Size and configuration of cache(s)
• Number of physical disks at the
back-end

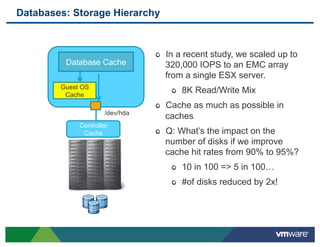

50. Databases: Storage Hierarchy
" In a recent study, we scaled up to
Database Cache 320,000 IOPS to an EMC array
from a single ESX server.
Guest OS
Cache
" 8K Read/Write Mix
" Cache as much as possible in
/dev/hda
caches
Controller
Cache " Q: What’s the impact on the
number of disks if we improve
cache hit rates from 90% to 95%?
" 10 in 100 => 5 in 100…
" #of disks reduced by 2x!
51. Storage – VMFS or RDM
Guest Guest
OS OS
Guest
OS /dev/hda /dev/hda
/dev/hda VMFS database1.vmdk database2.vmdk
FC LUN FC or iSCSI
RAW VMFS LUN
RAW provides direct access to Leverage templates and quick
provisioning
a LUN from within the VM
Fewer LUNs means you don’t have to
Allows portability between physical watch Heap
and virtual Scales better with Consolidated
RAW means more LUNs Backup
• More provisioning time Preferred Method
Advanced features still work

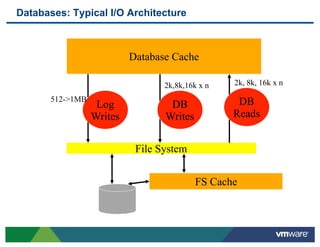

53. Databases: Typical I/O Architecture
Database Cache
2k,8k,16k x n 2k, 8k, 16k x n
512->1MB DB
Log DB
Writes Writes Reads
File System
FS Cache

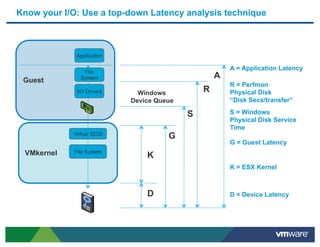

54. Know your I/O: Use a top-down Latency analysis technique
Application
File
A = Application Latency
Guest System A
R = Perfmon
I/O Drivers Windows R Physical Disk
Device Queue “Disk Secs/transfer”
S S = Windows
Physical Disk Service
Time
Virtual SCSI
G
G = Guest Latency
VMkernel File System
K
K = ESX Kernel
D D = Device Latency
55. Checking for Disk Bottlenecks
Disk latency issues are visible from Oracle stats
• Enable statspack
• Review top latency events
Top 5 Timed Events
% Total
Event Waits Time (s) Ela Time
--------------------------- ------------ ----------- -----------
db file sequential read 2,598 7,146 48.54
db file scattered read 25,519 3,246 22.04
library cache load lock 673 1,363 9.26
CPU time 2,154 934 7.83
log file parallel write 19,157 837 5.68
58. Direct I/O
Guest-OS Level Option for Bypassing the guest cache
• Uncached access avoids multiple copies of data in memory
• Avoid read/modify/write module file system block size
• Bypasses many file-system level locks
Enabling Direct I/O for Oracle and MySQL on Linux
# vi init.ora # vi my.cnf
filesystemio_options=“setall” innodb_flush_method to O_DIRECT
Check: Check:
# iostat 3 # iostat 3
(Check for I/O size matching (Check for I/O size matching
the DB block size…) the DB block size…)
59. Asynchronous I/O
An API for single-threaded process to launch multiple
outstanding I/Os
• Multi-threaded programs could just just multiple threads
• Oracle databases uses this extensively
• See aio_read(), aio_write() etc...
Enabling AIO on Linux
# rpm -Uvh aio.rpm
# vi init.ora
filesystemio_options=“setall”
Check:
# ps –aef |grep dbwr
# strace –p <pid>
io_submit()… <- Check for io_submit in syscall trace

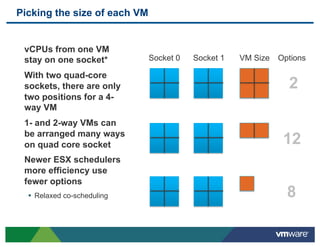

60. Picking the size of each VM
vCPUs from one VM
stay on one socket* Socket 0 Socket 1 VM Size Options
With two quad-core
sockets, there are only 2
two positions for a 4-
way VM
1- and 2-way VMs can
be arranged many ways
on quad core socket 12
Newer ESX schedulers
more efficiency use
fewer options
• Relaxed co-scheduling 8
61. Use Large Pages
Guest-OS Level Option to use Large MMU Pages
• Maps the large SGA region with fewer TLB entries
• Reduces MMU overheads
• ESX 3.5 Uniquely Supports Large Pages!
Enabling Large Pages on Linux
# vi /etc/sysctl.conf
(add the following lines:)
vm/nr_hugepages=2048
vm/hugetlb_shm_group=55
# cat /proc/vminfo |grep Huge
HugePages_Total: 1024
HugePages_Free: 940
Hugepagesize: 2048 kB
62. Large Pages
Increases TLB memory Performance Gains
coverage
• Removes TLB misses, improves
efficiency 12%
Improves performance of 10%
applications that are sensitive
to TLB miss costs 8%
Configure OS and application to
6%
leverage large pages
• LP will not be enabled by default 4%
2%
0%
Gain (%)

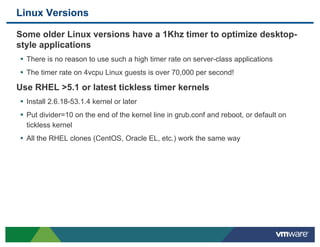

63. Linux Versions
Some older Linux versions have a 1Khz timer to optimize desktop-
style applications
• There is no reason to use such a high timer rate on server-class applications
• The timer rate on 4vcpu Linux guests is over 70,000 per second!
Use RHEL >5.1 or latest tickless timer kernels
• Install 2.6.18-53.1.4 kernel or later
• Put divider=10 on the end of the kernel line in grub.conf and reboot, or default on
tickless kernel
• All the RHEL clones (CentOS, Oracle EL, etc.) work the same way

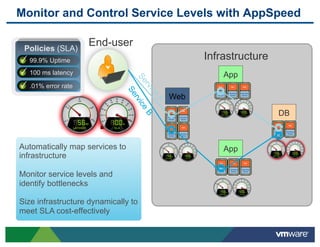

64. Monitor and Control Service Levels with AppSpeed
Policies (SLA)
End-user
99.9% Uptime Infrastructure
100 ms latency App
.01% error rate
Web
DB
Automatically map services to App
infrastructure
Monitor service levels and
identify bottlenecks
Size infrastructure dynamically to
meet SLA cost-effectively

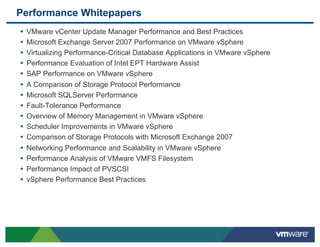

65. Performance Whitepapers
• VMware vCenter Update Manager Performance and Best Practices
• Microsoft Exchange Server 2007 Performance on VMware vSphere
• Virtualizing Performance-Critical Database Applications in VMware vSphere
• Performance Evaluation of Intel EPT Hardware Assist
• SAP Performance on VMware vSphere
• A Comparison of Storage Protocol Performance
• Microsoft SQLServer Performance
• Fault-Tolerance Performance
• Overview of Memory Management in VMware vSphere
• Scheduler Improvements in VMware vSphere
• Comparison of Storage Protocols with Microsoft Exchange 2007
• Networking Performance and Scalability in VMware vSphere
• Performance Analysis of VMware VMFS Filesystem
• Performance Impact of PVSCSI
• vSphere Performance Best Practices
