The VTS-19 is a 19-inch fully waterproof HD LED television designed and built in the UK. It features a slimline design that is easy to install flush in walls. The television has touch screen controls, multiple input and output connections, and is compatible with home integration systems. It is designed to be dust-free and protected against moisture damage.

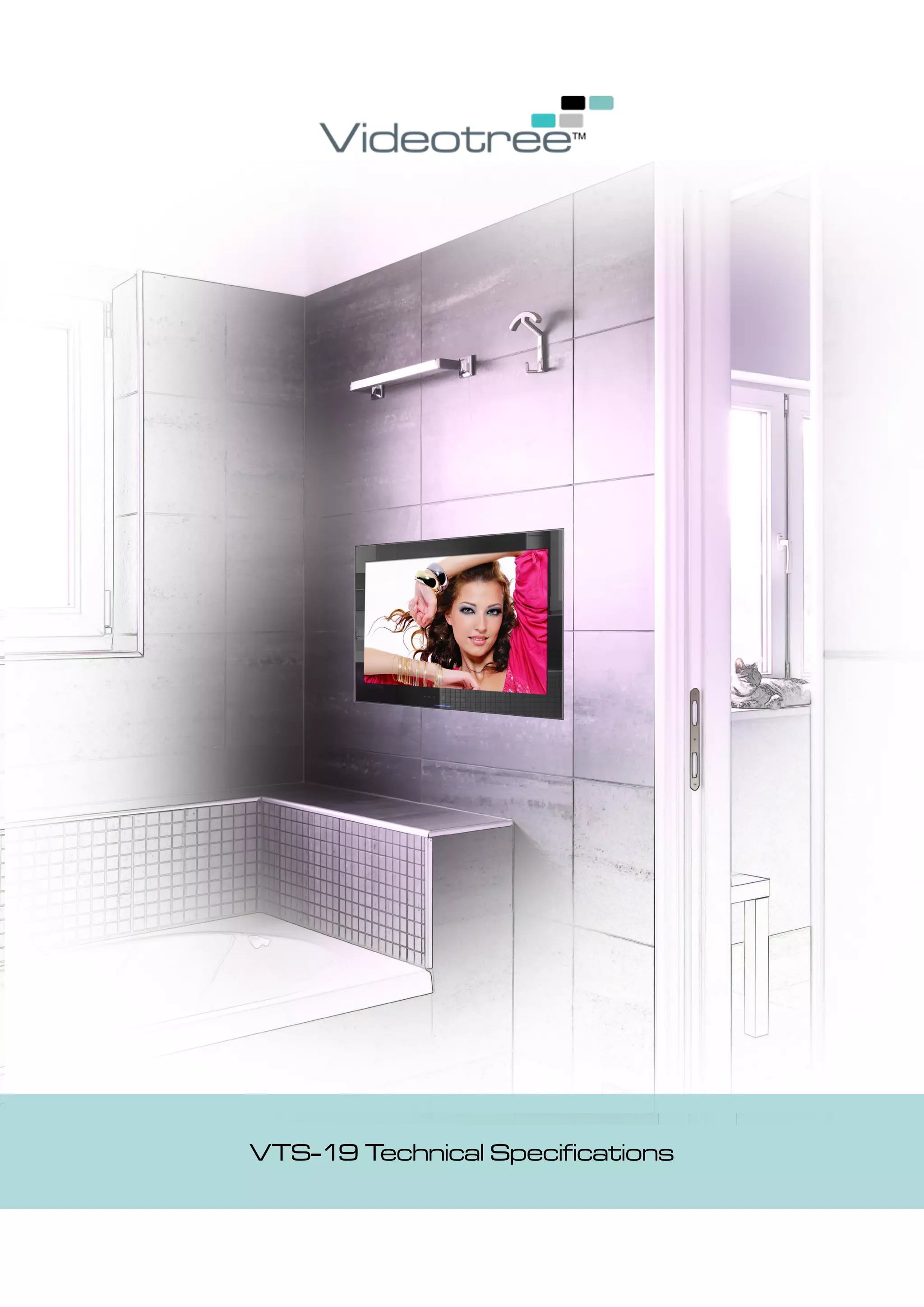

1. VTS-19 Technical Specifications

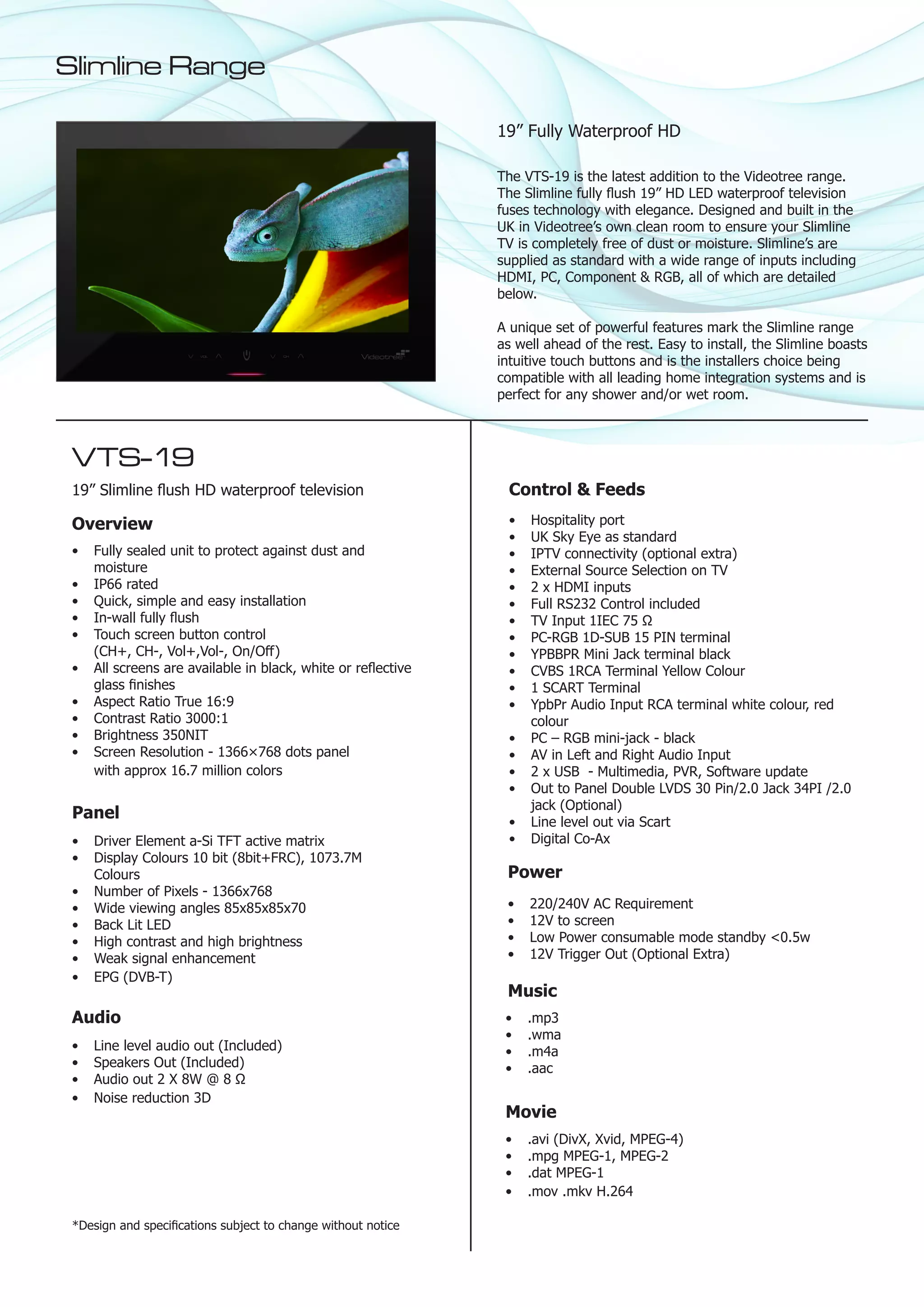

2. Slimline Range
19” Fully Waterproof HD
The VTS-19 is the latest addition to the Videotree range.
The Slimline fully flush 19” HD LED waterproof television
fuses technology with elegance. Designed and built in the
UK in Videotree’s own clean room to ensure your Slimline
TV is completely free of dust or moisture. Slimline’s are
supplied as standard with a wide range of inputs including
HDMI, PC, Component & RGB, all of which are detailed
below.
A unique set of powerful features mark the Slimline range
as well ahead of the rest. Easy to install, the Slimline boasts
intuitive touch buttons and is the installers choice being
compatible with all leading home integration systems and is
perfect for any shower and/or wet room.
VTS-19
19” Slimline flush HD waterproof television Control & Feeds
Overview • Hospitality port
• UK Sky Eye as standard
• Fully sealed unit to protect against dust and • IPTV connectivity (optional extra)
moisture • External Source Selection on TV
• IP66 rated • 2 x HDMI inputs
• Quick, simple and easy installation • Full RS232 Control included
• In-wall fully flush • TV Input 1IEC 75 Ω
• Touch screen button control • PC-RGB 1D-SUB 15 PIN terminal
(CH+, CH-, Vol+,Vol-, On/Off) • YPBBPR Mini Jack terminal black
• All screens are available in black, white or reflective • CVBS 1RCA Terminal Yellow Colour
glass finishes • 1 SCART Terminal
• Aspect Ratio True 16:9 • YpbPr Audio Input RCA terminal white colour, red
• Contrast Ratio 3000:1 colour
• Brightness 350NIT • PC – RGB mini-jack - black
• Screen Resolution - 1366×768 dots panel • AV in Left and Right Audio Input
with approx 16.7 million colors • 2 x USB - Multimedia, PVR, Software update
• Out to Panel Double LVDS 30 Pin/2.0 Jack 34PI /2.0
jack (Optional)
Panel • Line level out via Scart
• Driver Element a-Si TFT active matrix • Digital Co-Ax
• Display Colours 10 bit (8bit+FRC), 1073.7M
Colours Power
• Number of Pixels - 1366x768
• Wide viewing angles 85x85x85x70 • 220/240V AC Requirement
• Back Lit LED • 12V to screen
• High contrast and high brightness • Low Power consumable mode standby <0.5w
• Weak signal enhancement • 12V Trigger Out (Optional Extra)
• EPG (DVB-T)
Music
Audio • .mp3
• .wma
• Line level audio out (Included) • .m4a
• Speakers Out (Included) • .aac
• Audio out 2 X 8W @ 8 Ω
• Noise reduction 3D
Movie
• .avi (DivX, Xvid, MPEG-4)
• .mpg MPEG-1, MPEG-2
• .dat MPEG-1
• .mov .mkv H.264
*Design and specifications subject to change without notice

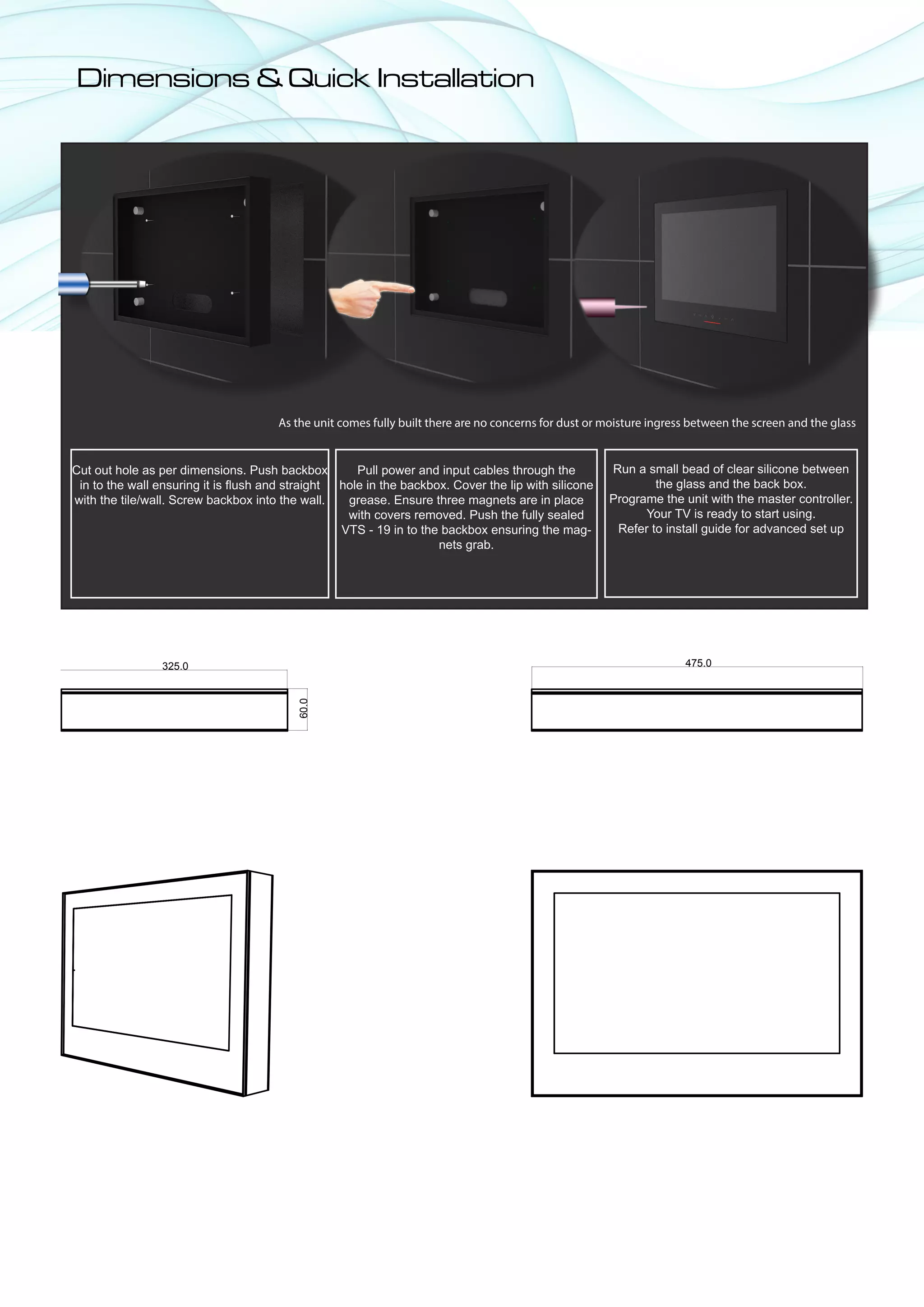

3. Dimensions & Quick Installation
As the unit comes fully built there are no concerns for dust or moisture ingress between the screen and the glass
Cut out hole as per dimensions. Push backbox Pull power and input cables through the Run a small bead of clear silicone between
in to the wall ensuring it is flush and straight hole in the backbox. Cover the lip with silicone the glass and the back box.
with the tile/wall. Screw backbox into the wall. grease. Ensure three magnets are in place Programe the unit with the master controller.
with covers removed. Push the fully sealed Your TV is ready to start using.
VTS - 19 in to the backbox ensuring the mag- Refer to install guide for advanced set up
nets grab.
325.0 475.0
60.0

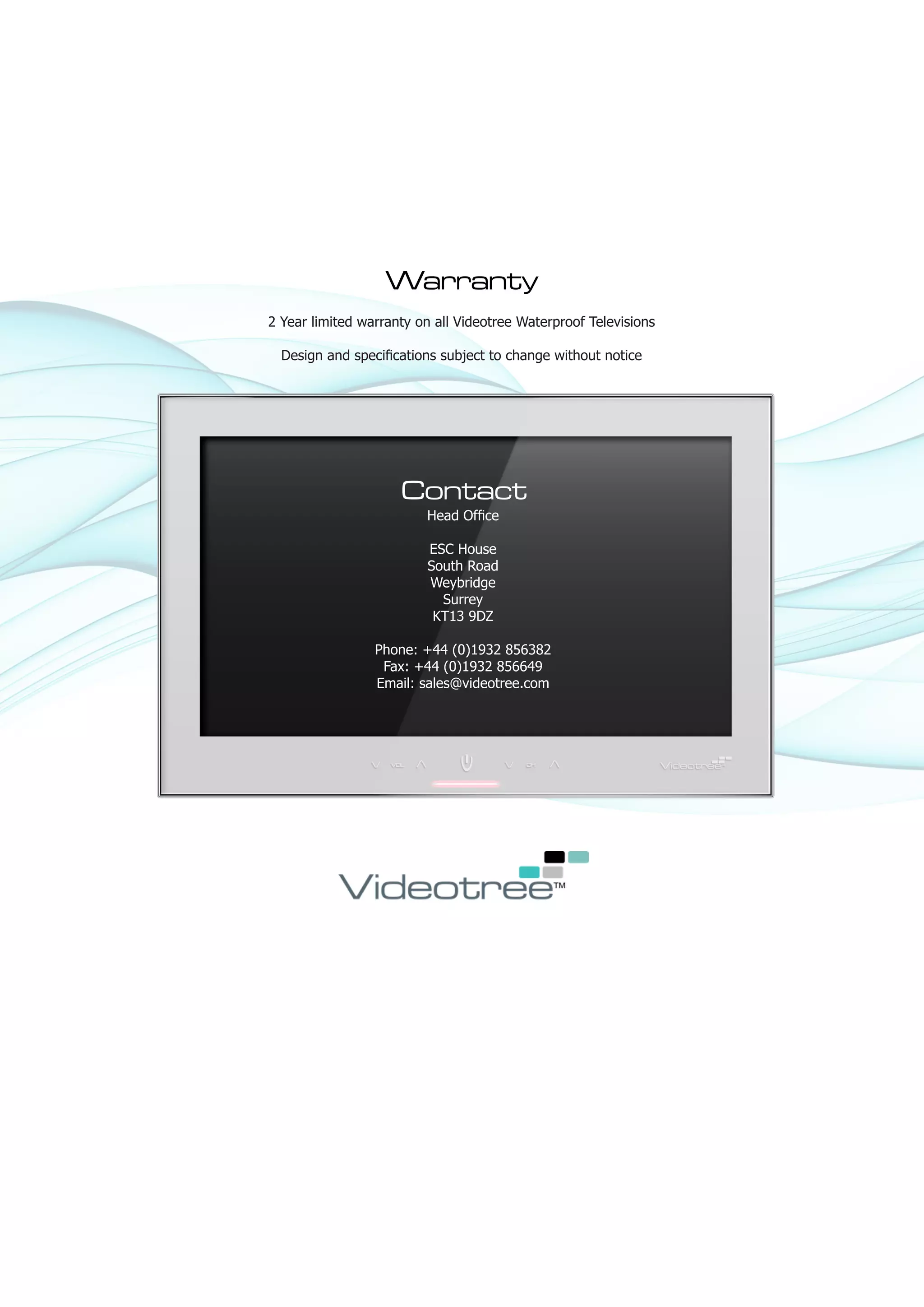

4. Warranty
2 Year limited warranty on all Videotree Waterproof Televisions
Design and specifications subject to change without notice
