The document describes the evbmc-1471la1, a versatile video transmitter supporting DisplayPort, HDMI, and VGA with audio extraction over HDBaseT. It features auto-sensing for video source selection, an exclusive EDID function for separate audio and video settings, and the capability to transmit signals up to 100 meters. This device is designed for multimedia and home theater system integration, suitable for use in huddle and meeting rooms.

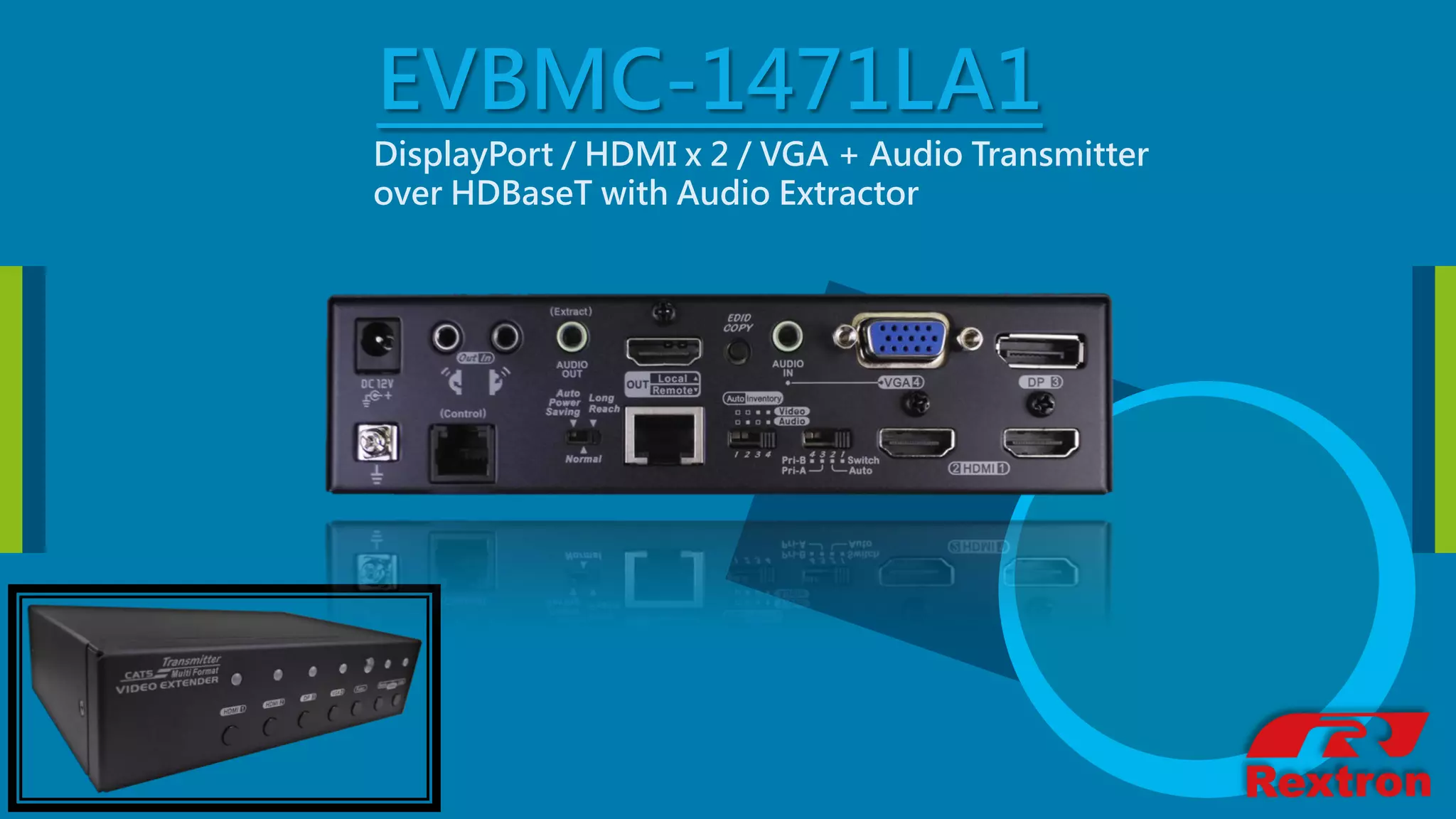

1. EVBMC-1471LA1
DisplayPort / HDMI x 2 / VGA + Audio Transmitter
over HDBaseT with Audio Extractor

2. 2 Auto-Sensing Function Enables the System to
Automatically Select the Latest Video Source
3
Built-in Audio Extractor
HDCP Compliant, 3D-Video and Blu-Ray Ready
over Single CATx Cable
4
Exclusive EDID Function
Multi-Functions for EDID Setting
Enable Separately Learn Audio and Video EDID
for Multimedia/ Home Theater System Integration
1 Transmit DP / HDMI / VGA with Analog Audio
Signal up to 70 / 100 meters
Features

3. Interface
Auto sensing function :
Priority Mode & Auto Select The Latest Video Source
Auto Inventory :
Learn Audio and Video EDID
2 port HDMI in
DisplayPort in
HDMI & Audio out
IR EXT.
Power port
RJ45 port
To connect with
the receiver
RJ11 port
Support local out
VGA & Audio in
Exclusive EDID Function
For control
EDID COPY Button
Auto Inventory
Auto sensing
function

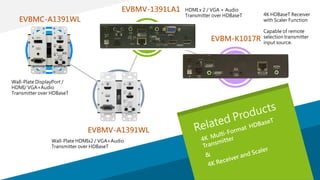

4. EVBMC-A1391WL
EVBMV-A1391WL
Key
words
Wall-Plate DisplayPort /
HDMI/ VGA+Audio
Transmitter over HDBaseT
Wall-Plate HDMIx2 / VGA+Audio
Transmitter over HDBaseT
HDMI x 2 / VGA + Audio
Transmitter over HDBaseT 4K HDBaseT Receiver
with Scaler Function
Capable of remote
selection transmitter
input source.
EVBMV-1391LA1
EVBM-K1017R

5. Education
Corporation
Application
Huddle Room
&
Meeting Room
