This document summarizes a 1-channel video over fiber bundle kit for transmitting video and data signals over long distances via fiber optic cable. The kit includes a transmitter (VF-102-T) and receiver (VF-102-R) that connect an analog camera to a monitor or DVR up to 20km apart using a single fiber. Each unit has BNC video and terminal block data ports, an optical port, and LED indicators. The kit digitally samples and transmits 8-bit video and RS-422/485 data over a single-mode fiber for reliable long-distance surveillance applications.

1. 1-Channel Video over Fiber
Bundle Kit
VF-102-T / VF-102-R
www.3xnet.ro www.planet.com.tw

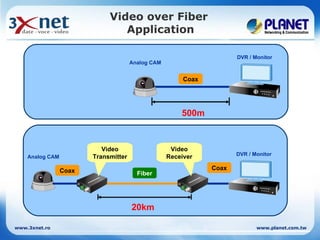

2. Video over Fiber
Application
DVR / Monitor
Analog CAM
Coax
500m
Video Video
DVR / Monitor
Analog CAM Transmitter Receiver
Coax Coax
Fiber
20km
www.3xnet.ro www.planet.com.tw

3. Video over Fiber
Application
Video Video
Transmitter Receiver DVR / Monitor
Analog CAM
Coax Coax
Fiber
RS-422/485
Data Data
Speed Dome Receiver Transmitter
Control Keyboard
www.3xnet.ro www.planet.com.tw

4. Product Overview
 VF-102-T / VF-102-R
www.3xnet.ro www.planet.com.tw

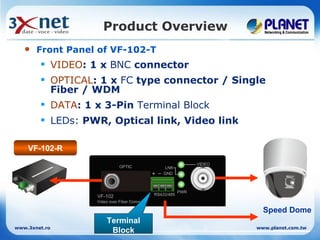

5. Product Overview
 Front Panel of VF-102-T
 VIDEO: 1 x BNC connector
 OPTICAL: 1 x FC type connector / Single
Fiber / WDM
 DATA: 1 x 3-Pin Terminal Block
 LEDs: PWR, Optical link, Video link
VF-102-R
VIDEO
OPTIC LNK
GND
PWR
VF-102 RS422/485
Video over Fiber Converter
Speed Dome
Terminal
www.3xnet.ro www.planet.com.tw
Block

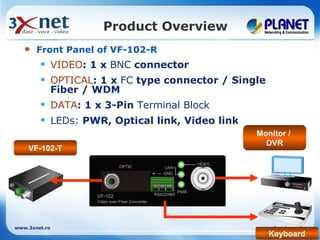

6. Product Overview
 Front Panel of VF-102-R
 VIDEO: 1 x BNC connector
 OPTICAL: 1 x FC type connector / Single
Fiber / WDM
 DATA: 1 x 3-Pin Terminal Block
 LEDs: PWR, Optical link, Video link
Monitor /
DVR
VF-102-T
VIDEO
OPTIC LNK
GND
PWR
VF-102 RS422/485
Video over Fiber Converter
www.3xnet.ro www.planet.com.tw
Keyboard

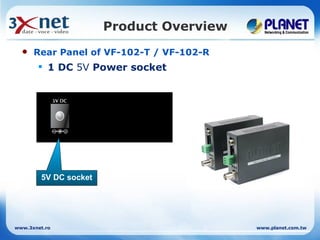

7. Product Overview
 Rear Panel of VF-102-T / VF-102-R
 1 DC 5V Power socket
5V DC socket
www.3xnet.ro www.planet.com.tw

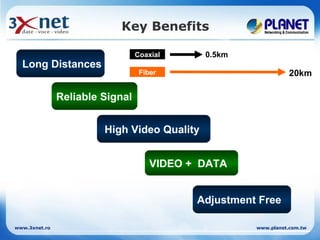

8. Key Benefits
Coaxial 0.5km
Long Distances
Fiber 20km
Reliable Signal
High Video Quality
VIDEO + DATA
Adjustment Free
www.3xnet.ro www.planet.com.tw

9. Product Features
 Video and Data over fiber transmission
 VIDEO:
 8 bit Video Signal digital sampling
 PAL, NTSC, SECAM compatible
 OPTIC:
 FC optical connector
– A field mountable, pull-proof connector
 WDM Single mode / Single fiber
 20km max. transmission distance
 DATA:
 Protocol: RS-422 / RS-485
www.3xnet.ro www.planet.com.tw

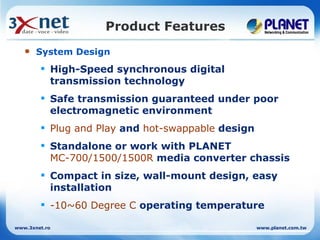

10. Product Features
 System Design
 High-Speed synchronous digital
transmission technology
 Safe transmission guaranteed under poor
electromagnetic environment
 Plug and Play and hot-swappable design
 Standalone or work with PLANET
MC-700/1500/1500R media converter chassis
 Compact in size, wall-mount design, easy
installation
 -10~60 Degree C operating temperature
www.3xnet.ro www.planet.com.tw

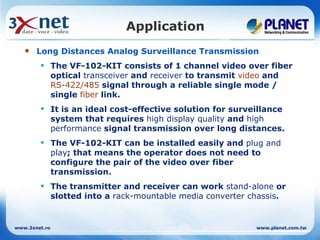

11. Application
 Long Distances Analog Surveillance Transmission
 The VF-102-KIT consists of 1 channel video over fiber
optical transceiver and receiver to transmit video and
RS-422/485 signal through a reliable single mode /
single fiber link.
 It is an ideal cost-effective solution for surveillance
system that requires high display quality and high
performance signal transmission over long distances.
 The VF-102-KIT can be installed easily and plug and
play; that means the operator does not need to
configure the pair of the video over fiber
transmission.
 The transmitter and receiver can work stand-alone or
slotted into a rack-mountable media converter chassis.
www.3xnet.ro www.planet.com.tw

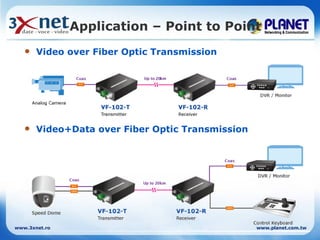

12. Application – Point to Point
 Video over Fiber Optic Transmission
 Video+Data over Fiber Optic Transmission
www.3xnet.ro www.planet.com.tw

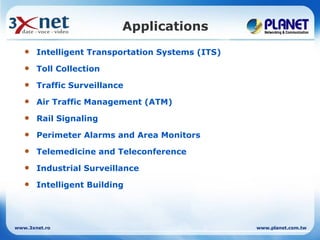

13. Applications
 Intelligent Transportation Systems (ITS)
 Toll Collection
 Traffic Surveillance
 Air Traffic Management (ATM)
 Rail Signaling
 Perimeter Alarms and Area Monitors
 Telemedicine and Teleconference
 Industrial Surveillance
 Intelligent Building
www.3xnet.ro www.planet.com.tw

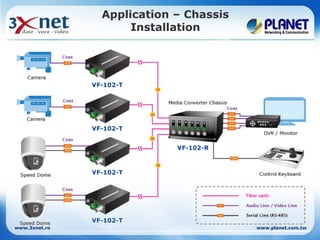

14. Application – Chassis
Installation
www.3xnet.ro www.planet.com.tw

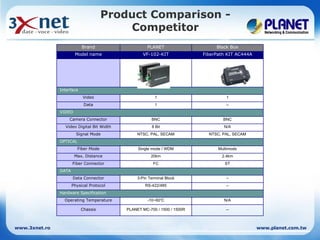

15. Product Comparison -
Competitor
Brand PLANET Black Box
Model name VF-102-KIT FiberPath KIT AC444A
Interface
Video 1 1
Data 1 --
VIDEO
Camera Connector BNC BNC
Video Digital Bit Width 8 Bit N/A
Signal Mode NTSC, PAL, SECAM NTSC, PAL, SECAM
OPTICAL
Fiber Mode Single mode / WDM Multimode
Max. Distance 20km 2.4km
Fiber Connector FC ST
DATA
Data Connector 3-Pin Terminal Block --
Physical Protocol RS-422/485 --
Hardware Specification
Operating Temperature -10~60℃ N/A
Chassis PLANET MC-700 / 1500 / 1500R --
www.3xnet.ro www.planet.com.tw

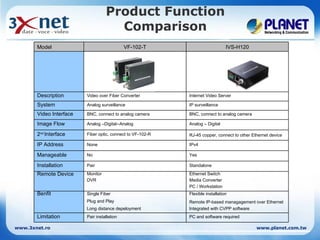

16. Product Function
Comparison
Model VF-102-T IVS-H120
Description Video over Fiber Converter Internet Video Server
System Analog surveillance IP surveillance
Video Interface BNC, connect to analog camera BNC, connect to analog camera
Image Flow Analog –Digital--Analog Analog – Digital
2nd Interface Fiber optic, connect to VF-102-R RJ-45 copper, connect to other Ethernet device
IP Address None IPv4
Manageable No Yes
Installation Pair Standalone
Remote Device Monitor Ethernet Switch
DVR Media Converter
PC / Workstation
Benfit Single Fiber Flexible installation
Plug and Play Remote IP-based managagement over Ethernet
Long distance depeloyment Integrated with CVPP software
Limitation Pair installation PC and software required
www.3xnet.ro www.planet.com.tw
