The XV GPRS control panel is a wireless, battery-operated security system that works with Videofied's devices. It has programmable inputs and outputs, supports 25 wireless devices, stores event logs and videos, and communicates using GPRS. It provides video verification from motion detectors and can trigger videos upon events. The control panel supervises connected devices and has tamper detection, multiple power options, and programming via keypad.

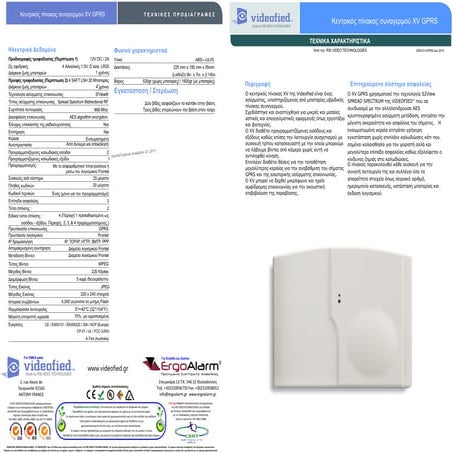

1. Control Panel Videofied XV GPRS TECHNICAL SPECIFICATIO NS
Control Panel Videofied XV GPRS
Electrical Data Physical Data P R O D U C T S P E C I F I C A T I O N S S H E E T
Power requirements (Option 1) 12V DC / 2A Material ABS—ULV0 Made by RSI VIDEO TECHNOLOGIES 2200-XV-GPRS Dec. 2010
Back up 4 Alkaline 1.5V, D size, LR20 Dimensions 225 mm x 180 mm x 55mm
Battery life 1 year (LxWxD):9in. x 7in. x 2-1/6in.
Power requirements (Option 2) 4 SAFT LSH 20 Batteries Weight 520gr (without batteries) / 1600gr (with batteries)
Battery life 4 years Description Supervised Wireless Technology
RF technology S2View® The XV control panel is a Videofied wireless, battery operated The XV GPRS, along with all Videofied devices utilize patented
Radio type Spread Spectrum Bidirectional RF Installation/Mounting hybrid alarm system. S2View® - Spread Spectrum, Videofied, Interactive, AES
Operating frequency 868/915/920 MHz Control Panel/Base Two screw secures control panel cover to Encrypted Wireless technology, providing optimum signal
It is designed for residential and small business security
Transmission security AES algorithm encryption base; Three screws secure control panel base to the wall integrity and security. Bi-directional RF communication paths
applications or commercial applications like construction sites.
Radio jam detection Yes between all system devices and the system control panel assure
Supervision Yes The XV has programmable inputs and outputs and have a high signal reliability. Integrated antennas eliminate protruding
Antenna Integrated mapping function that allows you to trigger a video from a wires or rods cumbersome to install and unsightly to consumers,
Tamper detection Wall and cover tamper detection Videofied Motion Viewer upon any events (Available Q1/2011). and if damaged could lead to potential system communication
Programmable Wired Inputs 11 2
ailable Q1 20 problems.
ts/Outputs av The XV also has two dedicated connectors to extend the GPRS
Programmable Wired Outputs Inpu 1
Programming Alphanumeric Keypads or Frontel remote and Radio range. The panel supervises every device (excluding the remote
control Software keyfob) to validate current open/close state, tamper condition,
The XV can also have two wired speaker-mike for full-duplex
Devices per system 25 per system serial number, date of manufacture, firmware revision, and
two-way voice audio verification.
Access codes 20 maximum battery status.
Installer codes One (for system programming only)
Security levels 3
Arming modes : 2
Special arming modes 4 (Area 1 predefined from factory for
entry/exit delay. Areas 2, 3, & 4 programmable.)
Communication formats GPRS
Protocols Frontel
IP stack IP, TCP/IP, HTTP, SMTP, PPP
Remote maintenance Frontel Downloader protocol only
VIdeo transmission By Frontel protocol to
central monitoring station
Video format MPEG video file
Video file size 220 Kbytes
Video framing 5 frames/second
Image format JPEG
Image size 320 x 240 pixels
History/Event Log 4,000 events stored in flash memory
Operating temperature 0°/+40°C (32°/104°F)
Maximum relative humidity 70%, non-condensing
Approvals pending CE / EN50131 / EN300220 / IDA / NCP (Europe)
CP-01 / UL / FCC (USA)
A-Tick (Australia)
EMEA SALES North American Headquarters
23, avenue du Général Leclerc 4455 White Bear Parkway, Suite 700
92340 BOURG-LA-REINE White Bear Lake, MN 55110
FRANCE USA
E-Mail : emeasales@rsivideotech.com E-Mail : usasales@rsivideotech.com
www.videofied.com www.videofied.com
© 2010 RSI Video Technologies Videofied® is a Registered Trademark of RSI Video Technologies. MotionViewerTM is a Registered Trademark of
RSI Video Technologies. S2View ® is a registered trademark of RSI Video Technologies. Specifications subject to change without notice.

2. Control Panel Videofied XV GPRS TECHNICAL SPECIFICATIO NS

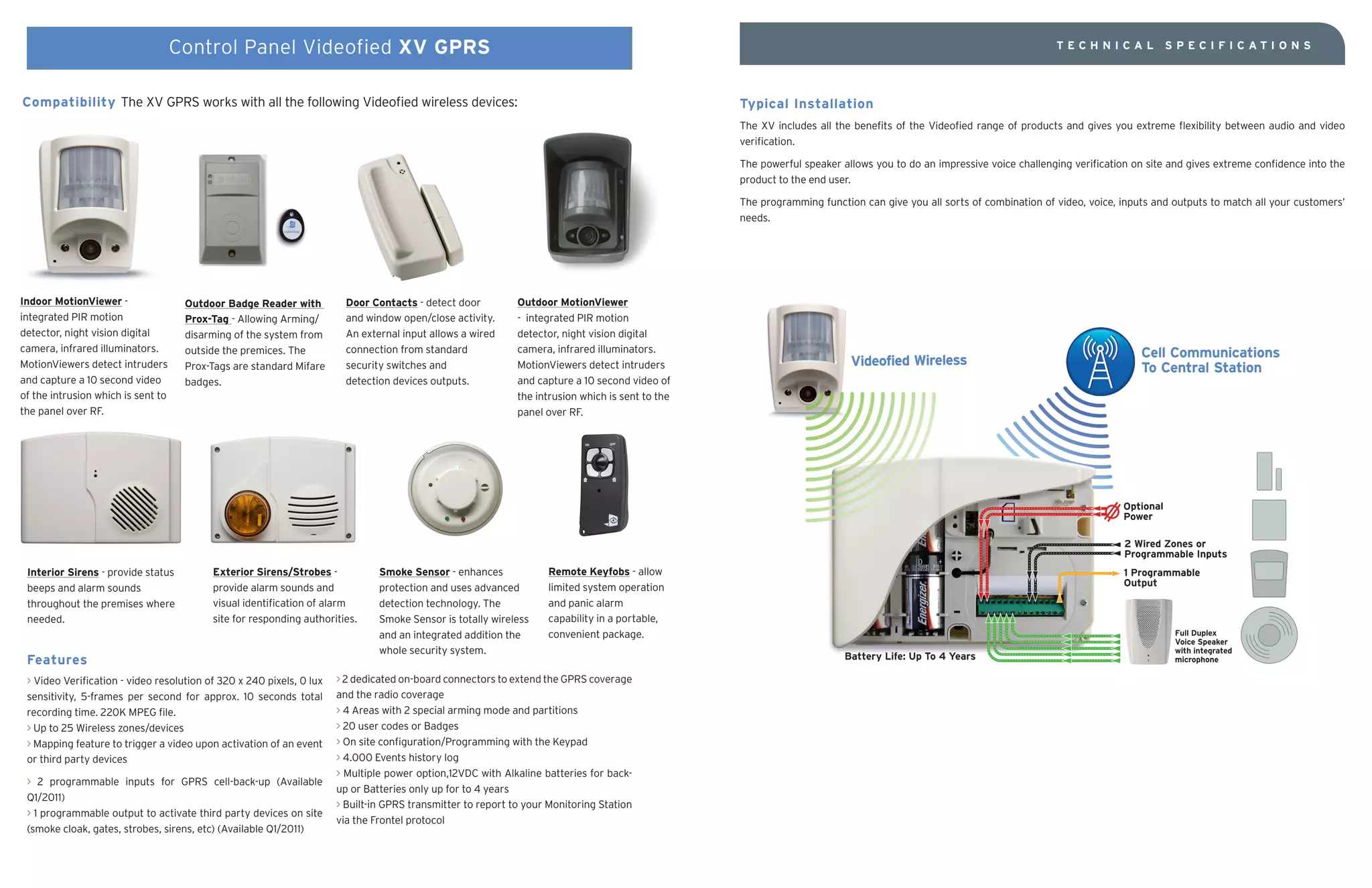

Compatibility The XV GPRS works with all the following Videofied wireless devices: Typical Installation
The XV includes all the benefits of the Videofied range of products and gives you extreme flexibility between audio and video
verification.
The powerful speaker allows you to do an impressive voice challenging verification on site and gives extreme confidence into the
product to the end user.
The programming function can give you all sorts of combination of video, voice, inputs and outputs to match all your customers’
needs.
Indoor MotionViewer - Outdoor Badge Reader with Door Contacts - detect door Outdoor MotionViewer
integrated PIR motion Prox-Tag - Allowing Arming/ and window open/close activity. - integrated PIR motion
detector, night vision digital disarming of the system from An external input allows a wired detector, night vision digital
camera, infrared illuminators. outside the premices. The connection from standard camera, infrared illuminators.
MotionViewers detect intruders Prox-Tags are standard Mifare security switches and MotionViewers detect intruders
and capture a 10 second video badges. detection devices outputs. and capture a 10 second video of
of the intrusion which is sent to the intrusion which is sent to the
the panel over RF. panel over RF.
Interior Sirens - provide status Exterior Sirens/Strobes - Smoke Sensor - enhances Remote Keyfobs - allow
beeps and alarm sounds provide alarm sounds and protection and uses advanced limited system operation
throughout the premises where visual identification of alarm detection technology. The and panic alarm
needed. site for responding authorities. Smoke Sensor is totally wireless capability in a portable,
and an integrated addition the convenient package.
whole security system.
Features
> Video Verification - video resolution of 320 x 240 pixels, 0 lux > 2 dedicated on-board connectors to extend the GPRS coverage
sensitivity, 5-frames per second for approx. 10 seconds total and the radio coverage
recording time. 220K MPEG file. > 4 Areas with 2 special arming mode and partitions
> Up to 25 Wireless zones/devices > 20 user codes or Badges
> Mapping feature to trigger a video upon activation of an event > On site configuration/Programming with the Keypad
or third party devices > 4.000 Events history log
> Multiple power option,12VDC with Alkaline batteries for back-
> 2 programmable inputs for GPRS cell-back-up (Available
up or Batteries only up for to 4 years
Q1/2011)
> Built-in GPRS transmitter to report to your Monitoring Station
> 1 programmable output to activate third party devices on site
via the Frontel protocol
(smoke cloak, gates, strobes, sirens, etc) (Available Q1/2011)
