Work shop –

JYOTI ELECTRO TECH

Mail – jyotiq81@gmail.com

Grambharti amrapure mahudi gandhinagar
highway road GUJRAT INDIA

Office - A- 33 Anmol park Opp.dhanlaxmi
tenement GORWA VADODRA – 39003
Page 1

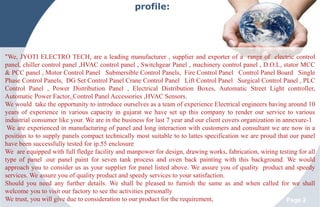

profile:

"We, JYOTI ELECTRO TECH, are a leading manufacturer , supplier and exporter of a range of electric control
panel, chiller control panel ,HVAC control panel , Switchgear Panel , machinery control panel , D.O.L, stator MCC
& PCC panel , Motor Control Panel Submersible Control Panels, Fire Control Panel Control Panel Board Single
Phase Control Panels, DG Set Control Panel Crane Control Panel Lift Control Panel Surgical Control Panel , PLC
Control Panel , Power Distribution Panel , Electrical Distribution Boxes, Automatic Street Light controller,
Automatic Power Factor, Control Panel Accessories ,HVAC Sensors.
We would take the opportunity to introduce ourselves as a team of experience Electrical engineers having around 10
years of experience in various capacity in gujarat we have set up this company to render our service to various
industrial consumer like your. We are in the business for last 7 year and our client covers organization in annexure-1
We are experienced in manufacturing of panel and long interaction with customers and consultant we are now in a
position to to supply panels compact technically most suitable to to lattes specification we are proud that our panel
have been successfully tested for ip.55 enclosure
We are equipped with full fledge facility and manpower for design, drawing works, fabrication, wiring testing for all
type of panel .our panel paint for seven tank process and oven back painting with this background. We would
approach you to consider us as your supplier for panel listed above. We assure you of quality product and speedy
services. We assure you of quality product and speedy services to your satisfaction.
Should you need any further details. We shall be pleased to furnish the same as and when called for we shall
welcome you to visit our factory to see the activities personally
We trust, you will give due to consideration to our product for the requirement,
Page 2

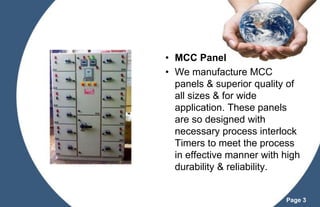

• MCC Panel
• We manufacture MCC
panels & superior quality of
all sizes & for wide
application. These panels
are so designed with
necessary process interlock
Timers to meet the process
in effective manner with high
durability & reliability.

Page 3

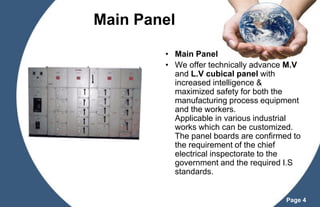

Main Panel
• Main Panel
• We offer technically advance M.V
and L.V cubical panel with
increased intelligence &
maximized safety for both the
manufacturing process equipment
and the workers.
Applicable in various industrial
works which can be customized.
The panel boards are confirmed to
the requirement of the chief
electrical inspectorate to the
government and the required I.S
standards.

Page 4

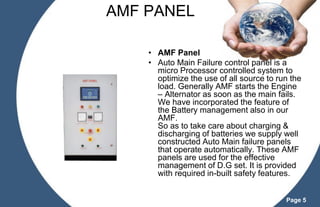

AMF PANEL
• AMF Panel
• Auto Main Failure control panel is a
micro Processor controlled system to
optimize the use of all source to run the
load. Generally AMF starts the Engine
– Alternator as soon as the main fails.
We have incorporated the feature of
the Battery management also in our
AMF.
So as to take care about charging &
discharging of batteries we supply well
constructed Auto Main failure panels
that operate automatically. These AMF
panels are used for the effective
management of D.G set. It is provided
with required in-built safety features.
Page 5

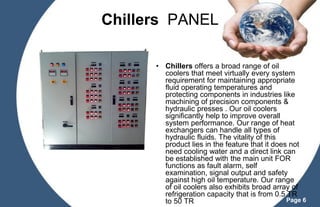

Chillers PANEL
• Chillers offers a broad range of oil
coolers that meet virtually every system
requirement for maintaining appropriate
fluid operating temperatures and
protecting components in industries like
machining of precision components &
hydraulic presses . Our oil coolers
significantly help to improve overall
system performance. Our range of heat
exchangers can handle all types of
hydraulic fluids. The vitality of this
product lies in the feature that it does not
need cooling water and a direct link can
be established with the main unit FOR
functions as fault alarm, self
examination, signal output and safety
against high oil temperature. Our range
of oil coolers also exhibits broad array of
refrigeration capacity that is from 0.5 TR
Page 6
to 50 TR

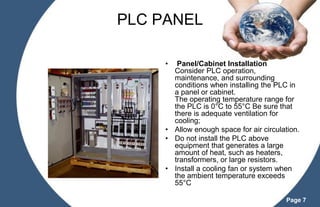

PLC PANEL
•

Panel/Cabinet Installation
Consider PLC operation,
maintenance, and surrounding
conditions when installing the PLC in
a panel or cabinet.
The operating temperature range for
the PLC is 0°C to 55°C Be sure that
there is adequate ventilation for
cooling;
• Allow enough space for air circulation.
• Do not install the PLC above
equipment that generates a large
amount of heat, such as heaters,
transformers, or large resistors.
• Install a cooling fan or system when
the ambient temperature exceeds
55°C
Page 7
