The document outlines U-SQL's capabilities in executing federated distributed queries across multiple Azure data stores without requiring data movement. It highlights the benefits of a single query language, schema flexibility, and efficient execution strategies while emphasizing the importance of data source sovereignty. Key features include advanced query optimization and secure credential management for accessing external data sources.

1. Michael Rys
Principal Program Manager, Big Data @ Microsoft
@MikeDoesBigData, {mrys, usql}@microsoft.com
U-SQL Federated Distributed Queries

3. Query data where it lives
Easily query data in multiple Azure data stores without moving it to a single store
Benefits
• Avoid moving large amounts of data across the
network between stores
• Single view of data irrespective of physical location
• Minimize data proliferation issues caused by
maintaining multiple copies
• Single query language for all data
• Each data store maintains its own sovereignty
• Design choices based on the need
• Push SQL expressions to remote SQL sources
• Filters
• Joins
U-SQL
Query
Query
Azure
Storage Blobs
Azure SQL
in VMs
Azure
SQL DB
Azure Data
Lake Analytics
Azure
SQL Data Warehouse
Azure
Data Lake Storage

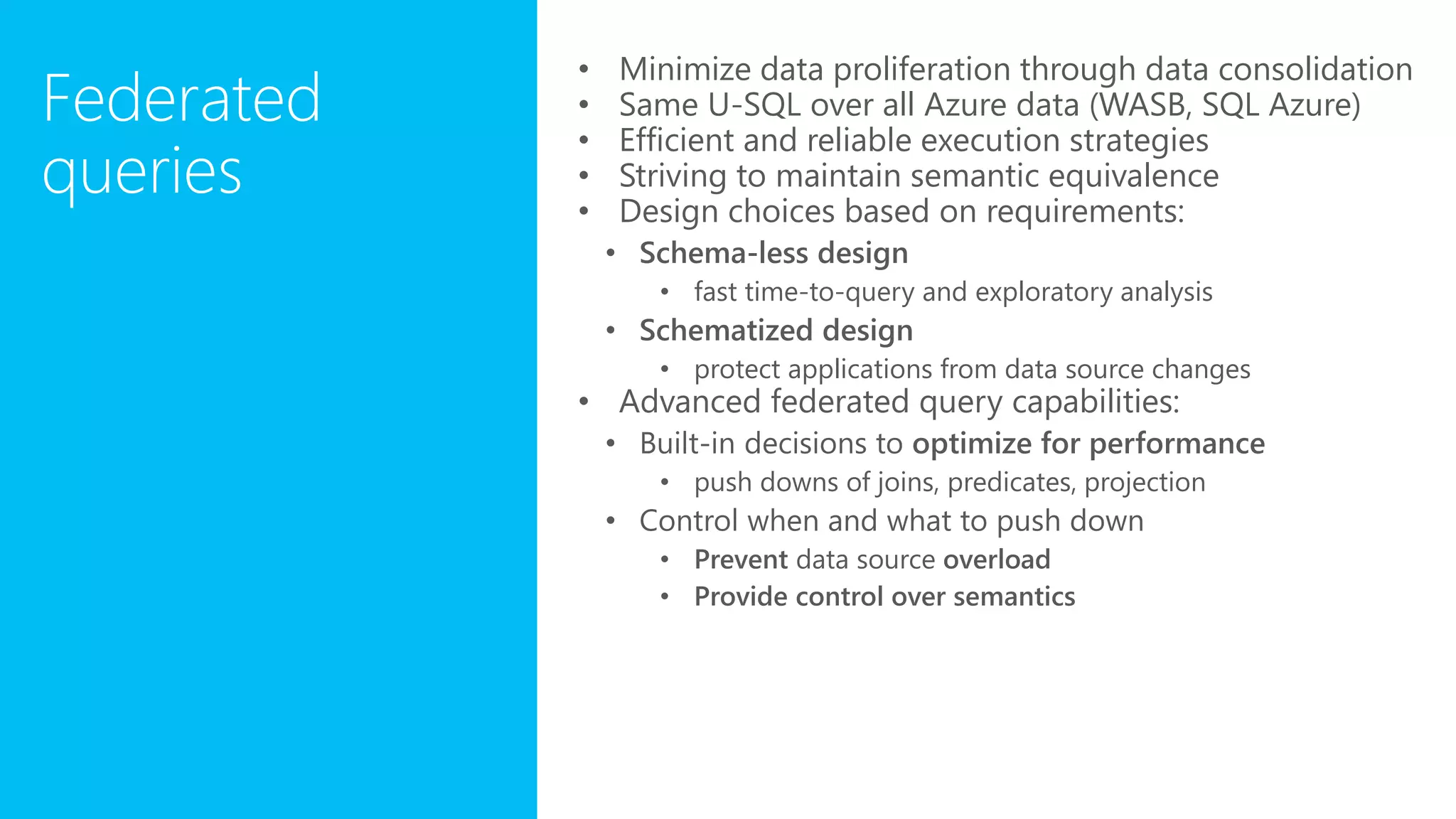

4. Federated
queries
• Minimize data proliferation through data consolidation
• Same U-SQL over all Azure data (WASB, SQL Azure)
• Efficient and reliable execution strategies
• Striving to maintain semantic equivalence
• Design choices based on requirements:
• Schema-less design
• fast time-to-query and exploratory analysis
• Schematized design
• protect applications from data source changes
• Advanced federated query capabilities:
• Built-in decisions to optimize for performance
• push downs of joins, predicates, projection
• Control when and what to push down
• Prevent data source overload
• Provide control over semantics

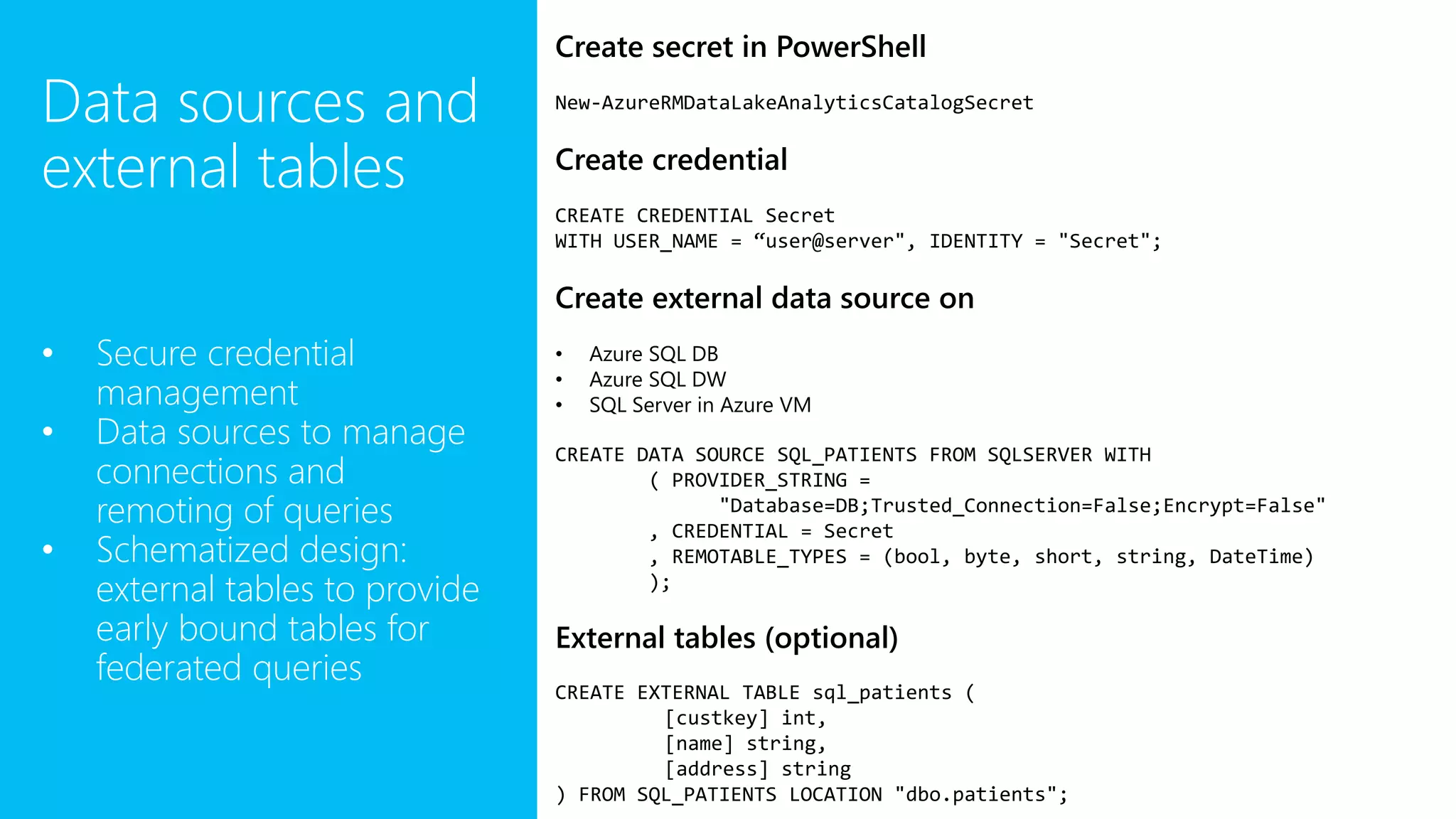

5. Data sources and
external tables
• Secure credential
management
• Data sources to manage
connections and
remoting of queries
• Schematized design:
external tables to provide
early bound tables for
federated queries
Create secret in PowerShell
New-AzureRMDataLakeAnalyticsCatalogSecret
Create credential
CREATE CREDENTIAL Secret
WITH USER_NAME = “user@server", IDENTITY = "Secret";
Create external data source on
• Azure SQL DB
• Azure SQL DW
• SQL Server in Azure VM
CREATE DATA SOURCE SQL_PATIENTS FROM SQLSERVER WITH
( PROVIDER_STRING =
"Database=DB;Trusted_Connection=False;Encrypt=False"
, CREDENTIAL = Secret
, REMOTABLE_TYPES = (bool, byte, short, string, DateTime)
);
External tables (optional)
CREATE EXTERNAL TABLE sql_patients (
[custkey] int,
[name] string,
[address] string
) FROM SQL_PATIENTS LOCATION "dbo.patients";

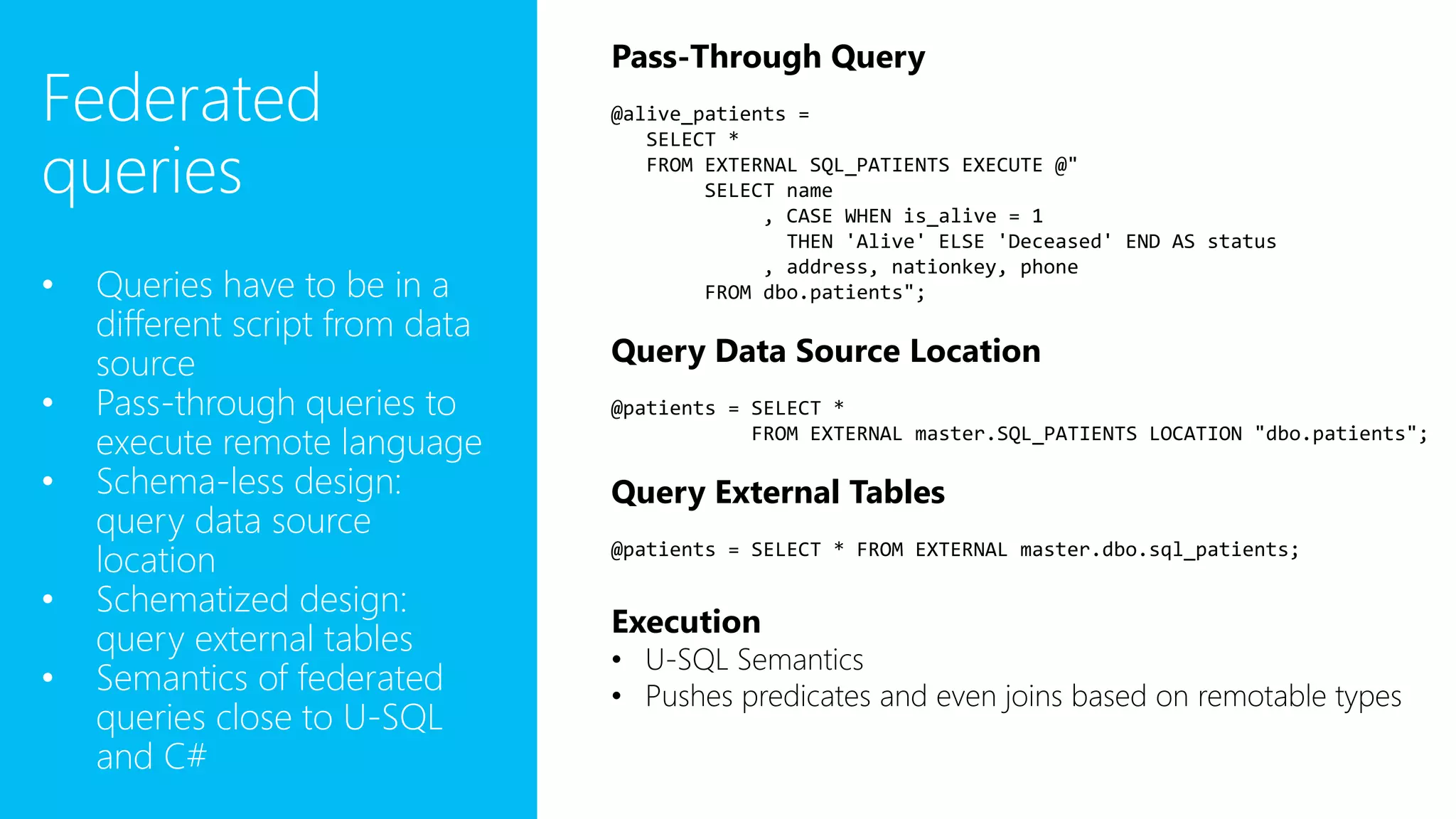

6. Federated
queries
• Queries have to be in a
different script from data
source
• Pass-through queries to
execute remote language
• Schema-less design:
query data source
location
• Schematized design:
query external tables
• Semantics of federated
queries close to U-SQL
and C#
Pass-Through Query
@alive_patients =
SELECT *
FROM EXTERNAL SQL_PATIENTS EXECUTE @"
SELECT name
, CASE WHEN is_alive = 1
THEN 'Alive' ELSE 'Deceased' END AS status
, address, nationkey, phone
FROM dbo.patients";
Query Data Source Location
@patients = SELECT *
FROM EXTERNAL master.SQL_PATIENTS LOCATION "dbo.patients";
Query External Tables
@patients = SELECT * FROM EXTERNAL master.dbo.sql_patients;
Execution
• U-SQL Semantics
• Pushes predicates and even joins based on remotable types

7. http://aka.ms/AzureDataLake
