1. Using Multi-Scale Modeling to Support Preclinical
Developments
• Systems Pharmacology
• Example
• Lessons learned
Tao You
Computational Biology
__________________________________________________
AstraZeneca
R&D | Innovative Medicines & Early Development | Discovery Sciences
50S51, Mereside, Alderley Park, Macclesfield, Cheshire SK10 4TG
T: +44 (0)1625 514733
tao.you@astrazeneca.com
Cancer Drug Discovery & Preclinical Development, London 17-18 Sep 2014

2. 2 Tao You tao.you@astrazeneca.com Computational Biology | Discovery Sciences

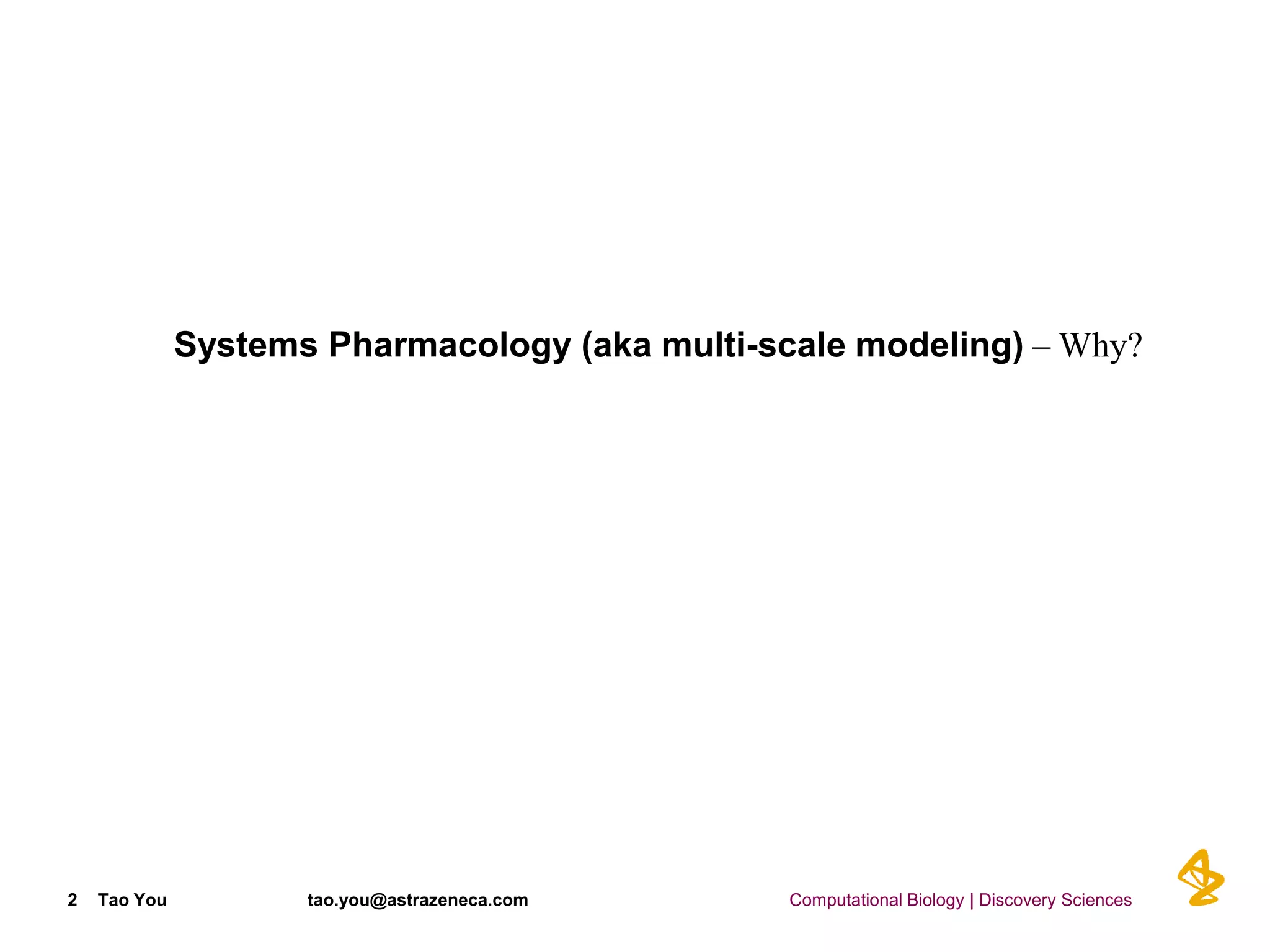

Systems Pharmacology (aka multi-scale modeling) – Why?

3. Tumour biology is multi-scale
3 Tao You tao.you@astrazeneca.com Computational Biology | Discovery Sciences
in vivo
animal model
In vitro
cell model
Signaling
Gene
regulation
MetabolismCell cycle
Sustaining
proliferative
signaling
Resisting cell
death
Genome
instability &
mutation
Inducing
angio-genesis
Deregulating
cellular
energetics
Enabling
replicative
immortality
Evading
growth
suppressor
Activating
invasion &
metastasis
Avoiding
immune
destruction
Tumour
promoting
inflammation
Molecules
Cells Tissues
Organisms
EGFR
inhibitors
Pro-apoptotic
BH3 memetics
PARP
inhibitors
Telomerase
inhibitors
CDK
inhibitors
Aerobic glycolysis
inhibitors
Tumour
growth
Immune
response
ADME
Inspired by Hanahan & Weinberg (2011) Cell. 144: 646-674.
HGF/c-Met
inhibitors
VEGF
inhibitors
Anti-CTLA4
mAb
Anti-inflammatory
drugs
Resistance:
Genetic change
Phenotypic change
Resistance:
Cell-cell interaction
Evolutionary selection
Tumour architecture

4. 4 Tao You tao.you@astrazeneca.com Computational Biology | Discovery Sciences
Systems Pharmacology – What?

5. Multi-scale modeling-informed drug discovery & development
5 Tao You tao.you@astrazeneca.com Computational Biology | Discovery Sciences
Target
Selection
POM/POP/POC DFL Launch
Product
Maint.
Lead
Optimisation
Lead
Generation
Target Exposure ScheduleTissue Trial DesignDose
PD
Emax
Cmax
EC50
P-Tau
(Brain)
P-GS
(Muscle)
0 4 8 12 16
0
25
50
75
100
125
Time (h)
P-GSratio(%)
0 4 8 12 16
0
25
50
75
100
125
Time (h)
seconds minutes hours days months
nm3 μm3 cm3 L
biomarkers cells tissue organ whole body
Systems
Pharmacology
model

6. Multi-scale modeling - what does it require?
6 Tao You tao.you@astrazeneca.com Computational Biology | Discovery Sciences
Biology
Disease
Molecular Biology
Genetics
Omics
Physiology
Nonlinear
Dynamics
Multi-stability
Oscillation
Chaos
Agent-based
Qualitative
Computational
Statistics
Model selection
Parameter Inference
Population modeling
Empirical PK/PD
Systems
Pharmacology
Systems Pharmacology Models
Mechanistic
– Relates biomarkers (molecules) with efficacy
(cells)
Integrative
– Links PK (body) with PD with (cells/tissue)
Insightful
– Reconciles in vitro-in vivo differences
– Bridges preclinical-clinical translation
Statistically Robust
– Infers structure, parameter and model behaviours
Predictive
– Validated often with preclinical data
Systems
Biology
Empirical
PK/PD
Predictive
Systems
Modeling

7. 7 Tao You tao.you@astrazeneca.com Computational Biology | Discovery Sciences
Systems Pharmacology – How?

8. Target
Selection
POM/POP/POC DFL Launch
Product
Maint.
Lead
Optimisation
Lead
Generation
Multi-scale modeling-informed drug discovery & development
Integrates in vitro evidence with in vivo preclinical data
Consolidates different information and build confidence in preclinical predictions
Integrates preclinical information with clinical tumours
1. Solid tumour architecture 2.Tumour heterogeneity
8 Tao You tao.you@astrazeneca.com Computational Biology | Discovery Sciences
Mechanism of
Action
PK
PK/PD/Efficacy
TK/TD/Toxicityin vivo
animal model
In vitro
cell model
PBPK
Clinical
predictions
Signaling
Gene
regulation
Metabolism
Cell cycle
Tumour
growth
ADME
Immune
response
1. Parameter Adjustments
reconciles in vitro-in vivo differences
2. Solid Tumour Architecture
Tumour Heterogeneity
reconciles in vivo-clinical differences

9. Example – Preclinical & Clinical Dosing & Scheduling
Combination therapy
Preclinical dose selection for Agent 2
 Agent 1’s dose is fixed
Preclinical scheduling of Agent 2
 Frequency & timing
 Minimise toxicity
 Maximise efficacy
First-in-human dose scheduling
9 Tao You tao.you@astrazeneca.com Computational Biology | Discovery Sciences
Agent 1
Agent 2 Arrests cell cycle
Chemotherapy

10. Example - MOA
Tao You | 15 July 201410 iMED | Discovery Sciences
Agent 1
Biomarker 1
Biomarker 2
Biomarkers Cell fate decision
SD
SG1 G2/M
G2D/MD
Biomarker 2Agent 2
Agent 2
Biomarker 1
G1D
Agent 1
Biomarker 1
Agent 1
Agent 2
Chemotherapy
Abolishes cell cycle arrest

11. Modeling in vitro data – Biomarker 1
Tao You | 15 July 201411 iMED | Discovery Sciences
Agent 1
Biomarker 1
Biomarker 2
Biomarkers
Agent 2
Agent 1
Agent 2
0
20
40
60
80
100
0 24 48 72
%+Biomarker1
Time (h)
Biomarker 1
(10nM Agent 1 + Agent 2 @ different conc)
set 1
In vitro data
Chemotherapy
Abolishes cell cycle arrest

12. Modeling in vitro data – cell cycle
Tao You | 15 July 201412 iMED | Discovery Sciences
Base cell cycle
SG1 G2/M
2 1 1
Doubling time: ~24h

13. Model in vitro data – efficacy for concurrent dosing
Tao You | 15 July 201413 iMED | Discovery Sciences
Cell fate decision
SD
SG1 G2/M
G2D/MD
Biomarker 2Agent 2
Biomarker 1
G1D
Agent 1
Biomarker 1
Agent 1
Agent 2 Abolishes cell cycle arrest
0
200
400
600
800
1000
1200
0 24 48
CellNumber
Time (h)
In vitro efficacies
(Agent 1 @ different conc.)
100nM
30nM
10nM
3nM
1nM
0.1% DMSO
set 1
set 2
Agent 1 (M)
Cellnumber
In vitro efficacies
(Agent 1 + Agent 2) @ 4days
Chemotherapy

14. Analysis – which parameters were unidentifiable?
Tao You | 15 July 201414 iMED | Discovery Sciences
Agent 1
Biomarker 1
Biomarker 2
Biomarkers Cell fate decision
SD
SG1 G2/M
G2D/MD
Biomarker 2Agent 2
Agent 2
Biomarker 1
G1D
Agent 1
Biomarker 1
Unidentifiable due to lack of washout data
Unidentifiable from data – fitness to data insensitive to changes in the parameters
Unidentifiable due to fast dynamics

15. Analysis – other questions
Parameter confidence intervals?
 1st-order approximation of Fisher information matrix
 Population simulations
Model structure – to be discussed
15 Tao You tao.you@astrazeneca.com Computational Biology | Discovery Sciences

16. Target
Selection
POM/POP/POC DFL Launch
Product
Maint.
Lead
Optimisation
Lead
Generation
Multi-scale modeling-informed drug discovery & development
Integrates in vitro evidence with in vivo preclinical data
Consolidates different information and build confidence in preclinical predictions
Integrates preclinical information with clinical tumours
1. Solid tumour architecture 2.Tumour heterogeneity
16 Tao You tao.you@astrazeneca.com Computational Biology | Discovery Sciences
Mechanism of
Action
PK
PK/PD/Efficacy
TK/TD/Toxicityin vivo
animal model
In vitro
cell model
PBPK
Clinical
predictions
Signaling
Gene
regulation
Metabolism
Cell cycle
Tumour
growth
ADME
Immune
response
1. Parameter Adjustments
reconciles in vitro-in vivo differences
2. Solid Tumour Architecture
Tumour Heterogeneity
reconciles in vivo-clinical differences

17. 17 Tao You tao.you@astrazeneca.com Computational Biology | Discovery Sciences
Parameter Adjustments reconcile in vitro-in vivo differences

18. Modeling in vivo data – cell cycle
Tao You | 15 July 201418 iMED | Discovery Sciences
Base cell cycle
SG1 G2/M
2 1 1
Doubling time: ~7d

19. Parameter Adjustments – cell cycle duration
Tao You | 15 July 201419 iMED | Discovery Sciences
Agent 1
Biomarker 1
Biomarker 2
Biomarkers Cell fate decision
SD
SG1 G2/M
G2D/MD
Biomarker 2Agent 2
Agent 2
Biomarker 1
G1D
Agent 1
Agent 1
Agent 2
Chemotherapy
Abolishes cell cycle arrest
Biomarker 1
time

20. Modeling in vivo data – concurrent dosing
20
Courtesy of Rajesh Odedra
Tao You | 15 July 2014 iMED | Discovery Sciences
Legend Drug 1 Frequency /wk Drug 2 Frequency /wk
Phy Saline 1 DMSO/Captisol 7
Agent 1 1 DMSO/Captisol 7
Phy Saline 1 Agent 2 7
Agent 1 1 Agent 2 1
Agent 1 1 Agent 2 3
Agent 1 1 Agent 2 7
Agent 1
Agent 2
1+7 dosing schedule

21. Modeling in vivo data – gapped dosing
21 Tao You | 15 July 2014 iMED | Discovery Sciences
Legend Drug 1 Frequency /wk Drug 2 Frequency /wk Gap h
DMSO/Water 1 DMSO/Captisol 3 48
DMSO/Water 1 Agent 2 3 48
Agent 1 1 DMSO/Captisol 3 48
Agent 1 1 Agent 2 3 48
Agent 1 1 Agent 2 3 72
Courtesy of Rajesh Odedra
Agent 1
Agent 2
1+3 dosing schedule

22. Modeling in vivo data – acute PD response
22 Tao You | 15 July 2014 iMED | Discovery Sciences
Agent 1
Agent 1 + Agent 2
h
Biomarker2
Courtesy of Nicola Broadbent

23. 23 Tao You tao.you@astrazeneca.com Computational Biology | Discovery Sciences
Predictive – Often validated with preclinical data

24. 24
Model validation – concurrent dosing
Tao You | 15 July 2014 iMED | Discovery Sciences
Legend Drug 1 Frequency /wk Drug 2 Frequency /wk
Phy Saline 1 DMSO/Captisol 7
Agent 1 1 DMSO/Captisol 7
Phy Saline 1 Agent 2 7
Agent 1 1 Agent 2 7
Courtesy of Rajesh Odedra
Agent 1
Agent 2
1+7 dosing schedule

25. 25
Model validation – 24h-gap schedule
Tao You | 15 July 2014 iMED | Discovery Sciences
Legend Drug 1 Frequency /wk Drug 2 Frequency /wk Gap h
DMSO/Water 1 DMSO/Captisol 3 24
Agent 1 1 Agent 2 3 24
DMSO/Water 1 DMSO/Captisol 3 24
Agent 1 1 Agent 2 3 24
Courtesy of Rajesh Odedra
Agent 1
Agent 2
1+3 dosing schedule

26. Example - summary
Tao You | 15 July 201426 iMED | Discovery Sciences
• A mechanistic model incorporates biomarkers and cell fate decisions
• Recapitulates 5 in vitro and in vivo datasets
• Validated by 2 in vivo efficacy studies
Agent 1
Biomarker 1
Biomarker 2
Biomarkers Cell fate decision
SD
SG1 G2/M
G2D/MD
Biomarker 2Agent 2
Agent 2
Biomarker 1
G1D
Agent 1
Biomarker 1

27. 27 Tao You tao.you@astrazeneca.com Computational Biology | Discovery Sciences
Solid Tumour Architecture
Tumour Heterogeneity
bridges preclinical-clinical gaps

28. Clinical tumour architecture
28 Tao You tao.you@astrazeneca.com Computational Biology | Discovery Sciences
Komlodi-Pasztor E et al. (2012) Inhibitors Targeting Mitosis. Clin Cancer Res 18:51-63
Proliferating rim ~ 1% of tumour mass
Necrotic core
Dormant hypoxic cells
Cell cycle durations
in vitro xenograft clinics
1d 1wk 3-12mths

29. •A multi-scale modeling informed drug development paradigm
Clinical PK of Agent 1 – literature
PBPK of Agent 2
Clinical tumour modelling
Biomarker
Cell cycle
Tumour growth
29
Dormant
hypoxic
cells
Proliferating rim
Agent 2
Biomarker 1
time
cell
time
Biomarker 2
time
Agent 1
PK PD Preclinical efficacy Clinical efficacy
Biomarker
model
Cell fate
decision
model
Systems Pharmacology paradigm
Tao You tao.you@astrazeneca.com Computational Biology | Discovery Sciences

30. Predicted clinical tumour volume responses
30
Assumptions: 3% cells are proliferative (G1: 1.5%; S: 0.75%; G2/M: 0.75%); double time identical to xenograft
6 months 12 months3 months 9 months
Tao You tao.you@astrazeneca.com Computational Biology | Discovery Sciences

31. Systems Pharmacology – Lessons learned
31 Tao You tao.you@astrazeneca.com Computational Biology | Discovery Sciences
Systems Pharmacology Models
Mechanistic
– Relates biomarkers (molecules) with efficacy (cells)
Be practical: When the exact molecular mechanism is unknown, choose a simple mathematical representation to avoid
unnecessary complexity A) make sure you understand the model, B) avoid unnecessary time spent on computing
Integrative
– Links PK (body) with PD with (cells/tissue)
Be consistent: Make sure you use the best animal PK model so that you don’t have to change the PK part frequently
Insightful
– Reconciles in vitro-in vivo differences
– Bridges preclinical-clinical translation
Be precise: Focus on unidentifiable parameters detected by sensitivity analysis; think about which parameters might be
different from biological knowledge
Statistically Robust
– Infers structure, parameter and model behaviours
Be collaborative: Washout data might be more informative than constant treatments; in vivo efficacy data may help infer
model structure
Predictive
– Validated often with preclinical data
Be confident: Always perform a validation – more convincing than anything else

32. Acknowledgements
Cross-functional collaboration
Modeling support: James Yates1, Joanne Wilson1, Gary Wilkinson1
In vitro experiments: Linda MacCallum2, Andrew Thomason3
In vivo experiments: Rajesh Odedra3, Nicola Broadbent3, Gareth Hughes3, Elaine
Cadogan3
1Oncology DMPK; 2Discovery Sciences; 3Oncology BioScience
32 Tao You tao.you@astrazeneca.com Computational Biology | Discovery Sciences

33. Model fitting to in vitro data
Evolutionary Algorithm, Parameter Sensitivity
33 Tao You tao.you@astrazeneca.com Computational Biology | Discovery Sciences
Goodnessoffit
Parameter
