Using Mobile for Your Message: A Process and a Strategy for Mobile Web Development
1. Using Mobile for Your Message:
A Process and a Strategy
for Mobile Web Development
Evan Donovan

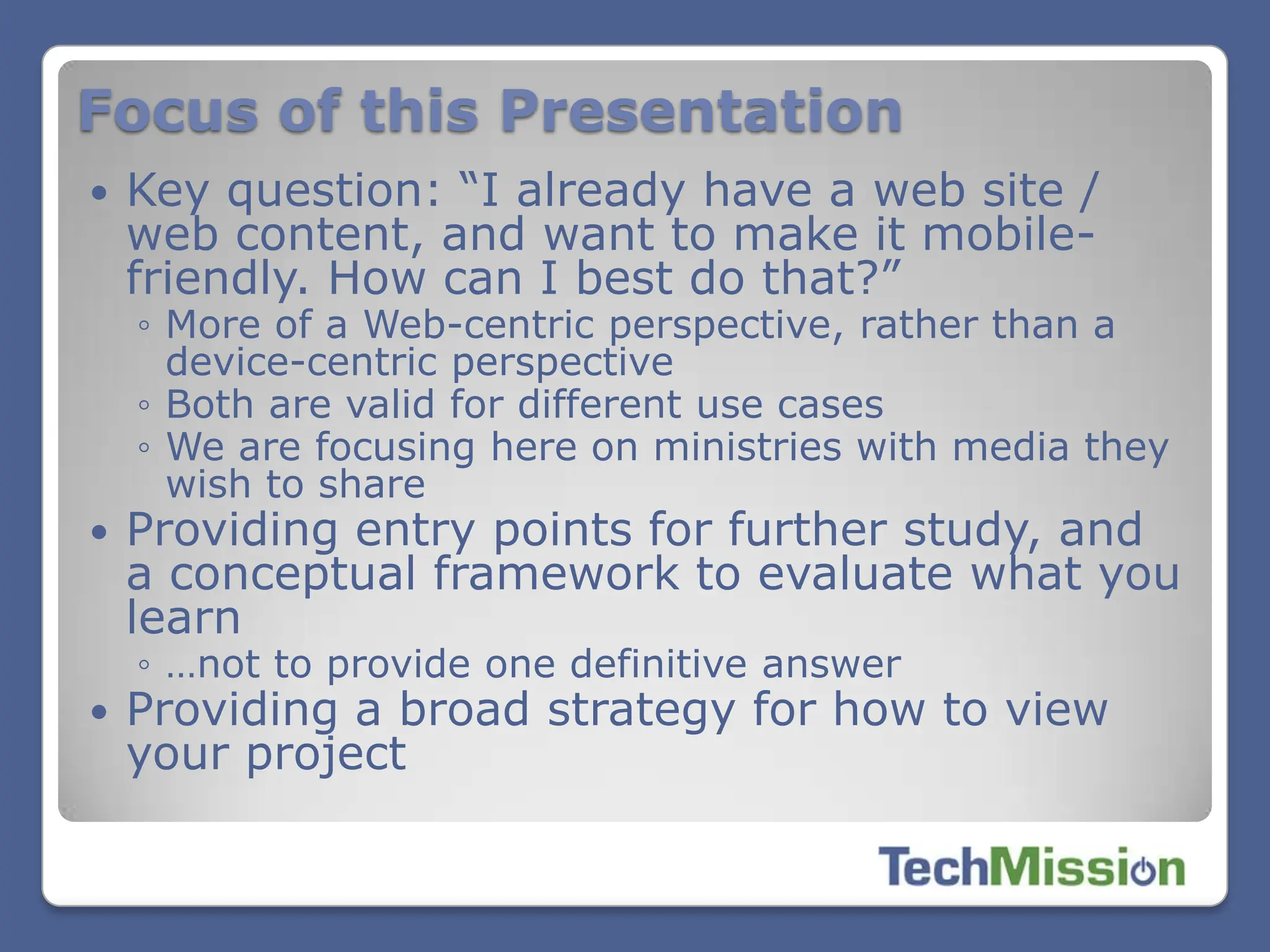

2. Focus of this Presentation
Key question: “I already have a web site /
web content, and want to make it mobile-
friendly. How can I best do that?”
◦ More of a Web-centric perspective, rather than a
device-centric perspective
◦ Both are valid for different use cases
◦ We are focusing here on ministries with media they
wish to share
Providing entry points for further study, and
a conceptual framework to evaluate what you
learn
◦ …not to provide one definitive answer
Providing a broad strategy for how to view
your project

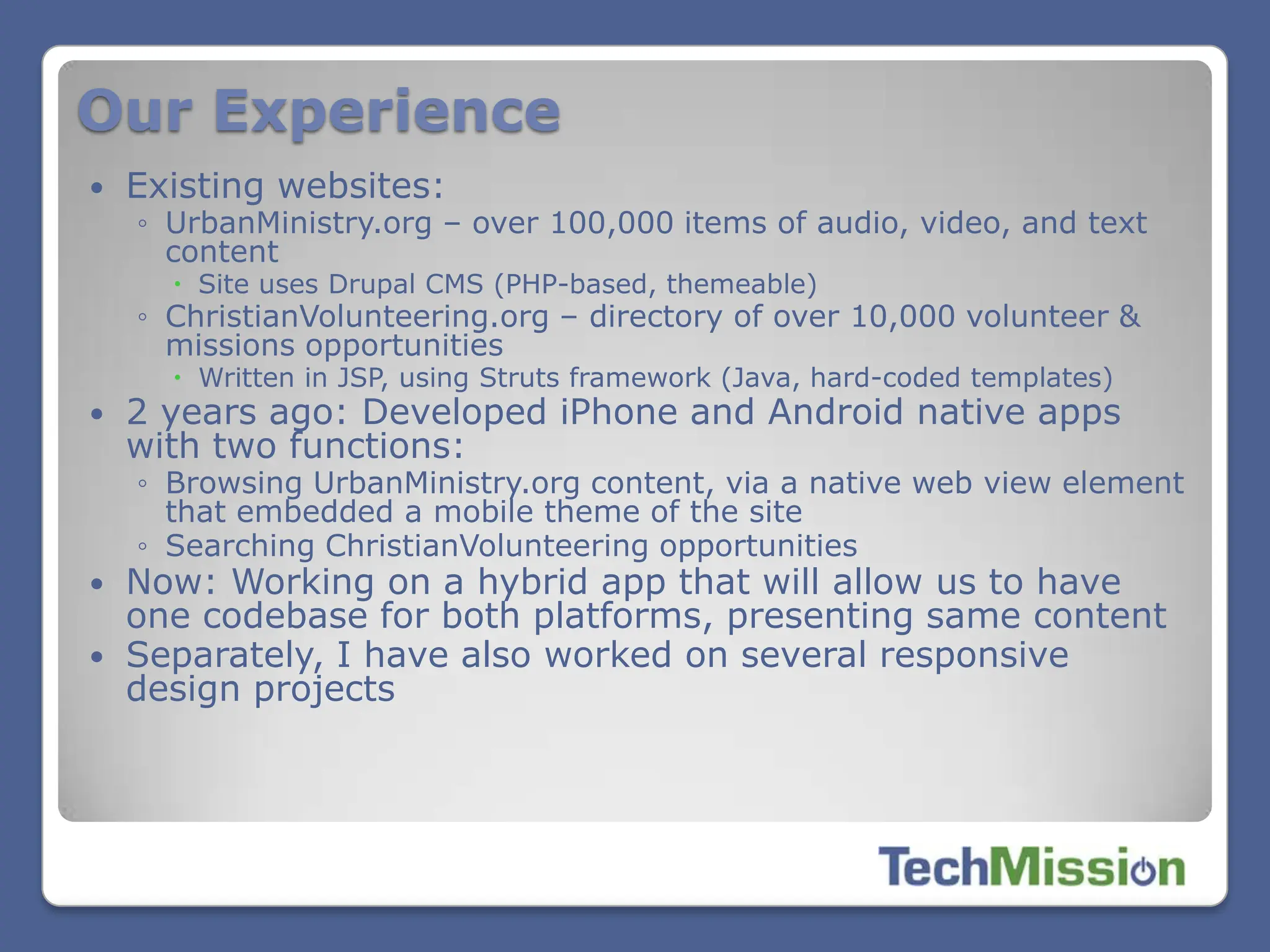

3. Our Experience
Existing websites:
◦ UrbanMinistry.org – over 100,000 items of audio, video, and text
content
Site uses Drupal CMS (PHP-based, themeable)
◦ ChristianVolunteering.org – directory of over 10,000 volunteer &
missions opportunities
Written in JSP, using Struts framework (Java, hard-coded templates)
2 years ago: Developed iPhone and Android native apps
with two functions:
◦ Browsing UrbanMinistry.org content, via a native web view element
that embedded a mobile theme of the site
◦ Searching ChristianVolunteering opportunities
Now: Working on a hybrid app that will allow us to have
one codebase for both platforms, presenting same content
Separately, I have also worked on several responsive
design projects

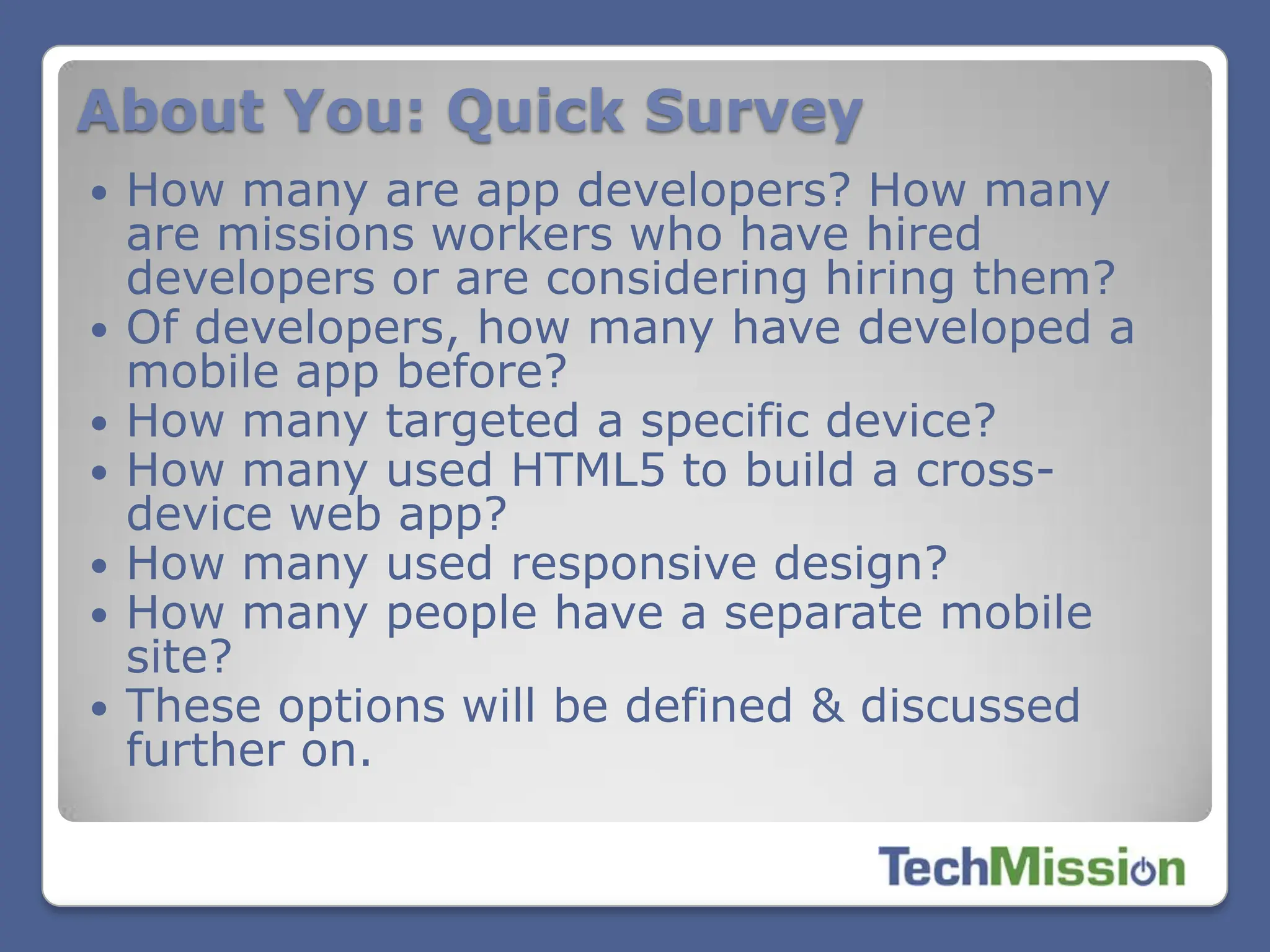

4. About You: Quick Survey
How many are app developers? How many
are missions workers who have hired
developers or are considering hiring them?
Of developers, how many have developed a
mobile app before?
How many targeted a specific device?
How many used HTML5 to build a cross-
device web app?
How many used responsive design?
How many people have a separate mobile
site?
These options will be defined & discussed
further on.

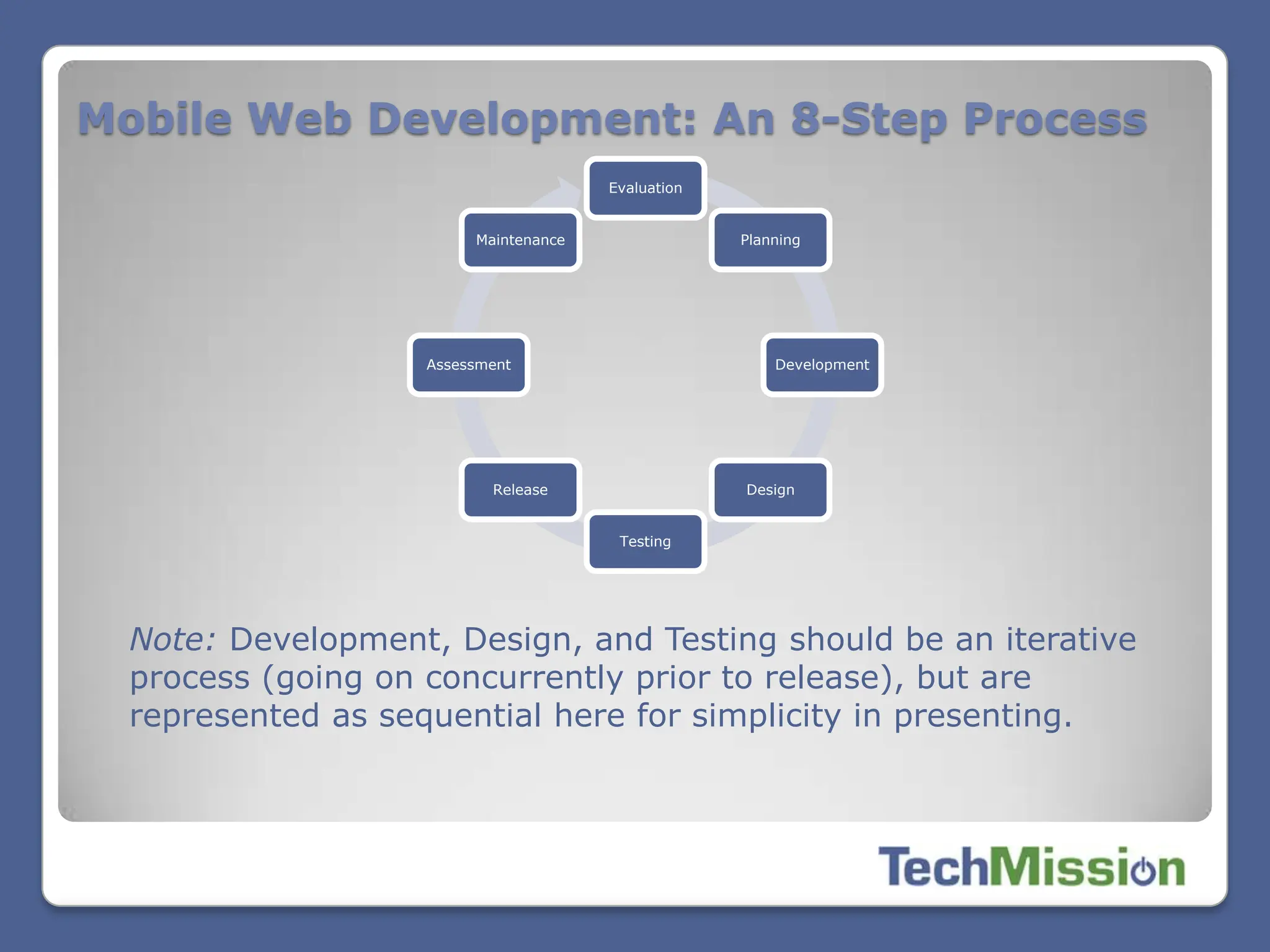

5. Mobile Web Development: An 8-Step Process
Evaluation
Maintenance Planning
Assessment Development
Release Design
Testing
Note: Development, Design, and Testing should be an iterative
process (going on concurrently prior to release), but are
represented as sequential here for simplicity in presenting.

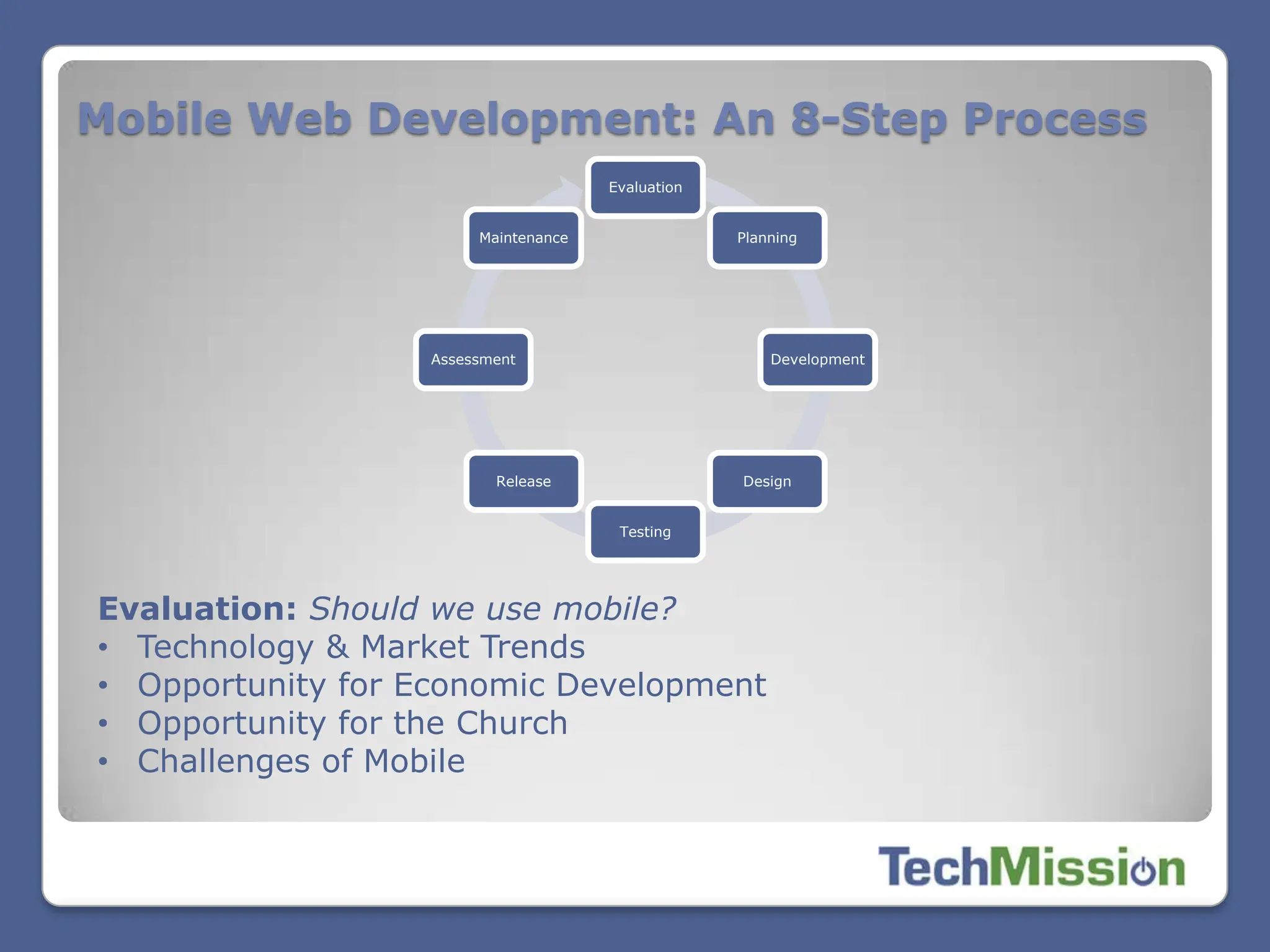

6. Mobile Web Development: An 8-Step Process
Evaluation
Maintenance Planning
Assessment Development
Release Design
Testing
Evaluation: Should we use mobile?
• Technology & Market Trends
• Opportunity for Economic Development
• Opportunity for the Church
• Challenges of Mobile

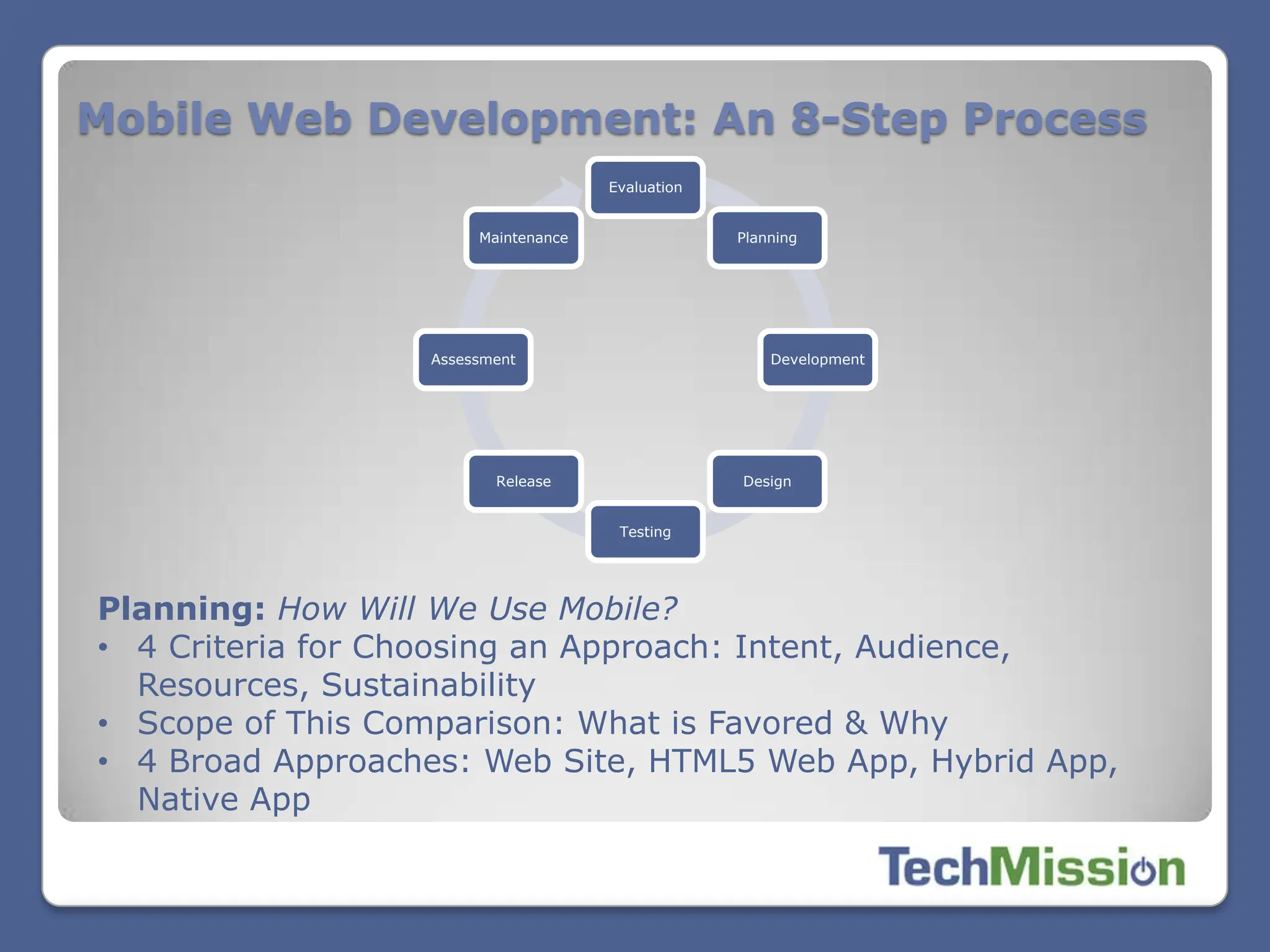

7. Mobile Web Development: An 8-Step Process
Evaluation
Maintenance Planning
Assessment Development
Release Design
Testing
Planning: How Will We Use Mobile?
• 4 Criteria for Choosing an Approach: Intent, Audience,
Resources, Sustainability
• Scope of This Comparison: What is Favored & Why

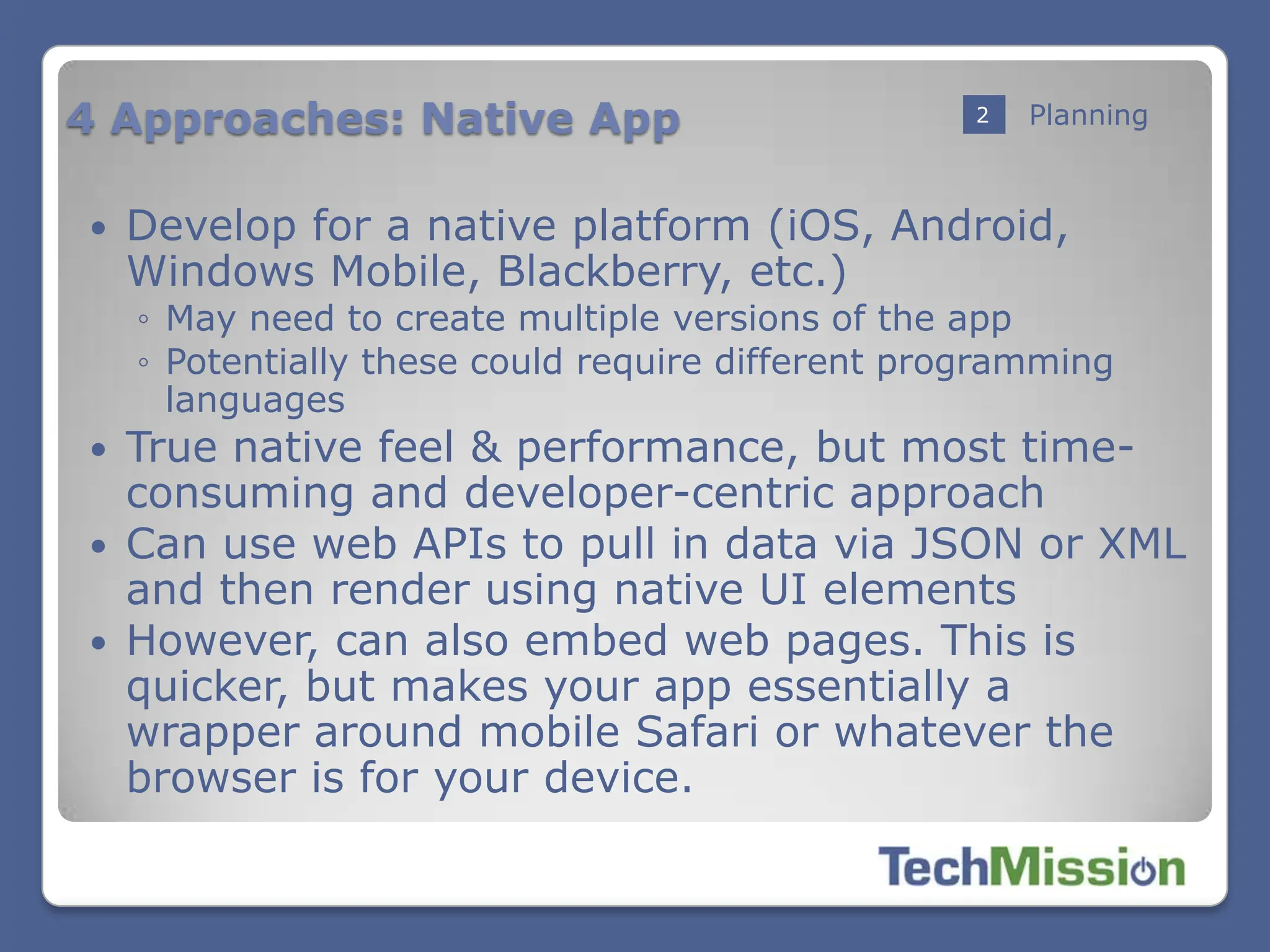

• 4 Broad Approaches: Web Site, HTML5 Web App, Hybrid App,
Native App

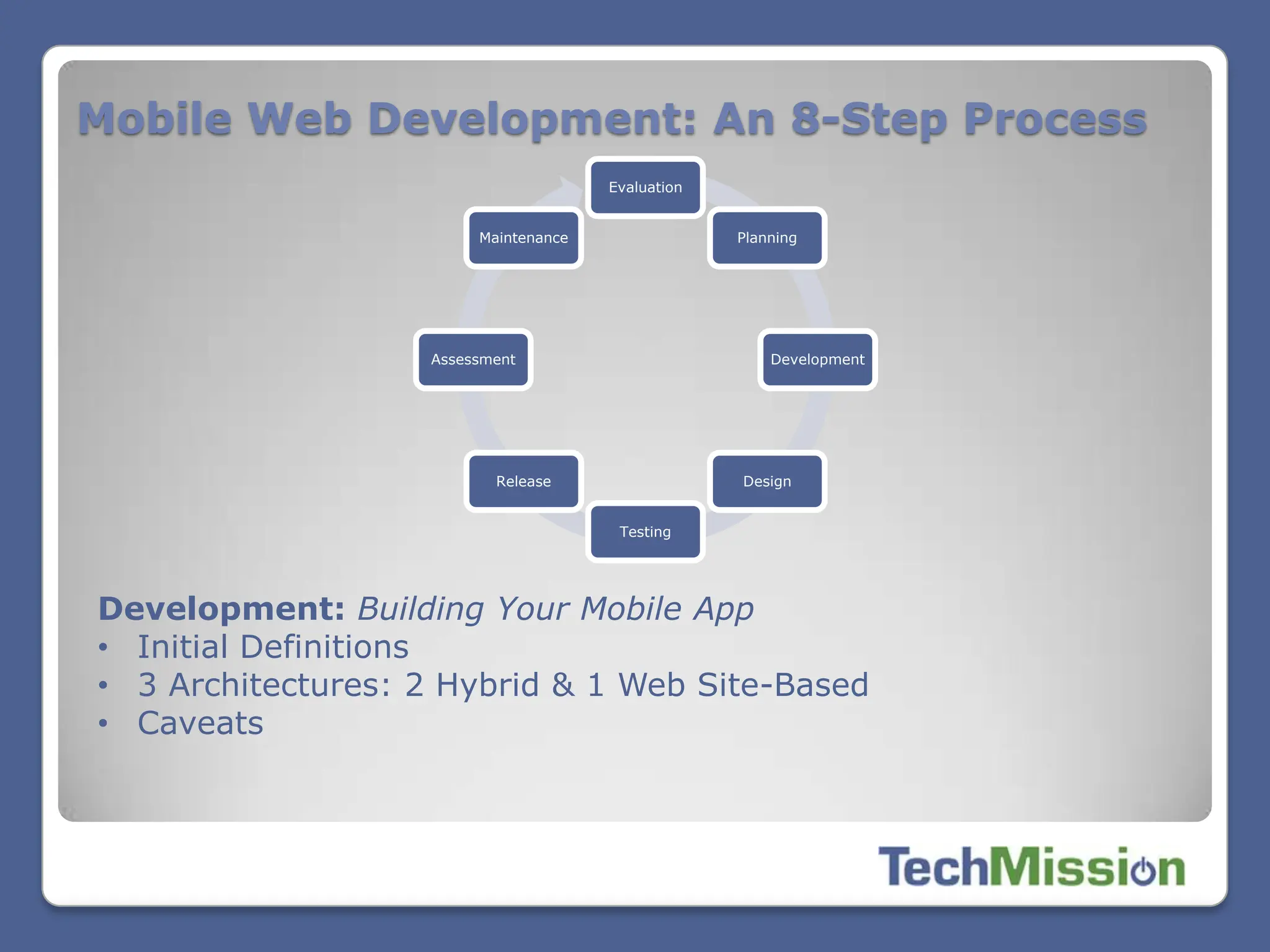

8. Mobile Web Development: An 8-Step Process
Evaluation
Maintenance Planning
Assessment Development
Release Design
Testing
Development: Building Your Mobile App

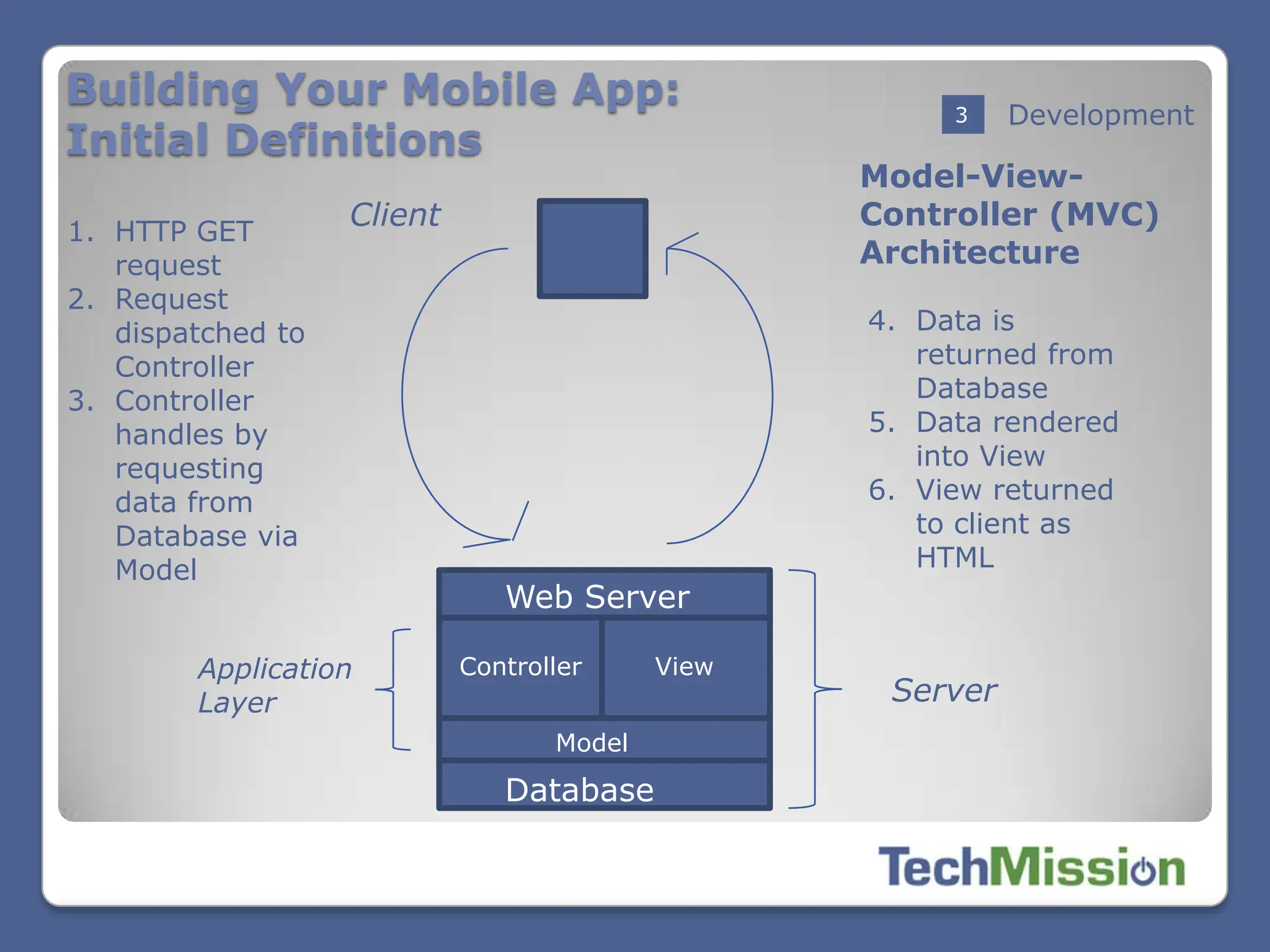

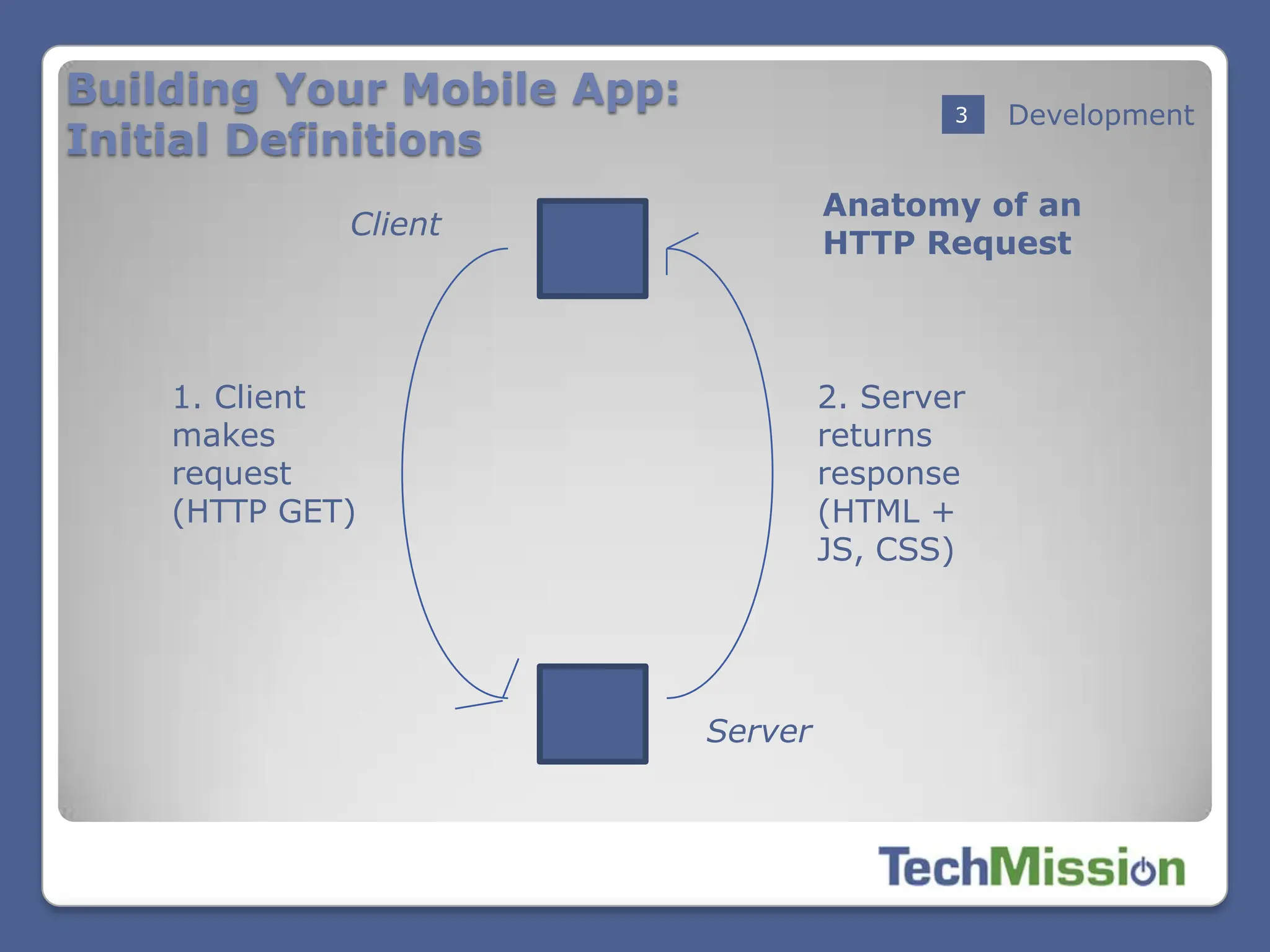

• Initial Definitions

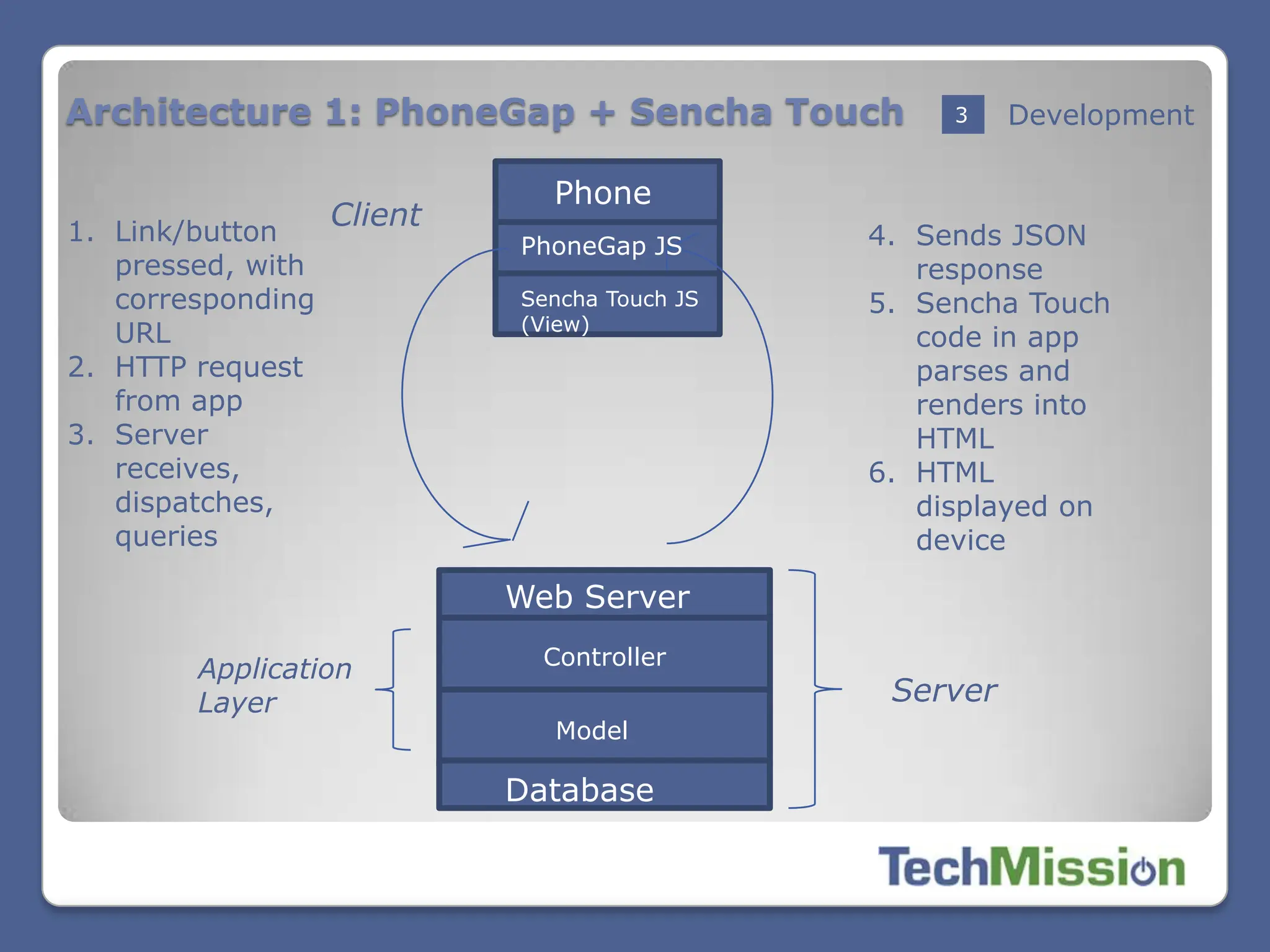

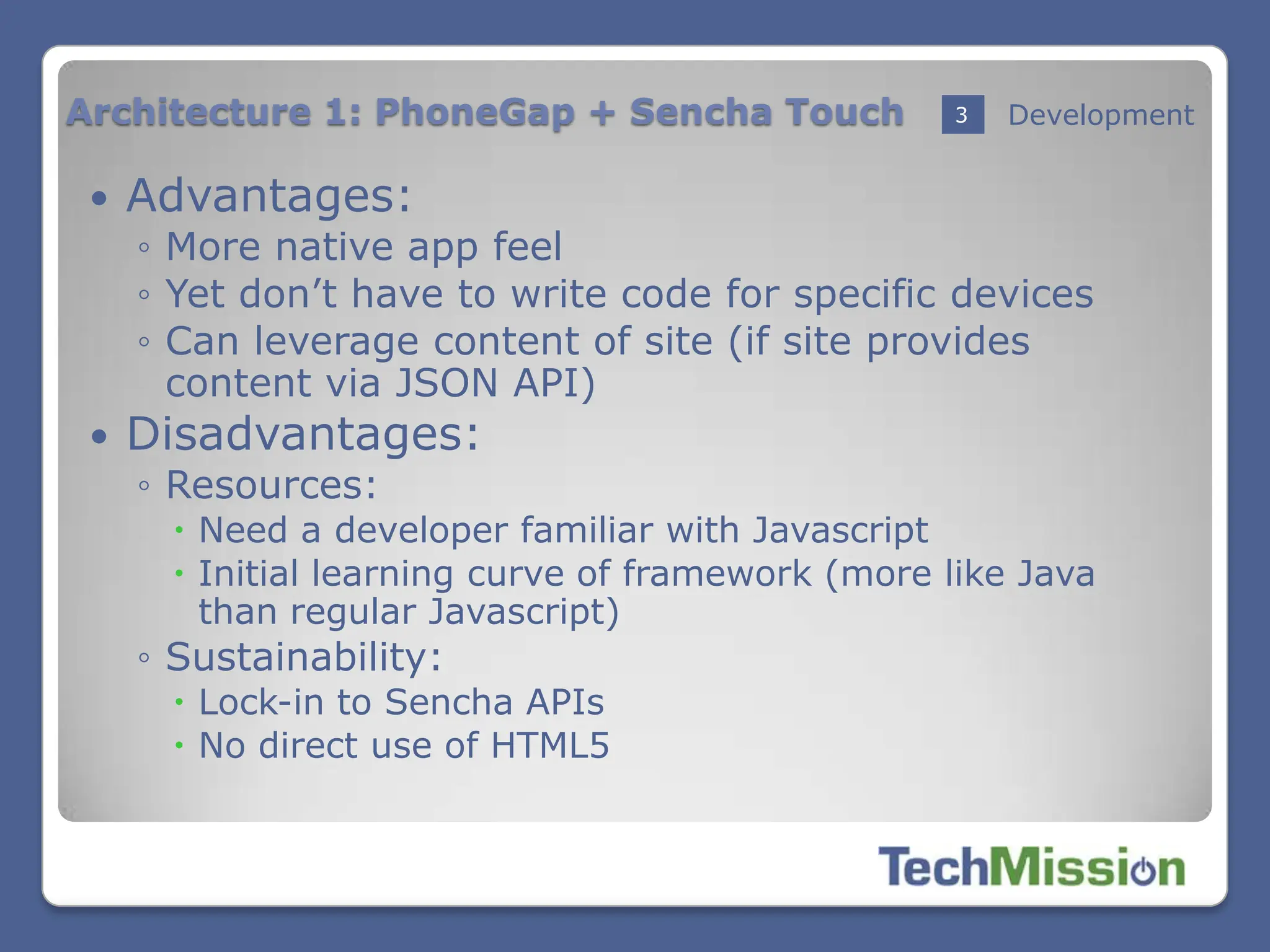

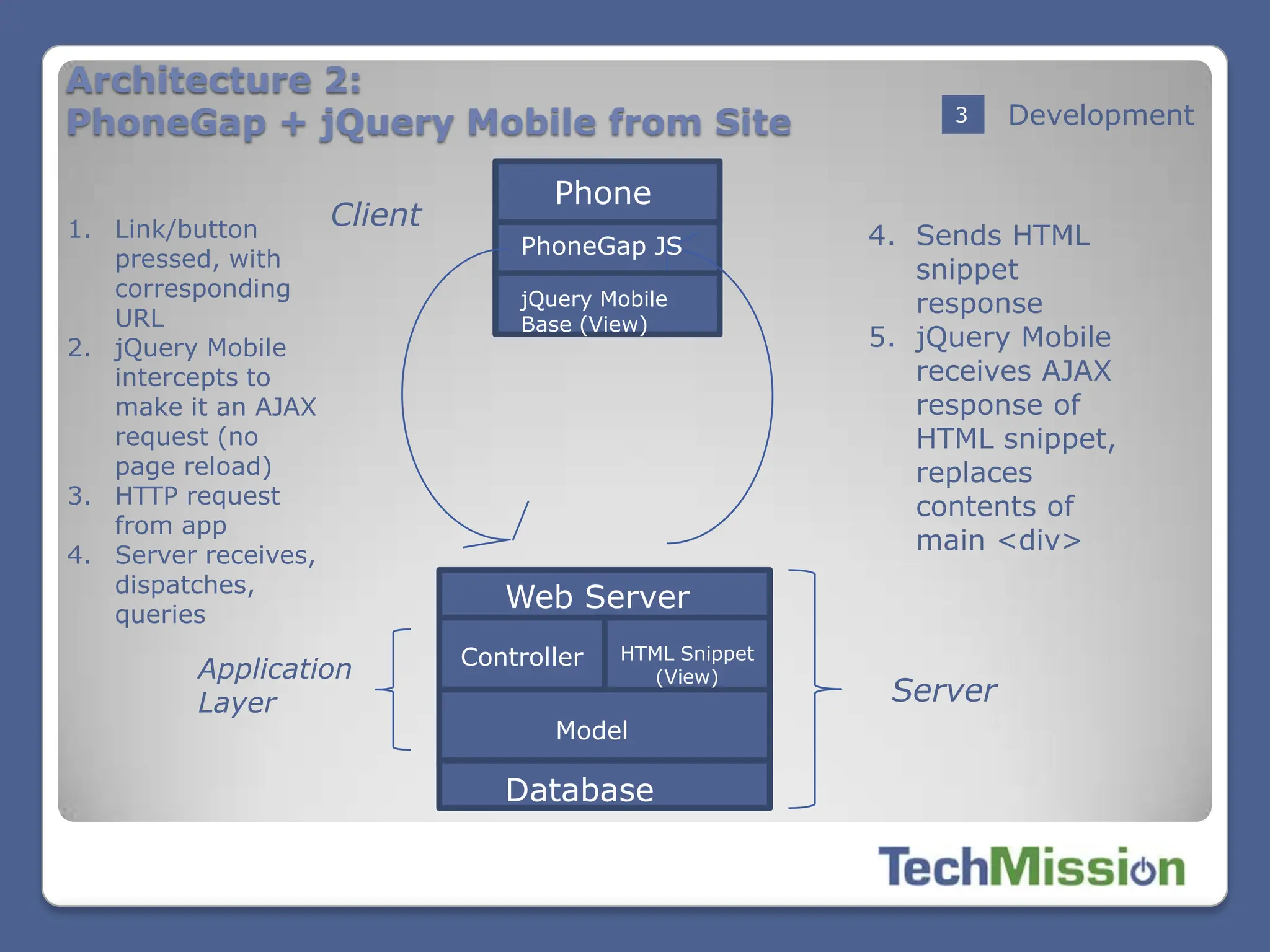

• 3 Architectures: 2 Hybrid & 1 Web Site-Based
• Caveats

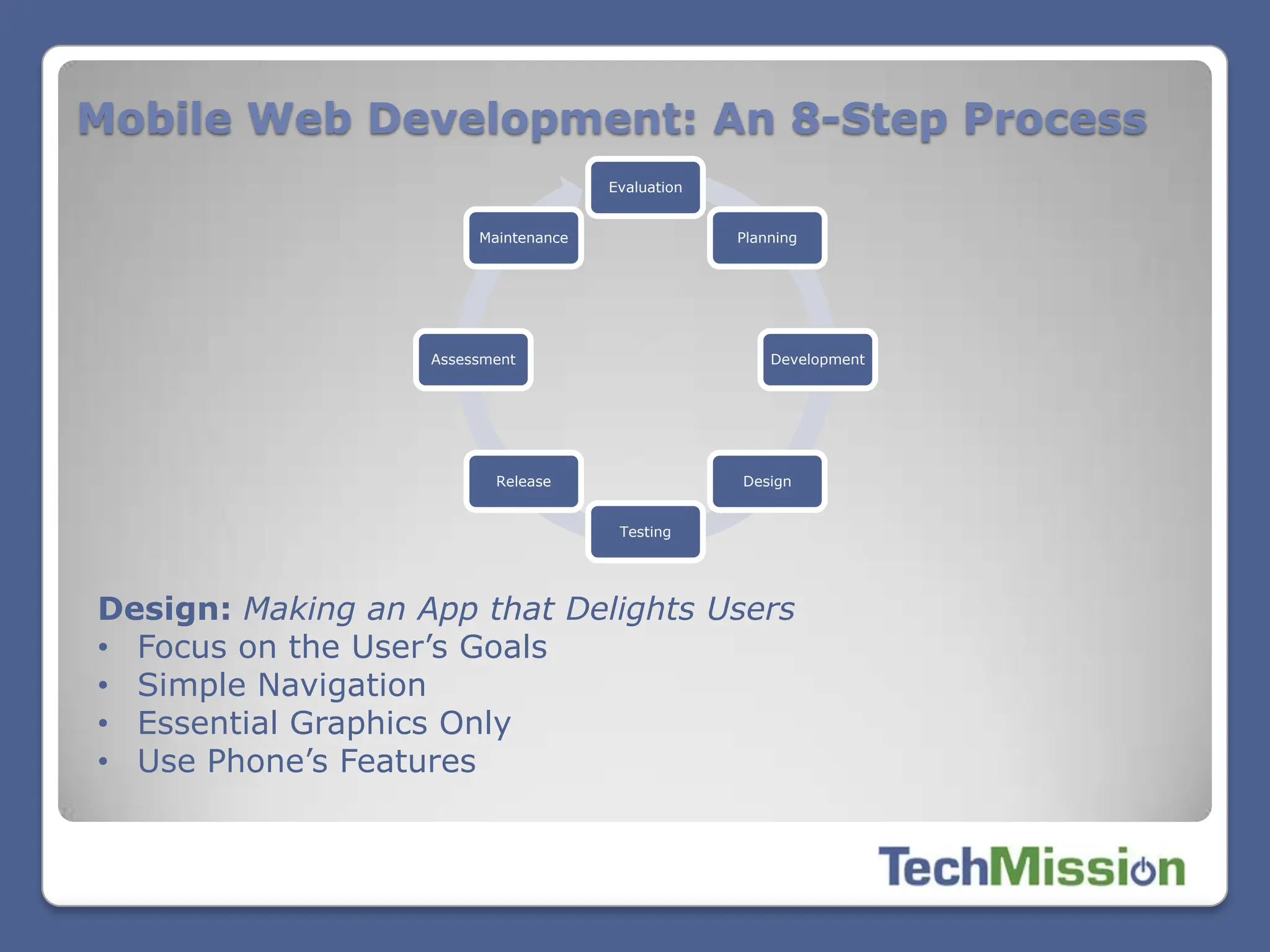

9. Mobile Web Development: An 8-Step Process
Evaluation
Maintenance Planning
Assessment Development
Release Design
Testing

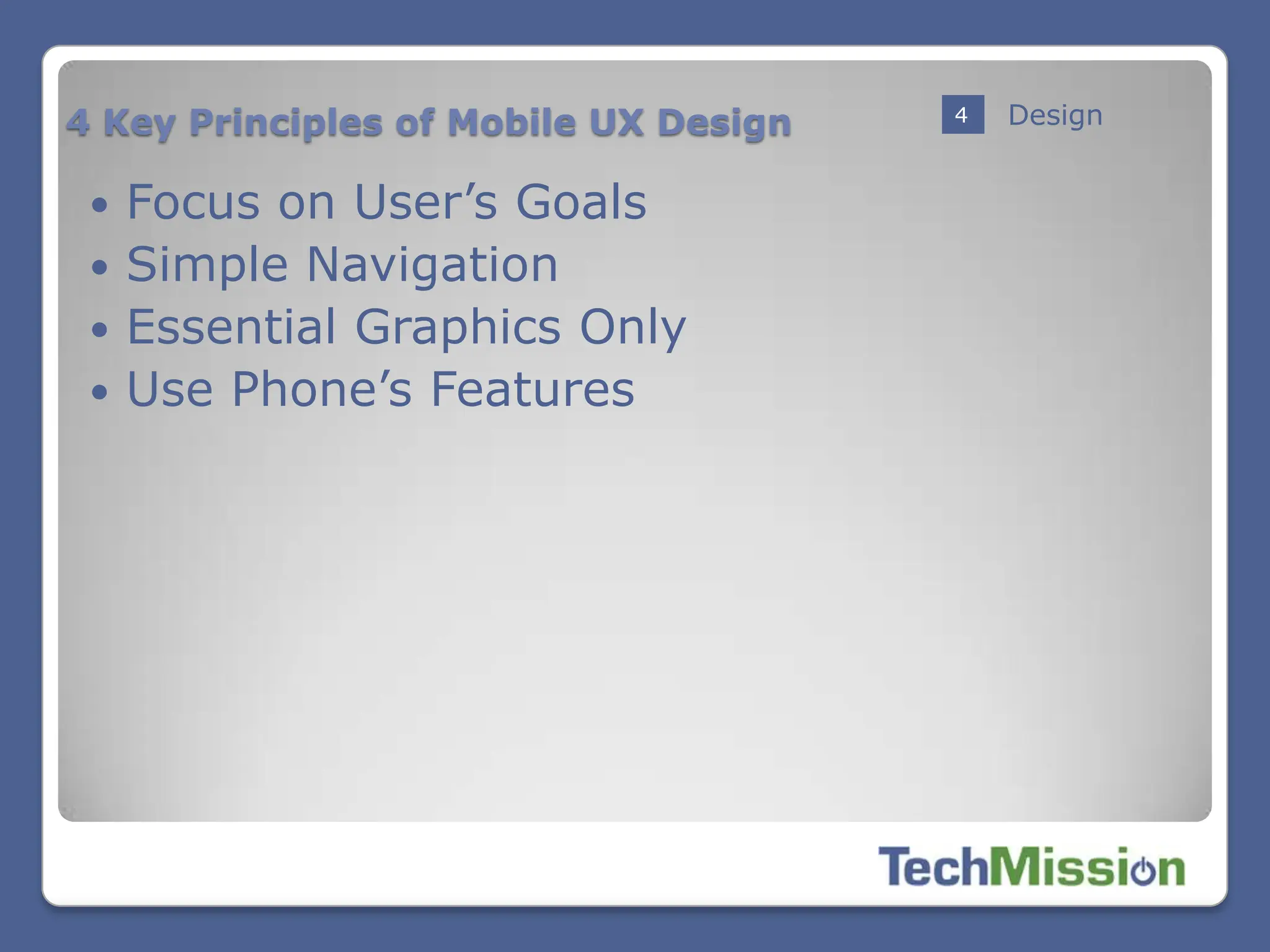

Design: Making an App that Delights Users
• Focus on the User’s Goals
• Simple Navigation
• Essential Graphics Only
• Use Phone’s Features

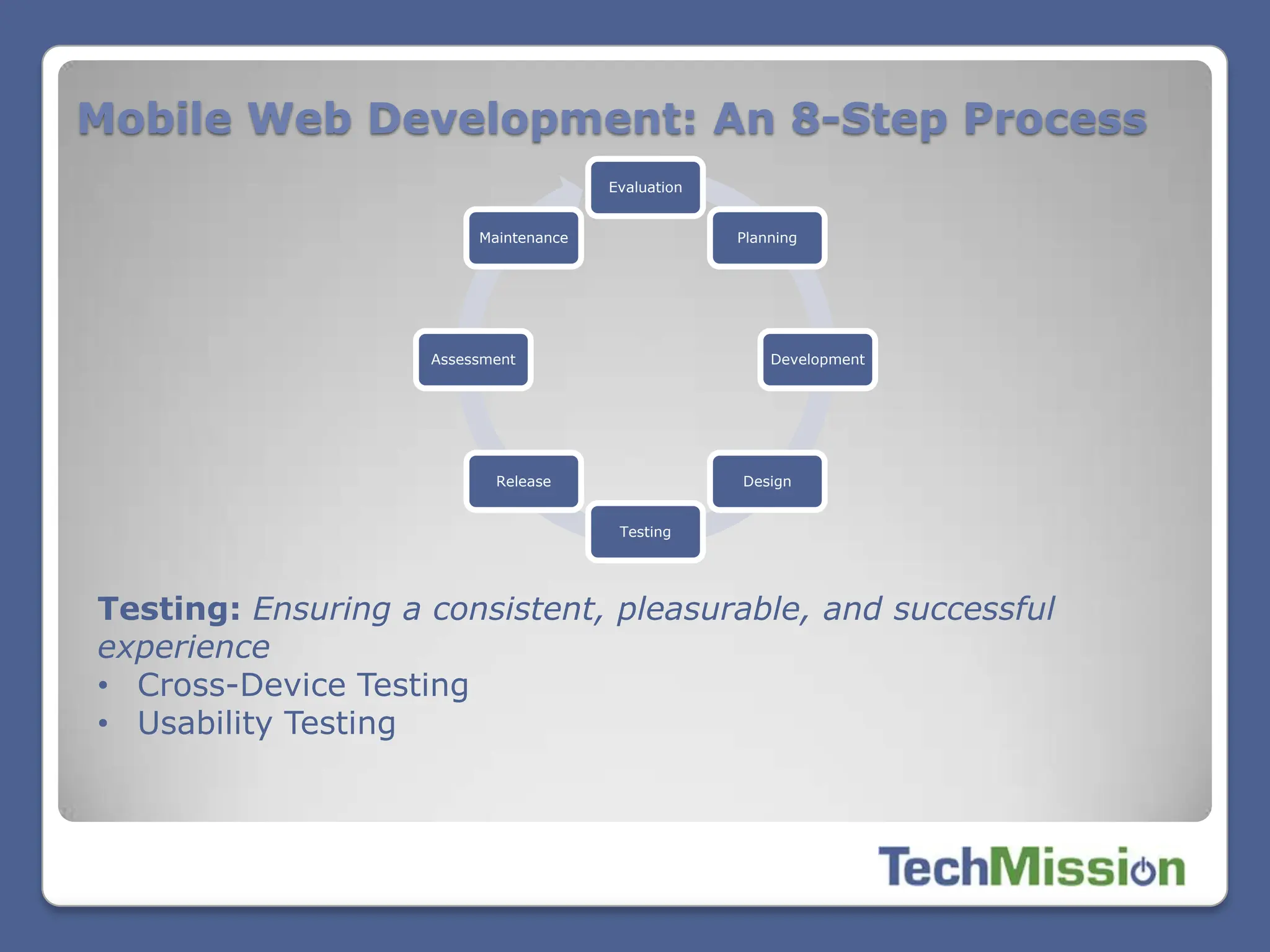

10. Mobile Web Development: An 8-Step Process
Evaluation
Maintenance Planning
Assessment Development
Release Design
Testing

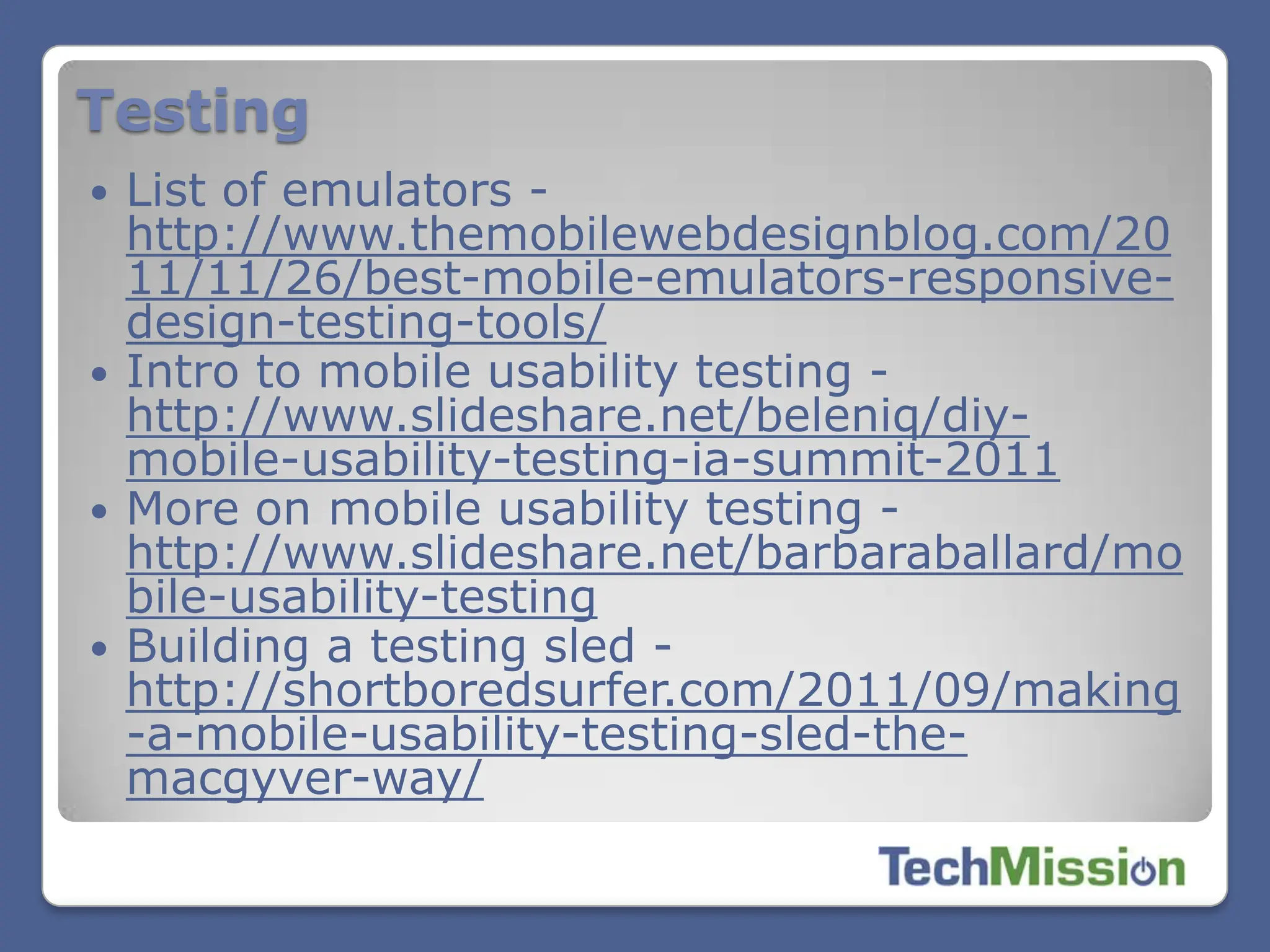

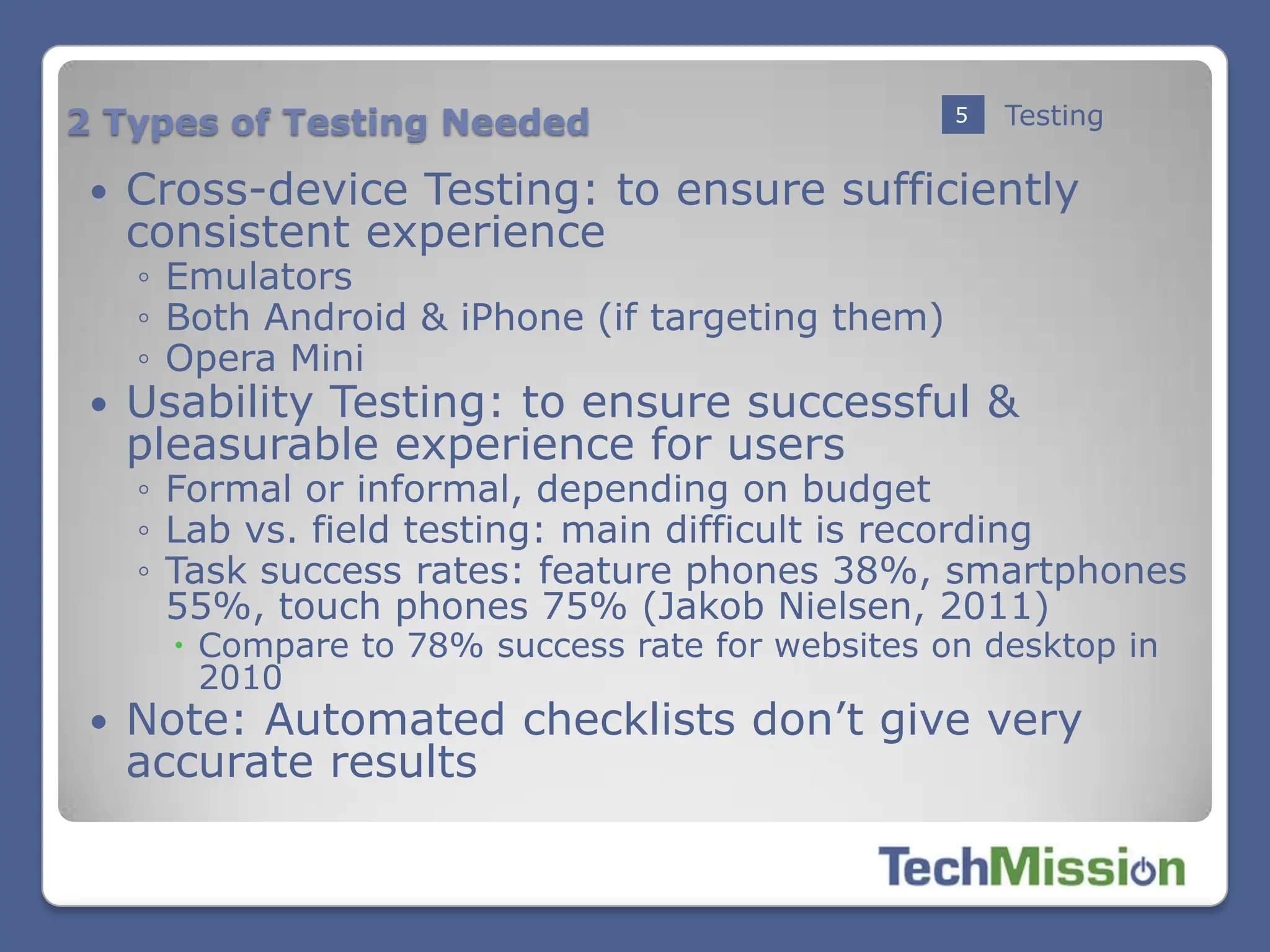

Testing: Ensuring a consistent, pleasurable, and successful
experience
• Cross-Device Testing
• Usability Testing

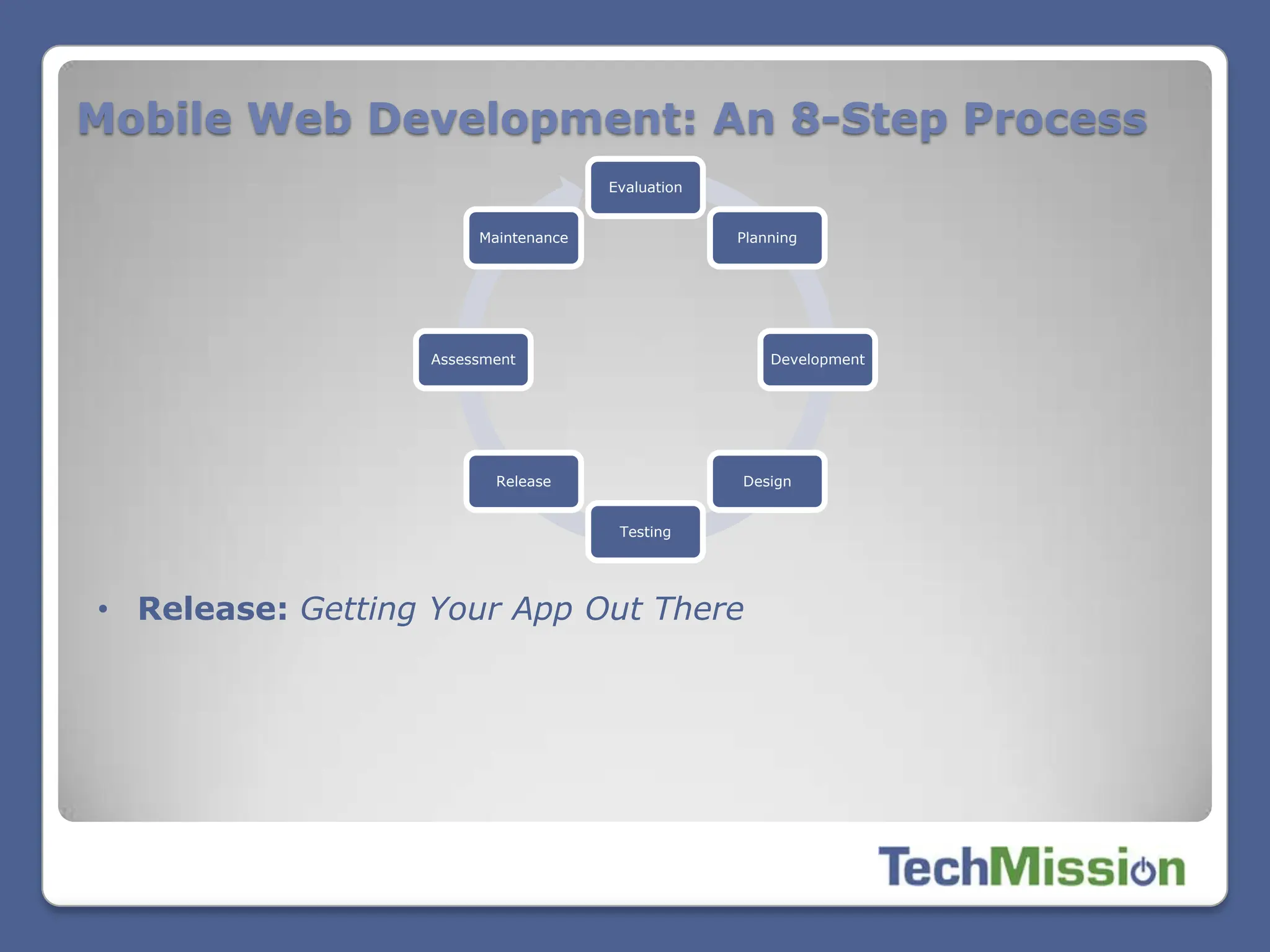

11. Mobile Web Development: An 8-Step Process
Evaluation
Maintenance Planning
Assessment Development
Release Design
Testing
• Release: Getting Your App Out There

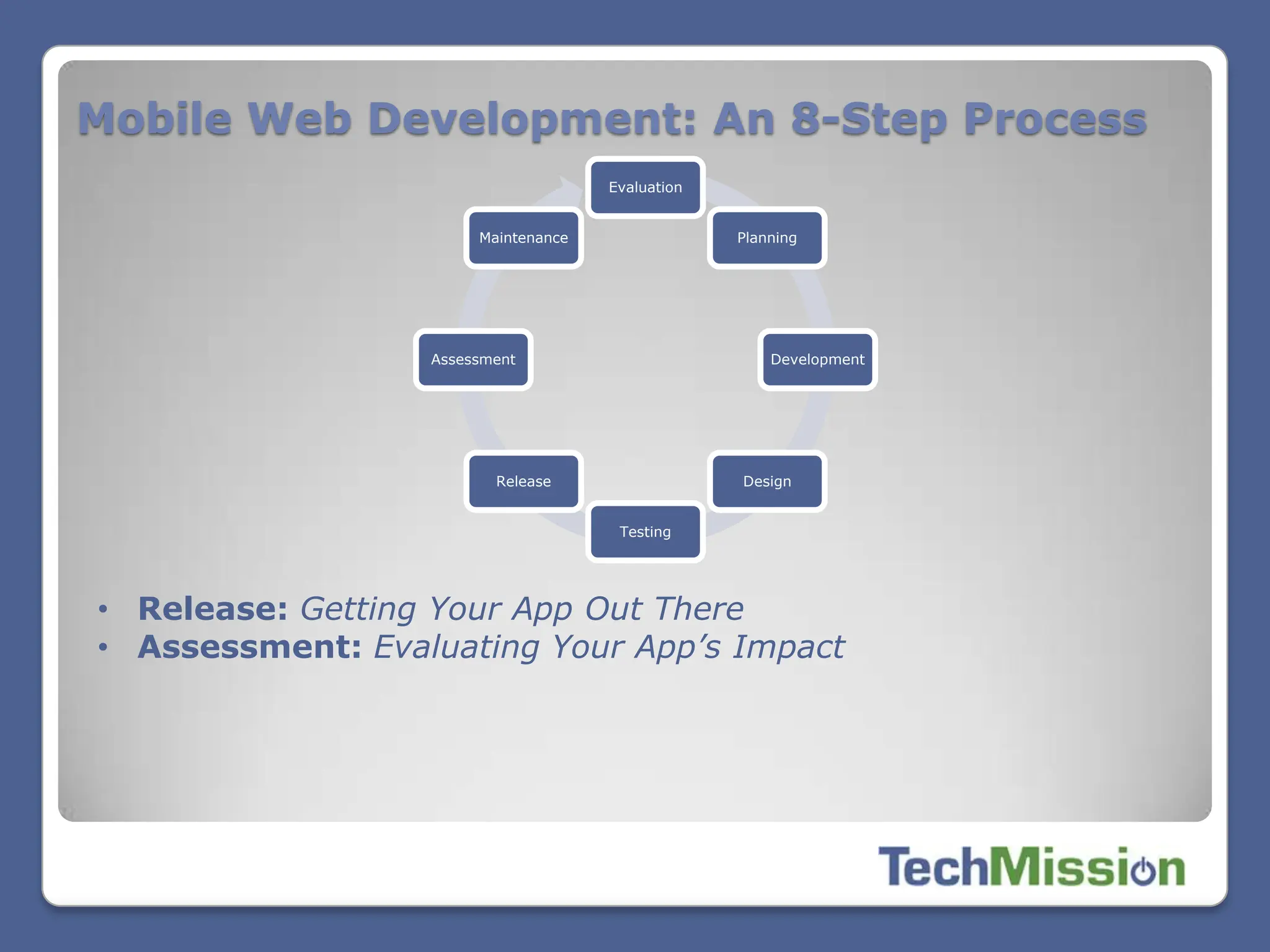

12. Mobile Web Development: An 8-Step Process
Evaluation
Maintenance Planning
Assessment Development
Release Design
Testing
• Release: Getting Your App Out There

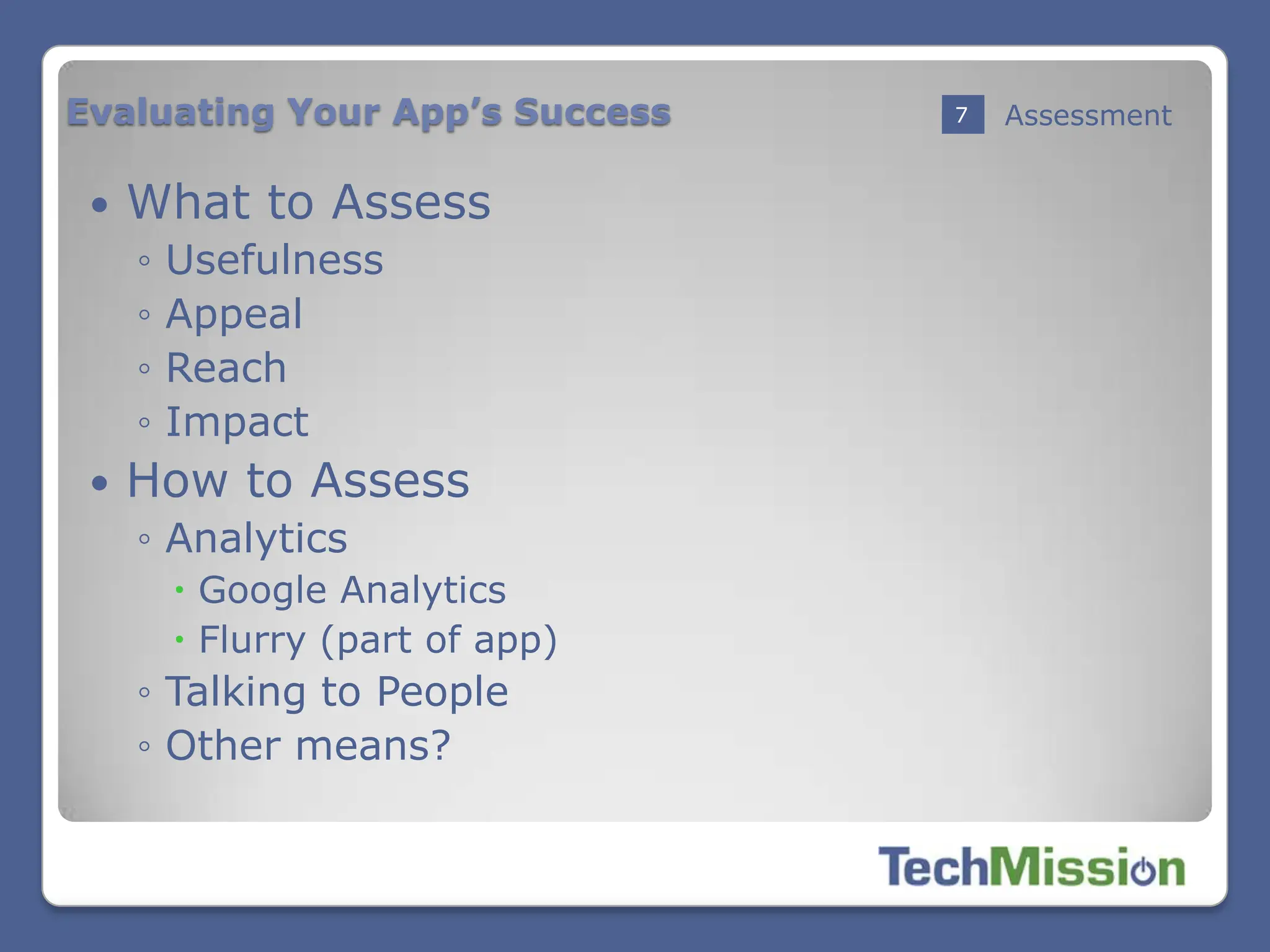

• Assessment: Evaluating Your App’s Impact

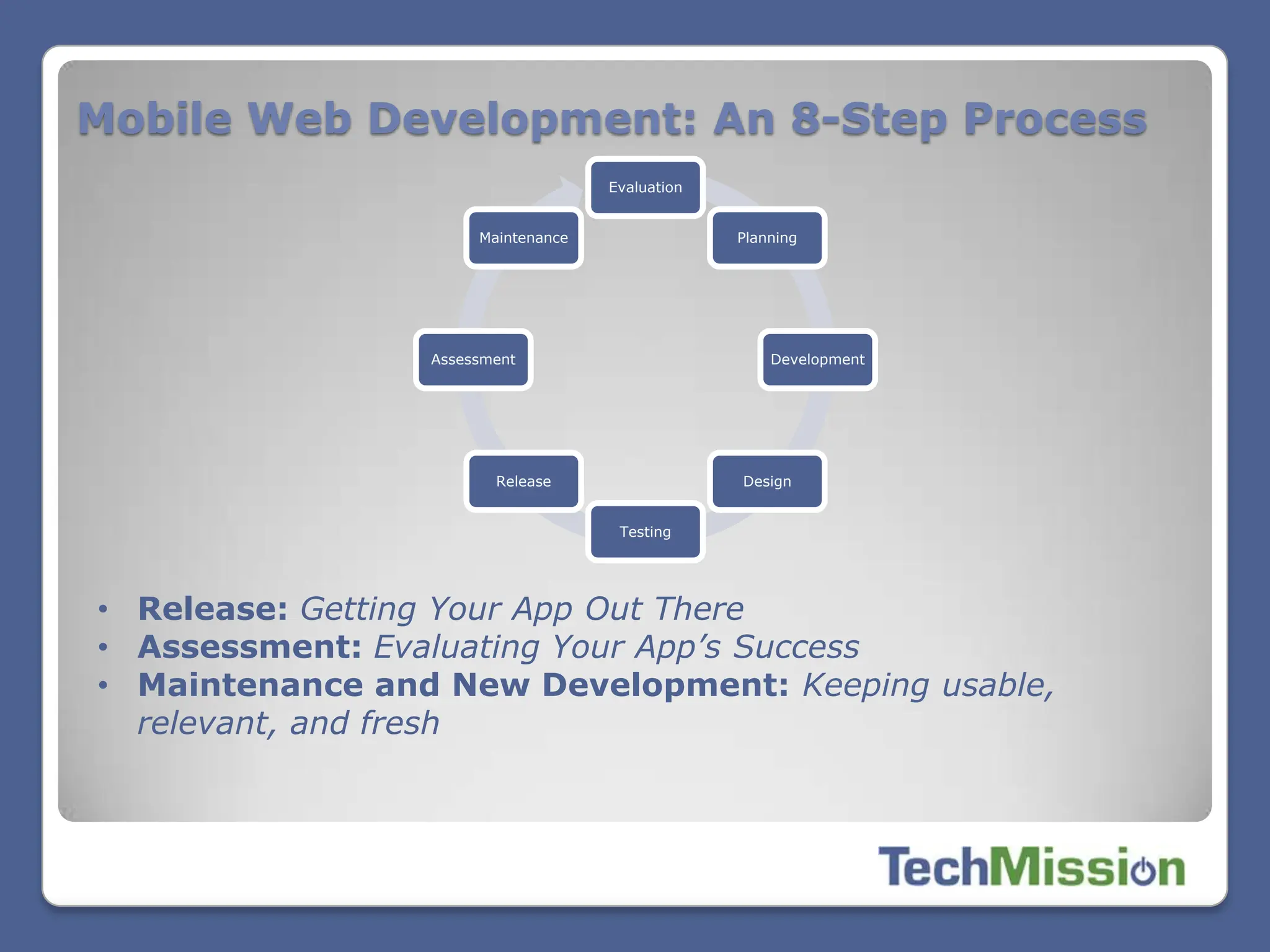

13. Mobile Web Development: An 8-Step Process
Evaluation
Maintenance Planning
Assessment Development
Release Design
Testing
• Release: Getting Your App Out There
• Assessment: Evaluating Your App’s Success

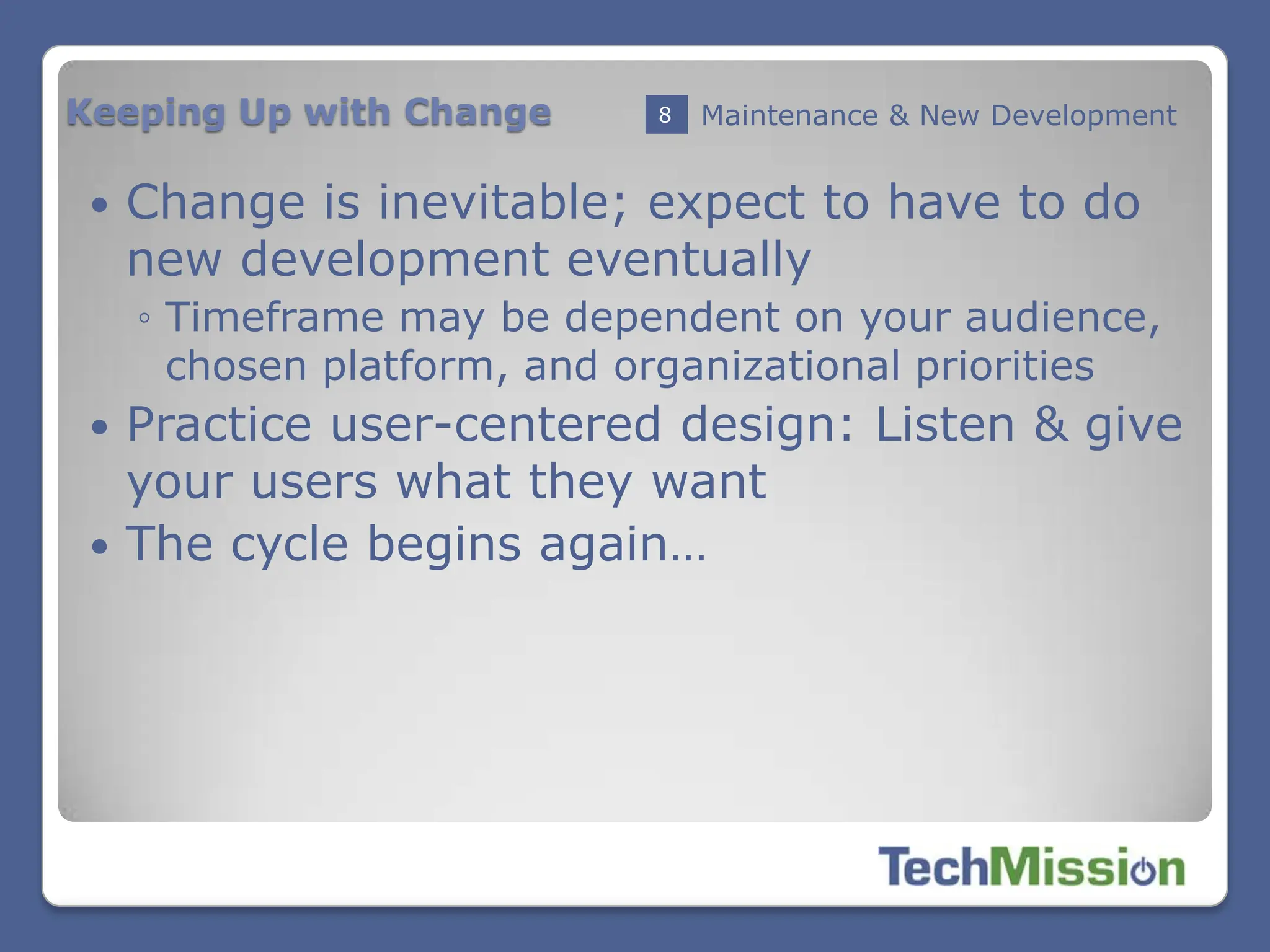

• Maintenance and New Development: Keeping usable,
relevant, and fresh

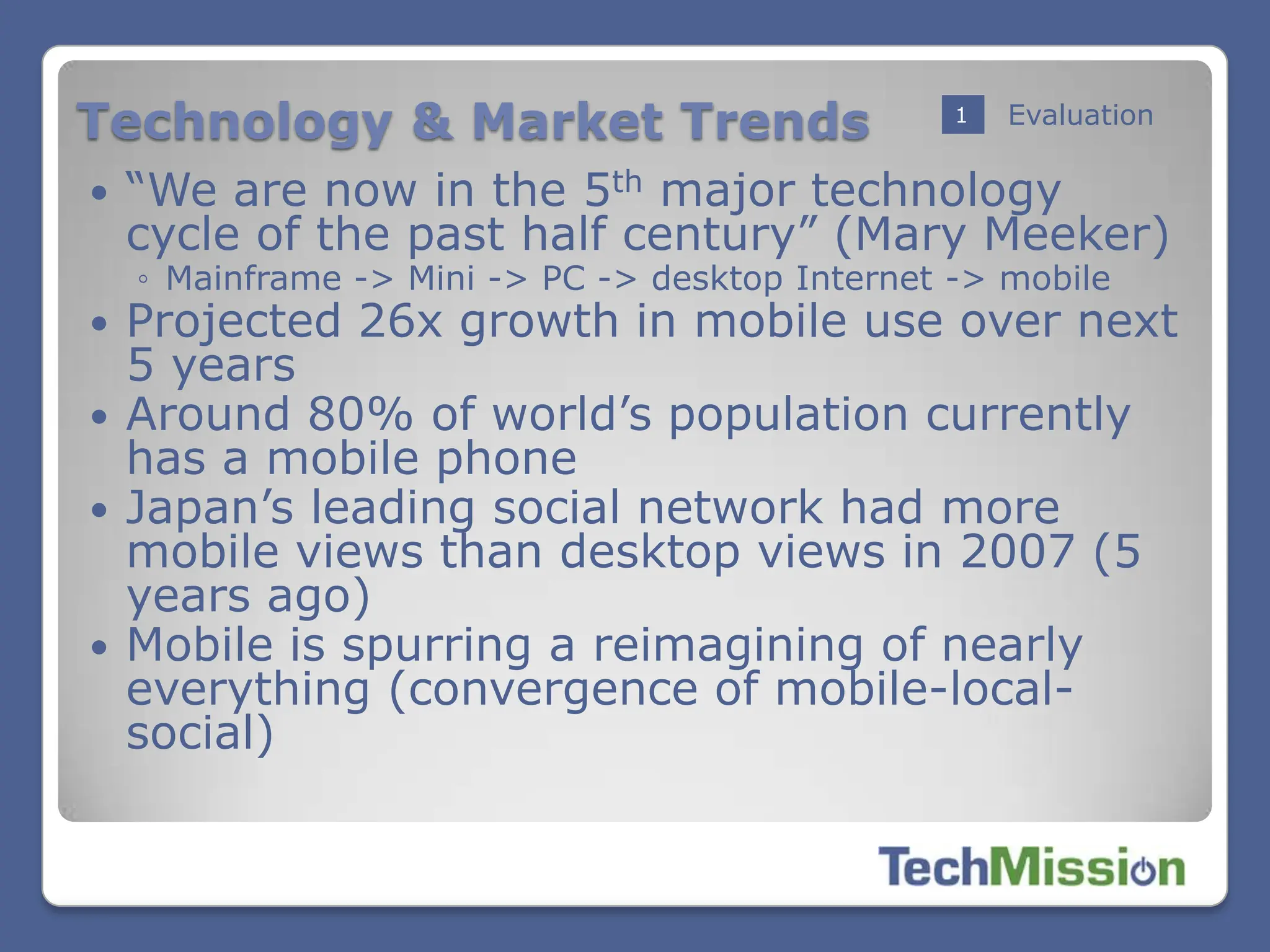

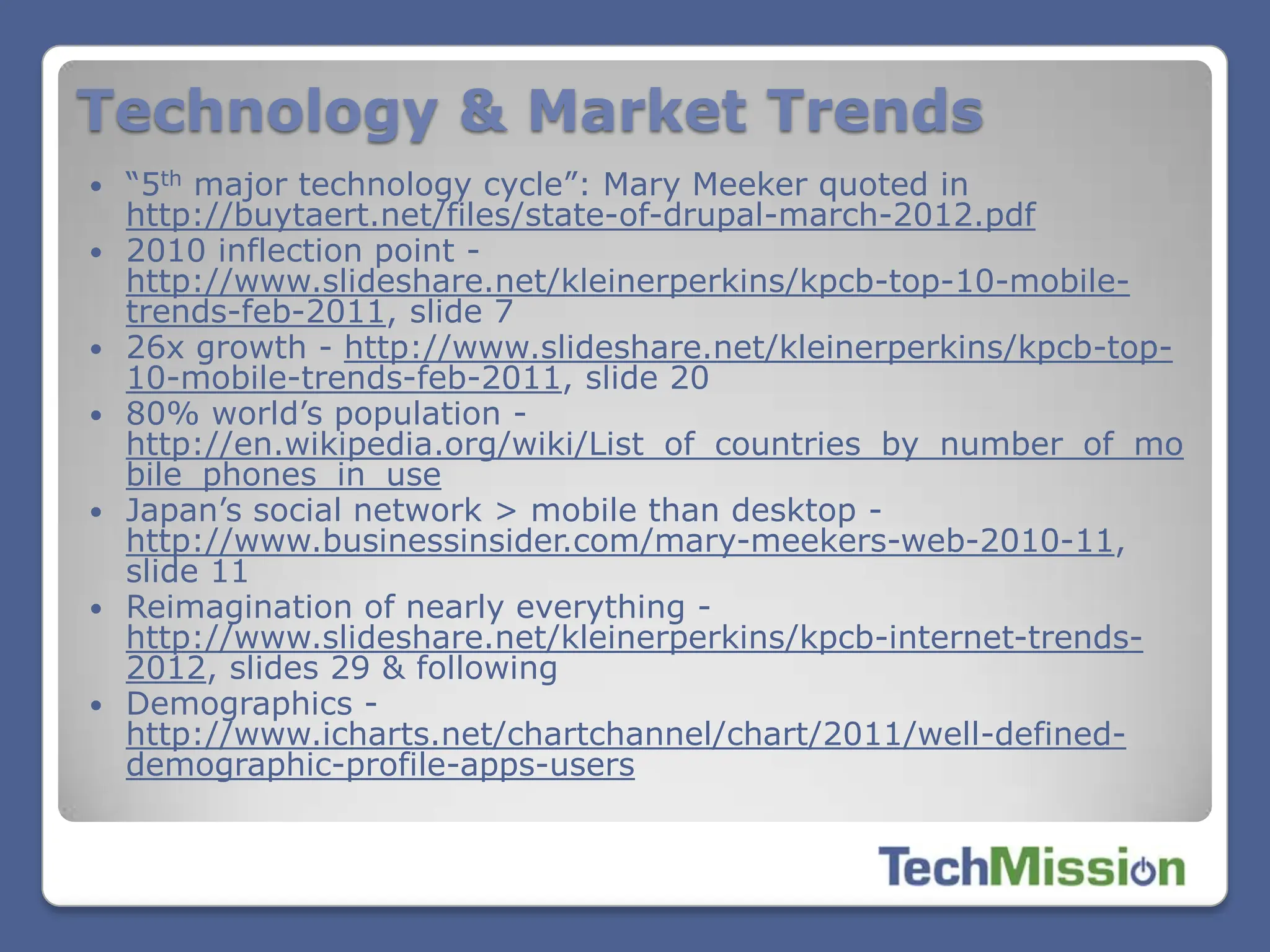

14. Technology & Market Trends 1 Evaluation
“We are now in the 5th major technology
cycle of the past half century” (Mary Meeker)
◦ Mainframe -> Mini -> PC -> desktop Internet -> mobile
Projected 26x growth in mobile use over next
5 years
Around 80% of world’s population currently
has a mobile phone
Japan’s leading social network had more
mobile views than desktop views in 2007 (5
years ago)
Mobile is spurring a reimagining of nearly
everything (convergence of mobile-local-
social)

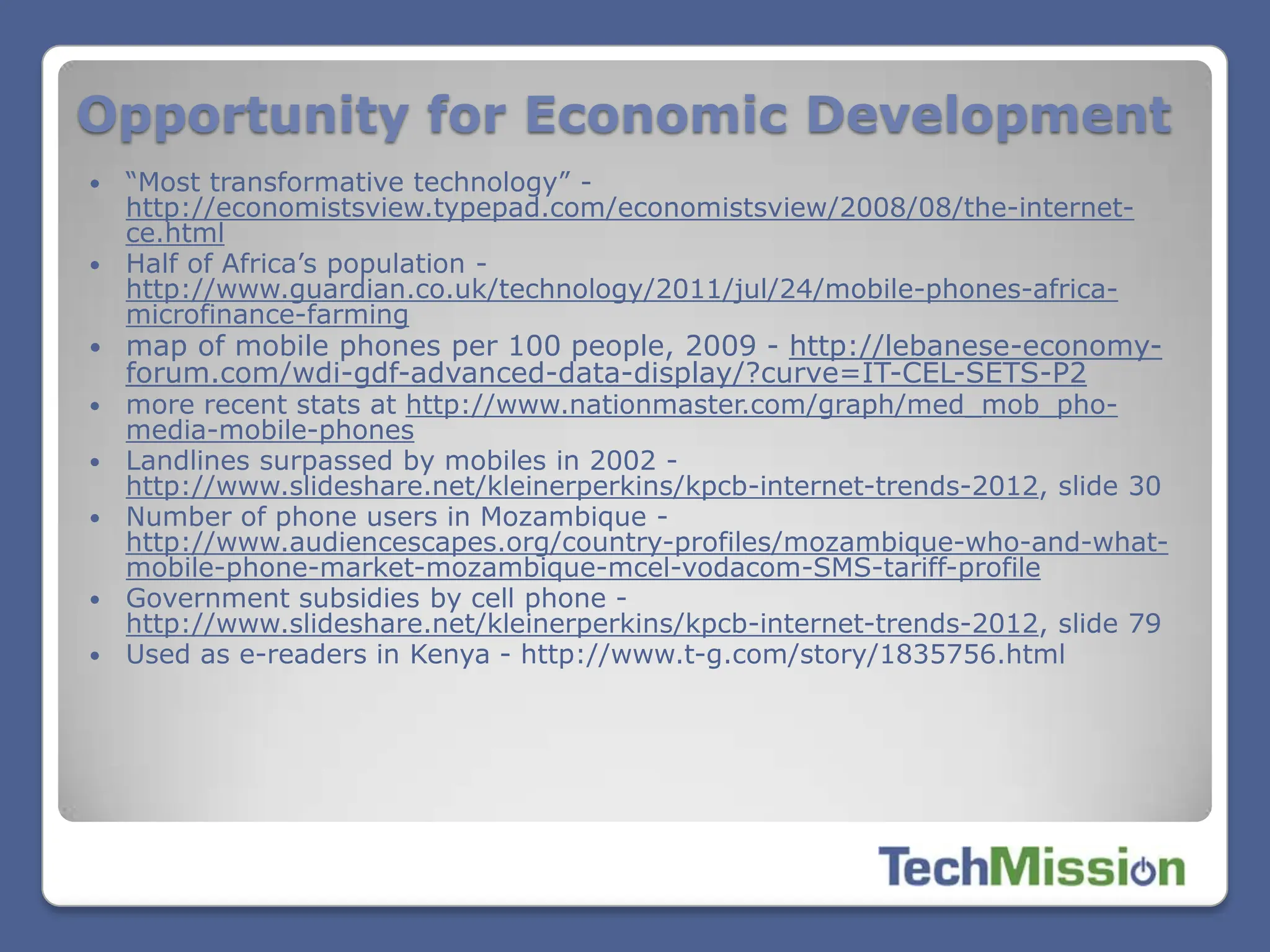

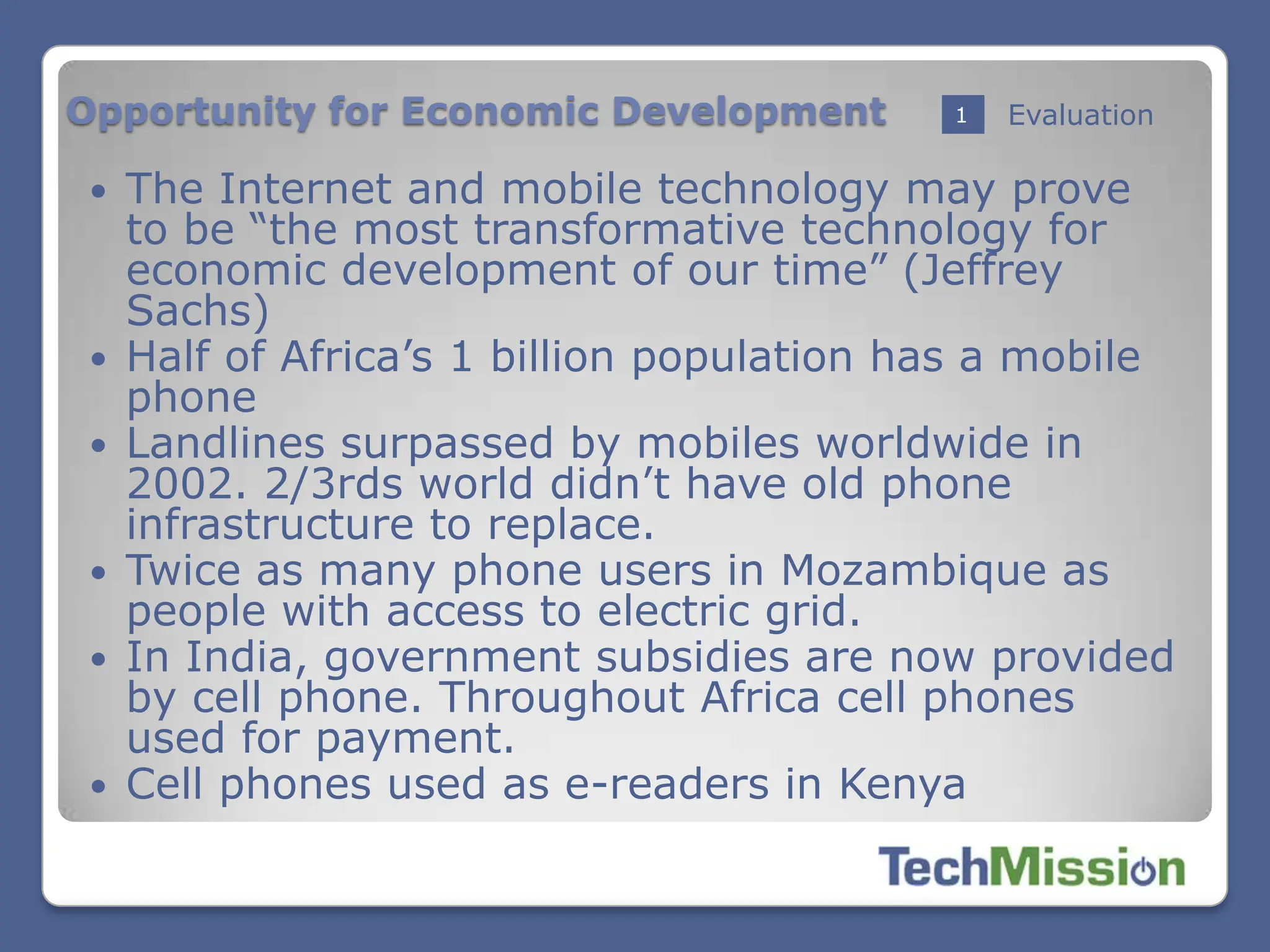

15. Opportunity for Economic Development 1 Evaluation
The Internet and mobile technology may prove
to be “the most transformative technology for
economic development of our time” (Jeffrey
Sachs)
Half of Africa’s 1 billion population has a mobile
phone
Landlines surpassed by mobiles worldwide in
2002. 2/3rds world didn’t have old phone
infrastructure to replace.
Twice as many phone users in Mozambique as
people with access to electric grid.
In India, government subsidies are now provided
by cell phone. Throughout Africa cell phones
used for payment.
Cell phones used as e-readers in Kenya

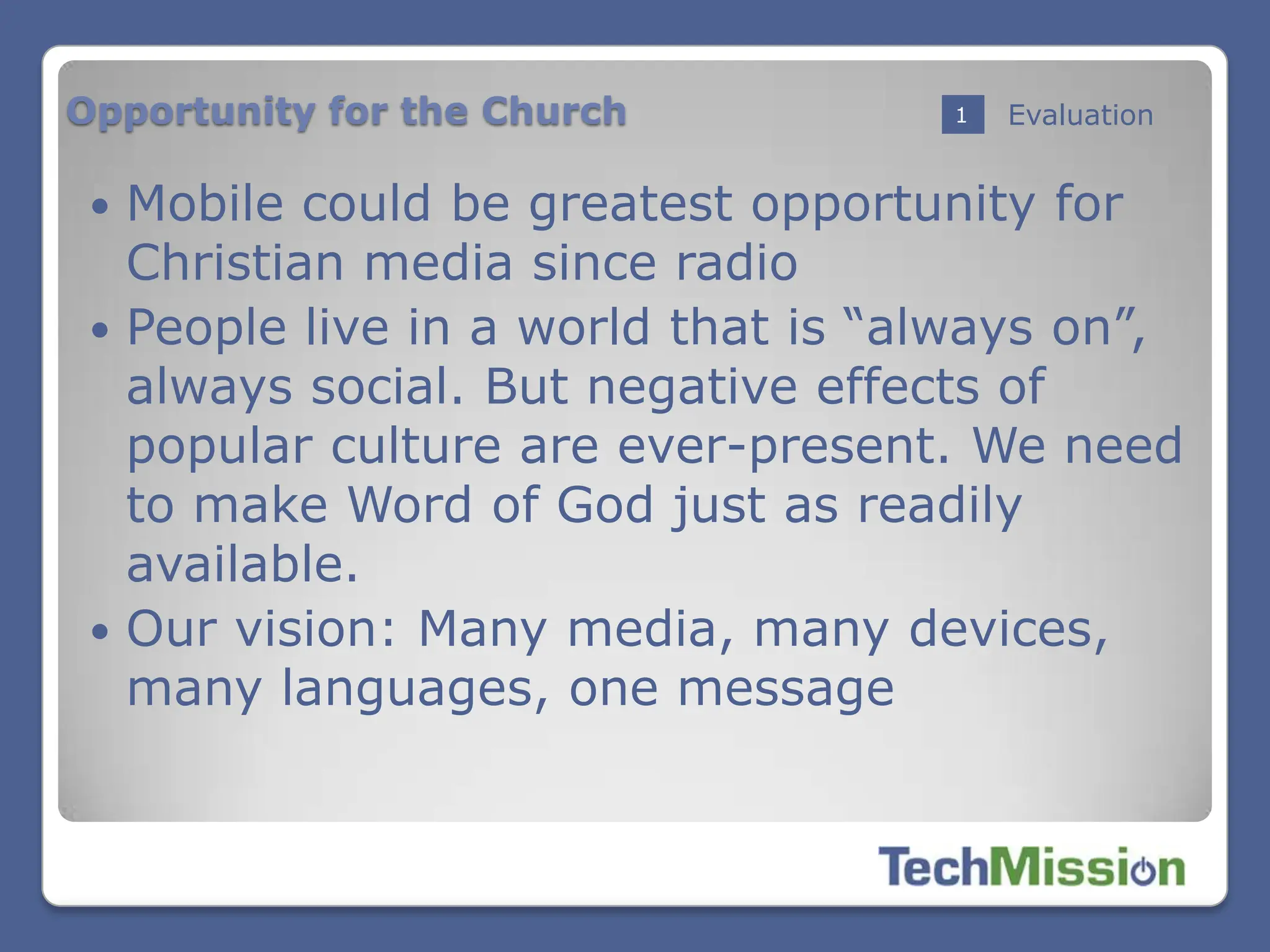

16. Opportunity for the Church 1 Evaluation
Mobile could be greatest opportunity for
Christian media since radio
People live in a world that is “always on”,
always social. But negative effects of
popular culture are ever-present. We need
to make Word of God just as readily
available.
Our vision: Many media, many devices,
many languages, one message

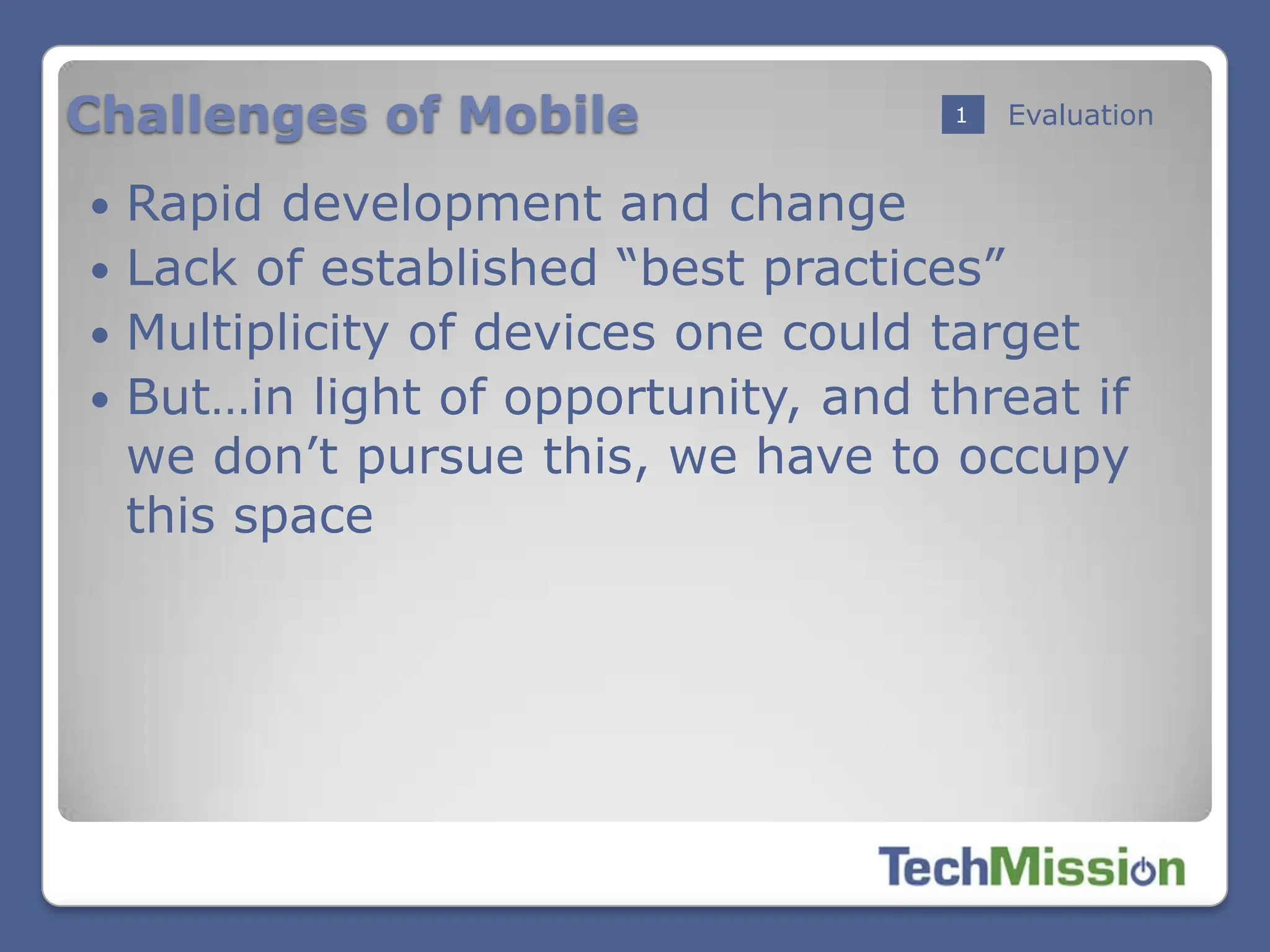

17. Challenges of Mobile 1 Evaluation
Rapid development and change
Lack of established “best practices”
Multiplicity of devices one could target
But…in light of opportunity, and threat if
we don’t pursue this, we have to occupy
this space

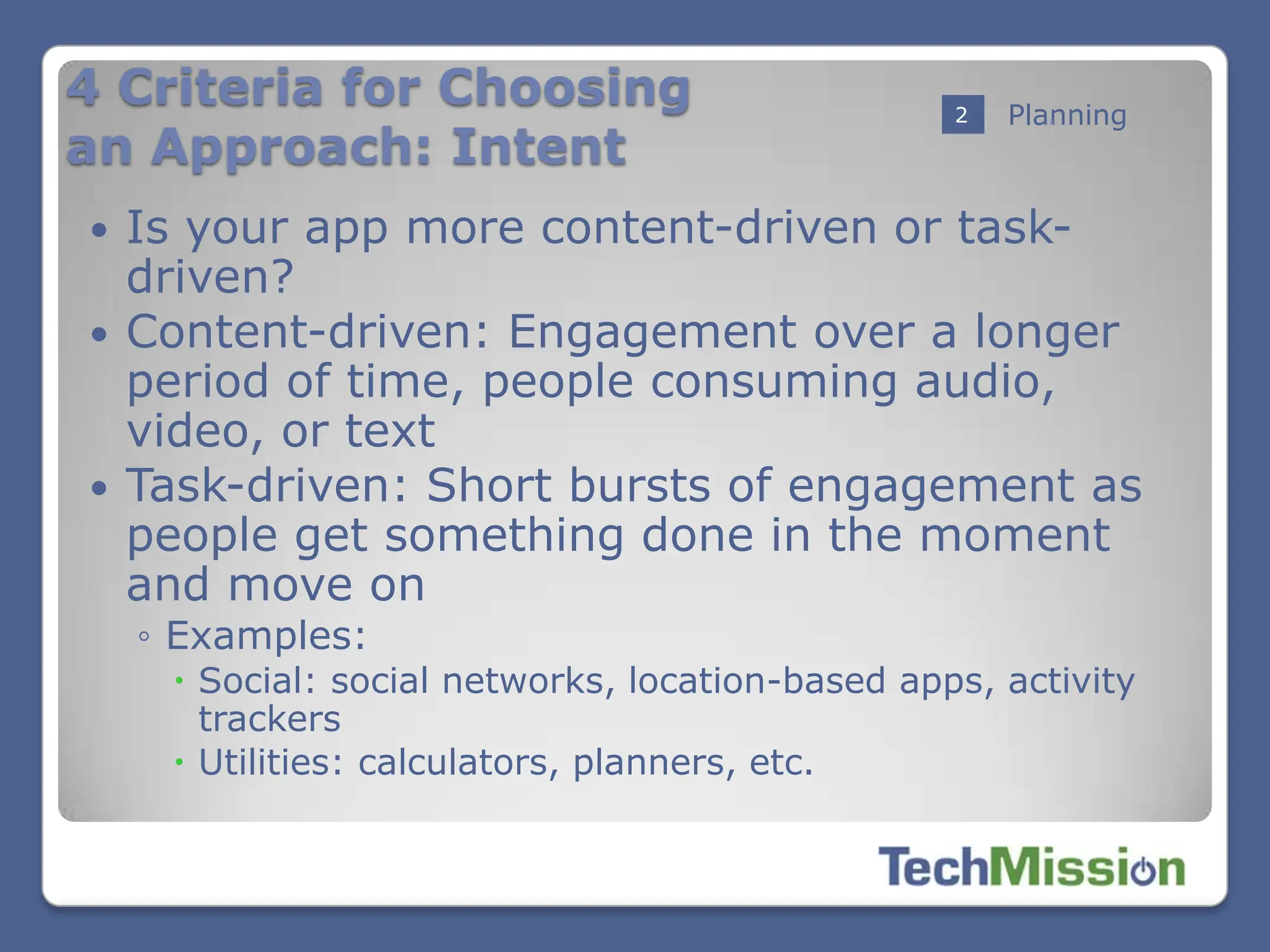

18. 4 Criteria for Choosing 2 Planning
an Approach: Intent
Is your app more content-driven or task-
driven?
Content-driven: Engagement over a longer
period of time, people consuming audio,
video, or text
Task-driven: Short bursts of engagement as
people get something done in the moment
and move on
◦ Examples:
Social: social networks, location-based apps, activity
trackers
Utilities: calculators, planners, etc.

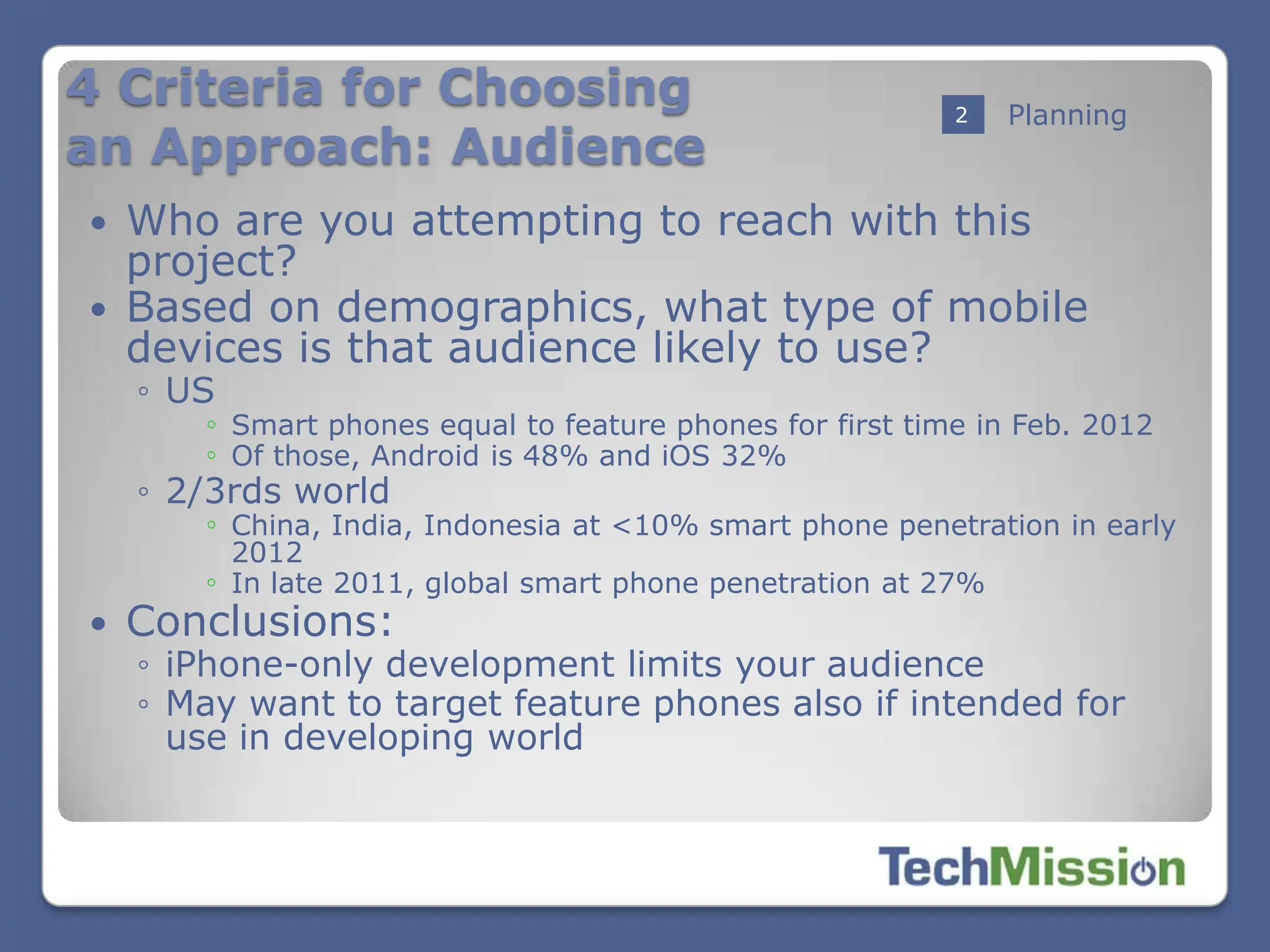

19. 4 Criteria for Choosing 2 Planning
an Approach: Audience
Who are you attempting to reach with this
project?
Based on demographics, what type of mobile
devices is that audience likely to use?
◦ US
◦ Smart phones equal to feature phones for first time in Feb. 2012
◦ Of those, Android is 48% and iOS 32%
◦ 2/3rds world
◦ China, India, Indonesia at <10% smart phone penetration in early
2012
◦ In late 2011, global smart phone penetration at 27%
Conclusions:
◦ iPhone-only development limits your audience
◦ May want to target feature phones also if intended for
use in developing world

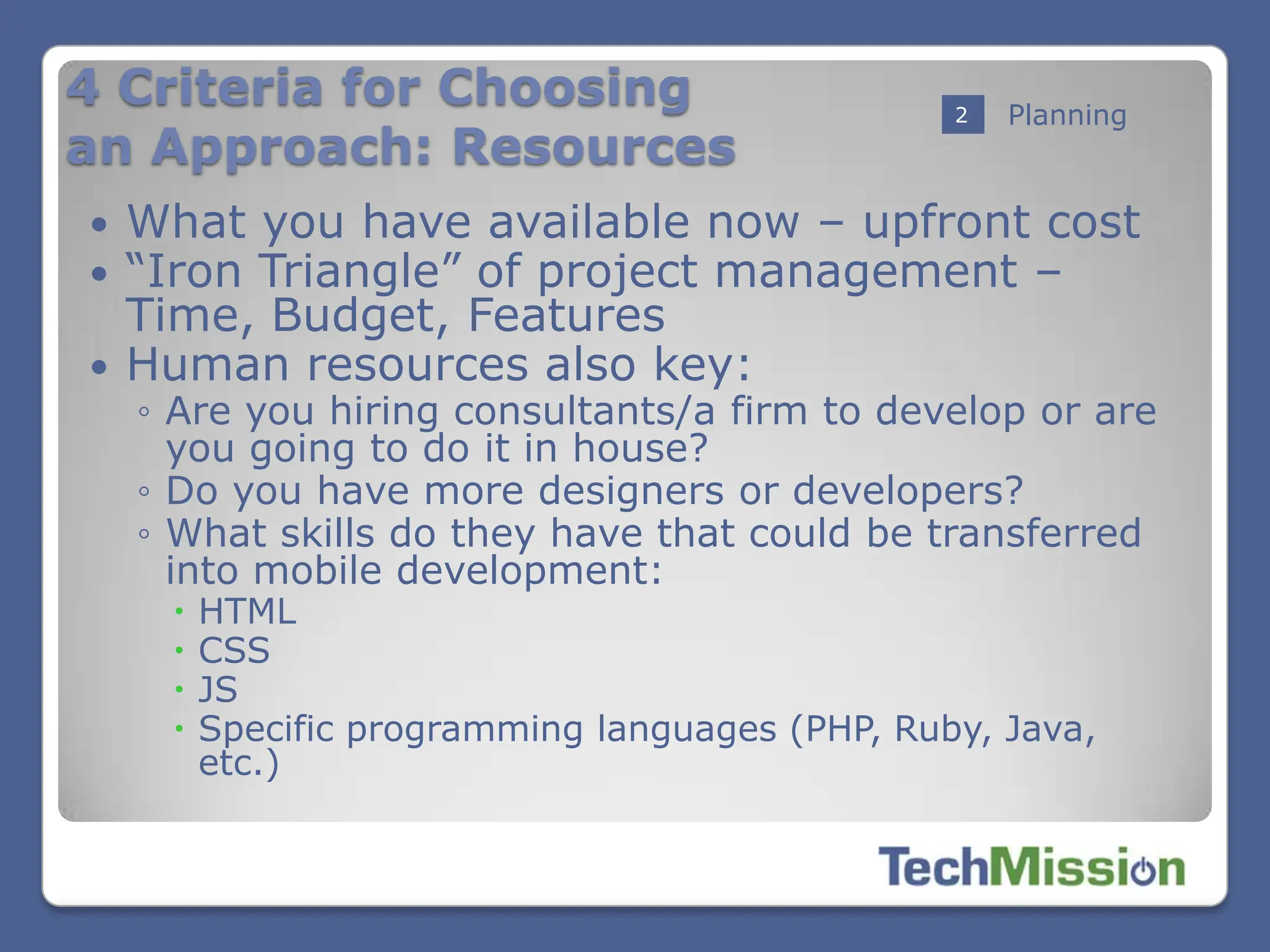

20. 4 Criteria for Choosing 2 Planning
an Approach: Resources
What you have available now – upfront cost
“Iron Triangle” of project management –
Time, Budget, Features
Human resources also key:
◦ Are you hiring consultants/a firm to develop or are
you going to do it in house?
◦ Do you have more designers or developers?
◦ What skills do they have that could be transferred
into mobile development:
HTML
CSS
JS
Specific programming languages (PHP, Ruby, Java,
etc.)

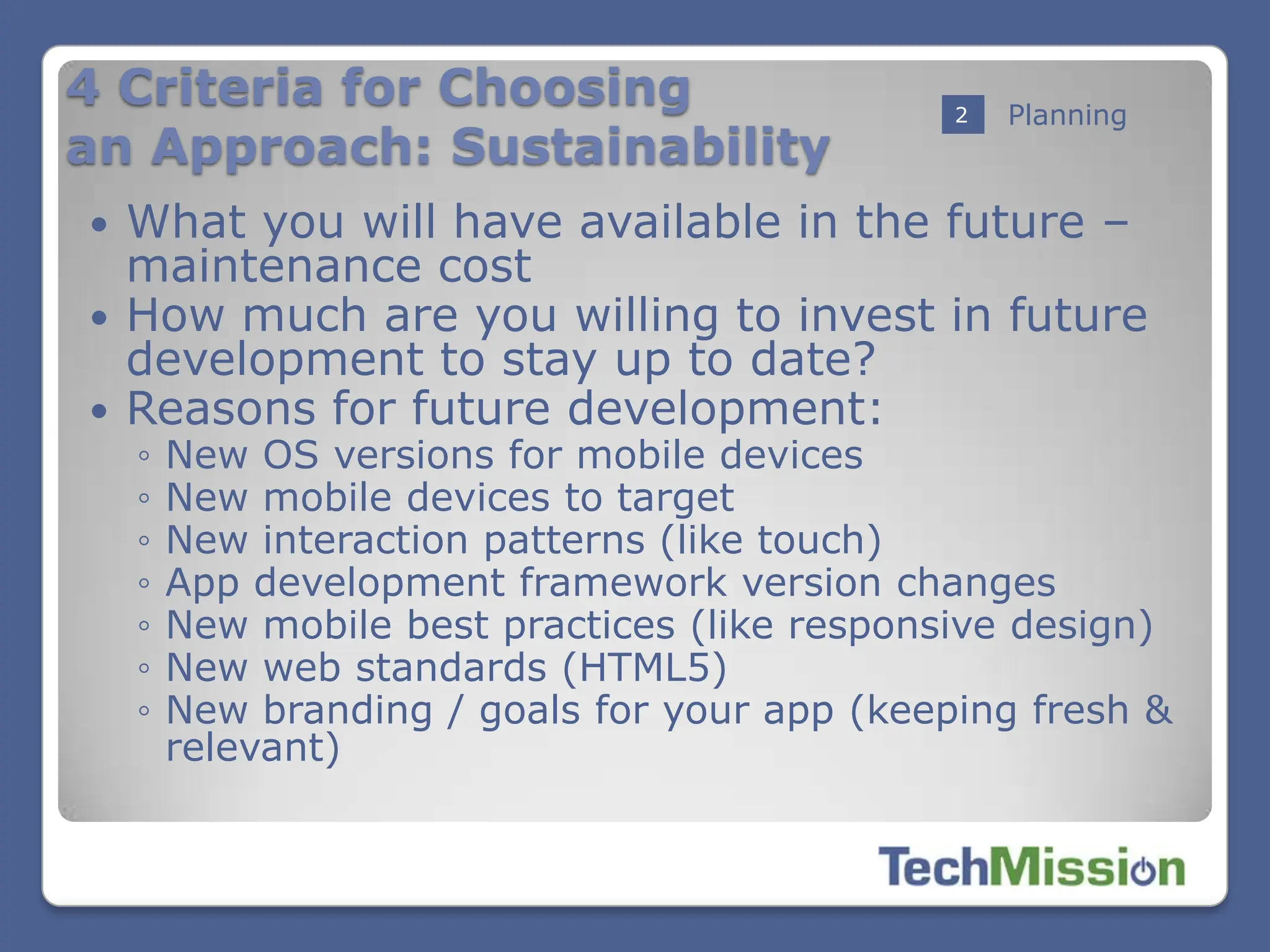

21. 4 Criteria for Choosing 2 Planning
an Approach: Sustainability
What you will have available in the future –
maintenance cost
How much are you willing to invest in future
development to stay up to date?
Reasons for future development:
◦ New OS versions for mobile devices
◦ New mobile devices to target
◦ New interaction patterns (like touch)
◦ App development framework version changes
◦ New mobile best practices (like responsive design)
◦ New web standards (HTML5)
◦ New branding / goals for your app (keeping fresh &
relevant)

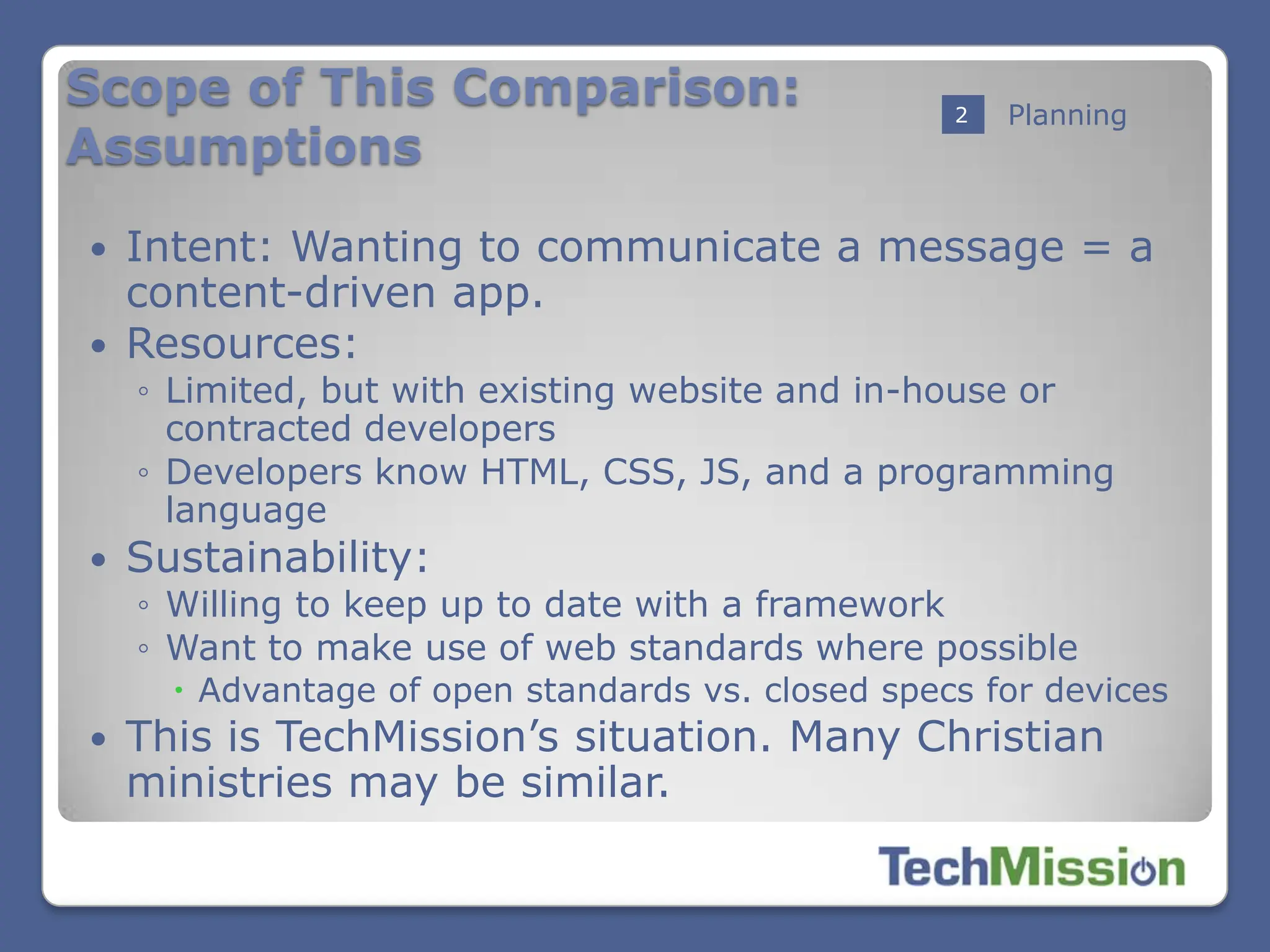

22. Scope of This Comparison: 2 Planning
Assumptions
Intent: Wanting to communicate a message = a
content-driven app.
Resources:
◦ Limited, but with existing website and in-house or
contracted developers
◦ Developers know HTML, CSS, JS, and a programming
language
Sustainability:
◦ Willing to keep up to date with a framework
◦ Want to make use of web standards where possible
Advantage of open standards vs. closed specs for devices
This is TechMission’s situation. Many Christian
ministries may be similar.

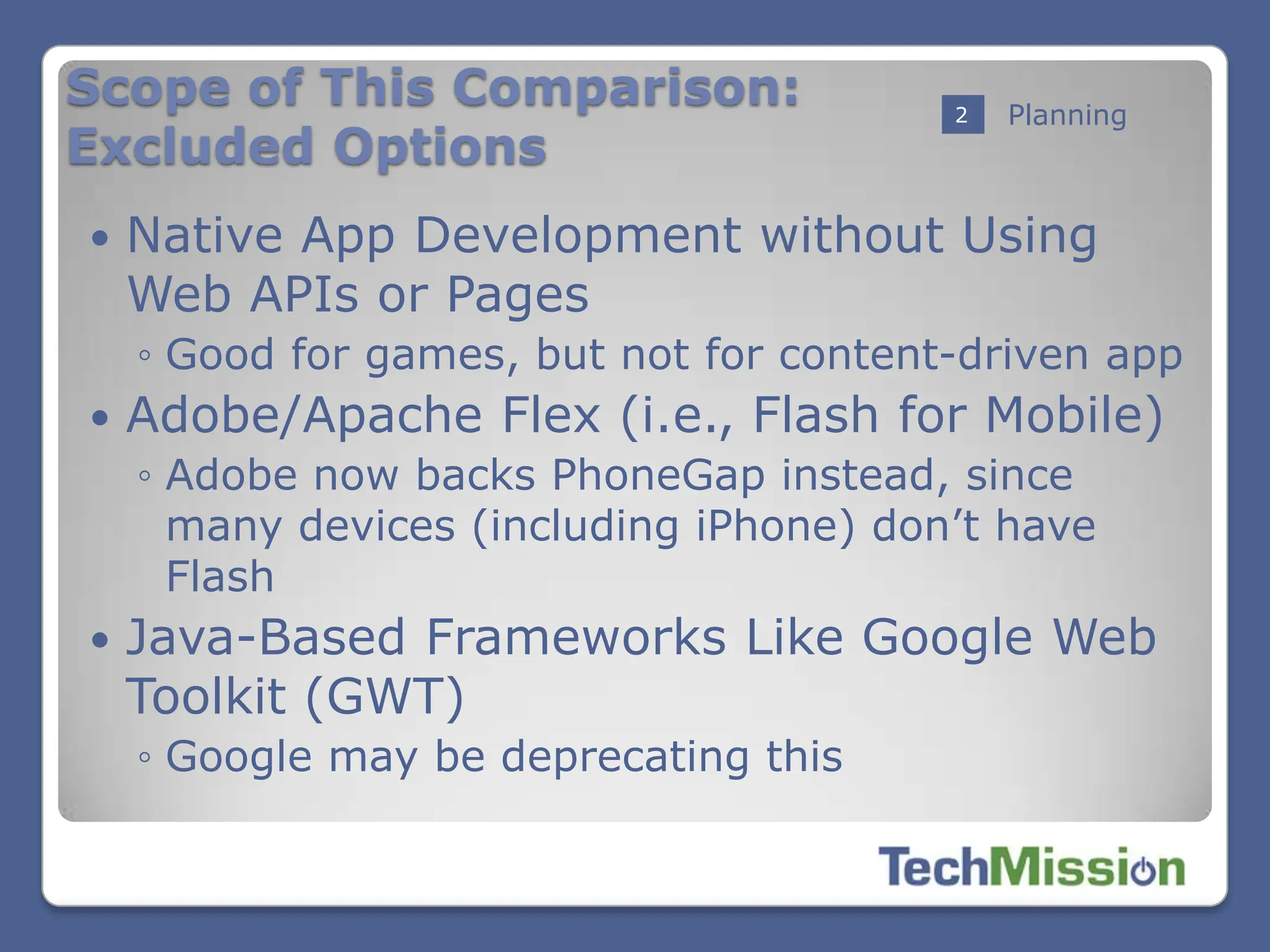

23. Scope of This Comparison: 2 Planning
Excluded Options
Native App Development without Using
Web APIs or Pages
◦ Good for games, but not for content-driven app
Adobe/Apache Flex (i.e., Flash for Mobile)
◦ Adobe now backs PhoneGap instead, since
many devices (including iPhone) don’t have
Flash
Java-Based Frameworks Like Google Web
Toolkit (GWT)
◦ Google may be deprecating this
24. Scope of This Comparison: 2 Planning
Excluded Options
Native App Development without Using
Web APIs or Pages
◦ Good for games, but not for content-driven app
Adobe/Apache Flex (i.e., Flash for Mobile)
◦ Adobe now backs PhoneGap instead, since
many devices (including iPhone) don’t have
Flash
Java-Based Frameworks Like Google Web
Toolkit (GWT)
◦ Google may be deprecating this

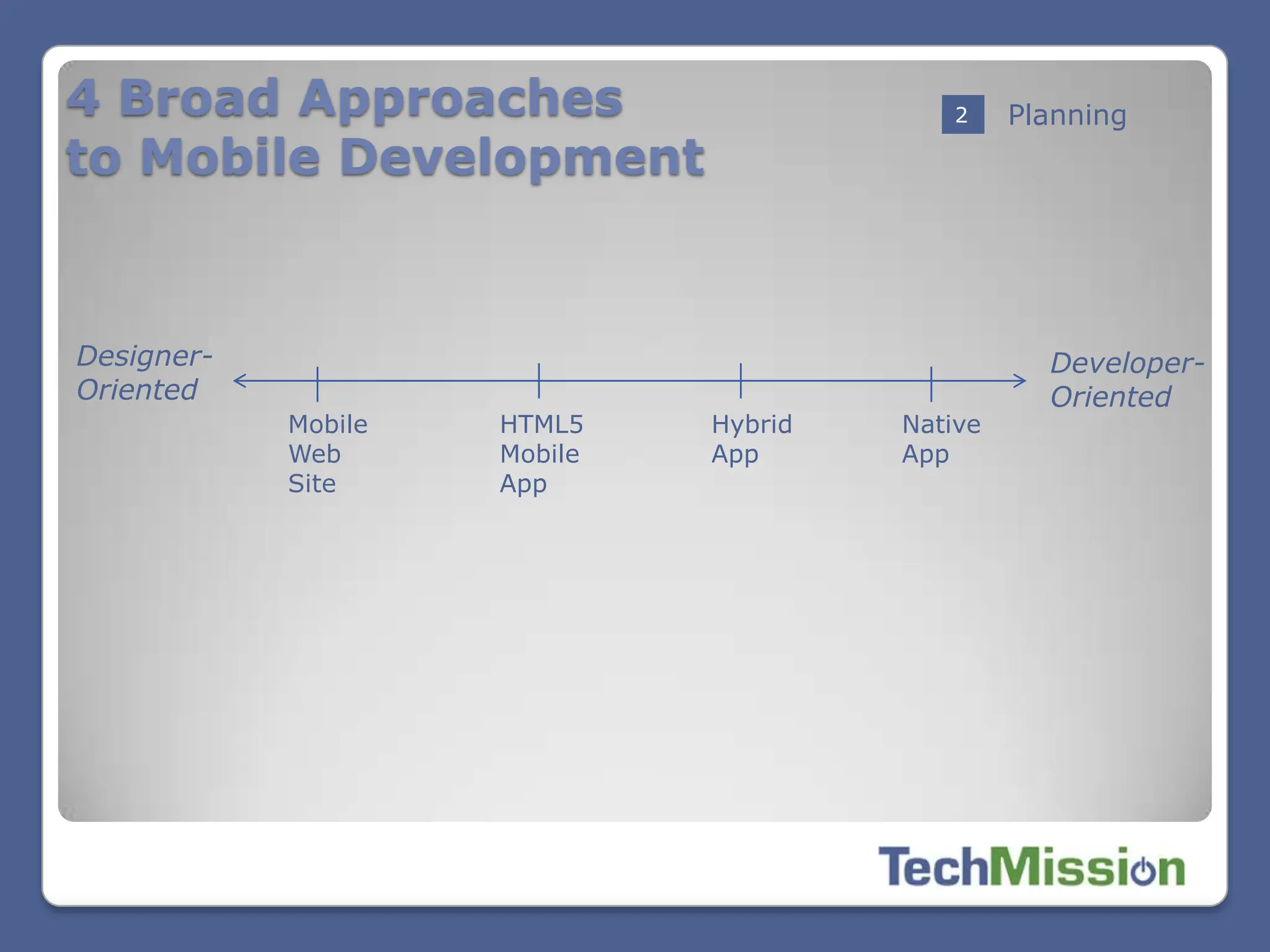

25. 4 Broad Approaches 2 Planning
to Mobile Development
Designer- Developer-
Oriented Oriented
Mobile HTML5 Hybrid Native
Web Mobile App App
Site App

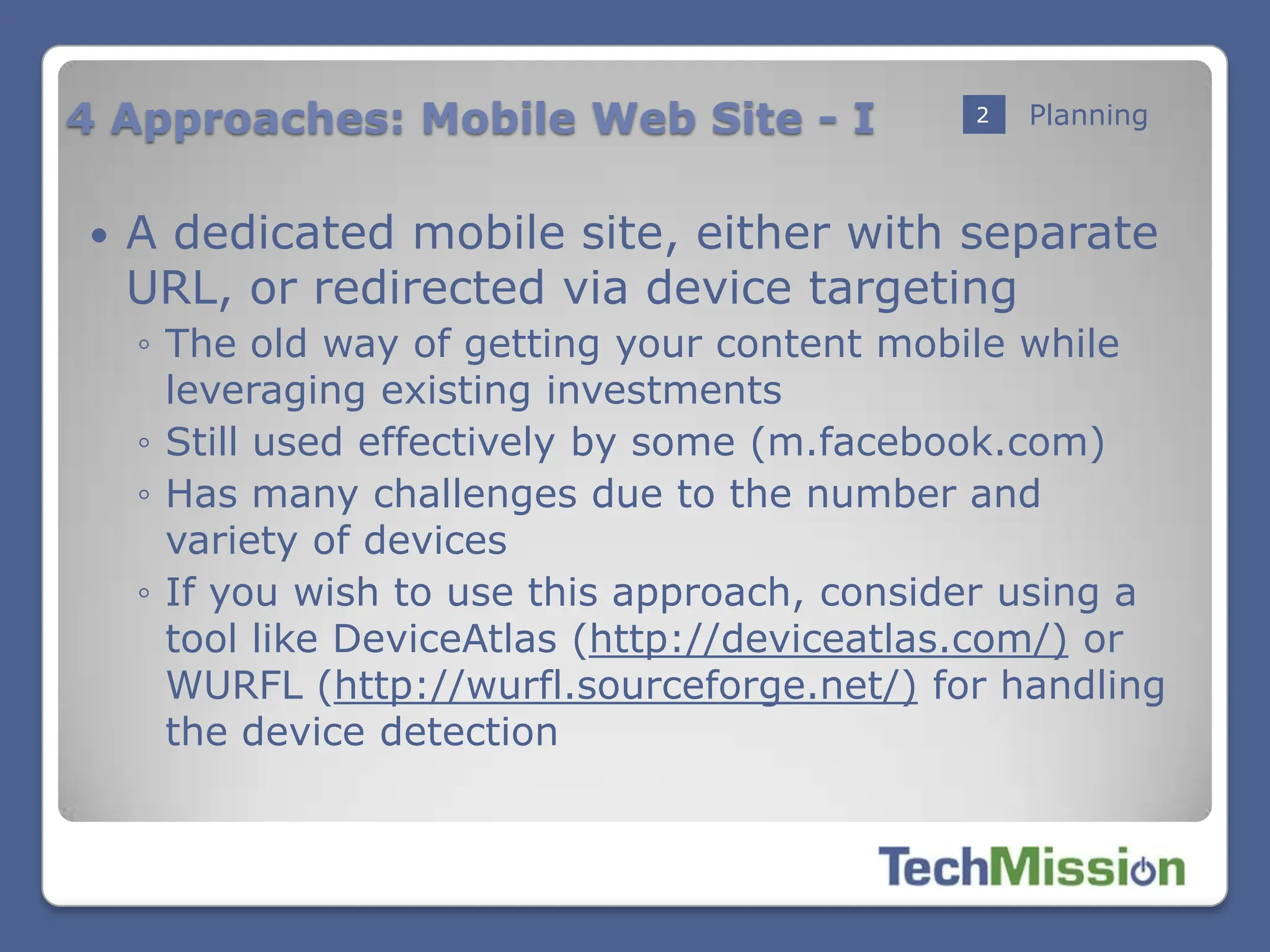

26. 4 Approaches: Mobile Web Site - I 2 Planning
A dedicated mobile site, either with separate
URL, or redirected via device targeting
◦ The old way of getting your content mobile while
leveraging existing investments
◦ Still used effectively by some (m.facebook.com)
◦ Has many challenges due to the number and
variety of devices
◦ If you wish to use this approach, consider using a
tool like DeviceAtlas (http://deviceatlas.com/) or
WURFL (http://wurfl.sourceforge.net/) for handling
the device detection

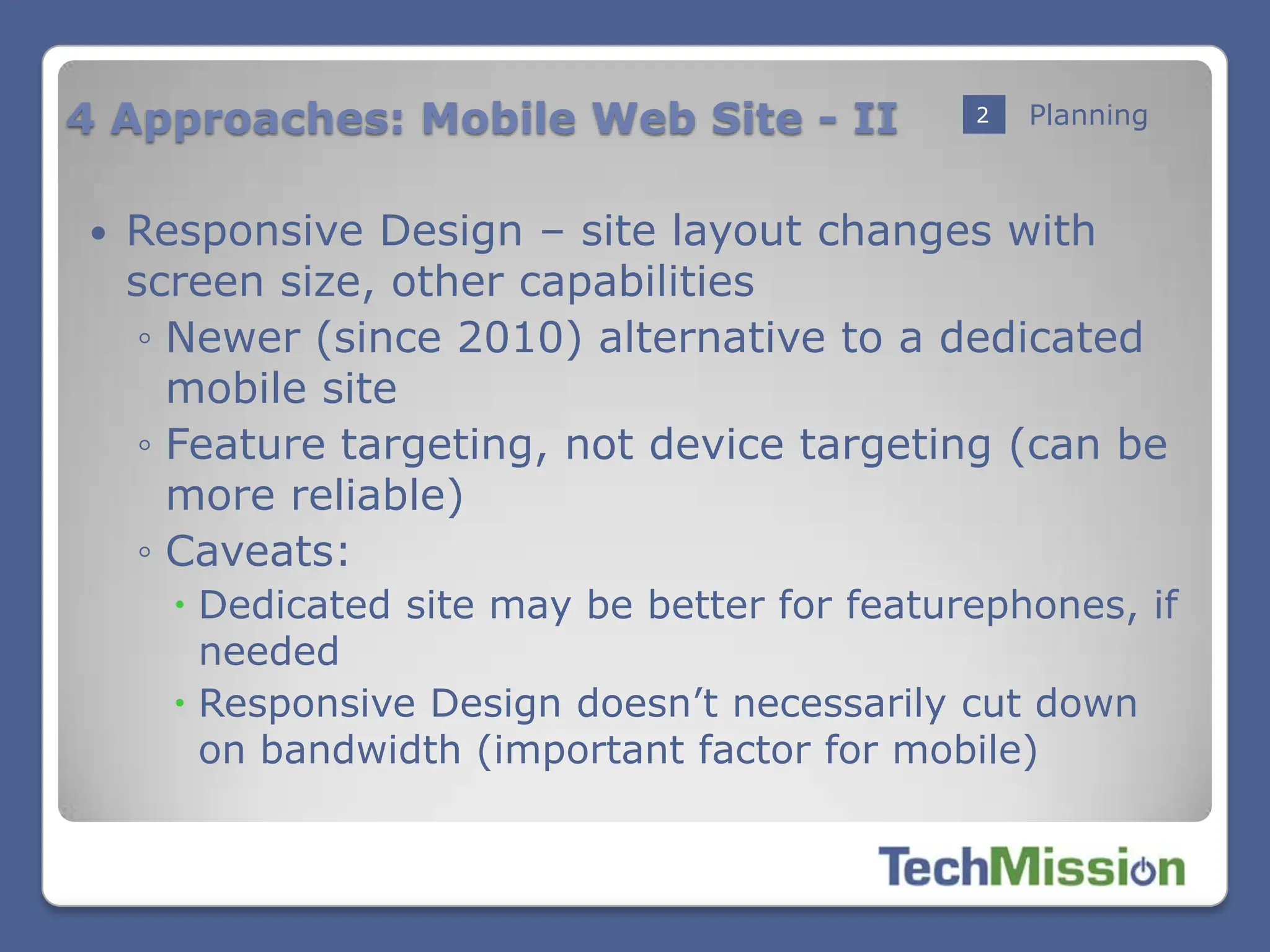

27. 4 Approaches: Mobile Web Site - II 2 Planning
Responsive Design – site layout changes with
screen size, other capabilities
◦ Newer (since 2010) alternative to a dedicated
mobile site
◦ Feature targeting, not device targeting (can be
more reliable)
◦ Caveats:
Dedicated site may be better for featurephones, if
needed
Responsive Design doesn’t necessarily cut down
on bandwidth (important factor for mobile)

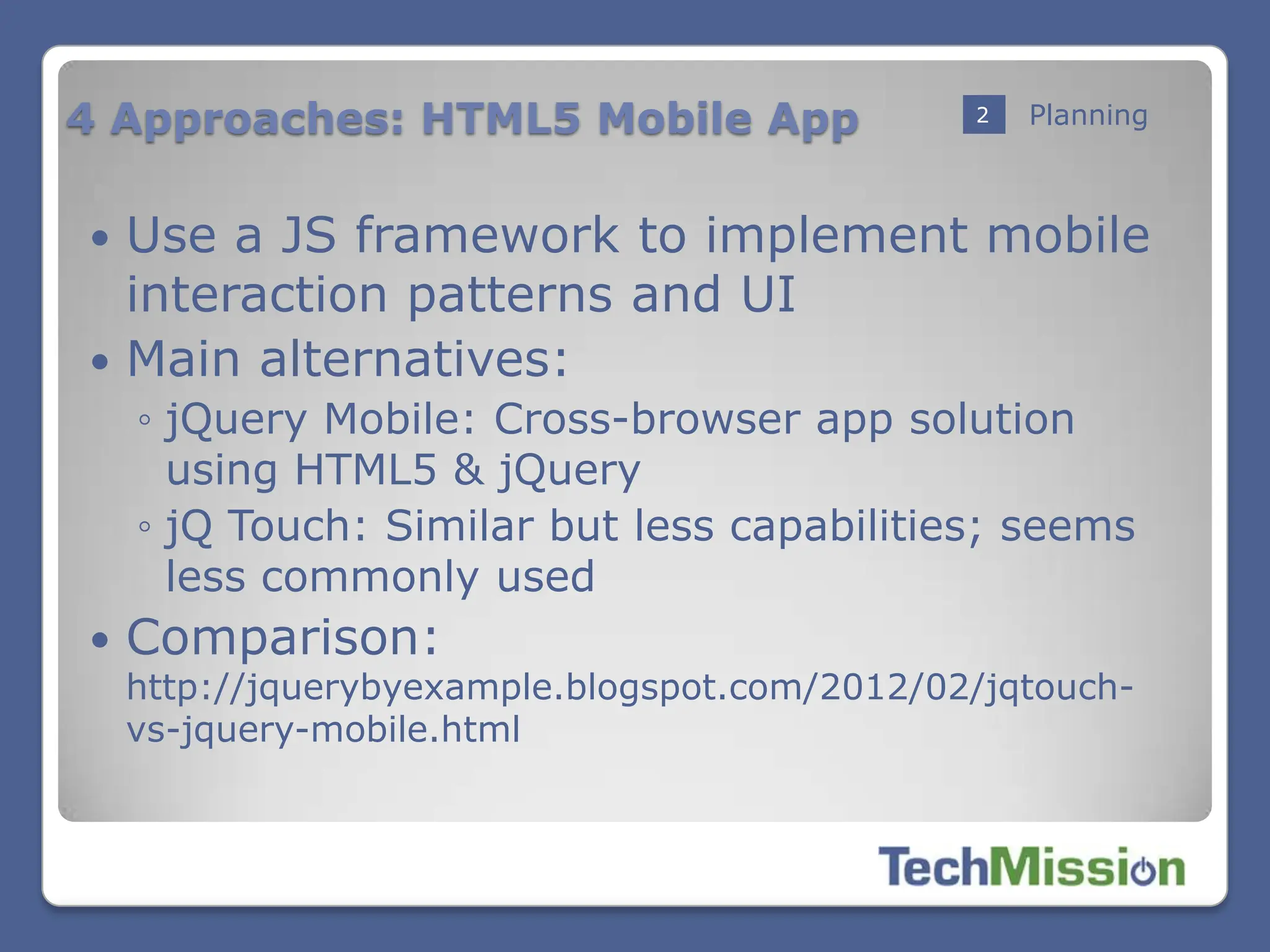

28. 4 Approaches: HTML5 Mobile App 2 Planning
Use a JS framework to implement mobile
interaction patterns and UI
Main alternatives:
◦ jQuery Mobile: Cross-browser app solution
using HTML5 & jQuery
◦ jQ Touch: Similar but less capabilities; seems
less commonly used
Comparison:
http://jquerybyexample.blogspot.com/2012/02/jqtouch-
vs-jquery-mobile.html

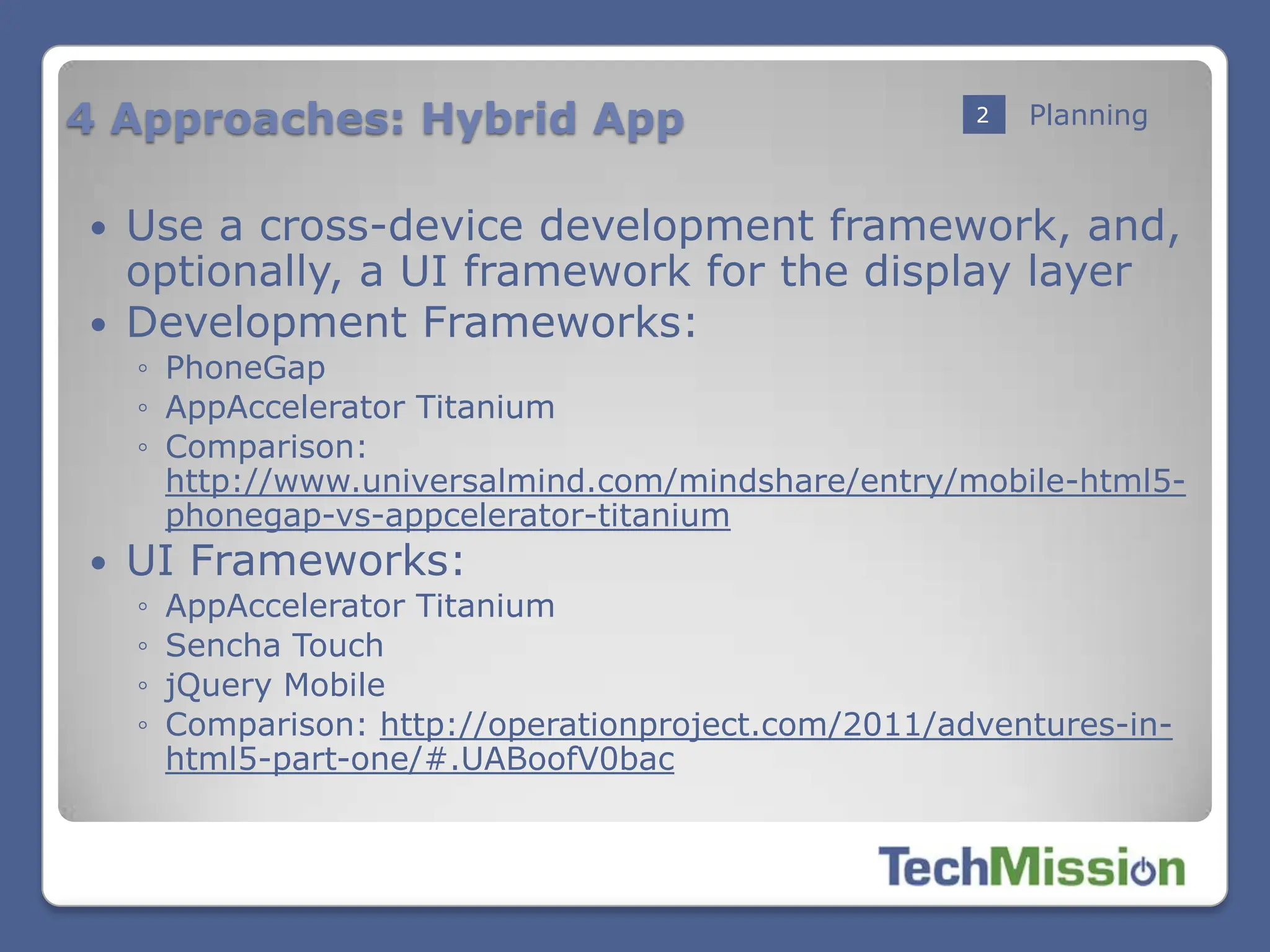

29. 4 Approaches: Hybrid App 2 Planning
Use a cross-device development framework, and,
optionally, a UI framework for the display layer
Development Frameworks:
◦ PhoneGap
◦ AppAccelerator Titanium
◦ Comparison:
http://www.universalmind.com/mindshare/entry/mobile-html5-
phonegap-vs-appcelerator-titanium
UI Frameworks:
◦ AppAccelerator Titanium
◦ Sencha Touch
◦ jQuery Mobile
◦ Comparison: http://operationproject.com/2011/adventures-in-
html5-part-one/#.UABoofV0bac
30. 4 Approaches: Native App 2 Planning
Develop for a native platform (iOS, Android,
Windows Mobile, Blackberry, etc.)
◦ May need to create multiple versions of the app
◦ Potentially these could require different programming
languages
True native feel & performance, but most time-
consuming and developer-centric approach
Can use web APIs to pull in data via JSON or XML
and then render using native UI elements
However, can also embed web pages. This is
quicker, but makes your app essentially a
wrapper around mobile Safari or whatever the
browser is for your device.
31. 4 Approaches: More Info 2 Planning
Definitions of approaches:
http://econsultancy.com/uk/blog/7832-
the-fight-gets-technical-mobile-apps-vs-
mobile-sites
Comparison chart: http://www.markus-
falk.com/mobile-frameworks-comparison-
chart/
◦ Especially helpful if your requirements are
known upfront (such as what language you can
develop in)
32. Building Your Mobile App: 3 Development
Initial Definitions
Anatomy of an
Client
HTTP Request
1. Client 2. Server
makes returns
request response
(HTTP GET) (HTML +
JS, CSS)
Server
33. Building Your Mobile App: 3 Development
Initial Definitions
Model-View-
1. HTTP GET
Client Controller (MVC)
request Architecture
2. Request
dispatched to 4. Data is
Controller returned from
3. Controller Database
handles by 5. Data rendered
requesting into View
data from 6. View returned
Database via to client as
Model HTML
Web Server
Application Controller View
Layer Server
Model
Database
34. Architecture 1: PhoneGap + Sencha Touch 3 Development
Advantages:
◦ More native app feel
◦ Yet don’t have to write code for specific devices
◦ Can leverage content of site (if site provides
content via JSON API)
Disadvantages:
◦ Resources:
Need a developer familiar with Javascript
Initial learning curve of framework (more like Java
than regular Javascript)
◦ Sustainability:
Lock-in to Sencha APIs
No direct use of HTML5
35. Architecture 1: PhoneGap + Sencha Touch 3 Development
Phone
1. Link/button
Client
PhoneGap JS 4. Sends JSON
pressed, with response
corresponding Sencha Touch JS 5. Sencha Touch
(View)
URL code in app
2. HTTP request parses and
from app renders into
3. Server HTML
receives, 6. HTML
dispatches, displayed on
queries device
Web Server
Controller
Application
Layer Server
Model
Database

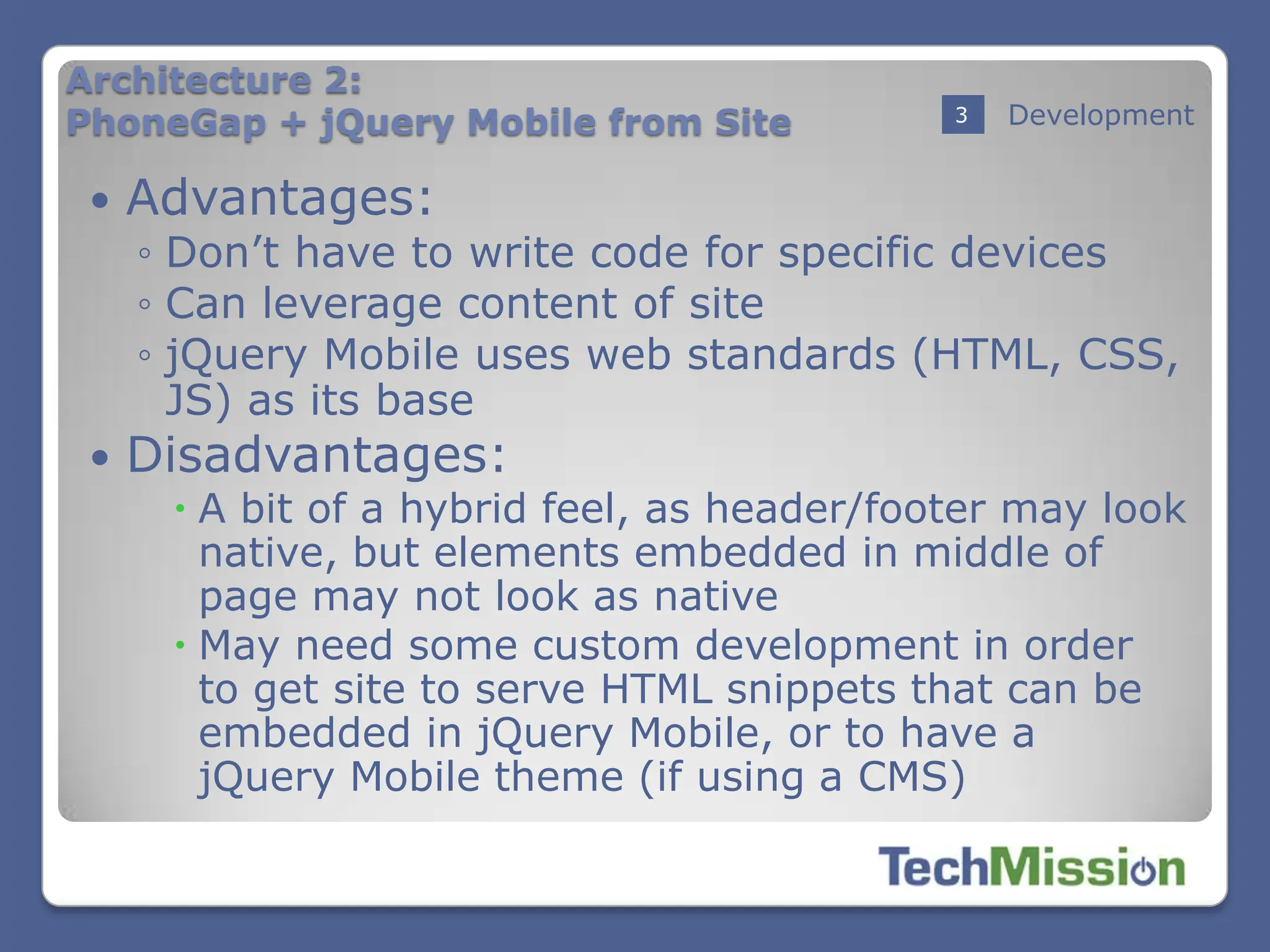

36. Architecture 2:
PhoneGap + jQuery Mobile from Site 3 Development
Advantages:
◦ Don’t have to write code for specific devices
◦ Can leverage content of site
◦ jQuery Mobile uses web standards (HTML, CSS,
JS) as its base
Disadvantages:
A bit of a hybrid feel, as header/footer may look
native, but elements embedded in middle of
page may not look as native
May need some custom development in order
to get site to serve HTML snippets that can be
embedded in jQuery Mobile, or to have a
jQuery Mobile theme (if using a CMS)
37. Architecture 2:
PhoneGap + jQuery Mobile from Site 3 Development
Phone
1. Link/button Client
PhoneGap JS 4. Sends HTML
pressed, with snippet
corresponding
URL
jQuery Mobile response
Base (View)
2. jQuery Mobile 5. jQuery Mobile
intercepts to receives AJAX
make it an AJAX response of
request (no HTML snippet,
page reload) replaces
3. HTTP request contents of
from app
4. Server receives,
main <div>
dispatches,
queries
Web Server
Controller HTML Snippet
Controller
Application (View)
Layer Server
Model
Database

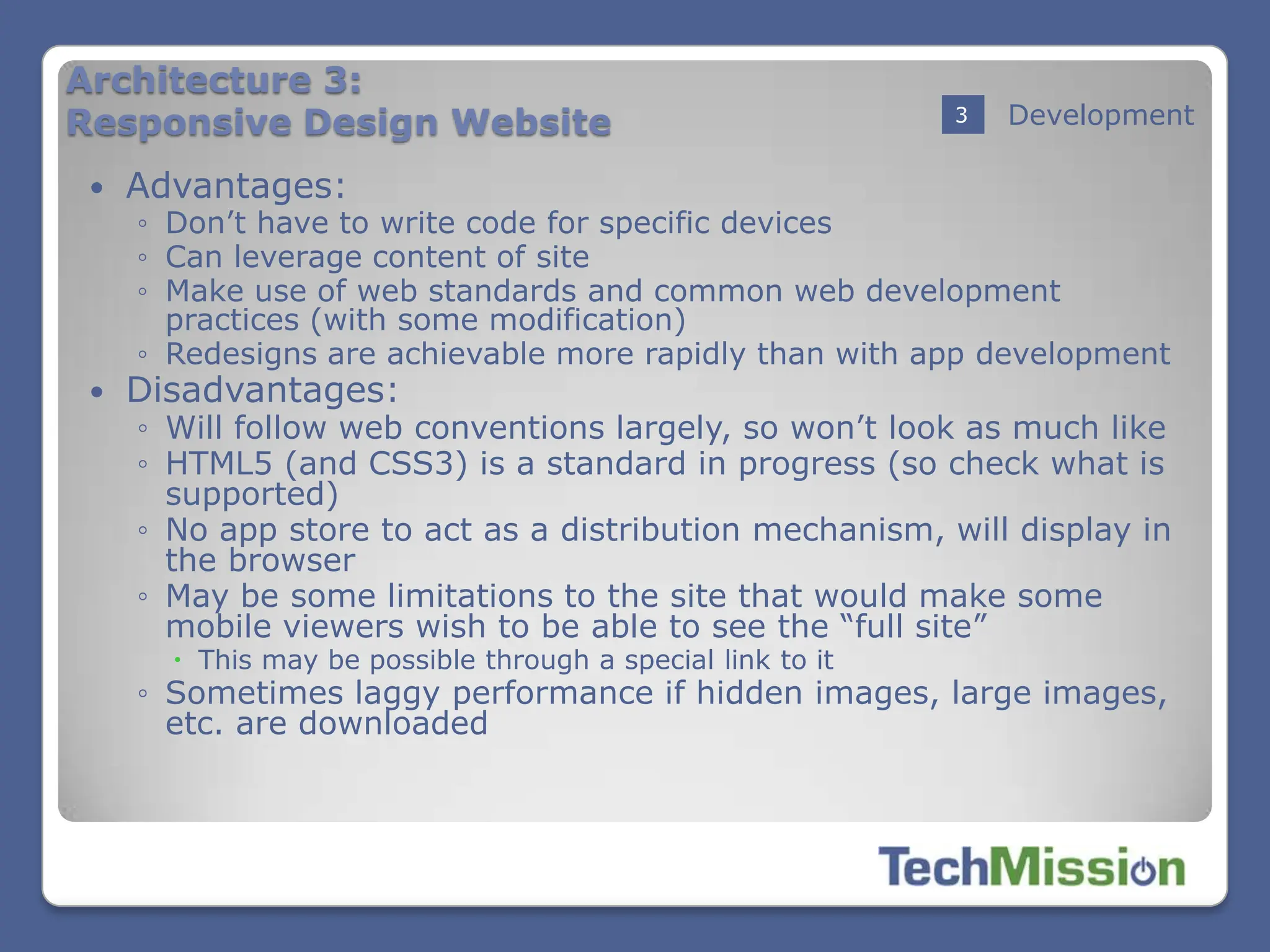

38. Architecture 3:
Responsive Design Website 3 Development
Advantages:
◦ Don’t have to write code for specific devices
◦ Can leverage content of site
◦ Make use of web standards and common web development
practices (with some modification)
◦ Redesigns are achievable more rapidly than with app development
Disadvantages:
◦ Will follow web conventions largely, so won’t look as much like
◦ HTML5 (and CSS3) is a standard in progress (so check what is
supported)
◦ No app store to act as a distribution mechanism, will display in
the browser
◦ May be some limitations to the site that would make some
mobile viewers wish to be able to see the “full site”
This may be possible through a special link to it
◦ Sometimes laggy performance if hidden images, large images,
etc. are downloaded

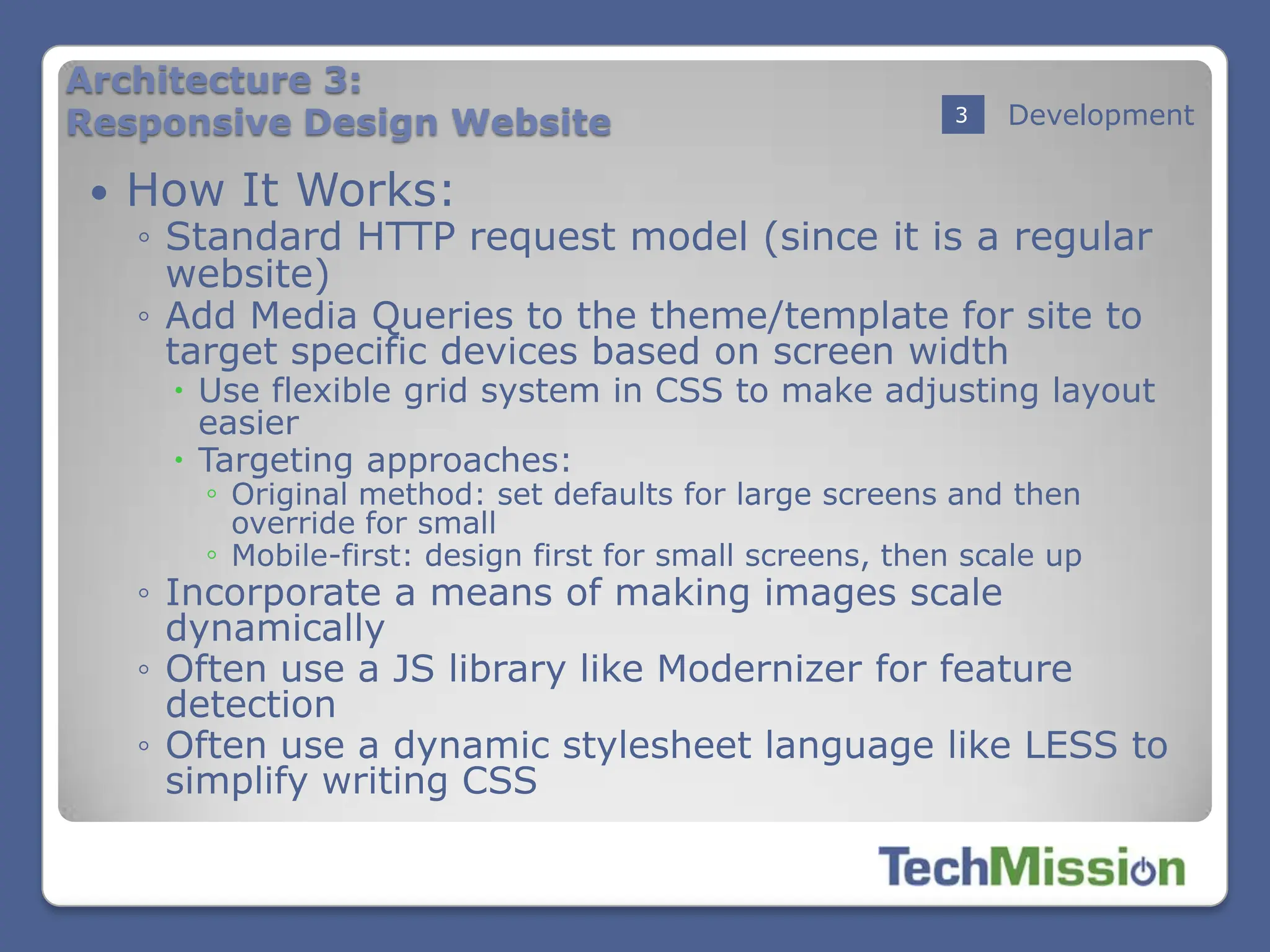

39. Architecture 3:
Responsive Design Website 3 Development
How It Works:
◦ Standard HTTP request model (since it is a regular
website)
◦ Add Media Queries to the theme/template for site to
target specific devices based on screen width
Use flexible grid system in CSS to make adjusting layout
easier
Targeting approaches:
◦ Original method: set defaults for large screens and then
override for small
◦ Mobile-first: design first for small screens, then scale up
◦ Incorporate a means of making images scale
dynamically
◦ Often use a JS library like Modernizer for feature
detection
◦ Often use a dynamic stylesheet language like LESS to
simplify writing CSS
40. 4 Key Principles of Mobile UX Design 4 Design
Focus on User’s Goals
Simple Navigation
Essential Graphics Only
Use Phone’s Features
41. 2 Types of Testing Needed 5 Testing
Cross-device Testing: to ensure sufficiently
consistent experience
◦ Emulators
◦ Both Android & iPhone (if targeting them)
◦ Opera Mini
Usability Testing: to ensure successful &
pleasurable experience for users
◦ Formal or informal, depending on budget
◦ Lab vs. field testing: main difficult is recording
◦ Task success rates: feature phones 38%, smartphones
55%, touch phones 75% (Jakob Nielsen, 2011)
Compare to 78% success rate for websites on desktop in
2010
Note: Automated checklists don’t give very
accurate results

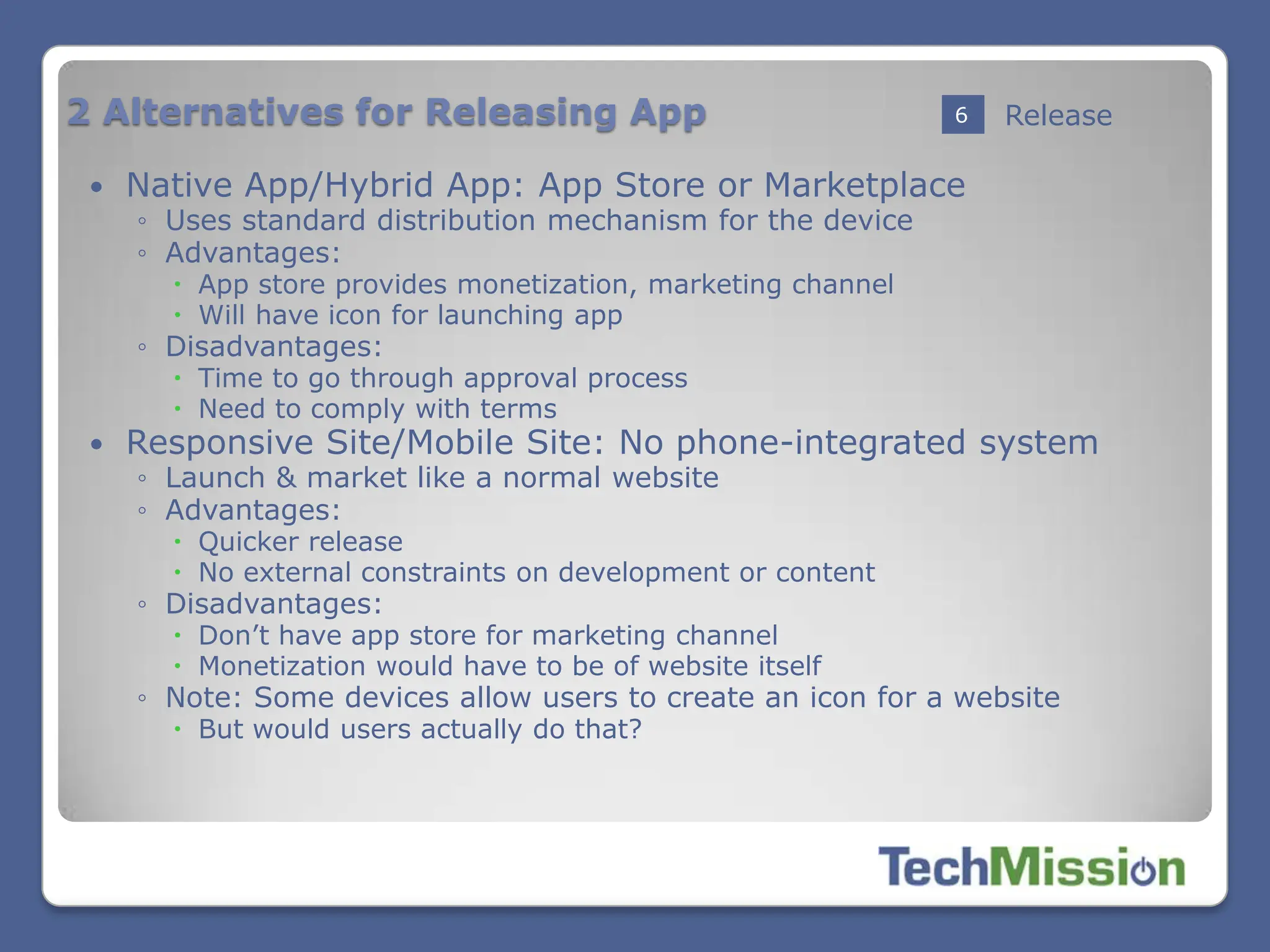

42. 2 Alternatives for Releasing App 6 Release
Native App/Hybrid App: App Store or Marketplace
◦ Uses standard distribution mechanism for the device
◦ Advantages:
App store provides monetization, marketing channel
Will have icon for launching app
◦ Disadvantages:
Time to go through approval process
Need to comply with terms
Responsive Site/Mobile Site: No phone-integrated system
◦ Launch & market like a normal website
◦ Advantages:
Quicker release
No external constraints on development or content
◦ Disadvantages:
Don’t have app store for marketing channel
Monetization would have to be of website itself
◦ Note: Some devices allow users to create an icon for a website
But would users actually do that?
43. Evaluating Your App’s Success 7 Assessment
What to Assess
◦ Usefulness
◦ Appeal
◦ Reach
◦ Impact
How to Assess
◦ Analytics
Google Analytics
Flurry (part of app)
◦ Talking to People
◦ Other means?
44. Keeping Up with Change 8 Maintenance & New Development
Change is inevitable; expect to have to do
new development eventually
◦ Timeframe may be dependent on your audience,
chosen platform, and organizational priorities
Practice user-centered design: Listen & give
your users what they want
The cycle begins again…
46. Technology & Market Trends
“5th major technology cycle”: Mary Meeker quoted in
http://buytaert.net/files/state-of-drupal-march-2012.pdf
2010 inflection point -
http://www.slideshare.net/kleinerperkins/kpcb-top-10-mobile-
trends-feb-2011, slide 7
26x growth - http://www.slideshare.net/kleinerperkins/kpcb-top-
10-mobile-trends-feb-2011, slide 20
80% world’s population -
http://en.wikipedia.org/wiki/List_of_countries_by_number_of_mo
bile_phones_in_use
Japan’s social network > mobile than desktop -
http://www.businessinsider.com/mary-meekers-web-2010-11,
slide 11
Reimagination of nearly everything -
http://www.slideshare.net/kleinerperkins/kpcb-internet-trends-
2012, slides 29 & following
Demographics -
http://www.icharts.net/chartchannel/chart/2011/well-defined-
demographic-profile-apps-users
47. Opportunity for Economic Development
“Most transformative technology” -
http://economistsview.typepad.com/economistsview/2008/08/the-internet-
ce.html
Half of Africa’s population -
http://www.guardian.co.uk/technology/2011/jul/24/mobile-phones-africa-
microfinance-farming
map of mobile phones per 100 people, 2009 - http://lebanese-economy-
forum.com/wdi-gdf-advanced-data-display/?curve=IT-CEL-SETS-P2
more recent stats at http://www.nationmaster.com/graph/med_mob_pho-
media-mobile-phones
Landlines surpassed by mobiles in 2002 -
http://www.slideshare.net/kleinerperkins/kpcb-internet-trends-2012, slide 30
Number of phone users in Mozambique -
http://www.audiencescapes.org/country-profiles/mozambique-who-and-what-
mobile-phone-market-mozambique-mcel-vodacom-SMS-tariff-profile
Government subsidies by cell phone -
http://www.slideshare.net/kleinerperkins/kpcb-internet-trends-2012, slide 79
Used as e-readers in Kenya - http://www.t-g.com/story/1835756.html

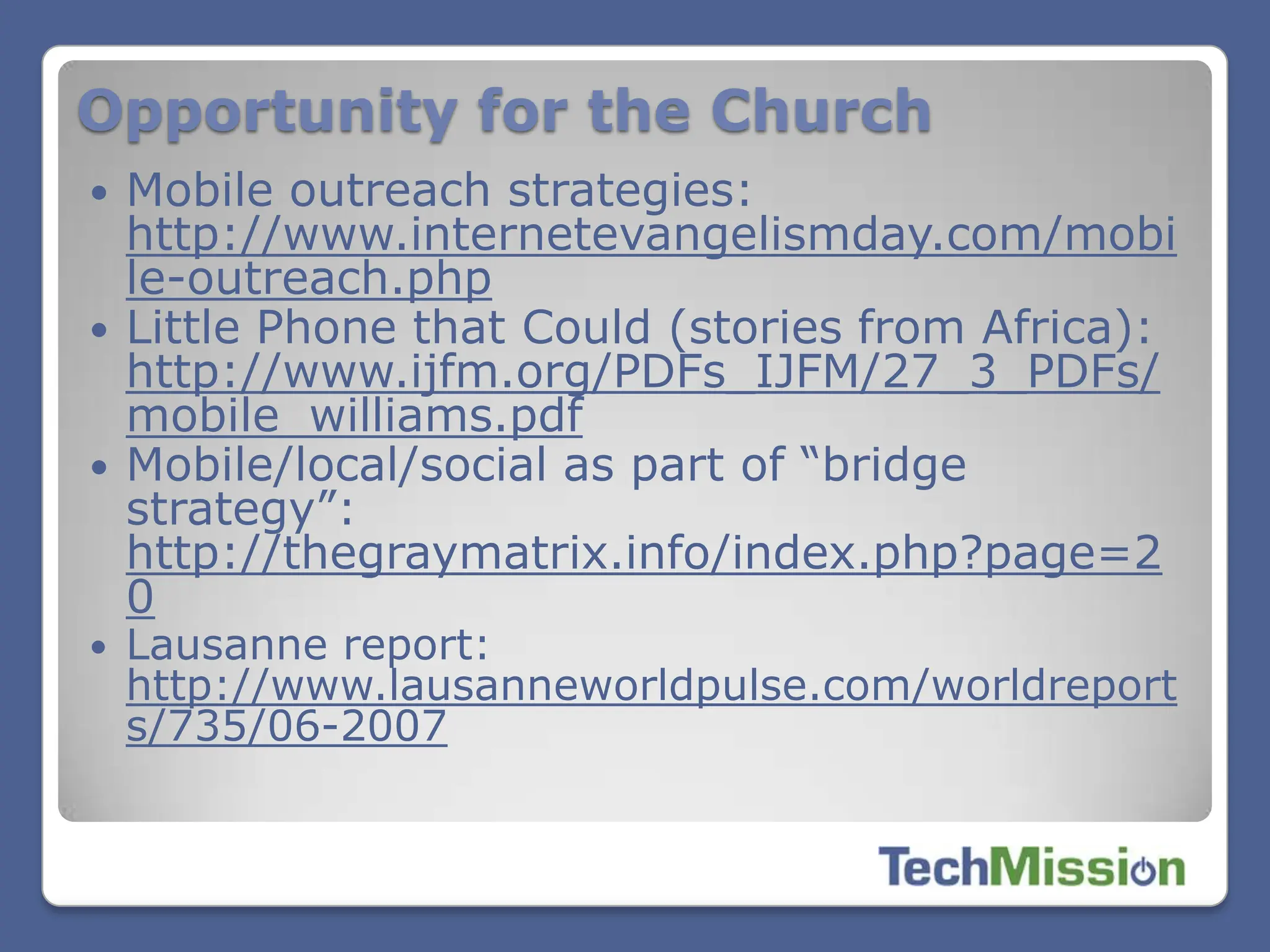

48. Opportunity for the Church
Mobile outreach strategies:
http://www.internetevangelismday.com/mobi
le-outreach.php
Little Phone that Could (stories from Africa):
http://www.ijfm.org/PDFs_IJFM/27_3_PDFs/
mobile_williams.pdf
Mobile/local/social as part of “bridge
strategy”:
http://thegraymatrix.info/index.php?page=2
0
Lausanne report:
http://www.lausanneworldpulse.com/worldreport
s/735/06-2007
49. Challenges of Mobile
Multiplicity of devices:
◦ Browser capability matrix:
http://jquerymobile.com/gbs/
◦ Comparison of capabilities:
http://www.quirksmode.org/m/table.html
◦ List of user agent strings:
http://www.useragentstring.com/pages/Mobile
%20Browserlist/

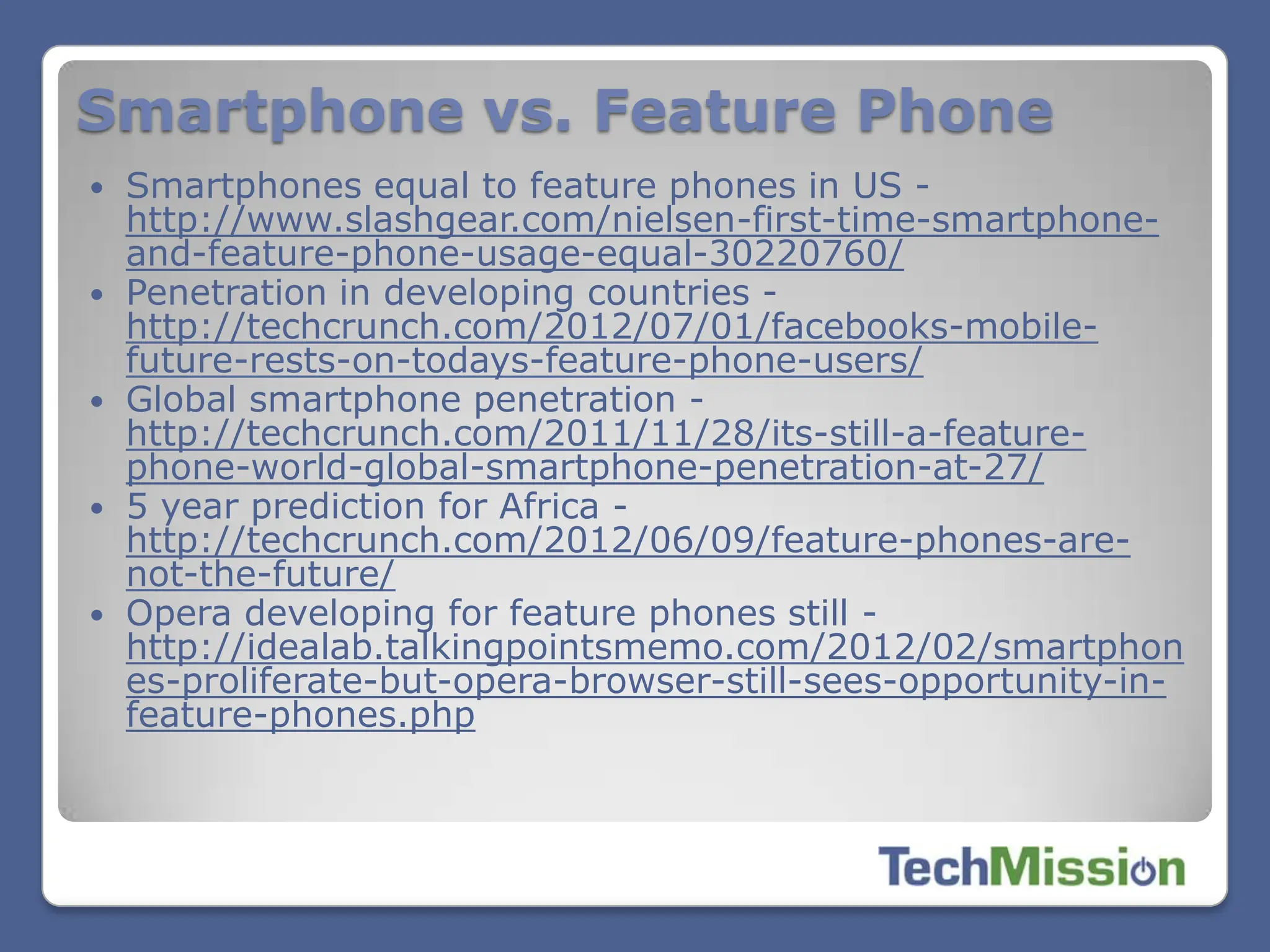

50. Smartphone vs. Feature Phone
Smartphones equal to feature phones in US -
http://www.slashgear.com/nielsen-first-time-smartphone-
and-feature-phone-usage-equal-30220760/
Penetration in developing countries -
http://techcrunch.com/2012/07/01/facebooks-mobile-
future-rests-on-todays-feature-phone-users/
Global smartphone penetration -
http://techcrunch.com/2011/11/28/its-still-a-feature-
phone-world-global-smartphone-penetration-at-27/
5 year prediction for Africa -
http://techcrunch.com/2012/06/09/feature-phones-are-
not-the-future/
Opera developing for feature phones still -
http://idealab.talkingpointsmemo.com/2012/02/smartphon
es-proliferate-but-opera-browser-still-sees-opportunity-in-
feature-phones.php

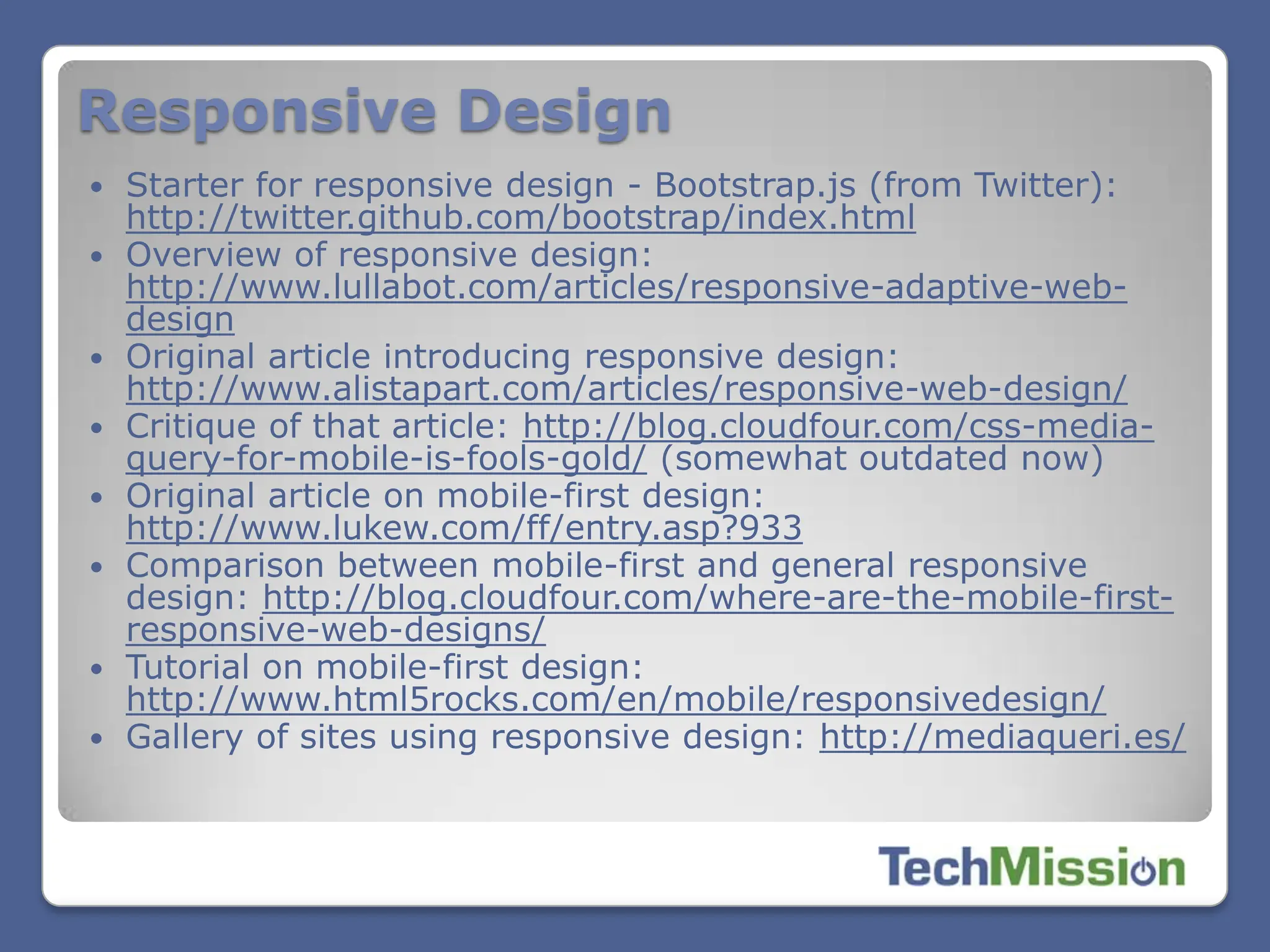

53. Responsive Design
Starter for responsive design - Bootstrap.js (from Twitter):
http://twitter.github.com/bootstrap/index.html
Overview of responsive design:
http://www.lullabot.com/articles/responsive-adaptive-web-
design
Original article introducing responsive design:
http://www.alistapart.com/articles/responsive-web-design/
Critique of that article: http://blog.cloudfour.com/css-media-
query-for-mobile-is-fools-gold/ (somewhat outdated now)
Original article on mobile-first design:
http://www.lukew.com/ff/entry.asp?933
Comparison between mobile-first and general responsive
design: http://blog.cloudfour.com/where-are-the-mobile-first-
responsive-web-designs/
Tutorial on mobile-first design:
http://www.html5rocks.com/en/mobile/responsivedesign/
Gallery of sites using responsive design: http://mediaqueri.es/
54. Mobile UX Principles
Mobile Design - Special UX
Considerations:
http://www.uxmatters.com/mt/archives/2
011/01/designing-for-the-mobile-web-
special-considerations.php
UX - 10 Ways Mobile Sites Differ From
Traditional Websites -
http://www.uxmatters.com/mt/archives/2
011/03/10-ways-mobile-sites-are-
different-from-desktop-web-sites.php
Design for Mobile Experience:
http://www.zdnet.com/blog/forrester/wha
t-design-for-mobile-first-really-means/867
55. Testing
List of emulators -
http://www.themobilewebdesignblog.com/20
11/11/26/best-mobile-emulators-responsive-
design-testing-tools/
Intro to mobile usability testing -
http://www.slideshare.net/beleniq/diy-
mobile-usability-testing-ia-summit-2011
More on mobile usability testing -
http://www.slideshare.net/barbaraballard/mo
bile-usability-testing
Building a testing sled -
http://shortboredsurfer.com/2011/09/making
-a-mobile-usability-testing-sled-the-
macgyver-way/
56. Mobile Analytics
http://mobile.tutsplus.com/articles/marke
ting/7-solutions-for-tracking-mobile-
analytics/
https://developers.google.com/mobile/
articles/analytics_end_to_end
57. Technical Browser Issues
Explanation of what is happening when you embed
a browser inside your app & platform differences -
http://www.mobilexweb.com/blog/axis-opera-mini-
alternative-browsers-iphone-ipad
Comparison of HTML5 support in Android & iOS
browsers -
http://www.fiercedeveloper.com/story/android-or-
ios-which-platform-better-html5/2012-02-03
Issues with different versions of browser in Android
-
http://arstechnica.com/gadgets/2012/03/android-
fragmentation-also-a-challenge-for-web-
developers/
58. For Further Reference
Extensive list of resources on all things
mobile development -
http://learnthemobileweb.com/blog/resou
rces/
Mobile Ministry Magazine (Antoine Wright)
- http://mobileministrymagazine.com/
