1. REAL-TIME IOT ANALYTICS
WITH APACHE PULSAR
DAVID KJERRUMGAARD
JUNE 18TH, 2020

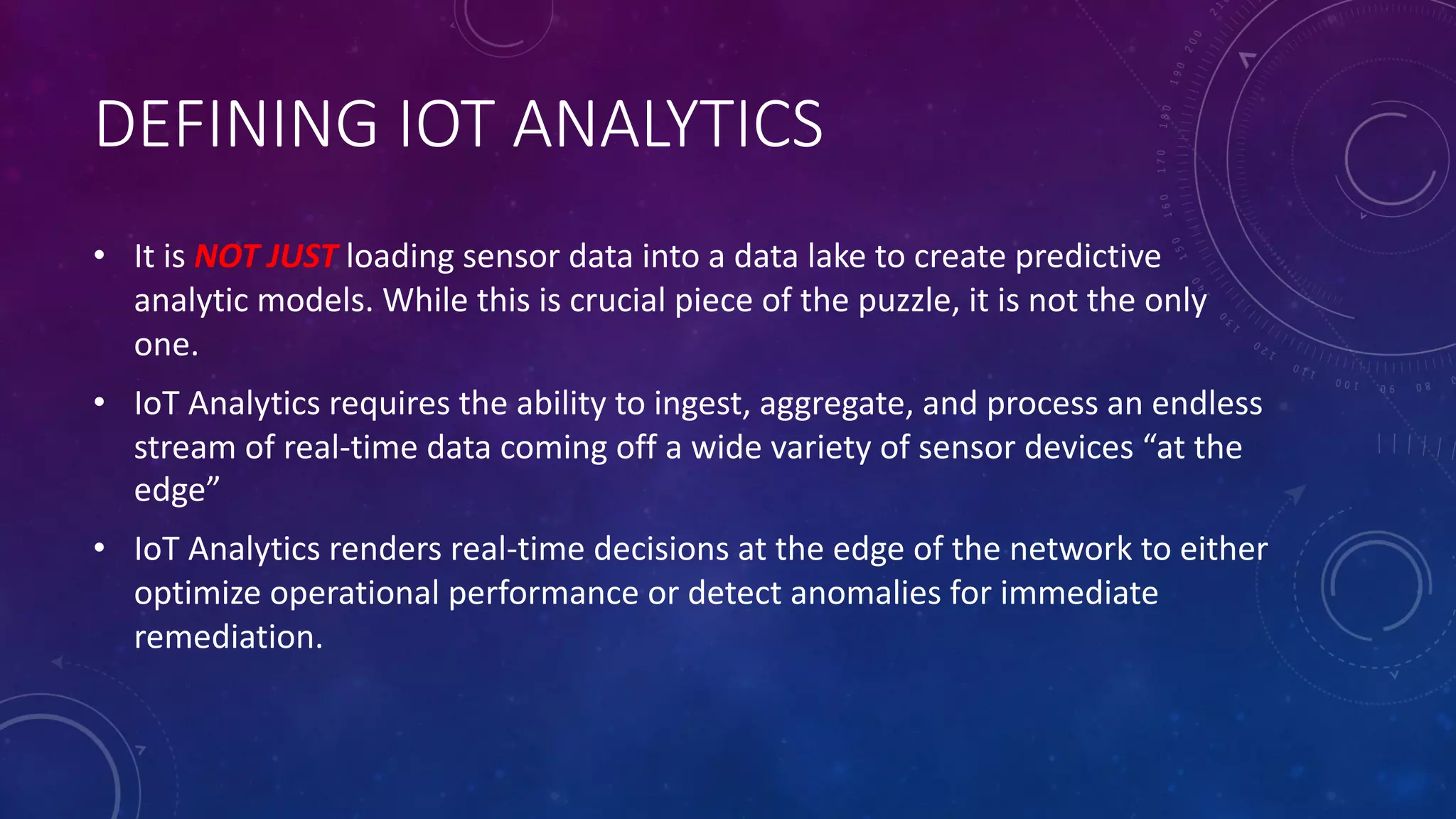

2. DEFINING IOT ANALYTICS
• It is NOT JUST loading sensor data into a data lake to create predictive
analytic models. While this is crucial piece of the puzzle, it is not the only
one.
• IoT Analytics requires the ability to ingest, aggregate, and process an endless
stream of real-time data coming off a wide variety of sensor devices “at the
edge”
• IoT Analytics renders real-time decisions at the edge of the network to either
optimize operational performance or detect anomalies for immediate
remediation.

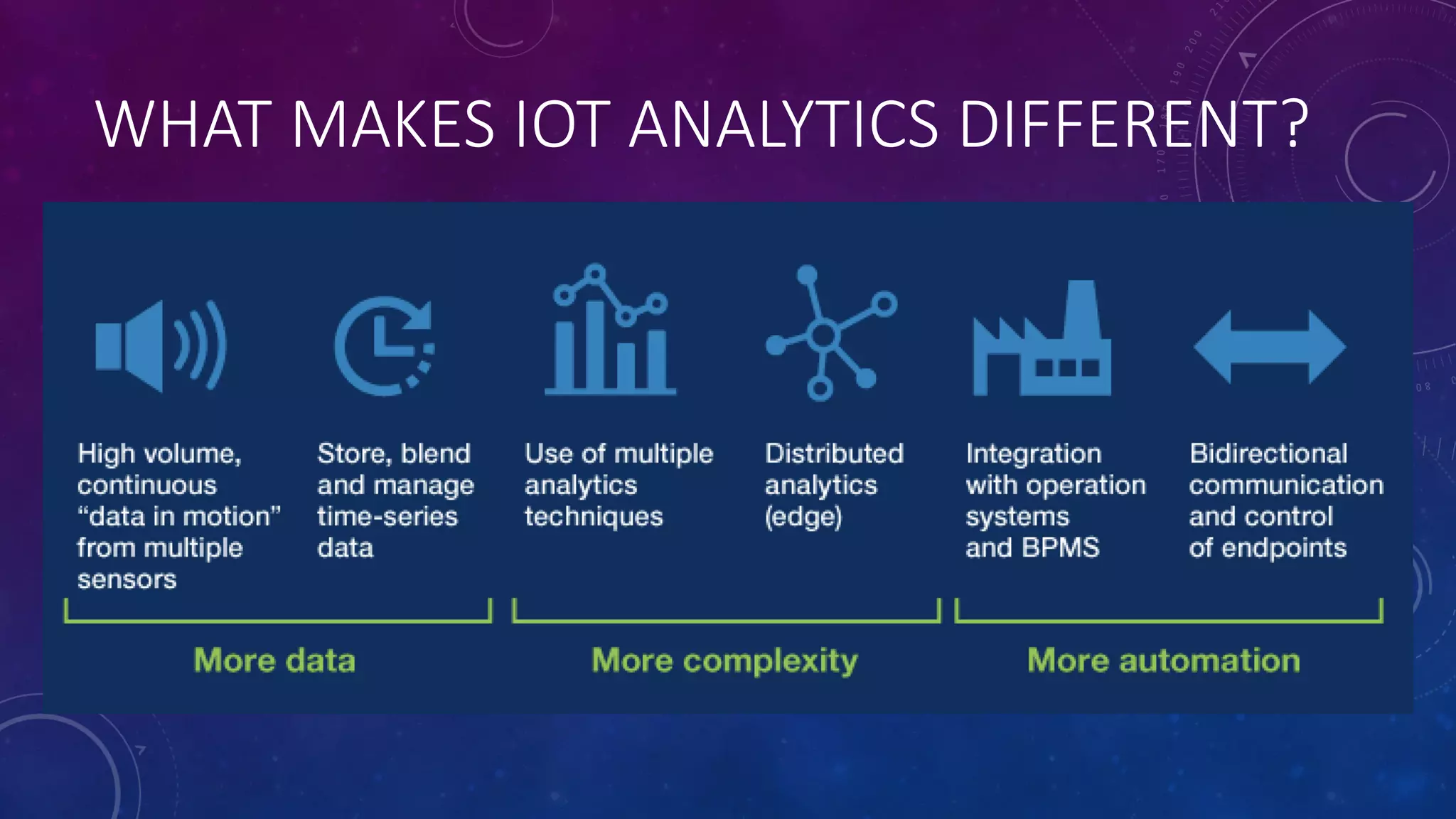

3. WHAT MAKES IOT ANALYTICS DIFFERENT?

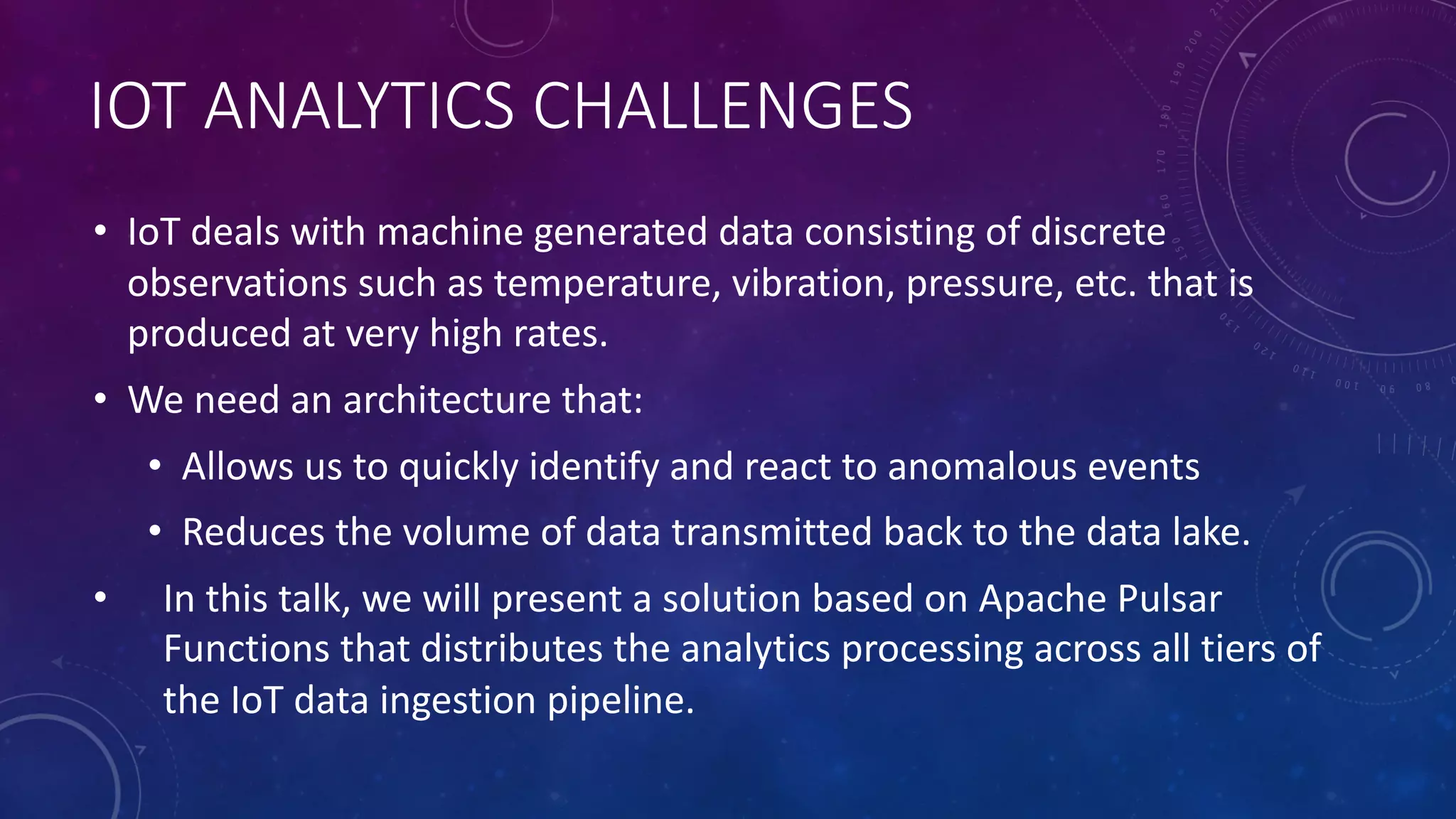

4. IOT ANALYTICS CHALLENGES
• IoT deals with machine generated data consisting of discrete
observations such as temperature, vibration, pressure, etc. that is
produced at very high rates.
• We need an architecture that:
• Allows us to quickly identify and react to anomalous events
• Reduces the volume of data transmitted back to the data lake.
• In this talk, we will present a solution based on Apache Pulsar
Functions that distributes the analytics processing across all tiers of
the IoT data ingestion pipeline.

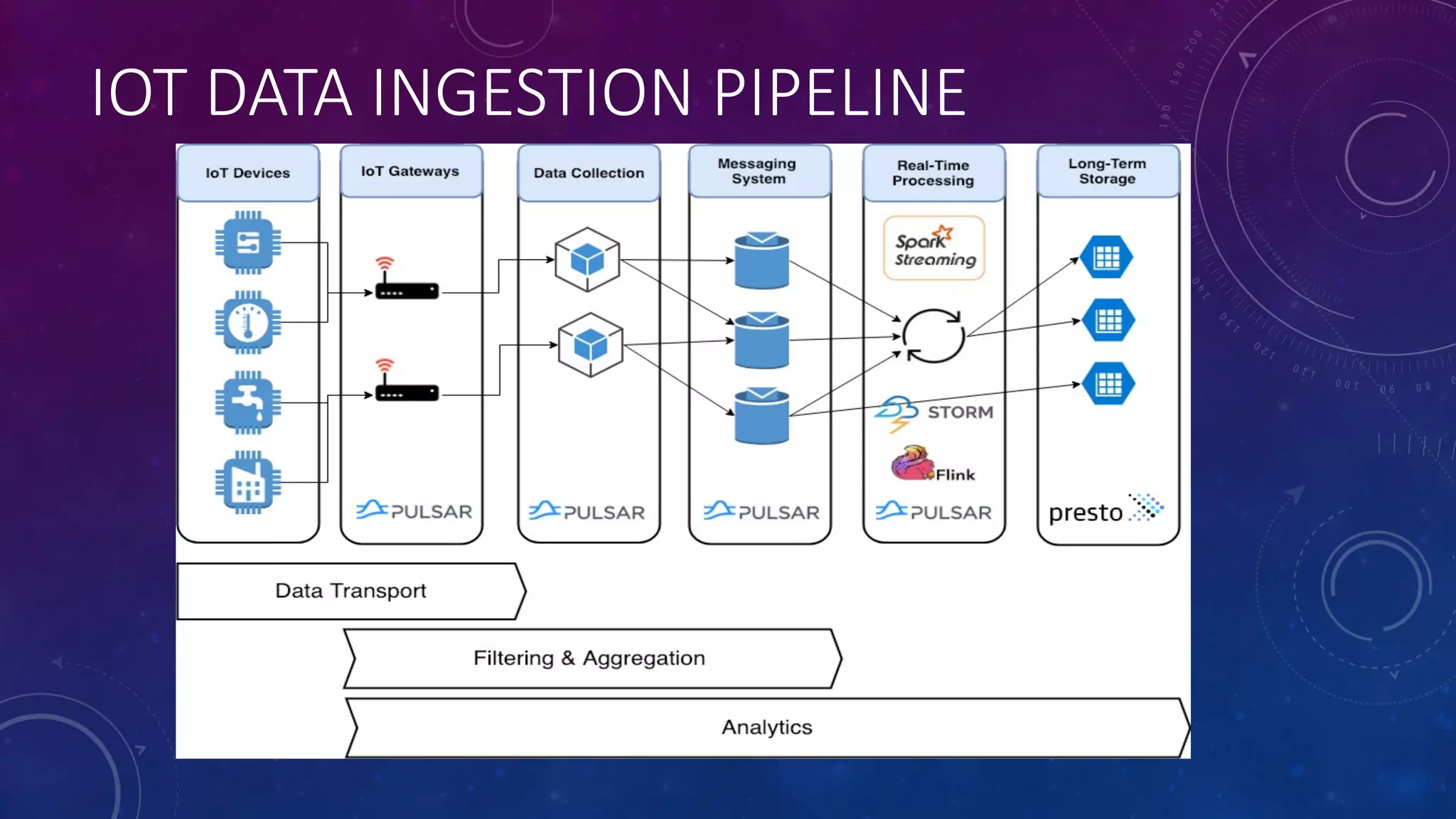

5. IOT DATA INGESTION PIPELINE

6. APACHE PULSAR FUNCTIONS

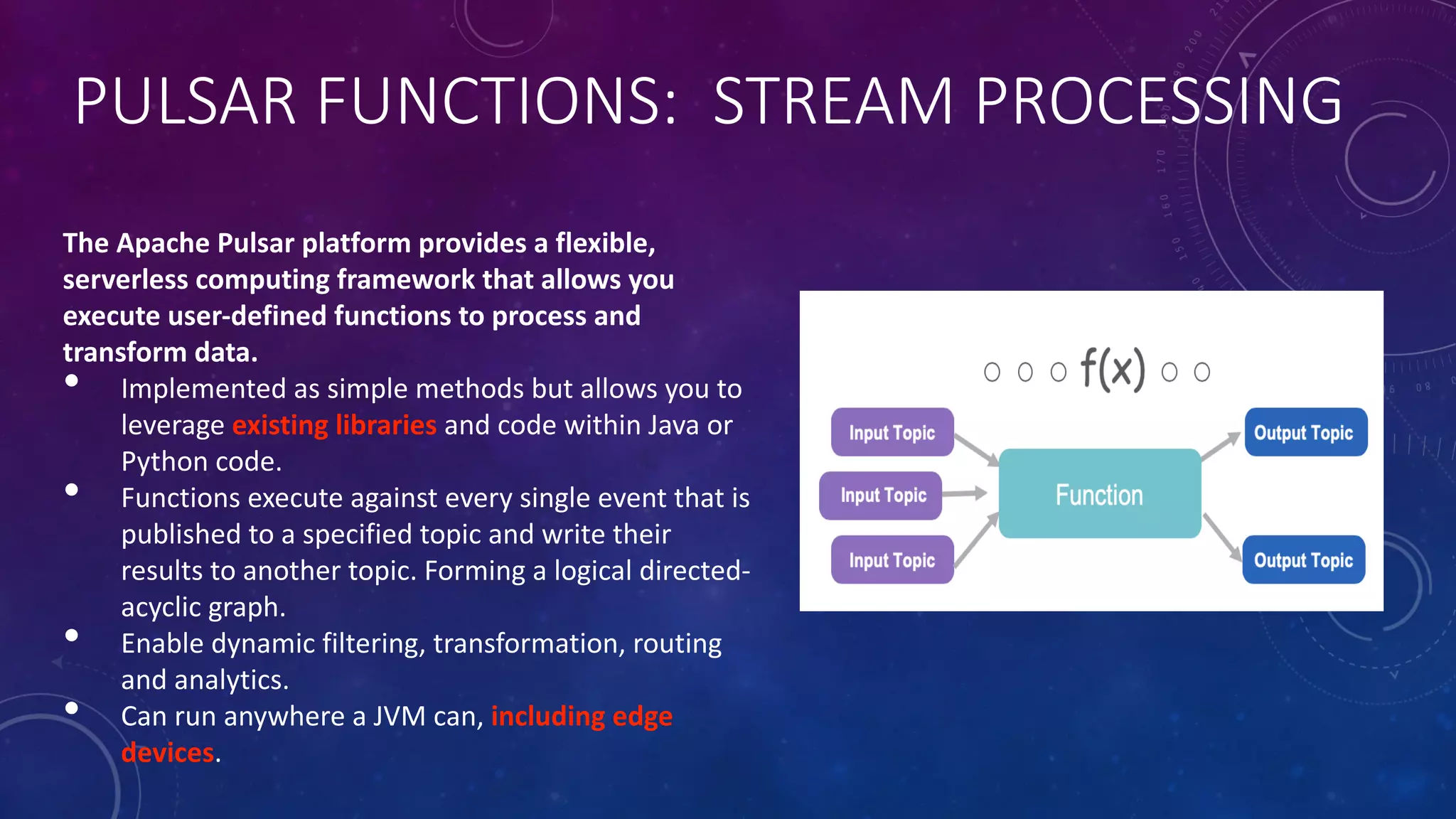

7. PULSAR FUNCTIONS: STREAM PROCESSING
The Apache Pulsar platform provides a flexible,
serverless computing framework that allows you
execute user-defined functions to process and
transform data.
• Implemented as simple methods but allows you to
leverage existing libraries and code within Java or
Python code.
• Functions execute against every single event that is
published to a specified topic and write their
results to another topic. Forming a logical directed-
acyclic graph.
• Enable dynamic filtering, transformation, routing
and analytics.
• Can run anywhere a JVM can, including edge
devices.

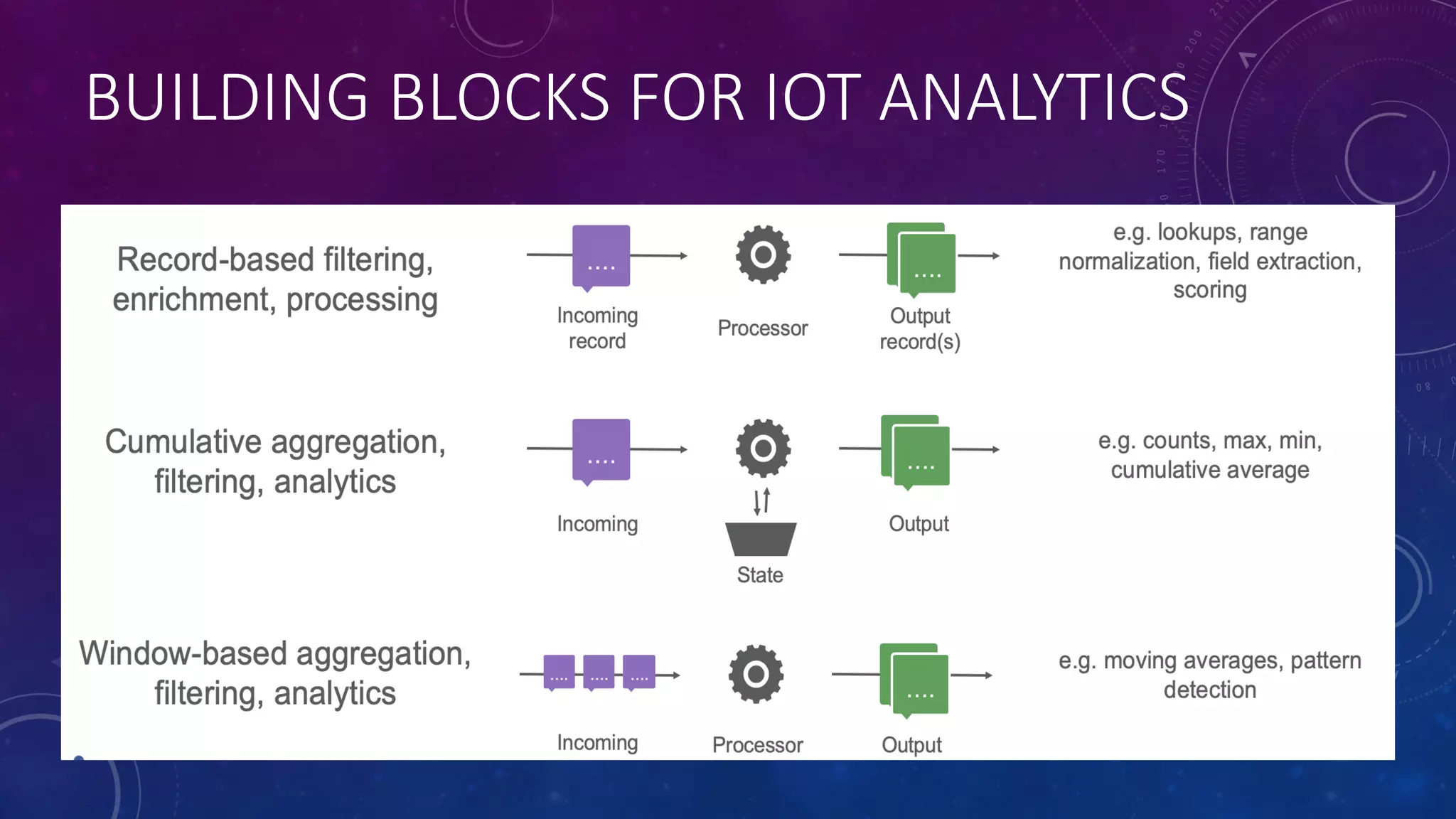

8. BUILDING BLOCKS FOR IOT ANALYTICS

9. DISTRIBUTED PROBABILISTIC
ANALYTICS WITH APACHE
PULSAR FUNCTIONS

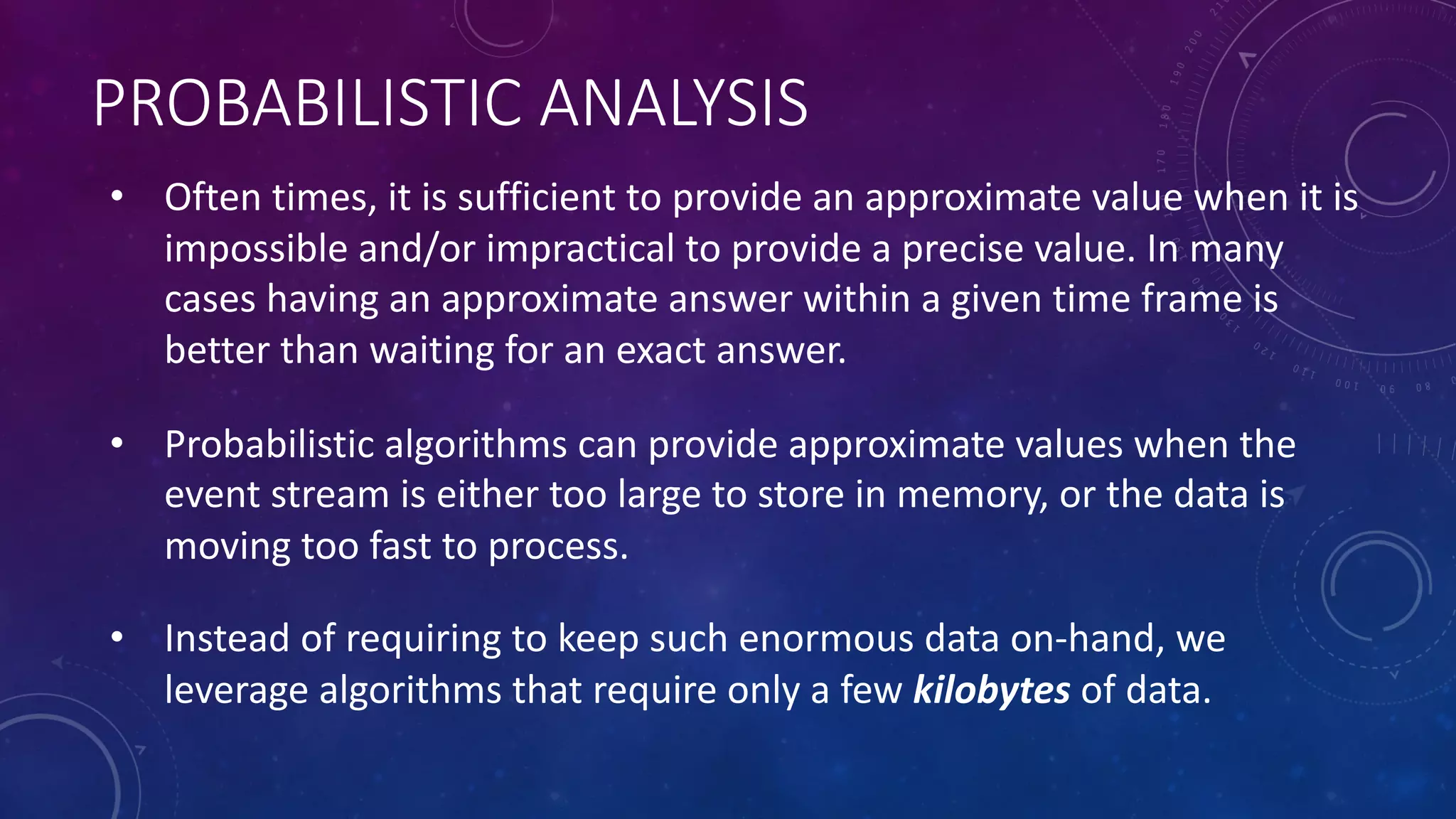

10. PROBABILISTIC ANALYSIS
• Often times, it is sufficient to provide an approximate value when it is
impossible and/or impractical to provide a precise value. In many
cases having an approximate answer within a given time frame is
better than waiting for an exact answer.
• Probabilistic algorithms can provide approximate values when the
event stream is either too large to store in memory, or the data is
moving too fast to process.
• Instead of requiring to keep such enormous data on-hand, we
leverage algorithms that require only a few kilobytes of data.

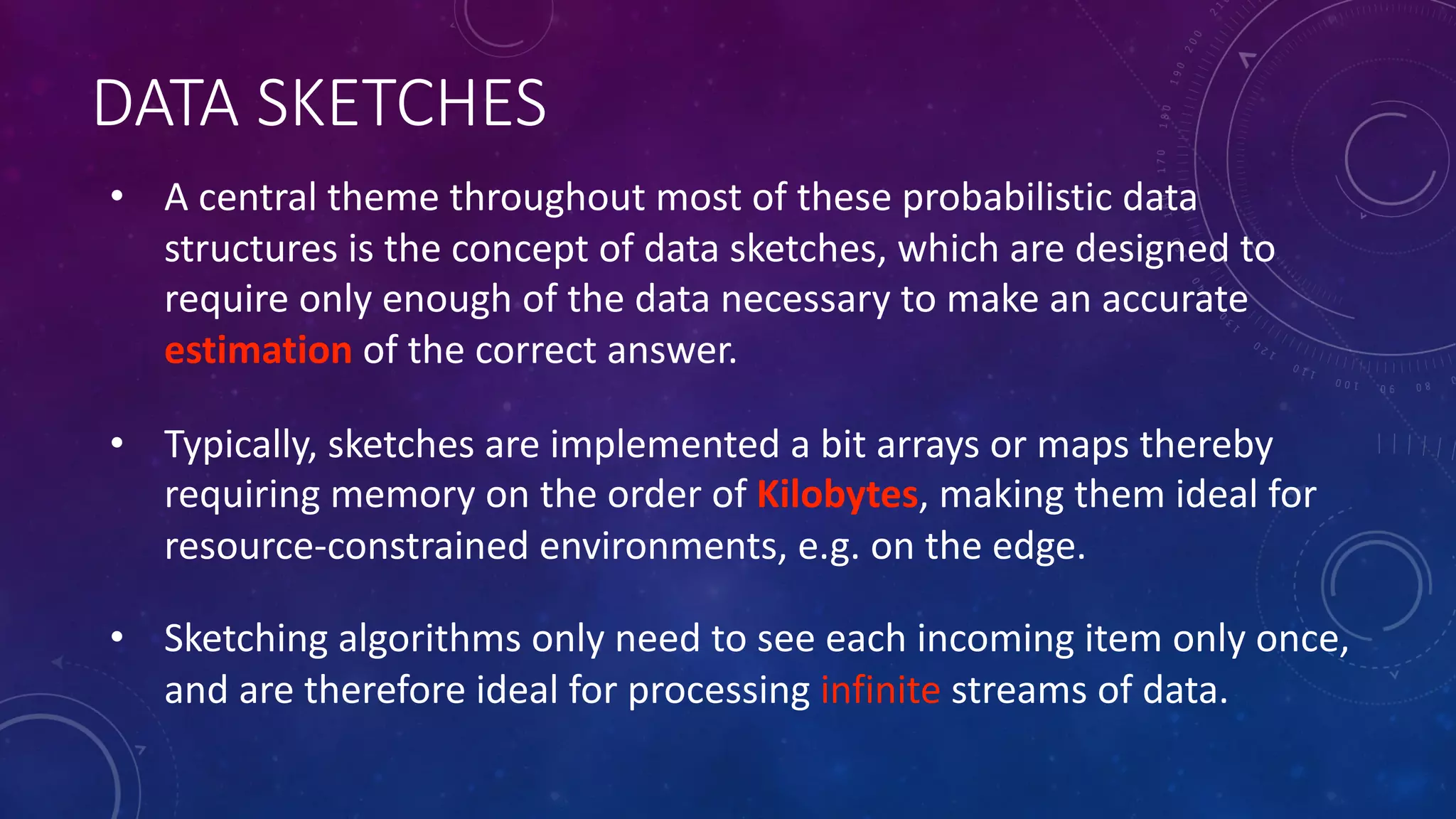

11. DATA SKETCHES
• A central theme throughout most of these probabilistic data
structures is the concept of data sketches, which are designed to
require only enough of the data necessary to make an accurate
estimation of the correct answer.
• Typically, sketches are implemented a bit arrays or maps thereby
requiring memory on the order of Kilobytes, making them ideal for
resource-constrained environments, e.g. on the edge.
• Sketching algorithms only need to see each incoming item only once,
and are therefore ideal for processing infinite streams of data.

12. SKETCH EXAMPLE
• Let’s walk through an
demonstration to show exactly
what I mean by sketches and show
you that we do not need 100% of
the data in order to make an
accurate prediction of what the
picture contains
• How much of the data did you
require to identify the main item
in the picture?

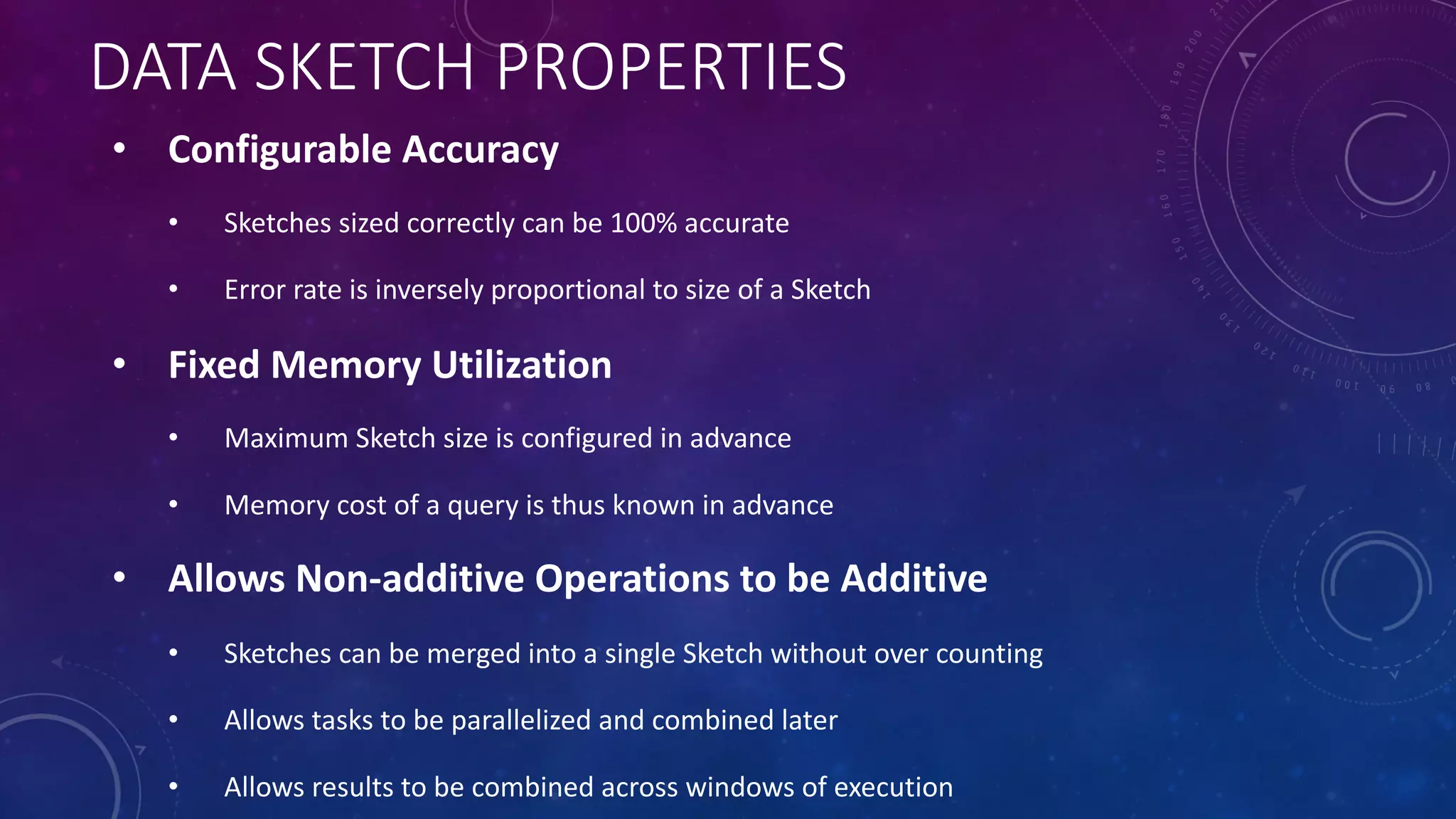

13. DATA SKETCH PROPERTIES
• Configurable Accuracy
• Sketches sized correctly can be 100% accurate
• Error rate is inversely proportional to size of a Sketch
• Fixed Memory Utilization
• Maximum Sketch size is configured in advance
• Memory cost of a query is thus known in advance
• Allows Non-additive Operations to be Additive
• Sketches can be merged into a single Sketch without over counting
• Allows tasks to be parallelized and combined later
• Allows results to be combined across windows of execution

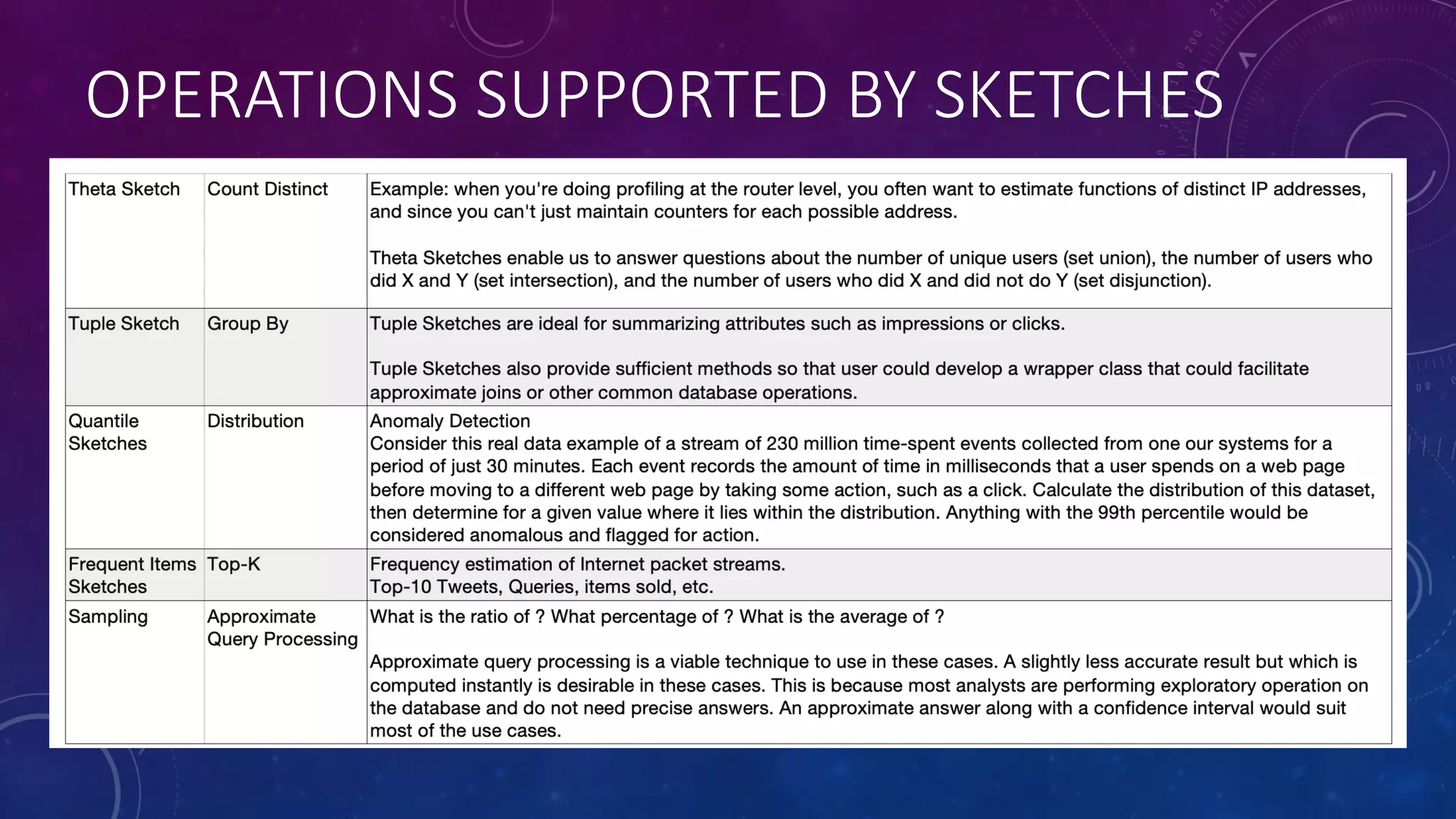

14. OPERATIONS SUPPORTED BY SKETCHES

15. SOME SKETCHY FUNCTIONS

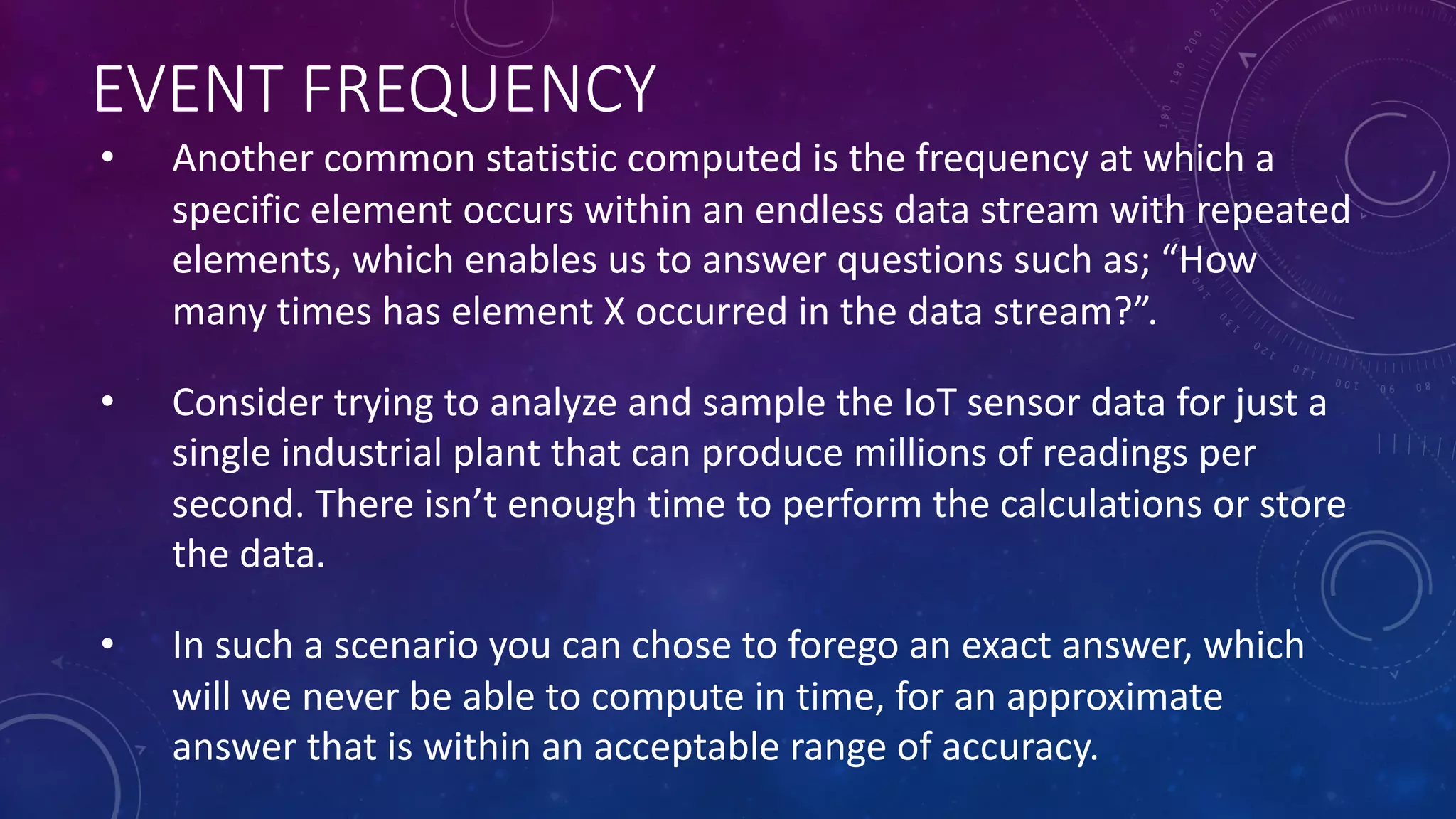

16. EVENT FREQUENCY
• Another common statistic computed is the frequency at which a
specific element occurs within an endless data stream with repeated
elements, which enables us to answer questions such as; “How
many times has element X occurred in the data stream?”.
• Consider trying to analyze and sample the IoT sensor data for just a
single industrial plant that can produce millions of readings per
second. There isn’t enough time to perform the calculations or store
the data.
• In such a scenario you can chose to forego an exact answer, which
will we never be able to compute in time, for an approximate
answer that is within an acceptable range of accuracy.

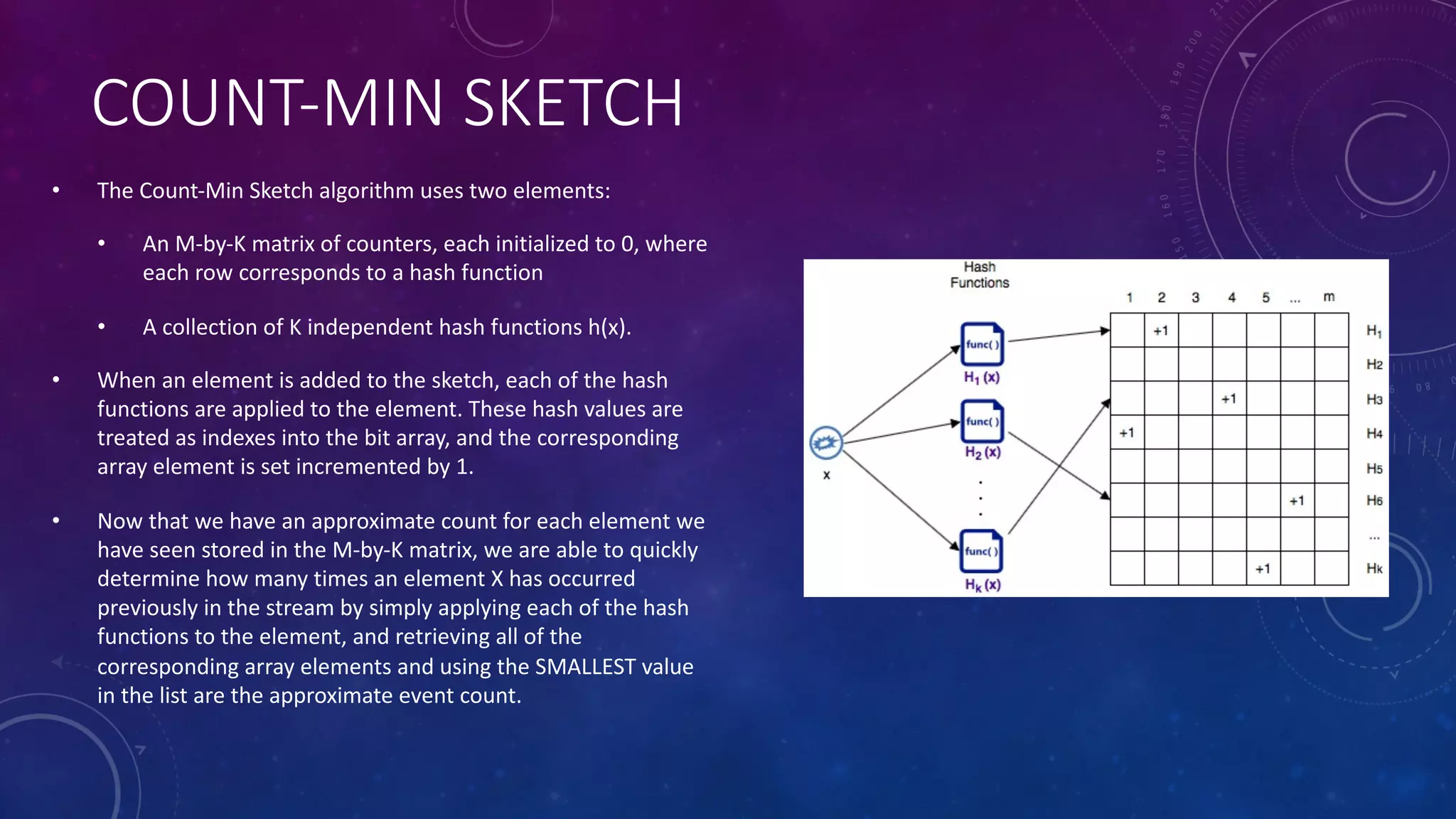

17. COUNT-MIN SKETCH
• The Count-Min Sketch algorithm uses two elements:
• An M-by-K matrix of counters, each initialized to 0, where
each row corresponds to a hash function
• A collection of K independent hash functions h(x).
• When an element is added to the sketch, each of the hash
functions are applied to the element. These hash values are
treated as indexes into the bit array, and the corresponding
array element is set incremented by 1.
• Now that we have an approximate count for each element we
have seen stored in the M-by-K matrix, we are able to quickly
determine how many times an element X has occurred
previously in the stream by simply applying each of the hash
functions to the element, and retrieving all of the
corresponding array elements and using the SMALLEST value
in the list are the approximate event count.

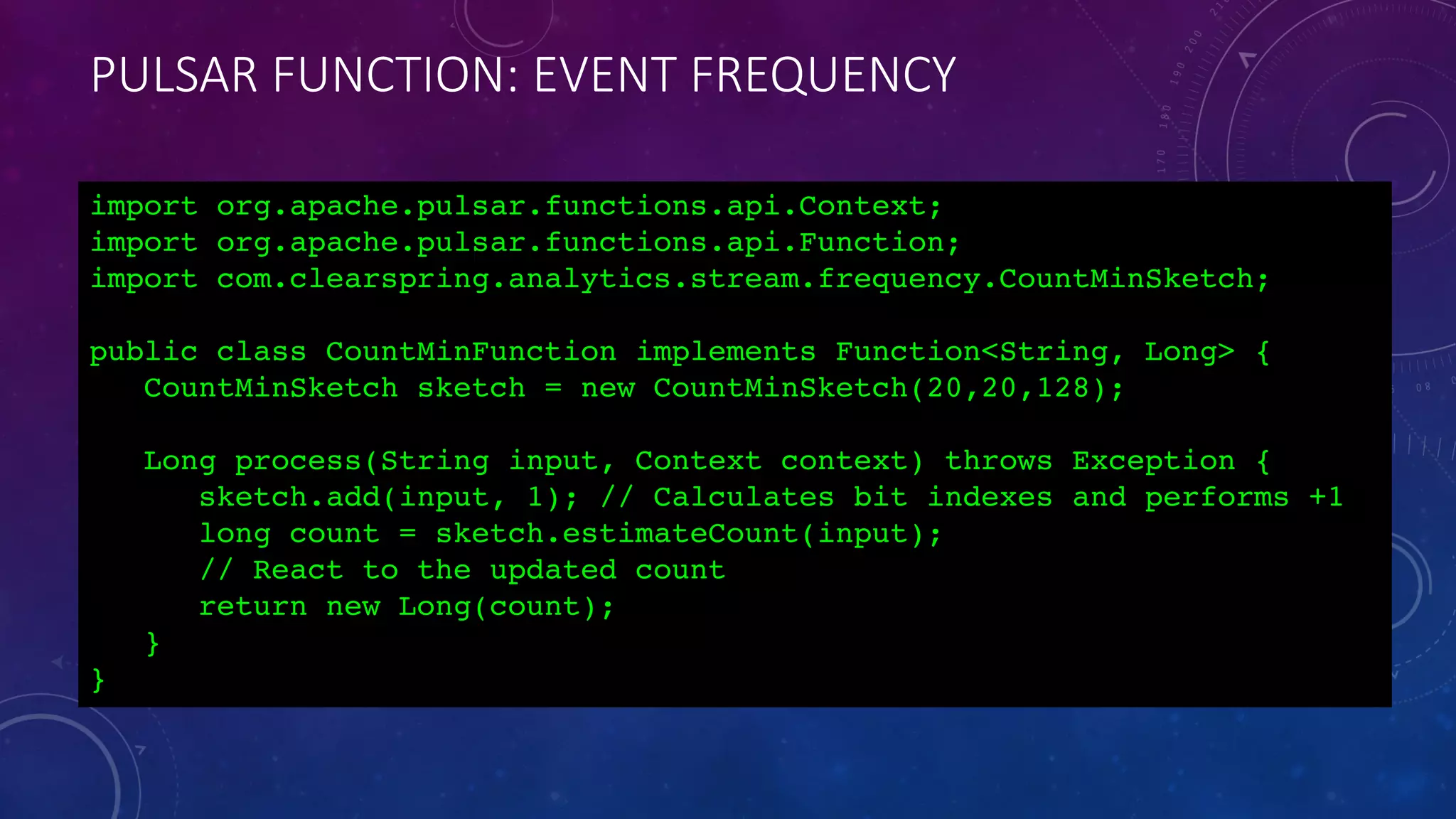

18. PULSAR FUNCTION: EVENT FREQUENCY
import org.apache.pulsar.functions.api.Context;
import org.apache.pulsar.functions.api.Function;
import com.clearspring.analytics.stream.frequency.CountMinSketch;
public class CountMinFunction implements Function<String, Long> {
CountMinSketch sketch = new CountMinSketch(20,20,128);
Long process(String input, Context context) throws Exception {
sketch.add(input, 1); // Calculates bit indexes and performs +1
long count = sketch.estimateCount(input);
// React to the updated count
return new Long(count);
}
}

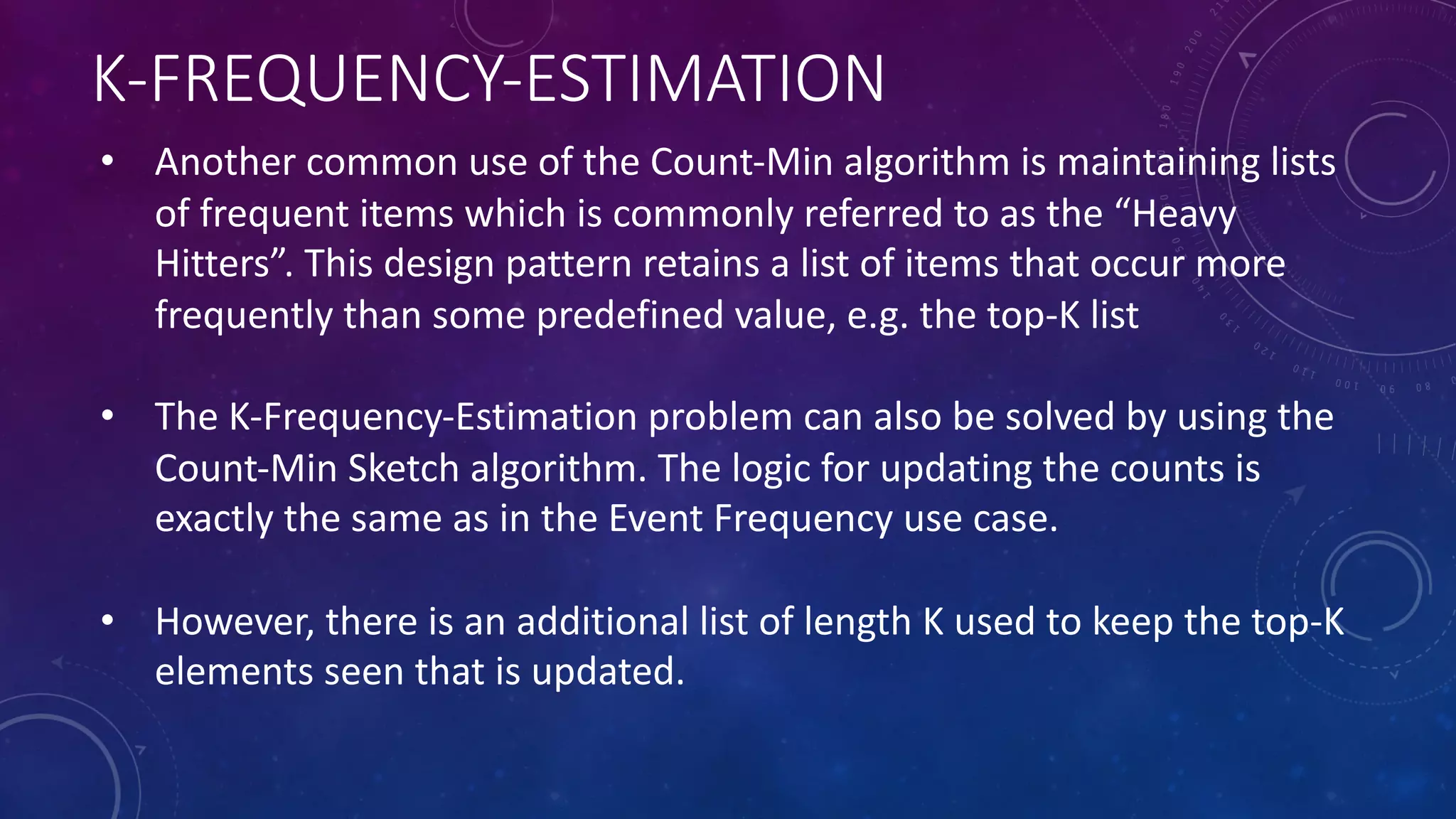

19. K-FREQUENCY-ESTIMATION
• Another common use of the Count-Min algorithm is maintaining lists
of frequent items which is commonly referred to as the “Heavy
Hitters”. This design pattern retains a list of items that occur more
frequently than some predefined value, e.g. the top-K list
• The K-Frequency-Estimation problem can also be solved by using the
Count-Min Sketch algorithm. The logic for updating the counts is
exactly the same as in the Event Frequency use case.
• However, there is an additional list of length K used to keep the top-K
elements seen that is updated.

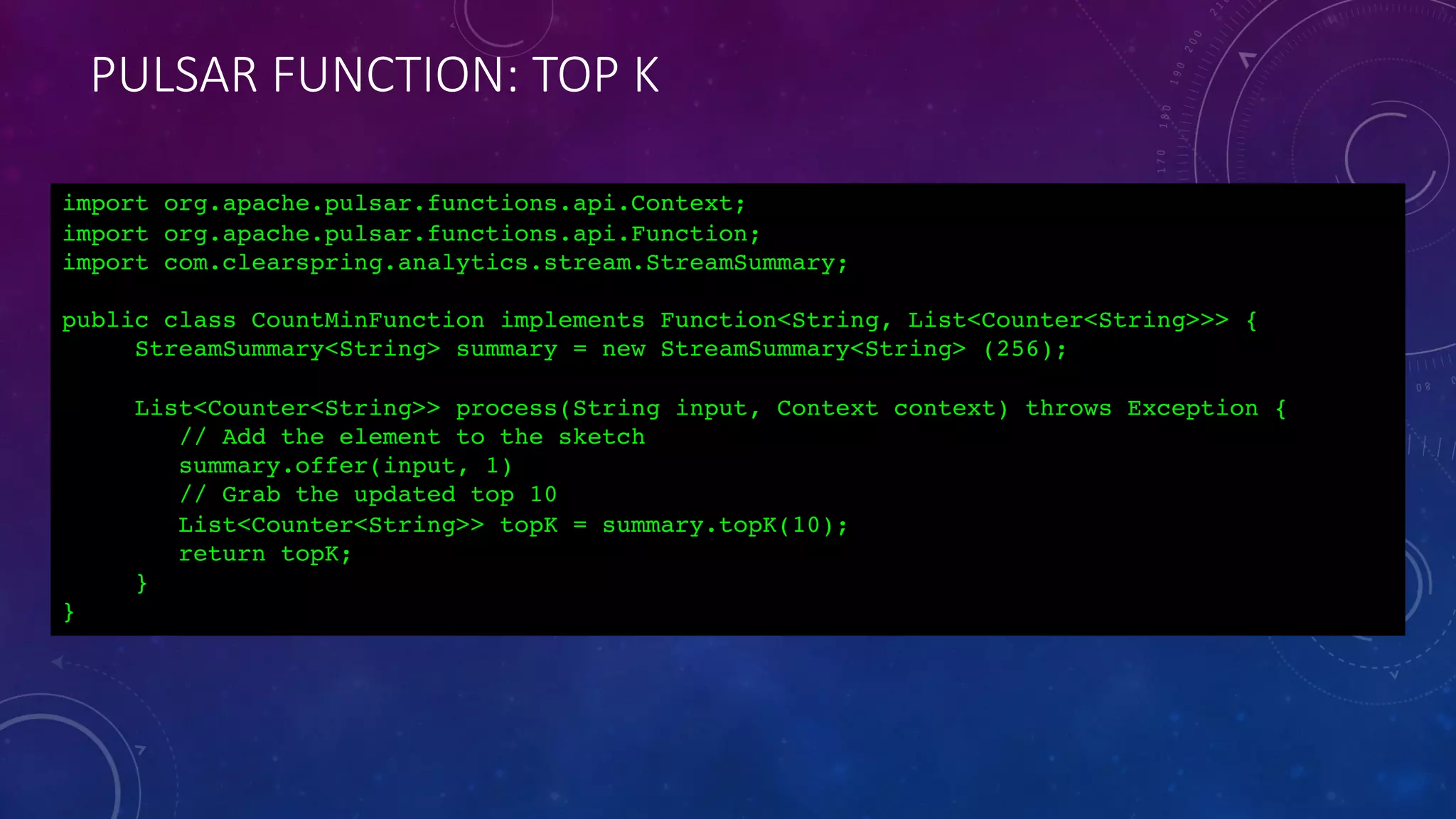

20. PULSAR FUNCTION: TOP K
import org.apache.pulsar.functions.api.Context;
import org.apache.pulsar.functions.api.Function;
import com.clearspring.analytics.stream.StreamSummary;
public class CountMinFunction implements Function<String, List<Counter<String>>> {
StreamSummary<String> summary = new StreamSummary<String> (256);
List<Counter<String>> process(String input, Context context) throws Exception {
// Add the element to the sketch
summary.offer(input, 1)
// Grab the updated top 10
List<Counter<String>> topK = summary.topK(10);
return topK;
}
}

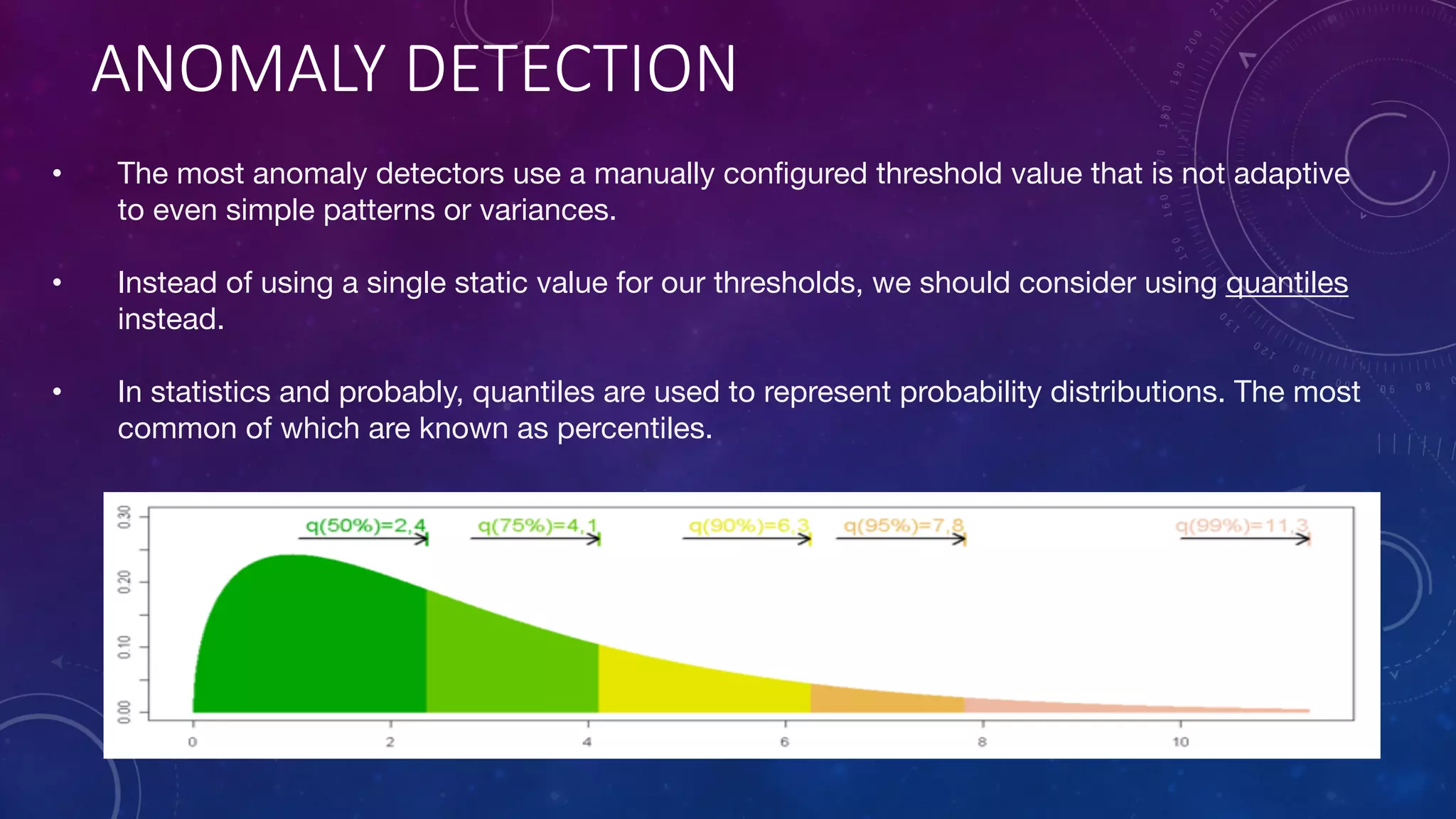

21. ANOMALY DETECTION
• The most anomaly detectors use a manually configured threshold value that is not adaptive
to even simple patterns or variances.
• Instead of using a single static value for our thresholds, we should consider using quantiles
instead.
• In statistics and probably, quantiles are used to represent probability distributions. The most
common of which are known as percentiles.

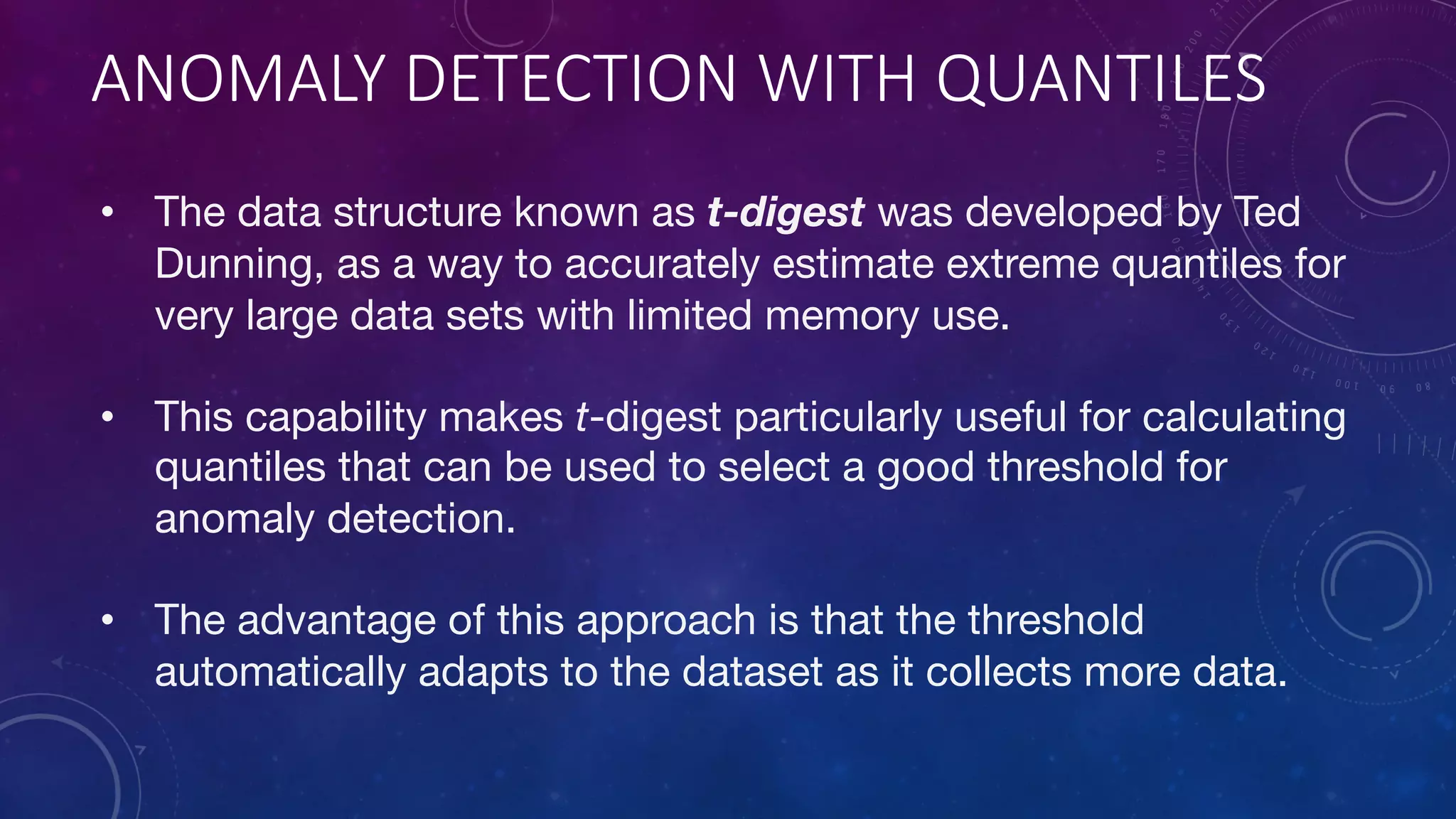

22. ANOMALY DETECTION WITH QUANTILES
• The data structure known as t-digest was developed by Ted
Dunning, as a way to accurately estimate extreme quantiles for
very large data sets with limited memory use.
• This capability makes t-digest particularly useful for calculating
quantiles that can be used to select a good threshold for
anomaly detection.
• The advantage of this approach is that the threshold
automatically adapts to the dataset as it collects more data.

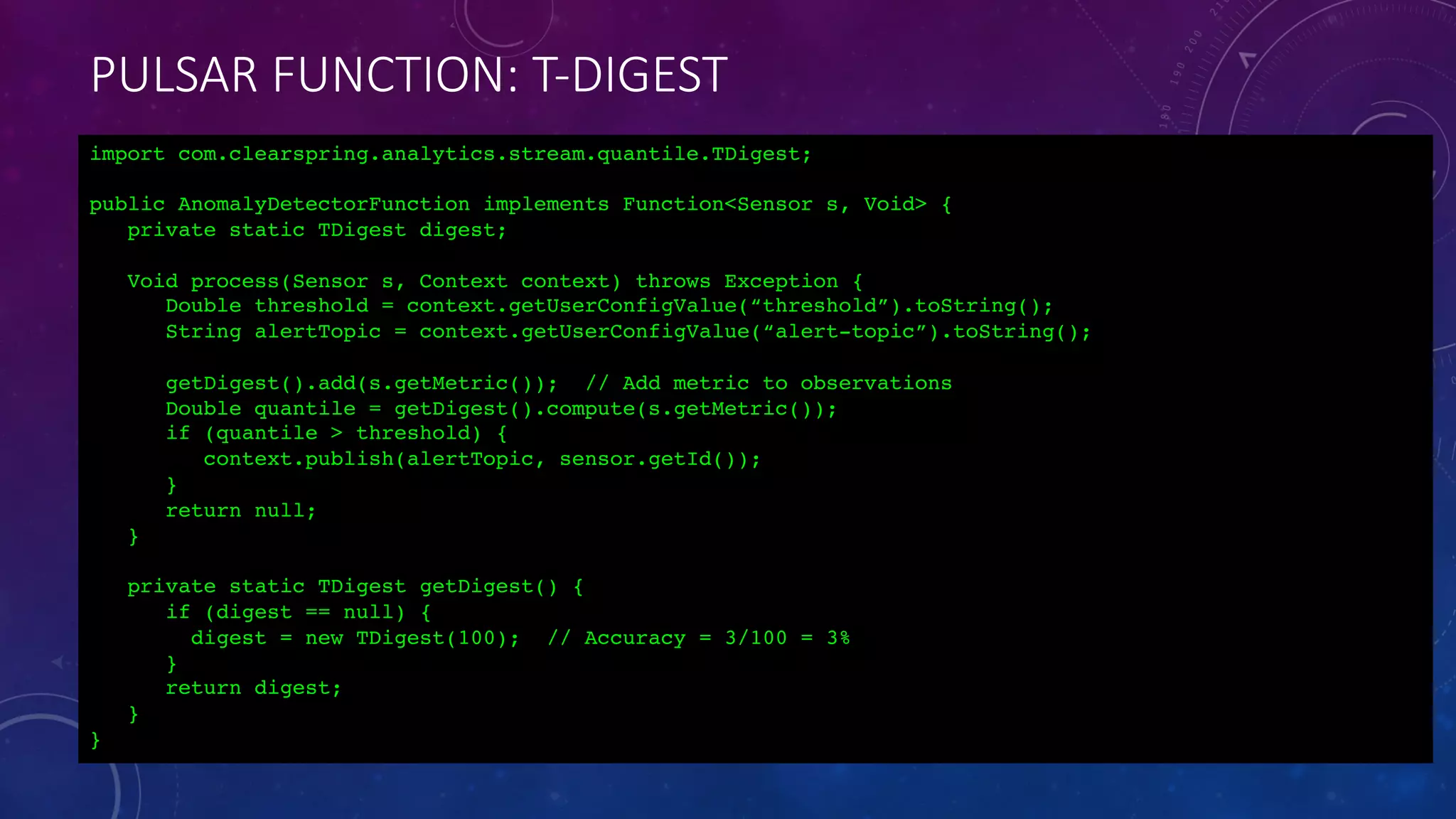

23. PULSAR FUNCTION: T-DIGEST
import com.clearspring.analytics.stream.quantile.TDigest;
public AnomalyDetectorFunction implements Function<Sensor s, Void> {
private static TDigest digest;
Void process(Sensor s, Context context) throws Exception {
Double threshold = context.getUserConfigValue(“threshold”).toString();
String alertTopic = context.getUserConfigValue(“alert-topic”).toString();
getDigest().add(s.getMetric()); // Add metric to observations
Double quantile = getDigest().compute(s.getMetric());
if (quantile > threshold) {
context.publish(alertTopic, sensor.getId());
}
return null;
}
private static TDigest getDigest() {
if (digest == null) {
digest = new TDigest(100); // Accuracy = 3/100 = 3%
}
return digest;
}
}

24. IOT ANALYTICS PIPELINE USING
APACHE PULSAR FUNCTIONS

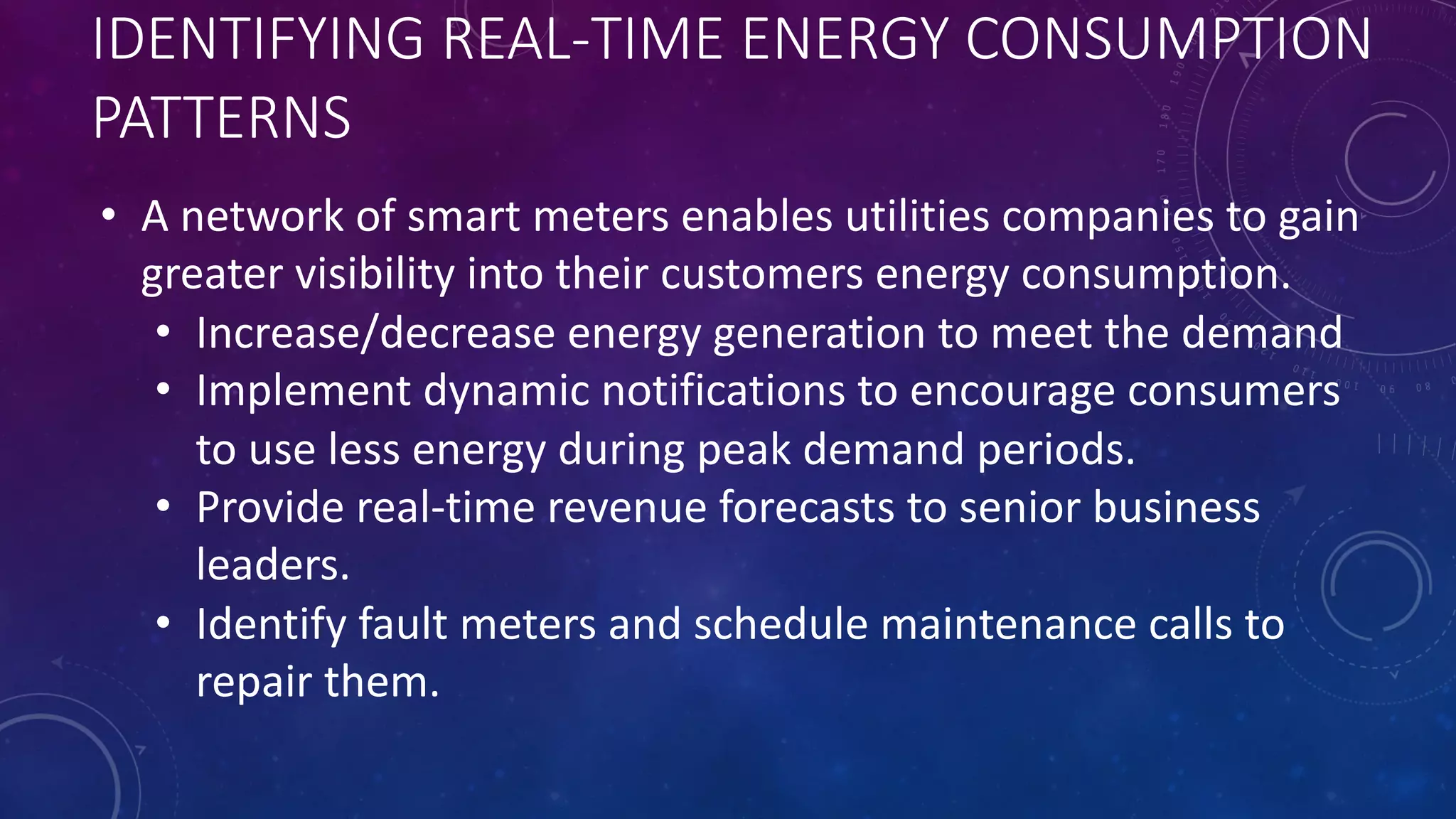

25. IDENTIFYING REAL-TIME ENERGY CONSUMPTION
PATTERNS
• A network of smart meters enables utilities companies to gain
greater visibility into their customers energy consumption.
• Increase/decrease energy generation to meet the demand
• Implement dynamic notifications to encourage consumers
to use less energy during peak demand periods.
• Provide real-time revenue forecasts to senior business
leaders.
• Identify fault meters and schedule maintenance calls to
repair them.

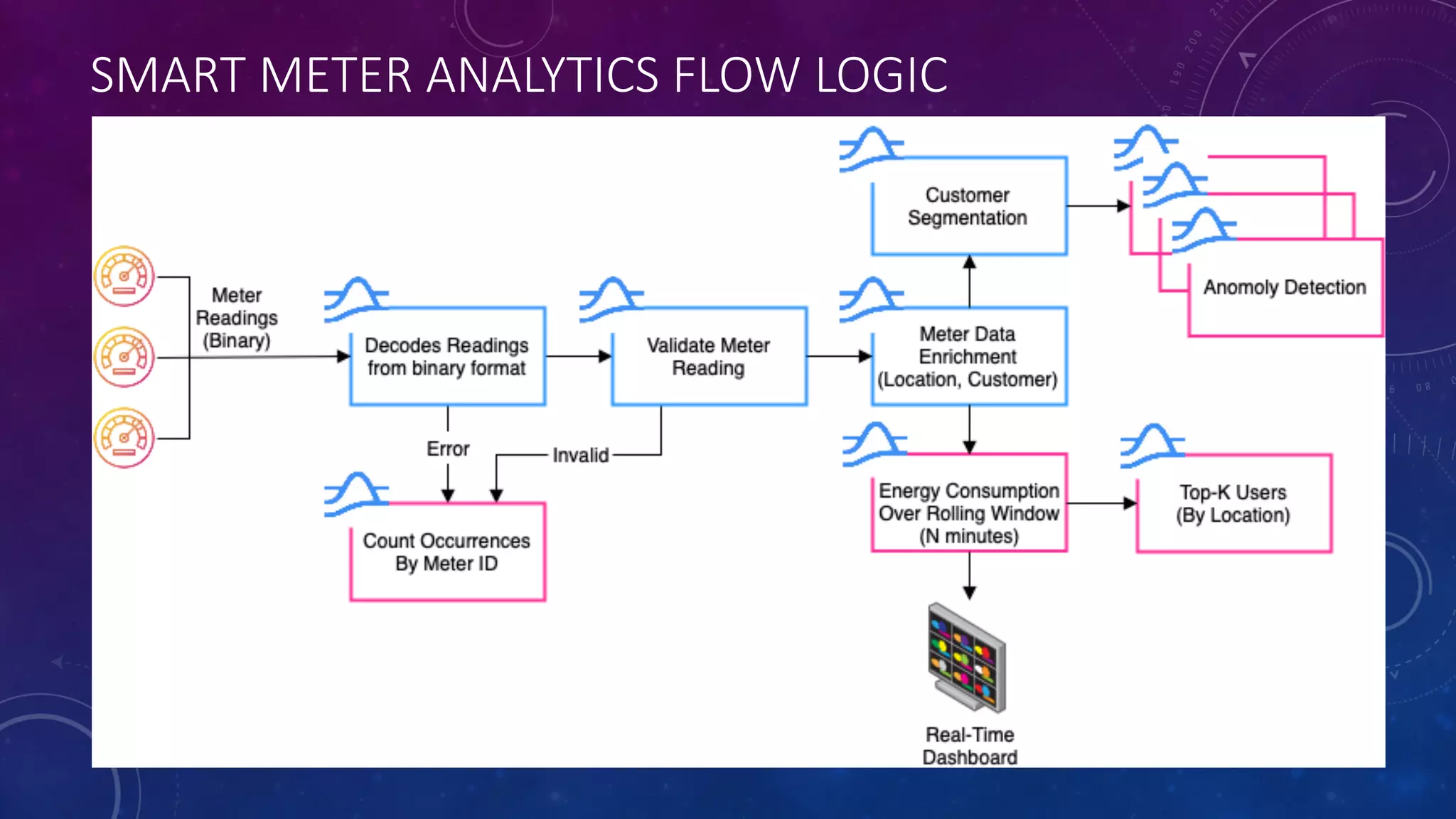

26. SMART METER ANALYTICS FLOW LOGIC

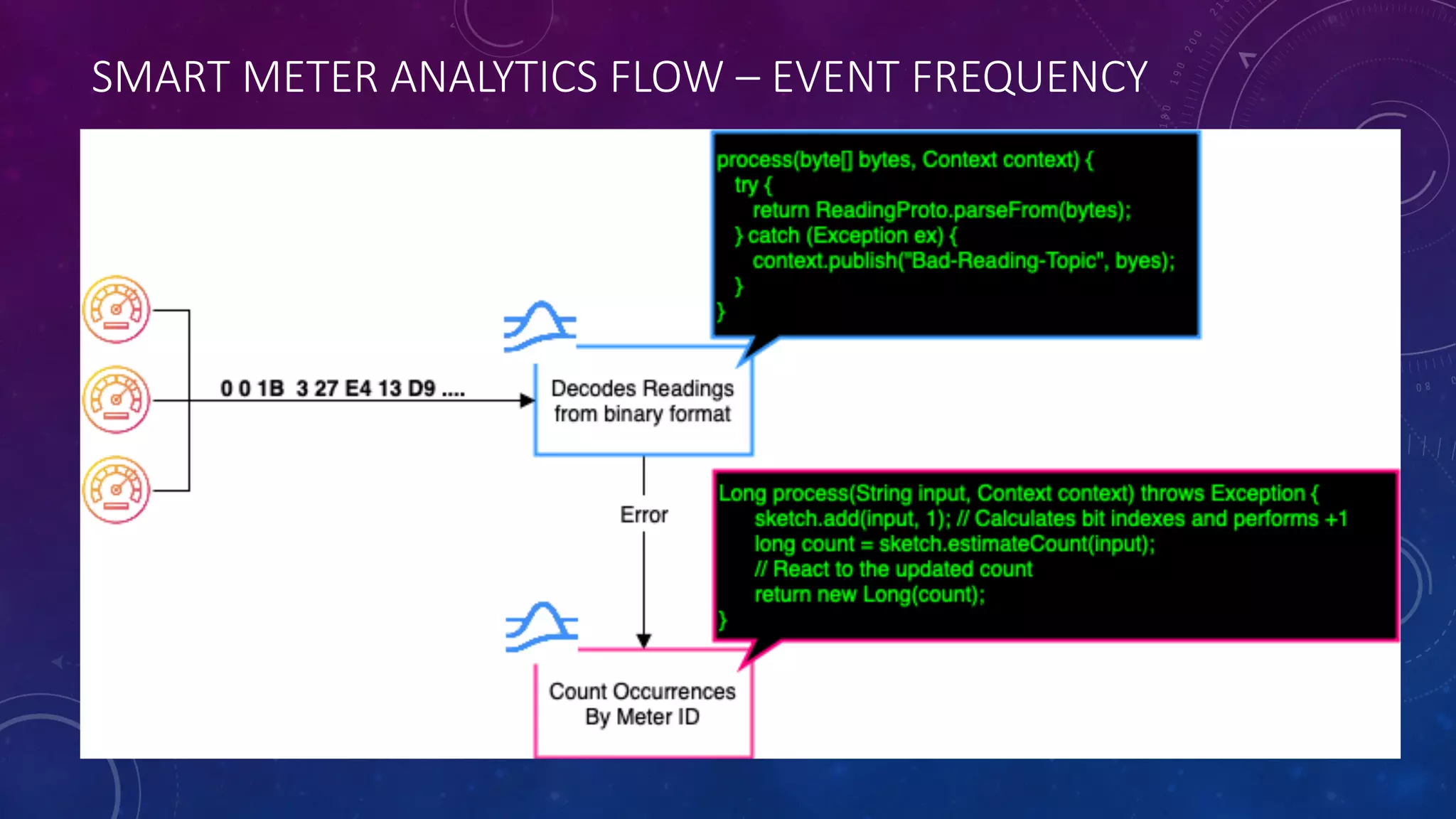

27. SMART METER ANALYTICS FLOW – EVENT FREQUENCY

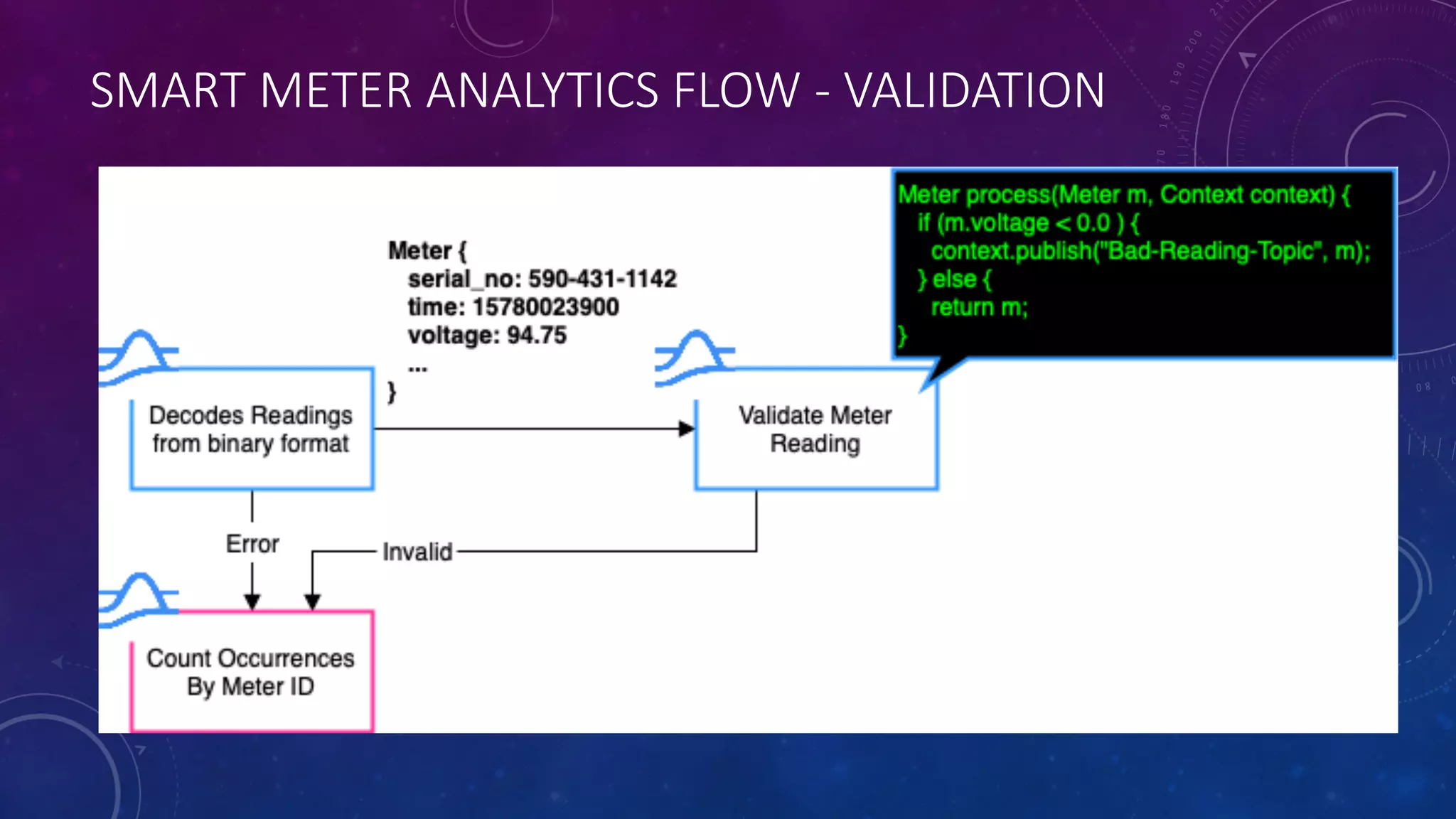

28. SMART METER ANALYTICS FLOW - VALIDATION

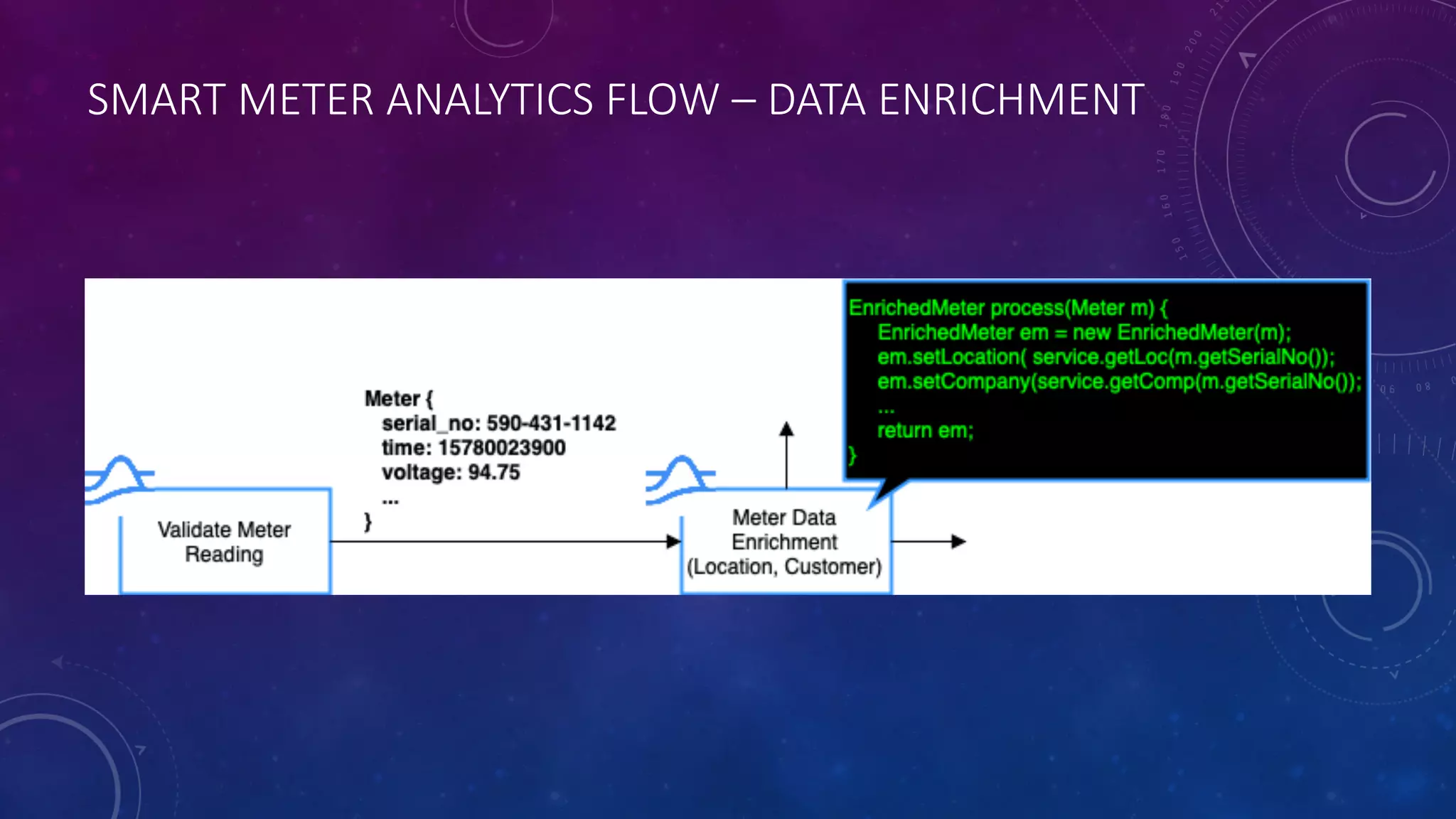

29. SMART METER ANALYTICS FLOW – DATA ENRICHMENT

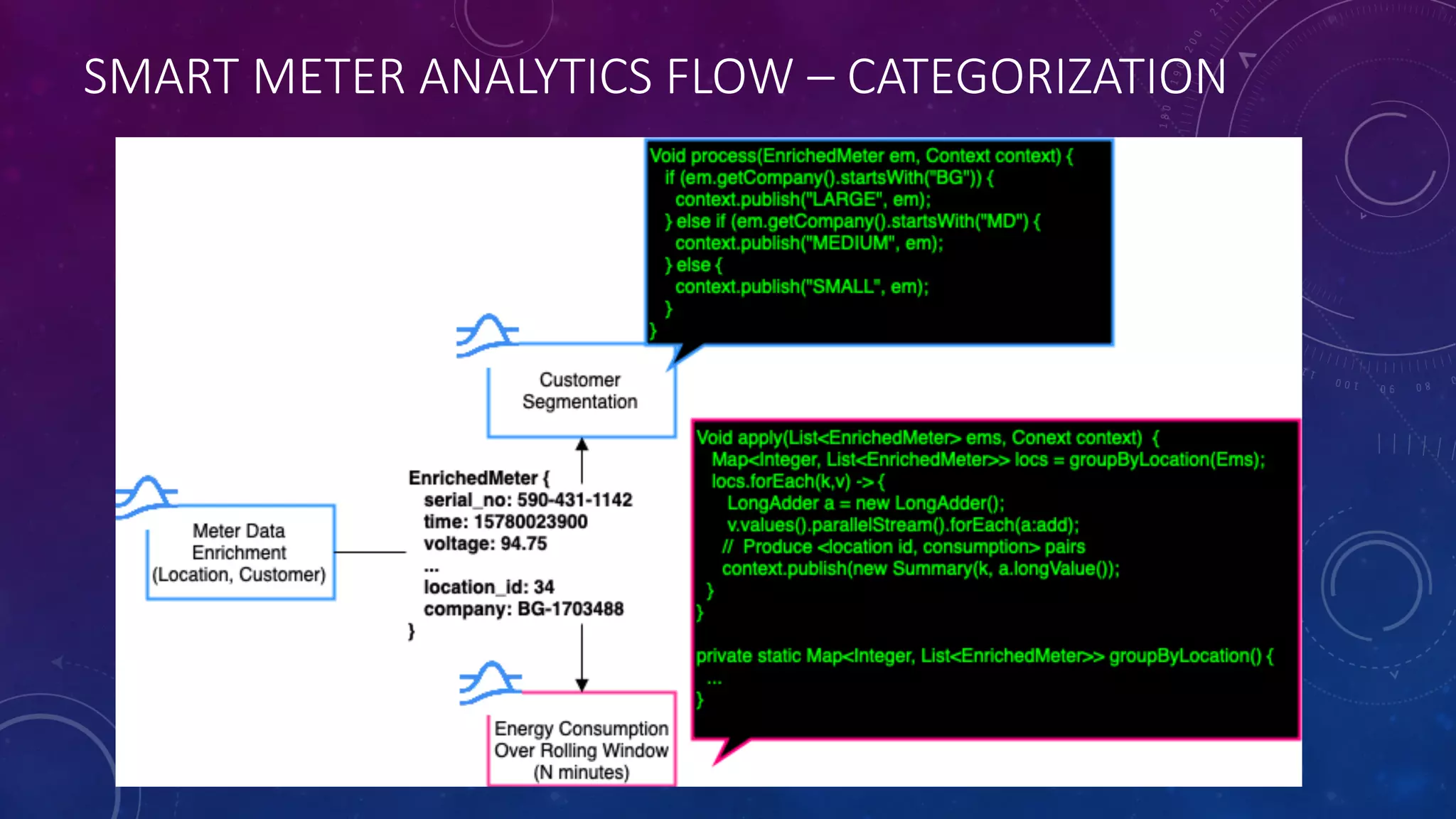

30. SMART METER ANALYTICS FLOW – CATEGORIZATION

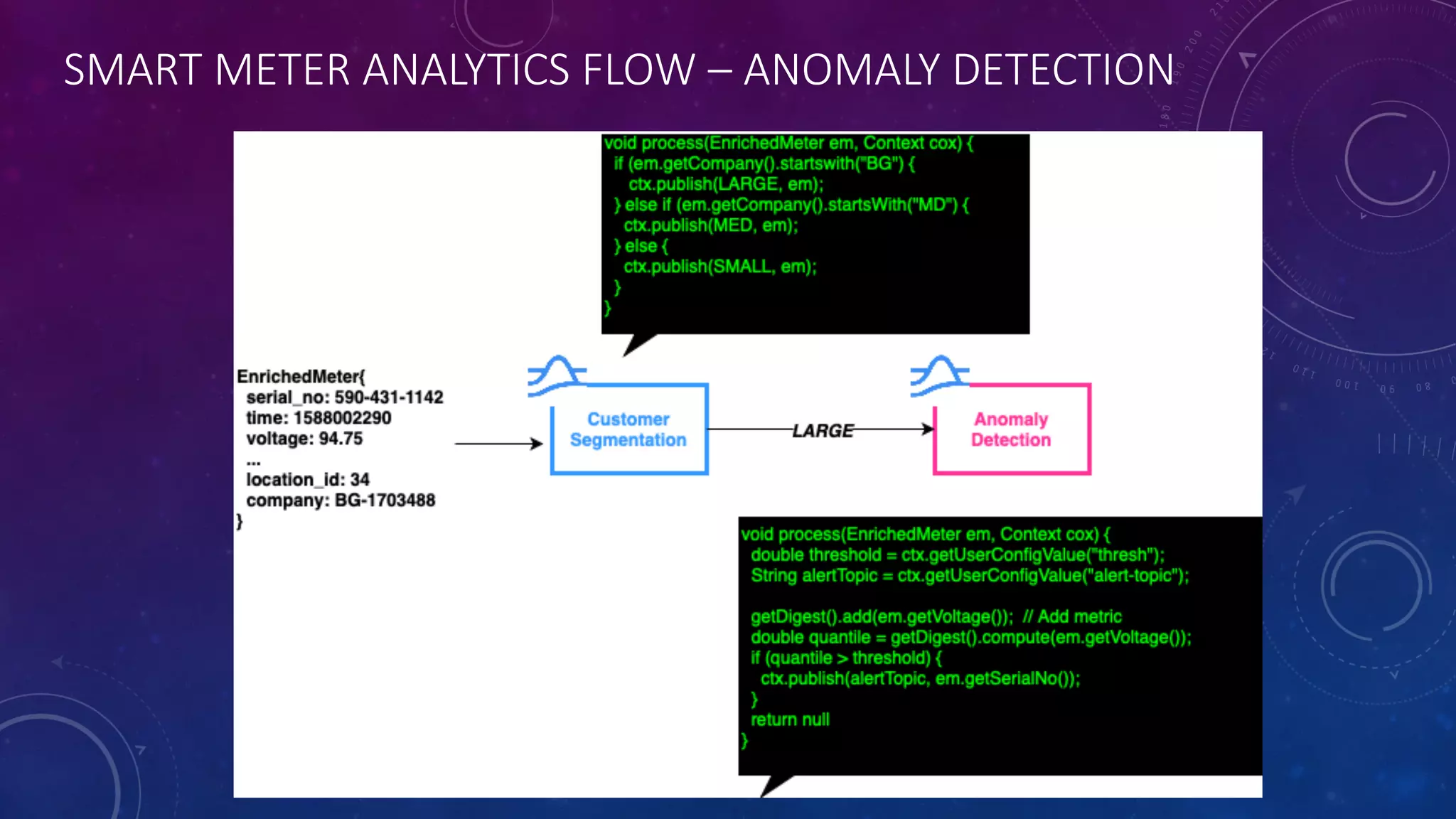

31. SMART METER ANALYTICS FLOW – ANOMALY DETECTION

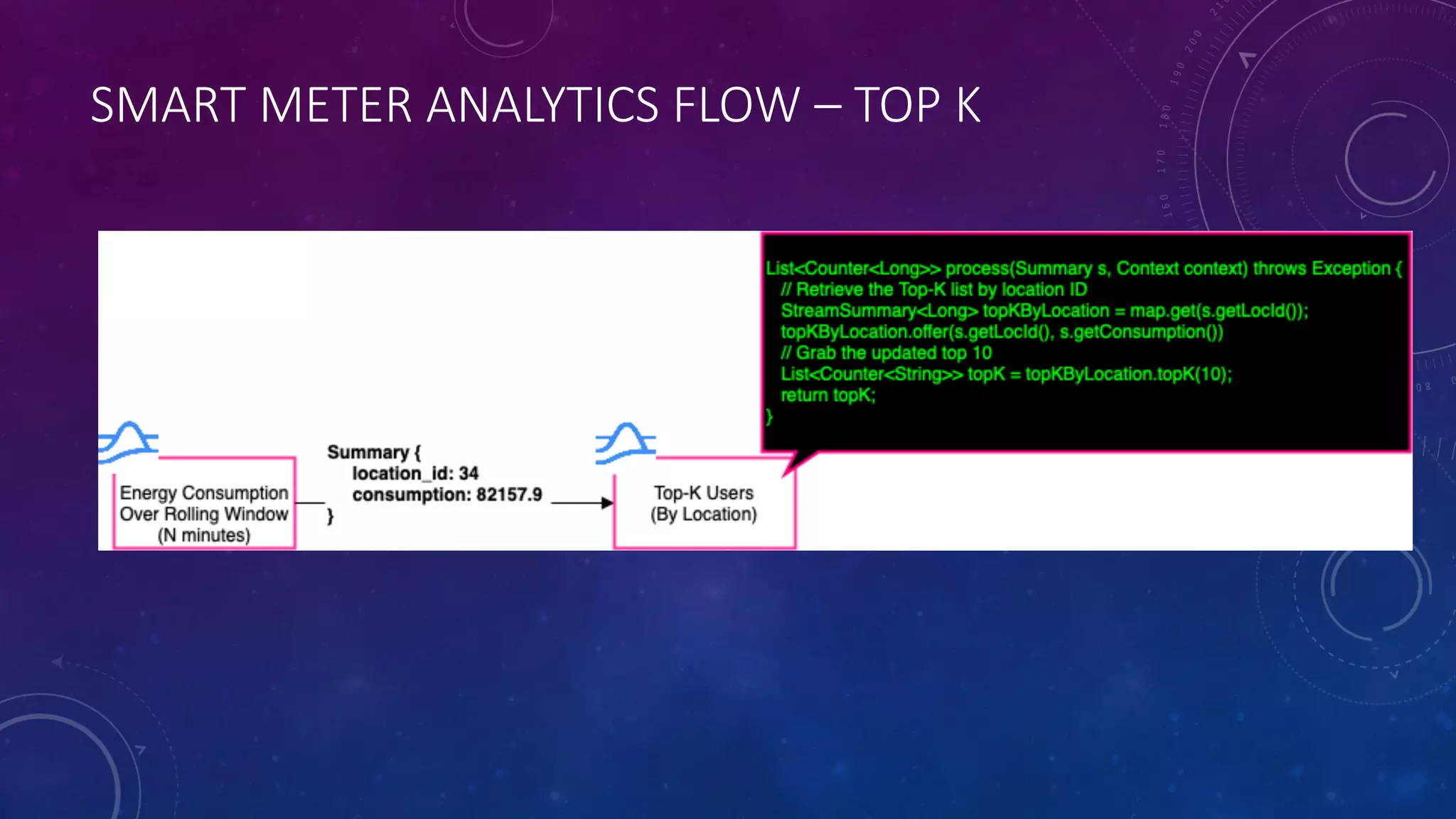

32. SMART METER ANALYTICS FLOW – TOP K

33. SUMMARY & REVIEW

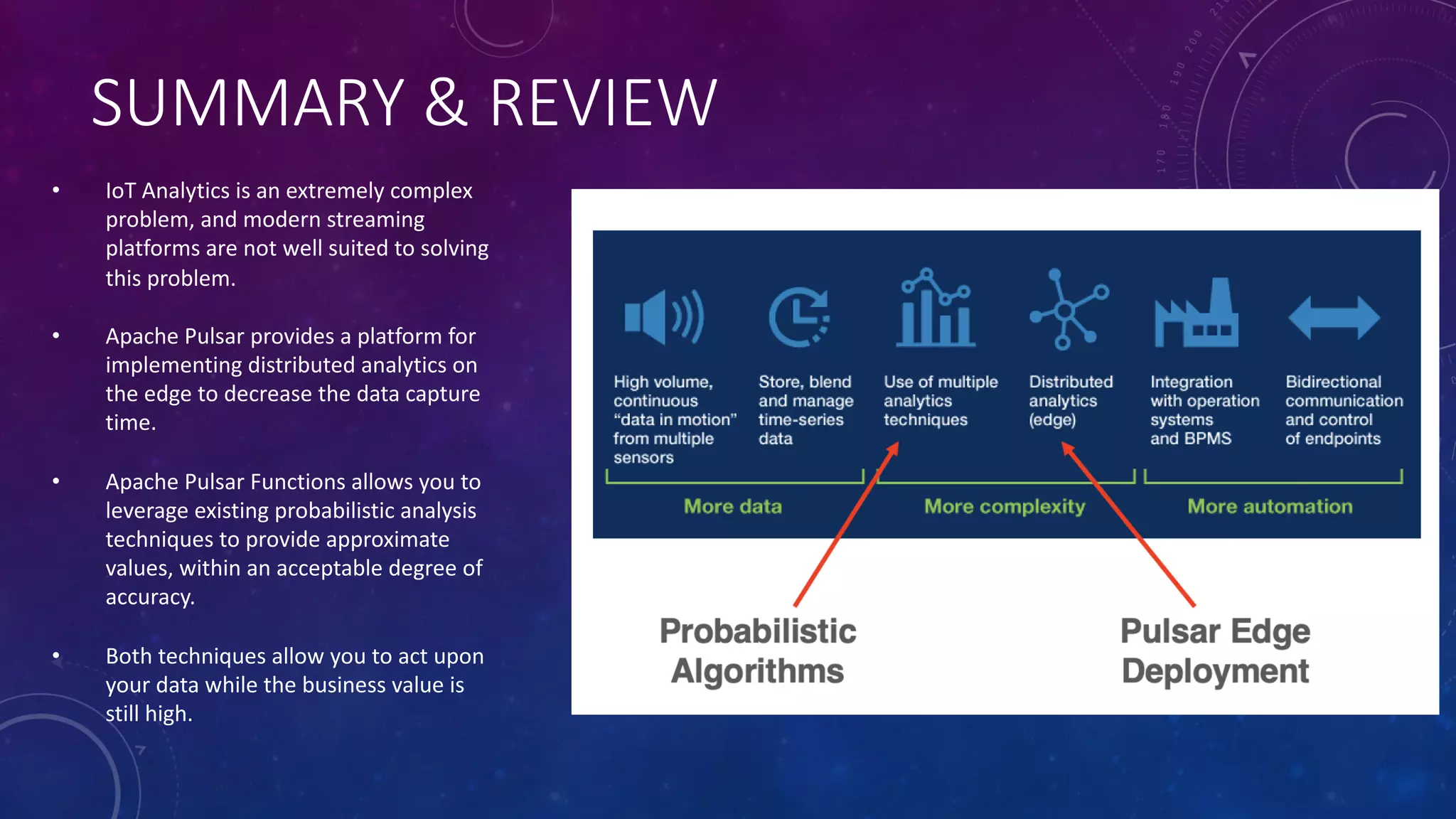

34. SUMMARY & REVIEW
• IoT Analytics is an extremely complex
problem, and modern streaming
platforms are not well suited to solving
this problem.
• Apache Pulsar provides a platform for
implementing distributed analytics on
the edge to decrease the data capture
time.
• Apache Pulsar Functions allows you to
leverage existing probabilistic analysis
techniques to provide approximate
values, within an acceptable degree of
accuracy.
• Both techniques allow you to act upon
your data while the business value is
still high.

35. Questions

36. THANK YOU
