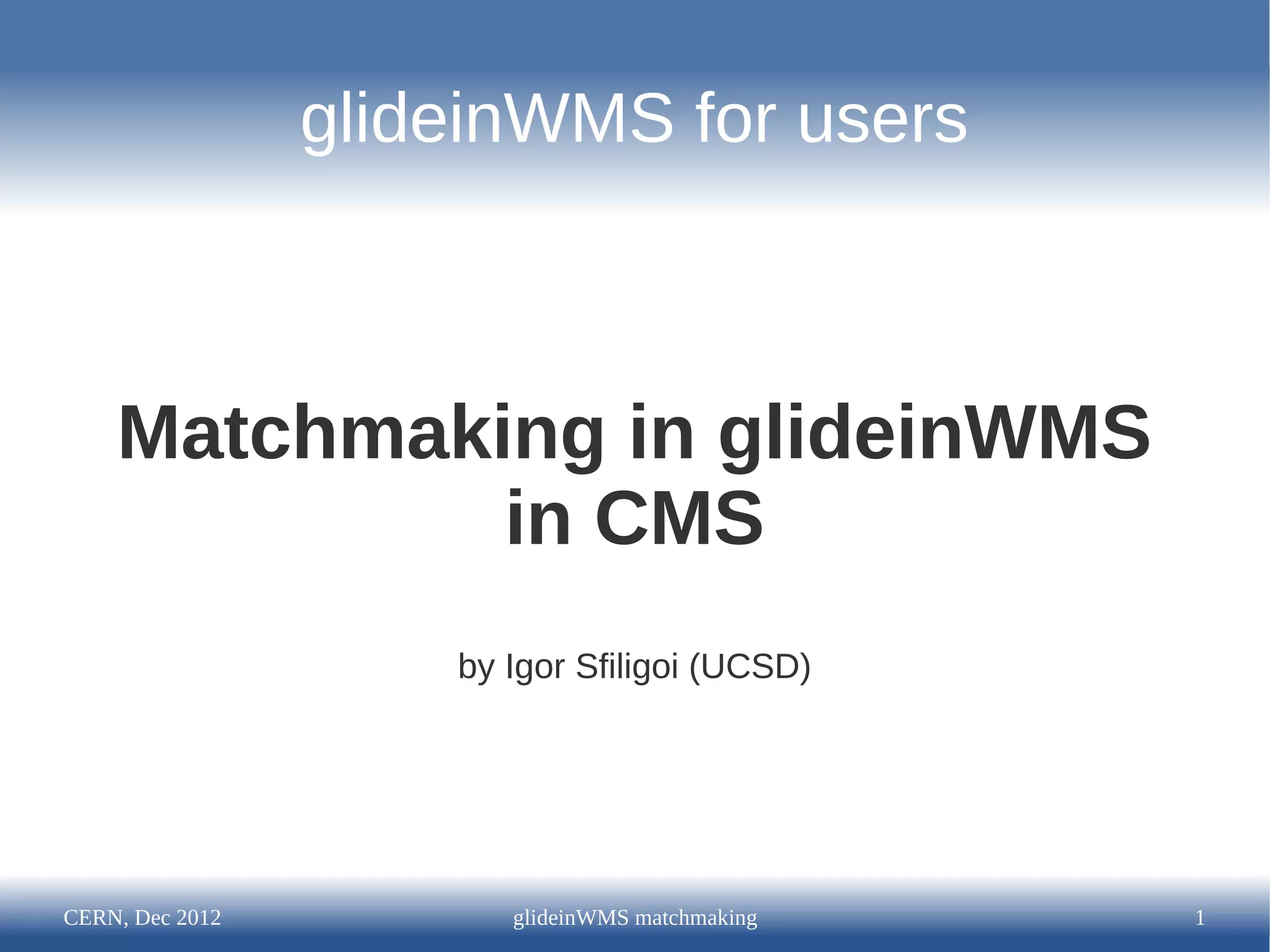

1. glideinWMS for users
Matchmaking in glideinWMS
in CMS
by Igor Sfiligoi (UCSD)
CERN, Dec 2012 glideinWMS matchmaking 1

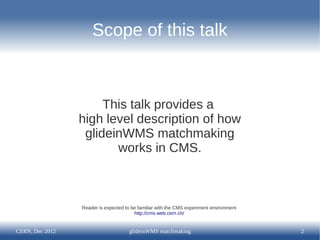

2. Scope of this talk
This talk provides a
high level description of how
glideinWMS matchmaking
works in CMS.
Reader is expected to be familiar with the CMS experiment environment
http://cms.web.cern.ch/
CERN, Dec 2012 glideinWMS matchmaking 2

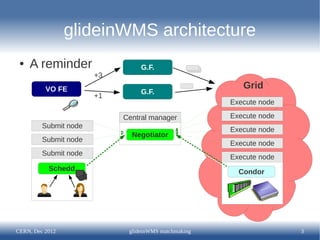

3. glideinWMS architecture
● A reminder G.F.
+3
VO FE Grid
G.F.
+1
Execute node
Central manager Execute node
Submit node
Execute node
Negotiator
Submit node
Execute node
Submit node
Execute node
Schedd Condor
CERN, Dec 2012 glideinWMS matchmaking 3

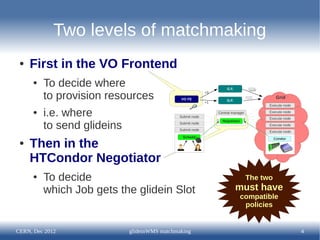

4. Two levels of matchmaking
● First in the VO Frontend
● To decide where G.F.
to provision resources VO FE
+3
+1
G.F.
Grid
Execute node
● i.e. where Submit node
Central manager Execute node
Execute node
to send glideins
Negotiator
Submit node
Execute node
Submit node
Execute node
Schedd
Then in the
Condor
●
HTCondor Negotiator
● To decide The two
which Job gets the glidein Slot must have
compatible
policies
CERN, Dec 2012 glideinWMS matchmaking 4

5. Defining the policy
● The VO FE configures the glideins
● So it can define the Slot Requirements
● Preferred strategy to leave all policy
decisions in the VO FE hands, i.e. both
● VO FE matchmaking policy Easier keep them
in sync this way
● HTCondor matchmaking policy
● This implies
● Users should not define Job Requirements
● Instead, publish attributes describing requirements
http://www.slideshare.net/igor_sfiligoi/condor-week-12-attribute-matchmaking-move-req-out-of-user-hands
CERN, Dec 2012 glideinWMS matchmaking 5

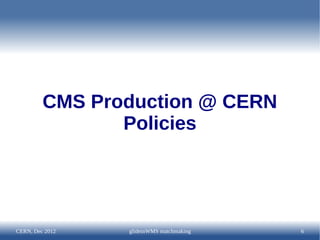

6. CMS Production @ CERN
Policies
CERN, Dec 2012 glideinWMS matchmaking 6

7. Description
● The VO FE @ CERN serves
the production needs
● i.e. Reconstruction and MC production
● Job submission regulated by service managed
by a dedicated team,
so jobs are
● Targeted
● Well behaved
At least by and large
CERN, Dec 2012 glideinWMS matchmaking 7

8. Matchmaking policy
● Two dimensions
● Grid Site
● Single CPU vs HTPC
● The actual policy is the AND of both
● Both VO FE policy and HTCondor policy
defined in the VO FE instance configuration
CERN, Dec 2012 glideinWMS matchmaking 8

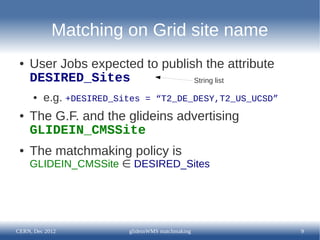

9. Matching on Grid site name
● User Jobs expected to publish the attribute
DESIRED_Sites String list
● e.g. +DESIRED_Sites = “T2_DE_DESY,T2_US_UCSD”
● The G.F. and the glideins advertising
GLIDEIN_CMSSite
● The matchmaking policy is
GLIDEIN_CMSSite ∈ DESIRED_Sites
CERN, Dec 2012 glideinWMS matchmaking 9

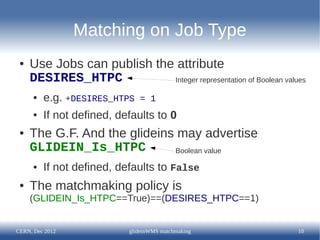

10. Matching on Job Type
● Use Jobs can publish the attribute
DESIRES_HTPC Integer representation of Boolean values
● e.g. +DESIRES_HTPS = 1
● If not defined, defaults to 0
● The G.F. And the glideins may advertise
GLIDEIN_Is_HTPC Boolean value
● If not defined, defaults to False
● The matchmaking policy is
(GLIDEIN_Is_HTPC==True)==(DESIRES_HTPC==1)
CERN, Dec 2012 glideinWMS matchmaking 10

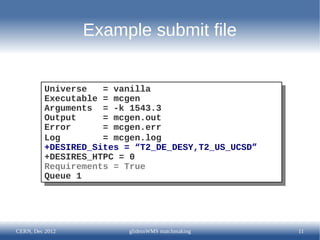

11. Example submit file
Universe
Universe = vanilla
= vanilla
Executable = mcgen
Executable = mcgen
Arguments = -k 1543.3
Arguments = -k 1543.3
Output
Output = mcgen.out
= mcgen.out
Error
Error = mcgen.err
= mcgen.err
Log
Log = mcgen.log
= mcgen.log
+DESIRED_Sites = “T2_DE_DESY,T2_US_UCSD”
+DESIRED_Sites = “T2_DE_DESY,T2_US_UCSD”
+DESIRES_HTPC = 0
+DESIRES_HTPC = 0
Requirements = True
Requirements = True
Queue 1
Queue 1
CERN, Dec 2012 glideinWMS matchmaking 11

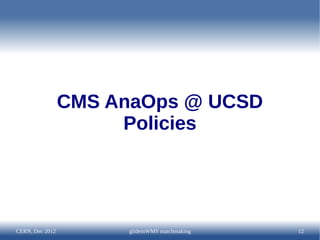

12. CMS AnaOps @ UCSD
Policies
CERN, Dec 2012 glideinWMS matchmaking 12

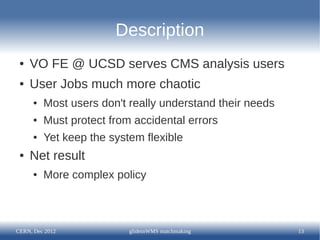

13. Description
● VO FE @ UCSD serves CMS analysis users
● User Jobs much more chaotic
● Most users don't really understand their needs
● Must protect from accidental errors
● Yet keep the system flexible
● Net result
● More complex policy
CERN, Dec 2012 glideinWMS matchmaking 13

14. Two different policies
● The AnaOps FE actually has two policies
● The Regular policy
● The Overflow policy
● The Regular policy tries to match resources
● Based on User desires
● The Overflow policy “outsmarts” the Users
● Will violate User desires without breaking the Jobs
● The aim is to finish user jobs sooner
● User can opt-out, if he wishes
CERN, Dec 2012 glideinWMS matchmaking 14

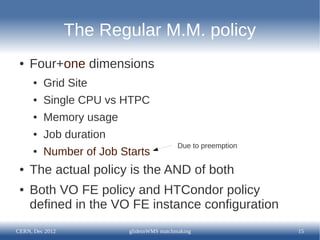

15. The Regular M.M. policy
● Four+one dimensions
● Grid Site
● Single CPU vs HTPC
● Memory usage
● Job duration
Due to preemption
● Number of Job Starts
● The actual policy is the AND of both
● Both VO FE policy and HTCondor policy
defined in the VO FE instance configuration
CERN, Dec 2012 glideinWMS matchmaking 15

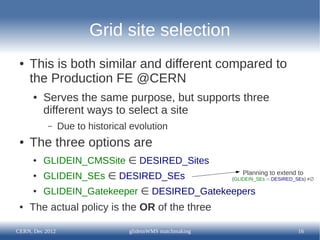

16. Grid site selection
● This is both similar and different compared to
the Production FE @CERN
● Serves the same purpose, but supports three
different ways to select a site
– Due to historical evolution
● The three options are
● GLIDEIN_CMSSite ∈ DESIRED_Sites
Planning to extend to
● GLIDEIN_SEs ∈ DESIRED_SEs (GLIDEIN_SEs ∩ DESIRED_SEs) ≠∅
● GLIDEIN_Gatekeeper ∈ DESIRED_Gatekeepers
● The actual policy is the OR of the three
CERN, Dec 2012 glideinWMS matchmaking 16

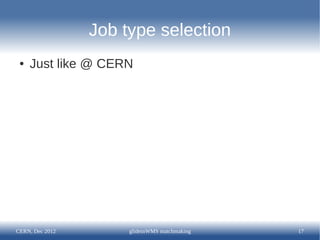

17. Job type selection
● Just like @ CERN
CERN, Dec 2012 glideinWMS matchmaking 17

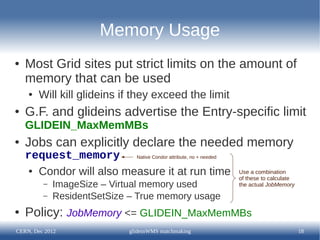

18. Memory Usage
● Most Grid sites put strict limits on the amount of
memory that can be used
● Will kill glideins if they exceed the limit
● G.F. and glideins advertise the Entry-specific limit
GLIDEIN_MaxMemMBs
● Jobs can explicitly declare the needed memory
request_memory Native Condor attribute, no + needed
● Condor will also measure it at run time Use a combination
of these to calculate
– ImageSize – Virtual memory used the actual JobMemory
– ResidentSetSize – True memory usage
● Policy: JobMemory <= GLIDEIN_MaxMemMBs
CERN, Dec 2012 glideinWMS matchmaking 18

19. Job Duration 1/2
● Glideins have a limited lifetime
● Must fit within the limits of the Grid site's queue
● Glideins publish the deadline
GLIDEIN_ToDie
– Jobs must finish before reaching the deadline
● Final user job lifetime unpredictable
● Depends on the type of computing done
● User should indicate the expected job lifetime
– Else we have to assume reasonable defaults
Not many users set
this value(s) right now
CERN, Dec 2012 glideinWMS matchmaking 19

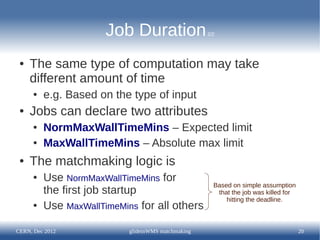

20. Job Duration 2/2
● The same type of computation may take
different amount of time
● e.g. Based on the type of input
● Jobs can declare two attributes
● NormMaxWallTimeMins – Expected limit
● MaxWallTimeMins – Absolute max limit
● The matchmaking logic is
● Use NormMaxWallTimeMins for
Based on simple assumption
the first job startup that the job was killed for
hitting the deadline.
● Use MaxWallTimeMins for all others
CERN, Dec 2012 glideinWMS matchmaking 20

21. Cut on number of re-starts
● Not really a user configurable property
● More an emergency break
● In a properly configured system,
should never be triggered
● But unexpected problems happen
● So better limit the damage
CERN, Dec 2012 glideinWMS matchmaking 21

22. The Overflow Use case
● User Jobs specify a list of sites,
because the data they need is there
● With recent versions of CMSSW, jobs can
access the data from remote
● With a small performance penalty
● We can thus schedule jobs “anywhere”
● As long as the needed data is
at a Site that has joined the xrootd federation
● But only if no CPU available “close to the data”
– And not too far, either
http://indico.cern.ch/contributionDisplay.py?contribId=381&sessionId=5&confId=149557
http://indico.cern.ch/contributionDisplay.py?contribId=232&sessionId=8&confId=149557
CERN, Dec 2012 glideinWMS matchmaking 22

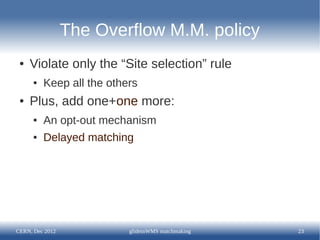

23. The Overflow M.M. policy
● Violate only the “Site selection” rule
● Keep all the others
● Plus, add one+one more:
● An opt-out mechanism
● Delayed matching
CERN, Dec 2012 glideinWMS matchmaking 23

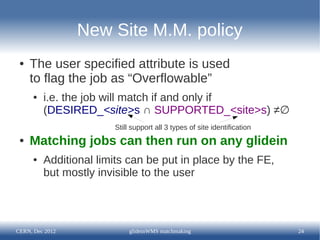

24. New Site M.M. policy
● The user specified attribute is used
to flag the job as “Overflowable”
● i.e. the job will match if and only if
(DESIRED_<site>s ∩ SUPPORTED_<site>s) ≠∅
Still support all 3 types of site identification
● Matching jobs can then run on any glidein
● Additional limits can be put in place by the FE,
but mostly invisible to the user
CERN, Dec 2012 glideinWMS matchmaking 24

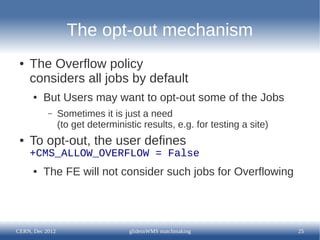

25. The opt-out mechanism
● The Overflow policy
considers all jobs by default
● But Users may want to opt-out some of the Jobs
– Sometimes it is just a need
(to get deterministic results, e.g. for testing a site)
● To opt-out, the user defines
+CMS_ALLOW_OVERFLOW = False
● The FE will not consider such jobs for Overflowing
CERN, Dec 2012 glideinWMS matchmaking 25

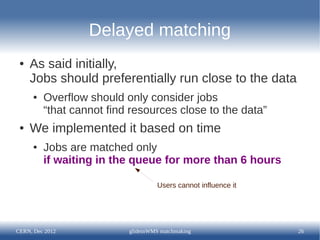

26. Delayed matching
● As said initially,
Jobs should preferentially run close to the data
● Overflow should only consider jobs
“that cannot find resources close to the data”
● We implemented it based on time
● Jobs are matched only
if waiting in the queue for more than 6 hours
Users cannot influence it
CERN, Dec 2012 glideinWMS matchmaking 26

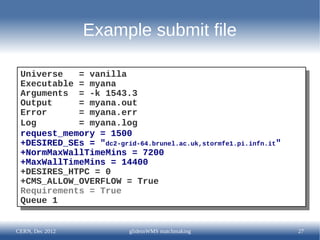

27. Example submit file
Universe
Universe = vanilla
= vanilla
Executable = myana
Executable = myana
Arguments = -k 1543.3
Arguments = -k 1543.3
Output
Output = myana.out
= myana.out
Error
Error = myana.err
= myana.err
Log
Log = myana.log
= myana.log
request_memory = 1500
request_memory = 1500
+DESIRED_SEs = "dc2-grid-64.brunel.ac.uk,stormfe1.pi.infn.it"
+DESIRED_SEs = "dc2-grid-64.brunel.ac.uk,stormfe1.pi.infn.it"
+NormMaxWallTimeMins = 7200
+NormMaxWallTimeMins = 7200
+MaxWallTimeMins = 14400
+MaxWallTimeMins = 14400
+DESIRES_HTPC = 0
+DESIRES_HTPC = 0
+CMS_ALLOW_OVERFLOW = True
+CMS_ALLOW_OVERFLOW = True
Requirements = True
Requirements = True
Queue 1
Queue 1
CERN, Dec 2012 glideinWMS matchmaking 27

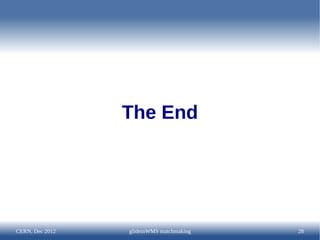

28. The End
CERN, Dec 2012 glideinWMS matchmaking 28

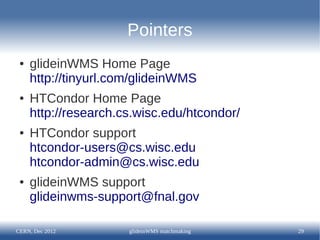

29. Pointers
● glideinWMS Home Page
http://tinyurl.com/glideinWMS
● HTCondor Home Page
http://research.cs.wisc.edu/htcondor/
● HTCondor support
htcondor-users@cs.wisc.edu
htcondor-admin@cs.wisc.edu
● glideinWMS support
glideinwms-support@fnal.gov
CERN, Dec 2012 glideinWMS matchmaking 29

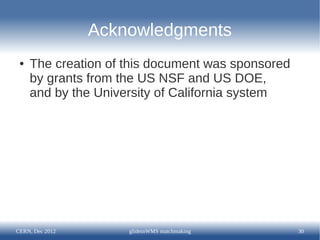

30. Acknowledgments
