Rapid-Deployment PXI based Solution to Validate/Measure the following aspects of the USB-Power Delivery v3 or v2 specification:
- BMC Baseband Modem TX and RX Eye Diagram, Cable Idle Detection and Noise Rejection capabilities for the CC Lines for any Type-C Downward Facing Port.
- Power Contract Negotiation over CC Line
- Functional Validation
- Protocol Layer, Policy Engine, Power Supply, VDM tests
- APIs Available for callability from Test Sequencers.
- Different Levels of Abstraction.
- GUI, Test, Driver, Message and Packet Formation Layers.
- Does not include USB3 Data Lines Protocol Validation. But PXI platform is scalable for this kind of enhancement.
- Both R&D and Production Test Features available. Tested well on USBPD ICs and on PD Chargers.
Beyond Boundaries: Leveraging No-Code Solutions for Industry Innovation
USB Power Delivery Functional and Compliance Test Validation Suite
1. Confidential and Proprietary
TYPE-C USB-PD Port Functional Test and
Parametric Measurement Platform
• Instantiable, Rapid-Deployment PXI Based Solution to
Validate/Measure
• BMC Baseband Modem TX and RX Eye Diagram, Cable
Idle Detection and Noise Rejection capabilities for the
CC Lines for any Type-C Downward Facing Port.
• Power Contract Negotiation over CC Line- Functional
Validation
• Protocol Layer, Policy Engine and Power Supply Tests
• Supports Rev-2 and Rev-3 of the USB-pD Spec.
• APIs Available for callability from Test Sequencers
• Does not include USB3 Data Lines Protocol Validation
(Includes Power Delivery Lines only). But PXI platform is
scalable for this kind of enhancement.
• Both R&D and Production Test Features available.
• Solution tested on USBPD ICs and on PD Chargers
2. Confidential and Proprietary

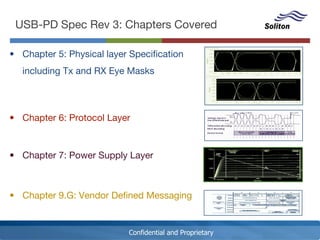

USB-PD Spec Rev 3: Chapters Covered
• Chapter 5: Physical layer Specification
including Tx and RX Eye Masks
• Chapter 6: Protocol Layer
• Chapter 7: Power Supply Layer
• Chapter 9.G: Vendor Defined Messaging
3. Instrument Stackup:
● Power Supply DC and AC tests
● Timing Response tests to USB_PD
Commands
● PD spec compliance power negotiation (CC)
lines
● Physical layer testsDUT Family:
USB-PD Port Controller or Charger
7
9
6
5
/
6
S
M
U
S
M
U
DUT
5781/3
4. Confidential and Proprietary
Soliton USBPD Suite Software Architecture
FPGA Based PD
Protocol Engine
Scriptable API Library-
Sequencing- Friendly and
Modular
Off the Shelf Tests
User Defined Tests
Abstraction
around NI DC
Power Drivers
5. Confidential and Proprietary
Software Components
• LabVIEW Wrapper GUI that
demonstrates a test sequence
with selectable and Configurable
Tests. (Or can use TestStand)
• LabVIEW API and Palette
organized by varying
levels of abstraction
6. Confidential and Proprietary
Soliton USBPD Suite Differentiators
Protocol Compliance
Fault Behavior (using API)
Integration with non-PD Tests
Compactness, Ruggedness
R&D Validation Production Test
7. Confidential and Proprietary

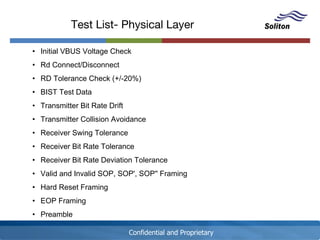

Test List- Physical Layer
• Initial VBUS Voltage Check
• Rd Connect/Disconnect
• RD Tolerance Check (+/-20%)
• BIST Test Data
• Transmitter Bit Rate Drift
• Transmitter Collision Avoidance
• Receiver Swing Tolerance
• Receiver Bit Rate Tolerance
• Receiver Bit Rate Deviation Tolerance
• Valid and Invalid SOP, SOP', SOP'' Framing
• Hard Reset Framing
• EOP Framing
• Preamble
8. Confidential and Proprietary

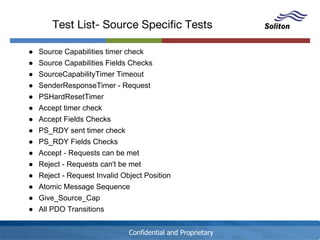

Test List- Source Specific Tests
● Source Capabilities timer check
● Source Capabilities Fields Checks
● SourceCapabilityTimer Timeout
● SenderResponseTimer - Request
● PSHardResetTimer
● Accept timer check
● Accept Fields Checks
● PS_RDY sent timer check
● PS_RDY Fields Checks
● Accept - Requests can be met
● Reject - Requests can't be met
● Reject - Request Invalid Object Position
● Atomic Message Sequence
● Give_Source_Cap
● All PDO Transitions
9. Confidential and Proprietary

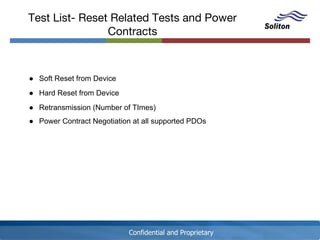

Test List- Reset Related Tests and Power
Contracts
● Soft Reset from Device
● Hard Reset from Device
● Retransmission (Number of TImes)
● Power Contract Negotiation at all supported PDOs
10. Confidential and Proprietary
Bangalore
Milwaukee
Coimbatore
Dallas

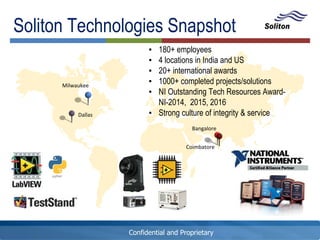

Soliton Technologies Snapshot
▪ 180+ employees
▪ 4 locations in India and US
▪ 20+ international awards
▪ 1000+ completed projects/solutions
▪ NI Outstanding Tech Resources Award-
NI-2014, 2015, 2016
▪ Strong culture of integrity & service
