1. URBAN DESIGN STUDIO
URBAN FABRIC OBSERVATION
( THROUGH MOVIE )
BY:
BIMENPREET KAUR
PRERNA SHARMA
PRIYAL AGARWAL

2. JOHN WICK
The shooting locations of this movie are:
❖ MANHATTAN, NEW YORK
❖ MONTREAL, CANADA

3. MANHATTAN, NEW YORK
RECTANGULAR GRID PATTERN PLANNING

4. VEHICULAR
PEDESTRIAN
BROOKLYN BRIDGE
CYCLE TRACK

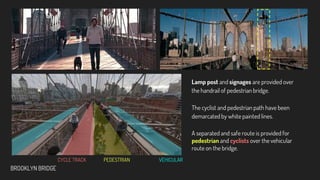

A separated and safe route is provided for
pedestrian and cyclists over the vehicular
route on the bridge.
Lamp post and signages are provided over
the handrail of pedestrian bridge.
The cyclist and pedestrian path have been
demarcated by white painted lines.

5. VEHICULAR
RAILWAY TRACK
MANHATTAN BRIDGE , NEW YORK
CYCLE TRACK
The bridge caters to three different
types of movements.

6. Pedestrian path is provided on both sides of the street.
Street light poles are provided towards one side of the
street
Dropped kerb and signages provided along the
crossing

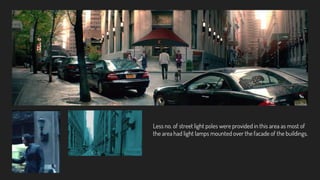

7. Less no. of street light poles were provided in this area as most of
the area had light lamps mounted over the facade of the buildings.

8. Wide area is provided around the trees in the pavement which is covered with
perforated mesh :
● So that water can penetrate to the roots of the trees easily.
● Mesh helps to keep the soil settled to the level of the paved area

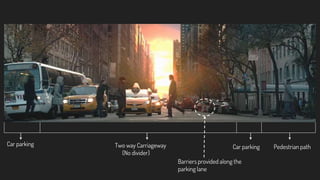

9. Two way Carriageway
(No divider)
Car parking
Car parking Pedestrian path
Barriers provided along the
parking lane

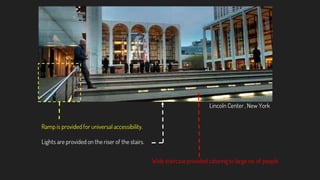

10. Ramp is provided for universal accessibility.
Lights are provided on the riser of the stairs.
Lincoln Center , New York
Wide staircase provided catering to large no. of people

11. Fountain at the center of the plaza
Circular seating is provided around the fountain ( looks
like a floating ring )
Lighting is provided on the fountain and on the pillars of the
surrounding buildings only .

12. Bollards are provided along pedestrian path on one side
Cycle track and vehicular lane division is demarcated through
white lines.
Colour contrast is noticed in the materials of the pedestrian
path and vehicular area

13. ● This area connects to the arcade on one side and to the park on the other side
● Only staircase is provided for vertical circulation (not universally accessible)
● Two levels are united by two grand staircases and a lesser one that passes under the road
● Public plaza is connected to the road above through staircase

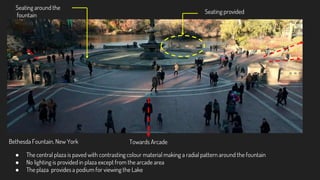

14. Bethesda Fountain, New York
Seating provided
Seating around the
fountain
Towards Arcade
● The central plaza is paved with contrasting colour material making a radial pattern around the fountain
● No lighting is provided in plaza except from the arcade area
● The plaza provides a podium for viewing the Lake

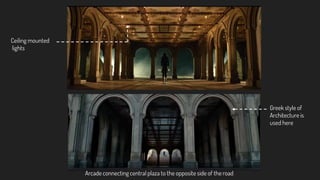

15. Arcade connecting central plaza to the opposite side of the road
Greek style of
Architecture is
used here
Ceiling mounted
lights

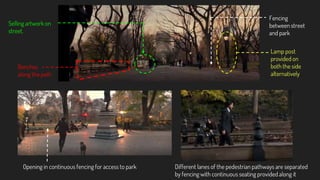

16. Selling artwork on
street.
Fencing
between street
and park
Lamp post
provided on
both the side
alternatively
Opening in continuous fencing for access to park
Benches
along the path
Different lanes of the pedestrian pathways are separated
by fencing with continuous seating provided along it

17. Traffic light poles along the
streets have led light strips
mounted over it to ensure
visibility
MONTREAL, CANADA

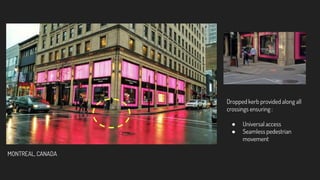

18. Dropped kerb provided along all
crossings ensuring :
● Universal access
● Seamless pedestrian
movement
MONTREAL, CANADA

19. Outdoor cafe seating area tends
to cover some portion of the
sidewalk and car parking.
Planters are provided along the
cafe seating area to segregate it
from the carriage-way
Parklets were provided along the sidewalks

20. MONTREAL SUBWAY
CONNECTING METRO STATION
The subway in the metro station where there is
light display.
It gives vibrant effect during the dark time.

21. Walkway is made vibrant through different coloured
light installations
