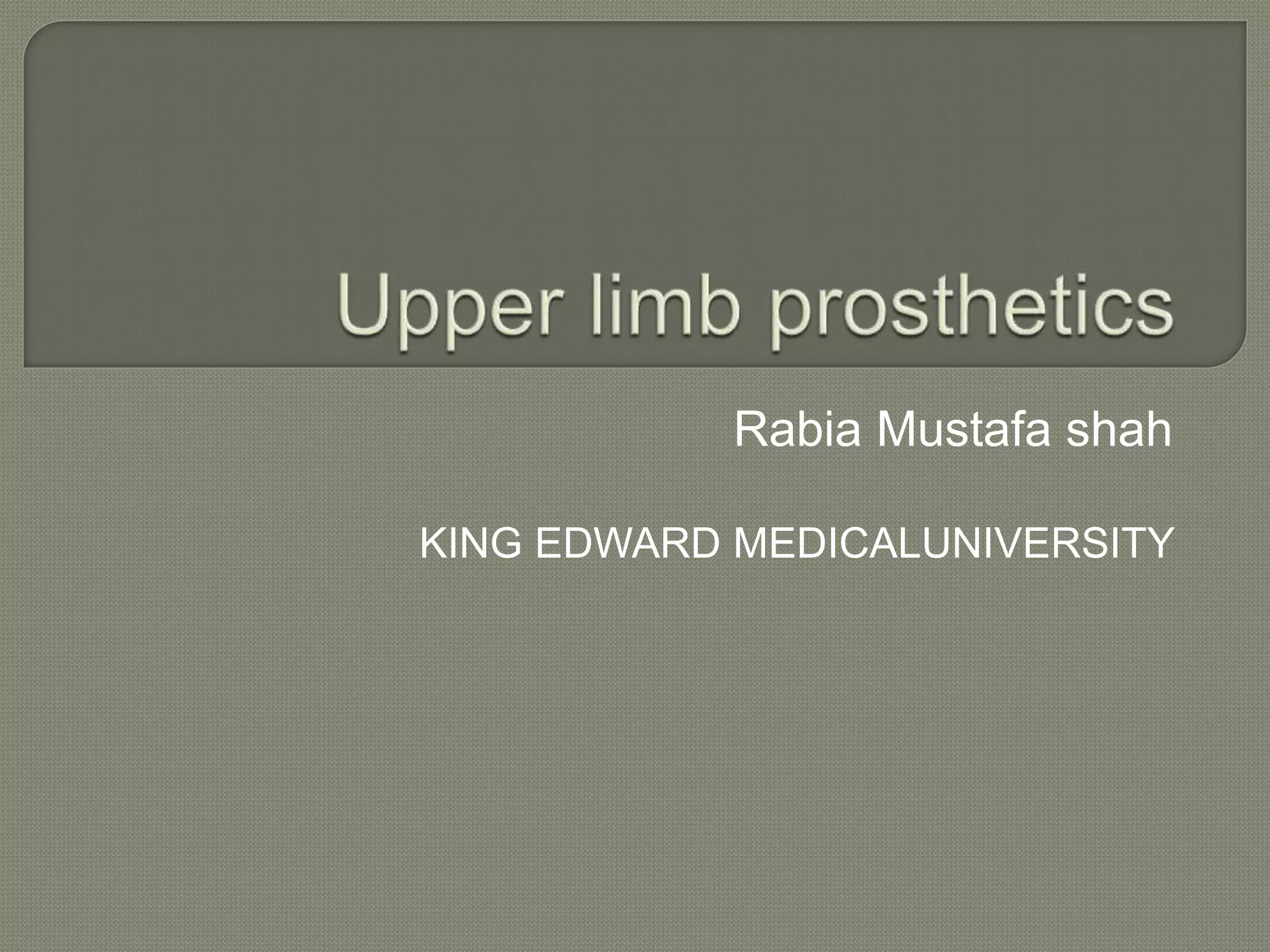

Rabia Mustafa shah
KING EDWARD MEDICALUNIVERSITY
Prior to antiseptic surgery and
antimicrobial drugs many amputations
of the limb were caused by fractures .
Although amputations of the upper limb
may be presumed to have occurred
from very early times the first record of
an artificial device used for an upper
limb amputation is thought to have
come from the second Punic war 218-
201 BC
6000 to 10,000 major amputations of
upper limb occur every year in united
states .
Upper limb amputations with hand loss
is extremely devastating , upper limb
traumatic amputations occur twice as
frequently as traumatic amputations of
lower limb
1- trauma
Trauma is undoubtedly the largest producer of upper limb
amputations and can include fractures , electrical ,
thermal burns , frostbite and machine injuries
2 - Tumor
Significant improvements in cancer detection and treatment
in recent decades are believe to have resulted in gradual
decline in upper limb amputations
3- Disease
Major limb amputations have been reported for vascular
complications secondary to infections produced by drugs
injected into back of hand or into wed spaces of digits.
Partial hand amputations may be
considered to be any number of
amputations involving any or all of
digits or the radial or ulnar border of
the hand.
The wrist disarticulation level
amputation is usually performed
when the partial hand residual limb
is without thumb or fingers and
when the motions afforded by the
wrist and palm of the hands has
virtually nothing to oppose it.
According to Taylor s’ a long trans
radial amputation is defined as 8 to
10 inches from the centre of lateral
Epicondyle to the end of the residual
limb
. Amputation at the level of elbow
disarticulation is performed for a
variety of reasons.
The long or standard trans
humeral amputation is defined as
one of 50 to 90% of the length of a
normal humeurs and is usually the
level of choice for amputation
above the elbow .
Shoulder disarticulation may be
defined as any amputation of the
arm from approximately 30% of the
humeurs through the shoulder joint
Shoulder disarticulation is usually
performed because of tumor . In the
forequarter the clavicle and scapula
are usually sacrificed as well as the
entire length of the humeurs and the
rest of the arm.
1. Body powered prosthesis
2. Electrically powered prosthesis
(Myoelectric prosthesis)
3. Hybrid prosthesis
4. Activity specific prosthesis
 Body-powered prostheses represent a
common type of prosthesis.
 These body-powered devices are durable
, often weigh less than their electrical
counterparts.
 Their mechanics depend on
proprioceptive feedback through the
harness system.
 Disadvantages of a body-powered
prosthesis revolve around the restrictive
nature of its design. The harness, which is
required for functionality and suspension,
limits the range of motion and functional
envelope of the individual.
 The functional envelope refers to the
range of motion around a person’s body
in which he or she can operate the
prosthesis without limiting or affecting
the function of the contralateral limb.
 When a patient uses a prosthesis outside
the functional envelope, it becomes
difficult to operate a terminal device
without having to use gross body
motion.
 Long-term use of a body-powered
prosthesis can accelerate shoulder
issues and anterior muscle imbalances
and lead to nerve entrapment within the
contralateral axilla.
The electrically powered
prosthesis provides more grip
force and enhanced functional
envelope, while reducing or
eliminating the overall harnessing
necessary with a body-powered
prosthesis.
Many different designs are
available. The term Myoelectric
commonly is associated with
electrical prostheses even though
other electrical control modalities.
These include Myoelectrodes,
switches, slider-type input devices
( linear, transducers, or
potentiometers) and force-sensing
resistors (or touch pads).
 Myoelectrodes collect and filter
surface electromyogram signals
generated through muscle
contractions and convert those
signals into a form that can influence
electrical motors.
 Muscle sites are based primarily on
the level of amputation and socket
design. It typically include the
anterior deltoid, biceps, wrist flexors,
posterior deltoid, infraspinatus, teres
major, triceps, and wrist extensors.
Any muscle that plays a reverse
action or postural role should be
evaluated carefully to avoid
unwanted muscle contraction.
A common example would be use
of the trapezius for a Myoelectric
control site. Another area of
concern is using a muscle for
Myoelectric control that is in close
proximity to cardiac muscle.
A variety of motions are possible
through different kinds of switching
devices.
 Many switches are activated by
pulling a cable or pressing a
button.
Switches are designed to perform
multiple functions and come in
many presentations. Harness-type
switches rely on some type of pull
to move the switch.
 Depressing the switch with a chin,
phocomelic finger, residual limb, or
contralateral hand moves another
type of switch, often referred to as a
push switch.
 A push switch may be placed distal
to the axilla on the inner side of the
person’s forearm on a transradial
level amputee and activated by
humeral abduction.
 More advanced switches are found
in multiposition types of applications
 Slider-type input devices convert distance,
speed, or force into proportional movement
of a prosthetic limb.
 As a result, feedback enhances
proprioception.
 Slider-type input devices come in two
varieties , the linear type of potentiometer is
a input device that translates linear motion
or into proportional function. Examples of
this input device is the Linear Potentiometer.
 The second variety is the force-sensing type
, such as Motion Control.
 Some electrical prostheses employ a force-
sensing Resistor . These types of input
devices consist of a force-sensing resistor
matrix.
 The amputee activates the force-sensing
resistor by moving the shoulder complex, a
phocomelic finger, residual humeral neck, or
other residual anatomy.
 It reduces the incidence of phantom limb pain
 Special care is require in force-sensing
resistors , Improper installation results in
premature failure and greater expense and can
produce uncomfortable perspiration,
moisture, and uneven shear force.
 The hybrid prosthesis combines the
benefits of body-powered and electrical
styles.
 This type of design allows simultaneous
control of the elbow and terminal device
and most commonly is simplified with the
use of a body-powered elbow , electrical
terminal device and wrist.
 In some cases, an amputee may choose a
fully conventional system with an
electronic wrist, but not usually as the first
option.
 The last prosthetic option is that of the activity-
specific prosthesis. This type of prosthesis is
designed for a specific activity where more
typical prosthetic options are not sufficient.
 Patients use this custom device successfully
for activities such as gardening, weightlifting,
and skydiving.
 These special prostheses allow patients to
resume meaningful activities and help life
‘‘return to normal’’ in a tangible way. These
devices also physically show to the amputee’s
family and friends that he or she is capable of
doing many diverse activities
Current advances in upper limb
technology can be divided into five
categories,
 Treatment protocol
 Prosthetic interface
Microprocessor technology
 Terminal devices
This process involves fitting the patient
within 2 to 3 days, then following the
patient consistently through
occupational therapy
 This close interaction allows clinicians
to evaluate better the interface,
component choice , use and
therapeutic issues.
 A major determining factor of whether a patient will
use a prosthesis comfortably is the design of
prosthetic interface.
 One type of interface method is beginning to be used
more frequently in upper limb prosthetics the roll-on
suction suspension liner.
 This design helps provide a positive type of
suspension, while eliminating suspension
harnessing, which allows the incorporation of more
functional control harnessing.
 Roll-on liners can be used with all type of
prostheses, including Myoelectric prostheses
A suction-type design is used to
stabilize the residual limb at the
contours of Epicondyle.
The transradial anatomic
contoured socket contours the
muscles of the residual limb and
maintains a suspension that
incorporates the benefits of the
mediolateral and anterior-posterior
contours of the residual limb.
Currently, microprocessor technology
influences terminal device control wrist
and elbow functions, and other options,
such as shoulder joint locking and
unlocking, remote on-and-off control,
and sensory feedback.
The microprocessor enhances input
characteristics to produce the desired
output optimizing prosthetic function
and increasing overall ease of use.
Two breakthroughs in terminal
device technology have had a
significant impact on the future of
electronic prostheses.
 The first is the introduction of
water/dust resistant components.
These new components function
better in the real world and have
fewer moisture-related problems.
 The second major development is
that of speed.

More Related Content

What's hot

Upper limb functional prosthesis
Upper limb functional prosthesisUpper limb functional prosthesis
Upper limb functional prosthesisTauseef Hassan

Lower Limb Orthotics - Dr Rajendra Sharma
Lower Limb Orthotics - Dr Rajendra SharmaLower Limb Orthotics - Dr Rajendra Sharma
Lower Limb Orthotics - Dr Rajendra Sharmamrinal joshi

Lower Limbs Prosthesis
Lower Limbs Prosthesis Lower Limbs Prosthesis
Lower Limbs Prosthesis nawan_junior

Prosthesis and orthotics
Prosthesis and orthoticsProsthesis and orthotics
Prosthesis and orthoticsorthoprince

Upper Limb Orthotics - Dr Sanjay Wadhwa
Upper Limb Orthotics - Dr Sanjay WadhwaUpper Limb Orthotics - Dr Sanjay Wadhwa
Upper Limb Orthotics - Dr Sanjay Wadhwamrinal joshi

PROSTHETICS KNEE JOINTS.ppt
PROSTHETICS KNEE JOINTS.pptPROSTHETICS KNEE JOINTS.ppt
PROSTHETICS KNEE JOINTS.pptSundayNdomba

KNEE ANKLE FOOT ORTHOSIS.pptx
KNEE ANKLE FOOT ORTHOSIS.pptxKNEE ANKLE FOOT ORTHOSIS.pptx
KNEE ANKLE FOOT ORTHOSIS.pptxSundayNdomba

Physiotherapy Rehab After Total Hip Replacement
Physiotherapy Rehab After Total Hip ReplacementPhysiotherapy Rehab After Total Hip Replacement
Physiotherapy Rehab After Total Hip ReplacementMozammal Rabby

Biomechanics of Quadrilateral socket
Biomechanics of Quadrilateral socketBiomechanics of Quadrilateral socket
Biomechanics of Quadrilateral socketShishir Bin

Lower limb orthosis
Lower limb orthosis Lower limb orthosis
Lower limb orthosis Rutuja Solkar

LOWER LIMB PROSTHETIC CHECKOUTS
LOWER LIMB PROSTHETIC CHECKOUTSLOWER LIMB PROSTHETIC CHECKOUTS
LOWER LIMB PROSTHETIC CHECKOUTSAbey P Rajan

Principles of-tendon-transfers
Principles of-tendon-transfersPrinciples of-tendon-transfers
Principles of-tendon-transfersdrpouriamoradi


What's hot (20)

Upper limb functional prosthesis
Upper limb functional prosthesisUpper limb functional prosthesis
Upper limb functional prosthesis

Lower Limb Orthotics - Dr Rajendra Sharma
Lower Limb Orthotics - Dr Rajendra SharmaLower Limb Orthotics - Dr Rajendra Sharma
Lower Limb Orthotics - Dr Rajendra Sharma

Lower Limbs Prosthesis
Lower Limbs Prosthesis Lower Limbs Prosthesis
Lower Limbs Prosthesis

Orthosis of hand ppt
Orthosis of hand pptOrthosis of hand ppt
Orthosis of hand ppt

Prosthesis and orthotics
Prosthesis and orthoticsProsthesis and orthotics
Prosthesis and orthotics

Orthosis
OrthosisOrthosis
Orthosis

Upper Limb Orthotics - Dr Sanjay Wadhwa
Upper Limb Orthotics - Dr Sanjay WadhwaUpper Limb Orthotics - Dr Sanjay Wadhwa
Upper Limb Orthotics - Dr Sanjay Wadhwa

PROSTHETICS KNEE JOINTS.ppt
PROSTHETICS KNEE JOINTS.pptPROSTHETICS KNEE JOINTS.ppt
PROSTHETICS KNEE JOINTS.ppt

KNEE ANKLE FOOT ORTHOSIS.pptx
KNEE ANKLE FOOT ORTHOSIS.pptxKNEE ANKLE FOOT ORTHOSIS.pptx
KNEE ANKLE FOOT ORTHOSIS.pptx

Wheelchair ppt
Wheelchair pptWheelchair ppt
Wheelchair ppt

Physiotherapy Rehab After Total Hip Replacement
Physiotherapy Rehab After Total Hip ReplacementPhysiotherapy Rehab After Total Hip Replacement
Physiotherapy Rehab After Total Hip Replacement

Biomechanics of Quadrilateral socket
Biomechanics of Quadrilateral socketBiomechanics of Quadrilateral socket
Biomechanics of Quadrilateral socket

Spinal orthosis
Spinal orthosisSpinal orthosis
Spinal orthosis

Lower limb prosthesis
Lower limb prosthesisLower limb prosthesis
Lower limb prosthesis

Lower limb orthosis
Lower limb orthosis Lower limb orthosis
Lower limb orthosis

HKAFO
HKAFOHKAFO
HKAFO

LOWER LIMB PROSTHETIC CHECKOUTS
LOWER LIMB PROSTHETIC CHECKOUTSLOWER LIMB PROSTHETIC CHECKOUTS
LOWER LIMB PROSTHETIC CHECKOUTS

Orthosis by Dr. Sandhya Dhokia
Orthosis by Dr. Sandhya DhokiaOrthosis by Dr. Sandhya Dhokia
Orthosis by Dr. Sandhya Dhokia

Prosthesis principle
Prosthesis principleProsthesis principle
Prosthesis principle

Principles of-tendon-transfers
Principles of-tendon-transfersPrinciples of-tendon-transfers
Principles of-tendon-transfers


Similar to Upper limb prosthesis

IRJET- Artificial Intelligence ARM- Review
IRJET- Artificial Intelligence ARM- ReviewIRJET- Artificial Intelligence ARM- Review
IRJET- Artificial Intelligence ARM- ReviewIRJET Journal

Electric terminal devices
Electric terminal devicesElectric terminal devices
Electric terminal devicesPOLY GHOSH

Electric terminal devices
Electric terminal devicesElectric terminal devices
Electric terminal devicesPOLY GHOSH

IRJET - Advancement of the Adjustable and Modest 3D Printed Prosthetic AR...
IRJET -  	  Advancement of the Adjustable and Modest 3D Printed Prosthetic AR...IRJET -  	  Advancement of the Adjustable and Modest 3D Printed Prosthetic AR...
IRJET - Advancement of the Adjustable and Modest 3D Printed Prosthetic AR...IRJET Journal

Limb Prosthetic ,types of limb Prosthetic
Limb Prosthetic ,types of limb ProstheticLimb Prosthetic ,types of limb Prosthetic
Limb Prosthetic ,types of limb ProstheticRahul Aade

Prosthetic Arm for Amputees
Prosthetic Arm for AmputeesProsthetic Arm for Amputees
Prosthetic Arm for Amputeesvivatechijri

NET 2014-Myoelectric Prosthetic Hand with Air muscles
NET 2014-Myoelectric Prosthetic Hand with Air musclesNET 2014-Myoelectric Prosthetic Hand with Air muscles
NET 2014-Myoelectric Prosthetic Hand with Air musclesRosemary James T

Rehabilitation of Upper Limb Amputee
Rehabilitation of Upper Limb AmputeeRehabilitation of Upper Limb Amputee
Rehabilitation of Upper Limb AmputeeRaghav Shrotriya

IRJET- Exoskeleton Arm for Therapeutic Applications and Augmented Strength
IRJET- Exoskeleton Arm for Therapeutic Applications and Augmented StrengthIRJET- Exoskeleton Arm for Therapeutic Applications and Augmented Strength
IRJET- Exoskeleton Arm for Therapeutic Applications and Augmented StrengthIRJET Journal

Lecture 1;TRANSTIBIA PROSTHETICS-1.ppt
Lecture 1;TRANSTIBIA PROSTHETICS-1.pptLecture 1;TRANSTIBIA PROSTHETICS-1.ppt
Lecture 1;TRANSTIBIA PROSTHETICS-1.pptSundayNdomba

NET Paper no 63-Myoelectric Prosthetic Hand with Air muscles
NET Paper no 63-Myoelectric Prosthetic Hand with Air musclesNET Paper no 63-Myoelectric Prosthetic Hand with Air muscles
NET Paper no 63-Myoelectric Prosthetic Hand with Air musclesRosemary James T

Upper limb prostheses
Upper limb prosthesesUpper limb prostheses
Upper limb prosthesesJoe Antony


Similar to Upper limb prosthesis (20)

IRJET- Artificial Intelligence ARM- Review
IRJET- Artificial Intelligence ARM- ReviewIRJET- Artificial Intelligence ARM- Review
IRJET- Artificial Intelligence ARM- Review

Research
ResearchResearch
Research

Final report 1_ _1_
Final report  1_ _1_Final report  1_ _1_
Final report 1_ _1_

Prosthetics
ProstheticsProsthetics
Prosthetics

Electric terminal devices
Electric terminal devicesElectric terminal devices
Electric terminal devices

Electric terminal devices
Electric terminal devicesElectric terminal devices
Electric terminal devices

IRJET - Advancement of the Adjustable and Modest 3D Printed Prosthetic AR...
IRJET -  	  Advancement of the Adjustable and Modest 3D Printed Prosthetic AR...IRJET -  	  Advancement of the Adjustable and Modest 3D Printed Prosthetic AR...
IRJET - Advancement of the Adjustable and Modest 3D Printed Prosthetic AR...

Limb Prosthetic ,types of limb Prosthetic
Limb Prosthetic ,types of limb ProstheticLimb Prosthetic ,types of limb Prosthetic
Limb Prosthetic ,types of limb Prosthetic

Laparoscopic Dissection Techniques
Laparoscopic Dissection TechniquesLaparoscopic Dissection Techniques
Laparoscopic Dissection Techniques

Prosthetic Arm for Amputees
Prosthetic Arm for AmputeesProsthetic Arm for Amputees
Prosthetic Arm for Amputees

NET 2014-Myoelectric Prosthetic Hand with Air muscles
NET 2014-Myoelectric Prosthetic Hand with Air musclesNET 2014-Myoelectric Prosthetic Hand with Air muscles
NET 2014-Myoelectric Prosthetic Hand with Air muscles

V01 i010409
V01 i010409V01 i010409
V01 i010409

Rehabilitation of Upper Limb Amputee
Rehabilitation of Upper Limb AmputeeRehabilitation of Upper Limb Amputee
Rehabilitation of Upper Limb Amputee

Prosthetic hand ppt
Prosthetic hand pptProsthetic hand ppt
Prosthetic hand ppt

Medical-Robotics
Medical-RoboticsMedical-Robotics
Medical-Robotics

IRJET- Exoskeleton Arm for Therapeutic Applications and Augmented Strength
IRJET- Exoskeleton Arm for Therapeutic Applications and Augmented StrengthIRJET- Exoskeleton Arm for Therapeutic Applications and Augmented Strength
IRJET- Exoskeleton Arm for Therapeutic Applications and Augmented Strength

Lecture 1;TRANSTIBIA PROSTHETICS-1.ppt
Lecture 1;TRANSTIBIA PROSTHETICS-1.pptLecture 1;TRANSTIBIA PROSTHETICS-1.ppt
Lecture 1;TRANSTIBIA PROSTHETICS-1.ppt

NET Paper no 63-Myoelectric Prosthetic Hand with Air muscles
NET Paper no 63-Myoelectric Prosthetic Hand with Air musclesNET Paper no 63-Myoelectric Prosthetic Hand with Air muscles
NET Paper no 63-Myoelectric Prosthetic Hand with Air muscles

Elecrosurgery in hysteroscopy
Elecrosurgery in hysteroscopyElecrosurgery in hysteroscopy
Elecrosurgery in hysteroscopy

Upper limb prostheses
Upper limb prosthesesUpper limb prostheses
Upper limb prostheses


More from Ainaa Khan

Pathological gait
Pathological gaitPathological gait
Pathological gaitAinaa Khan

Orthotic treatment of polio myelitis
Orthotic treatment of polio myelitisOrthotic treatment of polio myelitis
Orthotic treatment of polio myelitisAinaa Khan

Neural tube defects
Neural tube defectsNeural tube defects
Neural tube defectsAinaa Khan

Deformities related to cerebral palsy and their orthotic
Deformities related to cerebral palsy and their orthoticDeformities related to cerebral palsy and their orthotic
Deformities related to cerebral palsy and their orthoticAinaa Khan

Calcaneus fracture
Calcaneus fractureCalcaneus fracture
Calcaneus fractureAinaa Khan

Anatomy and physiology of muscle
Anatomy and physiology of muscleAnatomy and physiology of muscle
Anatomy and physiology of muscleAinaa Khan


More from Ainaa Khan (10)

Torticollis
TorticollisTorticollis
Torticollis

Spinal cord
Spinal cordSpinal cord
Spinal cord

Scoilosis
ScoilosisScoilosis
Scoilosis

Pathological gait
Pathological gaitPathological gait
Pathological gait

Orthotic treatment of polio myelitis
Orthotic treatment of polio myelitisOrthotic treatment of polio myelitis
Orthotic treatment of polio myelitis

Neural tube defects
Neural tube defectsNeural tube defects
Neural tube defects

Fixed pulley
Fixed pulleyFixed pulley
Fixed pulley

Deformities related to cerebral palsy and their orthotic
Deformities related to cerebral palsy and their orthoticDeformities related to cerebral palsy and their orthotic
Deformities related to cerebral palsy and their orthotic

Calcaneus fracture
Calcaneus fractureCalcaneus fracture
Calcaneus fracture

Anatomy and physiology of muscle
Anatomy and physiology of muscleAnatomy and physiology of muscle
Anatomy and physiology of muscle


Recently uploaded

Unlocking Holistic Wellness: Addressing Depression, Mental Well-Being, and St...
Unlocking Holistic Wellness: Addressing Depression, Mental Well-Being, and St...Unlocking Holistic Wellness: Addressing Depression, Mental Well-Being, and St...
Unlocking Holistic Wellness: Addressing Depression, Mental Well-Being, and St...Health Kinesiology Natural Bioenergetics

NDCT Rules, 2019: An Overview | New Drugs and Clinical Trial Rules 2019
NDCT Rules, 2019: An Overview | New Drugs and Clinical Trial Rules 2019NDCT Rules, 2019: An Overview | New Drugs and Clinical Trial Rules 2019
NDCT Rules, 2019: An Overview | New Drugs and Clinical Trial Rules 2019Akash Agnihotri

Gallbladder Double-Diverticular: A Case Report المرارة مزدوجة التج: تقرير حالة
Gallbladder Double-Diverticular: A Case Report  المرارة مزدوجة التج: تقرير حالةGallbladder Double-Diverticular: A Case Report  المرارة مزدوجة التج: تقرير حالة
Gallbladder Double-Diverticular: A Case Report المرارة مزدوجة التج: تقرير حالةMohamad محمد Al-Gailani الكيلاني

Let's Talk About It: Ovarian Cancer (The Emotional Toll of Treatment Decision...
Let's Talk About It: Ovarian Cancer (The Emotional Toll of Treatment Decision...Let's Talk About It: Ovarian Cancer (The Emotional Toll of Treatment Decision...
Let's Talk About It: Ovarian Cancer (The Emotional Toll of Treatment Decision...bkling

TEST BANK For Huether and McCance's Understanding Pathophysiology, Canadian 2...
TEST BANK For Huether and McCance's Understanding Pathophysiology, Canadian 2...TEST BANK For Huether and McCance's Understanding Pathophysiology, Canadian 2...
TEST BANK For Huether and McCance's Understanding Pathophysiology, Canadian 2...marcuskenyatta275

Premium ℂall Girls In Mumbai👉 Dail ℂALL ME: 📞9833325238 📲 ℂall Richa VIP ℂall...
Premium ℂall Girls In Mumbai👉 Dail ℂALL ME: 📞9833325238 📲 ℂall Richa VIP ℂall...Premium ℂall Girls In Mumbai👉 Dail ℂALL ME: 📞9833325238 📲 ℂall Richa VIP ℂall...
Premium ℂall Girls In Mumbai👉 Dail ℂALL ME: 📞9833325238 📲 ℂall Richa VIP ℂall...Avani bhatt

SEMESTER-V CHILD HEALTH NURSING-UNIT-1-INTRODUCTION.pdf
SEMESTER-V CHILD HEALTH NURSING-UNIT-1-INTRODUCTION.pdfSEMESTER-V CHILD HEALTH NURSING-UNIT-1-INTRODUCTION.pdf
SEMESTER-V CHILD HEALTH NURSING-UNIT-1-INTRODUCTION.pdfSachin Sharma

Connective Tissue II - Dr Muhammad Ali Rabbani - Medicose Academics
Connective Tissue II - Dr Muhammad Ali Rabbani - Medicose AcademicsConnective Tissue II - Dr Muhammad Ali Rabbani - Medicose Academics
Connective Tissue II - Dr Muhammad Ali Rabbani - Medicose AcademicsMedicoseAcademics

ANAPHYLAXIS BY DR.SOHAN BISWAS,MBBS,DNB(INTERNAL MEDICINE) RESIDENT.pptx
ANAPHYLAXIS BY DR.SOHAN BISWAS,MBBS,DNB(INTERNAL MEDICINE) RESIDENT.pptxANAPHYLAXIS BY DR.SOHAN BISWAS,MBBS,DNB(INTERNAL MEDICINE) RESIDENT.pptx
ANAPHYLAXIS BY DR.SOHAN BISWAS,MBBS,DNB(INTERNAL MEDICINE) RESIDENT.pptxDr. Sohan Biswas

Results For Love Spell Is Guaranteed In 1 Day +27834335081 [BACK LOST LOVE SP...
Results For Love Spell Is Guaranteed In 1 Day +27834335081 [BACK LOST LOVE SP...Results For Love Spell Is Guaranteed In 1 Day +27834335081 [BACK LOST LOVE SP...
Results For Love Spell Is Guaranteed In 1 Day +27834335081 [BACK LOST LOVE SP...BabaJohn3

ESC HF 2024 Spotlights Day-2.pptx heart failure
ESC HF 2024 Spotlights Day-2.pptx heart failureESC HF 2024 Spotlights Day-2.pptx heart failure
ESC HF 2024 Spotlights Day-2.pptx heart failuremahiavy26

Mgr university bsc nursing adult health previous question paper with answers
Mgr university  bsc nursing adult health previous question paper with answersMgr university  bsc nursing adult health previous question paper with answers
Mgr university bsc nursing adult health previous question paper with answersShafnaP5

Video capsule endoscopy (VCE ) in children
Video capsule endoscopy (VCE ) in childrenVideo capsule endoscopy (VCE ) in children
Video capsule endoscopy (VCE ) in childrenRaju678948

Tips and tricks to pass the cardiovascular station for PACES exam
Tips and tricks to pass the cardiovascular station for PACES examTips and tricks to pass the cardiovascular station for PACES exam
Tips and tricks to pass the cardiovascular station for PACES examJunhao Koh

VIP Pune 7877925207 WhatsApp: Me All Time Serviℂe Available Day and Night
VIP Pune 7877925207 WhatsApp: Me All Time Serviℂe Available Day and NightVIP Pune 7877925207 WhatsApp: Me All Time Serviℂe Available Day and Night
VIP Pune 7877925207 WhatsApp: Me All Time Serviℂe Available Day and Nightpatanjali9823#S07

Get the best psychology treatment in Indore at Gokuldas Hospital
Get the best psychology treatment in Indore at Gokuldas HospitalGet the best psychology treatment in Indore at Gokuldas Hospital
Get the best psychology treatment in Indore at Gokuldas HospitalGokuldas Hospital

TEST BANK For Lewis's Medical Surgical Nursing in Canada, 4th Edition by Jane...
TEST BANK For Lewis's Medical Surgical Nursing in Canada, 4th Edition by Jane...TEST BANK For Lewis's Medical Surgical Nursing in Canada, 4th Edition by Jane...
TEST BANK For Lewis's Medical Surgical Nursing in Canada, 4th Edition by Jane...marcuskenyatta275

Quality control tests of suppository ...
Quality control tests  of suppository ...Quality control tests  of suppository ...
Quality control tests of suppository ...Hasnat Tariq

Renal Replacement Therapy in Acute Kidney Injury -time modality -Dr Ayman Se...
Renal Replacement Therapy in Acute Kidney Injury -time  modality -Dr Ayman Se...Renal Replacement Therapy in Acute Kidney Injury -time  modality -Dr Ayman Se...
Renal Replacement Therapy in Acute Kidney Injury -time modality -Dr Ayman Se...Ayman Seddik


Recently uploaded (20)

Unlocking Holistic Wellness: Addressing Depression, Mental Well-Being, and St...
Unlocking Holistic Wellness: Addressing Depression, Mental Well-Being, and St...Unlocking Holistic Wellness: Addressing Depression, Mental Well-Being, and St...
Unlocking Holistic Wellness: Addressing Depression, Mental Well-Being, and St...

NDCT Rules, 2019: An Overview | New Drugs and Clinical Trial Rules 2019
NDCT Rules, 2019: An Overview | New Drugs and Clinical Trial Rules 2019NDCT Rules, 2019: An Overview | New Drugs and Clinical Trial Rules 2019
NDCT Rules, 2019: An Overview | New Drugs and Clinical Trial Rules 2019

Gallbladder Double-Diverticular: A Case Report المرارة مزدوجة التج: تقرير حالة
Gallbladder Double-Diverticular: A Case Report  المرارة مزدوجة التج: تقرير حالةGallbladder Double-Diverticular: A Case Report  المرارة مزدوجة التج: تقرير حالة
Gallbladder Double-Diverticular: A Case Report المرارة مزدوجة التج: تقرير حالة

Let's Talk About It: Ovarian Cancer (The Emotional Toll of Treatment Decision...
Let's Talk About It: Ovarian Cancer (The Emotional Toll of Treatment Decision...Let's Talk About It: Ovarian Cancer (The Emotional Toll of Treatment Decision...
Let's Talk About It: Ovarian Cancer (The Emotional Toll of Treatment Decision...

TEST BANK For Huether and McCance's Understanding Pathophysiology, Canadian 2...
TEST BANK For Huether and McCance's Understanding Pathophysiology, Canadian 2...TEST BANK For Huether and McCance's Understanding Pathophysiology, Canadian 2...
TEST BANK For Huether and McCance's Understanding Pathophysiology, Canadian 2...

Premium ℂall Girls In Mumbai👉 Dail ℂALL ME: 📞9833325238 📲 ℂall Richa VIP ℂall...
Premium ℂall Girls In Mumbai👉 Dail ℂALL ME: 📞9833325238 📲 ℂall Richa VIP ℂall...Premium ℂall Girls In Mumbai👉 Dail ℂALL ME: 📞9833325238 📲 ℂall Richa VIP ℂall...
Premium ℂall Girls In Mumbai👉 Dail ℂALL ME: 📞9833325238 📲 ℂall Richa VIP ℂall...

SEMESTER-V CHILD HEALTH NURSING-UNIT-1-INTRODUCTION.pdf
SEMESTER-V CHILD HEALTH NURSING-UNIT-1-INTRODUCTION.pdfSEMESTER-V CHILD HEALTH NURSING-UNIT-1-INTRODUCTION.pdf
SEMESTER-V CHILD HEALTH NURSING-UNIT-1-INTRODUCTION.pdf

Connective Tissue II - Dr Muhammad Ali Rabbani - Medicose Academics
Connective Tissue II - Dr Muhammad Ali Rabbani - Medicose AcademicsConnective Tissue II - Dr Muhammad Ali Rabbani - Medicose Academics
Connective Tissue II - Dr Muhammad Ali Rabbani - Medicose Academics

ANAPHYLAXIS BY DR.SOHAN BISWAS,MBBS,DNB(INTERNAL MEDICINE) RESIDENT.pptx
ANAPHYLAXIS BY DR.SOHAN BISWAS,MBBS,DNB(INTERNAL MEDICINE) RESIDENT.pptxANAPHYLAXIS BY DR.SOHAN BISWAS,MBBS,DNB(INTERNAL MEDICINE) RESIDENT.pptx
ANAPHYLAXIS BY DR.SOHAN BISWAS,MBBS,DNB(INTERNAL MEDICINE) RESIDENT.pptx

Results For Love Spell Is Guaranteed In 1 Day +27834335081 [BACK LOST LOVE SP...
Results For Love Spell Is Guaranteed In 1 Day +27834335081 [BACK LOST LOVE SP...Results For Love Spell Is Guaranteed In 1 Day +27834335081 [BACK LOST LOVE SP...
Results For Love Spell Is Guaranteed In 1 Day +27834335081 [BACK LOST LOVE SP...

ESC HF 2024 Spotlights Day-2.pptx heart failure
ESC HF 2024 Spotlights Day-2.pptx heart failureESC HF 2024 Spotlights Day-2.pptx heart failure
ESC HF 2024 Spotlights Day-2.pptx heart failure

Mgr university bsc nursing adult health previous question paper with answers
Mgr university  bsc nursing adult health previous question paper with answersMgr university  bsc nursing adult health previous question paper with answers
Mgr university bsc nursing adult health previous question paper with answers

Video capsule endoscopy (VCE ) in children
Video capsule endoscopy (VCE ) in childrenVideo capsule endoscopy (VCE ) in children
Video capsule endoscopy (VCE ) in children

Tips and tricks to pass the cardiovascular station for PACES exam
Tips and tricks to pass the cardiovascular station for PACES examTips and tricks to pass the cardiovascular station for PACES exam
Tips and tricks to pass the cardiovascular station for PACES exam

VIP Pune 7877925207 WhatsApp: Me All Time Serviℂe Available Day and Night
VIP Pune 7877925207 WhatsApp: Me All Time Serviℂe Available Day and NightVIP Pune 7877925207 WhatsApp: Me All Time Serviℂe Available Day and Night
VIP Pune 7877925207 WhatsApp: Me All Time Serviℂe Available Day and Night

Get the best psychology treatment in Indore at Gokuldas Hospital
Get the best psychology treatment in Indore at Gokuldas HospitalGet the best psychology treatment in Indore at Gokuldas Hospital
Get the best psychology treatment in Indore at Gokuldas Hospital

TEST BANK For Lewis's Medical Surgical Nursing in Canada, 4th Edition by Jane...
TEST BANK For Lewis's Medical Surgical Nursing in Canada, 4th Edition by Jane...TEST BANK For Lewis's Medical Surgical Nursing in Canada, 4th Edition by Jane...
TEST BANK For Lewis's Medical Surgical Nursing in Canada, 4th Edition by Jane...

Quality control tests of suppository ...
Quality control tests  of suppository ...Quality control tests  of suppository ...
Quality control tests of suppository ...

Making Patient-Centric Immunotherapy a Reality in Lung Cancer: Best Practices...
Making Patient-Centric Immunotherapy a Reality in Lung Cancer: Best Practices...Making Patient-Centric Immunotherapy a Reality in Lung Cancer: Best Practices...
Making Patient-Centric Immunotherapy a Reality in Lung Cancer: Best Practices...

Renal Replacement Therapy in Acute Kidney Injury -time modality -Dr Ayman Se...
Renal Replacement Therapy in Acute Kidney Injury -time  modality -Dr Ayman Se...Renal Replacement Therapy in Acute Kidney Injury -time  modality -Dr Ayman Se...
Renal Replacement Therapy in Acute Kidney Injury -time modality -Dr Ayman Se...


Upper limb prosthesis

  • 1. Rabia Mustafa shah KING EDWARD MEDICALUNIVERSITY
  • 2.
  • 3. Prior to antiseptic surgery and antimicrobial drugs many amputations of the limb were caused by fractures . Although amputations of the upper limb may be presumed to have occurred from very early times the first record of an artificial device used for an upper limb amputation is thought to have come from the second Punic war 218- 201 BC
  • 4.
  • 5.
  • 6. 6000 to 10,000 major amputations of upper limb occur every year in united states . Upper limb amputations with hand loss is extremely devastating , upper limb traumatic amputations occur twice as frequently as traumatic amputations of lower limb
  • 7. 1- trauma Trauma is undoubtedly the largest producer of upper limb amputations and can include fractures , electrical , thermal burns , frostbite and machine injuries 2 - Tumor Significant improvements in cancer detection and treatment in recent decades are believe to have resulted in gradual decline in upper limb amputations 3- Disease Major limb amputations have been reported for vascular complications secondary to infections produced by drugs injected into back of hand or into wed spaces of digits.
  • 8.
  • 9. Partial hand amputations may be considered to be any number of amputations involving any or all of digits or the radial or ulnar border of the hand.
  • 10. The wrist disarticulation level amputation is usually performed when the partial hand residual limb is without thumb or fingers and when the motions afforded by the wrist and palm of the hands has virtually nothing to oppose it.
  • 11. According to Taylor s’ a long trans radial amputation is defined as 8 to 10 inches from the centre of lateral Epicondyle to the end of the residual limb
  • 12. . Amputation at the level of elbow disarticulation is performed for a variety of reasons.
  • 13. The long or standard trans humeral amputation is defined as one of 50 to 90% of the length of a normal humeurs and is usually the level of choice for amputation above the elbow .
  • 14. Shoulder disarticulation may be defined as any amputation of the arm from approximately 30% of the humeurs through the shoulder joint
  • 15. Shoulder disarticulation is usually performed because of tumor . In the forequarter the clavicle and scapula are usually sacrificed as well as the entire length of the humeurs and the rest of the arm.
  • 16.
  • 17. 1. Body powered prosthesis 2. Electrically powered prosthesis (Myoelectric prosthesis) 3. Hybrid prosthesis 4. Activity specific prosthesis
  • 18.  Body-powered prostheses represent a common type of prosthesis.  These body-powered devices are durable , often weigh less than their electrical counterparts.  Their mechanics depend on proprioceptive feedback through the harness system.  Disadvantages of a body-powered prosthesis revolve around the restrictive nature of its design. The harness, which is required for functionality and suspension, limits the range of motion and functional envelope of the individual.
  • 19.  The functional envelope refers to the range of motion around a person’s body in which he or she can operate the prosthesis without limiting or affecting the function of the contralateral limb.  When a patient uses a prosthesis outside the functional envelope, it becomes difficult to operate a terminal device without having to use gross body motion.  Long-term use of a body-powered prosthesis can accelerate shoulder issues and anterior muscle imbalances and lead to nerve entrapment within the contralateral axilla.
  • 20.
  • 21. The electrically powered prosthesis provides more grip force and enhanced functional envelope, while reducing or eliminating the overall harnessing necessary with a body-powered prosthesis.
  • 22. Many different designs are available. The term Myoelectric commonly is associated with electrical prostheses even though other electrical control modalities. These include Myoelectrodes, switches, slider-type input devices ( linear, transducers, or potentiometers) and force-sensing resistors (or touch pads).
  • 23.  Myoelectrodes collect and filter surface electromyogram signals generated through muscle contractions and convert those signals into a form that can influence electrical motors.  Muscle sites are based primarily on the level of amputation and socket design. It typically include the anterior deltoid, biceps, wrist flexors, posterior deltoid, infraspinatus, teres major, triceps, and wrist extensors.
  • 24. Any muscle that plays a reverse action or postural role should be evaluated carefully to avoid unwanted muscle contraction. A common example would be use of the trapezius for a Myoelectric control site. Another area of concern is using a muscle for Myoelectric control that is in close proximity to cardiac muscle.
  • 25.
  • 26. A variety of motions are possible through different kinds of switching devices.  Many switches are activated by pulling a cable or pressing a button. Switches are designed to perform multiple functions and come in many presentations. Harness-type switches rely on some type of pull to move the switch.
  • 27.  Depressing the switch with a chin, phocomelic finger, residual limb, or contralateral hand moves another type of switch, often referred to as a push switch.  A push switch may be placed distal to the axilla on the inner side of the person’s forearm on a transradial level amputee and activated by humeral abduction.  More advanced switches are found in multiposition types of applications
  • 28.
  • 29.  Slider-type input devices convert distance, speed, or force into proportional movement of a prosthetic limb.  As a result, feedback enhances proprioception.  Slider-type input devices come in two varieties , the linear type of potentiometer is a input device that translates linear motion or into proportional function. Examples of this input device is the Linear Potentiometer.  The second variety is the force-sensing type , such as Motion Control.
  • 30.  Some electrical prostheses employ a force- sensing Resistor . These types of input devices consist of a force-sensing resistor matrix.  The amputee activates the force-sensing resistor by moving the shoulder complex, a phocomelic finger, residual humeral neck, or other residual anatomy.  It reduces the incidence of phantom limb pain  Special care is require in force-sensing resistors , Improper installation results in premature failure and greater expense and can produce uncomfortable perspiration, moisture, and uneven shear force.
  • 31.
  • 32.  The hybrid prosthesis combines the benefits of body-powered and electrical styles.  This type of design allows simultaneous control of the elbow and terminal device and most commonly is simplified with the use of a body-powered elbow , electrical terminal device and wrist.  In some cases, an amputee may choose a fully conventional system with an electronic wrist, but not usually as the first option.
  • 33.
  • 34.  The last prosthetic option is that of the activity- specific prosthesis. This type of prosthesis is designed for a specific activity where more typical prosthetic options are not sufficient.  Patients use this custom device successfully for activities such as gardening, weightlifting, and skydiving.  These special prostheses allow patients to resume meaningful activities and help life ‘‘return to normal’’ in a tangible way. These devices also physically show to the amputee’s family and friends that he or she is capable of doing many diverse activities
  • 35.
  • 36. Current advances in upper limb technology can be divided into five categories,  Treatment protocol  Prosthetic interface Microprocessor technology  Terminal devices
  • 37. This process involves fitting the patient within 2 to 3 days, then following the patient consistently through occupational therapy  This close interaction allows clinicians to evaluate better the interface, component choice , use and therapeutic issues.
  • 38.  A major determining factor of whether a patient will use a prosthesis comfortably is the design of prosthetic interface.  One type of interface method is beginning to be used more frequently in upper limb prosthetics the roll-on suction suspension liner.  This design helps provide a positive type of suspension, while eliminating suspension harnessing, which allows the incorporation of more functional control harnessing.  Roll-on liners can be used with all type of prostheses, including Myoelectric prostheses
  • 39.
  • 40. A suction-type design is used to stabilize the residual limb at the contours of Epicondyle. The transradial anatomic contoured socket contours the muscles of the residual limb and maintains a suspension that incorporates the benefits of the mediolateral and anterior-posterior contours of the residual limb.
  • 41.
  • 42. Currently, microprocessor technology influences terminal device control wrist and elbow functions, and other options, such as shoulder joint locking and unlocking, remote on-and-off control, and sensory feedback. The microprocessor enhances input characteristics to produce the desired output optimizing prosthetic function and increasing overall ease of use.
  • 43. Two breakthroughs in terminal device technology have had a significant impact on the future of electronic prostheses.  The first is the introduction of water/dust resistant components. These new components function better in the real world and have fewer moisture-related problems.  The second major development is that of speed.
