Updating on ameloblastoma
1. Dr.Mohammed El Sayed El Zayady
OMF consultant
BDS, Egyptian fellowship of oral & maxillofacial surgery
*
2. *
*The ameloblastoma is one of the most controversial neoplasms of
facial skeleton.
*Broca in 1868 gave the fist scientific description.
*Falkson in 1897 gave the term Adamantinoma.
*Churchill in 1929 introduced the current term Ameloblastoma.1,2
*Non of the given terms is properly descriptive of the tumor ;
* Adam-antinoma: there is no enamel formed in the tumor and is
not hard as the term implies.
*Ameloblastoma: suggesting origin from ameloblasts , however
the ameloblasts are not the basic cells in all tumors.3

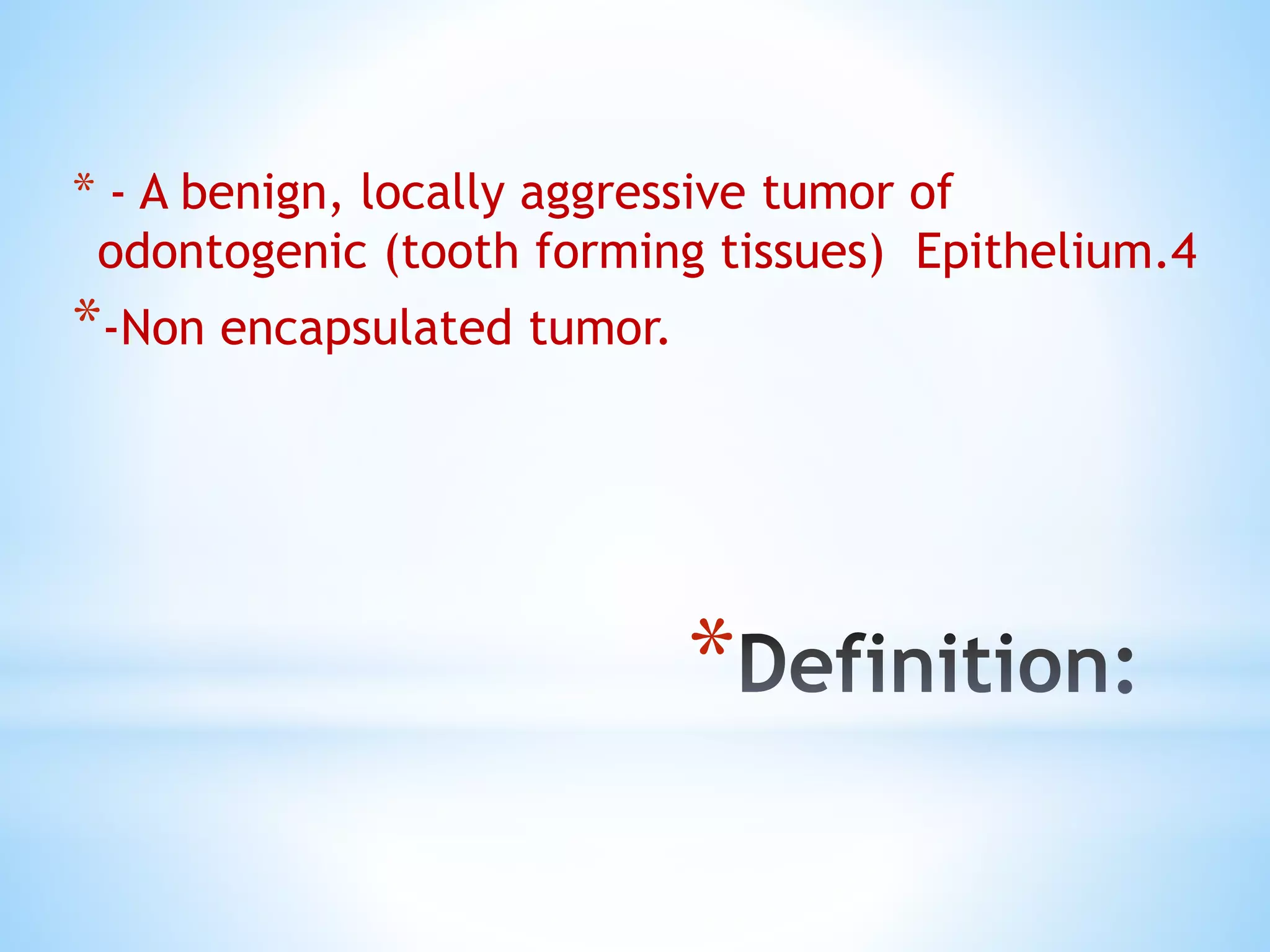

3. *
* - A benign, locally aggressive tumor of
odontogenic (tooth forming tissues) Epithelium.4
*-Non encapsulated tumor.
4. *
*-1% of all tumors of maxilla & mandible.
*-11% of all odontogenic tumors.
*-85% in mandible, almost in molar ramus region
(70% in molar region, 20% in premolar area & 10%
in incisor region).
*-15% in maxilla, almost in maxillary tubersity.5

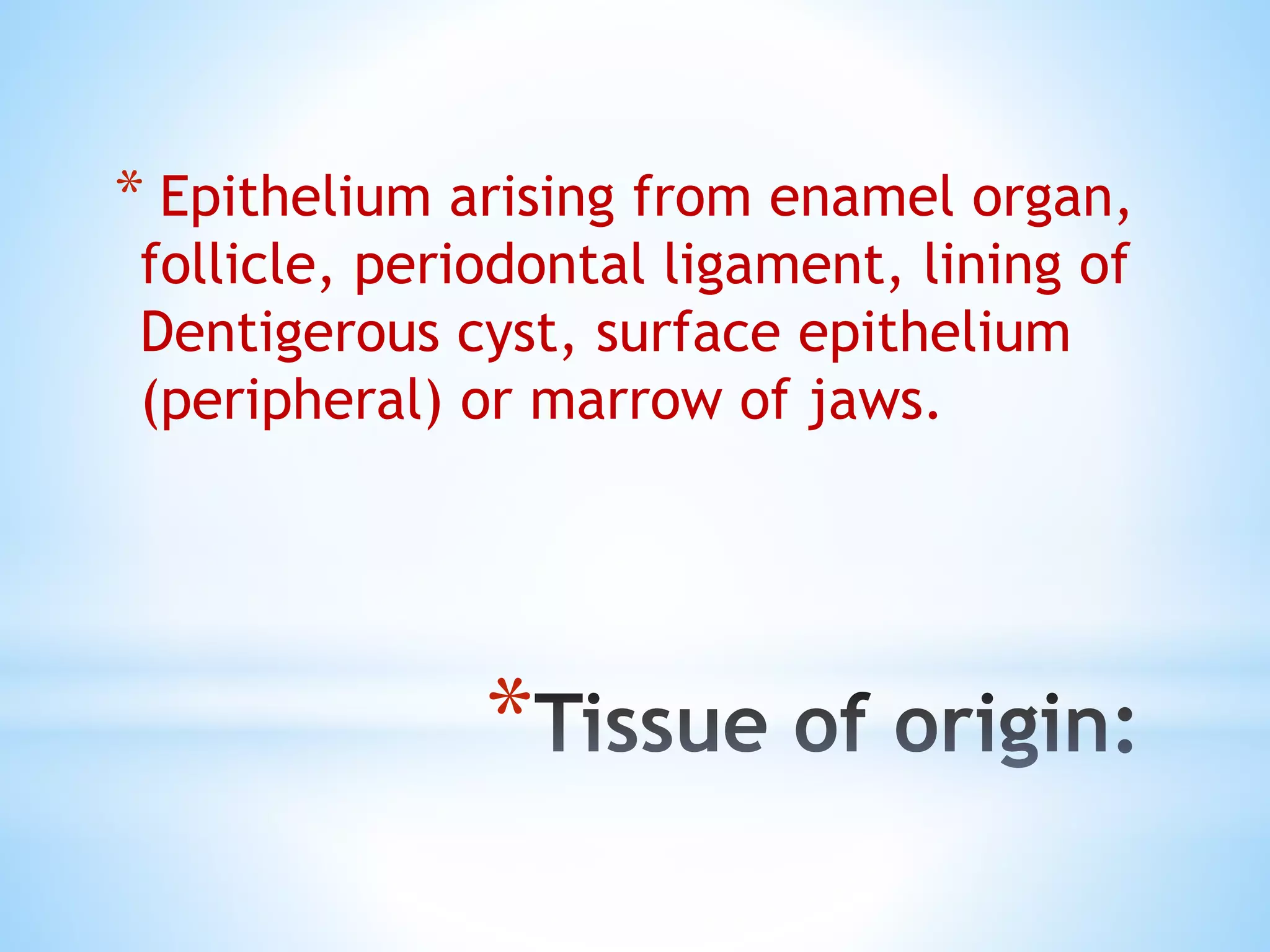

5. *
* Epithelium arising from enamel organ,
follicle, periodontal ligament, lining of
Dentigerous cyst, surface epithelium
(peripheral) or marrow of jaws.
6. *
* Multilocular Ameloblastoma : according to histopathological findings , it is divided into:3
* Follicular:
* Many small discrete islands, the cells are tall columnar with polarization of nuclei away from basement
membrane, central portion of epithelial islands is composed of a loose network of cells resembling stellate
reticulum.
* -Cystic formation is common in that pattern
* Plexiform:
* ameloblastic like cells are arranged in irregular masses and interdigitating cords bounded by
columnar cells ,minimum stroma of stellate reticulum –like cells are found.
* Basal cell:
* Epithelial cells show very little tendency to differentiate and remain more or less basal in character, they
are arranged in cords or sheets similar to basal cell carcinoma of the skin, in a loose fibrous stroma.
* Acanthomatous:
* Epidermoid features like epithelial pearls and prickle cells are marked, the cells occupying the position
of stellate reticulum undergo squamous metaplasia sometimes with keratin formation in the central portion of
the tumor islands.
* Granular cell:
* The epithelial cells are large, cuboidal or columnar with very coarse granular appearance, the
acidophilic granules occur sometimes in the stellate reticulum like cells rather than the ameloblast – like cells
* (This type is said to be of particular clinical significance because of the increased risk of metastases).
* Vascular:
* When many blood spaces are found replacing the stroma.
* Melanotic:
* Typical ameloblastic cells together with pigmented epithelial cells.
7. *No correlation has been found between
histological subtypes and its clinical behavior or
treatment 6
8. *Ameloblastoma invades the intertrabecular
spaces of cancellous bone without
accompanying resorption of trabeculae, it
does not invade cortical bone, although it
may erode it.3
9. *
*Was first described by Robinson and Martinez in 1977. 7
*Features considered to justify the diagnosis of
ameloblastoma in a cyst of the jaw.3 :-
*Hyperchromatism of basal cell nuclei of the epithelium
lining the cystic cavity.
*Pallisading of basal cells and polarization of nuclei of
basal cells lining the cystic cavity.
*Cytoplasmic vaculation of the basal cells.
10. *
*there are three distinct histological variants of the
unicystic ameloblastoma and these features
include:1,2
*A relatively innocuous lining which may give way in
parts to cell changes specific for ameloblastoma
*A nodule will project into lumen of a cyst and on
examination, the nodule exhibits a plexiform pattern.
*Mural type: where part of the wall of cyst is infiltrated
with typical plexiform or follicular ameloblastoma.
(more aggressive)

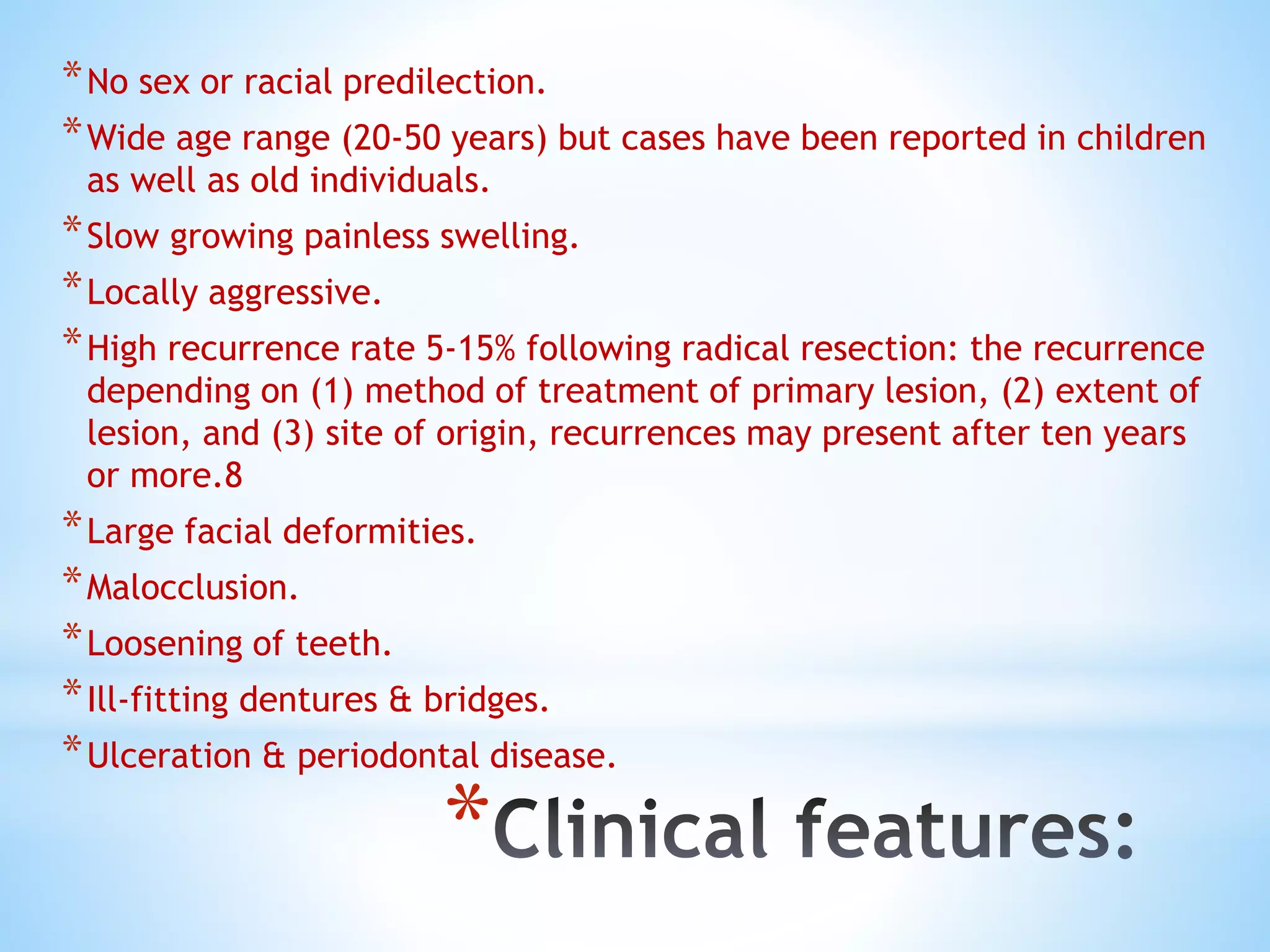

11. *
*No sex or racial predilection.
*Wide age range (20-50 years) but cases have been reported in children
as well as old individuals.
*Slow growing painless swelling.
*Locally aggressive.
*High recurrence rate 5-15% following radical resection: the recurrence
depending on (1) method of treatment of primary lesion, (2) extent of
lesion, and (3) site of origin, recurrences may present after ten years
or more.8
*Large facial deformities.
*Malocclusion.
*Loosening of teeth.
*Ill-fitting dentures & bridges.
*Ulceration & periodontal disease.
12. *
* unicystic ameloblastoma:
* - Cystic lesion arises from lining of dentigerous cyst.
* - Less aggressive - Less common
* -Well circumscribed radiolucency.
* multicystic:
* -More common
* -Can grow to a large size
* -Can infiltrate into adjacent structures
* -Has a poorer prognosis than cystic lesion
* -Has a higher rate of recurrence
* -Radiographically appears as multilocular “soap bubble”
* peripheral:9
* - It is thought to arise from the surface epithelium or the remnants of the dental lamina.
* -Soft tissue extraosseous lesion
* -Occurs in alveolar mucosa
* -Underlying bone can be involved due to secondary erosion
* -Rare
* malignant :
* -The ameloblastomas with malignant tendencies have been known by variety of terms including:10
* -Ameloblastic carcinoma
* -Malignant ameloblastoma
13. Ameloblastic carcinoma Malignant ameloblastoma
-Rare
-Describes a tumor , regardless of
biologic behavior with cytologic
features of frank malignancy such as
nuclear hyperchromatism, increased
nuclear cytoplasmic ratio , prominent
nucleoli, presence of mitosis and
necrosis
-Diagnosis based on histologic criteria
at initial biopsy
-Rare
-Histologically benign appearing
ameloblastoma primary in the jaw that
produces similar benign appearing
distant metastases.
-Only recognized when metastasis is
documented.
-Distant metastases especially to the
lungs have been described but were
attributed to aspiration and
transportation rather than being blood
borne.

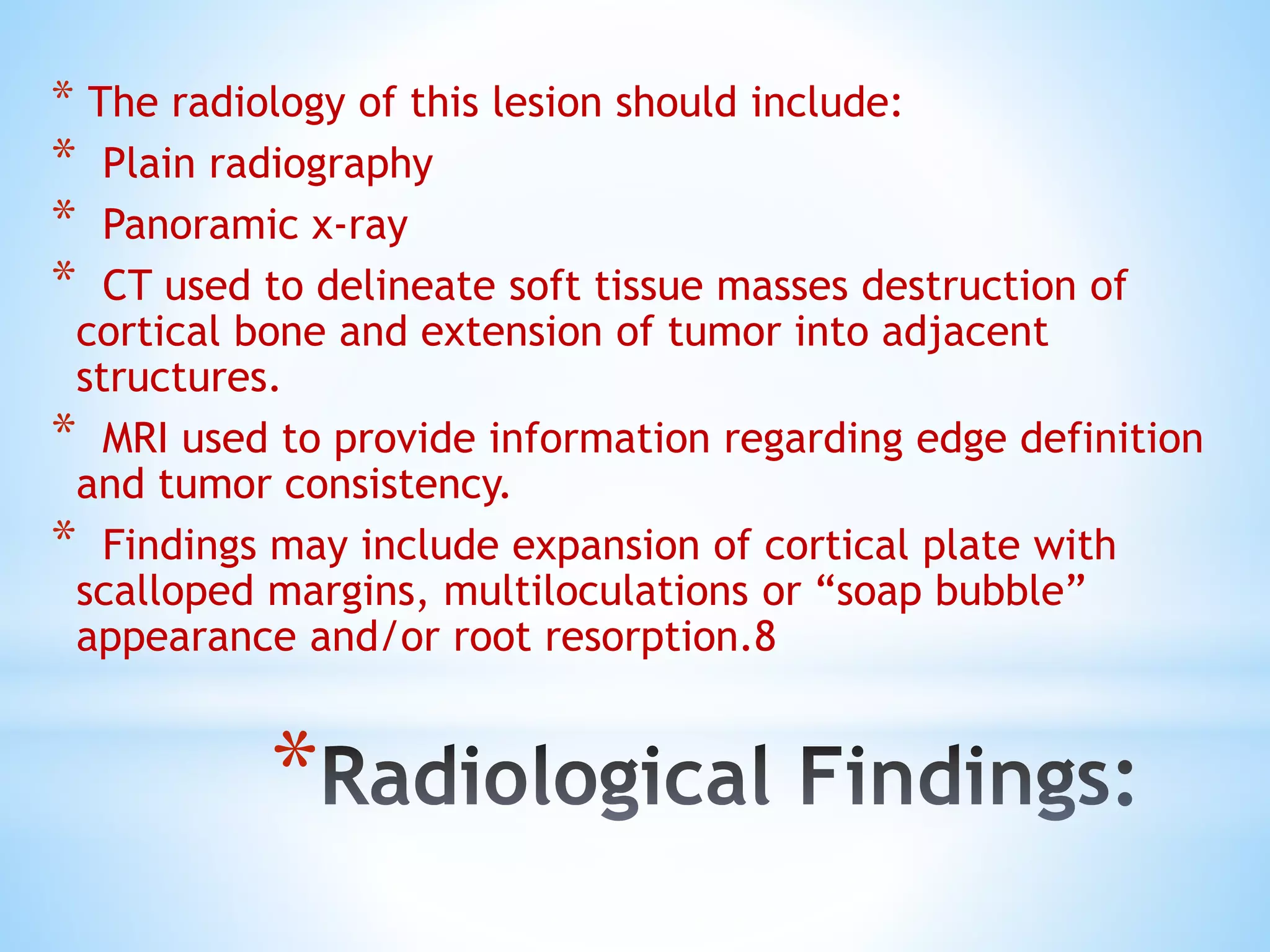

14. *
* The radiology of this lesion should include:
* Plain radiography
* Panoramic x-ray
* CT used to delineate soft tissue masses destruction of
cortical bone and extension of tumor into adjacent
structures.
* MRI used to provide information regarding edge definition
and tumor consistency.
* Findings may include expansion of cortical plate with
scalloped margins, multiloculations or “soap bubble”
appearance and/or root resorption.8
15. *
* Incisional biopsy is the most definitive way of
differentiation between dentigerous cyst and
ameloblastoma.
16. *
* Depended on: -Clinical type
* -Location
* -Size of lesion
* -Age of patient

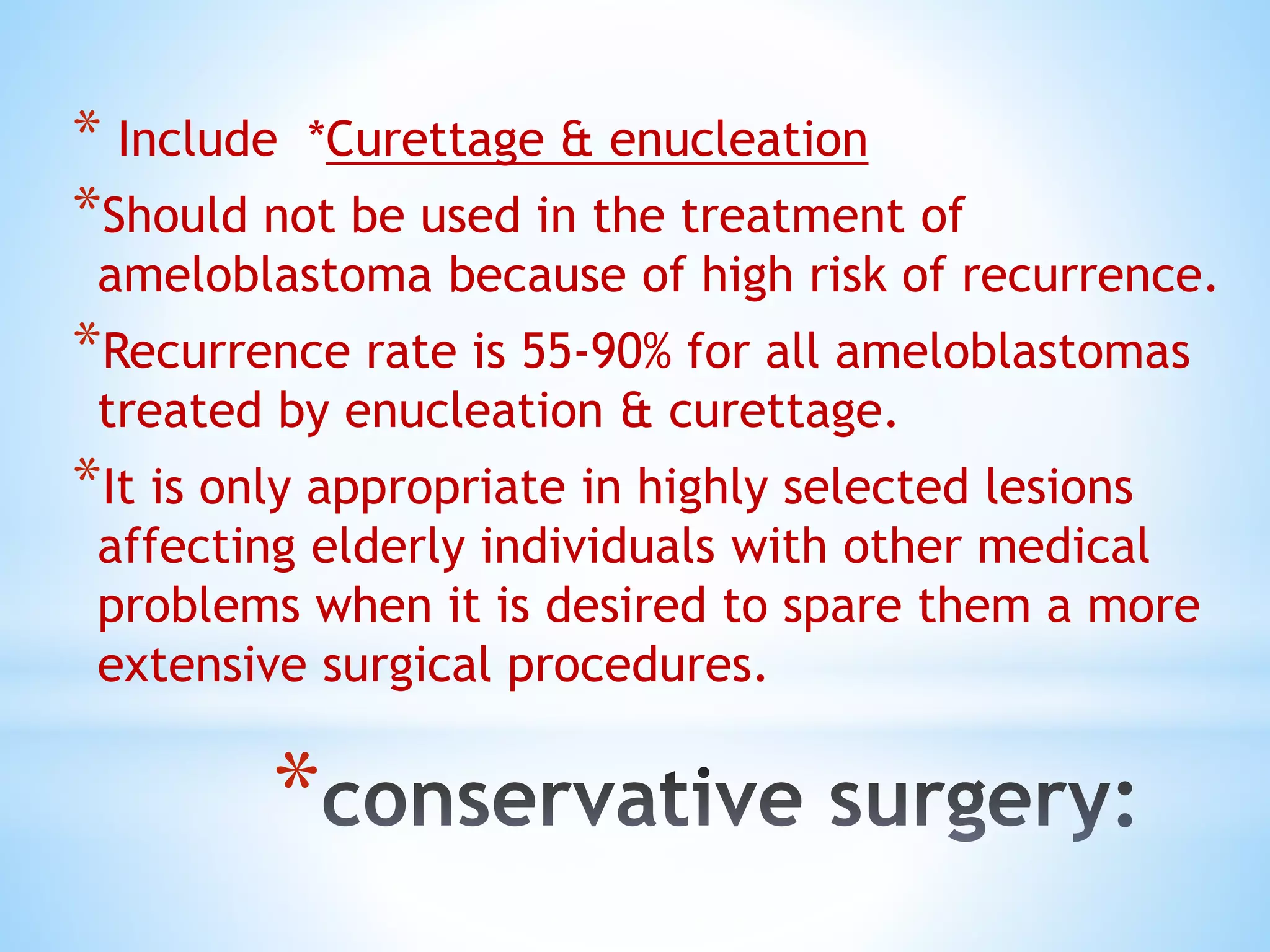

17. *
* Include *Curettage & enucleation
*Should not be used in the treatment of
ameloblastoma because of high risk of recurrence.
*Recurrence rate is 55-90% for all ameloblastomas
treated by enucleation & curettage.
*It is only appropriate in highly selected lesions
affecting elderly individuals with other medical
problems when it is desired to spare them a more
extensive surgical procedures.

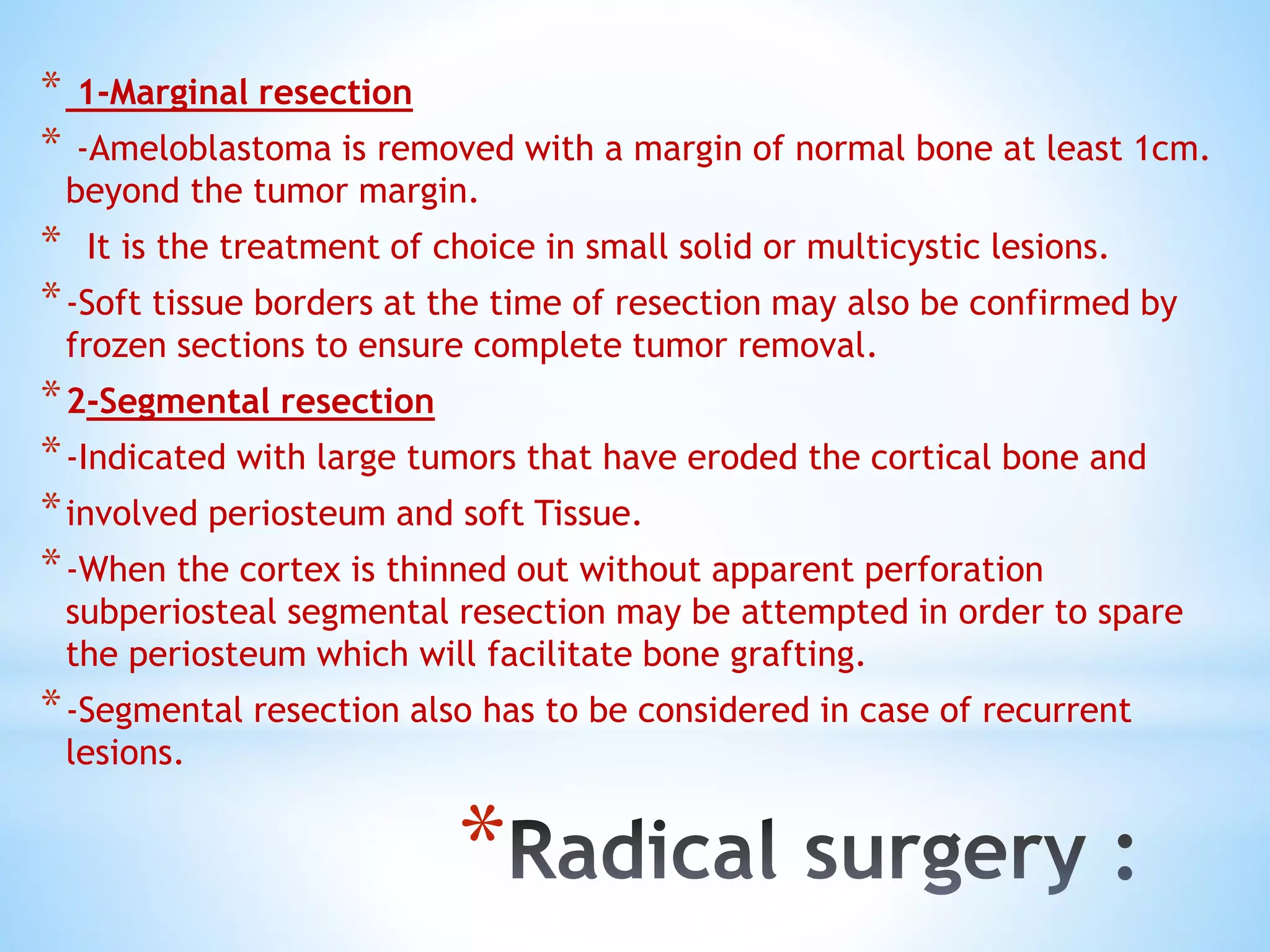

18. *
* 1-Marginal resection
* -Ameloblastoma is removed with a margin of normal bone at least 1cm.
beyond the tumor margin.
* It is the treatment of choice in small solid or multicystic lesions.
*-Soft tissue borders at the time of resection may also be confirmed by
frozen sections to ensure complete tumor removal.
*2-Segmental resection
*-Indicated with large tumors that have eroded the cortical bone and
*involved periosteum and soft Tissue.
*-When the cortex is thinned out without apparent perforation
subperiosteal segmental resection may be attempted in order to spare
the periosteum which will facilitate bone grafting.
*-Segmental resection also has to be considered in case of recurrent
lesions.

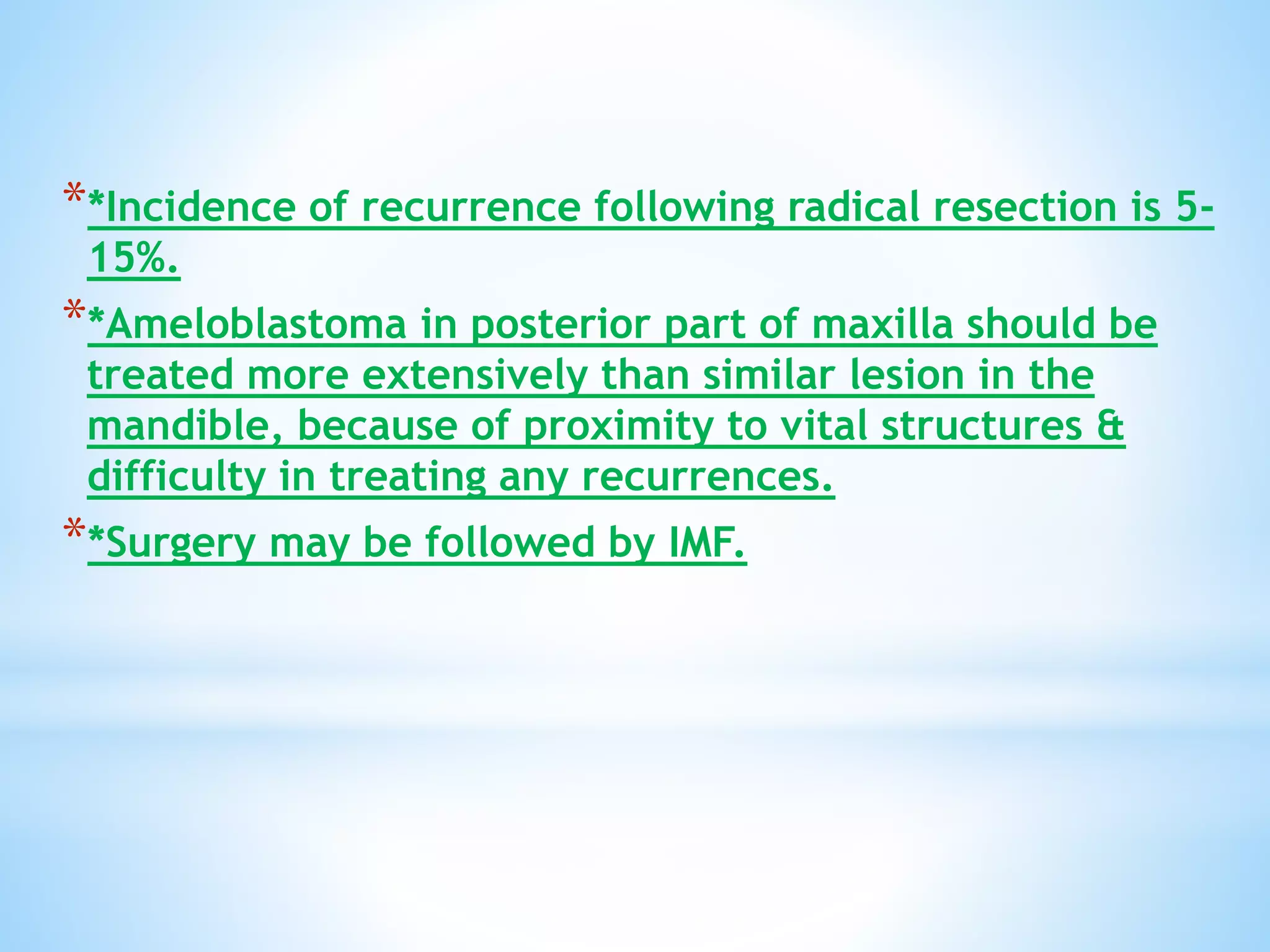

19. **Incidence of recurrence following radical resection is 5-
15%.
**Ameloblastoma in posterior part of maxilla should be
treated more extensively than similar lesion in the
mandible, because of proximity to vital structures &
difficulty in treating any recurrences.
**Surgery may be followed by IMF.

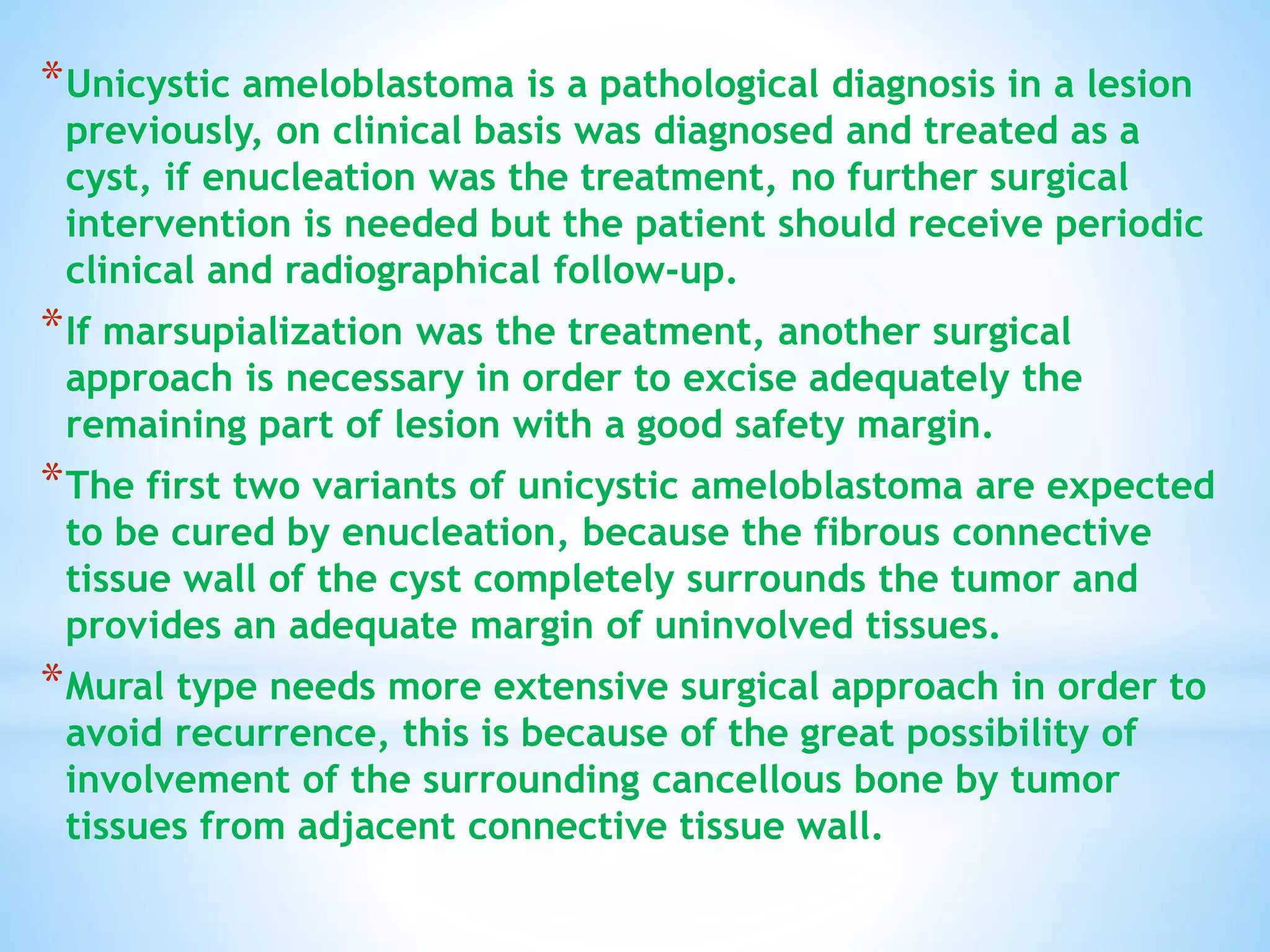

20. *Unicystic ameloblastoma is a pathological diagnosis in a lesion
previously, on clinical basis was diagnosed and treated as a
cyst, if enucleation was the treatment, no further surgical
intervention is needed but the patient should receive periodic
clinical and radiographical follow-up.
*If marsupialization was the treatment, another surgical
approach is necessary in order to excise adequately the
remaining part of lesion with a good safety margin.
*The first two variants of unicystic ameloblastoma are expected
to be cured by enucleation, because the fibrous connective
tissue wall of the cyst completely surrounds the tumor and
provides an adequate margin of uninvolved tissues.
*Mural type needs more extensive surgical approach in order to
avoid recurrence, this is because of the great possibility of
involvement of the surrounding cancellous bone by tumor
tissues from adjacent connective tissue wall.
22. *
*Classification of ameloblastoma into solid, unicystic, peripheral and malignant
forms is clinically sensible and important as it relates directly to the
treatment plan.5
*The various histopathological subtypes of the solid tumor are interesting but
have no relevance to the ultimate treatment of the lesion.6
*The management of malignant ameloblastoma should follow the same
principles of other head and neck malignancies, including wide resection and
consideration for metastatic disease.5
*A good safety margin in cancellous bone is a must during excision of solid
ameloblastoma which should pass the clinically and radiographically involved
region, thus minimizing the chances of recurrence.
*Long – term follow up is mandatory.
*Radiotherapy has no place in the treatment of ameloblastoma because the
tumor is radioresistant, also there is the danger of development of
postradiation sarcoma or osteoradionecrosis.3

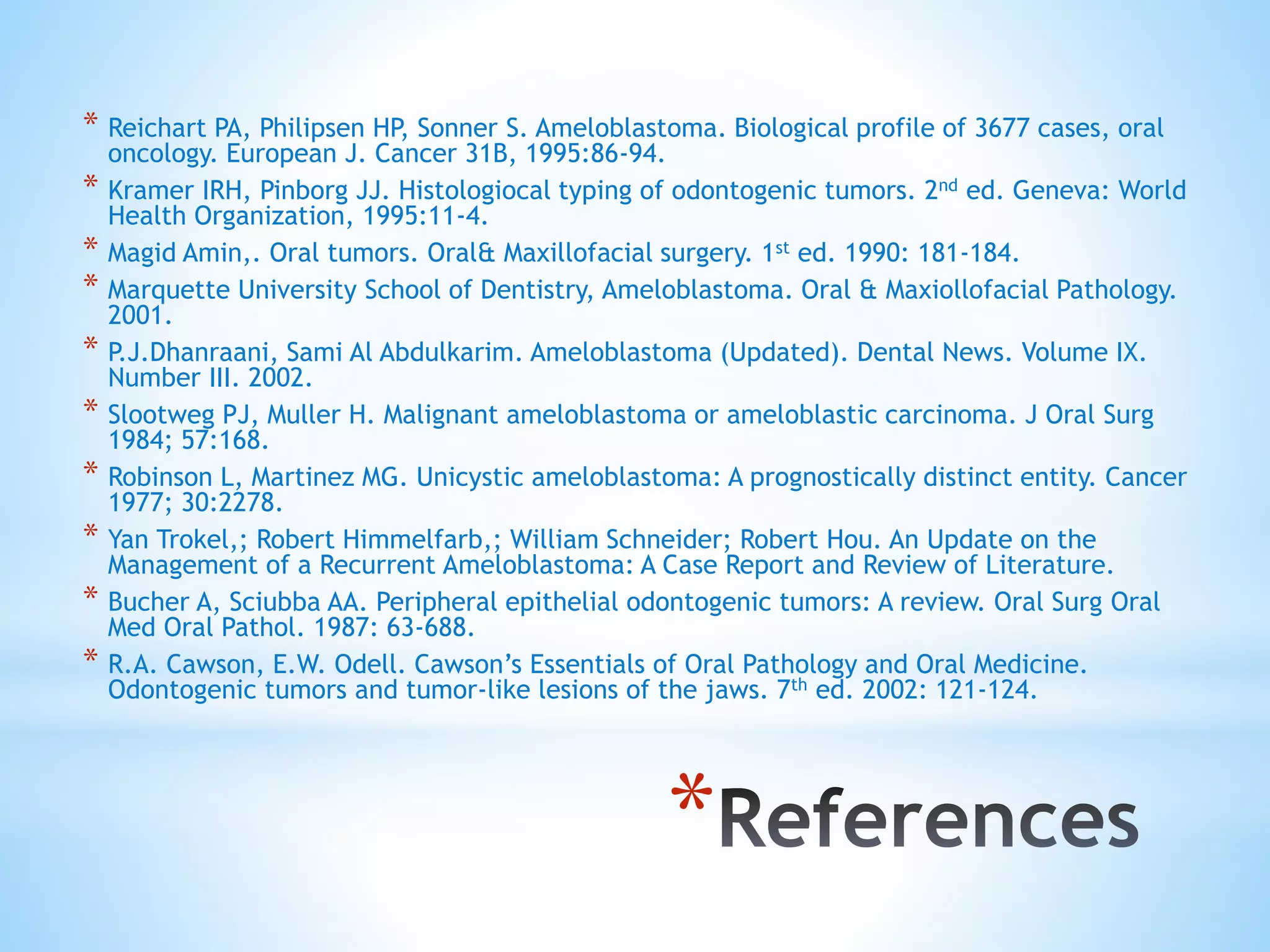

23. *
* Reichart PA, Philipsen HP, Sonner S. Ameloblastoma. Biological profile of 3677 cases, oral
oncology. European J. Cancer 31B, 1995:86-94.
* Kramer IRH, Pinborg JJ. Histologiocal typing of odontogenic tumors. 2nd ed. Geneva: World
Health Organization, 1995:11-4.
* Magid Amin,. Oral tumors. Oral& Maxillofacial surgery. 1st ed. 1990: 181-184.
* Marquette University School of Dentistry, Ameloblastoma. Oral & Maxiollofacial Pathology.
2001.
* P.J.Dhanraani, Sami Al Abdulkarim. Ameloblastoma (Updated). Dental News. Volume IX.
Number III. 2002.
* Slootweg PJ, Muller H. Malignant ameloblastoma or ameloblastic carcinoma. J Oral Surg
1984; 57:168.
* Robinson L, Martinez MG. Unicystic ameloblastoma: A prognostically distinct entity. Cancer
1977; 30:2278.
* Yan Trokel,; Robert Himmelfarb,; William Schneider; Robert Hou. An Update on the
Management of a Recurrent Ameloblastoma: A Case Report and Review of Literature.
* Bucher A, Sciubba AA. Peripheral epithelial odontogenic tumors: A review. Oral Surg Oral
Med Oral Pathol. 1987: 63-688.
* R.A. Cawson, E.W. Odell. Cawson’s Essentials of Oral Pathology and Oral Medicine.
Odontogenic tumors and tumor-like lesions of the jaws. 7th ed. 2002: 121-124.
