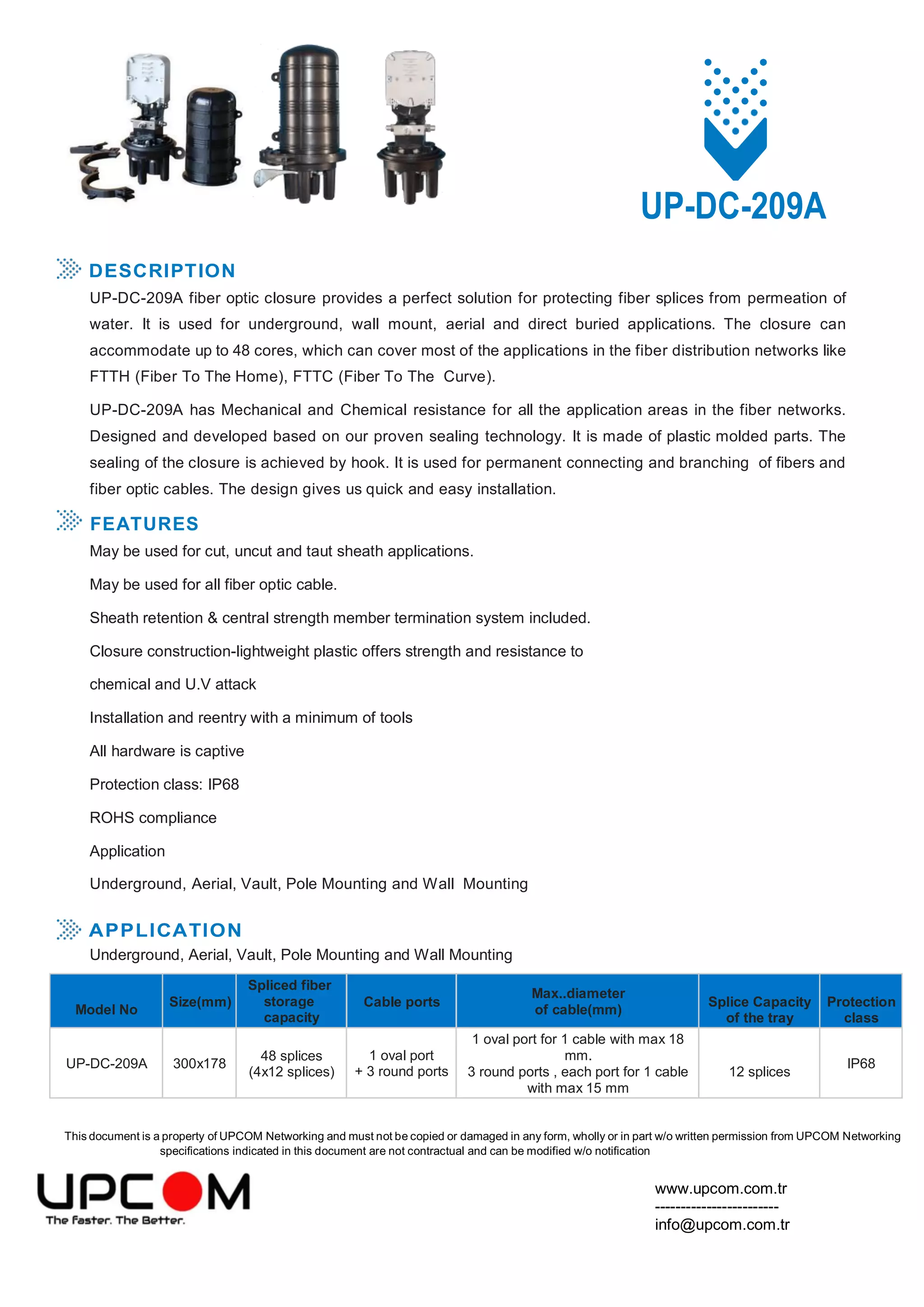

UP-DC-209A
DESCRIPTION
UP-DC-209A fiber optic closure provides a perfect solution for protecting fiber splices from permeation of
water. It is used for underground, wall mount, aerial and direct buried applications. The closure can
accommodate up to 48 cores, which can cover most of the applications in the fiber distribution networks like
FTTH (Fiber To The Home), FTTC (Fiber To The Curve).
UP-DC-209A has Mechanical and Chemical resistance for all the application areas in the fiber networks.
Designed and developed based on our proven sealing technology. It is made of plastic molded parts. The
sealing of the closure is achieved by hook. It is used for permanent connecting and branching of fibers and
fiber optic cables. The design gives us quick and easy installation.
FEATURES
May be used for cut, uncut and taut sheath applications.
May be used for all fiber optic cable.
Sheath retention & central strength member termination system included.
Closure construction-lightweight plastic offers strength and resistance to
chemical and U.V attack
Installation and reentry with a minimum of tools
All hardware is captive
Protection class: IP68
ROHS compliance
Application
Underground, Aerial, Vault, Pole Mounting and Wall Mounting
APPLICATION
Underground, Aerial, Vault, Pole Mounting and Wall Mounting
Model No
Size(mm)
Spliced fiber
storage
capacity
Cable ports
Max..diameter
of cable(mm)
Splice Capacity
of the tray
Protection
class
UP-DC-209A 300x178
48 splices
(4x12 splices)
1 oval port
+ 3 round ports
1 oval port for 1 cable with max 18
mm.
3 round ports , each port for 1 cable
with max 15 mm
12 splices
IP68
