The document provides an overview of various types of electrical cables, including AWM, tray cables, and service cables, focusing on their applications, flexibility, and UL ratings. It emphasizes the importance of compliance with safety standards and the different designations for insulation and environmental resistance. Additionally, it mentions Mencom as a leader in panel interface connectors, offering a wide range of custom solutions and support for connectivity challenges.

1. SERVICE
CABLES
AWM ONLY
CABLES
TRAY
CABLES
STOOW
SJTOOW
SEOOW
SJEOOW
etc.

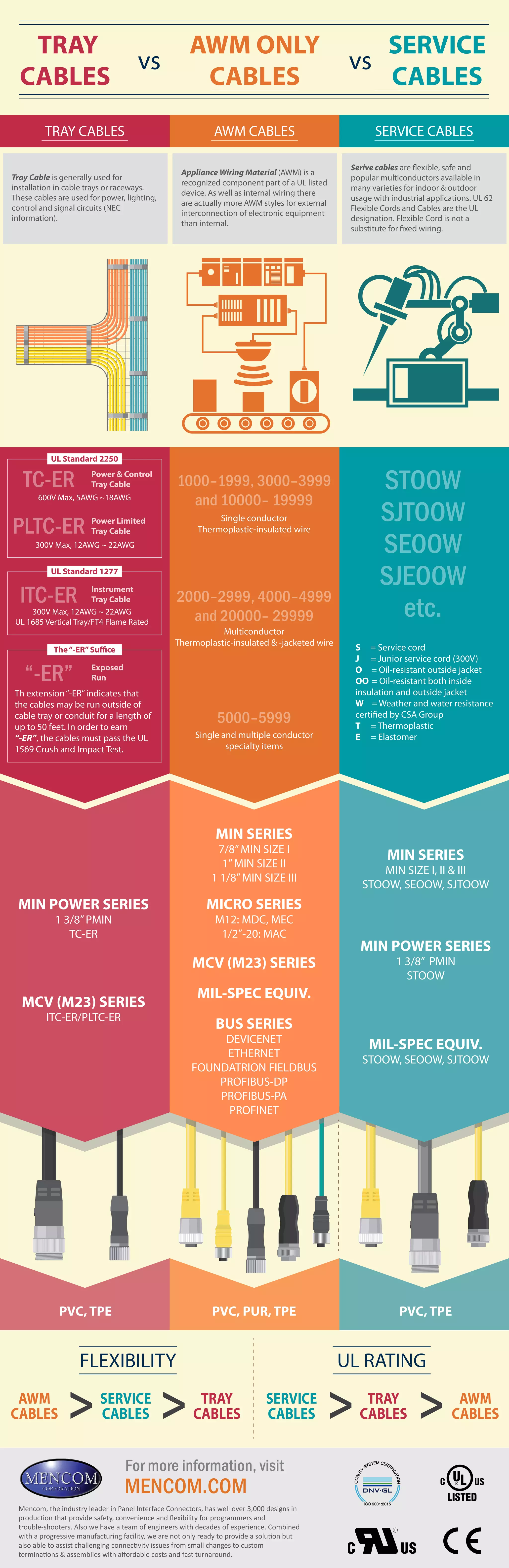

AWM CABLESTRAY CABLES SERVICE CABLES
Appliance Wiring Material (AWM) is a
recognized component part of a UL listed
device. As well as internal wiring there
are actually more AWM styles for external
interconnection of electronic equipment
than internal.
Tray Cable is generally used for
installation in cable trays or raceways.
These cables are used for power, lighting,
control and signal circuits (NEC
information).
Serive cables are flexible, safe and
popular multiconductors available in
many varieties for indoor & outdoor
usage with industrial applications. UL 62
Flexible Cords and Cables are the UL
designation. Flexible Cord is not a
substitute for fixed wiring.
Power Limited
Tray Cable
Instrument
Tray Cable
TC-ER 1000–1999, 3000–3999
and 10000– 19999
2000–2999, 4000–4999
and 20000– 29999
5000–5999
PLTC-ER
ITC-ER
Power & Control
Tray Cable
FLEXIBILITY UL RATING
Th extension“-ER”indicates that
the cables may be run outside of
cable tray or conduit for a length of
up to 50 feet. In order to earn
“-ER”, the cables must pass the UL
1569 Crush and Impact Test.
S = Service cord
J = Junior service cord (300V)
O = Oil-resistant outside jacket
OO = Oil-resistant both inside
insulation and outside jacket
W = Weather and water resistance
certified by CSA Group
T = Thermoplastic
E = Elastomer
Single conductor
Thermoplastic-insulated wire
Multiconductor
Thermoplastic-insulated & -jacketed wire
MIN SERIES
7/8”MIN SIZE I
1”MIN SIZE II
1 1/8”MIN SIZE III
MIN POWER SERIES
1 3/8”PMIN
TC-ER
MICRO SERIES
M12: MDC, MEC
1/2”-20: MAC
MCV (M23) SERIES
MCV (M23) SERIES
ITC-ER/PLTC-ER
MIL-SPEC EQUIV.
BUS SERIES
DEVICENET
ETHERNET
FOUNDATRION FIELDBUS
PROFIBUS-DP
PROFIBUS-PA
PROFINET
MIN SERIES
MIN SIZE I, II & III
STOOW, SEOOW, SJTOOW
MIN POWER SERIES
1 3/8” PMIN
STOOW
MIL-SPEC EQUIV.
STOOW, SEOOW, SJTOOW
PVC, PUR, TPEPVC, TPE PVC, TPE
Single and multiple conductor
specialty items
600V Max, 5AWG ~18AWG
300V Max, 12AWG ~ 22AWG
300V Max, 12AWG ~ 22AWG
UL 1685 Vertical Tray/FT4 Flame Rated
UL Standard 2250
UL Standard 1277
Exposed
Run“-ER”
The“-ER”Suffice
AWM
CABLES
AWM
CABLES
SERVICE
CABLES
SERVICE
CABLES
TRAY
CABLES
TRAY
CABLES
vs vs
MENCOM.COM
For more information, visit
Mencom, the industry leader in Panel Interface Connectors, has well over 3,000 designs in
production that provide safety, convenience and flexibility for programmers and
trouble-shooters. Also we have a team of engineers with decades of experience. Combined
with a progressive manufacturing facility, we are not only ready to provide a solution but
also able to assist challenging connectivity issues from small changes to custom
terminations & assemblies with affordable costs and fast turnaround.
> > > >
