1. UNTANGLING THE WEB
CLASS 1 – INTRODUCTION TO THE COURSE
THE HARDWARE AND PROTOCOLS THAT POWER THE WEB
INTERVIEW QUESTION: WHAT HAPPENS WHEN YOU TYPE A URL IN THE
SEARCH BAR?

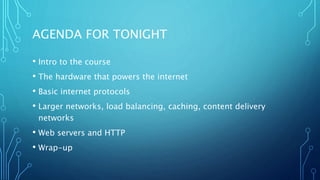

2. AGENDA FOR TONIGHT
• Intro to the course
• The hardware that powers the internet
• Basic internet protocols
• Larger networks, load balancing, caching, content delivery
networks
• Web servers and HTTP
• Wrap-up

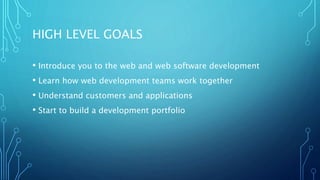

3. HIGH LEVEL GOALS
• Introduce you to the web and web software development
• Learn how web development teams work together
• Understand customers and applications
• Start to build a development portfolio

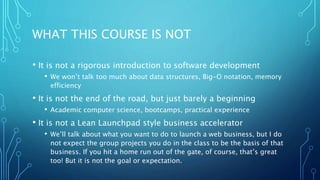

4. WHAT THIS COURSE IS NOT
• It is not a rigorous introduction to software development
• We won’t talk too much about data structures, Big-O notation, memory
efficiency
• It is not the end of the road, but just barely a beginning
• Academic computer science, bootcamps, practical experience
• It is not a Lean Launchpad style business accelerator
• We’ll talk about what you want to do to launch a web business, but I do
not expect the group projects you do in the class to be the basis of that
business. If you hit a home run out of the gate, of course, that’s great
too! But it is not the goal or expectation.

5. INSTRUCTOR BIO – DEREK JACOBY
• Recent computer science PhD at Uvic, but in the field since the early 90’s
• 10 years at Microsoft, mostly in Microsoft Research working on speech
recognition
• Development, user research, program management were all roles I filled
• Singularity University graduate
• Focus areas
• Web development
• Bioinformatics
• Data visualization and VR/AR
• User interface design and speech recognition

6. COURSE STRUCTURE
• Weekly lecture
• 3 hours is a long time, so we’ll break it up with exercises
• Group project
• Ideal group size is 3-4, but smaller or a bit larger is fine too.
• The project is in 3 parts – defining a website concept (individual), writing
a website front-end, writing a website back-end
• Ideal is to stay with the same group for the entire time, but if necessary
switching can occur after part 1 is due

7. GRADING
• 11 Individual Exercises (5% each) 55% Due beginning of
class time
• 3 Team Projects (15% each) 45% Sept 27th, Oct 25th,
Nov 29th
• (first project is individual, but can be done in groups)
• Grading System
F D C C+ B- B B+ A- A A+
0-49 50-59 60-64 65-69 70-72 73-76 77-79 80-84 85-89 90-100

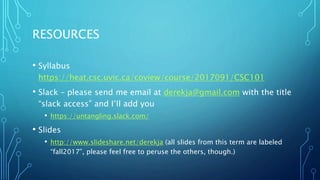

8. RESOURCES
• Syllabus
https://heat.csc.uvic.ca/coview/course/2017091/CSC101
• Slack – please send me email at derekja@gmail.com with the title
“slack access” and I’ll add you
• https://untangling.slack.com/
• Slides
• http://www.slideshare.net/derekja (all slides from this term are labeled
“fall2017”, please feel free to peruse the others, though.)

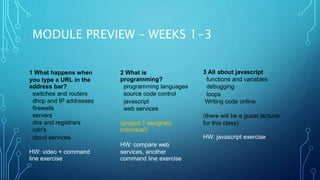

9. MODULE PREVIEW – WEEKS 1-3
1 What happens when
you type a URL in the
address bar?
switches and routers
dhcp and IP addresses
firewalls
servers
dns and registrars
cdn's
cloud services
HW: video + command
line exercise
2 What is
programming?
programming languages
source code control
javascript
web services
(project 1 assigned,
individual)
HW: compare web
services, another
command line exercise
3 All about javascript
functions and variables
debugging
loops
Writing code online
(there will be a guest lecturer
for this class)
HW: javascript exercise

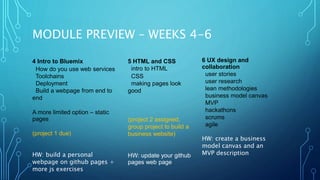

10. MODULE PREVIEW – WEEKS 4-6
4 Intro to Bluemix
How do you use web services
Toolchains
Deployment
Build a webpage from end to
end
A more limited option – static
pages
(project 1 due)
HW: build a personal
webpage on github pages +
more js exercises
5 HTML and CSS
intro to HTML
CSS
making pages look
good
(project 2 assigned,
group project to build a
business website)
HW: update your github
pages web page
6 UX design and
collaboration
user stories
user research
lean methodologies
business model canvas
MVP
hackathons
scrums
agile
HW: create a business
model canvas and an
MVP description

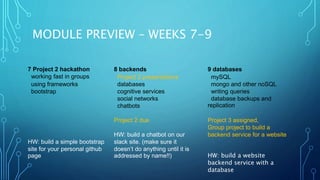

11. MODULE PREVIEW – WEEKS 7-9
7 Project 2 hackathon
working fast in groups
using frameworks
bootstrap
HW: build a simple bootstrap
site for your personal github
page
8 backends
Project 2 presentations
databases
cognitive services
social networks
chatbots
Project 2 due
HW: build a chatbot on our
slack site. (make sure it
doesn’t do anything until it is
addressed by name!!)
9 databases
mySQL
mongo and other noSQL
writing queries
database backups and
replication
Project 3 assigned,
Group project to build a
backend service for a website
HW: build a website
backend service with a
database

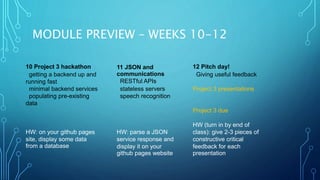

12. MODULE PREVIEW – WEEKS 10-12
10 Project 3 hackathon
getting a backend up and
running fast
minimal backend services
populating pre-existing
data
HW: on your github pages
site, display some data
from a database
11 JSON and
communications
RESTful APIs
stateless servers
speech recognition
HW: parse a JSON
service response and
display it on your
github pages website
12 Pitch day!
Giving useful feedback
Project 3 presentations
Project 3 due
HW (turn in by end of
class): give 2-3 pieces of
constructive critical
feedback for each
presentation

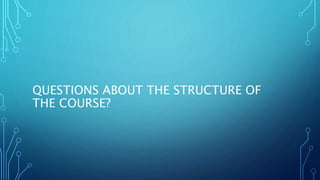

13. QUESTIONS ABOUT THE STRUCTURE OF
THE COURSE?

14. SHORT BREAK – INTRODUCTION TO IBM
BLUEMIX
https://www.youtube.com/watch?v=7Ed2R1ozChw

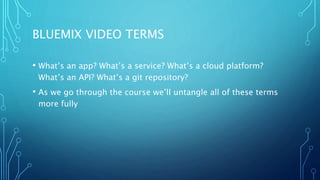

15. BLUEMIX VIDEO TERMS
• What’s an app? What’s a service? What’s a cloud platform?
What’s an API? What’s a git repository?
• As we go through the course we’ll untangle all of these terms
more fully

16. TECHNOLOGY STACKS AND A WEB
INTRODUCTION
WHEN YOU TYPE A URL INTO THE ADDRESS BAR, WHAT HAPPENS?

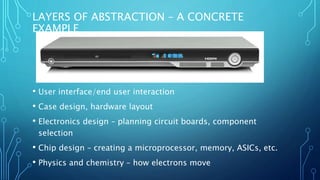

17. LAYERS OF ABSTRACTION – A CONCRETE
EXAMPLE
• User interface/end user interaction
• Case design, hardware layout
• Electronics design – planning circuit boards, component
selection
• Chip design – creating a microprocessor, memory, ASICs, etc.
• Physics and chemistry – how electrons move

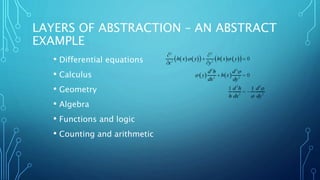

18. LAYERS OF ABSTRACTION – AN ABSTRACT
EXAMPLE
• Differential equations
• Calculus
• Geometry
• Algebra
• Functions and logic
• Counting and arithmetic

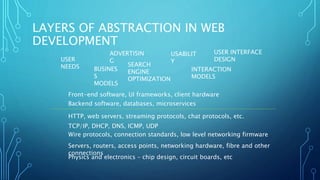

19. LAYERS OF ABSTRACTION IN WEB
DEVELOPMENT
Physics and electronics – chip design, circuit boards, etc
Servers, routers, access points, networking hardware, fibre and other
connections
Wire protocols, connection standards, low level networking firmware
TCP/IP, DHCP, DNS, ICMP, UDP
HTTP, web servers, streaming protocols, chat protocols, etc.
Backend software, databases, microservices
Front-end software, UI frameworks, client hardware
USER
NEEDS BUSINES
S
MODELS
ADVERTISIN
G
SEARCH
ENGINE
OPTIMIZATION
USABILIT
Y
INTERACTION
MODELS
USER INTERFACE
DESIGN

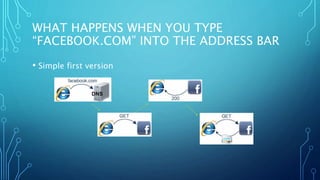

20. WHAT HAPPENS WHEN YOU TYPE
“FACEBOOK.COM” INTO THE ADDRESS BAR
• Simple first version

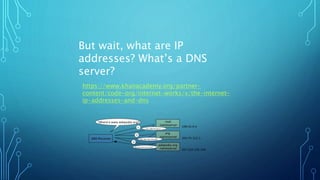

21. https://www.khanacademy.org/partner-
content/code-org/internet-works/v/the-internet-
ip-addresses-and-dns
But wait, what are IP
addresses? What’s a DNS
server?

22. SHORT BREAK
• Questions?
• Be back in 5!
Another description of DNS
https://www.youtube.com/watch?v=dE4rsNuG0aw

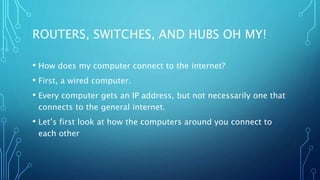

23. ROUTERS, SWITCHES, AND HUBS OH MY!
• How does my computer connect to the internet?
• First, a wired computer.
• Every computer gets an IP address, but not necessarily one that
connects to the general internet.
• Let’s first look at how the computers around you connect to
each other

24. HUBS – THE LEAST INTELLIGENT
CONNECTION
Everything is connected to everything else
But it’s cheap, and easy

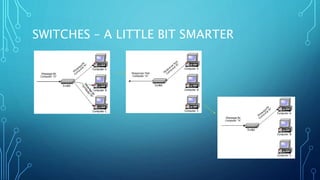

25. SWITCHES – A LITTLE BIT SMARTER

26. ROUTERS – SMARTER YET
• DHCP and NAT
• Dynamic Host Configuration Protocol
• Network Address Translation
NAT is also a rudimentary
firewall

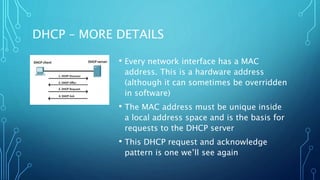

27. DHCP – MORE DETAILS
• Every network interface has a MAC
address. This is a hardware address
(although it can sometimes be overridden
in software)
• The MAC address must be unique inside
a local address space and is the basis for
requests to the DHCP server
• This DHCP request and acknowledge
pattern is one we’ll see again

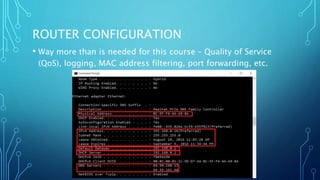

28. ROUTER CONFIGURATION
• Way more than is needed for this course – Quality of Service
(QoS), logging, MAC address filtering, port forwarding, etc.

29. WIRELESS CLIENTS
• Only a little bit different. A Wi-Fi access point is generally
integrated with a router.
• Each access point broadcasts an SSID – Service Set Identifier
• There are also more variants of wireless security since physical
access isn’t needed to connect

30. A SHORT BREAK AND AN EXERCISE
• Open a terminal (start menu, cmd on PC)(Application-
>utilities->terminal on Mac)
• Find your ip address (on PC, type “ipconfig”) (on Mac, type
“ifconfig”)
• Is that IP address on the main internet or is it granted by a wifi
access point?
• What is your external IP address? (go to
https://www.whatismyip.com/)

31. LARGER NETWORKS
• Routing on the internet
• Caching
• Load balancing
• Anycast
• Content delivery networks (CDNs)
• Network tools

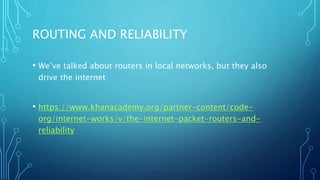

32. ROUTING AND RELIABILITY
• We’ve talked about routers in local networks, but they also
drive the internet
• https://www.khanacademy.org/partner-content/code-
org/internet-works/v/the-internet-packet-routers-and-
reliability

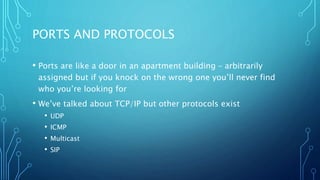

33. PORTS AND PROTOCOLS
• Ports are like a door in an apartment building – arbitrarily
assigned but if you knock on the wrong one you’ll never find
who you’re looking for
• We’ve talked about TCP/IP but other protocols exist
• UDP
• ICMP
• Multicast
• SIP

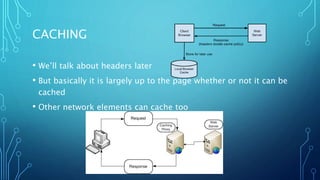

34. CACHING
• We’ll talk about headers later
• But basically it is largely up to the page whether or not it can be
cached
• Other network elements can cache too

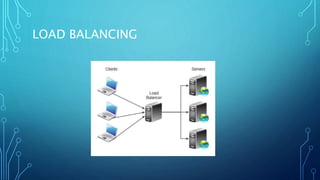

35. LOAD BALANCING

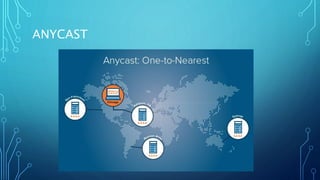

36. ANYCAST

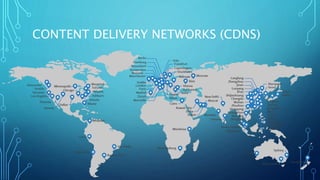

37. CONTENT DELIVERY NETWORKS (CDNS)

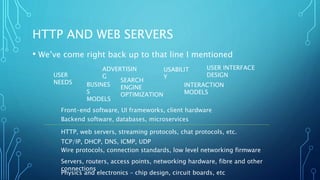

38. HTTP AND WEB SERVERS
• We’ve come right back up to that line I mentioned
Physics and electronics – chip design, circuit boards, etc
Servers, routers, access points, networking hardware, fibre and other
connections
Wire protocols, connection standards, low level networking firmware
TCP/IP, DHCP, DNS, ICMP, UDP
HTTP, web servers, streaming protocols, chat protocols, etc.
Backend software, databases, microservices
Front-end software, UI frameworks, client hardware
USER
NEEDS BUSINES
S
MODELS
ADVERTISIN
G
SEARCH
ENGINE
OPTIMIZATION
USABILIT
Y
INTERACTION
MODELS
USER INTERFACE
DESIGN

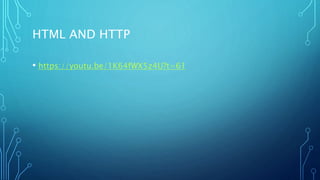

39. HTML AND HTTP
• https://youtu.be/1K64fWX5z4U?t=61

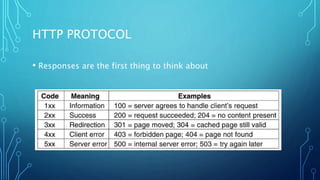

40. HTTP PROTOCOL
• Responses are the first thing to think about

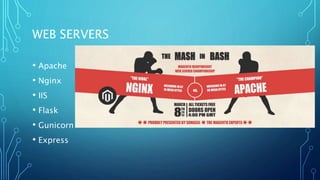

41. WEB SERVERS
• Apache
• Nginx
• IIS
• Flask
• Gunicorn
• Express

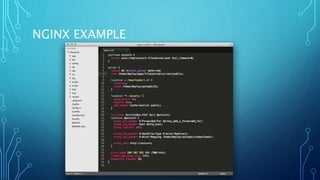

42. NGINX EXAMPLE

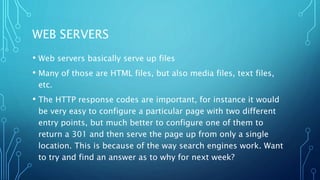

43. WEB SERVERS
• Web servers basically serve up files
• Many of those are HTML files, but also media files, text files,
etc.
• The HTTP response codes are important, for instance it would
be very easy to configure a particular page with two different
entry points, but much better to configure one of them to
return a 301 and then serve the page up from only a single
location. This is because of the way search engines work. Want
to try and find an answer as to why for next week?

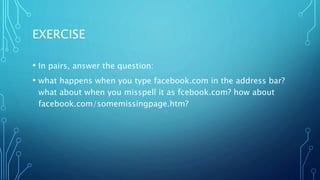

44. EXERCISE
• In pairs, answer the question:
• what happens when you type facebook.com in the address bar?
what about when you misspell it as fcebook.com? how about
facebook.com/somemissingpage.htm?

45. PC ARCHITECTURE AND USER INTERFACES
• Most of this course is about the web
• But you’ll be using your laptop to access and create content for
it, so understanding some of the computer internals is useful

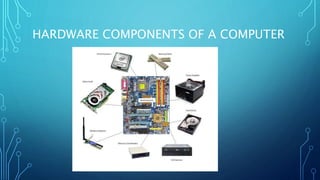

46. HARDWARE COMPONENTS OF A COMPUTER

47. SOFTWARE COMPONENTS OF A COMPUTER
Hardware and devices
Graphics
subsystem
BIOS
Operating system and device
drivers
Window
manager
Terminal and
utilities
Applications such as word processors,
browser, etc.

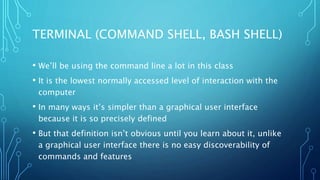

48. TERMINAL (COMMAND SHELL, BASH SHELL)
• We’ll be using the command line a lot in this class
• It is the lowest normally accessed level of interaction with the
computer
• In many ways it’s simpler than a graphical user interface
because it is so precisely defined
• But that definition isn’t obvious until you learn about it, unlike
a graphical user interface there is no easy discoverability of
commands and features

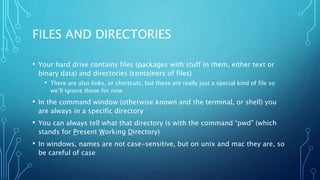

49. FILES AND DIRECTORIES
• Your hard drive contains files (packages with stuff in them, either text or
binary data) and directories (containers of files)
• There are also links, or shortcuts, but these are really just a special kind of file so
we’ll ignore those for now
• In the command window (otherwise known and the terminal, or shell) you
are always in a specific directory
• You can always tell what that directory is with the command “pwd” (which
stands for Present Working Directory)
• In windows, names are not case-sensitive, but on unix and mac they are, so
be careful of case

50. SOME TERMINAL COMMANDS
• After this week we’ll all be using the git bash command
window, which will be more similar between mac and pc.
• A detailed command line reference is found at
http://ss64.com/
• To get the directory listing, on mac it is “ls” and on the pc it is
“dir”
• Once the git bash install has occurred we will use “ls” on both
systems, for example

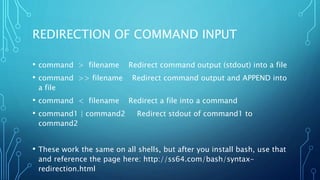

51. REDIRECTION OF COMMAND INPUT
• command > filename Redirect command output (stdout) into a file
• command >> filename Redirect command output and APPEND into
a file
• command < filename Redirect a file into a command
• command1 | command2 Redirect stdout of command1 to
command2
• These work the same on all shells, but after you install bash, use that
and reference the page here: http://ss64.com/bash/syntax-
redirection.html

52. EXAMPLES
• To put the listing of a directory into a new file on a pc
• “dir > output.txt”
• Or to append to an existing file (creating a new one if it doesn’t
exist)
• “ls >> output.txt”
• To get information about a computer
• On the PC, “systeminfo” or on the mac, “system_profiler”

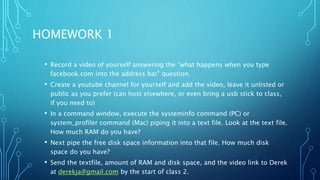

53. HOMEWORK 1
• Record a video of yourself answering the “what happens when you type
facebook.com into the address bar” question.
• Create a youtube channel for yourself and add the video, leave it unlisted or
public as you prefer (can host elsewhere, or even bring a usb stick to class,
if you need to)
• In a command window, execute the systeminfo command (PC) or
system_profiler command (Mac) piping it into a text file. Look at the text file.
How much RAM do you have?
• Next pipe the free disk space information into that file. How much disk
space do you have?
• Send the textfile, amount of RAM and disk space, and the video link to Derek
at derekja@gmail.com by the start of class 2.

54. GETTING READY FOR NEXT WEEK
• Make a github account. This will be your developer’s portfolio,
so we’ll start populating it!
• Install git on your computer (install “git bash” from https://git-
scm.com/downloads)
• Please make sure you’ve gotten on the slack channel. Send me
email at derekja@gmail.com to get access.
