The document explains how solar power systems work, detailing the roles of solar panels, battery banks, inverters, electrical panels, and utility meters. Solar panels convert sunlight into electricity, which is stored in battery banks for later use and converted to AC power for home appliances. Additionally, the utility meter tracks energy usage and allows for net metering, enabling homeowners to gain credits for surplus energy sent back to the grid.

1. UNDERSTANDING HOW
SOLARPOWER WORKS

2. SOLARPOWER
The eco-friendly
way to power
your home

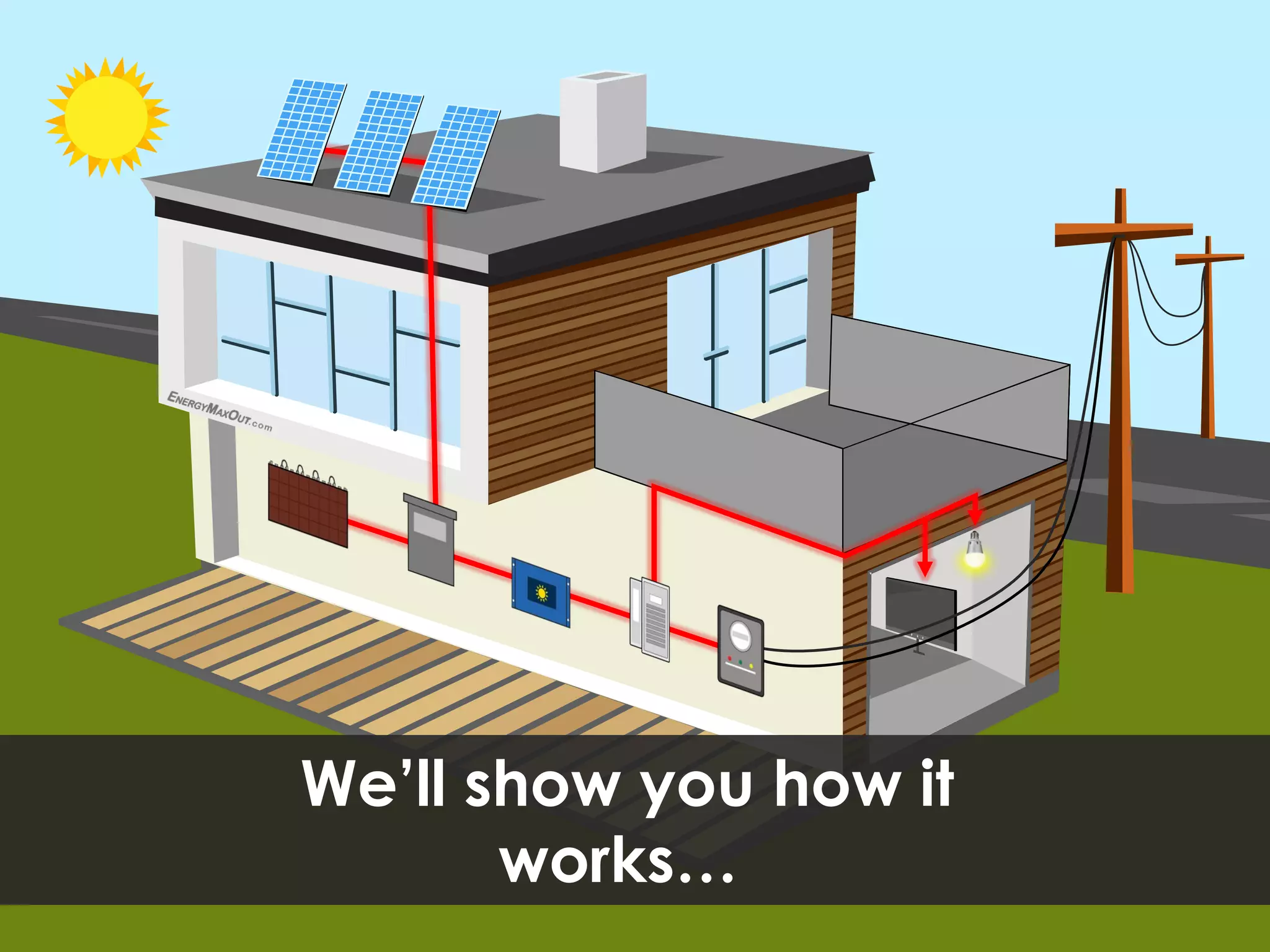

3. We’ll show you how it
works…

4. SOLARPANEL
Converts sun’s rays
into energy

5. Solar
Panels

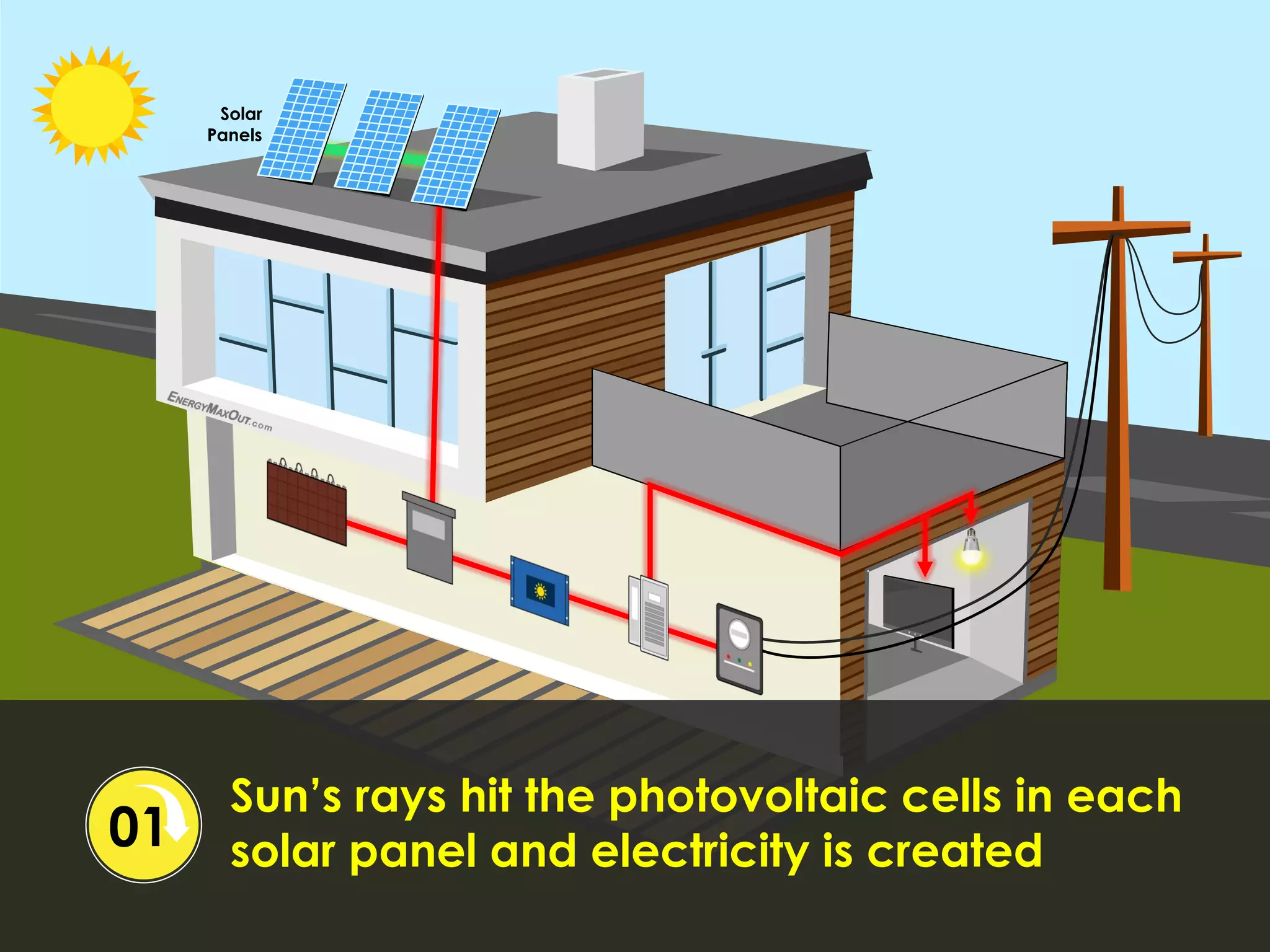

Sun’s rays hit the photovoltaic cells in each
solar panel and electricity is created01

6. Battery
80%
Input :
charge :
output :
System : Ok
SOLAR POWER
HOME
POWER
BATTERY
POWER

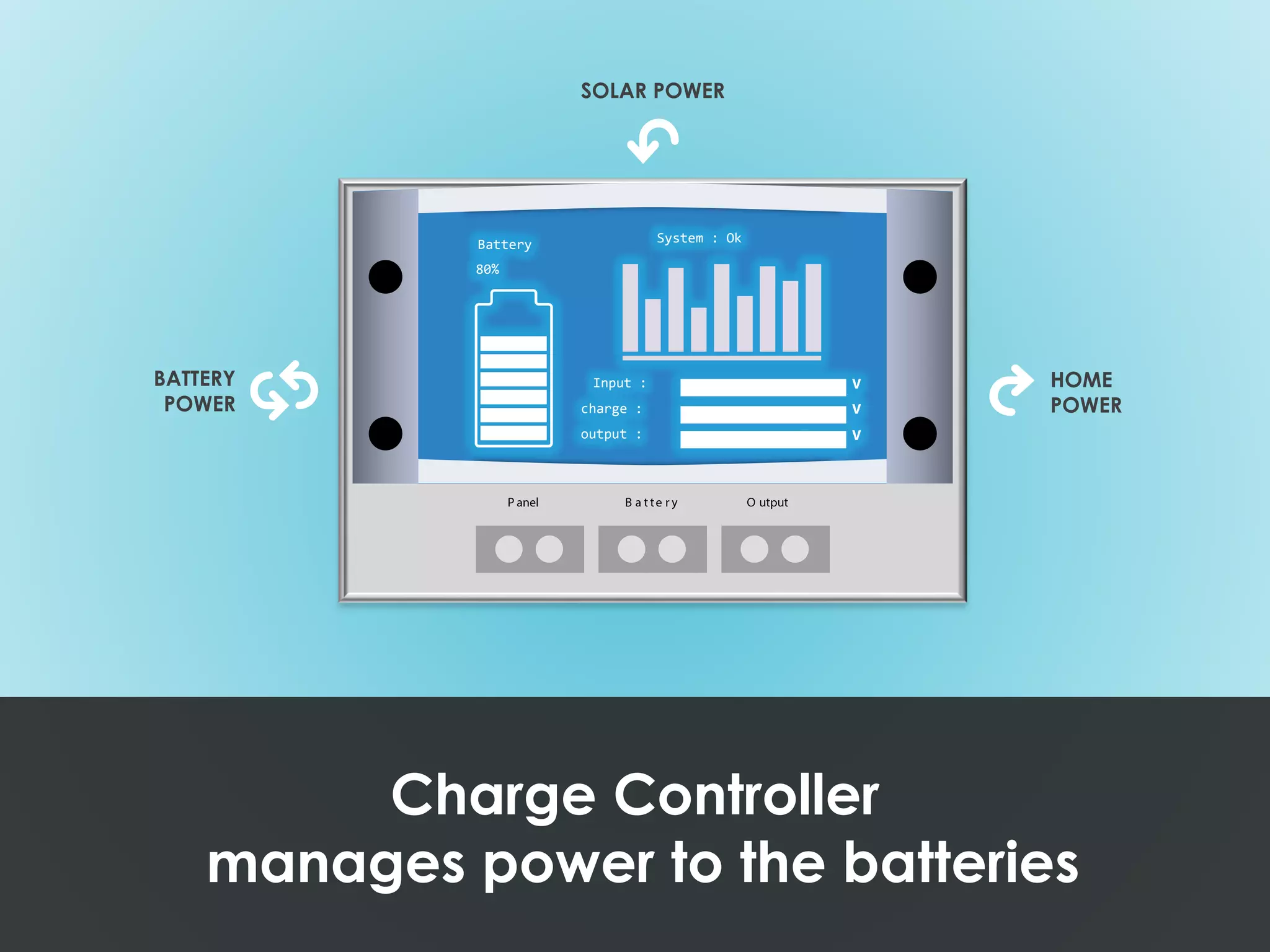

Charge Controller
manages power to the batteries

7. Solar
Panels

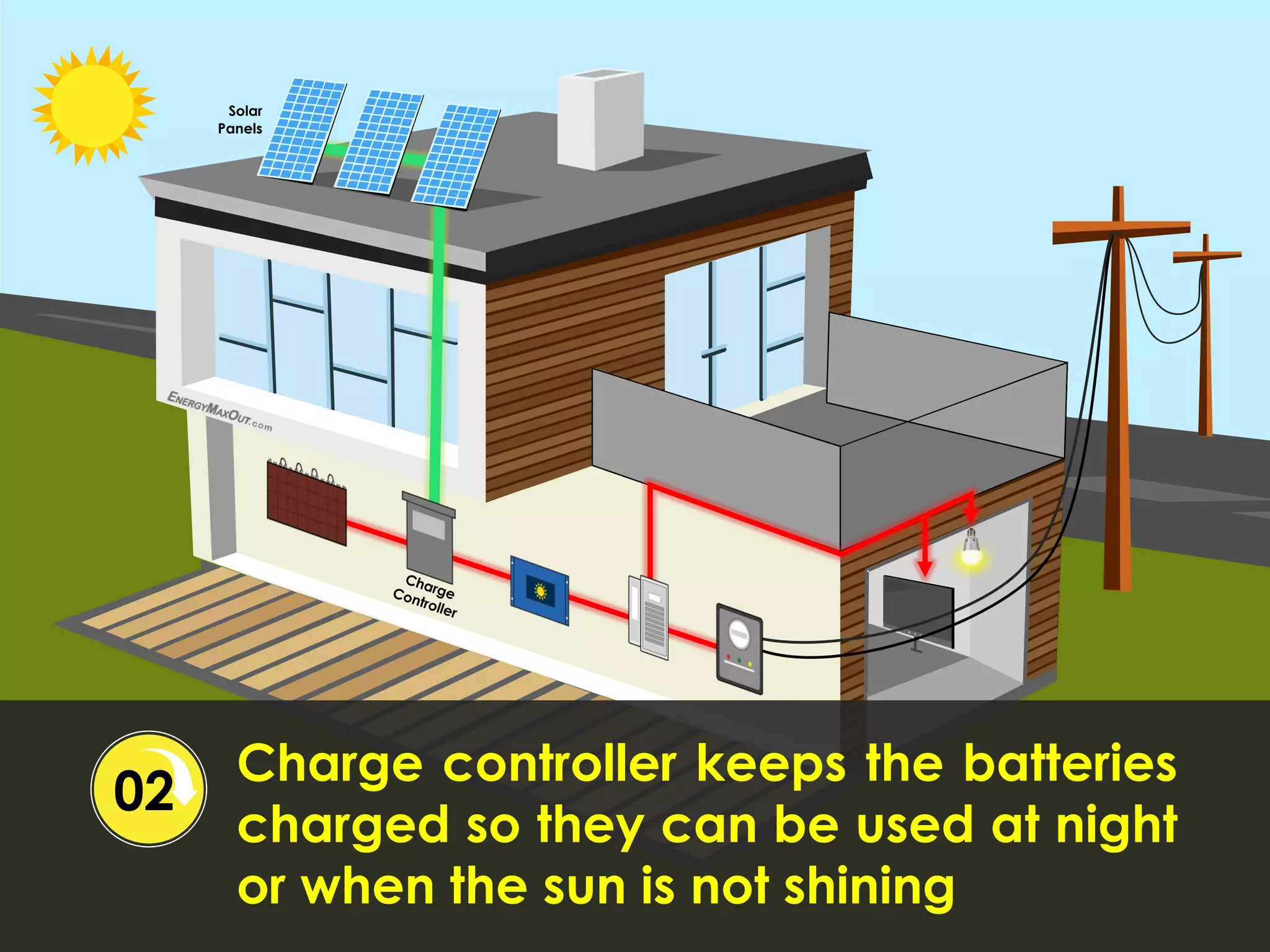

Charge controller keeps the batteries
charged so they can be used at night
or when the sun is not shining
02

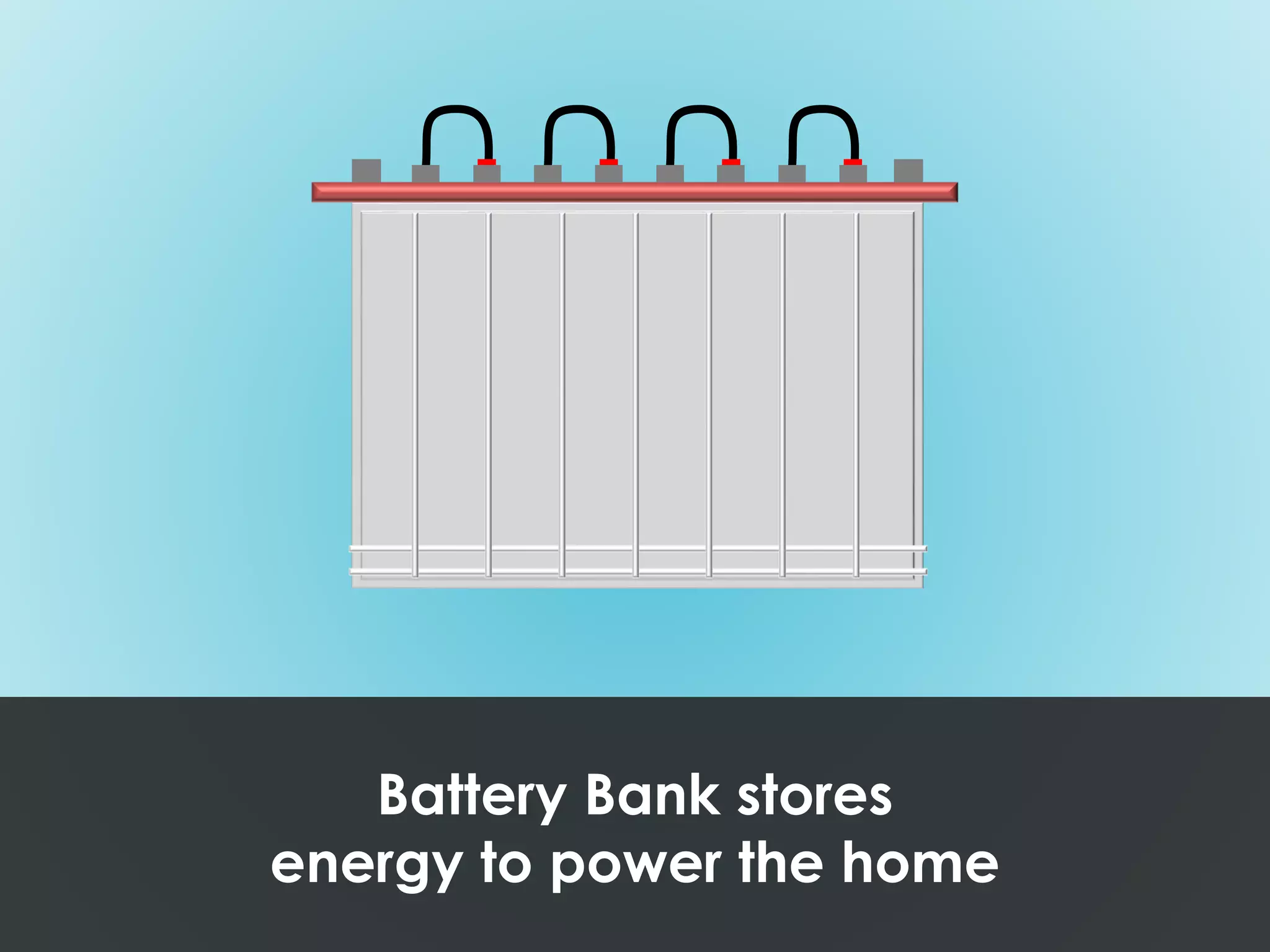

8. Battery Bank stores
energy to power the home

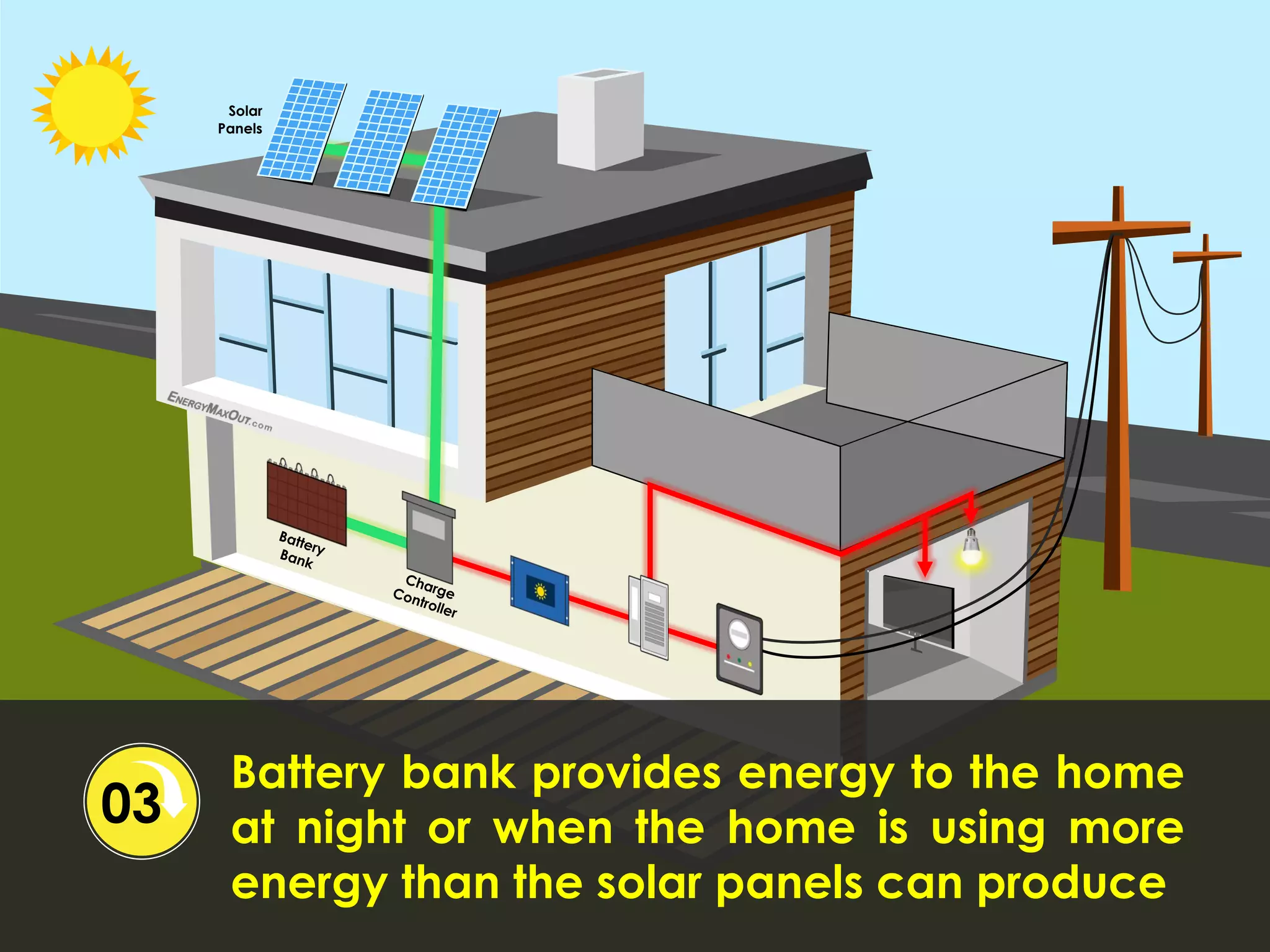

9. Solar
Panels
Battery bank provides energy to the home
at night or when the home is using more
energy than the solar panels can produce
03

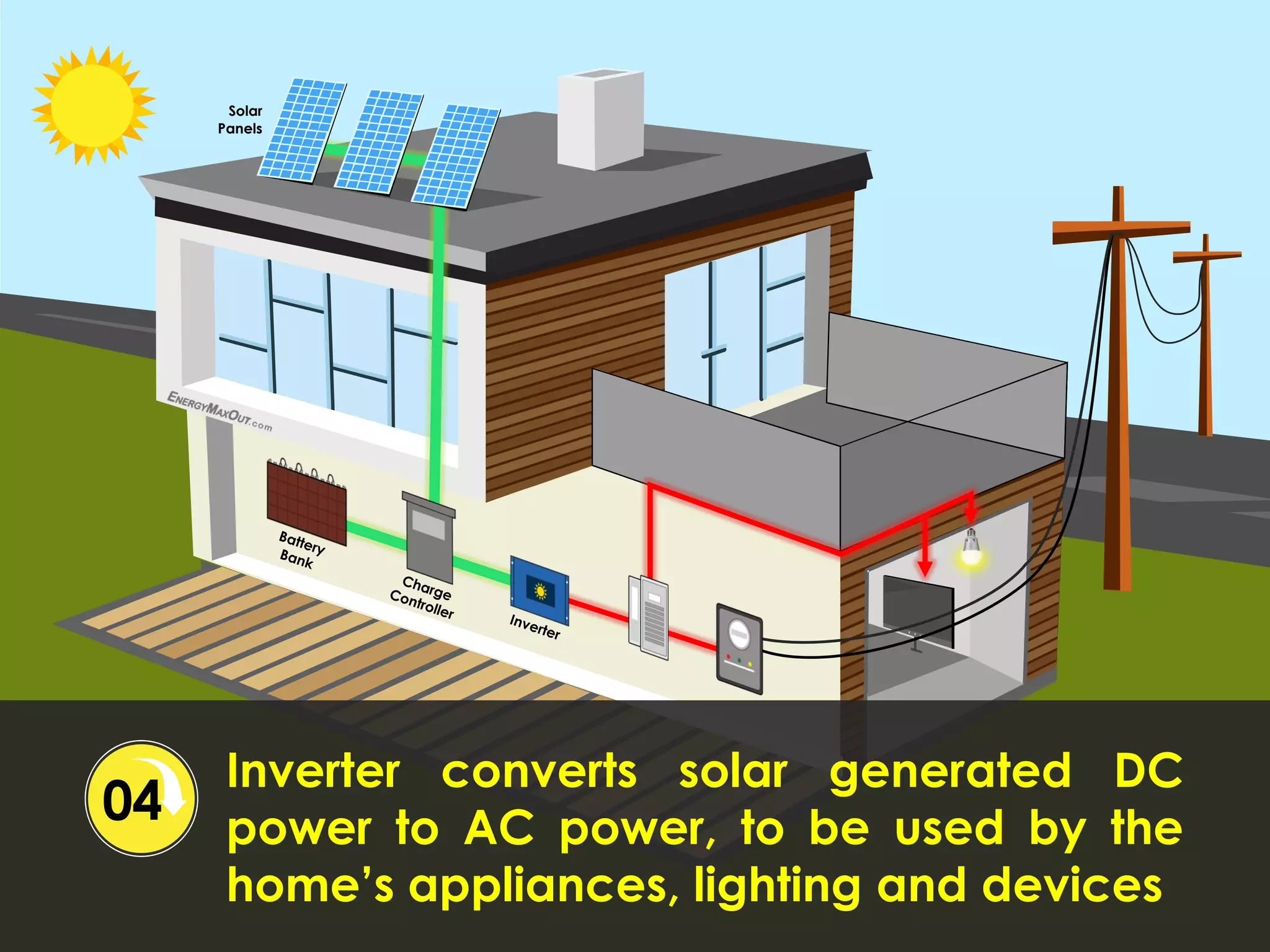

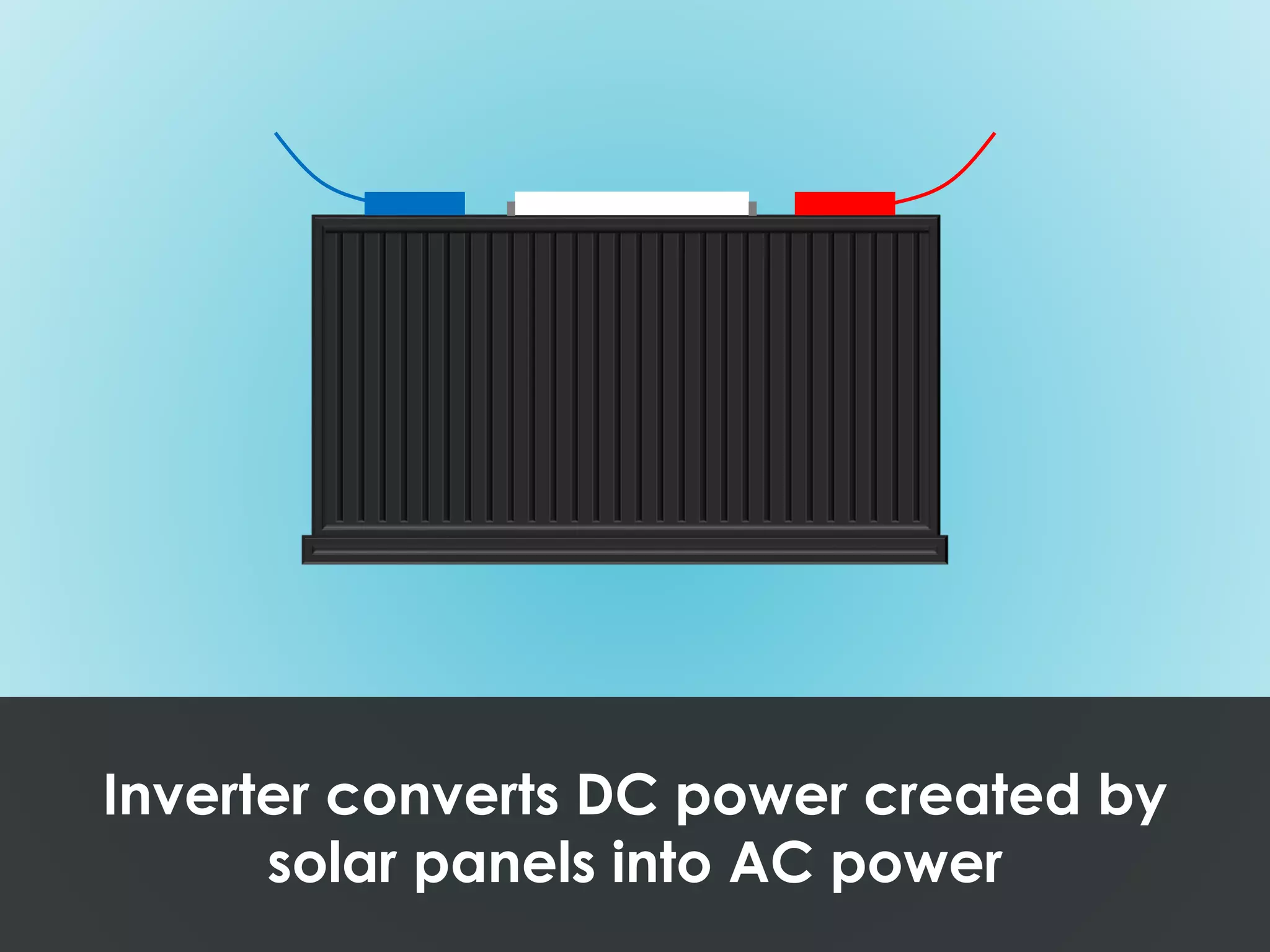

10. Inverter converts DC power created by
solar panels into AC power

11. Solar
Panels
Inverter converts solar generated DC
power to AC power, to be used by the
home’s appliances, lighting and devices
04

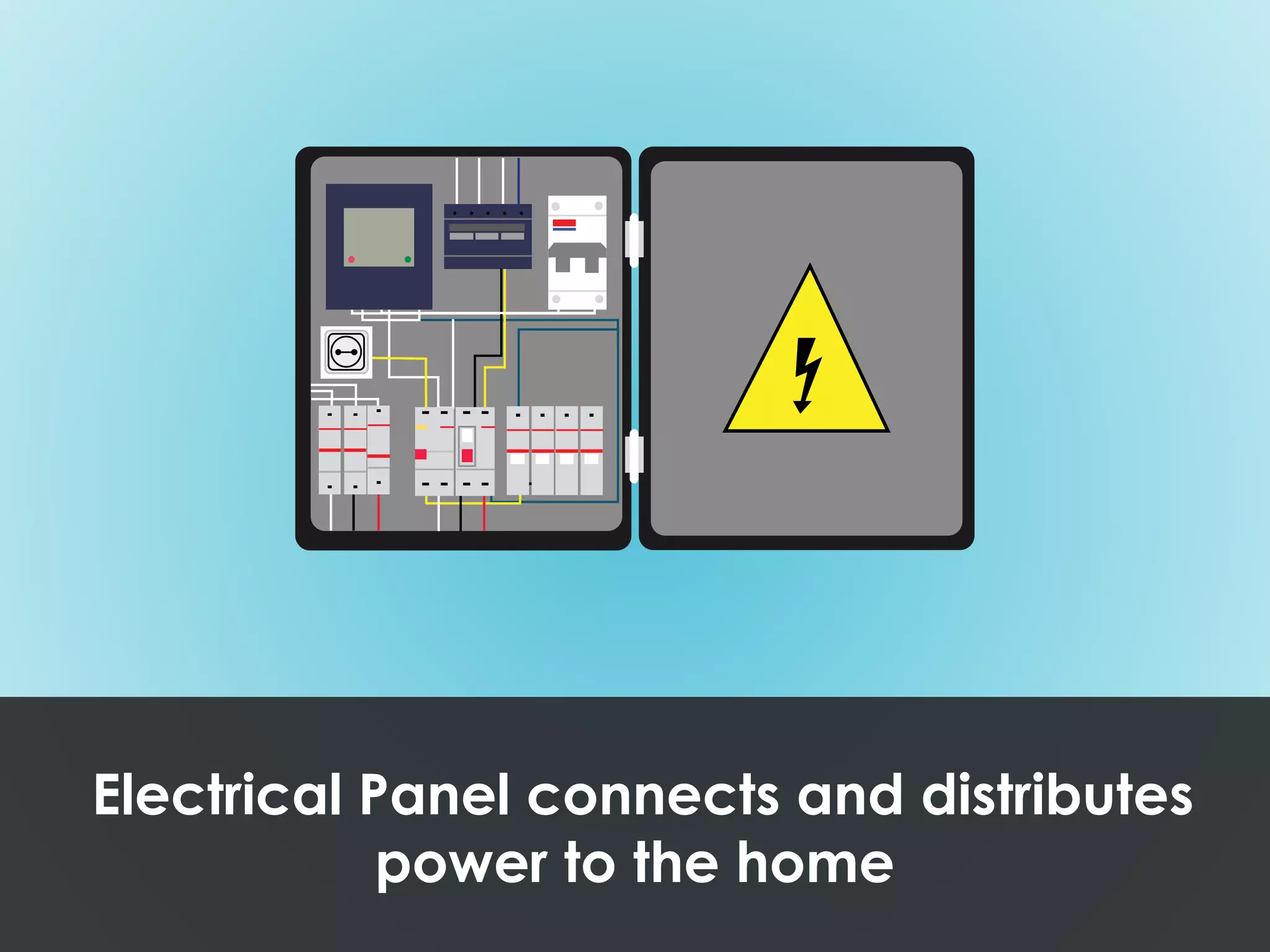

12. Electrical Panel connects and distributes
power to the home

13. Solar
Panels

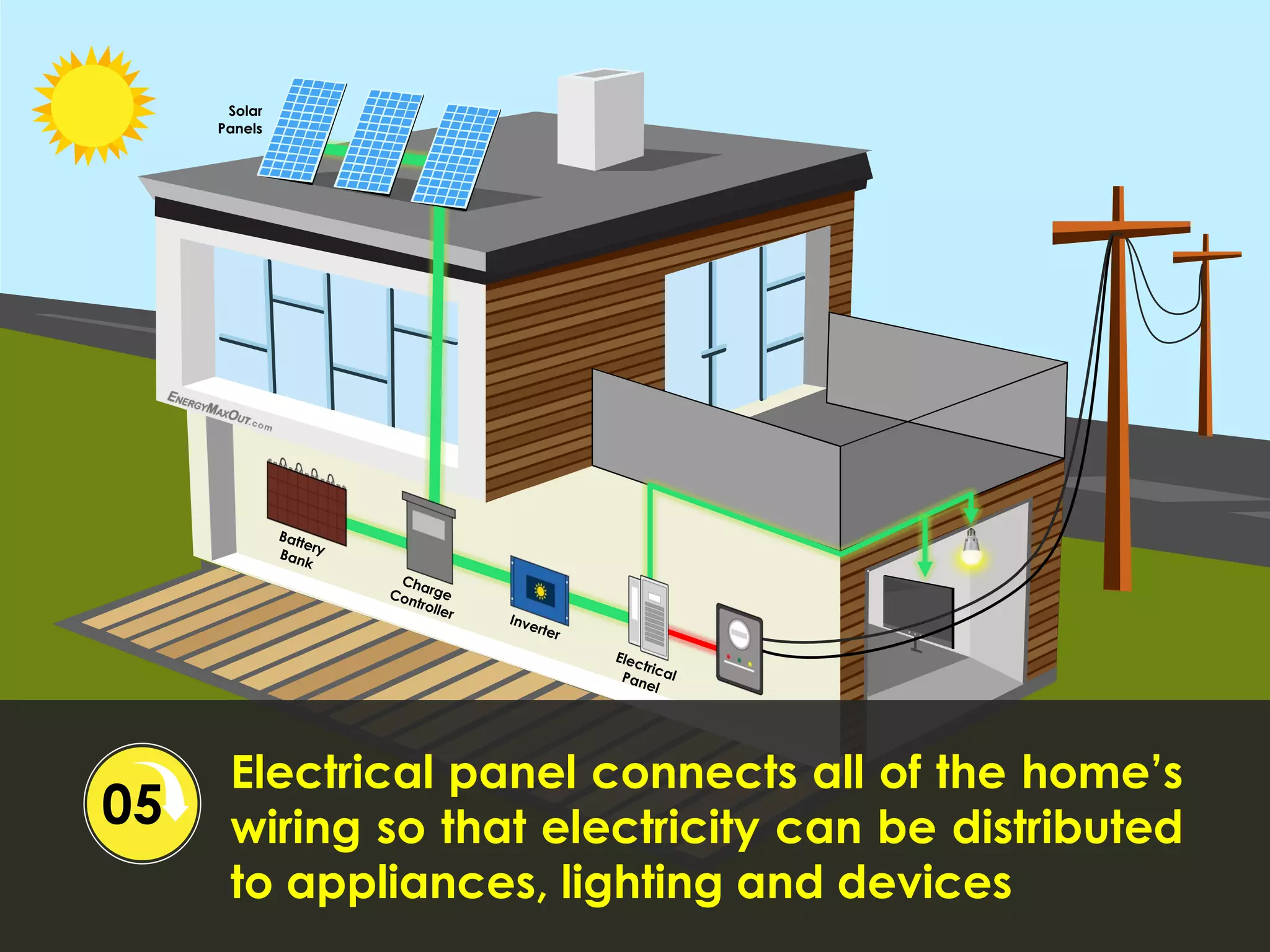

Electrical panel connects all of the home’s
wiring so that electricity can be distributed
to appliances, lighting and devices
05

14. 000000
00000
001

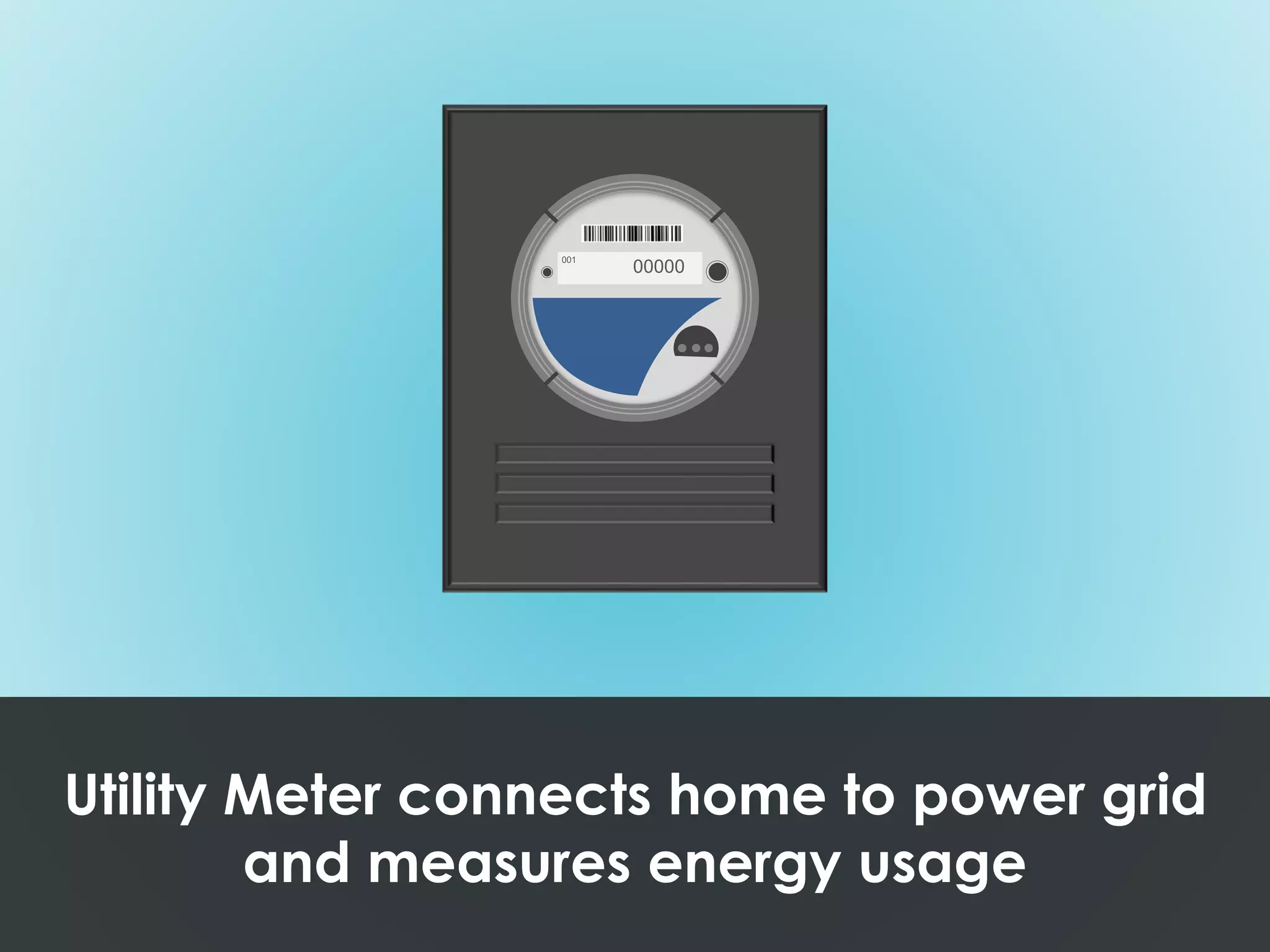

Utility Meter connects home to power grid
and measures energy usage

15. Solar
Panels

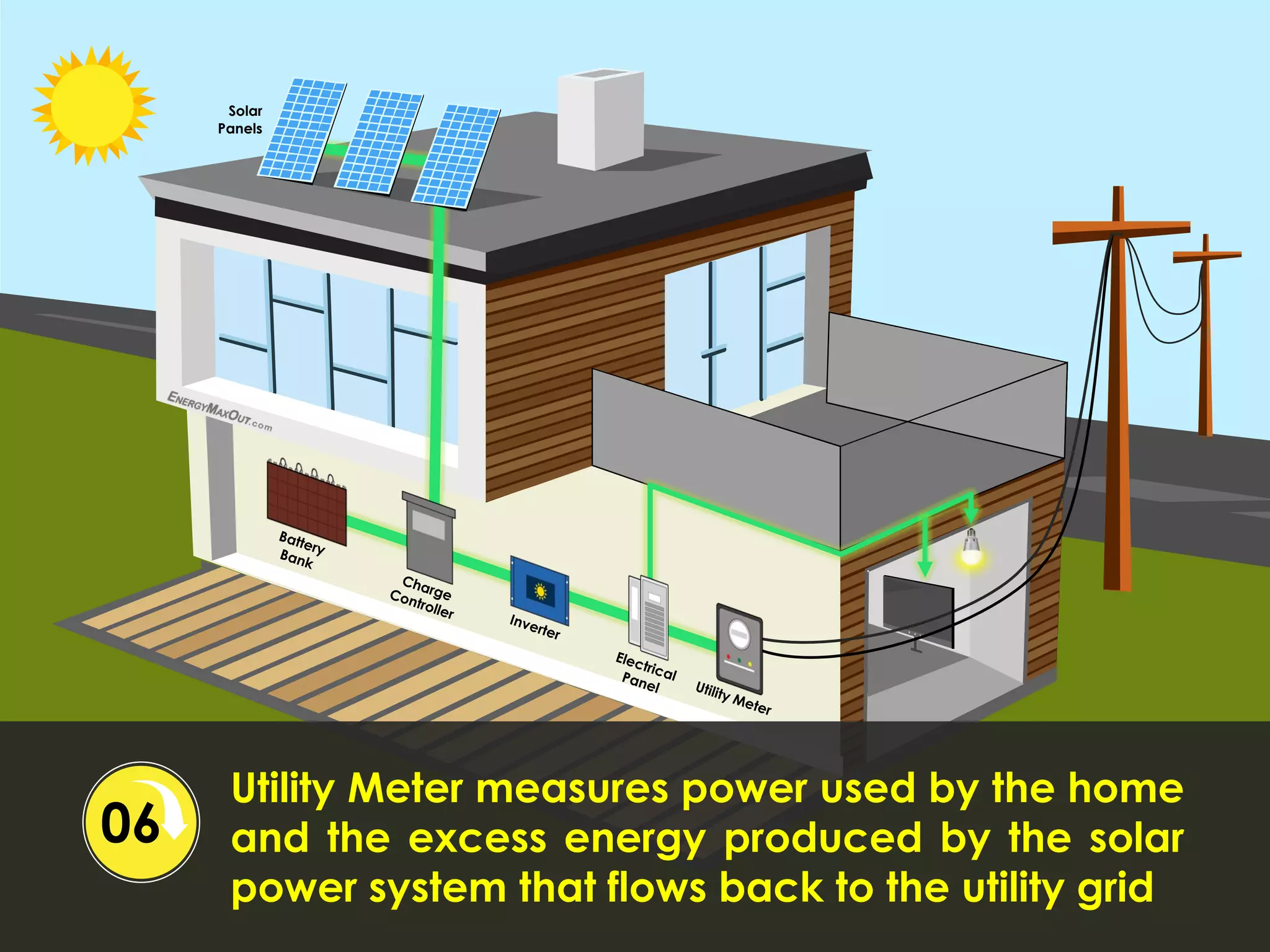

Utility Meter measures power used by the home
and the excess energy produced by the solar
power system that flows back to the utility grid
06

16. Utility Grid
provides power
to home,
when needed

17. Solar
Panels
Utility Grid

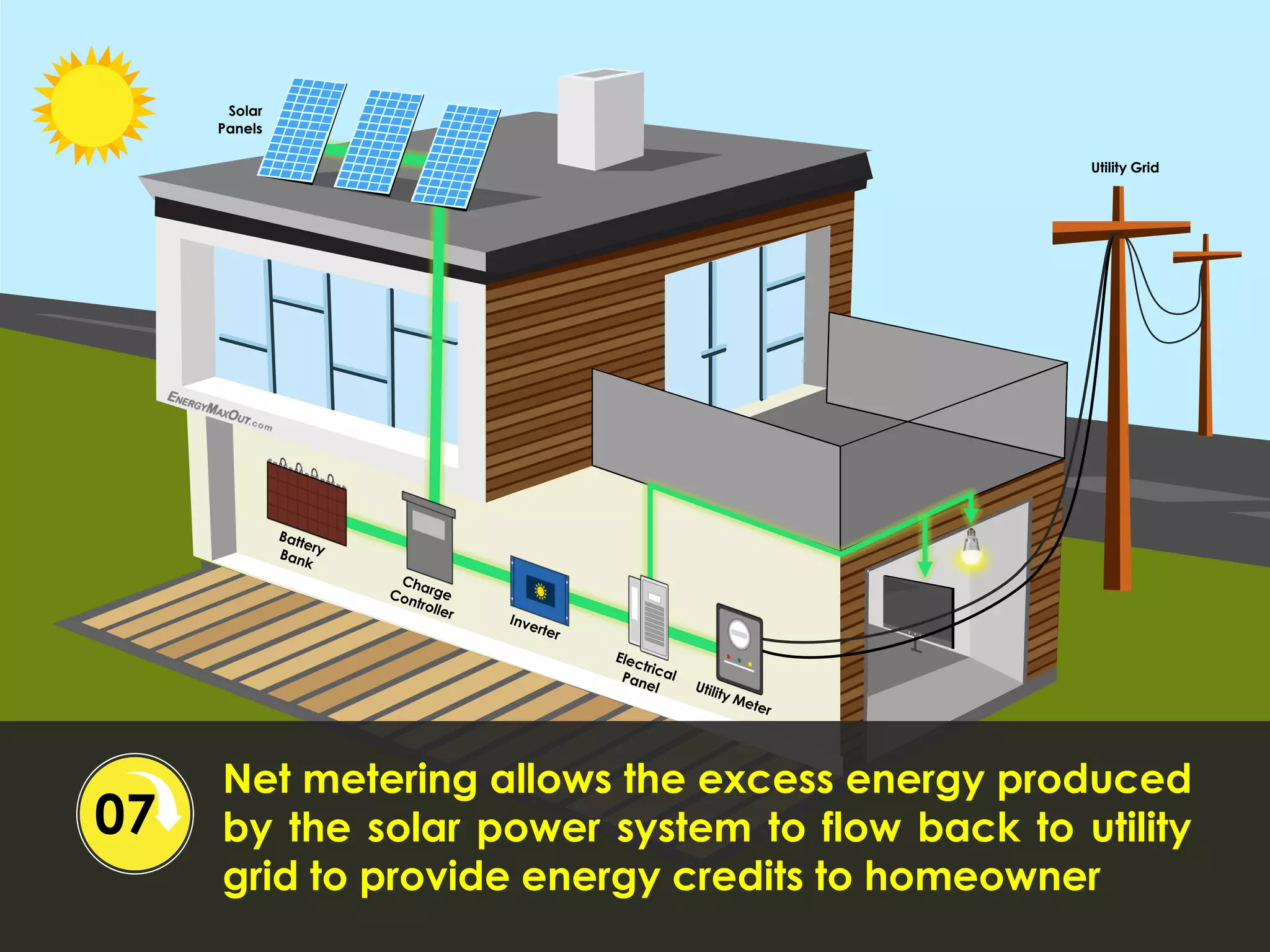

Net metering allows the excess energy produced
by the solar power system to flow back to utility
grid to provide energy credits to homeowner
07

18. Solar
Panels
Utility Grid
Solar Powered Home with
Battery Backup
