Basics of Electrical Engineering

By
Ms. Nishkam Dhiman
Assistant Professor -EEE Deptt.
Chitkara Institute of Engg. & Technology

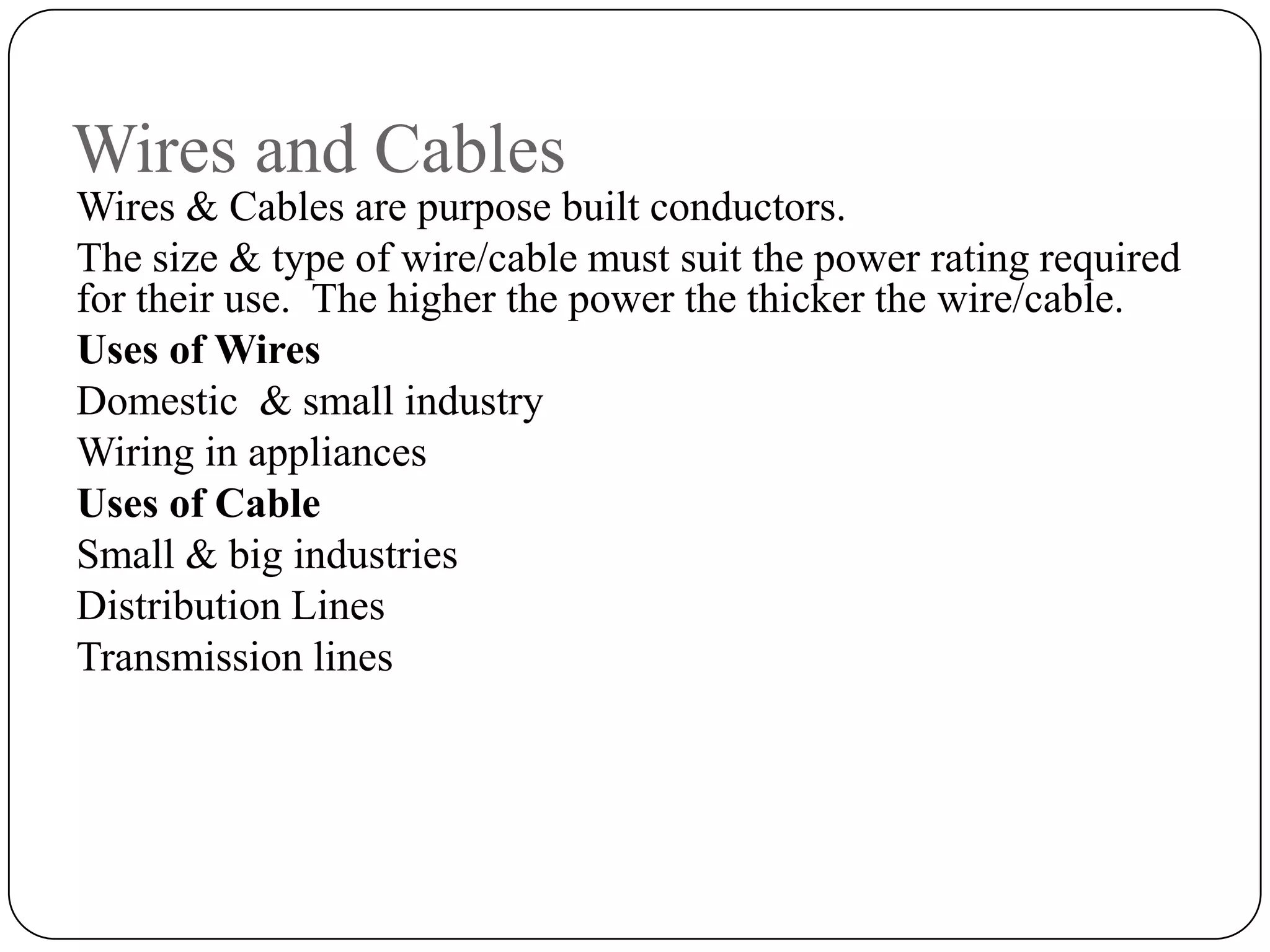

Wires and Cables
Wires & Cables are purpose built conductors.
The size & type of wire/cable must suit the power rating required
for their use. The higher the power the thicker the wire/cable.
Uses of Wires
Domestic & small industry
Wiring in appliances
Uses of Cable
Small & big industries
Distribution Lines
Transmission lines
Wires
Various types of wires.
1.VIR wire:
 It is called vulcanized insulation rubber wire. Copper &
aluminum conductor and rubber coating are used in it.
Now single & double braided wires are mostly in a use.
But it has lower tensile strength, chemical reaction & bad
insulation so it is not used.
 suitable for: low & medium voltage supply only
 old type: not readily available to purchase
2. CTS & TRS wire:
It is called crab tyre sheath wire & tuff rubber sheath wire.
Hard & good rubber coating on copper wire is used in this
wire. Its used in house wiring & industrial wiring.
Available in 250/440V only
3. Weather proof wire:
No weather reaction , in this types of wire. Because it
has cotton breeding with water proof. But it is flammable so
no in use now.
4. LC wire:
It is called lead covered wire. Lead pipe on rubber
insulation & its coating on conductor. It is very good in
moisture condition but less tensile strength so low uses now.
5. MICC wire :
It is called mineral insulated copper covered wire. In this
type wire copper conductor coated is with magnesium oxide.
And After copper coating is coated on it. In case of
moisture weather PVC coating (serving) is coated on its. It
is uses in mines, factory, furnace, boiler, rolling mills etc.
magnesium oxide is used for avoiding moisture problems.
6. PVC wire:
It is called poly vinyl chloride wire. PVC coating on copper
conductor so its so many advantages as follows.
(a) High dielectric strength
(b) High tensile strength
(c) More defense against moisture
(d) High life
(e) No disturb in vibration
Available in 600, 660, 1100 Voltage, Widely used Long life
Durable against water, heat, oil, UV light
Three Core Wire
This is three core wire. It is pvc insulated wire.
Its used for 1-phase.
1.Blue wire for Neutral
(Returns current to power source)
2. Brown for live wire
(Provides current to appliance)
3. Yellow wire for earth
(Takes current to ground if appliance has fault)
There is color code used for wiring
&supply.
CABLE STRUCTURE
There is cable wire. Its
Use for power transmit ion.

1- core
2- pvc insulation
3- oil duct

4- metallic screen
5- rubber insulation
General construction & main parts of
cable






Core
Insulation
Metallic sheath
Bedding
Armouring

Metallic Sheath: A power cable is an assembly of two or
more electrical conductors, usually held together with an overall sheath.
The assembly is used for transmission of electrical power.
Armouring: Armoured cable is the name given to any electrical cable
constructed with a layer of aluminium wire armour or steel wire armour.
The armour sits below the sheath of the cable to provide protection for the
conductor and insulating layers.

Bedding: Cable bedding compounds are mainly used in multiconductor cables, filling the spaces between conductors and
making the cable round.
Classification of Cables
Type of insulation
1. Cotton covered
2. Silk coated
3. Asbestos covered
4. Rubber coated
5. PVC coated
Type of conducting material
1. Copper
2. Aluminum
Shape
1. Flat
2. Round
Mechanical Protection
1. Unarmored
2. Armored
Voltage Rating
1. Low voltage cable.(1000V)
2. High voltage cable.(11KV)
3. Super tension cable.(upto 132kV)
4. Extra high tension.(132kV and more)
5. Ultra high voltage cables(400kV and more)
Grading of cables
The voltage gradient is maximum at the surface of the
conductor and minimum at the inner surface of the sheath
(i.e., the stress decreases from conductor surface to sheath).
This causes breakdown in the insulation. For avoiding this
breakdown, it is advisable to have more uniform stress
distribution throughout the dielectric. The process of
achieving uniform distribution in dielectric stress is called
the grading of cables.
S.W.G. (standard wire gauge)
Introduction
A Instrument which is use for measure Cross Area (gauge)
of wire
Various uses of wire gauge
• To measure Cross
area of wire
• To measure gauge
Basics of electrical engineering
Cable Termination
 When a cable enters into an accessory its called a termination

or Cable termination is the process of connecting power cables
up to the final equipment or the upstream circuit breaker.
 Thimble or terminals must be used at termination points, where
thimble is the termination point which can be connected to the
source or load.
 These must be as mechanically & electrically strong as the
conductor or device which it is used.
Cable Safety
 Weather Proof
 Rust proof
 Free from wear and tear
 Armoured
 Good insulation
DIFFERENT TYPES OF JOINTS





Britannia Joint
Straight Joint
Tee Joint
Western Union Joint
1. Britannia Joint : The Britannia joint is a form of
electrical joint used for bare overhead wires where great
tensile strength is required. The two wires are each
tinned, and then each have a short shoulder bent in
them, and are then bound together with tinned wire before
the whole is soldered.
2. Straight Joint
 The braiding is cut back to a distance of about 6

inches, and a shoulder is neatly formed with a sharp knife.
The rubber insulation is also cut back and neatly tapered
to a conical form about 1 1/2 inch in length. The copper
wires are separated for a length of about 2 inches from the
end, and carefully cleaned with emery cloth. The
remainder of the exposed copper wires are twisted tightly
together, and the central strand is cut out as close as
possible to the point where the strands commence to
separate.
3. T Joint
 When a tee joint is to be made in single wires, about 2

inches of the main cable and 2 inches of the branch
cable are bared, the insulating material being treated
as before described. The wires are cleaned, and about
1 inch of the branch is wound round the main
cable, and soldered to it at the extreme end.
4. Western Union Joints
The wires are crossed positioned to make a long twist or
bend in each wire. One end of the wire is wrapped and then
the other end four or five times around the straight portion
of each wire The ends of the wires are pressed down as close
as possible to the straight portion of the wire.
5. Married Joint
 The married joint is an electrical joint used for

joining multi-strand cables. The wires are
unstranded, then interlaced with the wires of the
other cable, and then married (twisted) together
before finally being soldered.
Signs and Symbols
Introduction:
In electrical, so many signs & symbols are used for drawing
electrical circuits also use for short identification.
Different types of sign & symbols used in Electrical Engineering.
1) A.C. = ~
2) D.C. =
3) Power = w
4) Voltage = v
5) Current = I
6) Resistance = R
7) Inductor = L
Basics of electrical engineering
Basics of electrical engineering
Basics of electrical engineering
Basics of electrical engineering
Ohm’s Law
For a fixed metal conductor, the temperature & other conditions
remaining constant the current (I) through it is proportional to the
potential difference (V) between its ends
Equation ,
I=V/R
I=current , V=voltage and R=resistance
Applications of Ohm’s Law
By using Ohm's law, you are able to find the resistance of a
circuit, knowing only the voltage and the current in the circuit.
In any equation, if all the variables (parameters) are known
except one, that unknown can be found.
Concept of Electric Circuit
 An electric circuit is formed by interconnecting

components having different electric properties.
 A collection of devices such as resistors and sources in
which terminals are connected together by connecting wires
is called an electric circuit. These wires converge
in nodes, and the devices are called branches of the circuit.
 Components of electric circuit
1. Resistance
2. Voltage or Current Sources
3. Wires
Series and Parallel Circuits
 Series circuits
 A series circuit is a circuit in which resistors are arranged in a

chain, so the current has only one path to take. The current is
the same through each resistor. The total resistance of the
circuit is found by simply adding up the resistance values of the
individual resistors:
 equivalent resistance of resistors in series : R = R1 + R2 + R3 +
...
 Parallel circuits
 A parallel circuit is a circuit in which the resistors are arranged

with their heads connected together, and their tails connected
together. The current in a parallel circuit breaks up, with some
flowing along each parallel branch and re-combining when the
branches meet again. The voltage across each resistor in
parallel is the same.
 The total resistance of a set of resistors in parallel is found by
adding up the reciprocals of the resistance values, and then
taking the reciprocal of the total:
 equivalent resistance of resistors in parallel: 1 / R = 1 / R1 + 1 /
R2 + 1 / R3 +...
Mixed Circuits
 Resistor circuits that combine series and parallel resistors

networks together are generally known as Resistor
Combination or mixed resistor circuits. The method of
calculating the circuits equivalent resistance is the same as that
for any individual series or parallel circuit and hopefully we
now know that resistors in series carry exactly the same current
and that resistors in parallel have exactly the same voltage
across them.

More Related Content

What's hot

Types of wires and cables
Types of wires and cablesTypes of wires and cables
Types of wires and cables
Dhruvit Kardani

Schematic diagrams
Schematic diagramsSchematic diagrams
Schematic diagrams
Damion Lawrence

Earthing
EarthingEarthing
Earthing
vijay9213

Basic Difference Between Wires and Cables
Basic Difference Between Wires and CablesBasic Difference Between Wires and Cables
Basic Difference Between Wires and Cables
Dr.Raja R

Resistors - Basics
Resistors - BasicsResistors - Basics
Resistors - Basics
AtheenaPandian Enterprises

Unit 01 electrical wiring diagrams
Unit 01 electrical wiring diagramsUnit 01 electrical wiring diagrams
Unit 01 electrical wiring diagrams
Parneet Chowdhary

Transformer Designing
Transformer Designing Transformer Designing
Transformer Designing
Praveen Sharma

Theory Communication
Theory CommunicationTheory Communication
Theory Communication
Hikari Riten

Electrical measuring instruments
Electrical measuring instrumentsElectrical measuring instruments
Electrical measuring instruments
Suhail Ahmed

Electronics
ElectronicsElectronics
Electronics
Jeraldine Cabayaran

Transformers
TransformersTransformers
Transformers
Abhijit Jadhav

dc Generator Ppt
dc Generator Pptdc Generator Ppt
dc Generator Ppt
kiit university

WIRING ACCESORIES AND LIGHTING.pptx
WIRING ACCESORIES AND LIGHTING.pptxWIRING ACCESORIES AND LIGHTING.pptx
WIRING ACCESORIES AND LIGHTING.pptx
RIDDHESH VARIK

Electronics ppt
Electronics ppt Electronics ppt
Electronics ppt
Anirudha Kumar

Resonance in parallel rlc circuit
Resonance in parallel rlc circuitResonance in parallel rlc circuit
Resonance in parallel rlc circuit
Shivam Gupta

Electrical measuring instruments
Electrical measuring instrumentsElectrical measuring instruments
Electrical measuring instruments
Vinod Adakkaputhur

Electrical protective devices ec
Electrical protective devices ecElectrical protective devices ec
Electrical protective devices ec
trg12345

transmission-lines
transmission-linestransmission-lines
transmission-lines
ATTO RATHORE

Dc motor
Dc motorDc motor
Dc motor
Sayyed Raza

HOME WIRING(domestic wiring)
HOME WIRING(domestic wiring)HOME WIRING(domestic wiring)
HOME WIRING(domestic wiring)
Arshad Hussain


What's hot (20)

Types of wires and cables
Types of wires and cablesTypes of wires and cables
Types of wires and cables

Schematic diagrams
Schematic diagramsSchematic diagrams
Schematic diagrams

Earthing
EarthingEarthing
Earthing

Basic Difference Between Wires and Cables
Basic Difference Between Wires and CablesBasic Difference Between Wires and Cables
Basic Difference Between Wires and Cables

Resistors - Basics
Resistors - BasicsResistors - Basics
Resistors - Basics

Unit 01 electrical wiring diagrams
Unit 01 electrical wiring diagramsUnit 01 electrical wiring diagrams
Unit 01 electrical wiring diagrams

Transformer Designing
Transformer Designing Transformer Designing
Transformer Designing

Theory Communication
Theory CommunicationTheory Communication
Theory Communication

Electrical measuring instruments
Electrical measuring instrumentsElectrical measuring instruments
Electrical measuring instruments

Electronics
ElectronicsElectronics
Electronics

Transformers
TransformersTransformers
Transformers

dc Generator Ppt
dc Generator Pptdc Generator Ppt
dc Generator Ppt

WIRING ACCESORIES AND LIGHTING.pptx
WIRING ACCESORIES AND LIGHTING.pptxWIRING ACCESORIES AND LIGHTING.pptx
WIRING ACCESORIES AND LIGHTING.pptx

Electronics ppt
Electronics ppt Electronics ppt
Electronics ppt

Resonance in parallel rlc circuit
Resonance in parallel rlc circuitResonance in parallel rlc circuit
Resonance in parallel rlc circuit

Electrical measuring instruments
Electrical measuring instrumentsElectrical measuring instruments
Electrical measuring instruments

Electrical protective devices ec
Electrical protective devices ecElectrical protective devices ec
Electrical protective devices ec

transmission-lines
transmission-linestransmission-lines
transmission-lines

Dc motor
Dc motorDc motor
Dc motor

HOME WIRING(domestic wiring)
HOME WIRING(domestic wiring)HOME WIRING(domestic wiring)
HOME WIRING(domestic wiring)


Similar to Basics of electrical engineering

Transmission & distribution of electrical power
Transmission & distribution of electrical powerTransmission & distribution of electrical power
Transmission & distribution of electrical power
priyanka1432

Power house report
Power house reportPower house report
Power house report
Lakshminarayan Solanki

Power house report
Power house reportPower house report
Power house report
Lakshminarayan Solanki

Unit I.pdf
Unit I.pdfUnit I.pdf
Unit I.pdf
SharumathiR1

typesofconductorshantanu-170307193908.pptx
typesofconductorshantanu-170307193908.pptxtypesofconductorshantanu-170307193908.pptx
typesofconductorshantanu-170307193908.pptx
AbidKamal15

wiring estimation and costing Unit I.ppt
wiring estimation and costing Unit I.pptwiring estimation and costing Unit I.ppt
wiring estimation and costing Unit I.ppt
vellakumar325

WP-Th-lecture,machine shope-4(2k22).pptx
WP-Th-lecture,machine shope-4(2k22).pptxWP-Th-lecture,machine shope-4(2k22).pptx
WP-Th-lecture,machine shope-4(2k22).pptx
khizeraftab1018

Types of Cables.pdf
Types of Cables.pdfTypes of Cables.pdf
Types of Cables.pdf
DevaRajuT

Power System I Chapt 3.pdf
Power System I Chapt 3.pdfPower System I Chapt 3.pdf
Power System I Chapt 3.pdf
ArifeAbdulkerim

Types of cables
Types of cables   Types of cables
Types of cables
Preetshah1212

Lecture 1 resistors
Lecture  1  resistorsLecture  1  resistors
Lecture 1 resistors
Empre

Underground cables
Underground cablesUnderground cables
Resistor
ResistorResistor
Electronics and Communication Engineering
Electronics and Communication EngineeringElectronics and Communication Engineering
Electronics and Communication Engineering
Ekeeda

Domestic wiring
Domestic wiringDomestic wiring
Domestic wiring
Vima Mali

My Presentation on Rc-Circuit
My Presentation on Rc-CircuitMy Presentation on Rc-Circuit
My Presentation on Rc-Circuit
dreamxdemise

Wires (Solar Photovoltaic Technology and Systems).pptx
Wires (Solar Photovoltaic Technology and Systems).pptxWires (Solar Photovoltaic Technology and Systems).pptx
Wires (Solar Photovoltaic Technology and Systems).pptx
Sayed Rashid Khan Nickbeen

SOUMADIP-FACT.pptx
SOUMADIP-FACT.pptxSOUMADIP-FACT.pptx
SOUMADIP-FACT.pptx
SOUMADIPGHARA

Electrical Engineering
Electrical EngineeringElectrical Engineering
Electrical Engineering
Ekeeda

Presentation on cables
Presentation on cablesPresentation on cables
Presentation on cables
FaizanAli244


Similar to Basics of electrical engineering (20)

Transmission & distribution of electrical power
Transmission & distribution of electrical powerTransmission & distribution of electrical power
Transmission & distribution of electrical power

Power house report
Power house reportPower house report
Power house report

Power house report
Power house reportPower house report
Power house report

Unit I.pdf
Unit I.pdfUnit I.pdf
Unit I.pdf

typesofconductorshantanu-170307193908.pptx
typesofconductorshantanu-170307193908.pptxtypesofconductorshantanu-170307193908.pptx
typesofconductorshantanu-170307193908.pptx

wiring estimation and costing Unit I.ppt
wiring estimation and costing Unit I.pptwiring estimation and costing Unit I.ppt
wiring estimation and costing Unit I.ppt

WP-Th-lecture,machine shope-4(2k22).pptx
WP-Th-lecture,machine shope-4(2k22).pptxWP-Th-lecture,machine shope-4(2k22).pptx
WP-Th-lecture,machine shope-4(2k22).pptx

Types of Cables.pdf
Types of Cables.pdfTypes of Cables.pdf
Types of Cables.pdf

Power System I Chapt 3.pdf
Power System I Chapt 3.pdfPower System I Chapt 3.pdf
Power System I Chapt 3.pdf

Types of cables
Types of cables   Types of cables
Types of cables

Lecture 1 resistors
Lecture  1  resistorsLecture  1  resistors
Lecture 1 resistors

Underground cables
Underground cablesUnderground cables
Underground cables

Resistor
ResistorResistor
Resistor

Electronics and Communication Engineering
Electronics and Communication EngineeringElectronics and Communication Engineering
Electronics and Communication Engineering

Domestic wiring
Domestic wiringDomestic wiring
Domestic wiring

My Presentation on Rc-Circuit
My Presentation on Rc-CircuitMy Presentation on Rc-Circuit
My Presentation on Rc-Circuit

Wires (Solar Photovoltaic Technology and Systems).pptx
Wires (Solar Photovoltaic Technology and Systems).pptxWires (Solar Photovoltaic Technology and Systems).pptx
Wires (Solar Photovoltaic Technology and Systems).pptx

SOUMADIP-FACT.pptx
SOUMADIP-FACT.pptxSOUMADIP-FACT.pptx
SOUMADIP-FACT.pptx

Electrical Engineering
Electrical EngineeringElectrical Engineering
Electrical Engineering

Presentation on cables
Presentation on cablesPresentation on cables
Presentation on cables


More from Nishkam Dhiman

The Punjabi Culture
The Punjabi Culture  The Punjabi Culture
The Punjabi Culture
Nishkam Dhiman

Combined operation of power plants
Combined operation of power plantsCombined operation of power plants
Combined operation of power plants
Nishkam Dhiman

Cogeneration
CogenerationCogeneration
Cogeneration
Nishkam Dhiman

Nuclear power plants
Nuclear power plantsNuclear power plants
Nuclear power plants
Nishkam Dhiman

Hydro electric power plant
Hydro electric power plantHydro electric power plant
Hydro electric power plant
Nishkam Dhiman

Gas turbine power plants
Gas turbine power plantsGas turbine power plants
Gas turbine power plants
Nishkam Dhiman

Steam power plant 2
Steam power plant 2Steam power plant 2
Steam power plant 2
Nishkam Dhiman

Diesel power plant
Diesel power plantDiesel power plant
Diesel power plant
Nishkam Dhiman

Steam power plant
Steam power plantSteam power plant
Steam power plant
Nishkam Dhiman

Electric Motors
Electric MotorsElectric Motors
Electric Motors
Nishkam Dhiman

Magnets and magnetism
Magnets and magnetismMagnets and magnetism
Magnets and magnetism
Nishkam Dhiman

Electromagnetic induction
Electromagnetic inductionElectromagnetic induction
Electromagnetic induction
Nishkam Dhiman

Ac and dc meters and kirchoff's laws
Ac and dc meters and kirchoff's lawsAc and dc meters and kirchoff's laws
Ac and dc meters and kirchoff's laws
Nishkam Dhiman


More from Nishkam Dhiman (13)

The Punjabi Culture
The Punjabi Culture  The Punjabi Culture
The Punjabi Culture

Combined operation of power plants
Combined operation of power plantsCombined operation of power plants
Combined operation of power plants

Cogeneration
CogenerationCogeneration
Cogeneration

Nuclear power plants
Nuclear power plantsNuclear power plants
Nuclear power plants

Hydro electric power plant
Hydro electric power plantHydro electric power plant
Hydro electric power plant

Gas turbine power plants
Gas turbine power plantsGas turbine power plants
Gas turbine power plants

Steam power plant 2
Steam power plant 2Steam power plant 2
Steam power plant 2

Diesel power plant
Diesel power plantDiesel power plant
Diesel power plant

Steam power plant
Steam power plantSteam power plant
Steam power plant

Electric Motors
Electric MotorsElectric Motors
Electric Motors

Magnets and magnetism
Magnets and magnetismMagnets and magnetism
Magnets and magnetism

Electromagnetic induction
Electromagnetic inductionElectromagnetic induction
Electromagnetic induction

Ac and dc meters and kirchoff's laws
Ac and dc meters and kirchoff's lawsAc and dc meters and kirchoff's laws
Ac and dc meters and kirchoff's laws


Recently uploaded

FINAL MATATAG Kindergarten CG 2023 pdf
FINAL MATATAG Kindergarten CG 2023   pdfFINAL MATATAG Kindergarten CG 2023   pdf
FINAL MATATAG Kindergarten CG 2023 pdf
maricelrudela

Genetics Teaching Plan: Dr.Kshirsagar R.V.
Genetics Teaching Plan: Dr.Kshirsagar R.V.Genetics Teaching Plan: Dr.Kshirsagar R.V.
Genetics Teaching Plan: Dr.Kshirsagar R.V.
DrRavindrakshirsagar1

formative Evaluation By Dr.Kshirsagar R.V
formative Evaluation By Dr.Kshirsagar R.Vformative Evaluation By Dr.Kshirsagar R.V
formative Evaluation By Dr.Kshirsagar R.V
DrRavindrakshirsagar1

Allopathic M1 Srudent Orientation Powerpoint
Allopathic M1 Srudent Orientation PowerpointAllopathic M1 Srudent Orientation Powerpoint
Allopathic M1 Srudent Orientation Powerpoint
Julie Sarpy

ASP.NET Core Interview Questions PDF By ScholarHat.pdf
ASP.NET Core Interview Questions PDF By ScholarHat.pdfASP.NET Core Interview Questions PDF By ScholarHat.pdf
ASP.NET Core Interview Questions PDF By ScholarHat.pdf
Scholarhat

Our Guide to the July 2024 USPS® Rate Change
Our Guide to the July 2024 USPS® Rate ChangeOur Guide to the July 2024 USPS® Rate Change
Our Guide to the July 2024 USPS® Rate Change
Postal Advocate Inc.

Kesadaran_Berbangsa_dan_Bernegara_Nasion.pptx
Kesadaran_Berbangsa_dan_Bernegara_Nasion.pptxKesadaran_Berbangsa_dan_Bernegara_Nasion.pptx
Kesadaran_Berbangsa_dan_Bernegara_Nasion.pptx
artenzmartenkai

How To Update One2many Field From OnChange of Field in Odoo 17
How To Update One2many Field From OnChange of Field in Odoo 17How To Update One2many Field From OnChange of Field in Odoo 17
How To Update One2many Field From OnChange of Field in Odoo 17
Celine George

How to Manage Early Receipt Printing in Odoo 17 POS
How to Manage Early Receipt Printing in Odoo 17 POSHow to Manage Early Receipt Printing in Odoo 17 POS
How to Manage Early Receipt Printing in Odoo 17 POS
Celine George

The Cruelty of Animal Testing in the Industry.pdf
The Cruelty of Animal Testing in the Industry.pdfThe Cruelty of Animal Testing in the Industry.pdf
The Cruelty of Animal Testing in the Industry.pdf
luzmilaglez334

How to Manage Access Rights & User Types in Odoo 17
How to Manage Access Rights & User Types in Odoo 17How to Manage Access Rights & User Types in Odoo 17
How to Manage Access Rights & User Types in Odoo 17
Celine George

Mail Server Configuration Using App passwords in Odoo 17
Mail Server Configuration Using App passwords in Odoo 17Mail Server Configuration Using App passwords in Odoo 17
Mail Server Configuration Using App passwords in Odoo 17
Celine George

JavaScript Interview Questions PDF By ScholarHat
JavaScript Interview  Questions PDF By ScholarHatJavaScript Interview  Questions PDF By ScholarHat
JavaScript Interview Questions PDF By ScholarHat
Scholarhat

Imagination in Computer Science Research
Imagination in Computer Science ResearchImagination in Computer Science Research
Imagination in Computer Science Research
Abhik Roychoudhury

Odoo 17 Events - Attendees List Scanning
Odoo 17 Events - Attendees List ScanningOdoo 17 Events - Attendees List Scanning
Odoo 17 Events - Attendees List Scanning
Celine George

NAEYC Code of Ethical Conduct Resource Book
NAEYC Code of Ethical Conduct Resource BookNAEYC Code of Ethical Conduct Resource Book
NAEYC Code of Ethical Conduct Resource Book
lakitawilson

C# Interview Questions PDF By ScholarHat.pdf
C# Interview Questions PDF By ScholarHat.pdfC# Interview Questions PDF By ScholarHat.pdf
C# Interview Questions PDF By ScholarHat.pdf
Scholarhat

Power of Ignored Skills: Change the Way You Think and Decide by Manoj Tripathi
Power of Ignored Skills: Change the Way You Think and Decide by Manoj TripathiPower of Ignored Skills: Change the Way You Think and Decide by Manoj Tripathi
Power of Ignored Skills: Change the Way You Think and Decide by Manoj Tripathi
Pankaj523992

Introduction to Banking System in India.ppt
Introduction to Banking System in India.pptIntroduction to Banking System in India.ppt
Introduction to Banking System in India.ppt
Dr. S. Bulomine Regi

How to Manage Large Scrollbar in Odoo 17 POS
How to Manage Large Scrollbar in Odoo 17 POSHow to Manage Large Scrollbar in Odoo 17 POS
How to Manage Large Scrollbar in Odoo 17 POS
Celine George


Recently uploaded (20)

FINAL MATATAG Kindergarten CG 2023 pdf
FINAL MATATAG Kindergarten CG 2023   pdfFINAL MATATAG Kindergarten CG 2023   pdf
FINAL MATATAG Kindergarten CG 2023 pdf

Genetics Teaching Plan: Dr.Kshirsagar R.V.
Genetics Teaching Plan: Dr.Kshirsagar R.V.Genetics Teaching Plan: Dr.Kshirsagar R.V.
Genetics Teaching Plan: Dr.Kshirsagar R.V.

formative Evaluation By Dr.Kshirsagar R.V
formative Evaluation By Dr.Kshirsagar R.Vformative Evaluation By Dr.Kshirsagar R.V
formative Evaluation By Dr.Kshirsagar R.V

Allopathic M1 Srudent Orientation Powerpoint
Allopathic M1 Srudent Orientation PowerpointAllopathic M1 Srudent Orientation Powerpoint
Allopathic M1 Srudent Orientation Powerpoint

ASP.NET Core Interview Questions PDF By ScholarHat.pdf
ASP.NET Core Interview Questions PDF By ScholarHat.pdfASP.NET Core Interview Questions PDF By ScholarHat.pdf
ASP.NET Core Interview Questions PDF By ScholarHat.pdf

Our Guide to the July 2024 USPS® Rate Change
Our Guide to the July 2024 USPS® Rate ChangeOur Guide to the July 2024 USPS® Rate Change
Our Guide to the July 2024 USPS® Rate Change

Kesadaran_Berbangsa_dan_Bernegara_Nasion.pptx
Kesadaran_Berbangsa_dan_Bernegara_Nasion.pptxKesadaran_Berbangsa_dan_Bernegara_Nasion.pptx
Kesadaran_Berbangsa_dan_Bernegara_Nasion.pptx

How To Update One2many Field From OnChange of Field in Odoo 17
How To Update One2many Field From OnChange of Field in Odoo 17How To Update One2many Field From OnChange of Field in Odoo 17
How To Update One2many Field From OnChange of Field in Odoo 17

How to Manage Early Receipt Printing in Odoo 17 POS
How to Manage Early Receipt Printing in Odoo 17 POSHow to Manage Early Receipt Printing in Odoo 17 POS
How to Manage Early Receipt Printing in Odoo 17 POS

The Cruelty of Animal Testing in the Industry.pdf
The Cruelty of Animal Testing in the Industry.pdfThe Cruelty of Animal Testing in the Industry.pdf
The Cruelty of Animal Testing in the Industry.pdf

How to Manage Access Rights & User Types in Odoo 17
How to Manage Access Rights & User Types in Odoo 17How to Manage Access Rights & User Types in Odoo 17
How to Manage Access Rights & User Types in Odoo 17

Mail Server Configuration Using App passwords in Odoo 17
Mail Server Configuration Using App passwords in Odoo 17Mail Server Configuration Using App passwords in Odoo 17
Mail Server Configuration Using App passwords in Odoo 17

JavaScript Interview Questions PDF By ScholarHat
JavaScript Interview  Questions PDF By ScholarHatJavaScript Interview  Questions PDF By ScholarHat
JavaScript Interview Questions PDF By ScholarHat

Imagination in Computer Science Research
Imagination in Computer Science ResearchImagination in Computer Science Research
Imagination in Computer Science Research

Odoo 17 Events - Attendees List Scanning
Odoo 17 Events - Attendees List ScanningOdoo 17 Events - Attendees List Scanning
Odoo 17 Events - Attendees List Scanning

NAEYC Code of Ethical Conduct Resource Book
NAEYC Code of Ethical Conduct Resource BookNAEYC Code of Ethical Conduct Resource Book
NAEYC Code of Ethical Conduct Resource Book

C# Interview Questions PDF By ScholarHat.pdf
C# Interview Questions PDF By ScholarHat.pdfC# Interview Questions PDF By ScholarHat.pdf
C# Interview Questions PDF By ScholarHat.pdf

Power of Ignored Skills: Change the Way You Think and Decide by Manoj Tripathi
Power of Ignored Skills: Change the Way You Think and Decide by Manoj TripathiPower of Ignored Skills: Change the Way You Think and Decide by Manoj Tripathi
Power of Ignored Skills: Change the Way You Think and Decide by Manoj Tripathi

Introduction to Banking System in India.ppt
Introduction to Banking System in India.pptIntroduction to Banking System in India.ppt
Introduction to Banking System in India.ppt

How to Manage Large Scrollbar in Odoo 17 POS
How to Manage Large Scrollbar in Odoo 17 POSHow to Manage Large Scrollbar in Odoo 17 POS
How to Manage Large Scrollbar in Odoo 17 POS


Basics of electrical engineering

  • 1. Basics of Electrical Engineering By Ms. Nishkam Dhiman Assistant Professor -EEE Deptt. Chitkara Institute of Engg. & Technology
  • 2. Wires and Cables Wires & Cables are purpose built conductors. The size & type of wire/cable must suit the power rating required for their use. The higher the power the thicker the wire/cable. Uses of Wires Domestic & small industry Wiring in appliances Uses of Cable Small & big industries Distribution Lines Transmission lines
  • 3. Wires Various types of wires. 1.VIR wire:  It is called vulcanized insulation rubber wire. Copper & aluminum conductor and rubber coating are used in it. Now single & double braided wires are mostly in a use. But it has lower tensile strength, chemical reaction & bad insulation so it is not used.  suitable for: low & medium voltage supply only  old type: not readily available to purchase
  • 4. 2. CTS & TRS wire: It is called crab tyre sheath wire & tuff rubber sheath wire. Hard & good rubber coating on copper wire is used in this wire. Its used in house wiring & industrial wiring. Available in 250/440V only
  • 5. 3. Weather proof wire: No weather reaction , in this types of wire. Because it has cotton breeding with water proof. But it is flammable so no in use now. 4. LC wire: It is called lead covered wire. Lead pipe on rubber insulation & its coating on conductor. It is very good in moisture condition but less tensile strength so low uses now. 5. MICC wire : It is called mineral insulated copper covered wire. In this type wire copper conductor coated is with magnesium oxide. And After copper coating is coated on it. In case of moisture weather PVC coating (serving) is coated on its. It is uses in mines, factory, furnace, boiler, rolling mills etc. magnesium oxide is used for avoiding moisture problems.
  • 6. 6. PVC wire: It is called poly vinyl chloride wire. PVC coating on copper conductor so its so many advantages as follows. (a) High dielectric strength (b) High tensile strength (c) More defense against moisture (d) High life (e) No disturb in vibration Available in 600, 660, 1100 Voltage, Widely used Long life Durable against water, heat, oil, UV light
  • 7. Three Core Wire This is three core wire. It is pvc insulated wire. Its used for 1-phase. 1.Blue wire for Neutral (Returns current to power source) 2. Brown for live wire (Provides current to appliance) 3. Yellow wire for earth (Takes current to ground if appliance has fault) There is color code used for wiring &supply.
  • 8. CABLE STRUCTURE There is cable wire. Its Use for power transmit ion. 1- core 2- pvc insulation 3- oil duct 4- metallic screen 5- rubber insulation
  • 9. General construction & main parts of cable      Core Insulation Metallic sheath Bedding Armouring Metallic Sheath: A power cable is an assembly of two or more electrical conductors, usually held together with an overall sheath. The assembly is used for transmission of electrical power. Armouring: Armoured cable is the name given to any electrical cable constructed with a layer of aluminium wire armour or steel wire armour. The armour sits below the sheath of the cable to provide protection for the conductor and insulating layers. Bedding: Cable bedding compounds are mainly used in multiconductor cables, filling the spaces between conductors and making the cable round.
  • 10. Classification of Cables Type of insulation 1. Cotton covered 2. Silk coated 3. Asbestos covered 4. Rubber coated 5. PVC coated Type of conducting material 1. Copper 2. Aluminum
  • 11. Shape 1. Flat 2. Round Mechanical Protection 1. Unarmored 2. Armored Voltage Rating 1. Low voltage cable.(1000V) 2. High voltage cable.(11KV) 3. Super tension cable.(upto 132kV) 4. Extra high tension.(132kV and more) 5. Ultra high voltage cables(400kV and more)
  • 12. Grading of cables The voltage gradient is maximum at the surface of the conductor and minimum at the inner surface of the sheath (i.e., the stress decreases from conductor surface to sheath). This causes breakdown in the insulation. For avoiding this breakdown, it is advisable to have more uniform stress distribution throughout the dielectric. The process of achieving uniform distribution in dielectric stress is called the grading of cables.
  • 13. S.W.G. (standard wire gauge) Introduction A Instrument which is use for measure Cross Area (gauge) of wire Various uses of wire gauge • To measure Cross area of wire • To measure gauge
  • 15. Cable Termination  When a cable enters into an accessory its called a termination or Cable termination is the process of connecting power cables up to the final equipment or the upstream circuit breaker.  Thimble or terminals must be used at termination points, where thimble is the termination point which can be connected to the source or load.  These must be as mechanically & electrically strong as the conductor or device which it is used.
  • 16. Cable Safety  Weather Proof  Rust proof  Free from wear and tear  Armoured  Good insulation
  • 17. DIFFERENT TYPES OF JOINTS     Britannia Joint Straight Joint Tee Joint Western Union Joint 1. Britannia Joint : The Britannia joint is a form of electrical joint used for bare overhead wires where great tensile strength is required. The two wires are each tinned, and then each have a short shoulder bent in them, and are then bound together with tinned wire before the whole is soldered.
  • 18. 2. Straight Joint  The braiding is cut back to a distance of about 6 inches, and a shoulder is neatly formed with a sharp knife. The rubber insulation is also cut back and neatly tapered to a conical form about 1 1/2 inch in length. The copper wires are separated for a length of about 2 inches from the end, and carefully cleaned with emery cloth. The remainder of the exposed copper wires are twisted tightly together, and the central strand is cut out as close as possible to the point where the strands commence to separate.
  • 19. 3. T Joint  When a tee joint is to be made in single wires, about 2 inches of the main cable and 2 inches of the branch cable are bared, the insulating material being treated as before described. The wires are cleaned, and about 1 inch of the branch is wound round the main cable, and soldered to it at the extreme end.
  • 20. 4. Western Union Joints The wires are crossed positioned to make a long twist or bend in each wire. One end of the wire is wrapped and then the other end four or five times around the straight portion of each wire The ends of the wires are pressed down as close as possible to the straight portion of the wire.
  • 21. 5. Married Joint  The married joint is an electrical joint used for joining multi-strand cables. The wires are unstranded, then interlaced with the wires of the other cable, and then married (twisted) together before finally being soldered.
  • 22. Signs and Symbols Introduction: In electrical, so many signs & symbols are used for drawing electrical circuits also use for short identification. Different types of sign & symbols used in Electrical Engineering. 1) A.C. = ~ 2) D.C. = 3) Power = w 4) Voltage = v 5) Current = I 6) Resistance = R 7) Inductor = L
  • 27. Ohm’s Law For a fixed metal conductor, the temperature & other conditions remaining constant the current (I) through it is proportional to the potential difference (V) between its ends Equation , I=V/R I=current , V=voltage and R=resistance Applications of Ohm’s Law By using Ohm's law, you are able to find the resistance of a circuit, knowing only the voltage and the current in the circuit. In any equation, if all the variables (parameters) are known except one, that unknown can be found.
  • 28. Concept of Electric Circuit  An electric circuit is formed by interconnecting components having different electric properties.  A collection of devices such as resistors and sources in which terminals are connected together by connecting wires is called an electric circuit. These wires converge in nodes, and the devices are called branches of the circuit.  Components of electric circuit 1. Resistance 2. Voltage or Current Sources 3. Wires
  • 29. Series and Parallel Circuits  Series circuits  A series circuit is a circuit in which resistors are arranged in a chain, so the current has only one path to take. The current is the same through each resistor. The total resistance of the circuit is found by simply adding up the resistance values of the individual resistors:  equivalent resistance of resistors in series : R = R1 + R2 + R3 + ...
  • 30.  Parallel circuits  A parallel circuit is a circuit in which the resistors are arranged with their heads connected together, and their tails connected together. The current in a parallel circuit breaks up, with some flowing along each parallel branch and re-combining when the branches meet again. The voltage across each resistor in parallel is the same.  The total resistance of a set of resistors in parallel is found by adding up the reciprocals of the resistance values, and then taking the reciprocal of the total:  equivalent resistance of resistors in parallel: 1 / R = 1 / R1 + 1 / R2 + 1 / R3 +...
  • 31. Mixed Circuits  Resistor circuits that combine series and parallel resistors networks together are generally known as Resistor Combination or mixed resistor circuits. The method of calculating the circuits equivalent resistance is the same as that for any individual series or parallel circuit and hopefully we now know that resistors in series carry exactly the same current and that resistors in parallel have exactly the same voltage across them.
