1. Gergana Kremenska & Stanislava Baltova, SAP
June 30, 2017
UI5 Supportability
Reloaded
UI5 Supportability Reloaded
UI5 Supportability Reloaded

2. 2
 UI5 Support Tools Explained
 Get to know the new UI5 Support Assistant
Agenda

3. UI5 Support Tools

4. 4
Technical Information Dialog Alt Ctrl Shift +P
 Quick look up @version info & switch debug on
 Simpler and fresh look & feel
Diagnostics Window Alt Ctrl Shift +S
 Rich toolset for troubleshooting & debugging
 Updated look & feel & new add-ons
UI5 Inspector
 UI5 tailored Chrome Dev Tools extension
 Open sourced W
New Support Assistant
 Stay tuned.. 
UI5 Support Tools - Which Support Tool to use When?

5. 5
 Check Troubleshooting Section for support tools overview.
 Follow the Troubleshooting Tutorial to get hands-on
experience in UI5 troubleshooting.
 Check out the First-Aid Kit for common issues and their
resolution suggestion.
Enhanced Documentation

6. The new UI5 Support Assistant

7. 7
 Ensure guidelines and best practices are followed
 Check / report any UI5 application for consistency
 Assist support and troubleshooting
 … in automated manner
The Need?

8. 8
 Analyze the web application for well known problems.
 Sourcing from our expert knowledge materialized in the Support Rules
 That reveals the Issues and provides resolution suggestions
 With easy UI and enabled for automation
The Solution – UI5 Support Assistant

9. 9

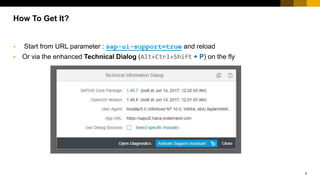

 Start from URL parameter : sap-ui-support=true and reload
 Or via the enhanced Technical Dialog (Alt+Ctrl+Shift + P) on the fly
How To Get It?

10. 10

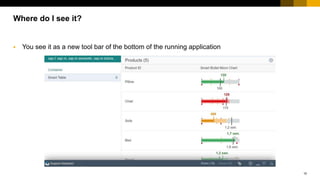

 You see it as a new tool bar of the bottom of the running application
Where do I see it?

11. 11
Application OpenUI5 1.48 – application URL Application OpenUI5 latest – application URL
Support Assistant in action

12. SUPPORT RULES

13. 13

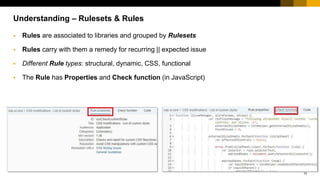

 Rules are associated to libraries and grouped by Rulesets
 Rules carry with them a remedy for recurring || expected issue
 Different Rule types: structural, dynamic, CSS, functional
 The Rule has Properties and Check function (in JavaScript)
Understanding – Rulesets & Rules

14. 14

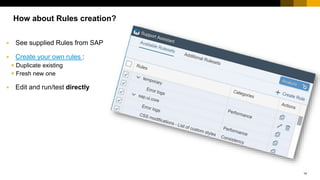

 See supplied Rules from SAP
 Create your own rules :
 Duplicate existing
 Fresh new one
 Edit and run/test directly
How about Rules creation?

15. 15

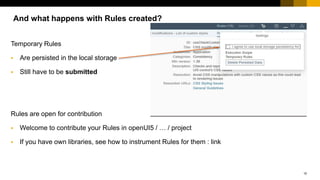

Temporary Rules
 Are persisted in the local storage
 Still have to be submitted
Rules are open for contribution
 Welcome to contribute your Rules in openUI5 / … / project
 If you have own libraries, see how to instrument Rules for them : link
And what happens with Rules created?

16. 16
Scope
 Global – the whole application.
 Sub-tree – analyze only the specific part of the application.
 Component – every application in the Fiori Launch Pad is a component
Subset of rules
 Select rules to be analyzed
 Example for narrow scope: OPA Explored
Get in your own scope

17. 17
ANALYZE
Get EXCITED !!!

18. ISSUES

19. 19

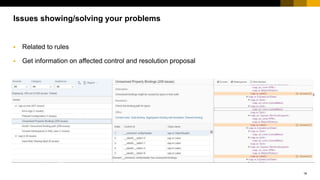

 Related to rules
 Get information on affected control and resolution proposal
Issues showing/solving your problems

20. REPORT

21. 21
 Report contents:
 Available and Executed Rules
 Technical Information
 Application Information
 Issues
Report – Viewing & Downloading

22. 22

23. Thank you.
Contact information:
Gergana Kremenska
gergana.kremenska@sap.com
Stanislava Baltova
stanislava.baltova@sap.com
You are welcome to give feedback for this session
in the UI5con Event App
