Definition of computer
Types of Personal Computer

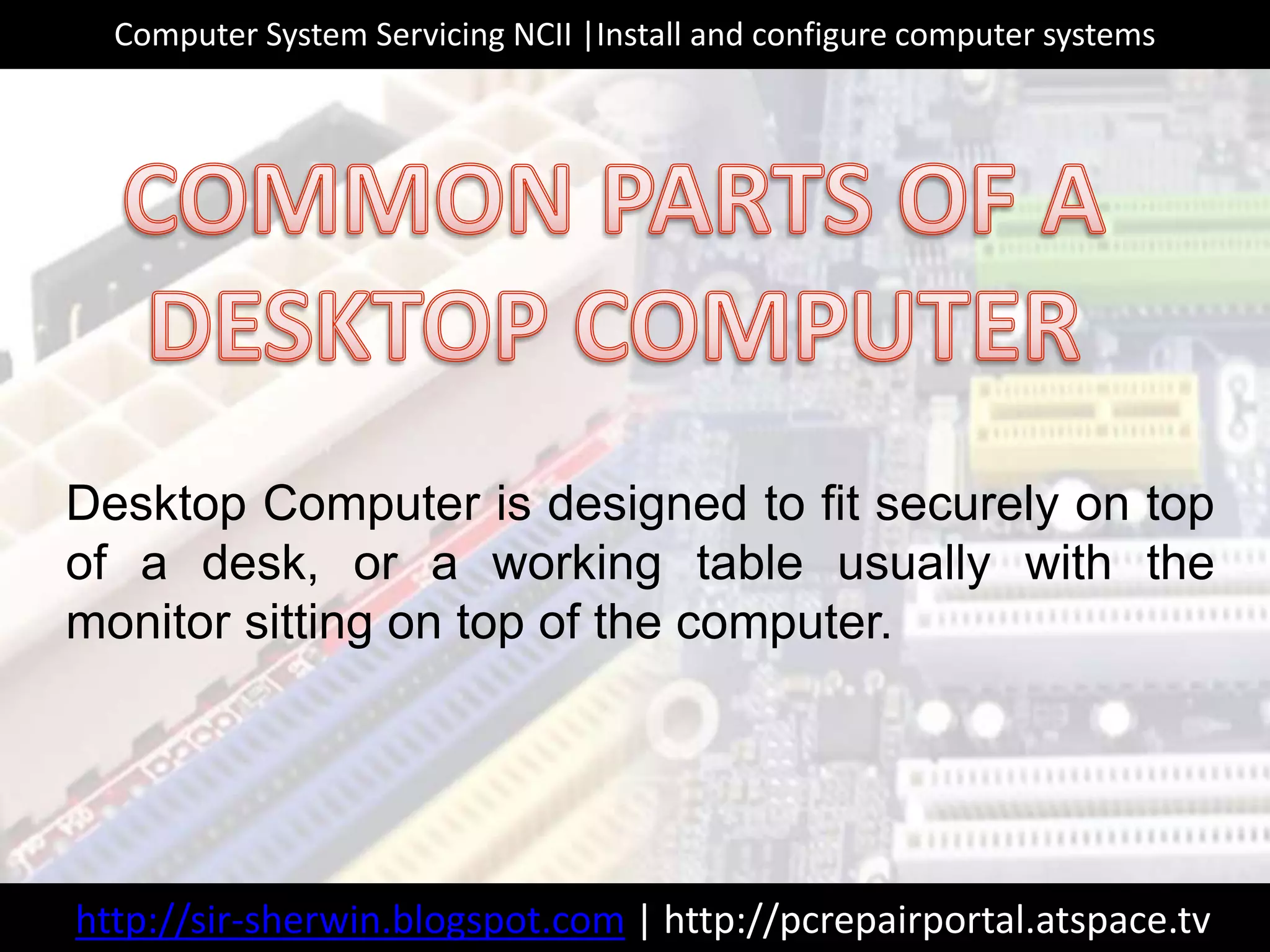

Common parts of a Desktop Computer
http://sir-sherwin.blogspot.com | http://pcrepairportal.atspace.tv
Computer System Servicing NCII |Install and configure computer systems

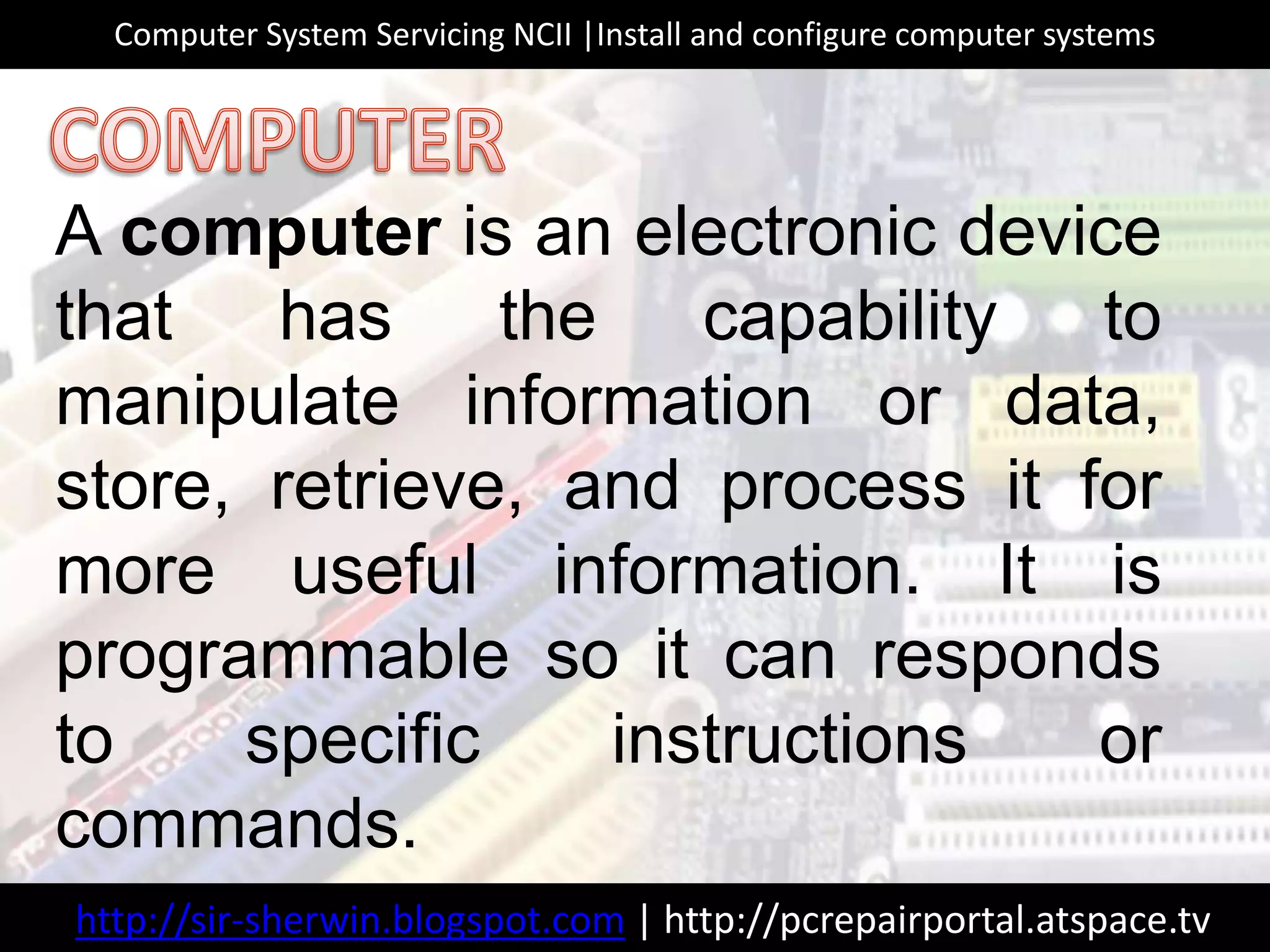

A computer is an electronic device
that has the capability to
manipulate information or data,
store, retrieve, and process it for
more useful information. It is
programmable so it can responds
to specific instructions or
commands.

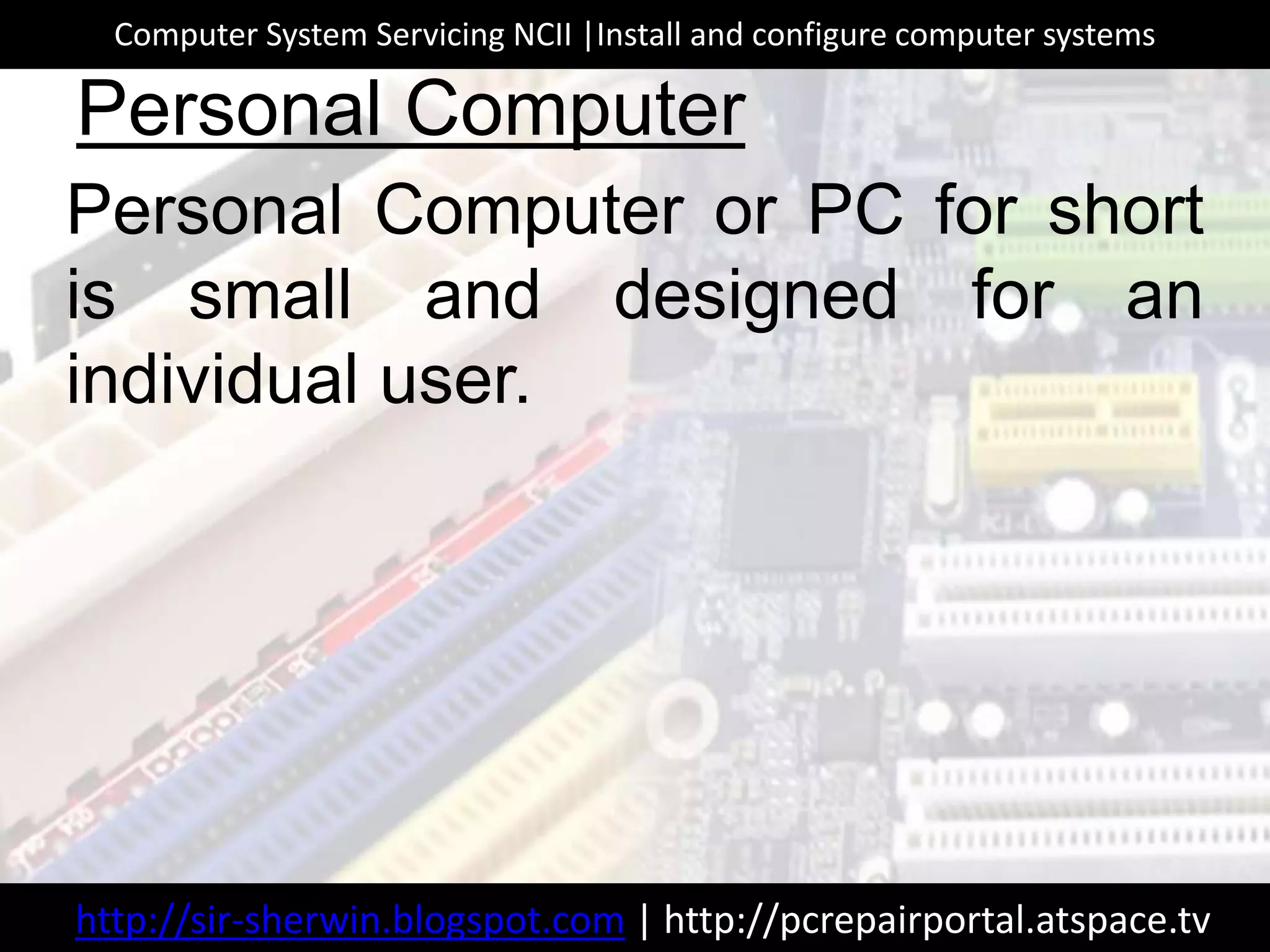

Personal Computer or PC for short
is small and designed for an
individual user.
Personal Computer

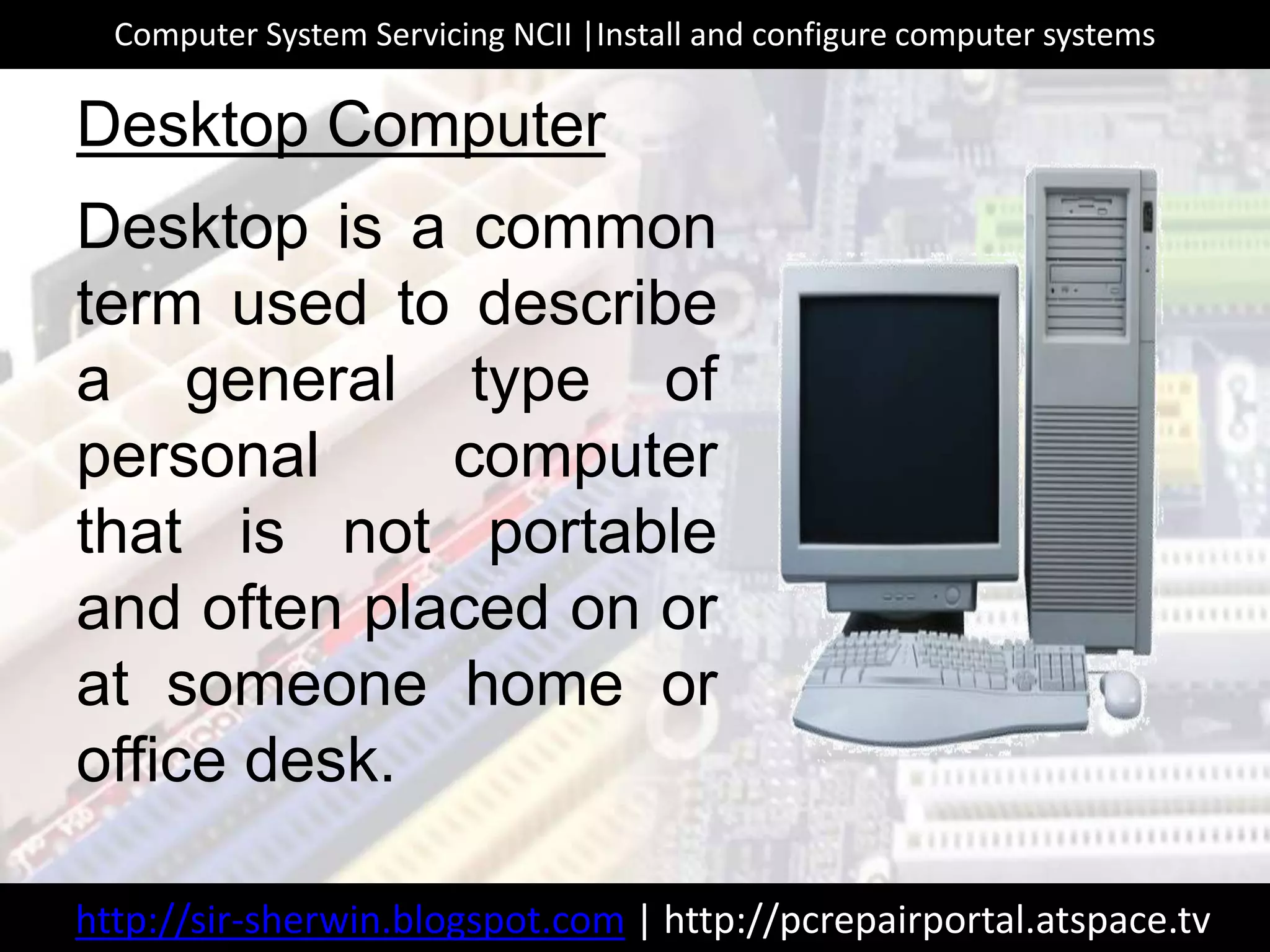

Desktop is a common
term used to describe
a general type of
personal computer
that is not portable
and often placed on or
at someone home or
office desk.
Desktop Computer

Laptop Computer

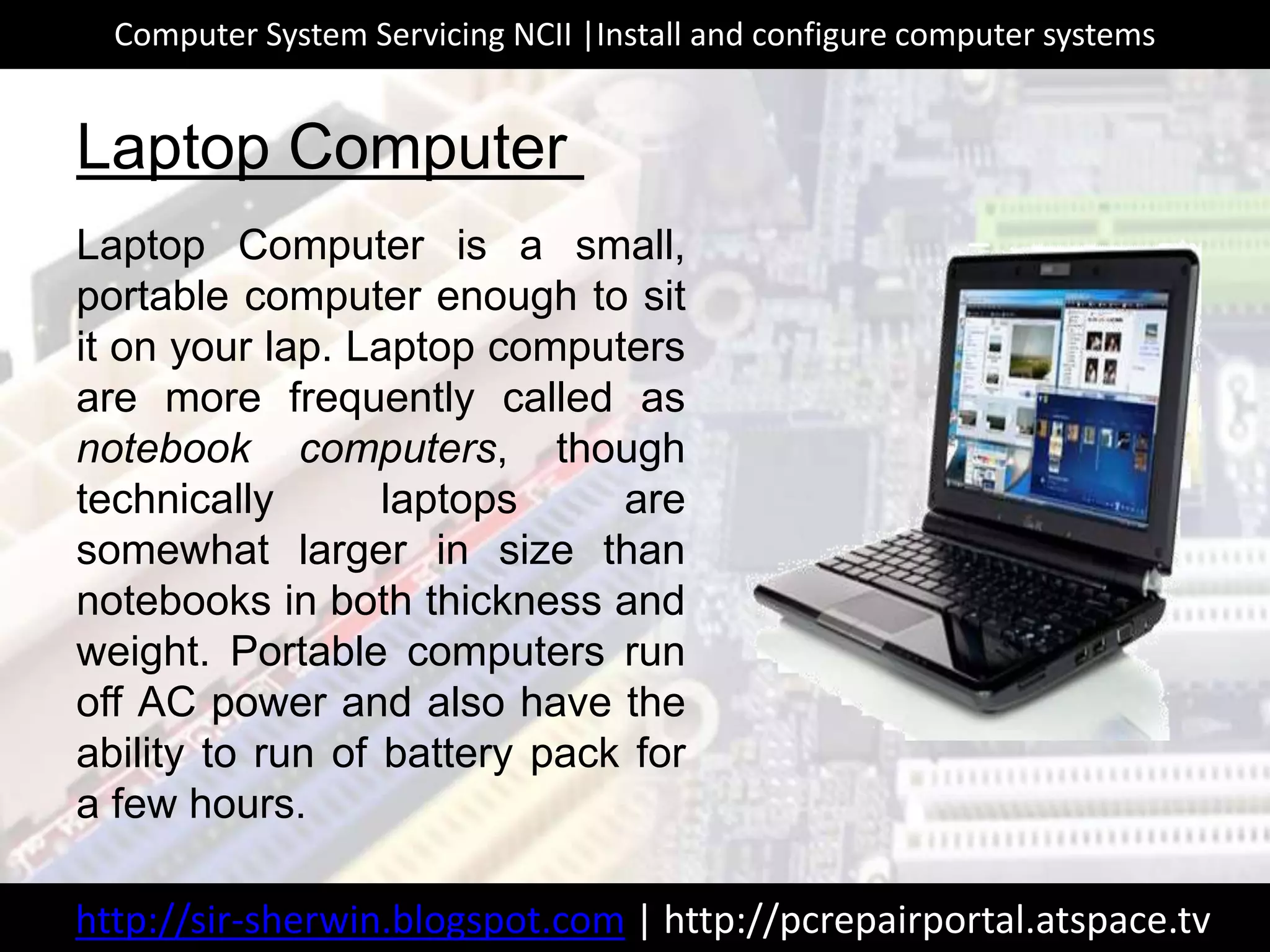

Laptop Computer is a small,
portable computer enough to sit
it on your lap. Laptop computers
are more frequently called as
notebook computers, though
technically laptops are
somewhat larger in size than
notebooks in both thickness and
weight. Portable computers run
off AC power and also have the
ability to run of battery pack for
a few hours.

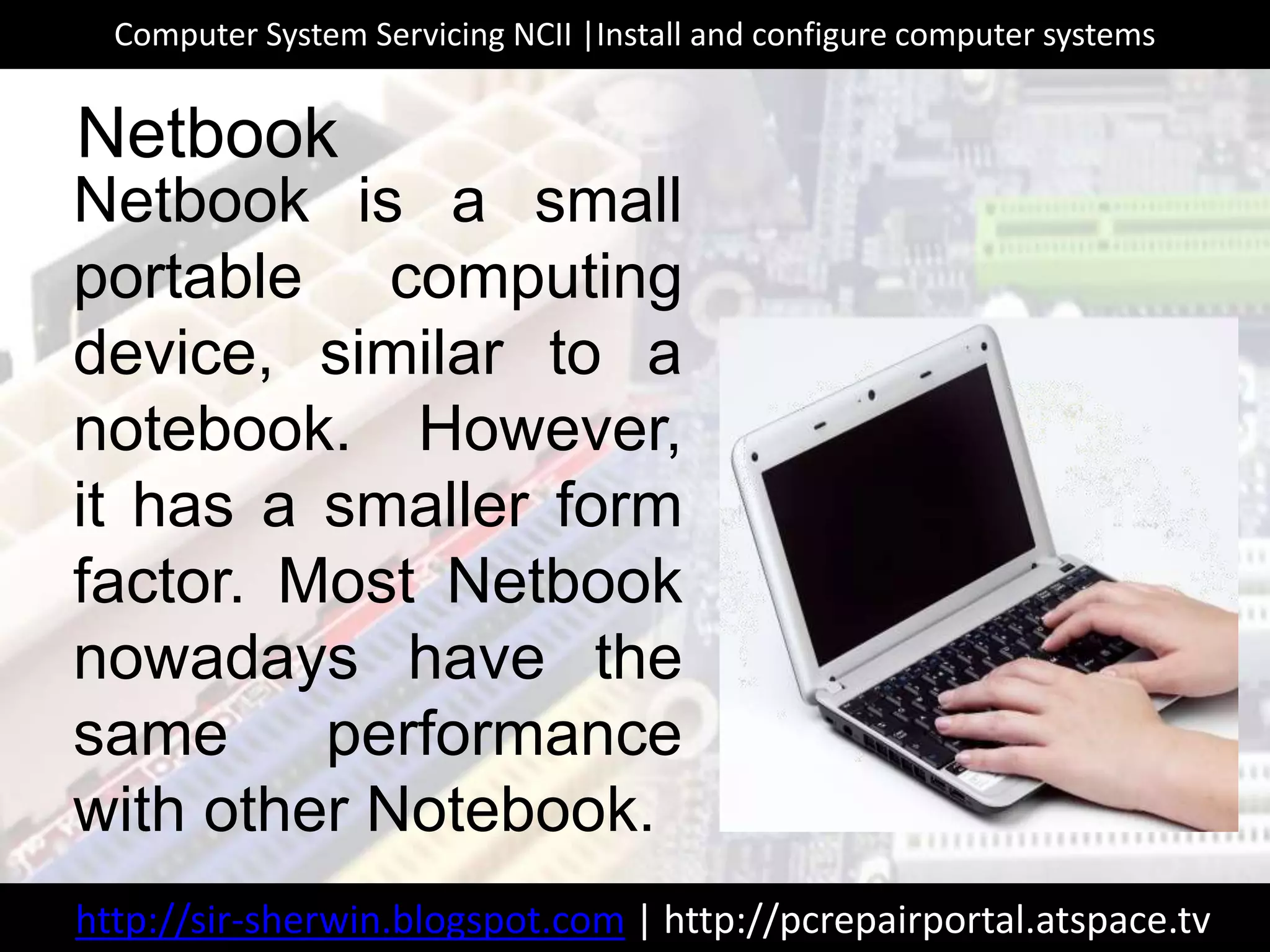

Netbook is a small
portable computing
device, similar to a
notebook. However,
it has a smaller form
factor. Most Netbook
nowadays have the
same performance
with other Notebook.
Netbook

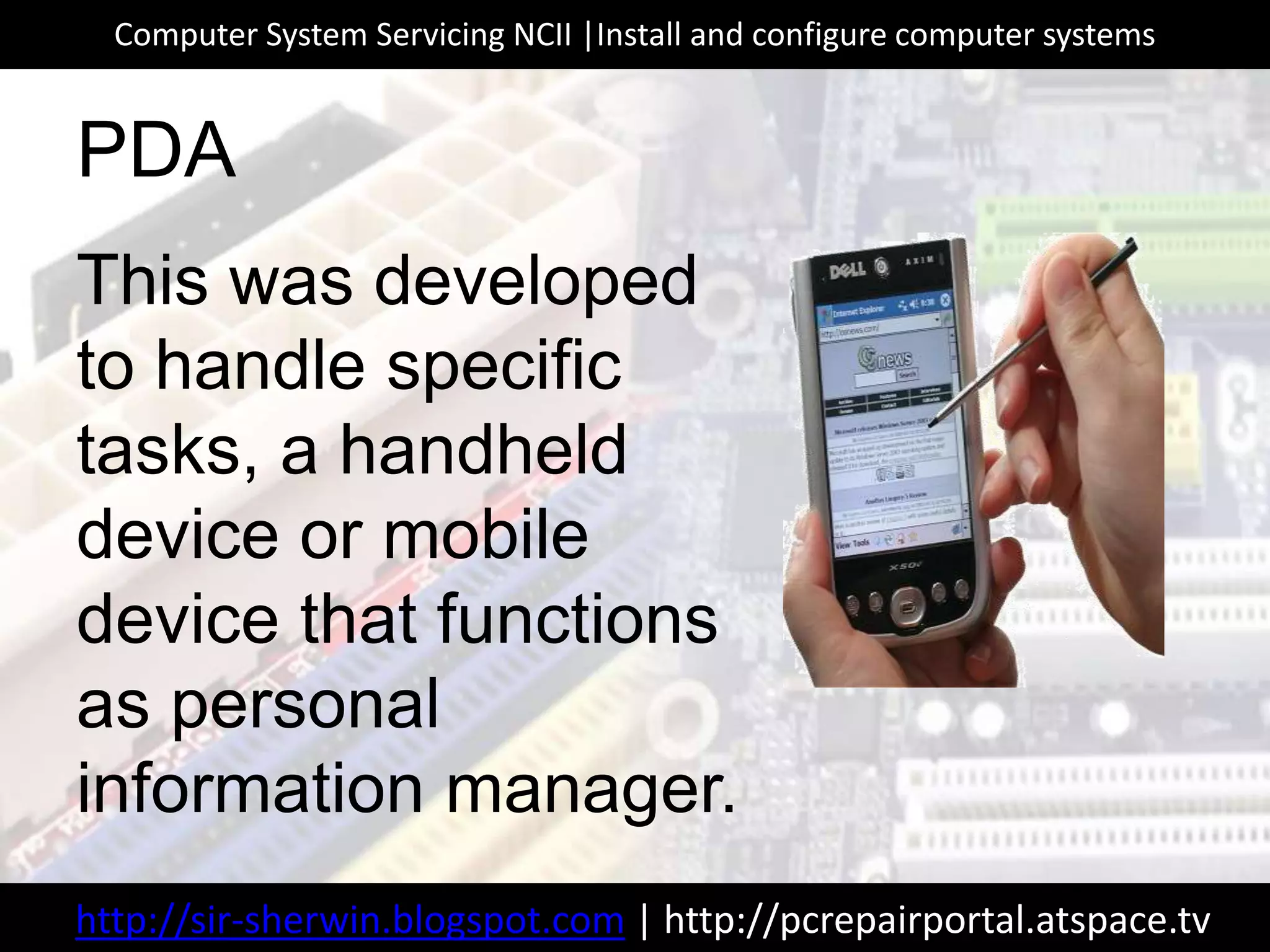

This was developed
to handle specific
tasks, a handheld
device or mobile
device that functions
as personal
information manager.
PDA

Desktop Computer is designed to fit securely on top
of a desk, or a working table usually with the
monitor sitting on top of the computer.

System Unit is the main body
of a desktop computer which
is typically consisting of a
metal or plastic enclosure
containing all the essential
parts of the personal
computer.
System Unit

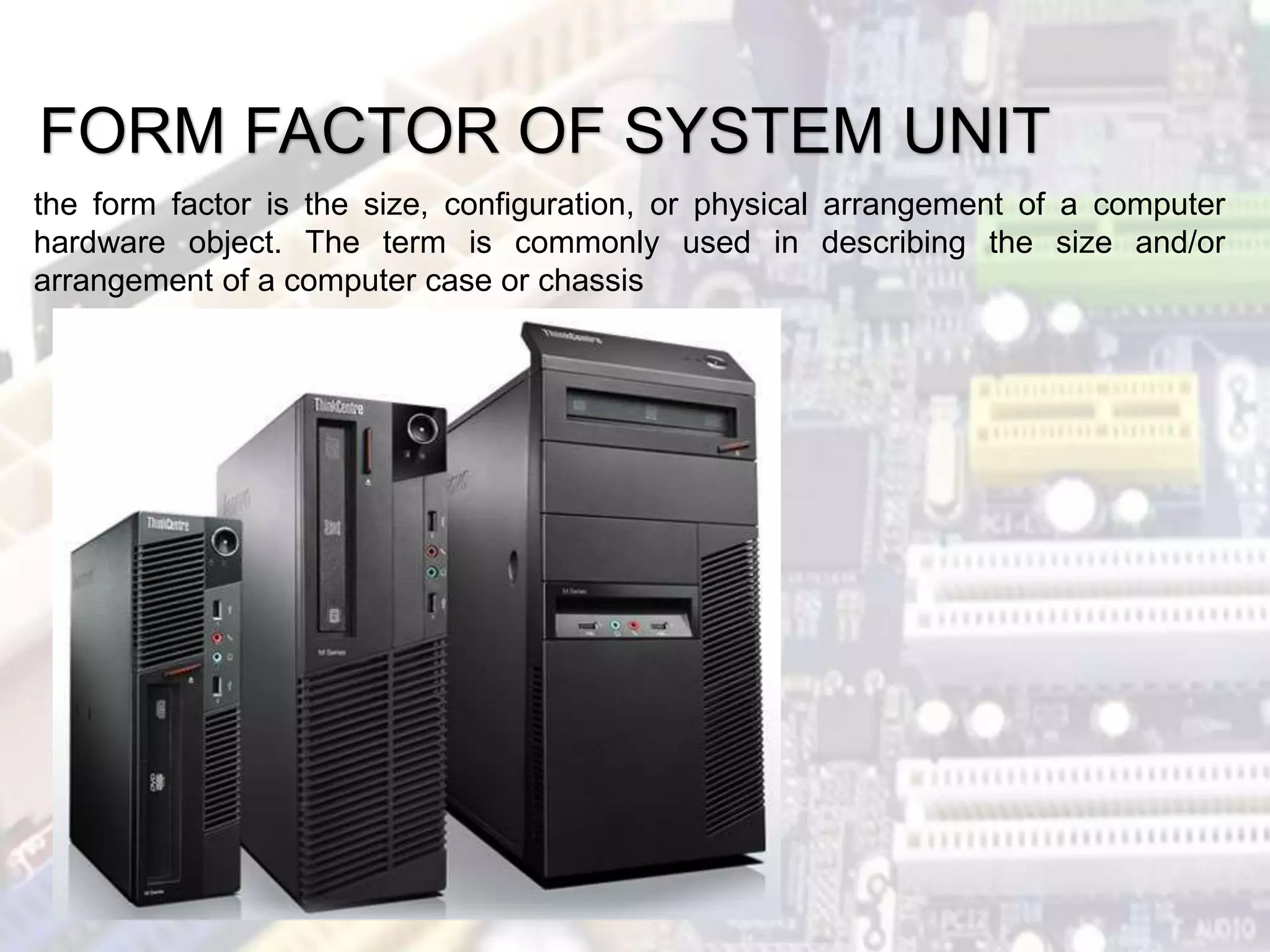

FORM FACTOR OF SYSTEM UNIT
the form factor is the size, configuration, or physical arrangement of a computer
hardware object. The term is commonly used in describing the size and/or
arrangement of a computer case or chassis

Full Tower

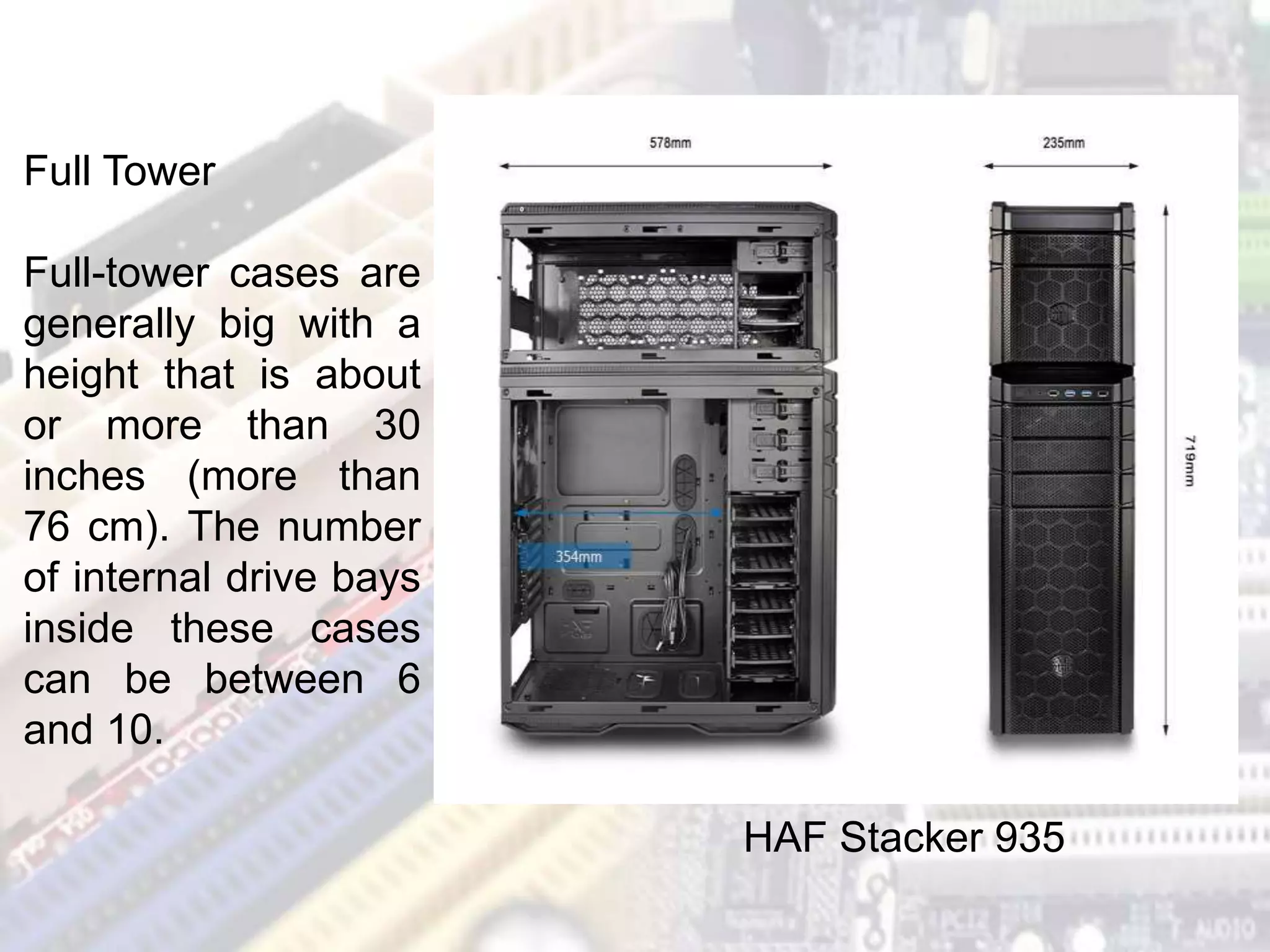

Full-tower cases are
generally big with a
height that is about
or more than 30
inches (more than
76 cm). The number
of internal drive bays
inside these cases
can be between 6
and 10.
HAF Stacker 935

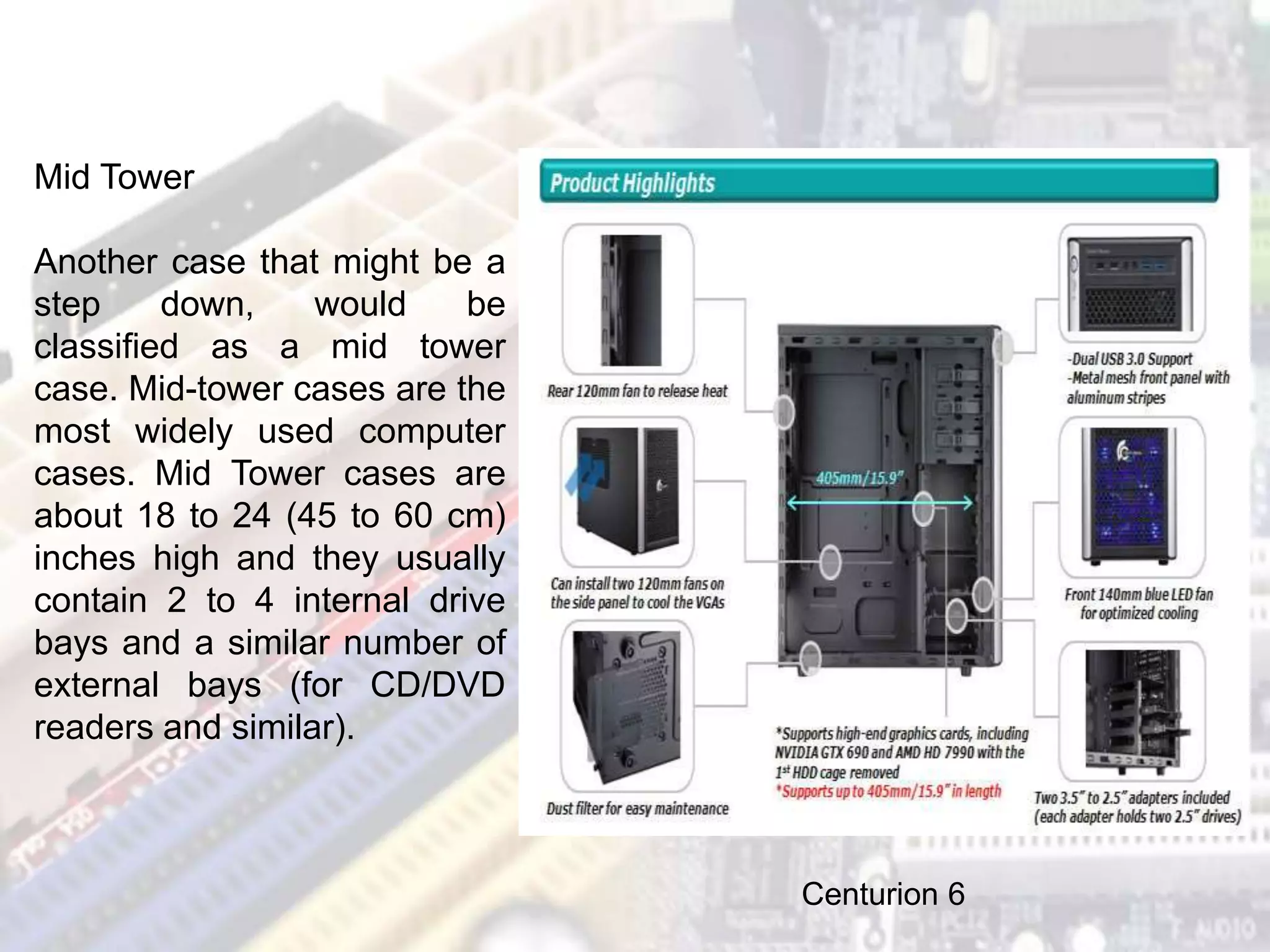

Mid Tower
Another case that might be a
step down, would be
classified as a mid tower
case. Mid-tower cases are the
most widely used computer
cases. Mid Tower cases are
about 18 to 24 (45 to 60 cm)
inches high and they usually
contain 2 to 4 internal drive
bays and a similar number of
external bays (for CD/DVD
readers and similar).
Centurion 6

Mini Tower

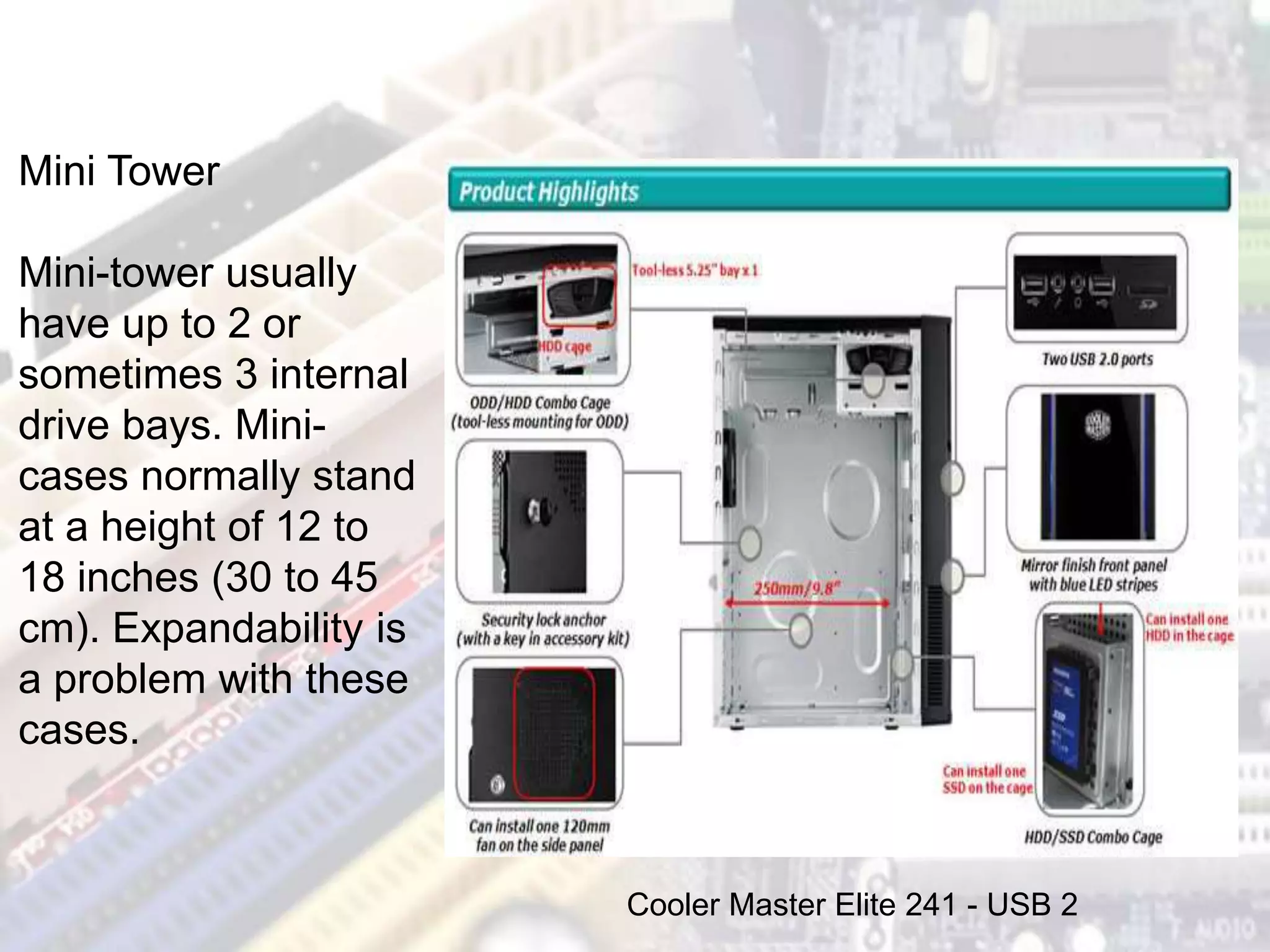

Mini-tower usually
have up to 2 or
sometimes 3 internal
drive bays. Mini-
cases normally stand
at a height of 12 to
18 inches (30 to 45
cm). Expandability is
a problem with these
cases.
Cooler Master Elite 241 - USB 2

FORM FACTOR OF SYSTEM UNIT

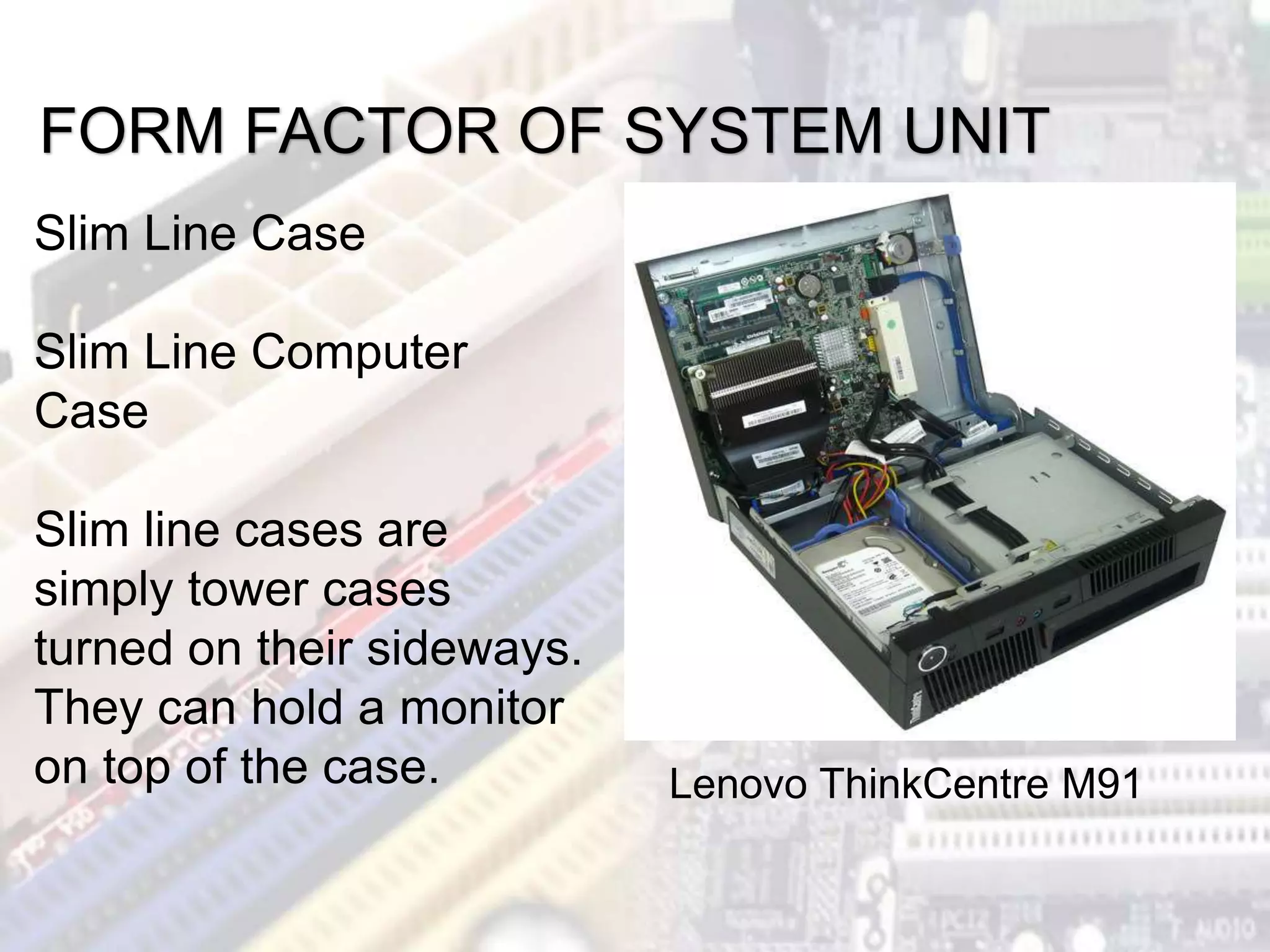

Lenovo ThinkCentre M91
Slim Line Case
Slim Line Computer
Case
Slim line cases are
simply tower cases
turned on their sideways.
They can hold a monitor
on top of the case.

Small Form Factor (SFF) Case

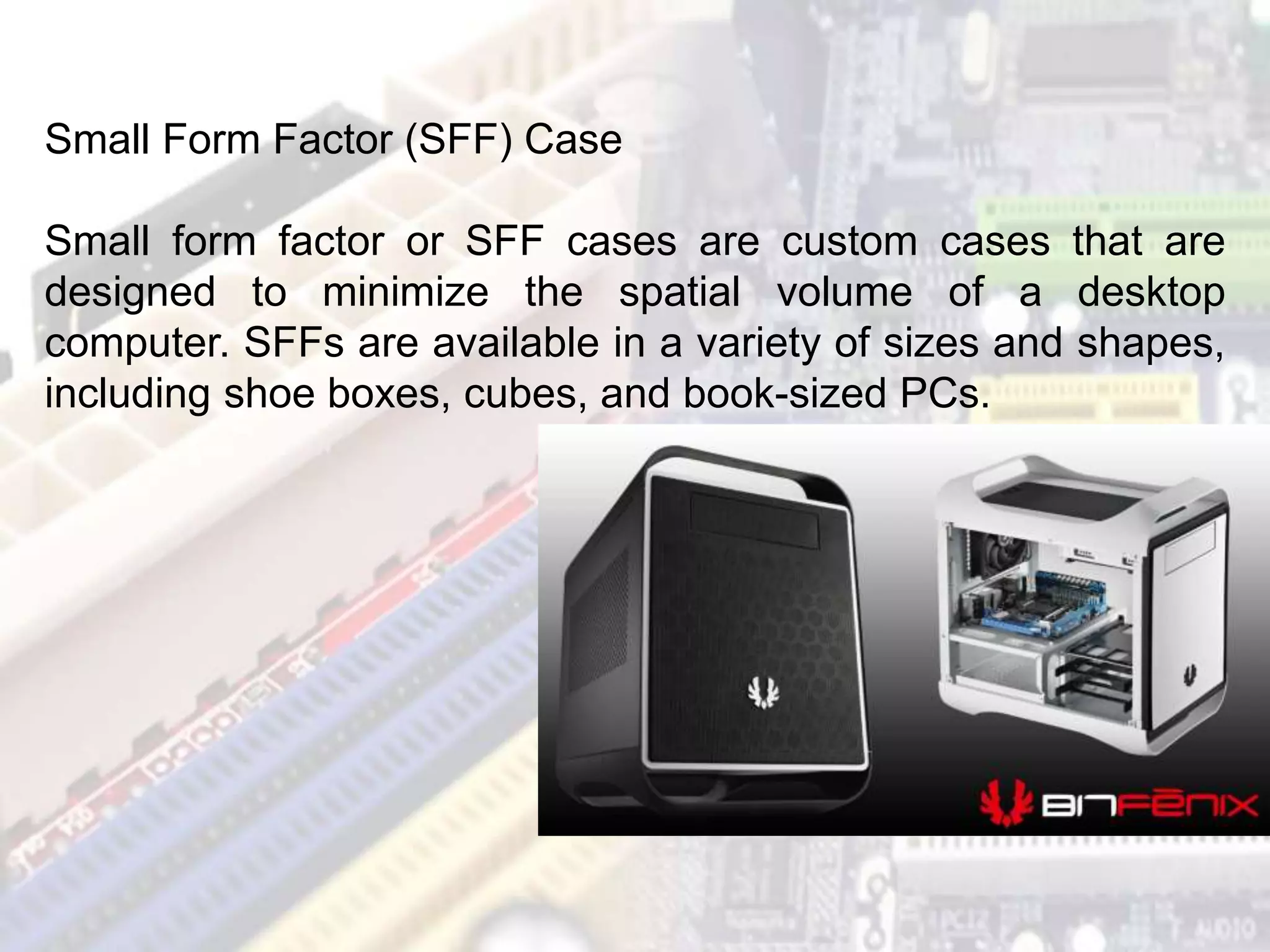

Small form factor or SFF cases are custom cases that are
designed to minimize the spatial volume of a desktop
computer. SFFs are available in a variety of sizes and shapes,
including shoe boxes, cubes, and book-sized PCs.

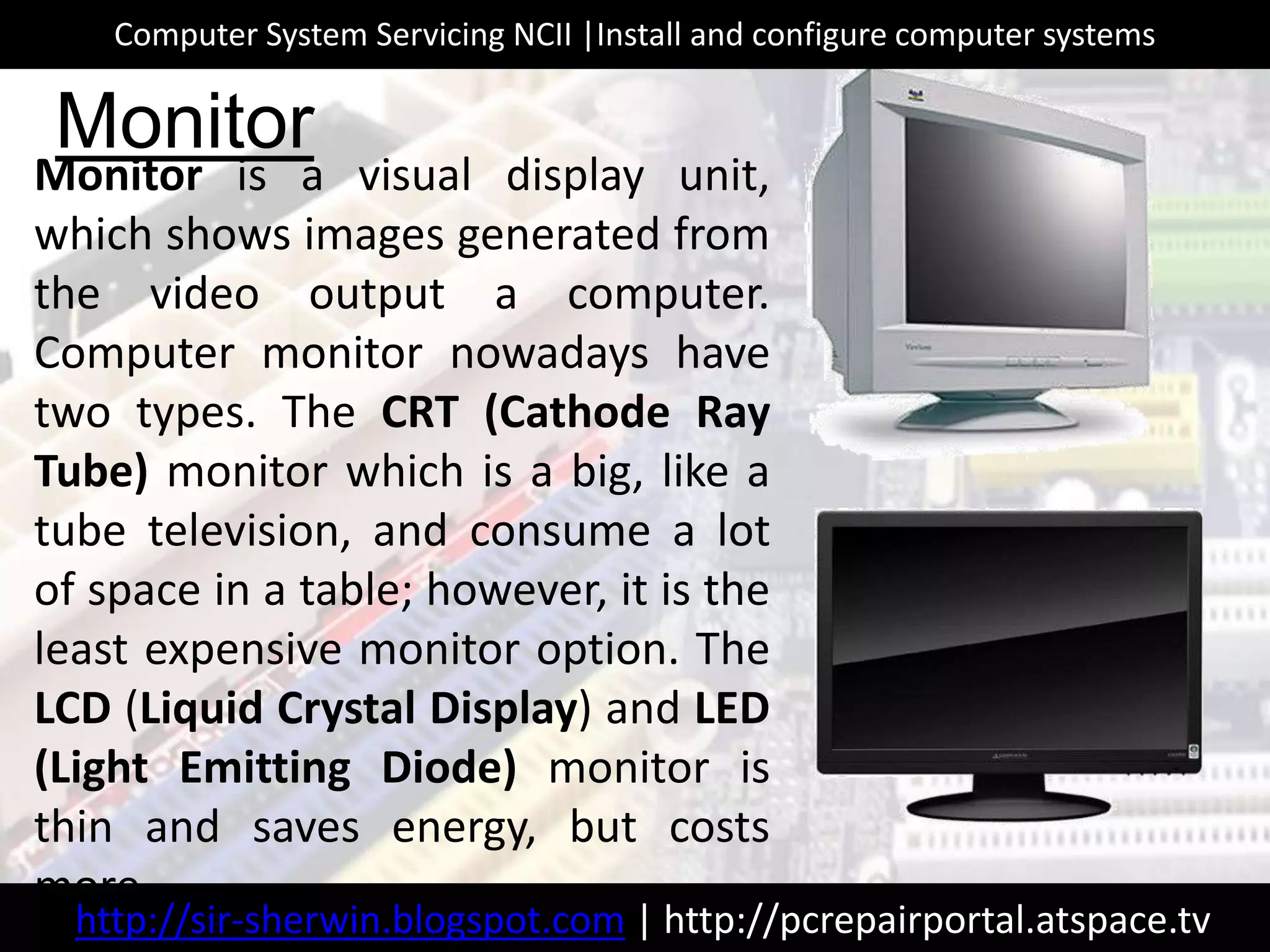

Monitor is a visual display unit,
which shows images generated from
the video output a computer.
Computer monitor nowadays have
two types. The CRT (Cathode Ray
Tube) monitor which is a big, like a
tube television, and consume a lot
of space in a table; however, it is the
least expensive monitor option. The
LCD (Liquid Crystal Display) and LED
(Light Emitting Diode) monitor is
thin and saves energy, but costs
more.
Monitor

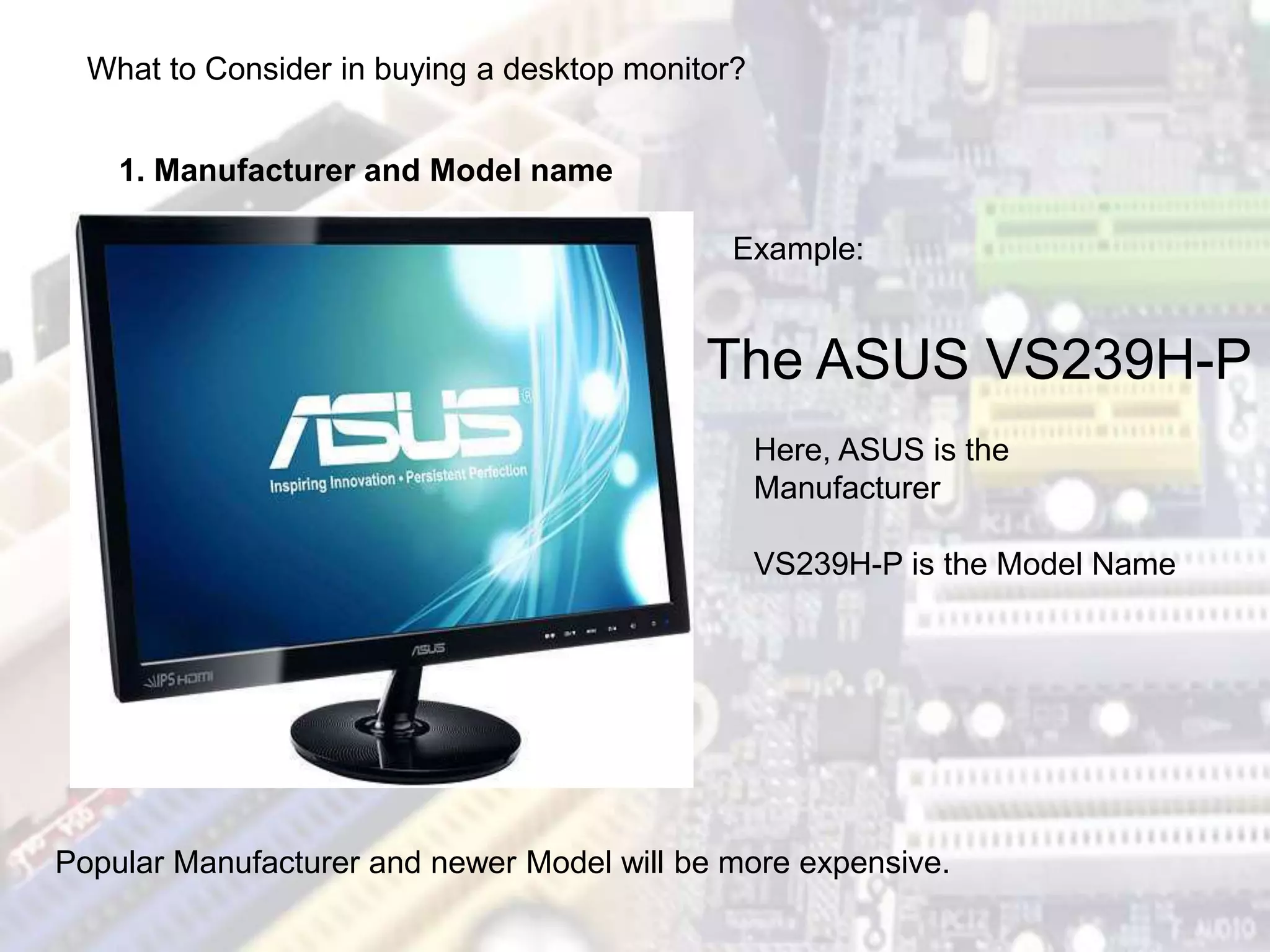

The ASUS VS239H-P
What to Consider in buying a desktop monitor?
1. Manufacturer and Model name
Example:
Here, ASUS is the
Manufacturer
VS239H-P is the Model Name
Popular Manufacturer and newer Model will be more expensive.

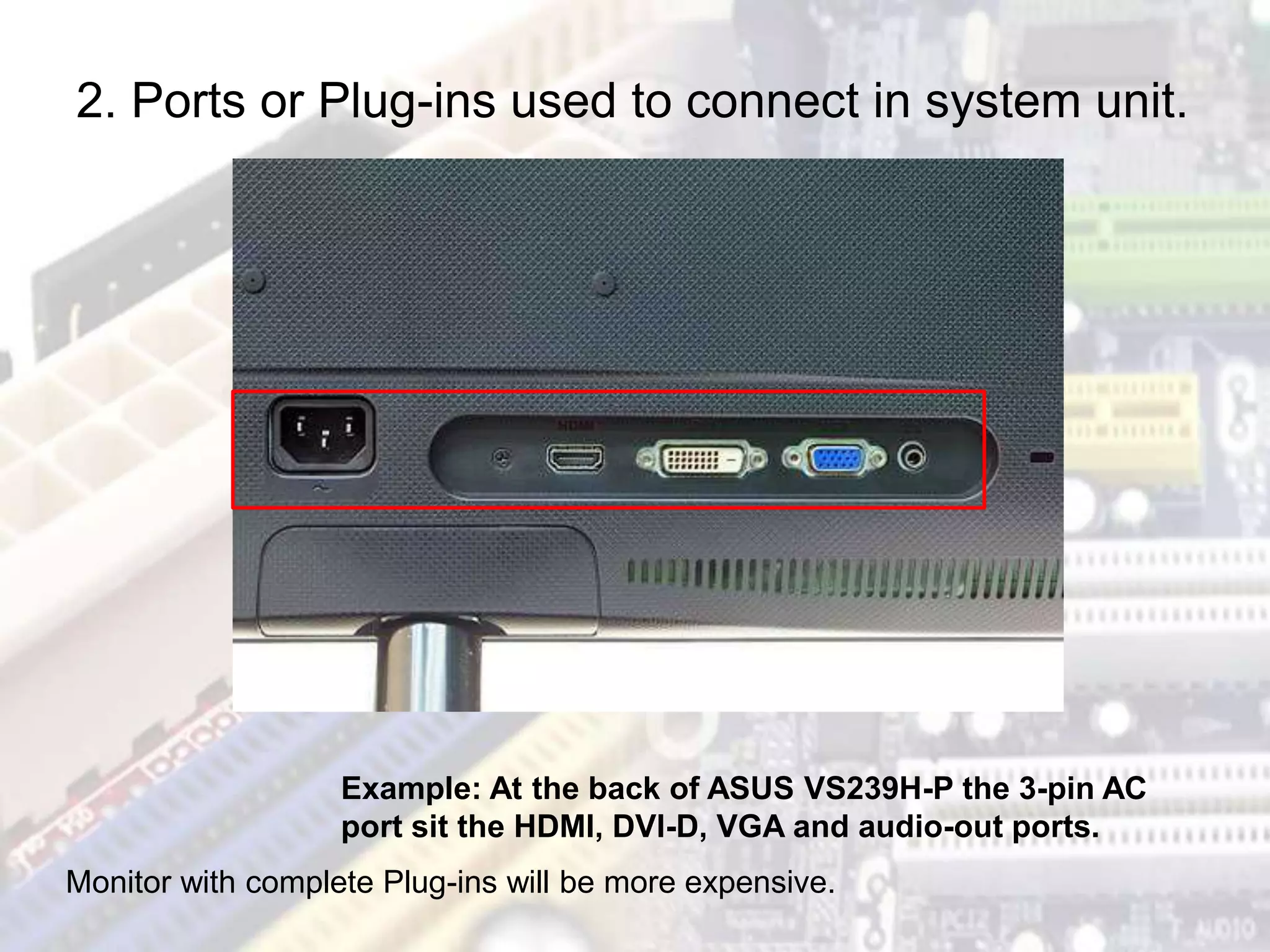

Example: At the back of ASUS VS239H-P the 3-pin AC
port sit the HDMI, DVI-D, VGA and audio-out ports.
2. Ports or Plug-ins used to connect in system unit.
Monitor with complete Plug-ins will be more expensive.

Types of Data Cable used by computer monitor

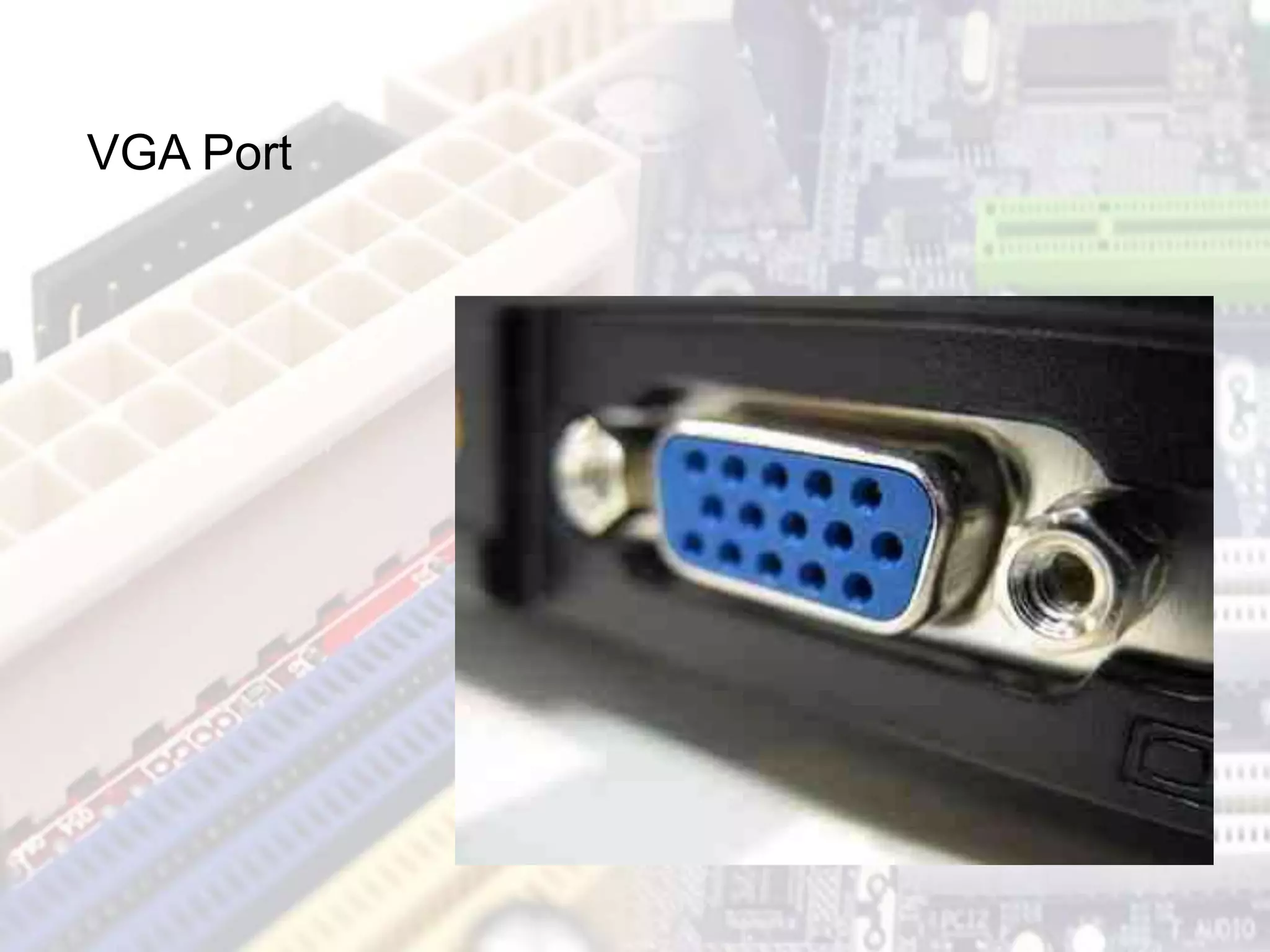

VGA (Video Graphic Array) Cable

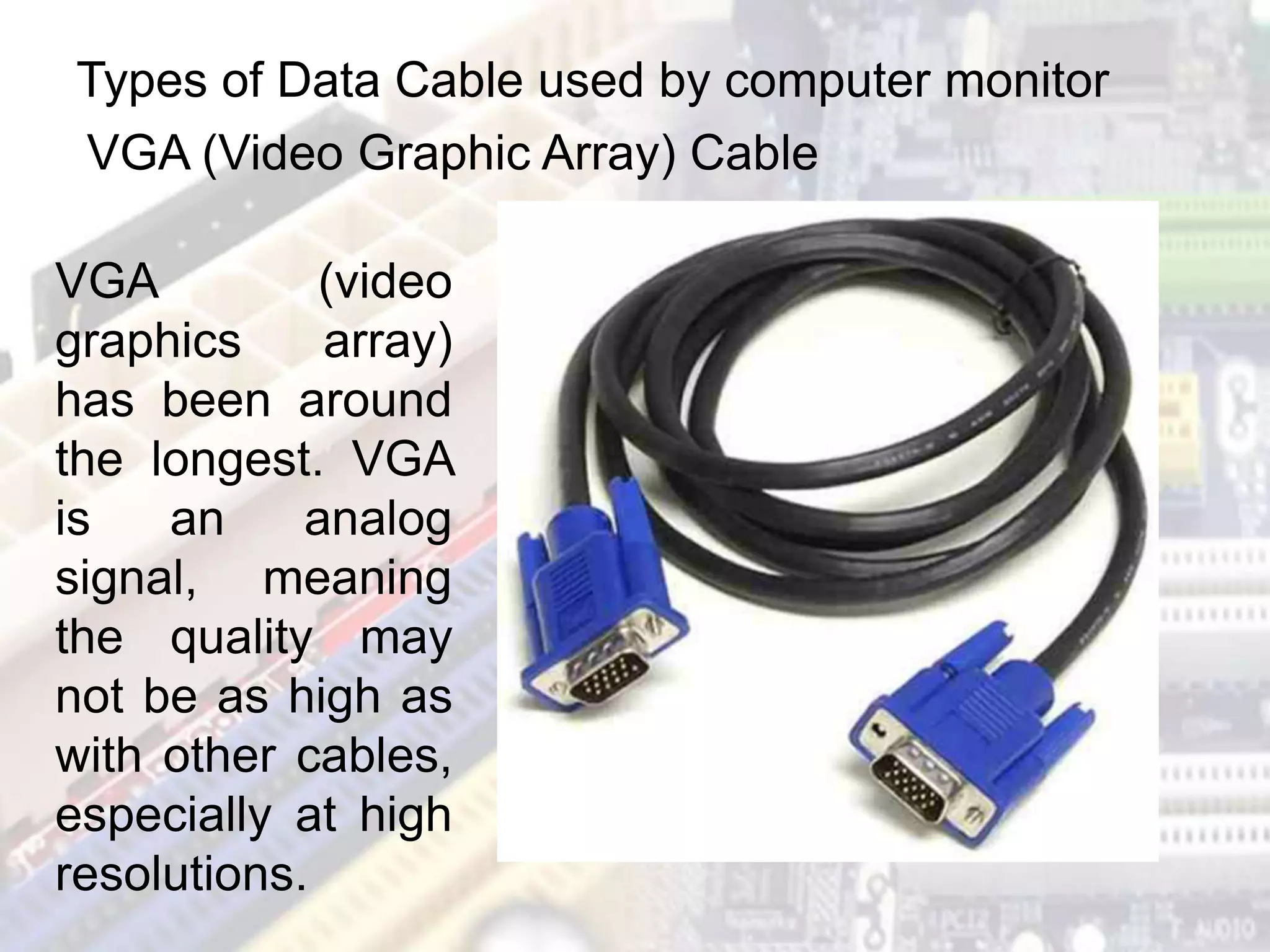

VGA (video
graphics array)
has been around
the longest. VGA
is an analog
signal, meaning
the quality may
not be as high as
with other cables,
especially at high
resolutions.

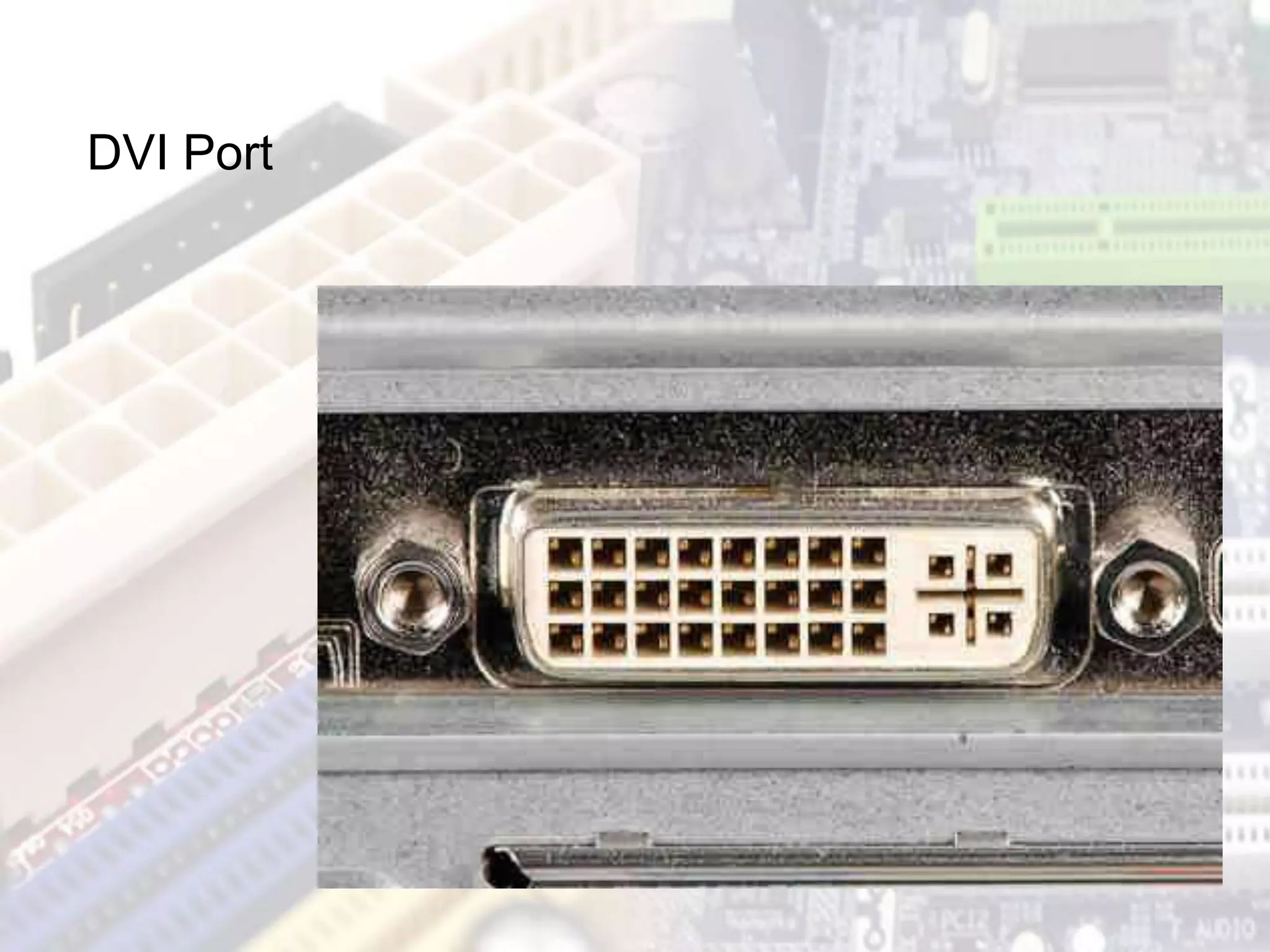

DVI (Digital Video Interface) Cable

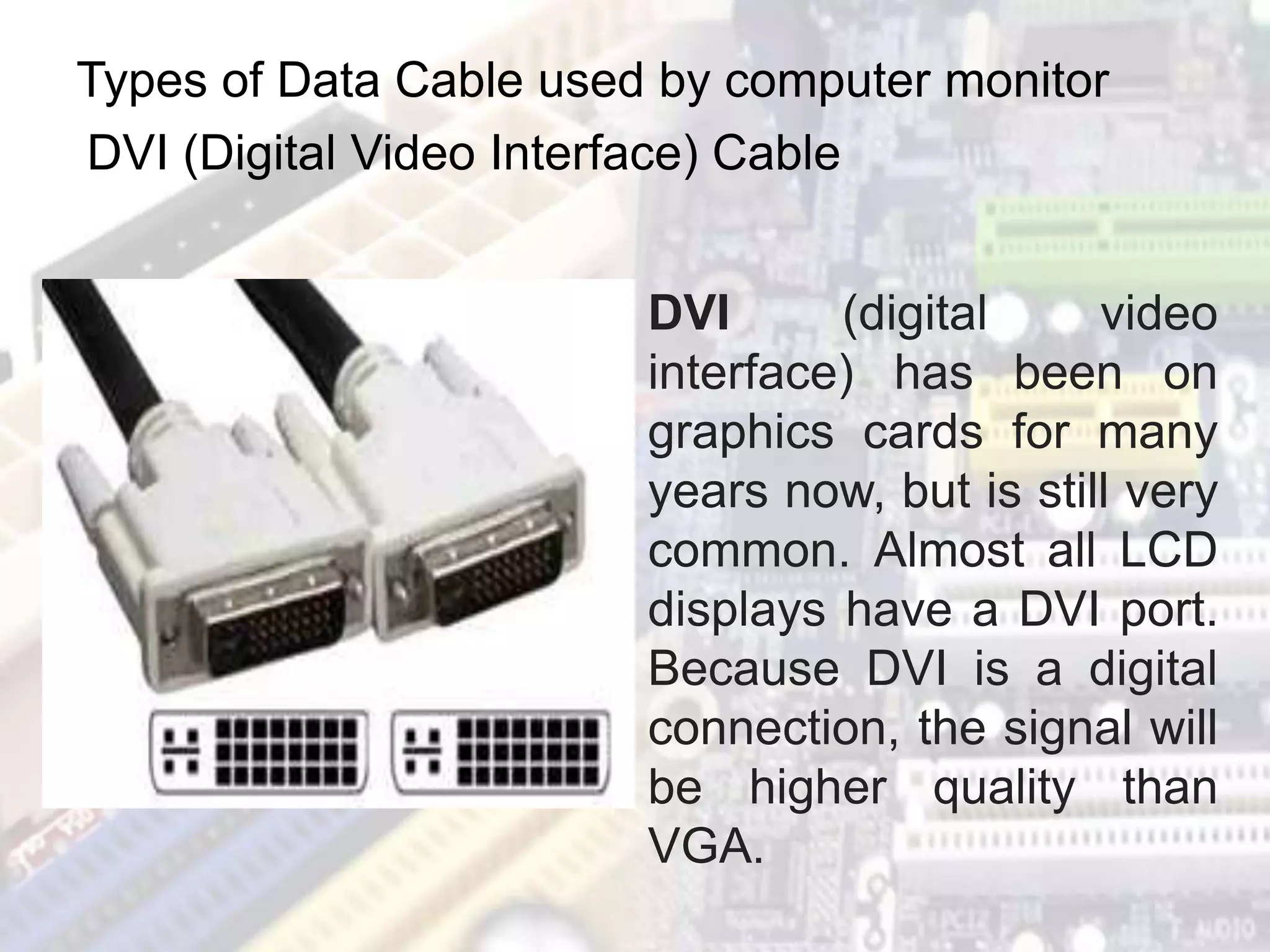

DVI (digital video
interface) has been on
graphics cards for many
years now, but is still very
common. Almost all LCD
displays have a DVI port.
Because DVI is a digital
connection, the signal will
be higher quality than
VGA.

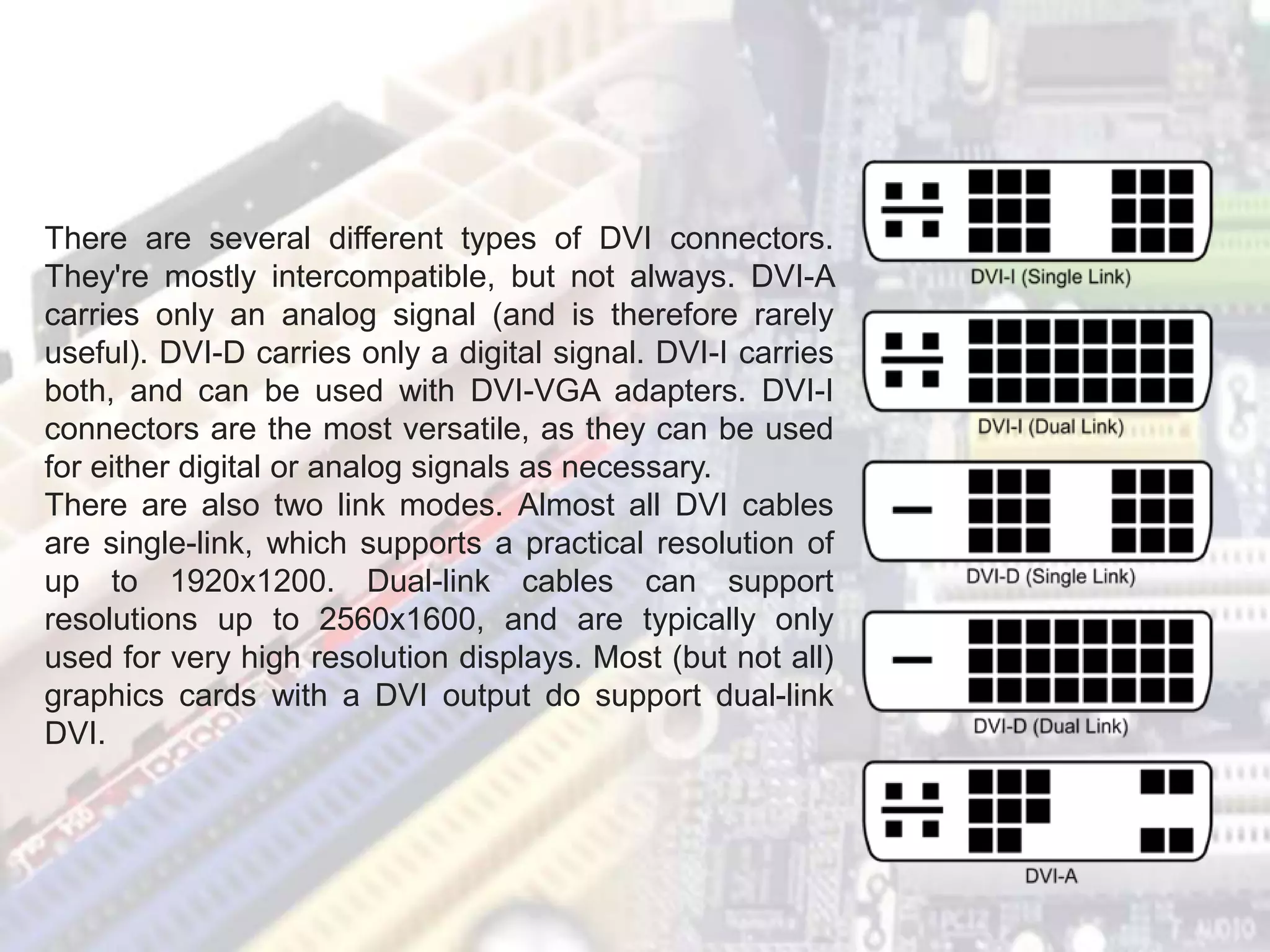

There are several different types of DVI connectors.
They're mostly intercompatible, but not always. DVI-A
carries only an analog signal (and is therefore rarely
useful). DVI-D carries only a digital signal. DVI-I carries
both, and can be used with DVI-VGA adapters. DVI-I
connectors are the most versatile, as they can be used
for either digital or analog signals as necessary.
There are also two link modes. Almost all DVI cables
are single-link, which supports a practical resolution of
up to 1920x1200. Dual-link cables can support
resolutions up to 2560x1600, and are typically only
used for very high resolution displays. Most (but not all)
graphics cards with a DVI output do support dual-link
DVI.

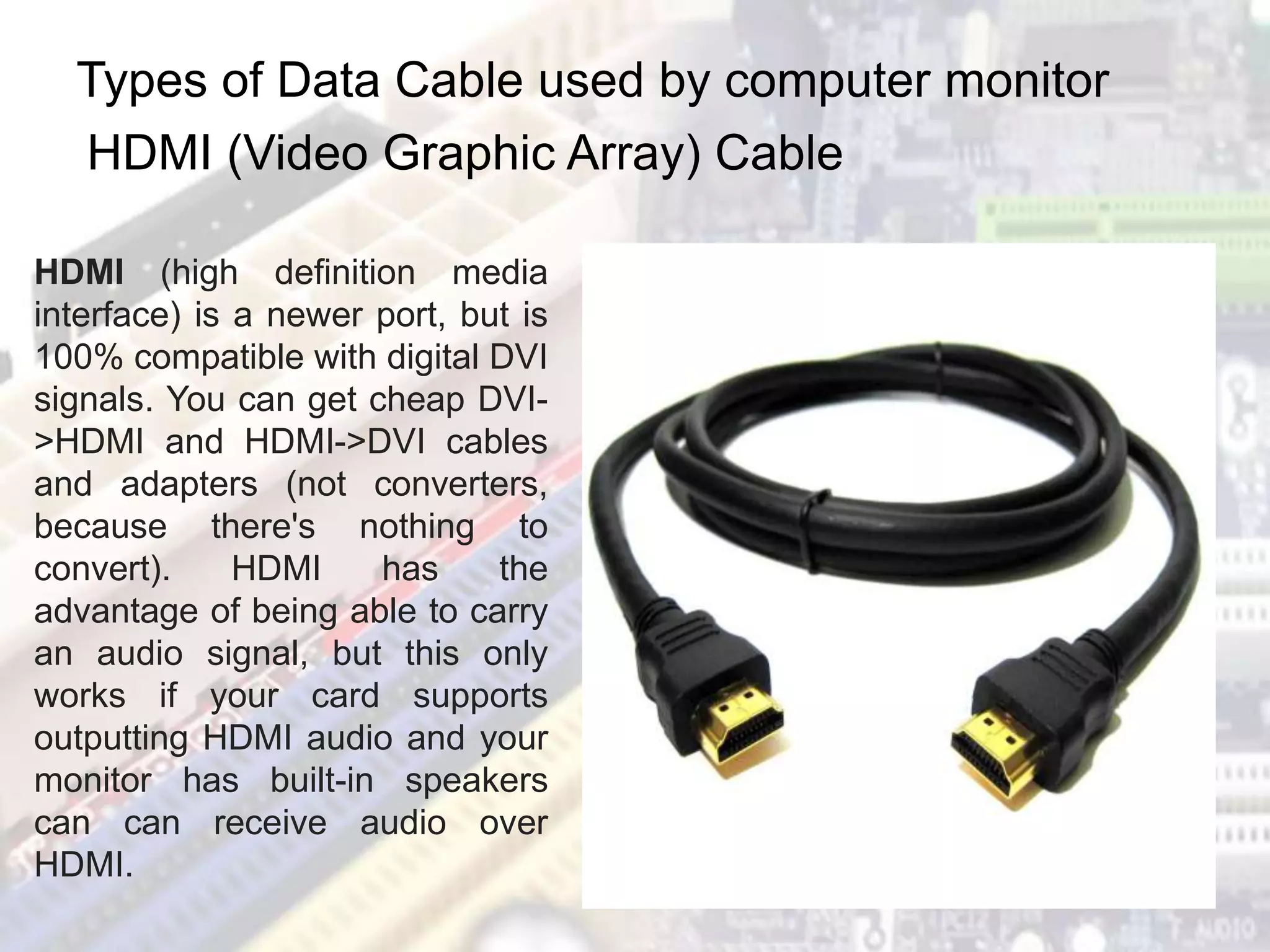

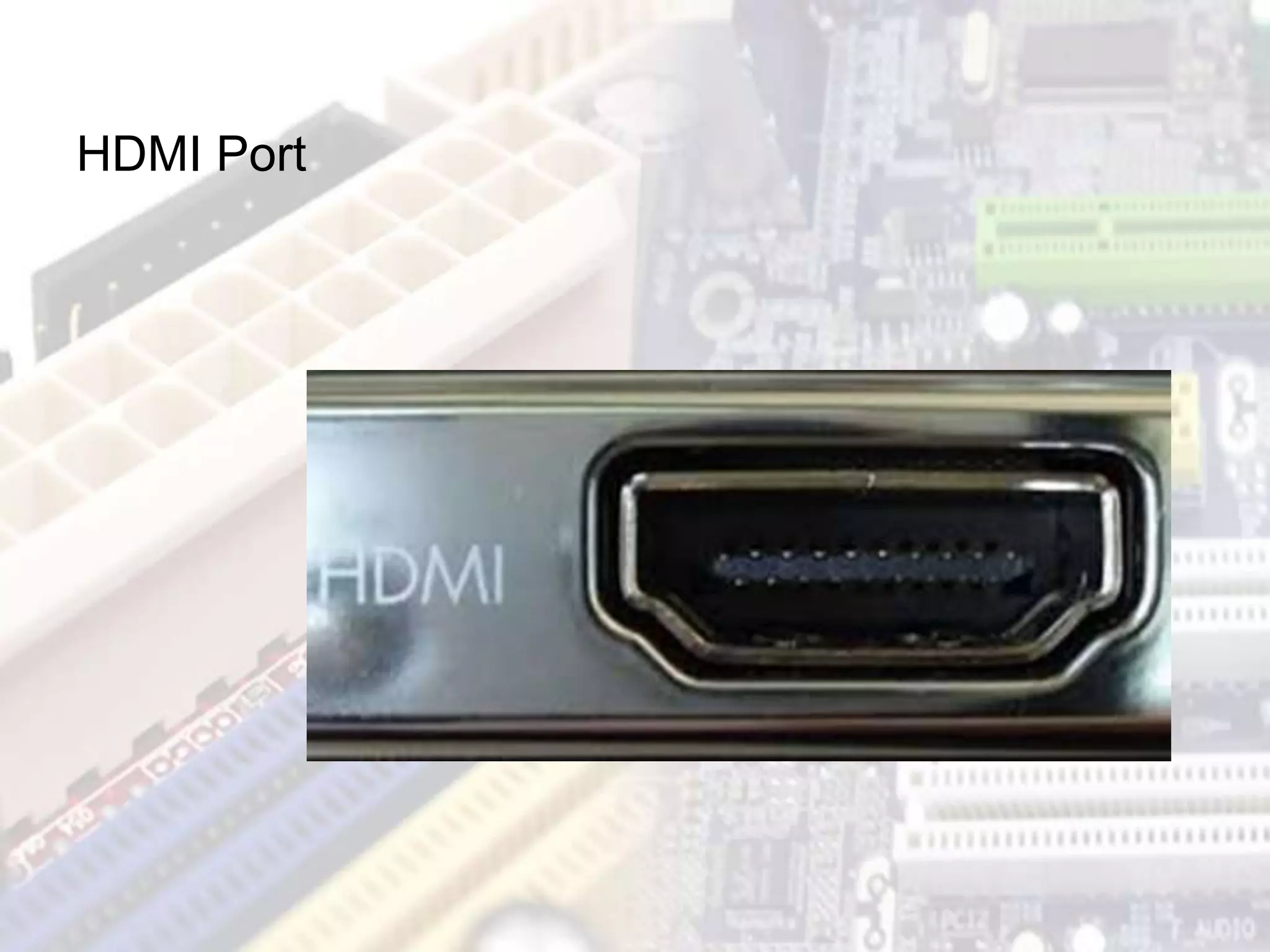

HDMI (Video Graphic Array) Cable
HDMI (high definition media
interface) is a newer port, but is
100% compatible with digital DVI
signals. You can get cheap DVI-
>HDMI and HDMI->DVI cables
and adapters (not converters,
because there's nothing to
convert). HDMI has the
advantage of being able to carry
an audio signal, but this only
works if your card supports
outputting HDMI audio and your
monitor has built-in speakers
can can receive audio over
HDMI.

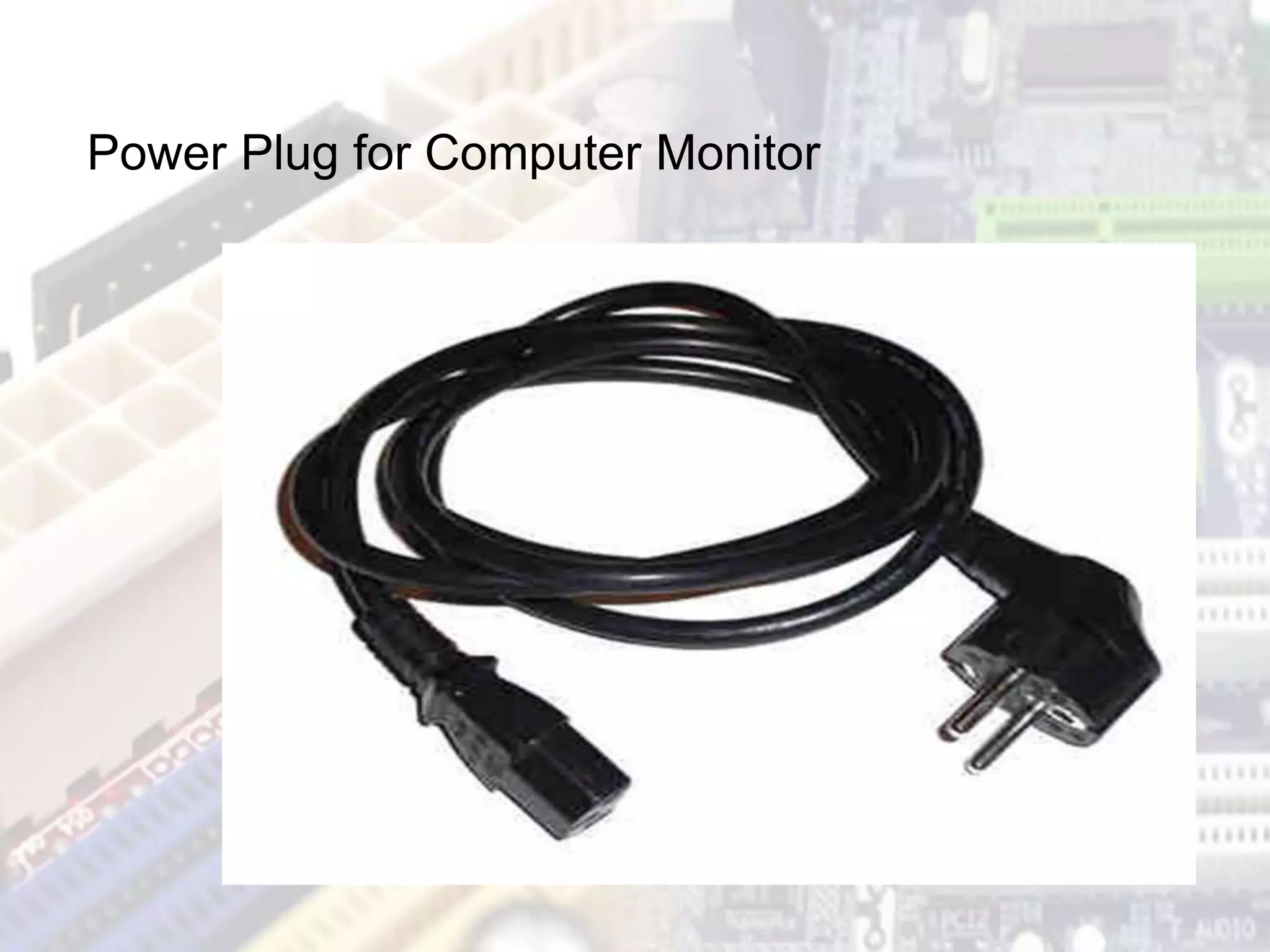

Power Plug for Computer Monitor

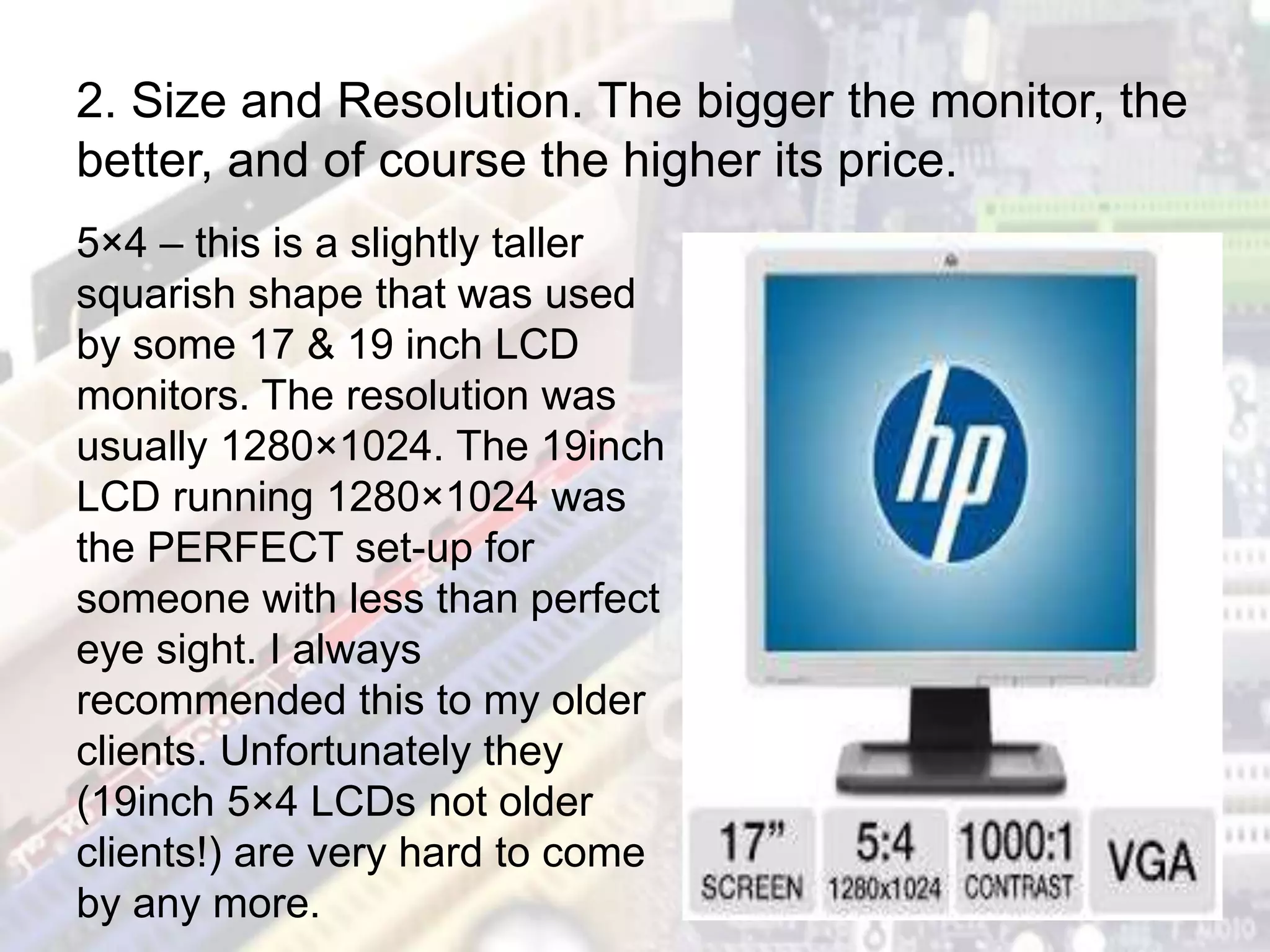

5×4 – this is a slightly taller
squarish shape that was used
by some 17 & 19 inch LCD
monitors. The resolution was
usually 1280×1024. The 19inch
LCD running 1280×1024 was
the PERFECT set-up for
someone with less than perfect
eye sight. I always
recommended this to my older
clients. Unfortunately they
(19inch 5×4 LCDs not older
clients!) are very hard to come
by any more.
2. Size and Resolution. The bigger the monitor, the
better, and of course the higher its price.

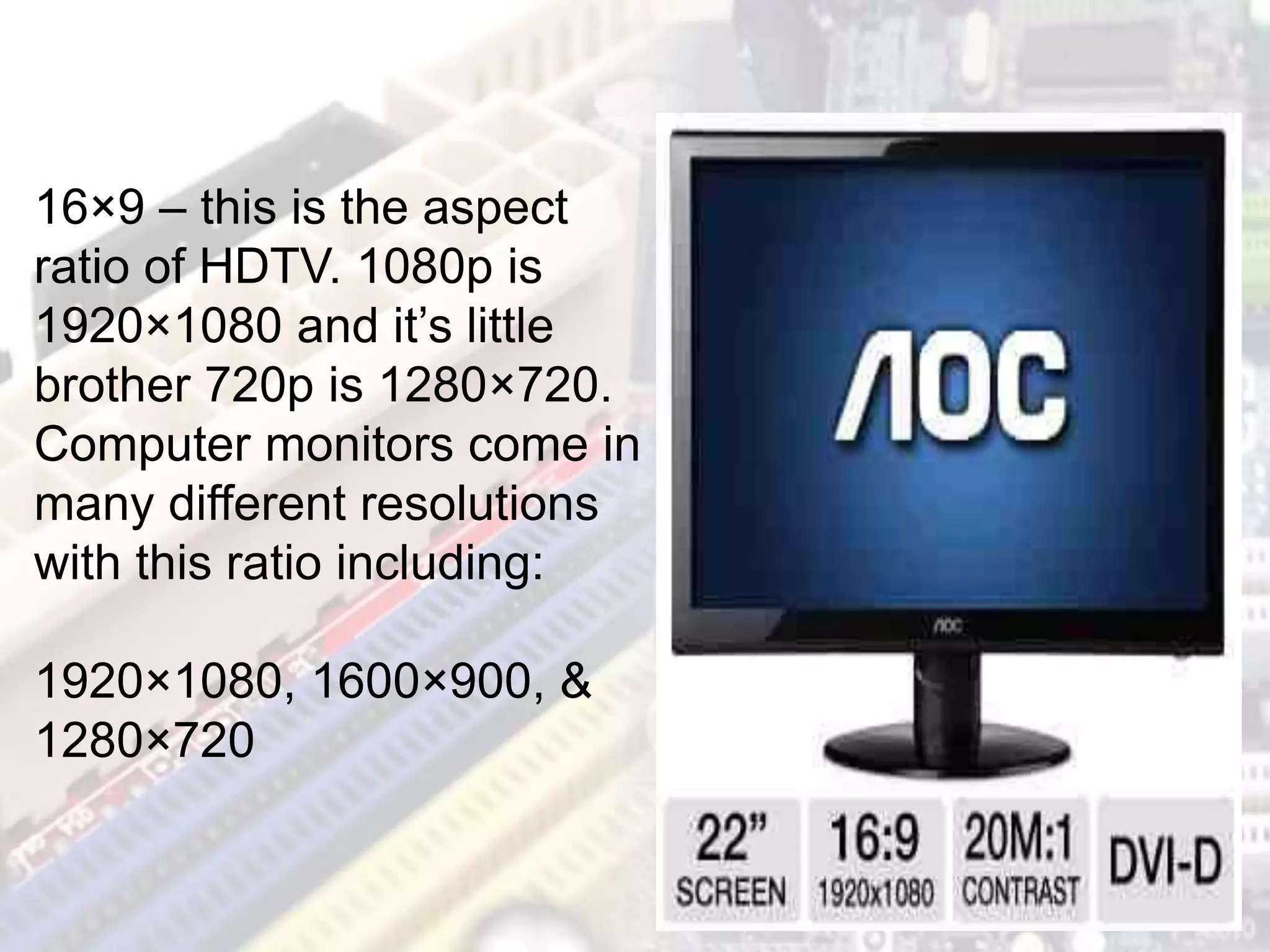

16×9 – this is the aspect
ratio of HDTV. 1080p is
1920×1080 and it’s little
brother 720p is 1280×720.
Computer monitors come in
many different resolutions
with this ratio including:
1920×1080, 1600×900, &
1280×720

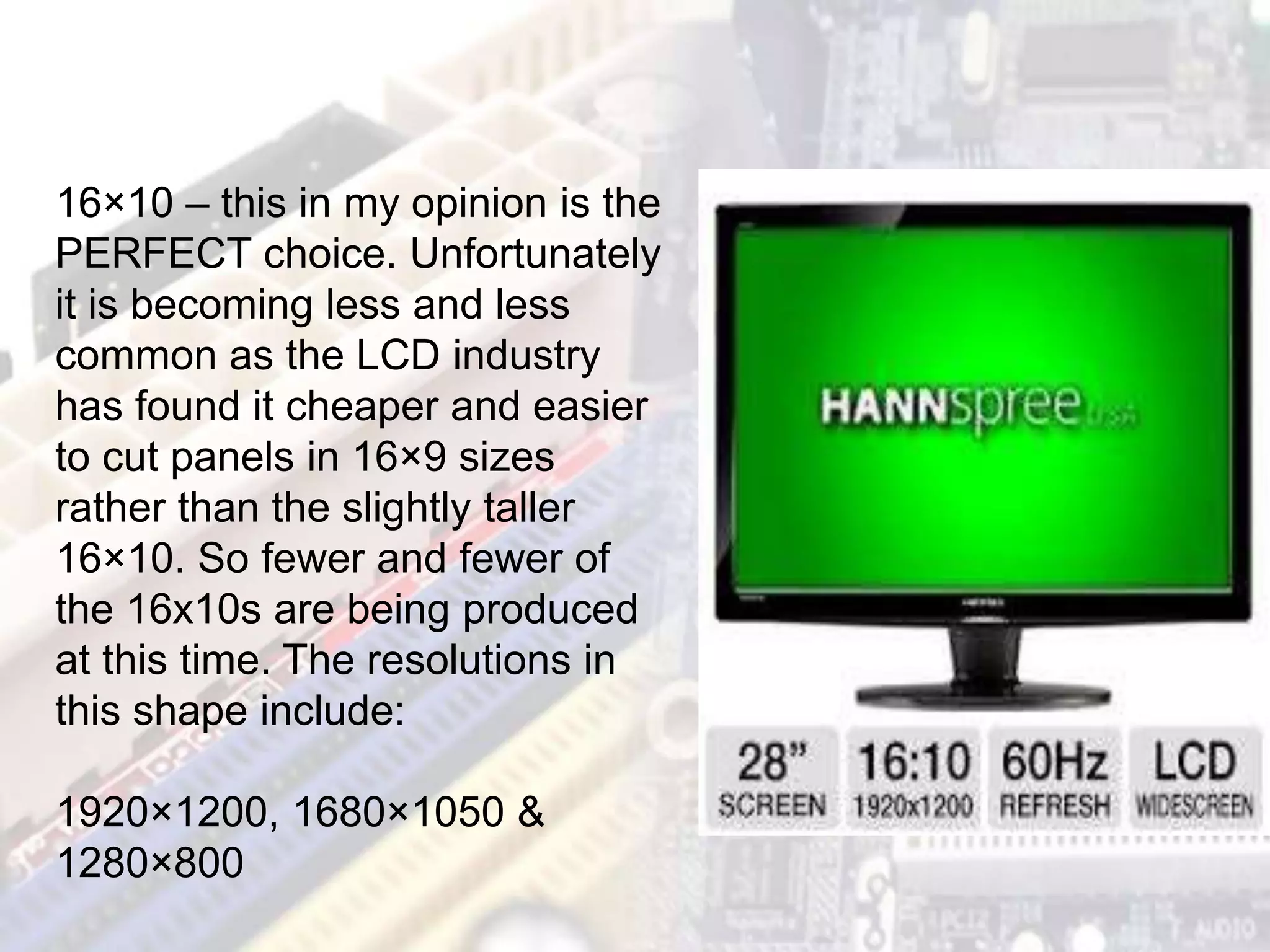

16×10 – this in my opinion is the
PERFECT choice. Unfortunately
it is becoming less and less
common as the LCD industry
has found it cheaper and easier
to cut panels in 16×9 sizes
rather than the slightly taller
16×10. So fewer and fewer of
the 16x10s are being produced
at this time. The resolutions in
this shape include:
1920×1200, 1680×1050 &
1280×800

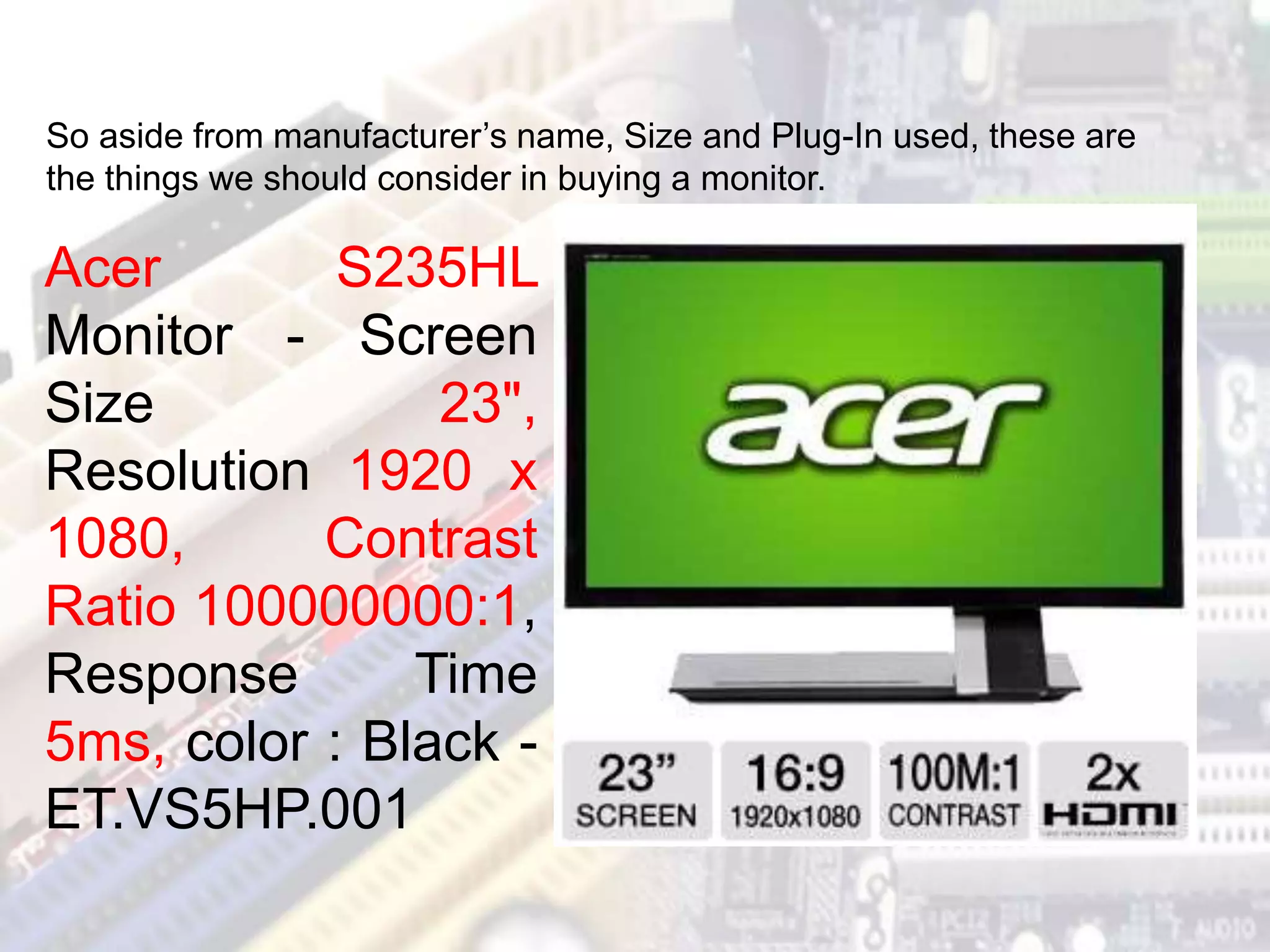

Acer S235HL
Monitor - Screen
Size 23",
Resolution 1920 x
1080, Contrast
Ratio 100000000:1,
Response Time
5ms, color : Black -
ET.VS5HP.001
So aside from manufacturer’s name, Size and Plug-In used, these are
the things we should consider in buying a monitor.

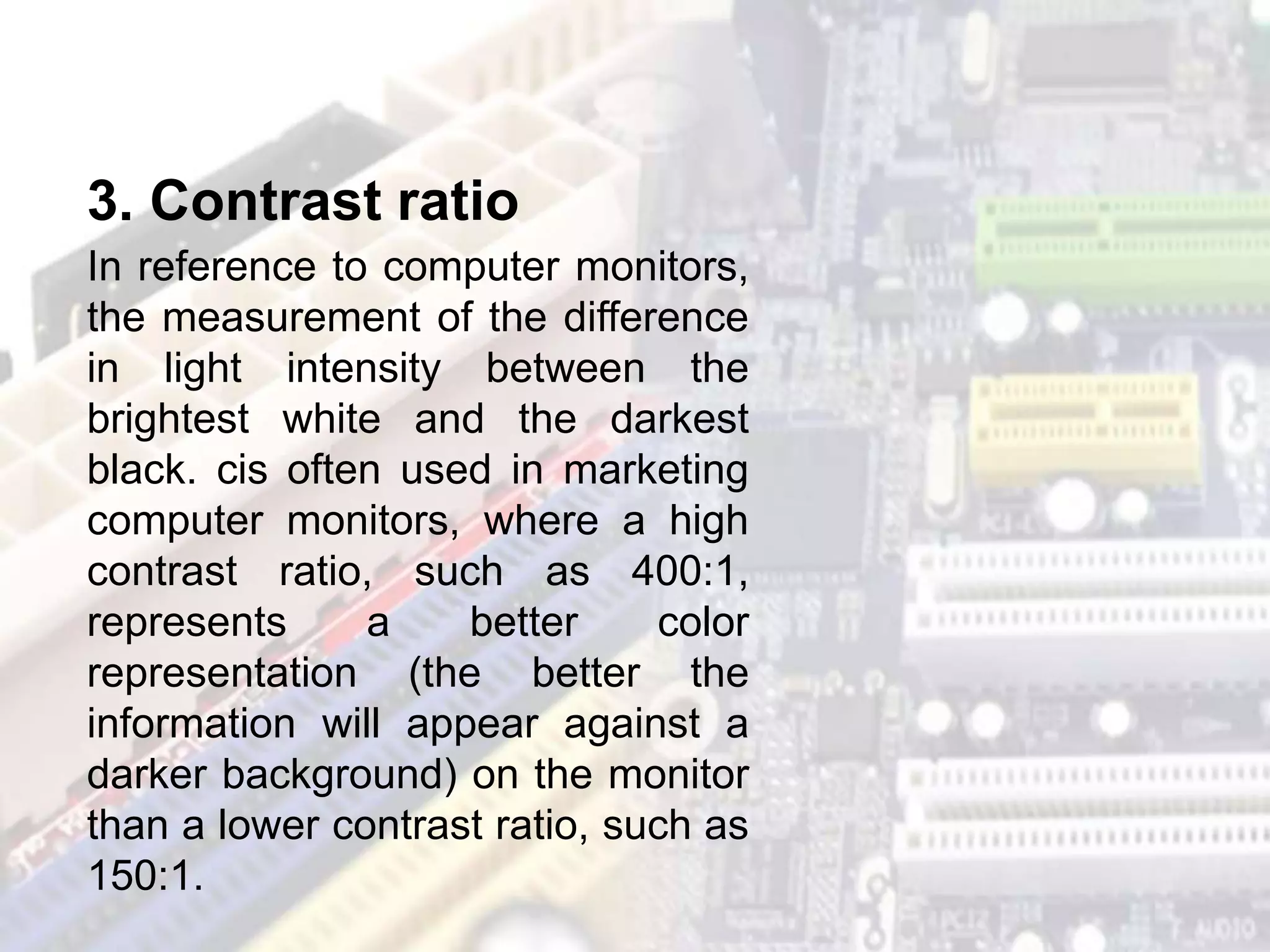

In reference to computer monitors,
the measurement of the difference
in light intensity between the
brightest white and the darkest
black. cis often used in marketing
computer monitors, where a high
contrast ratio, such as 400:1,
represents a better color
representation (the better the
information will appear against a
darker background) on the monitor
than a lower contrast ratio, such as
150:1.
3. Contrast ratio

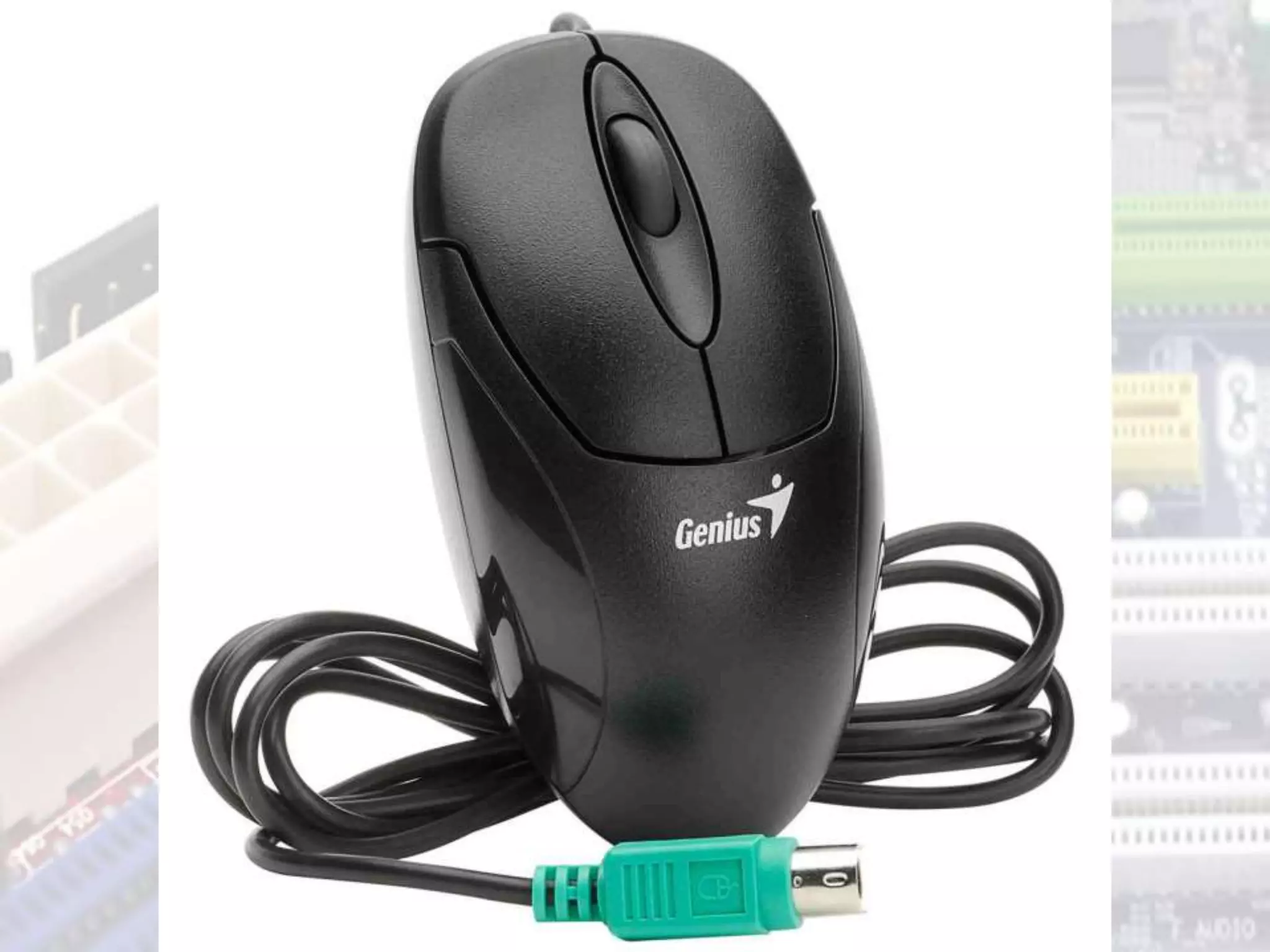

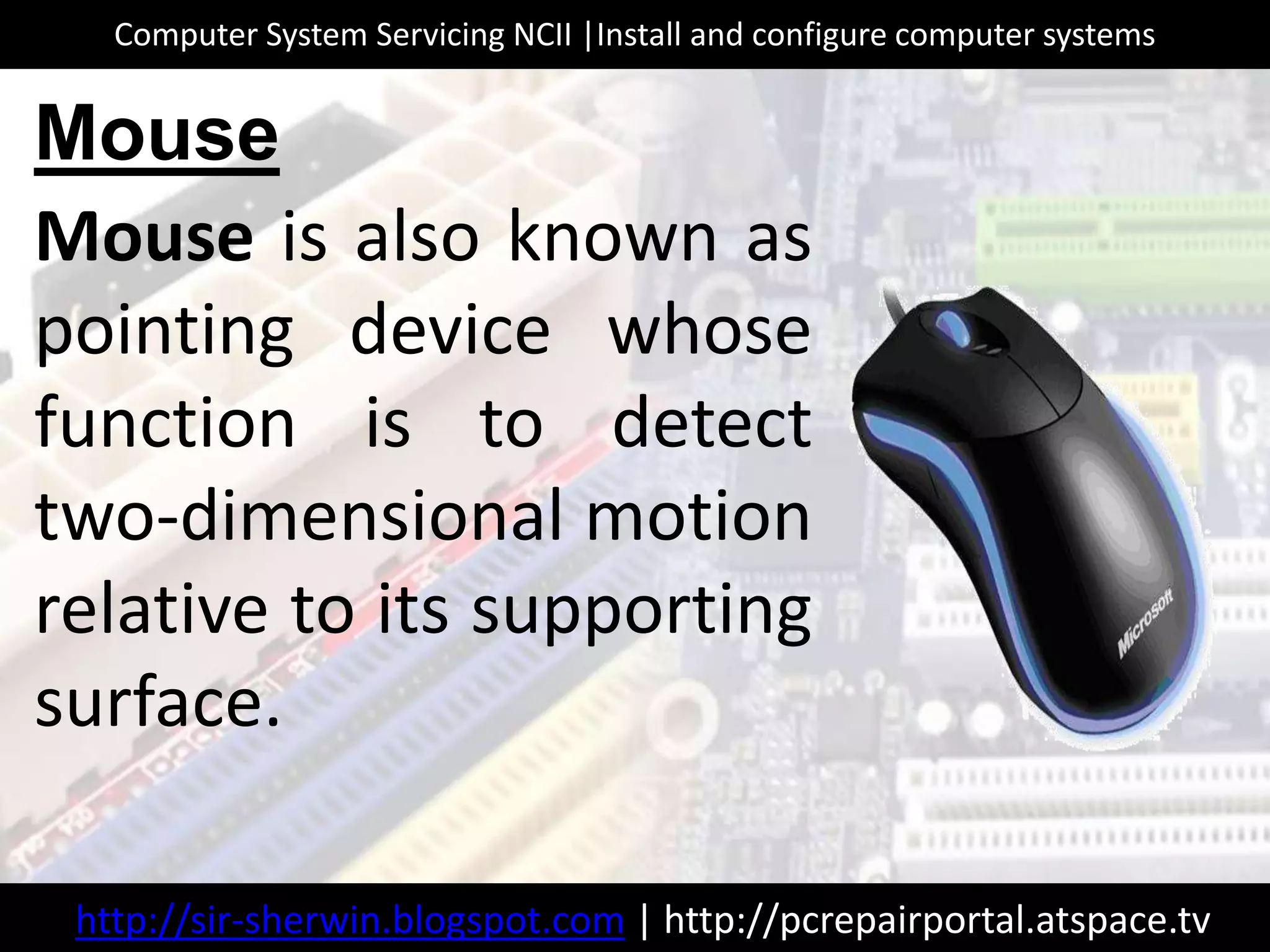

Mouse is also known as
pointing device whose
function is to detect
two-dimensional motion
relative to its supporting
surface.
Mouse

Types of Computer Mouse

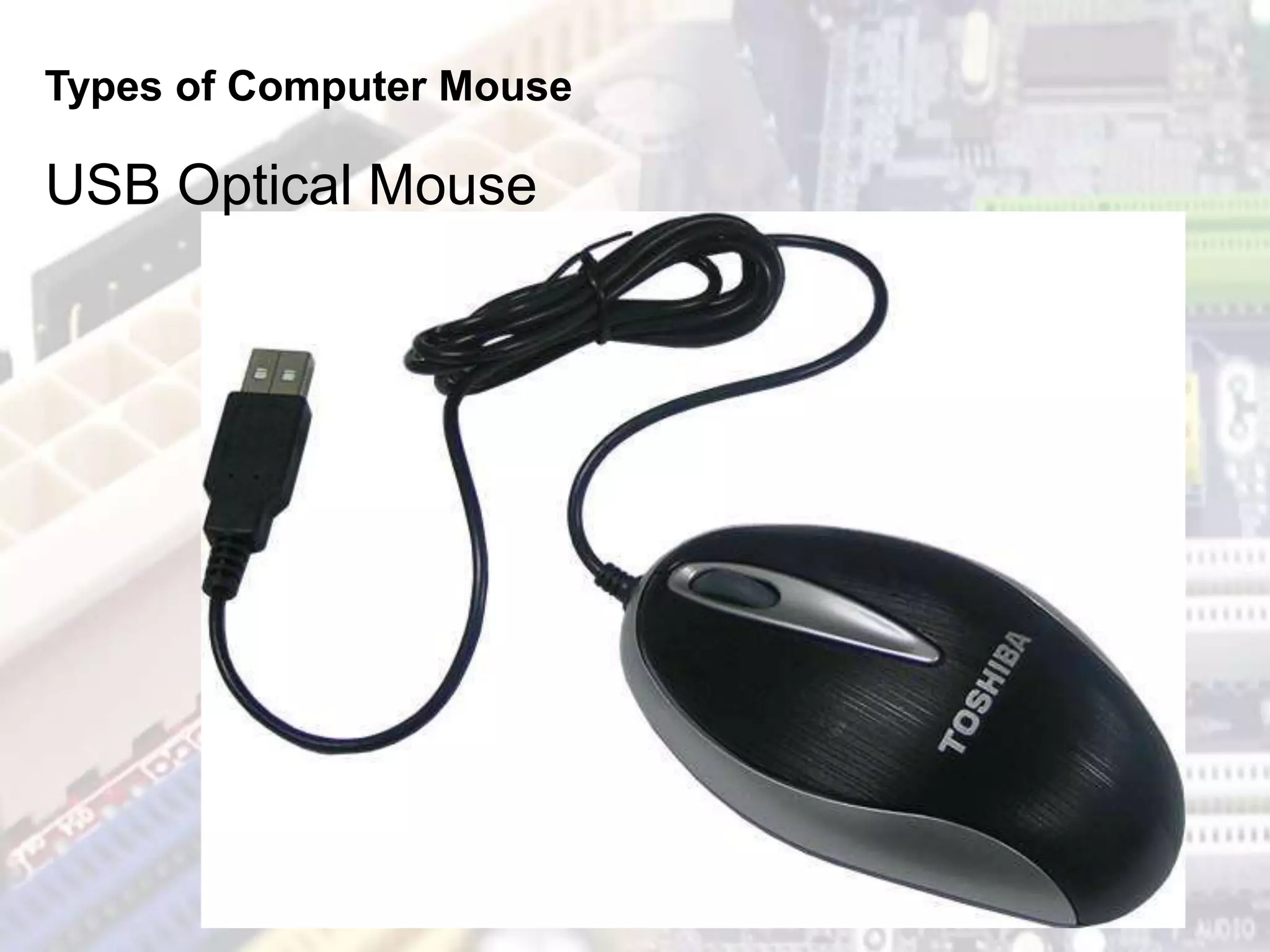

USB Optical Mouse

Types of Computer Mouse

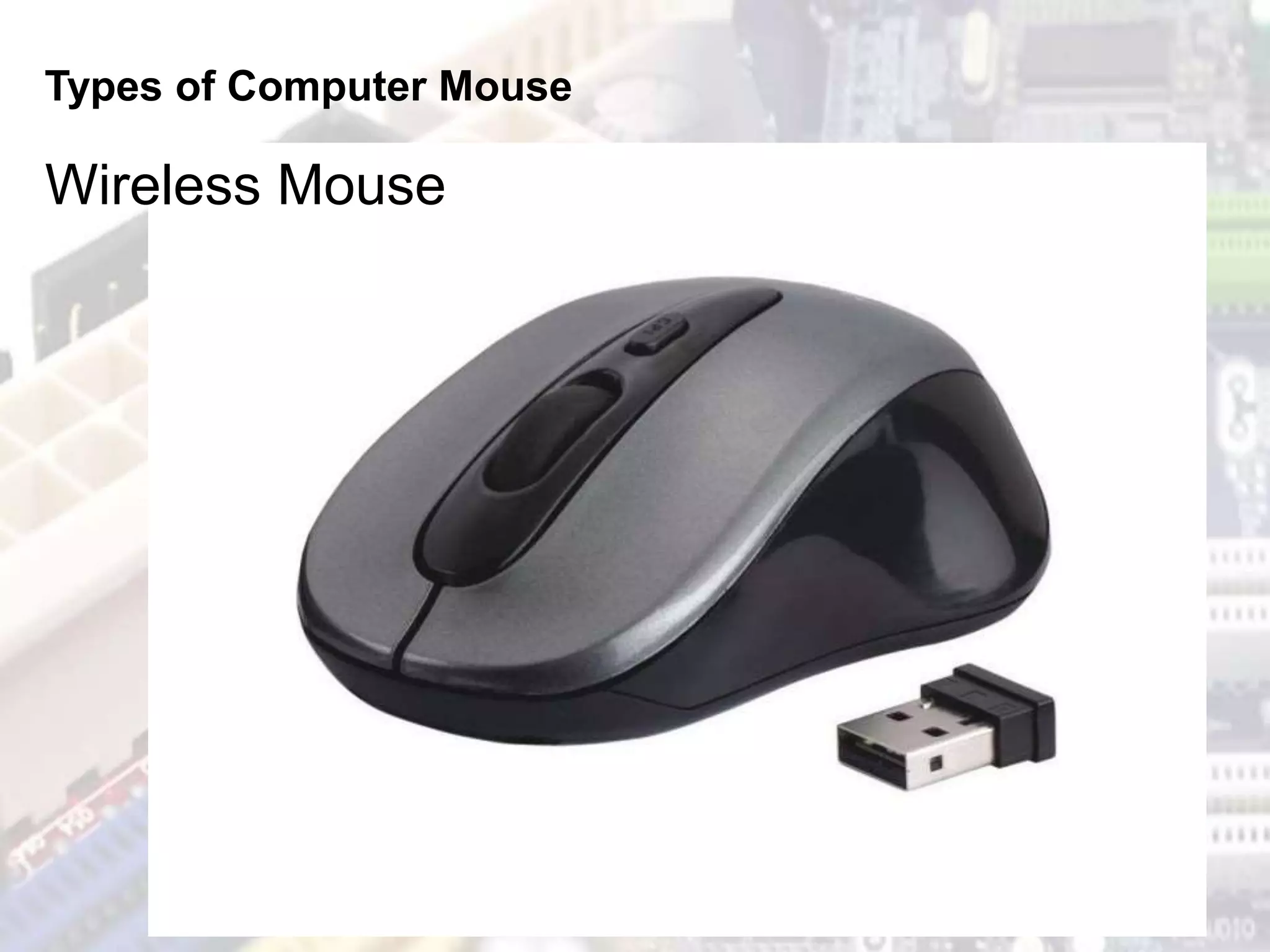

Wireless Mouse

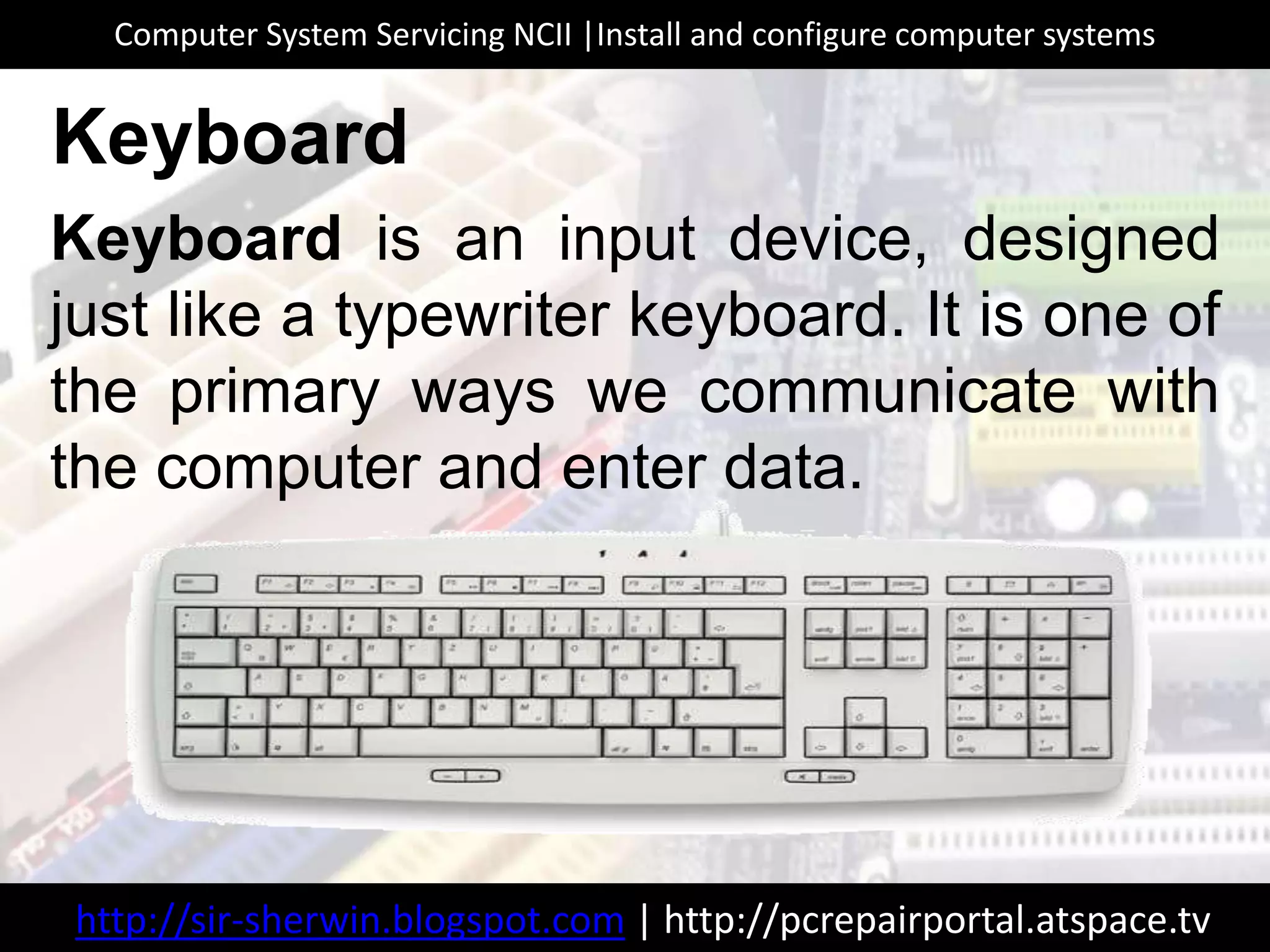

Keyboard is an input device, designed
just like a typewriter keyboard. It is one of
the primary ways we communicate with
the computer and enter data.
Keyboard

Types of Keyboard

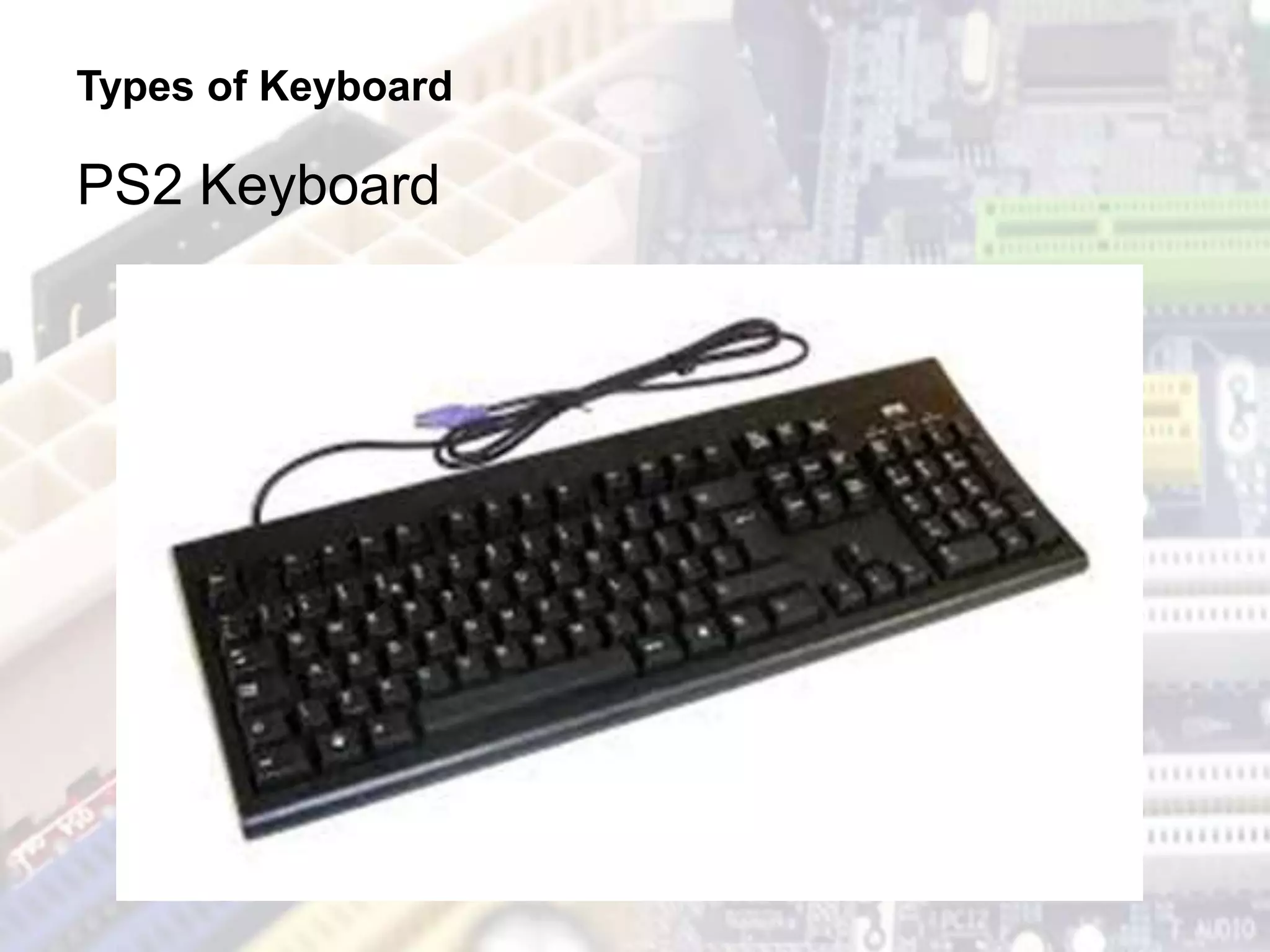

PS2 Keyboard

Types of Keyboard
USB Keyboard

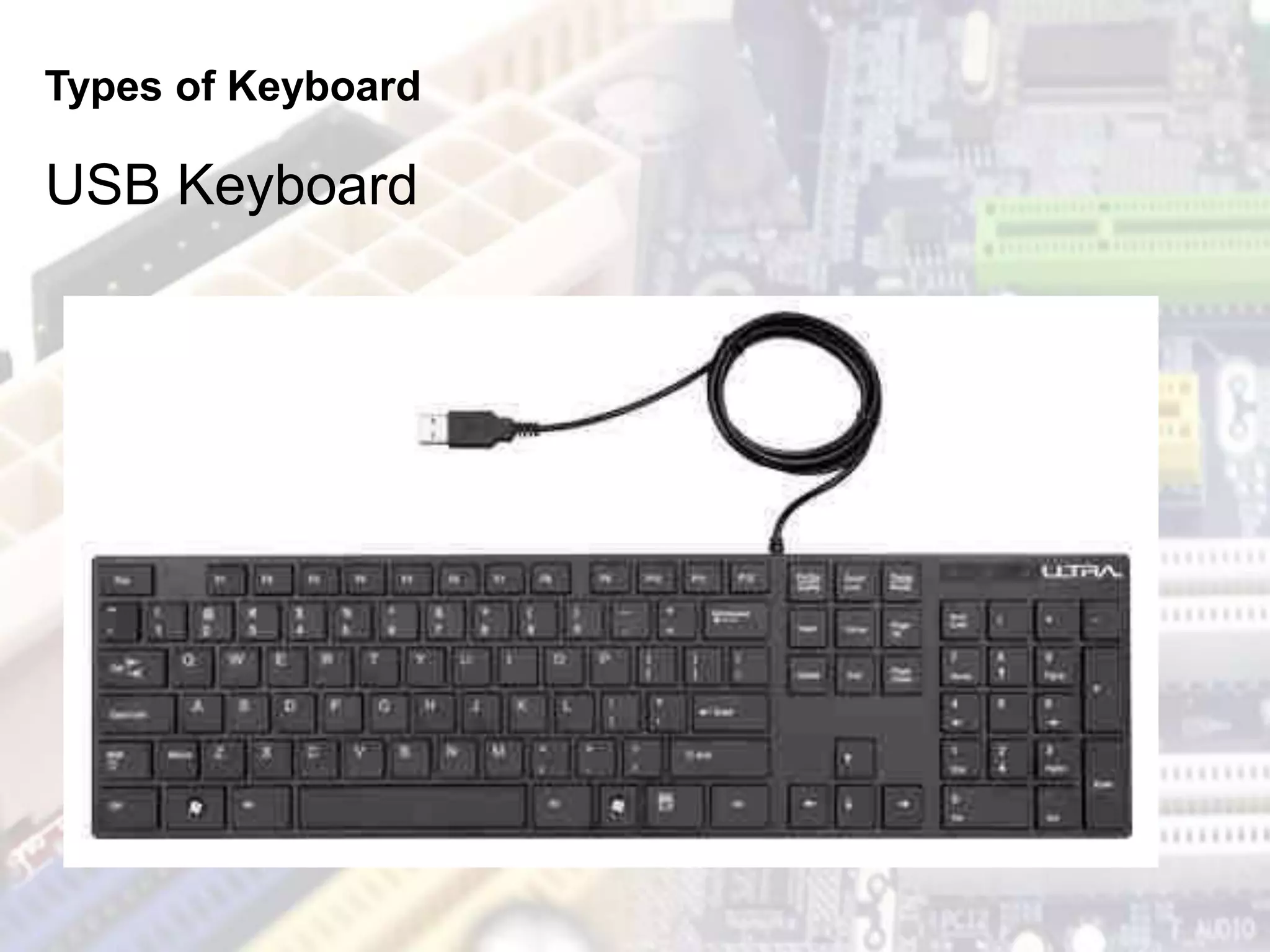

Types of keyboard

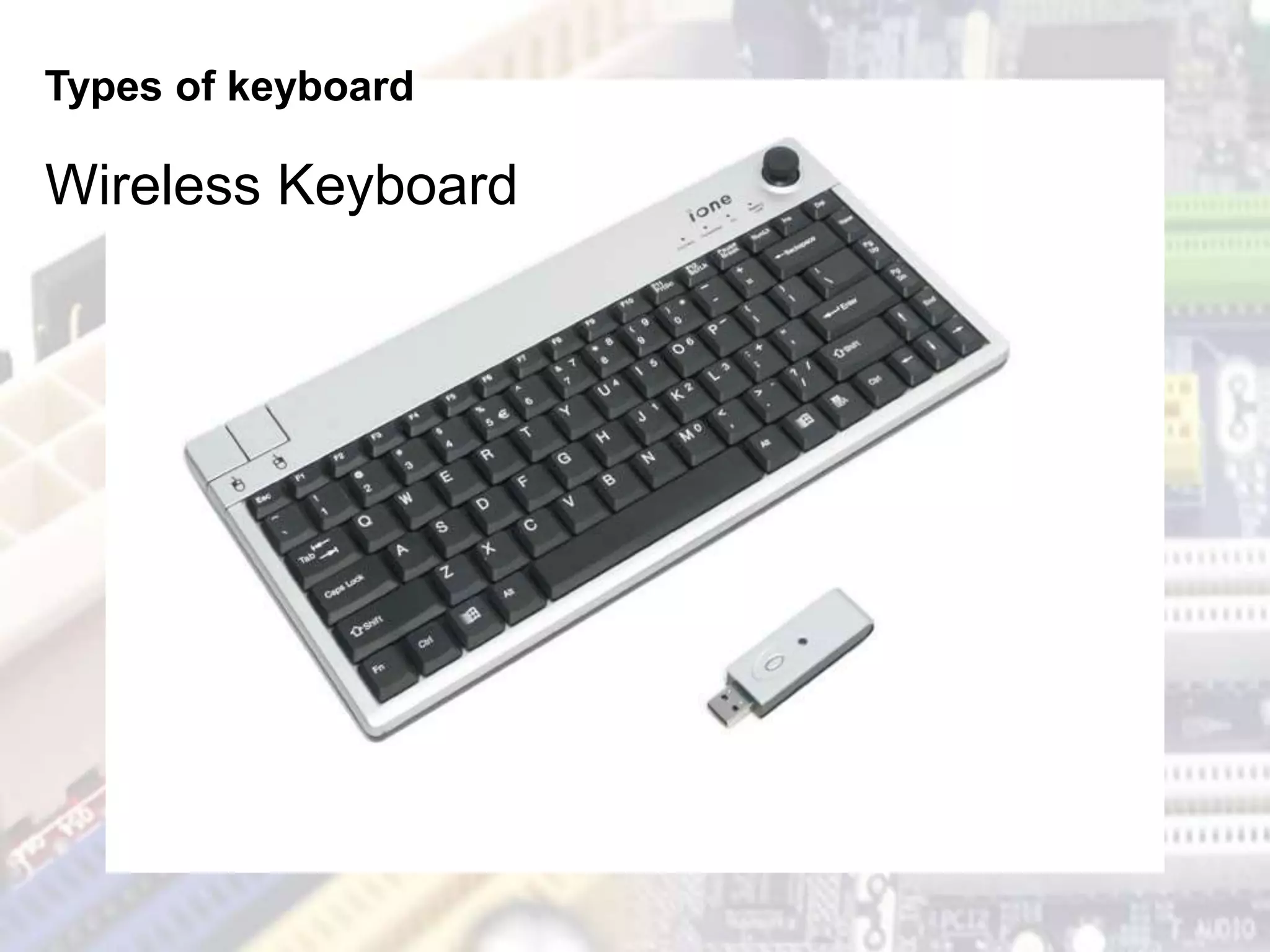

Wireless Keyboard

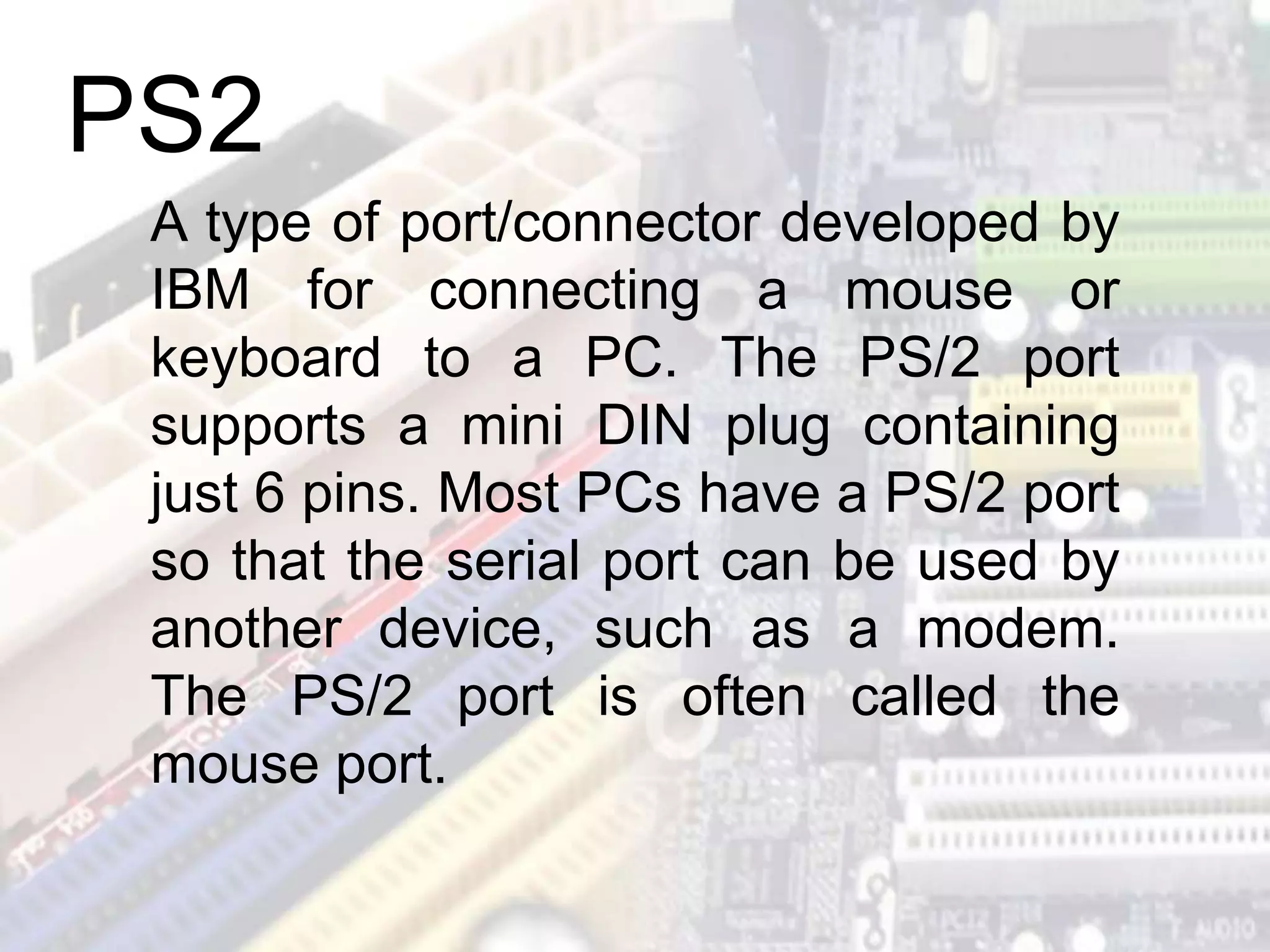

A type of port/connector developed by
IBM for connecting a mouse or
keyboard to a PC. The PS/2 port
supports a mini DIN plug containing
just 6 pins. Most PCs have a PS/2 port
so that the serial port can be used by
another device, such as a modem.
The PS/2 port is often called the
mouse port.
PS2

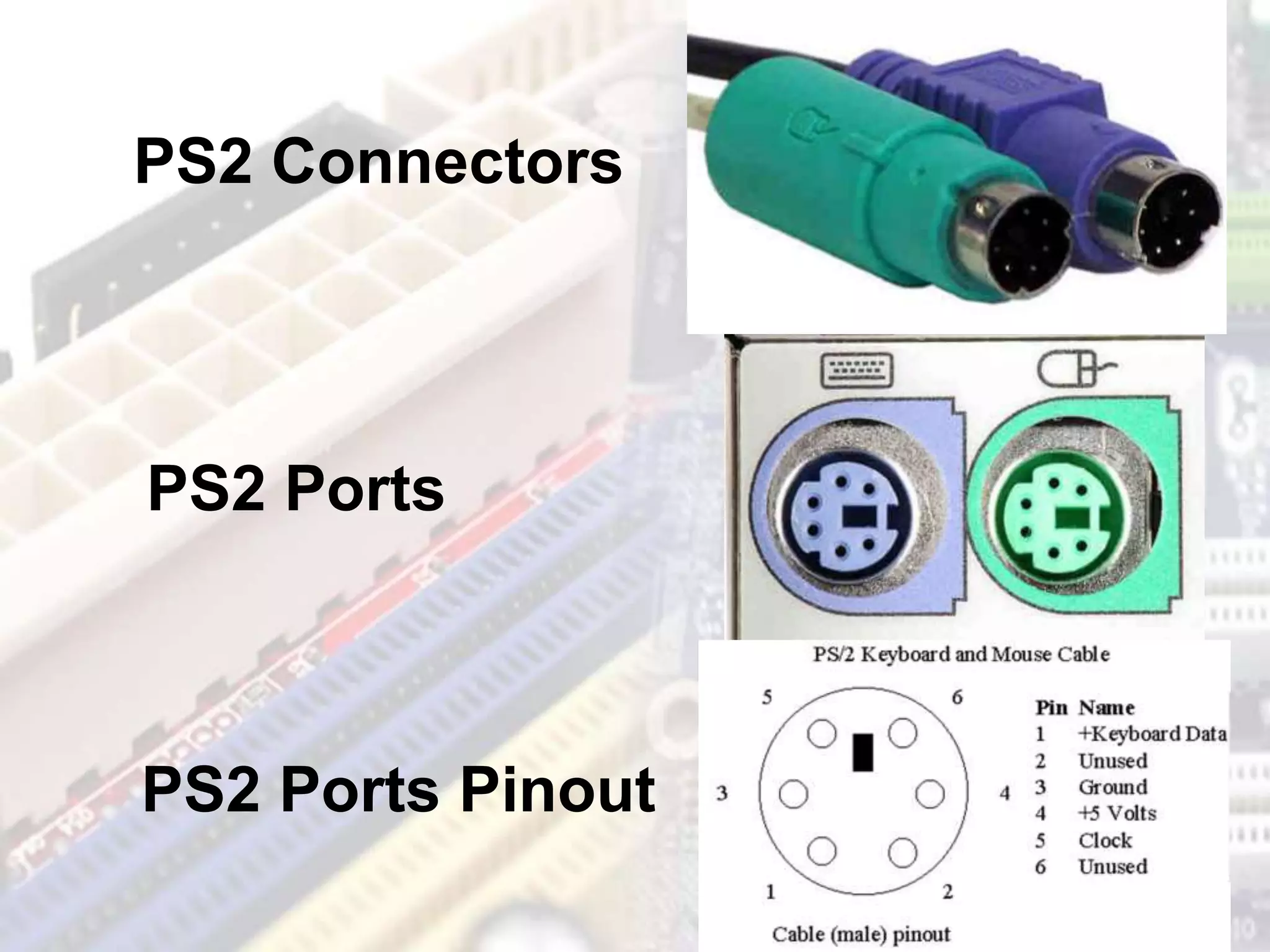

PS2 Connectors
PS2 Ports
PS2 Ports Pinout

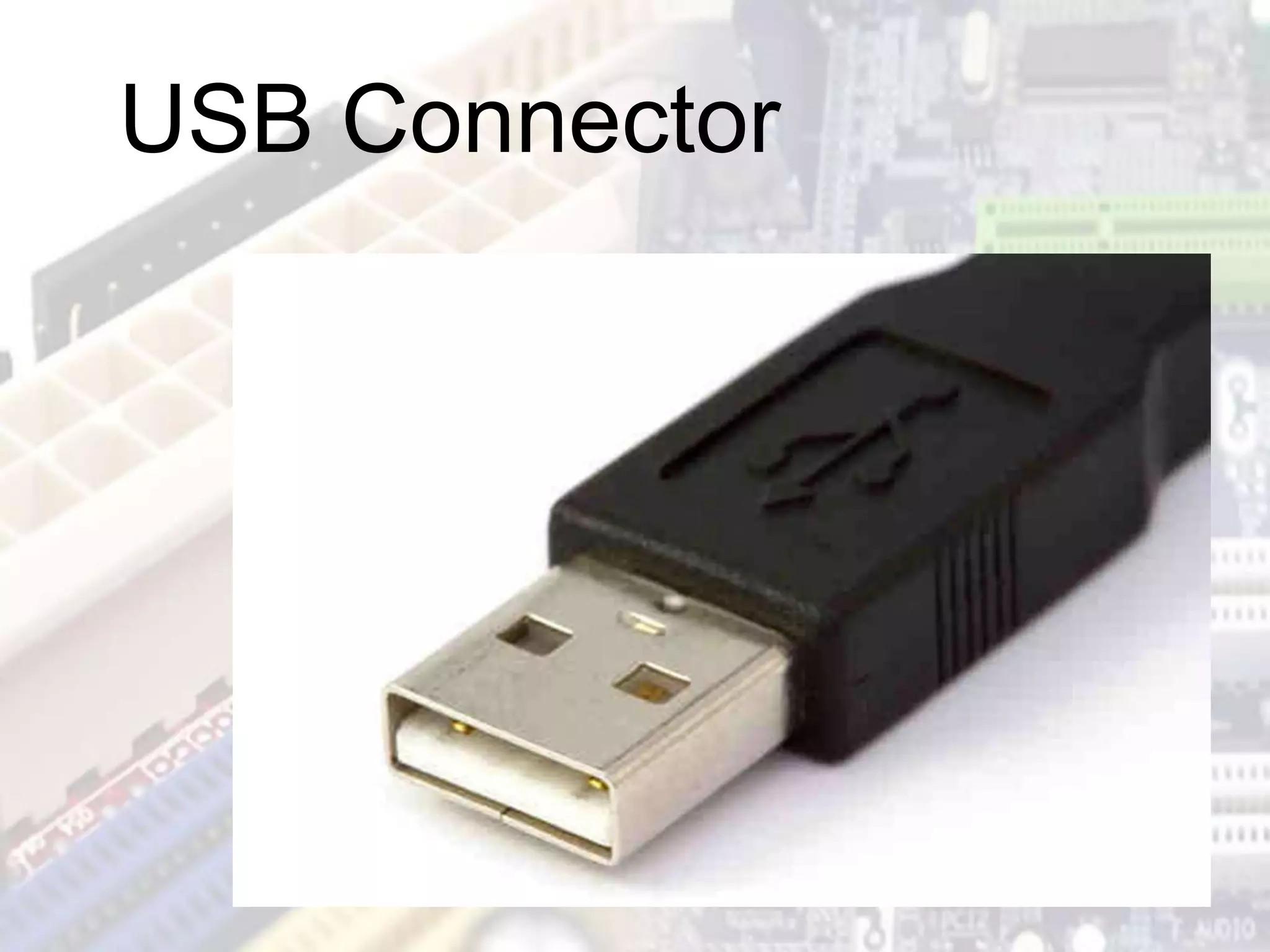

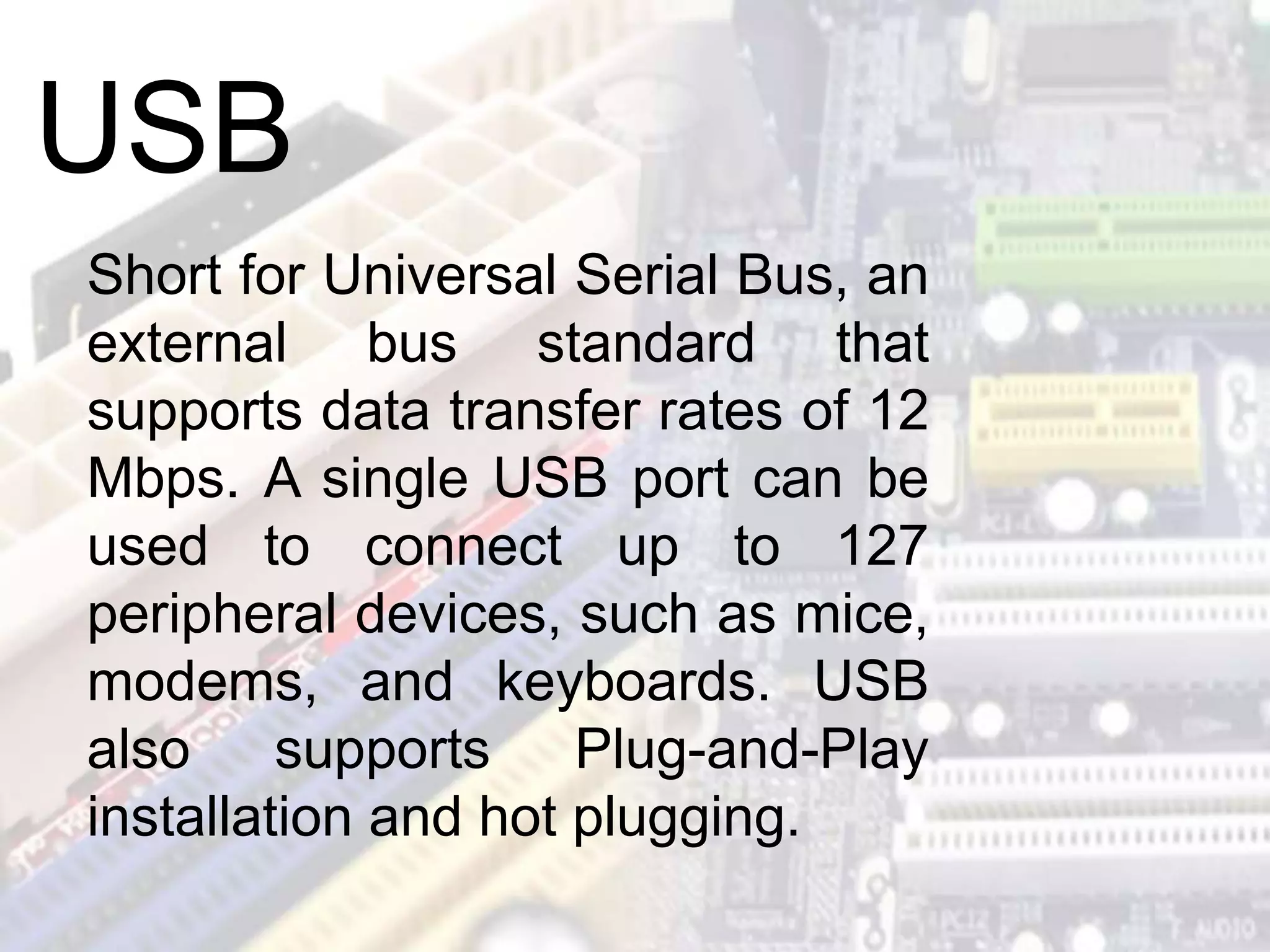

Short for Universal Serial Bus, an
external bus standard that
supports data transfer rates of 12
Mbps. A single USB port can be
used to connect up to 127
peripheral devices, such as mice,
modems, and keyboards. USB
also supports Plug-and-Play
installation and hot plugging.
USB

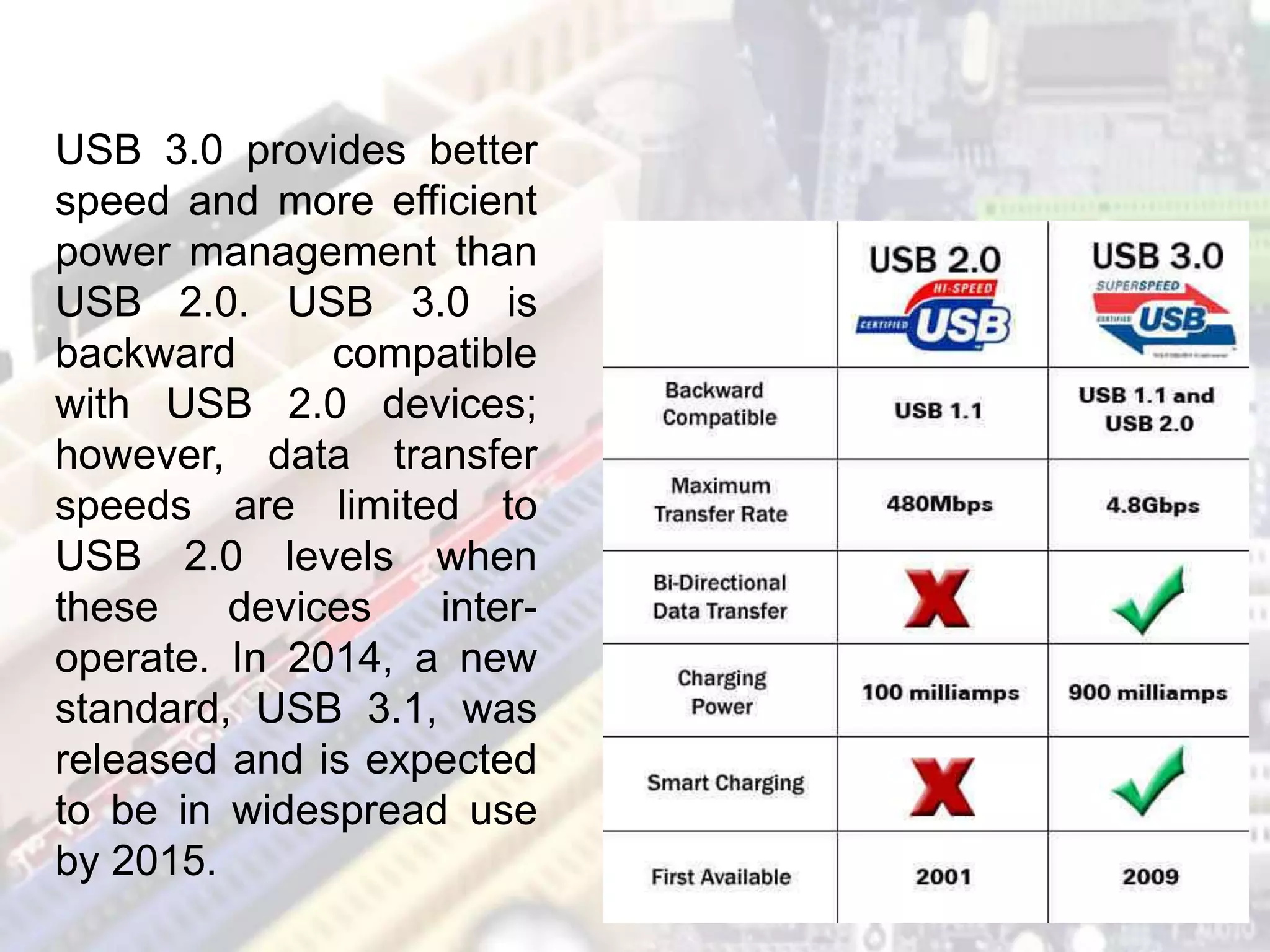

USB 3.0 provides better
speed and more efficient
power management than
USB 2.0. USB 3.0 is
backward compatible
with USB 2.0 devices;
however, data transfer
speeds are limited to
USB 2.0 levels when
these devices inter-
operate. In 2014, a new
standard, USB 3.1, was
released and is expected
to be in widespread use
by 2015.

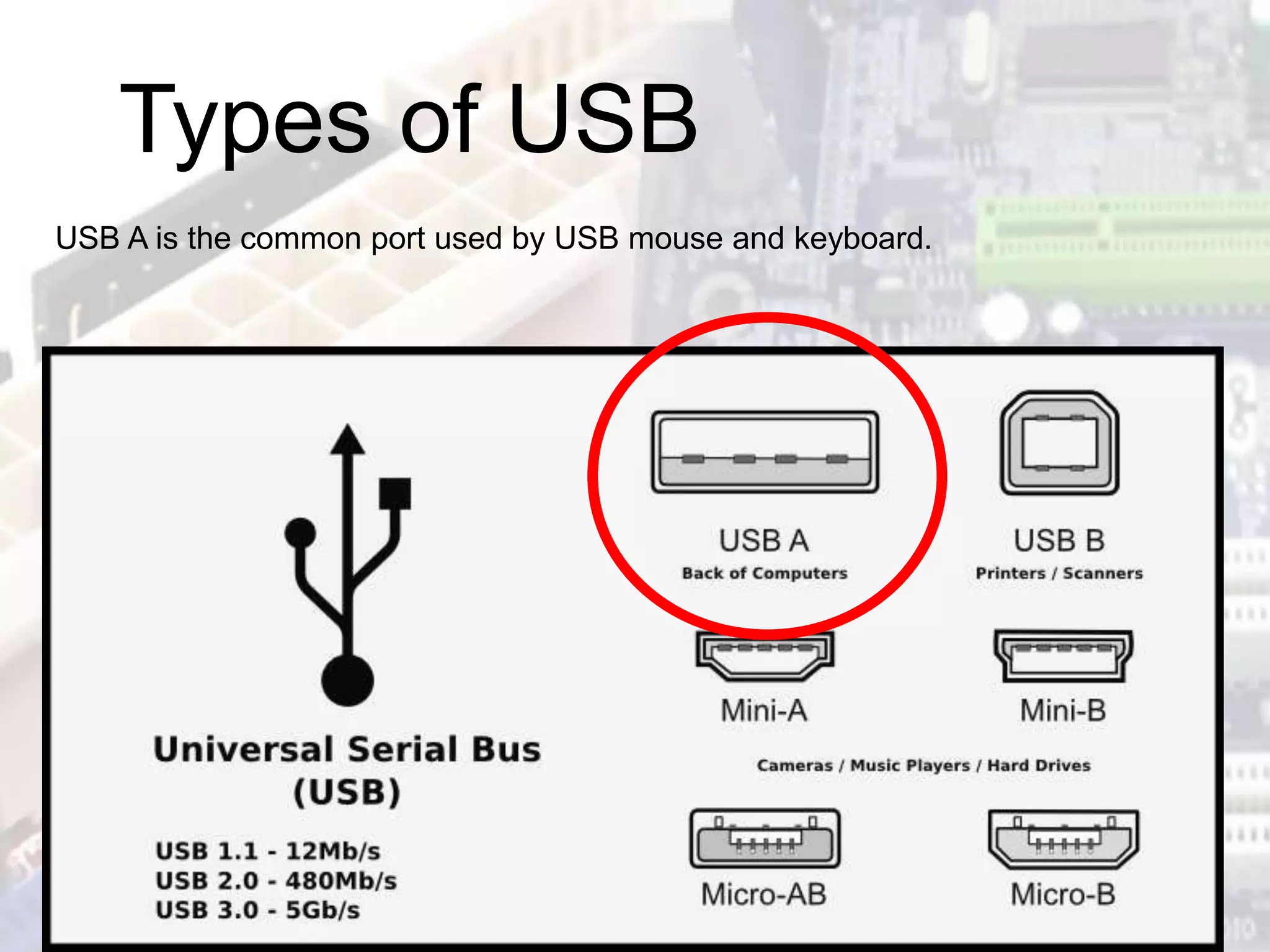

Types of USB
USB A is the common port used by USB mouse and keyboard.

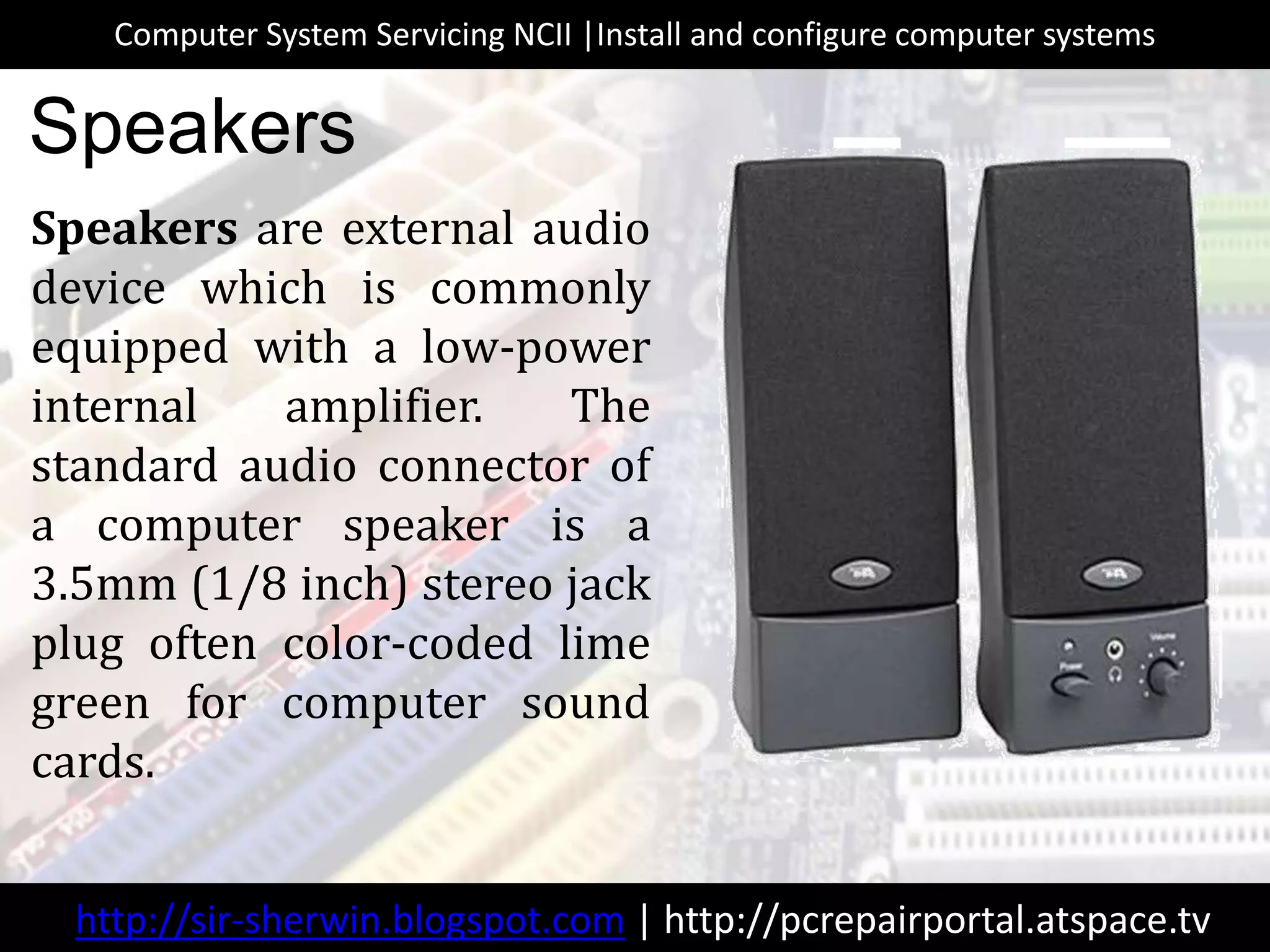

Speakers are external audio
device which is commonly
equipped with a low-power
internal amplifier. The
standard audio connector of
a computer speaker is a
3.5mm (1/8 inch) stereo jack
plug often color-coded lime
green for computer sound
cards.
Speakers

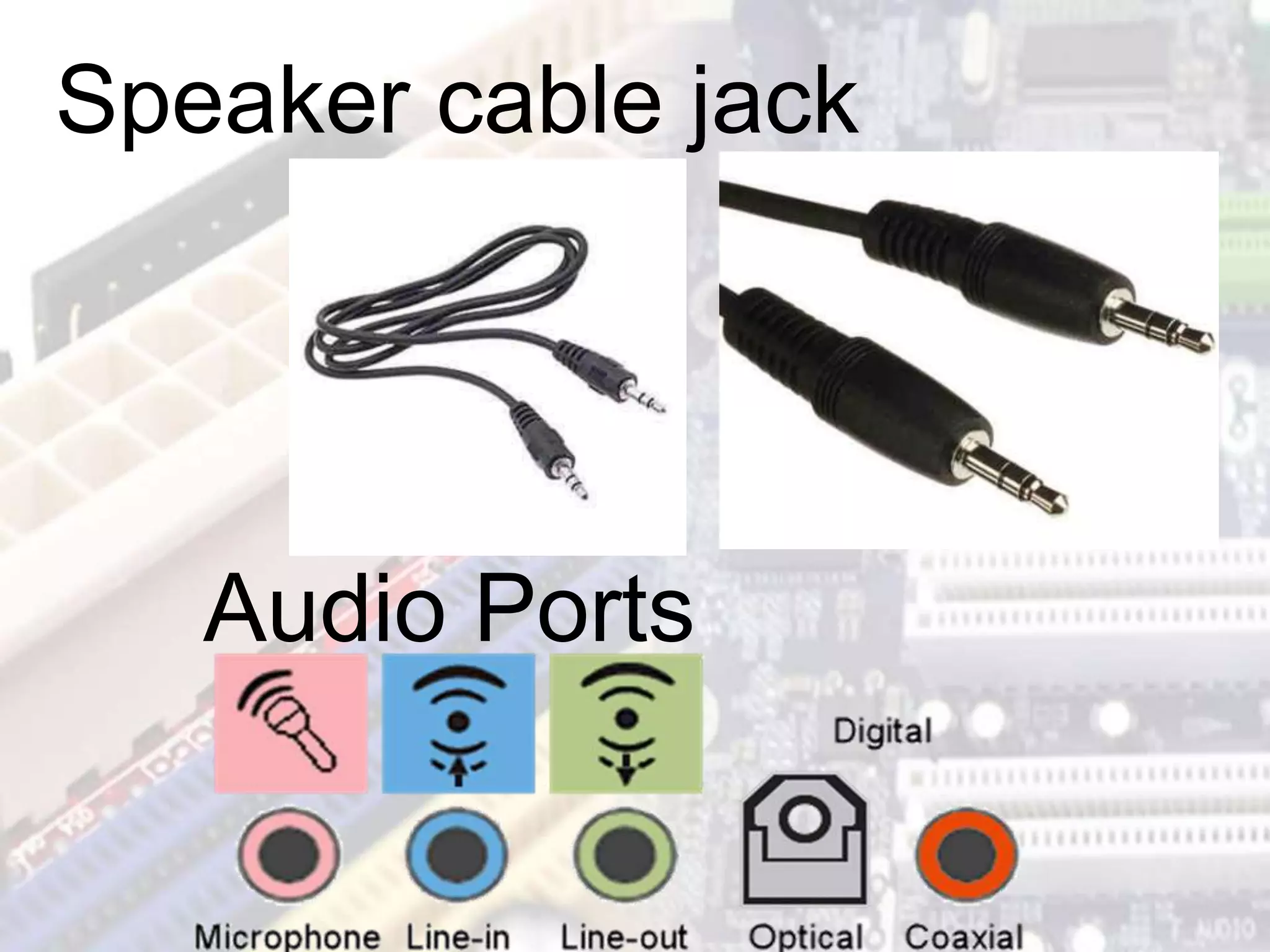

Speaker cable jack
Audio Ports

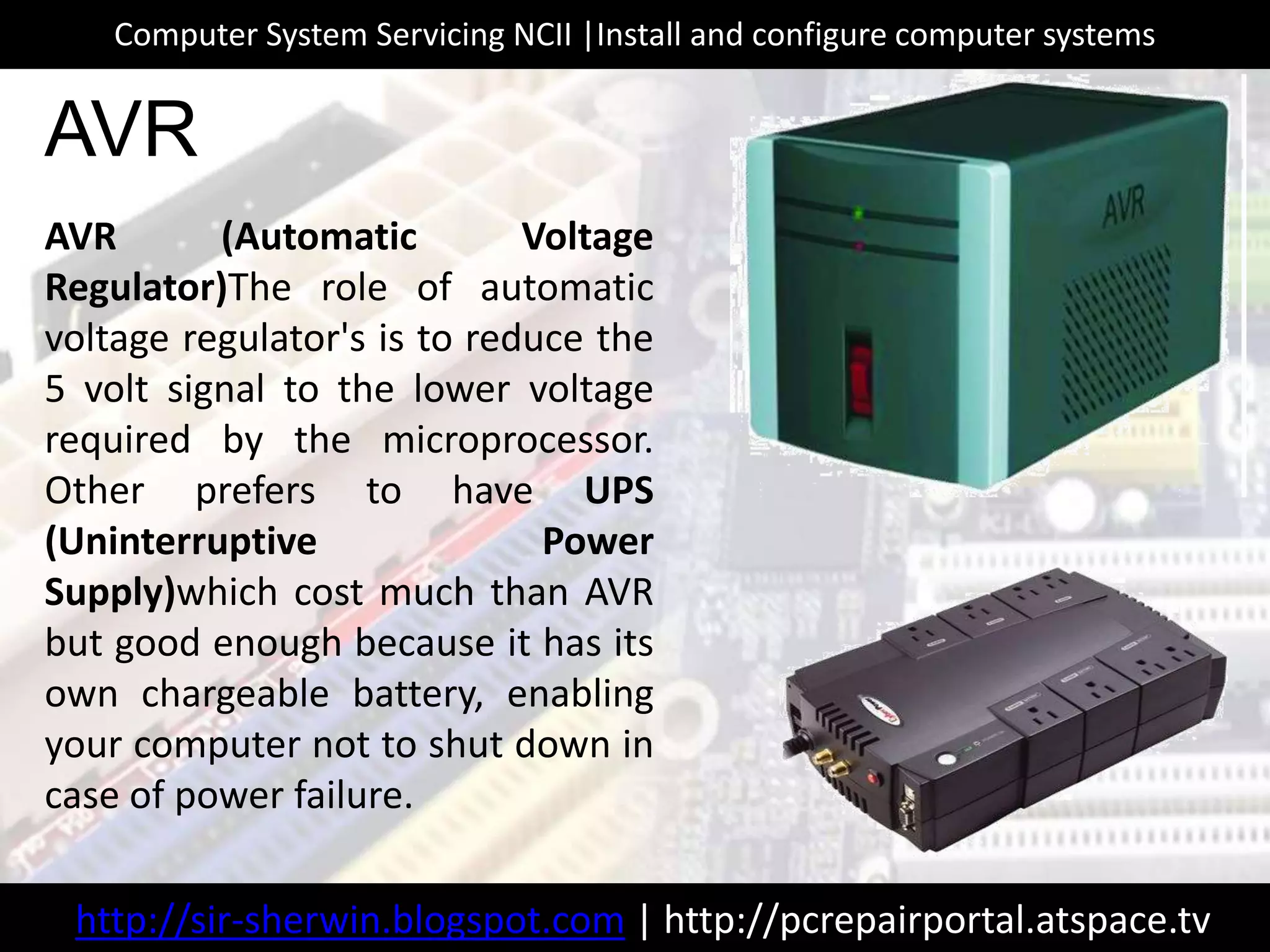

AVR (Automatic Voltage
Regulator)The role of automatic
voltage regulator's is to reduce the
5 volt signal to the lower voltage
required by the microprocessor.
Other prefers to have UPS
(Uninterruptive Power
Supply)which cost much than AVR
but good enough because it has its
own chargeable battery, enabling
your computer not to shut down in
case of power failure.
AVR

http://www.computerhistory.org/

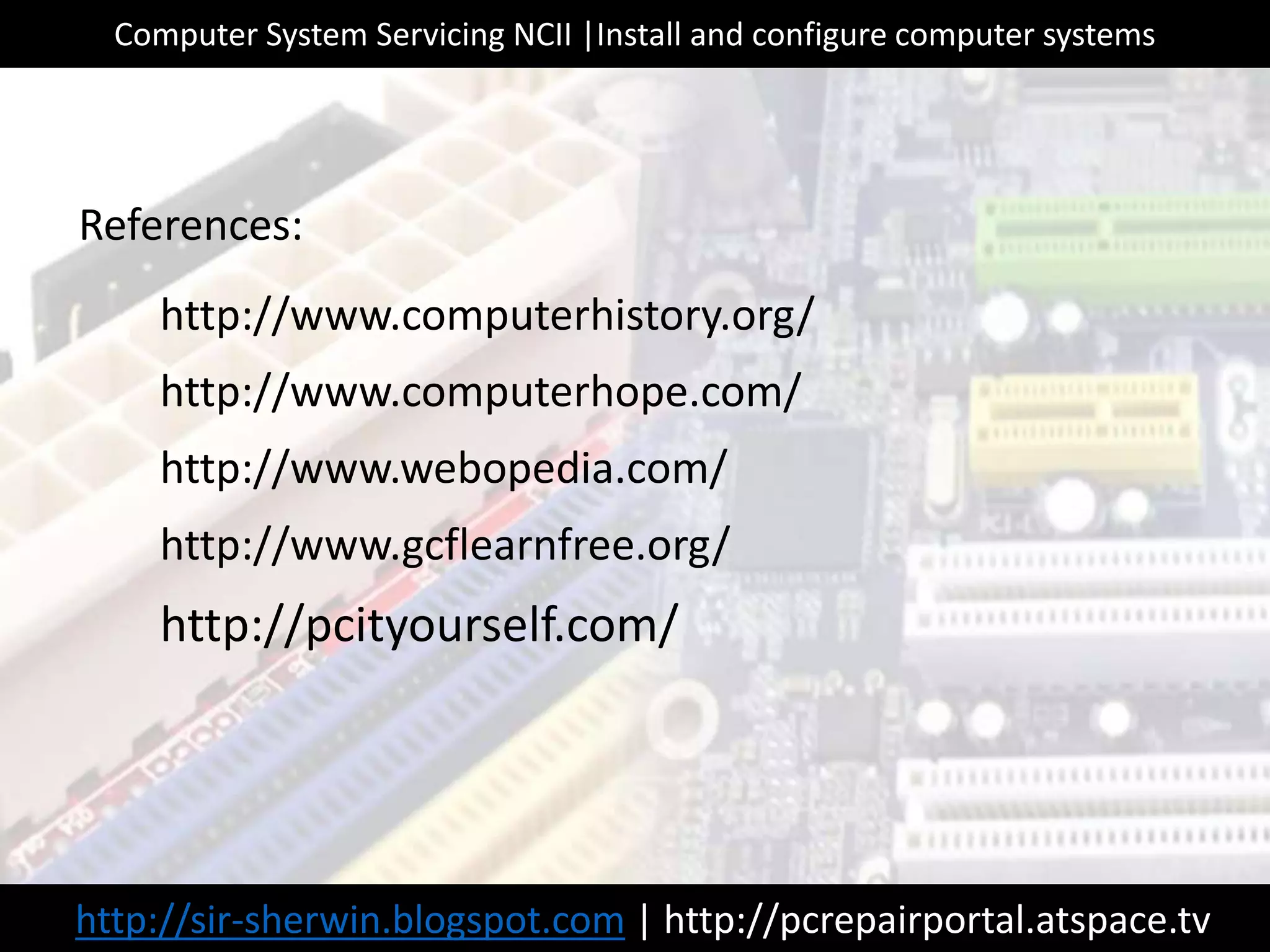

References:
http://www.computerhope.com/
http://www.webopedia.com/
http://www.gcflearnfree.org/
http://pcityourself.com/
