Trigger Emails BigD17
The document outlines the process of creating and managing trigger emails for Cisco's collaboration products, detailing the differences from marketing emails and the technical challenges involved in coding HTML email templates. It discusses the need for visual alignment, stakeholder collaboration, and the establishment of a headless CMS for maintaining an up-to-date email catalog. The author emphasizes the importance of a systematic approach to content management to facilitate email updates and stakeholder approvals effectively.
More Related Content
Trigger Emails BigD17
- 1. TRIGGER EMAILS: IT ISSIMPLE, RIGHT? @MathSusan https://github.com/mathsusan Susan McKenzie Cisco Systems, INC Work email: sumckenz@cisco.com Personal email: sbmck@yahoo.com
- 2. A little aboutme… I have a husband, two kids and four (yes 4) cats BS in Math from Oklahoma State University MS in Computer Science from UT Dallas My first career was High School Math Teacher At Cisco for 10+ years Now, work with “The Design Team” at Cisco Systems designing ( and some UI on the side)
- 3. A little about,The Design Team We work on Cisco Collaboration Products Cisco WebEx, Cisco Spark, Cisco Room Systems Anything that helps teams collaborate more productively The team is all over the world, China, Oslo, California, Texas, RTP, the UK, etc

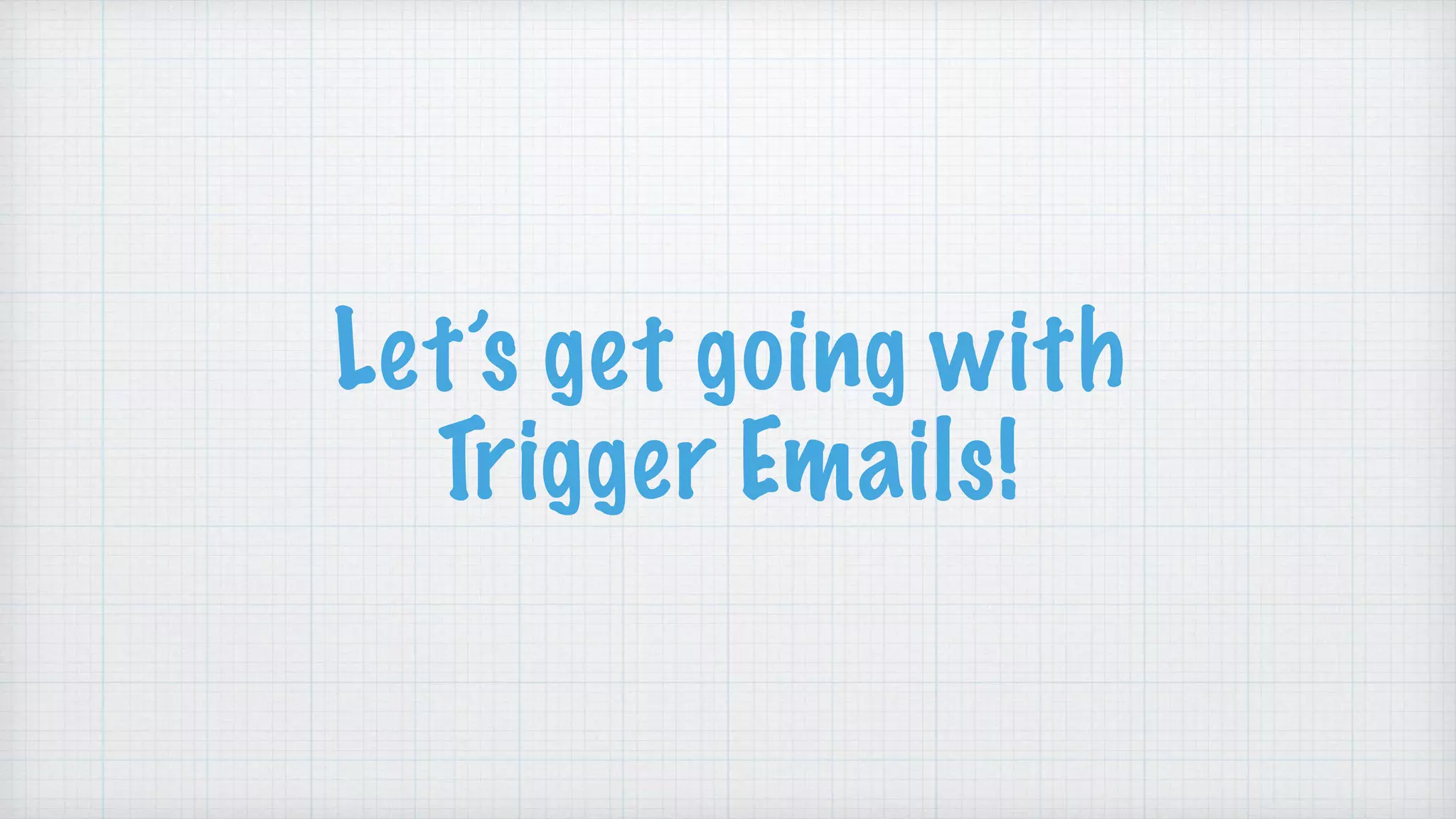

- 4. Let’s get goingwith Trigger Emails!
- 5. What is aTrigger Email? Trigger Emails are emails that are ‘triggered’ by an event in an application For Example, You signed up or someone invited you You changed your password You paid your bill You ordered something

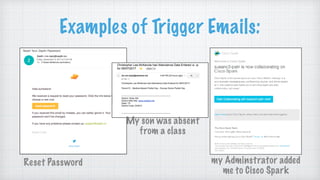

- 6. Examples of TriggerEmails: Reset Password My son was absent from a class my Adminstrator added me to Cisco Spark

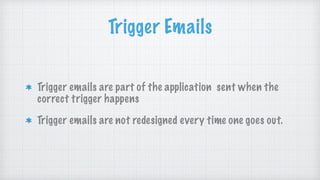

- 7. Trigger Emails Trigger emailsare part of the application sent when the correct trigger happens Trigger emails are not redesigned every time one goes out.

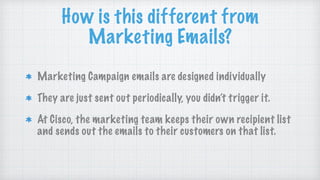

- 8. How is thisdifferent from Marketing Emails? Marketing Campaign emails are designed individually They are just sent out periodically, you didn’t trigger it. At Cisco, the marketing team keeps their own recipient list and sends out the emails to their customers on that list.

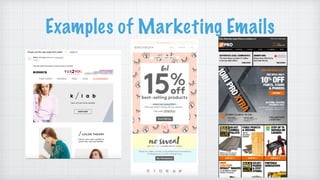

- 9. Examples of MarketingEmails
- 10. So far allthis sounds pretty simple, right? How hard could it be? Simple email Simple Text Simple Call to Action
- 11. What’s so complicated? “HTMLemails are just like a web page right?” WRONG!

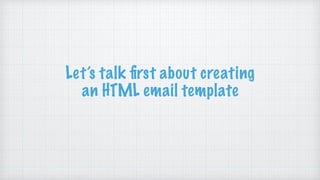

- 12. Let’s talk firstabout creating an HTML email template

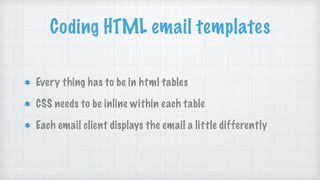

- 13. Coding HTML emailtemplates Every thing has to be in html tables CSS needs to be inline within each table Each email client displays the email a little differently

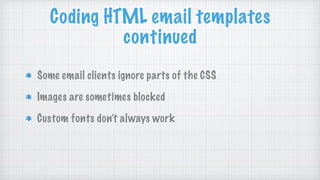

- 14. Some email clientsignore parts of the CSS Images are sometimes blocked Custom fonts don’t always work Coding HTML email templates continued
- 16. What else doI need to think about?

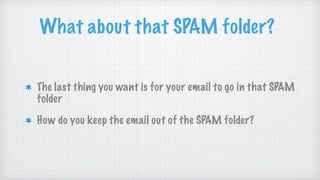

- 17. What about thatSPAM folder? The last thing you want is for your email to go in that SPAM folder How do you keep the email out of the SPAM folder?

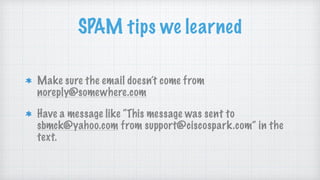

- 18. SPAM tips welearned Make sure the email doesn’t come from noreply@somewhere.com Have a message like “This message was sent to sbmck@yahoo.com from support@ciscospark.com” in the text.

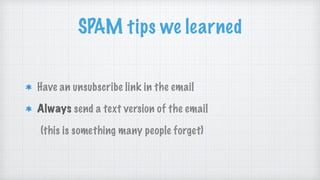

- 19. SPAM tips welearned Have an unsubscribe link in the email Always send a text version of the email (this is something many people forget)
- 20. About the projectI am working on

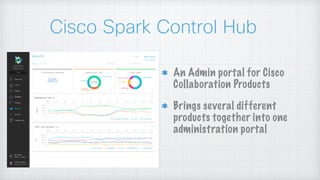

- 21. Cisco Spark ControlHub An Admin portal for Cisco Collaboration Products Brings several different products together into one administration portal

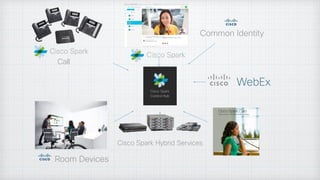

- 22. Room Devices Common Identity Call CiscoSpark Hybrid Services
- 23. All of theseproducts were sending their own emails Some had different visual designs At first, there were multiple emails at one time Many different Product Managers were stakeholders

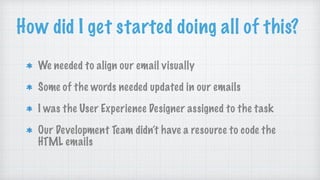

- 24. How did Iget started doing all of this? We needed to align our email visually Some of the words needed updated in our emails I was the User Experience Designer assigned to the task Our Development Team didn’t have a resource to code the HTML emails
- 25. Our new VisualDesign …

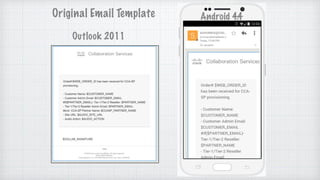

- 26. Outlook 2011 Original EmailTemplate Android 4.4

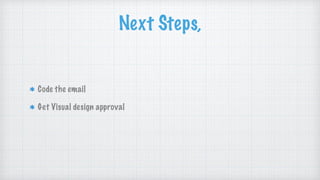

- 27. Next Steps, Code theemail Get Visual design approval
- 28. Should I justfix this email?

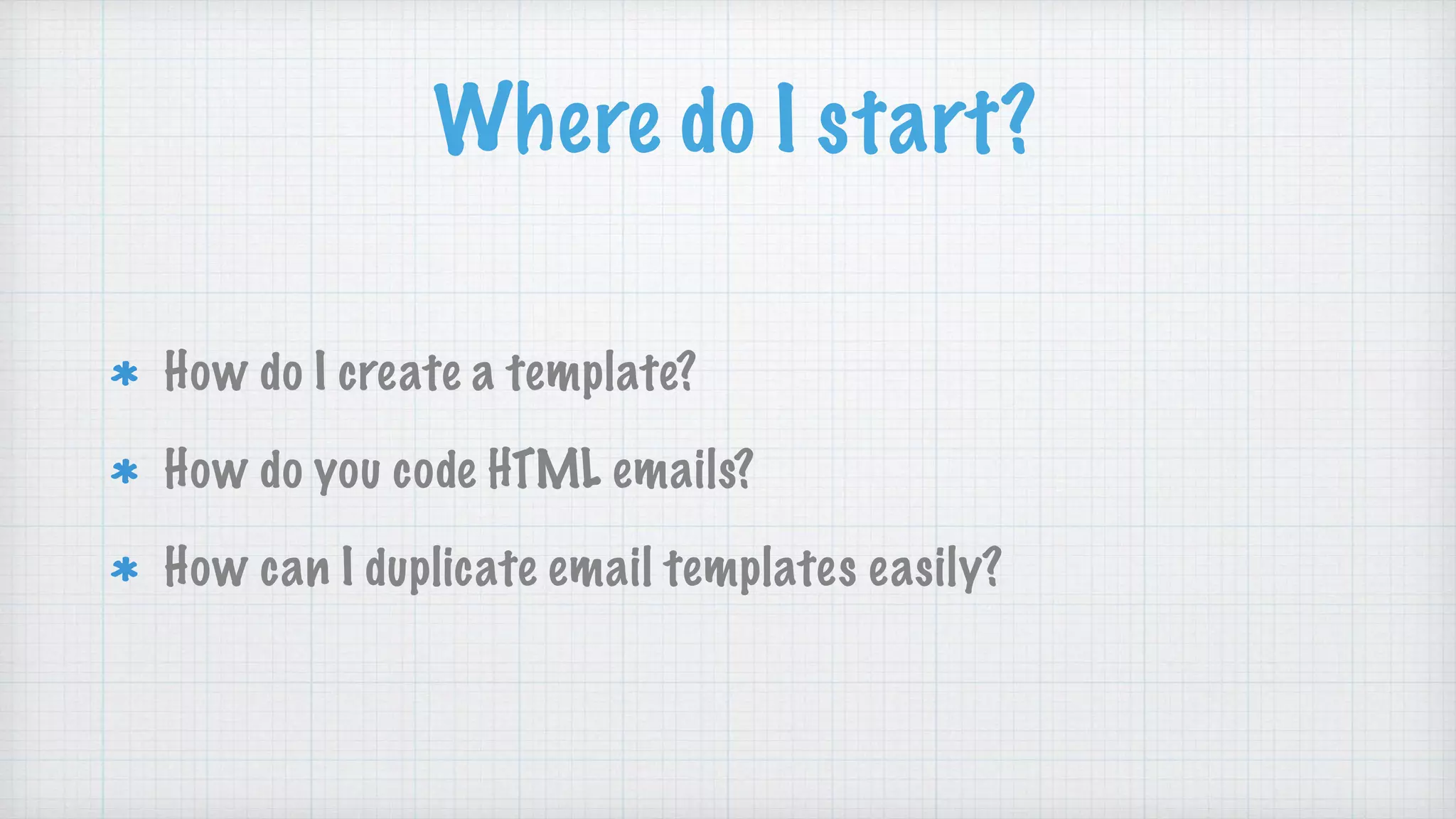

- 29. Where do Istart? How do I create a template? How do you code HTML emails? How can I duplicate email templates easily?

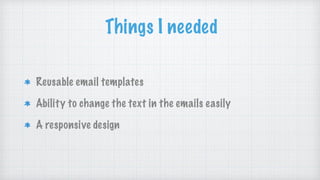

- 30. Things I needed Reusableemail templates Ability to change the text in the emails easily A responsive design

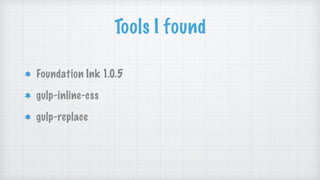

- 31. Tools I found FoundationInk 1.0.5 gulp-inline-css gulp-replace
- 32.

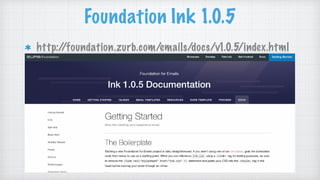

- 33. Foundation Ink 1.0.5 CSSto start the project with Had sample templates to start coding with

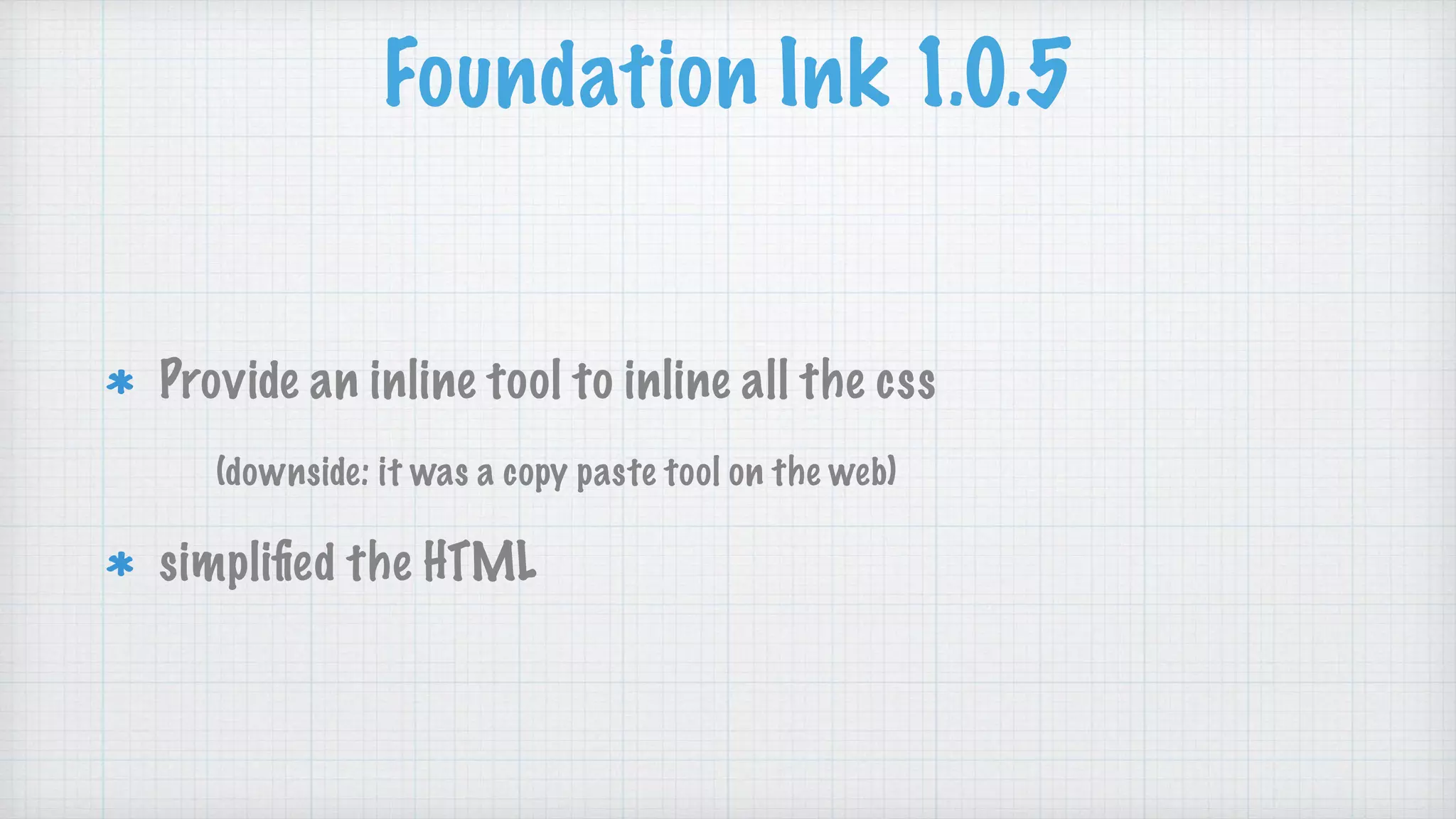

- 34. Foundation Ink 1.0.5 Providean inline tool to inline all the css (downside: it was a copy paste tool on the web) simplified the HTML

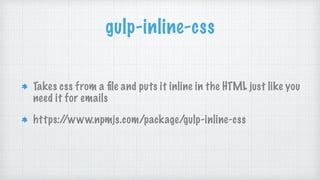

- 35. gulp-inline-css Takes css froma file and puts it inline in the HTML just like you need it for emails https://www.npmjs.com/package/gulp-inline-css

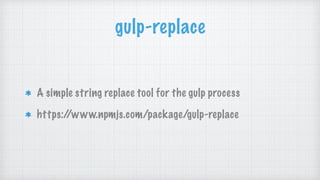

- 36. gulp-replace A simple stringreplace tool for the gulp process https://www.npmjs.com/package/gulp-replace
- 37. Project Plan Start withFoundation Ink for the layout Put the words in a file so that they can easily be translated and use gulp-replace to put the words in the html. Use gulp-inline-css to automate the inline css to keep it consistent. Do all of this in a build process to create all the emails at once
- 38.

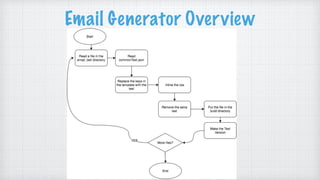

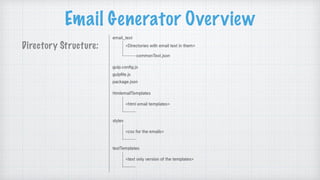

- 39. Email Generator Overview DirectoryStructure:

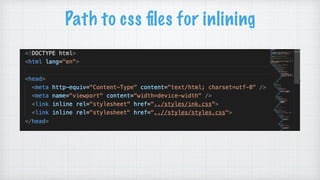

- 40. Path to cssfiles for inlining

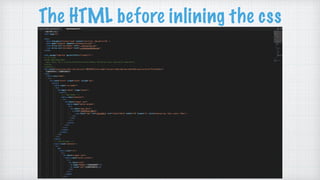

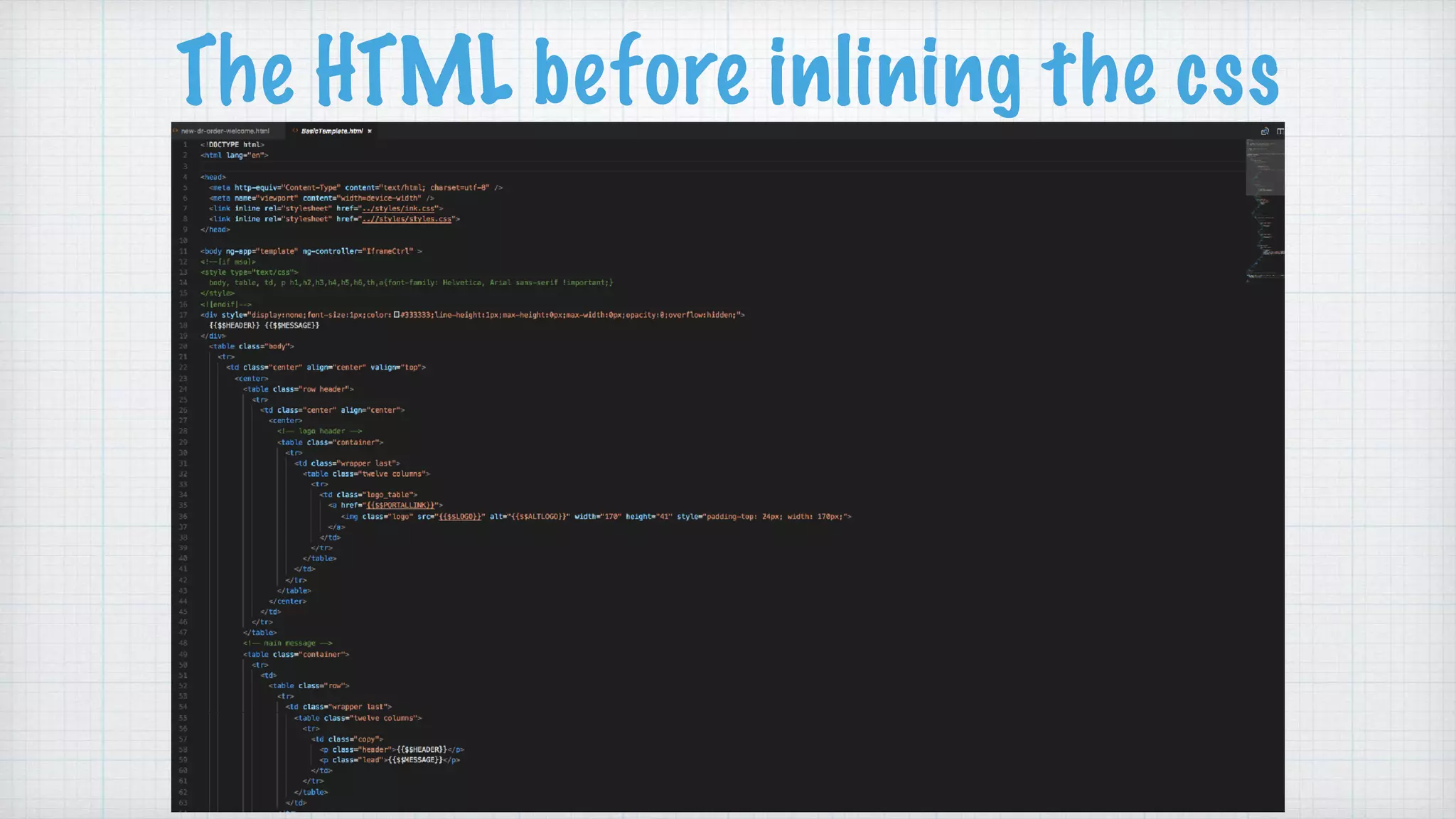

- 41. The HTML beforeinlining the css
- 42. Keys in theHTML

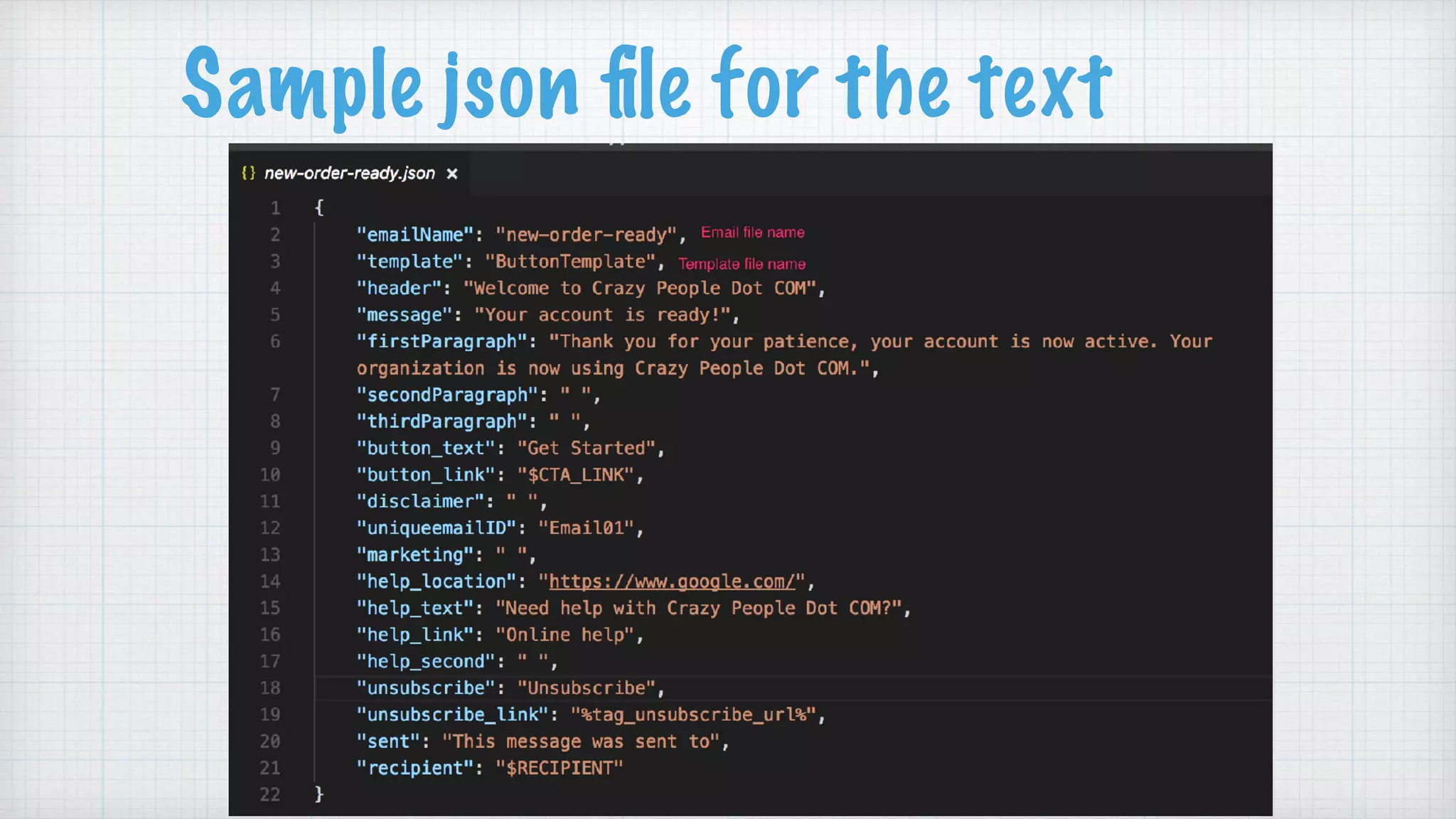

- 43. Sample json filefor the text

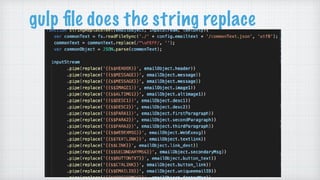

- 44. gulp file doesthe string replace
- 45.

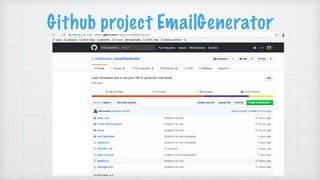

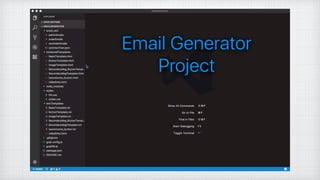

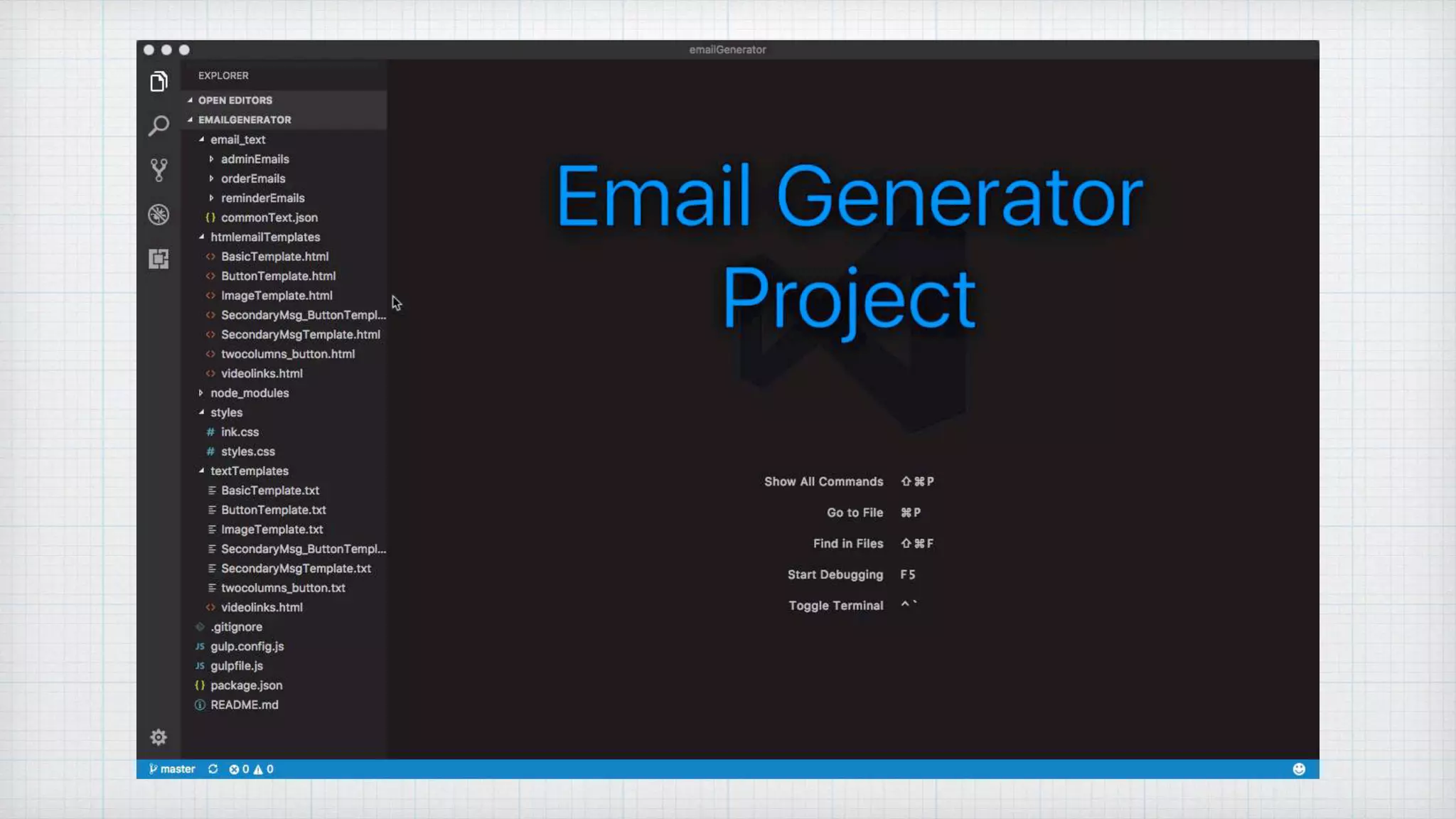

- 46. Demo of EmailGenerator https://github.com/mathsusan/emailGenerator This is the tool I used to generate the emails
- 48. Now I havean email generated what’s next?
- 49. Test the email Ineed to preview the emails in many different clients There are several apps that do this EmailOnAcid, Litmus, etc I chose Litmus

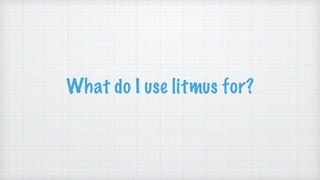

- 50. What do Iuse litmus for?

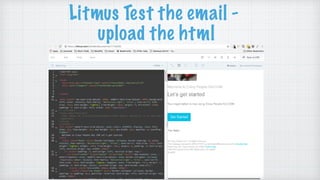

- 51. Litmus Test theemail - upload the html
- 52. Toggle off theimages

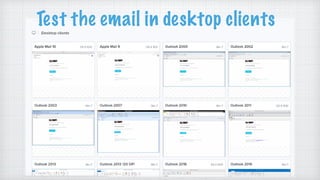

- 53. Test the emailin desktop clients

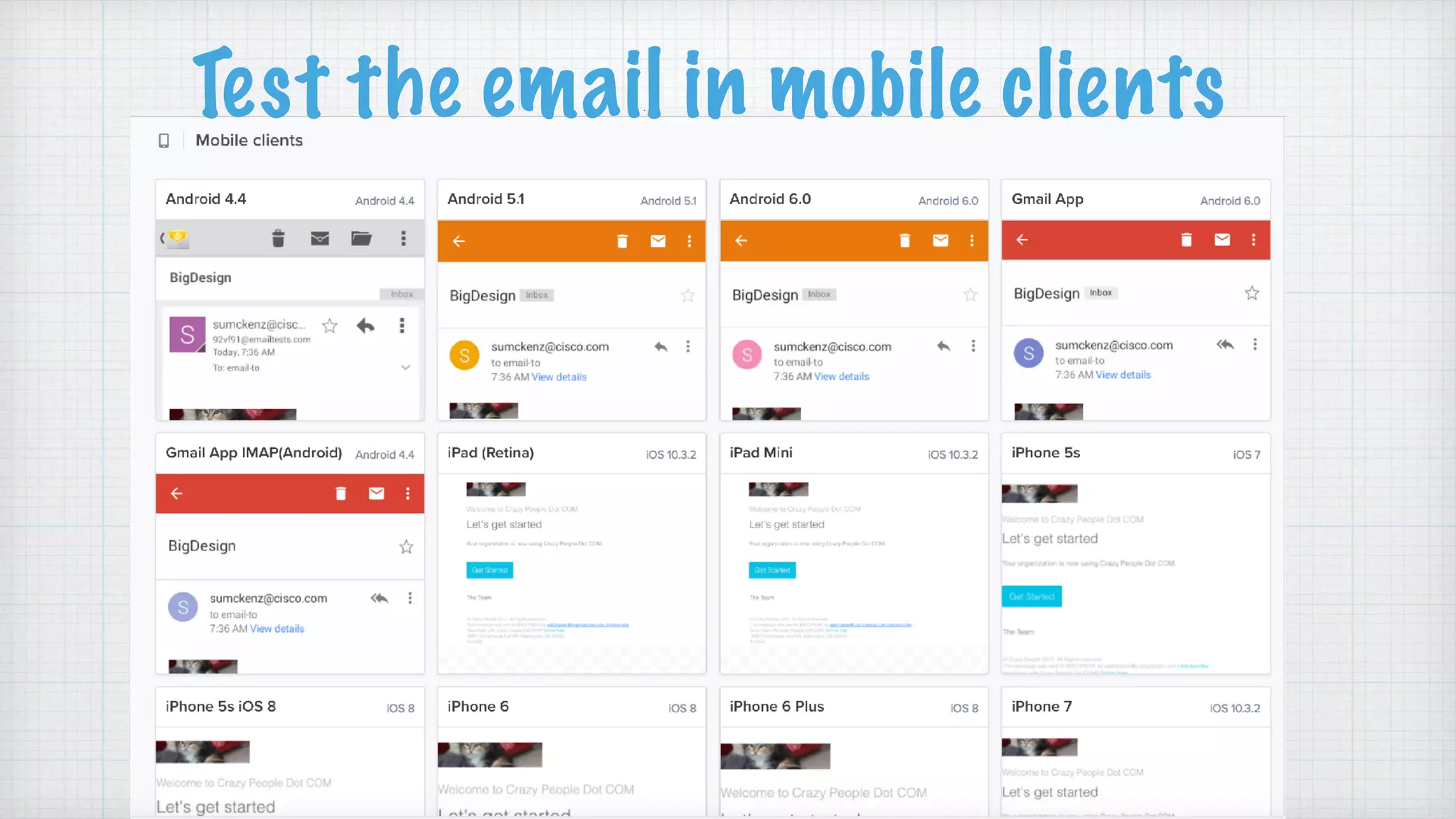

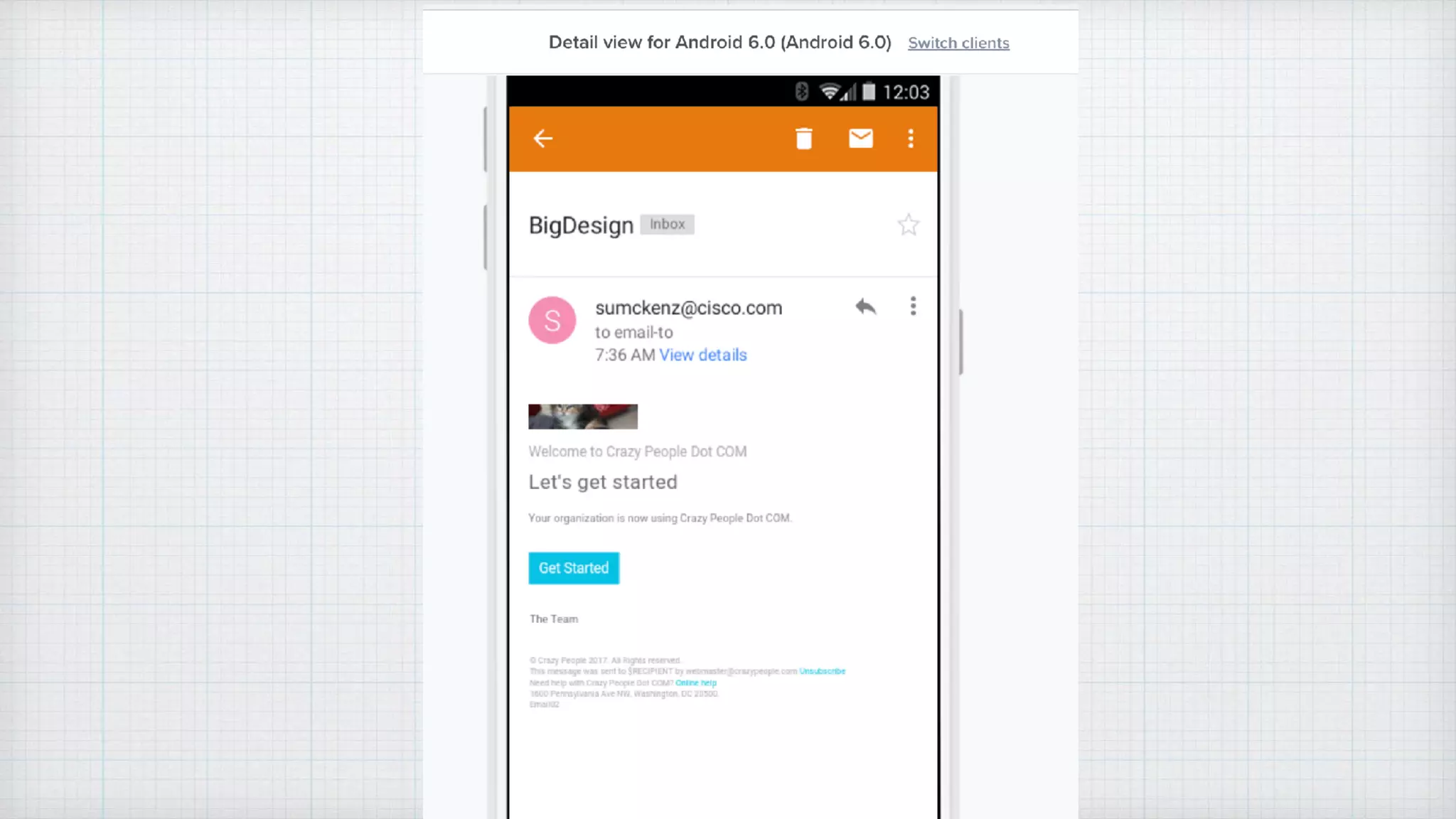

- 54. Test the emailin mobile clients

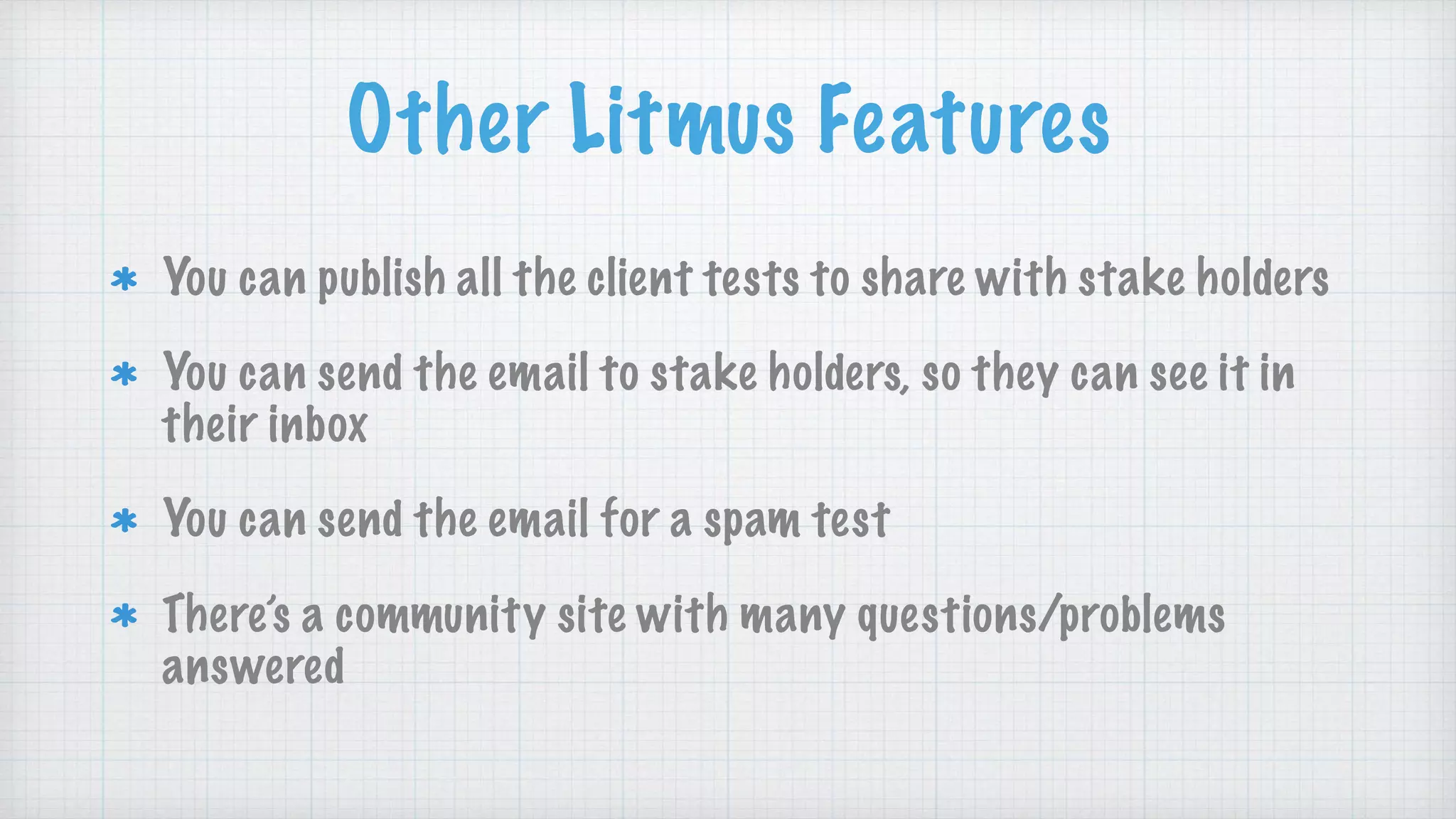

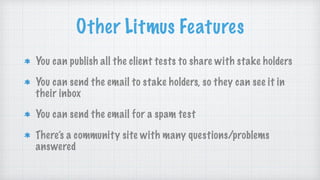

- 56. Other Litmus Features Youcan publish all the client tests to share with stake holders You can send the email to stake holders, so they can see it in their inbox You can send the email for a spam test There’s a community site with many questions/problems answered

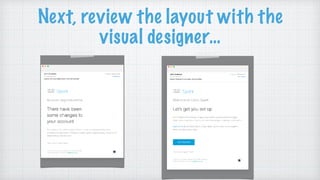

- 57. Next, review thelayout with the visual designer…

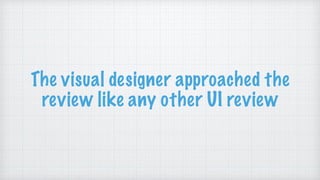

- 58. The visual designerapproached the review like any other UI review

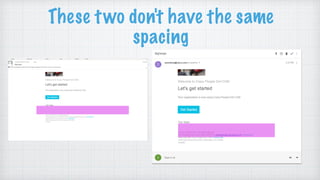

- 59. These two don'thave the same spacing
- 60. How do Iconvince the visual designer that I can’t make every email look exactly the same in all email clients?

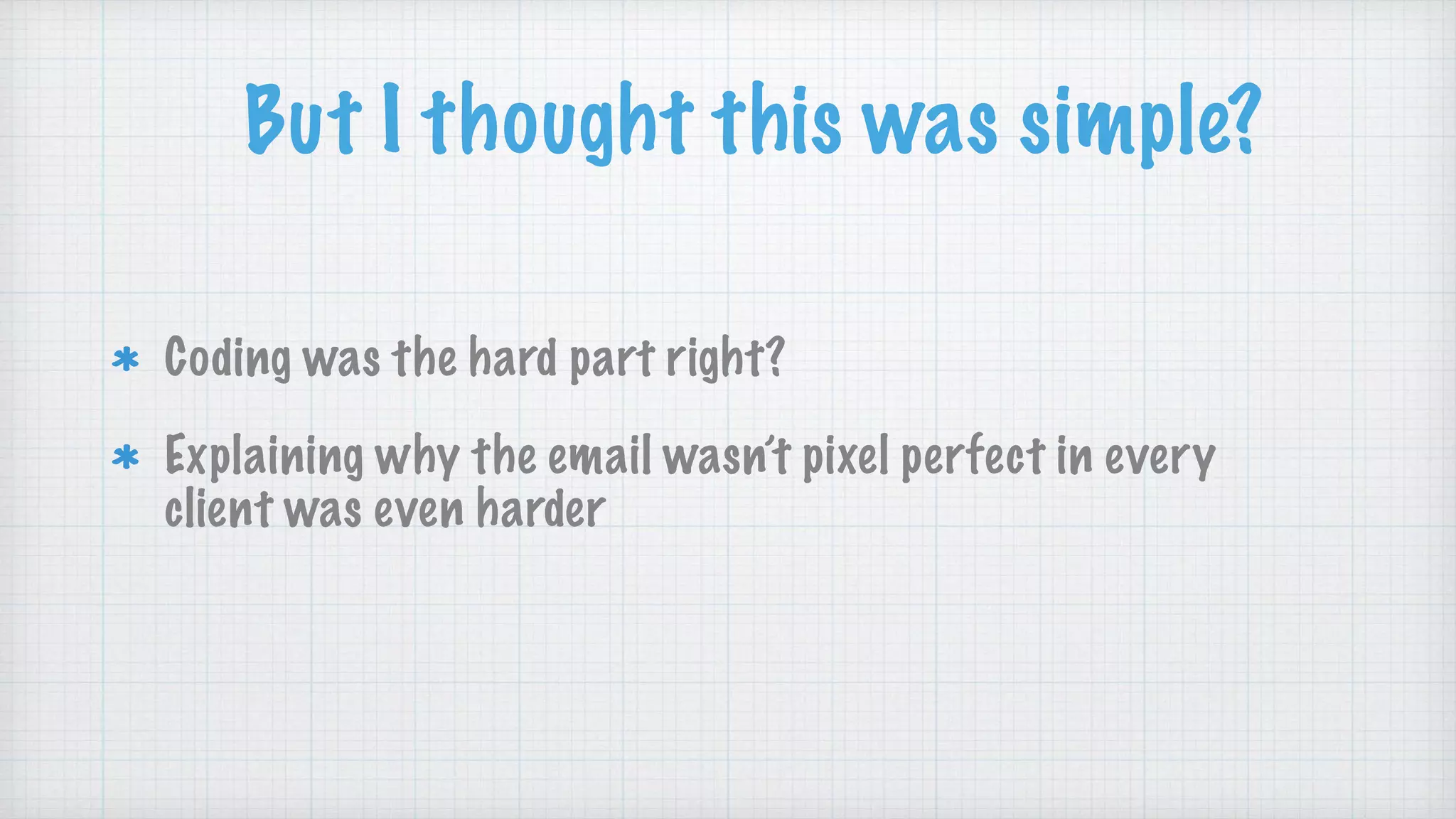

- 61. But I thoughtthis was simple? Coding was the hard part right? Explaining why the email wasn’t pixel perfect in every client was even harder
- 62. Now that Ihave templates, we need to update the wording… The marketing team chose 16 emails that were high priority I had to understand when we sent these emails and update the words
- 63. Again, SIMPLE All Ihave to do is understand when the emails go out and write some new copy

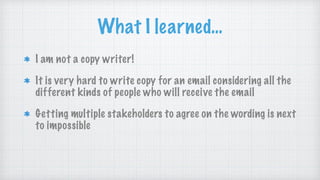

- 64. What I learned… Iam not a copy writer! It is very hard to write copy for an email considering all the different kinds of people who will receive the email Getting multiple stakeholders to agree on the wording is next to impossible
- 65. Somehow, we gotthose 16 emails updated and they were better.
- 66. I’m finished, right?NOPE .. this was only the beginning
- 67.

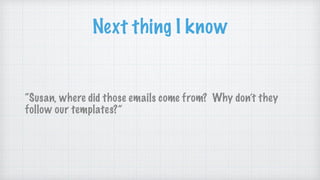

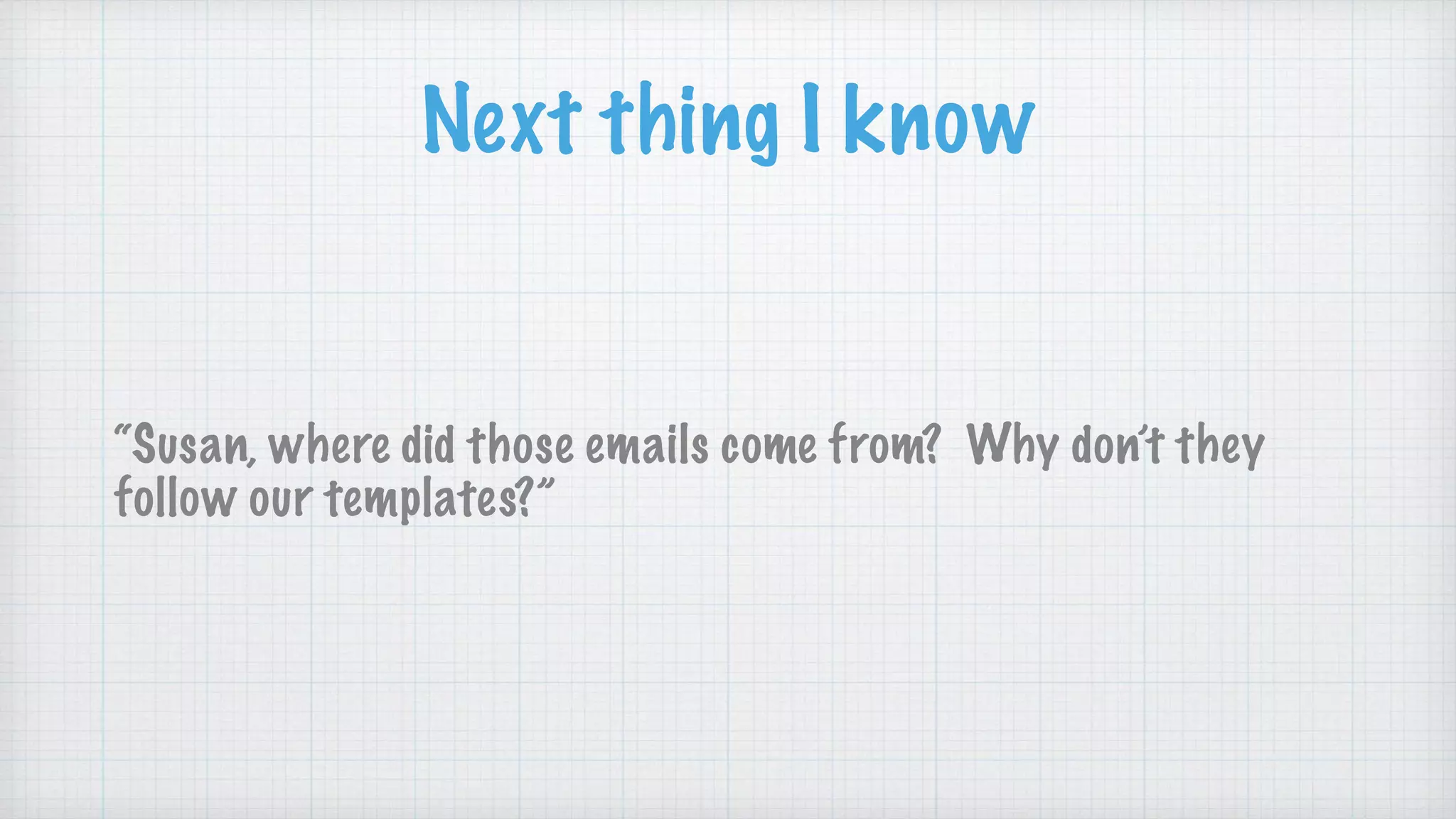

- 68. Next thing Iknow “Susan, where did those emails come from? Why don’t they follow our templates?”

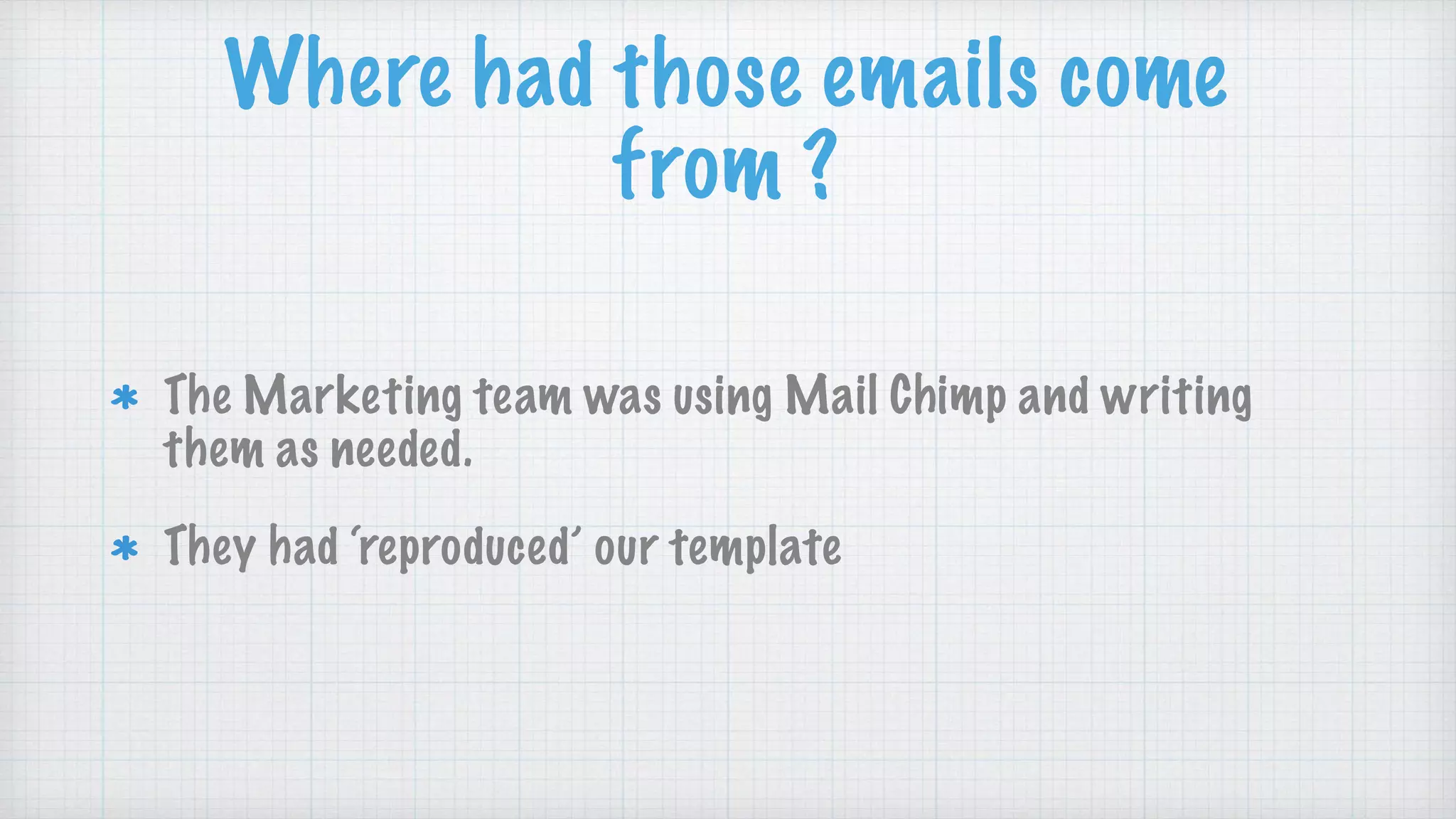

- 69. Where had thoseemails come from ? The Marketing team was using Mail Chimp and writing them as needed. They had ‘reproduced’ our template

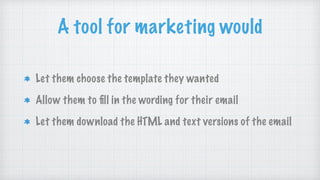

- 70. A tool formarketing would Let them choose the template they wanted Allow them to fill in the wording for their email Let them download the HTML and text versions of the email

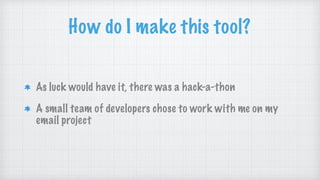

- 71. How do Imake this tool? As luck would have it, there was a hack-a-thon A small team of developers chose to work with me on my email project

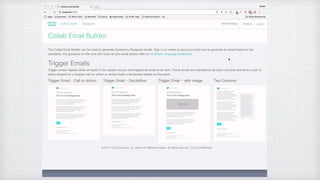

- 72. We called theproject the Collab-Email Builder Uses our templates Allows the user to enter the text they want to use

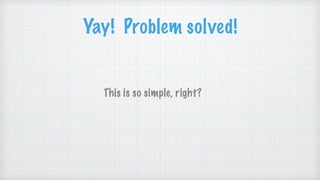

- 74. Yay! Problem solved! Thisis so simple, right?
- 75.
- 76. Susan, Can yousend me an inventory of all the emails we send out?
- 77. Where could Iget a list of all those emails?

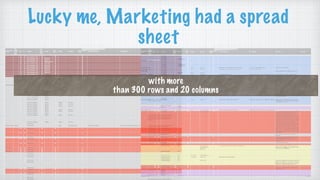

- 78. with more than 300rows and 20 columns Lucky me, Marketing had a spread sheet
- 79. I just couldn’tget my head around it! How can I tell other people what emails we have? How do I know when they get sent to our users? Did I even understand what was going on?

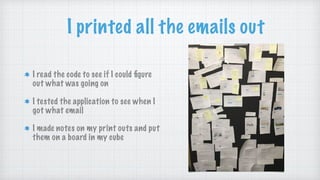

- 80. I printed allthe emails out I read the code to see if I could figure out what was going on I tested the application to see when I got what email I made notes on my print outs and put them on a board in my cube
- 81. How do Ishare a board in my cube? Hey, come to Texas and you can read the board.

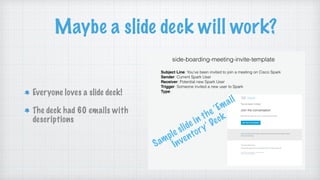

- 82. Maybe a slidedeck will work? Everyone loves a slide deck! The deck had 60 emails with descriptions Sample slide in the ‘Email Inventory’ Deck
- 83. I got this!It’s simple!

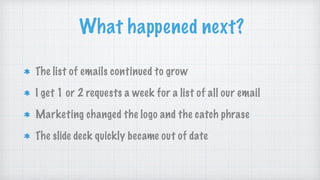

- 84. What happened next? Thelist of emails continued to grow I get 1 or 2 requests a week for a list of all our email Marketing changed the logo and the catch phrase The slide deck quickly became out of date
- 85. The slide deckwas static and impossible to keep up with

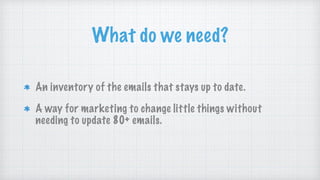

- 86. What do weneed? An inventory of the emails that stays up to date. A way for marketing to change little things without needing to update 80+ emails.

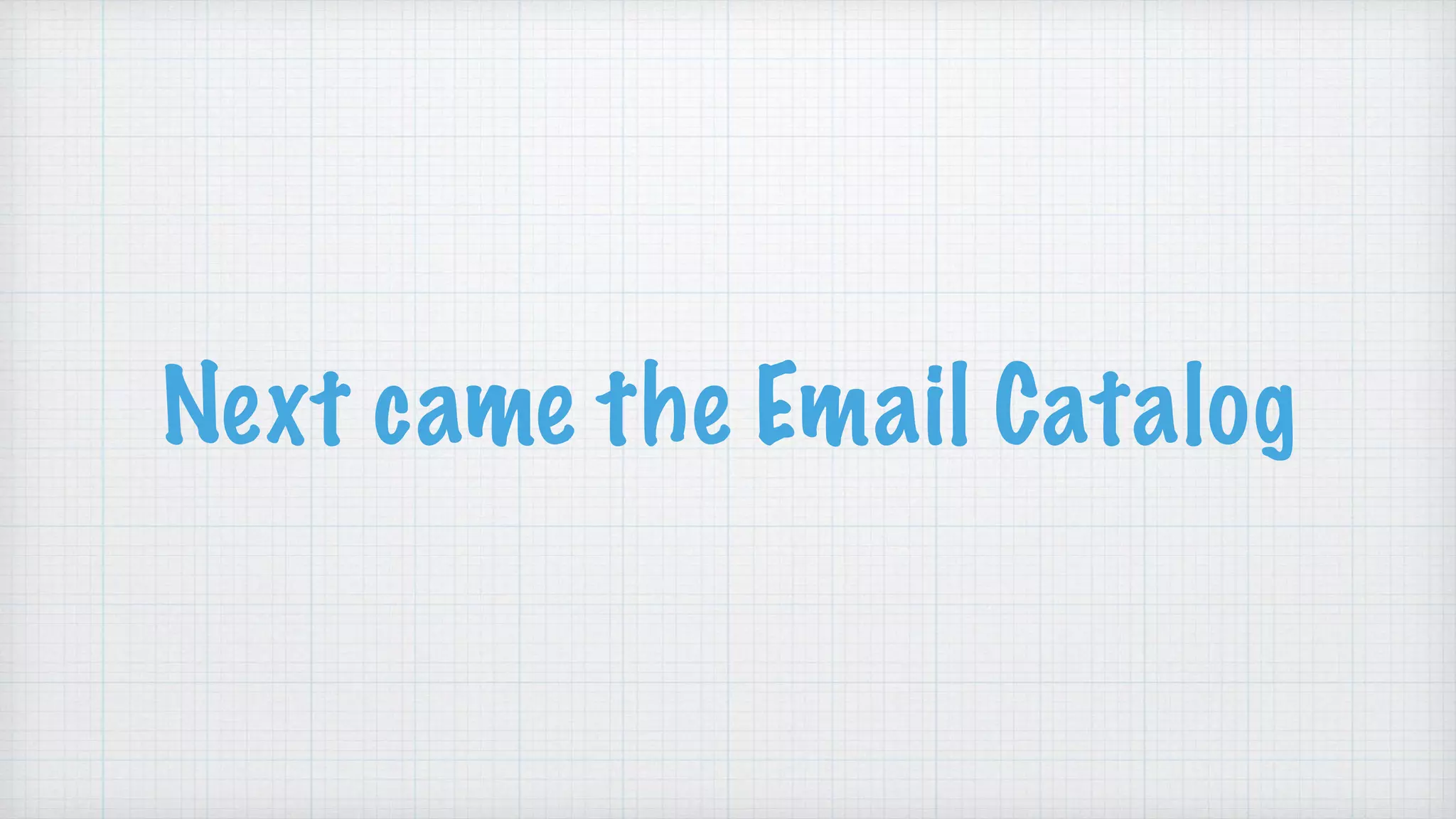

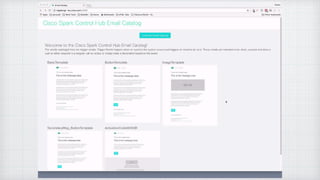

- 87. Next came theEmail Catalog

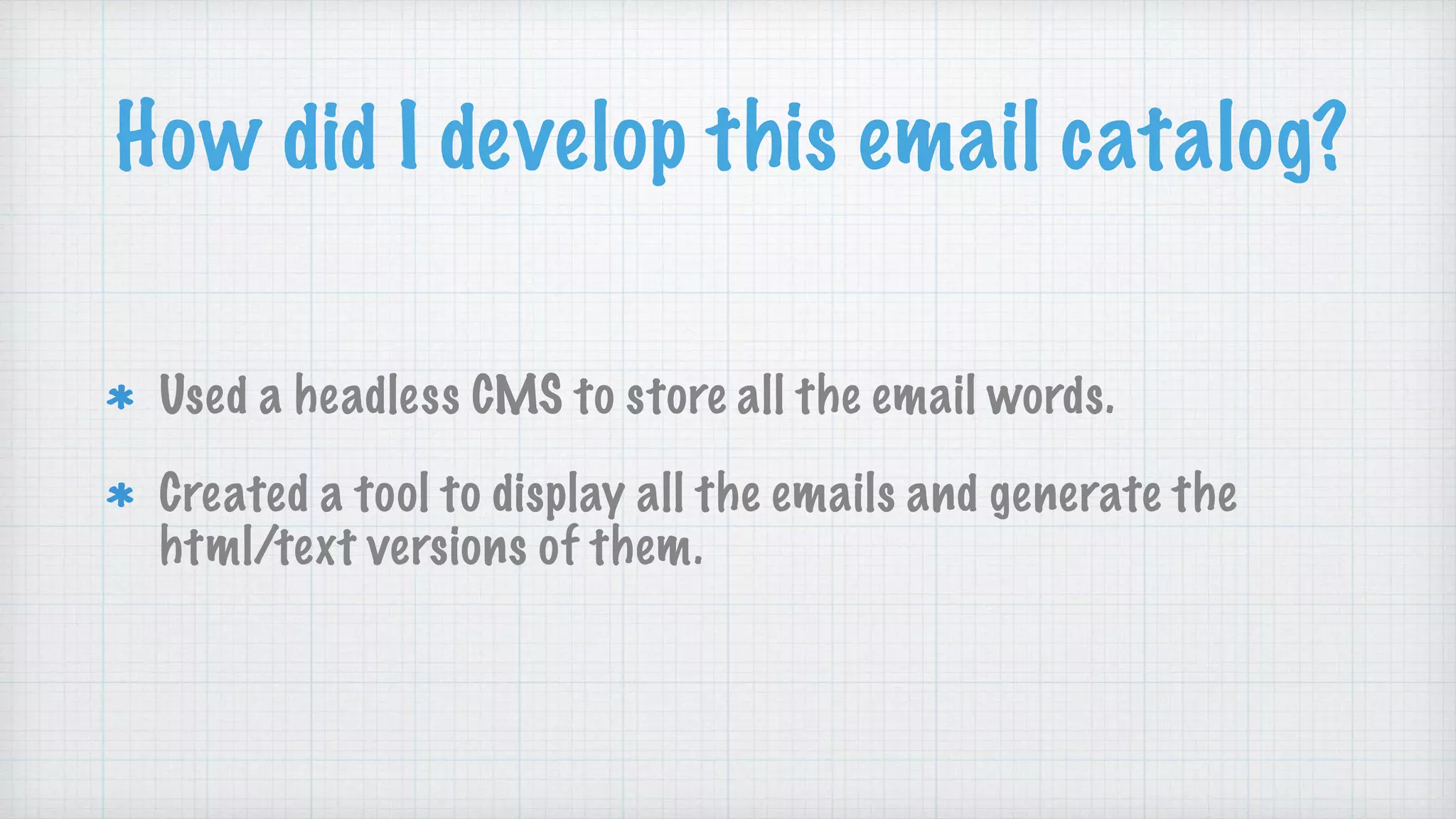

- 89. How did Idevelop this email catalog? Used a headless CMS to store all the email words. Created a tool to display all the emails and generate the html/text versions of them.
- 90. What is aCMS? CMS - Content Management System A CMS has a front end to display the data and a back end to store the data WordPress is an example of this.
- 91. What is aheadless CMS? A headless CMS does not have the front-end It still stores the data Use REST API’s to access the data for your application.

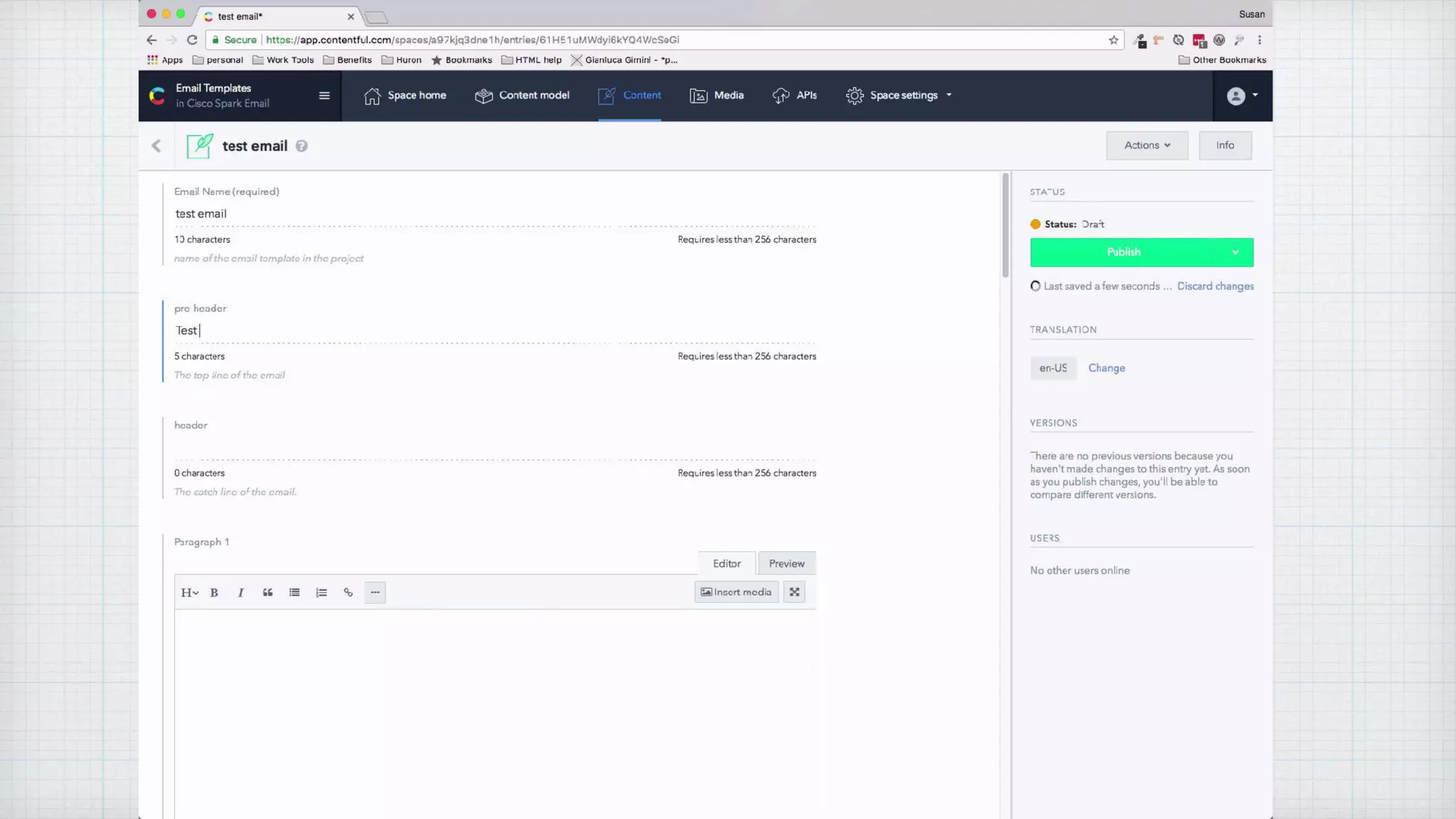

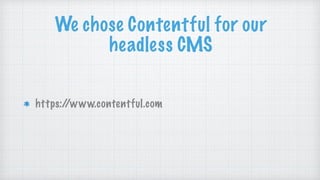

- 92. We chose Contentfulfor our headless CMS https://www.contentful.com
- 93.

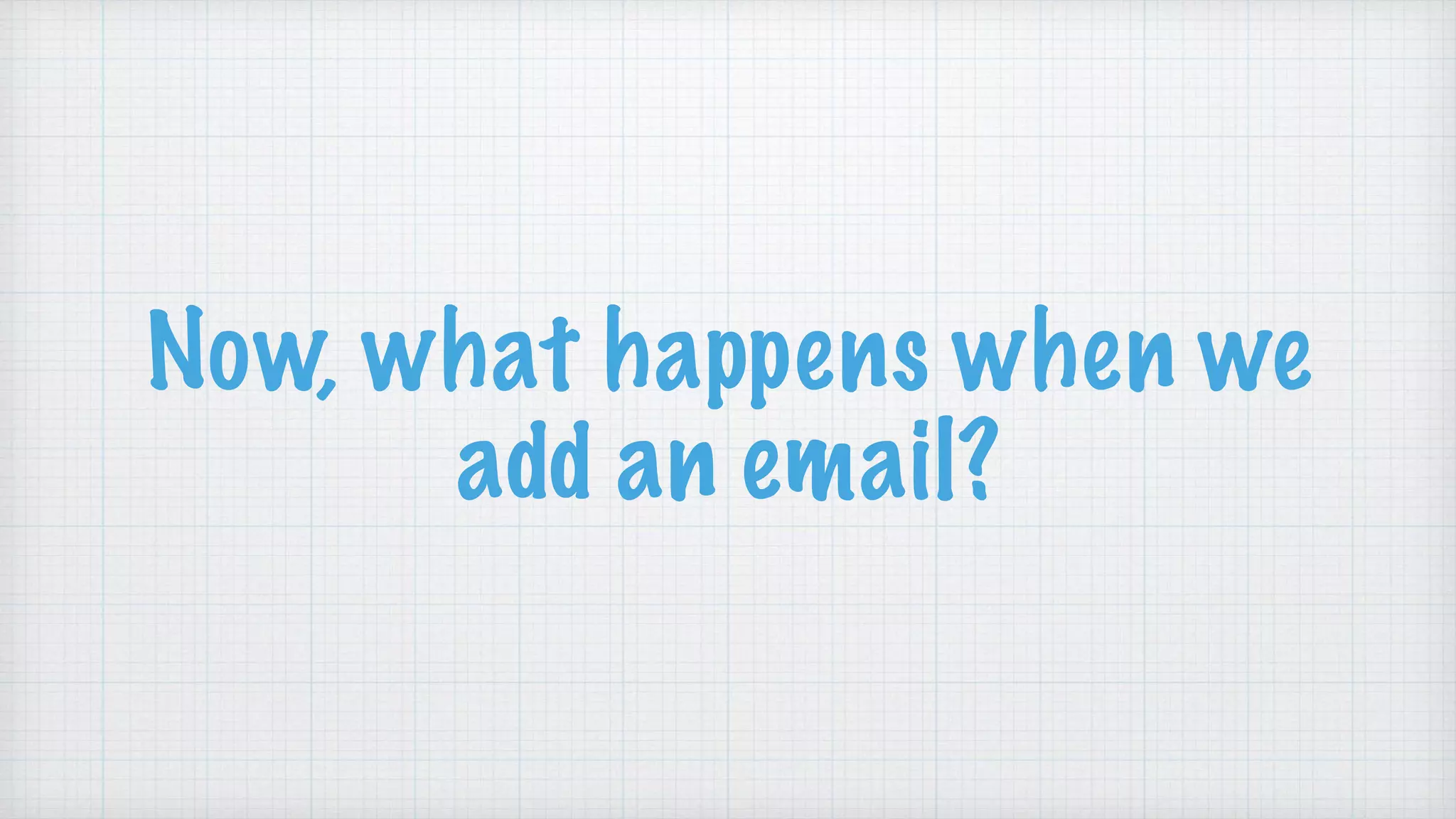

- 95. Now, what happenswhen we add an email?

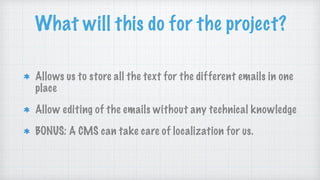

- 97. What will thisdo for the project? Allows us to store all the text for the different emails in one place Allow editing of the emails without any technical knowledge BONUS: A CMS can take care of localization for us.

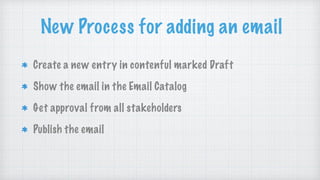

- 98. New Process foradding an email Create a new entry in contenful marked Draft Show the email in the Email Catalog Get approval from all stakeholders Publish the email

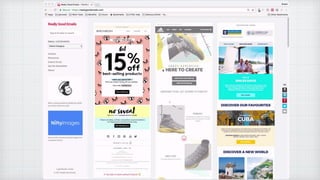

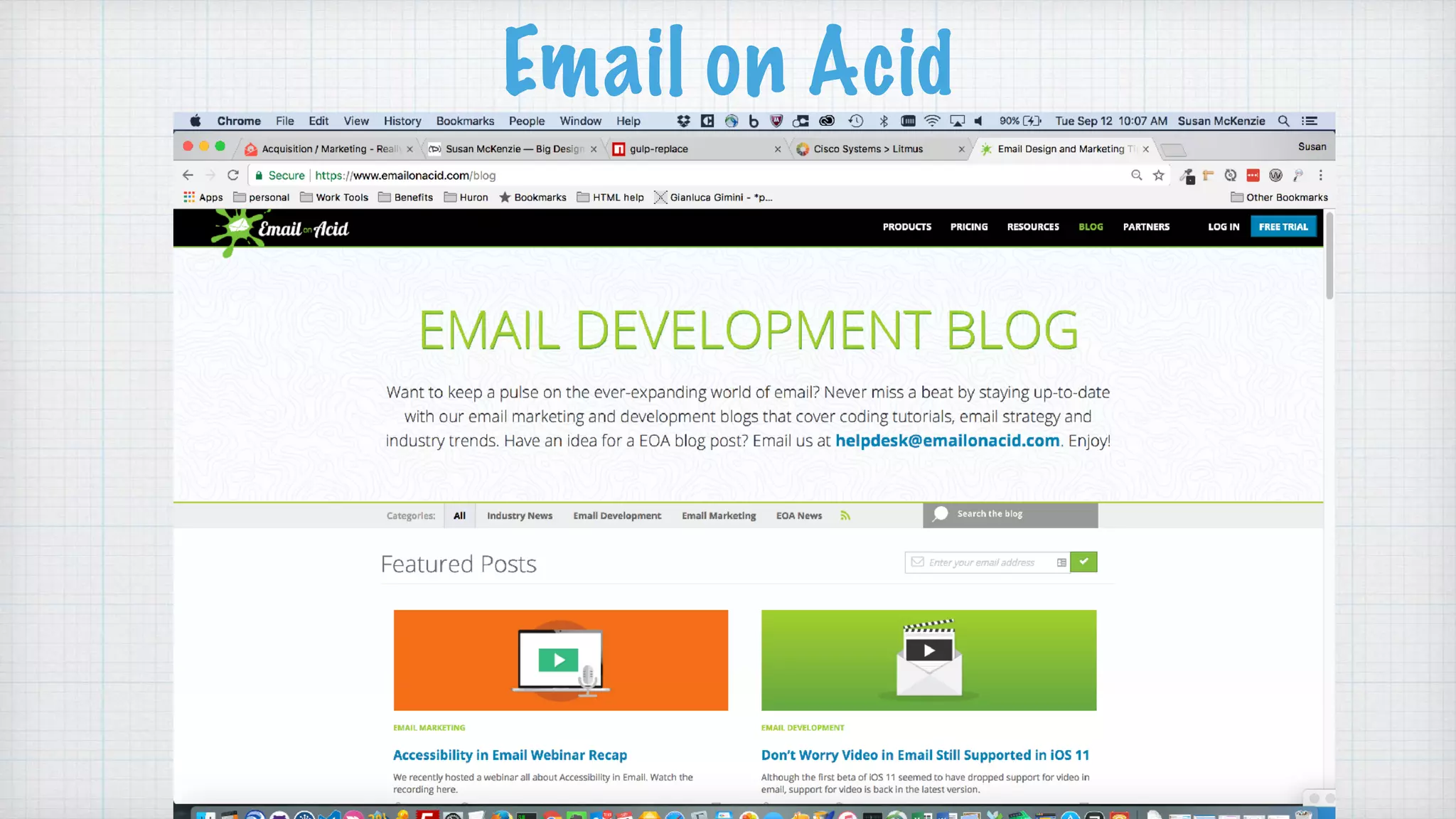

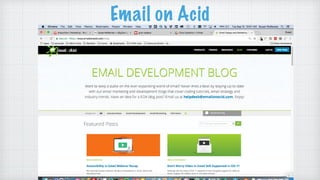

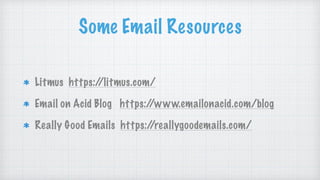

- 99. Some Email Resources Litmushttps://litmus.com/ Email on Acid Blog https://www.emailonacid.com/blog Really Good Emails https://reallygoodemails.com/
- 100.
- 102. This is allstill a work in progress.

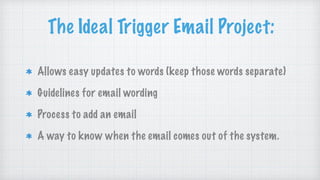

- 103. The Ideal TriggerEmail Project: Allows easy updates to words (keep those words separate) Guidelines for email wording Process to add an email A way to know when the email comes out of the system.

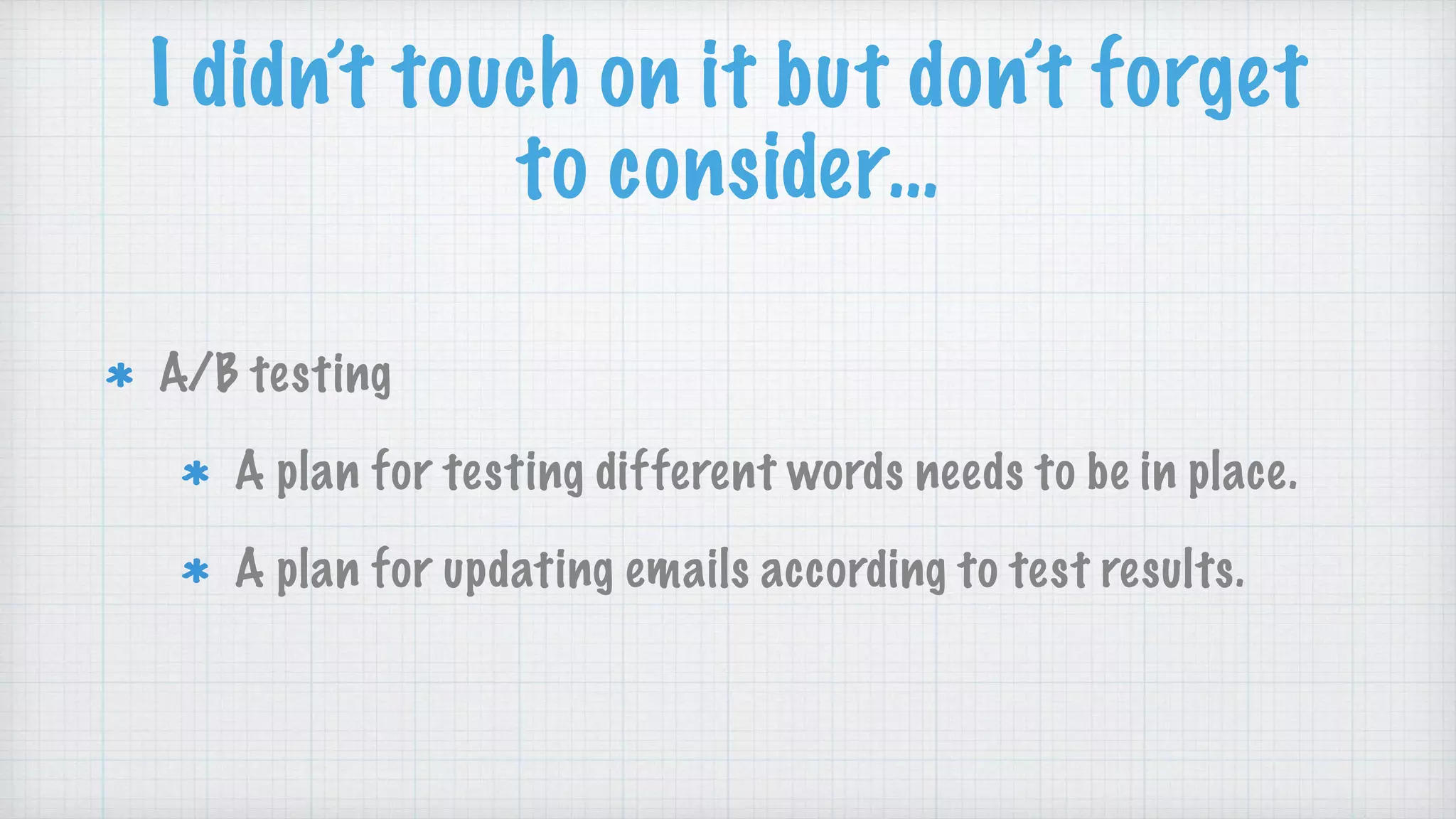

- 104. I didn’t touchon it but don’t forget to consider… A/B testing A plan for testing different words needs to be in place. A plan for updating emails according to test results.
- 105. Take aways Carefully planhow your trigger email project will work. Make sure you have a solution that works to quickly change emails The solution really needs a way for Marketing to change the words without involving developers Most of all, a PROCESS PROCESS PROCESS

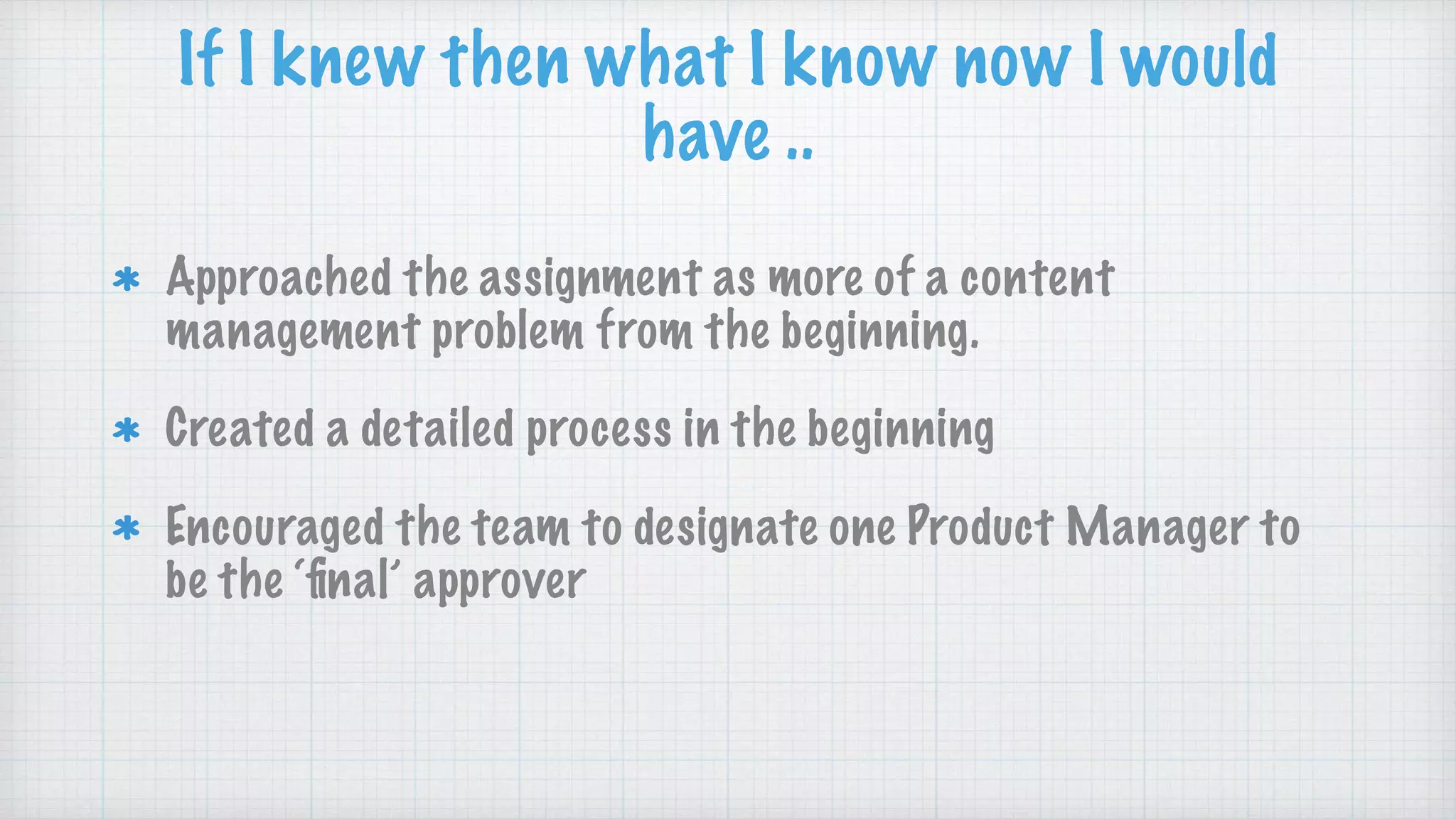

- 106. Approached the assignmentas more of a content management problem from the beginning. Created a detailed process in the beginning Encouraged the team to designate one Product Manager to be the ‘final’ approver If I knew then what I know now I would have ..
- 107. Thank you! @MathSusan https://github.com/mathsusan Susan McKenzie CiscoSystems, INC Work email: sumckenz@cisco.com Personal email: sbmck@yahoo.com
