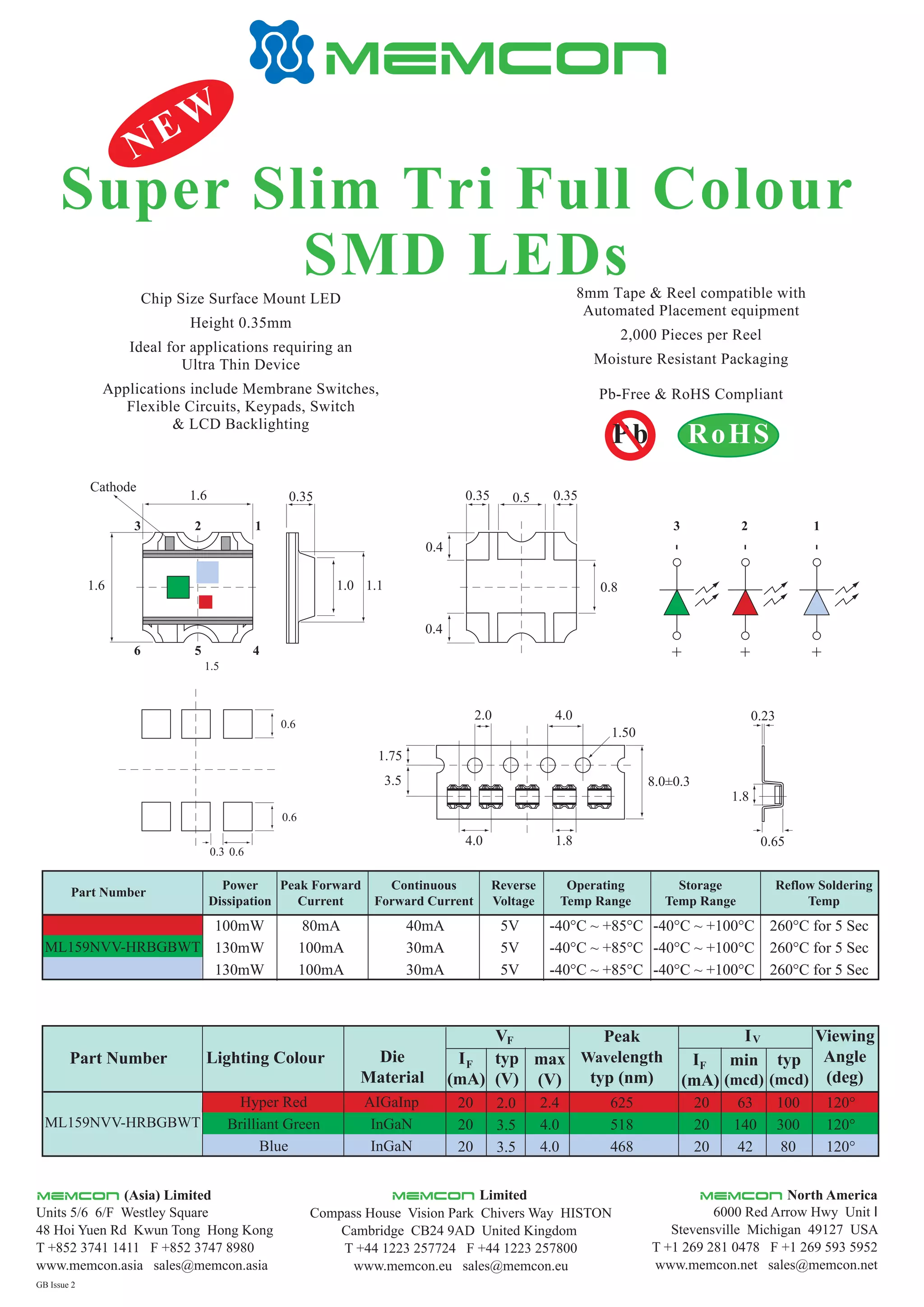

1. Super Slim Tri Full Colour
SMD LEDsChip Size Surface Mount LED
Height 0.35mm
Ideal for applications requiring an
Ultra Thin Device
Applications include Membrane Switches,
Flexible Circuits, Keypads, Switch
& LCD Backlighting
8mm Tape & Reel compatible with
Automated Placement equipment
2,000 Pieces per Reel
Moisture Resistant Packaging
Pb-Free & RoHS Compliant
Part Number
Part Number
Power
Dissipation
Peak Forward
Current
Continuous
Forward Current
Reverse
Voltage
Operating
Temp Range
Storage
Temp Range
Reflow Soldering
Temp
Lighting Colour Die
Material
Viewing
Angle
(deg)
VF
I
(mA)
typ
(V)
F max
(V)
Peak
Wavelength
typ (nm)
IV
I
(mA)
F min
(mcd)
typ
(mcd)
ML159NVV-HRBGBWT
ML159NVV-HRBGBWT
Hyper Red
Brilliant Green
Blue
AIGaInp
InGaN
InGaN
20
20
20
63
140
42
100
300
80
625
518
468
2.4
4.0
4.0
2.0
3.5
3.5
20
20
20
120°
120°
120°
100mW
130mW
130mW
80mA
100mA
100mA
40mA
30mA
30mA
5V
5V
5V
-40°C ~ +85°C
-40°C ~ +85°C
-40°C ~ +85°C
-40°C ~ +100°C
-40°C ~ +100°C
-40°C ~ +100°C
260°C for 5 Sec
260°C for 5 Sec
260°C for 5 Sec
+-
+-
+-0.6
0.6
0.4
0.4
0.81.6 1.11.0
0.35 0.5 0.350.351.6
123 123
456
0.60.3
1.5
3.5
1.75
4.0 1.8 0.65
1.8
8.0±0.3
1.50
2.0 4.0 0.23
