The DC-9104Exd is an explosion proof UV flame detector that features a single chip microcomputer for fast alarm response times under 100ms, three sensitivity levels, and a normally open output. It uses an advanced ultraviolet photodiode for superior sensitivity in dust, humidity, and corrosion resistant performance. The detector has a stylish aluminum alloy shell that is small and lightweight for better mechanical strength.

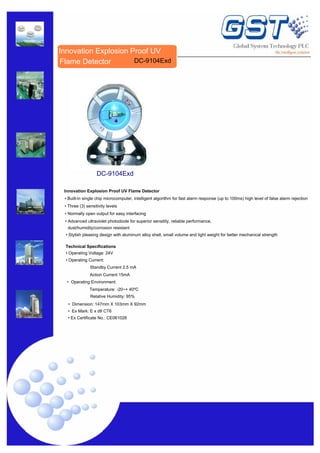

1. Innovation Explosion Proof UV
DC-9104Exd
Flame Detector
DC-9104Exd
Innovation Explosion Proof UV Flame Detector
• Built-in single chip microcomputer, intelligent algorithm for fast alarm response (up to 100ms) high level of false alarm rejection
• Three (3) sensitivity levels
• Normally open output for easy interfacing
• Advanced ultraviolet photodiode for superior sensitity, reliable performance,
dust/humidity/corrosion resistant
• Stylish pleasing design with aluminum alloy shell, small volume and light weight for better mechanical strength
Technical Specifications
• Operating Voltage: 24V
• Operating Current:
Standby Current 2.5 mA
Action Current 15mA
• Operating Environment:
Temperature: -20~+ 40ºC
Relative Humidity: 95%
• Dimension: 147mm X 103mm X 92mm
• Ex Mark: E x dII CT6
• Ex Certificate No.: CE061028
