This document provides specifications for a 2-way 0 degree power divider that operates from 5-1200 MHz. It lists the typical and maximum insertion loss, isolation, phase and amplitude unbalance over the frequency range as well as the absolute maximum ratings for power, current, and temperature. A schematic and pin connections are shown along with typical performance curves and dimensions.

1. 5-1200 MHz

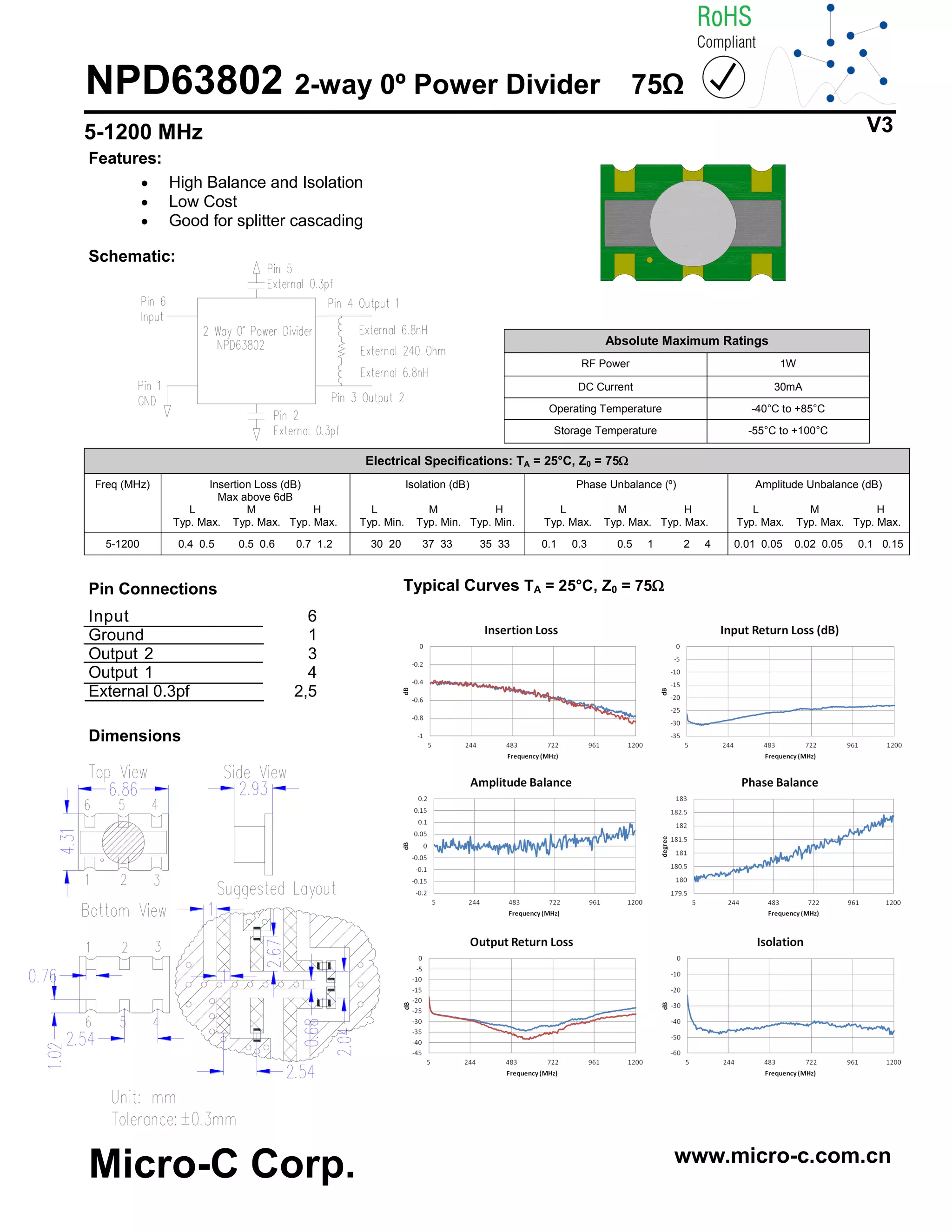

NPD63802 2-way 0º Power Divider 75Ω
V3
Micro-C Corp. www.micro-c.com.cn
Electrical Specifications: TA = 25°C, Z0 = 75
Freq (MHz) Insertion Loss (dB)
Max above 6dB
L M H
Typ. Max. Typ. Max. Typ. Max.
Isolation (dB)
L M H
Typ. Min. Typ. Min. Typ. Min.
Phase Unbalance (º)
L M H
Typ. Max. Typ. Max. Typ. Max.
Amplitude Unbalance (dB)
L M H
Typ. Max. Typ. Max. Typ. Max.
5-1200 0.4 0.5 0.5 0.6 0.7 1.2 30 20 37 33 35 33 0.1 0.3 0.5 1 2 4 0.01 0.05 0.02 0.05 0.1 0.15
Absolute Maximum Ratings
RF Power 1W
DC Current 30mA
Operating Temperature -40°C to +85°C
Storage Temperature -55°C to +100°C
Schematic:
Features:
Pin Connections Typical Curves TA = 25°C, Z0 = 75
Dimensions
 High Balance and Isolation
 Low Cost
 Good for splitter cascading
Input 6
Ground 1
Output 2 3
Output 1 4
External 0.3pf 2,5
