Agilent Optoelectronic Solutions for Mobile Application

Agilent Optoelectronic Solutions for Mobile Application Agilent Optoelectronic Solutions

Embed presentation

Download to read offline
Agilent Optoelectronic Solutions for Mobile Application by Patrick Trueson European Product Marketing Manager Optoelectronic Products Division
AUTOMOTIVE ESS ILLUMINATION & COLOR MANAGEMENT Home Appliances MOBILE APPLIANCES Optoelectronic Products Division
Surface Mount LED  Top 3 LED Supplier  #1 in InGaN blue LEDs for backlighting  Wide range of package sizes and configurations  Full range of LED colors  Full spectrum of single-color LEDs  Bi-color and tri-color LEDs  High volume, low cost manufacturing  Short lead times  Own IP position on the InGaN LED  InGaN Low Current Testing – 5mA
Mobile Phone ChipLED Product Offering HSMF-C15x 3.2x2.7x1.1mm HSMF-C16x 1.6x0.8x0.5mm Bi-Color HSMx-C265 3.4x1.25x1.1mm Reverse Mount (Single Color) HSMx-C130 (*) 1.6x0.8x0.35mm Single Color HSMx-C191 1.6x0.8x0.6mm HSMx-C197 1.6x0.8x0.4mm Right Angle (Single Color) HSMx-C110 3.2x1.0x1.5mm HSMx-C120 (*) 1.6x1.0x0.6mm HSMN-C310 2.8x1.2x1.0mm Tri-Color HSMF-C118 Common Anode 3.2x2.7x1.1mm HSMF-C115 (*) 2.5x1.0x1.0mm HSMF-C114 (*) 1.6 x 1.5 x 0.35mm More than 1 billion blue InGaN ChipLEDs shipped! InGaN ChipLED at 5 mA specified!

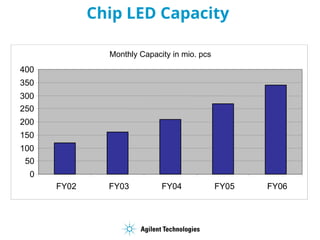

Chip LED Capacity Monthly Capacity in mio. pcs 0 50 100 150 200 250 300 350 400 FY02 FY03 FY04 FY05 FY06
Focused ChipLED Product Offering Package Color P/N Dice material Dimensions (mm) Testing Current (mA) IV (typ) Color (typ) Side Firing blue HSMR-C120 InGaN 1.6 x 1.0 x 0.6 5 18 473 Side Firing white HSMW-C120 InGaN 1.6 x 1.0 x 0.6 5 52 0.31/0.33 Side Firing yellow green HSME-C120 AlInGaP 1.6 x 1.0 x 0.6 20 52 572 Side Firing yellow HSMA-C120 AlInGaP 1.6 x 1.0 x 0.6 20 90 595 Side Firing red HSMC-C120 AlInGaP 1.6 x 1.0 x 0.6 20 90 626 Package Color P/N Dice material Dimensions (mm) Testing Current (mA) IV (typ) Color (typ) Top Mount blue HSMR-C191 InGaN 1.6 x 0.8 x 0.6 5 18 473 Top Mount white HSMW-C191 InGaN 1.6 x 0.8 x 0.6 5 52 0.31/0.33 Top Mount yellow green HSME-C191 AlInGaP 1.6 x 0.8 x 0.6 20 50 572 Top Mount yellow HSMA-C191 AlInGaP 1.6 x 0.8 x 0.6 20 90 592 Top Mount orange HSML-C191 AlInGaP 1.6 x 0.8 x 0.6 20 90 605 Top Mount red HSMC-C191 AlInGaP 1.6 x 0.8 x 0.6 20 90 626 Top Mount blue HSMR-C197 InGaN 1.6 x 0.8 x 0.4 5 18 473 Top Mount yellow green HSME-C197 AlInGaP 1.6 x 0.8 x 0.4 20 50 572 Top Mount yellow HSMA-C197 AlInGaP 1.6 x 0.8 x 0.4 20 90 592 Top Mount orange HSML-C197 AlInGaP 1.6 x 0.8 x 0.4 20 90 605 Top Mount red HSMC-C197 AlInGaP 1.6 x 0.8 x 0.4 20 90 626 Top Mount blue HSMR-C130 InGaN 1.6 x 0.8 x 0.35 5 18 473 Top Mount white HSMW-C130 InGaN 1.6 x 0.8 x 0.35 5 52 0.31/0.33 Package Color P/N Dice material Dimensions (mm) Testing Current (mA) IV (R/G/B) Color (R/G/B) typ Side Firing RGB HSMF-C113 InGaN/AlInGaP 2.5 x 1.0 x 1.0 20 80/50/60 626/572/470 Side Firing RGB HSMF-C115 InGaN/AlInGaP 2.5 x 1.0 x 1.0 20 80/170/60 626/525/470 Top Mount RGB HSMF-C114 InGaN/AlInGaP 1.6 x 1.5 x 0.35 20 85/180/70 626/525/470
Low Cost Blue Chip LED QSMR-C130  5mA Tested Product  No Bin Selection *1  Limited Capacity  0603 low profile top view package *1 Full brightness range: Iv Bin L: 11.2 – 18 mcd/5mA Iv Bin M: 18 – 28.5 mcd/5mA Iv Bin N: 28.5 – 45 mcd/5mA Iv Bin P: 45 – 71.5 mcd/5mA Full color range: Bin A: 460 – 465 nm/5mA Bin B: 465 – 470 nm/5mA Bin D: 470 – 475 nm/5mA Bin C: 475 – 480 nm/5mA Full Vf range: Vf Bin 1: 2.55 – 2.75 V/5mA Vf Bin 2: 2.75 – 2.95 V/5mA Vf Bin 3: 2.95 – 3.15 V/5mA

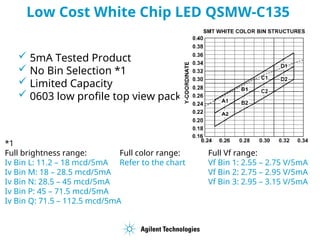

Low Cost White Chip LED QSMW-C135  5mA Tested Product  No Bin Selection *1  Limited Capacity  0603 low profile top view package *1 Full brightness range: Iv Bin L: 11.2 – 18 mcd/5mA Iv Bin M: 18 – 28.5 mcd/5mA Iv Bin N: 28.5 – 45 mcd/5mA Iv Bin P: 45 – 71.5 mcd/5mA Iv Bin Q: 71.5 – 112.5 mcd/5mA Full color range: Refer to the chart Full Vf range: Vf Bin 1: 2.55 – 2.75 V/5mA Vf Bin 2: 2.75 – 2.95 V/5mA Vf Bin 3: 2.95 – 3.15 V/5mA
Low Cost AlInGaP Chip LED QSMA-C1xx QSME-C1xx QSMC-C1xx C120 , C191, C197 C170 QSMA-C1xx QSME-C1xx QSMC-C1xx HSMx-C120 1.6x1.0x0.6mm HSMx-C191 1.6x0.8x0.6mm HSMx-C197 1.6x0.8x0.4mm HSMx-C170 2x1.25x0.8mm Color Amber Yellow Green Red Package C191/C120/C170/C197 C191/C120/C170/C197 C191/C120/C170/C197 Iv N min 28:5~45 mcd N min 28:5~45 mcd N min 28:5~45 mcd Clr A ~ E A ~ E 615 ~ 630nm Vf 1.6 ~ 2.4 1.6 ~ 2.4 1.6 ~ 2.4

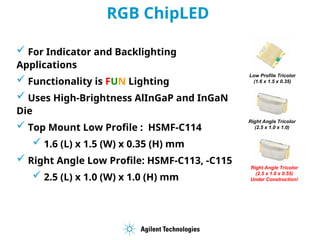

RGB ChipLED  For Indicator and Backlighting Applications  Functionality is FUN Lighting  Uses High-Brightness AlInGaP and InGaN Die  Top Mount Low Profile : HSMF-C114  1.6 (L) x 1.5 (W) x 0.35 (H) mm  Right Angle Low Profile: HSMF-C113, -C115  2.5 (L) x 1.0 (W) x 1.0 (H) mm Low Profile Tricolor (1.6 x 1.5 x 0.35) Right Angle Tricolor (2.5 x 1.0 x 1.0) Right Angle Tricolor (2.5 x 1.0 x 0.55) Under Construction!
Low Profile Right Angle Tricolor ChipLED Package Layout Proposal Product Specification : 1.Package Dimension (LxWxH) = 2.5 x 1.0 x 0.55 mm 2.Package Type: ChipLED 3.Package Height (max. incl. tolerance) = 0.60mm 4.Single Die On = 20mA (each) 5.Three Die On = 15mA Key Milestones Lead-time: • 1st engineering sample – 8 weeks • Qualification - 4months Terminal Layout Top View Side View Target Performance : Source IV (min) IV (typ) Lambda (typ) Red 45mcd 110mcd 626 Green 112.5mcd 180mcd 525 Blue 45mcd 60mcd 470 Note: Performance per If = 20mA
Flashlight LED
Flash LED Wins  Own IP position  ESD protection  Slim package for greater design flexibility  Unique optics design that does not need secondary optics  Easy cascading for design that needs multiple flash combination
Flash LED Roadmap 1 10 100 FY03 FY04 FY05 FY06 Pulsed Lux FY04 FY05 FY03 1x3 Series 10 Lux FY06 FY07 4.5cd @80mA, 60° 7.5cd @180mA pulse 2.8 cd @ 50mA, 70° 4 cd @ 80mA pulse 6cd @80mA, 50° 10cd @180mA pulse 1x3 Parallel 4 Lux 1st Generation 7 Lux@180mA 2nd Generation 3rd Gen 50-60Lux 50cd @ 1A pulsed 8cd DC 10cd Pulse 3.4 x 3.4 x 1.5 6 cd DC 8 cd Pulse 2.8 x 2.8 x 1.5 8 Lux 10 Lux
Flash LED Wins Samsung SPH- V4400 Samsung SGH- E800 Sony Ericsson
Flash LED Wins LG A7100 TCL Motorola V710
Auto Focus LED
Auto Focus Auxiliary • Maximum driving current : 50mA • Luminous Intensity : 15cd minimum @ 20mA • Maximum forward voltage : 2.6V • Maximum power dissipation : 130mW AlInGaP Red Orange • Maximum driving current : 30mA • Luminous Intensity : 10cd minimum @ 20mA • Maximum forward voltage : 3.8V • Maximum power dissipation : 114mW InGaN Green • AF auxiliary light source for cameras • Red-eye reduction lamp • Self-timer display Applications
InGaN Green optimized for CCD & CMOS InGaN Green as the best Choice as AF Aux Flash • There are 2 photo diode allocated for green in each color pixel. • InGaN Green has wavelength of typical 525nm, which is optimized to the Green color filter in CCD & CMOS camera. Filter Transmittance 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 200 220 240 260 280 300 320 340 360 380 400 420 440 460 480 500 520 540 560 580 600 620 640 660 680 700 720 740 760 780 800 wavelength N o rm alized green red blue 620nm 535nm 455nm
Product Development Plan FY ‘06 FY ‘05 Red Orange 15cd@20mA 1st Generation 2nd Generation 4.8x4.8x5.3mm Released by Apr’05 Green 10cd@20mA 4.8x4.8x5.3mm 15cd@20mA 4.0x4.0x3.5mm Green Release date TBA Released by Sept’05
Decorative Lighting Solution
Flexible Light Pipe with Single-,Bi-,Tricolor LED Clad Core • Core: Elastomer • Clad: Teflon • High Flexibility – can be flex into any shape • Excellent Uniformity and High Brightness • Single, Bicolor or Tricolor Offering • Easy and Fast Assembly
Flexible Light Pipe Objective: To demonstrate 2nd level decorative lighting solution using RGB LEDs or multi-color LEDs with flexibility installation to handset makers or any decorative applications. • Able to demonstrate multi-colors if apply with Jazz or just multi- color LEDs. • U shape to fit in handset + set top instruments. • Flexi, bendable, uniform in brightness and color. • Possible to be molded to any shape. • Easy for assembly. Features : The microstructured light pipe control light distribution, brightness and uniformity. The microstructured light pipe can be molded on to the cover of the front panel handphone or any decorative applications. Microstructu res
LED solutions for LCD Backlighting
High Bright White LED for LCD Backlight QSMW-Cx31 4.0 x 1.4 x 0.8mm QSMW-Cx11 2.8 x 1.2 x 1.0mm May August Product Release Date Note: - Timing in RED are best estimate dates and may subject to change (release point at 500hr - Samples are unreleased and not fully qualified parts. Limited samples available - PN setup to be confirmed Data Sheet and limited samples are Available! Targeted ~ 1cd (typ)
Color Sensor Solution
Color Sensor Solution for Mobile Appliance Color Sensing Solution *Add Features Value proposition: •Small foot print: package size ~3.0 x 3.0 mm •Supply voltage: 3V •Uniform RGB filter array design •Operating temp: 0 – 70C Product Availability: Q4’05 (preliminary)
Color Sensing solution Second level Color Sensor in Mobile Phone Color Duplication Illumination Sensing Color Reader
Color Duplication Front LCD lighting Back Cover lighting Main LCD backlighting Keypad lighting Front Cover lighting Side Cover lighting Value proposition: •Small foot print: package size ~3.0 x 3.0 mm •Supply voltage: 3V •Uniform RGB filter array design •Operating temp: 0 – 70C Product Availability: Q4’05 (preliminary)
Illumination Sensing 1. The perceived image and color quality of a color LCD varies with the type and intensity of the ambient illumination. 2. For instance, outdoor sunlight, indoor Incandescent, fluorescent lighting, etc as a result of respective different spectral power distribution. 3. Wavelength biases may affect LCD image quality, for example, fluorescent lighting is biased towards the blue (~450nm) Value proposition: •Small foot print: package size ~3.0 x 3.0 mm •Supply voltage: 3V •Uniform RGB filter array design •Operating temp: 0 – 70C Product Availability: Q4’05 (preliminary)
Illumination Sensing To determine Color algorith m Ambient/ illumination light Type of light source Luminance Chrominance To detect To enhance Contrast enhancem ent Brightness adjustment RGB backlight colors correction Processor

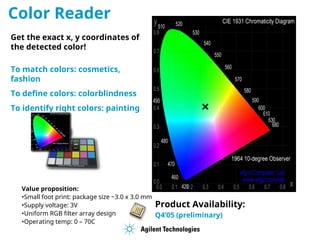

Color Reader Get the exact x, y coordinates of the detected color! To match colors: cosmetics, fashion To define colors: colorblindness To identify right colors: painting Value proposition: •Small foot print: package size ~3.0 x 3.0 mm •Supply voltage: 3V •Uniform RGB filter array design •Operating temp: 0 – 70C Product Availability: Q4’05 (preliminary)
Additional Information - Further information about Agilent’s RGB color sensor is available at http://www.agilent.com/view/icm - Samples are available at esamples@agilent.com - The following documentation and tools are available • Product datasheet http://www.agilent.com/view/icm • Application note http://cp.literature.agilent.com/litweb/pdf/5989- 1845EN.pdf • Development kit (HDJD-JD02, available for order)
Illumination Color Management Solution

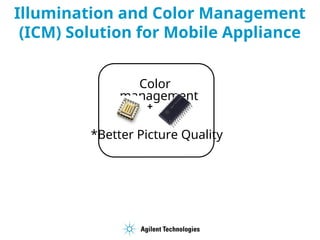

Illumination and Color Management (ICM) Solution for Mobile Appliance Color management + *Better Picture Quality
Bigger LCD Screens For wireless cellphones, size is starting to matter A + Cell Phones Mail, Instant Messaging, Web Browsing, Scheduling and Entertainment + Making Calls D Display is the ‘FACE’ of the Mobile Appliance nsumer Survey shows that Better picture quality is the NUMBER ONE purchasing crit
An RGB LED backlight is able to present more realistic images because it has a wider color gamut (104% of NTSC) compared to conventional Cold-Cathode Florescent Lamp (CCFL is 75% of NTSC) RGB LEDs Enables Wider Color Gamut RGB LED Intelligent Color NTSC CCFL efg´s Computer Lab www.efg2.com/lab
. Impossible to maintain color point because Red, Green, Blu LEDs degrade at different rate . Wavelength shifts as temperature varies . Standard color space set point . High LED cost due to tight binning . Plug and play solution not available Agilent patented solution addresses these issues Top 5 Challenges to Existing Backlighting and Illumination Systems using RGB LED
LEDs will shift in color during operation, resulting in the mixed light output changing. Mixed light output Shift in mixed light output Shifts in Light and Intensity
Optical feedback samples the mixed light and compares its color to the required color. Adjustments are made to the RGB ratio to achieve the required color and maintain it. Mixed light output Shift in color without feedback Adjustment to green LEDs Adjustment to blue LEDs Shift in RGB LEDs Agilent solution: Optical feedback

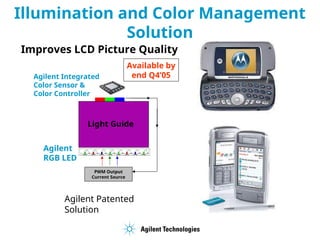

Illumination and Color Management Solution PWM Output Current Source Agilent Integrated Color Sensor & Color Controller Agilent RGB LED Light Guide Improves LCD Picture Quality Agilent Patented Solution Available by end Q4’05
RGB LED light source for ICM To replace white LEDS in current backlight unit for small screen appliances Value Proposition Optimum Light output - Small aperture opening of 0.6mm to channel maximum light output into light guide. Best color mixing – RGB LED chips place close to each other. 2.1mm pitch for 12mils dice. Product Size –8pcs LED dice in a package size of 16.8mm X 0.9mm with 0.8mm thickness Best thermal management – LED chips direct attach on the heat sink Miniature Multichip RGB LED Light Strip with Chip on metal coated plastic substrate. Light from RGB light source Light Guide Sensor facing back of the light guide G R B G G R B Available by end Q1’06 G Top View
Value Proposition 1 White LED Natural Color • Richer Color – exceed 100% of NTSC • Intensity control • Tunable White Point • Panel to Panel Consistency • Wide choice of colors • Environmental friendly (no mercury, Pb free) RGB LED
Value Proposition 2 Panel to Panel Consistency A B C D E F ERROR OPTICS / LIGHT GUIDE / MIXER TARGET COLOR COLOR PROCESSING ALGORITHMS PWM GENERATOR red filter AGILENT COLOR CONTROLLER green filter blue filter MEASURED COLOR RGB LED ARRAY R G B Vred Vgreen Vblue AGILENT TRICOLOR PHOTOSENSOR RED LED DRIVER GREEN LED DRIVER BLUE LED DRIVER ERROR OPTICS / LIGHT GUIDE / MIXER TARGET COLOR COLOR PROCESSING ALGORITHMS PWM GENERATOR red filter AGILENT COLOR CONTROLLER green filter blue filter MEASURED COLOR RGB LED ARRAY R G B Vred Vgreen Vblue AGILENT TRICOLOR PHOTOSENSOR RED LED DRIVER GREEN LED DRIVER BLUE LED DRIVER ERROR OPTICS / LIGHT GUIDE / MIXER TARGET COLOR COLOR PROCESSING ALGORITHMS PWM GENERATOR red filter AGILENT COLOR CONTROLLER green filter blue filter MEASURED COLOR RGB LED ARRAY R G B Vred Vgreen Vblue AGILENT TRICOLOR PHOTOSENSOR RED LED DRIVER GREEN LED DRIVER BLUE LED DRIVER ERROR OPTICS / LIGHT GUIDE / MIXER TARGET COLOR COLOR PROCESSING ALGORITHMS PWM GENERATOR red filter AGILENT COLOR CONTROLLER green filter blue filter MEASURED COLOR RGB LED ARRAY R G B Vred Vgreen Vblue AGILENT TRICOLOR PHOTOSENSOR RED LED DRIVER GREEN LED DRIVER BLUE LED DRIVER ERROR OPTICS / LIGHT GUIDE / MIXER TARGET COLOR COLOR PROCESSING ALGORITHMS PWM GENERATOR red filter AGILENT COLOR CONTROLLER green filter blue filter MEASURED COLOR RGB LED ARRAY R G B Vred Vgreen Vblue AGILENT TRICOLOR PHOTOSENSOR RED LED DRIVER GREEN LED DRIVER BLUE LED DRIVER ERROR OPTICS / LIGHT GUIDE / MIXER TARGET COLOR COLOR PROCESSING ALGORITHMS PWM GENERATOR red filter AGILENT COLOR CONTROLLER green filter blue filter MEASURED COLOR RGB LED ARRAY R G B Vred Vgreen Vblue AGILENT TRICOLOR PHOTOSENSOR RED LED DRIVER GREEN LED DRIVER BLUE LED DRIVER = consistent color space from system to system!
ICM Road Map High Performance - -Bigger Color Gumut (>3 color LEDs) Basi c Values Add High Performance Jazz 2.2 Create more values solution - Integrate more functions - Dimming - Blinking - Localize dimming - Matrix Sensing - Zero Calibration - Matrix Sensing Jazz 2.1 Size Does Matter - Hand phone / PDA - smaller size - Limited functions & accuracy - Low cost - Integrate Sensor - No Calibration Jazz 2.3 Size + Value - Field Sequencing - Integrated Sensor - Light To PWM - Background processing - High Speed Sampling Desktop 15-21” Smallest + Lowest Cost Better Picture Quality Jazz 1
- Further information about Agilent’s ICM is available at http://www.agilent.com/view/icm - Samples are available at esamples@agilent.com - The following documentation and tools are available • Product datasheet http://www.agilent.com/view/icm • Application note http://cp.literature.agilent.com/litweb/pdf/5989- 1168EN.pdf http://cp.literature.agilent.com/litweb/pdf/5989- 1169EN.pdf • Development kit (HDJD-JD01, available Additional Information
Application Design Center Optics Thermal Stress PCB/Flex IC Material - 60 R&D and Application Design Engineers - Level 2 Customization capabilities - Provides application design support (discreet and modular) - Technical process support - Product testing and characterization capabilities
Illumination & Color Management Brighter Color Sharper Image Natural Color Tone No Color Degradation Color Consistency Longer Lifetime LED Status Indicator Bicolor, Tricolor LED Flash Light Camera Phones Color Sensor Color Duplication Color Reader Illuminant sensing Keypad Backlighting White, Blue Multicolor LED LCD Backlighting J-LED RGB LEDs Agilent Product Summary
Thank You
