1. Mashing Up Your Web-Enabled Home
Enabling Physical Mashups in a
Dominique Guinard, SAP Research Zurich & ETH Zurich
Touch the Web 2010 @ ICWE Vienna
06.07.2010

2. [http://www.flickr.com/photos/moragcasey/]
Web of Things? Physical Mashups?
1. MOTIVATION

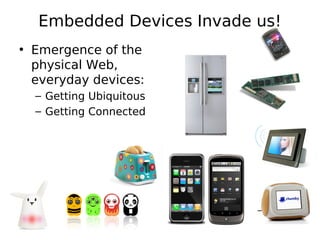

3. Embedded Devices Invade us!
• Emergence of the
physical Web,
everyday devices:
– Getting Ubiquitous
– Getting Connected

4. What if we Could Recompose
Them as we Wish?
• Easing the currently
complicated
development.
• Creating a re-
useable/composable
physical world.
• From Web mashups
to physical
mashups.

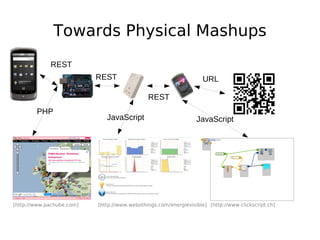

5. Towards Physical Mashups
REST
REST URL
REST
PHP
JavaScript JavaScript
[http://www.pachube.com] [http://www.webothings.com/energievisible] [http://www.clickscript.ch]

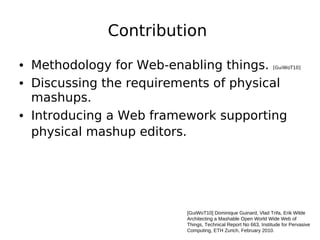

6. Contribution
• Methodology for Web-enabling things. [GuiWoT10]
• Discussing the requirements of physical
mashups.
• Introducing a Web framework supporting
physical mashup editors.
[GuiWoT10] Dominique Guinard, Vlad Trifa, Erik Wilde
Architecting a Mashable Open World Wide Web of
Things, Technical Report No 663, Institude for Pervasive
Computing, ETH Zurich, February 2010.

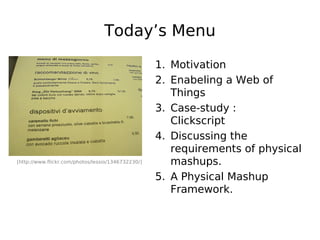

7. Today’s Menu
1. Motivation
2. Enabeling a Web of
Things
3. Case-study :
Clickscript
4. Discussing the
requirements of physical
[http://www.flickr.com/photos/lessio/1346732230/] mashups.
5. A Physical Mashup
Framework.

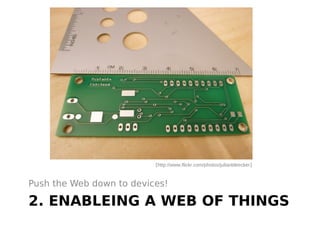

8. [http://www.flickr.com/photos/julianbleecker]
Push the Web down to devices!
2. ENABLEING A WEB OF THINGS

9. Integrating Smart Things to the Web
• Connecting them to the Internet:
– Directly: IPv6 Lowpan
– Indirectly: Through reverse proxies (smart gateways).
• “RESTful” Things:
– Functionality as resources:
• BASE_URI/sunspot/sensors/light
– Serving several linked representations:
• HTML for browsability,
• XML / JSON for integration,
• ATOM for aggregation.
– Using HTTP as an application protocol:
• GET, POST, PUT, DELETE,
[GuiWoT10] Dominique Guinard, Vlad Trifa, Erik Wilde
• Error codes, Content negotiation. Architecting a Mashable Open World Wide Web of
Things, Technical Report No 663, Institude for Pervasive
Computing, ETH Zurich, February 2010.

10. Example: RESTful SunSPOTs
• Web-enabling the
Sun SPOT platform:
– All sensors and
actuators become
resources.
• Two
implementation:
– Web-server on the
nodes.
[http://www.sunspotworld.com] – Web-server on the
gateway.
[GuiSpot09] Dominique Guinard, Vlad Trifa, Thomas
Pham, Olivier Liechti. Towards Physical Mashups in the
Web of Things. Proceedings of IEEE INSS 2009

11. [http://www.flickr.com/photos/lpettinati/]
Trying out physical mashups
3. CASE STUDY: CLICKSCRIPT

12. Demo

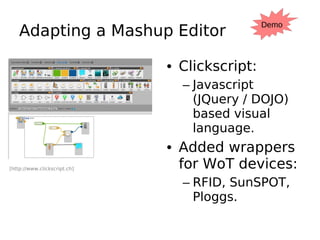

Adapting a Mashup Editor
• Clickscript:
– Javascript
(JQuery / DOJO)
based visual
language.
• Added wrappers
[http://www.clickscript.ch] for WoT devices:
– RFID, SunSPOT,
Ploggs.

13. [http://www.flickr.com/photos/sharynmorrow/]
What do we need for physical mashups to become reality?
4. DISCUSSING REQUIREMENTS

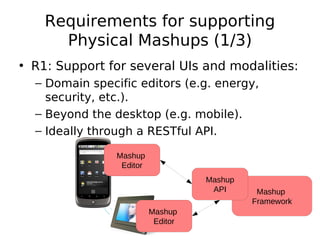

14. Requirements for supporting
Physical Mashups (1/3)
• R1: Support for several UIs and modalities:
– Domain specific editors (e.g. energy,
security, etc.).
– Beyond the desktop (e.g. mobile).
– Ideally through a RESTful API.
Mashup
Editor
Mashup
API Mashup
Framework
Mashup
Editor

15. Requirements for supporting
Physical Mashups (2/3)

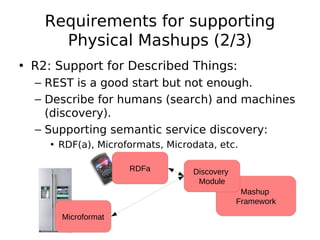

• R2: Support for Described Things:
– REST is a good start but not enough.
– Describe for humans (search) and machines
(discovery).
– Supporting semantic service discovery:
• RDF(a), Microformats, Microdata, etc.
RDFa Discovery
Module
Mashup
Framework
Microformat

16. Requirements for supporting
Physical Mashups (3/3)

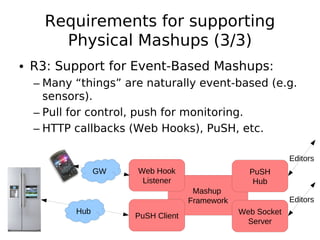

• R3: Support for Event-Based Mashups:
– Many “things” are naturally event-based (e.g.
sensors).
– Pull for control, push for monitoring.
– HTTP callbacks (Web Hooks), PuSH, etc.
Editors
GW Web Hook PuSH
Listener Hub
Mashup
Framework Editors
Hub Web Socket
PuSH Client
Server

17. [www.flickr.com/photos/docman ]
Towards Supporting Real-World Mashup Editors
5. A Physical Mashup
Framework

18. Concept

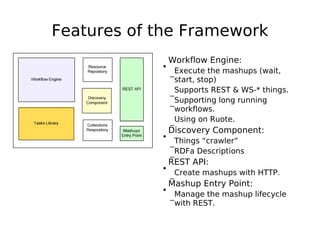

19. Features of the Framework
Workflow Engine:
• Execute the mashups (wait,
–start, stop)
Supports REST & WS-* things.
–
Supporting long running
–workflows.
Using on Ruote.
–
Discovery Component:
• Things “crawler”
–
RDFa Descriptions
–
REST API:
• Create mashups with HTTP.
–
Mashup Entry Point:
• Manage the mashup lifecycle
–with REST.

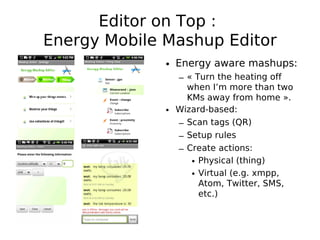

20. Editor on Top :
Energy Mobile Mashup Editor
• Energy aware mashups:
– « Turn the heating off
when I’m more than two
KMs away from home ».
• Wizard-based:
– Scan tags (QR)
– Setup rules
– Create actions:
• Physical (thing)
• Virtual (e.g. xmpp,
Atom, Twitter, SMS,
etc.)

21. [http://www.flickr.com/photos/parmiter/]
Where do we go from here?
OPEN CHALLENGES

22. Challenges Towards Physical Mashups
• Discovering/searching things and
their services:
– We use a “proprietary” RDFa
description.
– Standard? Currently experimenting
using Microformats.
• Scalability? Usefulness?
– Need for qualitative/quantitative
evaluation.

23. Thanks a lot for your
attention
www.webofthings.com
• Contact:
– Dominique Guinard
– dguinard a t ethz.ch
– www.guinard.org
• Special thanks to:
– Azulena Aguilar.
23

24. Backup Slides

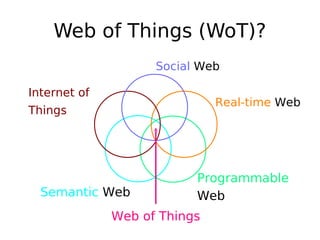

25. Web of Things (WoT)?
Social Web
Internet of
Real-time Web
Things
Programmable
Semantic Web Web
Web of Things

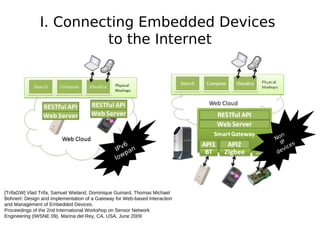

26. I. Connecting Embedded Devices
to the Internet
n
No
6 IP es
IP v a n de
vi c
p
lo w
[TrifaGW] Vlad Trifa, Samuel Wieland, Dominique Guinard, Thomas Michael
Bohnert: Design and Implementation of a Gateway for Web-based Interaction
and Management of Embedded Devices.
Proceedings of the 2nd International Workshop on Sensor Network
Engineering (IWSNE 09). Marina del Rey, CA, USA, June 2009
