- Alice Liu is the President of Avalue, which was established in 2000 and aims to provide benefits to both customers and employees. Liu believes a successful company has steady growth, an excellent reputation, and a good working environment.
- Avalue's mission is to provide solutions to different markets through products and services. Its vision is to become a leading international enterprise in the embedded industry.
- Avalue optimizes its new product development process to shorten design cycles and fulfill customer demands through quality assurance and efficiency.
ISO Certified, SW K-TEC(HQ) is located in Seoul Korea where low business risk is ensured, and SWE (manufacturing facility) is located in Yantai China where manufacturing infrastructure is well established and conveniently accessible from Korea and anywhere on the globe
Since its foundation in 1989, SW K-TEC has been successfully serving customers for over 25+ years, and over 13 years of experience in China has enabled our stable operation-capability
Roeslein & Associates, Inc. is an engineering and modular fabrication company headquartered in St. Louis, Missouri that provides technical services and engineered products to various process industries. It specializes in modularized solutions for large capital projects using an integrated Engineering, Fabrication, and Construction approach. The company has expanded its services to include industries like oil and gas, refining, petrochemicals, chemicals, and power generation. Whether pipe rack modules or complex process modules, Roeslein delivers customized and cost-effective modularized solutions to its customers.
Jonathan D. Harman has over eight years of experience as a process engineer specializing in pharmaceutical manufacturing. He has extensive experience with aseptic process design, cleaning processes, scale-up from lab to commercial production, and hazardous process design. Currently he works as a senior process engineer at Nanomi in the Netherlands, where he leads projects from pilot to commercial scale and manages technology transfers.
This document summarizes the challenges that small gage manufacturers face in applying the Quality System Requirements: Tooling & Equipment Supplement (TE Supplement) to obtain registration. While around 1,200 tooling and equipment suppliers are required by automakers to register under the TE Supplement, it was not designed with gage manufacturers in mind. Gage manufacturers produce measuring tools rather than production equipment, so requirements like machinery runoff tests do not apply. The document outlines one company's experience going through registration and recommends that gage manufacturers use experienced auditors and consultants to help implement conforming quality systems under the challenging requirements.
iFluids Engineering provides design, supply, installation, commissioning, and maintenance services for laboratory infrastructure projects. They have expertise in understanding customer requirements and applying standards to create efficient and beautiful laboratory environments. Their services include architecture, HVAC, electrical work, fume hoods, furniture, and testing/commissioning to deliver a turnkey laboratory solution.
This curriculum vitae is for Kevin Pratt, who has over 20 years of experience as an electrician and control/commissioning engineer working with process control systems. He currently works as the director and control engineer at his own company, KP Controls, where he has worked on major projects for Diageo distilleries. Some of his responsibilities include design, documentation, programming, commissioning, training, and optimizing automation systems. He has extensive experience working with PLCs and HMIs from manufacturers such as Siemens, Allen-Bradley, and Schneider.
Andrew Ritchie has over 15 years of experience in engineering roles in the pharmaceutical, consumer care, and medical device industries. He has expertise in project management, capital projects, equipment validation, and computer system validation. Currently he is an Engineering Director at Bayer Consumer Care where he manages engineers, consultants, and contractors supporting R&D equipment and facilities. Previously he held engineering leadership roles at Merck Consumer Care and Boston Scientific.
Automation World: Testing and Evaluation Improve Product Quality for Manufact...Michael Muldoon
1. The document discusses how automated testing systems are essential for manufacturers to ensure product quality, whether for luxury brands or safety-critical applications like aircraft engines.
2. It provides examples of companies that have implemented automated quality control and testing systems using robots, vision systems, and data collection to improve production quality and efficiency.
3. By precisely monitoring and controlling critical manufacturing processes, these automated quality control systems help reduce waste and increase yields while improving overall equipment performance and product consistency.
ISO Certified, SW K-TEC(HQ) is located in Seoul Korea where low business risk is ensured, and SWE (manufacturing facility) is located in Yantai China where manufacturing infrastructure is well established and conveniently accessible from Korea and anywhere on the globe
Since its foundation in 1989, SW K-TEC has been successfully serving customers for over 25+ years, and over 13 years of experience in China has enabled our stable operation-capability
Roeslein & Associates, Inc. is an engineering and modular fabrication company headquartered in St. Louis, Missouri that provides technical services and engineered products to various process industries. It specializes in modularized solutions for large capital projects using an integrated Engineering, Fabrication, and Construction approach. The company has expanded its services to include industries like oil and gas, refining, petrochemicals, chemicals, and power generation. Whether pipe rack modules or complex process modules, Roeslein delivers customized and cost-effective modularized solutions to its customers.
Jonathan D. Harman has over eight years of experience as a process engineer specializing in pharmaceutical manufacturing. He has extensive experience with aseptic process design, cleaning processes, scale-up from lab to commercial production, and hazardous process design. Currently he works as a senior process engineer at Nanomi in the Netherlands, where he leads projects from pilot to commercial scale and manages technology transfers.
This document summarizes the challenges that small gage manufacturers face in applying the Quality System Requirements: Tooling & Equipment Supplement (TE Supplement) to obtain registration. While around 1,200 tooling and equipment suppliers are required by automakers to register under the TE Supplement, it was not designed with gage manufacturers in mind. Gage manufacturers produce measuring tools rather than production equipment, so requirements like machinery runoff tests do not apply. The document outlines one company's experience going through registration and recommends that gage manufacturers use experienced auditors and consultants to help implement conforming quality systems under the challenging requirements.
iFluids Engineering provides design, supply, installation, commissioning, and maintenance services for laboratory infrastructure projects. They have expertise in understanding customer requirements and applying standards to create efficient and beautiful laboratory environments. Their services include architecture, HVAC, electrical work, fume hoods, furniture, and testing/commissioning to deliver a turnkey laboratory solution.
This curriculum vitae is for Kevin Pratt, who has over 20 years of experience as an electrician and control/commissioning engineer working with process control systems. He currently works as the director and control engineer at his own company, KP Controls, where he has worked on major projects for Diageo distilleries. Some of his responsibilities include design, documentation, programming, commissioning, training, and optimizing automation systems. He has extensive experience working with PLCs and HMIs from manufacturers such as Siemens, Allen-Bradley, and Schneider.
Andrew Ritchie has over 15 years of experience in engineering roles in the pharmaceutical, consumer care, and medical device industries. He has expertise in project management, capital projects, equipment validation, and computer system validation. Currently he is an Engineering Director at Bayer Consumer Care where he manages engineers, consultants, and contractors supporting R&D equipment and facilities. Previously he held engineering leadership roles at Merck Consumer Care and Boston Scientific.
Automation World: Testing and Evaluation Improve Product Quality for Manufact...Michael Muldoon
1. The document discusses how automated testing systems are essential for manufacturers to ensure product quality, whether for luxury brands or safety-critical applications like aircraft engines.
2. It provides examples of companies that have implemented automated quality control and testing systems using robots, vision systems, and data collection to improve production quality and efficiency.
3. By precisely monitoring and controlling critical manufacturing processes, these automated quality control systems help reduce waste and increase yields while improving overall equipment performance and product consistency.
Applied Chemical Technology Inc Statement of Qualification 2016-17Brian Pace
Applied Chemical Technology (ACT) is an engineering and fabrication company located in Florence, Alabama that has won state awards for excellence. They provide research, development, engineering, design, automation, and fabrication services for various industries. ACT has over 90,000 square feet of facilities for labs, design, fabrication, pilot plants, and more. They specialize in custom plant and equipment design and have experience across many industrial sectors. ACT emphasizes confidentiality and maintains clients' intellectual property. They offer a range of engineering, R&D, design, automation, and fabrication services to support their clients from initial concepts through commercial production.
The document provides an overview of consulting services offered by Si Consulting Group in areas such as quality engineering, new product development, supplier management, and compliance. Key services include quality management system implementation, new product introduction project management, product qualification, failure analysis, and audits. The consultants have extensive experience in semiconductor and electronics industries, with backgrounds in quality engineering, manufacturing, and process development.
Beratung Consultants Private Limited is an engineering consulting firm with over 15 years of experience in various fields. They offer services including commissioning, design and peer reviews, green building certifications, and allied services. Their team of over 15 people includes directors, technical and managerial leadership, and operational staff with expertise in LEED, commissioning, engineering, and project management. They have completed over 100 projects for clients in various sectors.
The document provides information about an individual with experience in mechanical engineering, quality assurance, and project management. It includes a summary of 16 years of experience in valves, pumps, quality control, supplier development, and process improvements. It also lists education and certification in areas such as six sigma, ISO standards, and valve repair. The objective is seeking a position to utilize skills and contribute to organizational goals.
Installation of a High Purity Water and WFI system with no unplanned downtime.
Latest available technology including online monitoring Microbial Detection, Reduced water consumption with start / stop / sanitize cycles of water pretreatment equipment.
Both systems designed with full redundancy to provide reliability.
Ravi Jha has over 9 years of experience in new product development and refrigeration engineering. He has expertise in developing products from initial concept through commercialization, including feasibility studies, design, prototyping, testing, and certification. He is proficient in Solidworks for 3D modeling and manages a team for design and testing projects. Ravi has experience handling refrigeration systems, performing calculations, and conducting tests to validate product performance. He has led the development of various commercial refrigeration and vending machines for companies in India and abroad.
This document contains a resume for Harshal Sopan Markande. It summarizes his educational qualifications including a Bachelor's Degree in Mechanical Engineering. It also outlines his over 4 years of work experience as a Quality Engineer and Junior Engineer, with responsibilities like quality assurance, implementing quality systems, handling customer complaints and ensuring compliance. His technical skills include knowledge of quality tools, ISO standards, and experience with processes like APQP and PPAP.
Infodream Articles about Continuous Improvement, Aerospace, Quality Control a...Infodream
Articles include: 1. Lack of Training to Blame for Slow Up-take of Continuous Improvement Tools in Aerospace -- 2. SPC Vision Reduces Inspection Stages and Empowers Operators at Turbomeca UK -- 3. Real time SPC & Quality Control at Mölnlycke Health Care supports FDA’s PAT
L-Con, Inc. is an EPC contractor based in Houston, Texas that provides engineering, procurement, and construction services for refining, midstream, petrochemical, power and storage projects. It has extensive safety and quality programs and has received several safety awards. L-Con offers full-service EPC capabilities for projects up to $150 million, with the goal of reducing costs and schedules through its integrated engineering, procurement, and construction approach. It serves numerous clients in the refining, petrochemical, and midstream industries.
William J. Maschinot is a process engineer with over 20 years of experience in operations management and process improvements. He has worked in various leadership roles directing manufacturing operations and implementing strategies to increase production capacity, quality, and safety while reducing costs. Maschinot is recognized for his expertise in Six Sigma and lean manufacturing methodologies and has worked on numerous projects from inception to completion. He has a proven track record of slashing costs and boosting productivity and efficiency across several industries.
KING-METER founded in 2004 is a professional enterprise, specialized in R&D, production and sales of displays, sensor and rental system for public E-bikes.
KING-METER is national grade High-tech enterprise. We own 96 patents and get many design awards. All the products are exported to Europe and own35% market share in Europe. All products have passed EN15194, CE, RoHs and REACH.
Our engineering risk audit is an independent fresh eyes’ expert assessment of your product under development, that examines its market entry readiness prior to production release.
It will unveil potential shortfalls and risks in construction, in design verification methods and in product creation processes.
Read more under www.innovensys.com
This document provides an overview of IMG Medical Group, a manufacturing group focused on medical device components. It summarizes IMG's mission to deliver high quality medical device manufacturing through engineering expertise and information technology. It outlines IMG's rapid growth, comprehensive manufacturing and R&D capabilities across multiple market sectors including medical, automotive, 3C, and office automation. Key details include IMG's proprietary IT systems, quality management systems, project management approach, and manufacturing resources that enable end-to-end solutions with
Internal Audits and Assessments with help of Enterprise SPiCEErnest Wallmueller
Internal audits and assessments were conducted at SVOX using Enterprise SPICE to help drive process improvements. Enterprise SPICE provided practices that could be used to assess processes at Capability Level 1 and monitor work products and process performance at Level 2. First experiences found Enterprise SPICE useful for many areas but weak in sales, marketing, finance, and portfolio management. Some processes required more granularity and clearly defined relationships. The assessments identified improvement actions and provided a means for continual process updates beyond external audits alone.
This document contains the resume of Jim Rinehart, who has over 30 years of experience in quality engineering, manufacturing, and product design. He has extensive training and certifications in quality management systems and processes like APQP, FMEA, PPAP, and Lean Six Sigma. His work experience includes roles as Quality Manager, Corporate Quality Engineer, Technical Coordinator, Consulting, and various engineering positions at several manufacturing companies. He has a background in mechanical engineering technology, CAD, and tool and die design.
DEWEI STAINLESS STEEL PIPE INDUSTRY is one of the largest major stainless steel piping material manufacturers in China.
Want to know more about us ? Please contact Simon Zhang
youngadm@126.com simon.zhang@deweigroup.cn
Mobile/Whatsapp/WeChat:+86 13586303108
Skype:youngadm
This document provides a summary of the industrial training completed by Ajay Kumar at Lumax Mannoh Allied Technologies from June 15th to July 15th, 2016. It includes an introduction to APQP (Advanced Product Quality Planning), the major elements and phases of APQP, examples of process outputs like an FFMEA (Failure Mode and Effects Analysis). It also summarizes key failure modes, effects, potential causes and controls as part of the FFMEA process for improving product quality.
Jim Cloer has over 15 years of experience in product engineering and process development across multiple industries. He specializes in developing and sustaining new products and processes, overseeing complex projects, and collaborating with clients. Recent projects at his side business DAC Aero involved designing replacement parts for obsolete firearm magazines using additive manufacturing. At previous employers he improved production processes, developed new products, and led cross-functional teams to resolve issues. He has a BS in Mechanical Engineering and expertise in design, manufacturing engineering, and technical tools like SolidWorks.
- Kamal Kumar Singh has over 12 years of experience in quality assurance and process excellence roles. He is currently serving as Senior Manager of Quality Assurance, Process Excellence, and Deputy Manager Representative at Yamaha Motors India Pvt. Ltd.
- He has expertise in designing and developing organizational systems, quality functions, conducting audits, and carrying out quality and new product development activities.
- He has completed Lean Six Sigma Black Belt certification and is certified in Six Sigma (Green Belt), internal and special process auditing, and train-the-trainer programs.
Enhancing Quality and Test in Medical Device Design - Part 2.pdfICS
Join us for the second installment of our webinar series, during which we explore the interesting and controversial aspects of quality and test solutions used in engineering for medical devices.
In this session, we'll weigh the pros, cons, motivations and alternatives for the canonical forms of software tests.
We'll also differentiate Medical Device Verification from other forms of testing to ensure you don't pay twice for the same result. And, we'll discuss how the concept of "reliability" in medical devices has evolved for software, and how "durability" might have more value.
If you’re developing medical devices and are trying to improve the value and efficacy of your quality budget, this session is a can't-miss!
Adaptive Innovations Corp is an engineering firm that specializes in automation, robotics, test equipment design and engineering services. They provide customized solutions for automation integration, machine vision systems, test fixtures, and more. Their team of engineers combines expertise in various industries to design cost-effective and robust equipment that helps customers improve productivity and quality.
Applied Chemical Technology Inc Statement of Qualification 2016-17Brian Pace
Applied Chemical Technology (ACT) is an engineering and fabrication company located in Florence, Alabama that has won state awards for excellence. They provide research, development, engineering, design, automation, and fabrication services for various industries. ACT has over 90,000 square feet of facilities for labs, design, fabrication, pilot plants, and more. They specialize in custom plant and equipment design and have experience across many industrial sectors. ACT emphasizes confidentiality and maintains clients' intellectual property. They offer a range of engineering, R&D, design, automation, and fabrication services to support their clients from initial concepts through commercial production.
The document provides an overview of consulting services offered by Si Consulting Group in areas such as quality engineering, new product development, supplier management, and compliance. Key services include quality management system implementation, new product introduction project management, product qualification, failure analysis, and audits. The consultants have extensive experience in semiconductor and electronics industries, with backgrounds in quality engineering, manufacturing, and process development.
Beratung Consultants Private Limited is an engineering consulting firm with over 15 years of experience in various fields. They offer services including commissioning, design and peer reviews, green building certifications, and allied services. Their team of over 15 people includes directors, technical and managerial leadership, and operational staff with expertise in LEED, commissioning, engineering, and project management. They have completed over 100 projects for clients in various sectors.
The document provides information about an individual with experience in mechanical engineering, quality assurance, and project management. It includes a summary of 16 years of experience in valves, pumps, quality control, supplier development, and process improvements. It also lists education and certification in areas such as six sigma, ISO standards, and valve repair. The objective is seeking a position to utilize skills and contribute to organizational goals.
Installation of a High Purity Water and WFI system with no unplanned downtime.
Latest available technology including online monitoring Microbial Detection, Reduced water consumption with start / stop / sanitize cycles of water pretreatment equipment.
Both systems designed with full redundancy to provide reliability.
Ravi Jha has over 9 years of experience in new product development and refrigeration engineering. He has expertise in developing products from initial concept through commercialization, including feasibility studies, design, prototyping, testing, and certification. He is proficient in Solidworks for 3D modeling and manages a team for design and testing projects. Ravi has experience handling refrigeration systems, performing calculations, and conducting tests to validate product performance. He has led the development of various commercial refrigeration and vending machines for companies in India and abroad.
This document contains a resume for Harshal Sopan Markande. It summarizes his educational qualifications including a Bachelor's Degree in Mechanical Engineering. It also outlines his over 4 years of work experience as a Quality Engineer and Junior Engineer, with responsibilities like quality assurance, implementing quality systems, handling customer complaints and ensuring compliance. His technical skills include knowledge of quality tools, ISO standards, and experience with processes like APQP and PPAP.
Infodream Articles about Continuous Improvement, Aerospace, Quality Control a...Infodream
Articles include: 1. Lack of Training to Blame for Slow Up-take of Continuous Improvement Tools in Aerospace -- 2. SPC Vision Reduces Inspection Stages and Empowers Operators at Turbomeca UK -- 3. Real time SPC & Quality Control at Mölnlycke Health Care supports FDA’s PAT
L-Con, Inc. is an EPC contractor based in Houston, Texas that provides engineering, procurement, and construction services for refining, midstream, petrochemical, power and storage projects. It has extensive safety and quality programs and has received several safety awards. L-Con offers full-service EPC capabilities for projects up to $150 million, with the goal of reducing costs and schedules through its integrated engineering, procurement, and construction approach. It serves numerous clients in the refining, petrochemical, and midstream industries.
William J. Maschinot is a process engineer with over 20 years of experience in operations management and process improvements. He has worked in various leadership roles directing manufacturing operations and implementing strategies to increase production capacity, quality, and safety while reducing costs. Maschinot is recognized for his expertise in Six Sigma and lean manufacturing methodologies and has worked on numerous projects from inception to completion. He has a proven track record of slashing costs and boosting productivity and efficiency across several industries.
KING-METER founded in 2004 is a professional enterprise, specialized in R&D, production and sales of displays, sensor and rental system for public E-bikes.
KING-METER is national grade High-tech enterprise. We own 96 patents and get many design awards. All the products are exported to Europe and own35% market share in Europe. All products have passed EN15194, CE, RoHs and REACH.
Our engineering risk audit is an independent fresh eyes’ expert assessment of your product under development, that examines its market entry readiness prior to production release.
It will unveil potential shortfalls and risks in construction, in design verification methods and in product creation processes.
Read more under www.innovensys.com
This document provides an overview of IMG Medical Group, a manufacturing group focused on medical device components. It summarizes IMG's mission to deliver high quality medical device manufacturing through engineering expertise and information technology. It outlines IMG's rapid growth, comprehensive manufacturing and R&D capabilities across multiple market sectors including medical, automotive, 3C, and office automation. Key details include IMG's proprietary IT systems, quality management systems, project management approach, and manufacturing resources that enable end-to-end solutions with
Internal Audits and Assessments with help of Enterprise SPiCEErnest Wallmueller
Internal audits and assessments were conducted at SVOX using Enterprise SPICE to help drive process improvements. Enterprise SPICE provided practices that could be used to assess processes at Capability Level 1 and monitor work products and process performance at Level 2. First experiences found Enterprise SPICE useful for many areas but weak in sales, marketing, finance, and portfolio management. Some processes required more granularity and clearly defined relationships. The assessments identified improvement actions and provided a means for continual process updates beyond external audits alone.
This document contains the resume of Jim Rinehart, who has over 30 years of experience in quality engineering, manufacturing, and product design. He has extensive training and certifications in quality management systems and processes like APQP, FMEA, PPAP, and Lean Six Sigma. His work experience includes roles as Quality Manager, Corporate Quality Engineer, Technical Coordinator, Consulting, and various engineering positions at several manufacturing companies. He has a background in mechanical engineering technology, CAD, and tool and die design.
DEWEI STAINLESS STEEL PIPE INDUSTRY is one of the largest major stainless steel piping material manufacturers in China.
Want to know more about us ? Please contact Simon Zhang
youngadm@126.com simon.zhang@deweigroup.cn
Mobile/Whatsapp/WeChat:+86 13586303108
Skype:youngadm
This document provides a summary of the industrial training completed by Ajay Kumar at Lumax Mannoh Allied Technologies from June 15th to July 15th, 2016. It includes an introduction to APQP (Advanced Product Quality Planning), the major elements and phases of APQP, examples of process outputs like an FFMEA (Failure Mode and Effects Analysis). It also summarizes key failure modes, effects, potential causes and controls as part of the FFMEA process for improving product quality.
Jim Cloer has over 15 years of experience in product engineering and process development across multiple industries. He specializes in developing and sustaining new products and processes, overseeing complex projects, and collaborating with clients. Recent projects at his side business DAC Aero involved designing replacement parts for obsolete firearm magazines using additive manufacturing. At previous employers he improved production processes, developed new products, and led cross-functional teams to resolve issues. He has a BS in Mechanical Engineering and expertise in design, manufacturing engineering, and technical tools like SolidWorks.
- Kamal Kumar Singh has over 12 years of experience in quality assurance and process excellence roles. He is currently serving as Senior Manager of Quality Assurance, Process Excellence, and Deputy Manager Representative at Yamaha Motors India Pvt. Ltd.
- He has expertise in designing and developing organizational systems, quality functions, conducting audits, and carrying out quality and new product development activities.
- He has completed Lean Six Sigma Black Belt certification and is certified in Six Sigma (Green Belt), internal and special process auditing, and train-the-trainer programs.
Enhancing Quality and Test in Medical Device Design - Part 2.pdfICS
Join us for the second installment of our webinar series, during which we explore the interesting and controversial aspects of quality and test solutions used in engineering for medical devices.
In this session, we'll weigh the pros, cons, motivations and alternatives for the canonical forms of software tests.
We'll also differentiate Medical Device Verification from other forms of testing to ensure you don't pay twice for the same result. And, we'll discuss how the concept of "reliability" in medical devices has evolved for software, and how "durability" might have more value.
If you’re developing medical devices and are trying to improve the value and efficacy of your quality budget, this session is a can't-miss!
Adaptive Innovations Corp is an engineering firm that specializes in automation, robotics, test equipment design and engineering services. They provide customized solutions for automation integration, machine vision systems, test fixtures, and more. Their team of engineers combines expertise in various industries to design cost-effective and robust equipment that helps customers improve productivity and quality.
Finpower Aircon L.L.C, a Maxell Group company, incorporated in 2012, is a proud and leading HVAC solution provider, manufacturing energy-efficient air-conditioning equipment as well as kitchen ventilation systems, for all kinds of commercial, residential as well as a multitude of other special application and bespoke projects.
Ever since our inception more than half a decade ago, Finpower has been enhancing the lives of their customers, helping them breathe cooler and cleaner air and at the same time providing a refreshing atmosphere through our best in class and reliable HVAC products.
An introduction to OVHcloud’s industrial innovations and what they mean for y...OVHcloud
OVHcloud’s innovations are built on the successful industrialisation of our supply chain and internal manufacturing capabilities, which allows us to deploy first-class bare metal in as little as 120 seconds. Patrick-Gilles Maillot will be taking a close look at how this was achieved, and what it means for the scalability of your own evolving infrastructure.
ONG was established in 1993 and is headquartered in Cork, Ireland with offices in Doha, Qatar and Florida, USA. They are a worldwide solution provider of industrial automation and MES systems, accredited to ISO 9000 and GAMP 5. ONG has over 20 years of experience integrating systems from manufacturers including Wonderware, Rockwell, and Siemens across industries like food and beverage, pharmaceuticals, manufacturing, and semiconductors. They provide full project life cycle support including custom applications, historians, production tracking, ERP integration, training, and maintenance services.
Industrial Automation Engineering - EPIC Industrial AutomationEPIC Systems
Learn about EPIC's industrial automation engineering services and capabilities. We are a process automation firm with 25+ years of experience. Visit www.epicindustrialautomation.com or call 314-207-4250 to learn more or get a quote.
- APW President Systems has been a market leader in enclosures since 1981, with two manufacturing facilities in Bangalore and Pune equipped with modern machinery.
- They have over 5000 customers across India, the Middle East, Australia and the USA, supported by sales offices and dealers.
- The company offers a wide range of enclosure products and value-added services for data center infrastructure, and aims to deliver customer value through innovation.
Configuration Engineering for Invitro-Diagnostic Product DevelopmentArnold Rudorfer
This talk on Configuration Engineering (= Configuration Management for Platform development) will discuss challenges, solution approaches and engineering experiences in invitro-diagnostic (IVD) product development. CE is an emerging discipline in various industries (such as medical devices, automotive, avionics/ space, …) which has developed from Configuration Management practices for single products. Further, examples presented will highlight the underlying CE concepts as well as address tool issues including observed benefits over the introduction.
Control engineering presentation 2009 submissionrselina
ONG Automation Ltd is an automation solutions provider that has delivered over 800K points of automation hardware to customers in industries like chemicals, pharmaceuticals, biotech, semiconductors, utilities, and food & beverage since 1993. It offers design, supply, implementation, support, training, and compliance services from its centers of excellence globally. ONG prides itself on technical competence and uses quality management systems to ensure customer satisfaction.
The candidate has over 30 years of experience in manufacturing. He has specialized experience with fabrication processes like wire saws, grinding, and thermal spray coating applications. He is skilled in quality management processes like 5S, statistical process control, and lean manufacturing. Most recently, he has worked in roles involving fabrication, inspection, and quality control at GT Advanced and as an abrasive waterjet operator.
The candidate has over 30 years of experience in manufacturing. He has held roles in fabrication, inspection, grinding, mapping and quality management. More recently, he worked as an abrasive water jet operator and plasma sprayer. He is skilled in various processes like thermal spray, robotics, CNC machining and quality control. The candidate aims to improve processes through organization, standardization and training.
Configuration Engineering for Invitro-Diagnostic (IVD) Product DevelopmentArnold Rudorfer
This talk on Configuration Engineering (= Configuration Management for Platform development) will discuss challenges, solution approaches and engineering experiences in invitro-diagnostic (IVD) product development. CE is an emerging discipline in various industries (such as medical devices, automotive, avionics/ space, …) which has developed from Configuration Management practices for single products. Further, examples presented will highlight the underlying CE concepts as well as address tool issues including observed benefits over the introduction.
Introducing Software Development TechnologiesJohn Miller
SDT provides software testing services and products to help customers create quality software on time and on budget. They ensure predictable quality, minimize risks, and reduce costs through their rightsourcing model which blends internal and external testing resources. SDT's Unified TestPro is a test automation tool that supports various software types and allows for parallel design and automation to increase productivity.
SW K-TEC Company Overview presented by HTCS Jan 2018HTCS LLC
SW K-TEC., Inc. is the ideal choice for those who are seeking customized low to mid-volume production solutions from dedicated and agile manufacturing partners.
SW K-TEC is a turn-key provider of electronics manufacturing services, successfully having served customers with product development and high-quality OEM services for over 25 years
.
SW K-TEC is a turn-key provider of electronics manufacturing services, successfully having served customers with product development and high-quality OEM services for over 25 years. Manufacturing high-quality product has been always the most important factor for SW K-TEC. Through seamless quality controls in multiple phases, SWKT ensures the finest-quality product manufacturing.
J-Squared Technologies Inc. is a global engineering firm specializing in product development, maintenance, repair and overhaul for mission-critical systems. It has offices in Canada and the US and partners internationally. The company has over 50 skilled employees and is certified in quality management and aerospace standards. It offers turn-key product development and life-cycle support services, including embedded systems engineering, mechanical engineering, and product life-cycle management. Customers choose J-Squared for its experience in safety-critical programs and ability to deliver projects on schedule.
Luis Montoya Valenzuela has over 18 years of experience in test development for the electronics, medical, automotive, and industrial industries. He has expertise in designing both hardware and software test solutions using tools like LabVIEW, TestStand, and Pro-E. Currently he works as a Test Automation Engineer automating electrical tests for wireless products using LabVIEW and test equipment. Previously he was a Test Development Engineer designing test fixtures, programming in LabVIEW and TestStand, and leading projects to develop and deploy automated test equipment.
This document summarizes the applicant's work experience, education, and qualifications. He has over 25 years of experience in manufacturing, with a focus on thermal spray processes, robotics programming, and quality management. Most recently, he worked at GT Advanced applying his experience to improve processes and help resolve issues. He also held senior positions at Honeywell Aerospace where he consistently enhanced work procedures and reduced manufacturing costs.
Similar to Touch The Future with Avalue Technology Inc (20)
The CBC machine is a common diagnostic tool used by doctors to measure a patient's red blood cell count, white blood cell count and platelet count. The machine uses a small sample of the patient's blood, which is then placed into special tubes and analyzed. The results of the analysis are then displayed on a screen for the doctor to review. The CBC machine is an important tool for diagnosing various conditions, such as anemia, infection and leukemia. It can also help to monitor a patient's response to treatment.
DEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODELgerogepatton
As digital technology becomes more deeply embedded in power systems, protecting the communication
networks of Smart Grids (SG) has emerged as a critical concern. Distributed Network Protocol 3 (DNP3)
represents a multi-tiered application layer protocol extensively utilized in Supervisory Control and Data
Acquisition (SCADA)-based smart grids to facilitate real-time data gathering and control functionalities.
Robust Intrusion Detection Systems (IDS) are necessary for early threat detection and mitigation because
of the interconnection of these networks, which makes them vulnerable to a variety of cyberattacks. To
solve this issue, this paper develops a hybrid Deep Learning (DL) model specifically designed for intrusion
detection in smart grids. The proposed approach is a combination of the Convolutional Neural Network
(CNN) and the Long-Short-Term Memory algorithms (LSTM). We employed a recent intrusion detection
dataset (DNP3), which focuses on unauthorized commands and Denial of Service (DoS) cyberattacks, to
train and test our model. The results of our experiments show that our CNN-LSTM method is much better
at finding smart grid intrusions than other deep learning algorithms used for classification. In addition,
our proposed approach improves accuracy, precision, recall, and F1 score, achieving a high detection
accuracy rate of 99.50%.
Embedded machine learning-based road conditions and driving behavior monitoringIJECEIAES
Car accident rates have increased in recent years, resulting in losses in human lives, properties, and other financial costs. An embedded machine learning-based system is developed to address this critical issue. The system can monitor road conditions, detect driving patterns, and identify aggressive driving behaviors. The system is based on neural networks trained on a comprehensive dataset of driving events, driving styles, and road conditions. The system effectively detects potential risks and helps mitigate the frequency and impact of accidents. The primary goal is to ensure the safety of drivers and vehicles. Collecting data involved gathering information on three key road events: normal street and normal drive, speed bumps, circular yellow speed bumps, and three aggressive driving actions: sudden start, sudden stop, and sudden entry. The gathered data is processed and analyzed using a machine learning system designed for limited power and memory devices. The developed system resulted in 91.9% accuracy, 93.6% precision, and 92% recall. The achieved inference time on an Arduino Nano 33 BLE Sense with a 32-bit CPU running at 64 MHz is 34 ms and requires 2.6 kB peak RAM and 139.9 kB program flash memory, making it suitable for resource-constrained embedded systems.
Electric vehicle and photovoltaic advanced roles in enhancing the financial p...IJECEIAES
Climate change's impact on the planet forced the United Nations and governments to promote green energies and electric transportation. The deployments of photovoltaic (PV) and electric vehicle (EV) systems gained stronger momentum due to their numerous advantages over fossil fuel types. The advantages go beyond sustainability to reach financial support and stability. The work in this paper introduces the hybrid system between PV and EV to support industrial and commercial plants. This paper covers the theoretical framework of the proposed hybrid system including the required equation to complete the cost analysis when PV and EV are present. In addition, the proposed design diagram which sets the priorities and requirements of the system is presented. The proposed approach allows setup to advance their power stability, especially during power outages. The presented information supports researchers and plant owners to complete the necessary analysis while promoting the deployment of clean energy. The result of a case study that represents a dairy milk farmer supports the theoretical works and highlights its advanced benefits to existing plants. The short return on investment of the proposed approach supports the paper's novelty approach for the sustainable electrical system. In addition, the proposed system allows for an isolated power setup without the need for a transmission line which enhances the safety of the electrical network
Batteries -Introduction – Types of Batteries – discharging and charging of battery - characteristics of battery –battery rating- various tests on battery- – Primary battery: silver button cell- Secondary battery :Ni-Cd battery-modern battery: lithium ion battery-maintenance of batteries-choices of batteries for electric vehicle applications.
Fuel Cells: Introduction- importance and classification of fuel cells - description, principle, components, applications of fuel cells: H2-O2 fuel cell, alkaline fuel cell, molten carbonate fuel cell and direct methanol fuel cells.
Harnessing WebAssembly for Real-time Stateless Streaming PipelinesChristina Lin
Traditionally, dealing with real-time data pipelines has involved significant overhead, even for straightforward tasks like data transformation or masking. However, in this talk, we’ll venture into the dynamic realm of WebAssembly (WASM) and discover how it can revolutionize the creation of stateless streaming pipelines within a Kafka (Redpanda) broker. These pipelines are adept at managing low-latency, high-data-volume scenarios.
UNLOCKING HEALTHCARE 4.0: NAVIGATING CRITICAL SUCCESS FACTORS FOR EFFECTIVE I...amsjournal
The Fourth Industrial Revolution is transforming industries, including healthcare, by integrating digital,
physical, and biological technologies. This study examines the integration of 4.0 technologies into
healthcare, identifying success factors and challenges through interviews with 70 stakeholders from 33
countries. Healthcare is evolving significantly, with varied objectives across nations aiming to improve
population health. The study explores stakeholders' perceptions on critical success factors, identifying
challenges such as insufficiently trained personnel, organizational silos, and structural barriers to data
exchange. Facilitators for integration include cost reduction initiatives and interoperability policies.
Technologies like IoT, Big Data, AI, Machine Learning, and robotics enhance diagnostics, treatment
precision, and real-time monitoring, reducing errors and optimizing resource utilization. Automation
improves employee satisfaction and patient care, while Blockchain and telemedicine drive cost reductions.
Successful integration requires skilled professionals and supportive policies, promising efficient resource
use, lower error rates, and accelerated processes, leading to optimized global healthcare outcomes.
Literature Review Basics and Understanding Reference Management.pptxDr Ramhari Poudyal
Three-day training on academic research focuses on analytical tools at United Technical College, supported by the University Grant Commission, Nepal. 24-26 May 2024
Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...shadow0702a
This document serves as a comprehensive step-by-step guide on how to effectively use PyCharm for remote debugging of the Windows Subsystem for Linux (WSL) on a local Windows machine. It meticulously outlines several critical steps in the process, starting with the crucial task of enabling permissions, followed by the installation and configuration of WSL.
The guide then proceeds to explain how to set up the SSH service within the WSL environment, an integral part of the process. Alongside this, it also provides detailed instructions on how to modify the inbound rules of the Windows firewall to facilitate the process, ensuring that there are no connectivity issues that could potentially hinder the debugging process.
The document further emphasizes on the importance of checking the connection between the Windows and WSL environments, providing instructions on how to ensure that the connection is optimal and ready for remote debugging.
It also offers an in-depth guide on how to configure the WSL interpreter and files within the PyCharm environment. This is essential for ensuring that the debugging process is set up correctly and that the program can be run effectively within the WSL terminal.
Additionally, the document provides guidance on how to set up breakpoints for debugging, a fundamental aspect of the debugging process which allows the developer to stop the execution of their code at certain points and inspect their program at those stages.
Finally, the document concludes by providing a link to a reference blog. This blog offers additional information and guidance on configuring the remote Python interpreter in PyCharm, providing the reader with a well-rounded understanding of the process.
Introduction- e - waste – definition - sources of e-waste– hazardous substances in e-waste - effects of e-waste on environment and human health- need for e-waste management– e-waste handling rules - waste minimization techniques for managing e-waste – recycling of e-waste - disposal treatment methods of e- waste – mechanism of extraction of precious metal from leaching solution-global Scenario of E-waste – E-waste in India- case studies.

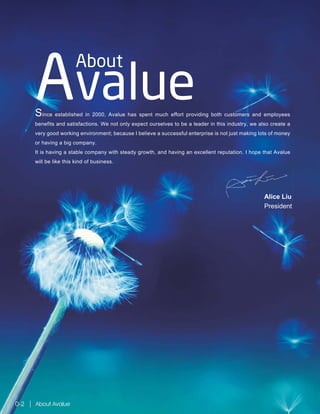

2. Alice Liu
President
Since established in 2000, Avalue has spent much effort providing both customers and employees
benefits and satisfactions. We not only expect ourselves to be a leader in this industry, we also create a
very good working environment; because I believe a successful enterprise is not just making lots of money
or having a big company.
It is having a stable company with steady growth, and having an excellent reputation. I hope that Avalue
will be like this kind of business.
About
Avalue
About Avalue0-2
Alice Liu

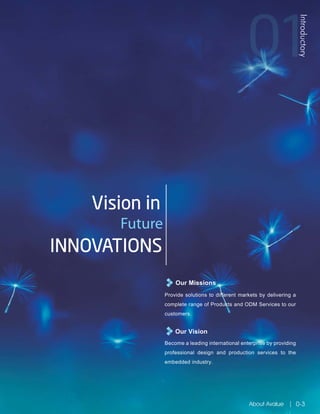

3. Our Missions
Our Vision
Provide solutions to different markets by delivering a
complete range of Products and ODM Services to our
customers.
Become a leading international enterprise by providing
professional design and production services to the
embedded industry.
Vision in
Future
INNOVATIONS
Introductory
About Avalue 0-3

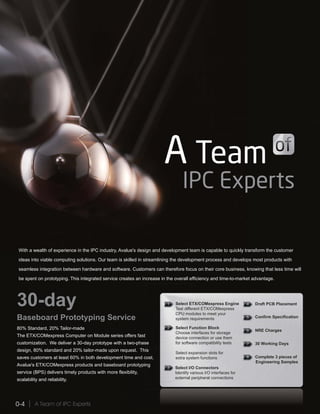

4. A Team of IPC Experts0-4
With a wealth of experience in the IPC industry, Avalue's design and development team is capable to quickly transform the customer
ideas into viable computing solutions. Our team is skilled in streamlining the development process and develops most products with
seamless integration between hardware and software. Customers can therefore focus on their core business, knowing that less time will
be spent on prototyping. This integrated service creates an increase in the overall efficiency and time-to-market advantage.
80% Standard, 20% Tailor-made
The ETX/COMexpress Computer on Module series offers fast
customization. We deliver a 30-day prototype with a two-phase
design, 80% standard and 20% tailor-made upon request. This
saves customers at least 60% in both development time and cost.
Avalue's ETX/COMexpress products and baseboard prototyping
service (BPS) delivers timely products with more flexibility,
scalability and reliability.
Baseboard Prototyping Service
30-day Select ETX/COMexpress Engine
Test different ETX/COMexpress
CPU modules to meet your
system requirements
Select Function Block
Choose interfaces for storage
device connection or use them
for software compatibility tests
Select expansion slots for
extra system functions
Draft PCB Placement
Confirm Specification
NRE Charges
30 Working Days
Complete 3 pieces of
Engineering Samples
Select I/O Connectors
Identify various I/O interfaces for
external peripheral connections
Select E
T t diff
11
se
Select F
Choose i
device co
for softwa
Test diffe
CPU mod
system re
is
cost.
ng
Select ex
extra sys
Select I/O
Identify v
external p
i
ces for
tions
Complet
Enginee
hem
ests 30 Work
age
h
NRE Cha
hem
Engine
press
Draft PC
press
r
Confirm
2
3
4
6
7
5
8

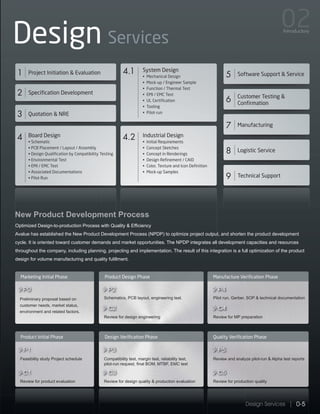

5. Optimized Design-to-production Process with Quality & Efficiency
Avalue has established the New Product Development Process (NPDP) to optimize project output, and shorten the product development
cycle. It is oriented toward customer demands and market opportunities. The NPDP integrates all development capacities and resources
throughout the company, including planning, projecting and implementation. The result of this integration is a full optimization of the product
design for volume manufacturing and quality fulillment.
New Product Development Process
Design Services
Preliminary proposal based on
customer needs, market status,
environment and related factors.
Feasibility study Project schedule
Review for product evaluation
Schematics, PCB layout, engineering test.
Review for design engineering
Compatibility test, margin test, reliability test,
pilot-run request, final BOM, MTBF, EMC test
Review for design quality & production evaluation
Pilot run, Gerber, SOP & technical documentation
Review for MP preparation
Review and analyze pilot-run & Alpha test reports
Review for production quality
9
1
2
3
4
4.1
4.2
5
6
7
8
Project Initiation & Evaluation
Specification Development
Quotation & NRE
Board Design Industrial Design
Software Support & Service
Design Services 0-5
Introductory
Preliminary proposal based on
customer needs, market status,
environment and related factors.
Feasibility study Project schedule
Review for product evaluation
Schematics, PCB layout, engineering test.
Review for design engineering
Compatibility test, margin test, reliability test,
pilot-run request, final BOM, MTBF, EMC test
Review for design quality & production evaluation
Pilot run, Gerber,
Review for MP pre
Review and analy
Review for produc
P1
C1
P3
C3
P5
C5
P2
C2
P4
C4
P0

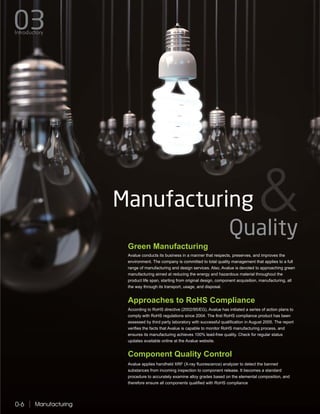

6. Manufacturing0-6
Avalue applies handheld XRF (X-ray fluorescence) analyzer to detect the banned
substances from incoming inspection to component release. It becomes a standard
procedure to accurately examine alloy grades based on the elemental composition, and
therefore ensure all components qualified with RoHS compliance
Component Quality Control
Green Manufacturing
Avalue conducts its business in a manner that respects, preserves, and improves the
environment. The company is committed to total quality management that applies to a full
range of manufacturing and design services. Also, Avalue is devoted to approaching green
manufacturing aimed at reducing the energy and hazardous material throughout the
product life span, starting from original design, component acquisition, manufacturing, all
the way through its transport, usage, and disposal.
Approaches to RoHS Compliance
According to RoHS directive (2002/95/EG), Avalue has initiated a series of action plans to
comply with RoHS regulations since 2004. The first RoHS compliance product has been
assessed by third party laboratory with successful qualification in August 2005. The report
verifies the facts that Avalue is capable to monitor RoHS manufacturing process, and
ensures its manufacturing achieves 100% lead-free quality. Check for regular status
updates available online at the Avalue website.
Manufacturing
Quality
03Introductory

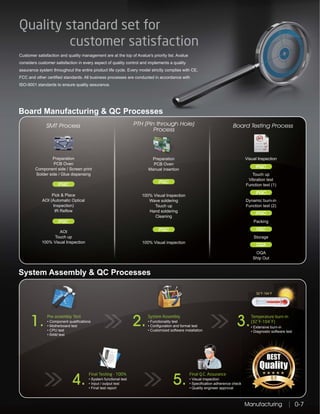

7. Quality standard set for
customer satisfaction
Customer satisfaction and quality management are at the top of Avalue's priority list. Avalue
considers customer satisfaction in every aspect of quality control and implements a quality
assurance system throughout the entire product life cycle. Every model strictly complies with CE,
FCC and other certified standards. All business processes are conducted in accordance with
ISO-9001 standards to ensure quality assurance.
System Assembly & QC Processes
Board Manufacturing & QC Processes
Manufacturing 0-7
Visual Inspection
Touch up
Vibration test
Function test (1)
Dynamic burn-in
Function test (2)
Packing
Storage
OQA
Ship Out
Board Testing ProcessPTH (Pin through Hole)
Process
Preparation
PCB Oven
Manual insertion
100% Visual Inspection
Wave soldering
Touch up
Hand soldering
Cleaning
100% Visual inspection
IPQC
IPQC
IPQC
IPQC
IPQC
IPQC
IPQC
FQC
OQA
SMT Process
Preparation
PCB Oven
Component side / Screen print
Solder side / Glue dispensing
Pick & Place
AOI (Automatic Optical
Inspection)
IR Reflow
AOI
Touch up
100% Visual Inspection
Pre-assembly Test System Assembly
Final Testing - 100%
Temperature burn-in
Final Q.C. Assurance
1. 2. 3.
4. 5.
Temperature burn-in
Visual Inspection
Board Testing ProcessPTH (Pin through Hole)
Process
Preparation
PCB Oven
Ma
IPQC
SMT Process
Preparation
PCB Oven
Component side / Screen print
Solder side / Glue dispensing
Pick & P
AOI (A
Pre-assembly Test
8. Support & Service0-8
Support
Service
The web site provides the most update information and free download
sheets.
Avalue provides eRMA (Return of Material Authorization) service that
or write to us on www.avalue.com.tw. Our sales staff is committed to
Listen & Respond to Your Needs
Carefree system development
Hardware Warranty Support
Sales Services
Technical Services
e-RMA Service

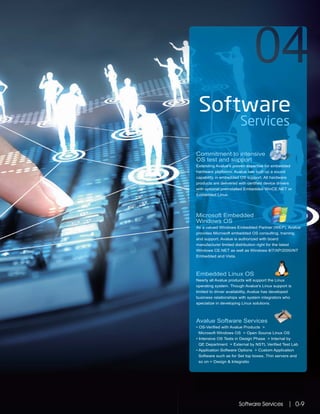

9. Software
Services
Microsoft Embedded
Windows OS
As a valued Windows Embedded Partner (WEP), Avalue
provides Microsoft embedded OS consulting, training,
and support. Avalue is authorized with board
manufacturer limited distribution right for the latest
Windows CE.NET as well as Windows 8/7/XP/2000/NT
Embedded and Vista.
Avalue Software Services
Commitment to intensive
OS test and support
hardware platforms, Avalue has built up a sound
products are delivered with certified device drivers
with optional preinstalled Embedded WinCE.NET or
Software Services 0-9

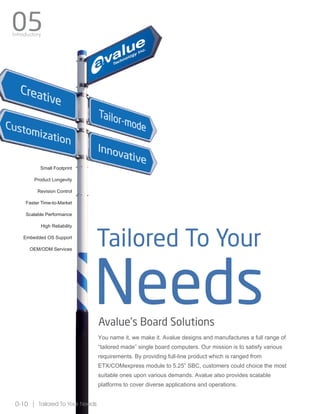

10. You name it, we make it. Avalue designs and manufactures a full range of
“tailored made” single board computers. Our mission is to satisfy various
requirements. By providing full-line product which is ranged from
ETX/COMexpress module to 5.25” SBC, customers could choice the most
suitable ones upon various demands. Avalue also provides scalable
platforms to cover diverse applications and operations.
Avalue’s Board Solutions
Tailored To Your
Needs
Tailored To Your Needs0-10
05Introductory
Faster Time-to-Market
Scalable Performance
High Reliability
Product Longevity
Revision Control
Small Footprint
Embedded OS Support
OEM/ODM Services

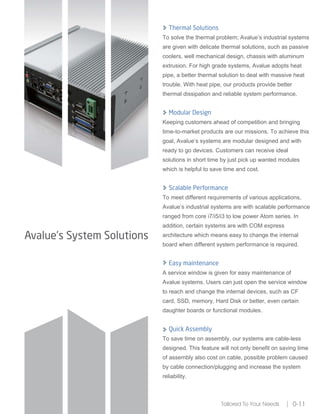

11. Avalue’s System Solutions
Tailored To Your Needs 0-11
Thermal Solutions
To solve the thermal problem; Avalue’s industrial systems
are given with delicate thermal solutions, such as passive
coolers, well mechanical design, chassis with aluminum
extrusion. For high grade systems, Avalue adopts heat
pipe, a better thermal solution to deal with massive heat
trouble. With heat pipe, our products provide better
thermal dissipation and reliable system performance.
Modular Design
Keeping customers ahead of competition and bringing
time-to-market products are our missions. To achieve this
goal, Avalue’s systems are modular designed and with
ready to go devices. Customers can receive ideal
solutions in short time by just pick up wanted modules
which is helpful to save time and cost.
Scalable Performance
To meet different requirements of various applications,
Avalue’s industrial systems are with scalable performance
ranged from core i7/i5/i3 to low power Atom series. In
addition, certain systems are with COM express
architecture which means easy to change the internal
board when different system performance is required.
Easy maintenance
A service window is given for easy maintenance of
Avalue systems. Users can just open the service window
to reach and change the internal devices, such as CF
card, SSD, memory, Hard Disk or better, even certain
daughter boards or functional modules.
Quick Assembly
To save time on assembly, our systems are cable-less
designed. This feature will not only benefit on saving time
of assembly also cost on cable, possible problem caused
by cable connection/plugging and increase the system
reliability.
12. Tailored to your Need
Avalue accumulates more than 10 year design and development knowledge
in Single Board Design & System Level Design for Embedded Market & Vertical
Field. We deliver an outsourcing turn key solution that meet customer specific
requirements from Component Sourcing, ID design to complicated system
product.
ODM Turn-Key Services
Industrial Design
Structure Analysis
Rapid metal prototyping
CNC, Laser cutting
Aluminum Extrusion
Plastic tooling
IP standard
Thermal Simulation
Longevity Support
Wide Temperature Range
Wide Range Voltage Input
IP Standard Comply
Sunlight Readable
Anti Shock/Vibration
Schematics
PCB layout
Power circuit plan
Prototype Fabrication
Digital, Analog, and
Mixed Circuit Design
Consultancy
Solutions Design
Gaming, POS/Kiosk, Medical,

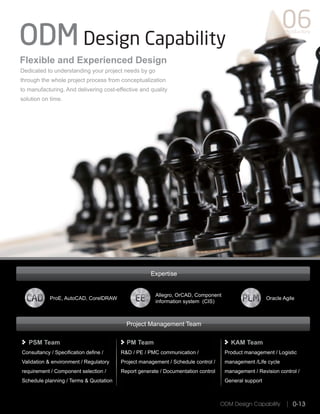

13. ODM Design Capability
Flexible and Experienced Design
Dedicated to understanding your project needs by go
through the whole project process from conceptualization
to manufacturing. And delivering cost-effective and quality
solution on time.
Expertise
ProE, AutoCAD, CorelDRAW
Allegro, OrCAD, Component
information system (CIS)
Oracle Agile
PSM Team KAM TeamPM Team
Consultancy / Specification define /
Validation & environment / Regulatory
requirement / Component selection /
Schedule planning / Terms & Quotation
R&D / PE / PMC communication /
Project management / Schedule control /
Report generate / Documentation control
Product management / Logistic
management /Life cycle
management / Revision control /
General support
Expertrr ise
Project Management Team
InInnI troductory

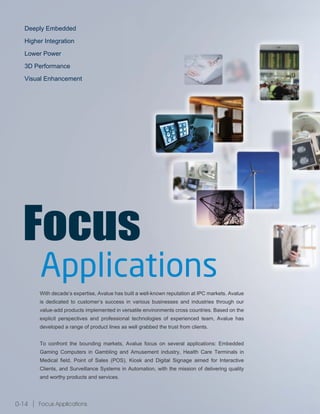

14. Deeply Embedded
Higher Integration
Lower Power
3D Performance
Visual Enhancement
Applications
Focus
With decade’s expertise, Avalue has built a well-known reputation at IPC markets. Avalue
is dedicated to customer’s success in various businesses and industries through our
value-add products implemented in versatile environments cross countries. Based on the
explicit perspectives and professional technologies of experienced team, Avalue has
developed a range of product lines as well grabbed the trust from clients.
To confront the bounding markets, Avalue focus on several applications: Embedded
Gaming Computers in Gambling and Amusement industry, Health Care Terminals in
Medical field, Point of Sales (POS), Kiosk and Digital Signage aimed for Interactive
Clients, and Surveillance Systems in Automation, with the mission of delivering quality
and worthy products and services.
Focus Applications0-14

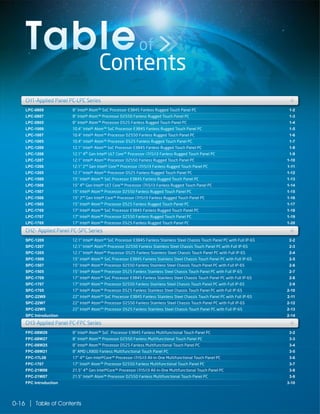

16. Table of Contents0-16
Contents
Tableof
LPC-0809

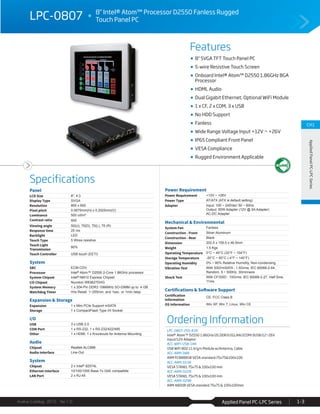

LPC-0807
LPC-0805
LPC-1009
LPC-1007
LPC-1005
LPC-1209
LPC-1208
LPC-1207
LPC-1206
LPC-1205
LPC-1509
LPC-1508

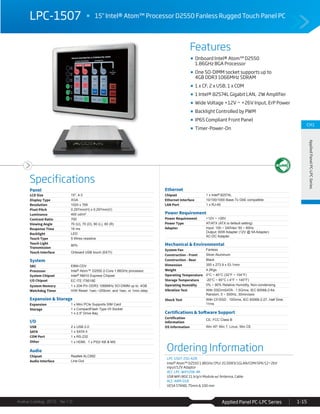

LPC-1507
LPC-1506
LPC-1505
LPC-1709
LPC-1707
LPC-1705
1-2
1-3
1-4
1-5
1-6
1-7
1-8
1-9
1-10
1-11
1-12
1-13
1-14
1-15
1-16
1-17
1-18
1-19
1-20
CH1-Applied Panel PC-LPC Series

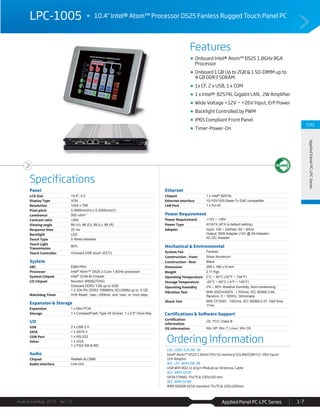

LPC-1005 1-7

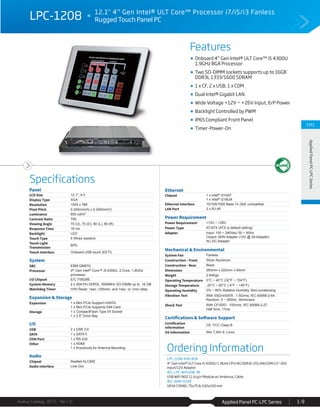

LPC-1208 1-9

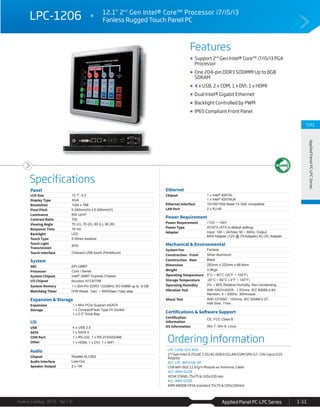

LPC-1206 1-11
LPC-1509 1-13
LPC-1507 1-15
LPC-1505 1-17
SPC-1209
SPC-1207
SPC-1205
SPC-1509
SPC-1507
SPC-1505
SPC-1709
SPC-1707

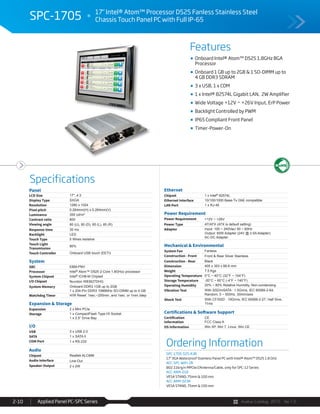

SPC-1705
SPC-22W9
SPC-22W7
SPC-22W5
SPC Introduction
2-2
2-3
2-4
2-5
2-6
2-7
2-8
2-9
2-10
2-11
2-12
2-13
2-14
12.1" Intel® Atom™ SoC Processor E3845 Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65
12.1" Intel® Atom™ Processor D2550 Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65
12.1" Intel® Atom™ Processor D525 Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65
15" Intel® Atom™ SoC Processor E3845 Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65
15" Intel® Atom™ Processor D2550 Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65
15" Intel® Atom™ Processor D525 Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65
17" Intel® Atom™ SoC Processor E3845 Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65
17" Intel® Atom™ Processor D2550 Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65
17" Intel® Atom™ Processor D525 Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65
22" Intel® Atom™ SoC Processor E3845 Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65
22" Intel® Atom™ Processor D2550 Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65
22" Intel® Atom™ Processor D525 Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65

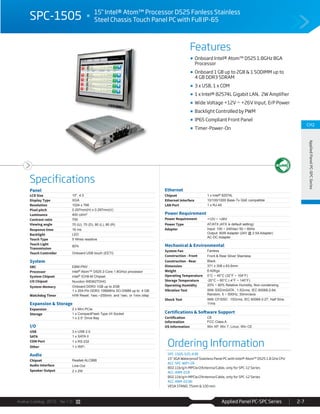

SPC-1505 2-715" Intel® Atom™ Processor D525 Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65

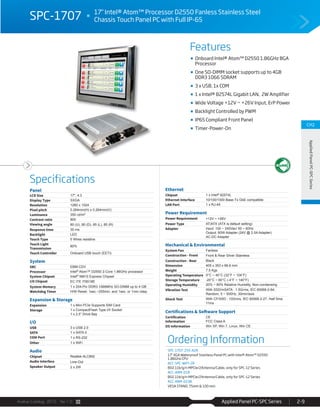

SPC-1707 2-917" Intel® Atom™ Processor D2550 Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65

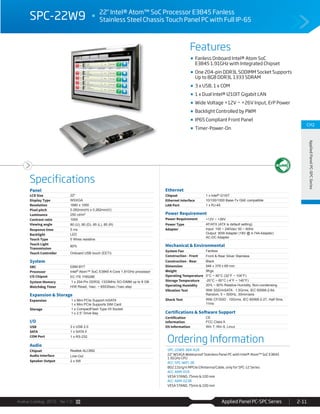

SPC-22W9 2-1122" Intel® Atom™ SoC Processor E3845 Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65
+CH1-Applied Panel PC-LPC Series ++
LPC-1709

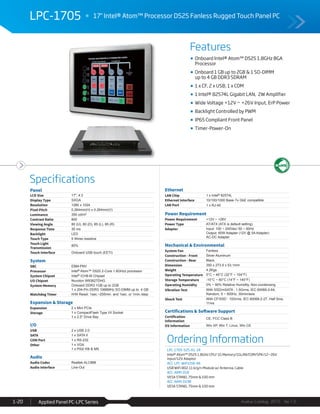

LPC-1705
1-18
1-20

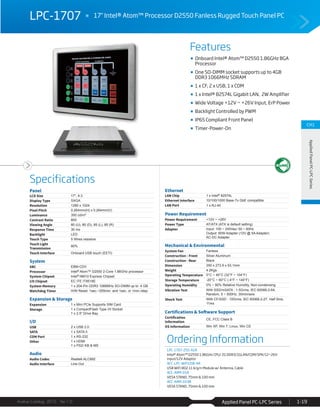

LPC-1707 1-19
SPC-1209

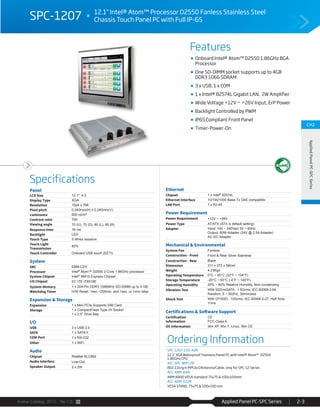

SPC-1207

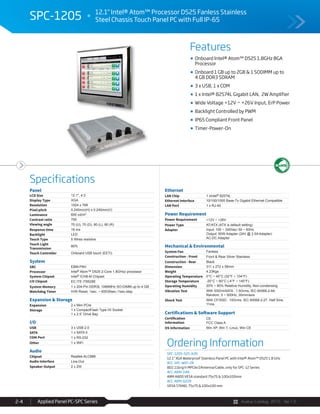

SPC-1205
2-2
2-3
2-4
12.1" Intel® Atom™ SoC Processor E3845 Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65
12.1" Intel® Atom™ Processor D2550 Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65
12.1" Intel® Atom™ Processor D525 Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65
CH2- Applied Panel PC-SPC Series +CH2- Applied Panel PC-SPC Series ++

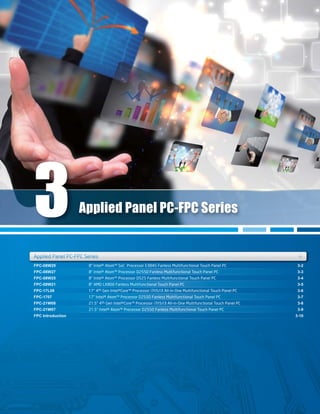

FPC-08W29
FPC-08W27
FPC-08W25

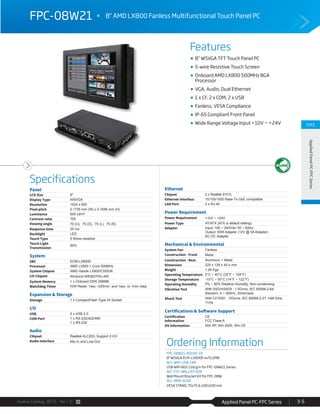

FPC-08W21

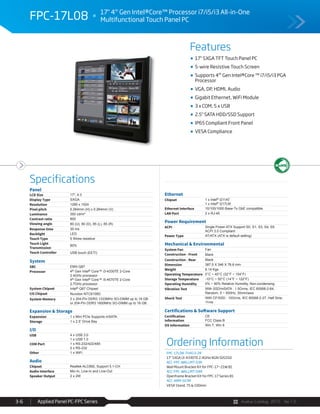

FPC-17L08
FPC-1707

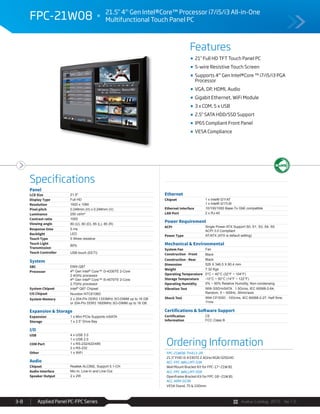

FPC-21W08
FPC-21W07
FPC Introduction
3-2
3-3
3-4
3-5
3-6
3-7
3-8
3-9
3-10
8" Intel® Atom™ SoC Processor E3845 Fanless Multifunctional Touch Panel PC
8" Intel® Atom™ Processor D2550 Fanless Multifunctional Touch Panel PC
8" Intel® Atom™ Processor D525 Fanless Multifunctional Touch Panel PC
8" AMD LX800 Fanless Multifunctional Touch Panel PC
17" 4th
Gen Intel®Core™ Processor i7/i5/i3 All-in-One Multifunctional Touch Panel PC
17" Intel® Atom™ Processor D2550 Fanless Multifunctional Touch Panel PC
21.5" 4th
Gen Intel®Core™ Processor i7/i5/i3 All-in-One Multifunctional Touch Panel PC
21.5" Intel® Atom™ Processor D2550 Fanless Multifunctional Touch Panel PC

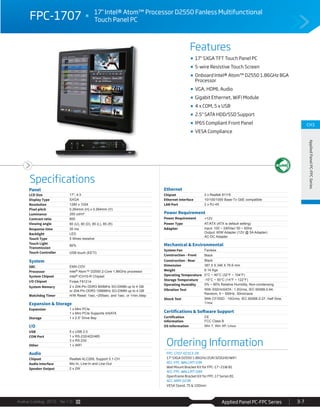

FPC-1707 3-717" Intel® Atom™ Processor D2550 Fanless Multifunctional Touch Panel PC
FPC-21W07 3-921.5" Intel® Atom™ Processor D2550 Fanless Multifunctional Touch Panel PC

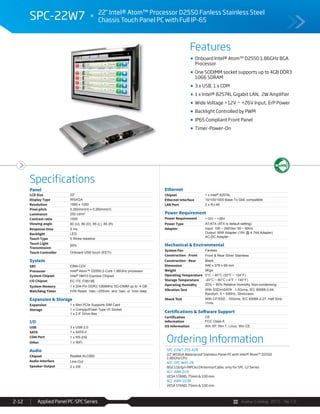

SPC-22W7

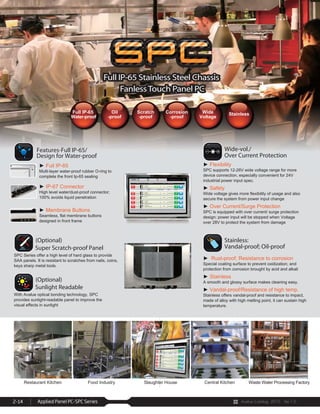

SPC Introduction
2-12
2-14
22" Intel® Atom™ Processor D2550 Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65
SPC-22W5 2-1322" Intel® Atom™ Processor D525 Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65
FPC-08W29
FPC-08W27

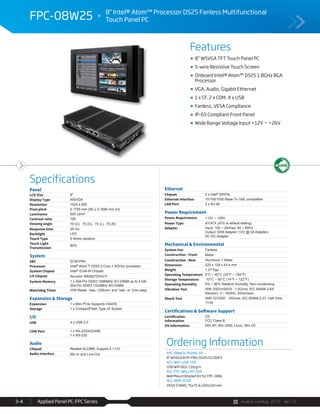

FPC-08W25
3-2
3-3
3-4
8" Intel® Atom™ SoC Processor E3845 Fanless Multifunctional Touch Panel PC
8" Intel® Atom™ Processor D2550 Fanless Multifunctional Touch Panel PC
8" Intel® Atom™ Processor D525 Fanless Multifunctional Touch Panel PC
CH3-Applied Panel PC-FPC Series +CH3-Applied Panel PC-FPC Series ++
8" Intel® Atom™ SoC Processor E3845 Fanless Rugged Touch Panel PC
8" Intel® Atom™ Processor D2550 Fanless Rugged Touch Panel PC
8" Intel® Atom™ Processor D525 Fanless Rugged Touch Panel PC
10.4" Intel® Atom™ SoC Processor E3845 Fanless Rugged Touch Panel PC
10.4" Intel® Atom™ Processor D2550 Fanless Rugged Touch Panel PC
10.4" Intel® Atom™ Processor D525 Fanless Rugged Touch Panel PC
12.1" Intel® Atom™ SoC Processor E3845 Fanless Rugged Touch Panel PC
12.1" 4th
Gen Intel® ULT Core™ Processor i7/i5/i3 Fanless Rugged Touch Panel PC
12.1" Intel® Atom™ Processor D2550 Fanless Rugged Touch Panel PC
12.1" 2nd
Gen Intel® Core™ Processor i7/i5/i3 Fanless Rugged Touch Panel PC
12.1" Intel® Atom™ Processor D525 Fanless Rugged Touch Panel PC
15" Intel® Atom™ SoC Processor E3845 Fanless Rugged Touch Panel PC
15" 4th
Gen Intel® ULT Core™ Processor i7/i5/i3 Fanless Rugged Touch Panel PC
15" Intel® Atom™ Processor D2550 Fanless Rugged Touch Panel PC
15" 2nd
Gen Intel® Core™ Processor i7/i5/i3 Fanless Rugged Touch Panel PC
15" Intel® Atom™ Processor D525 Fanless Rugged Touch Panel PC
17" Intel® Atom™ SoC Processor E3845 Fanless Rugged Touch Panel PC
17" Intel® Atom™ Processor D2550 Fanless Rugged Touch Panel PC
17" Intel® Atom™ Processor D525 Fanless Rugged Touch Panel PC

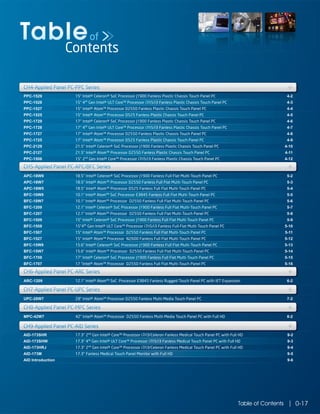

17. +
Table of Contents 0-17
Contents
Tableof
4-2
4-3
4-4
4-5
4-6
4-7
4-8
4-9
4-10
4-11
4-12
APC-18W9
APC-18W7
APC-18W5
BFC-10W9

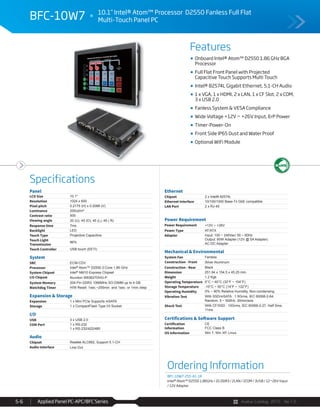

BFC-10W7
BFC-1209

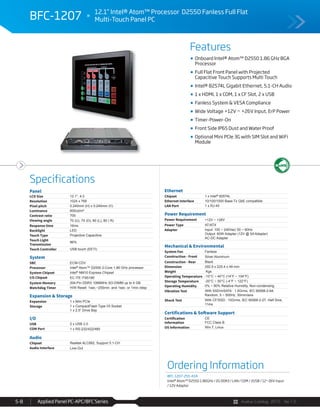

BFC-1207
BFC-1509
BFC-1508
BFC-1507
BFC-1527
BFC-15W9
BFC-15W7
BFC-1709
BFC-1707
5-2
5-3
5-4
5-5
5-6
5-7
5-8
5-9
5-10
5-11
5-12
5-13
5-14
5-15
5-16
CH4-Applied Panel PC-PPC Series
4-3
4-5
4-7
4-9
BFC-10W9 5-5
BFC-1209 5-7

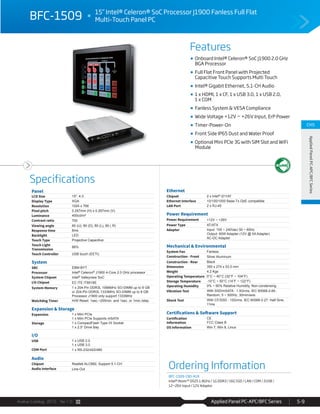

BFC-1509 5-9
BFC-1507 5-11

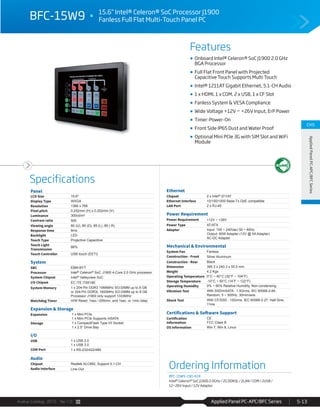

BFC-15W9 5-13
++CH4 Applied Panel PC PPC Series
4-10
4-12

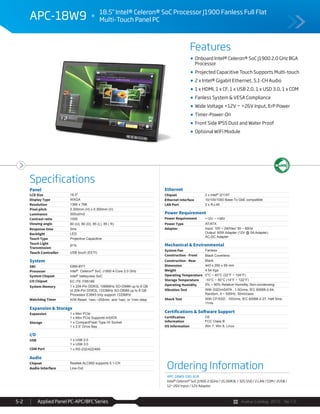

APC-18W9

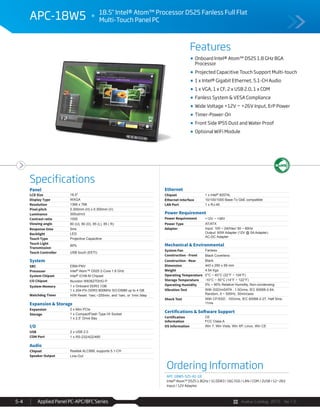

APC-18W5
5-2
5-4
4-11
APC-18W7 5-3

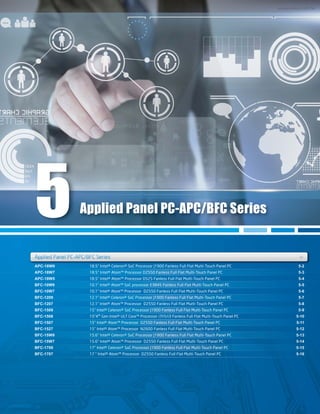

+CH5-Applied Panel PC-APC/BFC Series ++CH5 Applied Panel PC APC/BFC Series

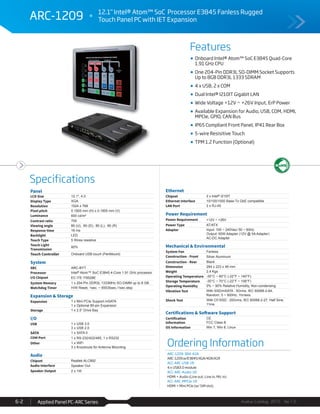

ARC-1209 6-212.1" Intel® Atom™ SoC Processor E3845 Fanless Rugged Touch Panel PC with IET Expansion

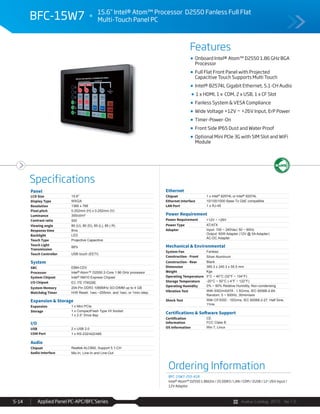

BFC-15W7

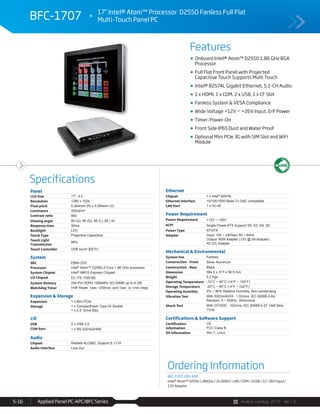

BFC-1707
5-14
5-16
BFC-1709 5-15
CH6-Applied Panel PC-ARC Series

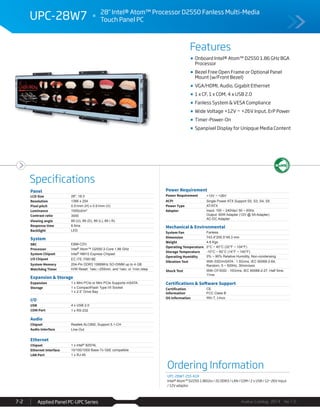

UPC-28W7 7-228" Intel® Atom™ Processor D2550 Fanless Multi-Media Touch Panel PC
ARC-1209 6-212.1" Intel® Atom™ SoC Processor E3845 Fanless Rugged Touch Panel PC with IET Expansion
+CH6-Applied Panel PC-ARC Series ++CH6 Applied Panel PC ARC Series
CH7-Applied Panel PC-UPC Series

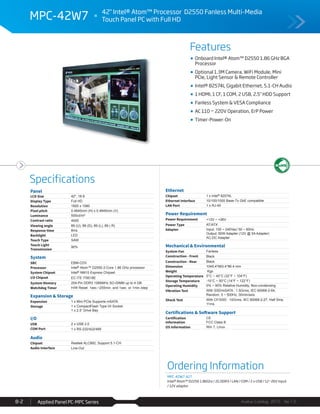

MPC-42W7 8-242" Intel® Atom™ Processor D2550 Fanless Multi-Media Touch Panel PC with Full HD
UPC-28W7 7-228" Intel® Atom™ Processor D2550 Fanless Multi-Media Touch Panel PC
+CH7-Applied Panel PC-UPC Series ++CH7 Applied Panel PC UPC Series

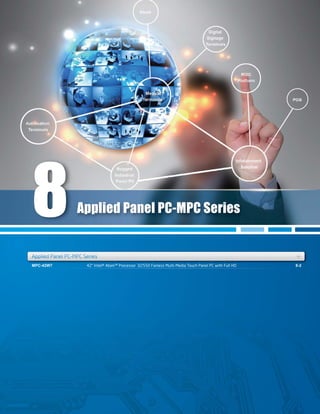

CH8-Applied Panel PC-MPC Series

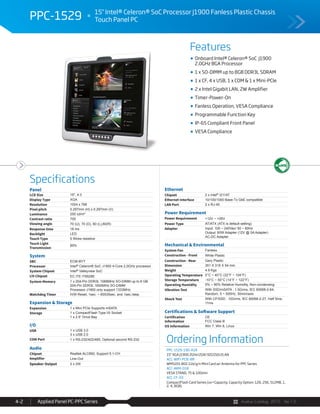

PPC-1529

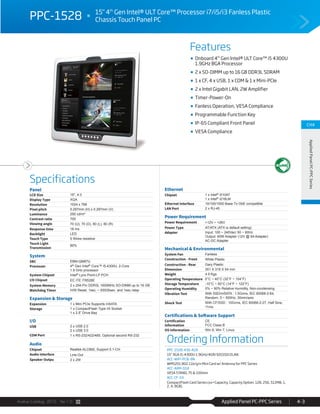

PPC-1528
PPC-1527

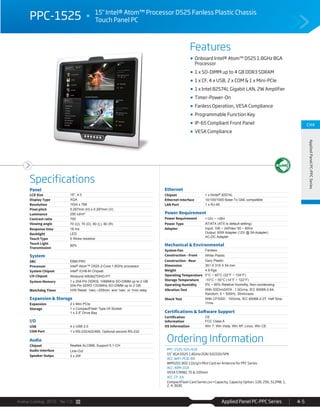

PPC-1525

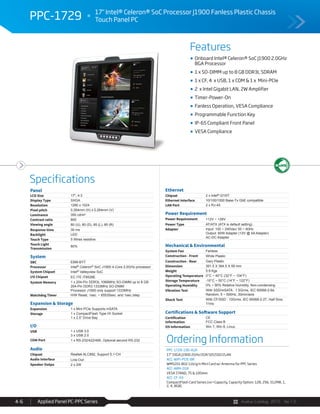

PPC-1729

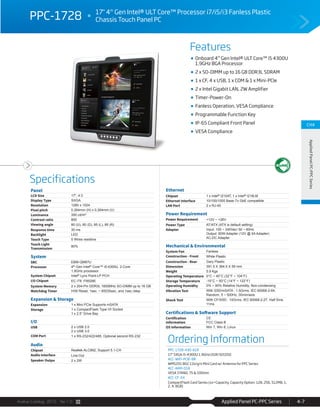

PPC-1728

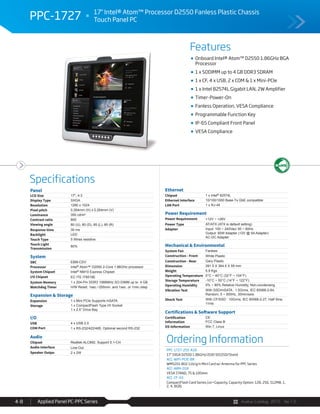

PPC-1727

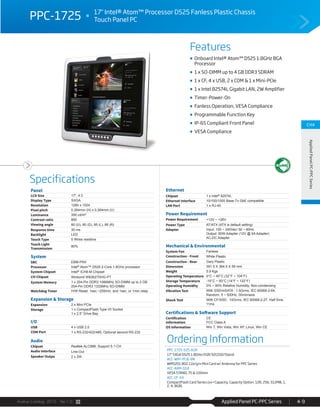

PPC-1725

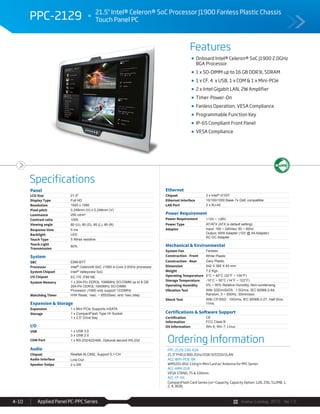

PPC-2129

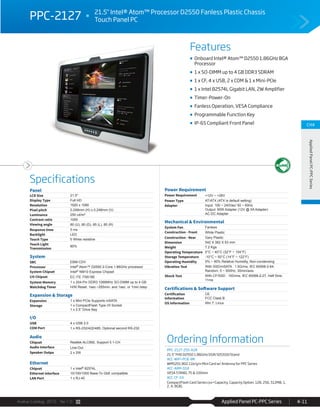

PPC-2127
PPC-1506
15" Intel® Celeron® SoC Processor J1900 Fanless Plastic Chassis Touch Panel PC
15" 4th
Gen Intel® ULT Core™ Processor i7/i5/i3 Fanless Plastic Chassis Touch Panel PC
15" Intel® Atom™ Processor D2550 Fanless Plastic Chassis Touch Panel PC
15" Intel® Atom™ Processor D525 Fanless Plastic Chassis Touch Panel PC
17" Intel® Celeron® SoC Processor J1900 Fanless Plastic Chassis Touch Panel PC
17" 4th
Gen Intel® ULT Core™ Processor i7/i5/i3 Fanless Plastic Chassis Touch Panel PC
17" Intel® Atom™ Processor D2550 Fanless Plastic Chassis Touch Panel PC
17" Intel® Atom™ Processor D525 Fanless Plastic Chassis Touch Panel PC
21.5" Intel® Celeron® SoC Processor J1900 Fanless Plastic Chassis Touch Panel PC
21.5" Intel® Atom™ Processor D2550 Fanless Plastic Chassis Touch Panel PC
15" 2nd
Gen Intel® Core™ Processor i7/i5/i3 Fanless Plastic Chassis Touch Panel PC

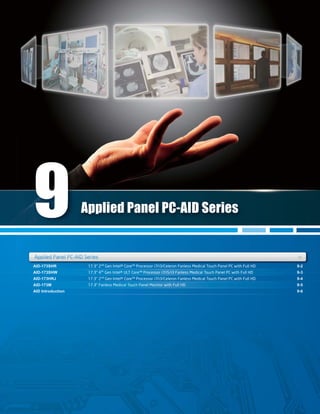

AID-173SHR
AID-173SHW
AID-173HRJ
AID-173M
AID Introduction
9-2
9-3
9-4
9-5
9-6
MPC-42W7 8-242" Intel® Atom™ Processor D2550 Fanless Multi-Media Touch Panel PC with Full HD
+CH8-Applied Panel PC-MPC Series ++CH8 Applied Panel PC MPC Series

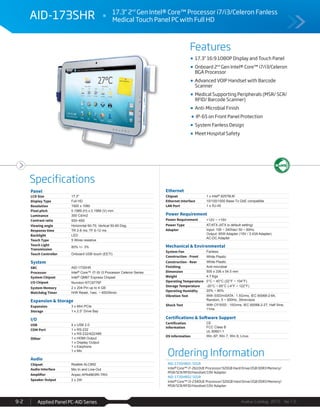

AID-173SHR

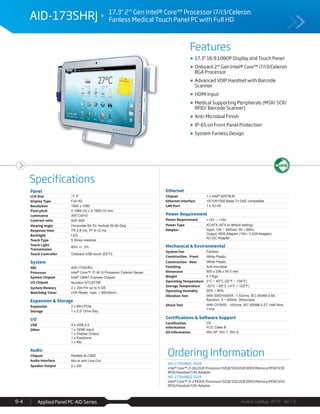

AID-173HRJ
9-2
9-4

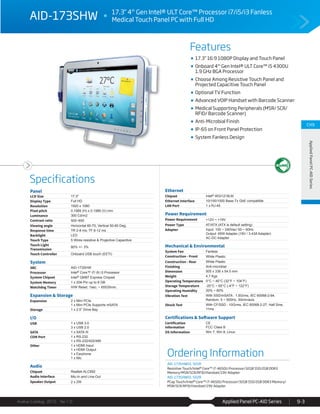

AID-173SHW 9-3

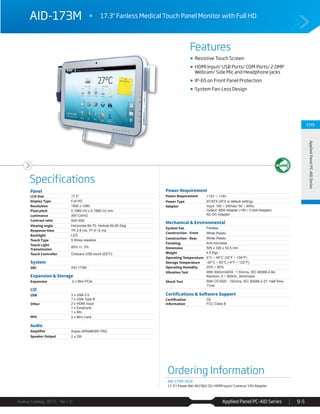

AID-173M 9-5
CH9-Applied Panel PC-AID Series +CH9 Applied Panel PC AID Series ++
17.3" 2nd
Gen Intel® Core™ Processor i7/i3/Celeron Fanless Medical Touch Panel PC with Full HD
17.3" 4th
Gen Intel® ULT Core™ Processor i7/i5/i3 Fanless Medical Touch Panel PC with Full HD
17.3" 2nd
Gen Intel® Core™ Processor i7/i3/Celeron Fanless Medical Touch Panel PC with Full HD
17.3" Fanless Medical Touch Panel Monitor with Full HD
18.5" Intel® Celeron® SoC Processor J1900 Fanless Full Flat Multi-Touch Panel PC
18.5" Intel® Atom™ Processor D2550 Fanless Full Flat Multi-Touch Panel PC
18.5" Intel® Atom™ Processor D525 Fanless Full Flat Multi-Touch Panel PC
10.1” Intel® Atom™ SoC Processor E3845 Fanless Full Flat Multi-Touch Panel PC
10.1” Intel® Atom™ Processor D2550 Fanless Full Flat Multi-Touch Panel PC
12.1” Intel® Celeron® SoC Processor J1900 Fanless Full Flat Multi-Touch Panel PC
12.1” Intel® Atom™ Processor D2550 Fanless Full Flat Multi-Touch Panel PC
15” Intel® Celeron® SoC Processor J1900 Fanless Full Flat Multi-Touch Panel PC
15”4th
Gen Intel® ULT Core™ Processor i7/i5/i3 Fanless Full Flat Multi-Touch Panel PC
15” Intel® Atom™ Processor D2550 Fanless Full Flat Multi-Touch Panel PC
15” Intel® Atom™ Processor N2600 Fanless Full Flat Multi-Touch Panel PC
15.6” Intel® Celeron® SoC Processor J1900 Fanless Full Flat Multi-Touch Panel PC
15.6” Intel® Atom™ Processor D2550 Fanless Full Flat Multi-Touch Panel PC
17” Intel® Celeron® SoC Processor J1900 Fanless Full Flat Multi-Touch Panel PC
17 ”Intel® Atom™ Processor D2550 Fanless Full Flat Multi-Touch Panel PC

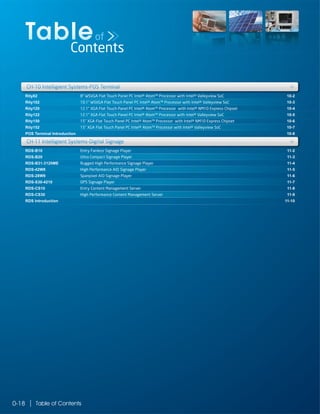

18. Table of Contents0-18
Contents
Tableof
Rity82
Rity102
Rity120
Rity122
Rity150
Rity152
POS Terminal Introduction
10-2
10-3
10-4
10-5
10-6
10-7
10-8
Rity82
Rity120
10-2
10-4

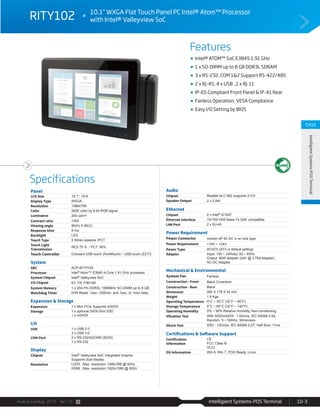

Rity102 10-3

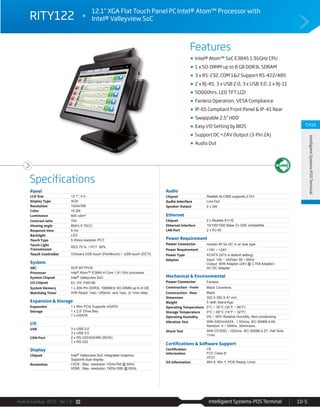

Rity122 10-5

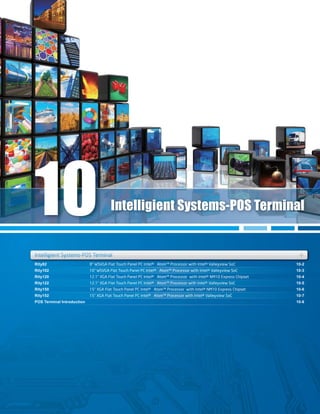

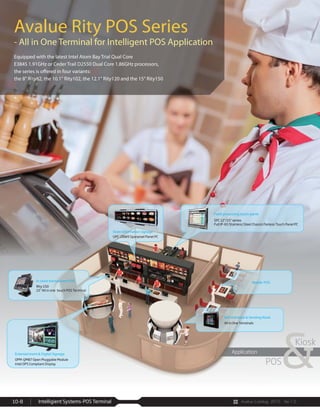

CH-10 Intelligient Systems-POS Terminal +CH 10 Intelligient Systems POS Terminal ++

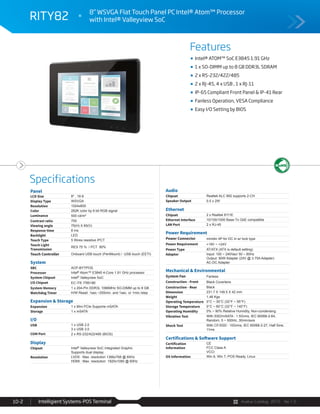

8” WSVGA Flat Touch Panel PC Intel® Atom™ Processor with Intel® Valleyview SoC
10.1” WSVGA Flat Touch Panel PC Intel® Atom™ Processor with Intel® Valleyview SoC
12.1” XGA Flat Touch Panel PC Intel® Atom™ Processor with Intel® NM10 Express Chipset
12.1” XGA Flat Touch Panel PC Intel® Atom™ Processor with Intel® Valleyview SoC
15” XGA Flat Touch Panel PC Intel® Atom™ Processor with Intel® NM10 Express Chipset
15” XGA Flat Touch Panel PC Intel® Atom™ Processor with Intel® Valleyview SoC

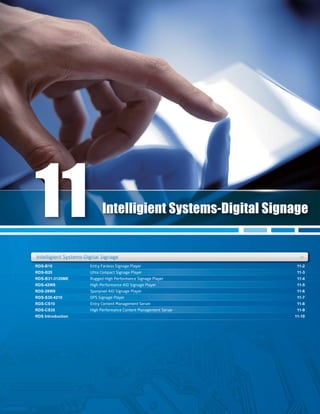

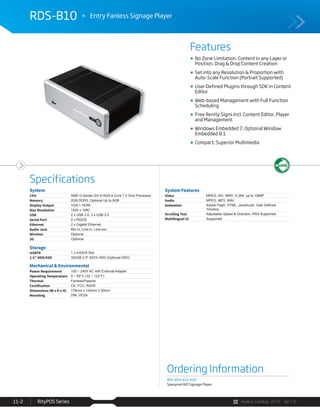

RDS-B10
RDS-B20

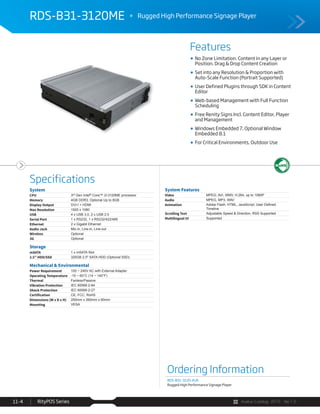

RDS-B31-3120ME

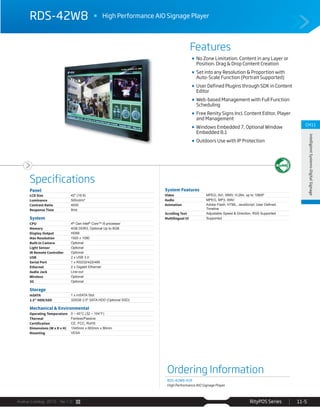

RDS-42W8

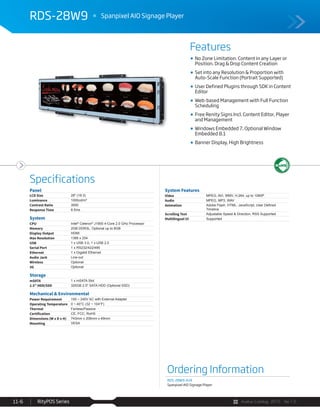

RDS-28W9
RDS-S30-4210

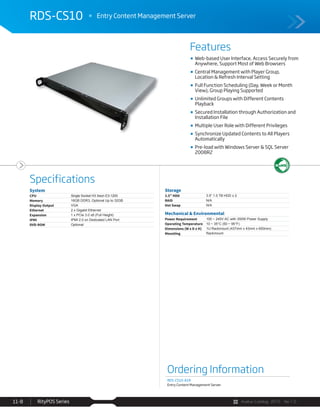

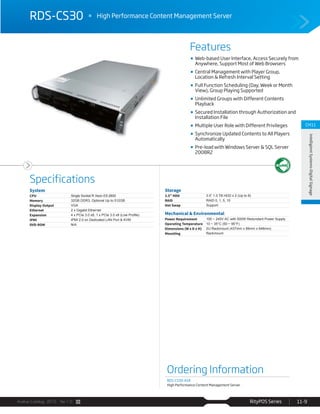

RDS-CS10
RDS-CS30
RDS Introduction
11-2
11-3
11-4
11-5
11-6
11-7
11-8
11-9
11-10

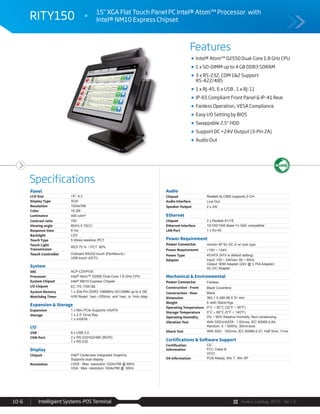

Rity150
POS Terminal Introduction
10-6
10-8

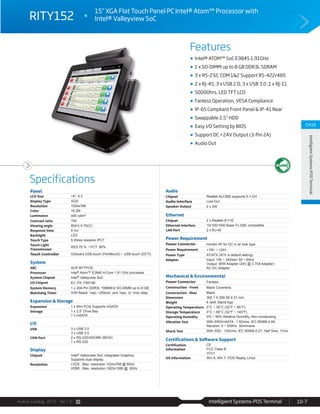

Rity152 10-7
15” XGA Flat Touch Panel PC Intel® Atom™ Processor with Intel® NM10 Express Chipset
15” XGA Flat Touch Panel PC Intel® Atom™ Processor with Intel® Valleyview SoC
RDS-B10
RDS-B31-3120ME
11-2
11-4

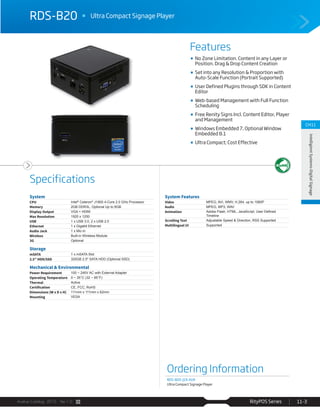

RDS-B20 11-3
RDS-42W8 11-5
RDS-S30-4210 11-7
RDS-CS30 11-9

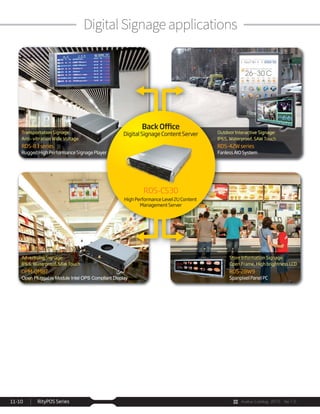

CH-11 Intelligient Systems-Digital Signage +CH 11 Intelligient Systems Digital Signage ++
Entry Fanless Signage Player
Ultra Compact Signage Player
Rugged High Performance Signage Player
High Performance AIO Signage Player
Spanpixel AIO Signage Player
OPS Signage Player
Entry Content Management Server
High Performance Content Management Server
19. Service
Portfolio
Consultancy
Project administration
Project initiation & evaluation
OEM/ODM Design
Kernel platform design
Specification development
System Design & Development
Concept sketches
Mechanical design
Mock-up engineering sample
EMI/EMC test
Technical Support
Application engineering
RMA, Warranty
OS adaptation
Driver, LCD test
BIOS adaptation
Manufacturing
Production & system integration
Business Support
Component & peripherals sourcing
Service Portfolio 0-19

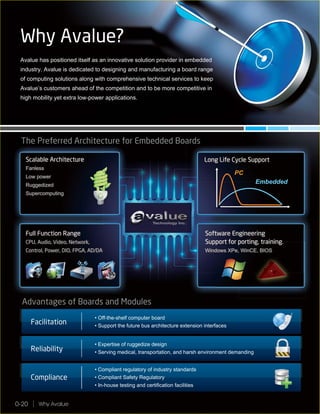

20. Why Avalue0-20
Facilitation
Reliability
Compliance
The Preferred Architecture for Embedded Boards
Advantages of Boards and Modules
Why Avalue?
Reliability
Compliance
Facilitation
ards
Full Function Range
CPU, Audio, Video, Network,
Control, Power, DIO, FPGA, AD/DA
Long Life Cycle Support
Software Engineering
Support for porting, training.
The Preferred Architec
F ll F ti R
Scalable Architecture
22. Features
Specifications
Avalue Catalog 2015 Ver.1.0Applied Panel PC-LPC Series1-2
Panel
LCD Size 8", 4:3
Display Type SVGA
Resolution 800 x 600
Pixel pitch 0.0675mm(H) x 0.2025mm(V)
Luminance 500 cd/m²
Contrast ratio 500
Viewing angle 50(U), 70(D), 70(L), 70 (R)
Response time 25 ms
Backlight LED
Touch Type 5 Wires resistive
Touch Light
Transmission
80%
Touch Controller USB touch (EETI)
System
SBC ECM-BYT
Processor Intel® Atom™ SoC E3845 4-Core 1.91GHz processor
I/O Chipset EC ITE IT8528E
System Memory 1 x 204-Pin DDR3L 1333MHz SO-DIMM up to 8 GB
Watchdog Timer H/W Reset, 1sec. ~ 65535sec. and 1sec./step
Expansion & Storage
Expansion 1 x Mini PCIe Support mSATA
Storage 1 x CompactFlash Type I/II Socket
I/O
USB 1 x USB 3.0, 3 x USB 2.0
COM Port 1 x RS-232, 1 x RS-232/422/485
Other 1 x HDMI, 1 x Knockouts for Antenna Mounting
Audio
Chipset Realtek ALC892
Audio Interface Line-Out
Ethernet
Chipset 2 x Intel® I211AT
Ethernet Interface 10/100/1000 Base-Tx GbE compatible
LAN Port 2 x RJ-45
Power Requirement
Power Requirement +12V ~ +26V
Power Type AT/ATX (ATX is default setting)
Adapter Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W Adapter (12V @ 5A Adapter)
AC-DC Adapter
Mechanical & Environmental
System Fan Fanless
Construction - Front Silver Aluminum
Construction - Rear Black
Dimension 202.5 x 159.5 x 46.5mm
Weight 1.5 Kgs
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity 0% ~ 90% Relative Humidity, Non-condensing
Vibration Test With SSD/mSATA : 1.5Grms, IEC 60068-2-64,
Random, 5 ~ 500Hz, 30min/axis
Shock Test With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine,
11ms
Certifications & Software Support
Certification
Information
CE, FCC Class B
OS Information Win 7, Win 8, Linux
Ordering Information
LPC-0809-384-A1R
Intel® Atom™ SoC E3845 1.91GHz/4G DDR3L/2GLAN/2COM/4USB/12~26V
input/12V Adaptor
ACC-WIFI-USB-14R
USB WiFi 802.11 b/g/n Module w/Antenna, Cable
ACC-ARM-D8R
ARM FC8888SB VESA standard:75x75&100x100
ACC-ARM-D15R
VESA STAND, 75x75 & 100x100 mm
ACC-ARM-D22R
VESA STAND, 75x75 & 100x100 mm
ACC-ARM-D29R
ARM A800B VESA standard 75x75 & 100x100mm
LPC-0809 8" Intel® Atom™ SoC Processor E3845 Fanless Rugged
Touch Panel PC
8" SVGA TFT Touch Panel PC
5-wire Resistive Touch Screen
Intel® Atom™ SoC E3845 1.91GHz CPU
HDMI, Audio
Dual Gigabit Ethernet, Optional WiFi Module
1 x CF, 2 x COM, 4 x USB
No HDD Support
Fanless
Wide Range Voltage Input +12V ~ +26V
IP65 Compliant Front Panel
VESA Compliance
Rugged Environment Applicable
23. Features
Specifications
Avalue Catalog 2015 Ver.1.0 Applied Panel PC-LPC Series 1-3
CH1
AppliedPanelPC-LPCSeries
Panel
LCD Size 8", 4:3
Display Type SVGA
Resolution 800 x 600
Pixel pitch 0.0675mm(H) x 0.2025mm(V)
Luminance 500 cd/m²
Contrast ratio 500
Viewing angle 50(U), 70(D), 70(L), 70 (R)
Response time 25 ms
Backlight LED
Touch Type 5 Wires resistive
Touch Light
Transmission
80%
Touch Controller USB touch (EETI)
System
SBC ECM-CDV
Processor Intel® Atom™ D2550 2-Core 1.86GHz processor
System Chipset Intel® NM10 Express Chipset
I/O Chipset Nuvoton W83627DHG
System Memory 1 x 204-Pin DDR3 1066MHz SO-DIMM up to 4 GB
Watchdog Timer H/w Reset: 1~255min. and 1sec. or 1min./step
Expansion & Storage
Expansion 1 x Mini PCIe Support mSATA
Storage 1 x CompactFlash Type I/II Socket
I/O
USB 3 x USB 2.0
COM Port 1 x RS-232, 1 x RS-232/422/485
Other 1 x HDMI, 1 x Knockouts for Antenna Mounting
Audio
Chipset Realtek ALC888
Audio Interface Line-Out
System
Chipset 2 x Intel® 82574L
Ethernet Interface 10/100/1000 Base-Tx GbE compatible
LAN Port 2 x RJ-45
Power Requirement
Power Requirement +12V ~ +26V
Power Type AT/ATX (ATX is default setting)
Adapter Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W Adapter (12V @ 5A Adapter)
AC-DC Adapter
Mechanical & Environmental
System Fan Fanless
Construction - Front Silver Aluminum
Construction - Rear Black
Dimension 202.5 x 159.5 x 46.5mm
Weight 1.5 Kgs
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity 0% ~ 90% Relative Humidity, Non-condensing
Vibration Test With SSD/mSATA : 1.5Grms, IEC 60068-2-64,
Random, 5 ~ 500Hz, 30min/axis
Shock Test With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine,
11ms
Certifications & Software Support
Certification
Information
CE, FCC Class B
OS Information Win XP, Win 7, Linux, Win CE
Ordering Information
LPC-0807-255-A1R
Intel® Atom™ D2550 1.86GHz/2G DDR3/2GLAN/2COM/3USB/12~26V
input/12V Adaptor
ACC-WIFI-USB-14R
USB WiFi 802.11 b/g/n Module w/Antenna, Cable
ACC-ARM-D8R
ARM FC8888SB VESA standard:75x75&100x100
ACC-ARM-D15R
VESA STAND, 75x75 & 100x100 mm
ACC-ARM-D22R
VESA STAND, 75x75 & 100x100 mm
ACC-ARM-D29R
ARM A800B VESA standard 75x75 & 100x100mm
LPC-0807 8" Intel® Atom™ Processor D2550 Fanless Rugged
Touch Panel PC
8" SVGA TFT Touch Panel PC
5-wire Resistive Touch Screen
Onboard Intel® Atom™ D2550 1.86GHz BGA
Processor
HDMI, Audio
Dual Gigabit Ethernet, Optional WiFi Module
1 x CF, 2 x COM, 3 x USB
No HDD Support
Fanless
Wide Range Voltage Input +12V ~ +26V
IP65 Compliant Front Panel
VESA Compliance
Rugged Environment Applicable
24. Features
Specifications
Avalue Catalog 2015 Ver.1.0Applied Panel PC-LPC Series1-4

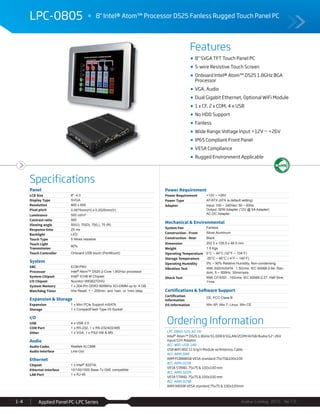

LPC-0805 8" Intel® Atom™ Processor D525 Fanless Rugged Touch Panel PC
Ordering Information
LPC-0805-525-A2-1R
Intel® Atom™ D525 1.8GHz/1G DDR3/1GLAN/2COM/4USB/Audio/12~26V
input/12V Adaptor
ACC-WIFI-USB-14R
USB WiFi 802.11 b/g/n Module w/Antenna, Cable
ACC-ARM-D8R
ARM FC8888SB VESA standard:75x75&100x100
ACC-ARM-D15R
VESA STAND, 75x75 & 100x100 mm
ACC-ARM-D22R
VESA STAND, 75x75 & 100x100 mm
ACC-ARM-D29R
ARM A800B VESA standard 75x75 & 100x100mm
8" SVGA TFT Touch Panel PC
5-wire Resistive Touch Screen
Onboard Intel® Atom™ D525 1.8GHz BGA
Processor
VGA, Audio
Dual Gigabit Ethernet, Optional WiFi Module
1 x CF, 2 x COM, 4 x USB
No HDD Support
Fanless
Wide Range Voltage Input +12V ~ +26V
IP65 Compliant Front Panel
VESA Compliance
Rugged Environment Applicable
Panel
LCD Size 8", 4:3
Display Type SVGA
Resolution 800 x 600
Pixel pitch 0.0675mm(H) x 0.2025mm(V)
Luminance 500 cd/m²
Contrast ratio 500
Viewing angle 50(U), 70(D), 70(L), 70 (R)
Response time 25 ms
Backlight LED
Touch Type 5 Wires resistive
Touch Light
Transmission
80%
Touch Controller Onboard USB touch (PenMount)
System
SBC ECM-PNV
Processor Intel® Atom™ D525 2-Core 1.8GHzz processor
System Chipset Intel® ICH8-M Chipset
I/O Chipset Nuvoton W83627DHG
System Memory 1 x 204-Pin DDR3 800MHz SO-DIMM up to 4 GB
Watchdog Timer H/w Reset: 1 ~ 255min. and 1sec. or 1min./step
Expansion & Storage
Expansion 1 x Mini PCIe Support mSATA
Storage 1 x CompactFlash Type I/II Socket
I/O
USB 4 x USB 2.0
COM Port 1 x RS-232, 1 x RS-232/422/485
Other 1 x VGA, 1 x PS2/ KB & MS
Audio
Audio Codec Realtek ALC888
Audio Interface Line-Out
Ethernet
Chipset 1 x Intel® 82574L
Ethernet Interface 10/100/1000 Base-Tx GbE compatible
LAN Port 1 x RJ-45
Power Requirement
Power Requirement +12V ~ +26V
Power Type AT/ATX (ATX is default setting)
Adapter Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W Adapter (12V @ 5A Adapter)
AC-DC Adapter
Mechanical & Environmental
System Fan Fanless
Construction - Front Silver Aluminum
Construction - Rear Black
Dimension 202.5 x 159.5 x 46.5 mm
Weight 1.5 Kgs
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity 0% ~ 90% Relative Humidity, Non-condensing
Vibration Test With SSD/mSATA : 1.5Grms, IEC 60068-2-64, Ran-
dom, 5 ~ 500Hz, 30min/axis
Shock Test With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine,
11ms
Certifications & Software Support
Certification
Information
CE, FCC Class B
OS Information Win XP, Win 7, Linux, Win CE
25. Features
Specifications
Avalue Catalog 2015 Ver.1.0 Applied Panel PC-LPC Series 1-5
CH1
AppliedPanelPC-LPCSeries
LPC-1009 10.4" Intel® Atom™ SoC Processor E3845 Fanless Rugged
Touch Panel PC
Ordering Information
LPC-1009-384-B1R
Intel® Atom™ SoC E3845 1.91GHz CPU/4G DDR3L/2GLAN/COM/12~26V
input/12V Adaptor
ACC-LPC-WiFiUSB-3R
UUSB WiFi 802.11 b/g/n Module w/ Antenna, Cable
ACC-ARM-D22R
VESA STAND, 75x75 & 100x100 mm
ACC-ARM-D29R
ARM A800B VESA standard 75x75 & 100x100mm
Intel® Atom™ SoC E3845 1.91GHz CPU
One 204-Pin DDR3L SO-DIMM Socket
Supports Up to 8GB DDR3L 1066/1333
SDRAM
1 x CF, 2 x USB, 1 x COM
Dual Intel® I210IT Gigabit LAN
Wide Voltage +12V ~ +26V Input, ErP Power
Backlight Controlled by PWM
IP65 Compliant Front Panel
Timer-Power-On
Panel
LCD Size 10.4", 4:3
Display Type XGA
Resolution 1024 x 768
Pixel pitch 0.0685mm(H) x 0.2055mm(V)
Luminance 500 cd/m²
Contrast ratio 1200
Viewing angle 88 (U), 88 (D), 88 (L), 88 (R)
Response time 25 ms
Backlight LED
Touch Type 5 Wires resistive
Touch Light
Transmission
80%
Touch Controller Onboard USB touch (EETI)
System
SBC EBM-BYT
Processor Intel® Atom™ SoC E3845 4-Core 1.91GHz
processor
I/O Chipset EC ITE IT8528E
System Memory 1 x 204-Pin DDR3L 1333MHz SO-DIMM up to 8 GB
Watchdog Timer H/W Reset, 1sec. ~ 65535sec./1sec.step
Expansion & Storage
Expansion 1 x Mini PCIe Support mSATA
1 x Mini PCIe Supports SIM Card
Storage 1 x CompactFlash Type I/II Socket
1 x 2.5" Drive Bay
I/O
USB 1 x USB 3.0
1 x USB 2.0
SATA 1 x SATA II
COM Port 1 x RS-232/422/485 (BIOS)
Other 1 x HDMI
1 x WiFi
1 x Knockouts for Antenna Mounting
Audio
Chipset Realtek ALC892
Audio Interface Line-Out
Ethernet
Chipset 2 x Intel® I210IT
Ethernet Interface 10/100/1000 Base-Tx GbE compatible
LAN Port 2 x RJ-45
Power Requirement
Power Requirement +12V ~ +26V
Power Type AT/ATX (ATX is default setting)
Adapter Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W Adapter (12V @ 5A Adapter)
AC-DC Adapter
Mechanical & Environmental
System Fan Fanless
Construction - Front Silver Aluminum
Construction - Rear Black
Dimension 259 x 196 x 41mm
Weight 2.11 Kgs
Operating Temperature -20°C ~ 60°C (-4°F ~ 140°F)
Storage Temperature -30°C ~ 70°C (-22°F ~ 158°F)
Operating Humidity 0% ~ 90% Relative Humidity, Non-condensing
Vibration Test With SSD/mSATA : 1.5Grms, IEC 60068-2-64,
Random, 5 ~ 500Hz, 30min/axis
Shock Test With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine,
11ms
Certifications & Software Support
Certification
Information
CE, FCC Class B
OS Information Win 7, Win 8, Linux
26. Features
Specifications
Avalue Catalog 2015 Ver.1.0Applied Panel PC-LPC Series1-6
LPC-1007 10.4" Intel® Atom™ Processor D2550 Fanless Rugged
Touch Panel PC
Ordering Information
LPC-1007-255-B1R
Intel® Atom™ D2550 1.86GHz CPU/ 2G DDR3/1GLAN/COM/12~26V
input/12V Adaptor
ACC-LPC-WiFiUSB-3R
USB WiFi 802.11 b/g/n Module w/ Antenna, Cable
ACC-ARM-D22R
VESA STAND, 75x75 & 100x100 mm
ACC-ARM-D29R
ARM A800B VESA standard 75x75 & 100x100mm
Onboard Intel® Atom™ D2550 1.86GHz BGA
Processor
One 204-Pin DDR3 SO-DIMM Socket Supports
Up to 4GB DDR3L 1066MHz SDRAM
1 x CF, 2 x USB, 1 x COM
1 x Intel® 82574L Gigabit LAN, 2W Amplifier
Wide Voltage +12V ~ +26V Input, ErP Power
Backlight Controlled by PWM
IP65 Compliant Front Panel
Timer-Power-On
Panel
LCD Size 10.4", 4:3
Display Type XGA
Resolution 1024 x 768
Pixel pitch 0.0685mm(H) x 0.2055mm(V)
Luminance 500 cd/m²
Contrast ratio 1200
Viewing angle 88 (U), 88 (D), 88 (L), 88 (R)
Response time 25 ms
Backlight LED
Touch Type 5 Wires resistive
Touch Light
Transmission
80%
Touch Controller Onboard USB touch (EETI)
System
SBC EBM-CDV
Processor Intel® Atom™ D2550 2-Core 1.86GHz processor
System Chipset Intel® NM10 Express Chipset
I/O Chipset EC ITE IT8518E
System Memory 1 x 204-Pin DDR3 1066MHz SO-DIMM up to 4 GB
Watchdog Timer H/W Reset: 1sec.~255min. and 1sec. or 1min./step
Expansion & Storage
Expansion 1 x Mini PCIe Supports SIM Card
Storage 1 x CompactFlash Type I/II Socket, 1 x 2.5" Drive Bay
I/O
USB 2 x USB 2.0
SATA 1 x SATA II
COM Port 1 x RS-232
Other 1 x HDMI, 1 x PS2/ KB & MS
Audio
Chipset Realtek ALC892
Audio Interface Line-Out
Ethernet
Chipset 1 x Intel® 82574L
Ethernet Interface 10/100/1000 Base-Tx GbE compatible
LAN Port 1 x RJ-45
Power Requirement
Power Requirement +12V ~ +26V
Power Type AT/ATX (ATX is default setting)
Adapter Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W Adapter (12V @ 5A Adapter)
AC-DC Adapter
Mechanical & Environmental
System Fan Fanless
Construction - Front Silver Aluminum
Construction - Rear Black
Dimension 259 x 196 x 41mm
Weight 2.11 Kgs
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity 0% ~ 90% Relative Humidity, Non-condensing
Vibration Test With SSD/mSATA : 1.5Grms, IEC 60068-2-64,
Random, 5 ~ 500Hz, 30min/axis
Shock Test With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine,
11ms
Certifications & Software Support
Certification
Information
CE, FCC Class B
OS Information Win XP, Win 7, Linux, Win CE
27. Features
Specifications
Avalue Catalog 2015 Ver.1.0 Applied Panel PC-LPC Series 1-7
CH1
AppliedPanelPC-LPCSeries
LPC-1005 10.4" Intel® Atom™ Processor D525 Fanless Rugged Touch Panel PC
Ordering Information
LPC-1005-525-B2-1R
Intel® Atom™ D525 1.8GHz CPU/1G memory/1GLAN/COM/12~26V input/
12V Adaptor
ACC-LPC-WiFiUSB-3R
USB WiFi 802.11 b/g/n Module w/ Antenna, Cable
ACC-ARM-D22R
VESA STAND, 75x75 & 100x100 mm
ACC-ARM-D29R
ARM A800B VESA standard 75x75 & 100x100mm
Onboard Intel® Atom™ D525 1.8GHz BGA
Processor
Onboard 1 GB Up to 2GB & 1 SO-DIMM up to
4 GB DDR3 SDRAM
1x CF, 2 x USB, 1 x COM
1 x Intel® 82574L Gigabit LAN, 2W Amplifier
Wide Voltage +12V ~ +26V Input, ErP Power
Backlight Controlled by PWM
IP65 Compliant Front Panel
Timer-Power-On
Panel
LCD Size 10.4", 4:3
Display Type XGA
Resolution 1024 x 768
Pixel pitch 0.0685mm(H) x 0.2055mm(V)
Luminance 500 cd/m²
Contrast ratio 1200
Viewing angle 88 (U), 88 (D), 88 (L), 88 (R)
Response time 25 ms
Backlight LED
Touch Type 5 Wires resistive
Touch Light
Transmission
80%
Touch Controller Onboard USB touch (EETI)
System
SBC EBM-PNV
Processor Intel® Atom™ D525 2-Core 1.8GHz processor
System Chipset Intel® ICH8-M Chipset
I/O Chipset Nuvoton W83627DHG
Onboard DDR3 1GB up to 2GB
1 x 204-Pin DDR3 1066MHz SO-DIMM up to 4 GB
Watchdog Timer H/W Reset: 1sec.~255min. and 1sec. or 1min./step
Expansion & Storage
Expansion 1 x Mini PCIe
Storage 1 x CompactFlash Type I/II Socket, 1 x 2.5" Drive Bay
I/O
USB 2 x USB 2.0
SATA 1 x SATA II
COM Port 1 x RS-232
Other 1 x VGA
1 x PS2/ KB & MS
Audio
Chipset Realtek ALC888
Audio Interface Line-Out
Ethernet
Chipset 1 x Intel® 82574L
Ethernet Interface 10/100/1000 Base-Tx GbE compatible
LAN Port 1 x RJ-45
Power Requirement
Power Requirement +12V ~ +26V
Power Type AT/ATX (ATX is default setting)
Adapter Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W Adapter (12V @ 5A Adapter)
AC-DC Adapter
Mechanical & Environmental
System Fan Fanless
Construction - Front Silver Aluminum
Construction - Rear Black
Dimension 259 x 196 x 41mm
Weight 2.11 Kgs
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity 0% ~ 90% Relative Humidity, Non-condensing
Vibration Test With SSD/mSATA : 1.5Grms, IEC 60068-2-64,
Random, 5 ~ 500Hz, 30min/axis
Shock Test With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine,
11ms
Certifications & Software Support
Certification
Information
CE, FCC Class B
OS Information Win XP, Win 7, Linux, Win CE
28. Features
Specifications

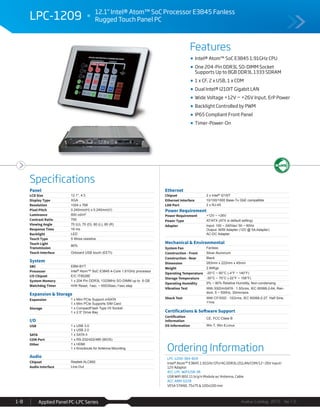

Avalue Catalog 2015 Ver.1.0Applied Panel PC-LPC Series1-8
LPC-1209 12.1" Intel® Atom™ SoC Processor E3845 Fanless
Rugged Touch Panel PC
Ordering Information
LPC-1209-384-B1R
Intel® Atom™ E3845 1.91GHz CPU/4G DDR3L/2GLAN/COM/12~26V input/
12V Adaptor
ACC-LPC-WiFiUSB-3R
USB WiFi 802.11 b/g/n Module w/ Antenna, Cable
ACC-ARM-D22R
VESA STAND, 75x75 & 100x100 mm
Panel
LCD Size 12.1", 4:3
Display Type XGA
Resolution 1024 x 768
Pixel Pitch 0.240mm(H) x 0.240mm(V)
Luminance 600 cd/m²
Contrast Ratio 700
Viewing Angle 70 (U), 70 (D), 80 (L), 80 (R)
Response Time 16 ms
Backlight LED
Touch Type 5 Wires resistive
Touch Light
Transmission
80%
Touch Interface Onboard USB touch (EETI)
System
SBC EBM-BYT
Processor Intel® Atom™ SoC E3845 4-Core 1.91GHz processor
I/O Chipset E/C IT8528E
System Memory 1 x 204-Pin DDR3L 1333MHz SO-DIMM up to 8 GB
Watchdog Timer H/W Reset, 1sec. ~ 65535sec./1sec.step
Expansion & Storage
Expansion 1 x Mini PCIe Support mSATA
1 x Mini PCIe Supports SIM Card
Storage 1 x CompactFlash Type I/II Socket
1 x 2.5" Drive Bay
I/O
USB 1 x USB 3.0
1 x USB 2.0
SATA 1 x SATA II
COM Port 1 x RS-232/422/485 (BIOS)
Other 1 x HDMI
1 x Knockouts for Antenna Mounting
Audio
Chipset Realtek ALC892
Audio Interface Line-Out
Ethernet
Chipset 2 x Intel® I210IT
Ethernet Interface 10/100/1000 Base-Tx GbE compatible
LAN Port 2 x RJ-45
Power Requirement
Power Requirement +12V ~ +26V
Power Type AT/ATX (ATX is default setting)
Adapter Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W Adapter (12V @ 5A Adapter)
AC-DC Adapter
Mechanical & Environmental
System Fan Fanless
Construction - Front Silver Aluminum
Construction - Rear Black
Dimension 283mm x 222mm x 45mm
Weight 2.84Kgs
Operating Temperature -20°C ~ 60°C (-4°F ~ 140°F)
Storage Temperature -30°C ~ 70°C (-22°F ~ 158°F)
Operating Humidity 0% ~ 90% Relative Humidity, Non-condensing
Vibration Test With SSD/mSATA : 1.5Grms, IEC 60068-2-64, Ran-
dom, 5 ~ 500Hz, 30min/axis
Shock Test With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine,
11ms
Certifications & Software Support
Certification
Information
CE, FCC Class B
OS Information Win 7, Win 8,Linux
Intel® Atom™ SoC E3845 1.91GHz CPU
One 204-Pin DDR3L SO-DIMM Socket
Supports Up to 8GB DDR3L 1333 SDRAM
1 x CF, 2 x USB, 1 x COM
Dual Intel® I210IT Gigabit LAN
Wide Voltage +12V ~ +26V Input, ErP Power
Backlight Controlled by PWM
IP65 Compliant Front Panel
Timer-Power-On
29. Features
Specifications
Avalue Catalog 2015 Ver.1.0 Applied Panel PC-LPC Series 1-9
CH1
AppliedPanelPC-LPCSeries
Panel
LCD Size 12.1", 4:3
Display Type XGA
Resolution 1024 x 768
Pixel Pitch 0.240mm(H) x 0.240mm(V)
Luminance 600 cd/m²
Contrast Ratio 700
Viewing Angle 70 (U), 70 (D), 80 (L), 80 (R)
Response Time 16 ms
Backlight LED
Touch Type 5 Wires resistive
Touch Light
Transmission
80%
Touch Interface Onboard USB touch (EETI)
System
SBC EBM-QM87U
Processor 4th Gen Intel® Core™ i5-4300U, 2-Core, 1.9GHz
processor
I/O Chipset E/C IT8528E
System Memory 2 x 204-Pin DDR3L 1600MHz SO-DIMM up to 16 GB
Watchdog Timer H/W Reset: 1sec.~255min. and 1sec. or 1min./step
Expansion & Storage
Expansion 1 x Mini PCIe Support mSATA
1 x Mini PCIe Supports SIM Card
Storage 1 x CompactFlash Type I/II Socket
1 x 2.5" Drive Bay
I/O
USB 2 x USB 3.0
SATA 1 x SATA II
COM Port 1 x RS-232
Other 1 x HDMI
1 x Knockouts for Antenna Mounting
Audio
Chipset Realtek ALC892
Audio Interface Line-Out
Ethernet
Chipset 1 x Intel® I210AT
1 x Intel® I218LM
Ethernet Interface 10/100/1000 Base-Tx GbE compatible
LAN Port 2 x RJ-45
Power Requirement
Power Requirement +12V ~ +26V
Power Type AT/ATX (ATX is default setting)
Adapter Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W Adapter (12V @ 5A Adapter)
AC-DC Adapter
Mechanical & Environmental
System Fan Fanless
Construction - Front Silver Aluminum
Construction - Rear Black
Dimension 283mm x 222mm x 45mm
Weight 2.84Kgs
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity 0% ~ 90% Relative Humidity, Non-condensing
Vibration Test With SSD/mSATA : 1.5Grms, IEC 60068-2-64,
Random, 5 ~ 500Hz, 30min/axis
Shock Test With CF/SSD : 10Grms, IEC 60068-2-27,
Half Sine, 11ms
Certifications & Software Support
Certification
Information
CE, FCC Class B
OS Information Win 7,Win 8 ,Linux
LPC-1208 12.1" 4th
Gen Intel® ULT Core™ Processor i7/i5/i3 Fanless
Rugged Touch Panel PC
Ordering Information
LPC-1208-430-B1R
4th
Gen Intel® ULT Core i5 4300U 1.9GHz CPU/4G DDR3L/2GLAN/COM/12~26V
input/12V Adaptor
ACC-LPC-WiFiUSB-3R
USB WiFi 802.11 b/g/n Module w/ Antenna, Cable
ACC-ARM-D22R
VESA STAND, 75x75 & 100x100 mm
Onboard 4th
Gen Intel® ULT Core™ i5 4300U
1.9GHz BGA Processor
Two SO-DIMM sockets supports up to 16GB
DDR3L 1333/1600 SDRAM
1 x CF, 2 x USB, 1 x COM
Dual Intel® Gigabit LAN
Wide Voltage +12V ~ +26V Input, ErP Power
Backlight Controlled by PWM
IP65 Compliant Front Panel
Timer-Power-On
30. Features
Specifications
Avalue Catalog 2015 Ver.1.0Applied Panel PC-LPC Series1-10
LPC-1207 12.1" Intel® Atom™ Processor D2550 Fanless
Rugged Touch Panel PC
Ordering Information
LPC-1207-255-B1R
Intel® Atom™ D2550 1.86GHz CPU/ 2G DDR3/1GLAN/COM/12~26V input/12V
Adaptor
ACC-LPC-WiFiUSB-3R
USB WiFi 802.11 b/g/n Module w/ Antenna, Cable
ACC-ARM-D22R
VESA STAND, 75x75 & 100x100 mm
ACC-ARM-D29R
ARM A800B VESA standard 75x75 & 100x100mm
Onboard Intel® Atom™ D2550 1.86GHz BGA
Processor
One SO-DIMM socket supports up to
4GB DDR3 1066 MHz SDRAM
1 x CF, 2 x USB, 1x COM
1 Intel® 82574L Gigabit LAN,
2W Amplifier
Wide Voltage +12V ~ +26V Input, ErP Power
Backlight Controlled by PWM
IP65 Compliant Front Panel
Timer-Power-On
Panel
LCD Size 12.1", 4:3
Display Type XGA
Resolution 1024 x 768
Pixel Pitch 0.240mm(H) x 0.240mm(V)
Luminance 600 cd/m²
Contrast Ratio 700
Viewing Angle 70 (U), 70 (D), 80 (L), 80 (R)
Response Time 16 ms
Backlight LED
Touch Type 5 Wires resistive
Touch Light
Transmission
80%
Touch Interface Onboard USB touch (EETI)
System
SBC EBM-CDV
Processor Intel® Atom™ D2550 2-Core 1.86GHz processor
System Chipset Intel® NM10 Express Chipset
I/O Chipset EC ITE IT8518E
System Memory 1 x 204-Pin DDR3 1066MHz SO-DIMM up to 4 GB
Watchdog Timer H/W Reset: 1sec.~255min. and 1sec. or 1min./step
Expansion & Storage
Expansion 1 x Mini PCIe Supports SIM Card
Storage 1 x CompactFlash Type I/II Socket
1 x 2.5" Drive Bay
I/O
USB 2 x USB 2.0
SATA 1 x SATA II
COM Port 1 x RS-232
Other 1 x HDMI
1 x PS2/ KB & MS
Audio
Chipset Realtek ALC892
Audio Interface Line-Out
Ethernet
Chipset 1 x Intel® 82574L
Ethernet Interface 10/100/1000 Base-Tx GbE compatible
LAN Port 1 x RJ-45
Power Requirement
Power Requirement +12V ~ +26V
Power Type AT/ATX (ATX is default setting)
Adapter Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W Adapter (12V @ 5A Adapter)
AC-DC Adapter
Mechanical & Environmental
System Fan Fanless
Construction - Front Silver Aluminum
Construction - Rear Black
Dimension 283 x 222 x 45mm
Weight 2.84Kgs
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity 0% ~ 90% Relative Humidity, Non-condensing
Vibration Test With SSD/mSATA : 1.5Grms, IEC 60068-2-64,
Random, 5 ~ 500Hz, 30min/axis
Shock Test With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine,
11ms
Certifications & Software Support
Certification
Information
CE, FCC Class B
OS Information Win XP, Win 7, Linux, Win CE
31. Features
Specifications
Avalue Catalog 2015 Ver.1.0 Applied Panel PC-LPC Series 1-11
CH1
AppliedPanelPC-LPCSeries
LPC-1206 12.1" 2nd
Gen Intel® Core™ Processor i7/i5/i3
Fanless Rugged Touch Panel PC
Ordering Information
LPC-1206-510-B1R
2nd Gen Intel i5 2510E 2.5G/4G DDR3/2GLAN/COM/SPK/12~19V input/12V
Adaptor
ACC-LPC-WiFiUSB-3R
USB WiFi 802.11 b/g/n Module w/ Antenna, Cable
ACC-ARM-D22R
VESA STAND, 75x75 & 100x100 mm
ACC-ARM-D29R
ARM A800B VESA standard 75x75 & 100x100mm
Support 2nd
Gen Intel® Core™ i7/i5/i3 PGA
Processor
One 204-pin DDR3 SODIMM Up to 8GB
SDRAM
4 x USB, 2 x COM, 1 x DVI, 1 x HDMI
Dual Intel® Gigabit Ethernet
Backlight Controlled by PWM
IP65 Compliant Front Panel
Panel
LCD Size 12.1", 4:3
Display Type XGA
Resolution 1024 x 768
Pixel Pitch 0.240mm(H) x 0.240mm(V)
Luminance 600 cd/m²
Contrast Ratio 700
Viewing Angle 70 (U), 70 (D), 80 (L), 80 (R)
Response Time 16 ms
Backlight LED
Touch Type 5 Wires resistive
Touch Light
Transmission
80%
Touch Interface Onboard USB touch (PenMount)
System
SBC EPI-QM67
Processor Core i Series
System Chipset Intel® QM67 Express Chipest
I/O Chipset Nuvoton NTC6776F
System Memory 1 x 204-Pin DDR3 1333MHz SO-DIMM up to 8 GB
Watchdog Timer H/W Reset, 1sec. ~ 65535sec./1sec.step
Expansion & Storage
Expansion 1 x Mini PCIe Support mSATA
Storage 1 x CompactFlash Type I/II Socket
1 x 2.5" Drive Bay
I/O
USB 4 x USB 2.0
SATA 1 x SATA II
COM Port 1 x RS-232, 1 x RS-272/422/485
Other 1 x HDMI, 1 x DVI, 1 x WiFi
Audio
Chipset Realtek ALC892
Audio Interface Line-Out
Speaker Output 2 x 1W
Ethernet
Chipset 1 x Intel® 82574L
1 x Intel® 82579LM
Ethernet Interface 10/100/1000 Base-Tx GbE compatible
LAN Port 2 x RJ-45
Power Requirement
Power Requirement +12V ~ +26V
Power Type AT/ATX (ATX is default setting)
Adapter Input: 100 ~ 240Vac/ 50 ~ 60Hz; Output
84W Adapter (12V @ 7A Adapter) AC-DC Adapter
Mechanical & Environmental
System Fan Fanless
Construction - Front Silver Aluminum
Construction - Rear Black
Dimension 283mm x 222mm x 68.8mm
Weight 3.9Kgs
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity 0% ~ 90% Relative Humidity, Non-condensing
Vibration Test With SSD/mSATA : 1.5Grms, IEC 60068-2-64,
Random, 5 ~ 500Hz, 30min/axis
Shock Test With CF/SSD : 10Grms, IEC 60068-2-27,
Half Sine, 11ms
Certifications & Software Support
Certification
Information
CE, FCC Class B
OS Information Win 7, Win 8, Linux
32. Features
Specifications
Avalue Catalog 2015 Ver.1.0Applied Panel PC-LPC Series1-12
LPC-1205 12.1" Intel® Atom™ Processor D525 Fanless Rugged Touch Panel PC
Ordering Information
LPC-1205-525-B2R
Intel® Atom™ D525 1.8GHz D525 CPU/ 1G DDR3/1GLAN/COM/12~26V input/
12V Adaptor
ACC-LPC-WiFiUSB-3R
USB WiFi 802.11 b/g/n Module w/ Antenna, Cable
ACC-ARM-D22R
VESA STAND, 75x75 & 100x100 mm
Onboard Intel® Atom™ D525 1.8GHz BGA
Processor
Onboard 1 GB up to 2GB & 1 SO-DIMM up to
4 GB DDR3 SDRAM
1 x CF, 2 x USB, 1 x COM
1 Intel® 82574L Gigabit LAN, 2W Amplifier
Wide Voltage +12V ~ +26V Input, ErP Power
Backlight Controlled by PWM
IP65 Compliant Front Panel
Timer-Power-On
Panel
LCD Size 12.1", 4:3
Display Type XGA
Resolution 1024 x 768
Luminance 600 cd/m²
Contrast Ratio 700
Viewing Angle 70 (U), 70 (D), 80 (L), 80 (R)
Response Time 16 ms
Backlight LED
Touch Type 5 Wires resistive
Touch Light
Transmission
80%
Touch Interface Onboard USB touch (EETI)
System
SBC EBM-PNV
Processor Intel® Atom™ D525 2-Core 1.8GHzz processor
System Chipset Intel® ICH8-M Chipset
I/O Chipset Nuvoton W83627DHG
System Memory Onboard DDR3 1GB up to 2GB
1 x 204-Pin DDR3 1066MHz SO-DIMM up to 4 GB
Watchdog Timer H/W Reset: 1sec.~255min. and 1sec. or 1min./step
Expansion & Storage
Expansion 2 x Mini PCIe
Storage 1 x CompactFlash Type I/II Socket
1 x 2.5" Drive Bay
I/O
USB 2 x USB 2.0
SATA 1 x SATA II
COM Port 1 x RS-232
Other 1 x VGA, 1 x PS2/ KB & MS
Audio
Chipset Realtek ALC888
Audio Interface Line-Out
Ethernet
Chipset 1 x Intel® 82574L
Ethernet Interface 10/100/1000 Base-Tx GbE compatible
LAN Port 1 x RJ-45
Power Requirement
Power Requirement +12V ~ +26V
Power Type AT/ATX (ATX is default setting)
Adapter Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W Adapter (12V @ 5A Adapter)
AC-DC Adapter
Mechanical & Environmental
System Fan Fanless
Construction - Front Silver Aluminum
Construction - Rear Black
Dimension 283mm x 222mm x 45mm
Weight 2.84Kgs
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity 0% ~ 90% Relative Humidity, Non-condensing
Vibration Test With SSD/mSATA : 1.5Grms, IEC 60068-2-64, Ran-
dom, 5 ~ 500Hz, 30min/axis
Shock Test With CF/SSD : 10Grms, IEC 60068-2-27,
Half Sine, 11ms
Certifications & Software Support
Certification
Information
CE, FCC Class B
OS Information Win XP, Win 7, Linux, Win CE
33. Features
Specifications
Avalue Catalog 2015 Ver.1.0 Applied Panel PC-LPC Series 1-13
CH1
AppliedPanelPC-LPCSeries
LPC-1509 15" Intel® Atom™ SoC Processor E3845 Fanless Rugged
Touch Panel PC
Ordering Information
LPC-1509-384-A1R
Intel® Atom™ Soc E3845 1.91GHz CPU/4G DDR3L/2GLAN/COM/12~26V input/
12V Adaptor
ACC-LPC-WiFiUSB-4R
USB WiFi 802.11 b/g/n Module w/ Antenna, Cable
ACC-ARM-D1R
VESA STAND, 75mm & 100 mm
Intel® Atom™ SoC E3845 1.91GHz CPU
One 204-Pin DDR3L SO-DIMM Socket
Supports Up to 8GB DDR3L 1333 SDRAM
1 x CF, 2 x USB, 1 x COM
Dual Intel® I210IT Gigabit LAN
Wide Voltage +12V ~ +26V Input, ErP Power
Backlight Controlled by PWM
IP65 Compliant Front Panel
Timer-Power-On
Panel
LCD Size 15", 4:3
Display Type XGA
Resolution 1024 x 768
Pixel Pitch 0.297mm(H) x 0.297mm(V)
Luminance 400 cd/m²
Contrast Ratio 700
Viewing Angle 70 (U), 70 (D), 80 (L), 80 (R)
Response Time 16 ms
Backlight LED
Touch Type 5 Wires resistive
Touch Light
Transmission
80%
Touch Interface Onboard USB touch (EETI)
System
SBC EBM-BYT
Processor Intel® Atom™ SoC E3845 4-Core 1.91GHz processor
I/O Chipset EC ITE IT8528E
System Memory 1 x 204-Pin DDR3L 1333MHz SO-DIMM up to 8 GB
Watchdog Timer H/W Reset: 1sec.~255min. and 1sec. or 1min./step
Expansion & Storage
Expansion 1 x Mini PCIe Support mSATA
1 x Mini PCIe Supports SIM Card
Storage 1 x CompactFlash Type I/II Socket
1 x 2.5" Drive Bay
I/O
USB 1 x USB 3.0, 1 x USB 2.0
SATA 1 x SATA II
COM Port 1 x RS-232/422/485 (BIOS)
Other 1 x HDMI
1 x Knockouts for Antenna Mounting
Audio
Chipset Realtek ALC892
Audio Interface Line-Out
Ethernet
Chipset 2 x Intel® I210IT
Ethernet Interface 10/100/1000 Base-Tx GbE compatible
LAN Port 1 x RJ-45
Power Requirement
Power Requirement +12V ~ +26V
Power Type AT/ATX (ATX is default setting)
Adapter Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W Adapter (12V @ 5A Adapter)
AC-DC Adapter
Mechanical & Environmental
System Fan Fanless
Construction - Front Silver Aluminum
Construction - Rear Black
Dimension 350mm x 273.9mm x 53.1mm
Weight 4.2Kgs
Operating Temperature -20°C ~ 60°C (-4°F ~ 140°F)
Storage Temperature -30°C ~ 70°C (-22°F ~ 158°F)
Operating Humidity 0% ~ 90% Relative Humidity, Non-condensing
Vibration Test With SSD/mSATA : 1.5Grms, IEC 60068-2-64,
Random, 5 ~ 500Hz, 30min/axis
Shock Test With CF/SSD : 10Grms, IEC 60068-2-27,
Half Sine, 11ms
Certifications & Software Support
Certification
Information
CE, FCC Class B
OS Information Win 7, Win 8, Linux
34. Features
Specifications

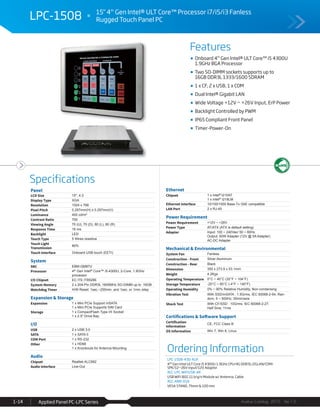

Avalue Catalog 2015 Ver.1.0Applied Panel PC-LPC Series1-14
LPC-1508 15" 4th
Gen Intel® ULT Core™ Processor i7/i5/i3 Fanless
Rugged Touch Panel PC
Ordering Information
LPC-1508-430-A1R
4th Gen Intel ULT Core i5 4300U 1.9GHz CPU/4G DDR3L/2GLAN/COM/
SPK/12~26V input/12V Adaptor
ACC-LPC-WiFiUSB-4R
USB WiFi 802.11 b/g/n Module w/ Antenna, Cable
ACC-ARM-D1R
VESA STAND, 75mm & 100 mm
Onboard 4th
Gen Intel® ULT Core™ i5 4300U
1.9GHz BGA Processor
Two SO-DIMM sockets supports up to
16GB DDR3L 1333/1600 SDRAM
1 x CF, 2 x USB, 1 x COM
Dual Intel® Gigabit LAN
Wide Voltage +12V ~ +26V Input, ErP Power
Backlight Controlled by PWM
IP65 Compliant Front Panel
Timer-Power-On
Panel
LCD Size 15", 4:3
Display Type XGA
Resolution 1024 x 768
Pixel Pitch 0.297mm(H) x 0.297mm(V)
Luminance 400 cd/m²
Contrast Ratio 700
Viewing Angle 70 (U), 70 (D), 80 (L), 80 (R)
Response Time 16 ms
Backlight LED
Touch Type 5 Wires resistive
Touch Light
Transmission
80%
Touch Interface Onboard USB touch (EETI)
System
SBC EBM-QM87U
Processor 4th Gen Intel® Core™ i5-4300U, 2-Core, 1.9GHz
processor
I/O Chipset EC ITE IT8528E
System Memory 2 x 204-Pin DDR3L 1600MHz SO-DIMM up to 16GB
Watchdog Timer H/W Reset: 1sec.~255min. and 1sec. or 1min./step
Expansion & Storage
Expansion 1 x Mini PCIe Support mSATA
1 x Mini PCIe Supports SIM Card
Storage 1 x CompactFlash Type I/II Socket
1 x 2.5" Drive Bay
I/O
USB 2 x USB 3.0
SATA 1 x SATA II
COM Port 1 x RS-232
Other 1 x HDMI
1 x Knockouts for Antenna Mounting
Audio
Chipset Realtek ALC892
Audio Interface Line-Out
Ethernet
Chipset 1 x Intel® I210AT
1 x Intel® I218LM
Ethernet Interface 10/100/1000 Base-Tx GbE compatible
LAN Port 2 x RJ-45
Power Requirement
Power Requirement +12V ~ +26V
Power Type AT/ATX (ATX is default setting)
Adapter Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W Adapter (12V @ 5A Adapter)
AC-DC Adapter
Mechanical & Environmental
System Fan Fanless
Construction - Front Silver Aluminum
Construction - Rear Black
Dimension 350 x 273.9 x 53.1mm
Weight 4.2Kgs
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity 0% ~ 90% Relative Humidity, Non-condensing
Vibration Test With SSD/mSATA : 1.5Grms, IEC 60068-2-64, Ran-
dom, 5 ~ 500Hz, 30min/axis
Shock Test With CF/SSD : 10Grms, IEC 60068-2-27,
Half Sine, 11ms
Certifications & Software Support
Certification
Information
CE, FCC Class B
OS Information Win 7, Win 8, Linux
35. Features
Specifications
Avalue Catalog 2015 Ver.1.0 Applied Panel PC-LPC Series 1-15
CH1
AppliedPanelPC-LPCSeries
LPC-1507 15" Intel® Atom™ Processor D2550 Fanless Rugged Touch Panel PC
Ordering Information
LPC-1507-255-A2R
Intel® Atom™ D2550 1.86GHz CPU/ 2G DDR3/1GLAN/COM/SPK/12~26V
input/12V Adaptor
ACC-LPC-WiFiUSB-4R
USB WiFi 802.11 b/g/n Module w/ Antenna, Cable
ACC-ARM-D1R
VESA STAND, 75mm & 100 mm
Onboard Intel® Atom™ D2550
1.86GHz BGA Processor
One SO-DIMM socket supports up to
4GB DDR3 1066MHz SDRAM
1 x CF, 2 x USB, 1 x COM
1 Intel® 82574L Gigabit LAN, 2W Amplifier
Wide Voltage +12V ~ +26V Input, ErP Power
Backlight Controlled by PWM
IP65 Compliant Front Panel
Timer-Power-On
Panel
LCD Size 15", 4:3
Display Type XGA
Resolution 1024 x 768
Pixel Pitch 0.297mm(H) x 0.297mm(V)
Luminance 400 cd/m²
Contrast Ratio 700
Viewing Angle 70 (U), 70 (D), 80 (L), 80 (R)
Response Time 16 ms
Backlight LED
Touch Type 5 Wires resistive
Touch Light
Transmission
80%
Touch Interface Onboard USB touch (EETI)
System
SBC EBM-CDV
Processor Intel® Atom™ D2550 2-Core 1.86GHz processor
System Chipset Intel® NM10 Express Chipset
I/O Chipset EC ITE IT8518E
System Memory 1 x 204-Pin DDR3 1066MHz SO-DIMM up to 4GB
Watchdog Timer H/W Reset: 1sec.~255min. and 1sec. or 1min./step
Expansion & Storage
Expansion 1 x Mini PCIe Supports SIM Card
Storage 1 x CompactFlash Type I/II Socket
1 x 2.5" Drive Bay
I/O
USB 2 x USB 2.0
SATA 1 x SATA II
COM Port 1 x RS-232
Other 1 x HDMI, 1 x PS2/ KB & MS
Audio
Chipset Realtek ALC892
Audio Interface Line-Out
Ethernet
Chipset 1 x Intel® 82574L
Ethernet Interface 10/100/1000 Base-Tx GbE compatible
LAN Port 1 x RJ-45
Power Requirement
Power Requirement +12V ~ +26V
Power Type AT/ATX (ATX is default setting)
Adapter Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W Adapter (12V @ 5A Adapter)
AC-DC Adapter
Mechanical & Environmental
System Fan Fanless
Construction - Front Silver Aluminum
Construction - Rear Black
Dimension 350 x 273.9 x 53.1mm
Weight 4.2Kgs
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity 0% ~ 90% Relative Humidity, Non-condensing
Vibration Test With SSD/mSATA : 1.5Grms, IEC 60068-2-64,
Random, 5 ~ 500Hz, 30min/axis
Shock Test With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine,
11ms
Certifications & Software Support
Certification
Information
CE, FCC Class B
OS Information Win XP, Win 7, Linux, Win CE
36. Features
Specifications

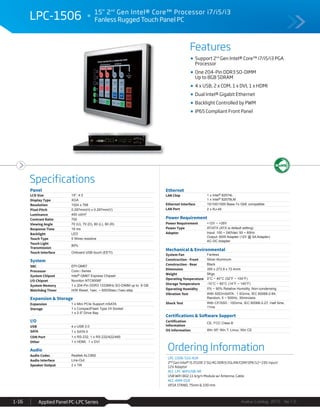

Avalue Catalog 2015 Ver.1.0Applied Panel PC-LPC Series1-16
LPC-1506 15" 2nd
Gen Intel® Core™ Processor i7/i5/i3
Fanless Rugged Touch Panel PC
Ordering Information
LPC-1506-510-A1R
2nd Gen Intel® i5 2510E 2.5G/4G DDR3/2GLAN/COM/SPK/12~19V input/
12V Adaptor
ACC-LPC-WiFiUSB-4R
USB WiFi 802.11 b/g/n Module w/ Antenna, Cable
ACC-ARM-D1R
VESA STAND, 75mm & 100 mm
Support 2nd
Gen Intel® Core™ i7/i5/i3 PGA
Processor
One 204-Pin DDR3 SO-DIMM
Up to 8GB SDRAM
4 x USB, 2 x COM, 1 x DVI, 1 x HDMI
Dual Intel® Gigabit Ethernet
Backlight Controlled by PWM
IP65 Compliant Front Panel
Panel
LCD Size 15", 4:3
Display Type XGA
Resolution 1024 x 768
Pixel Pitch 0.297mm(H) x 0.297mm(V)
Luminance 400 cd/m²
Contrast Ratio 700
Viewing Angle 70 (U), 70 (D), 80 (L), 80 (R)
Response Time 16 ms
Backlight LED
Touch Type 5 Wires resistive
Touch Light
Transmission
80%
Touch Interface Onboard USB touch (EETI)
System
SBC EPI-QM67
Processor Core i Series
System Chipset Intel® QM67 Express Chipset
I/O Chipset Nuvoton NTC6006F
System Memory 1 x 204-Pin DDR3 1333MHz SO-DIMM up to 8 GB
Watchdog Timer H/W Reset, 1sec. ~ 65535sec./1sec.step
Expansion & Storage
Expansion 1 x Mini PCIe Support mSATA
Storage 1 x CompactFlash Type I/II Socket
1 x 2.5" Drive Bay
I/O
USB 4 x USB 2.0
SATA 1 x SATA II
COM Port 1 x RS-232, 1 x RS-232/422/485
Other 1 x HDMI, 1 x DVI
Audio
Audio Codec Realtek ALC892
Audio Interface Line-Out
Speaker Output 2 x 1W
Ethernet
LAN Chip 1 x Intel® 82574L
1 x Intel® 82579LM
Ethernet Interface 10/100/1000 Base-Tx GbE compatible
LAN Port 2 x RJ-45
Power Requirement
Power Requirement +12V ~ +26V
Power Type AT/ATX (ATX is default setting)
Adapter Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W Adapter (12V @ 5A Adapter)
AC-DC Adapter
Mechanical & Environmental
System Fan Fanless
Construction - Front Silver Aluminum
Construction - Rear Black
Dimension 350 x 273.9 x 72.4mm
Weight 5Kgs
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -10°C ~ 60°C (14°F ~ 140°F)
Operating Humidity 0% ~ 90% Relative Humidity, Non-condensing
Vibration Test With SSD/mSATA : 1.5Grms, IEC 60068-2-64,
Random, 5 ~ 500Hz, 30min/axis
Shock Test With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine,
11ms
Certifications & Software Support
Certification
Information
CE, FCC Class B
OS Information Win XP, Win 7, Linux, Win CE
37. Features
Specifications
Avalue Catalog 2015 Ver.1.0 Applied Panel PC-LPC Series 1-17
CH1
AppliedPanelPC-LPCSeries
LPC-1505 15" Intel® Atom™ Processor D525 Fanless Rugged Touch Panel PC
Ordering Information
LPC-1505-525-A2R
Intel® Atom™ D525 1.8GHz CPU/ 1G Memory/1GLAN/COM/SPK/12~26V
input/12V Adaptor
ACC-LPC-WiFiUSB-4R
USB WiFi 802.11 b/g/n Module w/ Antenna, Cable
ACC-ARM-D1R
VESA STAND, 75mm & 100 mm
ACC-ARM-D19R
VESA STAND, 75mm & 100 mm
Onboard Intel® Atom™ D525 1.8GHz BGA
Processor
Onboard 1 GB up to 2GB & 1 SO-DIMM
up to 4 GB DDR3 SDRAM
1 x CF, 2 x USB, 1 x COM
1 Intel® 82574L Gigabit LAN, 2W Amplifier
Wide Voltage +12V ~ +26V Input, ErP Power
Backlight Controlled by PWM
IP65 Compliant Front Panel
Timer-Power-On
Panel
LCD Size 15", 4:3
Display Type XGA
Resolution 1024 x 768
Pixel Pitch 0.297mm(H) x 0.297mm(V)
Luminance 400 cd/m²
Contrast Ratio 700
Viewing Angle 70 (U), 70 (D), 80 (L), 80 (R)
Response Time 16 ms
Backlight LED
Touch Type 5 Wires resistive
Touch Light
Transmission
80%
Touch Interface Onboard USB touch (EETI)
System
SBC EBM-PNV
Processor Intel® Atom™ D525 2-Core 1.8GHzz processor
System Chipset Intel® ICH8-M Chipset
I/O Chipset Nuvoton W83627DHG
System Memory Onboard DDR3 1GB up to 2GB
1 x 204-Pin DDR3 1066MHz SO-DIMM up to 4 GB
Watchdog Timer H/W Reset: 1sec.~255min. and 1sec. or 1min./step
Expansion & Storage
Expansion 2 x Mini PCIe
Storage 1 x CompactFlash Type I/II Socket
1 x 2.5" Drive Bay
I/O
USB 2 x USB 3.0
SATA 1 x SATA II
COM Port 1 x RS-232
Other 1 x VGA,1 x PS2/ KB & MS
Audio
Audio Codec Realtek ALC888
Audio Interface Line-Out
Ethernet
LAN Chip 1 x Intel® 82574L
Ethernet Interface 10/100/1000 Base-Tx GbE compatible
LAN Port 1 x RJ-45
Power Requirement
Power Requirement +12V ~ +26V
Power Type AT/ATX (ATX is default setting)
Adapter Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W Adapter (12V @ 5A Adapter)
AC-DC Adapter
Mechanical & Environmental
System Fan Fanless
Construction - Front Silver Aluminum
Construction - Rear Black
Dimension 350 x 273.9 x 53.1mm
Weight 4.2Kgs
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -10°C ~ 60°C (14°F ~ 140°F)
Operating Humidity 0% ~ 90% Relative Humidity, Non-condensing
Vibration Test With SSD/mSATA : 1.5Grms, IEC 60068-2-64,
Random, 5 ~ 500Hz, 30min/axis
Shock Test With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine,
11ms
Certifications & Software Support
Certification
Information
CE, FCC Class B
OS Information Win XP, Win 7, Linux, Win CE
38. Features
Specifications
Avalue Catalog 2015 Ver.1.0Applied Panel PC-LPC Series1-18
LPC-1709 17" Intel® Atom™ SoC Processor E3845 Fanless Rugged
Touch Panel PC
Ordering Information
LPC-1709-384-A1R
Intel® Atom™ SoC E3845 1.91GHz CPU/ 4G DDR3L/2GLAN/COM/SPK/12~26V
input/12V Adaptor
ACC-LPC-WiFiUSB-4R
USB WiFi 802.11 b/g/n Module w/ Antenna, Cable
ACC-ARM-D1R
VESA STAND, 75mm & 100 mm
ACC-ARM-D19R
VESA STAND, 75mm & 100 mm
Intel® Atom™SoC E3845 1.91GHz CPU
One 204-Pin DDR3L SO-DIMM Socket
Supports Up to 8GB DDR3L 1333 SDRAM
1 x CF, 2 x USB, 1 x COM
Dual Intel® I210IT Gigabit LAN
Wide Voltage +12V ~ +26V Input, ErP Power
Backlight Controlled by PWM
IP65 Compliant Front Panel
Timer-Power-On
Panel
LCD Size 17", 4:3
Display Type SXGA
Resolution 1280 x 1024
Pixel Pitch 0.264mm(H) x 0.264mm(V)
Luminance 350 cd/m²
Contrast Ratio 800
Viewing Angle 80 (U), 80 (D), 85 (L), 85 (R)
Response Time 30 ms
Backlight LED
Touch Type 5 Wires resistive
Touch Light
Transmission
80%
Touch Interface Onboard USB touch (EETI)
System
SBC EBM-BYT
Processor Intel® Atom™ SoC E3845 4-Core 1.91GHz processor
I/O Chipset EC ITE IT8528E
System Memory 1 x 204-Pin DDR3L 1333MHz SO-DIMM up to 8 GB
Watchdog Timer H/W Reset, 1sec. ~ 65535sec./1sec.step
Expansion & Storage
Expansion 1 x Mini PCIe Support mSATA
1 x Mini PCIe Supports SIM Card
Storage 1 x CompactFlash Type I/II Socket
1 x 2.5" Drive Bay
I/O
USB 1 x USB 3.0
1 x USB 2.0
SATA 1 x SATA II
COM Port 1 x RS-232/422/485 (BIOS)
Other 1 x HDMI
1 x Knockouts for Antenna Mounting
Audio
Audio Codec Realtek ALC892
Audio Interface Line-Out
Ethernet
LAN Chip 2 x Intel® I210IT
Ethernet Interface 10/100/1000 Base-Tx GbE compatible
LAN Port 2 x RJ-45
Power Requirement
Power Requirement +12V ~ +26V
Power Type AT/ATX (ATX is default setting)
Adapter Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W Adapter (12V @ 5A Adapter)
AC-DC Adapter
Mechanical & Environmental
System Fan Fanless
Construction - Front Silver Aluminum
Construction - Rear Black
Dimension 350 x 273.9 x 53.1mm
Weight 4.2Kgs
Operating Temperature -20°C ~ 60°C (-4°F ~ 140°F)
Storage Temperature -30°C ~ 70°C (-22°F ~ 158°F)
Operating Humidity 0% ~ 90% Relative Humidity, Non-condensing
Vibration Test With SSD/mSATA : 1.5Grms, IEC 60068-2-64,
Random, 5 ~ 500Hz, 30min/axis
Shock Test With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine,
11ms
Certifications & Software Support
Certification
Information
CE, FCC Class B
OS Information Win 7, Win 8, Linux
39. Features
Specifications
Avalue Catalog 2015 Ver.1.0 Applied Panel PC-LPC Series 1-19
CH1
AppliedPanelPC-LPCSeries
LPC-1707 17" Intel® Atom™ Processor D2550 Fanless Rugged Touch Panel PC
Ordering Information
LPC-1707-255-A1R
Intel® Atom™ D2550 1.86GHz CPU/ 2G DDR3/1GLAN/COM/SPK/12~26V
input/12V Adaptor
ACC-LPC-WiFiUSB-4R
USB WiFi 802.11 b/g/n Module w/ Antenna, Cable
ACC-ARM-D1R
VESA STAND, 75mm & 100 mm
ACC-ARM-D19R
VESA STAND, 75mm & 100 mm
Onboard Intel® Atom™ D2550 1.86GHz BGA
Processor
One SO-DIMM socket supports up to 4GB
DDR3 1066MHz SDRAM
1 x CF, 2 x USB, 1 x COM
1 x Intel® 82574L Gigabit LAN, 2W Amplifier
Wide Voltage +12V ~ +26V Input, ErP Power
Backlight Controlled by PWM
IP65 Compliant Front Panel
Timer-Power-On
Panel
LCD Size 17", 4:3
Display Type SXGA
Resolution 1280 x 1024
Pixel Pitch 0.264mm(H) x 0.264mm(V)
Luminance 350 cd/m²
Contrast Ratio 800
Viewing Angle 80 (U), 80 (D), 85 (L), 85 (R)
Response Time 30 ms
Backlight LED
Touch Type 5 Wires resistive
Touch Light
Transmission
80%
Touch Interface Onboard USB touch (EETI)
System
SBC EBM-CDV
Processor Intel® Atom™ D2550 2-Core 1.86GHz processor
System Chipset Intel® NM10 Express Chipset
I/O Chipset EC ITE IT8518E
System Memory 1 x 204-Pin DDR3 1066MHz SO-DIMM up to 4 GB
Watchdog Timer H/W Reset: 1sec.~255min. and 1sec. or 1min./step
Expansion & Storage
Expansion 1 x Mini PCIe Supports SIM Card
Storage 1 x CompactFlash Type I/II Socket
1 x 2.5" Drive Bay
I/O
USB 2 x USB 2.0
SATA 1 x SATA II
COM Port 1 x RS-232
Other 1 x HDMI
1 x PS2/ KB & MS
Audio
Audio Codec Realtek ALC892
Audio Interface Line-Out
Ethernet
LAN Chip 1 x Intel® 82574L
Ethernet Interface 10/100/1000 Base-Tx GbE compatible
LAN Port 1 x RJ-45
Power Requirement
Power Requirement +12V ~ +26V
Power Type AT/ATX (ATX is default setting)
Adapter Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W Adapter (12V @ 5A Adapter)
AC-DC Adapter
Mechanical & Environmental
System Fan Fanless
Construction - Front Silver Aluminum
Construction - Rear Black
Dimension 350 x 273.9 x 53.1mm
Weight 4.2Kgs
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity 0% ~ 90% Relative Humidity, Non-condensing
Vibration Test With SSD/mSATA : 1.5Grms, IEC 60068-2-64,
Random, 5 ~ 500Hz, 30min/axis
Shock Test With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine,
11ms
Certifications & Software Support
Certification
Information
CE, FCC Class B
OS Information Win XP, Win 7, Linux, Win CE
40. Features
Specifications
Avalue Catalog 2015 Ver.1.0Applied Panel PC-LPC Series1-20
LPC-1705 17" Intel® Atom™ Processor D525 Fanless Rugged Touch Panel PC
Ordering Information
LPC-1705-525-A1-1R
Intel® Atom™ D525 1.8GHz CPU/ 1G Memory/1GLAN/COM/SPK/12~26V
input/12V Adaptor
ACC-LPC-WiFiUSB-4R
USB WiFi 802.11 b/g/n Module w/ Antenna, Cable
ACC-ARM-D1R
VESA STAND, 75mm & 100 mm
ACC-ARM-D19R
VESA STAND, 75mm & 100 mm
Onboard Intel® Atom™ D525 1.8GHz BGA
Processor
Onboard 1 GB up to 2GB & 1 SO-DIMM
up to 4 GB DDR3 SDRAM
1 x CF, 2 x USB, 1 x COM
1 Intel® 82574L Gigabit LAN, 2W Amplifier
Wide Voltage +12V ~ +26V Input, ErP Power
Backlight Controlled by PWM
IP65 Compliant Front Panel
Timer-Power-On
Panel
LCD Size 17", 4:3
Display Type SXGA
Resolution 1280 x 1024
Pixel Pitch 0.264mm(H) x 0.264mm(V)
Luminance 350 cd/m²
Contrast Ratio 800
Viewing Angle 80 (U), 80 (D), 85 (L), 85 (R)
Response Time 30 ms
Backlight LED
Touch Type 5 Wires resistive
Touch Light
Transmission
80%
Touch Interface Onboard USB touch (EETI)
System
SBC EBM-PNV
Processor Intel® Atom™ D525 2-Core 1.8GHzz processor
System Chipset Intel® ICH8-M Chipset
I/O Chipset Nuvoton W83627DHG
System Memory Onboard DDR3 1GB up to 2GB
1 x 204-Pin DDR3 1066MHz SO-DIMM up to 4 GB
Watchdog Timer H/W Reset: 1sec.~255min. and 1sec. or 1min./step
Expansion & Storage
Expansion 2 x Mini PCIe
Storage 1 x CompactFlash Type I/II Socket
1 x 2.5" Drive Bay
I/O
USB 2 x USB 2.0
SATA 1 x SATA II
COM Port 1 x RS-232
Other 1 x VGA
1 x PS2/ KB & MS
Audio
Audio Codec Realtek ALC888
Audio Interface Line-Out
Ethernet
LAN Chip 1 x Intel® 82574L
Ethernet Interface 10/100/1000 Base-Tx GbE compatible
LAN Port 1 x RJ-45
Power Requirement
Power Requirement +12V ~ +26V
Power Type AT/ATX (ATX is default setting)
Adapter Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W Adapter (12V @ 5A Adapter)
AC-DC Adapter
Mechanical & Environmental
System Fan Fanless
Construction - Front Silver Aluminum
Construction - Rear Black
Dimension 350 x 273.9 x 53.1mm
Weight 4.2Kgs
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -10°C ~ 60°C (14°F ~ 140°F)
Operating Humidity 0% ~ 90% Relative Humidity, Non-condensing
Vibration Test With SSD/mSATA : 1.5Grms, IEC 60068-2-64,
Random, 5 ~ 500Hz, 30min/axis
Shock Test With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine,
11ms
Certifications & Software Support
Certification
Information
CE, FCC Class B
OS Information Win XP, Win 7, Linux, Win CE
41. SPC-1209
SPC-1207
SPC-1205
SPC-1509
SPC-1507
SPC-1505
SPC-1709
SPC-1707
SPC-1705
SPC-22W9
SPC-22W7
SPC-22W5
SPC Introduction
2-2
2-3
2-4
2-5
2-6
2-7
2-8
2-9
2-10
2-11
2-12
2-13
2-14
12.1" Intel® Atom™ SoC Processor E3845 Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65
12.1" Intel® Atom™ Processor D2550 Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65
12.1" Intel® Atom™ Processor D525 Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65
15" Intel® Atom™ SoC Processor E3845 Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65
15" Intel® Atom™ Processor D2550 Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65
15" Intel® Atom™ Processor D525 Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65
17" Intel® Atom™ SoC Processor E3845 Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65
17" Intel® Atom™ Processor D2550 Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65
17" Intel® Atom™ Processor D525 Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65
22" Intel® Atom™ SoC Processor E3845 Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65
22" Intel® Atom™ Processor D2550 Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65
22" Intel® Atom™ Processor D525 Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65
SPC-1209
SPC-1205
2-2
2-4
12.1" Intel® Atom™ SoC Processor E3845 Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65
12.1" Intel® Atom™ Processor D525 Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65
SPC-1207SPC-1207 2-32-312 1" Intel® Atom™ Processor D2550 Fanless Stainless Steel Chassis Touch Panel PC with Full IP-6512.1 Intel® Atom Processor D2550 Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65
SPC-1509 2-515" Intel® Atom™ SoC Processor E3845 Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65
SPC-1505 2-715" Intel® Atom™ Processor D525 Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65
SPC-1707 2-917" Intel® Atom™ Processor D2550 Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65
SPC-22W9 2-1122" Intel® Atom™ SoC Processor E3845 Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65
SPC-22W5 2-1322" Intel® Atom™ Processor D525 Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65
Applied Panel PC-SPC Series +eries ++
Applied Panel PC-SPC Series
Applied Panel PC-SPC SeApplied Panel PC SPC Se
2

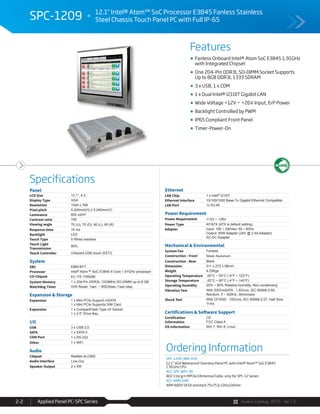

42. Avalue Catalog 2015 Ver.1.0Applied Panel PC-SPC Series2-2
Features
Specifications
SPC-1209 12.1" Intel® Atom™ SoC Processor E3845 Fanless Stainless
Steel Chassis Touch Panel PC with Full IP-65
Ordering Information
SPC-1209-384-A1R
12.1" XGA Waterproof Stainless Panel PC with Intel® Atom™ SoC E3845
1.91GHz CPU
ACC-SPC-WIFI-3R
802.11b/g/n MPCIe/2Antenna/Cable, only for SPC-12 Series
ACC-ARM-D4R
ARM A800 VESA standard 75x75 & 100x100mm
Panel
LCD Size 12.1", 4:3
Display Type XGA
Resolution 1024 x 768
Pixel pitch 0.240mm(H) x 0.240mm(V)
Luminance 600 cd/m²
Contrast ratio 700
Viewing angle 70 (U), 70 (D), 80 (L), 80 (R)
Response time 16 ms
Backlight LED
Touch Type 5 Wires resistive
Touch Light
Transmission
80%
Touch Controller Onboard USB touch (EETI)
System
SBC EBM-BYT
Processor Intel® Atom™ SoC E3845 4-Core 1.91GHz processor
I/O Chipset EC ITE IT8528E
System Memory 1 x 204-Pin DDR3L 1333MHz SO-DIMM up to 8 GB
Watchdog Timer H/W Reset, 1sec. ~ 65535sec./1sec.step
Expansion & Storage
Expansion 1 x Mini PCIe Support mSATA
1 x Mini PCIe Supports SIM Card
Expansion 1 x CompactFlash Type I/II Socket
1 x 2.5” Drive Bay
I/O
USB 3 x USB 2.0
SATA 1 x SATA II
COM Port 1 x RS-232
Other 1 x WiFi
Audio
Chipset Realtek ALC892
Audio Interface Line-Out
Speaker Output 2 x 5W
Ethernet
LAN Chip 1 x Intel® I210IT
Ethernet Interface 10/100/1000 Base-Tx Gigabit Ethernet Compatible
LAN Port 1x RJ-45
Power Requirement
Power Requirement +12V ~ +26V
Power Type AT/ATX (ATX is default setting)
Adapter Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W Adapter (24V @ 2.5A Adapter)
AC-DC Adapter
Mechanical & Environmental
System Fan Fanless
Construction - Front Silver Aluminum
Construction - Rear Black
Dimension 311 x 272 x 58mm
Weight 4.23Kgs
Operating Temperature -20°C ~ 50°C (-4°F ~ 122°F)
Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity 20% ~ 80% Relative Humidity, Non-condensing
Vibration Test With SSD/mSATA : 1.5Grms, IEC 60068-2-64,
Random, 5 ~ 500Hz, 30min/axis
Shock Test With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine,
11ms
Certifications & Software Support
Certification
Information
CE
FCC Class A
OS Information Win 7, Win 8, Linux
Fanless Onboard Intel® Atom SoC E3845 1.91GHz
with Integrated Chipset
One 204-Pin DDR3L SO-DIMM Socket Supports
Up to 8GB DDR3L 1333 SDRAM
3 x USB, 1 x COM
1 x Dual Intel® I210IT Gigabit LAN
Wide Voltage +12V ~ +26V Input, ErP Power
Backlight Controlled by PWM
IP65 Compliant Front Panel
Timer-Power-On
43. Avalue Catalog 2015 Ver.1.0 Applied Panel PC-SPC Series 2-3
Features
Specifications
CH2
AppliedPanelPC-SPCSeries
SPC-1207 12.1" Intel® Atom™ Processor D2550 Fanless Stainless Steel
Chassis Touch Panel PC with Full IP-65
Ordering Information
SPC-1207-255-A2R
12.1" XGA Waterproof Stainless Panel PC with Intel® Atom™ D2550
1.86GHz CPU
ACC-SPC-WIFI-2R
802.11b/g/n MPCIe/2Antenna/Cable, only for SPC-12 Series
ACC-ARM-D4R
ARM A800 VESA standard 75x75 & 100x100mm
ACC-ARM-D22R
VESA STAND, 75x75 & 100x100 mm
Panel
LCD Size 12.1", 4:3
Display Type XGA
Resolution 1024 x 768
Pixel pitch 0.240mm(H) x 0.240mm(V)
Luminance 600 cd/m²
Contrast ratio 700
Viewing angle 70 (U), 70 (D), 80 (L), 80 (R)
Response time 16 ms
Backlight LED
Touch Type 5 Wires resistive
Touch Light
Transmission
80%
Touch Controller Onboard USB touch (EETI)
System
SBC EBM-CDV
Processor Intel® Atom™ D2550 2-Core 1.86GHz processor
System Chipset Intel® NM10 Express Chipset
I/O Chipset EC ITE IT8518E
System Memory 1 x 204-Pin DDR3 1066MHz SO-DIMM up to 4 GB
Watchdog Timer H/W Reset: 1sec.~255min. and 1sec. or 1min./step
Expansion & Storage
Expansion 1 x Mini PCIe Supports SIM Card
Storage 1 x CompactFlash Type I/II Socket
1 x 2.5” Drive Bay
I/O
USB 3 x USB 2.0
SATA 1 x SATA II
COM Port 1 x RS-232
Other 1 x WiFi
Audio
Chipset Realtek ALC892
Audio Interface Line-Out
Speaker Output 2 x 2W
Ethernet
Chipset 1 x Intel® 82574L
Ethernet Interface 10/100/1000 Base-Tx GbE compatible
LAN Port 1 x RJ-45
Power Requirement
Power Requirement +12V ~ +26V
Power Type AT/ATX (ATX is default setting)
Adapter Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W Adapter (24V @ 2.5A Adapter)
AC-DC Adapter
Mechanical & Environmental
System Fan Fanless
Construction - Front Front & Rear Silver Stainless
Construction - Rear Black
Dimension 311 x 272 x 58mm
Weight 4.23Kgs
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity 20% ~ 80% Relative Humidity, Non-condensing
Vibration Test With SSD/mSATA : 1.5Grms, IEC 60068-2-64,
Random, 5 ~ 500Hz, 30min/axis
Shock Test With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine,
11ms
Certifications & Software Support
Certification
Information
CE
FCC Class A
OS Information Win XP, Win 7, Linux, Win CE
Onboard Intel® Atom™ D2550 1.86GHz BGA
Processor
One SO-DIMM socket supports up to 4GB
DDR3 1066 SDRAM
3 x USB, 1 x COM
1 x Intel® 82574L Gigabit LAN, 2W Amplifier
Wide Voltage +12V ~ +26V Input, ErP Power
Backlight Controlled by PWM
IP65 Compliant Front Panel
Timer-Power-On
44. Avalue Catalog 2015 Ver.1.0Applied Panel PC-SPC Series2-4
Features
Specifications
SPC-1205 12.1" Intel® Atom™ Processor D525 Fanless Stainless
Steel Chassis Touch Panel PC with Full IP-65
Onboard Intel® Atom™ D525 1.8GHz BGA
Processor
Onboard 1 GB up to 2GB & 1 SODIMM up to
4 GB DDR3 SDRAM
3 x USB, 1 x COM
1 x Intel® 82574L Gigabit LAN, 2W Amplifier
Wide Voltage +12V ~ +26V Input, ErP Power
Backlight Controlled by PWM
IP65 Compliant Front Panel
Timer-Power-On
Ordering Information
SPC-1205-525-A2R
12.1" XGA Waterproof Stainless Panel PC with Intel® Atom™ D525 1.8 GHz
ACC-SPC-WIFI-2R
802.11b/g/n MPCIe/2Antenna/Cable, only for SPC-12 Series
ACC-ARM-D4R
ARM A800 VESA standard 75x75 & 100x100mm
ACC-ARM-D22R
VESA STAND, 75x75 & 100x100 mm
Panel
LCD Size 12.1", 4:3
Display Type XGA
Resolution 1024 x 768
Pixel pitch 0.240mm(H) x 0.240mm(V)
Luminance 600 cd/m²
Contrast ratio 700
Viewing angle 70 (U), 70 (D), 80 (L), 80 (R)
Response time 16 ms
Backlight LED
Touch Type 5 Wires resistive
Touch Light
Transmission
80%
Touch Controller Onboard USB touch (EETI)
System
SBC EBM-PNV
Processor Intel® Atom™ D525 2-Core 1.8GHzz processor
System Chipset Intel® ICH8-M Chipset
I/O Chipset EC ITE IT8528E
System Memory 1 x 204-Pin DDR3L 1066MHz SO-DIMM up to 4 GB
Watchdog Timer H/W Reset, 1sec. ~ 65535sec./1sec.step
Expansion & Storage
Expansion 2 x Mini PCIe
Storage 1 x CompactFlash Type I/II Socket
1 x 2.5” Drive Bay
I/O
USB 3 x USB 2.0
SATA 1 x SATA II
COM Port 1 x RS-232
Other 1 x WiFi
Audio
Chipset Realtek ALC888
Audio Interface Line-Out
Speaker Output 2 x 2W
Ethernet
LAN Chip 1 xIntel® 82574L
Ethernet Interface 10/100/1000 Base-Tx Gigabit Ethernet Compatible
LAN Port 1 x RJ-45
Power Requirement
Power Requirement +12V ~ +26V
Power Type AT/ATX (ATX is default setting)
Adapter Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W Adapter (24V @ 2.5A Adapter)
AC-DC Adapter
Mechanical & Environmental
System Fan Fanless
Construction - Front Front & Rear Silver Stainless
Construction - Rear Black
Dimension 311 x 272 x 58mm
Weight 4.23Kgs
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity 20% ~ 80% Relative Humidity, Non-condensing
Vibration Test With SSD/mSATA : 1.5Grms, IEC 60068-2-64,
Random, 5 ~ 500Hz, 30min/axis
Shock Test With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine,
11ms
Certifications & Software Support
Certification
Information
CE
FCC Class A
OS Information Win XP, Win 7, Linux, Win CE

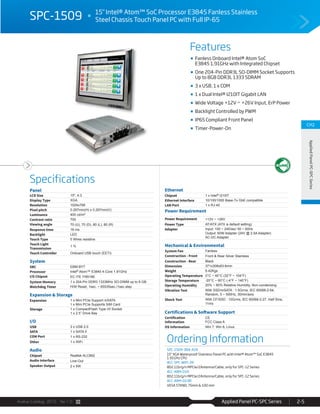

45. Avalue Catalog 2015 Ver.1.0 Applied Panel PC-SPC Series 2-5
Features
Specifications
CH2
AppliedPanelPC-SPCSeries
SPC-1509 15" Intel® Atom™ SoC Processor E3845 Fanless Stainless
Steel Chassis Touch Panel PC with Full IP-65
Fanless Onboard Intel® Atom SoC
E3845 1.91GHz with Integrated Chipset
One 204-Pin DDR3L SO-DIMM Socket Supports
Up to 8GB DDR3L 1333 SDRAM
3 x USB, 1 x COM
1 x Dual Intel® I210IT Gigabit LAN
Wide Voltage +12V ~ +26V Input, ErP Power
Backlight Controlled by PWM
IP65 Compliant Front Panel
Timer-Power-On
Ordering Information
SPC-1509-384-A1R
15" XGA Waterproof Stainless Panel PC with Intel® Atom™ SoC E3845
1.91GHz CPU
ACC-SPC-WIFI-2R
802.11b/g/n MPCIe/2Antenna/Cable, only for SPC-12 Series
ACC-ARM-D1R
802.11b/g/n MPCIe/2Antenna/Cable, only for SPC-12 Series
ACC-ARM-D23R:
VESA STAND, 75mm & 100 mm
Panel
LCD Size 15", 4:3
Display Type XGA
Resolution 1024x768
Pixel pitch 0.297mm(H) x 0.297mm(V)
Luminance 400 cd/m²
Contrast ratio 700
Viewing angle 70 (U), 70 (D), 80 (L), 80 (R)
Response time 16 ms
Backlight LED
Touch Type 5 Wires resistive
Touch Light
Transmission
1 %
Touch Controller Onboard USB touch (EETI)
System
SBC EBM-BYT
Processor Intel® Atom™ E3845 4-Core 1.91GHz
I/O Chipset EC ITE IT8518E
System Memory 1 x 204-Pin DDR3 1333MHz SO-DIMM up to 8 GB
Watchdog Timer H/W Reset, 1sec. ~ 65535sec./1sec.step
Expansion & Storage
Expansion 1 x Mini PCIe Support mSATA
1 x Mini PCIe Supports SIM Card
Storage 1 x CompactFlash Type I/II Socket
1 x 2.5” Drive Bay
I/O
USB 3 x USB 2.0
SATA 1 x SATA II
COM Port 1 x RS-232
Other 1 x WiFi
Audio
Chipset Realtek ALC892
Audio Interface Line-Out
Speaker Output 2 x 5W
Ethernet
Chipset 1 x Intel® I210IT
Ethernet Interface 10/100/1000 Base-Tx GbE compatible
LAN Port 1 x RJ-45
Power Requirement
Power Requirement +12V ~ +26V
Power Type AT/ATX (ATX is default setting)
Adapter Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W Adapter (24V @ 2.5A Adapter)
AC-DC Adapter
Mechanical & Environmental
System Fan Fanless
Construction - Front Front & Rear Silver Stainless
Construction - Rear Black
Dimension 371x308x63.6mm
Weight 6.42Kgs
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity 20% ~ 80% Relative Humidity, Non-condensing
Vibration Test With SSD/mSATA : 1.5Grms, IEC 60068-2-64,
Random, 5 ~ 500Hz, 30min/axis
Shock Test With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine,
11ms
Certifications & Software Support
Certification
Information
CE
FCC Class A
OS Information Win 7, Win 8, Linux

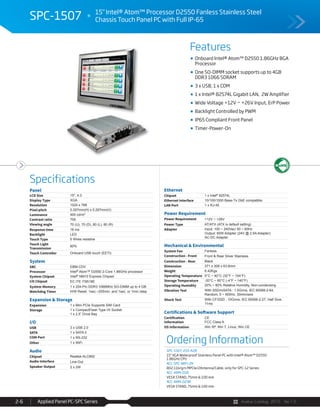

46. Avalue Catalog 2015 Ver.1.0Applied Panel PC-SPC Series2-6
Features
Specifications
SPC-1507 15" Intel® Atom™ Processor D2550 Fanless Stainless Steel
Chassis Touch Panel PC with Full IP-65
Onboard Intel® Atom™ D2550 1.86GHz BGA
Processor
One SO-DIMM socket supports up to 4GB
DDR3 1066 SDRAM
3 x USB, 1 x COM
1 x Intel® 82574L Gigabit LAN, 2W Amplifier
Wide Voltage +12V ~ +26V Input, ErP Power
Backlight Controlled by PWM
IP65 Compliant Front Panel
Timer-Power-On
Ordering Information
SPC-1507-255-A2R
15" XGA Waterproof Stainless Panel PC with Intel® Atom™ D2550
1.86GHz CPU
ACC-SPC-WIFI-2R
802.11b/g/n MPCIe/2Antenna/Cable, only for SPC-12 Series
ACC-ARM-D1R
VESA STAND, 75mm & 100 mm
ACC-ARM-D23R
VESA STAND, 75mm & 100 mm
Panel
LCD Size 15", 4:3
Display Type XGA
Resolution 1024 x 768
Pixel pitch 0.297mm(H) x 0.297mm(V)
Luminance 400 cd/m²
Contrast ratio 700
Viewing angle 70 (U), 70 (D), 80 (L), 80 (R)
Response time 16 ms
Backlight LED
Touch Type 5 Wires resistive
Touch Light
Transmission
80%
Touch Controller Onboard USB touch (EETI)
System
SBC EBM-CDV
Processor Intel® Atom™ D2550 2-Core 1.86GHz processor
System Chipset Intel® NM10 Express Chipset
I/O Chipset EC ITE IT8518E
System Memory 1 x 204-Pin DDR3 1066MHz SO-DIMM up to 4 GB
Watchdog Timer H/W Reset: 1sec.~255min. and 1sec. or 1min./step
Expansion & Storage
Expansion 1 x Mini PCIe Supports SIM Card
Storage 1 x CompactFlash Type I/II Socket
1 x 2.5” Drive Bay
I/O
USB 3 x USB 2.0
SATA 1 x SATA II
COM Port 1 x RS-232
Other 1 x WiFi
Audio
Chipset Realtek ALC892
Audio Interface Line-Out
Speaker Output 2 x 2W
Ethernet
Chipset 1 x Intel® 82574L
Ethernet Interface 10/100/1000 Base-Tx GbE compatible
LAN Port 1 x RJ-45
Power Requirement
Power Requirement +12V ~ +26V
Power Type AT/ATX (ATX is default setting)
Adapter Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W Adapter (24V @ 2.5A Adapter)
AC-DC Adapter
Mechanical & Environmental
System Fan Fanless
Construction - Front Front & Rear Silver Stainless
Construction - Rear Black
Dimension 371 x 308 x 63.6mm
Weight 6.42Kgs
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity 20% ~ 80% Relative Humidity, Non-condensing
Vibration Test With SSD/mSATA : 1.5Grms, IEC 60068-2-64,
Random, 5 ~ 500Hz, 30min/axis
Shock Test With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine,
11ms
Certifications & Software Support
Certification
Information
CE
FCC Class A
OS Information Win XP, Win 7, Linux, Win CE
47. Avalue Catalog 2015 Ver.1.0 Applied Panel PC-SPC Series 2-7
Features
Specifications
CH2
AppliedPanelPC-SPCSeries
SPC-1505 15" Intel® Atom™ Processor D525 Fanless Stainless
Steel Chassis Touch Panel PC with Full IP-65
Onboard Intel® Atom™ D525 1.8GHz BGA
Processor
Onboard 1 GB up to 2GB & 1 SODIMM up to
4 GB DDR3 SDRAM
3 x USB, 1 x COM
1 x Intel® 82574L Gigabit LAN, 2W Amplifier
Wide Voltage +12V ~ +26V Input, ErP Power
Backlight Controlled by PWM
IP65 Compliant Front Panel
Timer-Power-On
Ordering Information
SPC-1505-525-A3R
15" XGA Waterproof Stainless Panel PC with Intel® Atom™ D525 1.8 GHz CPU
ACC-SPC-WIFI-2R
802.11b/g/n MPCIe/2Antenna/Cable, only for SPC-12 Series
ACC-ARM-D1R
802.11b/g/n MPCIe/2Antenna/Cable, only for SPC-12 Series
ACC-ARM-D23R:
VESA STAND, 75mm & 100 mm
Panel
LCD Size 15", 4:3
Display Type XGA
Resolution 1024 x 768
Pixel pitch 0.297mm(H) x 0.297mm(V)
Luminance 400 cd/m²
Contrast ratio 700
Viewing angle 70 (U), 70 (D), 80 (L), 80 (R)
Response time 16 ms
Backlight LED
Touch Type 5 Wires resistive
Touch Light
Transmission
80%
Touch Controller Onboard USB touch (EETI)
System
SBC EBM-PNV
Processor Intel® Atom™ D525 2-Core 1.8GHzz processor
System Chipset Intel® ICH8-M Chipset
I/O Chipset Nuvoton W83627DHG
System Memory Onboard DDR3 1GB up to 2GB
1 x 204-Pin DDR3 1066MHz SO-DIMM up to 4 GB
Watchdog Timer H/W Reset: 1sec.~255min. and 1sec. or 1min./step
Expansion & Storage
Expansion 2 x Mini PCIe
Storage 1 x CompactFlash Type I/II Socket
1 x 2.5” Drive Bay
I/O
USB 3 x USB 2.0
SATA 1 x SATA II
COM Port 1 x RS-232
Other 1 x WiFi
Audio
Chipset Realtek ALC888
Audio Interface Line-Out
Speaker Output 2 x 2W
Ethernet
Chipset 1 x Intel® 82574L
Ethernet Interface 10/100/1000 Base-Tx GbE compatible
LAN Port 1 x RJ-45
Power Requirement
Power Requirement +12V ~ +26V
Power Type AT/ATX (ATX is default setting)
Adapter Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W Adapter (24V @ 2.5A Adapter)
AC-DC Adapter
Mechanical & Environmental
System Fan Fanless
Construction - Front Front & Rear Silver Stainless
Construction - Rear Black
Dimension 371 x 308 x 63.6mm
Weight 6.42Kgs
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity 20% ~ 80% Relative Humidity, Non-condensing
Vibration Test With SSD/mSATA : 1.5Grms, IEC 60068-2-64,
Random, 5 ~ 500Hz, 30min/axis
Shock Test With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine,
11ms
Certifications & Software Support
Certification
Information
CE
FCC Class A
OS Information Win XP, Win 7, Linux, Win CE
48. Avalue Catalog 2015 Ver.1.0Applied Panel PC-SPC Series2-8
Features
Specifications

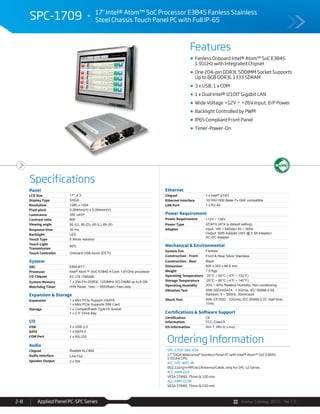

SPC-1709 17" Intel® Atom™ SoC Processor E3845 Fanless Stainless
Steel Chassis Touch Panel PC with Full IP-65
Fanless Onboard Intel® Atom™ SoC E3845
1.91GHz with Integrated Chipset
One 204-pin DDR3L SODIMM Socket Supports
Up to 8GB DDR3L 1333 SDRAM
3 x USB, 1 x COM
1 x Dual Intel® I210IT Gigabit LAN
Wide Voltage +12V ~ +26V Input, ErP Power
Backlight Controlled by PWM
IP65 Compliant Front Panel
Timer-Power-On
Ordering Information
SPC-1709-384-A1R
17" SXGA Waterproof Stainless Panel PC with Intel® Atom™ SoC E3845
1.91GHz CPU
ACC-SPC-WIFI-3R
802.11b/g/n MPCIe/2Antenna/Cable, only for SPC-12 Series
ACC-ARM-D1R
VESA STAND, 75mm & 100 mm
ACC-ARM-D23R
VESA STAND, 75mm & 100 mm
Panel
LCD Size 17", 4:3
Display Type SXGA
Resolution 1280 x 1024
Pixel pitch 0.264mm(H) x 0.264mm(V)
Luminance 350 cd/m²
Contrast ratio 800
Viewing angle 80 (U), 80 (D), 85 (L), 85 (R)
Response time 30 ms
Backlight LED
Touch Type 5 Wires resistive
Touch Light
Transmission
80%
Touch Controller Onboard USB touch (EETI)
System
SBC EBM-BYT
Processor Intel® Atom™ SoC E3845 4-Core 1.91GHz processor
I/O Chipset EC ITE IT8528E
System Memory 1 x 204-Pin DDR3L 1333MHz SO-DIMM up to 8 GB
Watchdog Timer H/W Reset, 1sec. ~ 65535sec./1sec.step
Expansion & Storage
Expansion 1 x Mini PCIe Support mSATA
1 x Mini PCIe Supports SIM Card
Storage 1 x CompactFlash Type I/II Socket
1 x 2.5” Drive Bay
I/O
USB 3 x USB 2.0
SATA 1 x SATA II
COM Port 1 x RS-232
Audio
Chipset Realtek ALC892
Audio Interface Line-Out
Speaker Output 2 x 5W
Ethernet
Chipset 1 x Intel® I210IT
Ethernet Interface 10/100/1000 Base-Tx GbE compatible
LAN Port 1 x RJ-45
Power Requirement
Power Requirement +12V ~ +26V
Power Type AT/ATX (ATX is default setting)
Adapter Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W Adapter (24V @ 2.5A Adapter)
AC-DC Adapter
Mechanical & Environmental
System Fan Fanless
Construction - Front Front & Rear Silver Stainless
Construction - Rear Black
Dimension 405 x 353 x 66.6 mm
Weight 7.5 Kgs
Operating Temperature -20°C ~ 50°C (-4°F ~ 122°F)
Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity 20% ~ 80% Relative Humidity, Non-condensing
Vibration Test With SSD/mSATA : 1.5Grms, IEC 60068-2-64,
Random, 5 ~ 500Hz, 30min/axis
Shock Test With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine,
11ms
Certifications & Software Support
Certification
Information
CE
FCC Class A
OS Information Win 7, Win 8, Linux
49. Avalue Catalog 2015 Ver.1.0 Applied Panel PC-SPC Series 2-9
Features
Specifications
CH2
AppliedPanelPC-SPCSeries
SPC-1707 17" Intel® Atom™ Processor D2550 Fanless Stainless Steel
Chassis Touch Panel PC with Full IP-65
Onboard Intel® Atom™ D2550 1.86GHz BGA
Processor
One SO-DIMM socket supports up to 4GB
DDR3 1066 SDRAM
3 x USB, 1x COM
1 x Intel® 82574L Gigabit LAN, 2W Amplifier
Wide Voltage +12V ~ +26V Input, ErP Power
Backlight Controlled by PWM
IP65 Compliant Front Panel
Timer-Power-On
Ordering Information
SPC-1707-255-A2R
17" XGA Waterproof Stainless Panel PC with Intel® Atom™ D2550
1.86GHz CPU
ACC-SPC-WIFI-2R
802.11b/g/n MPCIe/2Antenna/Cable, only for SPC-12 Series
ACC-ARM-D1R
802.11b/g/n MPCIe/2Antenna/Cable, only for SPC-12 Series
ACC-ARM-D23R
VESA STAND, 75mm & 100 mm
Panel
LCD Size 17", 4:3
Display Type SXGA
Resolution 1280 x 1024
Pixel pitch 0.264mm(H) x 0.264mm(V)
Luminance 350 cd/m²
Contrast ratio 800
Viewing angle 80 (U), 80 (D), 85 (L), 85 (R)
Response time 30 ms
Backlight LED
Touch Type 5 Wires resistive
Touch Light
Transmission
80%
Touch Controller Onboard USB touch (EETI)
System
SBC EBM-CDV
Processor Intel® Atom™ D2550 2-Core 1.86GHz processor
System Chipset Intel® NM10 Express Chipset
I/O Chipset EC ITE IT8518E
System Memory 1 x 204-Pin DDR3 1066MHz SO-DIMM up to 4 GB
Watchdog Timer H/W Reset: 1sec.~255min. and 1sec. or 1min./step
Expansion & Storage
Expansion 1 x Mini PCIe Supports SIM Card
Storage 1 x CompactFlash Type I/II Socket
1 x 2.5” Drive Bay
I/O
USB 3 x USB 2.0
SATA 1 x SATA II
COM Port 1 x RS-232
Other 1 x WiFi
Audio
Chipset Realtek ALC892
Audio Interface Line-Out
Speaker Output 2 x 2W
Ethernet
Chipset 1 x Intel® 82574L
Ethernet Interface 10/100/1000 Base-Tx GbE compatible
LAN Port 1 x RJ-45
Power Requirement
Power Requirement +12V ~ +26V
Power Type AT/ATX (ATX is default setting)
Adapter Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W Adapter (24V @ 2.5A Adapter)
AC-DC Adapter
Mechanical & Environmental
System Fan Fanless
Construction - Front Front & Rear Silver Stainless
Construction - Rear Black
Dimension 405 x 353 x 66.6 mm
Weight 7.5 Kgs
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity 20% ~ 80% Relative Humidity, Non-condensing
Vibration Test With SSD/mSATA : 1.5Grms, IEC 60068-2-64,
Random, 5 ~ 500Hz, 30min/axis
Shock Test With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine,
11ms
Certifications & Software Support
Certification
Information
CE
FCC Class A
OS Information Win XP, Win 7, Linux, Win CE
