Tools. Techniques. Trouble?
- 1. Tools. Techniques. Trouble? Whytest automation is getting more difficult and what can be done about it. Gordon McKeown Group Director, Product Management, TestPlant UK Northern Lights Manchester 27 April 2016

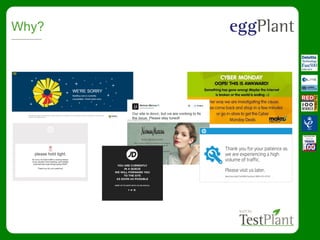

- 2.

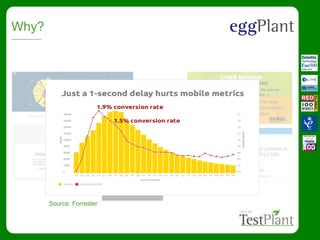

- 3.

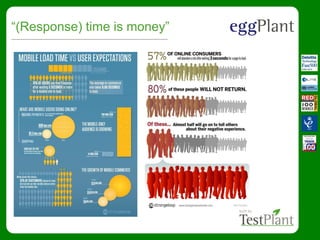

- 4. “(Response) time ismoney”

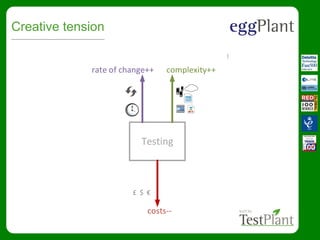

- 5. Creative tension Testing £ $€ costs-- rate of change++ complexity++
- 6. The burden oftesting Are we condemned to be like Sisyphus, to push a rock up a hill for eternity? Museo del Prado, Madrid, Spain
- 7. Historical precedent The divisionof labour and automation are the twin foundations of both a modern economy and effective software testing.

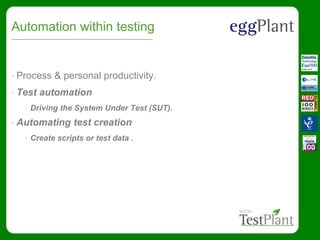

- 8. Automation within testing •Process & personal productivity. • Test automation • Driving the System Under Test (SUT). • Automating test creation • Create scripts or test data .

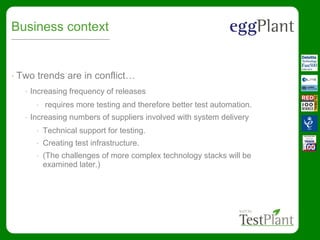

- 9. Business context • Twotrends are in conflict… • Increasing frequency of releases • requires more testing and therefore better test automation. • Increasing numbers of suppliers involved with system delivery • Technical support for testing. • Creating test infrastructure. • (The challenges of more complex technology stacks will be examined later.)

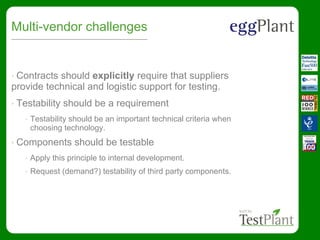

- 10. Multi-vendor challenges • Contractsshould explicitly require that suppliers provide technical and logistic support for testing. • Testability should be a requirement • Testability should be an important technical criteria when choosing technology. • Components should be testable • Apply this principle to internal development. • Request (demand?) testability of third party components.

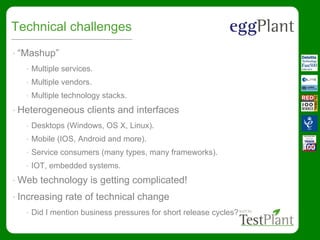

- 11. Technical challenges • “Mashup” •Multiple services. • Multiple vendors. • Multiple technology stacks. • Heterogeneous clients and interfaces • Desktops (Windows, OS X, Linux). • Mobile (IOS, Android and more). • Service consumers (many types, many frameworks). • IOT, embedded systems. • Web technology is getting complicated! • Increasing rate of technical change • Did I mention business pressures for short release cycles?

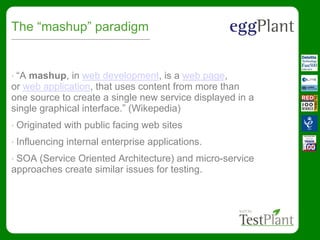

- 12. The “mashup” paradigm •“A mashup, in web development, is a web page, or web application, that uses content from more than one source to create a single new service displayed in a single graphical interface.” (Wikepedia) • Originated with public facing web sites • Influencing internal enterprise applications. • SOA (Service Oriented Architecture) and micro-service approaches create similar issues for testing.
- 13. Automating “mashup” apps •Move up the protocol stack to give holistic test (“user experience”). • Multi-level / multi-protocol testing may also be required • Background load (performance testing). • Individual services / subset focus. • More about this topic anon..

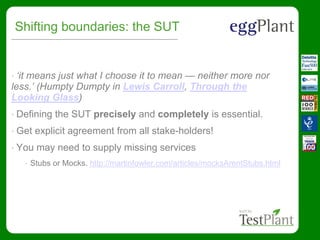

- 14. Shifting boundaries: theSUT • ‘it means just what I choose it to mean — neither more nor less.’ (Humpty Dumpty in Lewis Carroll, Through the Looking Glass) • Defining the SUT precisely and completely is essential. • Get explicit agreement from all stake-holders! • You may need to supply missing services • Stubs or Mocks. http://martinfowler.com/articles/mocksArentStubs.html
- 15. Test automation challenges •Tester productivity • Coverage • Script re-use & maintenance overhead across: • Time (software releases, technology changes). • Device types / platforms.
- 16. Heterogeneous clients • Publicfacing applications • Multiple mobile platforms plus desktops. Web services. • Range of devices, variable power, screen size & resolution. • Native apps plus web site. • Internal / Enterprise • Increased use of mobile so all of the above can apply. •

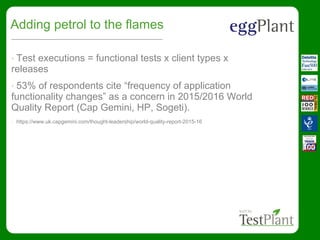

- 17. Adding petrol tothe flames • Test executions = functional tests x client types x releases • 53% of respondents cite “frequency of application functionality changes” as a concern in 2015/2016 World Quality Report (Cap Gemini, HP, Sogeti). • https://www.uk.capgemini.com/thought-leadership/world-quality-report-2015-16

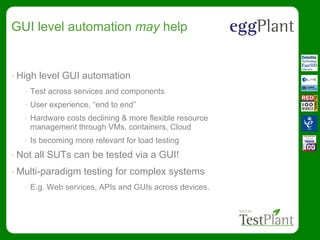

- 18. GUI level automationmay help • High level GUI automation • Test across services and components • User experience, “end to end” • Hardware costs declining & more flexible resource management through VMs, containers, Cloud • Is becoming more relevant for load testing • Not all SUTs can be tested via a GUI! • Multi-paradigm testing for complex systems • E.g. Web services, APIs and GUIs across devices.
- 19. Intelligent image recognitionand OCR User-centric GUI test automation
- 20. Objects versus images •For discussion: potential advantages of image based (+ OCR) versus object based: • Total device control including reboot. • Test whole GUI not just the app. • Minimal intrusion. • One script many devices (vary images or use image collections). • Images may be less volatile than objects as system evolves. • P.S. Assume I’m biased!

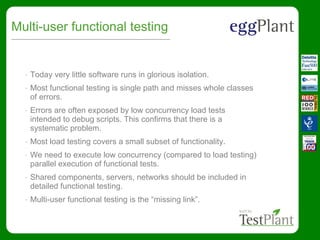

- 21. Multi-user functional testing •Today very little software runs in glorious isolation. • Most functional testing is single path and misses whole classes of errors. • Errors are often exposed by low concurrency load tests intended to debug scripts. This confirms that there is a systematic problem. • Most load testing covers a small subset of functionality. • We need to execute low concurrency (compared to load testing) parallel execution of functional tests. • Shared components, servers, networks should be included in detailed functional testing. • Multi-user functional testing is the “missing link”.
- 22. Network behaviour inscope or out? • The network is (back) on the application testing agenda • Twenty years ago the network was often in scope. • The last decade: fast intranets + relatively simple web applications meant network was out of scope for much testing. However, it could be argued that this was sometimes the wrong decision! • The rise of mobile devices and the immanent arrival of the IOT means that how software reacts to network characteristics should be an important concern.

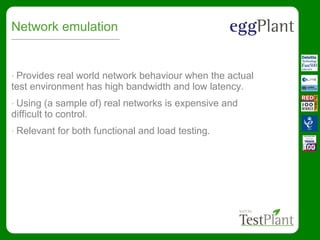

- 23. Network emulation • Providesreal world network behaviour when the actual test environment has high bandwidth and low latency. • Using (a sample of) real networks is expensive and difficult to control. • Relevant for both functional and load testing.

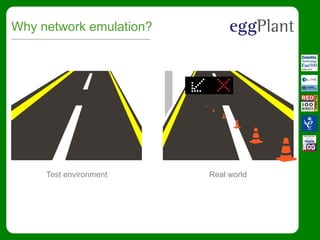

- 24. Why network emulation? Testenvironment Real world
- 25. Why network emulation? Testenvironment Real world A 64MB file takes 5s to transfer on a LAN. On a FAST network from London to New York the latency is just 90ms and the file takes 440s to transfer! There is nothing “bandwidth” can do about this!

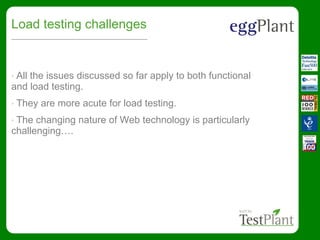

- 26. Load testing challenges •All the issues discussed so far apply to both functional and load testing. • They are more acute for load testing. • The changing nature of Web technology is particularly challenging….
- 27. Load testing andWeb evolution • Load testing of Web servers has traditionally been based on “replaying” or constructing http traffic. • This is done more or less intelligently… • The evolution of Web technology is disrupting this approach.

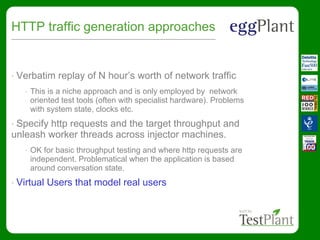

- 28. HTTP traffic generationapproaches • Verbatim replay of N hour’s worth of network traffic • This is a niche approach and is only employed by network oriented test tools (often with specialist hardware). Problems with system state, clocks etc. • Specify http requests and the target throughput and unleash worker threads across injector machines. • OK for basic throughput testing and where http requests are independent. Problematical when the application is based around conversation state. • Virtual Users that model real users

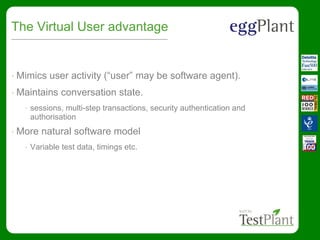

- 29. The Virtual Useradvantage • Mimics user activity (“user” may be software agent). • Maintains conversation state. • sessions, multi-step transactions, security authentication and authorisation • More natural software model • Variable test data, timings etc.
- 30. Protocol level loadtesting (emulation) Load testing tool
- 31. Application level loadtesting Load testing tool

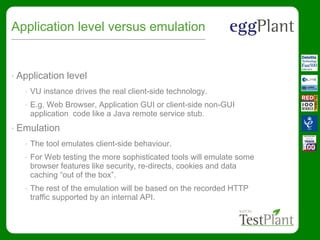

- 32. Application level versusemulation • Application level • VU instance drives the real client-side technology. • E.g. Web Browser, Application GUI or client-side non-GUI application code like a Java remote service stub. • Emulation • The tool emulates client-side behaviour. • For Web testing the more sophisticated tools will emulate some browser features like security, re-directs, cookies and data caching “out of the box”. • The rest of the emulation will be based on the recorded HTTP traffic supported by an internal API.

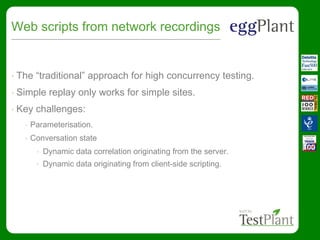

- 33. Web scripts fromnetwork recordings • The “traditional” approach for high concurrency testing. • Simple replay only works for simple sites. • Key challenges: • Parameterisation. • Conversation state • Dynamic data correlation originating from the server. • Dynamic data originating from client-side scripting.

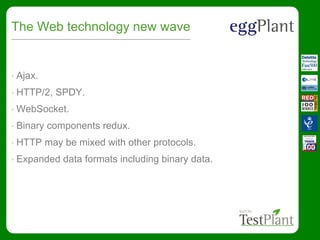

- 34. The Web technologynew wave • Ajax. • HTTP/2, SPDY. • WebSocket. • Binary components redux. • HTTP may be mixed with other protocols. • Expanded data formats including binary data.
- 35. Ajax asynchronous requests ©NetBeans

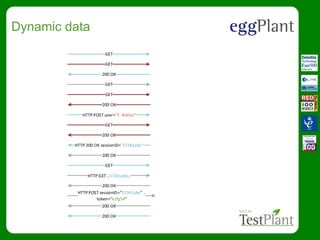

- 36. Dynamic data GET HTTP POSTuser= T. Atkins 200 OK HTTP 200 OK sessionID= 57341abc HTTP GET ..57341abc.. HTTP POST sessionID= 57341abc .. token= k2fg54" 200 OK 200 OK GET GET GET GET 200 OK 200 OK 200 OK 200 OK GET

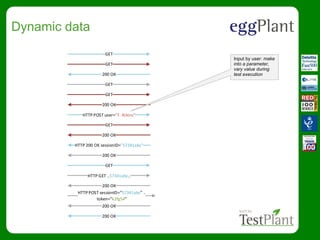

- 37. Dynamic data GET HTTP POSTuser= T. Atkins 200 OK HTTP 200 OK sessionID= 57341abc HTTP GET ..57341abc.. HTTP POST sessionID= 57341abc .. token= k2fg54" 200 OK 200 OK GET GET GET GET 200 OK 200 OK 200 OK 200 OK GET Input by user: make into a parameter, vary value during test execution
- 38. Dynamic data GET HTTP POSTuser= T. Atkins 200 OK HTTP 200 OK sessionID= 57341abc HTTP GET ..57341abc.. HTTP POST sessionID= 57341abc .. token= k2fg54" 200 OK 200 OK GET GET GET GET 200 OK 200 OK 200 OK 200 OK GET Input by user: make into a parameter, vary value during test execution From server: copy into variable

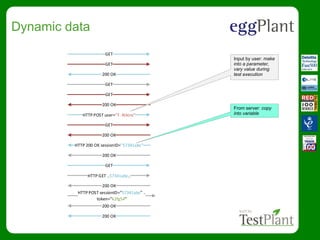

- 39. Dynamic data GET HTTP POSTuser= T. Atkins 200 OK HTTP 200 OK sessionID= 57341abc HTTP GET ..57341abc.. HTTP POST sessionID= 57341abc .. token= k2fg54" 200 OK 200 OK GET GET GET GET 200 OK 200 OK 200 OK 200 OK GET Input by user: make into a parameter, vary value during test execution From server: copy into variable Return to server: set from variable Return to server: set from variable

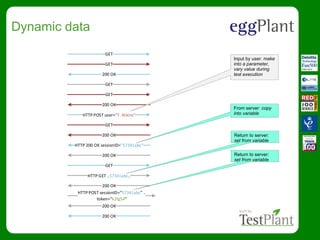

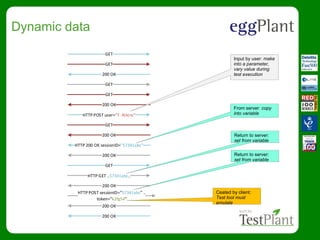

- 40. Dynamic data GET HTTP POSTuser= T. Atkins 200 OK HTTP 200 OK sessionID= 57341abc HTTP GET ..57341abc.. HTTP POST sessionID= 57341abc .. token= k2fg54" 200 OK 200 OK GET GET GET GET 200 OK 200 OK 200 OK 200 OK GET Input by user: make into a parameter, vary value during test execution From server: copy into variable Return to server: set from variable Return to server: set from variable Ceated by client: Test tool must emulate
- 41. Example: humble datetime values • Formats • Various strings, milliseconds since Unix epoch (Jan 1 1970) or some other time. Time zones. • Originated by server or client? • Meaning when originating from client • Now. • Now + offset. • Fixed. • Calculated from other data including time values. • End of current hour / day / week / month / year.

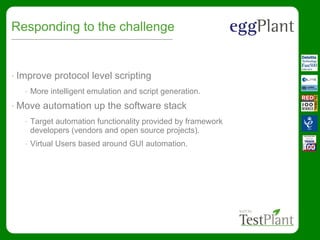

- 42. Responding to thechallenge • Improve protocol level scripting • More intelligent emulation and script generation. • Move automation up the software stack • Target automation functionality provided by framework developers (vendors and open source projects). • Virtual Users based around GUI automation.

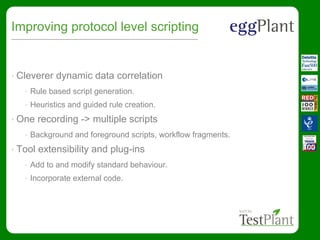

- 43. Improving protocol levelscripting • Cleverer dynamic data correlation • Rule based script generation. • Heuristics and guided rule creation. • One recording -> multiple scripts • Background and foreground scripts, workflow fragments. • Tool extensibility and plug-ins • Add to and modify standard behaviour. • Incorporate external code.
- 44. Moving up thestack? • Non-GUI client-side APIs • Producer support needed to avoid reverse engineering. • Good if documented. • Better if explicit testing support like tracing and ease of deployment is provided. • Not truly “end to end”. • GUI automation • Potential re-use of functional test scripts. • Management & resource overhead of real or virtual application client instances. • Hardware costs continue to fall. • “End to end”.

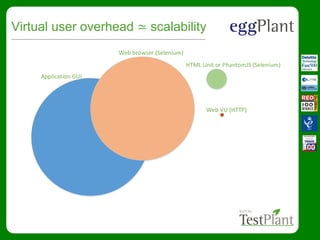

- 45. Virtual user overhead≃ scalability Application GUI Web browser (Selenium) HTML Unit or PhantomJS (Selenium) Web VU (HTTP)
- 46. The immediate future •Increasing scalability for GUI automation • VMs & cloud. • Device management. • Tool resilience & redundancy. • Low level automation continues • Will continue to be necessary for high concurrency tests. • Needed for sub-system testing.

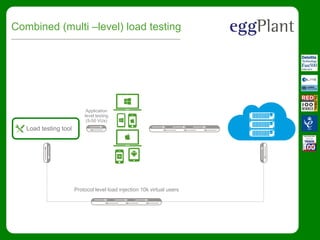

- 47. Combined (multi –level)load testing Protocol level load injection 10k virtual users Application level testing (5-50 VUs) Load testing tool

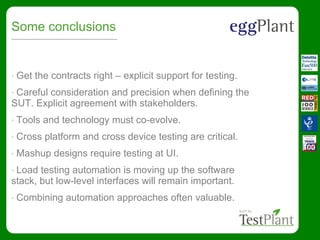

- 48. Some conclusions • Getthe contracts right – explicit support for testing. • Careful consideration and precision when defining the SUT. Explicit agreement with stakeholders. • Tools and technology must co-evolve. • Cross platform and cross device testing are critical. • Mashup designs require testing at UI. • Load testing automation is moving up the software stack, but low-level interfaces will remain important. • Combining automation approaches often valuable.
- 49.
