Tips and Tricks for Avoiding Common Query Pitfalls Christian Kurze

Tips and Tricks
for Avoiding
Common Query Pitfalls
Christian Kurze

CHRISTIAN KURZE
Senior Solutions Architect
MongoDB

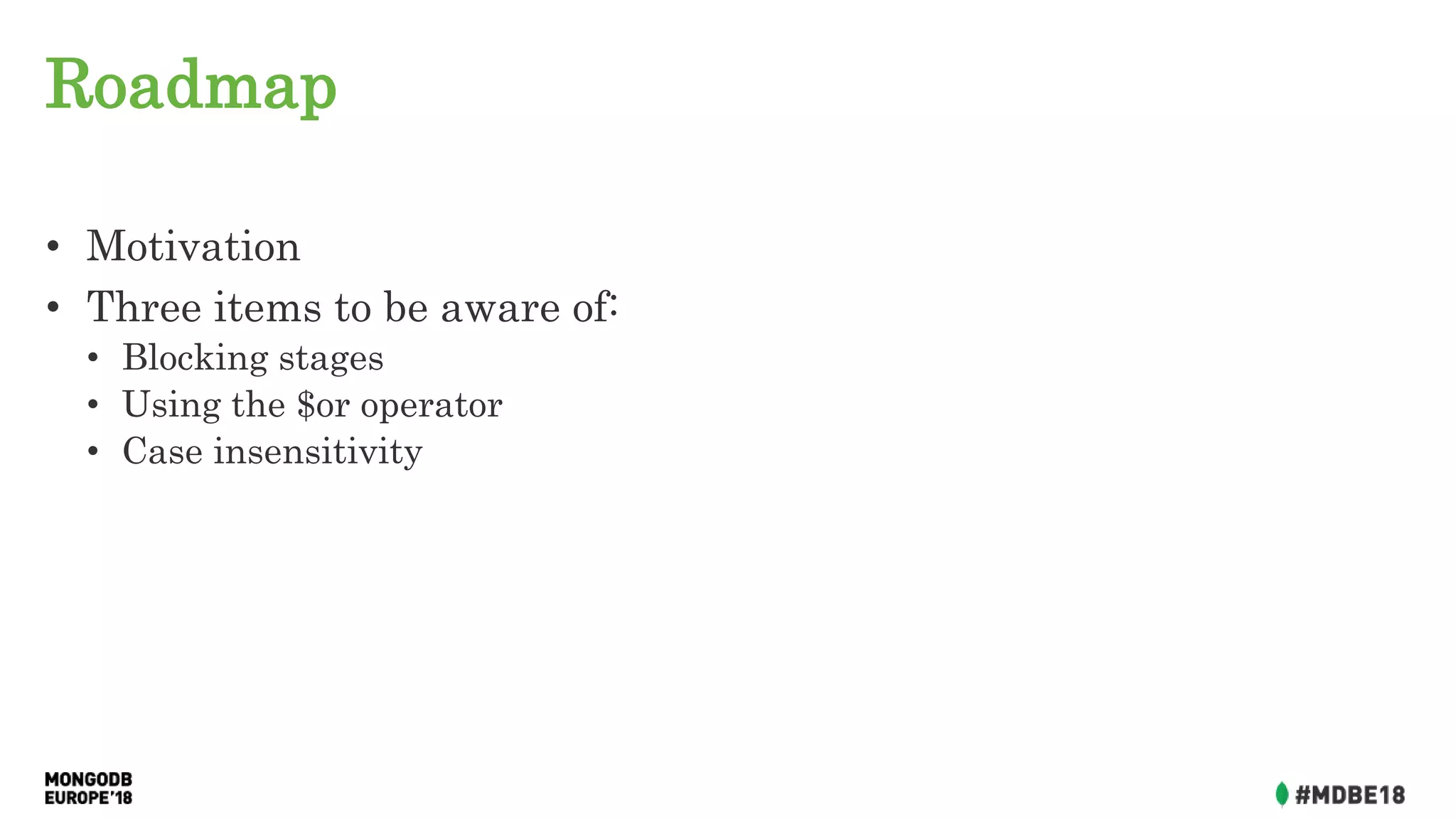

Roadmap
• Motivation
• Three items to be aware of:
• Blocking stages
• Using the $or operator
• Case insensitivity

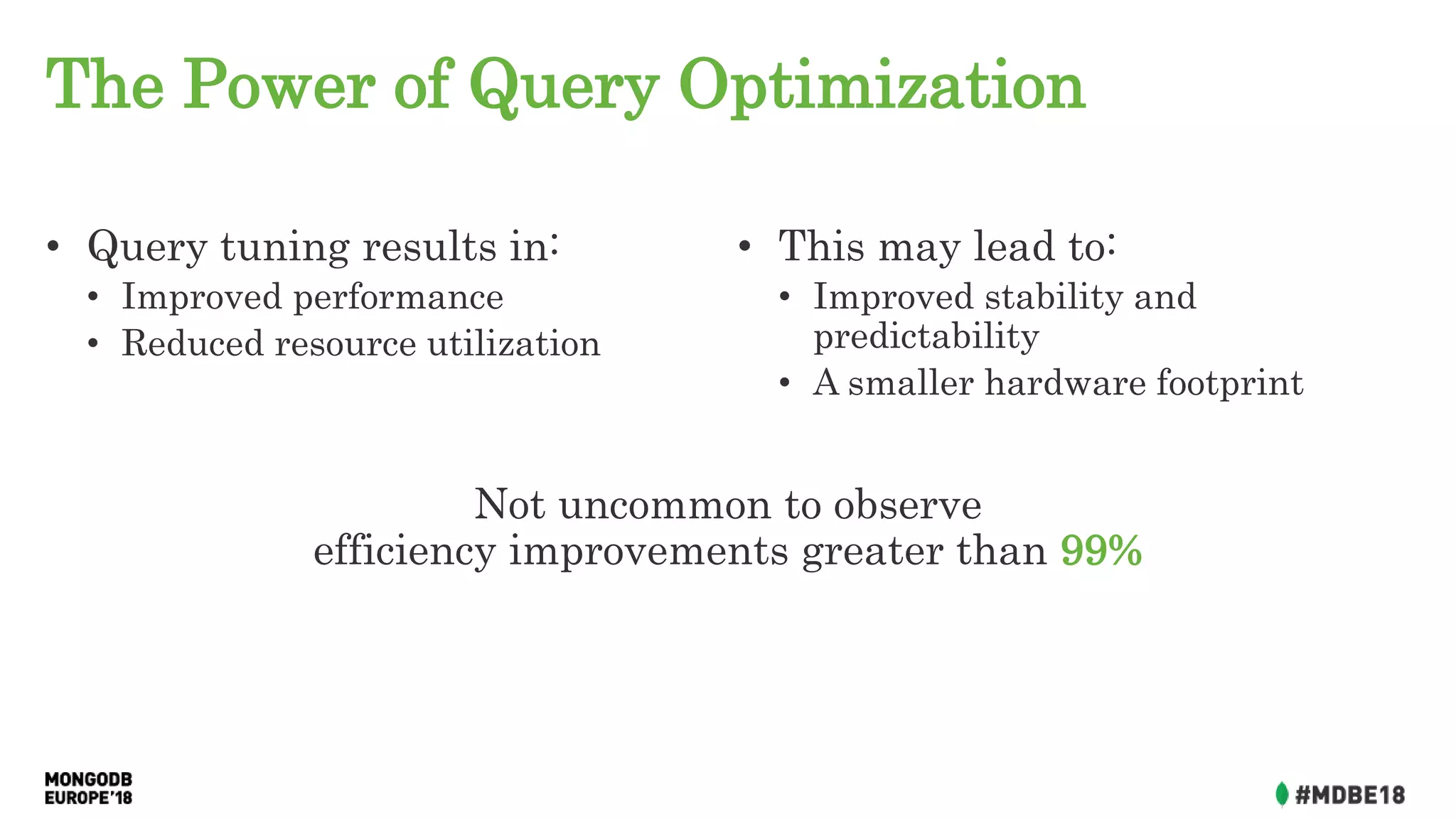

The Power of Query Optimization
• Query tuning results in:
• Improved performance
• Reduced resource utilization
• This may lead to:
• Improved stability and
predictability
• A smaller hardware footprint
Not uncommon to observe
efficiency improvements greater than 99%

The Challenge @ Acme Games, Inc.
Charlie
• DBA at Acme Game, Inc.
• MongoDB Champion
Stakeholders
• Developers
• Leadership
• RDBMS History

Acme Games Introduces…
The Peanuts
Brand new strategy game
Launching November 15th

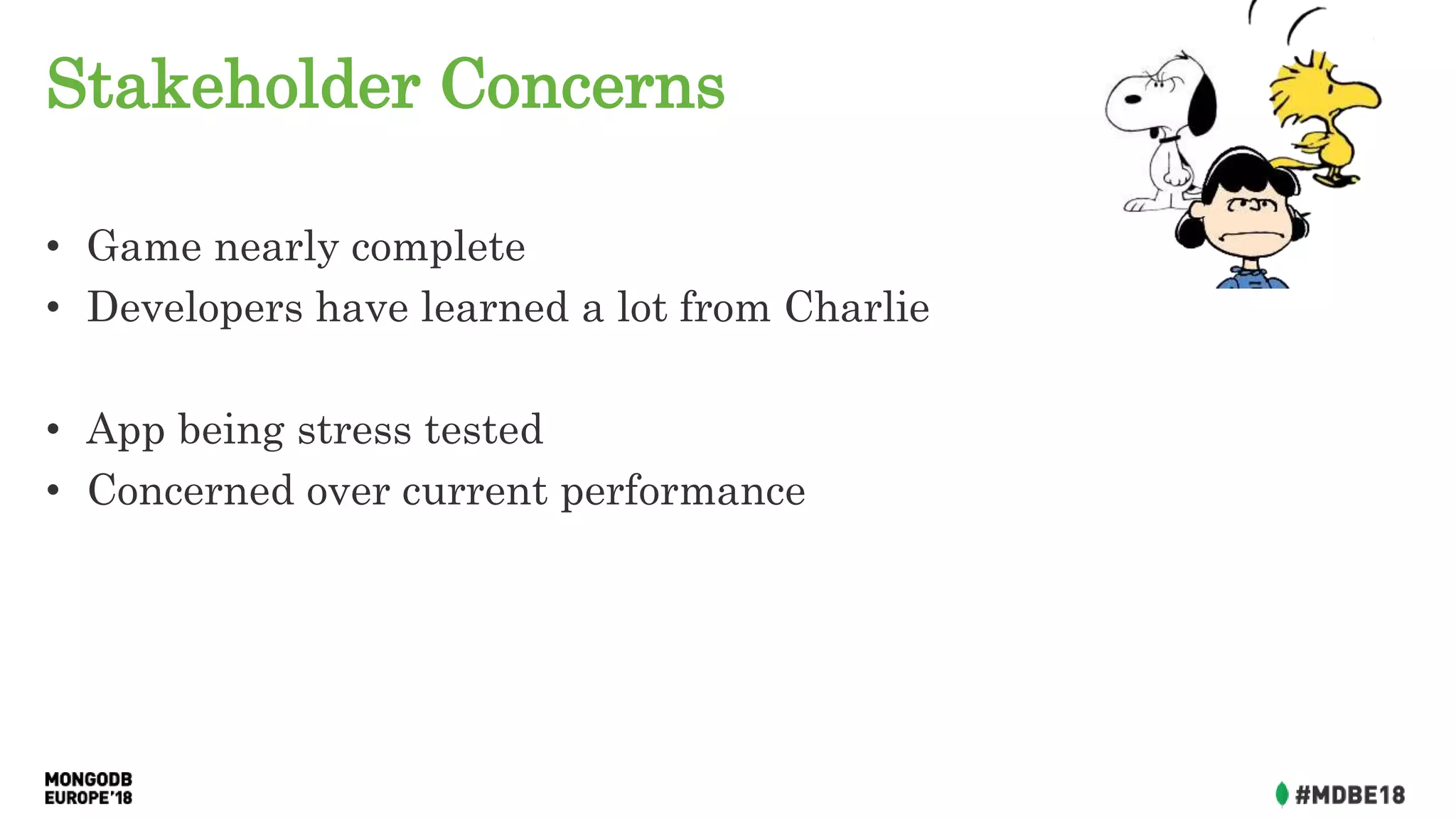

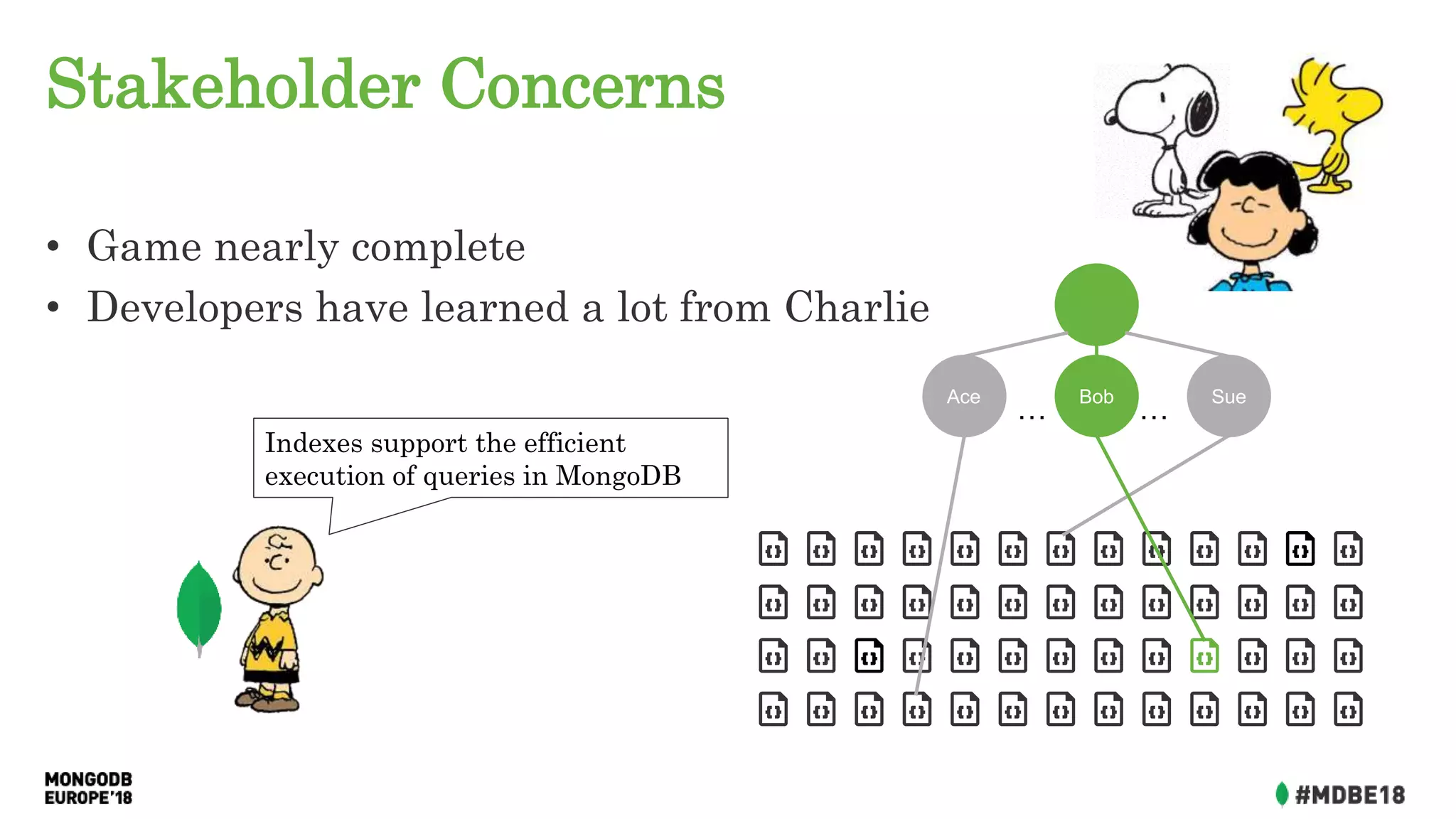

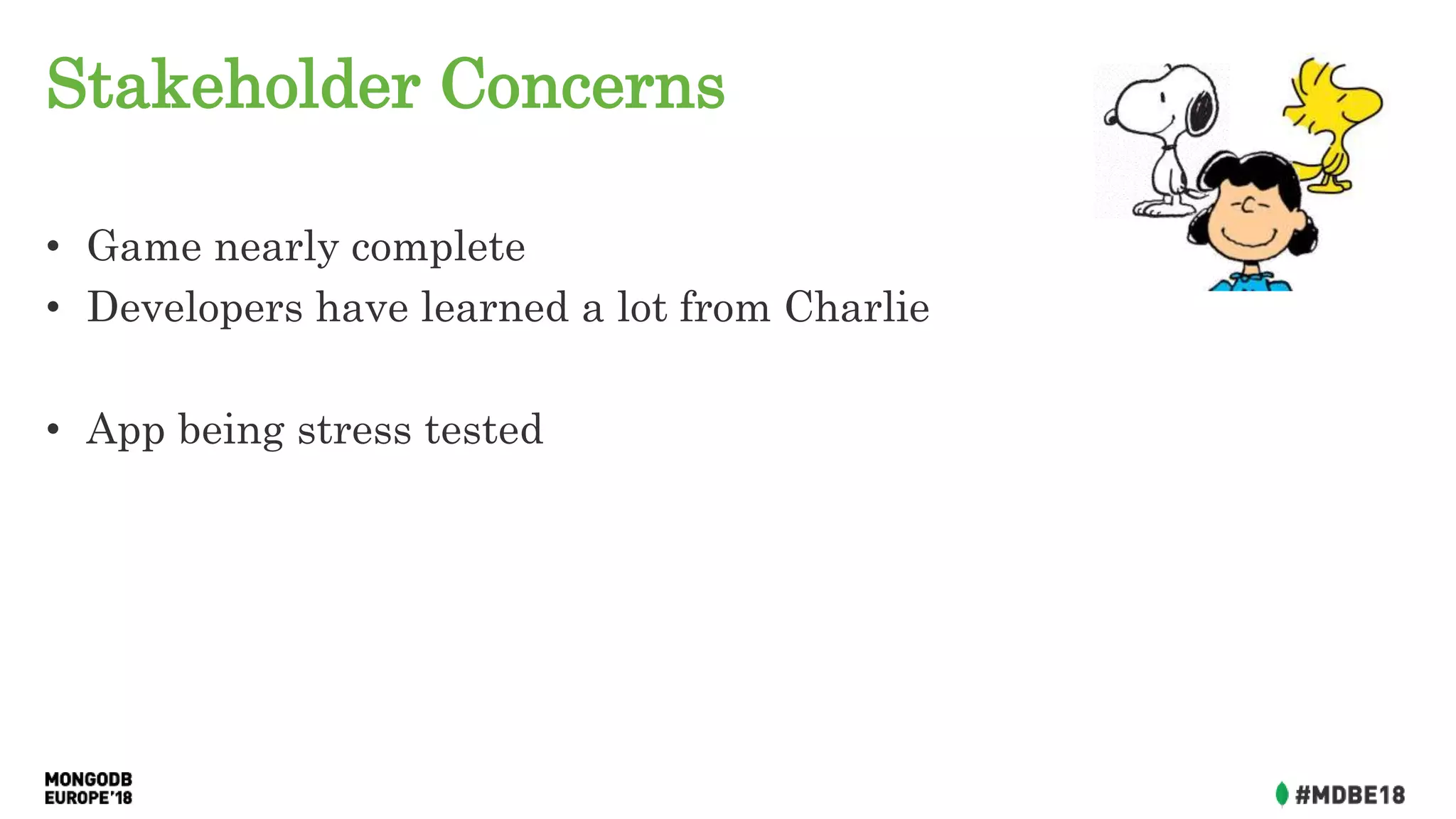

Stakeholder Concerns
• Game nearly complete
• Developers have learned a lot from Charlie

Indexes support the efficient
execution of queries in MongoDB

Indexes support the efficient
execution of queries in MongoDB
Ace Bob Sue
… …

• App being stress tested

• App being stress tested
• Concerned over current performance

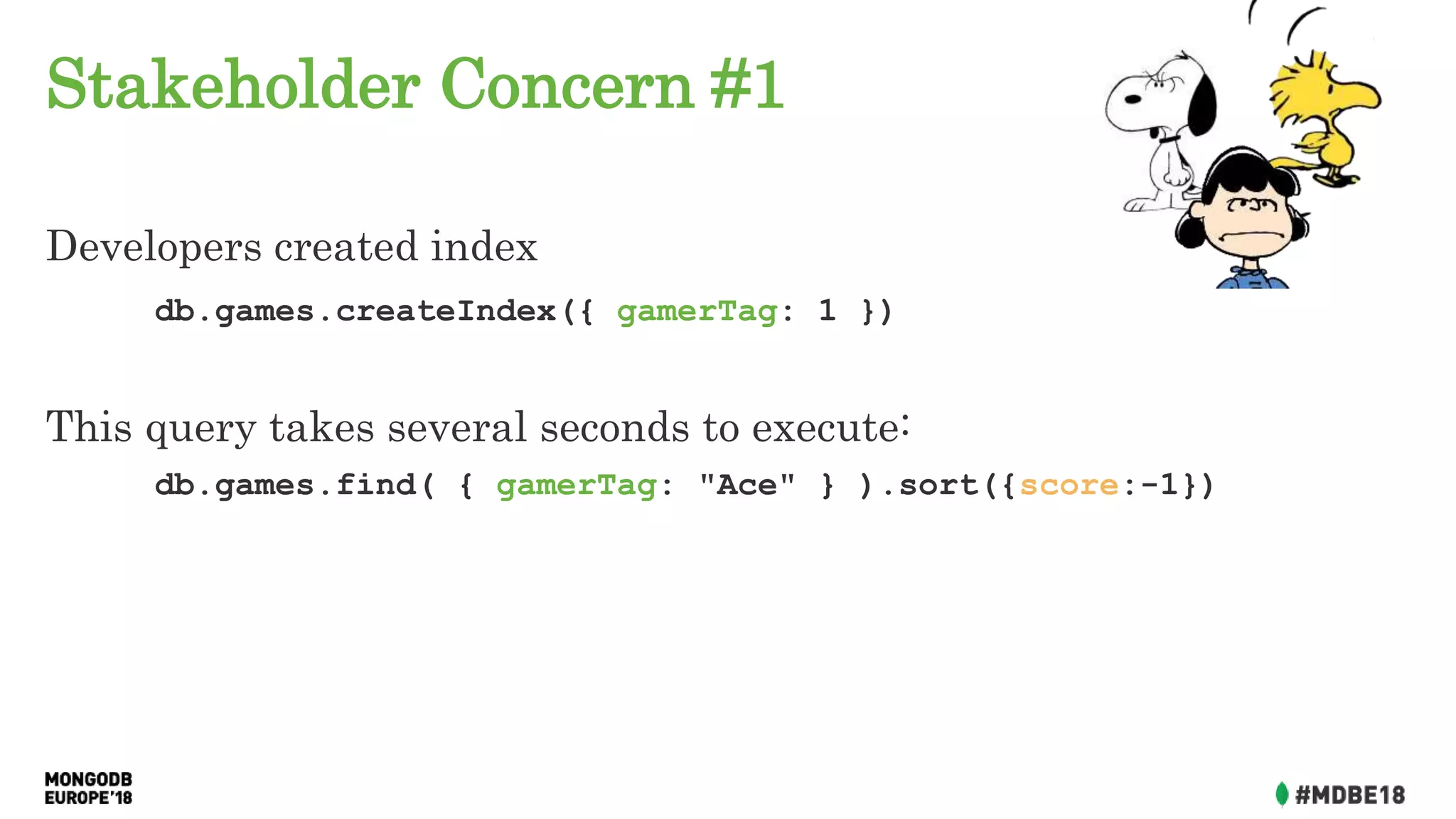

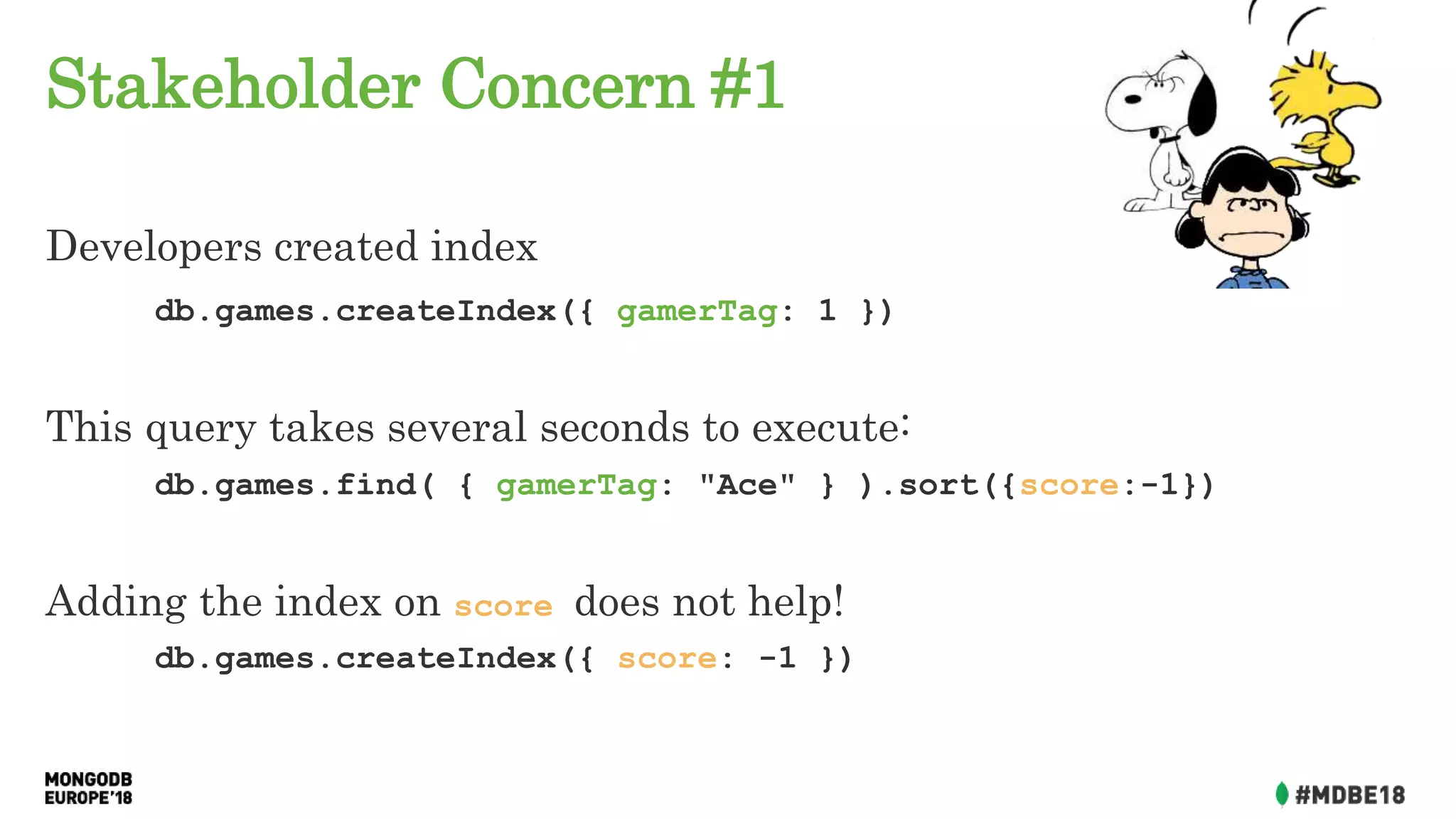

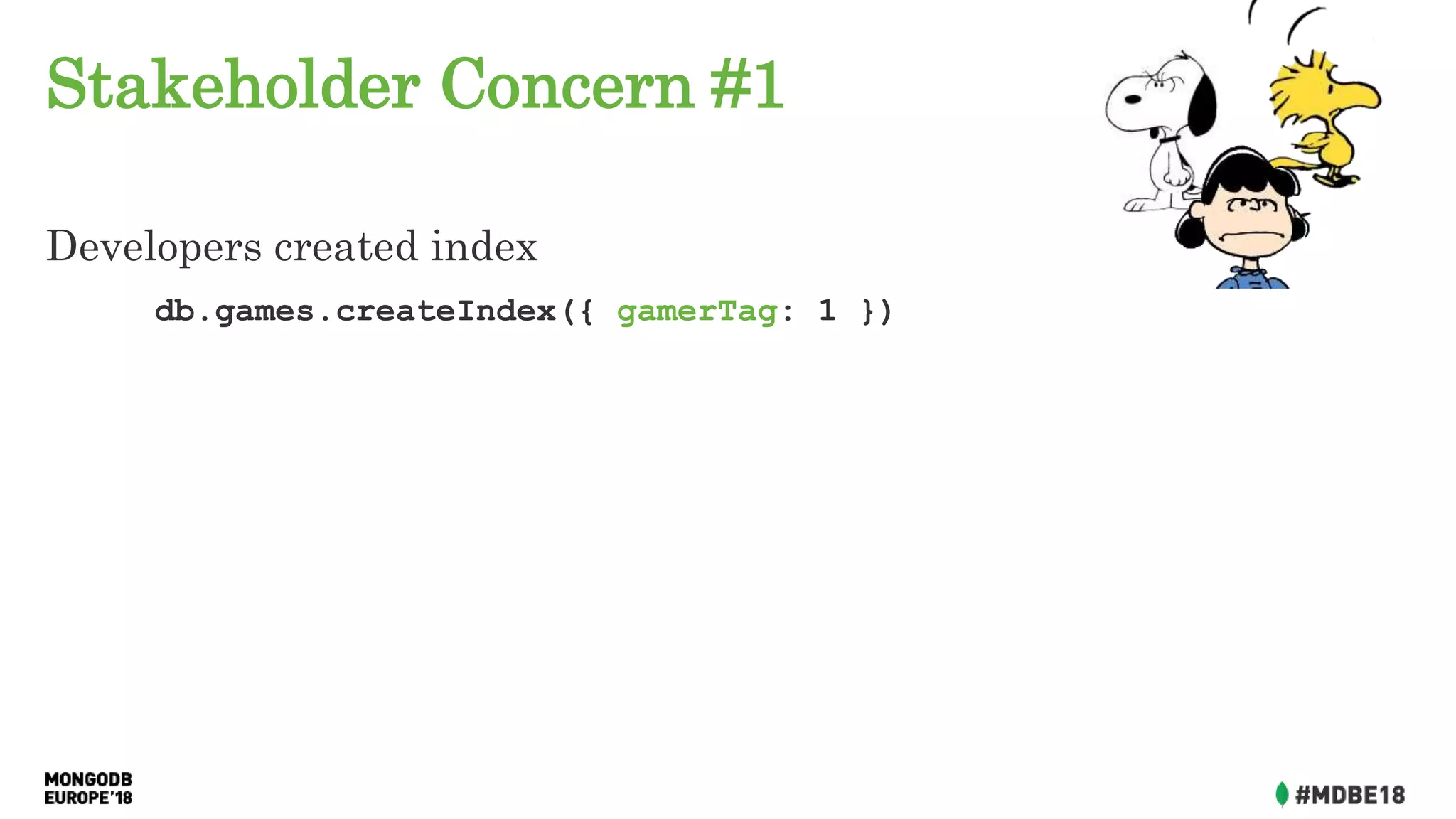

Stakeholder Concern #1
Developers created index
db.games.createIndex({ gamerTag: 1 })

This query takes several seconds to execute:
db.games.find( { gamerTag: "Ace" } ).sort({score:-1})

Adding the index on score does not help!
db.games.createIndex({ score: -1 })

Adding the index on score does not help!
db.games.createIndex({ score: -1 })
“Clearly MongoDB
is not web-scale!”

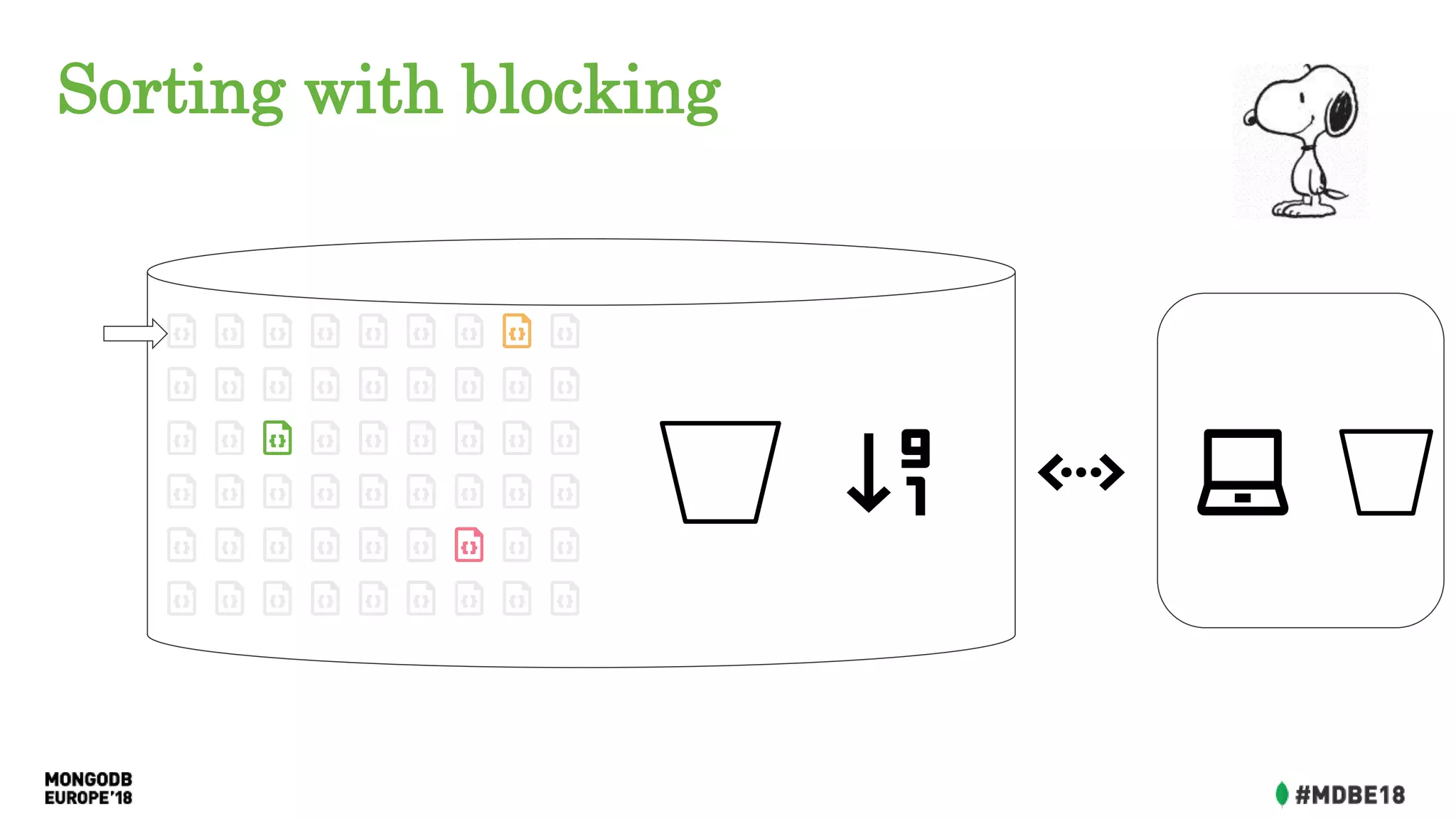

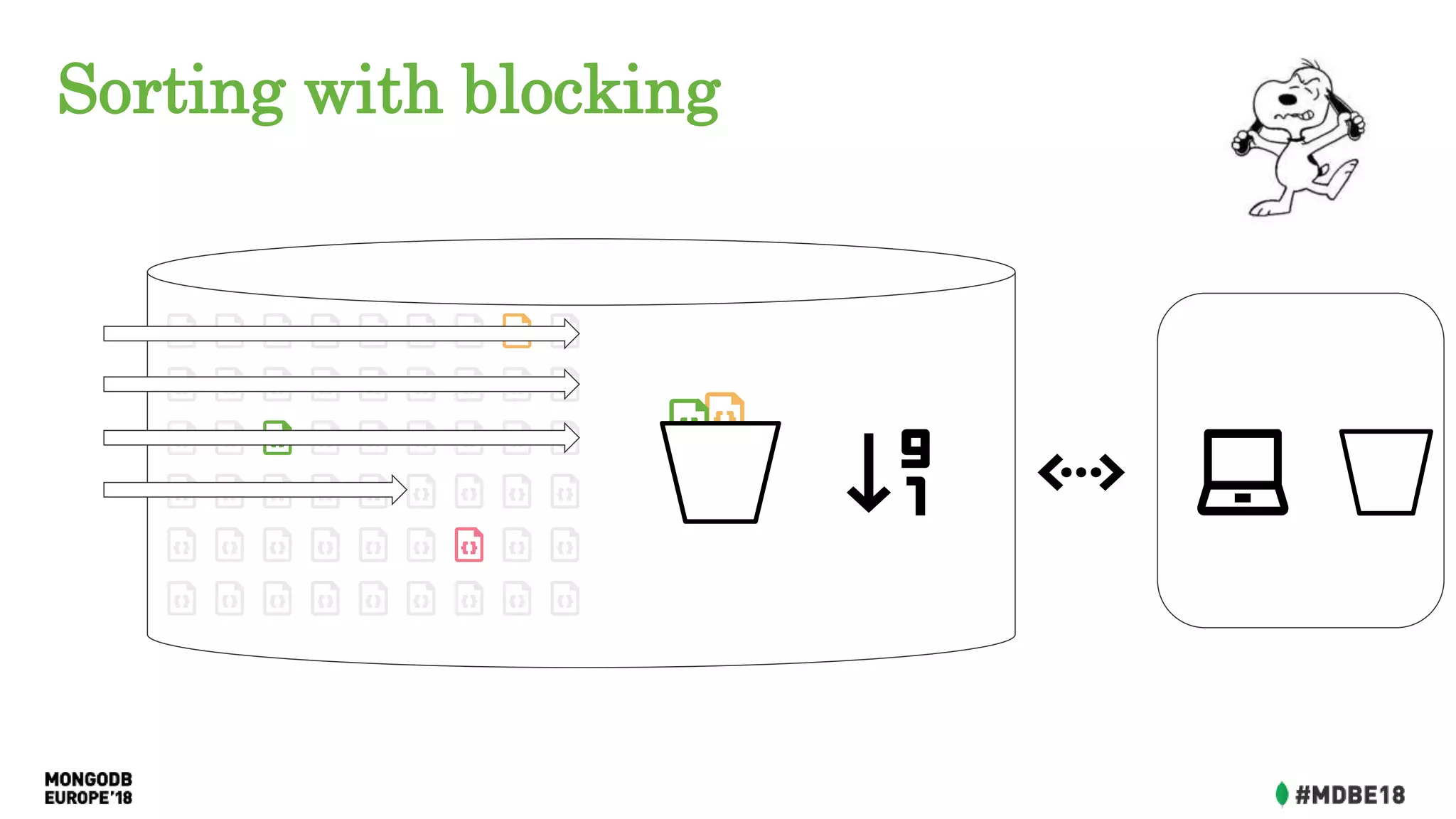

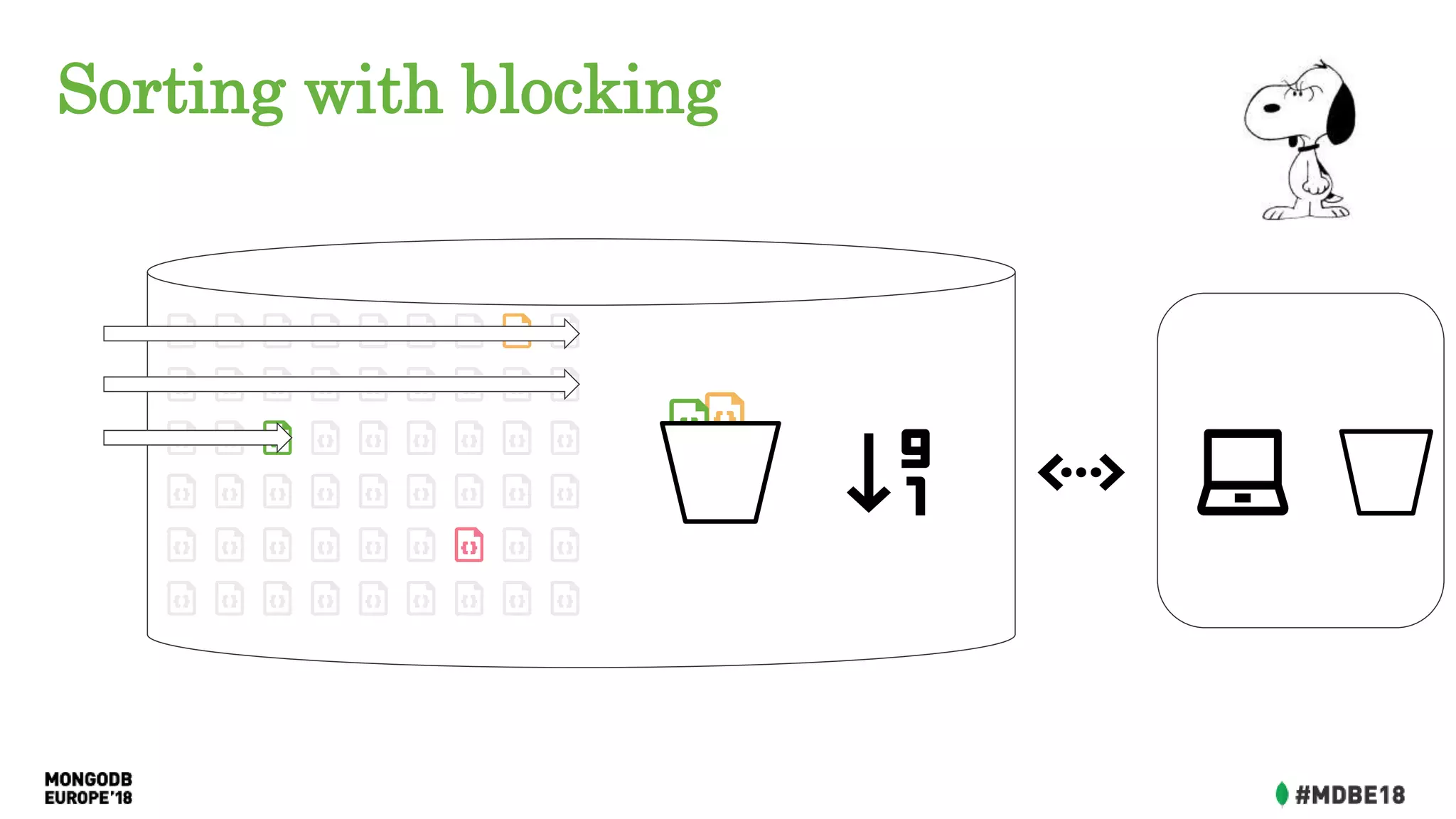

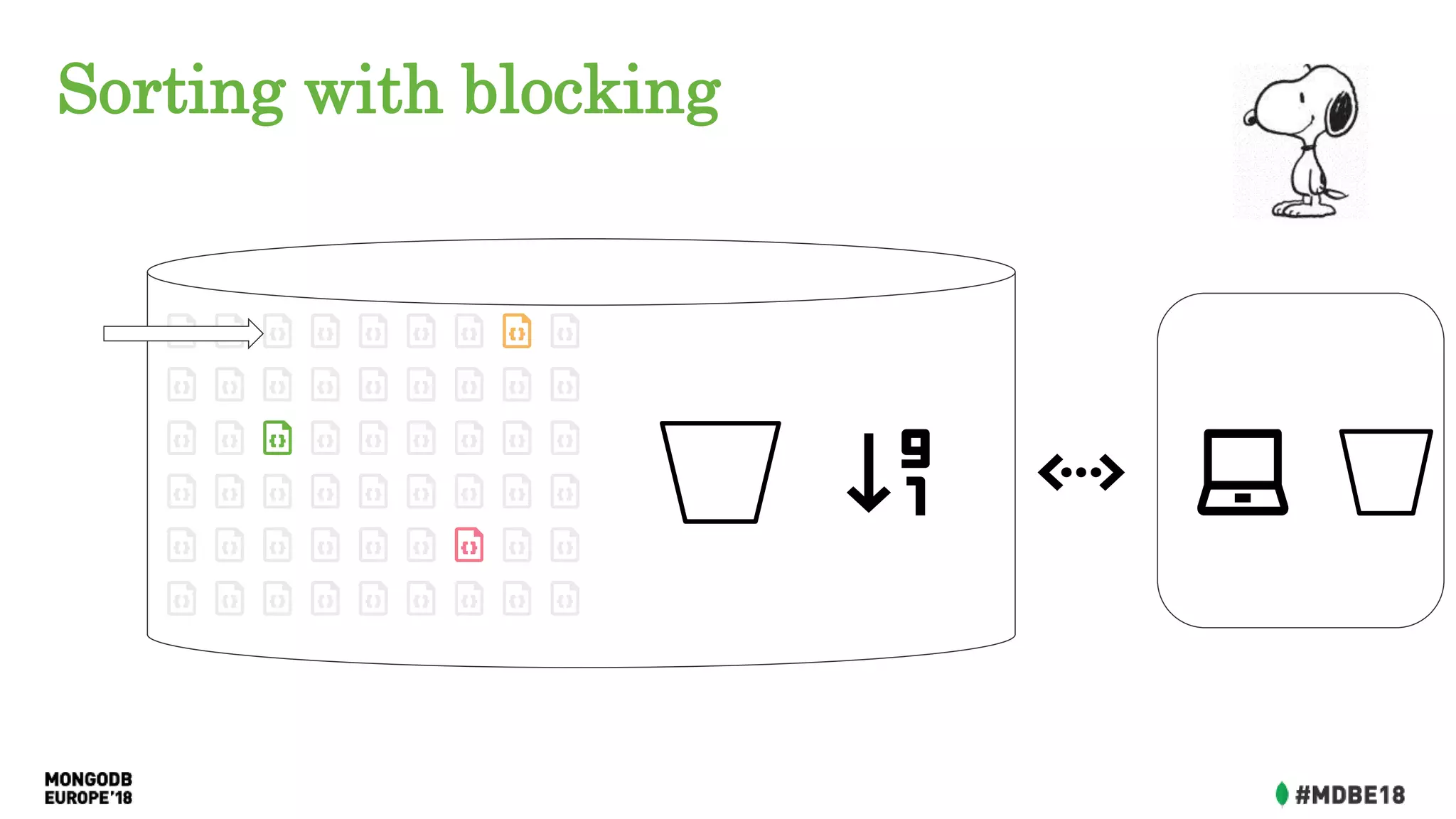

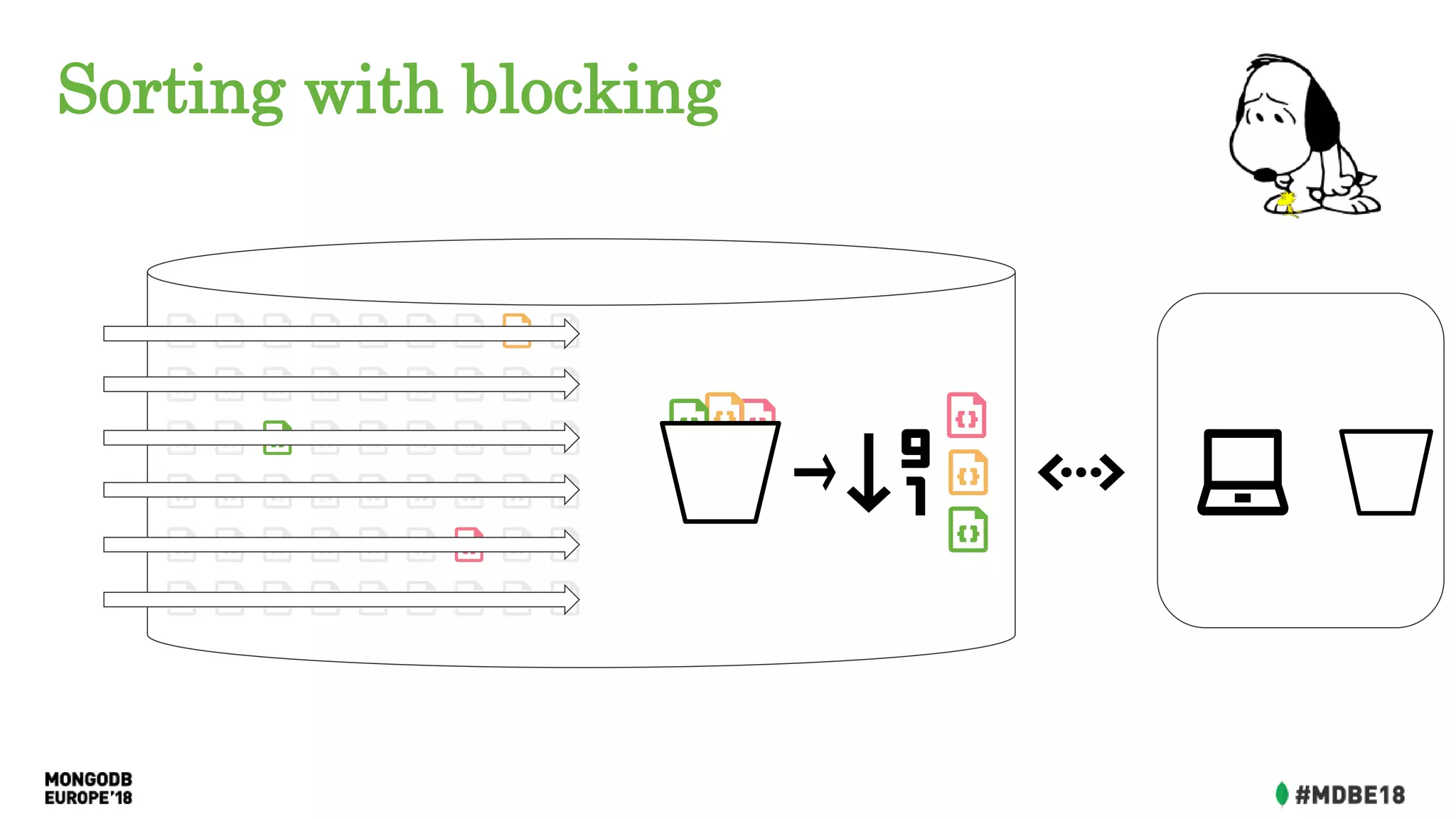

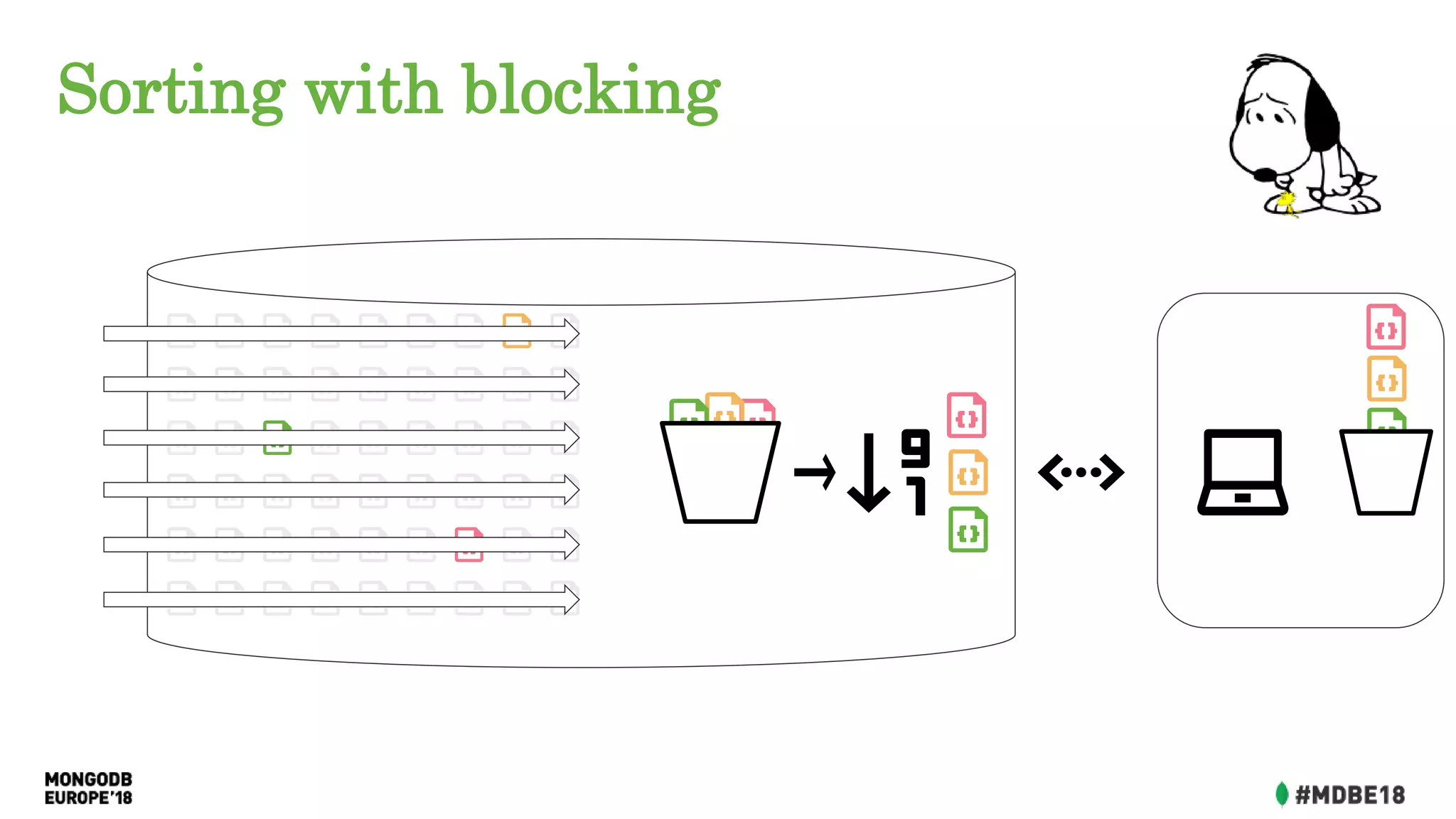

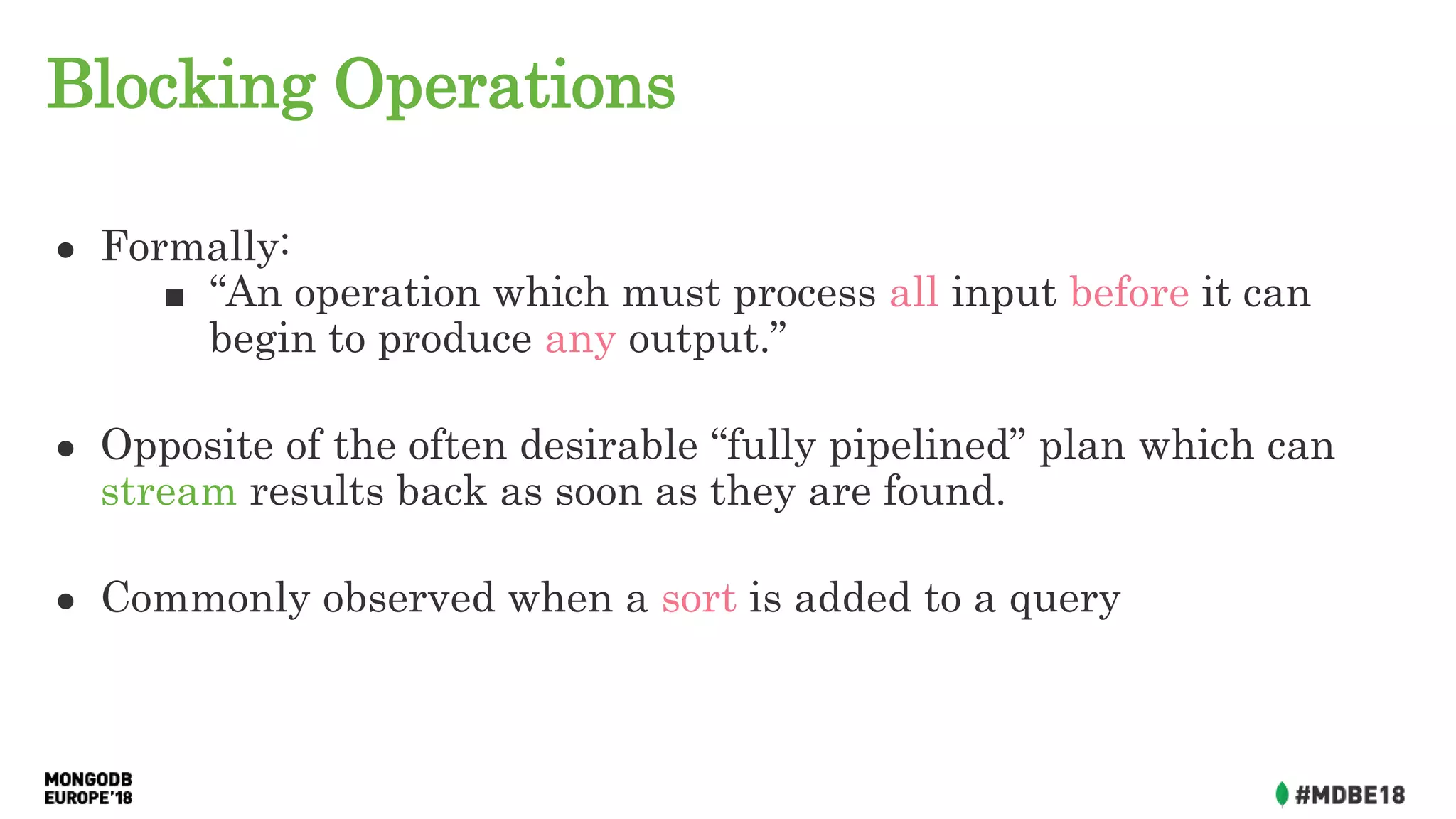

Blocking Operations
● Formally:
■ “An operation which must process all input before it can
begin to produce any output.”
● Opposite of the often desirable “fully pipelined” plan which can
stream results back as soon as they are found.
● Commonly observed when a sort is added to a query

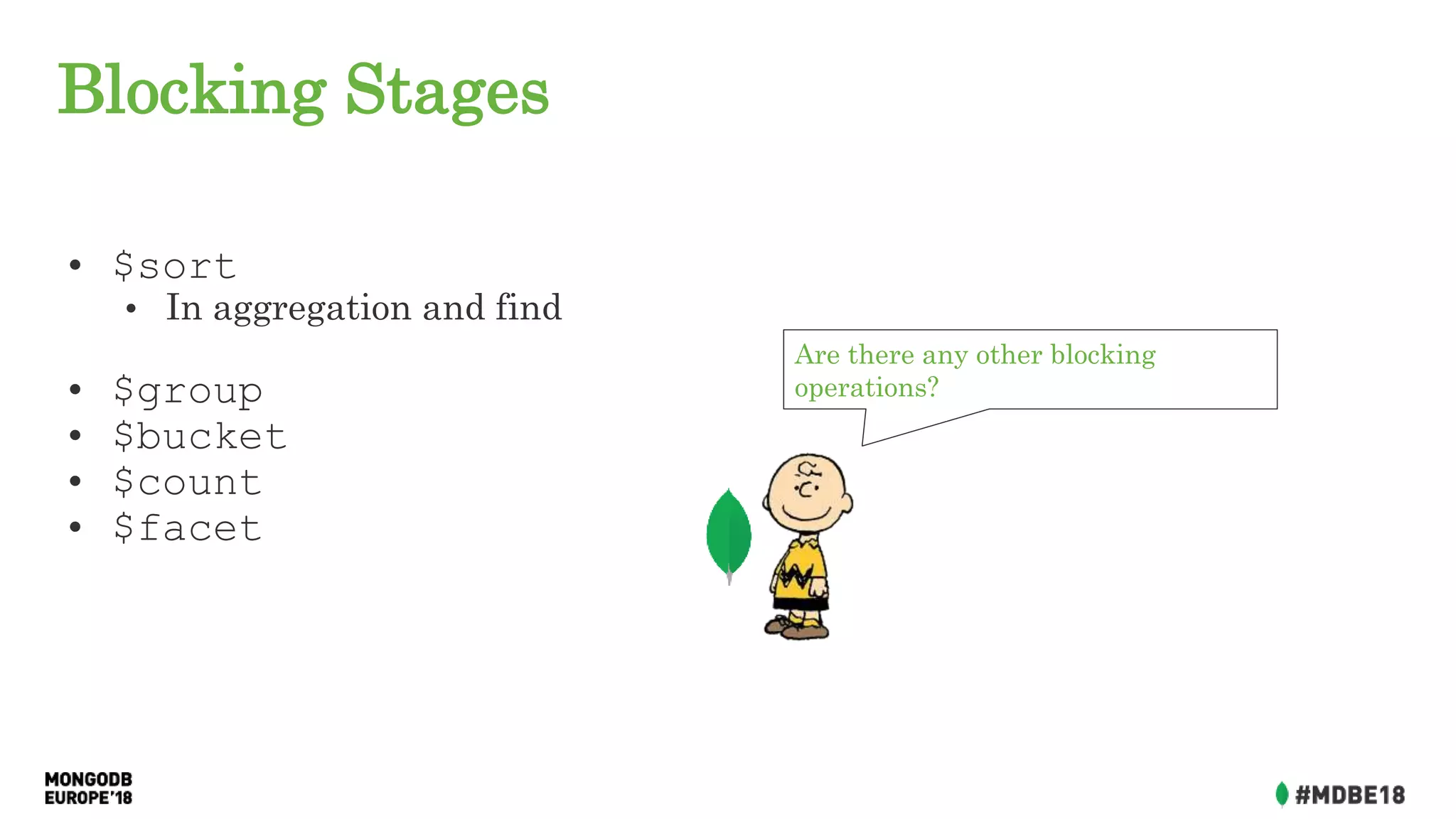

Blocking Stages
• $sort
• In aggregation and find
• $group
• $bucket
• $count
• $facet
Are there any other blocking
operations?

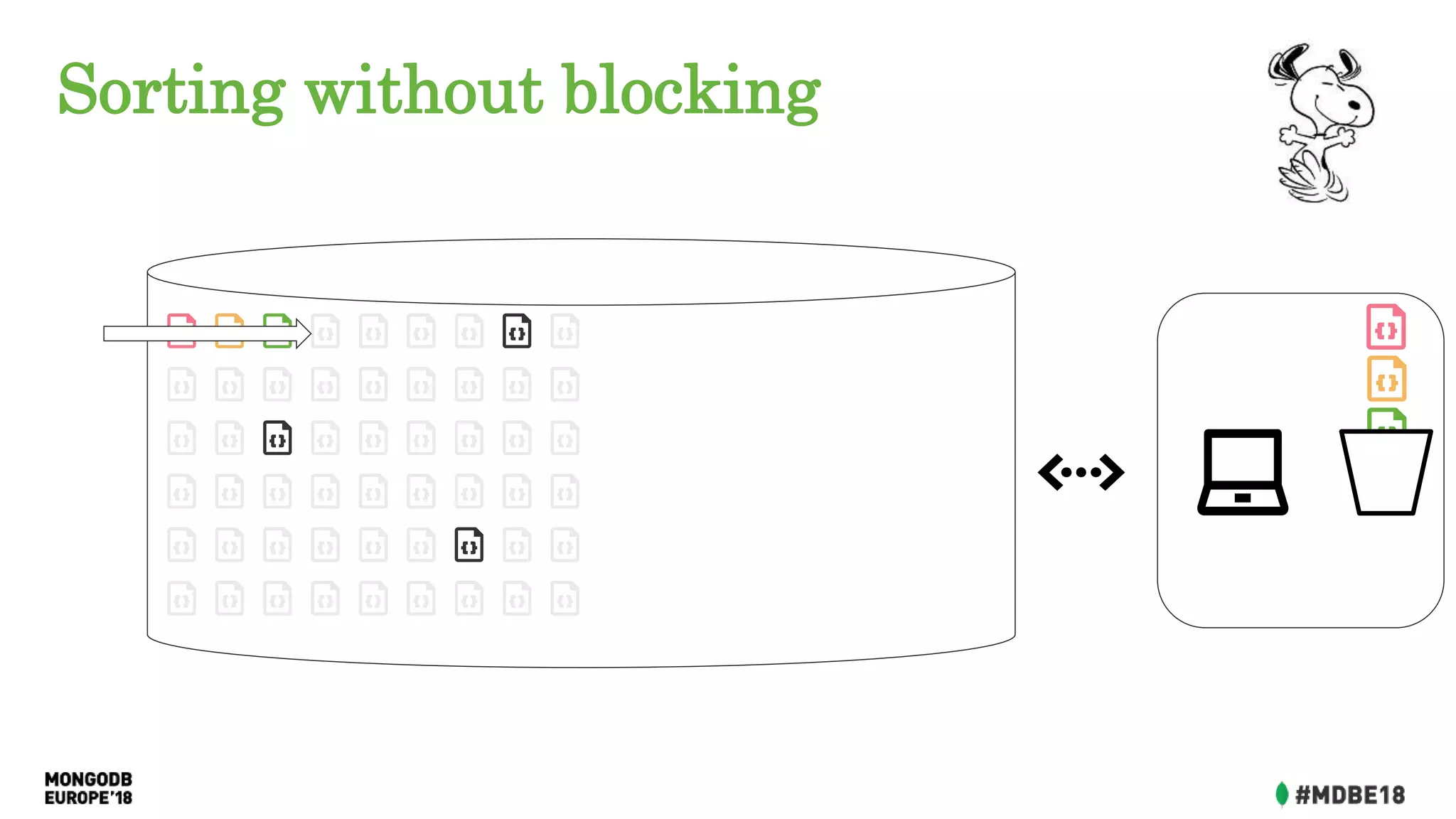

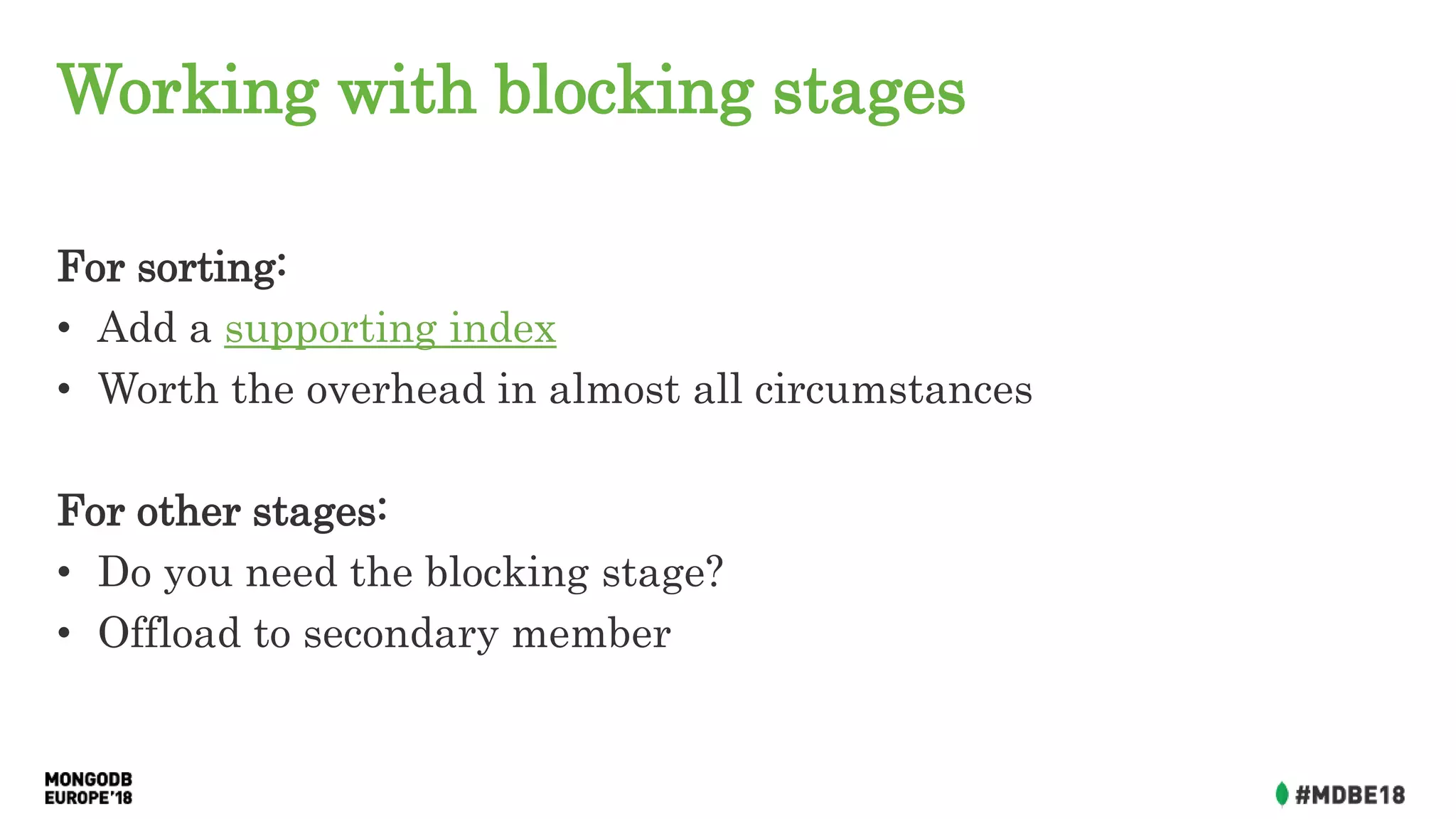

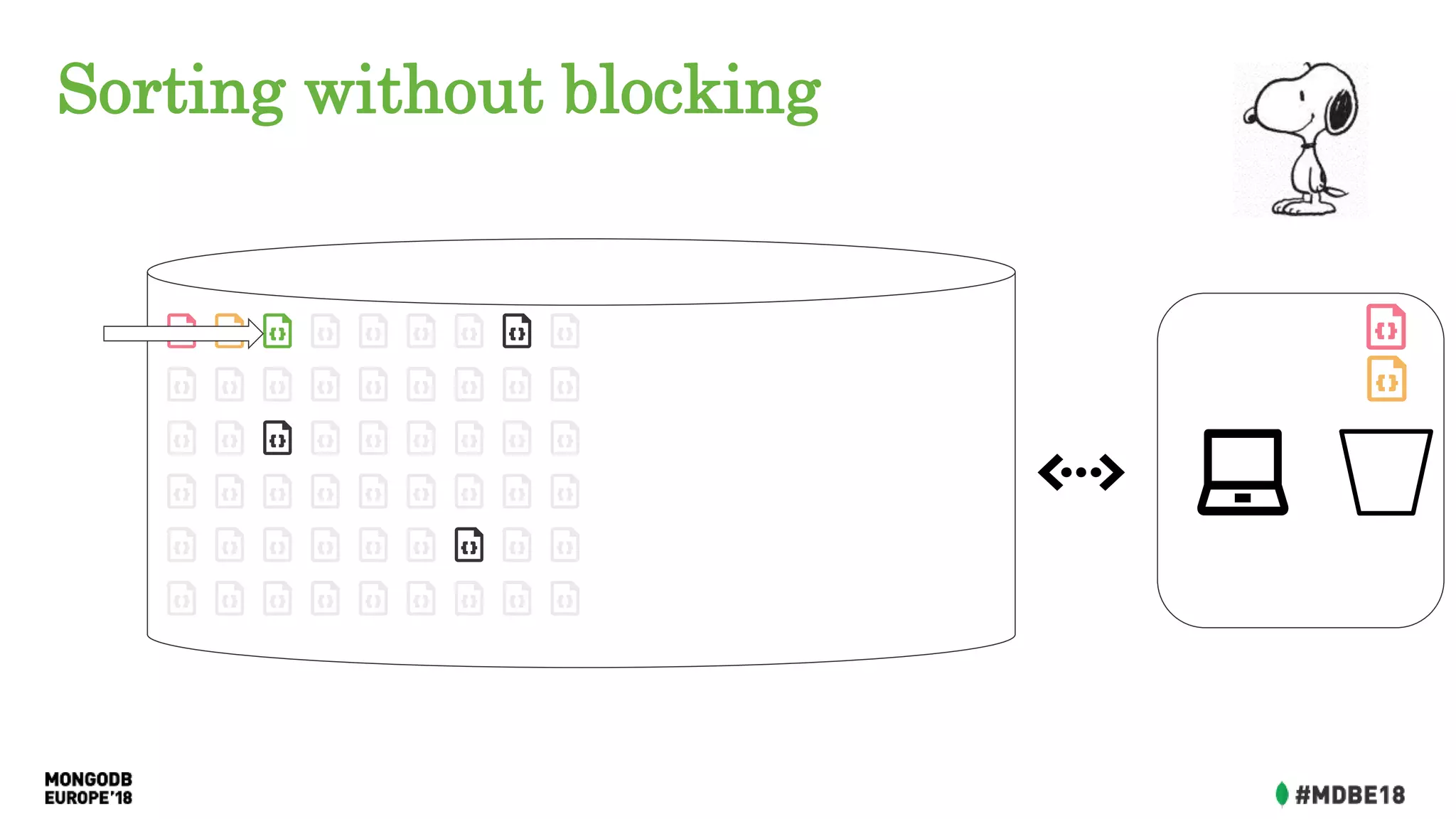

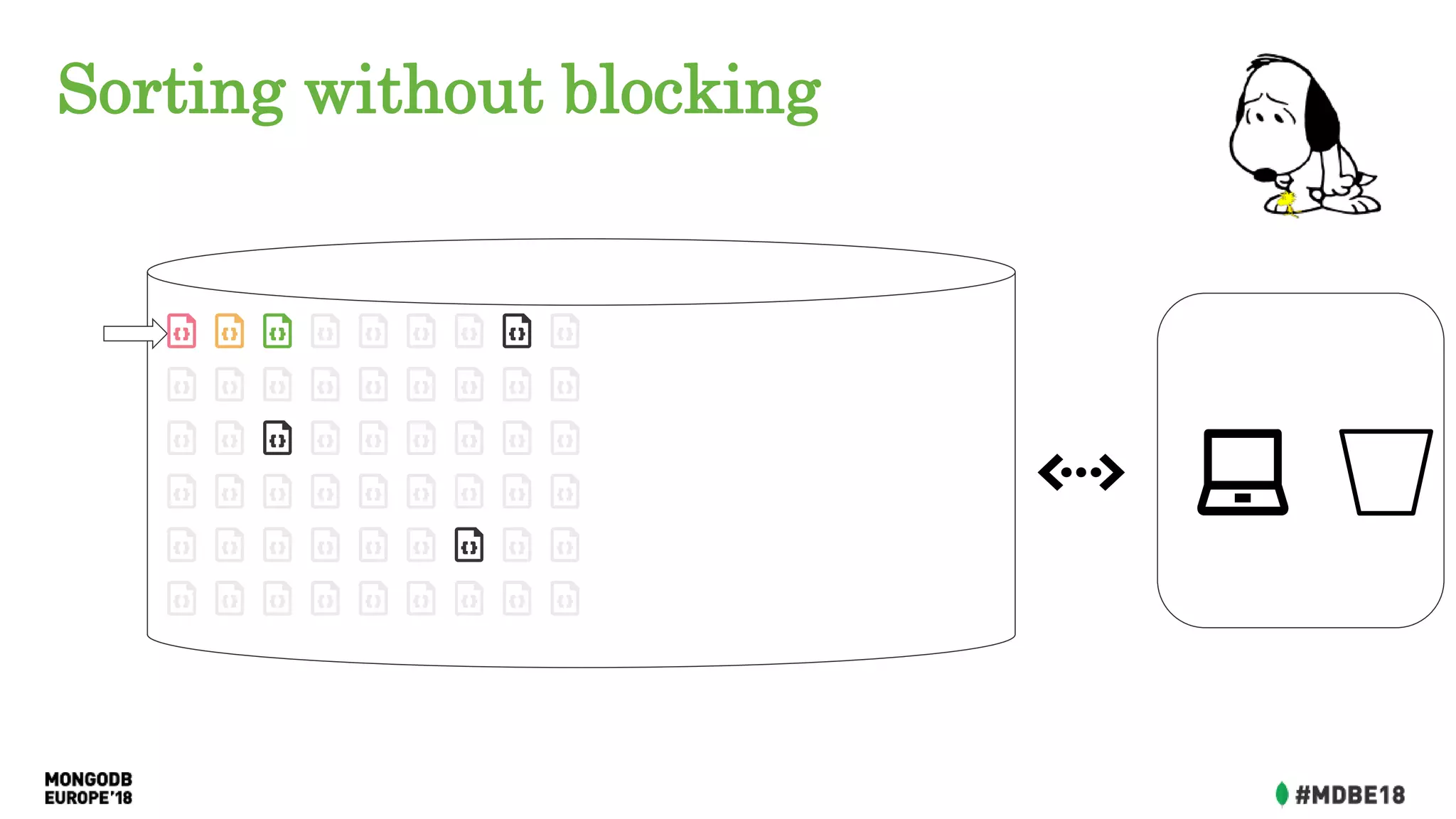

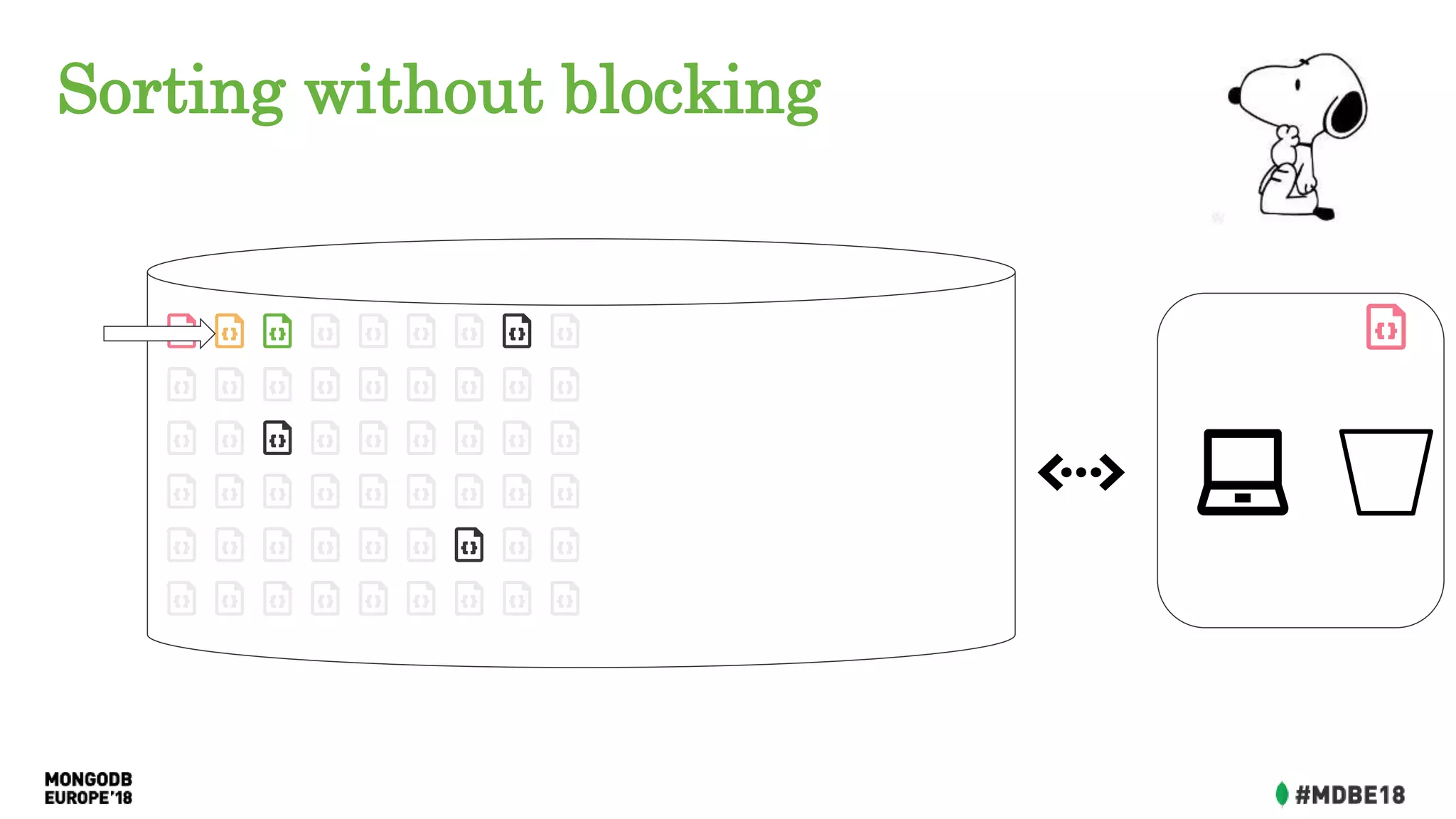

Working with blocking stages
For sorting:
• Add a supporting index
• Worth the overhead in almost all circumstances
For other stages:
• Do you need the blocking stage?
• Offload to secondary member

Performance of
“Clearly MongoDB
is not web-scale!”

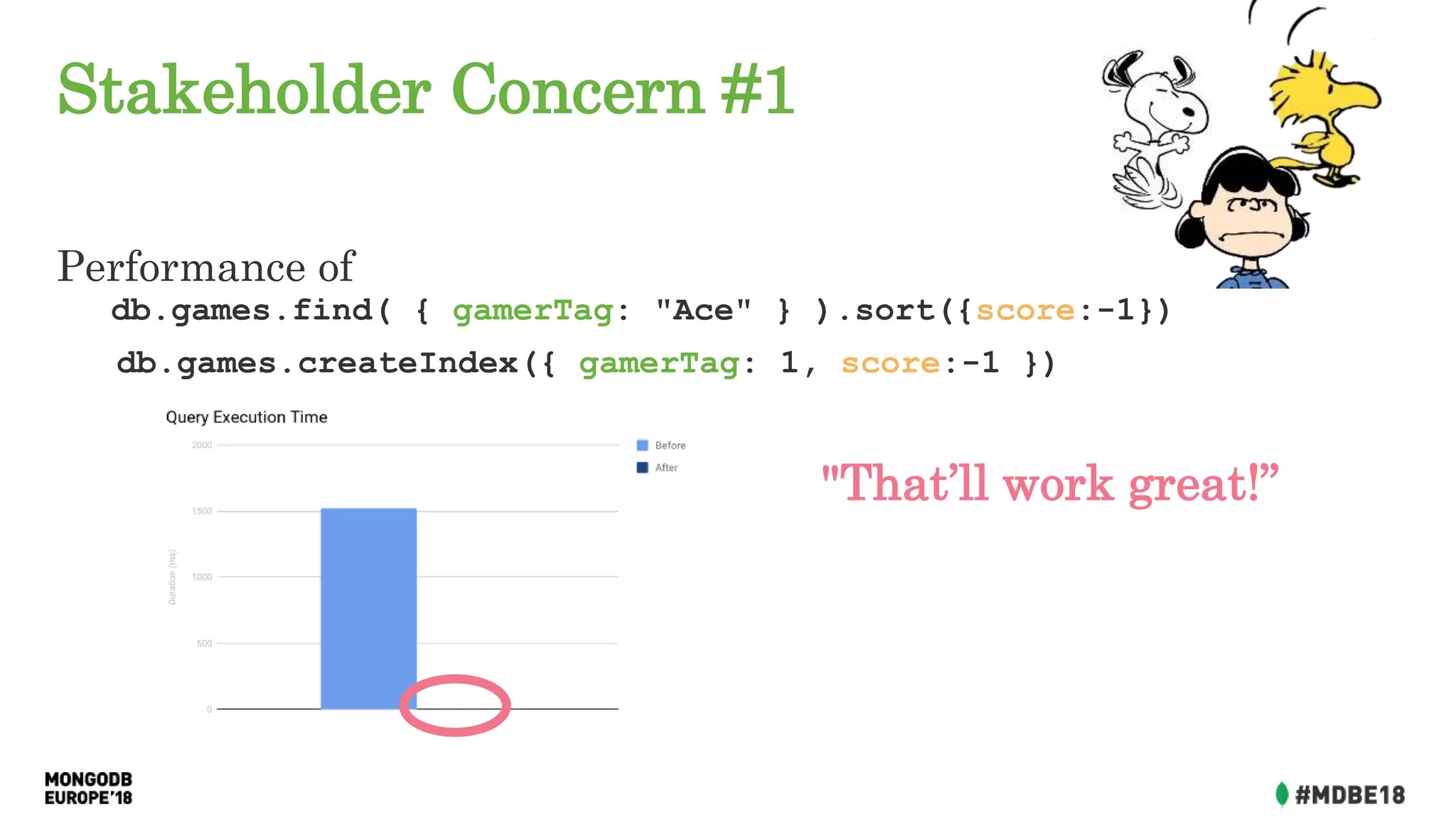

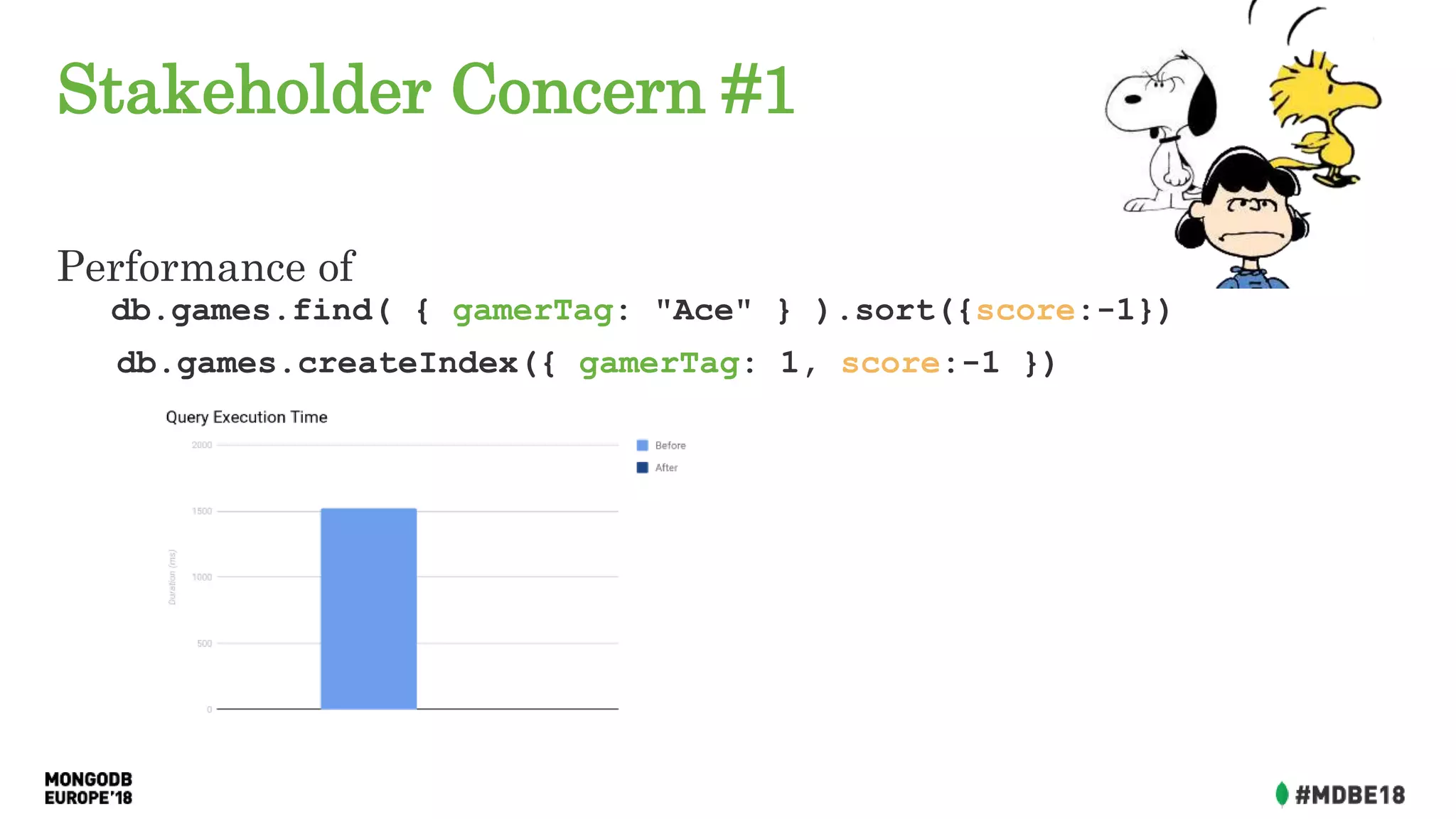

Performance of
db.games.createIndex({ gamerTag: 1, score:-1 })

Performance of
db.games.createIndex({ gamerTag: 1, score:-1 })
"That’ll work great!”

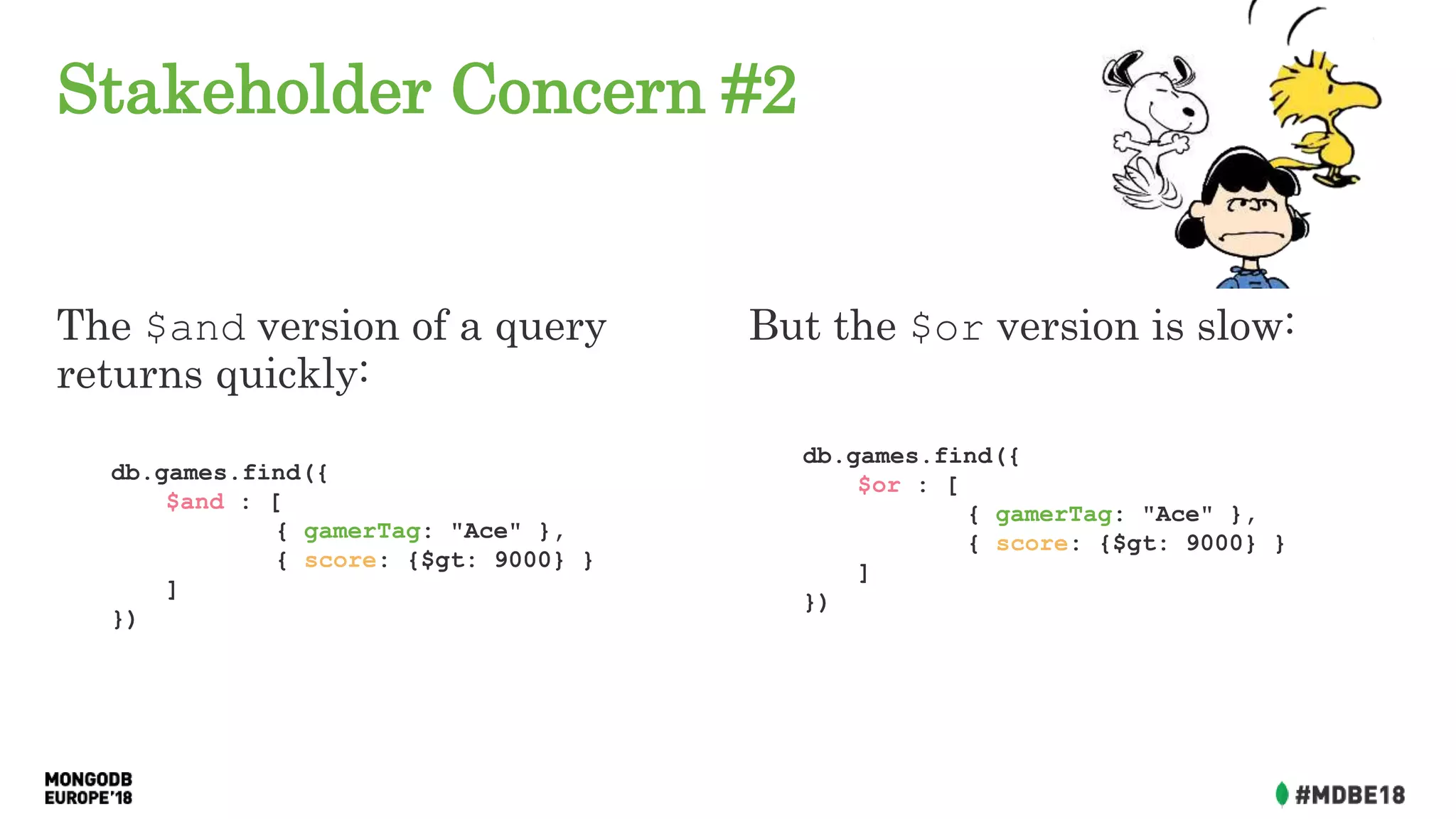

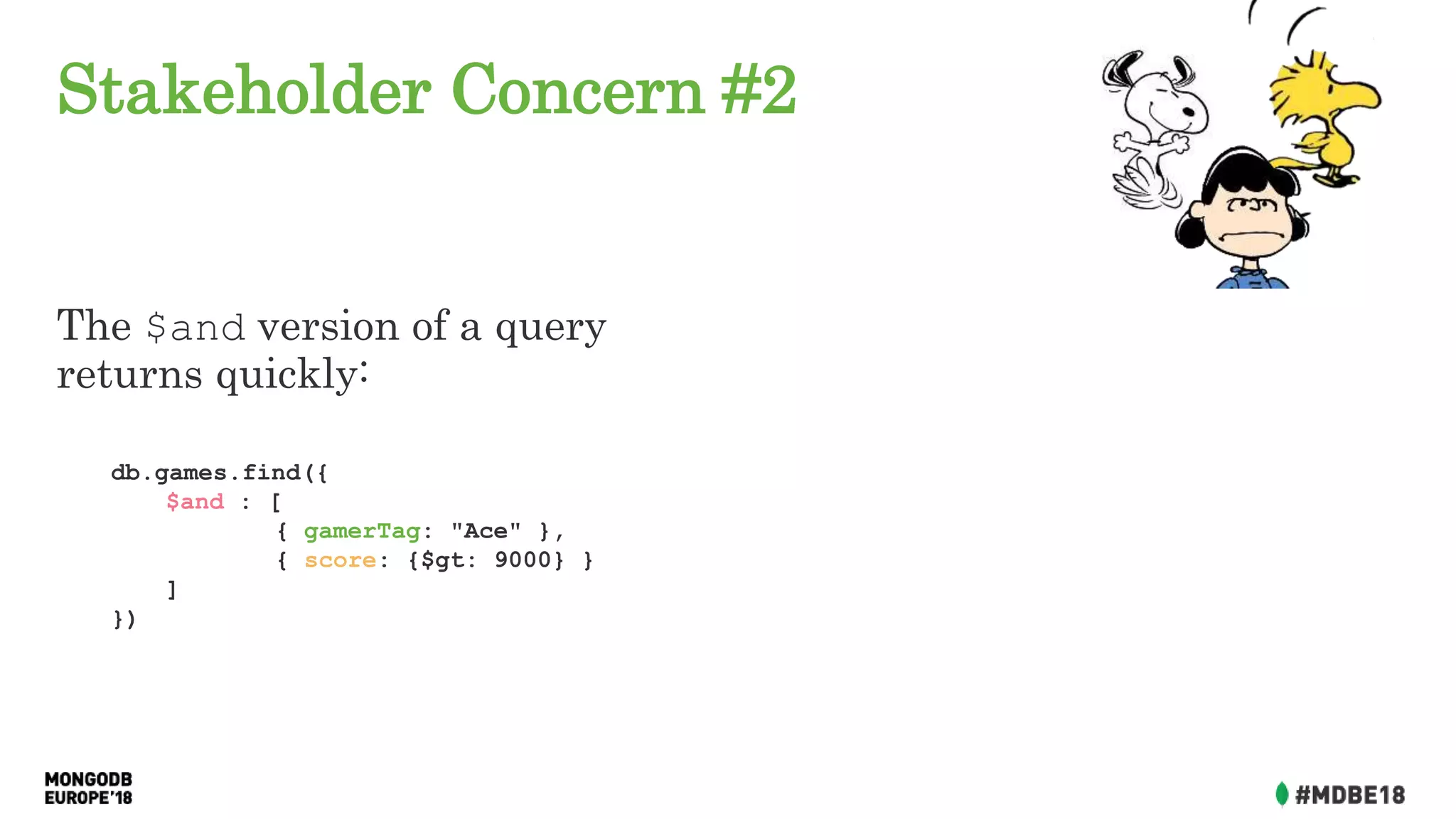

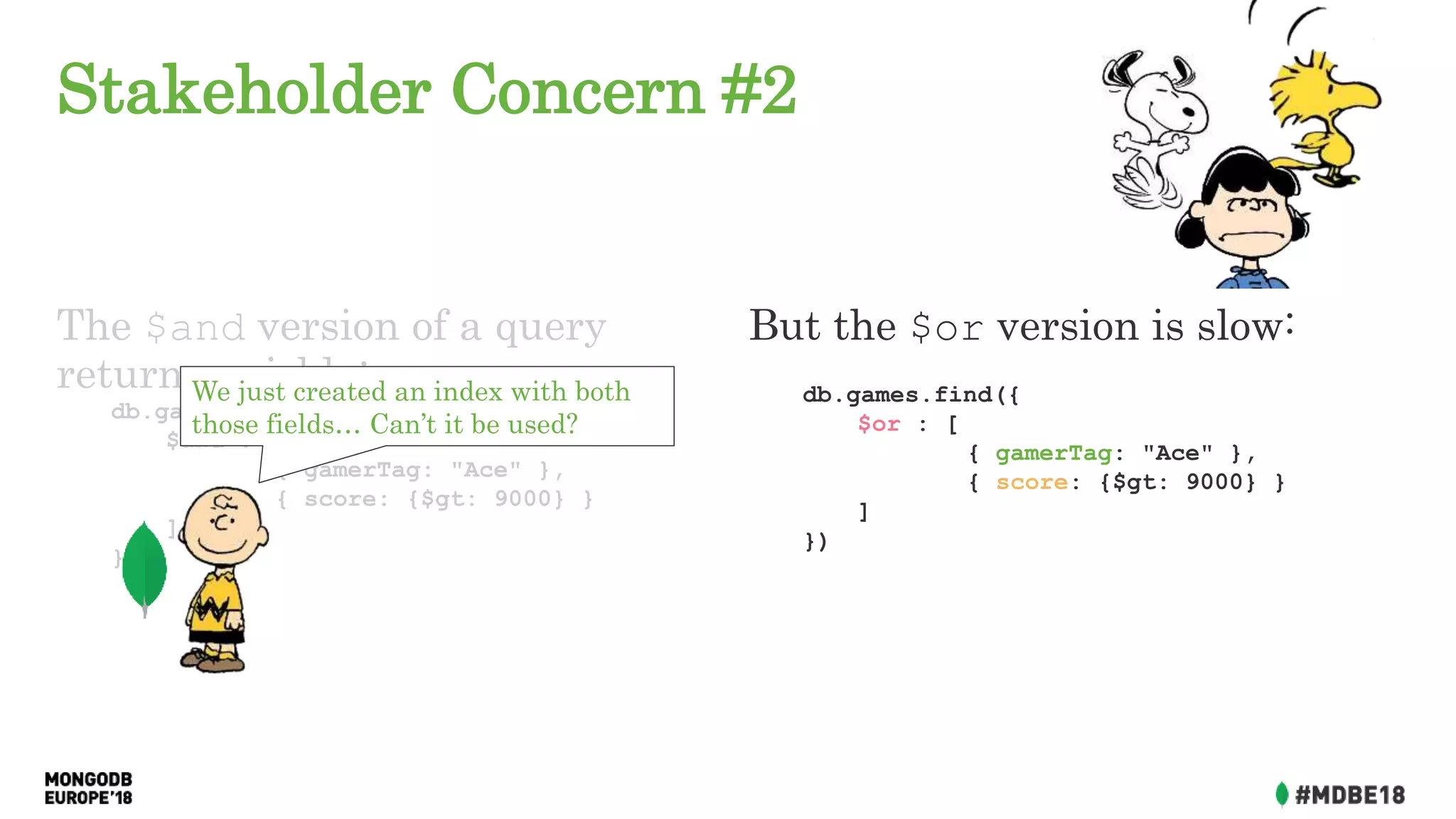

The $and version of a query
returns quickly:
db.games.find({
$and : [
{ gamerTag: "Ace" },
{ score: {$gt: 9000} }
]
})

returns quickly:
db.games.find({
$and : [
{ score: {$gt: 9000} }
]
})
But the $or version is slow:
db.games.find({
$or : [
{ score: {$gt: 9000} }
]
})

returns quickly:
db.games.find({
$and : [
{ score: {$gt: 9000} }
]
})
But the $or version is slow:
db.games.find({
$or : [
{ score: {$gt: 9000} }
]
})
We just created an index with both
those fields… Can’t it be used?

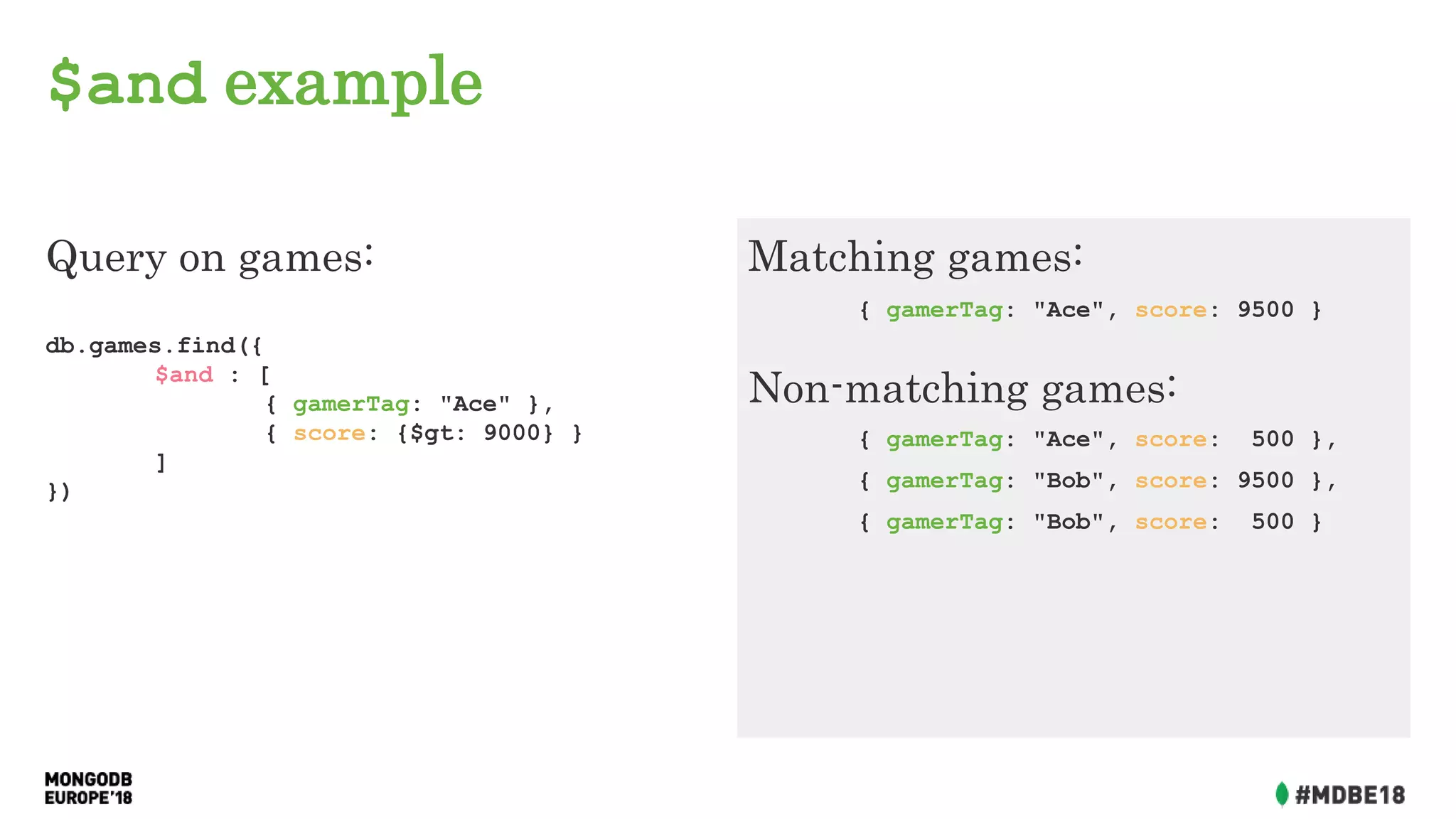

$and example
Query on games:
db.games.find({
$and : [
{ score: {$gt: 9000} }
]
})
Matching games:
{ gamerTag: "Ace", score: 9500 }
Non-matching games:
{ gamerTag: "Ace", score: 500 },
{ gamerTag: "Bob", score: 9500 },
{ gamerTag: "Bob", score: 500 }

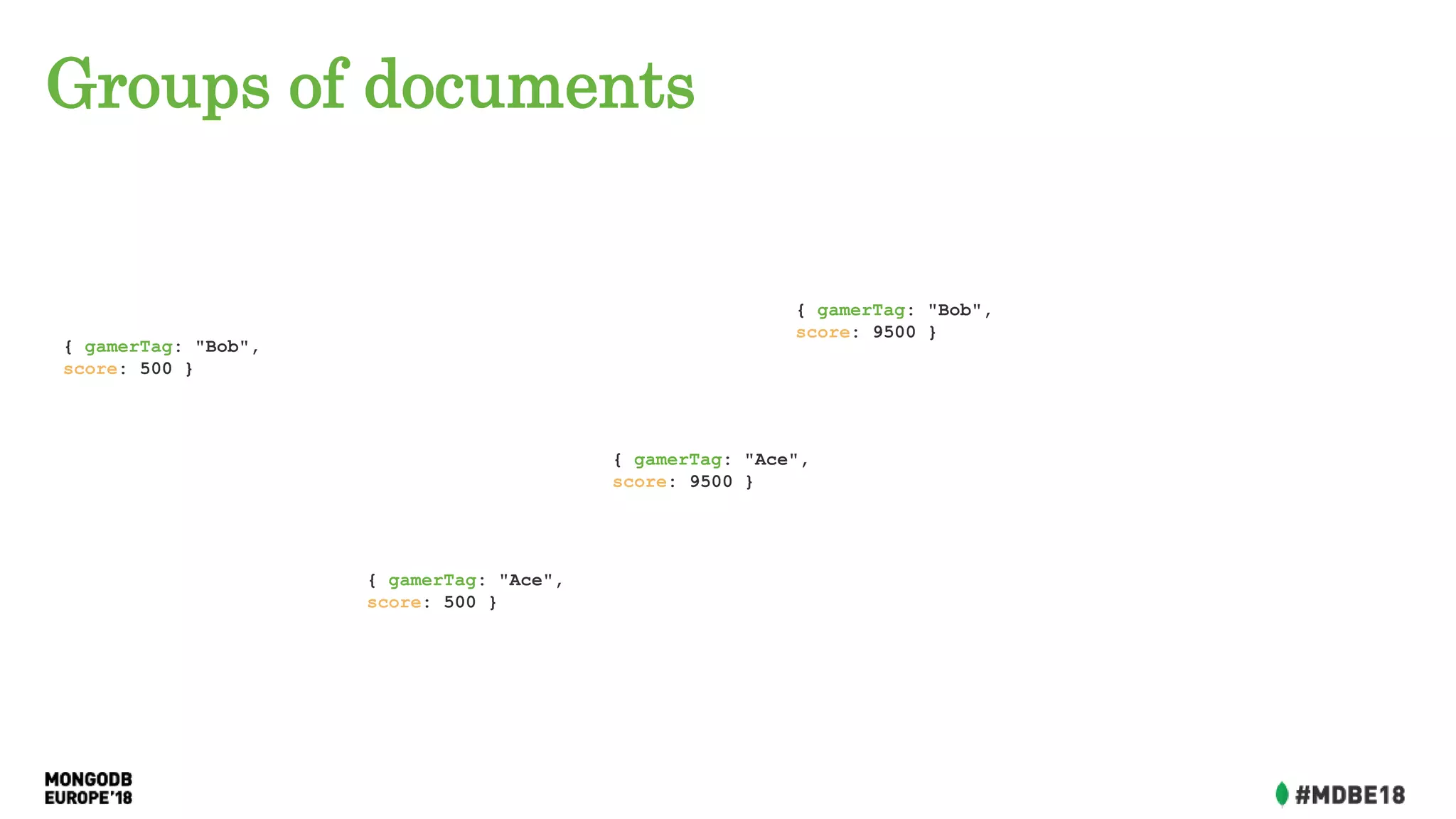

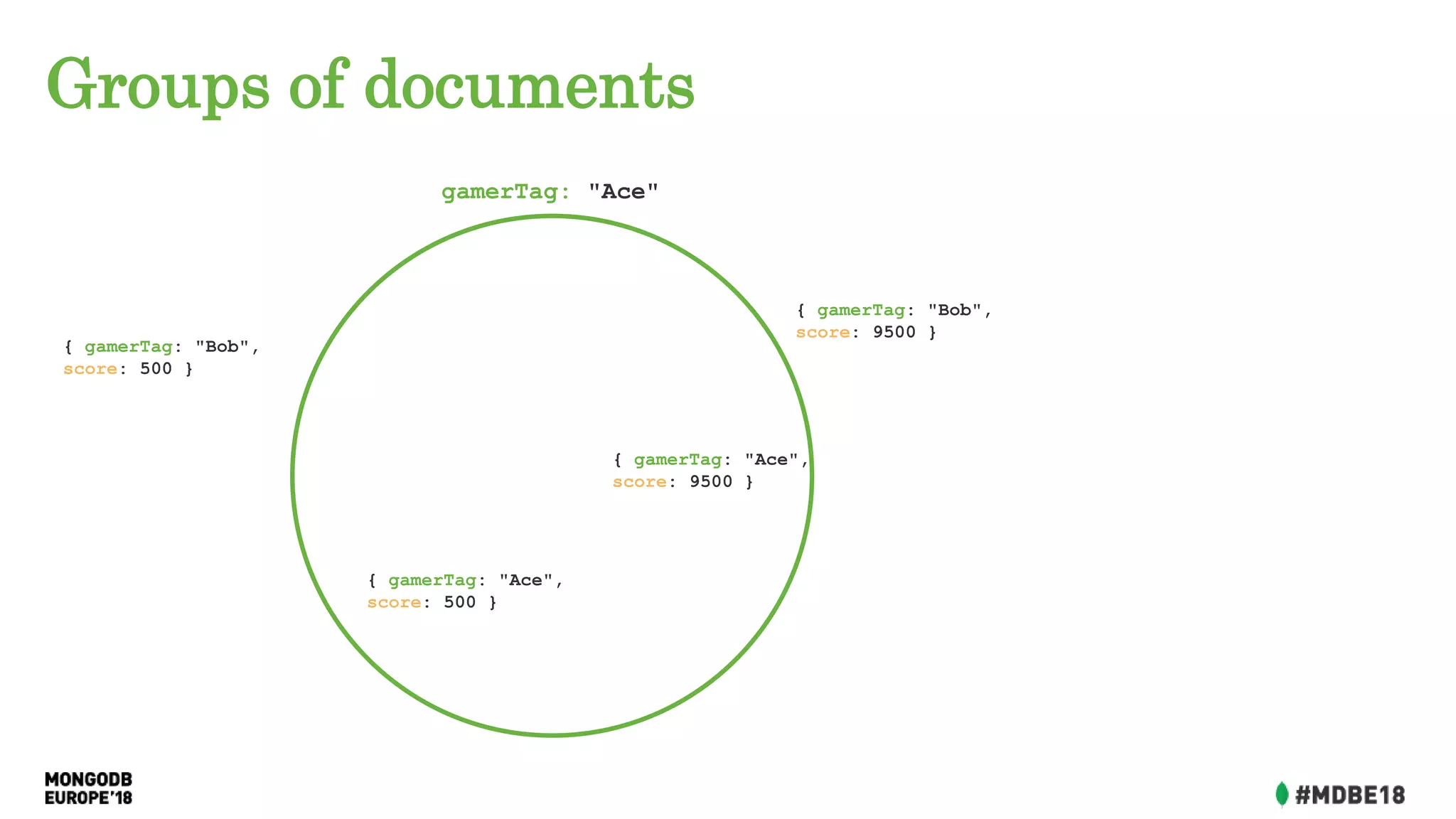

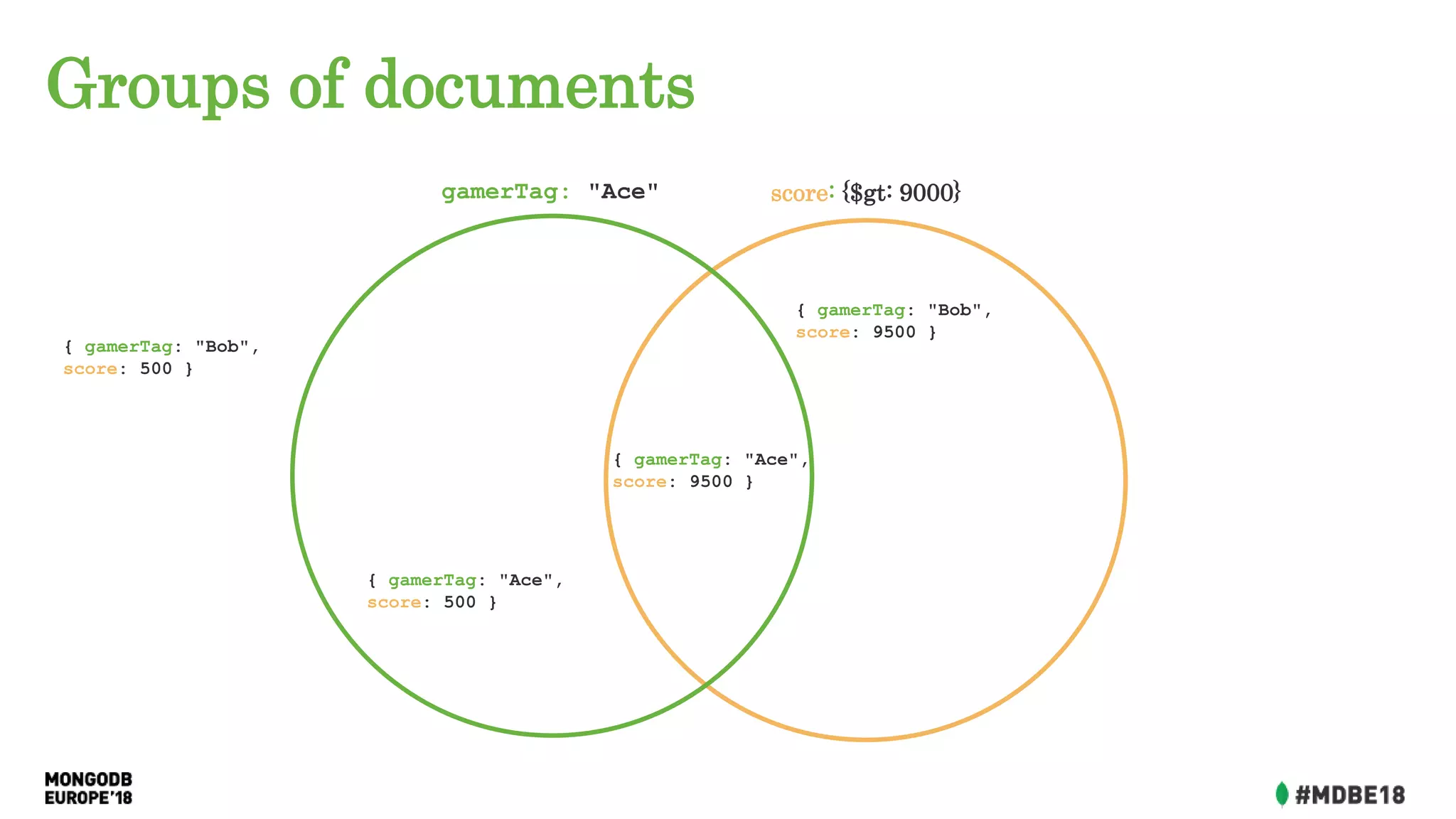

Groups of documents
{ gamerTag: "Ace",
score: 9500 }
{ gamerTag: "Ace",
score: 500 }
{ gamerTag: "Bob",
score: 9500 }
{ gamerTag: "Bob",
score: 500 }

Groups of documents
{ gamerTag: "Ace",
score: 9500 }
{ gamerTag: "Ace",
score: 500 }
{ gamerTag: "Bob",
score: 9500 }
{ gamerTag: "Bob",
score: 500 }
gamerTag: "Ace"

Groups of documents
{ gamerTag: "Ace",
score: 9500 }
{ gamerTag: "Ace",
score: 500 }
{ gamerTag: "Bob",
score: 9500 }
{ gamerTag: "Bob",
score: 500 }
gamerTag: "Ace" score: {$gt: 9000}

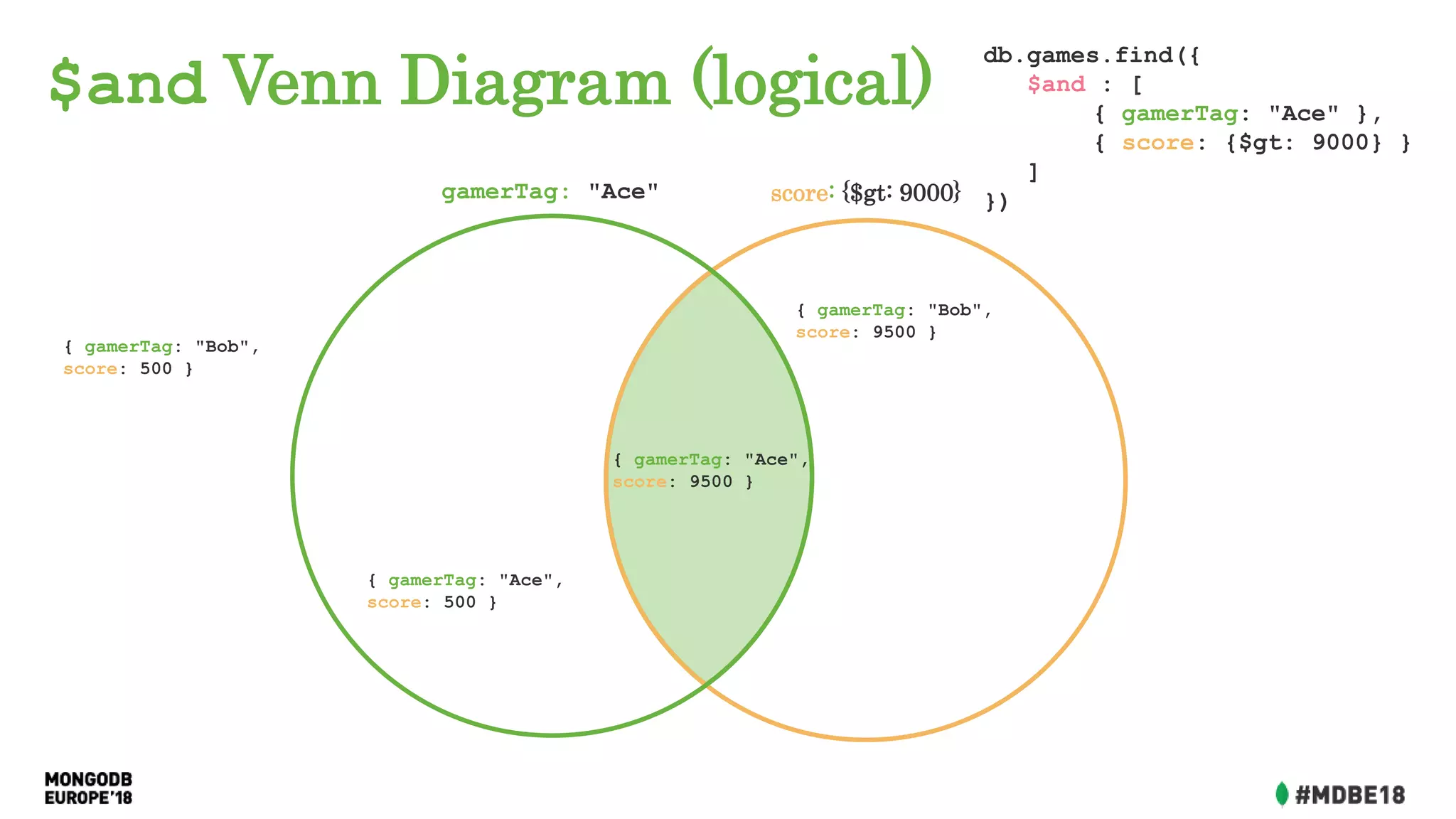

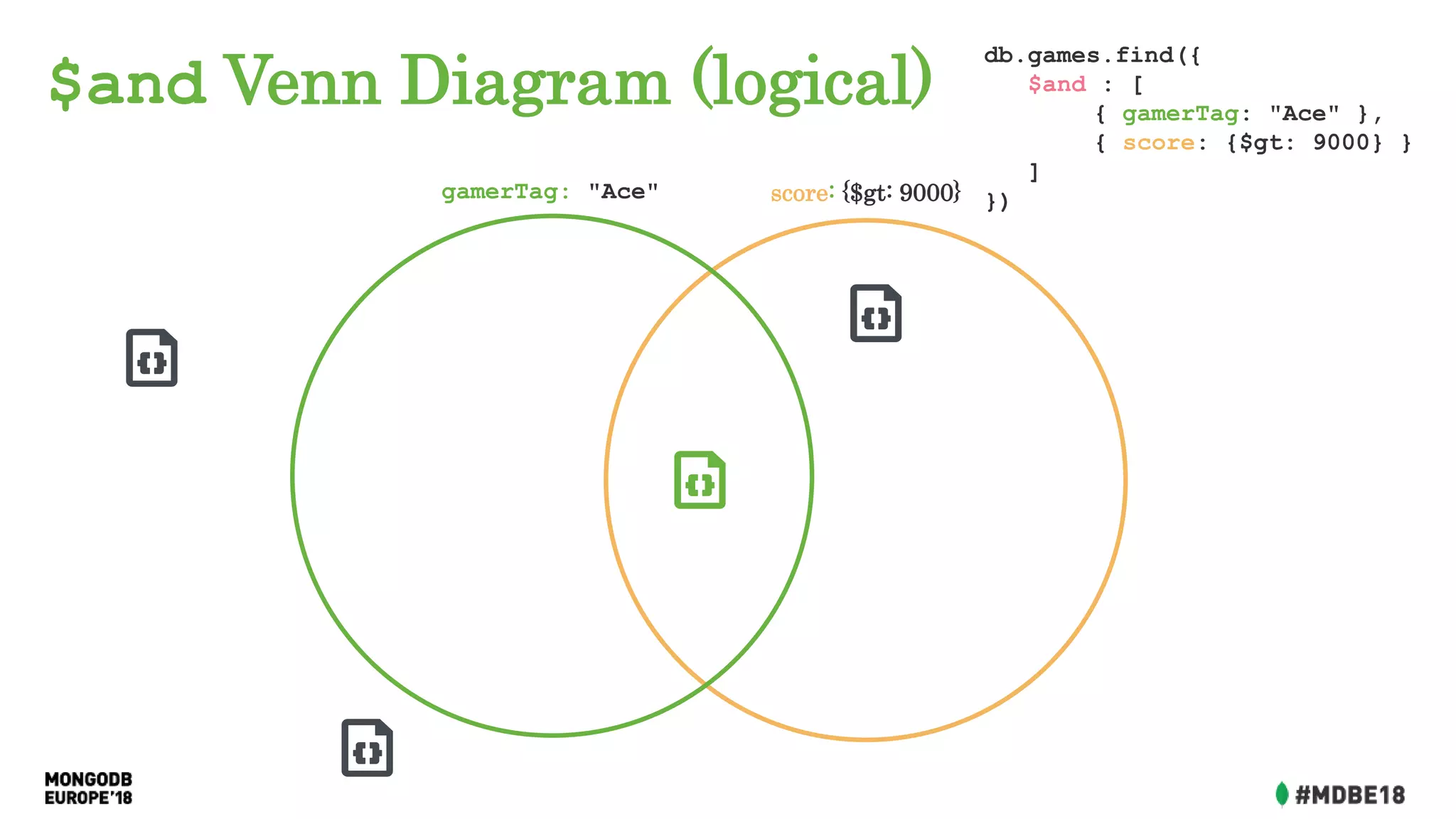

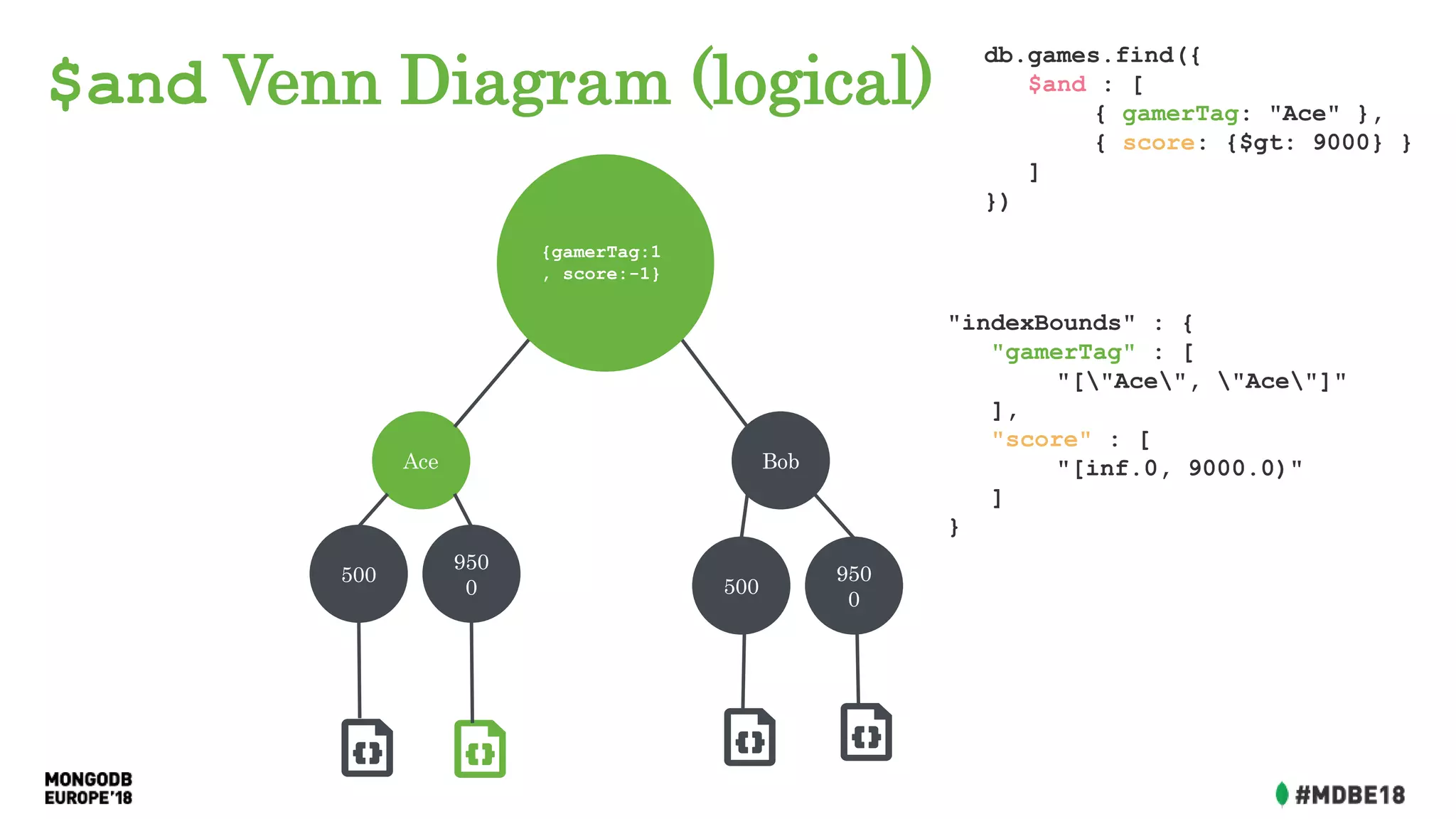

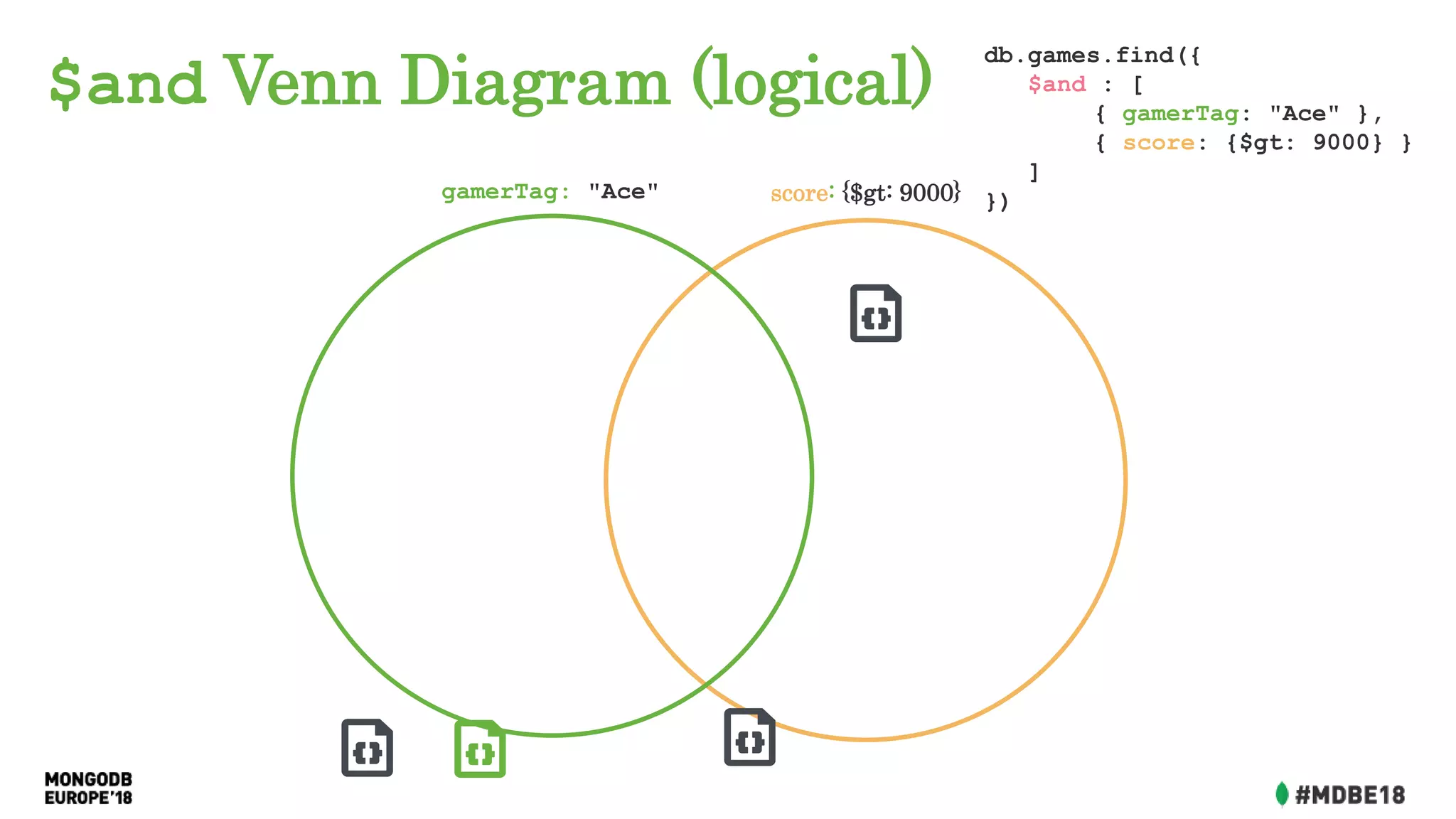

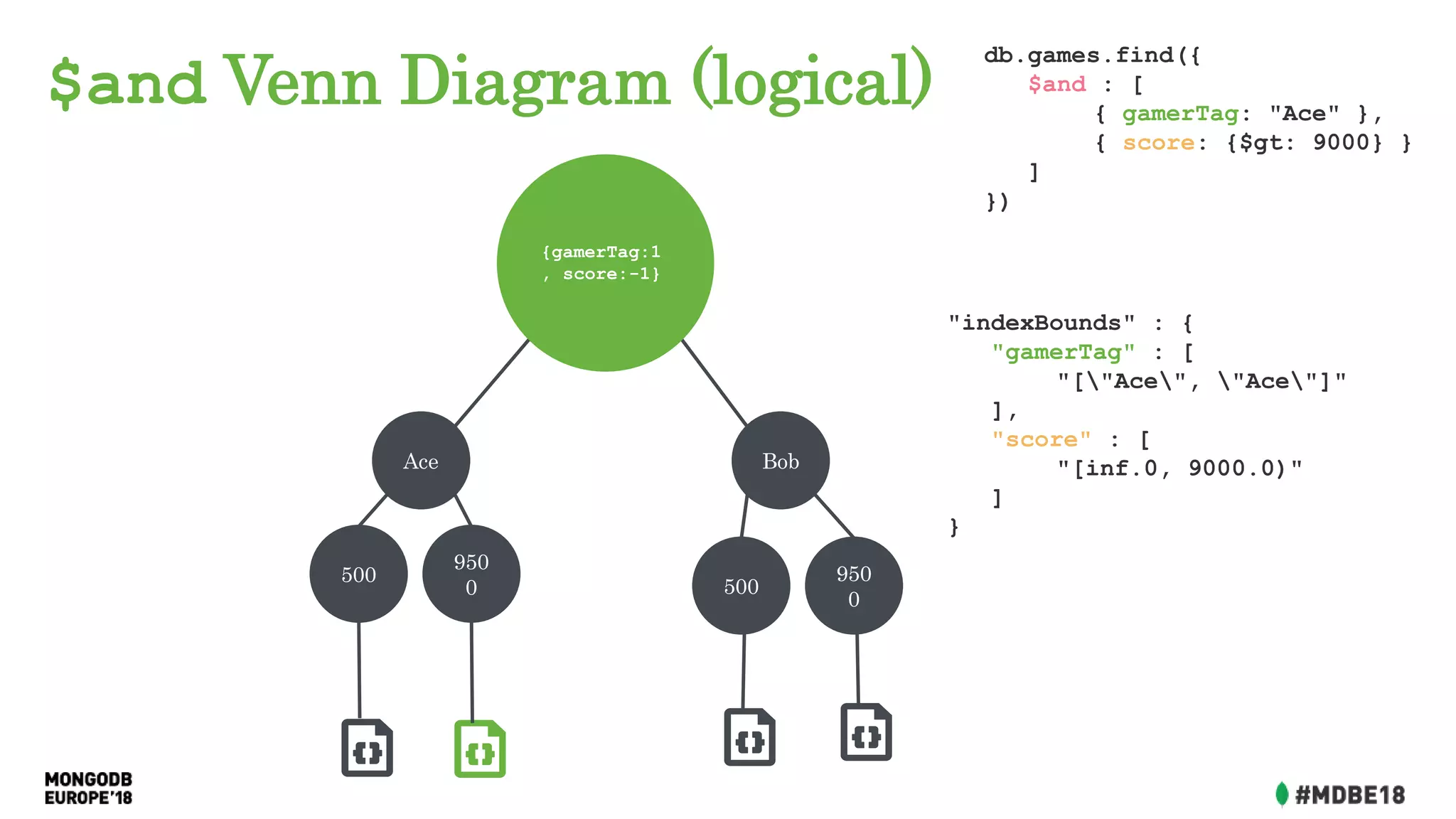

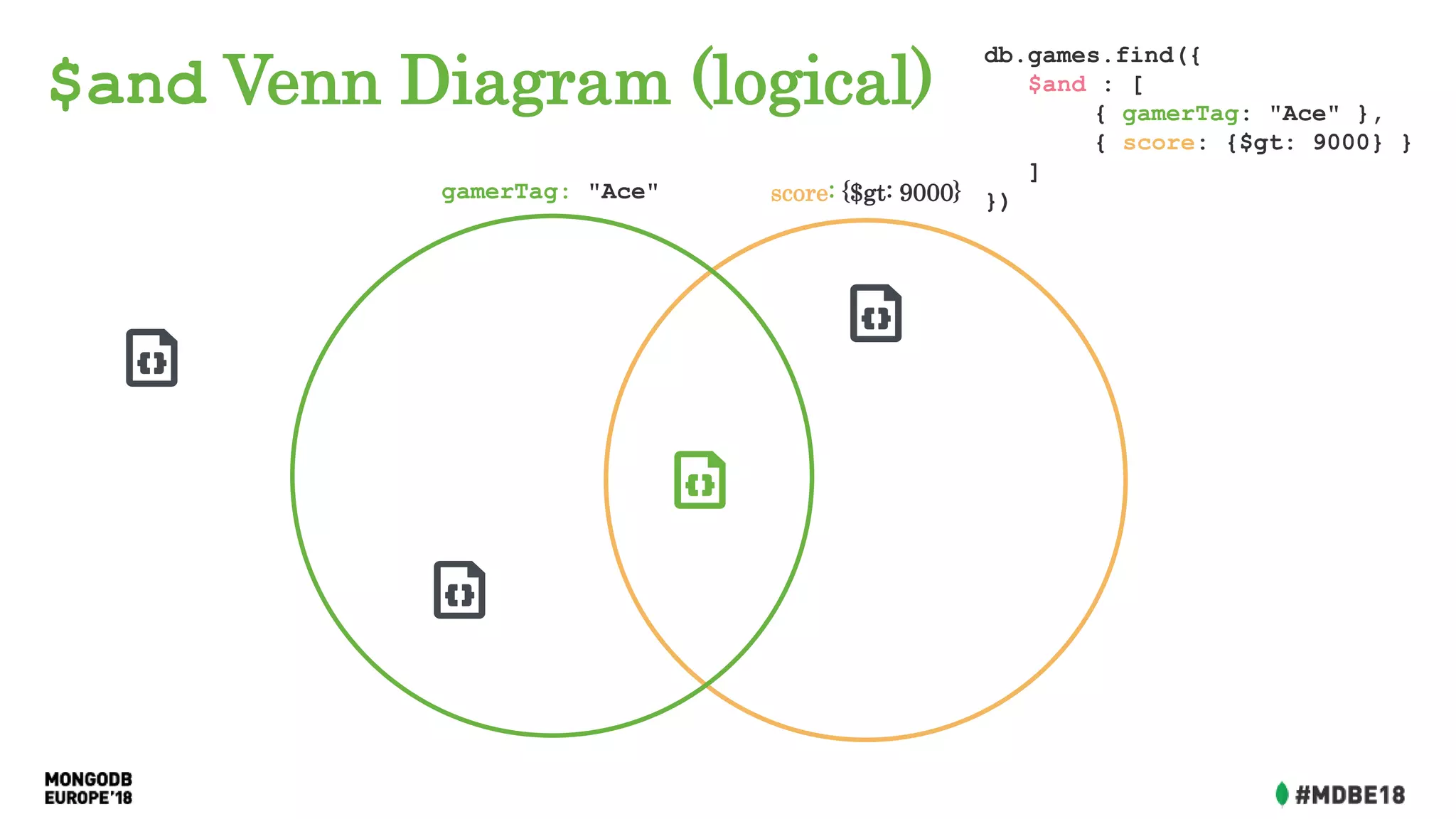

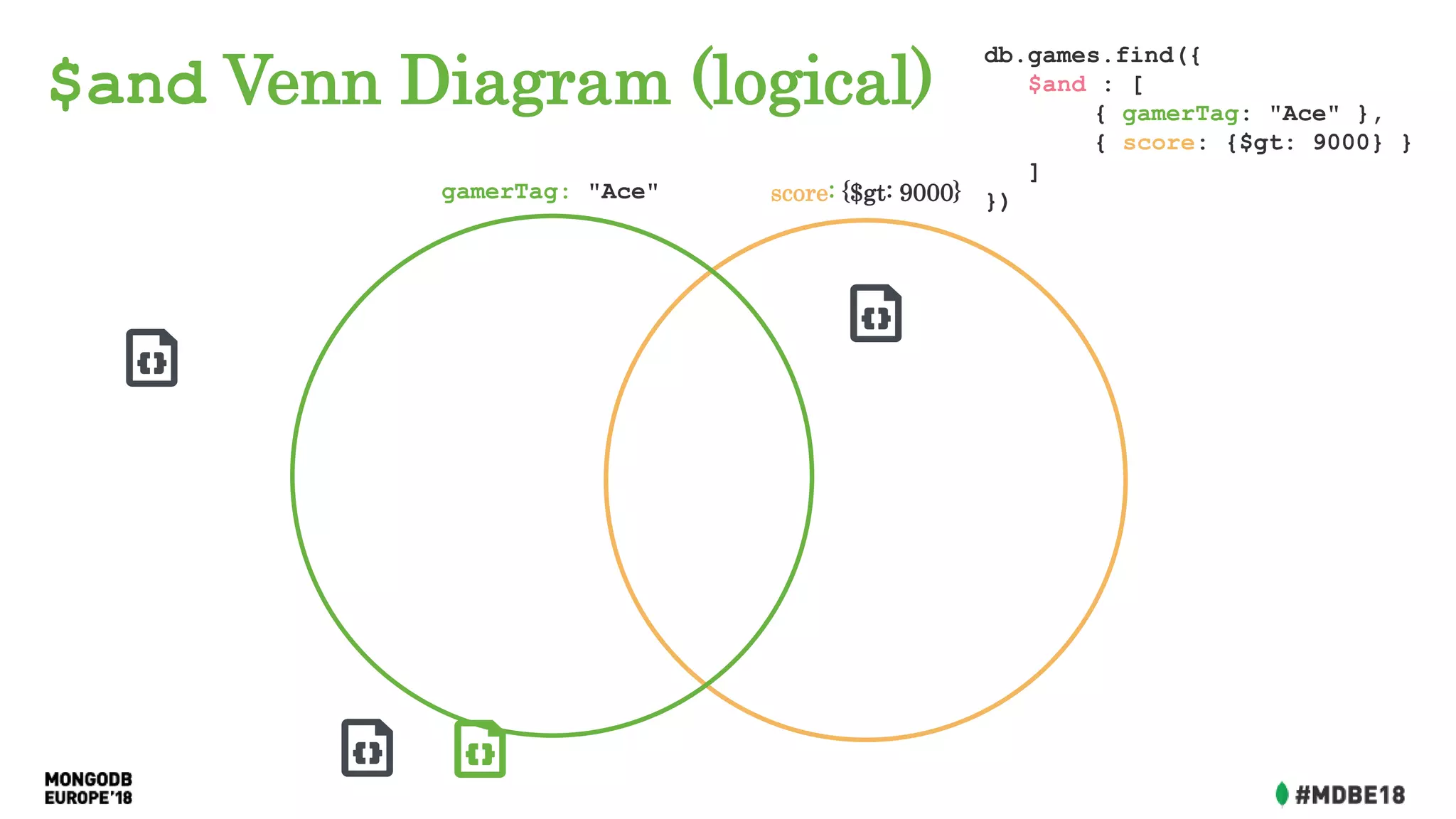

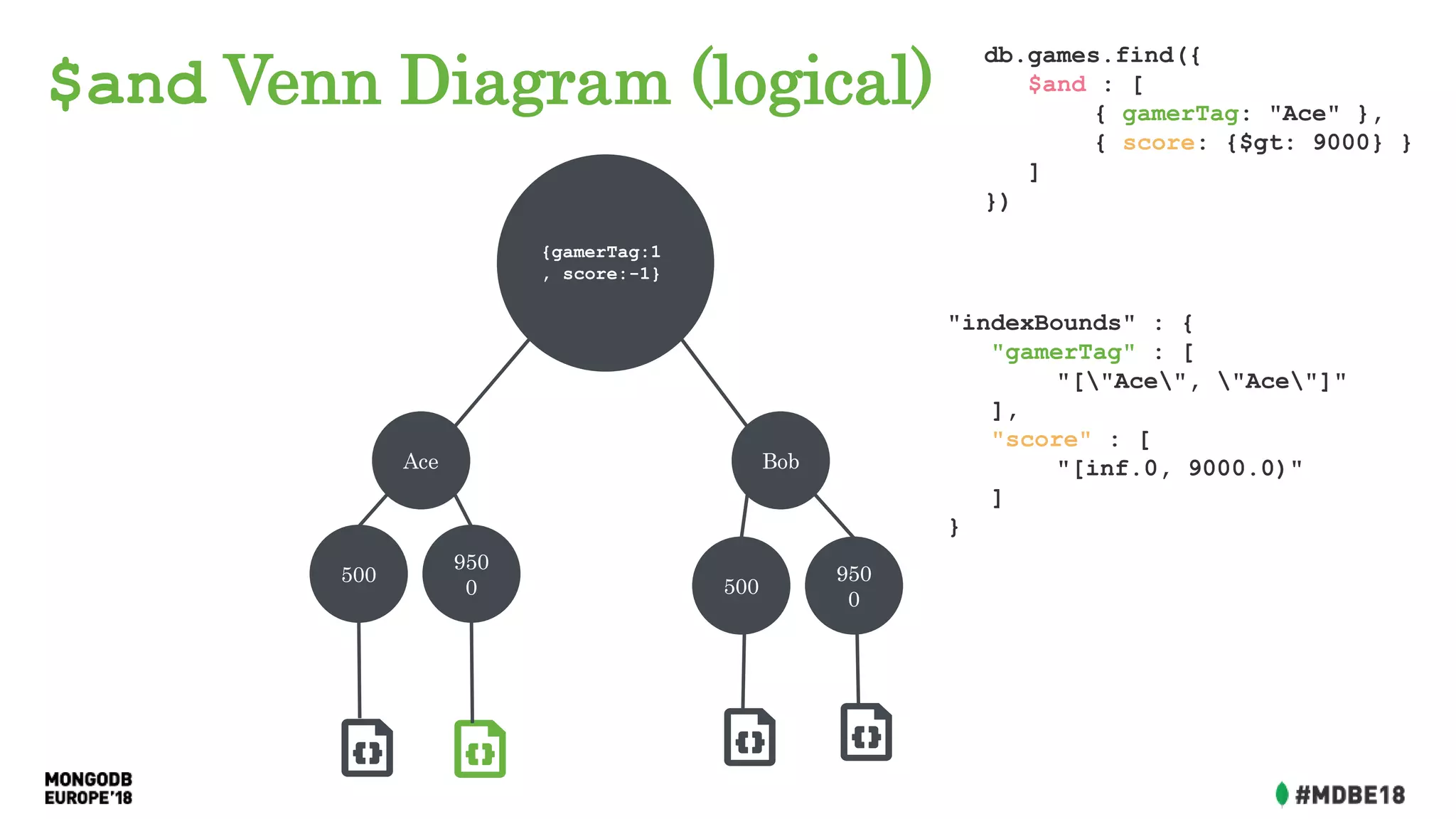

$and Venn Diagram (logical)
{ gamerTag: "Ace",
score: 9500 }
{ gamerTag: "Ace",
score: 500 }
{ gamerTag: "Bob",
score: 9500 }
{ gamerTag: "Bob",
score: 500 }
db.games.find({
$and : [
{ score: {$gt: 9000} }
]
})gamerTag: "Ace" score: {$gt: 9000}

db.games.find({
$and : [
{ score: {$gt: 9000} }
]

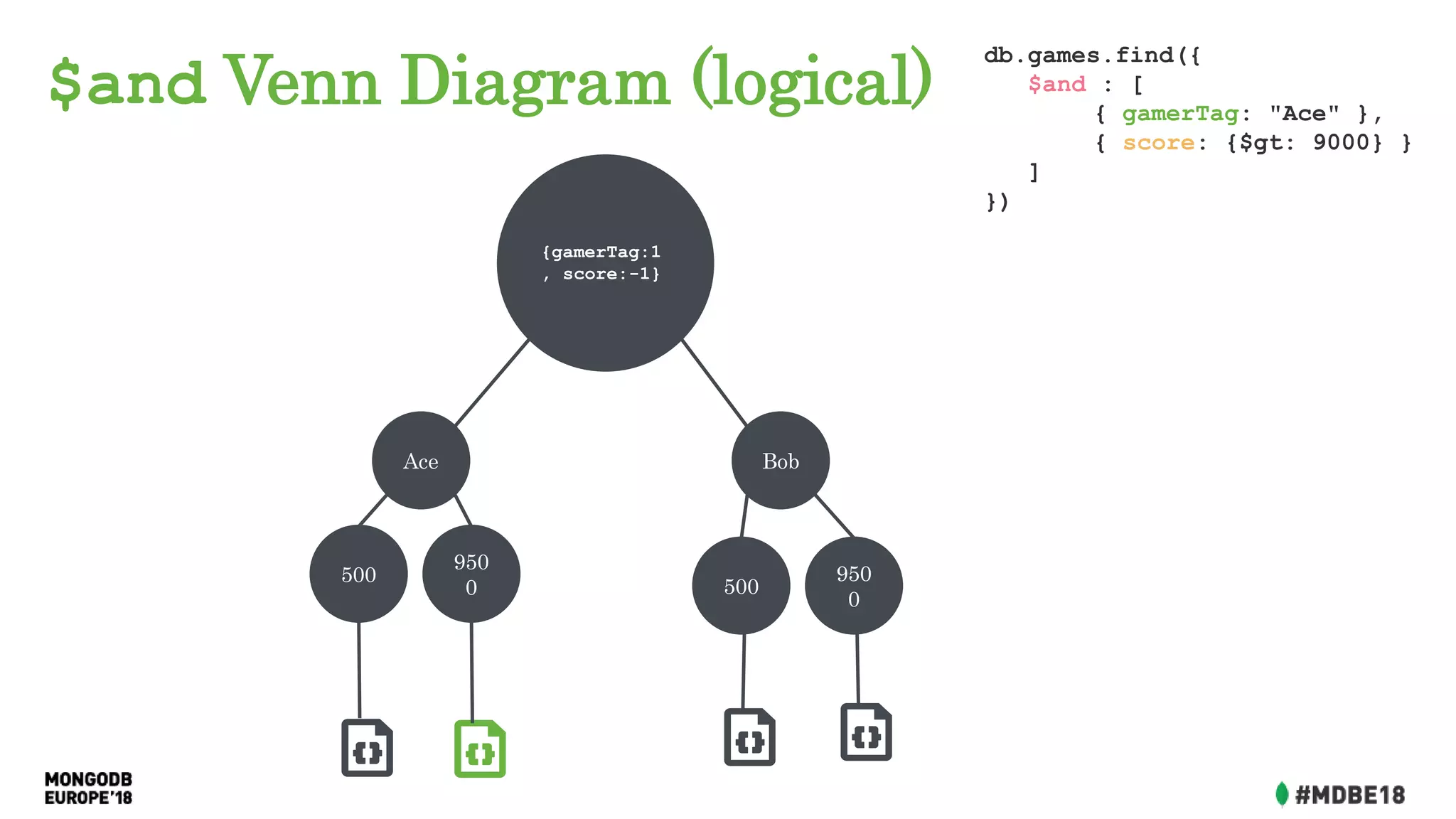

db.games.find({
$and : [
{ score: {$gt: 9000} }
]
})
Ace Bob
500
950
0 500
950
0
{gamerTag:1
, score:-1}

db.games.find({
$and : [
{ score: {$gt: 9000} }
]
})
Ace Bob
500
950
0 500
950
0
"indexBounds" : {
"gamerTag" : [
"["Ace", "Ace"]"
],
"score" : [
"[inf.0, 9000.0)"
]
}
{gamerTag:1
, score:-1}

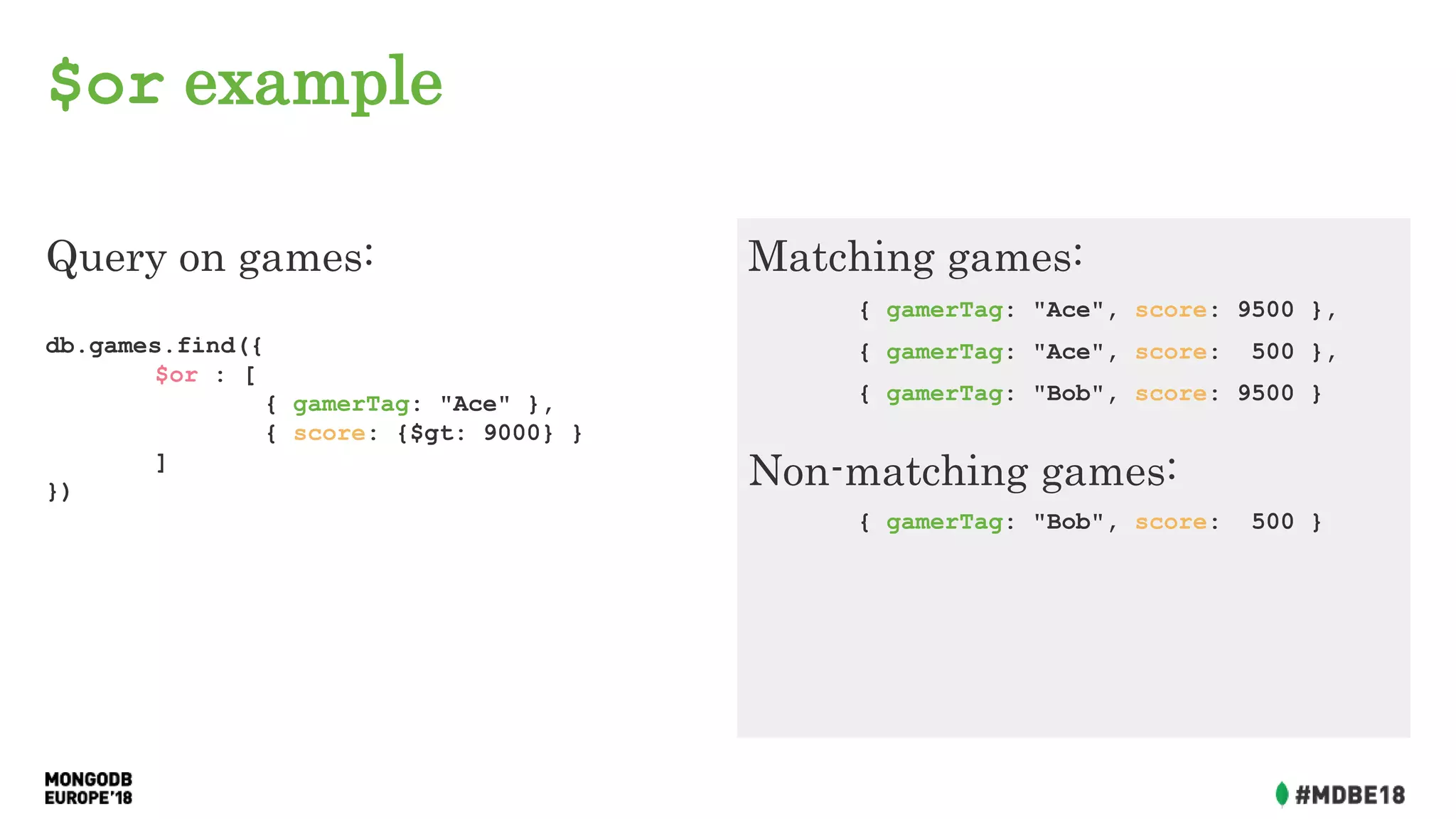

$or example
Query on games:
db.games.find({
$or : [
{ score: {$gt: 9000} }
]
})
Matching games:
Non-matching games:

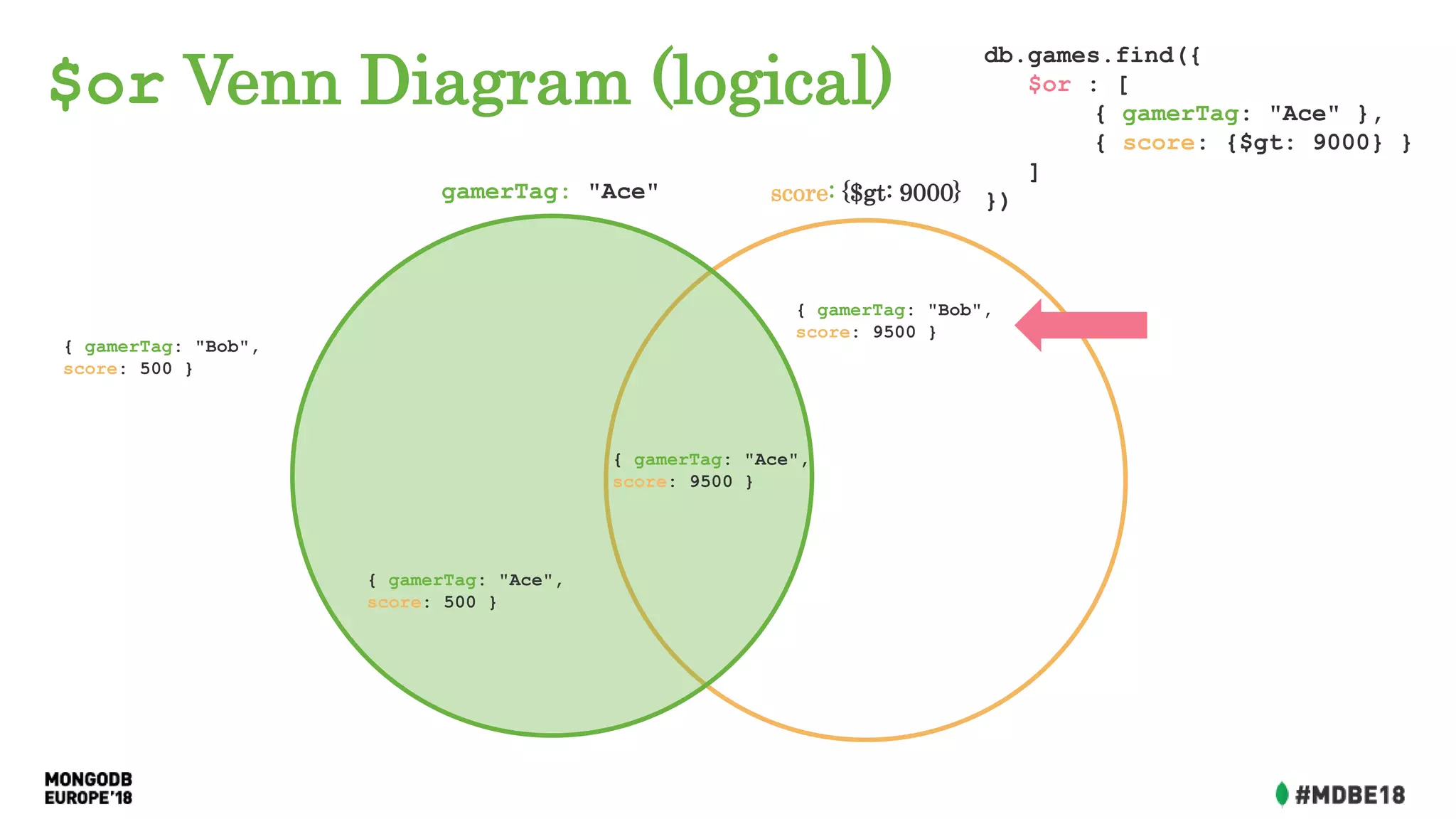

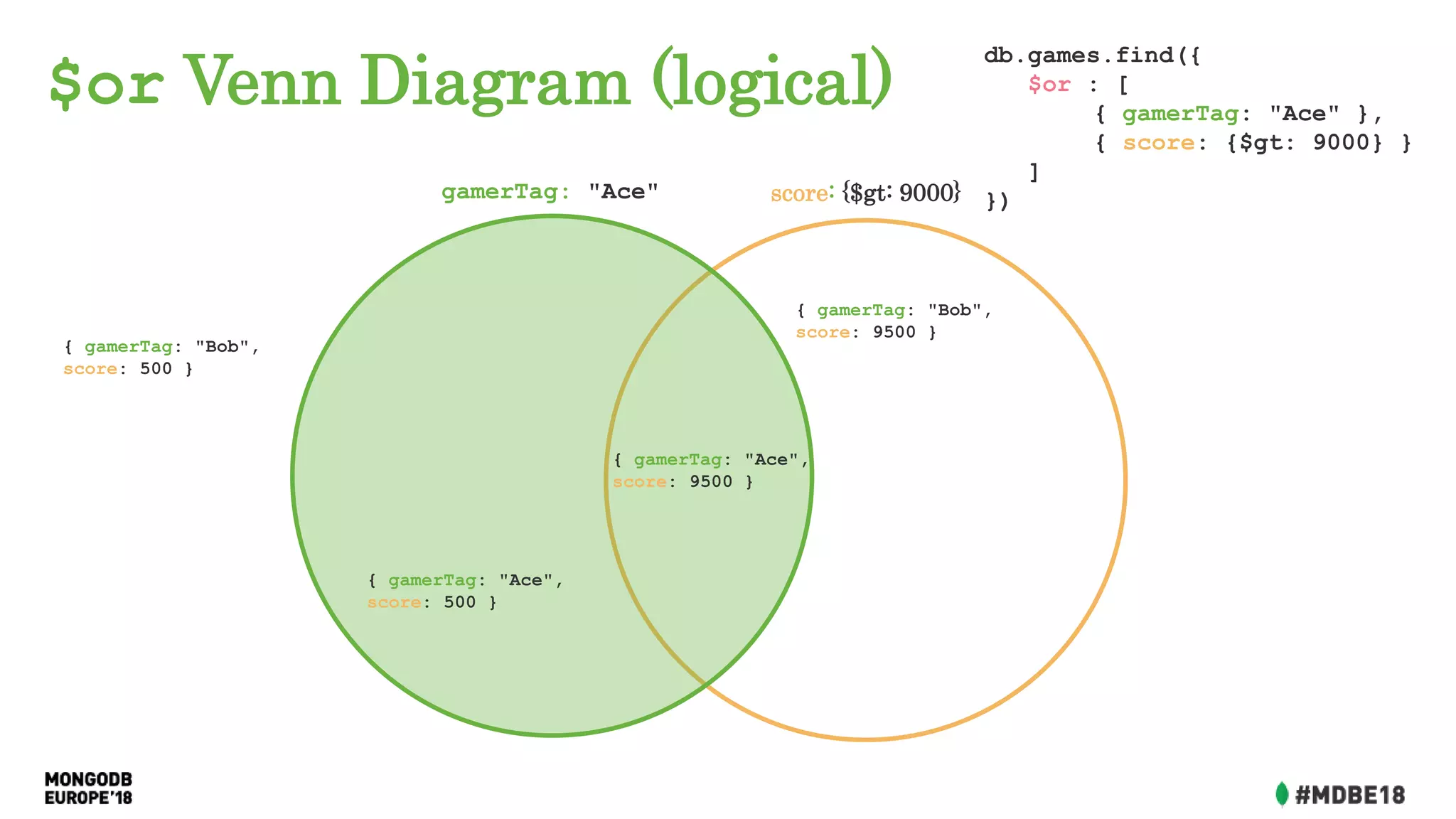

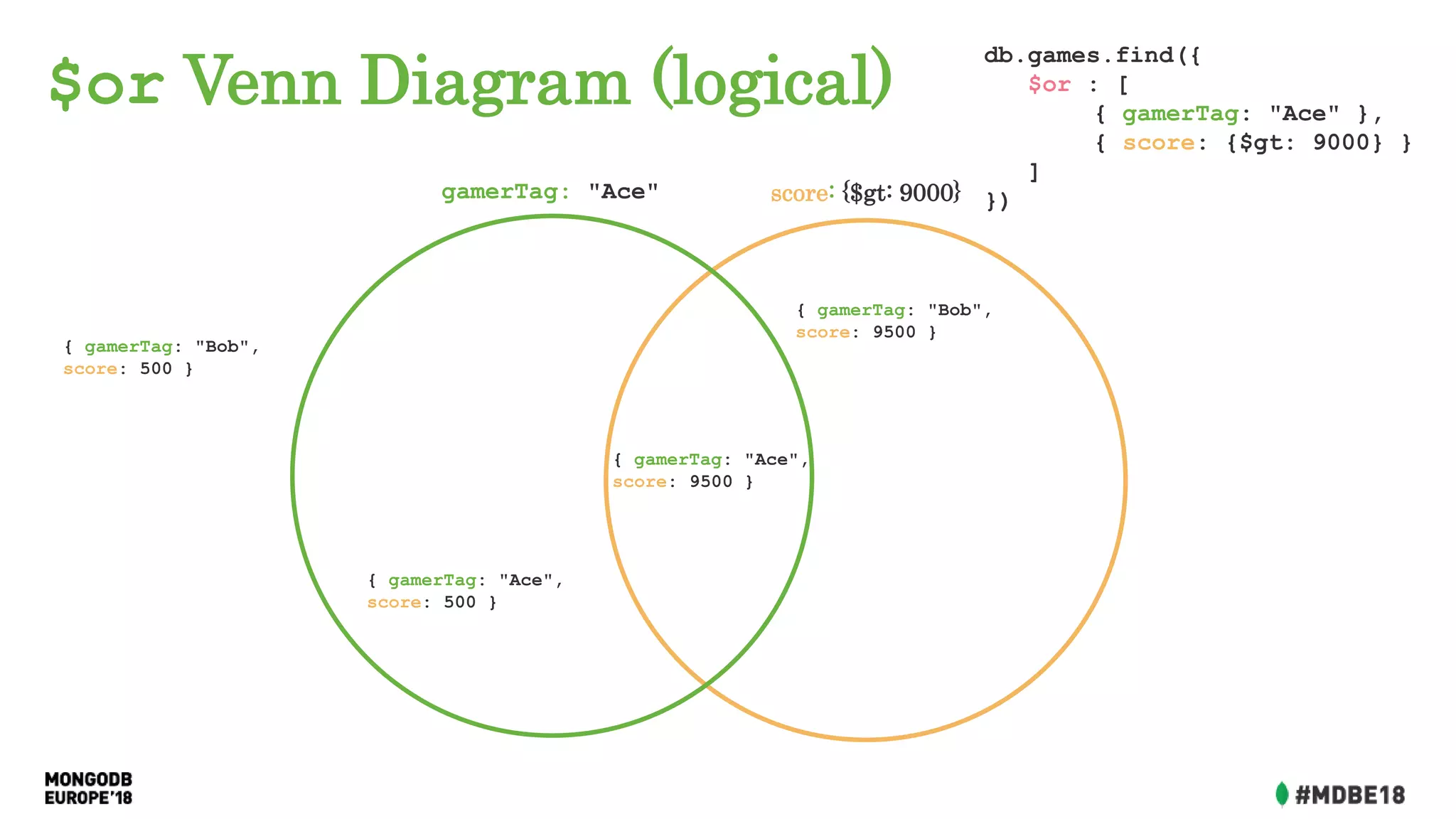

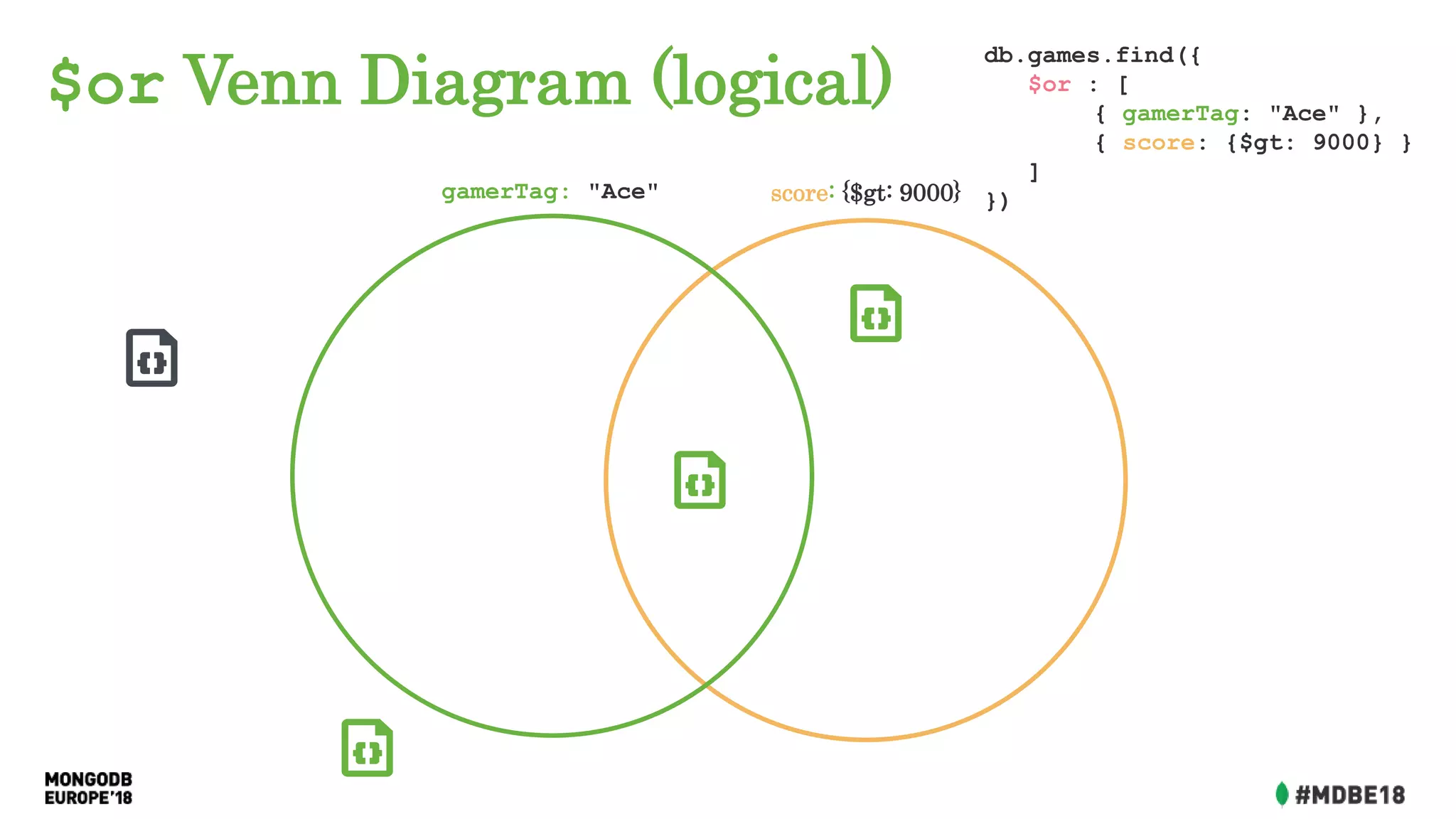

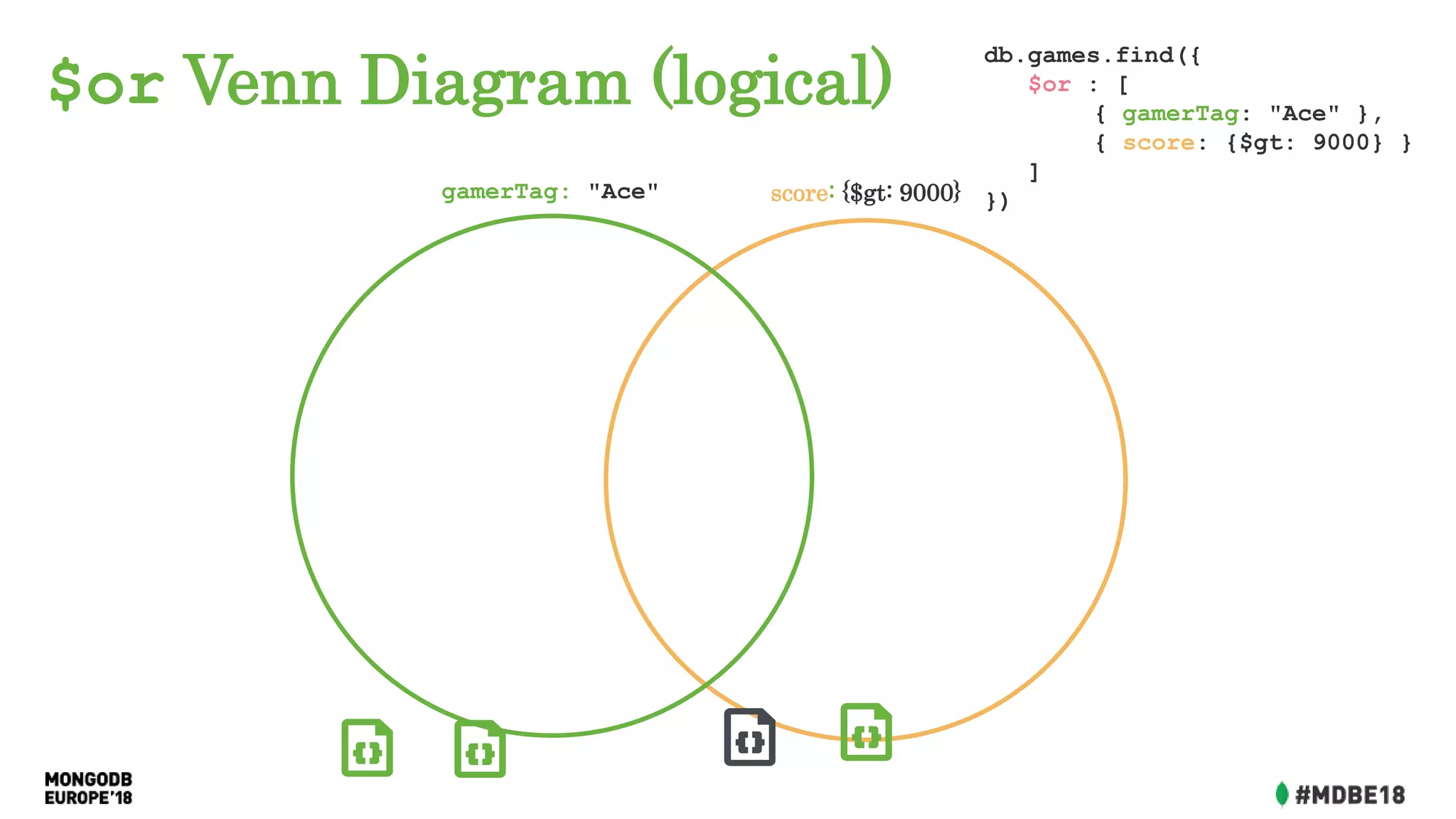

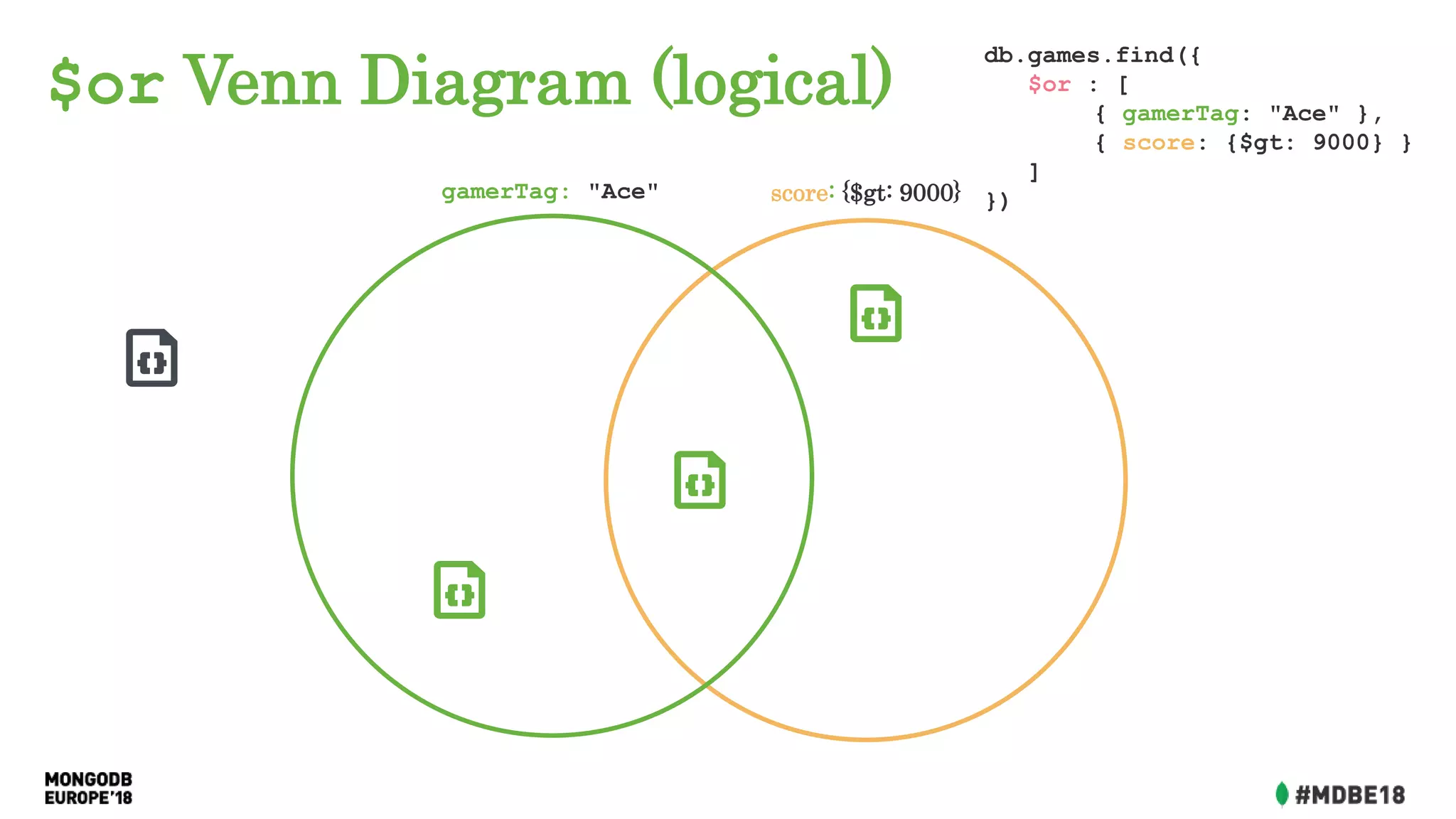

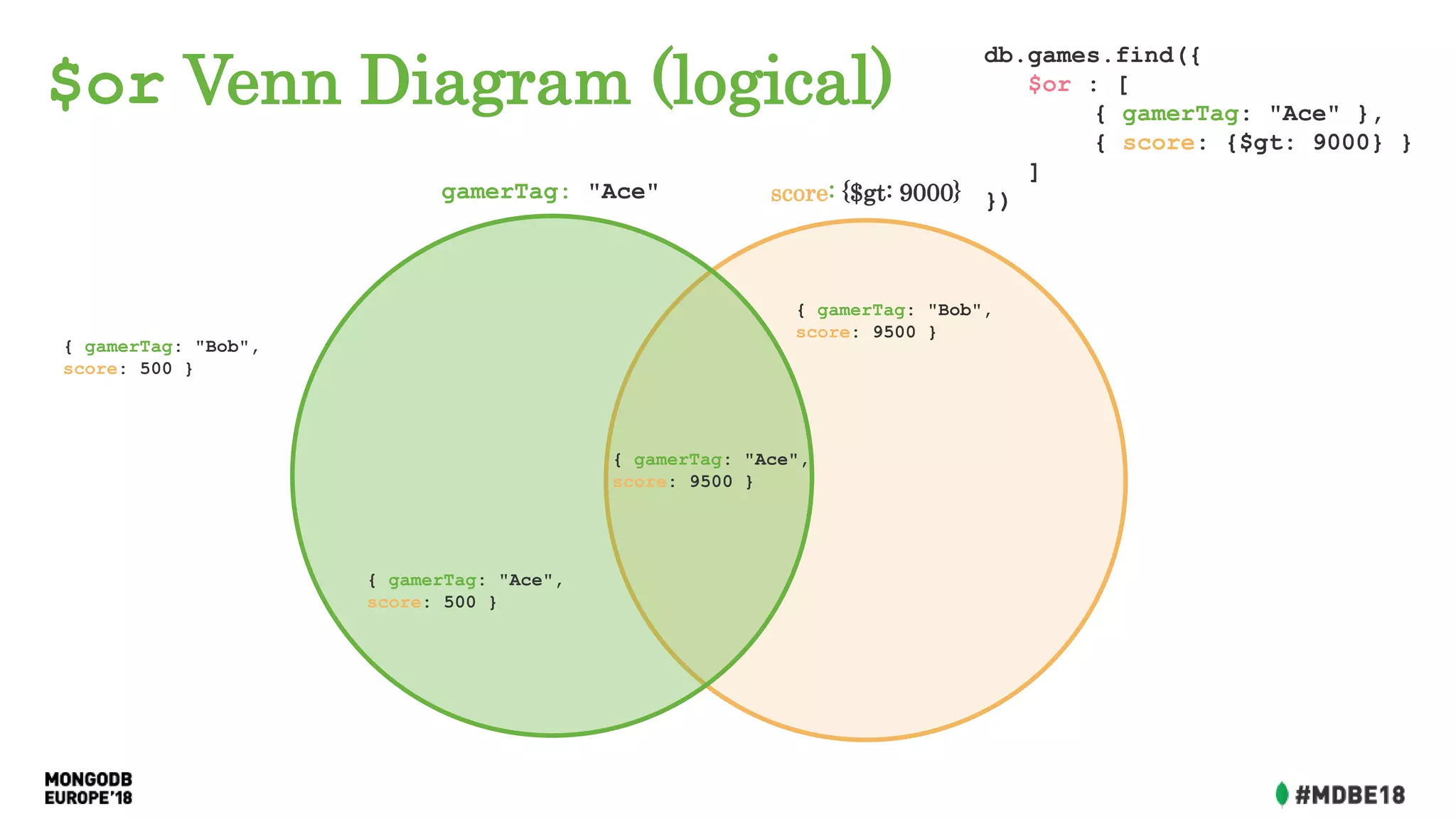

$or Venn Diagram (logical)
{ gamerTag: "Ace",
score: 9500 }
{ gamerTag: "Ace",
score: 500 }
{ gamerTag: "Bob",
score: 9500 }
{ gamerTag: "Bob",
score: 500 }
db.games.find({
$or : [
{ score: {$gt: 9000} }
]

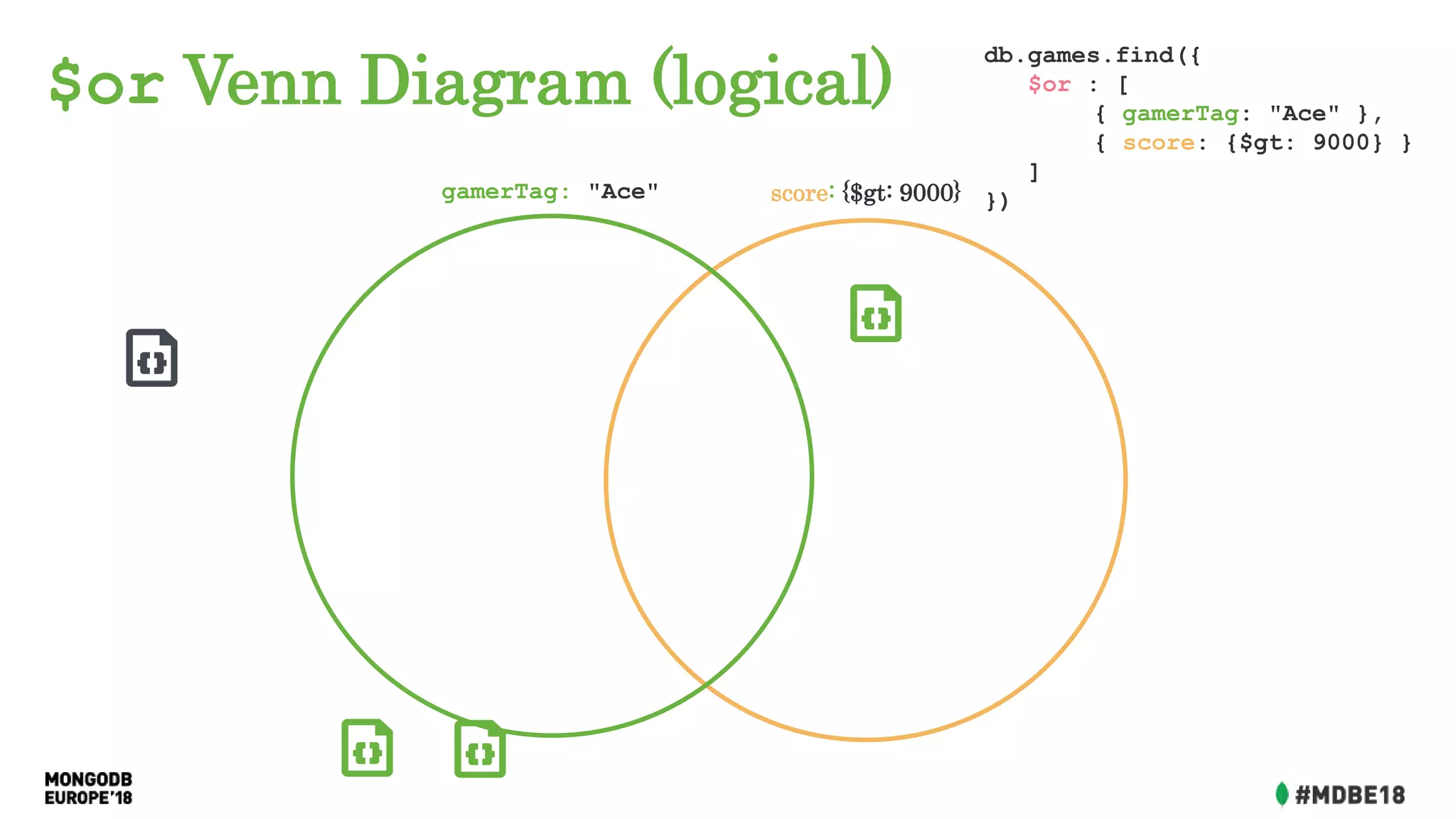

$or Venn Diagram (logical)
db.games.find({
$or : [
{ score: {$gt: 9000} }
]

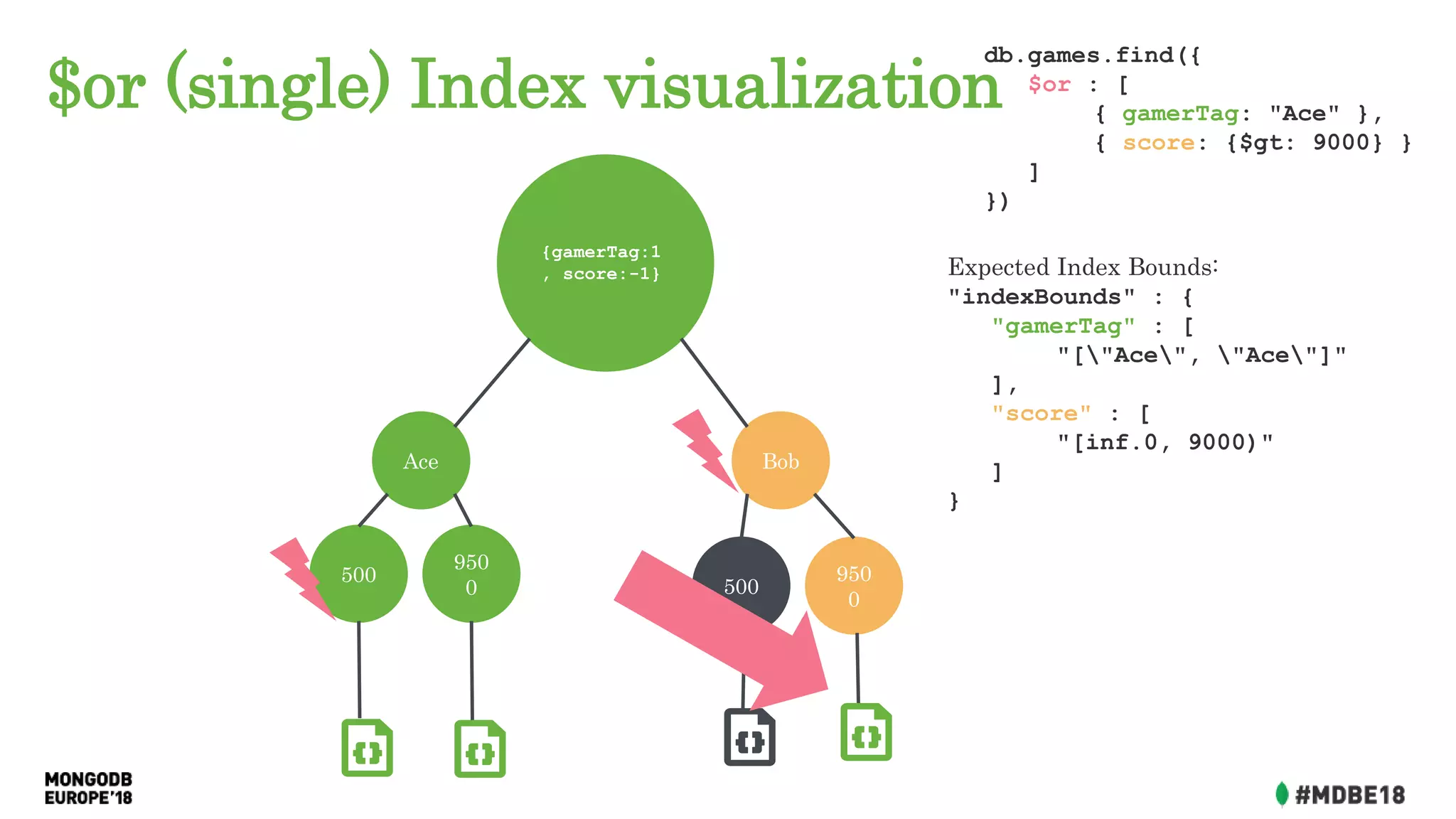

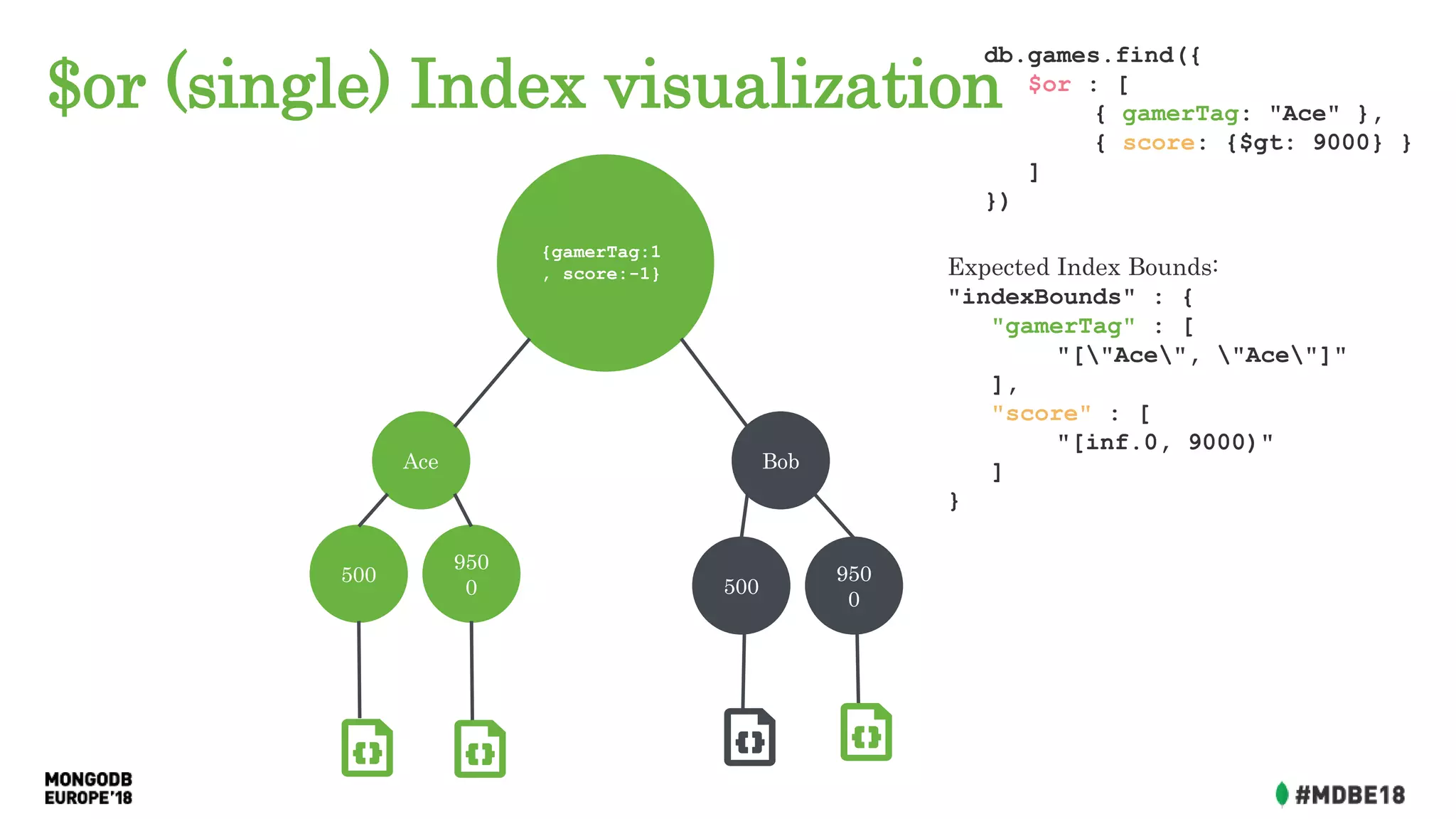

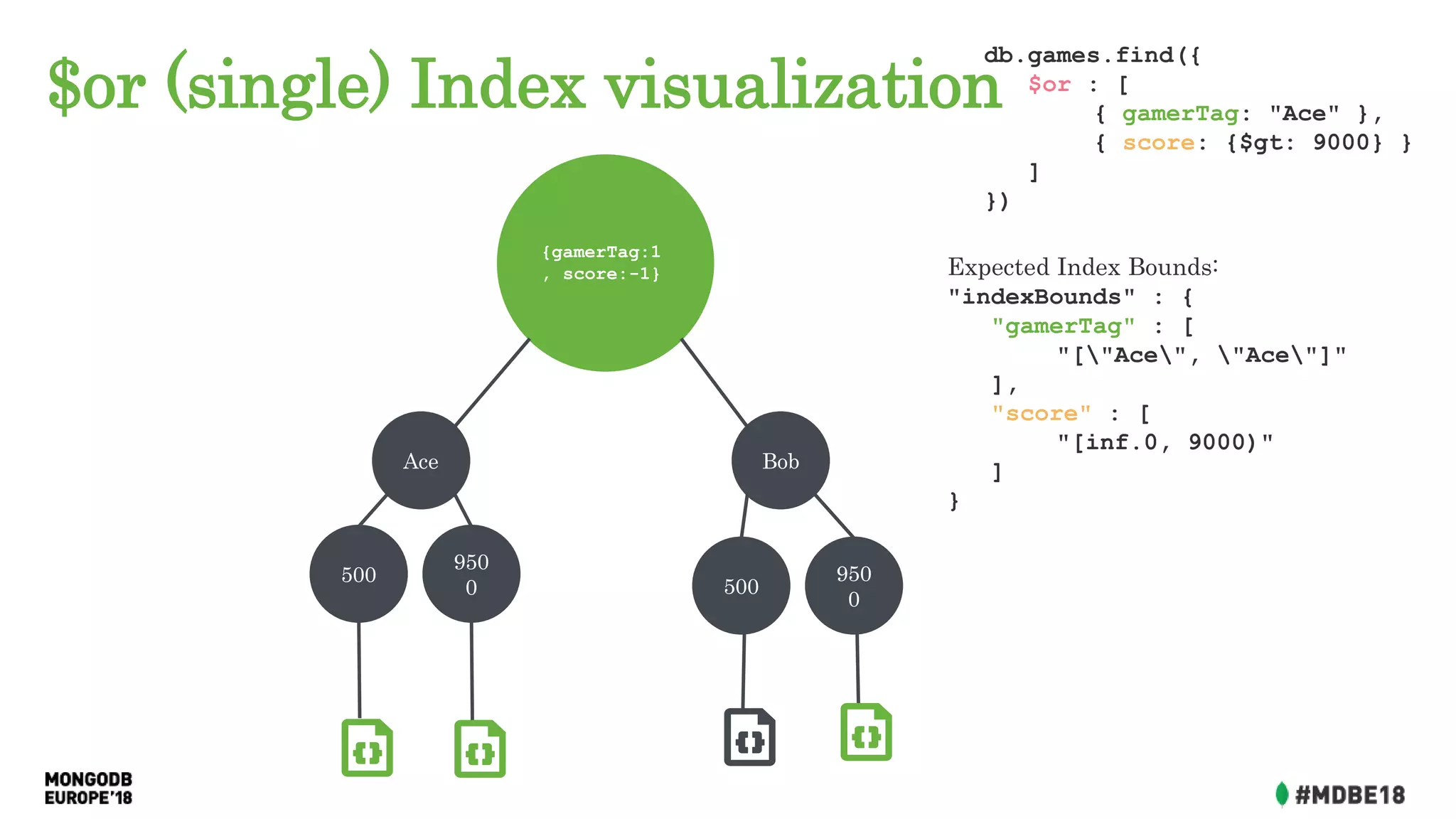

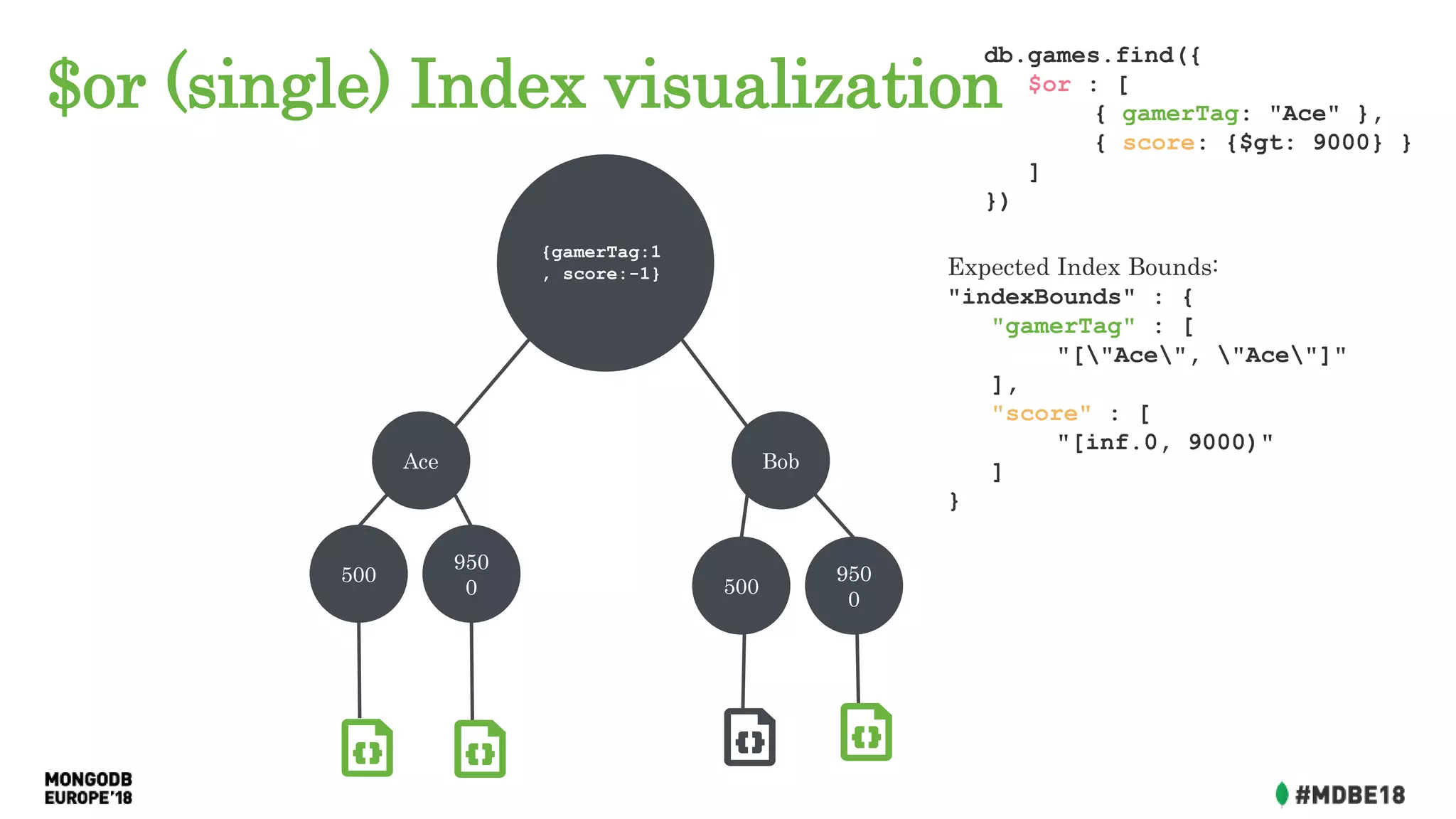

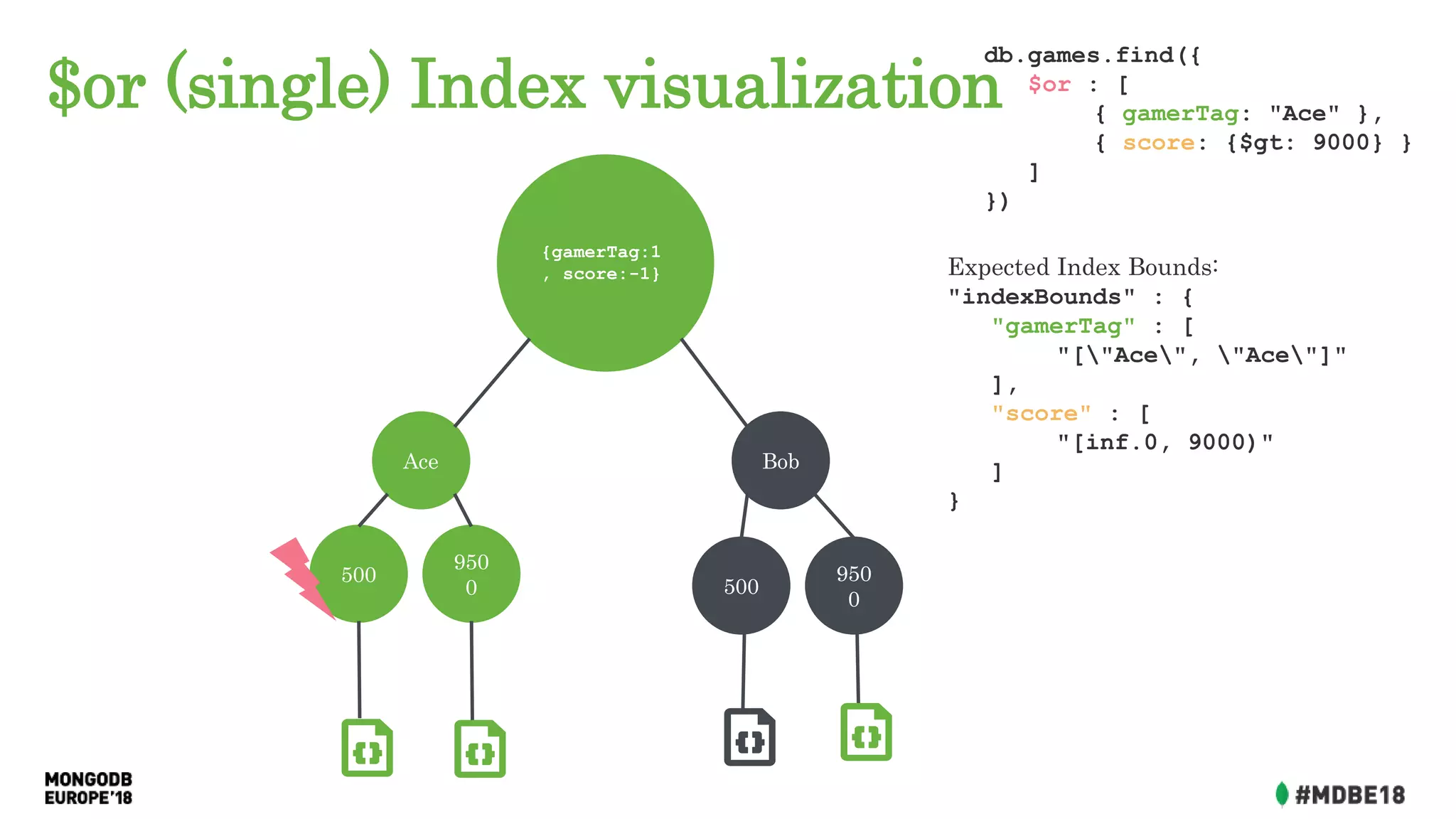

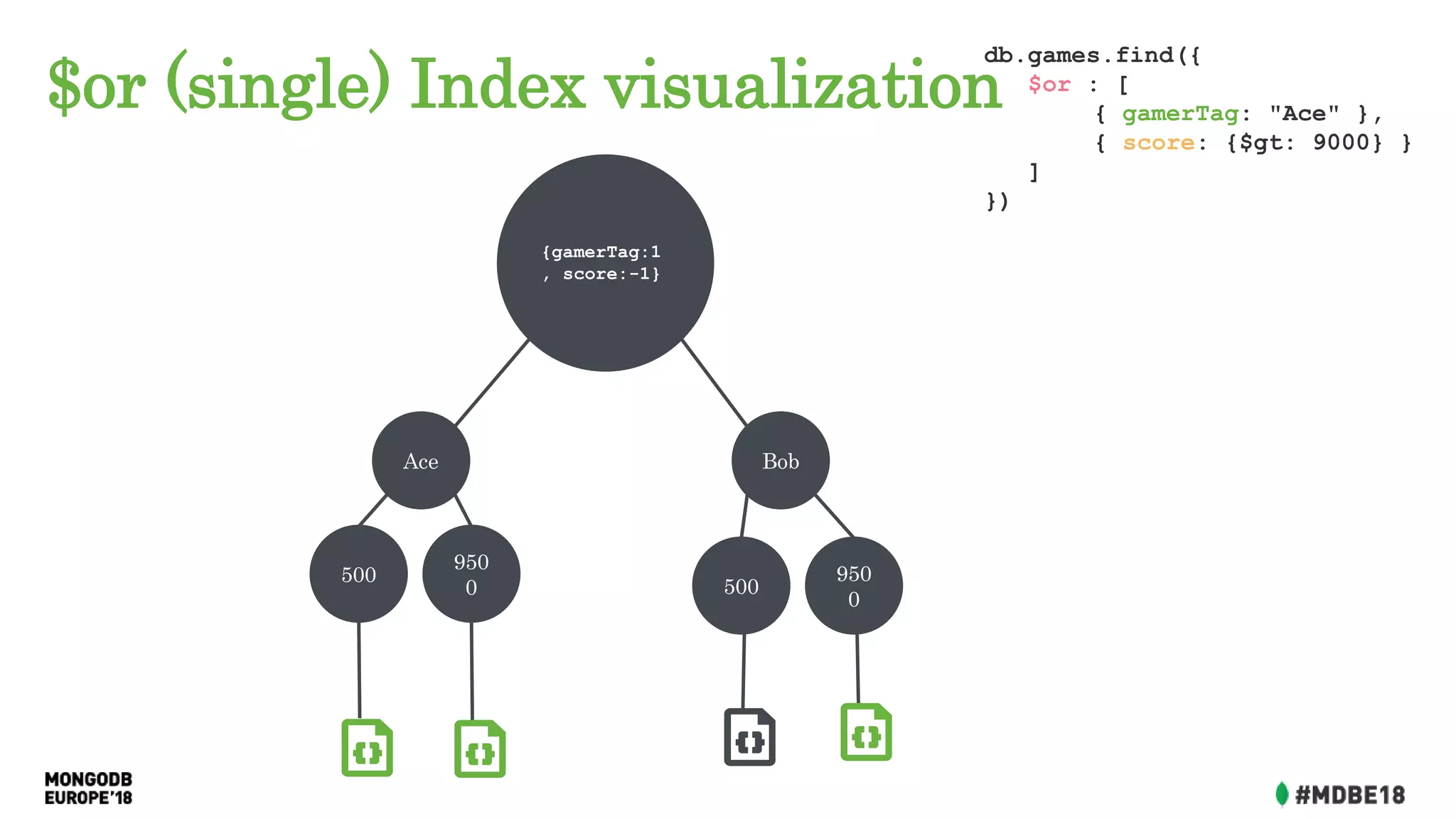

$or (single) Index visualization
Ace Bob
{gamerTag:1
, score:-1}
500
950
0 500
950
0
db.games.find({
$or : [
{ score: {$gt: 9000} }
]
})

Ace Bob
{gamerTag:1
, score:-1}
500
950
0 500
950
0
db.games.find({
$or : [
{ score: {$gt: 9000} }
]
})
Expected Index Bounds:
"indexBounds" : {
"gamerTag" : [
"["Ace", "Ace"]"
],
"score" : [
"[inf.0, 9000)"
]
}

Ace Bob
{gamerTag:1
, score:-1}
500
950
0 500
950
0
db.games.find({
$or : [
{ score: {$gt: 9000} }
]
})
"indexBounds" : {
"gamerTag" : [
"["Ace", "Ace"]"
],
"score" : [
"[inf.0, 9000)"
]
}

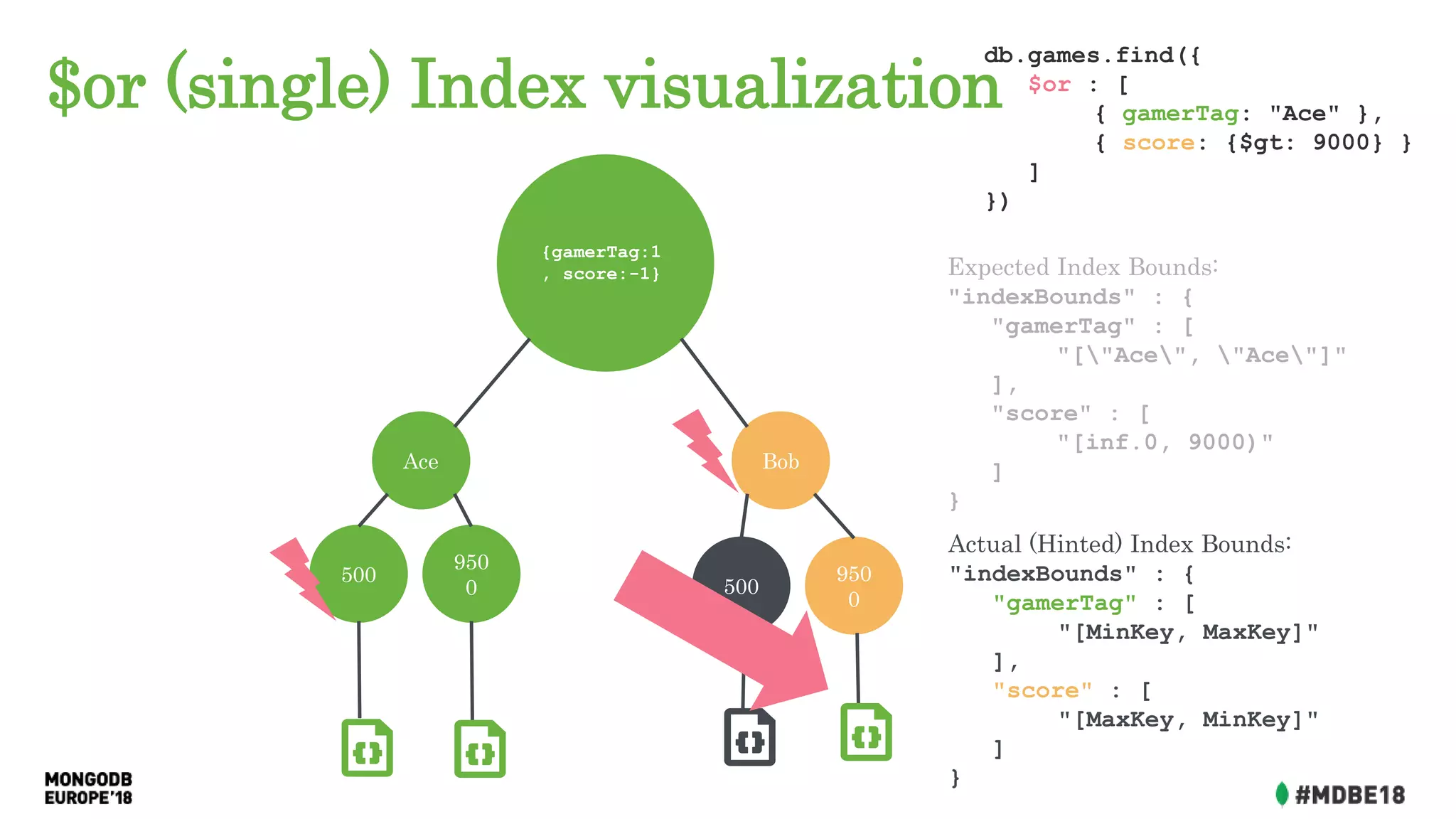

Actual (Hinted) Index Bounds:
"indexBounds" : {
"gamerTag" : [
"[MinKey, MaxKey]"
],
"score" : [
"[MaxKey, MinKey]"
]
}

Ace Bob
{gamerTag:1
, score:-1}
500
950
0 500
950
0
db.games.find({
$or : [
{ score: {$gt: 9000} }
]
})
"indexBounds" : {
"gamerTag" : [
"["Ace", "Ace"]"
],
"score" : [
"[inf.0, 9000)"
]
}
Actual (Hinted) Index Bounds:
"indexBounds" : {
"gamerTag" : [
"[MinKey, MaxKey]"
],
"score" : [
"[MaxKey, MinKey]"
]
}

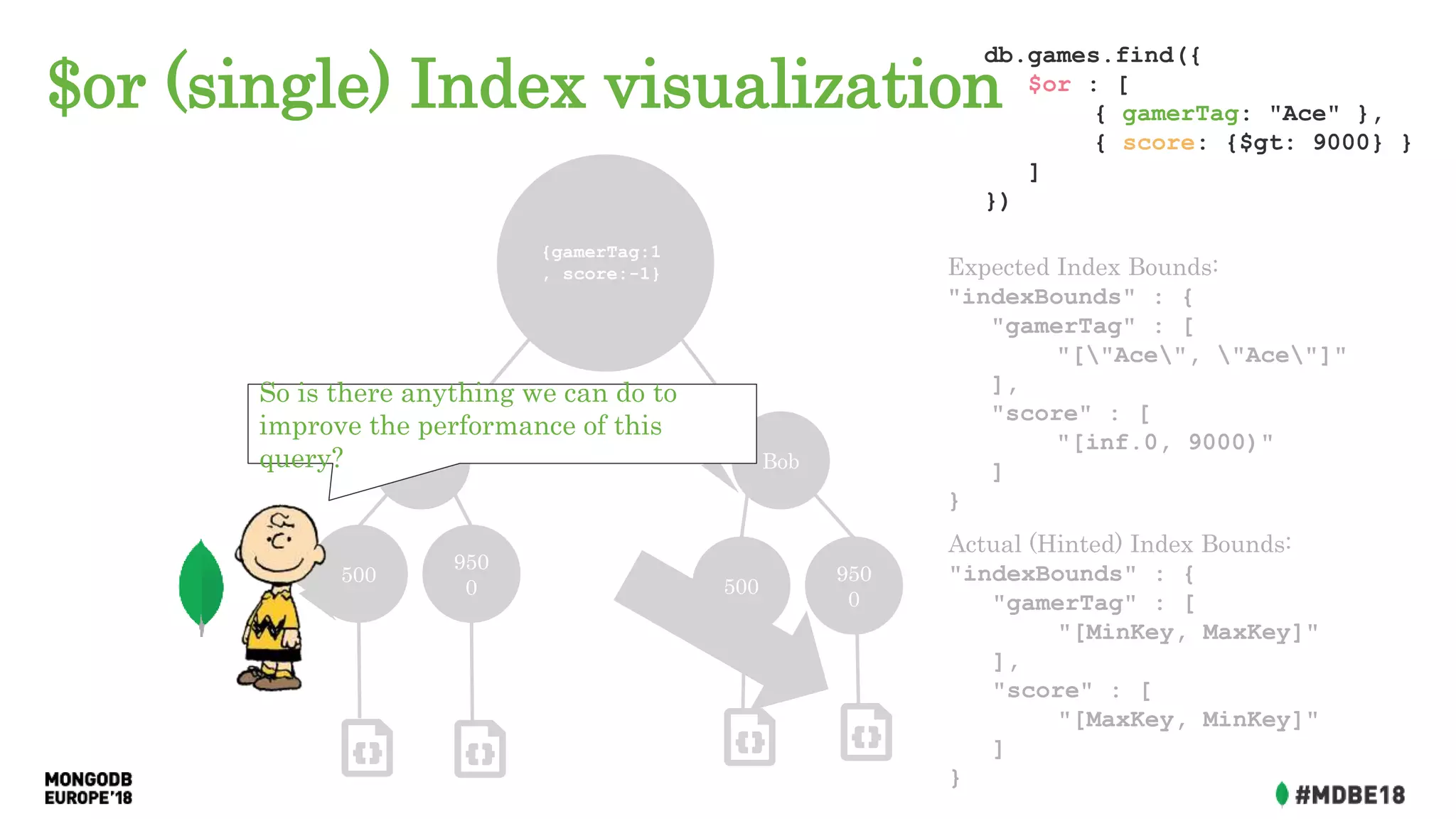

So is there anything we can do to
improve the performance of this
query?

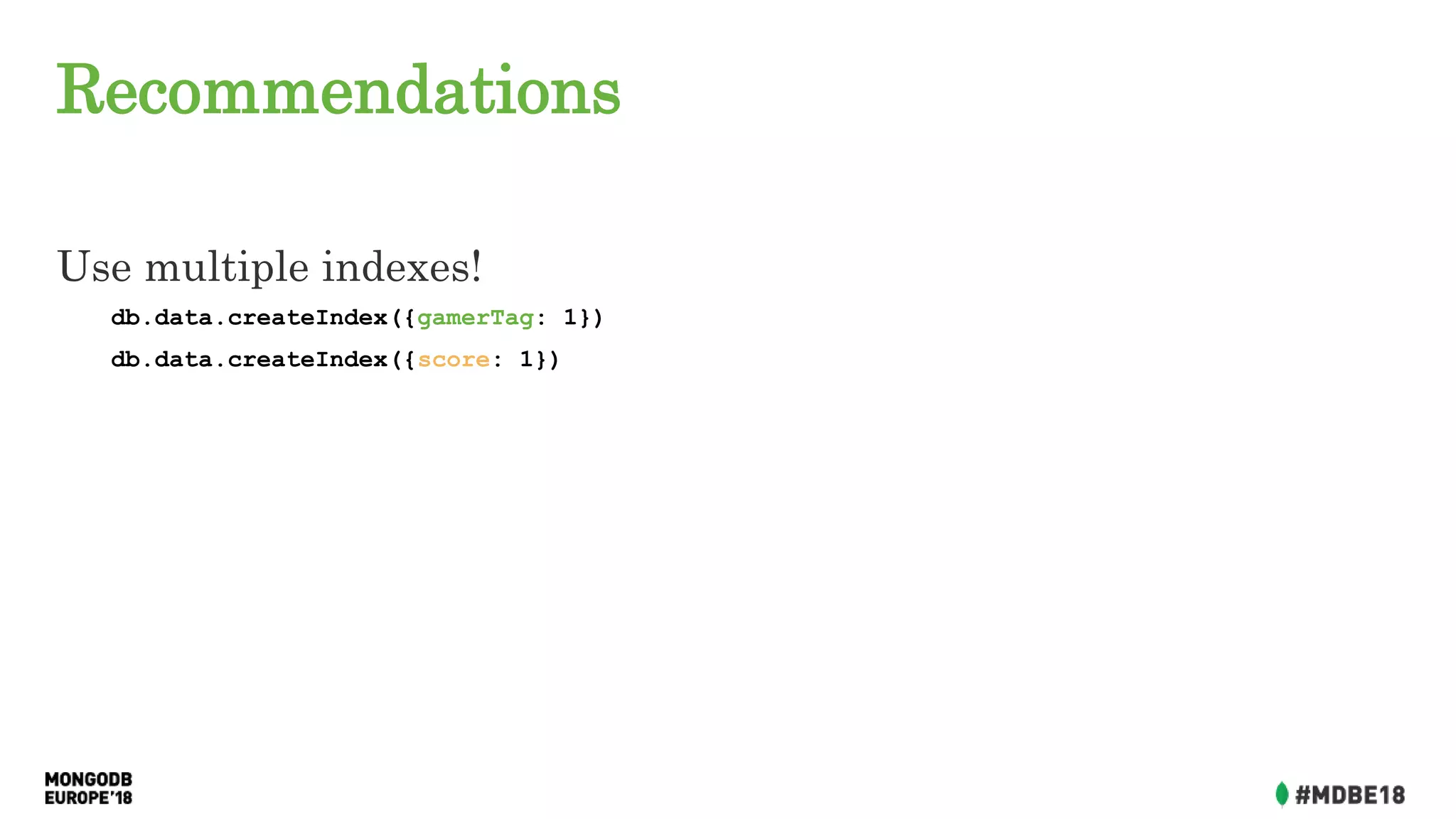

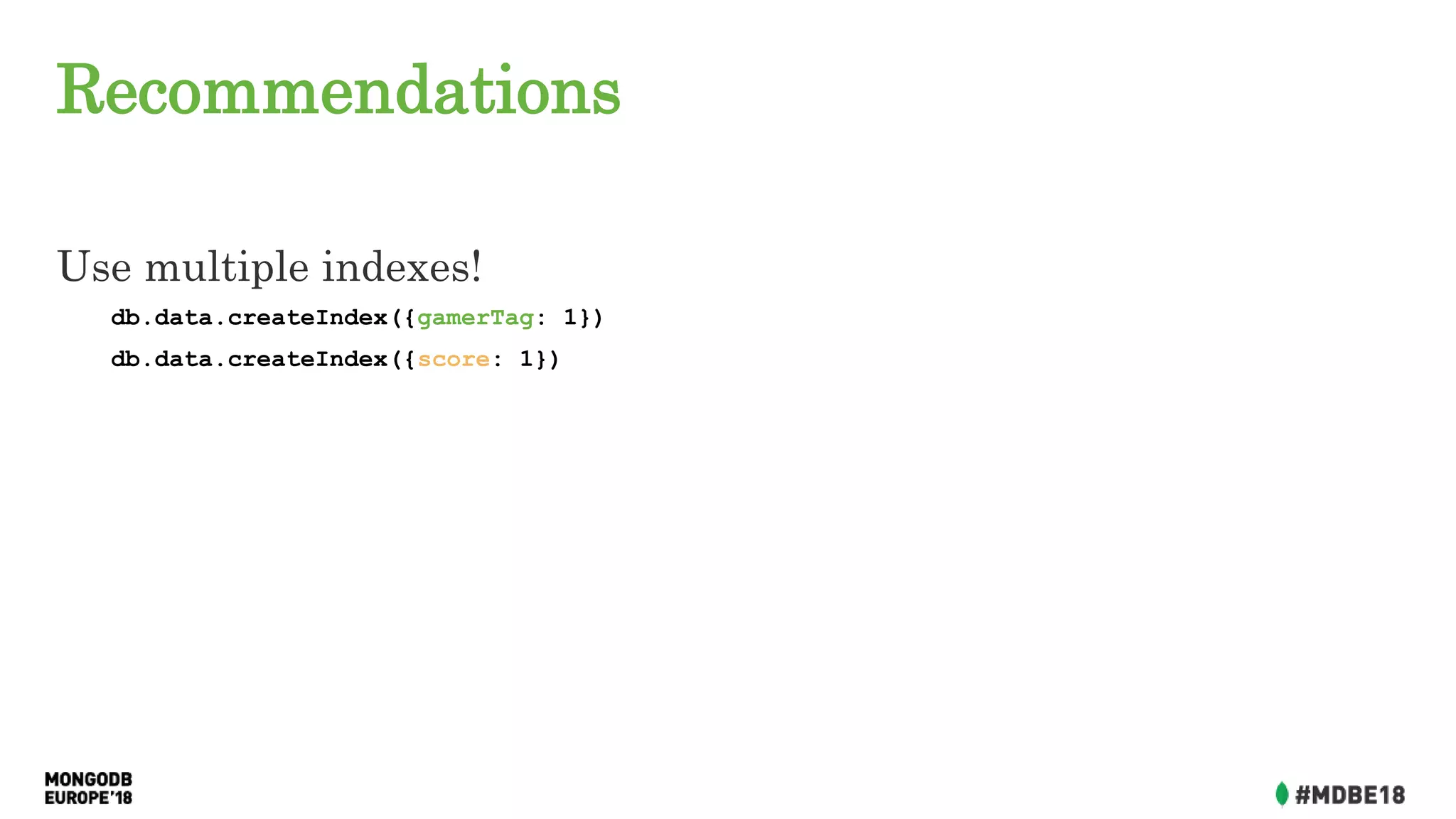

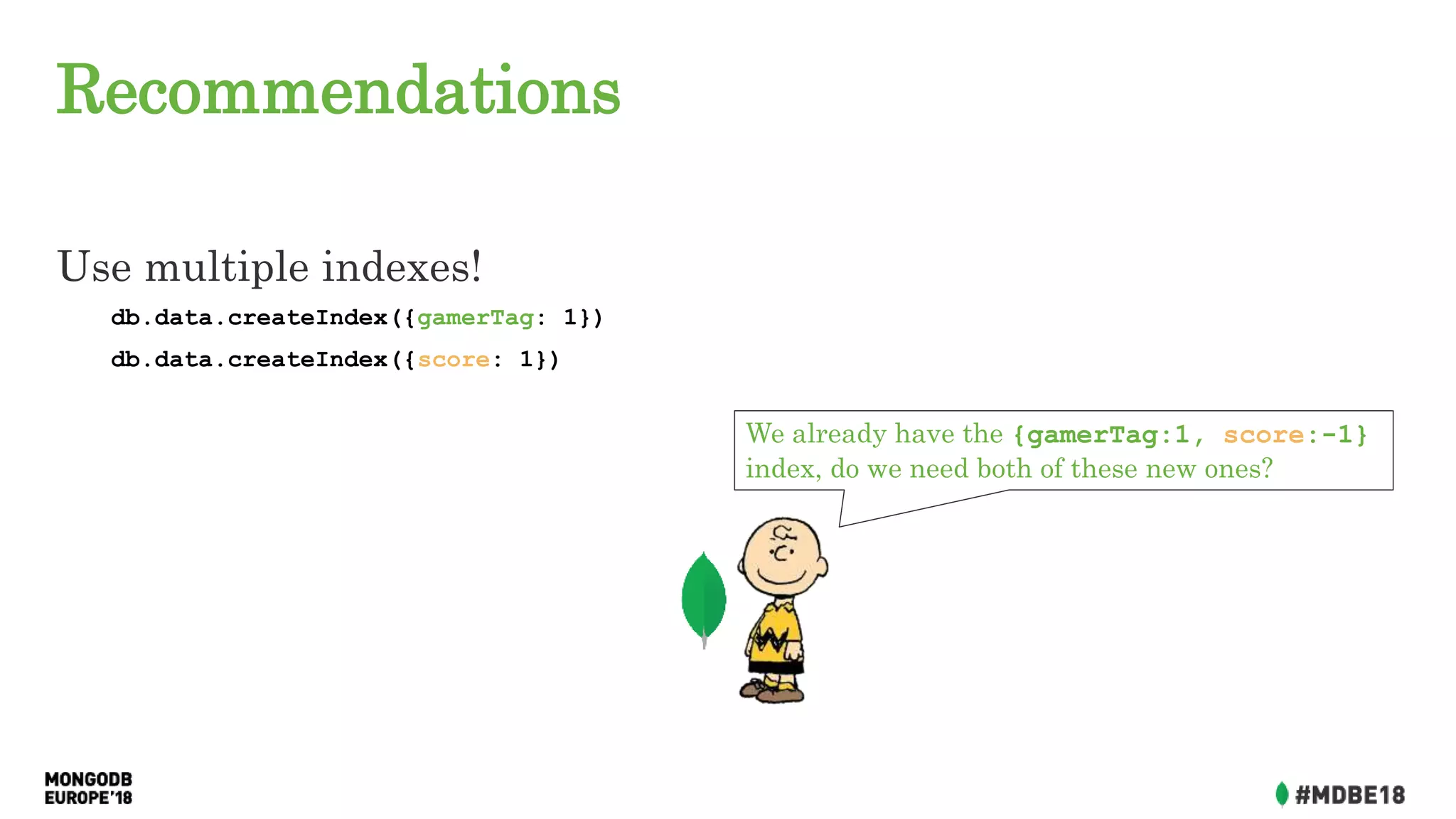

Recommendations
Use multiple indexes!
db.data.createIndex({gamerTag: 1})
db.data.createIndex({score: 1})

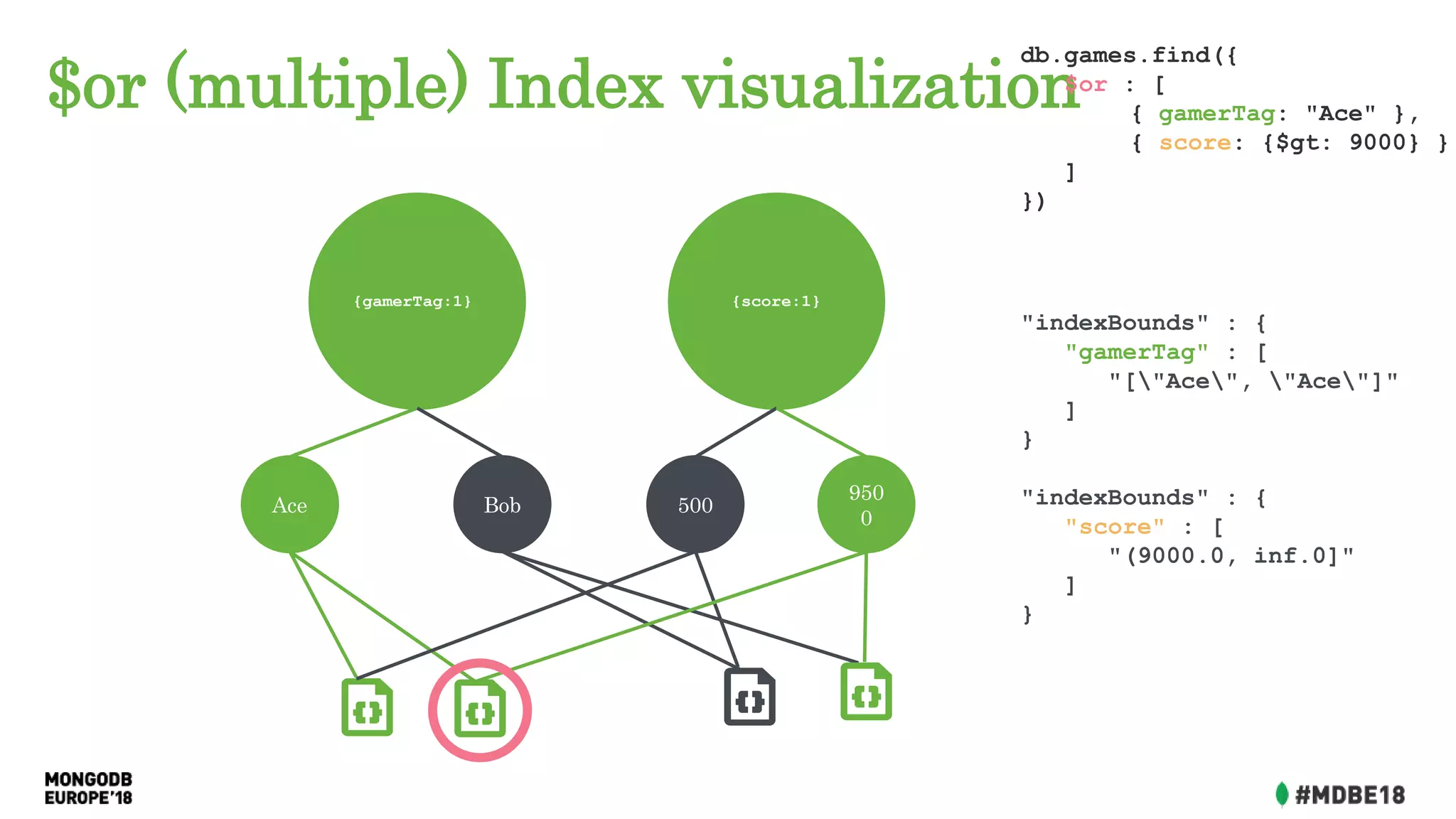

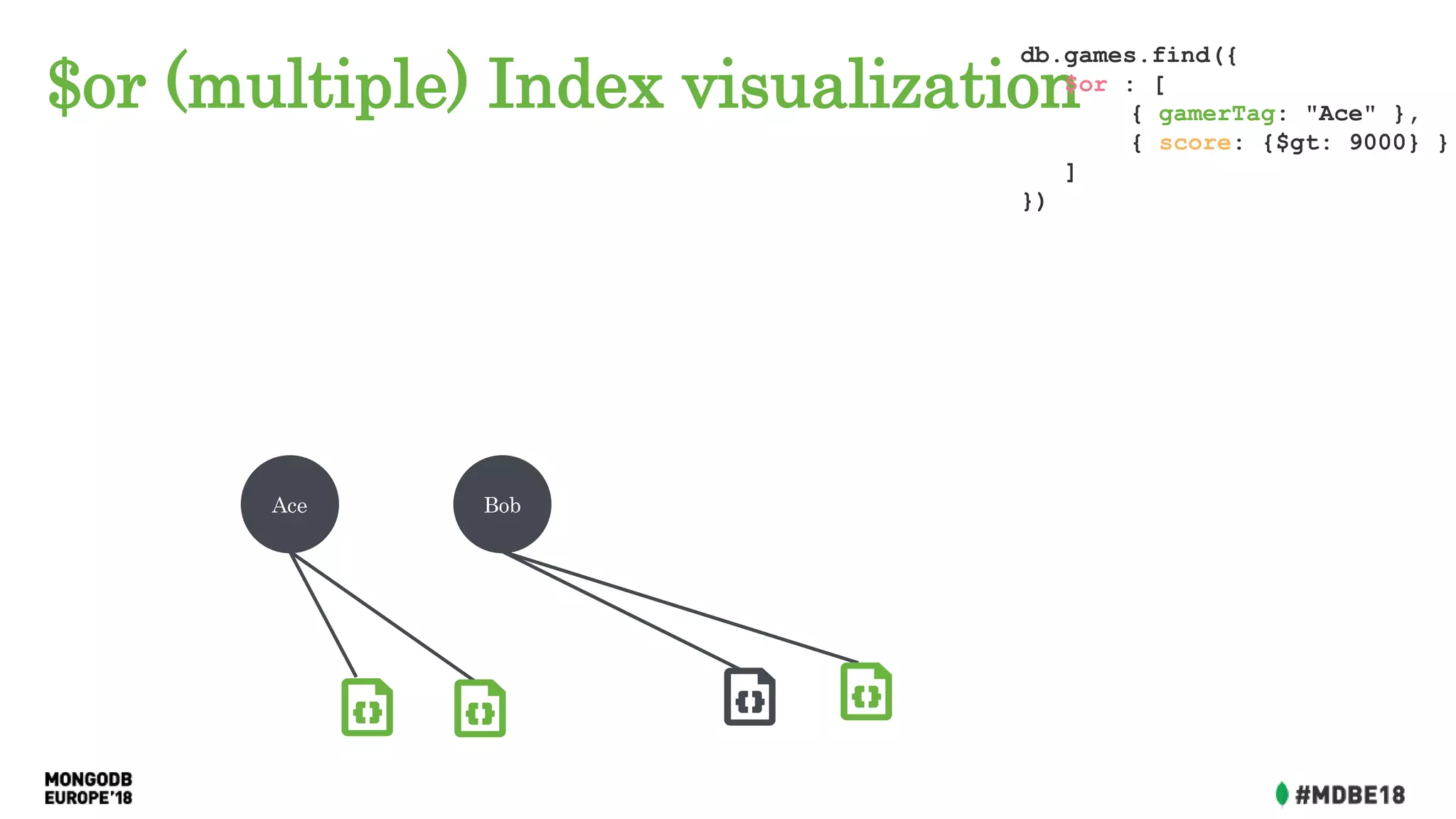

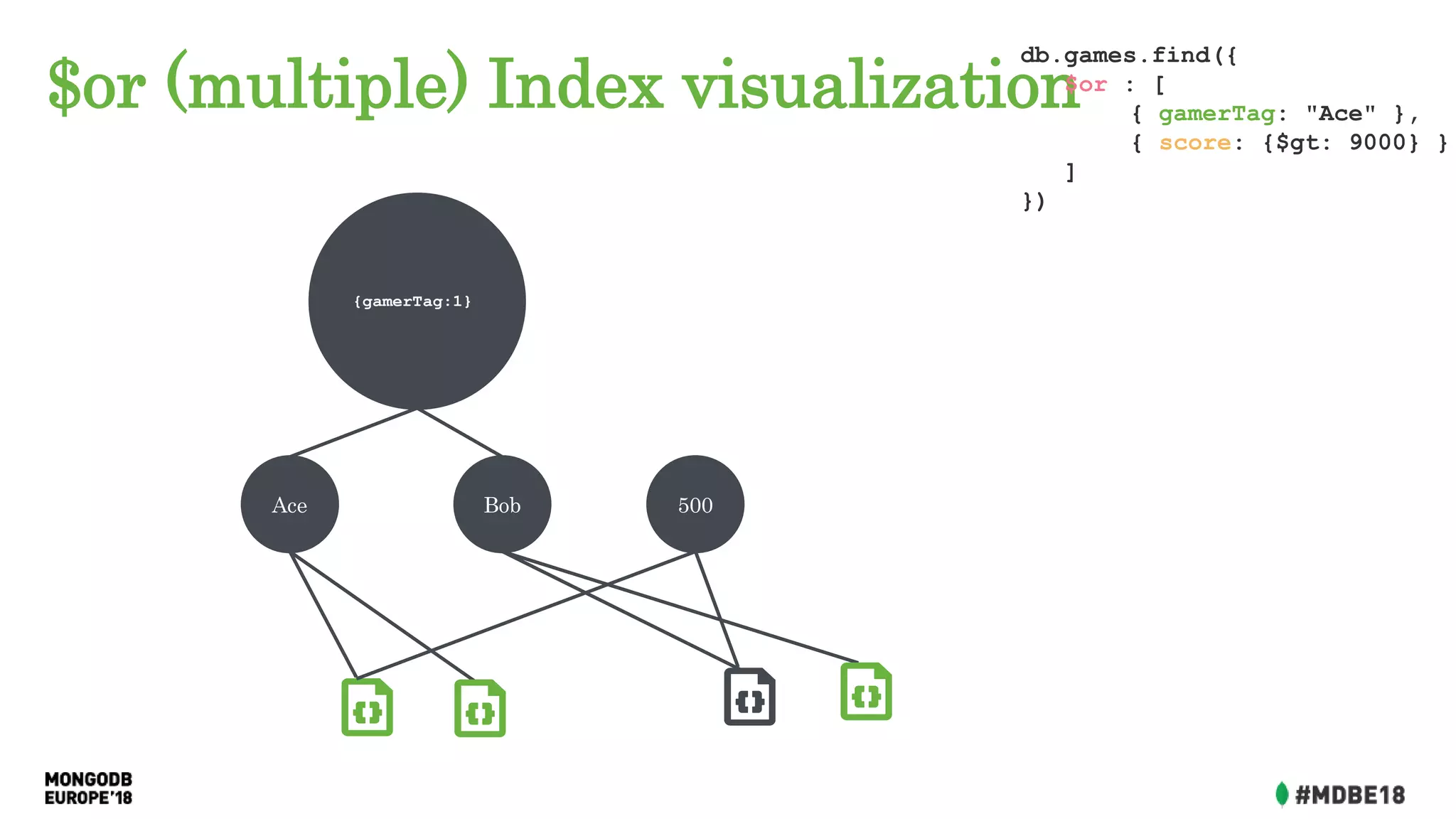

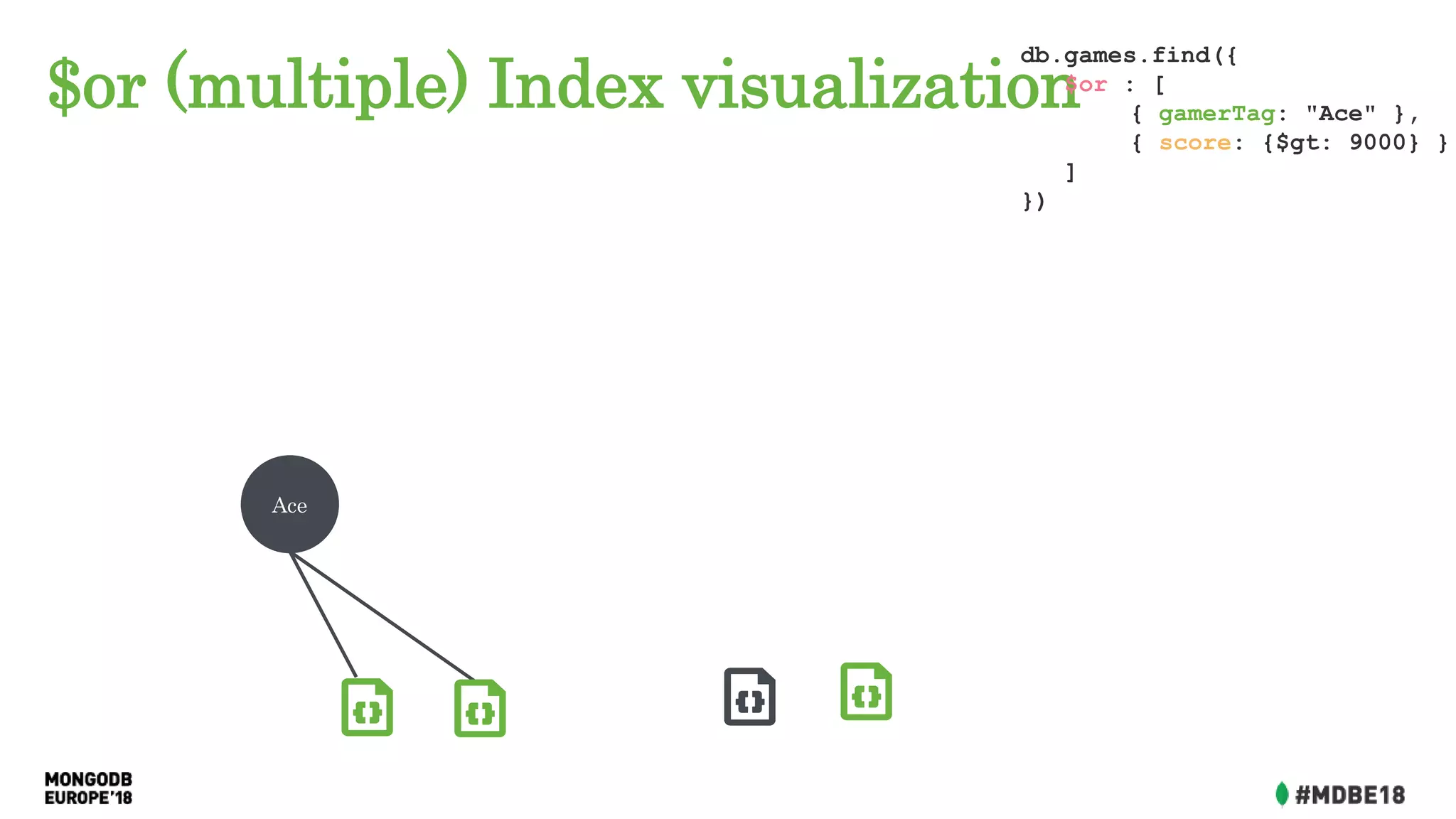

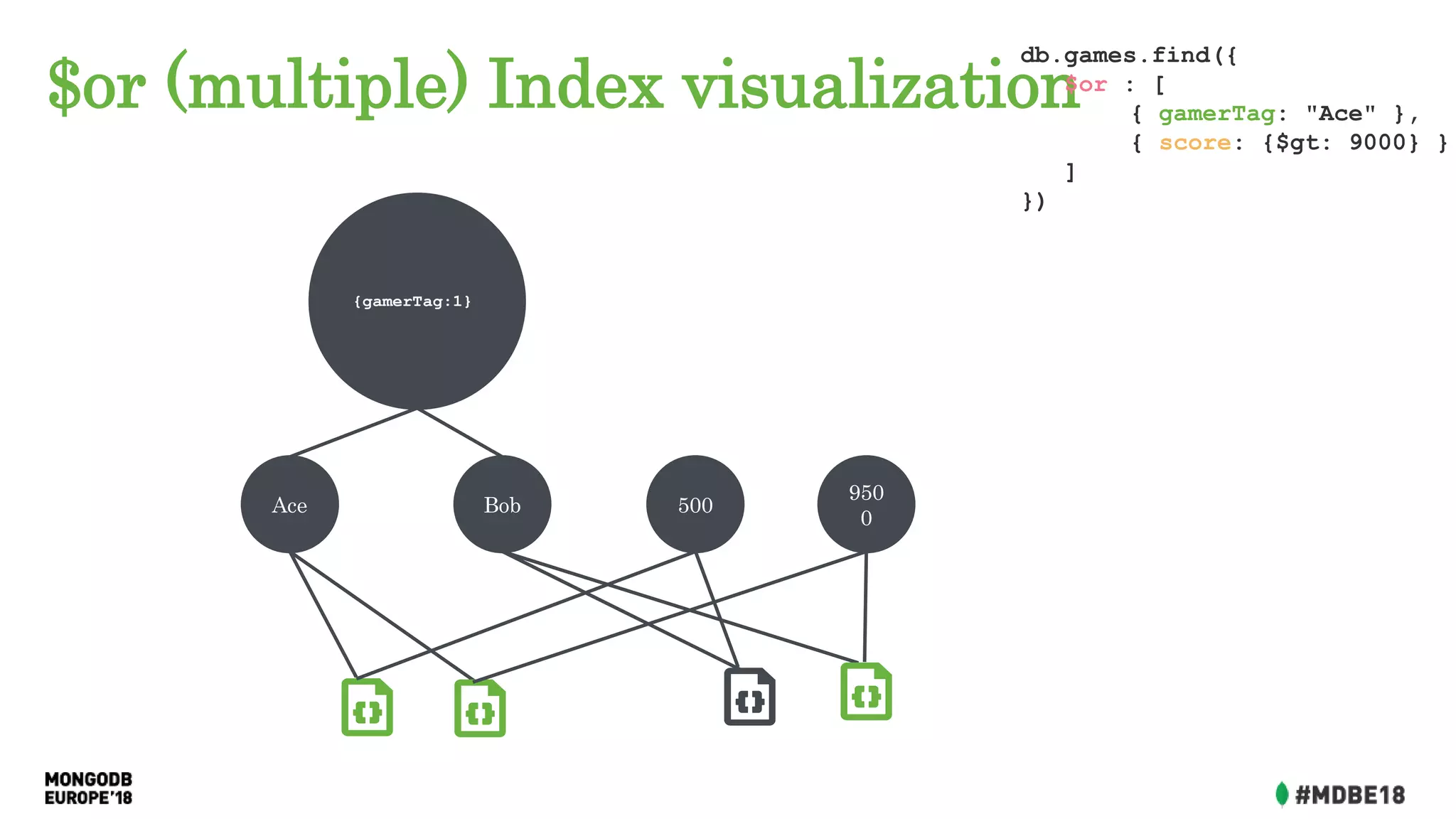

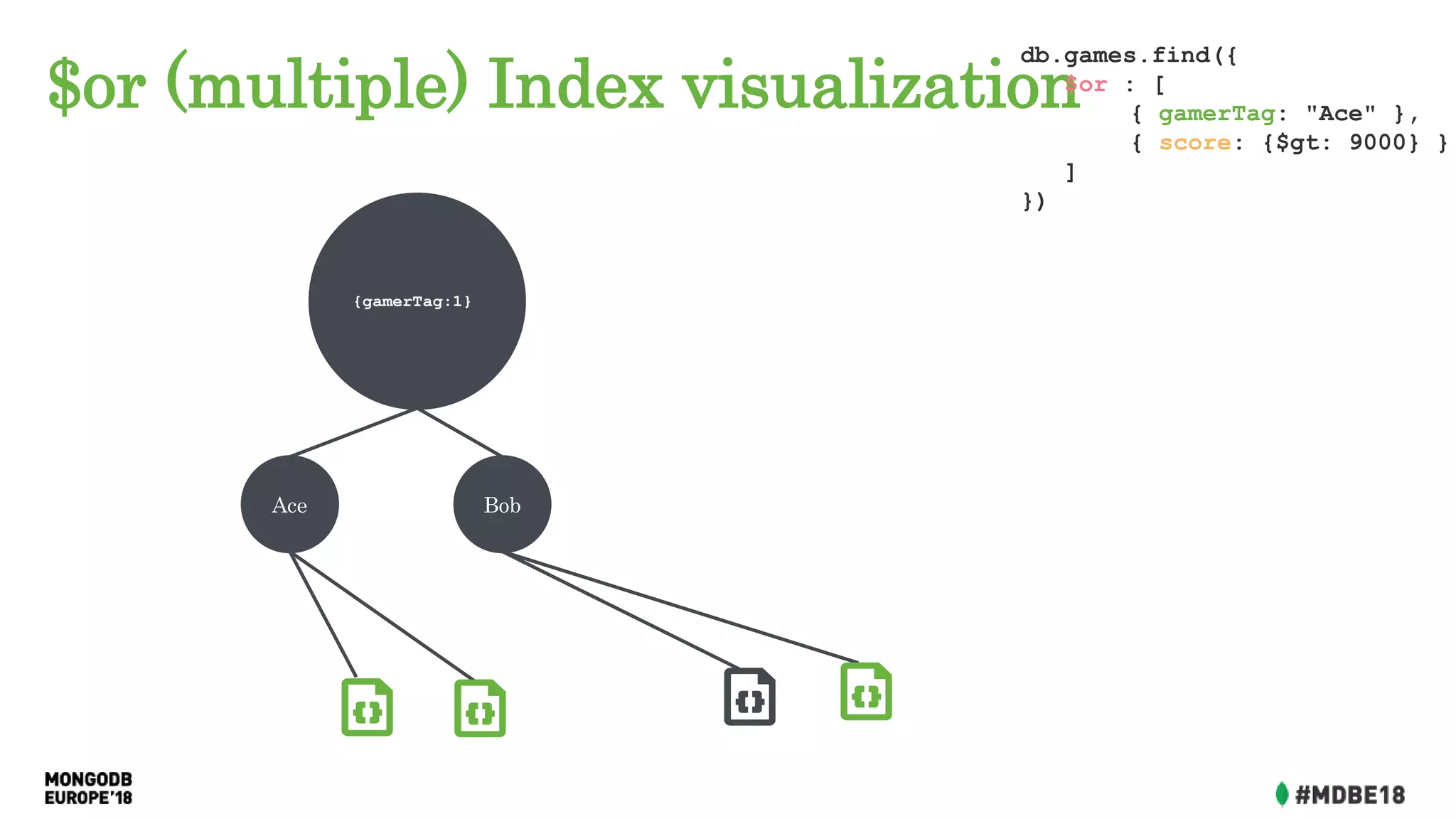

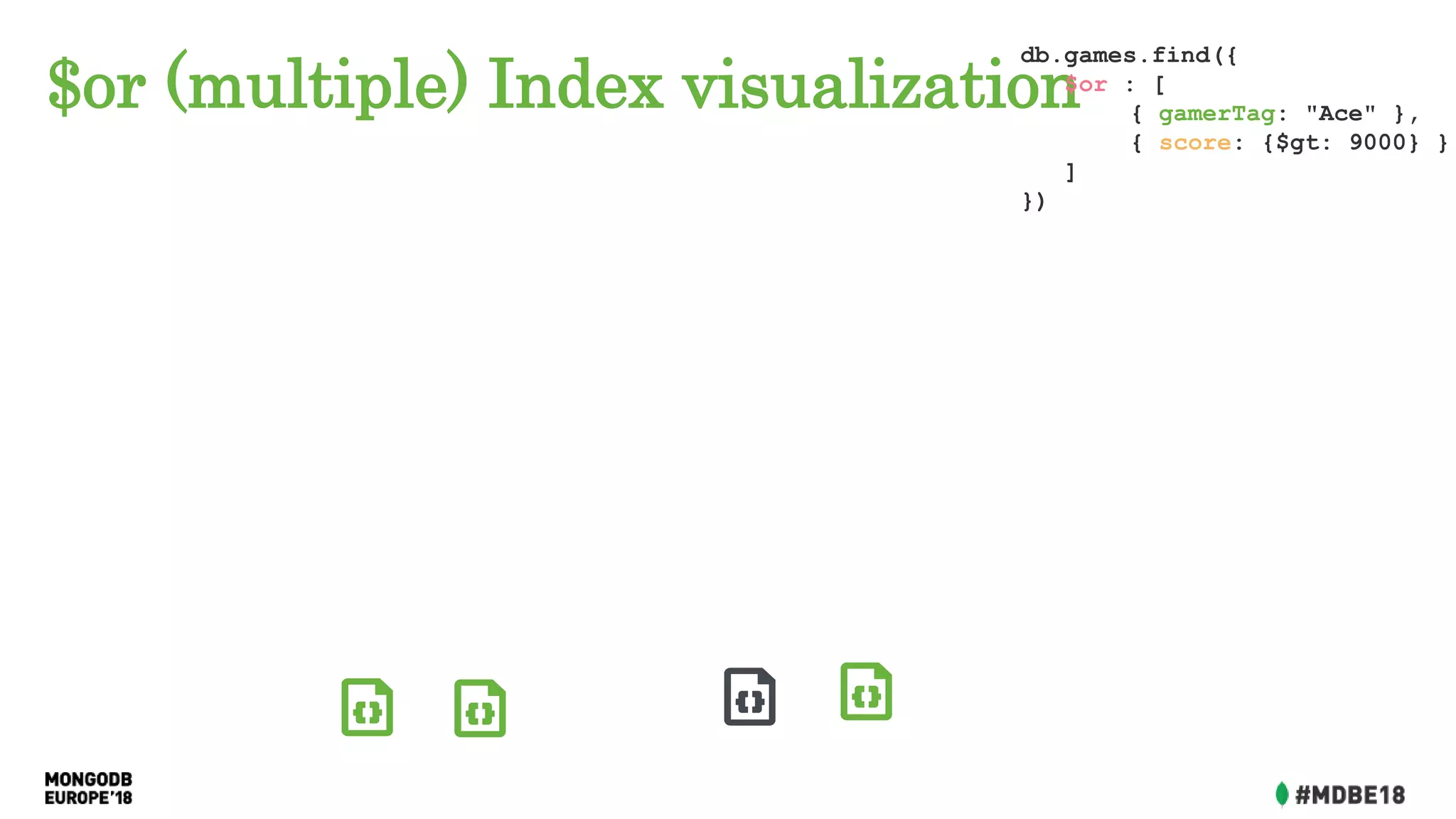

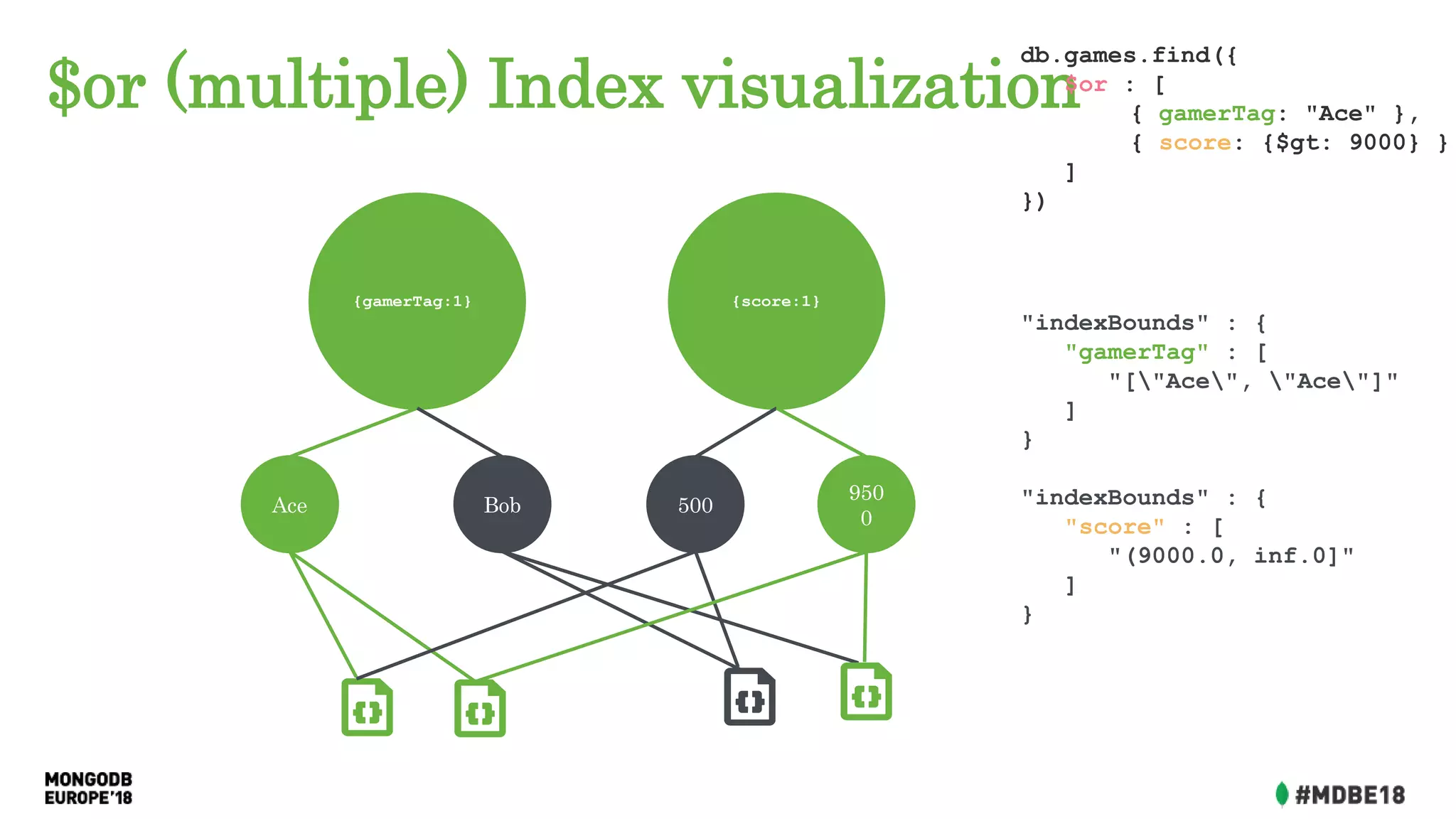

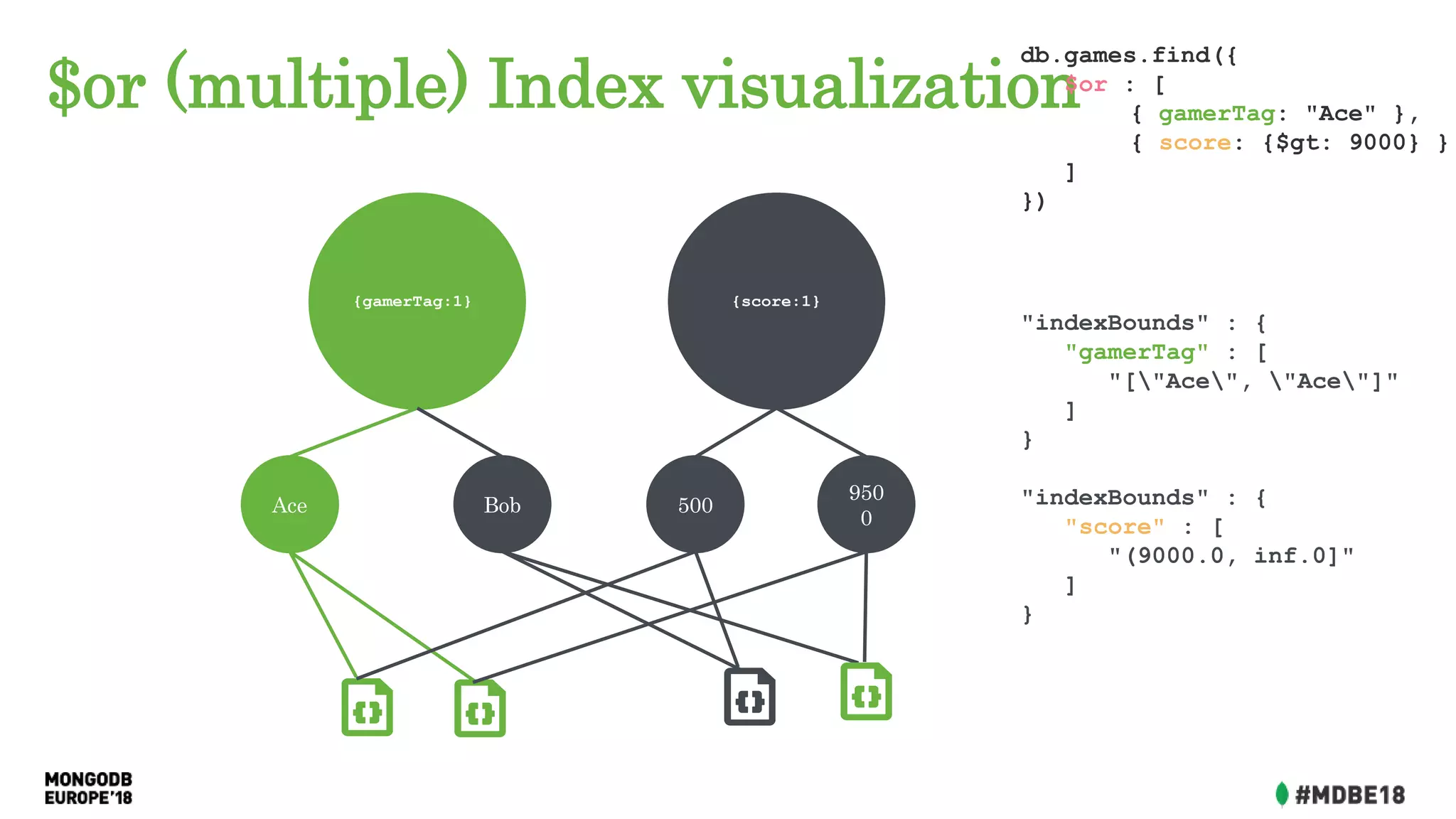

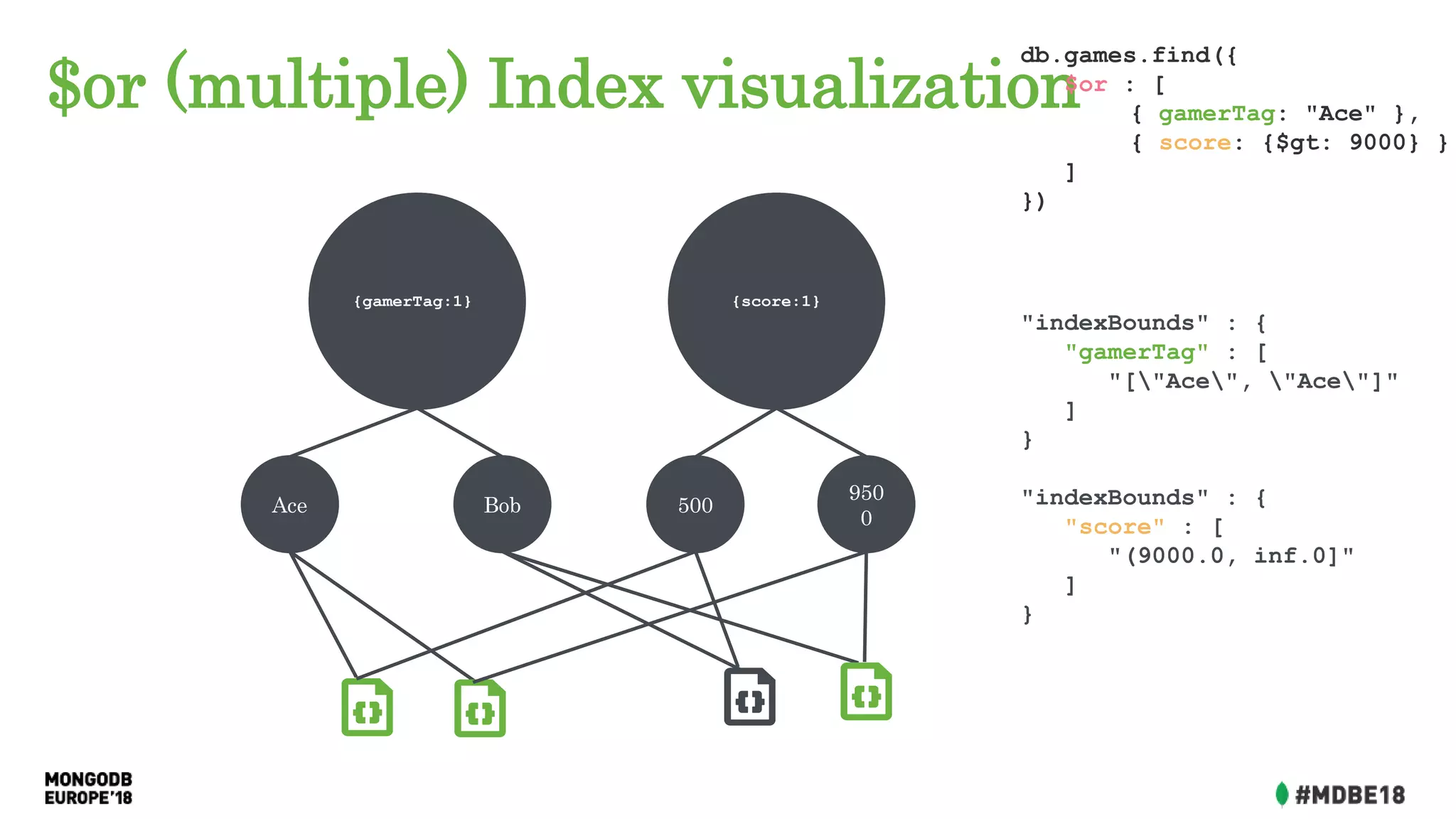

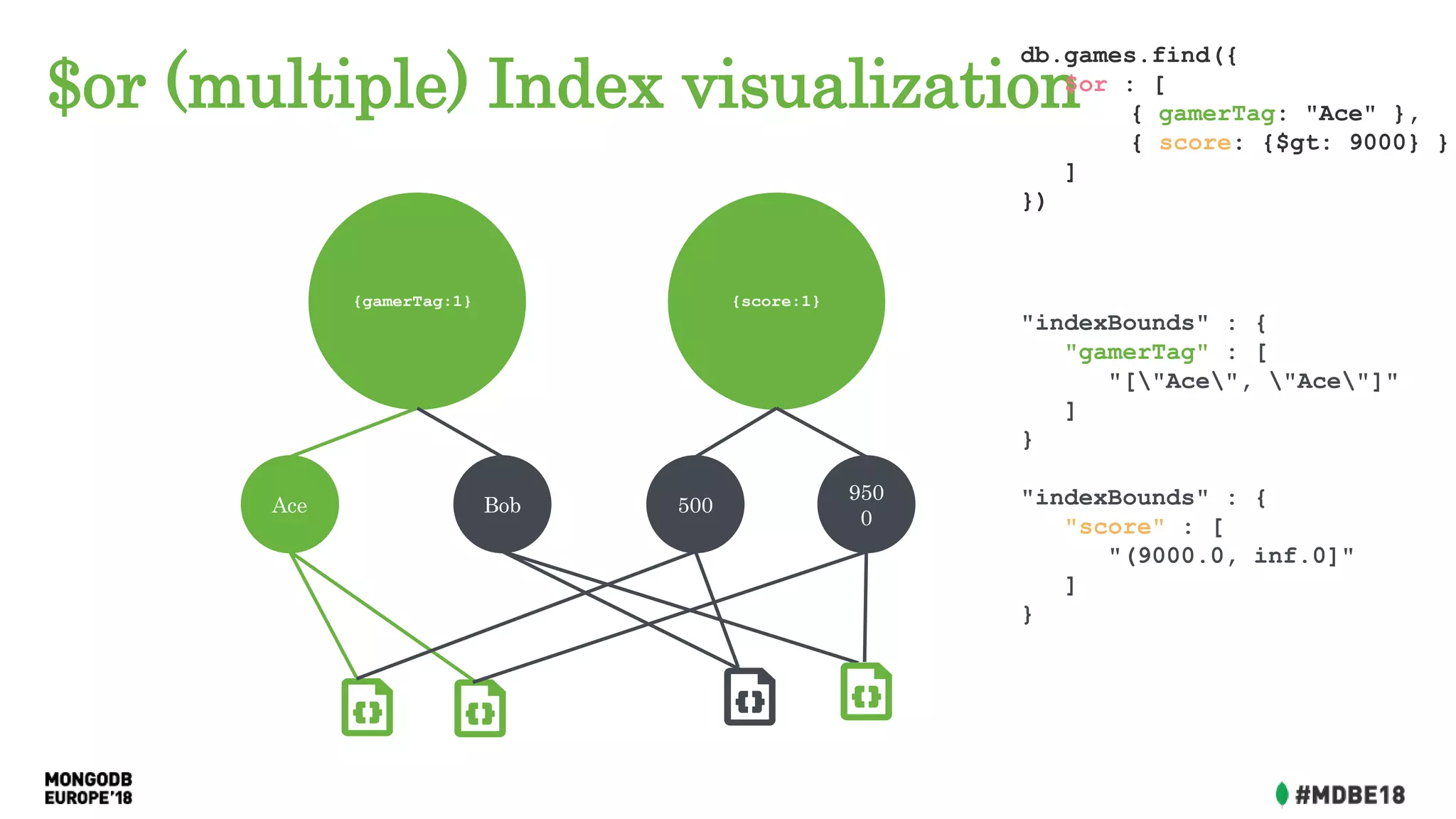

$or (multiple) Index visualization
db.games.find({
$or : [
{ score: {$gt: 9000} }
]
})

Ace
db.games.find({
$or : [
{ score: {$gt: 9000} }
]
})

Ace Bob
db.games.find({
$or : [
{ score: {$gt: 9000} }
]
})

Ace Bob
{gamerTag:1}
db.games.find({
$or : [
{ score: {$gt: 9000} }
]
})

Ace Bob
{gamerTag:1}
500
db.games.find({
$or : [
{ score: {$gt: 9000} }
]
})

Ace Bob
{gamerTag:1}
500
950
0
db.games.find({
$or : [
{ score: {$gt: 9000} }
]
})

Ace Bob
{gamerTag:1}
500
950
0
{score:1}
db.games.find({
$or : [
{ score: {$gt: 9000} }
]
})

Ace Bob
{gamerTag:1}
500
950
0
{score:1}

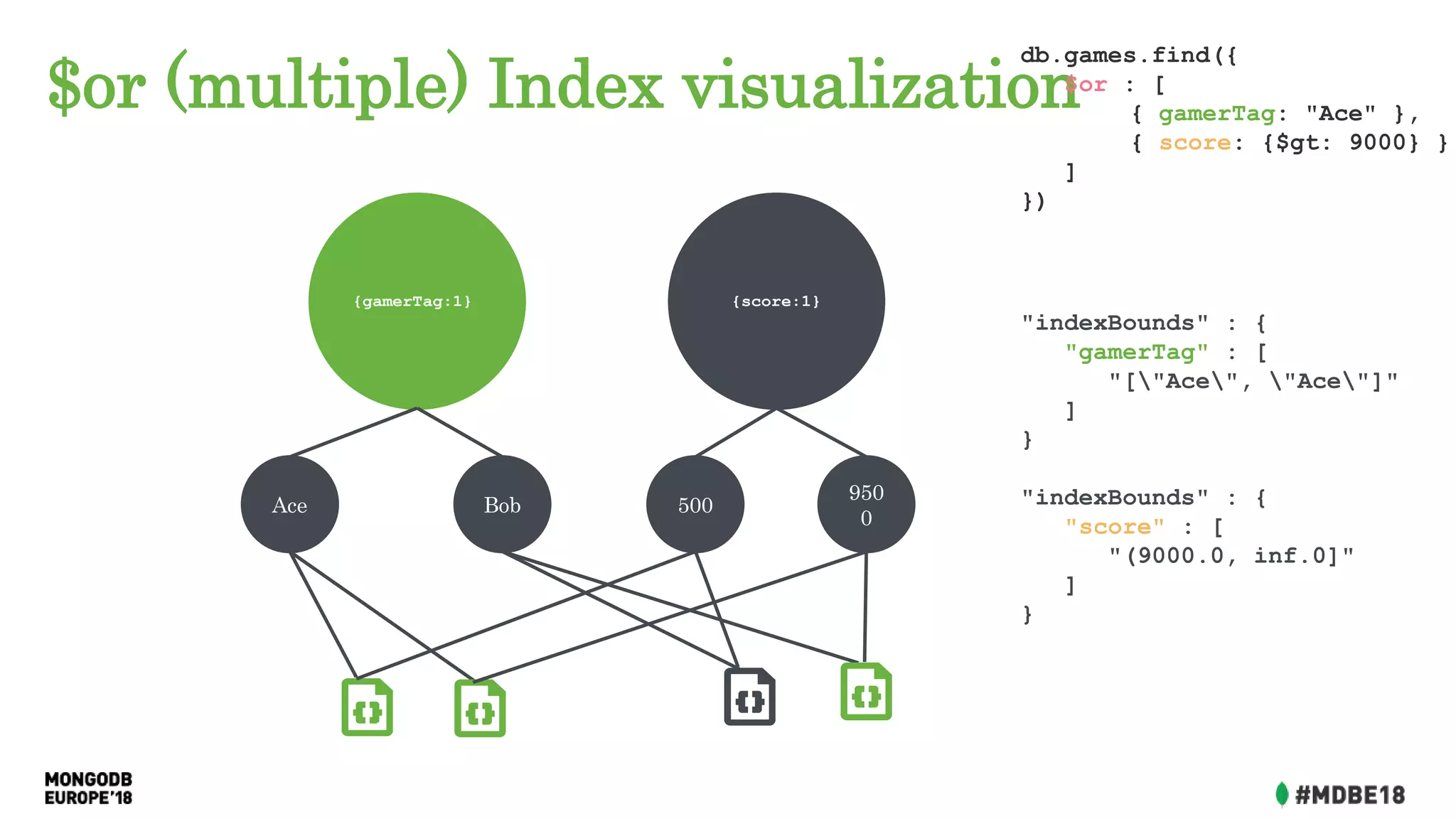

"indexBounds" : {
"gamerTag" : [
"["Ace", "Ace"]"
]
}
"indexBounds" : {
"score" : [
"(9000.0, inf.0]"
]
}
db.games.find({
$or : [
{ score: {$gt: 9000} }
]
})

Ace Bob
{gamerTag:1}
500
950
0
{score:1}
db.games.find({
$or : [
{ score: {$gt: 9000} }
]
})
"indexBounds" : {
"gamerTag" : [
"["Ace", "Ace"]"
]
}
"indexBounds" : {
"score" : [
"(9000.0, inf.0]"
]
}

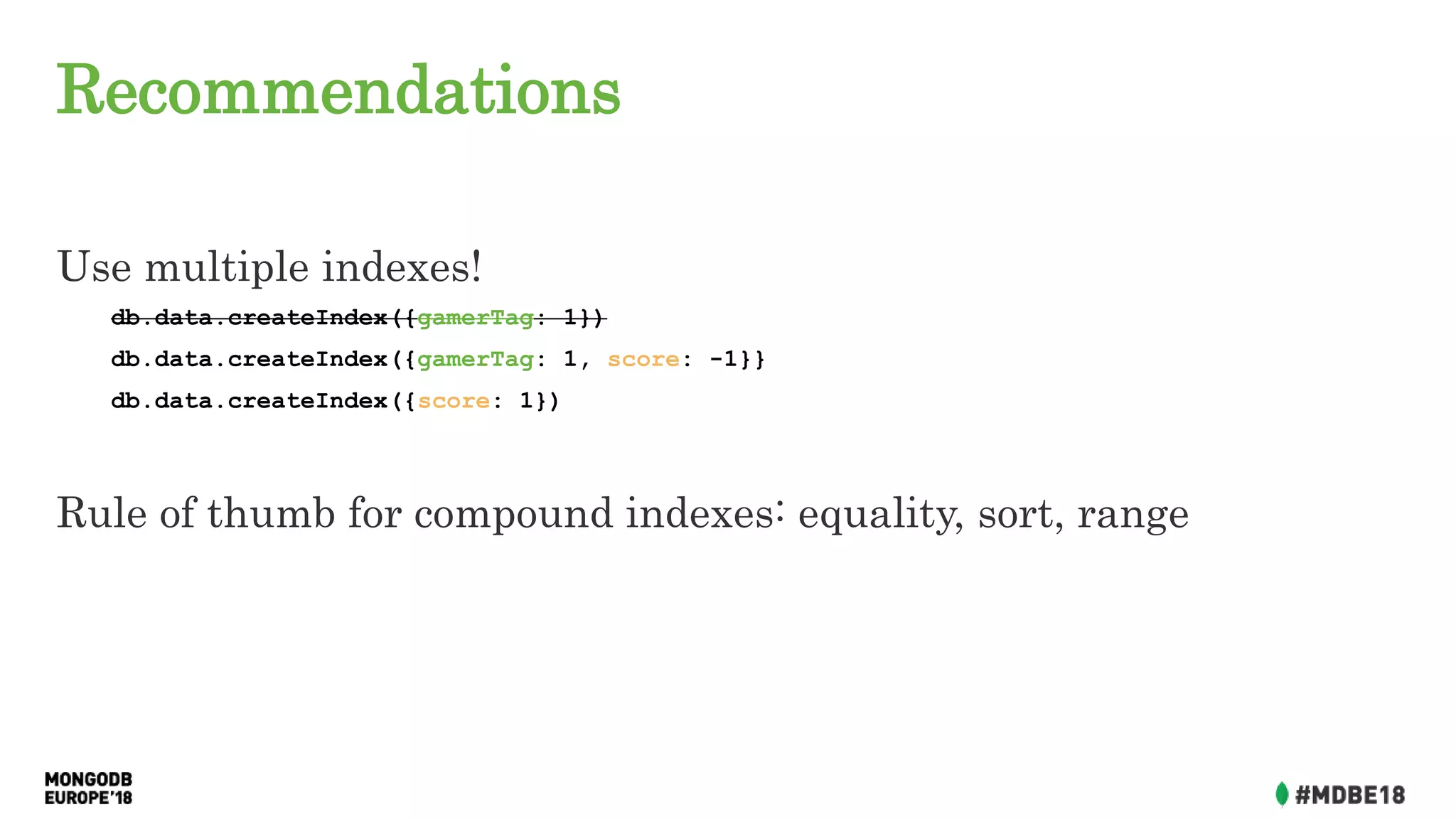

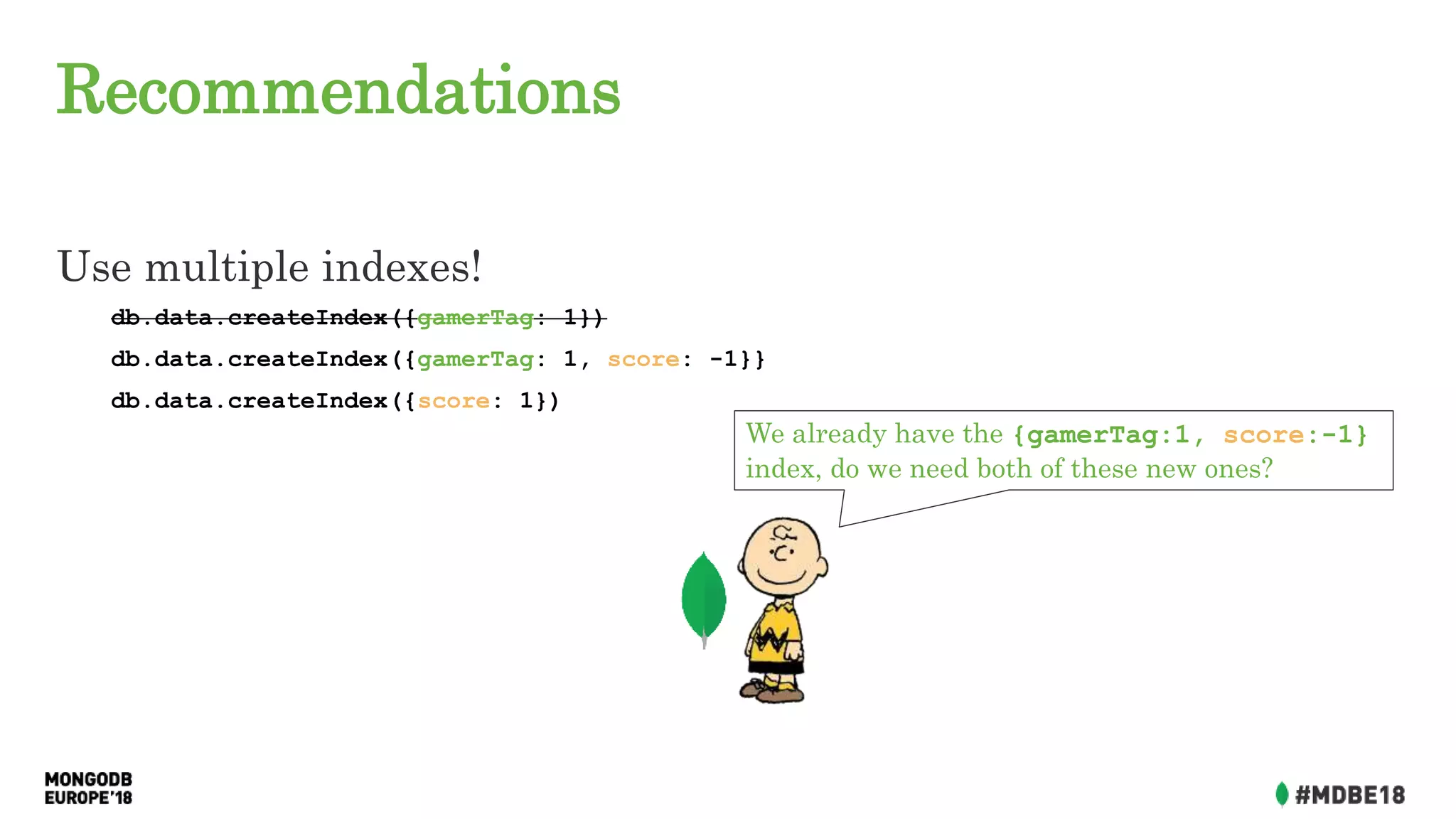

Recommendations
We already have the {gamerTag:1, score:-1}
index, do we need both of these new ones?

Recommendations
db.data.createIndex({gamerTag: 1, score: -1}}
We already have the {gamerTag:1, score:-1}
index, do we need both of these new ones?

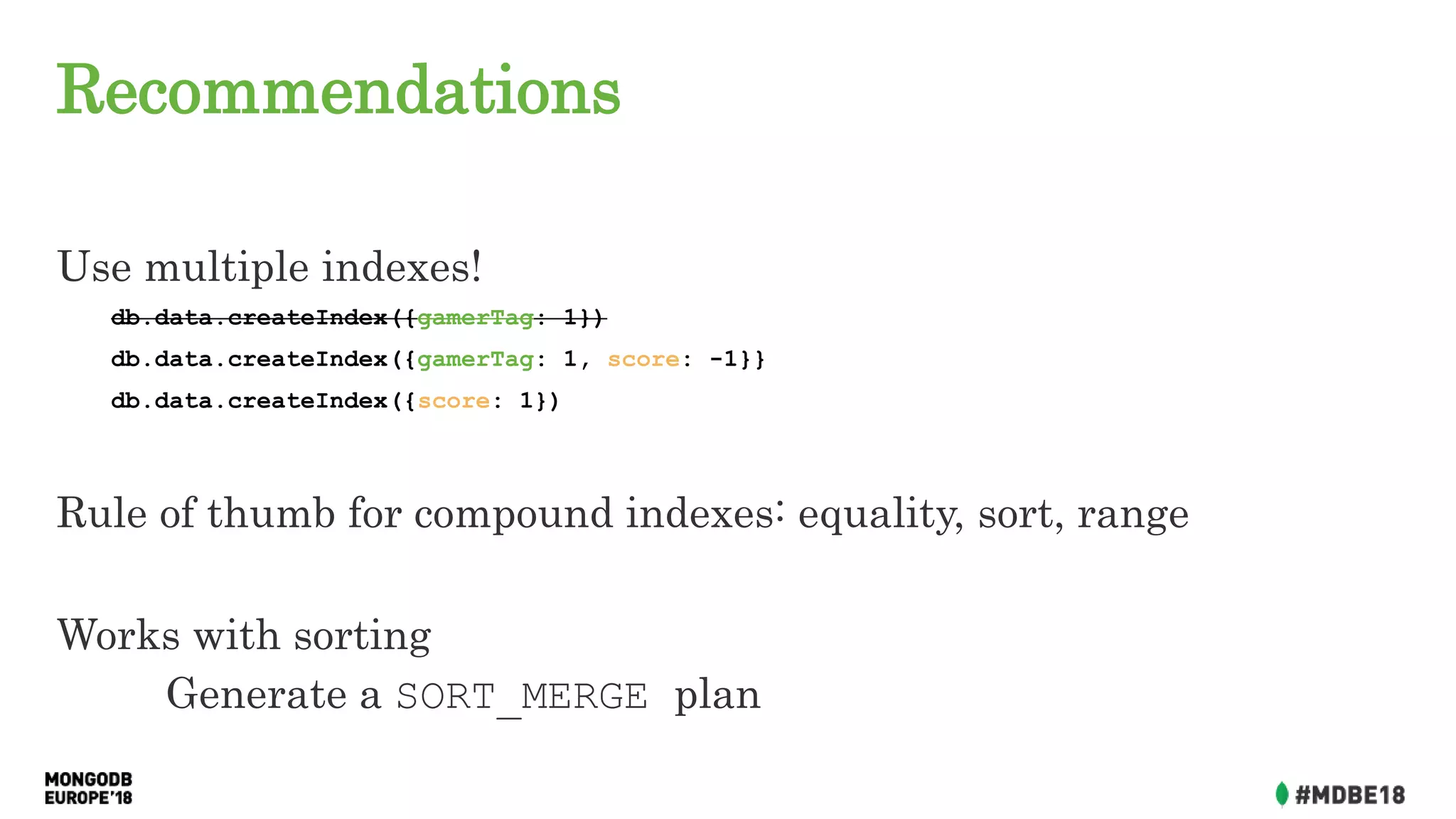

Recommendations
Rule of thumb for compound indexes: equality, sort, range

Recommendations
Rule of thumb for compound indexes: equality, sort, range
Works with sorting
Generate a SORT_MERGE plan

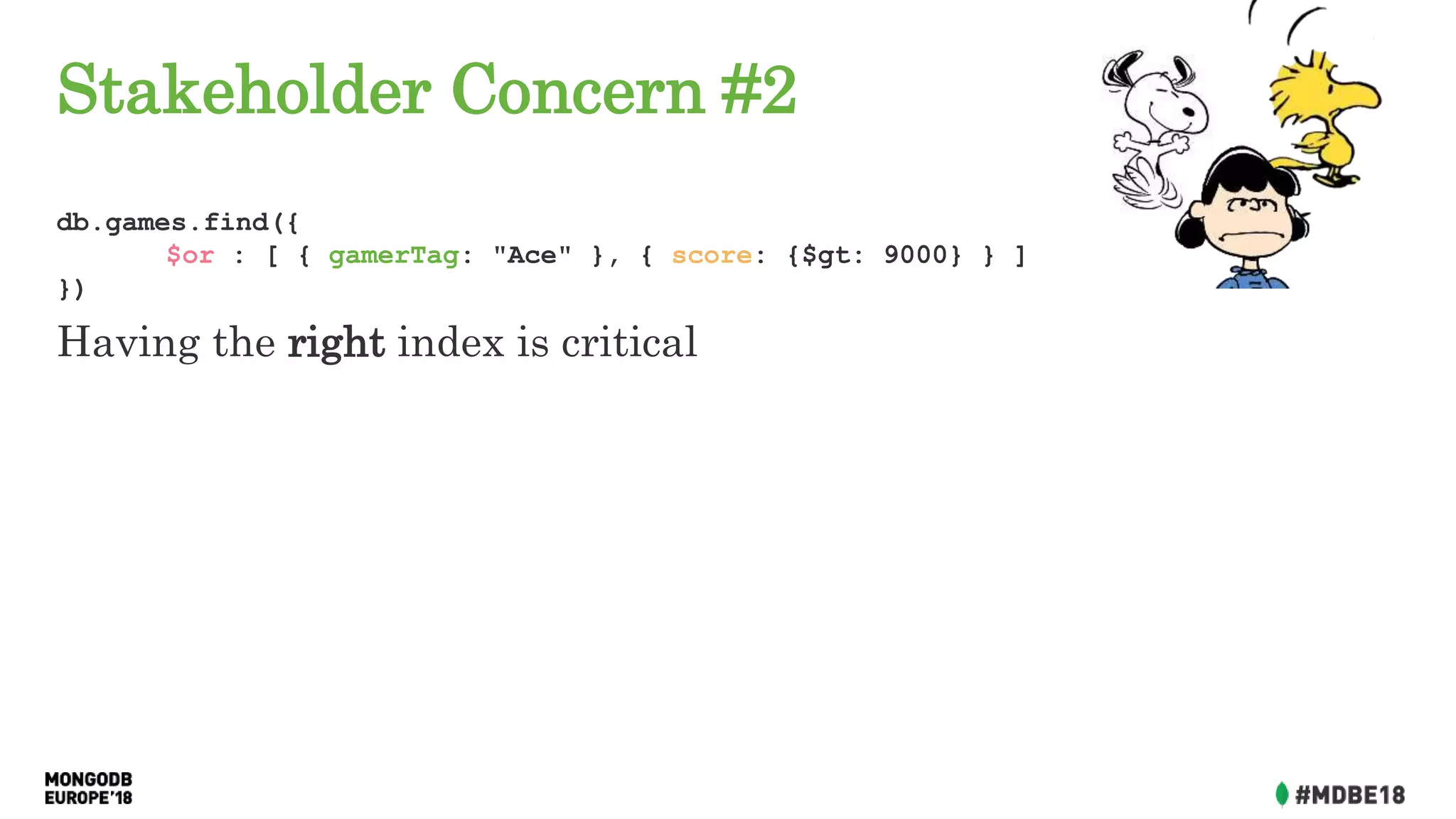

db.games.find({
$or : [ { gamerTag: "Ace" }, { score: {$gt: 9000} } ]
})

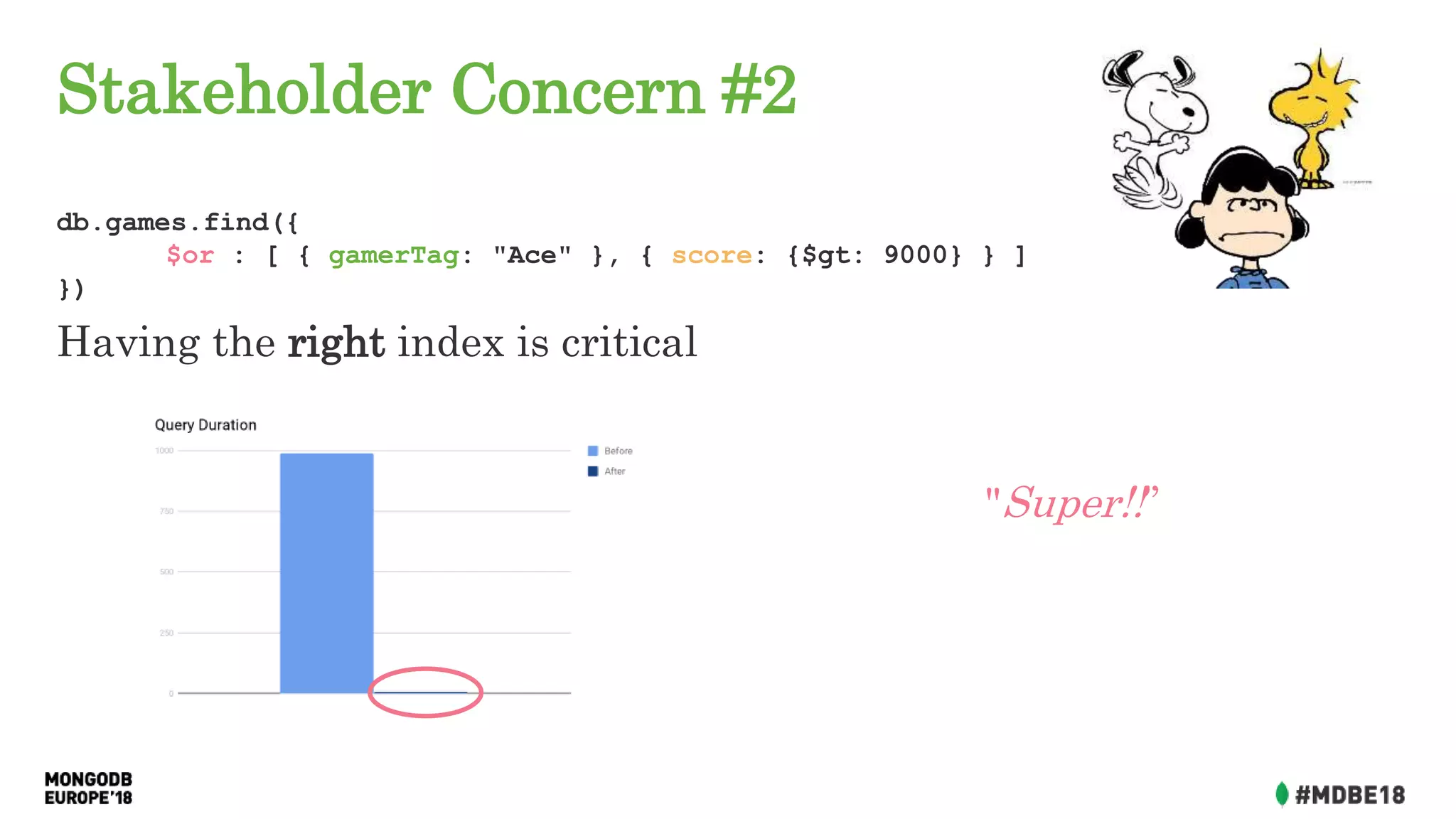

Having the right index is critical

db.games.find({
$or : [ { gamerTag: "Ace" }, { score: {$gt: 9000} } ]
})
Having the right index is critical
"Super!!”

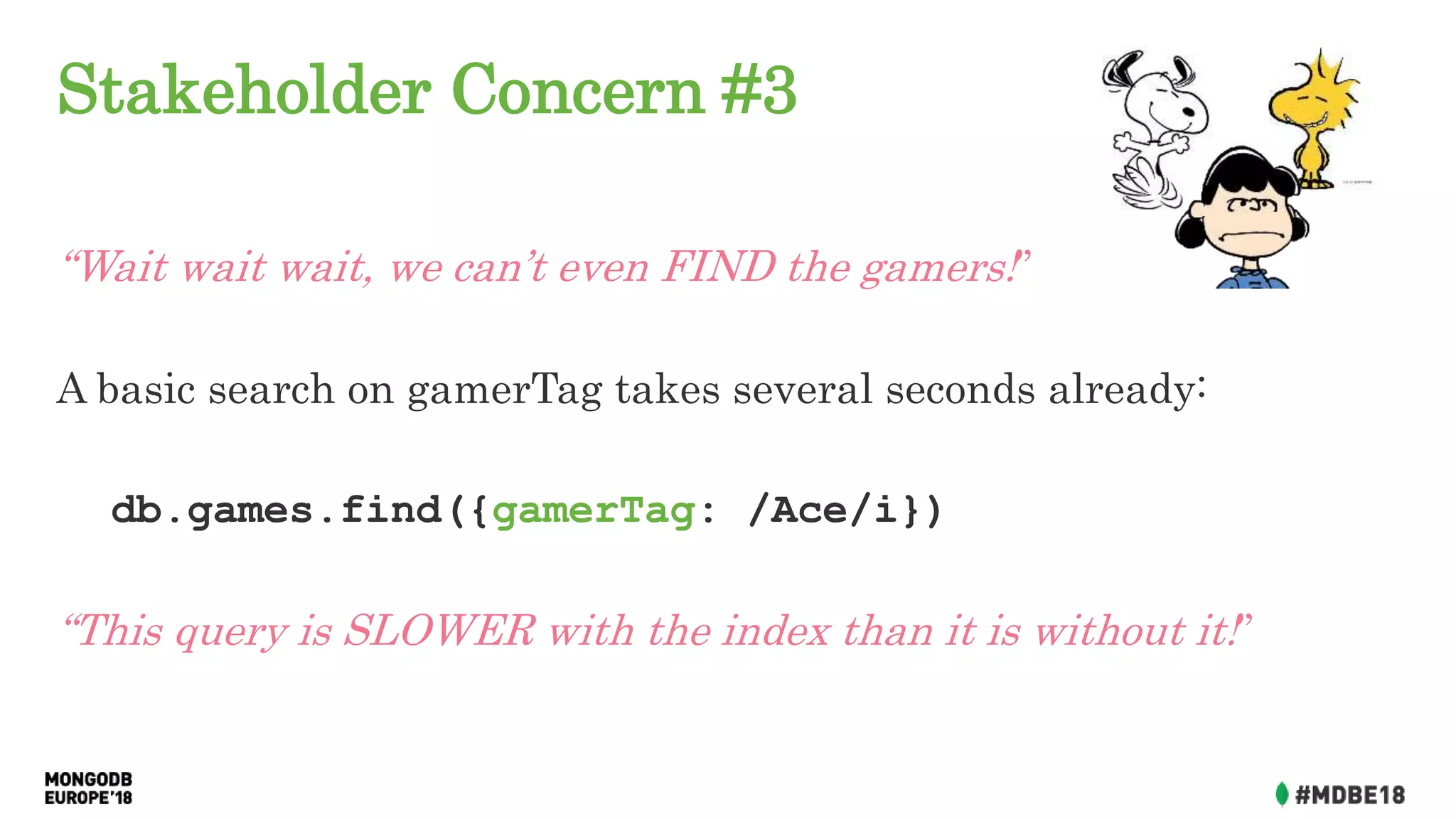

“Wait wait wait, we can’t even FIND the gamers!”
A basic search on gamerTag takes several seconds already:
db.games.find({gamerTag: /Ace/i})
“This query is SLOWER with the index than it is without it!”

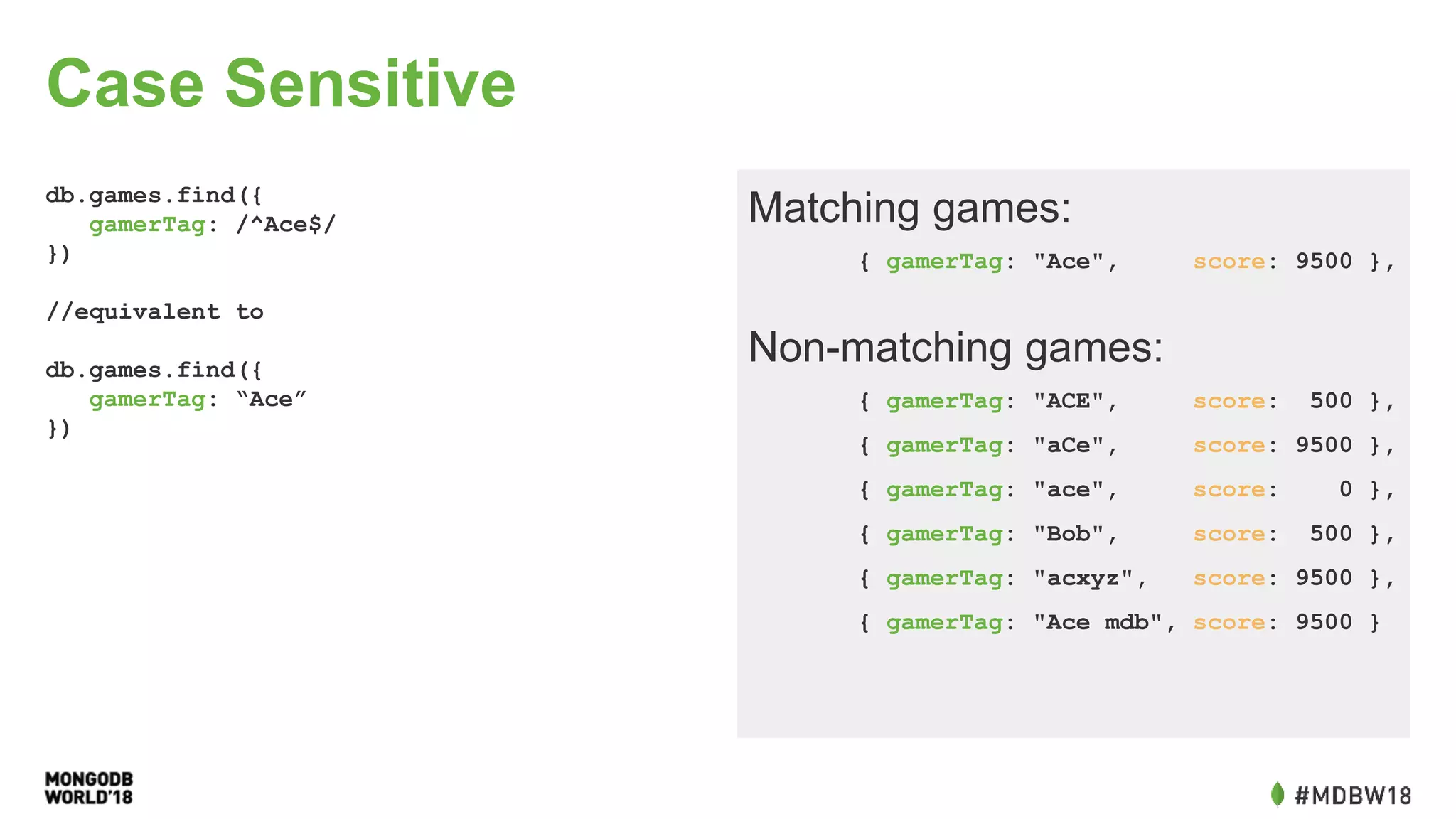

Case Sensitive
db.games.find({
gamerTag: /^Ace$/
})
//equivalent to
db.games.find({
gamerTag: “Ace”
})
Matching games:
Non-matching games:
{ gamerTag: "ACE", score: 500 },
{ gamerTag: "aCe", score: 9500 },
{ gamerTag: "ace", score: 0 },
{ gamerTag: "acxyz", score: 9500 },
{ gamerTag: "Ace mdb", score: 9500 }

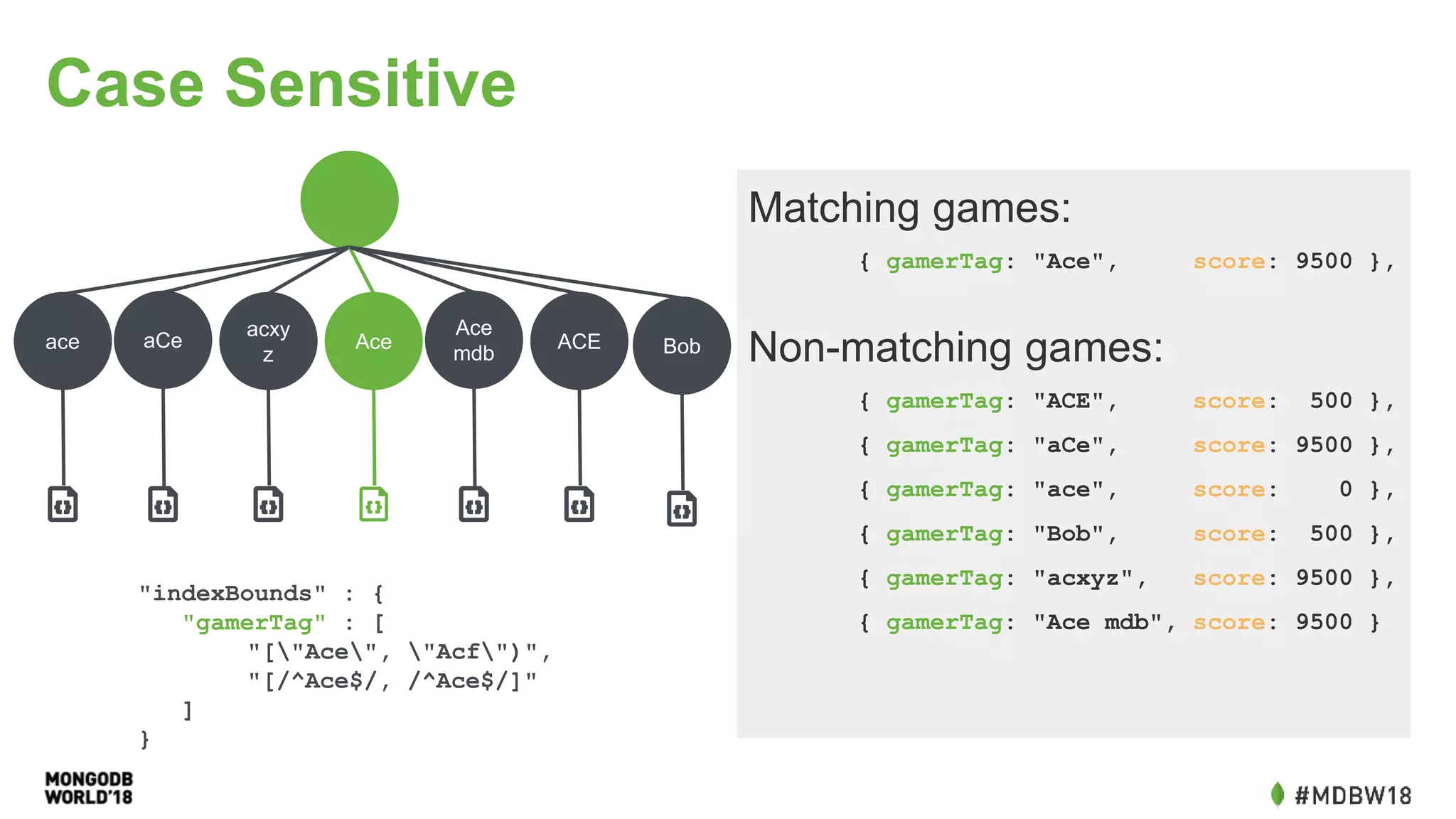

Case Sensitive
ace aCe
acxy
z
Ace
Ace
mdb
ACE Bob
"indexBounds" : {
"gamerTag" : [
"["Ace", "Acf")",
"[/^Ace$/, /^Ace$/]"
]
}
Matching games:
Non-matching games:
{ gamerTag: "ace", score: 0 },

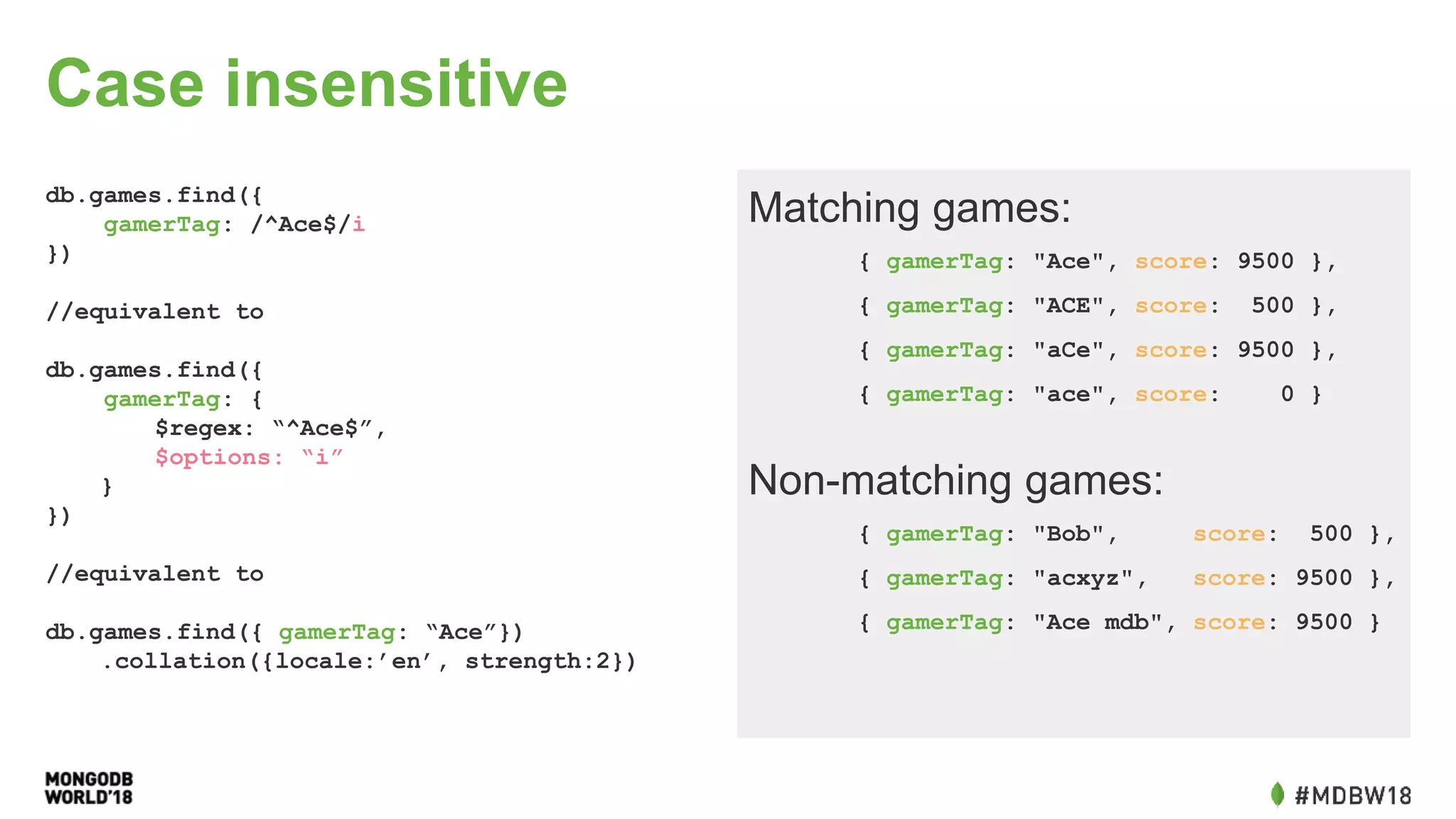

Case insensitive
db.games.find({
gamerTag: /^Ace$/i
})
//equivalent to
db.games.find({
gamerTag: {
$regex: “^Ace$”,
$options: “i”
}
})
//equivalent to
db.games.find({ gamerTag: “Ace”})
.collation({locale:’en’, strength:2})
Matching games:
{ gamerTag: "ace", score: 0 }
Non-matching games:

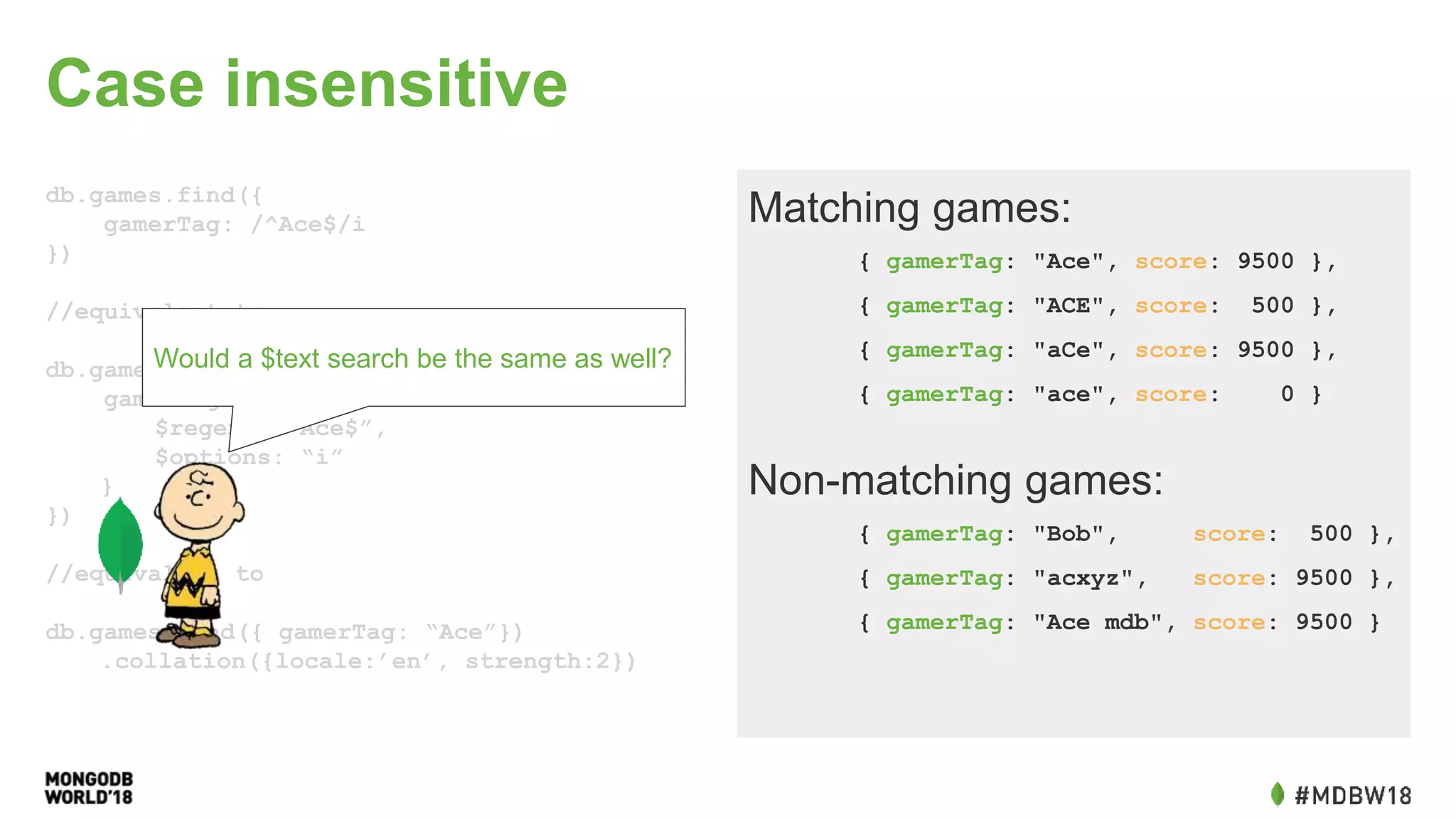

Case insensitive
db.games.find({
gamerTag: /^Ace$/i
})
//equivalent to
db.games.find({
gamerTag: {
$regex: “^Ace$”,
$options: “i”
}
})
//equivalent to
db.games.find({ gamerTag: “Ace”})
.collation({locale:’en’, strength:2})
Matching games:
Non-matching games:
Would a $text search be the same as well?

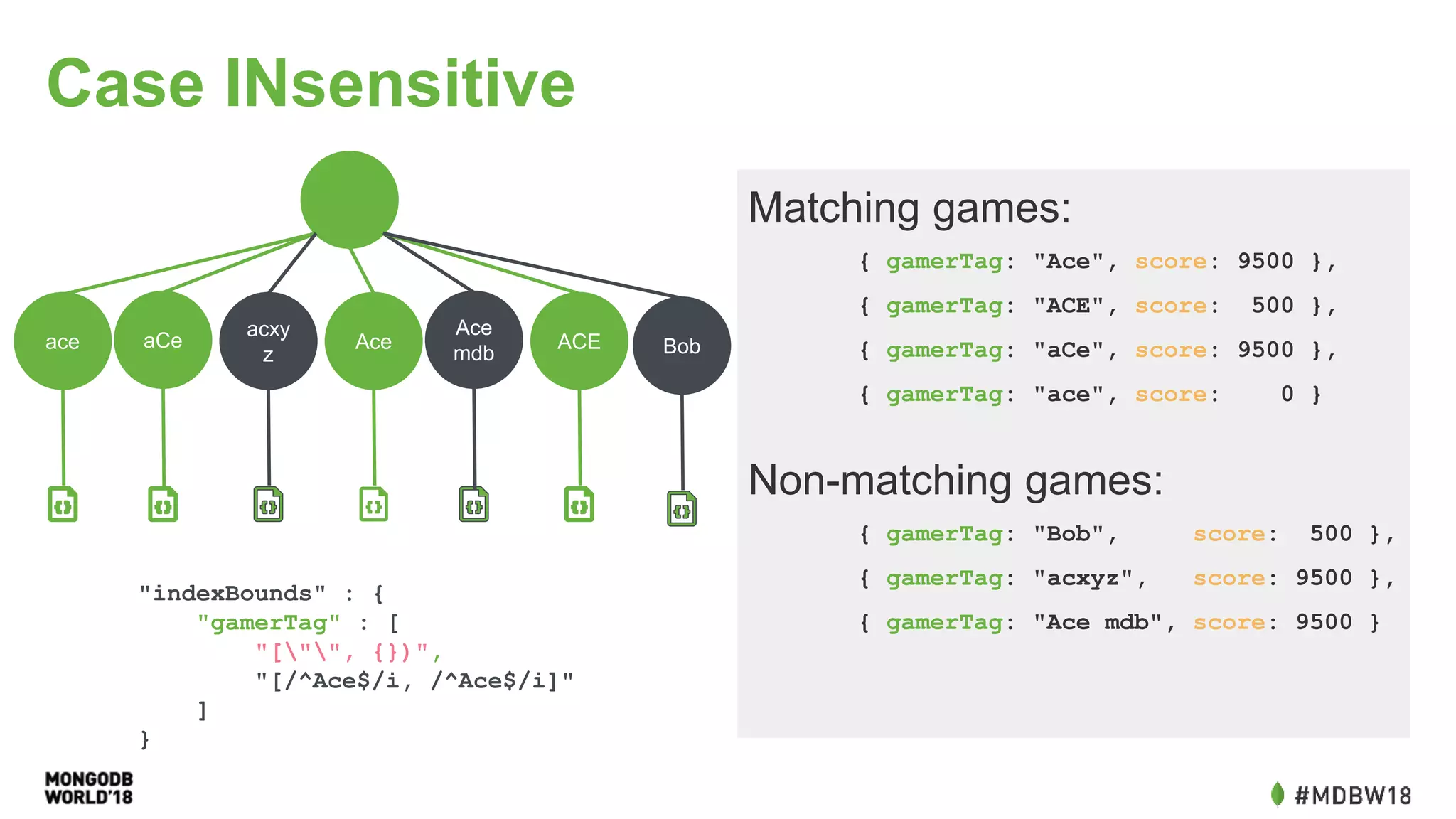

Case INsensitive
ace aCe
acxy
z
Ace
Ace
mdb
ACE Bob
"indexBounds" : {
"gamerTag" : [
"["", {})",
"[/^Ace$/i, /^Ace$/i]"
]
}
Matching games:
Non-matching games:

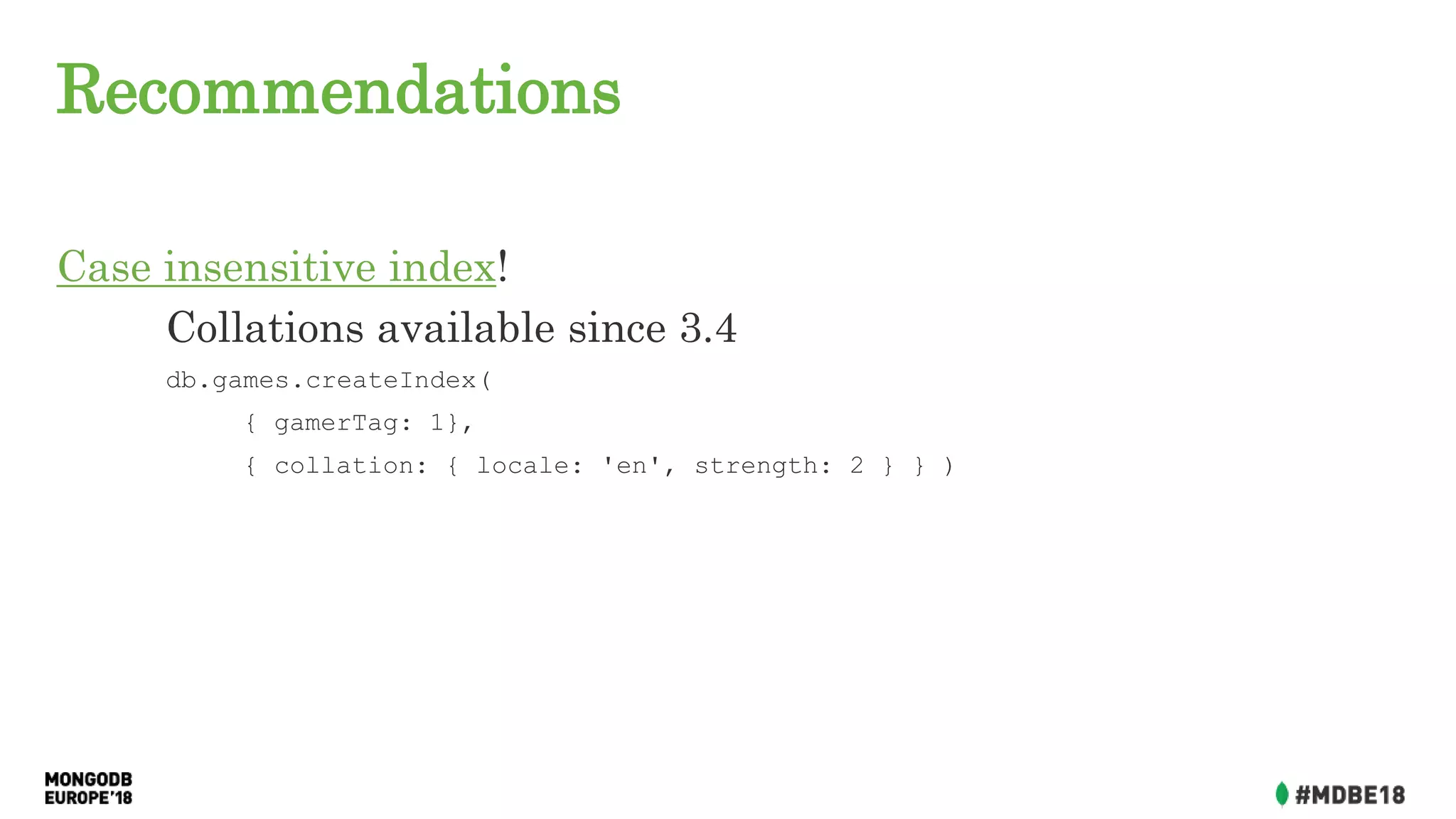

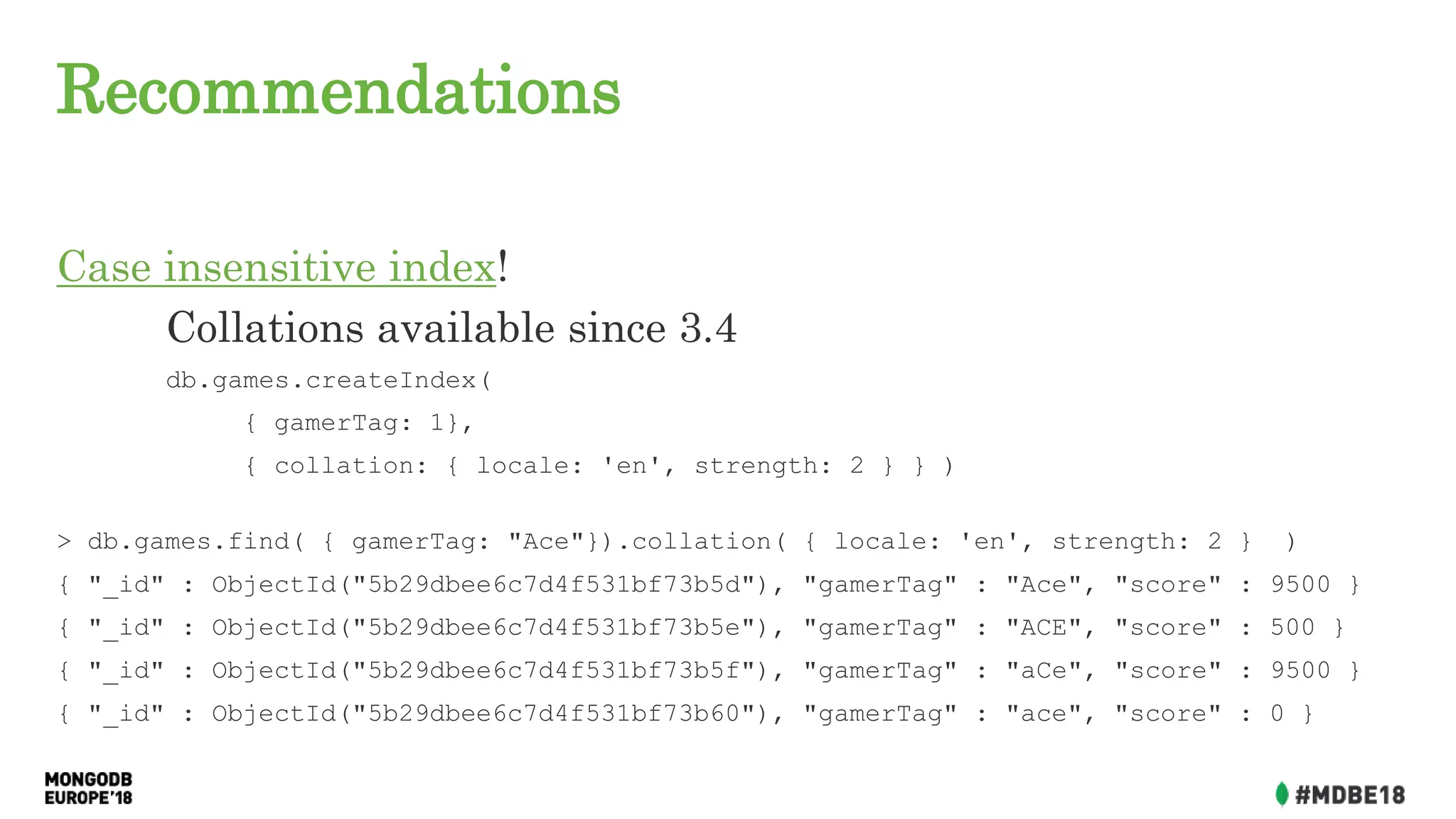

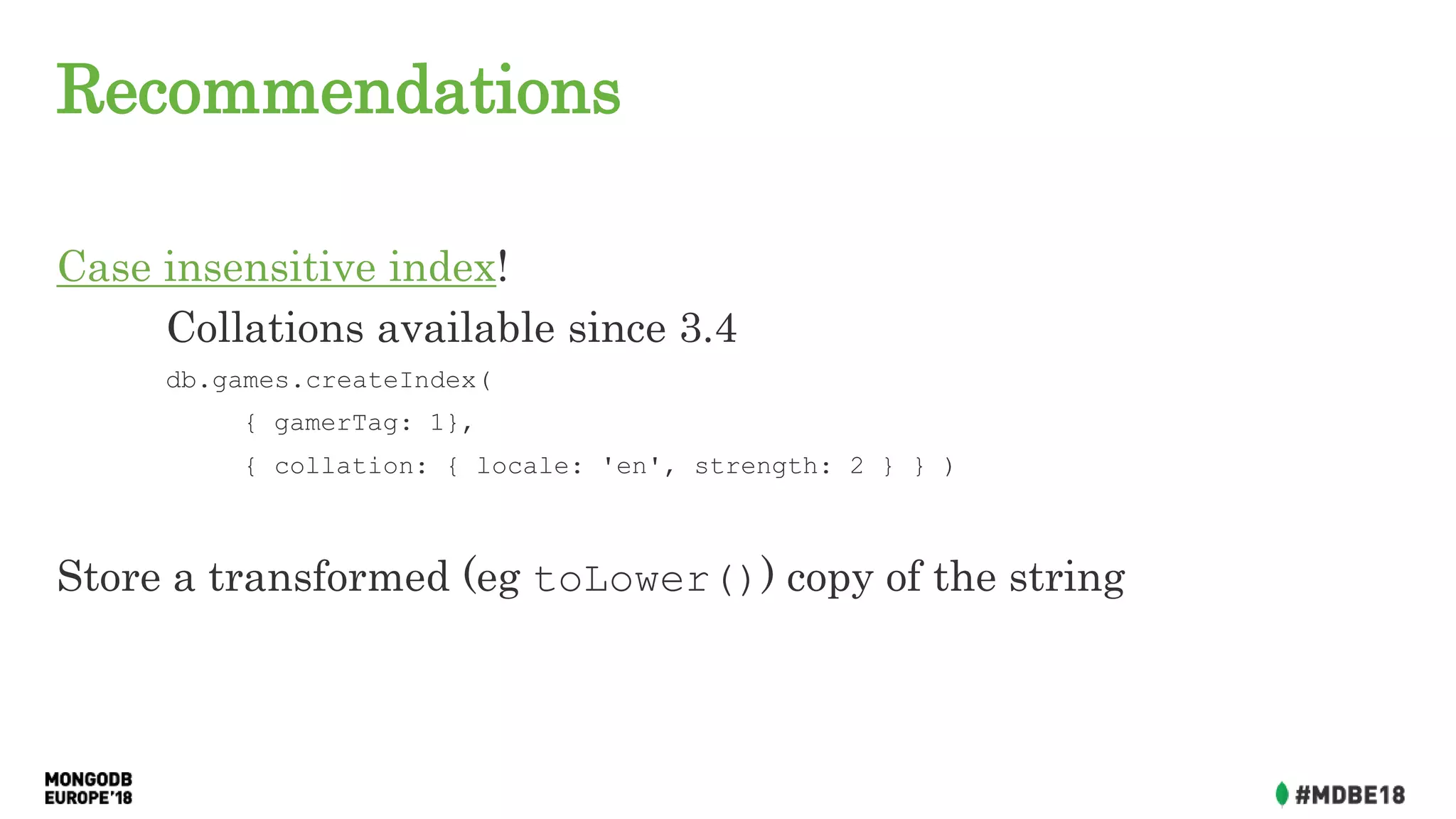

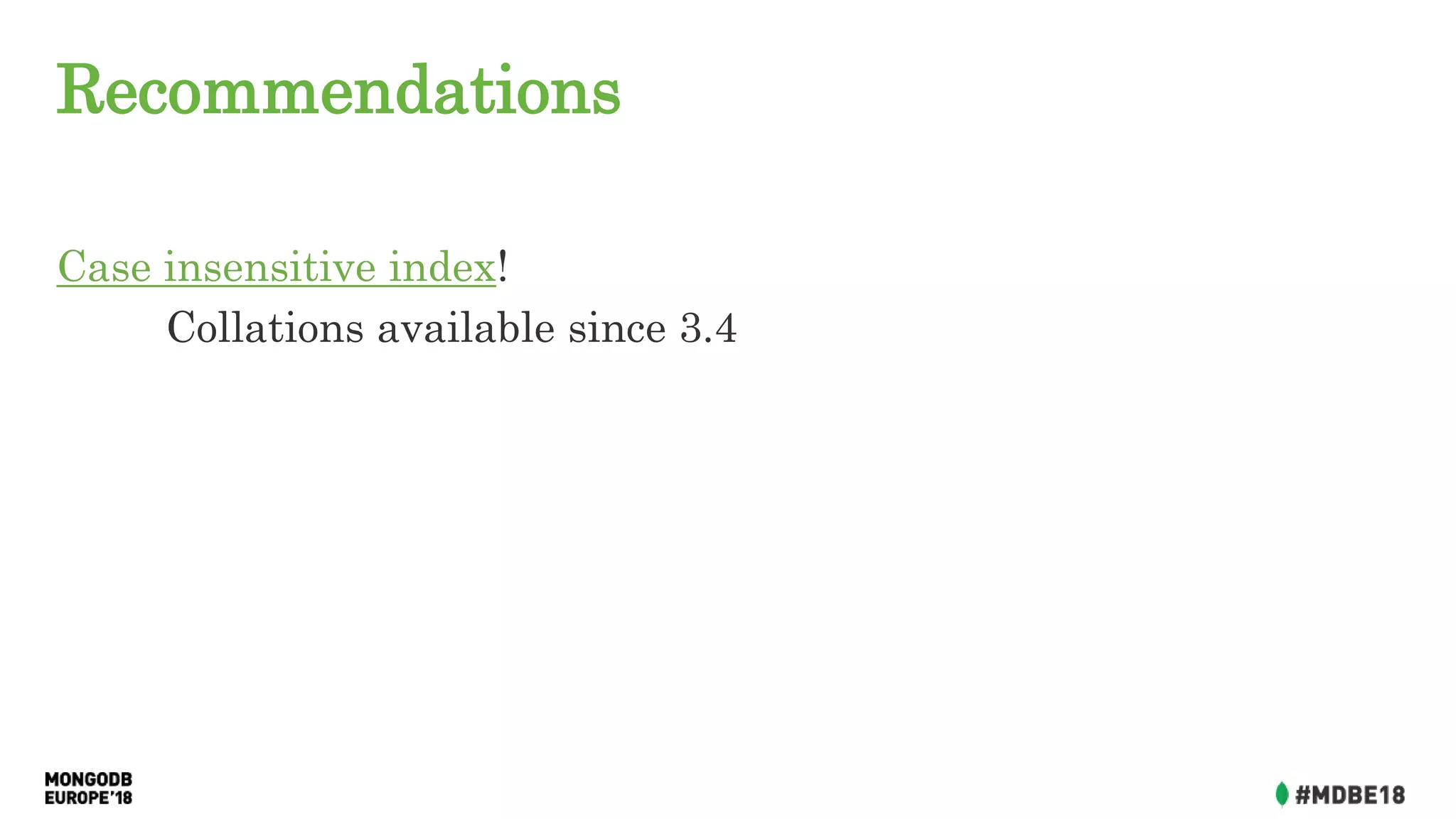

Recommendations
Case insensitive index!
Collations available since 3.4

Recommendations
db.games.createIndex(
{ gamerTag: 1},
{ collation: { locale: 'en', strength: 2 } } )

Recommendations
{ gamerTag: 1},
> db.games.find( { gamerTag: "Ace"}).collation( { locale: 'en', strength: 2 } )

Recommendations
{ gamerTag: 1},
> db.games.find( { gamerTag: "Ace"}).collation( { locale: 'en', strength: 2 } )
{ "_id" : ObjectId("5b29dbee6c7d4f531bf73b5d"), "gamerTag" : "Ace", "score" : 9500 }
{ "_id" : ObjectId("5b29dbee6c7d4f531bf73b5e"), "gamerTag" : "ACE", "score" : 500 }
{ "_id" : ObjectId("5b29dbee6c7d4f531bf73b5f"), "gamerTag" : "aCe", "score" : 9500 }
{ "_id" : ObjectId("5b29dbee6c7d4f531bf73b60"), "gamerTag" : "ace", "score" : 0 }

Recommendations
{ gamerTag: 1},
Store a transformed (eg toLower()) copy of the string

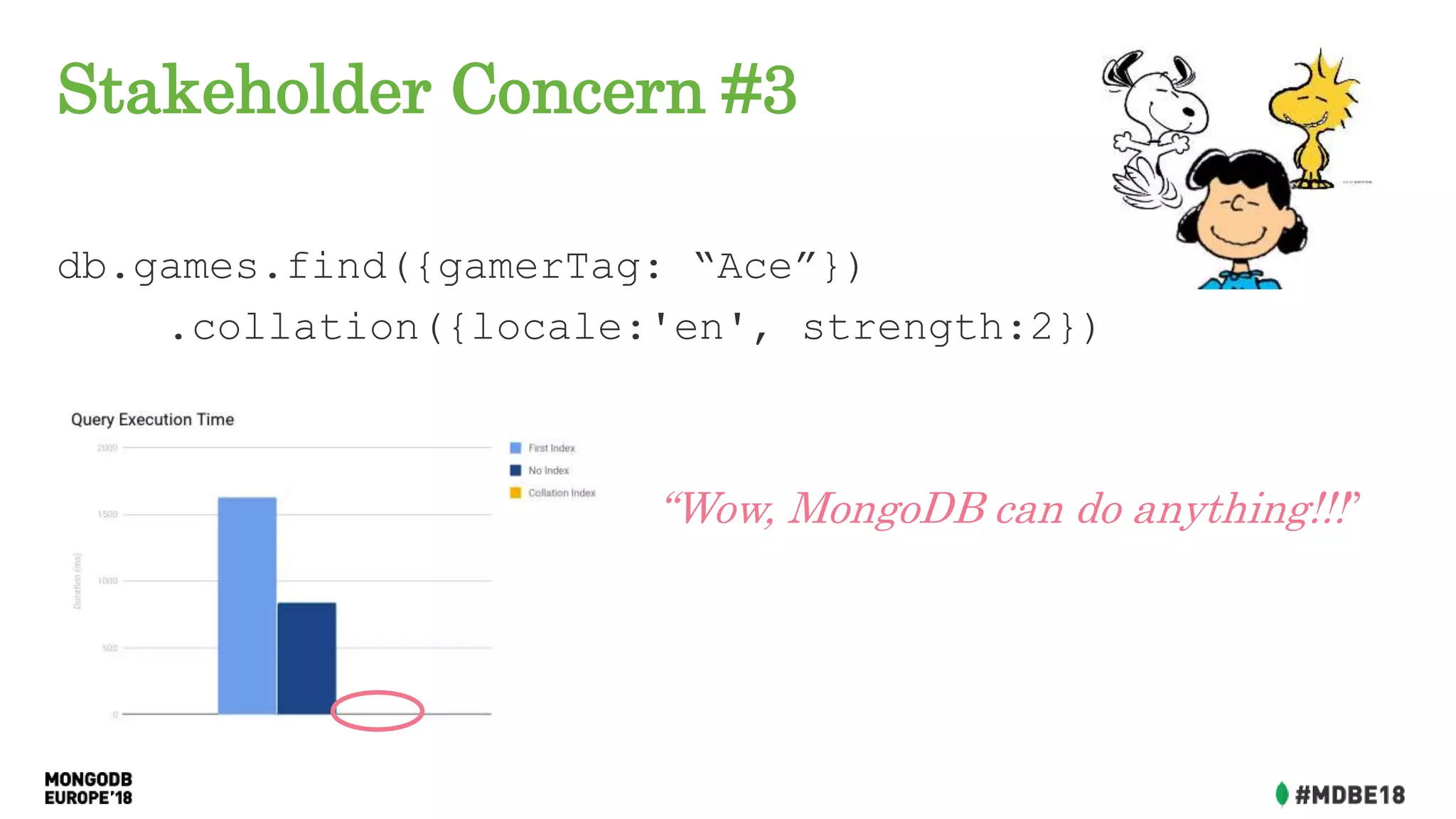

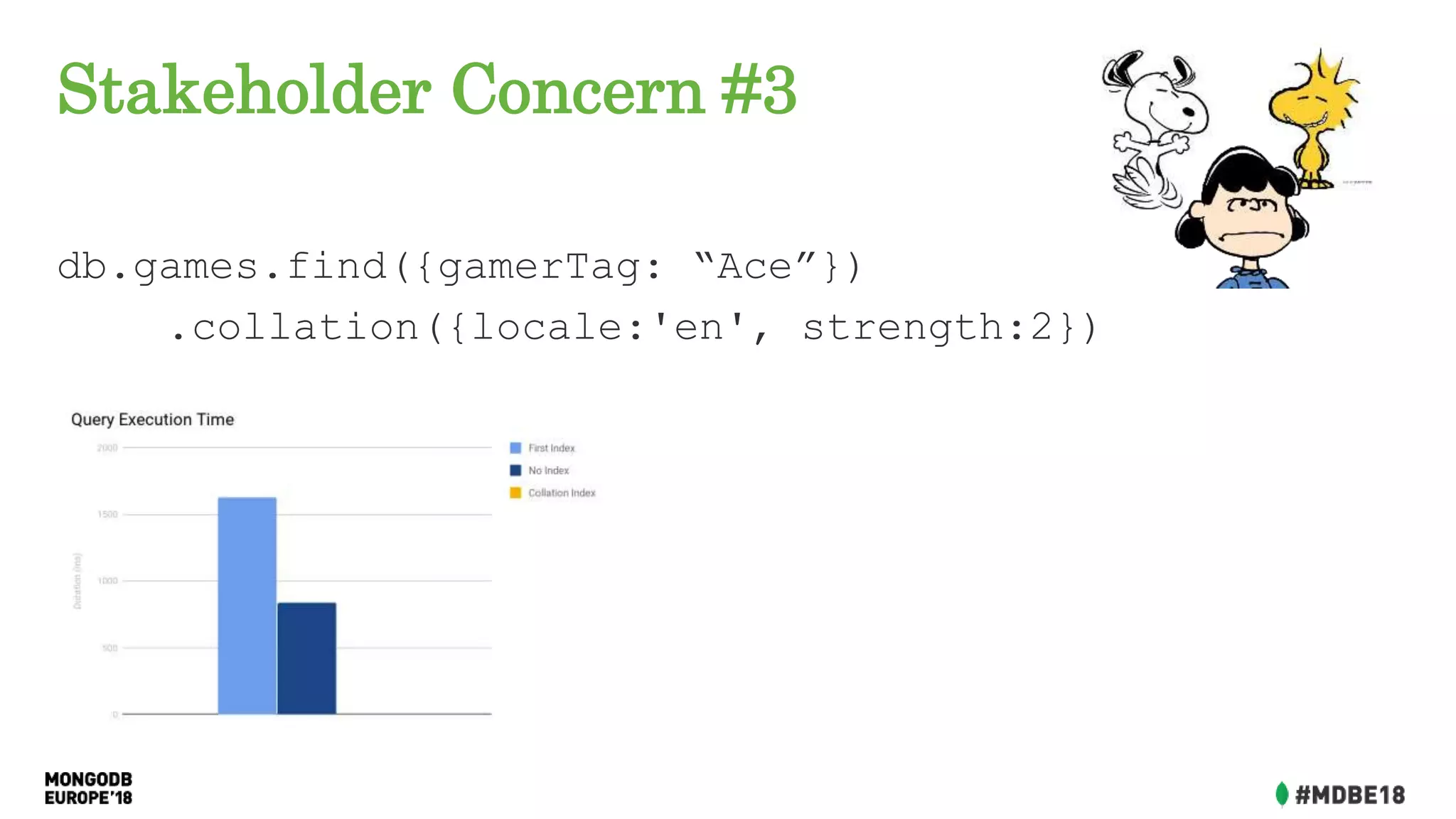

db.games.find({gamerTag: “Ace”})
.collation({locale:'en', strength:2})

db.games.find({gamerTag: “Ace”})
.collation({locale:'en', strength:2})
“Wow, MongoDB can do anything!!!”

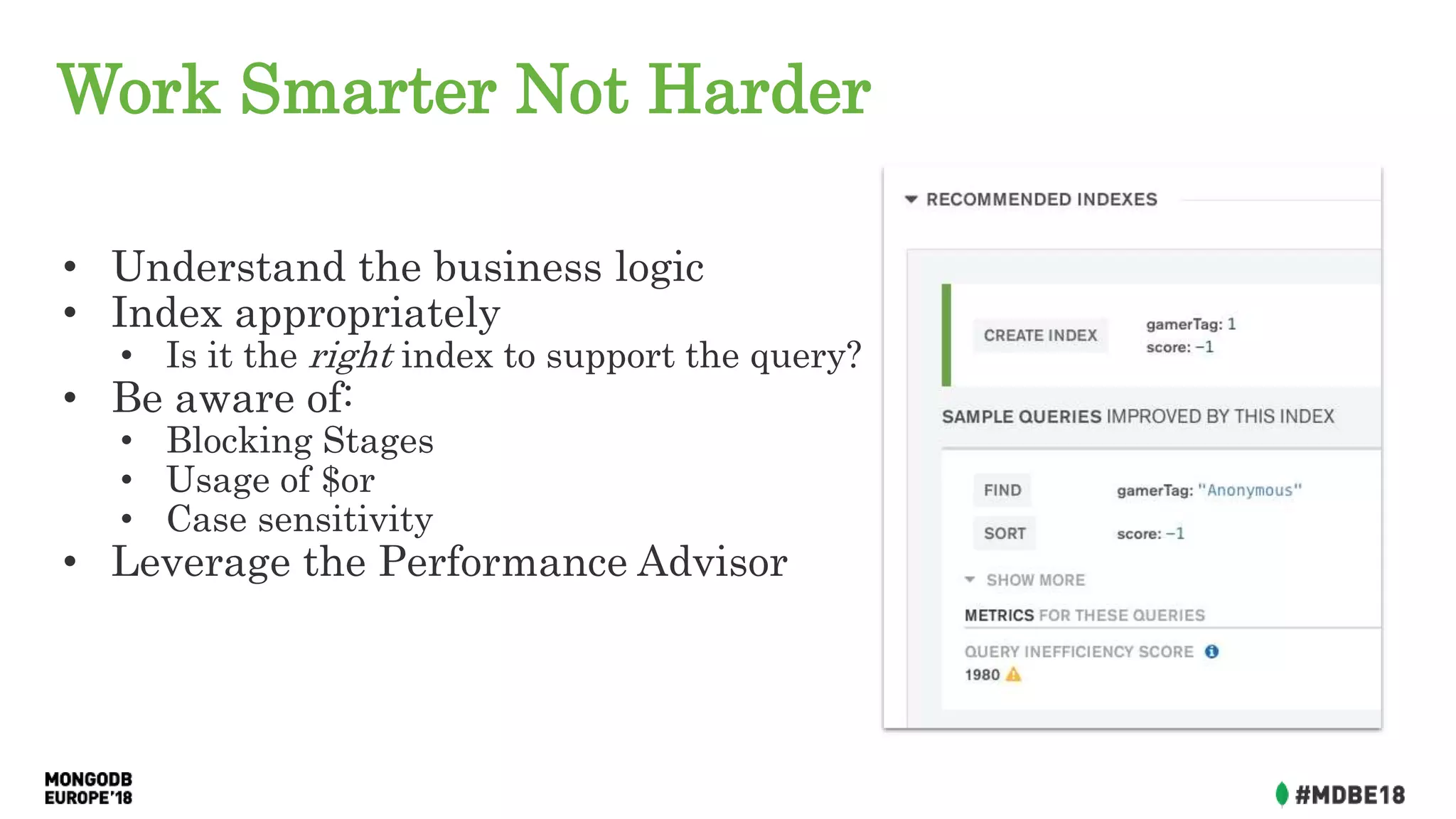

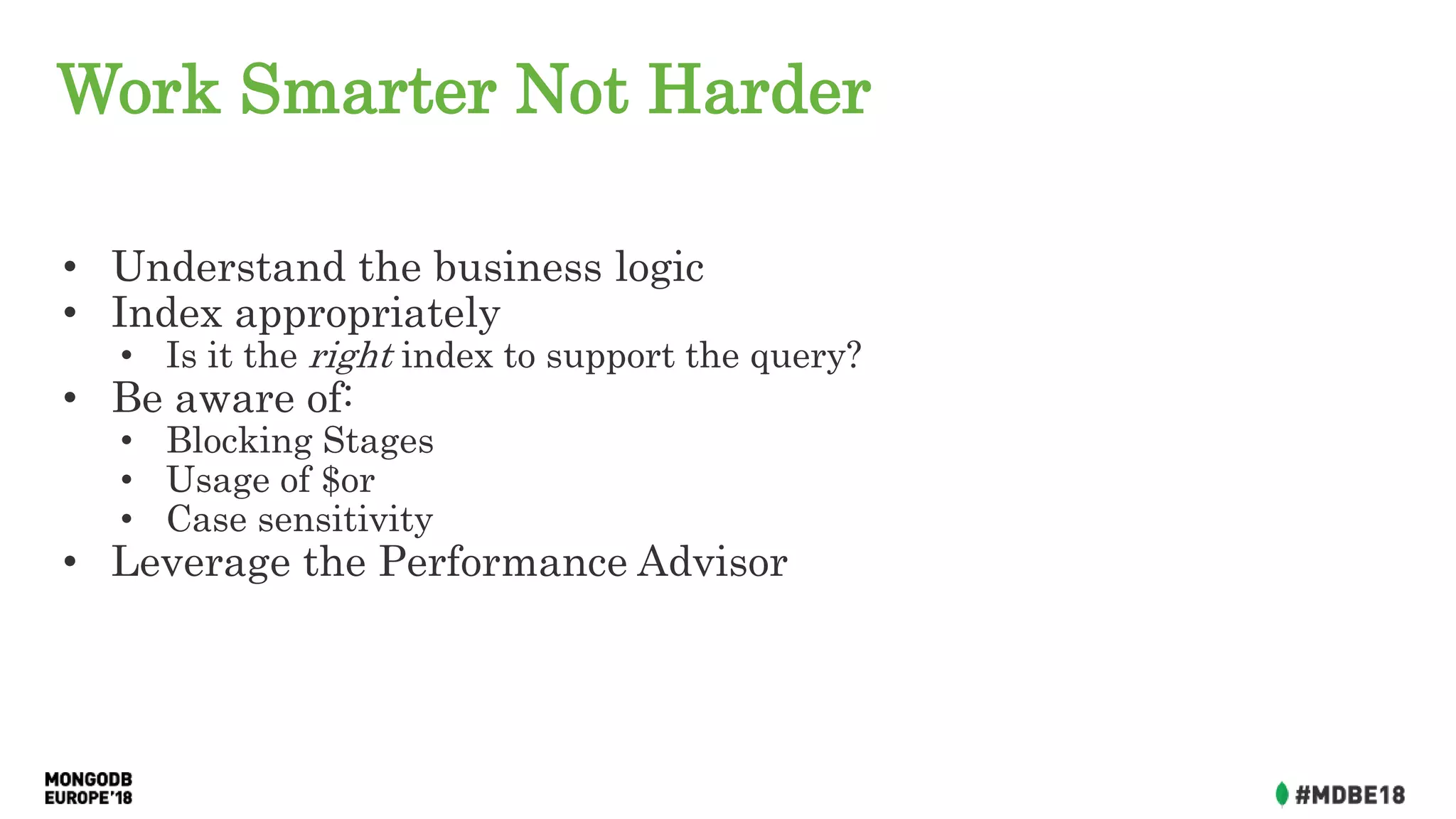

Work Smarter Not Harder
• Understand the business logic
• Index appropriately
• Is it the right index to support the query?
• Be aware of:
• Blocking Stages
• Usage of $or
• Case sensitivity
• Leverage the Performance Advisor

Countdown to The Peanuts
Powered by an optimized MongoDB
environment, The Peanuts is sure to be a hit!
