Our manufacturer has over 50 years of experience in wood manufacturing and acoustic expertise. They produce acoustic panels under the TAVINEL and TAVILINE brands for auditoriums, concert halls, and other spaces. Their panels are customizable and tested for acoustic performance. They also provide complete acoustic solutions and have experience advising on acoustic treatments. Their products are made from natural wood veneers and meet European fire safety standards.

1. Auditorium- Valencia Feria
Valencia, Spain
TAVINEL - Natural Cherry & Beech

2. Our manufacture has been involved in the wood business for
over 50 years.
A unique understanding of wood component manufacturing
and architectural structure
installation combined with acoustic expertise has made them
one of the most knowledgeable company in its field.
The branded TAVILINE and TAVINEL panels as well as custom
made structures are used to acoustically treat auditoria, concert
halls, museums as well as university lecture theatres and private
buildings.
Our manufacturer has a strong focus on projects; specializing in
custom-made products with flexible manufacturing; from wall and ceiling panels, and acoustic doors providing the complete internal acoustic cladding.
Throughout the years it has
continued to develop new and
innovative products with many of its elements unique to the market with research
into new materials and improved manufacturing technologies.
Reception Hall- Valencia Feria
Valencia, Spain
TAVINEL - Natural Cherry & Beech
Acoustics
ACOUSTIC PERFORMANCE - ACOUSTIC STUDY

3. Our manufacturer have been involved in the acoustical field for many years and are able to advise on the suitability of
certain acoustic products for treatment. There are times when the client would help them technical acoustic
questions specifically related to our TAVILINE and TAVINEL products.
Custom - made products for specific projects can be tested and full acoustic data needed by the project
management team, the acoustician and the architect can be provided.
We can also make available our acoustician partners to help with the acoustic testing and treatment of buildings and
interior spaces. On-site study can be facilitated as well as post installation testing.
All products are acoustically tested and certified in Europe
By ACARMA - Architectural and Environmental Acoustics , Polytechnic University of Valencia, Spain

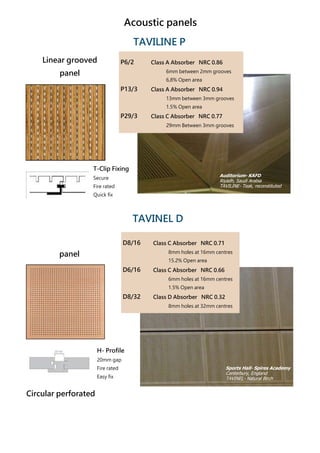

4. Acoustic panels
TAVILINE P
Linear grooved
P6/2
panel
Class A Absorber NRC 0.86
6mm between 2mm grooves
6,8% Open area
P13/3
Class A Absorber NRC 0.94
13mm between 3mm grooves
1.5% Open area
P29/3
Class C Absorber NRC 0.77
29mm Between 3mm grooves
T-Clip Fixing
Auditorium- KAFD
Riyadh, Saudi Arabia
TAVILINE - Teak, reconstituted
Secure
Fire rated
Quick fix
TAVINEL D
D8/16
panel
Class C Absorber NRC 0.71
8mm holes at 16mm centres
15.2% Open area
D6/16
Class C Absorber NRC 0.66
6mm holes at 16mm centres
1.5% Open area
D8/32
Class D Absorber NRC 0.32
8mm holes at 32mm centres
H- Profile
20mm gap
Fire rated
Easy fix
Circular perforated
Sports Hall- Spires Academy
Canterbury, England
TAVINEL - Natural Birch

5. Acoustic panels
TAVILINE® Panel System
TAVINEL C
Square perforated
C27/16
panel
Class A Absorber NRC 1.0
27mm squares, 16mm centres
34.2% Open face
57.5% Open back
C18/24
Class B Absorber NRC 0.84
13mm between 3mm grooves
15.2% Open face
T & G Profile
3 mm Gap
Music Room
Valleta , Malta
TAVINEL - Natural Cherry & Beech
V bevel joint
No gap joint
TAVINEL RL
RC6
Class B Absorber NRC 0.82
6mm slots, 235mm long
31.7% Open area
RL6
Class C Absorber NRC 0.74
6mm slots, 85mm long
9.1% Open area

6. Acoustic panels
Slotted perforated
panel
Accessible
TETON
Removable
Panel Fix
TAVINEL® Panel
System
NUBE - Sandwich Panel
Auditorium
Alicante, Spain
TAVINEL - Natural Oak

7. Acoustic panels
Our NUBE acoustic panels are complete
panels comprising of the outer open face,
the acoustic fleece, the absorbent rockwool
insulation and the backboard.
They can be of standard sizes ready to install;
Sizes 600x600, 1200x600, 1200x1200
They may also be made to custom sizes and
shapes to create 3D shapes and intricate
acoustic structures.
The panels follow our tested TAVINEL
Perforations patterns and acoustic rating.
Auditorium- CMA Tower
KAFD, Riyadh, RSA ( Under Study )
NUBE Panels- Natural Am. Cherry
Theatre Reception
Benicarlo, Spain
NUBE Panels- Natural Cherry
NUBE® Panel System

8. Acoustic panels
COSTILLAS - Slatted Wall and Ceiling Panels
Auditorium- Valencia Feria
Valencia, Spain
COSTLLAS Solid Ash
–
Back Panel - making up the structure, and easy-fit profile
Acoustic Fleece
Slats
Our COSTILLAS slatted wall
and ceiling systems are made
to order following
Architects and acousticians
requirements.
They are made in sections for
exact width distribution and
giving the structure strength.
COSTILLAS® Panel System

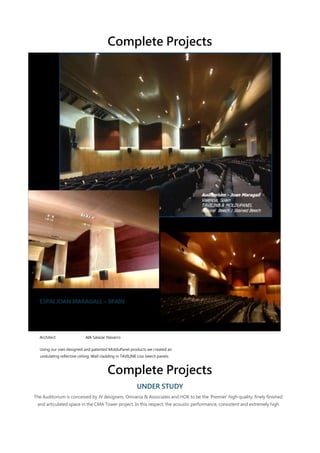

9. Complete Projects
Architect
AIA Salazar Navarro
Using our own designed and patented MolduPanel products we created an
undulating reflective ceiling. Wall cladding in TAVILINE Liso beech panels.
Complete Projects
UNDER STUDY
The Auditorium is conceived by JV designers, Omrania & Associates and HOK to be the ‘Premier’ high quality, finely finished
and articulated space in the CMA Tower project. In this respect, the acoustic performance, consistent and extremely high

10. quality of workmanship, fine finishing and detailing of the complex, intricate three dimensional wall and ceiling cladding is of
critical importance to the success of the auditorium.
The CMA Tower is the tallest tower and centrepiece to KAFD and envisaged as an example of the highest international
workmanship quality as befits the client, Capital Markets Authority (CMA), Saudi Arabia.
CMA TOWER AUDITORIUM – KAFD / RSA
3D Structure of triangular shapes
Finish
Natural FSC Am. Black Cherry
Acoustic Treatment
Absorption & Reflection
Architect
Omrania CASS / HOK
The panels to be used are of a sandwich type , where the acoustic absorbent
insulation is part of the construction. The panels are to be formed into individual
and unique shapes to create a 3D structure.
Surfaces

11. NATURAL WOOD VENEERS
Natural wood is the choice for luxurious interiors and has
Oak
been for centuries. The beauty of natural wood is that each
Maple
species, even within species the grain and colour varies.
Ash
Walnut
No two pieces of wood are the same.
Cherry
Birch
With time wood changes in colour and shade. Certain
Zebrano
species, Walnut will lighten with expose to light, while
Beech
others, cherry or maple will mellow and darken. This is all part
Mahogany
of a natural product. When adding extra panels or replacing
Teak
some, the colour will not be the same as the original, but with
Wenge
time the sun will blend all the tones together.
Anigre
Oak Burl
Maple Burl
Olive Ash Burl
Walnut Burl
Fumed Larch
Mappa Burl
Birds Eye Maple
Mahogany Pommele
Lacewood
Myrtle Burl
Santos Rosewood
Auditorium- Valencia Feria
Valencia, Spain
TAVINEL - Natural Cherry & Beech
OPTIONAL FINISHES & METAL
MELAMINE
Melamine finishes come in a large range of wood grains and solid col-
PAINTED FINISHES
ours. Melamine is an impregnated paper finish that has the
look of wood or paint and can be used when a budget needs
All the colours of the rainbow and all
engineering.
those in between. Following the
order the various shades, matt or gloss.
RAL chart we can manufacture to
HIGH PRESSURE LAMINATE

12. High pressure laminate ( HPL ) is
high wear areas and counter tops. Available in wood grain, Metal
a very resistant surface used is
and solid colours.
Euroclass Standards
RESISTANCE TO FIRE
All panels are manufactured to the fire standards required by the client.
Class B, Euro board with the certification Bs2d0.
Panels are also certified as complete units - using FR Mdf Bs2d0, a unique intumescent adhesive and roller coating lacquers to meet the
highest standard for veneered mdf panels Cs2d0.
We use Euroclass Bs2d0 mdf in our panel production as we all Bs2d0 lacquer / painted surfaces.
-
Timber or plywood with a density more then 400 kg/m3 are considered to have low fire propagation similar to FR MDF
- Euro Class Bs2d0.
-
When using Fire Rated Mdf with a veneer surface an additional fire rated lacquer must be applied to
the surface in order to counter the effect of the wood veneer.
When manufacturing with fire rated board we follow the instruction according to the certificate held my the
factory, according to UNE-EN 13501 1:07 Standards - ‘Classification of performance against fire of
construction products and building elements’.
ENVIRONMENT

13. We use FSC / PEFC certified substrate
and veneers when required.
FSC / PEFC ensures a credible link
between responsible production and
consumption of forest products, and
can help make an informed choice
about the products managed in an
environmentally appropriate, socially
beneficial and economically viable.
The
production facility is implementing a
chain of custody management system
in accordance with the requirements of
the FSC-STD-40-004.
Assembly
Zaragoza, Spain
TAVINEL - Natural Cherry

14. Auditorium IFA
Elche, Alicante, SPAIN
TAVINEL - Natural Oak
Acoustic Wood Solutions
