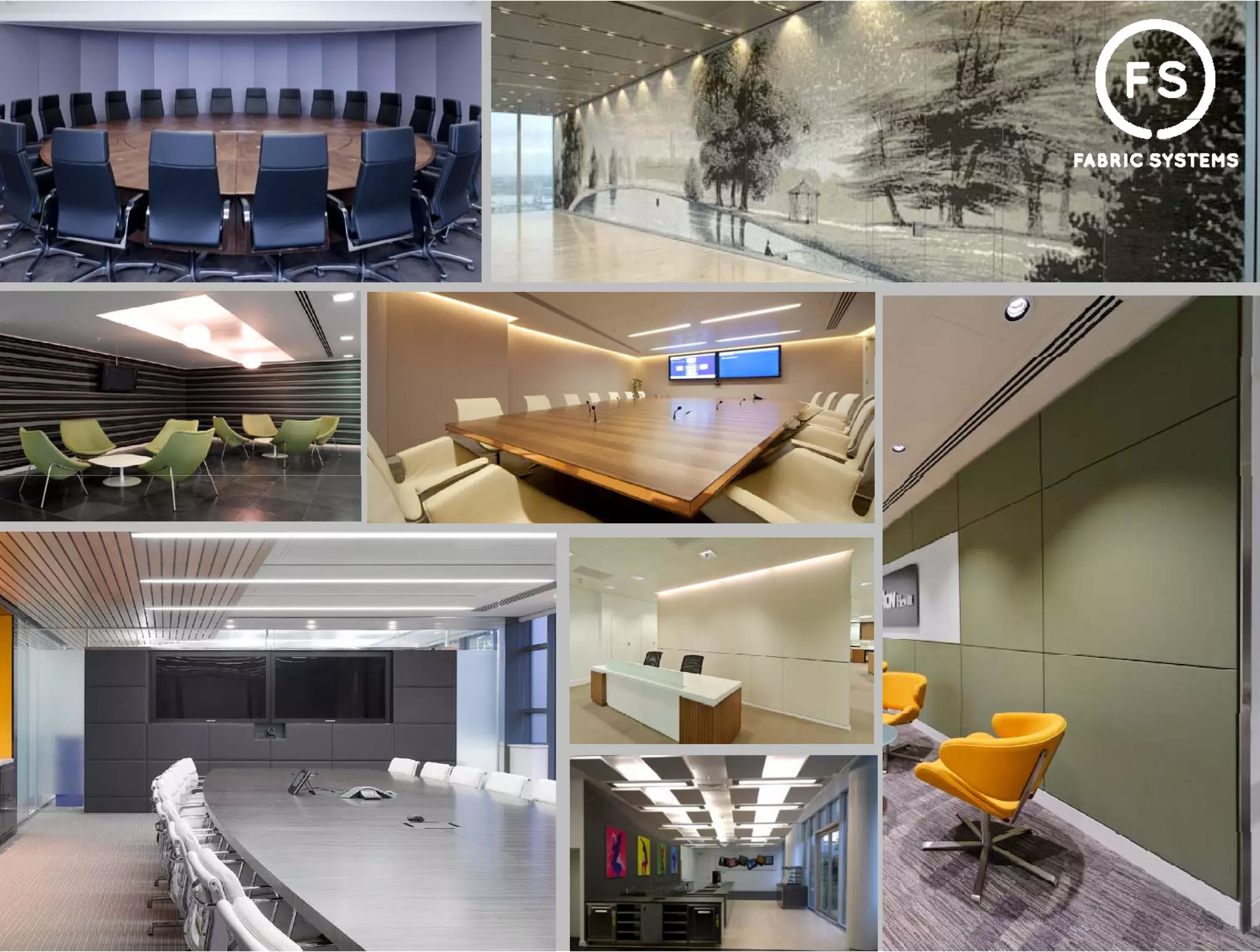

Fabric Systems
- 1.

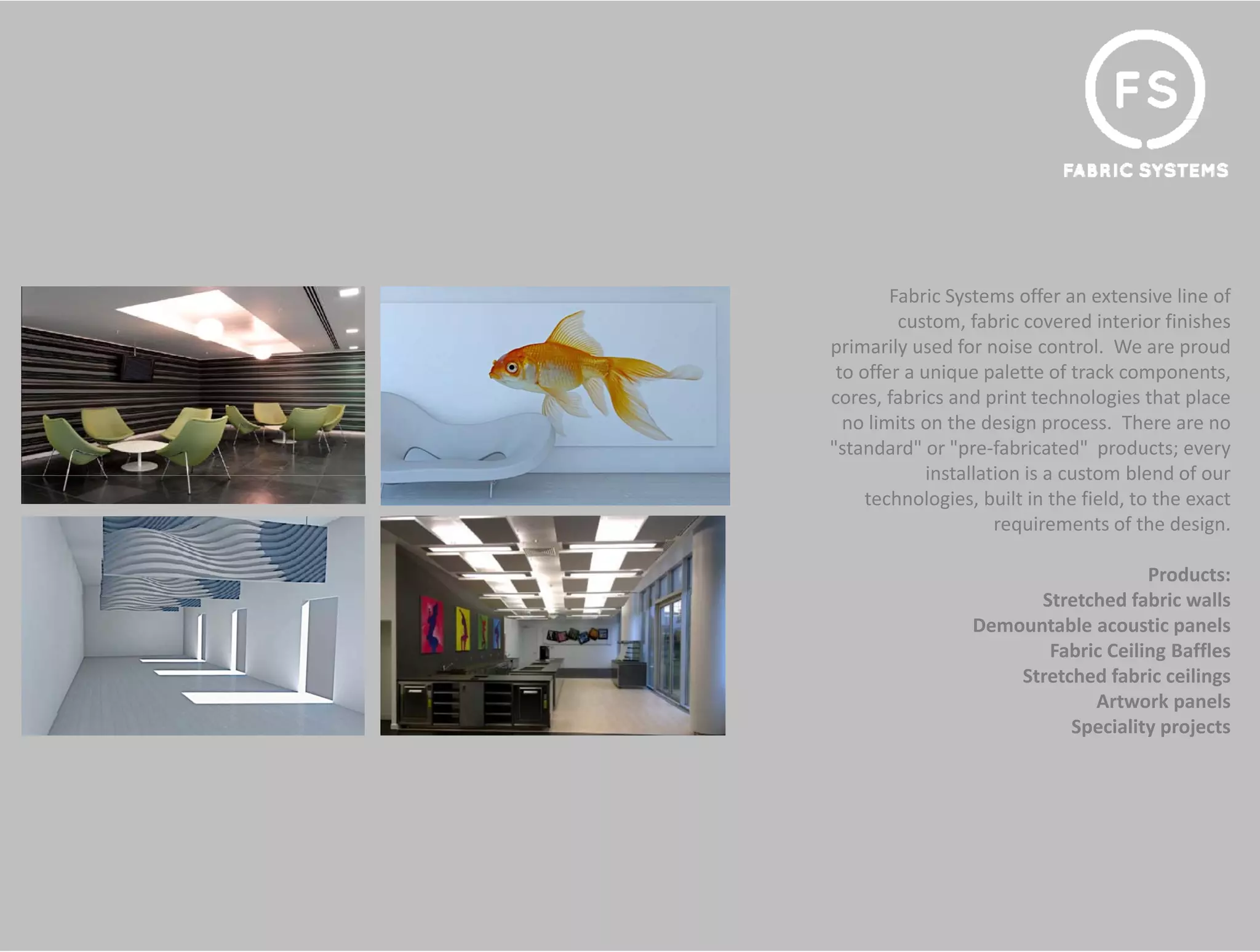

- 4. Fabric Systems offer an extensive line of custom, fabric covered interior finishes primarily used for noise control. We are proud to offer a unique palette of track components, cores, fabrics and print technologies that place no limits on the design process. There are no "standard" or "pre‐fabricated" products; every installation is a custom blend of our installation is a custom blend of our technologies, built in the field, to the exact requirements of the design. Products: Stretched fabric walls St t h d f b i ll Demountable acoustic panels Fabric Ceiling Baffles Stretched fabric ceilings Artwork panels Speciality projects

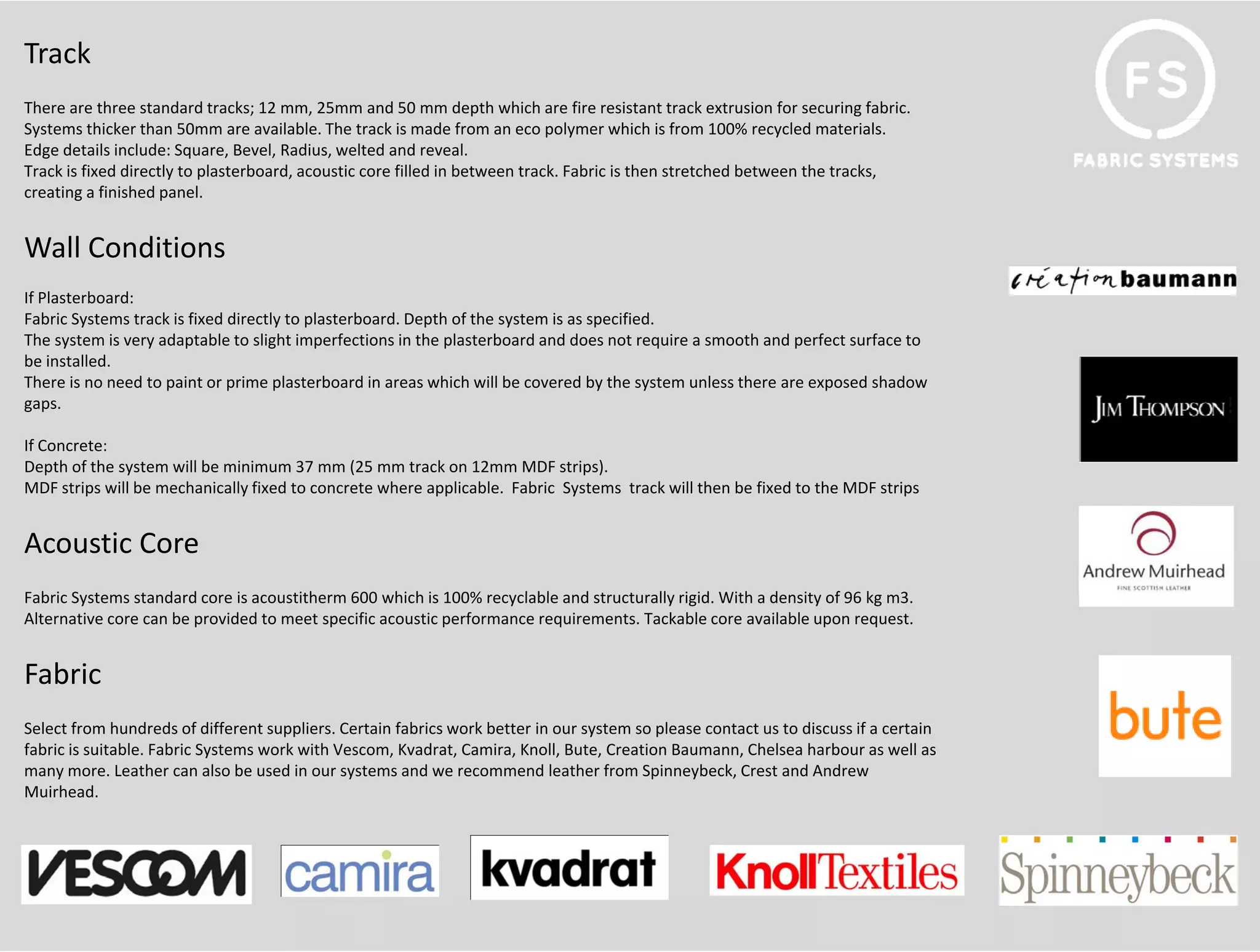

- 5. Track There are three standard tracks; 12 mm, 25mm and 50 mm depth which are fire resistant track extrusion for securing fabric. Systems thicker than 50mm are available. The track is made from an eco polymer which is from 100% recycled materials. Edge details include: Square, Bevel, Radius, welted and reveal. Track is fixed directly to plasterboard, acoustic core filled in between track. Fabric is then stretched between the tracks, creating a finished panel. Wall Conditions W ll Cdi i If Plasterboard: Fabric Systems track is fixed directly to plasterboard. Depth of the system is as specified. The system is very adaptable to slight imperfections in the plasterboard and does not require a smooth and perfect surface to be installed. b i t ll d There is no need to paint or prime plasterboard in areas which will be covered by the system unless there are exposed shadow gaps. If Concrete: Depth of the system will be minimum 37 mm (25 mm track on 12mm MDF strips). MDF strips will be mechanically fixed to concrete where applicable. Fabric Systems track will then be fixed to the MDF strips Acoustic Core Fabric Systems standard core is acoustitherm 600 which is 100% recyclable and structurally rigid. With a density of 96 kg m3. Fabric S stems standard core is aco stitherm 600 hich is 100% rec clable and str ct rall ri id With a densit of 96 k m3 Alternative core can be provided to meet specific acoustic performance requirements. Tackable core available upon request. Fabric Select from hundreds of different suppliers. Certain fabrics work better in our system so please contact us to discuss if a certain fabric is suitable. Fabric Systems work with Vescom, Kvadrat, Camira, Knoll, Bute, Creation Baumann, Chelsea harbour as well as many more. Leather can also be used in our systems and we recommend leather from Spinneybeck, Crest and Andrew Muirhead.
- 6. Acoustic Performance Acoustical Performance – 12mm system Sound absorption was tested in accordance with ASTM C423 using a Type A mounting per ASTM E 795 p g yp gp Product ABSORPTION COEFFICIENTS @ OCTAVE BAND FREQUENCIES (Hz) Thickness 125 250 500 1000 2000 4000 NRC 12mm 0.08 0.17 0.41 0.70 0.91 1.01 0.55 Acoustical Performance – 25mm system Sound absorption was tested in accordance with ASTM C423 using a Type A mounting per ASTM E 795 Product ABSORPTION COEFFICIENTS @ OCTAVE BAND FREQUENCIES (Hz) Thickness Thi k 125 250 500 1000 2000 4000 NRC 25mm 0.03 0.32 0.80 1.04 1.05 1.05 0.80 Acoustical Performance – 50mm system Sound absorption was tested in accordance with ASTM C423 using a Type A mounting per ASTM E 795 Product ABSORPTION COEFFICIENTS @ OCTAVE BAND FREQUENCIES (Hz) Thickness 125 250 500 1000 2000 4000 NRC 50mm 0.29 0.82 1.02 1.00 1.03 1.06 0.95

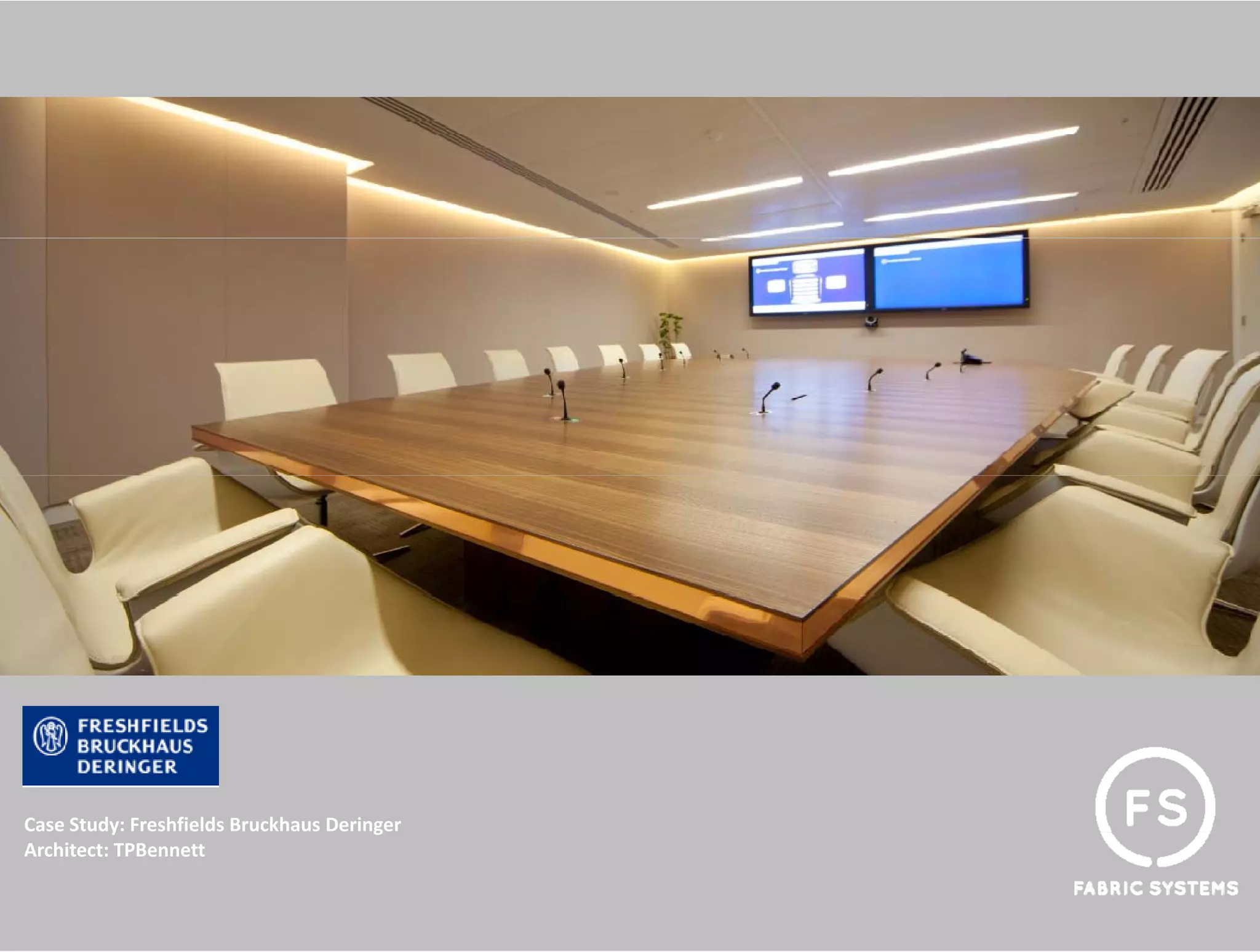

- 7. Case Study: Freshfields Bruckhaus Deringer y g Architect: TPBennett

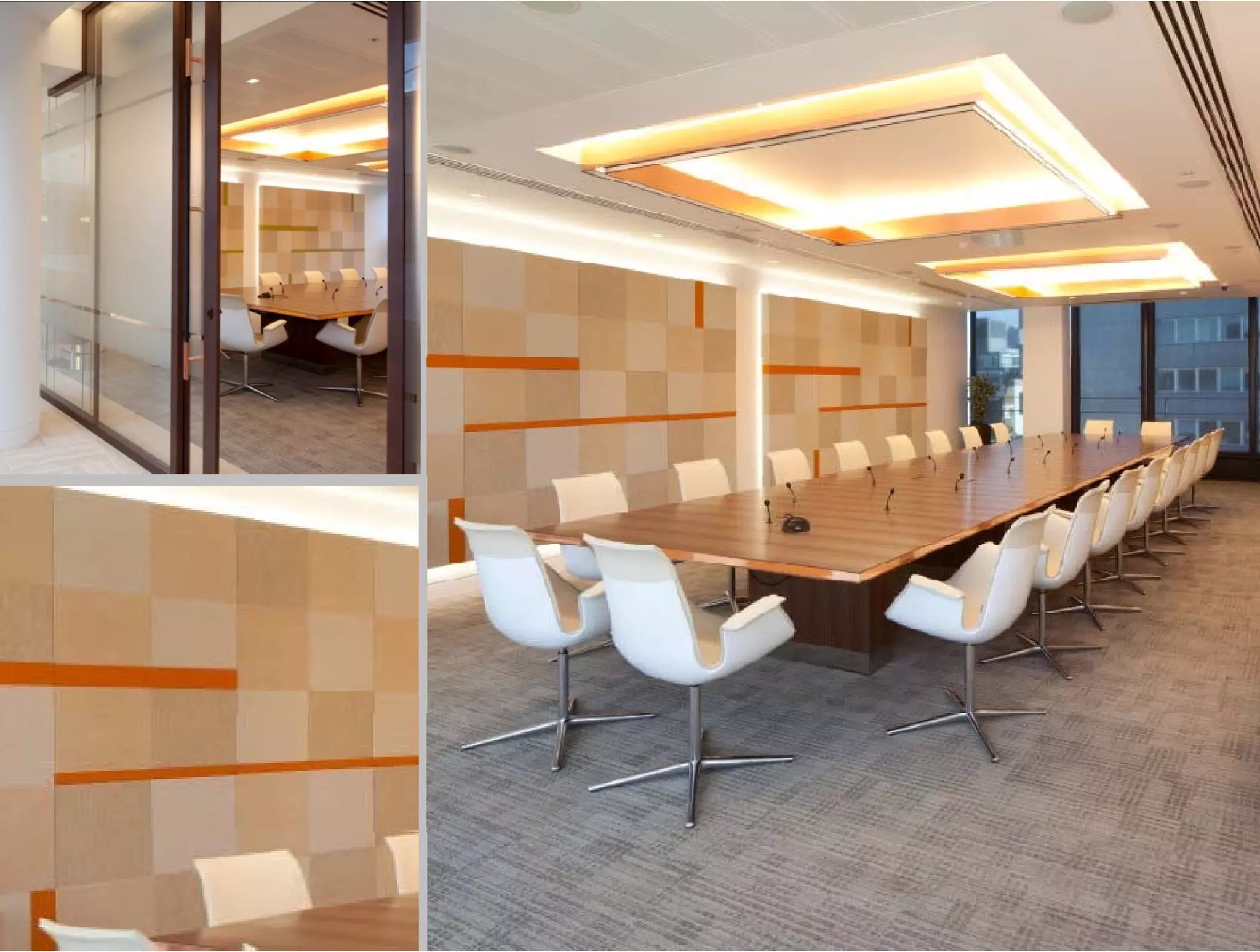

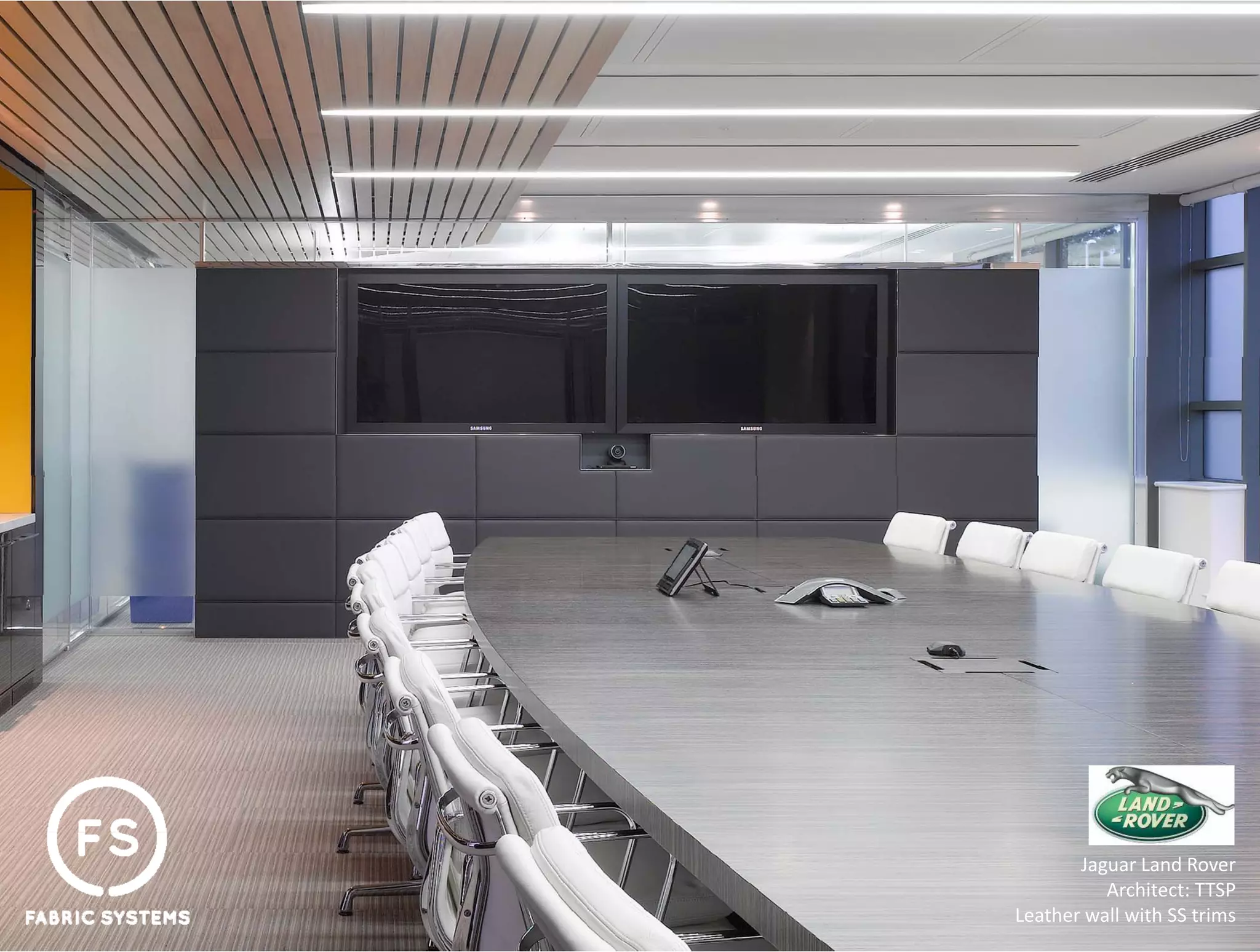

- 9. Jaguar Land Rover Architect: TTSP Leather wall with SS trims

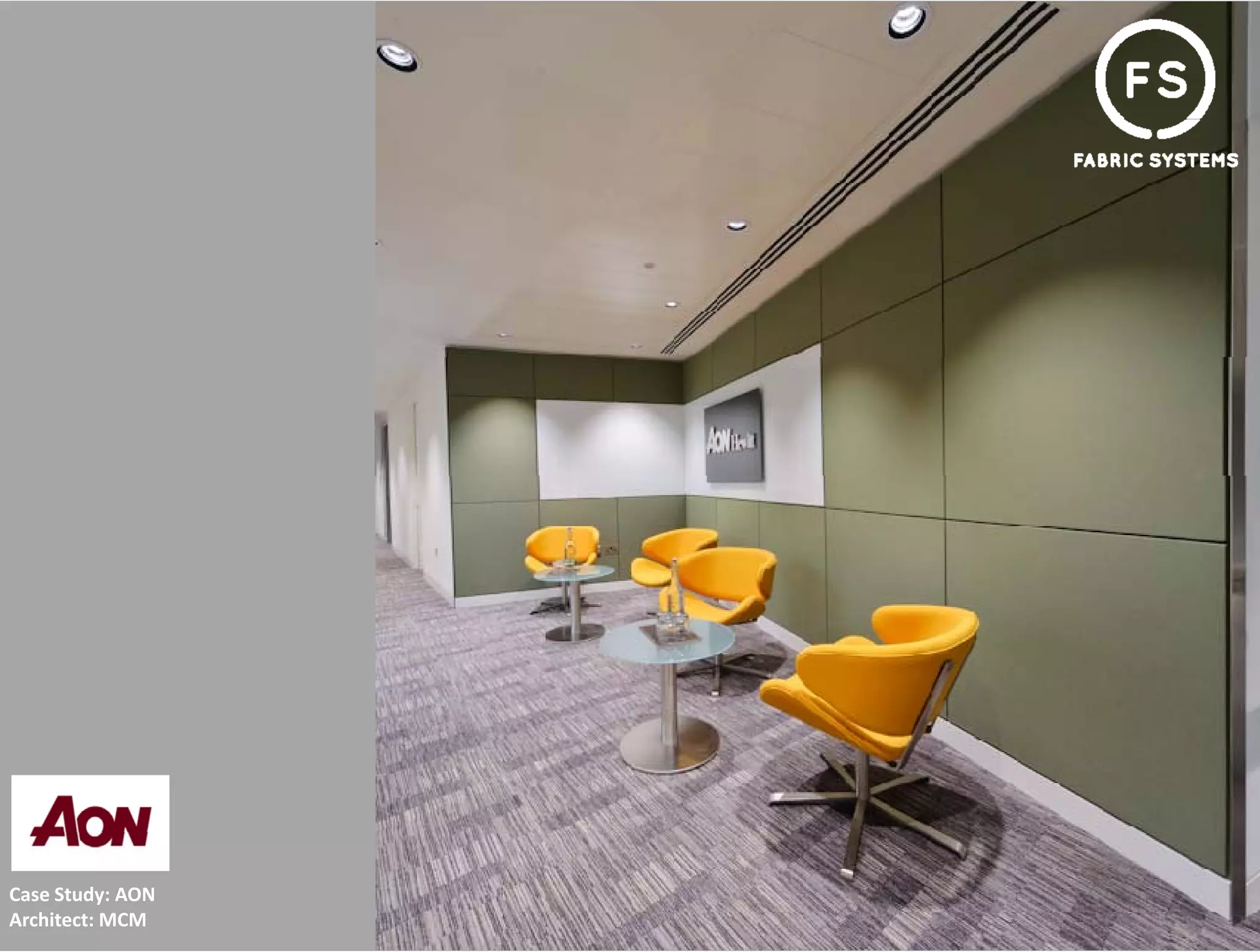

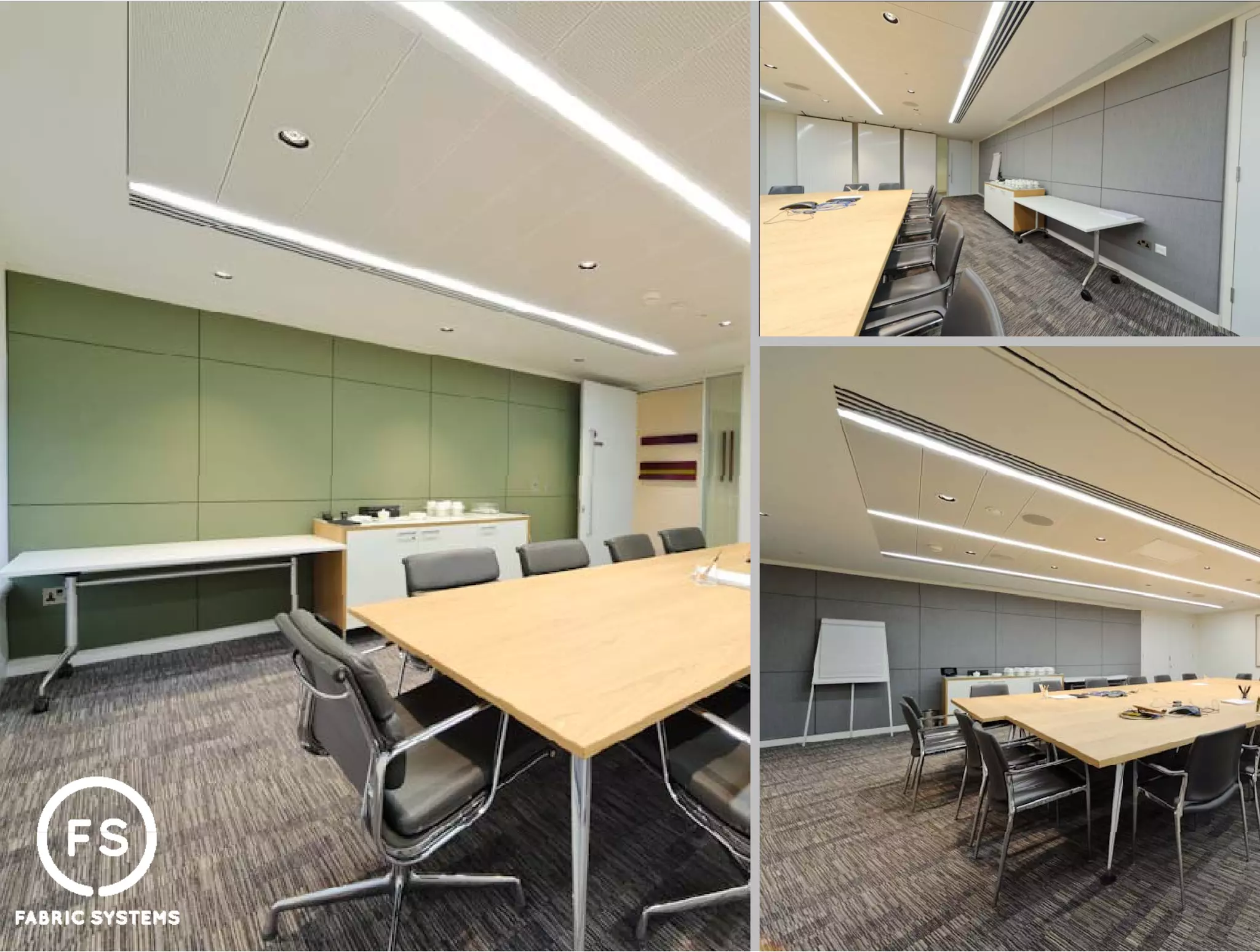

- 10.

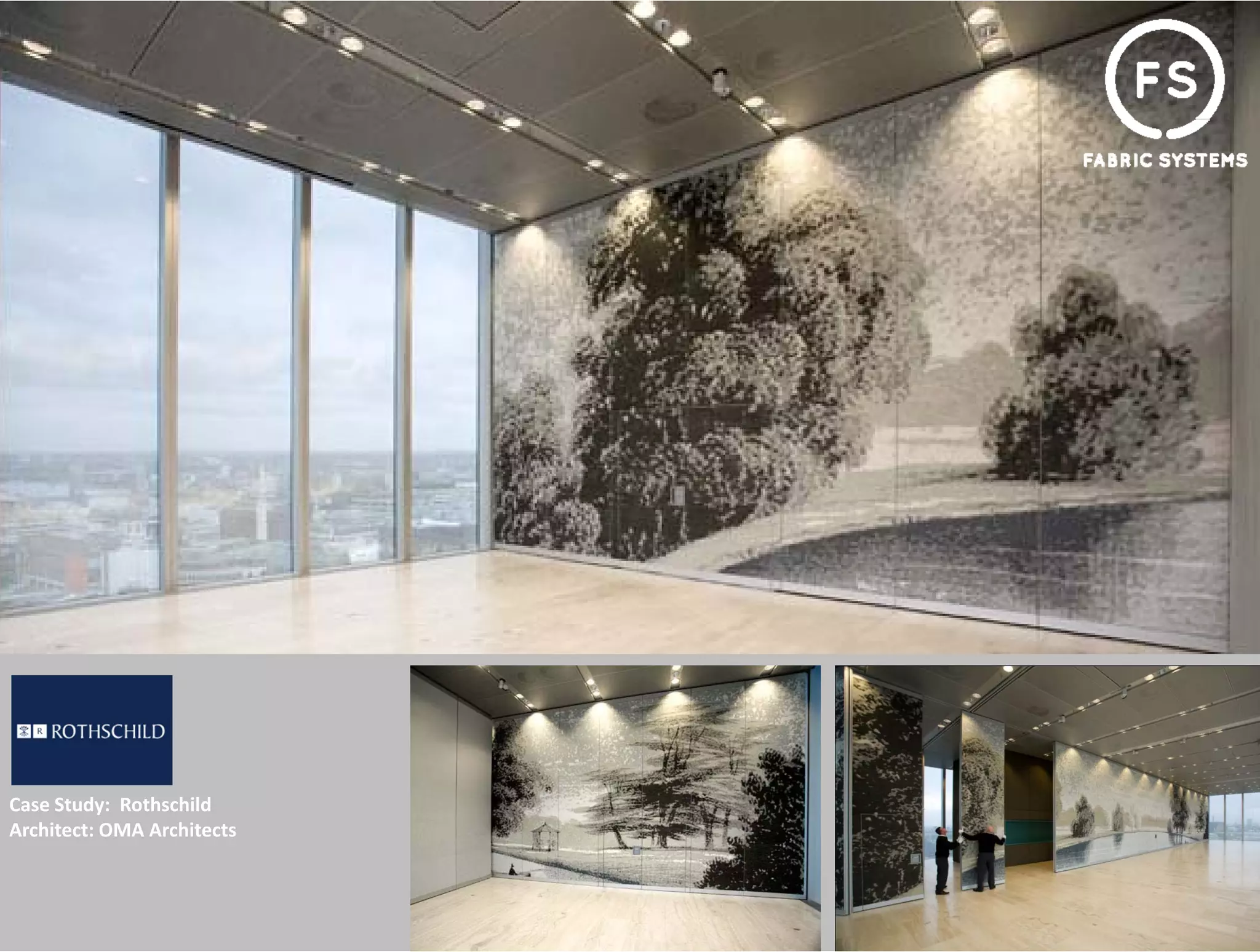

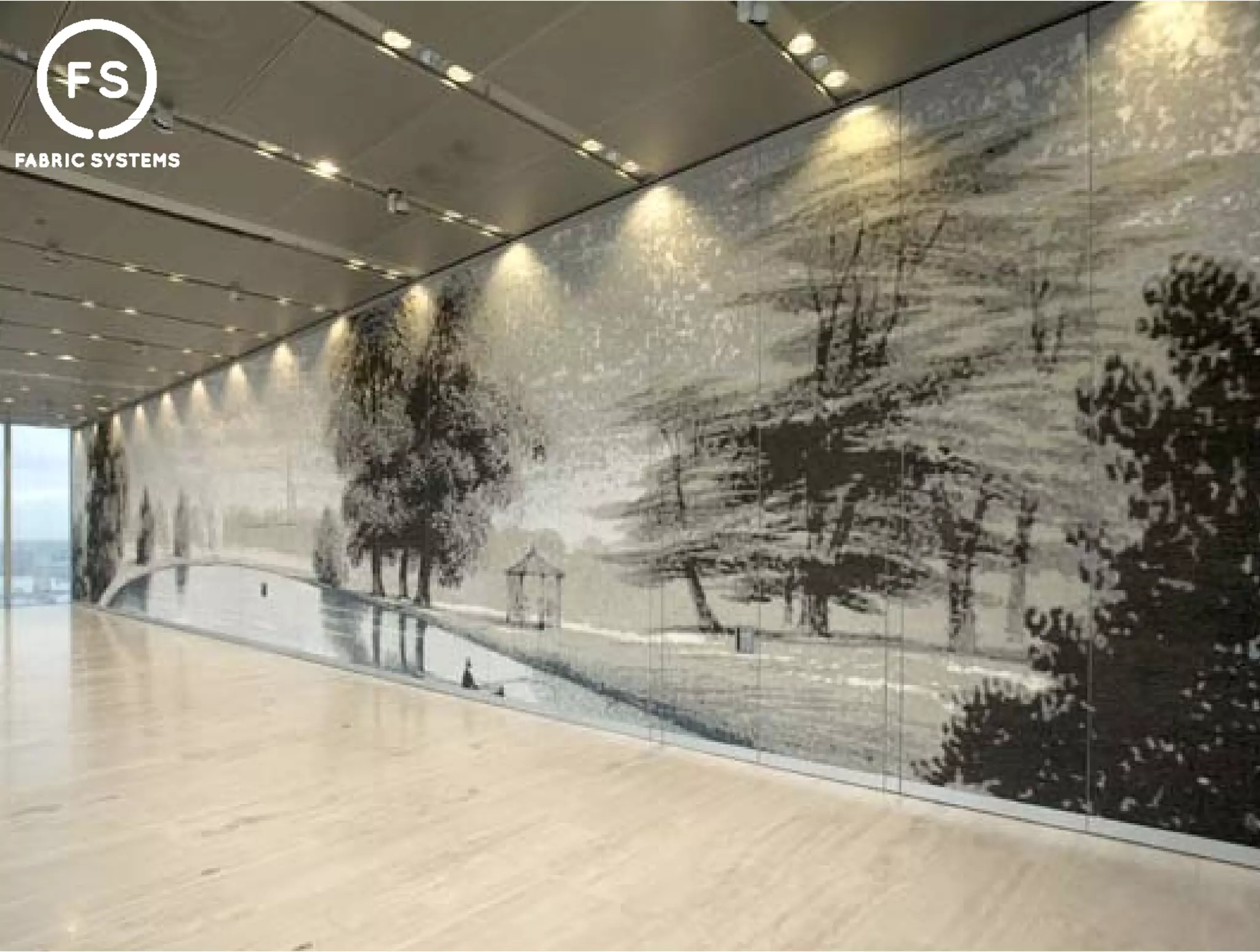

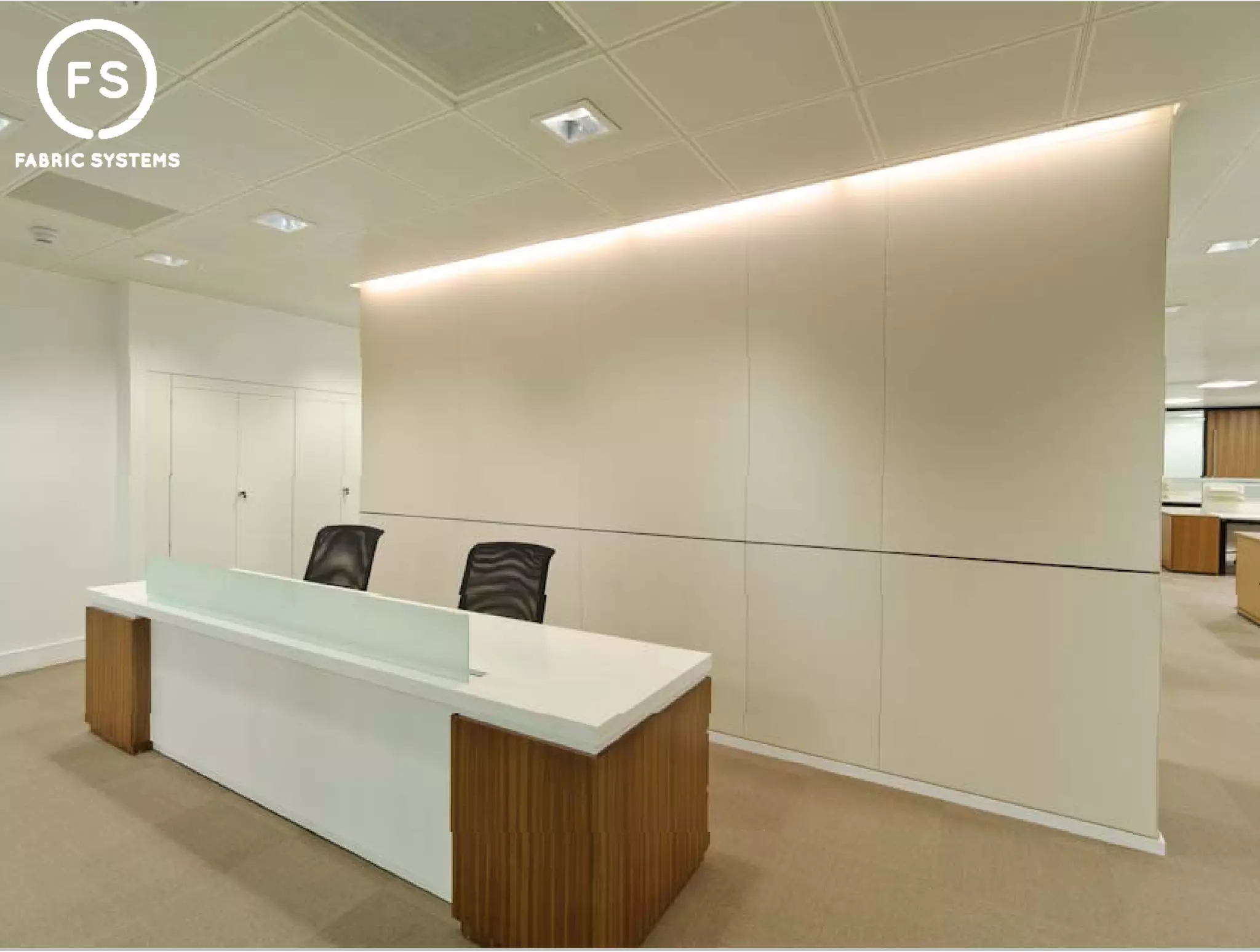

- 12.

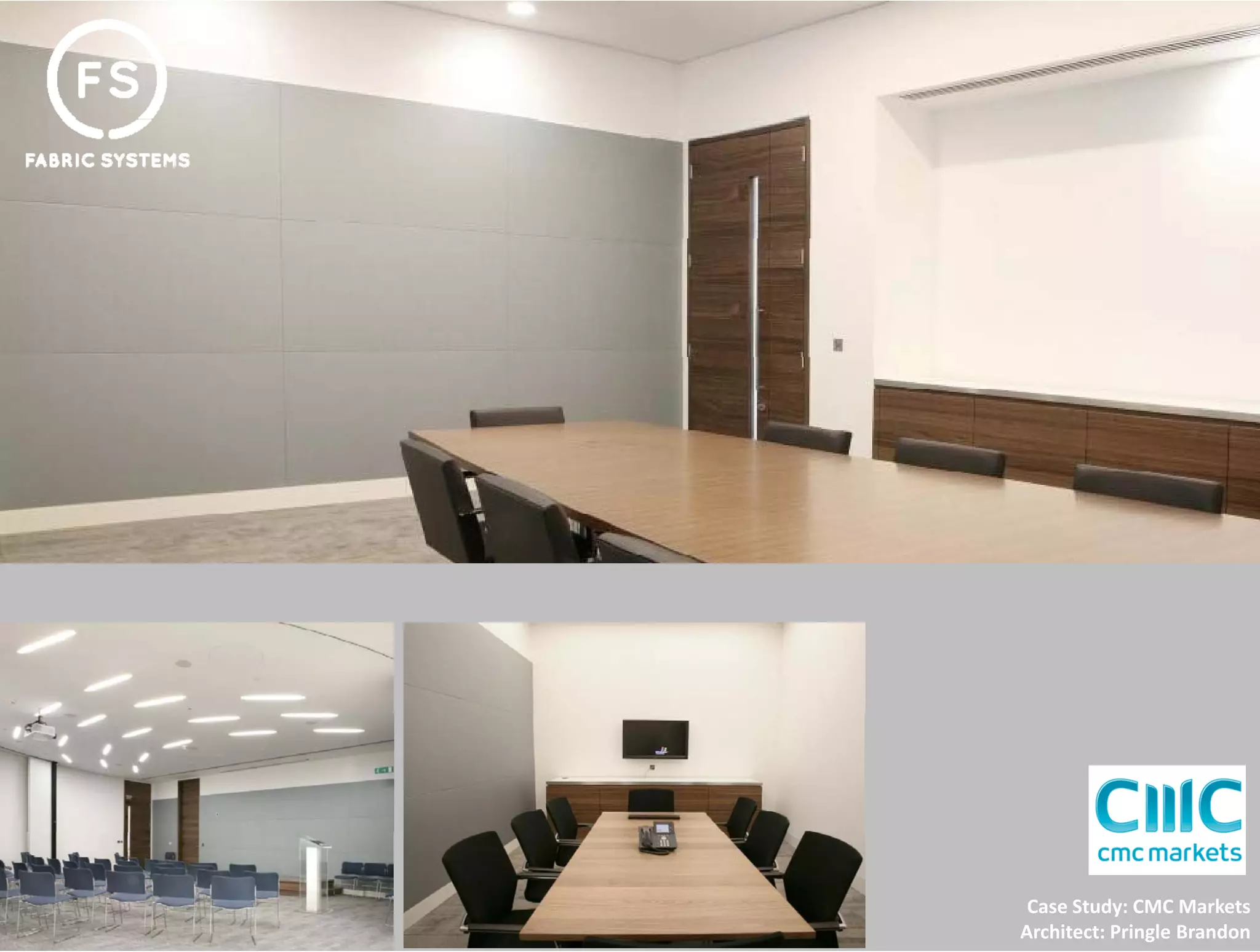

- 14.

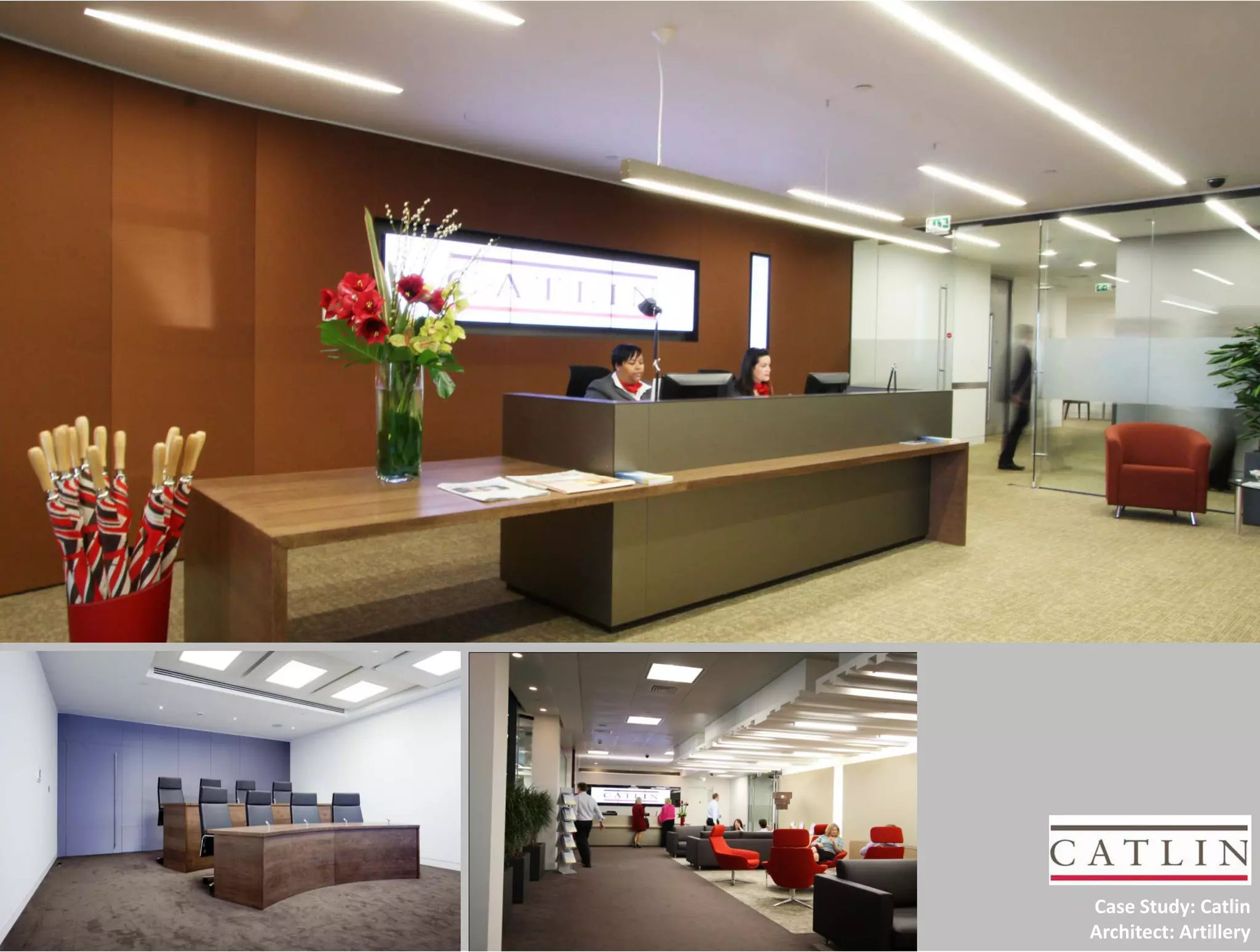

- 15.

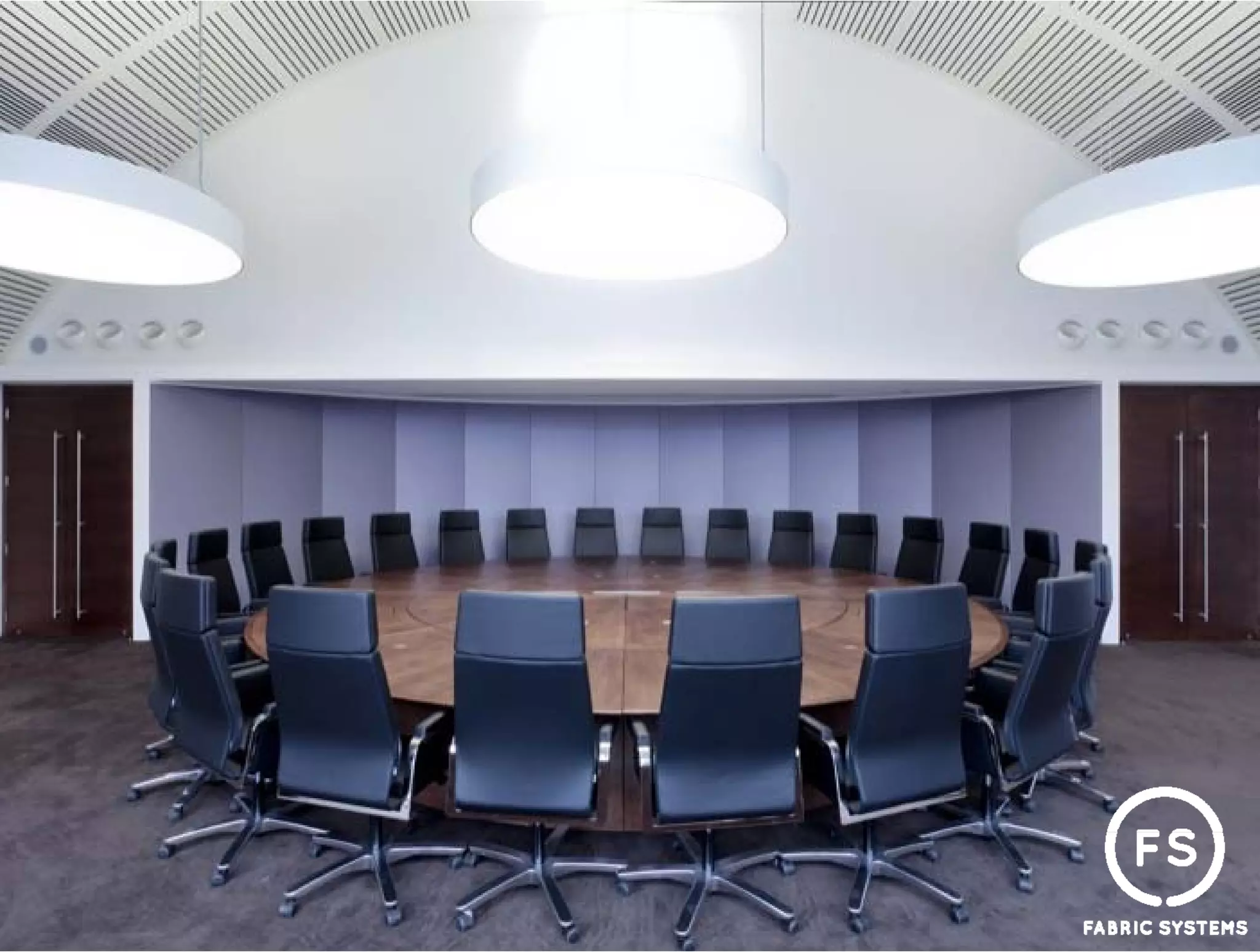

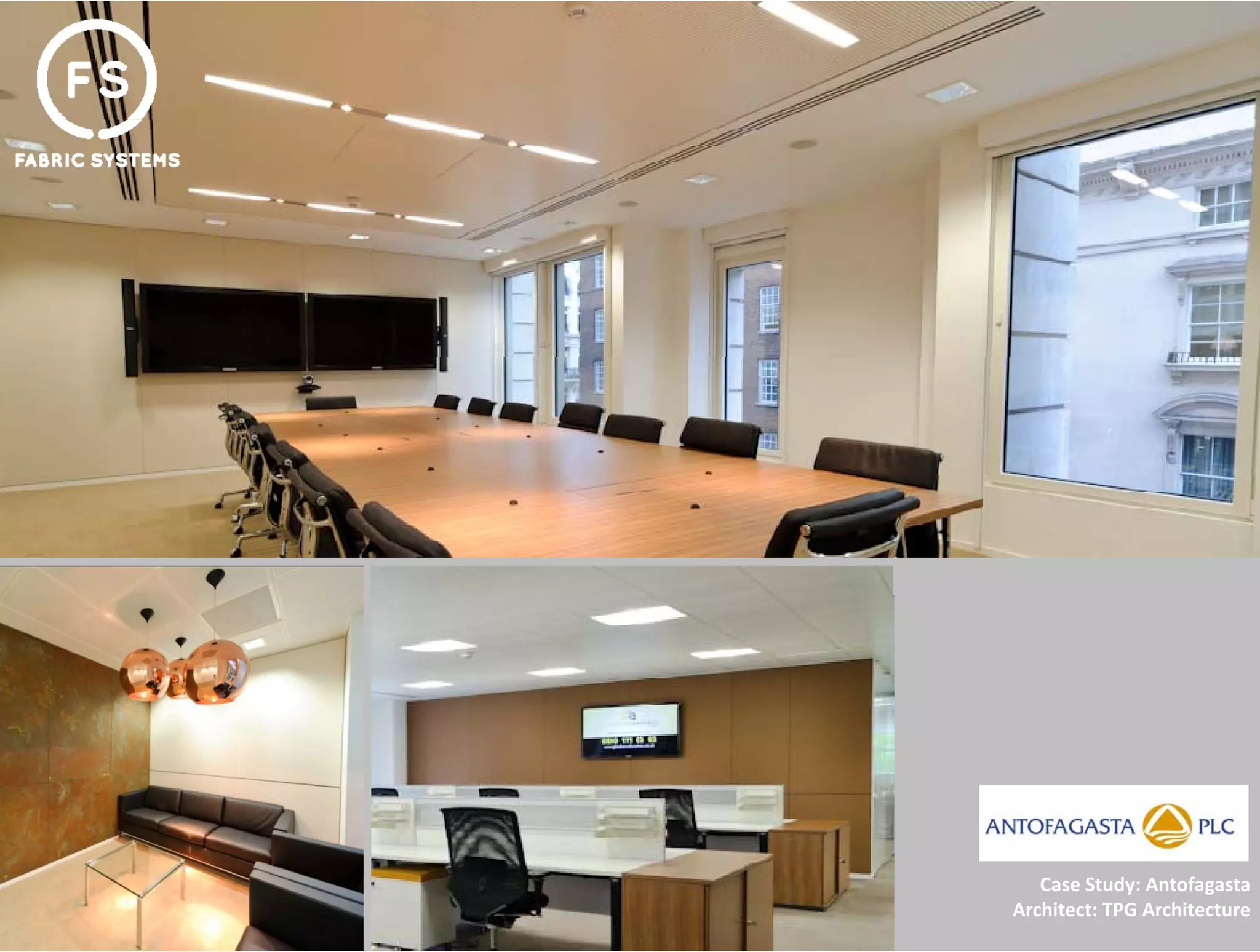

- 17.
- 19. Contact Details Fabric Systems Ltd 25 Worship Street London EC2A 2DX Tel: 020 7374 2292 Email: sales@fabric‐systems.com Web: www.fabric‐systems.com
