Fabric Systems Updated Case Studies
- 1.

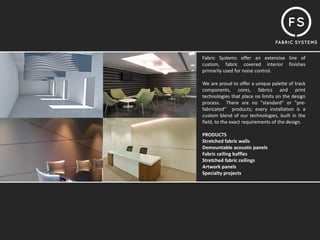

- 2. Fabric Systems offeran extensive line of custom, fabric covered interior finishes primarily used for noise control. We are proud to offer a unique palette of track components, cores, fabrics and print technologies that place no limits on the design process. There are no "standard" or "pre‐ fabricated" products; every installation is a custom blend of our technologies, built in the field, to the exact requirements of the design. PRODUCTS Stretched fabric walls Demountable acoustic panels Fabric ceiling baffles Stretched fabric ceilings Artwork panels Specialty projects
- 3. | LEGAL | BANKING | OIL & GAS | CONSULTING | TECHNOLOGY S A M P L E C L I E N T L I S T
- 4. | MEDIA & | MINING |AUTOMOTIVE | INSURANCE | CONSUMER INFORMATION & AEROSPACE & TOBACCO S A M P L E C L I E N T L I S T
- 5.

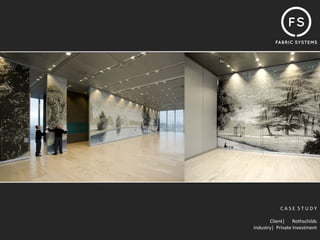

- 7. C A S E S T U D Y Client| Rothschilds Industry| Private Investment

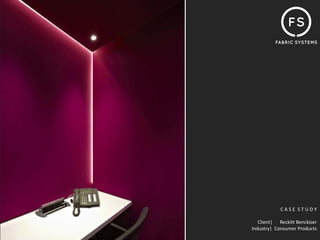

- 8. C A S E S T U D Y Client| Reckitt Benckiser Industry| Consumer Products

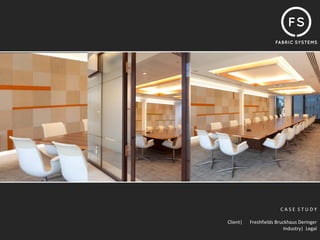

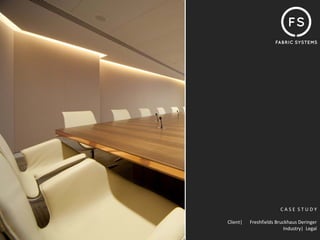

- 9. C A S E S T U D Y Client| Freshfields Bruckhaus Deringer Industry| Legal
- 10. C A S E S T U D Y Client| Freshfields Bruckhaus Deringer Industry| Legal

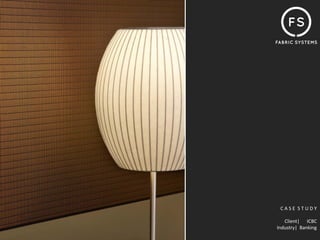

- 11. C A S E S T U D Y Client| ICBC Industry| Banking

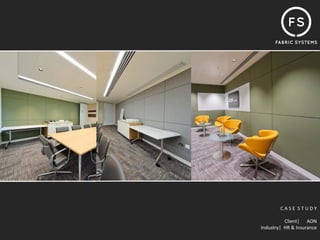

- 12. C A S E S T U D Y Client| AON Industry| HR & Insurance
- 13.
- 14. C A S E S T U D Y Client| Catlin Industry| Insurance
- 16. C A S E S T U D Y Client| Thomas Miller Industry| Insurance
- 17.
- 18.
- 19.
- 20.

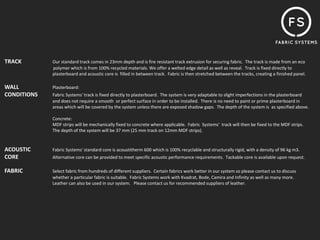

- 21. TRACK Our standard track comes in 23mm depth and is fire resistant track extrusion for securing fabric. The track is made from an eco polymer which is from 100% recycled materials. We offer a welted edge detail as well as reveal. Track is fixed directly to plasterboard and acoustic core is filled in between track. Fabric is then stretched between the tracks, creating a finished panel. WALL Plasterboard: CONDITIONS Fabric Systems' track is fixed directly to plasterboard. The system is very adaptable to slight imperfections in the plasterboard and does not require a smooth or perfect surface in order to be installed. There is no need to paint or prime plasterboard in areas which will be covered by the system unless there are exposed shadow gaps. The depth of the system is as specified above. Concrete: MDF strips will be mechanically fixed to concrete where applicable. Fabric Systems' track will then be fixed to the MDF strips. The depth of the system will be 37 mm (25 mm track on 12mm MDF strips). ACOUSTIC Fabric Systems' standard core is acoustitherm 600 which is 100% recyclable and structurally rigid, with a density of 96 kg m3. CORE Alternative core can be provided to meet specific acoustic performance requirements. Tackable core is available upon request. FABRIC Select fabric from hundreds of different suppliers. Certain fabrics work better in our system so please contact us to discuss whether a particular fabric is suitable. Fabric Systems work with Kvadrat, Bode, Camira and Infinity as well as many more. Leather can also be used in our system. Please contact us for recommended suppliers of leather.

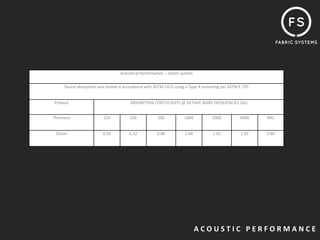

- 22. Acoustical Performance – 25mm system Sound absorption was tested in accordance with ASTM C423 using a Type A mounting per ASTM E 795 Product ABSORPTION COEFFICIENTS @ OCTAVE BAND FREQUENCIES (Hz) Thickness 125 250 500 1000 2000 4000 NRC 25mm 0.03 0.32 0.80 1.04 1.05 1.05 0.80 A C O U S T I C P E R F O R M A N C E

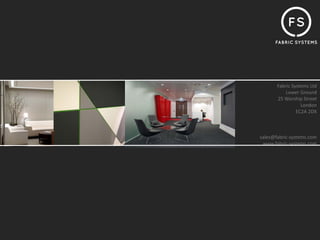

- 23. Fabric Systems Ltd Lower Ground 25 Worship Street London EC2A 2DX sales@fabric‐systems.com www.fabric‐systems.com
