THIRD GENERATION PV: TANDEM JUNCTION
•
Download as PPTX, PDF
•
2 likes
•
552 views
C
Cooper Lackay
Follow
Discussing the third generation of PV: Tandem Junction
Read less
Read more
Science
Report
Share
Report
Share
1 of 25
Download now
Recommended
final thesis submission presentation
final thesis submission presentation
Vikas 8126266867
seminar report on solar cell
seminar report on solar cell
ASHOK KHOJA
MPPT Based Optimal Charge Controller in PV system
MPPT Based Optimal Charge Controller in PV system
Malik Sameeullah
PV Technologies: Poly Crystalline and Mono Crystalline Solar Cells Production...
PV Technologies: Poly Crystalline and Mono Crystalline Solar Cells Production...
Zorays Solar Pakistan
A solar cell
A solar cell
Pritam Rath
Solar cells
Solar cells
sivakarthik51
physics of solar cell
physics of solar cell
IPRI,Innovation Campus,University of Wollongong,
Dc-Dc boost converter topologies & MPPT techniques for grid connected PV system
Dc-Dc boost converter topologies & MPPT techniques for grid connected PV system
rameshwar meena
Recommended
final thesis submission presentation
final thesis submission presentation
Vikas 8126266867
seminar report on solar cell
seminar report on solar cell
ASHOK KHOJA
MPPT Based Optimal Charge Controller in PV system
MPPT Based Optimal Charge Controller in PV system
Malik Sameeullah
PV Technologies: Poly Crystalline and Mono Crystalline Solar Cells Production...
PV Technologies: Poly Crystalline and Mono Crystalline Solar Cells Production...
Zorays Solar Pakistan
A solar cell
A solar cell
Pritam Rath
Solar cells
Solar cells
sivakarthik51
physics of solar cell
physics of solar cell
IPRI,Innovation Campus,University of Wollongong,
Dc-Dc boost converter topologies & MPPT techniques for grid connected PV system
Dc-Dc boost converter topologies & MPPT techniques for grid connected PV system
rameshwar meena
Solar cell
Solar cell
vishal gupta
Ultracapacitors or Supercapacitors
Ultracapacitors or Supercapacitors
VikAs DeshmuKh
Commutators
Commutators
karthi1017
Reference frame theory
Reference frame theory
Ramesh Babu
Generator sinkron
Generator sinkron
beninass
Solar cell Modeling with Scaps 1-D
Solar cell Modeling with Scaps 1-D
shubham mishra
Impacts of Distributed Generation on Power Quality
Impacts of Distributed Generation on Power Quality
Parth Patel
Hybrid supercapacitor
Hybrid supercapacitor
Dr. M. Ahila
FAULT ANALYSIS USING PSCAD/EMTDC for 150 kV SOUTH SULAWESI TRANSMISSION SYSTEM
FAULT ANALYSIS USING PSCAD/EMTDC for 150 kV SOUTH SULAWESI TRANSMISSION SYSTEM
Politeknik Negeri Ujung Pandang
Space vector pwm_inverter
Space vector pwm_inverter
ZunAib Ali
Effect of Shading on Photovoltaic Cell
Effect of Shading on Photovoltaic Cell
IOSR Journals
ELECTRODYANAMIC TETHER
ELECTRODYANAMIC TETHER
Vandana Krishna
solar cell
solar cell
Sudhanshu Jha
motors_and_generators.ppt
motors_and_generators.ppt
RaeSteven
Piezo Electric Based Harvesting
Piezo Electric Based Harvesting
Sugato Hajra
ELB044 Lecture 18. Introduction to Induction Machines
ELB044 Lecture 18. Introduction to Induction Machines
Francisco Gonzalez-Longatt
Solar cell technology_kartheek rp
Solar cell technology_kartheek rp
Kartheek RP
Vsc based hvdc transmission
Vsc based hvdc transmission
jawaharramaya
Solar cell
Solar cell
Arafat Jamil
An Introduction to super capacitors by M.Aadil.
An Introduction to super capacitors by M.Aadil.
Lecturer Chemistry at Govt. Degree College Makhdoom Aali
Tic que es el banda ancha
Tic que es el banda ancha
carmentecsi
Bachelor2014
Bachelor2014
Ida Marie Halvorsen
More Related Content
What's hot
Solar cell
Solar cell
vishal gupta
Ultracapacitors or Supercapacitors
Ultracapacitors or Supercapacitors
VikAs DeshmuKh
Commutators
Commutators
karthi1017
Reference frame theory
Reference frame theory
Ramesh Babu
Generator sinkron
Generator sinkron
beninass
Solar cell Modeling with Scaps 1-D
Solar cell Modeling with Scaps 1-D
shubham mishra
Impacts of Distributed Generation on Power Quality
Impacts of Distributed Generation on Power Quality
Parth Patel
Hybrid supercapacitor
Hybrid supercapacitor
Dr. M. Ahila
FAULT ANALYSIS USING PSCAD/EMTDC for 150 kV SOUTH SULAWESI TRANSMISSION SYSTEM
FAULT ANALYSIS USING PSCAD/EMTDC for 150 kV SOUTH SULAWESI TRANSMISSION SYSTEM
Politeknik Negeri Ujung Pandang
Space vector pwm_inverter
Space vector pwm_inverter
ZunAib Ali
Effect of Shading on Photovoltaic Cell
Effect of Shading on Photovoltaic Cell
IOSR Journals
ELECTRODYANAMIC TETHER
ELECTRODYANAMIC TETHER
Vandana Krishna
solar cell
solar cell
Sudhanshu Jha
motors_and_generators.ppt
motors_and_generators.ppt
RaeSteven
Piezo Electric Based Harvesting
Piezo Electric Based Harvesting
Sugato Hajra
ELB044 Lecture 18. Introduction to Induction Machines
ELB044 Lecture 18. Introduction to Induction Machines
Francisco Gonzalez-Longatt
Solar cell technology_kartheek rp
Solar cell technology_kartheek rp
Kartheek RP
Vsc based hvdc transmission
Vsc based hvdc transmission
jawaharramaya
Solar cell
Solar cell
Arafat Jamil
An Introduction to super capacitors by M.Aadil.
An Introduction to super capacitors by M.Aadil.
Lecturer Chemistry at Govt. Degree College Makhdoom Aali
What's hot
(20)
Solar cell
Solar cell
Ultracapacitors or Supercapacitors
Ultracapacitors or Supercapacitors
Commutators
Commutators
Reference frame theory
Reference frame theory
Generator sinkron
Generator sinkron
Solar cell Modeling with Scaps 1-D
Solar cell Modeling with Scaps 1-D
Impacts of Distributed Generation on Power Quality
Impacts of Distributed Generation on Power Quality
Hybrid supercapacitor
Hybrid supercapacitor
FAULT ANALYSIS USING PSCAD/EMTDC for 150 kV SOUTH SULAWESI TRANSMISSION SYSTEM
FAULT ANALYSIS USING PSCAD/EMTDC for 150 kV SOUTH SULAWESI TRANSMISSION SYSTEM
Space vector pwm_inverter
Space vector pwm_inverter
Effect of Shading on Photovoltaic Cell
Effect of Shading on Photovoltaic Cell
ELECTRODYANAMIC TETHER
ELECTRODYANAMIC TETHER
solar cell
solar cell
motors_and_generators.ppt
motors_and_generators.ppt
Piezo Electric Based Harvesting
Piezo Electric Based Harvesting
ELB044 Lecture 18. Introduction to Induction Machines
ELB044 Lecture 18. Introduction to Induction Machines
Solar cell technology_kartheek rp
Solar cell technology_kartheek rp
Vsc based hvdc transmission
Vsc based hvdc transmission
Solar cell
Solar cell
An Introduction to super capacitors by M.Aadil.
An Introduction to super capacitors by M.Aadil.
Viewers also liked
Tic que es el banda ancha
Tic que es el banda ancha
carmentecsi
Bachelor2014
Bachelor2014
Ida Marie Halvorsen
Presentación
Presentación
Ycd Daza
Financial Planning Process
Financial Planning Process
nitinsawant-nswealth
Chaitanya-TFS-Resume
Chaitanya-TFS-Resume
Chaitanya B
Presentationzen cua cam thi thanh le
Presentationzen cua cam thi thanh le
nguyenthaihonglam
Захист
Захист
Іруся Бурлачук
Ppt manusia sebagai khalifah
Ppt manusia sebagai khalifah
wiki_tuwi23
JECatt - JUNIOR ENTERPRISE CATTOLICA.
JECatt - JUNIOR ENTERPRISE CATTOLICA.
Chiara Novello
Cpdch 7 design solutions
Cpdch 7 design solutions
RONAK SUTARIYA
VinodKulkarni_Resume
VinodKulkarni_Resume
vinod kulkarni
Proyecto de informatica
Proyecto de informatica
wilferguevara2001
Fiber optics 1-5
Fiber optics 1-5
grantlerc
Pm0017 project quality management
Pm0017 project quality management
consult4solutions
Bab 4
Bab 4
chusnulkusuma22
Viewers also liked
(15)
Tic que es el banda ancha
Tic que es el banda ancha
Bachelor2014
Bachelor2014
Presentación
Presentación
Financial Planning Process
Financial Planning Process
Chaitanya-TFS-Resume
Chaitanya-TFS-Resume
Presentationzen cua cam thi thanh le
Presentationzen cua cam thi thanh le
Захист
Захист
Ppt manusia sebagai khalifah
Ppt manusia sebagai khalifah
JECatt - JUNIOR ENTERPRISE CATTOLICA.
JECatt - JUNIOR ENTERPRISE CATTOLICA.
Cpdch 7 design solutions
Cpdch 7 design solutions
VinodKulkarni_Resume
VinodKulkarni_Resume
Proyecto de informatica
Proyecto de informatica
Fiber optics 1-5
Fiber optics 1-5
Pm0017 project quality management
Pm0017 project quality management
Bab 4
Bab 4
Similar to THIRD GENERATION PV: TANDEM JUNCTION
FINAL Understanding the Role of Charge Mobility and Recombination
FINAL Understanding the Role of Charge Mobility and Recombination
David Lam
solar technology
solar technology
Khalandarmangalore
1 (1)
1 (1)
mamillavenki
Organic solar cells the exciting interplay of excitons and nano-morphology
Organic solar cells the exciting interplay of excitons and nano-morphology
vvgk-thalluri
“SIMULATION ON OPTIMISATION OF POWER QUALITY USING HYBRID POWER SYSTEM”
“SIMULATION ON OPTIMISATION OF POWER QUALITY USING HYBRID POWER SYSTEM”
IRJET Journal
green environment
green environment
susanta das
Final
Final
Jennifer Cook
Boosting Photocatalytic Activity Using Carbon Nitride Based 2D/2D van der Waa...
Boosting Photocatalytic Activity Using Carbon Nitride Based 2D/2D van der Waa...
Pawan Kumar
Homeowners Adding Grid Soila Photvoltaic Systems
Homeowners Adding Grid Soila Photvoltaic Systems
Renee Wardowski
Energy Boost for Golden Gate Bridge
Energy Boost for Golden Gate Bridge
Gede Eka Agastya
Fusion energy
Fusion energy
SathyaPhaneeshwar
Titaniumdioxide solarcells (1)
Titaniumdioxide solarcells (1)
jayeshgalchar1
Boosting Photocatalytic Activity Using Carbon Nitride Based 2D/2D van der Waa...
Boosting Photocatalytic Activity Using Carbon Nitride Based 2D/2D van der Waa...
Devika Laishram
IRJET- Investigation of Organic Solar Cell at Different Active Layer Thic...
IRJET- Investigation of Organic Solar Cell at Different Active Layer Thic...
IRJET Journal
Electrical and environmental parameters of the performance of polymer solar c...
Electrical and environmental parameters of the performance of polymer solar c...
International Journal of Power Electronics and Drive Systems
Comparative Study Of Mppt Algorithms For Photovoltaic...
Comparative Study Of Mppt Algorithms For Photovoltaic...
Stacey Cruz
The impact of coloured filters on the performance of polycrystalline photovo...
The impact of coloured filters on the performance of polycrystalline photovo...
IJECEIAES
Physical design and modeling of 25 v dc dc boost converter for stand alone so...
Physical design and modeling of 25 v dc dc boost converter for stand alone so...
ecij
Organic solar cells principles, mechanism and recent dvelopments
Organic solar cells principles, mechanism and recent dvelopments
eSAT Publishing House
A Framework For Epbt Calculation Of Roof Mounted...
A Framework For Epbt Calculation Of Roof Mounted...
Lindsey Jones
Similar to THIRD GENERATION PV: TANDEM JUNCTION
(20)
FINAL Understanding the Role of Charge Mobility and Recombination
FINAL Understanding the Role of Charge Mobility and Recombination
solar technology
solar technology
1 (1)
1 (1)
Organic solar cells the exciting interplay of excitons and nano-morphology
Organic solar cells the exciting interplay of excitons and nano-morphology
“SIMULATION ON OPTIMISATION OF POWER QUALITY USING HYBRID POWER SYSTEM”
“SIMULATION ON OPTIMISATION OF POWER QUALITY USING HYBRID POWER SYSTEM”
green environment
green environment
Final
Final
Boosting Photocatalytic Activity Using Carbon Nitride Based 2D/2D van der Waa...
Boosting Photocatalytic Activity Using Carbon Nitride Based 2D/2D van der Waa...
Homeowners Adding Grid Soila Photvoltaic Systems
Homeowners Adding Grid Soila Photvoltaic Systems
Energy Boost for Golden Gate Bridge
Energy Boost for Golden Gate Bridge
Fusion energy
Fusion energy
Titaniumdioxide solarcells (1)
Titaniumdioxide solarcells (1)
Boosting Photocatalytic Activity Using Carbon Nitride Based 2D/2D van der Waa...
Boosting Photocatalytic Activity Using Carbon Nitride Based 2D/2D van der Waa...
IRJET- Investigation of Organic Solar Cell at Different Active Layer Thic...
IRJET- Investigation of Organic Solar Cell at Different Active Layer Thic...
Electrical and environmental parameters of the performance of polymer solar c...
Electrical and environmental parameters of the performance of polymer solar c...
Comparative Study Of Mppt Algorithms For Photovoltaic...
Comparative Study Of Mppt Algorithms For Photovoltaic...
The impact of coloured filters on the performance of polycrystalline photovo...
The impact of coloured filters on the performance of polycrystalline photovo...
Physical design and modeling of 25 v dc dc boost converter for stand alone so...
Physical design and modeling of 25 v dc dc boost converter for stand alone so...
Organic solar cells principles, mechanism and recent dvelopments
Organic solar cells principles, mechanism and recent dvelopments
A Framework For Epbt Calculation Of Roof Mounted...
A Framework For Epbt Calculation Of Roof Mounted...
Recently uploaded
Is RISC-V ready for HPC workload? Maybe?
Is RISC-V ready for HPC workload? Maybe?
Patrick Diehl
Call Girls in Hauz Khas Delhi 💯Call Us 🔝9953322196🔝 💯Escort.
Call Girls in Hauz Khas Delhi 💯Call Us 🔝9953322196🔝 💯Escort.
aasikanpl
THE ROLE OF PHARMACOGNOSY IN TRADITIONAL AND MODERN SYSTEM OF MEDICINE.pptx
THE ROLE OF PHARMACOGNOSY IN TRADITIONAL AND MODERN SYSTEM OF MEDICINE.pptx
Nandakishor Bhaurao Deshmukh
Call Girls in Munirka Delhi 💯Call Us 🔝8264348440🔝
Call Girls in Munirka Delhi 💯Call Us 🔝8264348440🔝
soniya singh
BIOETHICS IN RECOMBINANT DNA TECHNOLOGY.
BIOETHICS IN RECOMBINANT DNA TECHNOLOGY.
PraveenaKalaiselvan1
Grafana in space: Monitoring Japan's SLIM moon lander in real time
Grafana in space: Monitoring Japan's SLIM moon lander in real time
Satoshi NAKAHIRA
Engler and Prantl system of classification in plant taxonomy
Engler and Prantl system of classification in plant taxonomy
Nistarini College, Purulia (W.B) India
Call Us ≽ 9953322196 ≼ Call Girls In Mukherjee Nagar(Delhi) |
Call Us ≽ 9953322196 ≼ Call Girls In Mukherjee Nagar(Delhi) |
aasikanpl
RESPIRATORY ADAPTATIONS TO HYPOXIA IN HUMNAS.pptx
RESPIRATORY ADAPTATIONS TO HYPOXIA IN HUMNAS.pptx
FarihaAbdulRasheed
SOLUBLE PATTERN RECOGNITION RECEPTORS.pptx
SOLUBLE PATTERN RECOGNITION RECEPTORS.pptx
kessiyaTpeter
Dashanga agada a formulation of Agada tantra dealt in 3 Rd year bams agada tanta
Dashanga agada a formulation of Agada tantra dealt in 3 Rd year bams agada tanta
Praksha3
Solution chemistry, Moral and Normal solutions
Solution chemistry, Moral and Normal solutions
Hajira Mahmood
insect anatomy and insect body wall and their physiology
insect anatomy and insect body wall and their physiology
DrAnita Sharma
Behavioral Disorder: Schizophrenia & it's Case Study.pdf
Behavioral Disorder: Schizophrenia & it's Case Study.pdf
SELF-EXPLANATORY
Manassas R - Parkside Middle School 🌎🏫
Manassas R - Parkside Middle School 🌎🏫
qfactory1
Cytokinin, mechanism and its application.pptx
Cytokinin, mechanism and its application.pptx
VarshiniMK
TOTAL CHOLESTEROL (lipid profile test).pptx
TOTAL CHOLESTEROL (lipid profile test).pptx
dharshini369nike
Call Girls in Mayapuri Delhi 💯Call Us 🔝9953322196🔝 💯Escort.
Call Girls in Mayapuri Delhi 💯Call Us 🔝9953322196🔝 💯Escort.
aasikanpl
Twin's paradox experiment is a meassurement of the extra dimensions.pptx
Twin's paradox experiment is a meassurement of the extra dimensions.pptx
Eran Akiva Sinbar
Vision and reflection on Mining Software Repositories research in 2024
Vision and reflection on Mining Software Repositories research in 2024
AyushiRastogi48
Recently uploaded
(20)
Is RISC-V ready for HPC workload? Maybe?
Is RISC-V ready for HPC workload? Maybe?
Call Girls in Hauz Khas Delhi 💯Call Us 🔝9953322196🔝 💯Escort.
Call Girls in Hauz Khas Delhi 💯Call Us 🔝9953322196🔝 💯Escort.
THE ROLE OF PHARMACOGNOSY IN TRADITIONAL AND MODERN SYSTEM OF MEDICINE.pptx
THE ROLE OF PHARMACOGNOSY IN TRADITIONAL AND MODERN SYSTEM OF MEDICINE.pptx
Call Girls in Munirka Delhi 💯Call Us 🔝8264348440🔝
Call Girls in Munirka Delhi 💯Call Us 🔝8264348440🔝
BIOETHICS IN RECOMBINANT DNA TECHNOLOGY.
BIOETHICS IN RECOMBINANT DNA TECHNOLOGY.
Grafana in space: Monitoring Japan's SLIM moon lander in real time
Grafana in space: Monitoring Japan's SLIM moon lander in real time
Engler and Prantl system of classification in plant taxonomy
Engler and Prantl system of classification in plant taxonomy
Call Us ≽ 9953322196 ≼ Call Girls In Mukherjee Nagar(Delhi) |
Call Us ≽ 9953322196 ≼ Call Girls In Mukherjee Nagar(Delhi) |
RESPIRATORY ADAPTATIONS TO HYPOXIA IN HUMNAS.pptx
RESPIRATORY ADAPTATIONS TO HYPOXIA IN HUMNAS.pptx
SOLUBLE PATTERN RECOGNITION RECEPTORS.pptx
SOLUBLE PATTERN RECOGNITION RECEPTORS.pptx
Dashanga agada a formulation of Agada tantra dealt in 3 Rd year bams agada tanta
Dashanga agada a formulation of Agada tantra dealt in 3 Rd year bams agada tanta
Solution chemistry, Moral and Normal solutions
Solution chemistry, Moral and Normal solutions
insect anatomy and insect body wall and their physiology
insect anatomy and insect body wall and their physiology
Behavioral Disorder: Schizophrenia & it's Case Study.pdf
Behavioral Disorder: Schizophrenia & it's Case Study.pdf
Manassas R - Parkside Middle School 🌎🏫
Manassas R - Parkside Middle School 🌎🏫
Cytokinin, mechanism and its application.pptx
Cytokinin, mechanism and its application.pptx
TOTAL CHOLESTEROL (lipid profile test).pptx
TOTAL CHOLESTEROL (lipid profile test).pptx
Call Girls in Mayapuri Delhi 💯Call Us 🔝9953322196🔝 💯Escort.
Call Girls in Mayapuri Delhi 💯Call Us 🔝9953322196🔝 💯Escort.
Twin's paradox experiment is a meassurement of the extra dimensions.pptx
Twin's paradox experiment is a meassurement of the extra dimensions.pptx
Vision and reflection on Mining Software Repositories research in 2024
Vision and reflection on Mining Software Repositories research in 2024
THIRD GENERATION PV: TANDEM JUNCTION
1.
THIRD GENERATION PV:

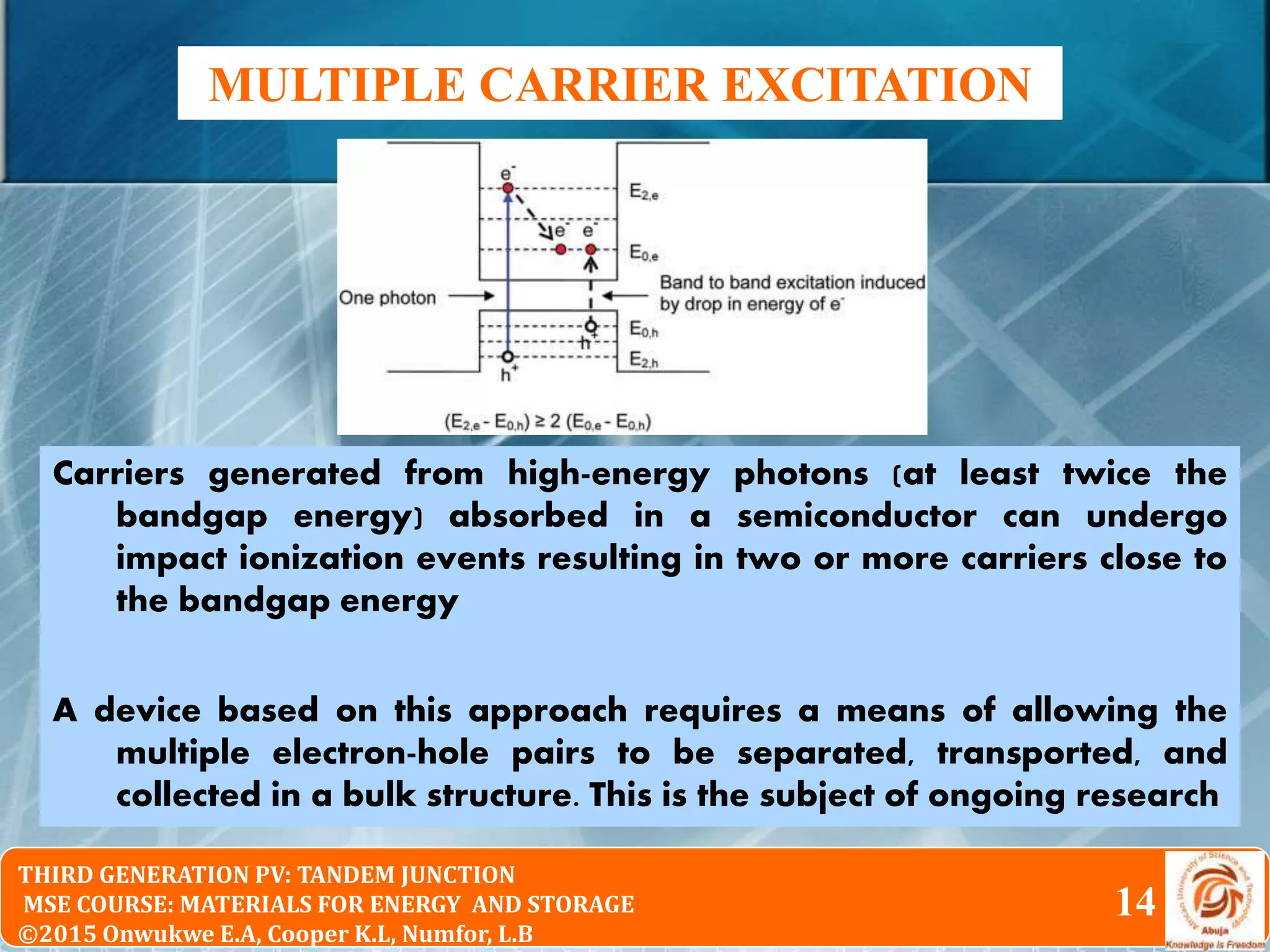

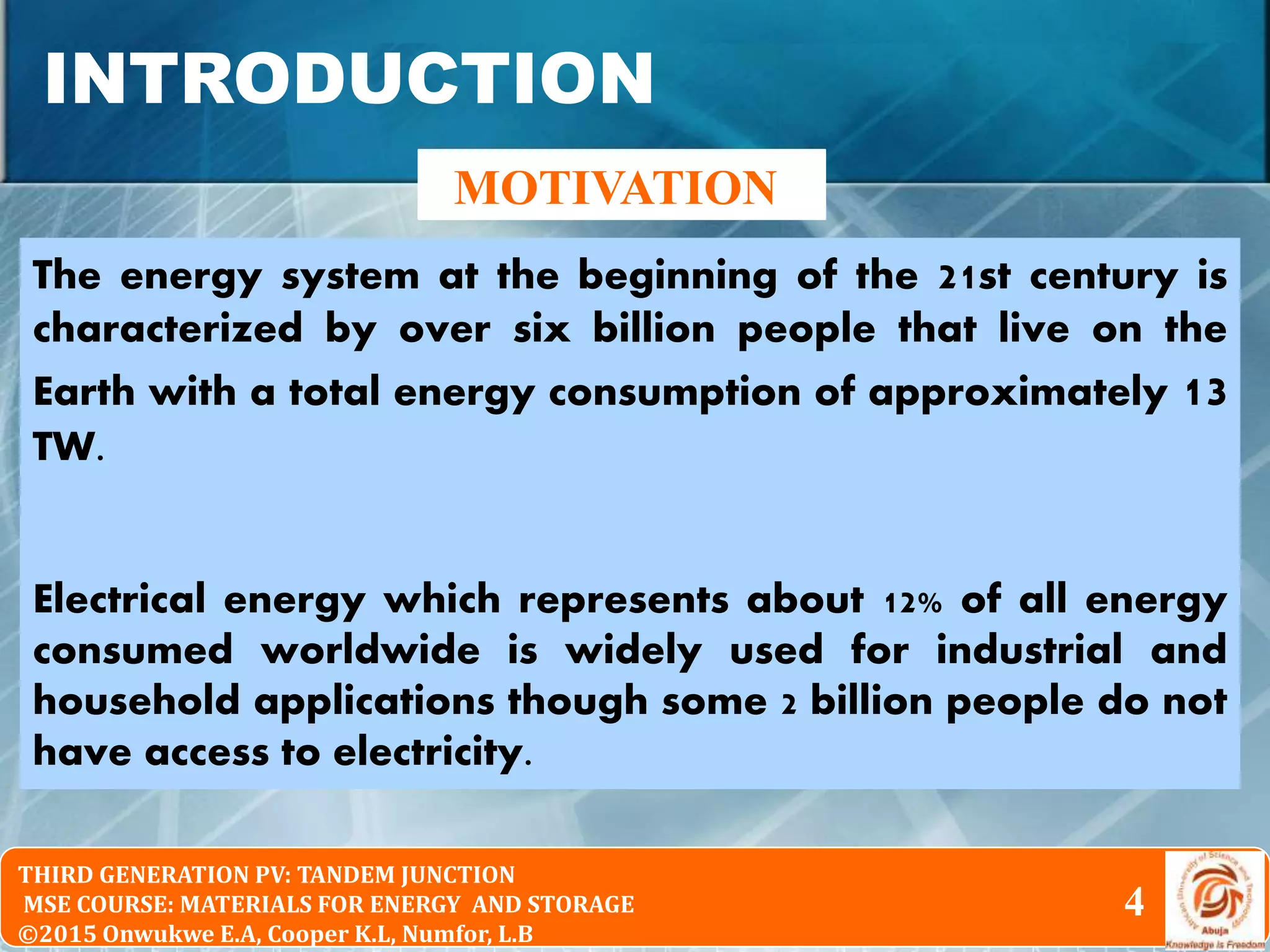

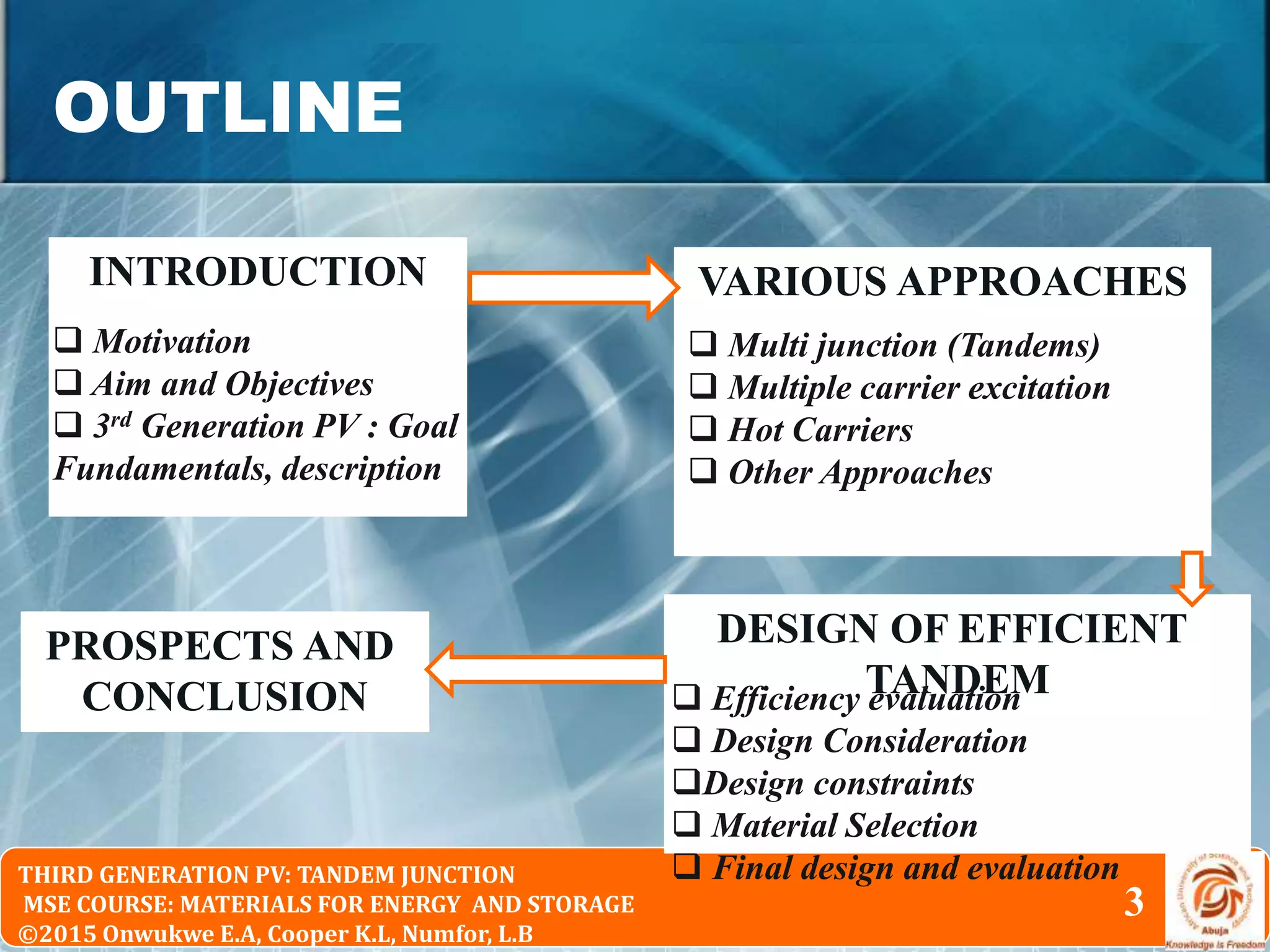

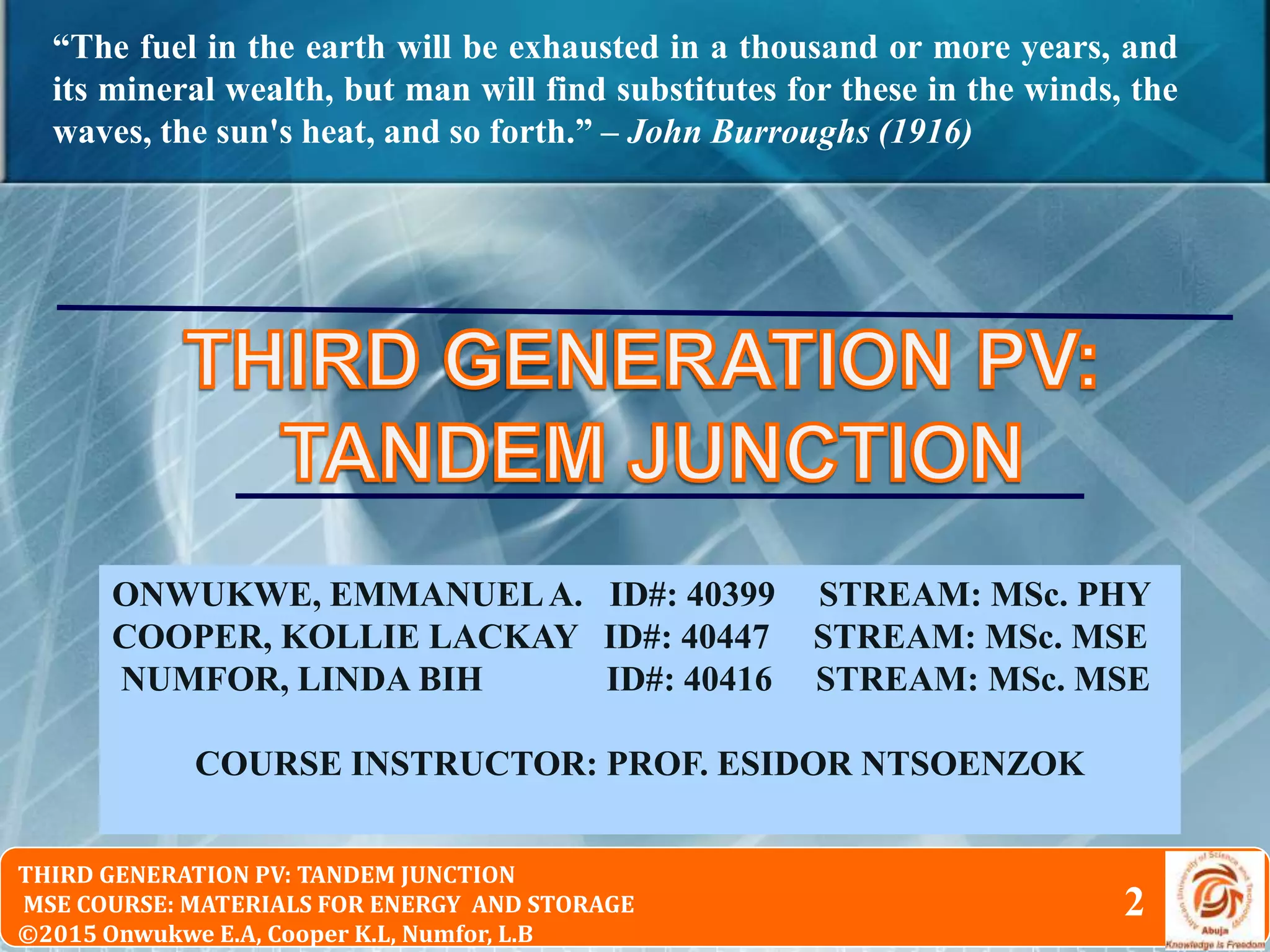

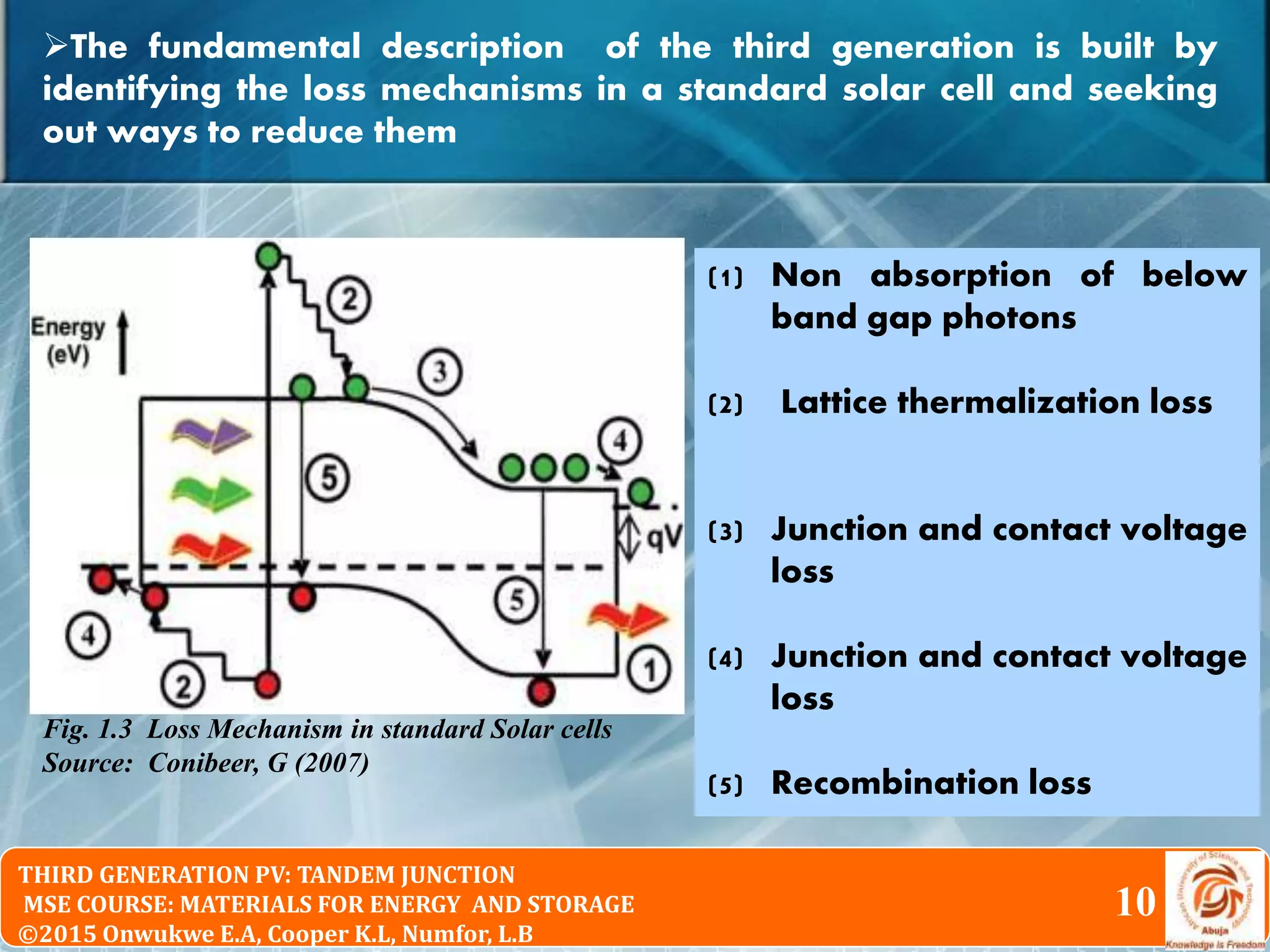

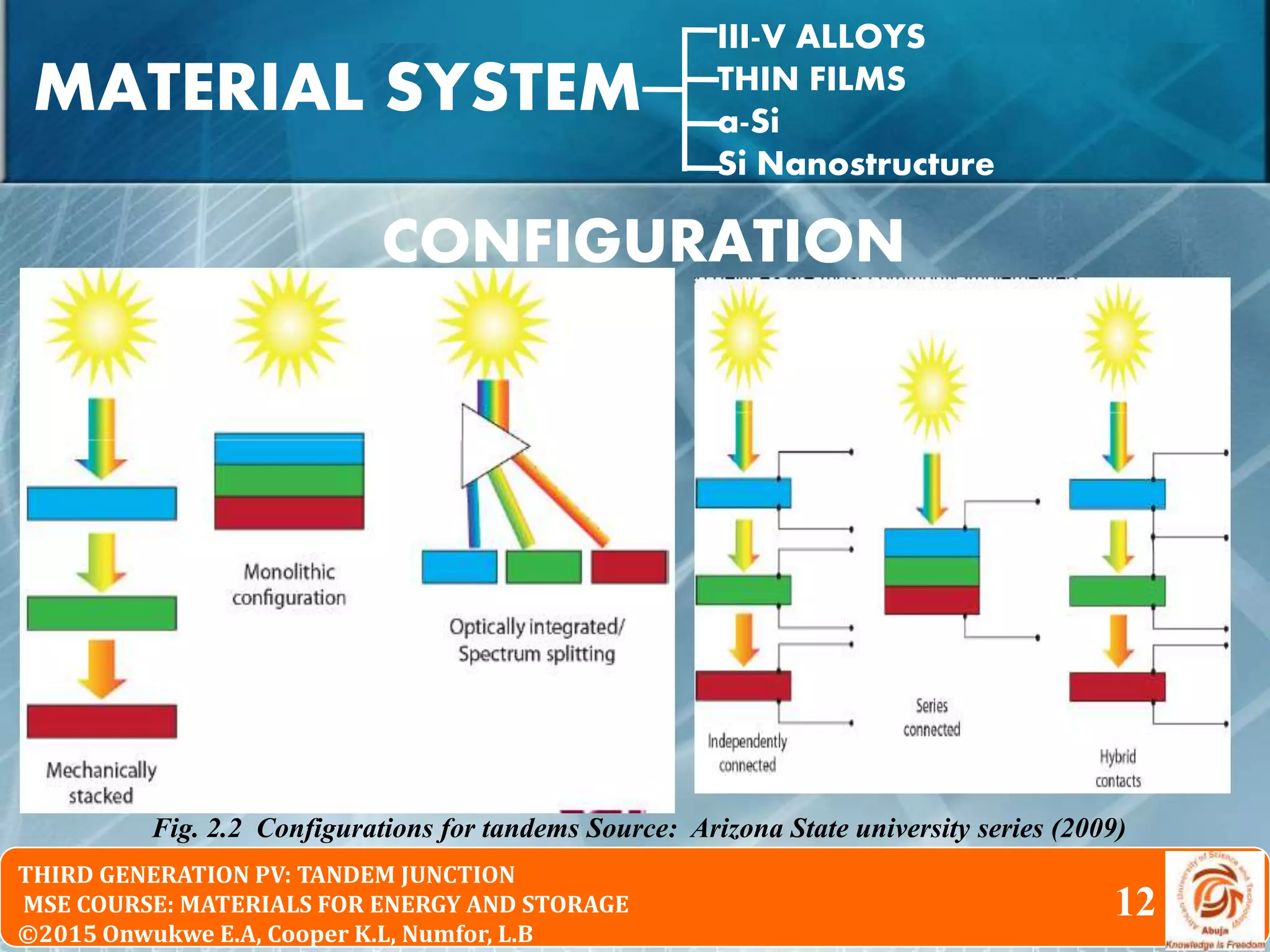

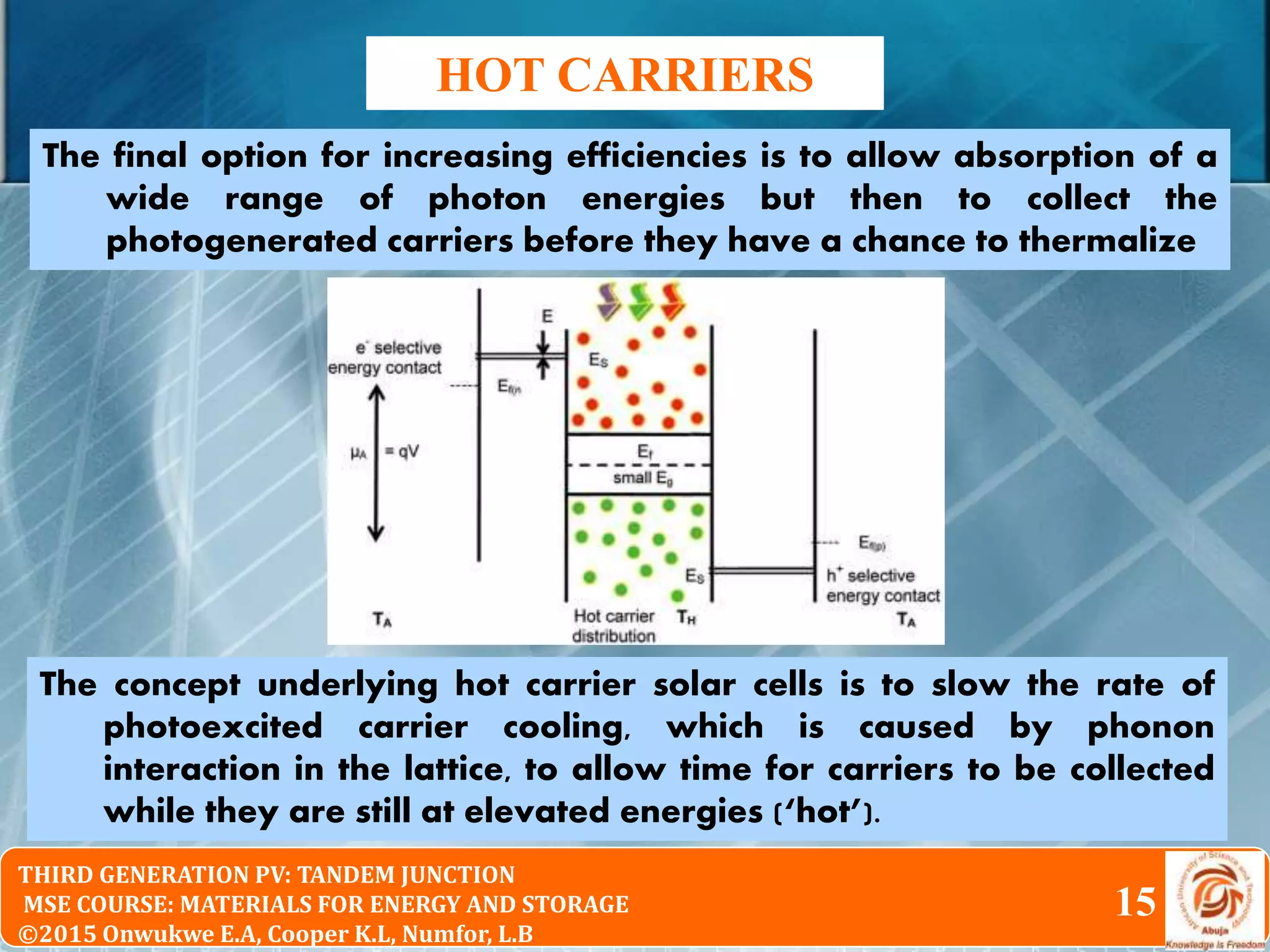

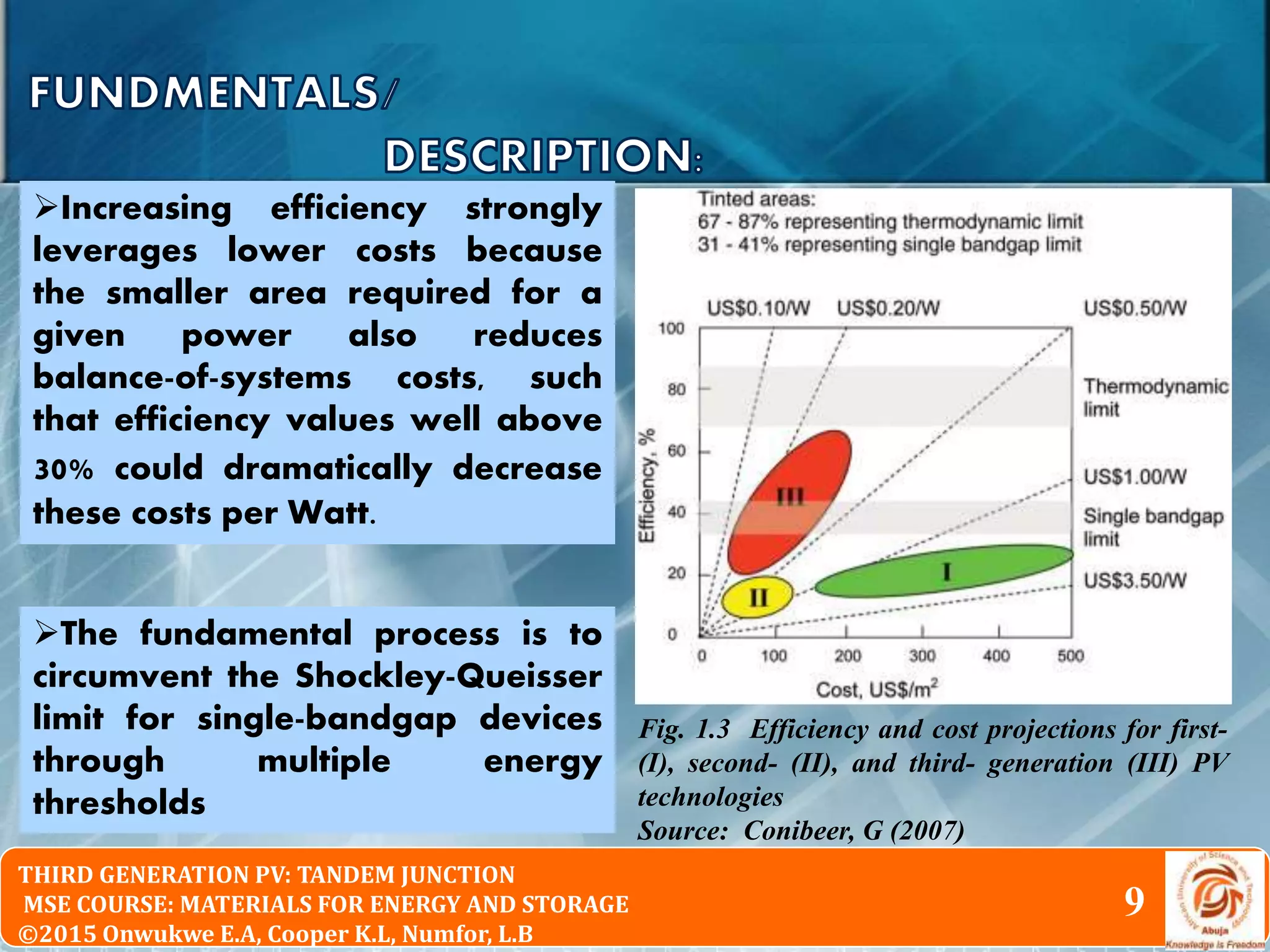

TANDEM JUNCTION MSE COURSE: MATERIALS FOR ENERGY AND STORAGE ©2015 Onwukwe E.A, Cooper K.L, Numfor, L.B 1 1
2.
© 2010 Pearson
Education South Asia Pte Ltd Physical Chemistry 2nd Edition Chapter 16: The Particle in the Box and the Real WorldTHIRD GENERATION PV: TANDEM JUNCTION MSE COURSE: MATERIALS FOR ENERGY AND STORAGE ©2015 Onwukwe E.A, Cooper K.L, Numfor, L.B “The fuel in the earth will be exhausted in a thousand or more years, and its mineral wealth, but man will find substitutes for these in the winds, the waves, the sun's heat, and so forth.” – John Burroughs (1916) ONWUKWE, EMMANUELA. ID#: 40399 STREAM: MSc. PHY COOPER, KOLLIE LACKAY ID#: 40447 STREAM: MSc. MSE NUMFOR, LINDA BIH ID#: 40416 STREAM: MSc. MSE COURSE INSTRUCTOR: PROF. ESIDOR NTSOENZOK 2
3.
© 2010 Pearson
Education South Asia Pte Ltd Physical Chemistry 2nd Edition Chapter 16: The Particle in the Box and the Real WorldTHIRD GENERATION PV: TANDEM JUNCTION MSE COURSE: MATERIALS FOR ENERGY AND STORAGE ©2015 Onwukwe E.A, Cooper K.L, Numfor, L.B OUTLINE INTRODUCTION VARIOUS APPROACHES DESIGN OF EFFICIENT TANDEM PROSPECTS AND CONCLUSION Motivation Aim and Objectives 3rd Generation PV : Goal Fundamentals, description Multi junction (Tandems) Multiple carrier excitation Hot Carriers Other Approaches Efficiency evaluation Design Consideration Design constraints Material Selection Final design and evaluation 3
4.
© 2010 Pearson
Education South Asia Pte Ltd Physical Chemistry 2nd Edition Chapter 16: The Particle in the Box and the Real WorldTHIRD GENERATION PV: TANDEM JUNCTION MSE COURSE: MATERIALS FOR ENERGY AND STORAGE ©2015 Onwukwe E.A, Cooper K.L, Numfor, L.B INTRODUCTION MOTIVATION 4 4 The energy system at the beginning of the 21st century is characterized by over six billion people that live on the Earth with a total energy consumption of approximately 13 TW. Electrical energy which represents about 12% of all energy consumed worldwide is widely used for industrial and household applications though some 2 billion people do not have access to electricity.
5.

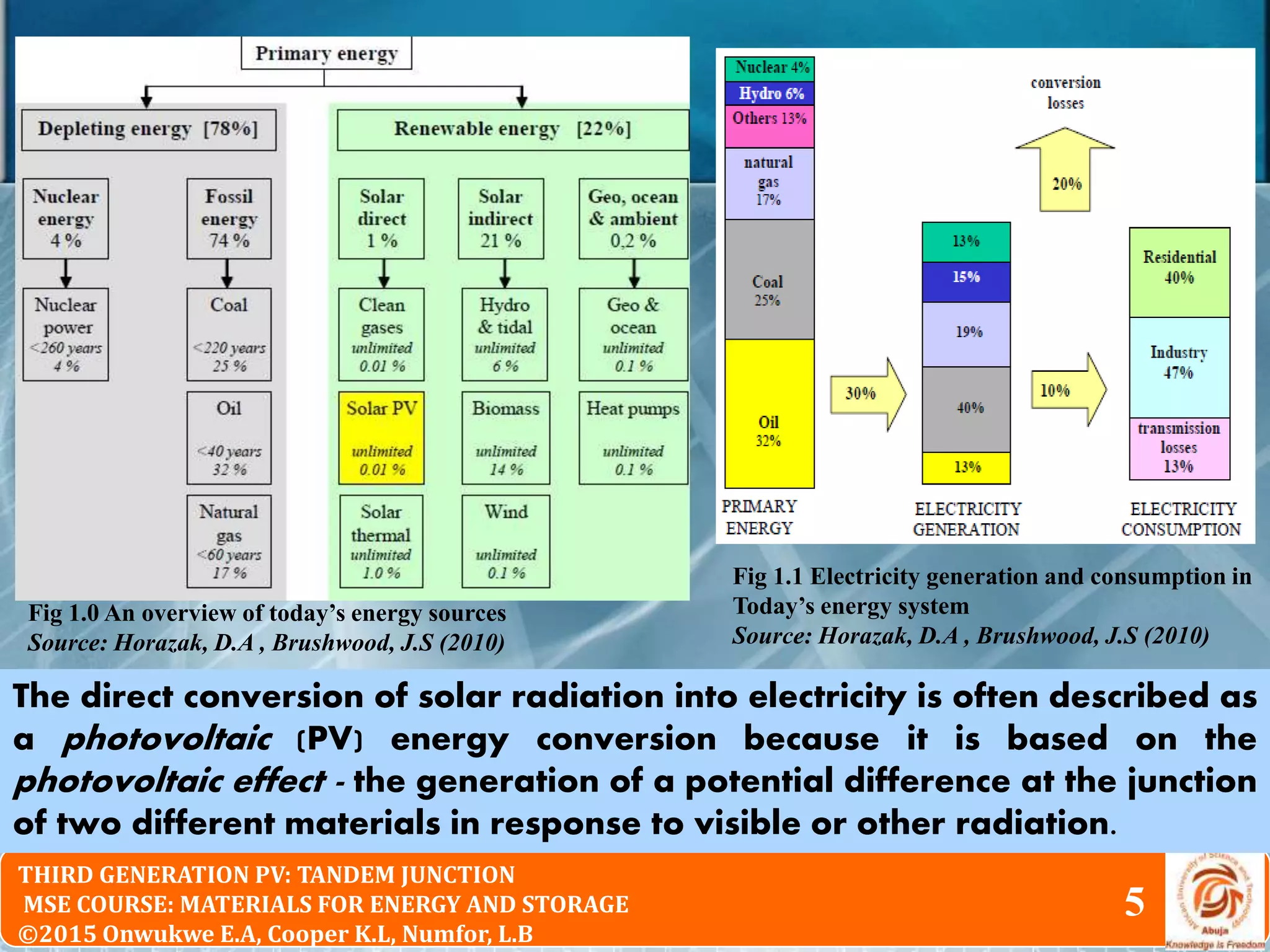

© 2010 Pearson
Education South Asia Pte Ltd Physical Chemistry 2nd Edition Chapter 16: The Particle in the Box and the Real WorldTHIRD GENERATION PV: TANDEM JUNCTION MSE COURSE: MATERIALS FOR ENERGY AND STORAGE ©2015 Onwukwe E.A, Cooper K.L, Numfor, L.B Fig 1.0 An overview of today’s energy sources Source: Horazak, D.A , Brushwood, J.S (2010) Fig 1.1 Electricity generation and consumption in Today’s energy system Source: Horazak, D.A , Brushwood, J.S (2010) 5 The direct conversion of solar radiation into electricity is often described as a photovoltaic (PV) energy conversion because it is based on the photovoltaic effect - the generation of a potential difference at the junction of two different materials in response to visible or other radiation.
6.
© 2010 Pearson
Education South Asia Pte Ltd Physical Chemistry 2nd Edition Chapter 16: The Particle in the Box and the Real WorldTHIRD GENERATION PV: TANDEM JUNCTION MSE COURSE: MATERIALS FOR ENERGY AND STORAGE ©2015 Onwukwe E.A, Cooper K.L, Numfor, L.B 6 WHY THE LOW PERCENTAGE OF 0.01% IN PV CONSUMPTION? • Relative High Efficiency though less than Shockley- Quiesser limit of 33.7% • Extremely high cost dominated by material costs of silicon wafer, glass cover sheet and encapsulant • significantly decreased material cost but compromised efficiency badly <15% Calculations based on thermodynamics demonstrate that the limit on the conversion efficiency of sunlight to electricity is 93% as opposed to the upper limit of 33% for a single junction solar cell, such as a silicon wafer and most present thin-film solar cells – hence need for 3rd generation. Conversion efficiency has to be increased substantially in order to progress further.
7.

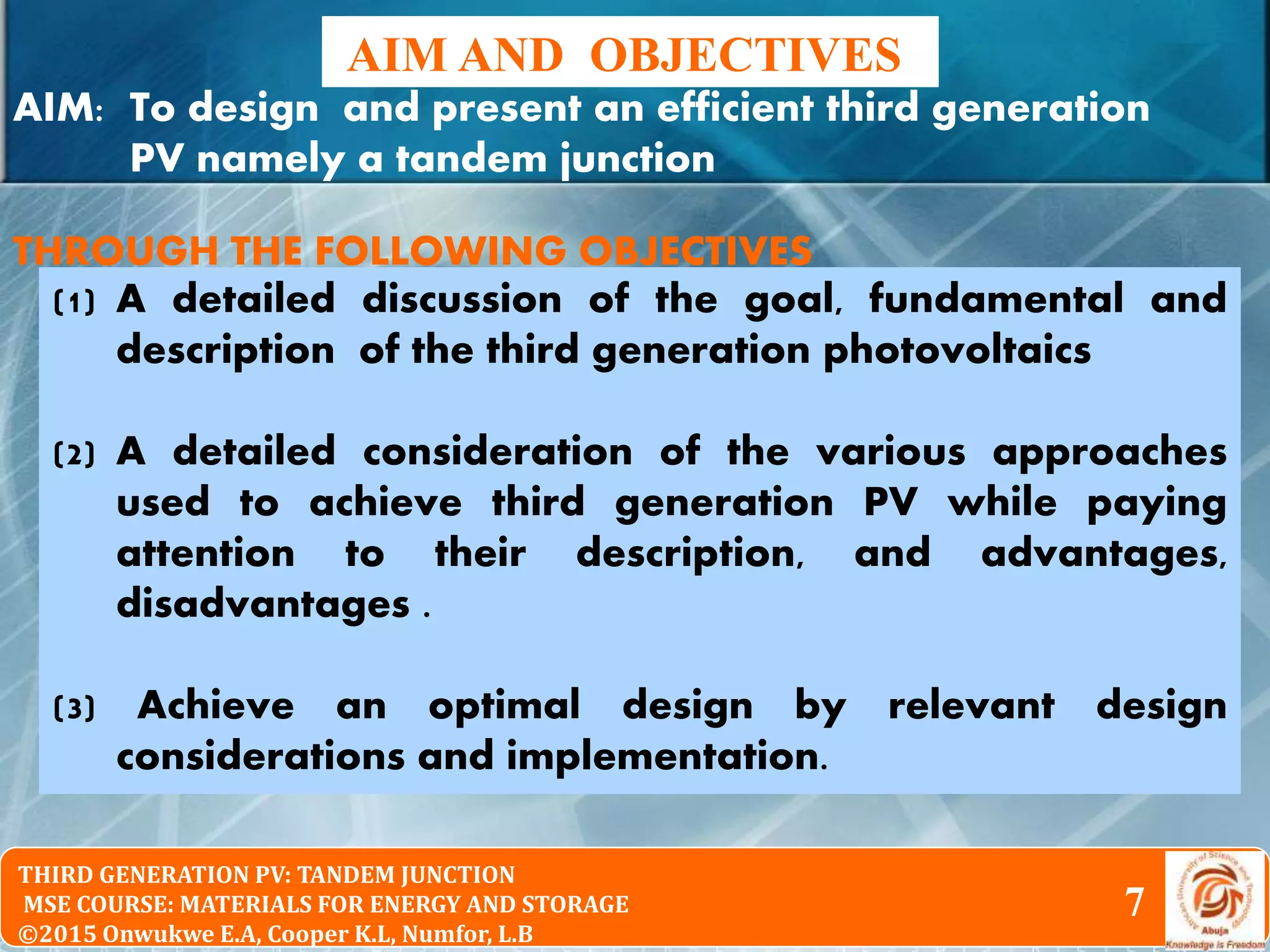

© 2010 Pearson
Education South Asia Pte Ltd Physical Chemistry 2nd Edition Chapter 16: The Particle in the Box and the Real WorldTHIRD GENERATION PV: TANDEM JUNCTION MSE COURSE: MATERIALS FOR ENERGY AND STORAGE ©2015 Onwukwe E.A, Cooper K.L, Numfor, L.B AIM AND OBJECTIVES 7 AIM: To design and present an efficient third generation PV namely a tandem junction THROUGH THE FOLLOWING OBJECTIVES (1) A detailed discussion of the goal, fundamental and description of the third generation photovoltaics (2) A detailed consideration of the various approaches used to achieve third generation PV while paying attention to their description, and advantages, disadvantages . (3) Achieve an optimal design by relevant design considerations and implementation.
8.
© 2010 Pearson
Education South Asia Pte Ltd Physical Chemistry 2nd Edition Chapter 16: The Particle in the Box and the Real WorldTHIRD GENERATION PV: TANDEM JUNCTION MSE COURSE: MATERIALS FOR ENERGY AND STORAGE ©2015 Onwukwe E.A, Cooper K.L, Numfor, L.B 3RD GENERATION PV 8 The main goal of the third generation materials is the improvement of poor electrical performances of second generation materials while keeping low production costs with clear targets of 30-60% efficiency. Statistics indicate that costs are targeted to decrease to well below the $1/W level of second-generation PVs to $0.50/W, potentially to $0.20/W or better, by significantly increasing efficiencies but maintaining the economic and environmental cost advantages of thin-film deposition techniques
9.
© 2010 Pearson
Education South Asia Pte Ltd Physical Chemistry 2nd Edition Chapter 16: The Particle in the Box and the Real WorldTHIRD GENERATION PV: TANDEM JUNCTION MSE COURSE: MATERIALS FOR ENERGY AND STORAGE ©2015 Onwukwe E.A, Cooper K.L, Numfor, L.B 9 Increasing efficiency strongly leverages lower costs because the smaller area required for a given power also reduces balance-of-systems costs, such that efficiency values well above 30% could dramatically decrease these costs per Watt. The fundamental process is to circumvent the Shockley-Queisser limit for single-bandgap devices through multiple energy thresholds Fig. 1.3 Efficiency and cost projections for first- (I), second- (II), and third- generation (III) PV technologies Source: Conibeer, G (2007)
10.
© 2010 Pearson
Education South Asia Pte Ltd Physical Chemistry 2nd Edition Chapter 16: The Particle in the Box and the Real WorldTHIRD GENERATION PV: TANDEM JUNCTION MSE COURSE: MATERIALS FOR ENERGY AND STORAGE ©2015 Onwukwe E.A, Cooper K.L, Numfor, L.B 10 The fundamental description of the third generation is built by identifying the loss mechanisms in a standard solar cell and seeking out ways to reduce them (1) Non absorption of below band gap photons (2) Lattice thermalization loss (3) Junction and contact voltage loss (4) Junction and contact voltage loss (5) Recombination loss Fig. 1.3 Loss Mechanism in standard Solar cells Source: Conibeer, G (2007)
11.
© 2010 Pearson
Education South Asia Pte Ltd Physical Chemistry 2nd Edition Chapter 16: The Particle in the Box and the Real WorldTHIRD GENERATION PV: TANDEM JUNCTION MSE COURSE: MATERIALS FOR ENERGY AND STORAGE ©2015 Onwukwe E.A, Cooper K.L, Numfor, L.B 11 VARIOUS APPROACHES MULTIJUNCTIONS (TANDEMS) Decreasing Bandgap Suggested by Jackson in 1955 approach increases energy level by stacking of P- N junctions in different semiconductor materials Fig. 2.1 Schematic of Tandem Cells Source: Conibeer, G (2007) Highest tandem efficiency is by optimizing power in each cell through appropriate choice of: MATERIAL SYSTEM • bandgap •Thickness •Junction depth •Doping characteristics CONFIGURATION
12.
© 2010 Pearson
Education South Asia Pte Ltd Physical Chemistry 2nd Edition Chapter 16: The Particle in the Box and the Real WorldTHIRD GENERATION PV: TANDEM JUNCTION MSE COURSE: MATERIALS FOR ENERGY AND STORAGE ©2015 Onwukwe E.A, Cooper K.L, Numfor, L.B Fig. 2.2 Configurations for tandems Source: Arizona State university series (2009) MATERIAL SYSTEM III-V ALLOYS THIN FILMS a-Si Si Nanostructure CONFIGURATION 12
13.

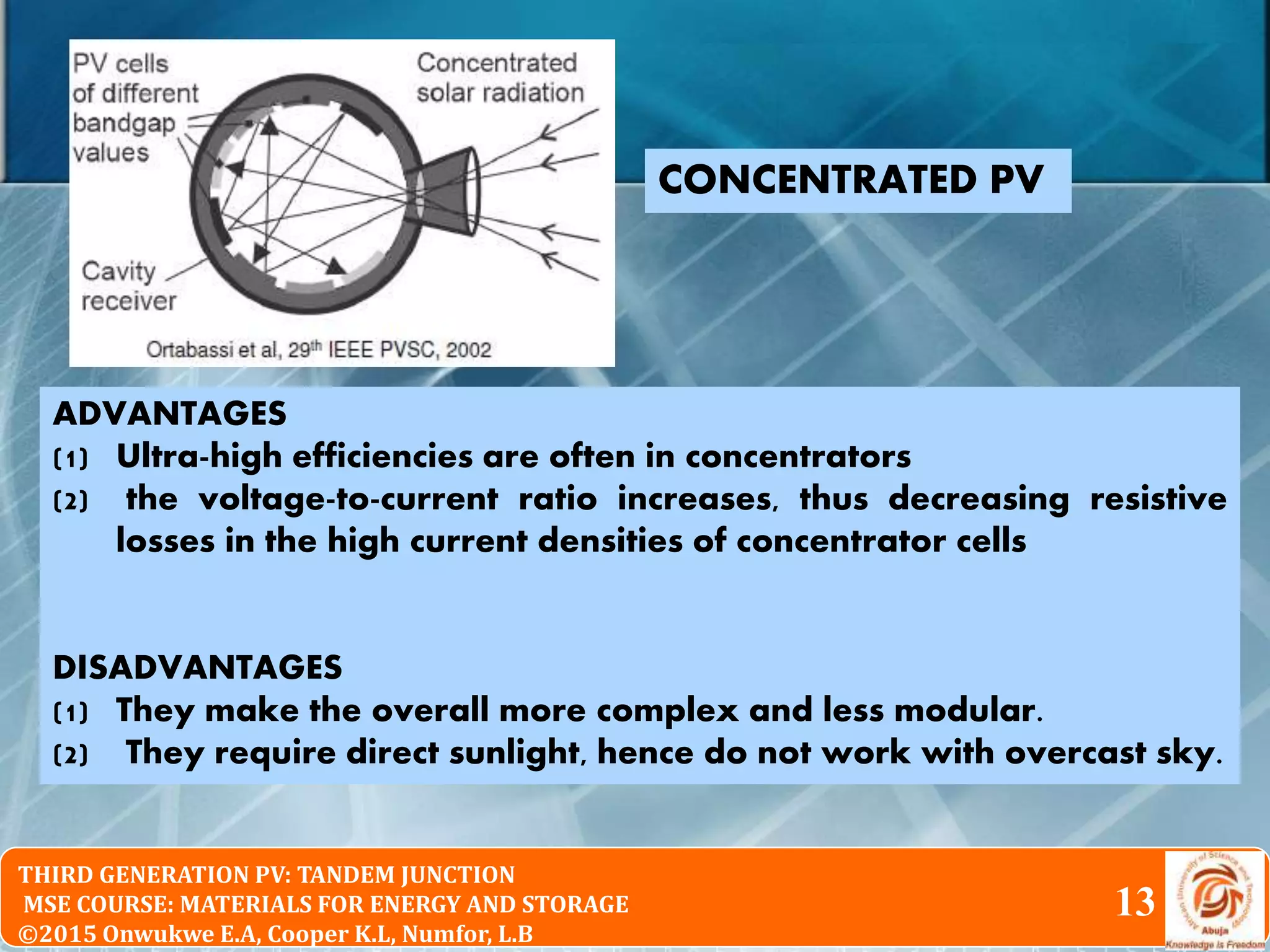

© 2010 Pearson
Education South Asia Pte Ltd Physical Chemistry 2nd Edition Chapter 16: The Particle in the Box and the Real WorldTHIRD GENERATION PV: TANDEM JUNCTION MSE COURSE: MATERIALS FOR ENERGY AND STORAGE ©2015 Onwukwe E.A, Cooper K.L, Numfor, L.B 13 CONCENTRATED PV ADVANTAGES (1) Ultra-high efficiencies are often in concentrators (2) the voltage-to-current ratio increases, thus decreasing resistive losses in the high current densities of concentrator cells DISADVANTAGES (1) They make the overall more complex and less modular. (2) They require direct sunlight, hence do not work with overcast sky.
14.
© 2010 Pearson
Education South Asia Pte Ltd Physical Chemistry 2nd Edition Chapter 16: The Particle in the Box and the Real WorldTHIRD GENERATION PV: TANDEM JUNCTION MSE COURSE: MATERIALS FOR ENERGY AND STORAGE ©2015 Onwukwe E.A, Cooper K.L, Numfor, L.B 14 MULTIPLE CARRIER EXCITATION Carriers generated from high-energy photons (at least twice the bandgap energy) absorbed in a semiconductor can undergo impact ionization events resulting in two or more carriers close to the bandgap energy A device based on this approach requires a means of allowing the multiple electron-hole pairs to be separated, transported, and collected in a bulk structure. This is the subject of ongoing research
15.
© 2010 Pearson
Education South Asia Pte Ltd Physical Chemistry 2nd Edition Chapter 16: The Particle in the Box and the Real WorldTHIRD GENERATION PV: TANDEM JUNCTION MSE COURSE: MATERIALS FOR ENERGY AND STORAGE ©2015 Onwukwe E.A, Cooper K.L, Numfor, L.B 15 HOT CARRIERS The final option for increasing efficiencies is to allow absorption of a wide range of photon energies but then to collect the photogenerated carriers before they have a chance to thermalize The concept underlying hot carrier solar cells is to slow the rate of photoexcited carrier cooling, which is caused by phonon interaction in the lattice, to allow time for carriers to be collected while they are still at elevated energies (‘hot’).
16.
© 2010 Pearson
Education South Asia Pte Ltd Physical Chemistry 2nd Edition Chapter 16: The Particle in the Box and the Real WorldTHIRD GENERATION PV: TANDEM JUNCTION MSE COURSE: MATERIALS FOR ENERGY AND STORAGE ©2015 Onwukwe E.A, Cooper K.L, Numfor, L.B 16 OTHER APPROACHES QUANTUM ANTENNA The idea of a quantum antenna is to use the wave nature of light rather than its particle nature. In-coming light waves oscillate electrons in an antenna tuned to the wavelength of light – hence the devices have to be of the order of a few hundred nanometers. Maximum achievable efficiency is 48% THERMOPHOTONIC Thermophotonics is a variation in which the thermal source heats a luminescent diode similar to the TPV cell, this then illuminates the cell with a spectrum strongly peaked just above their common bandgap. These approaches would normally use waste heat from an industrial process or similar and hence not be PV, but they can be coupled to an emitter heated by solar thermal energy
17.
© 2010 Pearson
Education South Asia Pte Ltd Physical Chemistry 2nd Edition Chapter 16: The Particle in the Box and the Real WorldTHIRD GENERATION PV: TANDEM JUNCTION MSE COURSE: MATERIALS FOR ENERGY AND STORAGE ©2015 Onwukwe E.A, Cooper K.L, Numfor, L.B 17 DESIGN OF AN EFFICIENT TANDEM EFFICIENCY EVALUATION Fig. 4.1 Junction and Efficiencies (Arizona State university series (2009)
18.
© 2010 Pearson
Education South Asia Pte Ltd Physical Chemistry 2nd Edition Chapter 16: The Particle in the Box and the Real WorldTHIRD GENERATION PV: TANDEM JUNCTION MSE COURSE: MATERIALS FOR ENERGY AND STORAGE ©2015 Onwukwe E.A, Cooper K.L, Numfor, L.B 18 DESIGN CONSIDERATION High efficiency requires the realization of solar cells with specified band gaps, and each solar cell requires nearly ideal properties. – Means that must be able to make each solar cell with high minority carrier lifetime THUS MAJOR DESIGN CONSTRAINTS ARE: (1) Series connection (2) Band Gap and lattice Matching DESIGN CONSTRAINTS High efficiency requires the realization of solar cells with specified band gaps, and each solar cell requires nearly ideal properties. – Means that must be able to make each solar cell with high minority carrier lifetime THUS MAJOR DESIGN CONSTRAINTS AFFECTING MATERIAL SELECTION: (1) Series connection (2) Band Gap and lattice Matching
19.
© 2010 Pearson
Education South Asia Pte Ltd Physical Chemistry 2nd Edition Chapter 16: The Particle in the Box and the Real WorldTHIRD GENERATION PV: TANDEM JUNCTION MSE COURSE: MATERIALS FOR ENERGY AND STORAGE ©2015 Onwukwe E.A, Cooper K.L, Numfor, L.B 19 CONCENTRATED VS UNCONCENTRATED (Major consideration cost) OPTICAL CHOICE
20.
© 2010 Pearson
Education South Asia Pte Ltd Physical Chemistry 2nd Edition Chapter 16: The Particle in the Box and the Real WorldTHIRD GENERATION PV: TANDEM JUNCTION MSE COURSE: MATERIALS FOR ENERGY AND STORAGE ©2015 Onwukwe E.A, Cooper K.L, Numfor, L.B 20
21.
© 2010 Pearson
Education South Asia Pte Ltd Physical Chemistry 2nd Edition Chapter 16: The Particle in the Box and the Real WorldTHIRD GENERATION PV: TANDEM JUNCTION MSE COURSE: MATERIALS FOR ENERGY AND STORAGE ©2015 Onwukwe E.A, Cooper K.L, Numfor, L.B 21
22.
© 2010 Pearson
Education South Asia Pte Ltd Physical Chemistry 2nd Edition Chapter 16: The Particle in the Box and the Real WorldTHIRD GENERATION PV: TANDEM JUNCTION MSE COURSE: MATERIALS FOR ENERGY AND STORAGE ©2015 Onwukwe E.A, Cooper K.L, Numfor, L.B 22 FINAL DESIGN AND EVALUATION
23.
© 2010 Pearson
Education South Asia Pte Ltd Physical Chemistry 2nd Edition Chapter 16: The Particle in the Box and the Real WorldTHIRD GENERATION PV: TANDEM JUNCTION MSE COURSE: MATERIALS FOR ENERGY AND STORAGE ©2015 Onwukwe E.A, Cooper K.L, Numfor, L.B 23 PERSPECTIVE Higher junction tandems ranging from 5 junctions and above are theoretical said not to exceed the maximum of 86.8 % under concentration. The verification of this is the perspective for future studies. Multicarrier excitation and Hot carrier cells as two different approaches to 3rd generation realization has not been fully realized and is a perspective for future consideration.
24.
© 2010 Pearson
Education South Asia Pte Ltd Physical Chemistry 2nd Edition Chapter 16: The Particle in the Box and the Real WorldTHIRD GENERATION PV: TANDEM JUNCTION MSE COURSE: MATERIALS FOR ENERGY AND STORAGE ©2015 Onwukwe E.A, Cooper K.L, Numfor, L.B 24 CONCLUSION Third generation tandem cells is the technology to improve efficiency and maintain low production cost of photovoltaic cells as the efficiency is increased the cost is further reduced. We have discussed several approaches to achieve them with an efficient design of a 4 Junction tandem presented.
25.
© 2010 Pearson
Education South Asia Pte Ltd Physical Chemistry 2nd Edition Chapter 16: The Particle in the Box and the Real WorldTHIRD GENERATION PV: TANDEM JUNCTION MSE COURSE: MATERIALS FOR ENERGY AND STORAGE ©2015 Onwukwe E.A, Cooper K.L, Numfor, L.B 25 REFERENCES ACKNOWLEDGEMENT Lecture series Prof Esidor Galvin Conibeer (2007) Third Generation Photovoltaics. Materials today, Volume 10, Issue 11, page 42-50 Advanced Solar Cells lecture series, Arizona state University (2009) Special thanks to our lecturer, Prof. Esidor and my colleagues too numerous to mention.
Download now
