The document provides specifications for various models of thermo hygrometers and hygro anemometers, detailing their functions, range, accuracy, resolution, and dimensions. Key models include the 910, 930t, 961, and 920, each designed for specific measurement tasks including temperature, humidity, and light intensity. Additionally, it includes contact information for Meco Instruments Pvt. Ltd. in Navi Mumbai, India.

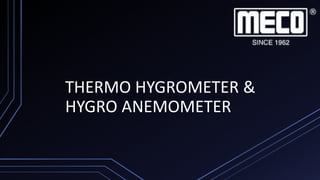

1. THERMO HYGROMETER &
HYGRO ANEMOMETER

2. PRODUCT IMAGE

3. MODELS: 910
• Functions: HOLD / MAX / MIN / MAX - MIN / AVG / APO
• Range: -30°C ~ 550°C, -22°F ~ 1022°F
• Accuracy: ± (2°C / 4°F) for -30°C ~ 100°C
• Resolution: 0.1°C, 0.1°F
• Emissivity: 0.1 ~ 1.0 (Adjustable)
• Dimension: 25 x 51 x 133 mm (approx)
• Weight: 125 gms Including Battery (approx)
• Accessories: !.5V AAA Battery (installed) x 2 Wristlet x 1, Protection Cap x
1

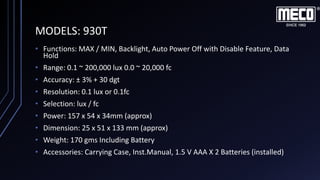

4. MODELS: 930T
• Functions: MAX / MIN, Backlight, Auto Power Off with Disable Feature, Data
Hold
• Range: 0.1 ~ 200,000 lux 0.0 ~ 20,000 fc
• Accuracy: ± 3% + 30 dgt
• Resolution: 0.1 lux or 0.1fc
• Selection: lux / fc
• Power: 157 x 54 x 34mm (approx)
• Dimension: 25 x 51 x 133 mm (approx)
• Weight: 170 gms Including Battery
• Accessories: Carrying Case, Inst.Manual, 1.5 V AAA X 2 Batteries (installed)

5. MODELS: 961 - Hygro Anemometer
• Range: 0.4 to 20m / s, 80 to 4000 ft / m
• Resolution: 0.1m / s, 1ft / m
• Range: 0% to 100% RH
• Sensor Response Time for 90% of Total Range: 60 Sec Typical
• Accuracy: ± 0.5°C for 0°C to 45°C, ± 1.0°C for -20°C to 0°C, 45°C to 60°C
• Sp. Function: HOLD / MAX / MIN / MAX-MIN / AVG / APO
• Accuracy: ± 0.2m/s + 2% of reading, ± 40ft/m + 2% of reading
• Sensor: Digital Capacitive Humidity Sensor
• Accuracy: ± 2.5%, 10-90% RH, ± 5%, 0-10% RH, 90% to 100% RH
• Range: -20°C to 60°C, -4°F to 140°F

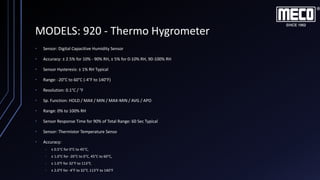

6. MODELS: 920 - Thermo Hygrometer
• Sensor: Digital Capacitive Humidity Sensor
• Accuracy: ± 2.5% for 10% - 90% RH, ± 5% for 0-10% RH, 90-100% RH
• Sensor Hysteresis: ± 1% RH Typical
• Range: -20°C to 60°C (-4°F to 140°F)
• Resolution: 0.1°C / °F
• Sp. Function: HOLD / MAX / MIN / MAX-MIN / AVG / APO
• Range: 0% to 100% RH
• Sensor Response Time for 90% of Total Range: 60 Sec Typical
• Sensor: Thermistor Temperature Senso
• Accuracy:
• ± 0.5°C for 0°C to 45°C,
• ± 1.0°C for -20°C to 0°C, 45°C to 60°C,
• ± 1.0°F for 32°F to 113°F,
• ± 2.0°F for -4°F to 32°F, 113°F to 140°F

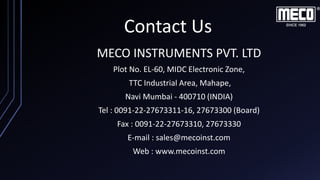

7. Contact Us
MECO INSTRUMENTS PVT. LTD
Plot No. EL-60, MIDC Electronic Zone,
TTC Industrial Area, Mahape,
Navi Mumbai - 400710 (INDIA)
Tel : 0091-22-27673311-16, 27673300 (Board)
Fax : 0091-22-27673310, 27673330
E-mail : sales@mecoinst.com
Web : www.mecoinst.com
