The Software Challenges of Building
Smart Chatbots – ICSE’21 TB
@xatkit – xatkit.com
Context
Jordi Cabot - @JordiCabot Gwendal Daniel - g__daniel
Can you help us create a chatbot to help
newcomers to write good bug reports on GitHub?
Sure! It’s just a set of questions &
answers, this will be pretty simple!
Narrator It wasn’t.
Once upon a time in 2018 (we were
young and naïve)
We were asked to build a bot. We ended up
building a bot platform
But at least we’ve
learnt some things
along the way that
today we want to
share with you
3 times so far!

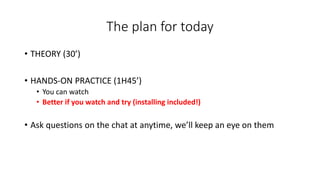

The plan for today
• THEORY (30’)
• HANDS-ON PRACTICE (1H45’)
• You can watch
• Better if you watch and try (installing included!)
• Ask questions on the chat at anytime, we’ll keep an eye on them
Why you all need to have
some bot building notions
The Software Challenges of Building Smart Chatbots - ICSE'21
And more predictions:
- Business Insider experts predict that by 2022, banks can automate up to 90% of their customer interaction using chatbots
- By 2024, consumer retail spend via chatbots worldwide will reach $142 billion—up from just $2.8 billion in 2019.

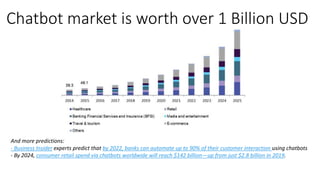

Chatbot market is worth over 1 Billion USD
The Software Challenges of Building Smart Chatbots - ICSE'21

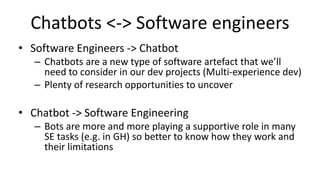

Chatbots <-> Software engineers
• Software Engineers -> Chatbot
– Chatbots are a new type of software artefact that we’ll
need to consider in our dev projects (Multi-experience dev)
– Plenty of research opportunities to uncover
• Chatbot -> Software Engineering
– Bots are more and more playing a supportive role in many
SE tasks (e.g. in GH) so better to know how they work and
their limitations
Basic concepts

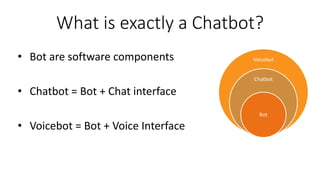

What is exactly a Chatbot?
• Bot are software components
• Chatbot = Bot + Chat interface
• Voicebot = Bot + Voice Interface
Voicebot
Chatbot
Bot

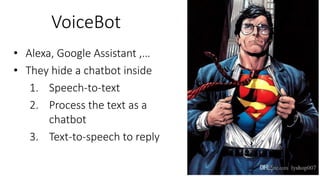

VoiceBot
• Alexa, Google Assistant ,…
• They hide a chatbot inside
1. Speech-to-text
2. Process the text as a
chatbot
3. Text-to-speech to reply
Chatbot vs LiveChat
• LiveChat: a person is behind
• They can be combined
– Bot  Person: when the bot doesn’t know how to
answer (or the visitor is specially “interesting”)
– Person  Bot: when no support person is available
or the client is not worth

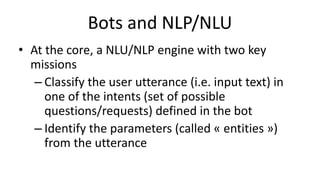

Bots and NLP/NLU
• At the core, a NLU/NLP engine with two key
missions
– Classify the user utterance (i.e. input text) in
one of the intents (set of possible
questions/requests) defined in the bot
– Identify the parameters (called « entities »)
from the utterance

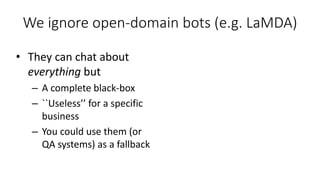

We ignore open-domain bots (e.g. LaMDA)
• They can chat about
everything but
– A complete black-box
– ``Useless’’ for a specific
business
– You could use them (or
QA systems) as a fallback
Why chatbot development
is so challenging?

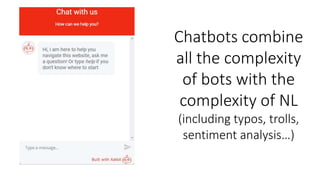

Chatbots combine
all the complexity
of bots with the
complexity of NL
(including typos, trolls,
sentiment analysis…)
Many pieces to assemble
Input/Output
Messaging channels
External
Platforms
NLU Engine
Events!
Chatbots are complex software systems
Conversation Logic
Text Processing
External Services
Messaging
Platforms
Deployment
Evolution
Maintenance
Tests
Jordi Cabot¹, Loli Burgueño², Robert Clarisó², Gwendal Daniel², Jorge Perianez-Pascual³,and Roberto Rodriguez-Echeverria³
¹ICREA, Barcelona, Spain
²Open University of Catalonia, Barcelona, Spain
³University of Extremadura, Cáceres, Spain
Testing challenges for NLP-intensive
bots
BotSE ‘21

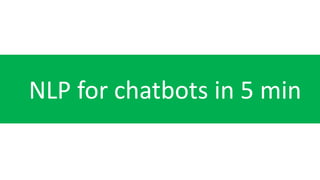

NLP for chatbots in 5 min

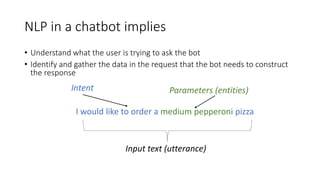

NLP in a chatbot implies
Parameters (entities)
I would like to order a medium pepperoni pizza
Intent
Input text (utterance)
• Understand what the user is trying to ask the bot
• Identify and gather the data in the request that the bot needs to construct
the response

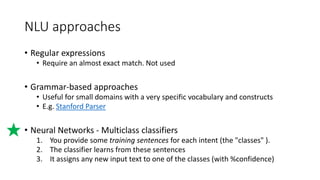

NLU approaches
• Regular expressions
• Require an almost exact match. Not used
• Grammar-based approaches
• Useful for small domains with a very specific vocabulary and constructs
• E.g. Stanford Parser
• Neural Networks - Multiclass classifiers
1. You provide some training sentences for each intent (the "classes" ).
2. The classifier learns from these sentences
3. It assigns any new input text to one of the classes (with %confidence)
Example: bot that greets you, informs about
the schedule and lets you buy a pizza
Greetings
Hi
Good morning
Good afternoon
Hello
Morning!
I’d like to buy a
pizza
I want a pizza
Can I order a
pizza?
Buy
Are you open?
Is it open now?
What are your
opening hours?
At what time do
you start?
Schedule
If a user says, “I would like to order a pizza” what is the closest intent?
Not that easy when intents start to overlap (e.g. offering a job vs looking
for a job: “can I offer you a job?” vs “do you have any job offer”)

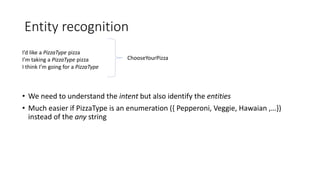

Entity recognition
• We need to understand the intent but also identify the entities
• Much easier if PizzaType is an enumeration ({ Pepperoni, Veggie, Hawaian ,…})
instead of the any string
ChooseYourPizza
I’d like a PizzaType pizza
I’m taking a PizzaType pizza
I think I’m going for a PizzaType

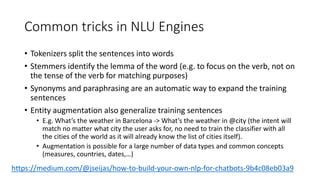

Common tricks in NLU Engines
• Tokenizers split the sentences into words
• Stemmers identify the lemma of the word (e.g. to focus on the verb, not on
the tense of the verb for matching purposes)
• Synonyms and paraphrasing are an automatic way to expand the training
sentences
• Entity augmentation also generalize training sentences
• E.g. What’s the weather in Barcelona -> What’s the weather in @city (the intent will
match no matter what city the user asks for, no need to train the classifier with all
the cities of the world as it will already know the list of cities itself).
• Augmentation is possible for a large number of data types and common concepts
(measures, countries, dates,…)
https://medium.com/@jseijas/how-to-build-your-own-nlp-for-chatbots-9b4c08eb03a9

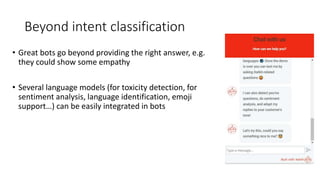

Beyond intent classification
• Great bots go beyond providing the right answer, e.g.
they could show some empathy
• Several language models (for toxicity detection, for
sentiment analysis, language identification, emoji
support…) can be easily integrated in bots

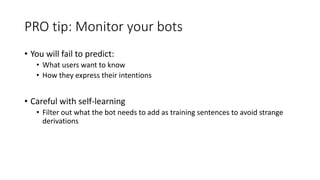

PRO tip: Monitor your bots
• You will fail to predict:
• What users want to know
• How they express their intentions
• Careful with self-learning
• Filter out what the bot needs to add as training sentences to avoid strange
derivations

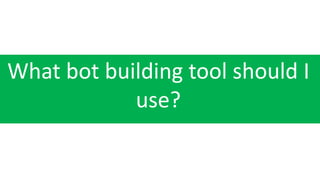

What bot building tool should I
use?
>100 bot platforms
• Rasa, BotPress, Chatfuel, Inbenta, Botsify,
Flow XO, Xatkit…
• And plenty NLP engines: DialogFlow, Lex,
LUIS, Watson, NLP.js

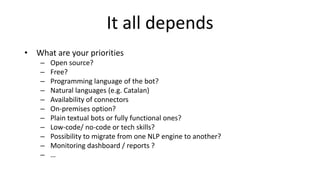

It all depends
• What are your priorities
– Open source?
– Free?
– Programming language of the bot?
– Natural languages (e.g. Catalan)
– Availability of connectors
– On-premises option?
– Plain textual bots or fully functional ones?
– Low-code/ no-code or tech skills?
– Possibility to migrate from one NLP engine to another?
– Monitoring dashboard / reports ?
– …
Building bots in Xatkit
Xatkit’s philosophy: Do not reinvent the wheel
Other solutions
Plenty of great NLU engines
and libraries, let’s not waste
our time building a new one
but take the best of breed
and focus on features to
help you create better bots
Xatkit is a chatbot orchestration platform

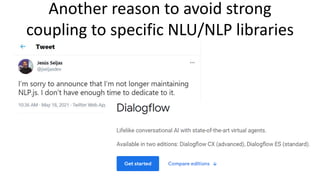

Another reason to avoid strong
coupling to specific NLU/NLP libraries

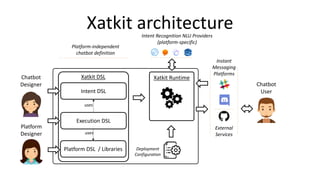

Xatkit architecture
Chatbot
Designer
Intent Recognition NLU Providers
(platform-specific)
Platform DSL / Libraries
Intent DSL
Xatkit DSL
Chatbot
User
Instant
Messaging
Platforms
Xatkit Runtime
Execution DSL
uses
uses
Platform-independent
chatbot definition
External
Services
Deployment
Configuration
Platform
Designer

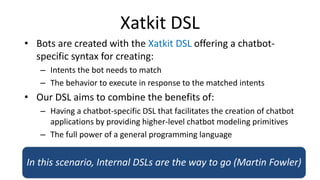

Xatkit DSL
• Bots are created with the Xatkit DSL offering a chatbot-
specific syntax for creating:
– Intents the bot needs to match
– The behavior to execute in response to the matched intents
• Our DSL aims to combine the benefits of:
– Having a chatbot-specific DSL that facilitates the creation of chatbot
applications by providing higher-level chatbot modeling primitives
– The full power of a general programming language
In this scenario, Internal DSLs are the way to go (Martin Fowler)

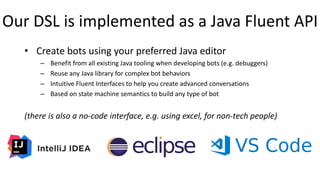

Our DSL is implemented as a Java Fluent API
• Create bots using your preferred Java editor
– Benefit from all existing Java tooling when developing bots (e.g. debuggers)
– Reuse any Java library for complex bot behaviors
– Intuitive Fluent Interfaces to help you create advanced conversations
– Based on state machine semantics to build any type of bot
(there is also a no-code interface, e.g. using excel, for non-tech people)
I18n: Xatkit helps you build bots ready to be localized
Easy deployments
A Xatkit bot can be packaged as a single jar
with no external dependencies. Just execute
the jar to get the bot up and running
Via a simple configuration file you can
connect your bot with external services, e.g.
NLP Engines and communication channels

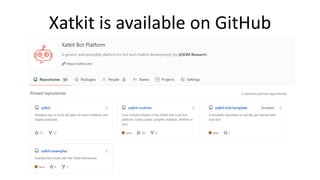

Xatkit is available on GitHub
To know more: xatkit.com /
info@xatkit.com
Xatkit is your best bet to sell more doing less
@xatkit – xatkit.com

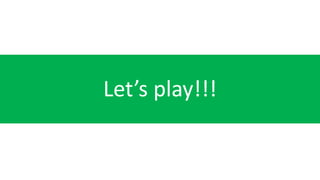

Let’s play!!!

More Related Content

What's hot

Everything you need to know about chatbots
Everything you need to know about chatbotsEverything you need to know about chatbots
Everything you need to know about chatbots
Konstant Infosolutions Pvt. Ltd.

Learning to code in 2020
Learning to code in 2020Learning to code in 2020
Learning to code in 2020
Nicholas Sterling

NLP & Machine Learning - An Introductory Talk
NLP & Machine Learning - An Introductory Talk NLP & Machine Learning - An Introductory Talk
NLP & Machine Learning - An Introductory Talk
Vijay Ganti

Software Modeling and Artificial Intelligence: friends or foes?
Software Modeling and Artificial Intelligence: friends or foes?Software Modeling and Artificial Intelligence: friends or foes?
Software Modeling and Artificial Intelligence: friends or foes?
Jordi Cabot

2106 ACM DIS
2106 ACM DIS2106 ACM DIS
2106 ACM DIS
WarNik Chow

Bridging the virtual and the physical space : Kornelia - a chatbot for public...
Bridging the virtual and the physical space : Kornelia - a chatbot for public...Bridging the virtual and the physical space : Kornelia - a chatbot for public...
Bridging the virtual and the physical space : Kornelia - a chatbot for public...
Jasmin Hügi

Vitalii Braslavskyi - Declarative engineering
Vitalii Braslavskyi - Declarative engineering Vitalii Braslavskyi - Declarative engineering
Vitalii Braslavskyi - Declarative engineering
Grammarly

Thomas Wolf "An Introduction to Transfer Learning and Hugging Face"
Thomas Wolf "An Introduction to Transfer Learning and Hugging Face"Thomas Wolf "An Introduction to Transfer Learning and Hugging Face"
Thomas Wolf "An Introduction to Transfer Learning and Hugging Face"
Fwdays

Java Memory Consistency Model - concepts and context
Java Memory Consistency Model - concepts and contextJava Memory Consistency Model - concepts and context
Java Memory Consistency Model - concepts and context
Tomek Borek

2104 Talk @SSU
2104 Talk @SSU2104 Talk @SSU
2104 Talk @SSU
WarNik Chow

Lipstick on a Pig: Integrated Library Systems
Lipstick on a Pig: Integrated Library SystemsLipstick on a Pig: Integrated Library Systems
Lipstick on a Pig: Integrated Library Systems
Dorothea Salo

Are High Level Programming Languages for Multicore and Safety Critical Conver...
Are High Level Programming Languages for Multicore and Safety Critical Conver...Are High Level Programming Languages for Multicore and Safety Critical Conver...
Are High Level Programming Languages for Multicore and Safety Critical Conver...
InfinIT - Innovationsnetværket for it

Natural Language Processing: L01 introduction
Natural Language Processing: L01 introductionNatural Language Processing: L01 introduction
Natural Language Processing: L01 introduction
ananth

How to get started in Open Source!
How to get started in Open Source!How to get started in Open Source!
How to get started in Open Source!
Pradeep Singh

Welcome to the Brixton Library Technology Initiative
Welcome to the Brixton Library Technology InitiativeWelcome to the Brixton Library Technology Initiative
Welcome to the Brixton Library Technology Initiative
Basil Bibi

Scalable state of-the-art conversational AI
Scalable state of-the-art conversational AIScalable state of-the-art conversational AI
Scalable state of-the-art conversational AI
Deep Learning Italia

Chatbots and Deep Learning
Chatbots and Deep LearningChatbots and Deep Learning
Chatbots and Deep Learning
Andherson Maeda

Next-gen IDE v2 - OpenSlava 2013-10-11
Next-gen IDE v2 - OpenSlava 2013-10-11Next-gen IDE v2 - OpenSlava 2013-10-11
Next-gen IDE v2 - OpenSlava 2013-10-11
Jorge Hidalgo

Is there a future for Model Transformation Languages?
Is there a future for Model Transformation Languages?Is there a future for Model Transformation Languages?
Is there a future for Model Transformation Languages?
Jordi Cabot

Natural language processing
Natural language processingNatural language processing
Natural language processing
Hansi Thenuwara


What's hot (20)

Everything you need to know about chatbots
Everything you need to know about chatbotsEverything you need to know about chatbots
Everything you need to know about chatbots

Learning to code in 2020
Learning to code in 2020Learning to code in 2020
Learning to code in 2020

NLP & Machine Learning - An Introductory Talk
NLP & Machine Learning - An Introductory Talk NLP & Machine Learning - An Introductory Talk
NLP & Machine Learning - An Introductory Talk

Software Modeling and Artificial Intelligence: friends or foes?
Software Modeling and Artificial Intelligence: friends or foes?Software Modeling and Artificial Intelligence: friends or foes?
Software Modeling and Artificial Intelligence: friends or foes?

2106 ACM DIS
2106 ACM DIS2106 ACM DIS
2106 ACM DIS

Bridging the virtual and the physical space : Kornelia - a chatbot for public...
Bridging the virtual and the physical space : Kornelia - a chatbot for public...Bridging the virtual and the physical space : Kornelia - a chatbot for public...
Bridging the virtual and the physical space : Kornelia - a chatbot for public...

Vitalii Braslavskyi - Declarative engineering
Vitalii Braslavskyi - Declarative engineering Vitalii Braslavskyi - Declarative engineering
Vitalii Braslavskyi - Declarative engineering

Thomas Wolf "An Introduction to Transfer Learning and Hugging Face"
Thomas Wolf "An Introduction to Transfer Learning and Hugging Face"Thomas Wolf "An Introduction to Transfer Learning and Hugging Face"
Thomas Wolf "An Introduction to Transfer Learning and Hugging Face"

Java Memory Consistency Model - concepts and context
Java Memory Consistency Model - concepts and contextJava Memory Consistency Model - concepts and context
Java Memory Consistency Model - concepts and context

2104 Talk @SSU
2104 Talk @SSU2104 Talk @SSU
2104 Talk @SSU

Lipstick on a Pig: Integrated Library Systems
Lipstick on a Pig: Integrated Library SystemsLipstick on a Pig: Integrated Library Systems
Lipstick on a Pig: Integrated Library Systems

Are High Level Programming Languages for Multicore and Safety Critical Conver...
Are High Level Programming Languages for Multicore and Safety Critical Conver...Are High Level Programming Languages for Multicore and Safety Critical Conver...
Are High Level Programming Languages for Multicore and Safety Critical Conver...

Natural Language Processing: L01 introduction
Natural Language Processing: L01 introductionNatural Language Processing: L01 introduction
Natural Language Processing: L01 introduction

How to get started in Open Source!
How to get started in Open Source!How to get started in Open Source!
How to get started in Open Source!

Welcome to the Brixton Library Technology Initiative
Welcome to the Brixton Library Technology InitiativeWelcome to the Brixton Library Technology Initiative
Welcome to the Brixton Library Technology Initiative

Scalable state of-the-art conversational AI
Scalable state of-the-art conversational AIScalable state of-the-art conversational AI
Scalable state of-the-art conversational AI

Chatbots and Deep Learning
Chatbots and Deep LearningChatbots and Deep Learning
Chatbots and Deep Learning

Next-gen IDE v2 - OpenSlava 2013-10-11
Next-gen IDE v2 - OpenSlava 2013-10-11Next-gen IDE v2 - OpenSlava 2013-10-11
Next-gen IDE v2 - OpenSlava 2013-10-11

Is there a future for Model Transformation Languages?
Is there a future for Model Transformation Languages?Is there a future for Model Transformation Languages?
Is there a future for Model Transformation Languages?

Natural language processing
Natural language processingNatural language processing
Natural language processing


Similar to The Software Challenges of Building Smart Chatbots - ICSE'21

Cómo construir un chatbot inteligente sin morir en el intento
Cómo construir un chatbot inteligente sin morir en el intentoCómo construir un chatbot inteligente sin morir en el intento
Cómo construir un chatbot inteligente sin morir en el intento
Facultad de Informática UCM

Using Chatbots in Extension Programming
Using Chatbots in Extension ProgrammingUsing Chatbots in Extension Programming
Using Chatbots in Extension Programming
Amy Cole

Applications-of-Artificial intelligence-Chatbot.pdf
Applications-of-Artificial intelligence-Chatbot.pdfApplications-of-Artificial intelligence-Chatbot.pdf
Applications-of-Artificial intelligence-Chatbot.pdf
yuguzeva

IRJET - A Study on Building a Web based Chatbot from Scratch
IRJET - A Study on Building a Web based Chatbot from ScratchIRJET - A Study on Building a Web based Chatbot from Scratch
IRJET - A Study on Building a Web based Chatbot from Scratch
IRJET Journal

UXPA2019 Not Your Average Chatbot: Using Cognitive Intercept to Improve Infor...
UXPA2019 Not Your Average Chatbot: Using Cognitive Intercept to Improve Infor...UXPA2019 Not Your Average Chatbot: Using Cognitive Intercept to Improve Infor...
UXPA2019 Not Your Average Chatbot: Using Cognitive Intercept to Improve Infor...
UXPA International

Chatbot
ChatbotChatbot
Chatbot
nikul patel

Workshop: Chatbot in a box - Introduction to conversation design and conducti...
Workshop: Chatbot in a box - Introduction to conversation design and conducti...Workshop: Chatbot in a box - Introduction to conversation design and conducti...
Workshop: Chatbot in a box - Introduction to conversation design and conducti...
Jon Temple

Chat bots
Chat botsChat bots
Chat bots
Chandulal Kavar

Chatbot Technology
Chatbot TechnologyChatbot Technology
Chatbot Technology
AishwaryaBhardwaj14

Realizing AI Conversational Bot
Realizing AI Conversational BotRealizing AI Conversational Bot
Realizing AI Conversational Bot
Rakuten Group, Inc.

Chatbot
ChatbotChatbot
Chatbot
UTSAB NEUPANE

Chatbot and Virtual AI Assistant Implementation in Natural Language Processing
Chatbot and Virtual AI Assistant Implementation in Natural Language Processing Chatbot and Virtual AI Assistant Implementation in Natural Language Processing
Chatbot and Virtual AI Assistant Implementation in Natural Language Processing
Shrutika Oswal

Student information chatbot final report
Student information chatbot  final report Student information chatbot  final report
Student information chatbot final report
jaysavani5

Final presentation on chatbot
Final presentation on chatbotFinal presentation on chatbot
Final presentation on chatbot
VaishnaviKhandelwal6

Introduction to Chatbots
Introduction to ChatbotsIntroduction to Chatbots
Introduction to Chatbots
Priyab Satoshi

Artificial Intelligence Virtual Assistants & Chatbots
Artificial Intelligence Virtual Assistants & ChatbotsArtificial Intelligence Virtual Assistants & Chatbots
Artificial Intelligence Virtual Assistants & Chatbots
aNumak & Company

CHATBOT PPT-2.pptx
CHATBOT PPT-2.pptxCHATBOT PPT-2.pptx
CHATBOT PPT-2.pptx
LohithaJangala

How to create a chatbot
How to create a chatbotHow to create a chatbot
How to create a chatbot
Raj Vignesh K

Ai chatbot ppt.pptx
Ai chatbot ppt.pptxAi chatbot ppt.pptx
Ai chatbot ppt.pptx
aashnareddy1

Chatbots Workshop by WideBot
Chatbots Workshop by WideBotChatbots Workshop by WideBot
Chatbots Workshop by WideBot
Basant Medhat


Similar to The Software Challenges of Building Smart Chatbots - ICSE'21 (20)

Cómo construir un chatbot inteligente sin morir en el intento
Cómo construir un chatbot inteligente sin morir en el intentoCómo construir un chatbot inteligente sin morir en el intento
Cómo construir un chatbot inteligente sin morir en el intento

Using Chatbots in Extension Programming
Using Chatbots in Extension ProgrammingUsing Chatbots in Extension Programming
Using Chatbots in Extension Programming

Applications-of-Artificial intelligence-Chatbot.pdf
Applications-of-Artificial intelligence-Chatbot.pdfApplications-of-Artificial intelligence-Chatbot.pdf
Applications-of-Artificial intelligence-Chatbot.pdf

IRJET - A Study on Building a Web based Chatbot from Scratch
IRJET - A Study on Building a Web based Chatbot from ScratchIRJET - A Study on Building a Web based Chatbot from Scratch
IRJET - A Study on Building a Web based Chatbot from Scratch

UXPA2019 Not Your Average Chatbot: Using Cognitive Intercept to Improve Infor...
UXPA2019 Not Your Average Chatbot: Using Cognitive Intercept to Improve Infor...UXPA2019 Not Your Average Chatbot: Using Cognitive Intercept to Improve Infor...
UXPA2019 Not Your Average Chatbot: Using Cognitive Intercept to Improve Infor...

Chatbot
ChatbotChatbot
Chatbot

Workshop: Chatbot in a box - Introduction to conversation design and conducti...
Workshop: Chatbot in a box - Introduction to conversation design and conducti...Workshop: Chatbot in a box - Introduction to conversation design and conducti...
Workshop: Chatbot in a box - Introduction to conversation design and conducti...

Chat bots
Chat botsChat bots
Chat bots

Chatbot Technology
Chatbot TechnologyChatbot Technology
Chatbot Technology

Realizing AI Conversational Bot
Realizing AI Conversational BotRealizing AI Conversational Bot
Realizing AI Conversational Bot

Chatbot
ChatbotChatbot
Chatbot

Chatbot and Virtual AI Assistant Implementation in Natural Language Processing
Chatbot and Virtual AI Assistant Implementation in Natural Language Processing Chatbot and Virtual AI Assistant Implementation in Natural Language Processing
Chatbot and Virtual AI Assistant Implementation in Natural Language Processing

Student information chatbot final report
Student information chatbot  final report Student information chatbot  final report
Student information chatbot final report

Final presentation on chatbot
Final presentation on chatbotFinal presentation on chatbot
Final presentation on chatbot

Introduction to Chatbots
Introduction to ChatbotsIntroduction to Chatbots
Introduction to Chatbots

Artificial Intelligence Virtual Assistants & Chatbots
Artificial Intelligence Virtual Assistants & ChatbotsArtificial Intelligence Virtual Assistants & Chatbots
Artificial Intelligence Virtual Assistants & Chatbots

CHATBOT PPT-2.pptx
CHATBOT PPT-2.pptxCHATBOT PPT-2.pptx
CHATBOT PPT-2.pptx

How to create a chatbot
How to create a chatbotHow to create a chatbot
How to create a chatbot

Ai chatbot ppt.pptx
Ai chatbot ppt.pptxAi chatbot ppt.pptx
Ai chatbot ppt.pptx

Chatbots Workshop by WideBot
Chatbots Workshop by WideBotChatbots Workshop by WideBot
Chatbots Workshop by WideBot


More from Jordi Cabot

AI and Software consultants: friends or foes?
AI and Software consultants: friends or foes?AI and Software consultants: friends or foes?
AI and Software consultants: friends or foes?
Jordi Cabot

Model-driven engineering for Industrial IoT architectures
Model-driven engineering for Industrial IoT architecturesModel-driven engineering for Industrial IoT architectures
Model-driven engineering for Industrial IoT architectures
Jordi Cabot

Smart modeling of smart software
Smart modeling of smart softwareSmart modeling of smart software
Smart modeling of smart software
Jordi Cabot

Modeling should be an independent scientific discipline
Modeling should be an independent scientific disciplineModeling should be an independent scientific discipline
Modeling should be an independent scientific discipline
Jordi Cabot

¿Quién va a desarrollar las Apps del futuro? (aviso: no serán los programador...
¿Quién va a desarrollar las Apps del futuro? (aviso: no serán los programador...¿Quién va a desarrollar las Apps del futuro? (aviso: no serán los programador...
¿Quién va a desarrollar las Apps del futuro? (aviso: no serán los programador...
Jordi Cabot

How to sustain a tool building community-driven effort
How to sustain a tool building community-driven effortHow to sustain a tool building community-driven effort
How to sustain a tool building community-driven effort
Jordi Cabot

All Researchers Should Become Entrepreneurs
All Researchers Should Become EntrepreneursAll Researchers Should Become Entrepreneurs
All Researchers Should Become Entrepreneurs
Jordi Cabot

Low-code vs Model-Driven Engineering
Low-code vs Model-Driven EngineeringLow-code vs Model-Driven Engineering
Low-code vs Model-Driven Engineering
Jordi Cabot

Future Trends on Software and Systems Modeling
Future Trends on Software and Systems ModelingFuture Trends on Software and Systems Modeling
Future Trends on Software and Systems Modeling
Jordi Cabot

Ingeniería del Software dirigida por modelos -Versión para incrédulos
Ingeniería del Software dirigida por modelos -Versión para incrédulosIngeniería del Software dirigida por modelos -Versión para incrédulos
Ingeniería del Software dirigida por modelos -Versión para incrédulos
Jordi Cabot

An LSTM-Based Neural Network Architecture for Model Transformations
An LSTM-Based Neural Network Architecture for Model TransformationsAn LSTM-Based Neural Network Architecture for Model Transformations
An LSTM-Based Neural Network Architecture for Model Transformations
Jordi Cabot

WAPIml: Towards a Modeling Infrastructure for Web APIs
WAPIml: Towards a Modeling Infrastructure for Web APIsWAPIml: Towards a Modeling Infrastructure for Web APIs
WAPIml: Towards a Modeling Infrastructure for Web APIs
Jordi Cabot

Temporal EMF: A temporal metamodeling platform
Temporal EMF: A temporal metamodeling platformTemporal EMF: A temporal metamodeling platform
Temporal EMF: A temporal metamodeling platform
Jordi Cabot

UMLtoNoSQL : From UML domain models to NoSQL Databases
UMLtoNoSQL : From UML domain models to NoSQL DatabasesUMLtoNoSQL : From UML domain models to NoSQL Databases
UMLtoNoSQL : From UML domain models to NoSQL Databases
Jordi Cabot

Multi-Platform Chatbot Modeling and Deployment with the Xatkit Framework
Multi-Platform Chatbot Modeling and Deployment with the Xatkit FrameworkMulti-Platform Chatbot Modeling and Deployment with the Xatkit Framework
Multi-Platform Chatbot Modeling and Deployment with the Xatkit Framework
Jordi Cabot

Model-driven Round-trip Engineering of REST APIs
Model-driven Round-trip Engineering of REST APIsModel-driven Round-trip Engineering of REST APIs
Model-driven Round-trip Engineering of REST APIs
Jordi Cabot

Robust Hashing for software models
Robust Hashing for software models Robust Hashing for software models
Robust Hashing for software models
Jordi Cabot

Cognifying model-driven software engineering
Cognifying model-driven software engineeringCognifying model-driven software engineering
Cognifying model-driven software engineering
Jordi Cabot

The secret life of rules in Software Engineering
The secret life of rules in Software EngineeringThe secret life of rules in Software Engineering
The secret life of rules in Software Engineering
Jordi Cabot

Automatic discovery of Web API Specifications: an example-driven approach
Automatic discovery of Web API Specifications: an example-driven approachAutomatic discovery of Web API Specifications: an example-driven approach
Automatic discovery of Web API Specifications: an example-driven approach
Jordi Cabot


More from Jordi Cabot (20)

AI and Software consultants: friends or foes?
AI and Software consultants: friends or foes?AI and Software consultants: friends or foes?
AI and Software consultants: friends or foes?

Model-driven engineering for Industrial IoT architectures
Model-driven engineering for Industrial IoT architecturesModel-driven engineering for Industrial IoT architectures
Model-driven engineering for Industrial IoT architectures

Smart modeling of smart software
Smart modeling of smart softwareSmart modeling of smart software
Smart modeling of smart software

Modeling should be an independent scientific discipline
Modeling should be an independent scientific disciplineModeling should be an independent scientific discipline
Modeling should be an independent scientific discipline

¿Quién va a desarrollar las Apps del futuro? (aviso: no serán los programador...
¿Quién va a desarrollar las Apps del futuro? (aviso: no serán los programador...¿Quién va a desarrollar las Apps del futuro? (aviso: no serán los programador...
¿Quién va a desarrollar las Apps del futuro? (aviso: no serán los programador...

How to sustain a tool building community-driven effort
How to sustain a tool building community-driven effortHow to sustain a tool building community-driven effort
How to sustain a tool building community-driven effort

All Researchers Should Become Entrepreneurs
All Researchers Should Become EntrepreneursAll Researchers Should Become Entrepreneurs
All Researchers Should Become Entrepreneurs

Low-code vs Model-Driven Engineering
Low-code vs Model-Driven EngineeringLow-code vs Model-Driven Engineering
Low-code vs Model-Driven Engineering

Future Trends on Software and Systems Modeling
Future Trends on Software and Systems ModelingFuture Trends on Software and Systems Modeling
Future Trends on Software and Systems Modeling

Ingeniería del Software dirigida por modelos -Versión para incrédulos
Ingeniería del Software dirigida por modelos -Versión para incrédulosIngeniería del Software dirigida por modelos -Versión para incrédulos
Ingeniería del Software dirigida por modelos -Versión para incrédulos

An LSTM-Based Neural Network Architecture for Model Transformations
An LSTM-Based Neural Network Architecture for Model TransformationsAn LSTM-Based Neural Network Architecture for Model Transformations
An LSTM-Based Neural Network Architecture for Model Transformations

WAPIml: Towards a Modeling Infrastructure for Web APIs
WAPIml: Towards a Modeling Infrastructure for Web APIsWAPIml: Towards a Modeling Infrastructure for Web APIs
WAPIml: Towards a Modeling Infrastructure for Web APIs

Temporal EMF: A temporal metamodeling platform
Temporal EMF: A temporal metamodeling platformTemporal EMF: A temporal metamodeling platform
Temporal EMF: A temporal metamodeling platform

UMLtoNoSQL : From UML domain models to NoSQL Databases
UMLtoNoSQL : From UML domain models to NoSQL DatabasesUMLtoNoSQL : From UML domain models to NoSQL Databases
UMLtoNoSQL : From UML domain models to NoSQL Databases

Multi-Platform Chatbot Modeling and Deployment with the Xatkit Framework
Multi-Platform Chatbot Modeling and Deployment with the Xatkit FrameworkMulti-Platform Chatbot Modeling and Deployment with the Xatkit Framework
Multi-Platform Chatbot Modeling and Deployment with the Xatkit Framework

Model-driven Round-trip Engineering of REST APIs
Model-driven Round-trip Engineering of REST APIsModel-driven Round-trip Engineering of REST APIs
Model-driven Round-trip Engineering of REST APIs

Robust Hashing for software models
Robust Hashing for software models Robust Hashing for software models
Robust Hashing for software models

Cognifying model-driven software engineering
Cognifying model-driven software engineeringCognifying model-driven software engineering
Cognifying model-driven software engineering

The secret life of rules in Software Engineering
The secret life of rules in Software EngineeringThe secret life of rules in Software Engineering
The secret life of rules in Software Engineering

Automatic discovery of Web API Specifications: an example-driven approach
Automatic discovery of Web API Specifications: an example-driven approachAutomatic discovery of Web API Specifications: an example-driven approach
Automatic discovery of Web API Specifications: an example-driven approach


Recently uploaded

當測試開始左移
當測試開始左移當測試開始左移
當測試開始左移
Jersey (CHE-PING) Su

Comprehensive Vulnerability Assessments Process _ Aardwolf Security.docx
Comprehensive Vulnerability Assessments Process _ Aardwolf Security.docxComprehensive Vulnerability Assessments Process _ Aardwolf Security.docx
Comprehensive Vulnerability Assessments Process _ Aardwolf Security.docx
Aardwolf Security

How To Fill Timesheet in TaskSprint: Quick Guide 2024
How To Fill Timesheet in TaskSprint: Quick Guide 2024How To Fill Timesheet in TaskSprint: Quick Guide 2024
How To Fill Timesheet in TaskSprint: Quick Guide 2024
TaskSprint | Employee Efficiency Software

VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...
VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...
VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...
jealousviolet

Attendance Tracking From Paper To Digital
Attendance Tracking From Paper To DigitalAttendance Tracking From Paper To Digital
Attendance Tracking From Paper To Digital
Task Tracker

Odoo E-commerce website development guides
Odoo E-commerce website development guidesOdoo E-commerce website development guides
Odoo E-commerce website development guides
jhkdigitalmarketing

Unleashing the Future: Building a Scalable and Up-to-Date GenAI Chatbot with ...
Unleashing the Future: Building a Scalable and Up-to-Date GenAI Chatbot with ...Unleashing the Future: Building a Scalable and Up-to-Date GenAI Chatbot with ...
Unleashing the Future: Building a Scalable and Up-to-Date GenAI Chatbot with ...
confluent

Independent Girls call Service Pune 000XX00000 Provide Best And Top Girl Serv...
Independent Girls call Service Pune 000XX00000 Provide Best And Top Girl Serv...Independent Girls call Service Pune 000XX00000 Provide Best And Top Girl Serv...
Independent Girls call Service Pune 000XX00000 Provide Best And Top Girl Serv...
bhumivarma35300

welcome to presentation on Google Apps
welcome to   presentation on Google Appswelcome to   presentation on Google Apps
welcome to presentation on Google Apps
AsifKarimJim

Mobile App Development Company in Noida - Drona Infotech.
Mobile App Development Company in Noida - Drona Infotech.Mobile App Development Company in Noida - Drona Infotech.
Mobile App Development Company in Noida - Drona Infotech.
Mobile App Development Company in Noida - Drona Infotech

Private Girls Call Navi Mumbai 🛵🚡9820252231 💃 Choose Best And Top Girl Servic...
Private Girls Call Navi Mumbai 🛵🚡9820252231 💃 Choose Best And Top Girl Servic...Private Girls Call Navi Mumbai 🛵🚡9820252231 💃 Choose Best And Top Girl Servic...
Private Girls Call Navi Mumbai 🛵🚡9820252231 💃 Choose Best And Top Girl Servic...
902basic

Russian Girls Call Mumbai 🛵🚡9833363713 💃 Choose Best And Top Girl Service And...
Russian Girls Call Mumbai 🛵🚡9833363713 💃 Choose Best And Top Girl Service And...Russian Girls Call Mumbai 🛵🚡9833363713 💃 Choose Best And Top Girl Service And...
Russian Girls Call Mumbai 🛵🚡9833363713 💃 Choose Best And Top Girl Service And...
dream girl

To Avoid Mistakes When Using Online Attendance Sheets
To Avoid Mistakes When Using Online Attendance SheetsTo Avoid Mistakes When Using Online Attendance Sheets
To Avoid Mistakes When Using Online Attendance Sheets
Task Tracker

TEQnation 2024: Sustainable Software: May the Green Code Be with You
TEQnation 2024: Sustainable Software: May the Green Code Be with YouTEQnation 2024: Sustainable Software: May the Green Code Be with You
TEQnation 2024: Sustainable Software: May the Green Code Be with You
marcofolio

Introduction to Cloud computing for Internet of Things
Introduction to Cloud computing for Internet of ThingsIntroduction to Cloud computing for Internet of Things
Introduction to Cloud computing for Internet of Things
NachuSubramanian1

AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.
AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.
AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.
Srinivas Dukka

Independent Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class H...
Independent Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class H...Independent Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class H...
Independent Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class H...
aslasdfmkhan4750

Prada Group Reports Strong Growth in First Quarter …
Prada Group Reports Strong Growth in First Quarter …Prada Group Reports Strong Growth in First Quarter …
Prada Group Reports Strong Growth in First Quarter …
908dutch

Maximizing Efficiency and Profitability: Optimizing Data Systems, Enhancing C...
Maximizing Efficiency and Profitability: Optimizing Data Systems, Enhancing C...Maximizing Efficiency and Profitability: Optimizing Data Systems, Enhancing C...
Maximizing Efficiency and Profitability: Optimizing Data Systems, Enhancing C...
OnePlan Solutions

GT degree offer diploma Transcript
GT degree offer diploma TranscriptGT degree offer diploma Transcript
GT degree offer diploma Transcript
attueb


Recently uploaded (20)

當測試開始左移
當測試開始左移當測試開始左移
當測試開始左移

Comprehensive Vulnerability Assessments Process _ Aardwolf Security.docx
Comprehensive Vulnerability Assessments Process _ Aardwolf Security.docxComprehensive Vulnerability Assessments Process _ Aardwolf Security.docx
Comprehensive Vulnerability Assessments Process _ Aardwolf Security.docx

How To Fill Timesheet in TaskSprint: Quick Guide 2024
How To Fill Timesheet in TaskSprint: Quick Guide 2024How To Fill Timesheet in TaskSprint: Quick Guide 2024
How To Fill Timesheet in TaskSprint: Quick Guide 2024

VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...
VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...
VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...

Attendance Tracking From Paper To Digital
Attendance Tracking From Paper To DigitalAttendance Tracking From Paper To Digital
Attendance Tracking From Paper To Digital

Odoo E-commerce website development guides
Odoo E-commerce website development guidesOdoo E-commerce website development guides
Odoo E-commerce website development guides

Unleashing the Future: Building a Scalable and Up-to-Date GenAI Chatbot with ...
Unleashing the Future: Building a Scalable and Up-to-Date GenAI Chatbot with ...Unleashing the Future: Building a Scalable and Up-to-Date GenAI Chatbot with ...
Unleashing the Future: Building a Scalable and Up-to-Date GenAI Chatbot with ...

Independent Girls call Service Pune 000XX00000 Provide Best And Top Girl Serv...
Independent Girls call Service Pune 000XX00000 Provide Best And Top Girl Serv...Independent Girls call Service Pune 000XX00000 Provide Best And Top Girl Serv...
Independent Girls call Service Pune 000XX00000 Provide Best And Top Girl Serv...

welcome to presentation on Google Apps
welcome to   presentation on Google Appswelcome to   presentation on Google Apps
welcome to presentation on Google Apps

Mobile App Development Company in Noida - Drona Infotech.
Mobile App Development Company in Noida - Drona Infotech.Mobile App Development Company in Noida - Drona Infotech.
Mobile App Development Company in Noida - Drona Infotech.

Private Girls Call Navi Mumbai 🛵🚡9820252231 💃 Choose Best And Top Girl Servic...
Private Girls Call Navi Mumbai 🛵🚡9820252231 💃 Choose Best And Top Girl Servic...Private Girls Call Navi Mumbai 🛵🚡9820252231 💃 Choose Best And Top Girl Servic...
Private Girls Call Navi Mumbai 🛵🚡9820252231 💃 Choose Best And Top Girl Servic...

Russian Girls Call Mumbai 🛵🚡9833363713 💃 Choose Best And Top Girl Service And...
Russian Girls Call Mumbai 🛵🚡9833363713 💃 Choose Best And Top Girl Service And...Russian Girls Call Mumbai 🛵🚡9833363713 💃 Choose Best And Top Girl Service And...
Russian Girls Call Mumbai 🛵🚡9833363713 💃 Choose Best And Top Girl Service And...

To Avoid Mistakes When Using Online Attendance Sheets
To Avoid Mistakes When Using Online Attendance SheetsTo Avoid Mistakes When Using Online Attendance Sheets
To Avoid Mistakes When Using Online Attendance Sheets

TEQnation 2024: Sustainable Software: May the Green Code Be with You
TEQnation 2024: Sustainable Software: May the Green Code Be with YouTEQnation 2024: Sustainable Software: May the Green Code Be with You
TEQnation 2024: Sustainable Software: May the Green Code Be with You

Introduction to Cloud computing for Internet of Things
Introduction to Cloud computing for Internet of ThingsIntroduction to Cloud computing for Internet of Things
Introduction to Cloud computing for Internet of Things

AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.
AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.
AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.

Independent Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class H...
Independent Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class H...Independent Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class H...
Independent Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class H...

Prada Group Reports Strong Growth in First Quarter …
Prada Group Reports Strong Growth in First Quarter …Prada Group Reports Strong Growth in First Quarter …
Prada Group Reports Strong Growth in First Quarter …

Maximizing Efficiency and Profitability: Optimizing Data Systems, Enhancing C...
Maximizing Efficiency and Profitability: Optimizing Data Systems, Enhancing C...Maximizing Efficiency and Profitability: Optimizing Data Systems, Enhancing C...
Maximizing Efficiency and Profitability: Optimizing Data Systems, Enhancing C...

GT degree offer diploma Transcript
GT degree offer diploma TranscriptGT degree offer diploma Transcript
GT degree offer diploma Transcript


The Software Challenges of Building Smart Chatbots - ICSE'21

  • 1. The Software Challenges of Building Smart Chatbots – ICSE’21 TB @xatkit – xatkit.com
  • 3. Jordi Cabot - @JordiCabot Gwendal Daniel - g__daniel
  • 4. Can you help us create a chatbot to help newcomers to write good bug reports on GitHub? Sure! It’s just a set of questions & answers, this will be pretty simple! Narrator It wasn’t. Once upon a time in 2018 (we were young and naïve)
  • 5. We were asked to build a bot. We ended up building a bot platform But at least we’ve learnt some things along the way that today we want to share with you 3 times so far!
  • 6. The plan for today • THEORY (30’) • HANDS-ON PRACTICE (1H45’) • You can watch • Better if you watch and try (installing included!) • Ask questions on the chat at anytime, we’ll keep an eye on them
  • 7. Why you all need to have some bot building notions
  • 9. And more predictions: - Business Insider experts predict that by 2022, banks can automate up to 90% of their customer interaction using chatbots - By 2024, consumer retail spend via chatbots worldwide will reach $142 billion—up from just $2.8 billion in 2019. Chatbot market is worth over 1 Billion USD
  • 11. Chatbots <-> Software engineers • Software Engineers -> Chatbot – Chatbots are a new type of software artefact that we’ll need to consider in our dev projects (Multi-experience dev) – Plenty of research opportunities to uncover • Chatbot -> Software Engineering – Bots are more and more playing a supportive role in many SE tasks (e.g. in GH) so better to know how they work and their limitations
  • 13. What is exactly a Chatbot? • Bot are software components • Chatbot = Bot + Chat interface • Voicebot = Bot + Voice Interface Voicebot Chatbot Bot
  • 14. VoiceBot • Alexa, Google Assistant ,… • They hide a chatbot inside 1. Speech-to-text 2. Process the text as a chatbot 3. Text-to-speech to reply
  • 15. Chatbot vs LiveChat • LiveChat: a person is behind • They can be combined – Bot  Person: when the bot doesn’t know how to answer (or the visitor is specially “interesting”) – Person  Bot: when no support person is available or the client is not worth
  • 16. Bots and NLP/NLU • At the core, a NLU/NLP engine with two key missions – Classify the user utterance (i.e. input text) in one of the intents (set of possible questions/requests) defined in the bot – Identify the parameters (called « entities ») from the utterance
  • 17. We ignore open-domain bots (e.g. LaMDA) • They can chat about everything but – A complete black-box – ``Useless’’ for a specific business – You could use them (or QA systems) as a fallback
  • 18. Why chatbot development is so challenging?
  • 19. Chatbots combine all the complexity of bots with the complexity of NL (including typos, trolls, sentiment analysis…)
  • 20. Many pieces to assemble Input/Output Messaging channels External Platforms NLU Engine Events!
  • 21. Chatbots are complex software systems Conversation Logic Text Processing External Services Messaging Platforms Deployment Evolution Maintenance Tests
  • 22. Jordi Cabot¹, Loli Burgueño², Robert Clarisó², Gwendal Daniel², Jorge Perianez-Pascual³,and Roberto Rodriguez-Echeverria³ ¹ICREA, Barcelona, Spain ²Open University of Catalonia, Barcelona, Spain ³University of Extremadura, Cáceres, Spain Testing challenges for NLP-intensive bots BotSE ‘21
  • 23. NLP for chatbots in 5 min
  • 24. NLP in a chatbot implies Parameters (entities) I would like to order a medium pepperoni pizza Intent Input text (utterance) • Understand what the user is trying to ask the bot • Identify and gather the data in the request that the bot needs to construct the response
  • 25. NLU approaches • Regular expressions • Require an almost exact match. Not used • Grammar-based approaches • Useful for small domains with a very specific vocabulary and constructs • E.g. Stanford Parser • Neural Networks - Multiclass classifiers 1. You provide some training sentences for each intent (the "classes" ). 2. The classifier learns from these sentences 3. It assigns any new input text to one of the classes (with %confidence)
  • 26. Example: bot that greets you, informs about the schedule and lets you buy a pizza Greetings Hi Good morning Good afternoon Hello Morning! I’d like to buy a pizza I want a pizza Can I order a pizza? Buy Are you open? Is it open now? What are your opening hours? At what time do you start? Schedule If a user says, “I would like to order a pizza” what is the closest intent? Not that easy when intents start to overlap (e.g. offering a job vs looking for a job: “can I offer you a job?” vs “do you have any job offer”)
  • 27. Entity recognition • We need to understand the intent but also identify the entities • Much easier if PizzaType is an enumeration ({ Pepperoni, Veggie, Hawaian ,…}) instead of the any string ChooseYourPizza I’d like a PizzaType pizza I’m taking a PizzaType pizza I think I’m going for a PizzaType
  • 28. Common tricks in NLU Engines • Tokenizers split the sentences into words • Stemmers identify the lemma of the word (e.g. to focus on the verb, not on the tense of the verb for matching purposes) • Synonyms and paraphrasing are an automatic way to expand the training sentences • Entity augmentation also generalize training sentences • E.g. What’s the weather in Barcelona -> What’s the weather in @city (the intent will match no matter what city the user asks for, no need to train the classifier with all the cities of the world as it will already know the list of cities itself). • Augmentation is possible for a large number of data types and common concepts (measures, countries, dates,…) https://medium.com/@jseijas/how-to-build-your-own-nlp-for-chatbots-9b4c08eb03a9
  • 29. Beyond intent classification • Great bots go beyond providing the right answer, e.g. they could show some empathy • Several language models (for toxicity detection, for sentiment analysis, language identification, emoji support…) can be easily integrated in bots
  • 30. PRO tip: Monitor your bots • You will fail to predict: • What users want to know • How they express their intentions • Careful with self-learning • Filter out what the bot needs to add as training sentences to avoid strange derivations
  • 31. What bot building tool should I use?
  • 32. >100 bot platforms • Rasa, BotPress, Chatfuel, Inbenta, Botsify, Flow XO, Xatkit… • And plenty NLP engines: DialogFlow, Lex, LUIS, Watson, NLP.js
  • 33. It all depends • What are your priorities – Open source? – Free? – Programming language of the bot? – Natural languages (e.g. Catalan) – Availability of connectors – On-premises option? – Plain textual bots or fully functional ones? – Low-code/ no-code or tech skills? – Possibility to migrate from one NLP engine to another? – Monitoring dashboard / reports ? – …
  • 35. Xatkit’s philosophy: Do not reinvent the wheel Other solutions Plenty of great NLU engines and libraries, let’s not waste our time building a new one but take the best of breed and focus on features to help you create better bots Xatkit is a chatbot orchestration platform
  • 36. Another reason to avoid strong coupling to specific NLU/NLP libraries
  • 37. Xatkit architecture Chatbot Designer Intent Recognition NLU Providers (platform-specific) Platform DSL / Libraries Intent DSL Xatkit DSL Chatbot User Instant Messaging Platforms Xatkit Runtime Execution DSL uses uses Platform-independent chatbot definition External Services Deployment Configuration Platform Designer
  • 38. Xatkit DSL • Bots are created with the Xatkit DSL offering a chatbot- specific syntax for creating: – Intents the bot needs to match – The behavior to execute in response to the matched intents • Our DSL aims to combine the benefits of: – Having a chatbot-specific DSL that facilitates the creation of chatbot applications by providing higher-level chatbot modeling primitives – The full power of a general programming language In this scenario, Internal DSLs are the way to go (Martin Fowler)
  • 39. Our DSL is implemented as a Java Fluent API • Create bots using your preferred Java editor – Benefit from all existing Java tooling when developing bots (e.g. debuggers) – Reuse any Java library for complex bot behaviors – Intuitive Fluent Interfaces to help you create advanced conversations – Based on state machine semantics to build any type of bot (there is also a no-code interface, e.g. using excel, for non-tech people)
  • 40. I18n: Xatkit helps you build bots ready to be localized
  • 41. Easy deployments A Xatkit bot can be packaged as a single jar with no external dependencies. Just execute the jar to get the bot up and running Via a simple configuration file you can connect your bot with external services, e.g. NLP Engines and communication channels
  • 42. Xatkit is available on GitHub
  • 43. To know more: xatkit.com / info@xatkit.com Xatkit is your best bet to sell more doing less @xatkit – xatkit.com

Editor's Notes

  1. We’re still young 
  2. We believe we had good arguments to decide that the world needed another chatbot development platform
  3. This is really designed to be a hands-on tutorial. We’ll start by installing Xatkit
  4. AI and Virtual assistants are everywhere
  5. And the chatbot market is growing non-stop
  6. Typically, this voice interface ends up being a speech-to-text component so a voicebot is a chatbot plus this speech-to-text and text-to-speech layer on top
  7. Google on Tuesday unveiled its latest language breakthrough, the development of a conversational language model called LaMDA (Language Model for Dialogue Applications). Google discussed the new model during the keynote address at its I/O conference.  Like other recently-developed language models, including BERT and GPT-3, LaMDA is built on Transformer, the neural network architecture that Google Research invented and open-sourced in 2017.  However, unlike other language models, Google's LaMDA was trained on dialogue, teaching it how to engage in free-flowing conversations. This training taught LaMDA to deliver responses that not only make sense given the context but are specific.
  8. By complexity of NL, I mean that beyond intent classification, you’ve plenty of additional issues to deal with in NL: trolls, typos, sentiment analysis
  9. When you start looking at what you need to build this bot you realize there are many more components involved Event webhooks
  10. We´ll assume you’re familiar with other complications such as APIs, webhooks,…
  11. The network uses synonyms and stemming and lemmatization to classify the intent Sometimes we may need to help the Engine by putting close questions in different paths
  12. Hay mucho “graciosillo” suelto, no queremos que el bot aprenda palaborats
  13. La diferencia entre un motor NLP y una plataforma es que el motor NLP está especializado en clasificar el texto del usuario, no tanto en lo qué el bot deber hacer con ella.
