Uploaded byJordi Cabot
WAPIml: Towards a Modeling Infrastructure for Web APIs
The document discusses the WAPIML project, aimed at creating a modeling infrastructure for web APIs, particularly focusing on OpenAPI and REST APIs. It emphasizes the importance of standardizing API descriptions to facilitate better visualization, understanding, and integration of APIs into model-based processes. Future plans include supporting OpenAPI 3, new UML diagrams, and additional web API specifications.
More Related Content
Similar to WAPIml: Towards a Modeling Infrastructure for Web APIs
WAPIml: Towards a Modeling Infrastructure for Web APIs
- 1. WAPIML: Towards aModeling Infrastructure for Web APIs Hamza Ed-douibi1, Javier Luis Cánovas Izquierdo1, Francis Bordeleau2, Jordi Cabot3 1Internet Interdisciplinary Institute (IN3) - Universitat Oberta de Catalunya (UOC), Barcelona, Spain 2École de technologie supérieure, Université du Québec, Montreal, Canada 3Internet Interdisciplinary Institute (IN3) - ICREA, Barcelona, Spain Munich, September 19, 2019
- 2. REST Representational state transfer(REST) ProgrammableWeb: more than 21 000 APIs
- 3. …consortium of forward-looking industryexperts who recognize the immense value of standardizing on how REST APIs are described… …is focused on creating, evolving and promoting a vendor neutral description format… https://www.openapis.org
- 4. 4 OpenAPI E xa m p le "info": { "description": "This is … ", "version" : "1.0.0", "title": “…", "contact": {…},… } Metadata { "swagger": "2.0", "info": { "version": "1.0.0", "title": "Swagger Petstore", "license": { "name": "MIT" } }, "host": "petstore.swagger.io", "basePath": "/v1", "schemes": [ "http" ], "consumes": [ "application/json" ], "produces": [ "application/json" ], "paths": { "/pets": { "get": { "summary": "List all pets", "operationId": "listPets", "tags": [ "pets" ], "parameters": [ { "name": "limit", "in": "query", "description": "How many items to return at one time (max 100)", "required": false, "type": "integer", "format": "int32" } ], "responses": { "200": { "description": "An paged array of pets", "headers": { "x-next": { "type": "string", "description": "A link to the next page of responses" } }, "schema": { "$ref": "#/definitions/Pets" } }, "default": { "description": "unexpected error", "schema": { "$ref": "#/definitions/Error" } } } }, OpenAPI definition "paths":{ "/pet/{petId}":{ "get":{ "parameters":[ { "name":"petId", "in":"path",... } ], "responses":{ "200":..., },... },... }, Operations "definitions":{ "Pet":{ "type":"object", "properties":{ "id":..., "category":..., "name":..., ... } } Schema
- 5.

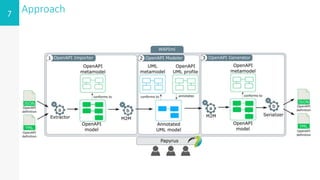

- 6. 6 Proposal Better visualizationand understanding of the data model and operations of a REST API. Easier integration of REST APIs in all kinds of model- based processes. OpenAPI to UML and back Model–based editor for OpenAPI definitions
- 7.
- 8.
- 9.
- 10.
- 11. 11 Conclusions andfuture work What we have shown What we plan to do Support OpenAPI 3 Support new UML diagrams Support other Web APIs specifications (e.g., OData) An OpenAPI round-trip tool that leverages model-driven techniques to create, visualize, manage, and generate OpenAPI definitions using an OpenAPI DSL also expressed as a UML profile
- 12. Thank you! WAPIML: Towardsa Modeling Infrastructure for Web APIs Hamza Ed-douibi, Javier Luis Cánovas Izquierdo, Francis Bordeleau, Jordi Cabot https://github.com/opendata-for-all/wapiml
