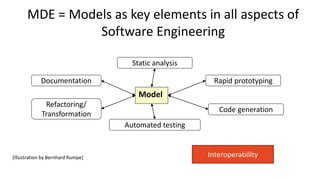

![Model
Rapid prototyping
Static analysis
Code generation
Automated testing
Refactoring/
Transformation
Documentation
[Illustration by Bernhard Rumpe]
MDE = Models as key elements in all aspects of
Software Engineering
Interoperability](https://image.slidesharecdn.com/serp4iotcabotkeynote-221205111126-2d355181/85/Model-driven-engineering-for-Industrial-IoT-architectures-12-320.jpg)
![Iotbox/box1/monitor

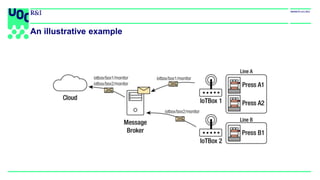

An illustrative example
{
"id": "Line A",
"presses": [
{
"id": "Press A1",
"ts": "2020-05-
11T18:01:06.158Z",
"value": 10.0
},{
"id": "Press A2",
"ts": "2020-05-
11T18:01:06.329Z",
"value": 15.5
}
]
}](https://image.slidesharecdn.com/serp4iotcabotkeynote-221205111126-2d355181/85/Model-driven-engineering-for-Industrial-IoT-architectures-23-320.jpg)
![An illustrative example
Iotbox/box1/monitoring
{
"id": "Line A",
"Press A1": {
"ts": "2020-05-11T18:01:06.158Z",
"value": 10.0
},
"Press A2“: {
"ts": "2020-05-11T18:01:06.329Z",
"value": 15.5
}
]
}
Iotbox/box1/monitor
{
"id": "Line A",
"presses": [
{
"id": "Press A1",
"ts": "2020-05-
11T18:01:06.158Z",
"value": 10.0
},{
"id": "Press A2",
"ts": "2020-05-
11T18:01:06.329Z",
"value": 15.5
}
]
}](https://image.slidesharecdn.com/serp4iotcabotkeynote-221205111126-2d355181/85/Model-driven-engineering-for-Industrial-IoT-architectures-25-320.jpg)

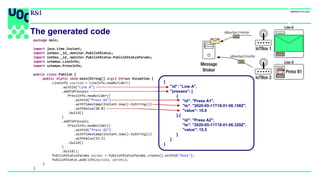

![The generated code
package main;
import java.time.Instant;
import iotbox._id_.monitor.PublishStatus;
import iotbox._id_.monitor.PublishStatus.PublishStatusParams;
import schemas.LineInfo;
import schemas.PressInfo;
public class Publish {
public static void main(String[] args) throws Exception {
LineInfo payload = LineInfo.newBuilder()
.withId("Line A")
.addToPresses(
PressInfo.newBuilder()
.withId("Press A1")
.withTimestamp(Instant.now().toString())
.withValue(10.0)
.build()
)
.addToPresses(
PressInfo.newBuilder()
.withId("Press A2")
.withTimestamp(Instant.now().toString())
.withValue(15.5)
.build()
)
.build();
PublishStatusParams params = PublishStatusParams.create().withId("box1");
PublishStatus.publish(payload, params);
}
}
{
"id": "Line A",
"presses": [
{
"id": "Press A1",
"ts": "2020-05-11T18:01:06.158Z",
"value": 10.0
},{
"id": "Press A2",
"ts": "2020-05-11T18:01:06.329Z",
"value": 15.5
}
]
}](https://image.slidesharecdn.com/serp4iotcabotkeynote-221205111126-2d355181/85/Model-driven-engineering-for-Industrial-IoT-architectures-50-320.jpg)
![GET http://restcountries/alpha/ES
GET Battuta.medunes.net/region/ES/all
{"@odata.context":"$metadata#Country",
"name": "Spain",
"code": "ES",
"population": 46538422,....
"regions":[
{"name": "Andalucia"},
{"name": "Aragon"},
{"name":"Canary Islands"},,...]
}
"name": "Spain",
"code": "ES",
"population": 46538422,....
{"name": "Andalucia"},
{"name": "Aragon"},
{"name":"Canary Islands"},...]](https://image.slidesharecdn.com/serp4iotcabotkeynote-221205111126-2d355181/85/Model-driven-engineering-for-Industrial-IoT-architectures-80-320.jpg)
Uploaded byJordi Cabot
Model-driven engineering for Industrial IoT architectures
The document describes an AsyncAPI specification for a model-driven architecture for an industrial IoT system. The specification defines an API for a monitoring channel ("iotbox/{id}/monitor") that publishes and subscribes status messages about IoT boxes. The message formats are defined under "components" including a "statusMessage" format that references nested "lineInfo" and "pressInfo" schemas defining the payload data structure.
More Related Content
Similar to Model-driven engineering for Industrial IoT architectures
Model-driven engineering for Industrial IoT architectures
- 1. Model-driven engineering for IndustrialIoT architectures Jordi Cabot, Abel Gómez, Ivan Alfonso Díaz, Javier Cánovas, Hamza Ed-douibi + the rest of the SOM team @JordiCabot – jordicabot.com
- 2. Why MDE isthe way to go in IIoT
- 3.
- 4. Internet of Things4 There will be 5.3 billion internet users in 2023 (Cisco Annual Internet Report)
- 6.

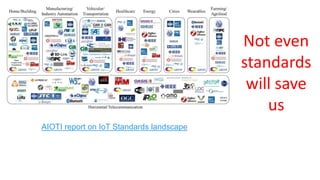

- 7. AIOTI report onIoT Standards landscape Not even standards will save us
- 8. MDE to therescue
- 9. • Grady Booch– history of softwre engineering The entire history of software engineering is that of the rise in levels of abstraction - Grady Booch Also true for IoT -> MDE is the best tool to manage the complexity of the IoT landscape
- 10. To model, ornot to model, this is the WRONG question - Shakespeare
- 12. Model Rapid prototyping Static analysis Codegeneration Automated testing Refactoring/ Transformation Documentation [Illustration by Bernhard Rumpe] MDE = Models as key elements in all aspects of Software Engineering Interoperability

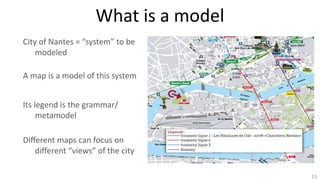

- 13. What is amodel 13 City of Nantes = “system” to be modeled A map is a model of this system Its legend is the grammar/ metamodel Different maps can focus on different “views” of the city

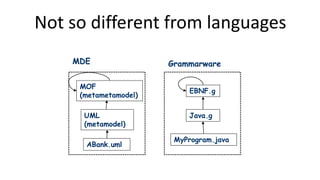

- 14. Not so differentfrom languages MDE Grammarware MOF (metametamodel) UML (metamodel) ABank.uml EBNF.g Java.g MyProgram.java
- 15. The MDE equation Models+ Transformations = Software

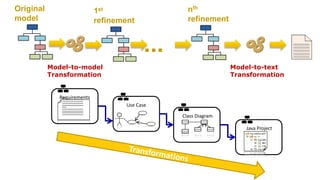

- 16.

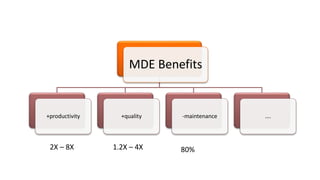

- 17. MDE Benefits +productivity +quality-maintenance …. 2X – 8X 1.2X – 4X 80%
- 18. MDE for IoT- Design time
- 19. The importance ofthe message

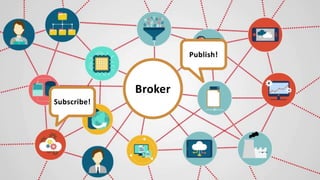

- 21.

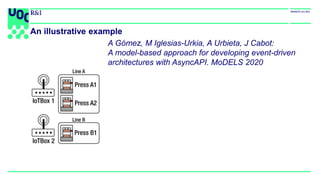

- 22. An illustrative example AGómez, M Iglesias-Urkia, A Urbieta, J Cabot: A model-based approach for developing event-driven architectures with AsyncAPI. MoDELS 2020
- 23. Iotbox/box1/monitor An illustrative example { "id":"Line A", "presses": [ { "id": "Press A1", "ts": "2020-05- 11T18:01:06.158Z", "value": 10.0 },{ "id": "Press A2", "ts": "2020-05- 11T18:01:06.329Z", "value": 15.5 } ] }
- 24.

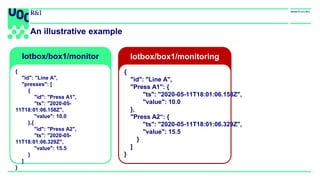

- 25. An illustrative example Iotbox/box1/monitoring { "id":"Line A", "Press A1": { "ts": "2020-05-11T18:01:06.158Z", "value": 10.0 }, "Press A2“: { "ts": "2020-05-11T18:01:06.329Z", "value": 15.5 } ] } Iotbox/box1/monitor { "id": "Line A", "presses": [ { "id": "Press A1", "ts": "2020-05- 11T18:01:06.158Z", "value": 10.0 },{ "id": "Press A2", "ts": "2020-05- 11T18:01:06.329Z", "value": 15.5 } ] }

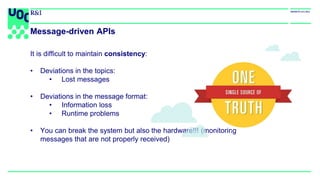

- 26. It is difficultto maintain consistency: • Deviations in the topics: • Lost messages • Deviations in the message format: • Information loss • Runtime problems • You can break the system but also the hardware!!! (monitoring messages that are not properly received) Message-driven APIs
- 27. A modeling toolkitfor message-driven architectures
- 28.

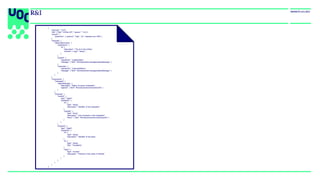

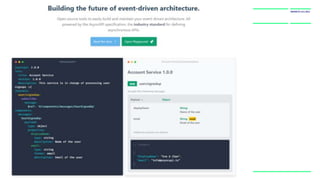

- 30. { "asyncapi": "2.0.0", "info": {"title": "IoTBox API", "version": "1.0.0”}, "servers": { "production": { "protocol": "mqtt", "url": "example.com:1883" } }, "channels": { "iotbox/{id}/monitor": { "parameters": { "id": { "description": "The ID of the IoTBox", "schema": { "type": "string" } } }, "publish": { "operationId": "publishStatus", "message": { "$ref": "#/components/messages/statusMessage" } }, "subscribe": { "operationId": "subscribeStatus", "message": { "$ref": "#/components/messages/statusMessage" } } } }, "components": { "messages": { "statusMessage": { "description": "Status of a given subsystem", "payload": { "$ref": "#/components/schemas/lineInfo" } } }, "schemas": { "lineInfo": { "type": "object", "properties": { "id": { "type": "string", "description": "Identifier of the subsystem" }, "presses": { "type": "array", "description": "Info of presses in this subsystem", "items": { "$ref": "#/components/schemas/pressInfo" } } } }, "pressInfo": { "type": "object", "properties": { "id": { "type": "string", "description": "Identifier of the press" }, "ts": { "type": "string", "title": "Timestamp" }, "value": { "type": "number", "description": "Pressure of the press in Pascals" } } } } } }

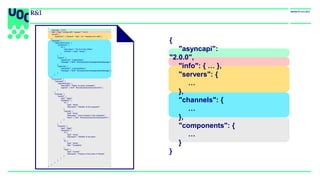

- 31. { "asyncapi": "2.0.0", "info": { …}, "servers": { … }, "channels": { … }, "components": { … } } { "asyncapi": "2.0.0", "info": { "title": "IoTBox API", "version": "1.0.0”}, "servers": { "production": { "protocol": "mqtt", "url": "example.com:1883" } }, "channels": { "iotbox/{id}/monitor": { "parameters": { "id": { "description": "The ID of the IoTBox", "schema": { "type": "string" } } }, "publish": { "operationId": "publishStatus", "message": { "$ref": "#/components/messages/statusMessage" } }, "subscribe": { "operationId": "subscribeStatus", "message": { "$ref": "#/components/messages/statusMessage" } } } }, "components": { "messages": { "statusMessage": { "description": "Status of a given subsystem", "payload": { "$ref": "#/components/schemas/lineInfo" } } }, "schemas": { "lineInfo": { "type": "object", "properties": { "id": { "type": "string", "description": "Identifier of the subsystem" }, "presses": { "type": "array", "description": "Info of presses in this subsystem", "items": { "$ref": "#/components/schemas/pressInfo" } } } }, "pressInfo": { "type": "object", "properties": { "id": { "type": "string", "description": "Identifier of the press" }, "ts": { "type": "string", "title": "Timestamp" }, "value": { "type": "number", "description": "Pressure of the press in Pascals" } } } } } }

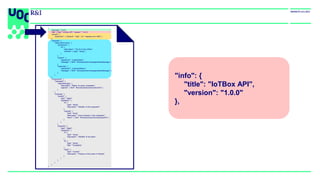

- 32. "info": { "title": "IoTBoxAPI", "version": "1.0.0" }, { "asyncapi": "2.0.0", "info": { "title": "IoTBox API", "version": "1.0.0”}, "servers": { "production": { "protocol": "mqtt", "url": "example.com:1883" } }, "channels": { "iotbox/{id}/monitor": { "parameters": { "id": { "description": "The ID of the IoTBox", "schema": { "type": "string" } } }, "publish": { "operationId": "publishStatus", "message": { "$ref": "#/components/messages/statusMessage" } }, "subscribe": { "operationId": "subscribeStatus", "message": { "$ref": "#/components/messages/statusMessage" } } } }, "components": { "messages": { "statusMessage": { "description": "Status of a given subsystem", "payload": { "$ref": "#/components/schemas/lineInfo" } } }, "schemas": { "lineInfo": { "type": "object", "properties": { "id": { "type": "string", "description": "Identifier of the subsystem" }, "presses": { "type": "array", "description": "Info of presses in this subsystem", "items": { "$ref": "#/components/schemas/pressInfo" } } } }, "pressInfo": { "type": "object", "properties": { "id": { "type": "string", "description": "Identifier of the press" }, "ts": { "type": "string", "title": "Timestamp" }, "value": { "type": "number", "description": "Pressure of the press in Pascals" } } } } } }

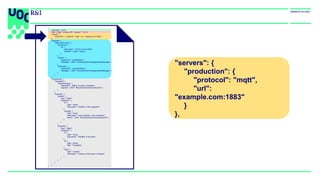

- 33. "servers": { "production": { "protocol":"mqtt", "url": "example.com:1883" } }, { "asyncapi": "2.0.0", "info": { "title": "IoTBox API", "version": "1.0.0”}, "servers": { "production": { "protocol": "mqtt", "url": "example.com:1883" } }, "channels": { "iotbox/{id}/monitor": { "parameters": { "id": { "description": "The ID of the IoTBox", "schema": { "type": "string" } } }, "publish": { "operationId": "publishStatus", "message": { "$ref": "#/components/messages/statusMessage" } }, "subscribe": { "operationId": "subscribeStatus", "message": { "$ref": "#/components/messages/statusMessage" } } } }, "components": { "messages": { "statusMessage": { "description": "Status of a given subsystem", "payload": { "$ref": "#/components/schemas/lineInfo" } } }, "schemas": { "lineInfo": { "type": "object", "properties": { "id": { "type": "string", "description": "Identifier of the subsystem" }, "presses": { "type": "array", "description": "Info of presses in this subsystem", "items": { "$ref": "#/components/schemas/pressInfo" } } } }, "pressInfo": { "type": "object", "properties": { "id": { "type": "string", "description": "Identifier of the press" }, "ts": { "type": "string", "title": "Timestamp" }, "value": { "type": "number", "description": "Pressure of the press in Pascals" } } } } } }

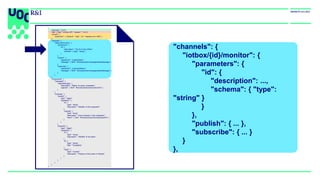

- 34. "channels": { "iotbox/{id}/monitor": { "parameters":{ "id": { "description": ..., "schema": { "type": "string" } } }, "publish": { ... }, "subscribe": { ... } } }, { "asyncapi": "2.0.0", "info": { "title": "IoTBox API", "version": "1.0.0”}, "servers": { "production": { "protocol": "mqtt", "url": "example.com:1883" } }, "channels": { "iotbox/{id}/monitor": { "parameters": { "id": { "description": "The ID of the IoTBox", "schema": { "type": "string" } } }, "publish": { "operationId": "publishStatus", "message": { "$ref": "#/components/messages/statusMessage" } }, "subscribe": { "operationId": "subscribeStatus", "message": { "$ref": "#/components/messages/statusMessage" } } } }, "components": { "messages": { "statusMessage": { "description": "Status of a given subsystem", "payload": { "$ref": "#/components/schemas/lineInfo" } } }, "schemas": { "lineInfo": { "type": "object", "properties": { "id": { "type": "string", "description": "Identifier of the subsystem" }, "presses": { "type": "array", "description": "Info of presses in this subsystem", "items": { "$ref": "#/components/schemas/pressInfo" } } } }, "pressInfo": { "type": "object", "properties": { "id": { "type": "string", "description": "Identifier of the press" }, "ts": { "type": "string", "title": "Timestamp" }, "value": { "type": "number", "description": "Pressure of the press in Pascals" } } } } } }

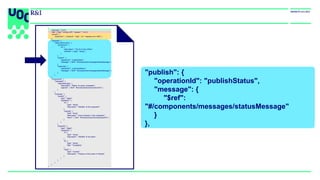

- 35. "publish": { "operationId": "publishStatus", "message":{ "$ref": "#/components/messages/statusMessage" } }, { "asyncapi": "2.0.0", "info": { "title": "IoTBox API", "version": "1.0.0”}, "servers": { "production": { "protocol": "mqtt", "url": "example.com:1883" } }, "channels": { "iotbox/{id}/monitor": { "parameters": { "id": { "description": "The ID of the IoTBox", "schema": { "type": "string" } } }, "publish": { "operationId": "publishStatus", "message": { "$ref": "#/components/messages/statusMessage" } }, "subscribe": { "operationId": "subscribeStatus", "message": { "$ref": "#/components/messages/statusMessage" } } } }, "components": { "messages": { "statusMessage": { "description": "Status of a given subsystem", "payload": { "$ref": "#/components/schemas/lineInfo" } } }, "schemas": { "lineInfo": { "type": "object", "properties": { "id": { "type": "string", "description": "Identifier of the subsystem" }, "presses": { "type": "array", "description": "Info of presses in this subsystem", "items": { "$ref": "#/components/schemas/pressInfo" } } } }, "pressInfo": { "type": "object", "properties": { "id": { "type": "string", "description": "Identifier of the press" }, "ts": { "type": "string", "title": "Timestamp" }, "value": { "type": "number", "description": "Pressure of the press in Pascals" } } } } } }

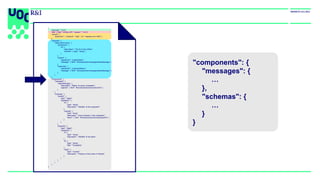

- 36. "components": { "messages": { … }, "schemas":{ … } } { "asyncapi": "2.0.0", "info": { "title": "IoTBox API", "version": "1.0.0”}, "servers": { "production": { "protocol": "mqtt", "url": "example.com:1883" } }, "channels": { "iotbox/{id}/monitor": { "parameters": { "id": { "description": "The ID of the IoTBox", "schema": { "type": "string" } } }, "publish": { "operationId": "publishStatus", "message": { "$ref": "#/components/messages/statusMessage" } }, "subscribe": { "operationId": "subscribeStatus", "message": { "$ref": "#/components/messages/statusMessage" } } } }, "components": { "messages": { "statusMessage": { "description": "Status of a given subsystem", "payload": { "$ref": "#/components/schemas/lineInfo" } } }, "schemas": { "lineInfo": { "type": "object", "properties": { "id": { "type": "string", "description": "Identifier of the subsystem" }, "presses": { "type": "array", "description": "Info of presses in this subsystem", "items": { "$ref": "#/components/schemas/pressInfo" } } } }, "pressInfo": { "type": "object", "properties": { "id": { "type": "string", "description": "Identifier of the press" }, "ts": { "type": "string", "title": "Timestamp" }, "value": { "type": "number", "description": "Pressure of the press in Pascals" } } } } } }

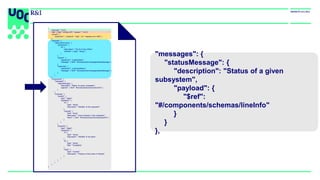

- 37. "messages": { "statusMessage": { "description":"Status of a given subsystem", "payload": { "$ref": "#/components/schemas/lineInfo" } } }, { "asyncapi": "2.0.0", "info": { "title": "IoTBox API", "version": "1.0.0”}, "servers": { "production": { "protocol": "mqtt", "url": "example.com:1883" } }, "channels": { "iotbox/{id}/monitor": { "parameters": { "id": { "description": "The ID of the IoTBox", "schema": { "type": "string" } } }, "publish": { "operationId": "publishStatus", "message": { "$ref": "#/components/messages/statusMessage" } }, "subscribe": { "operationId": "subscribeStatus", "message": { "$ref": "#/components/messages/statusMessage" } } } }, "components": { "messages": { "statusMessage": { "description": "Status of a given subsystem", "payload": { "$ref": "#/components/schemas/lineInfo" } } }, "schemas": { "lineInfo": { "type": "object", "properties": { "id": { "type": "string", "description": "Identifier of the subsystem" }, "presses": { "type": "array", "description": "Info of presses in this subsystem", "items": { "$ref": "#/components/schemas/pressInfo" } } } }, "pressInfo": { "type": "object", "properties": { "id": { "type": "string", "description": "Identifier of the press" }, "ts": { "type": "string", "title": "Timestamp" }, "value": { "type": "number", "description": "Pressure of the press in Pascals" } } } } } }
- 38. "lineInfo": { "type": "object", "properties":{ "id": { "type": "string", "description": "Identifier of the subsystem" }, "presses": { "type": "array", "description": "Info of presses in this subsystem", "items": { "$ref": "#/components/schemas/pressInfo“ } } } }, { "asyncapi": "2.0.0", "info": { "title": "IoTBox API", "version": "1.0.0”}, "servers": { "production": { "protocol": "mqtt", "url": "example.com:1883" } }, "channels": { "iotbox/{id}/monitor": { "parameters": { "id": { "description": "The ID of the IoTBox", "schema": { "type": "string" } } }, "publish": { "operationId": "publishStatus", "message": { "$ref": "#/components/messages/statusMessage" } }, "subscribe": { "operationId": "subscribeStatus", "message": { "$ref": "#/components/messages/statusMessage" } } } }, "components": { "messages": { "statusMessage": { "description": "Status of a given subsystem", "payload": { "$ref": "#/components/schemas/lineInfo" } } }, "schemas": { "lineInfo": { "type": "object", "properties": { "id": { "type": "string", "description": "Identifier of the subsystem" }, "presses": { "type": "array", "description": "Info of presses in this subsystem", "items": { "$ref": "#/components/schemas/pressInfo" } } } }, "pressInfo": { "type": "object", "properties": { "id": { "type": "string", "description": "Identifier of the press" }, "ts": { "type": "string", "title": "Timestamp" }, "value": { "type": "number", "description": "Pressure of the press in Pascals" } } } } } }

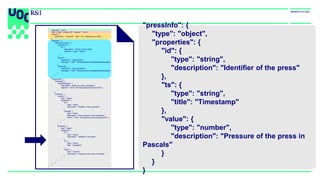

- 39. "pressInfo": { "type": "object", "properties":{ "id": { "type": "string", "description": "Identifier of the press" }, "ts": { "type": "string", "title": "Timestamp" }, "value": { "type": "number", "description": "Pressure of the press in Pascals" } } } { "asyncapi": "2.0.0", "info": { "title": "IoTBox API", "version": "1.0.0”}, "servers": { "production": { "protocol": "mqtt", "url": "example.com:1883" } }, "channels": { "iotbox/{id}/monitor": { "parameters": { "id": { "description": "The ID of the IoTBox", "schema": { "type": "string" } } }, "publish": { "operationId": "publishStatus", "message": { "$ref": "#/components/messages/statusMessage" } }, "subscribe": { "operationId": "subscribeStatus", "message": { "$ref": "#/components/messages/statusMessage" } } } }, "components": { "messages": { "statusMessage": { "description": "Status of a given subsystem", "payload": { "$ref": "#/components/schemas/lineInfo" } } }, "schemas": { "lineInfo": { "type": "object", "properties": { "id": { "type": "string", "description": "Identifier of the subsystem" }, "presses": { "type": "array", "description": "Info of presses in this subsystem", "items": { "$ref": "#/components/schemas/pressInfo" } } } }, "pressInfo": { "type": "object", "properties": { "id": { "type": "string", "description": "Identifier of the press" }, "ts": { "type": "string", "title": "Timestamp" }, "value": { "type": "number", "description": "Pressure of the press in Pascals" } } } } } }
- 40. AsyncAPI toolkit A model-basedapproach for developing message-driven architectures with AsyncAPI
- 42.

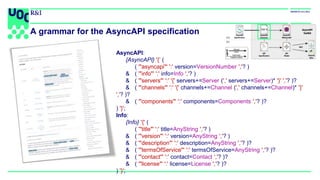

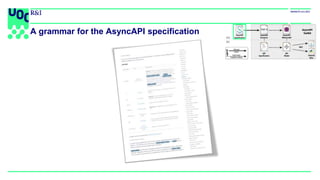

- 43. A grammar forthe AsyncAPI specification
- 44. AsyncAPI: {AsyncAPI} '{‘ ( ('"asyncapi"' ':' version=VersionNumber ','? ) & ( '"info"' ':' info=Info ','? ) & ( '"servers"' ':' '{' servers+=Server (',' servers+=Server)* '}' ','? )? & ( '"channels"' ':' '{' channels+=Channel (',' channels+=Channel)* '}' ','? )? & ( '"components"' ':' components=Components ','? )? ) '}'; Info: {Info} '{' ( ( '"title"' ':' title=AnyString ','? ) & ( '"version"' ':' version=AnyString ','? ) & ( '"description"' ':' description=AnyString ','? )? & ( '"termsOfService"' ':' termsOfService=AnyString ','? )? & ( '"contact"' ':' contact=Contact ','? )? & ( '"license"' ':' license=License ','? )? ) '}'; A grammar for the AsyncAPI specification

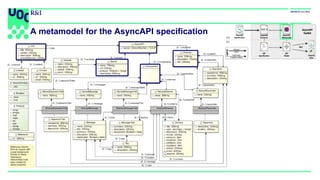

- 45. A metamodel forthe AsyncAPI specification

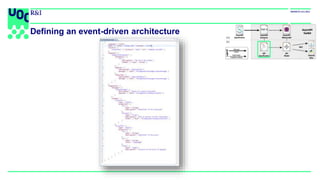

- 46. Defining an event-drivenarchitecture

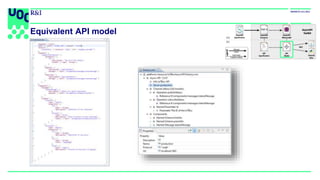

- 47.

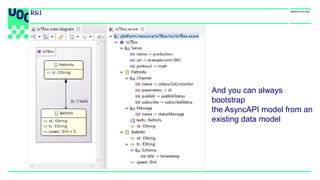

- 48. And you canalways bootstrap the AsyncAPI model from an existing data model
- 49.

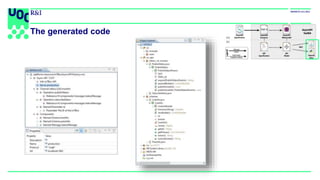

- 50. The generated code packagemain; import java.time.Instant; import iotbox._id_.monitor.PublishStatus; import iotbox._id_.monitor.PublishStatus.PublishStatusParams; import schemas.LineInfo; import schemas.PressInfo; public class Publish { public static void main(String[] args) throws Exception { LineInfo payload = LineInfo.newBuilder() .withId("Line A") .addToPresses( PressInfo.newBuilder() .withId("Press A1") .withTimestamp(Instant.now().toString()) .withValue(10.0) .build() ) .addToPresses( PressInfo.newBuilder() .withId("Press A2") .withTimestamp(Instant.now().toString()) .withValue(15.5) .build() ) .build(); PublishStatusParams params = PublishStatusParams.create().withId("box1"); PublishStatus.publish(payload, params); } } { "id": "Line A", "presses": [ { "id": "Press A1", "ts": "2020-05-11T18:01:06.158Z", "value": 10.0 },{ "id": "Press A2", "ts": "2020-05-11T18:01:06.329Z", "value": 15.5 } ] }
- 51. MDE for IoT- Runtime
- 52.

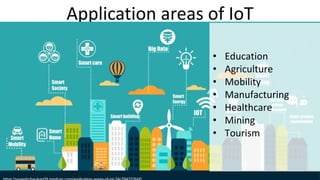

- 53. Application areas ofIoT 53 • Education • Agriculture • Mobility • Manufacturing • Healthcare • Mining • Tourism

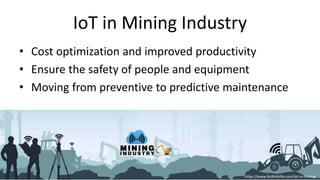

- 54. IoT in MiningIndustry • Cost optimization and improved productivity • Ensure the safety of people and equipment • Moving from preventive to predictive maintenance 54 https://www.biz4intellia.com/iot-in-mining/

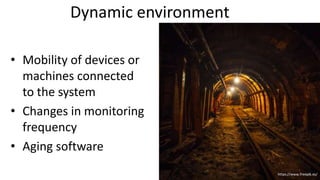

- 55. Dynamic environment • Mobilityof devices or machines connected to the system • Changes in monitoring frequency • Aging software 55 https://www.freepik.es/
- 56. Traditional IoT Architecture 56 Network device Network device Network device Network device Network device Network device Cloud PhysicalLayer Collecting data Sensors and actuators Cloud Layer Data processing and analysis Business logic Data storage Data centers Cloud

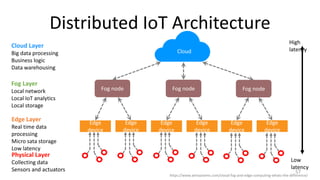

- 57. Distributed IoT Architecture 57 Fognode Fog node Fog node Edge device Edge device Edge device Edge device Edge device Edge device Cloud Layer Big data processing Business logic Data warehousing High latency Low latency Fog Layer Local network Local IoT analytics Local storage Edge Layer Real time data processing Micro sata storage Low latency Physical Layer Collecting data Sensors and actuators https://www.winsystems.com/cloud-fog-and-edge-computing-whats-the-difference/ Cloud
- 58. A DSL formodeling self- adaptative IoT architectures
- 59. We propose aDSL to • Specify multi-layered IoT infrastructures • Define adaptation rules to ensure the optimal performance of the system

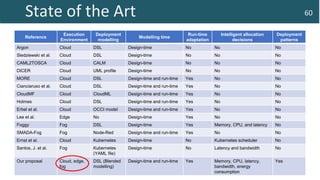

- 60. State of theArt 60 Reference Execution Environment Deployment modelling Modelling time Run-time adaptation Intelligent allocation decisions Deployment patterns Argon Cloud DSL Design-time No No No Sledziewski et al. Cloud DSL Design-time No No No CAML2TOSCA Cloud CALM Design-time No No No DICER Cloud UML profile Design-time No No No MORE Cloud DSL Design-time and run-time Yes No No Cianciaruso et al. Cloud DSL Design-time and run-time Yes No No CloudMF Cloud CloudML Design-time and run-time Yes No No Holmes Cloud DSL Design-time and run-time Yes No No Erbel et al. Cloud OCCI model Design-time and run-time Yes No No Lee et al. Edge No Design-time Yes No No Foggy Fog DSL Design-time Yes Memory, CPU, and latency No SMADA-Fog Fog Node-Red Design-time and run-time Yes No No Ernst et al. Cloud Kubernetes Design-time No Kubernetes scheduler No Santos, J. et al. Fog Kubernetes (YAML file) Design-time No Latency and bandwidth No Our proposal Cloud, edge, fog DSL (Blended modelling) Design-time and run-time Yes Memory, CPU, latency, bandwidth, energy consumption Yes

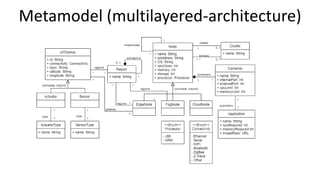

- 61.

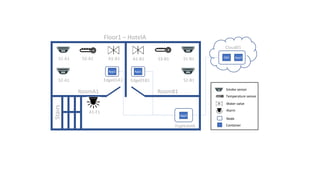

- 62. RoomA1 RoomB1 Floor1 –HotelA Stairs App2 FogHotelA App3 DB1 Cloud01 Smoke sensor Temperature sensor Water valve Alarm Node Container S1-A1 S2-A1 S3-A1 A1-A1 A1-B1 S2-B1 S3-B1 S1-B1 A1-F1 Edge01A1 Edge01B1 App1 App1
- 63.

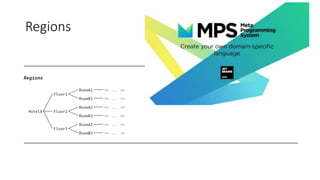

- 64.
- 65.

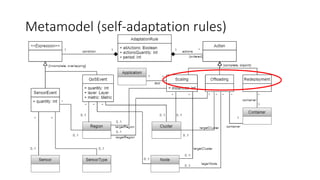

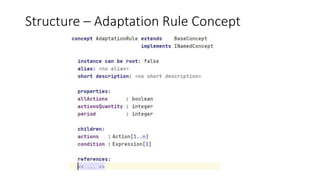

- 66. Structure – AdaptationRule Concept

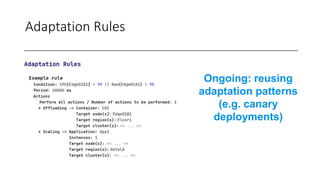

- 67. Adaptation Rules Ongoing: reusing adaptationpatterns (e.g. canary deployments)

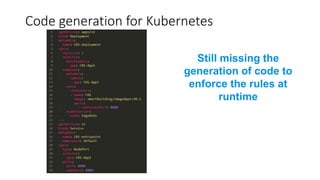

- 68. Code generation forKubernetes Still missing the generation of code to enforce the rules at runtime
- 69.

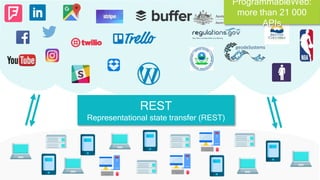

- 70. REST Representational state transfer(REST) ProgrammableWeb: more than 21 000 APIs
- 73. …consortium of forward-looking industryexperts who recognize the immense value of standardizing on how REST APIs are described… …is focused on creating, evolving and promoting a vendor neutral description format… https://www.openapis.org

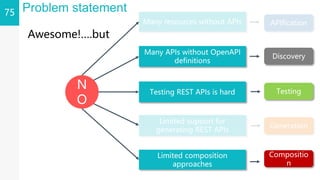

- 74. 75 Problem statement Compositi on Awesome!….but Manyresources without APIs Many APIs without OpenAPI definitions Testing REST APIs is hard Limited support for generating REST APIs Limited composition approaches N O APIfication Discovery Testing Generation Compositio n

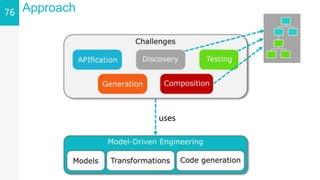

- 75.

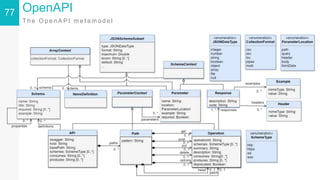

- 76. 77 OpenAPI T he O p e n A P I m e t a m o d e l

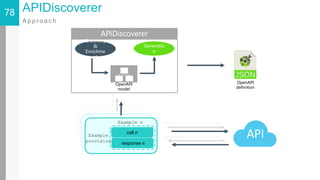

- 77. 78 APIDiscoverer A pp r o a c h APIDiscoverer Discovery & Enrichme nt Generatio n OpenAPI model Example 1 call 1 response 1 Example provision Example 2 call 2 response 2 Example provision Example n call n response n Example provision OpenAPI definition

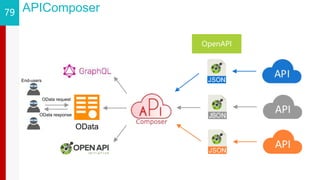

- 78. 79 APIComposer OData request ODataresponse End-users OpenAPI OData

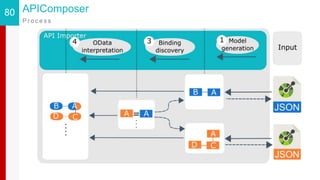

- 79. 80 APIComposer P ro c e s s

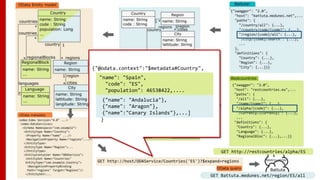

- 80. GET http://restcountries/alpha/ES GET Battuta.medunes.net/region/ES/all {"@odata.context":"$metadata#Country", "name":"Spain", "code": "ES", "population": 46538422,.... "regions":[ {"name": "Andalucia"}, {"name": "Aragon"}, {"name":"Canary Islands"},,...] } "name": "Spain", "code": "ES", "population": 46538422,.... {"name": "Andalucia"}, {"name": "Aragon"}, {"name":"Canary Islands"},...]
- 81. MDE + AI Smart IoT

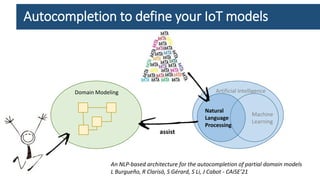

- 82. Artificial Intelligence Machine Learning Natural Language Processing Domain Modeling assist Autocompletionto define your IoT models An NLP-based architecture for the autocompletion of partial domain models L Burgueño, R Clarisó, S Gérard, S Li, J Cabot - CAiSE’21

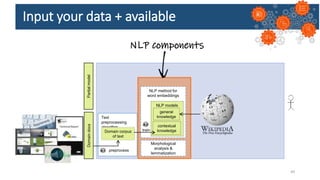

- 83. Input your data+ available 84 Partial model Text preprocessing algorithm preprocess A.1 Domain corpus of text Domain docs NLP method for word embeddings train A.2 Morphological analysis & lemmatization NLP models contextual knowledge general knowledge NLP components

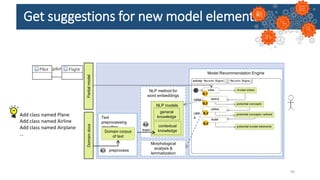

- 84. Get suggestions fornew model elements 85 Model Recommendation Engine NLP method for word embeddings train A.2 Morphological analysis & lemmatization NLP models contextual knowledge general knowledge query B.2 B.1 B.2 B.3 B.4 B.5 C.2 uses use s Partial model Text preprocessing algorithm preprocess A.1 Domain corpus of text Domain docs Add class named Plane Add class named Airline Add class named Airplane …
- 85. M M M Conversational interfaces forIoT infrastructures / Smart cities A P I A P I A P I M A P I BOT Give me all apartments near an electric station and bicing Ok, give me a minute These are the apartments I’ve found: … H Ed-Douibi, J L Cánovas, G Daniel, J Cabot: A Model-Based Chatbot Generation Approach to Converse with Open Data Sources. ICWE’21 Give me all apartments near an electric station and bicing and NO NOISE
- 86.
- 87.

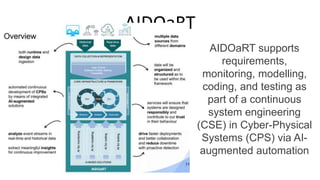

- 88. AIDOaRT AIDOaRT supports requirements, monitoring, modelling, coding,and testing as part of a continuous system engineering (CSE) in Cyber-Physical Systems (CPS) via AI- augmented automation

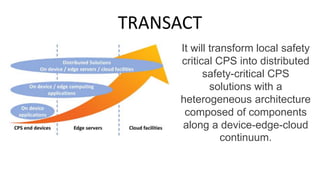

- 89. TRANSACT It will transformlocal safety critical CPS into distributed safety-critical CPS solutions with a heterogeneous architecture composed of components along a device-edge-cloud continuum.
