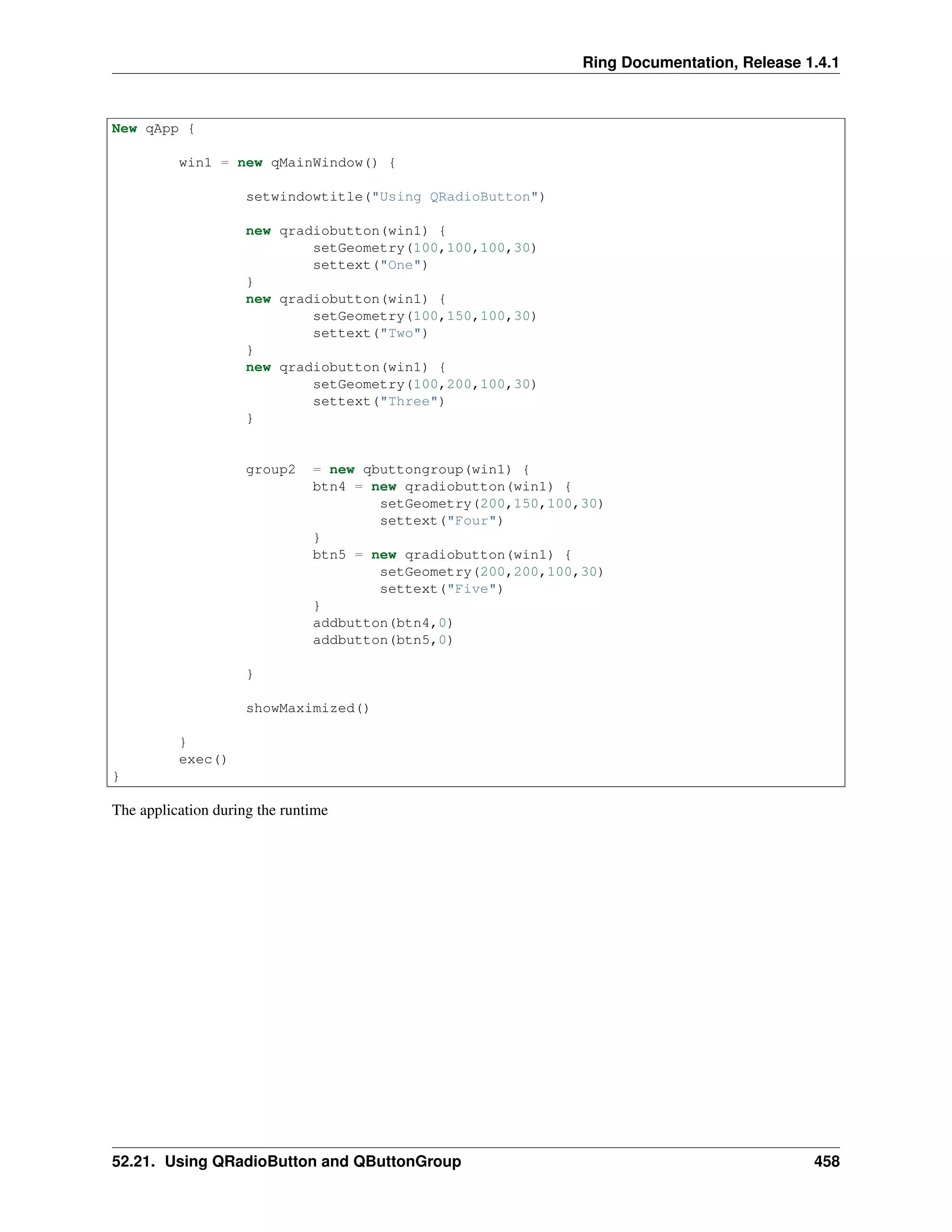

1. Ring Documentation, Release 1.4.1
New qApp {
win1 = new qMainWindow() {
setwindowtitle("Using QRadioButton")
new qradiobutton(win1) {
setGeometry(100,100,100,30)
settext("One")
}
new qradiobutton(win1) {
setGeometry(100,150,100,30)
settext("Two")
}
new qradiobutton(win1) {
setGeometry(100,200,100,30)
settext("Three")
}
group2 = new qbuttongroup(win1) {
btn4 = new qradiobutton(win1) {
setGeometry(200,150,100,30)
settext("Four")
}
btn5 = new qradiobutton(win1) {
setGeometry(200,200,100,30)
settext("Five")
}
addbutton(btn4,0)
addbutton(btn5,0)
}
showMaximized()
}
exec()
}
The application during the runtime
52.21. Using QRadioButton and QButtonGroup 458

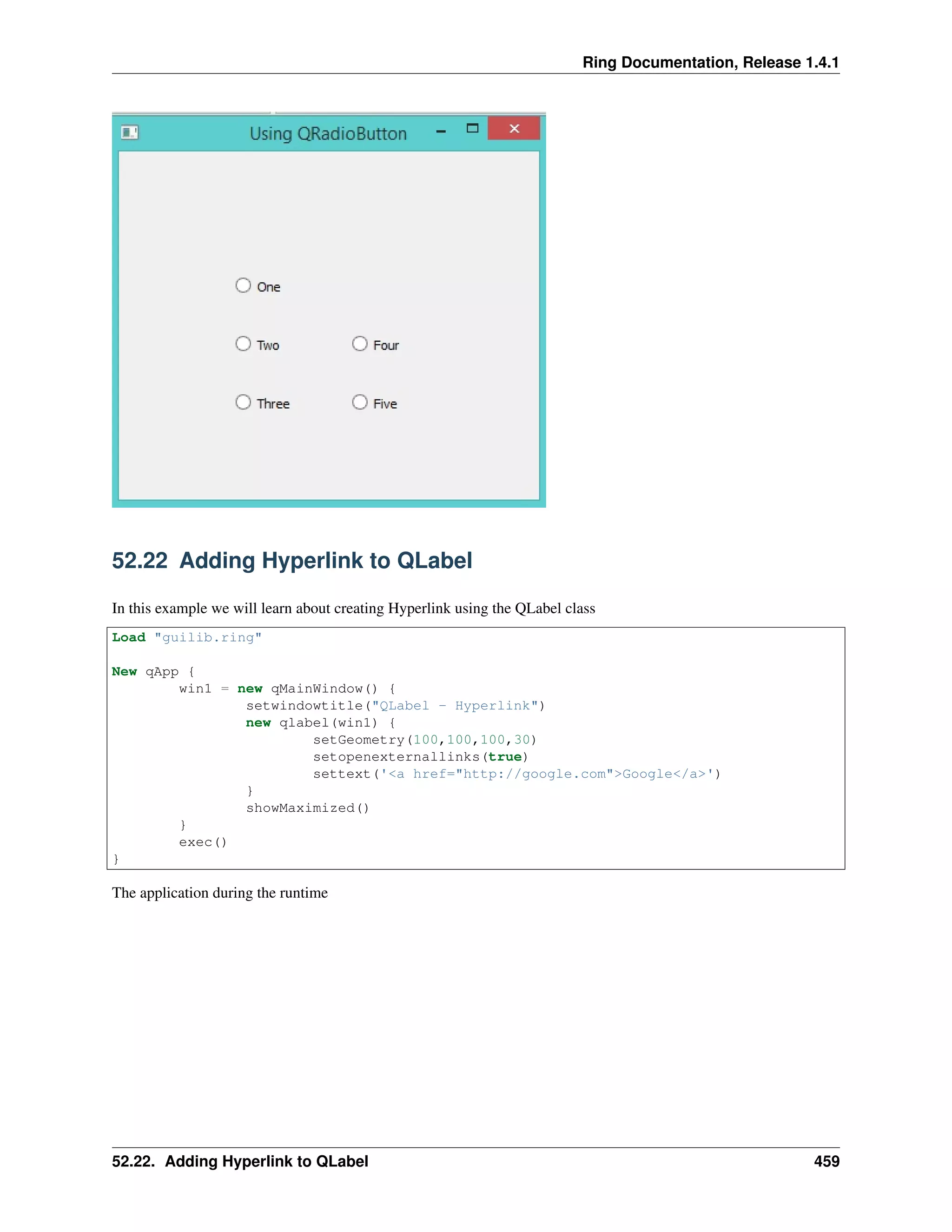

2. Ring Documentation, Release 1.4.1
52.22 Adding Hyperlink to QLabel
In this example we will learn about creating Hyperlink using the QLabel class
Load "guilib.ring"
New qApp {
win1 = new qMainWindow() {
setwindowtitle("QLabel - Hyperlink")
new qlabel(win1) {
setGeometry(100,100,100,30)
setopenexternallinks(true)
settext('<a href="http://google.com">Google</a>')
}
showMaximized()
}
exec()
}
The application during the runtime
52.22. Adding Hyperlink to QLabel 459
3. Ring Documentation, Release 1.4.1
52.23 QVideoWidget and QMediaPlayer
In this example we will learn about using the QVideoWidget and QMediaPlayer classes to play a group of movies
from different positions at the same time
Load "guilib.ring"
New qApp {
win1 = new qMainWindow() {
setwindowtitle("QVideoWidget")
btn1 = new qpushbutton(win1) {
setGeometry(0,0,100,30)
settext("play")
setclickevent("player.play() player2.play()
player3.play() player4.play()")
}
videowidget = new qvideowidget(win1) {
setGeometry(50,50,600,300)
setstylesheet("background-color: black")
}
videowidget2 = new qvideowidget(win1) {
setGeometry(700,50,600,300)
setstylesheet("background-color: black")
}
videowidget3 = new qvideowidget(win1) {
setGeometry(50,370,600,300)
setstylesheet("background-color: black")
}
videowidget4 = new qvideowidget(win1) {
52.23. QVideoWidget and QMediaPlayer 460
4. Ring Documentation, Release 1.4.1
setGeometry(700,370,600,300)
setstylesheet("background-color: black")
}
player = new qmediaplayer() {
setmedia(new qurl("1.mp4"))
setvideooutput(videowidget)
setposition(35*60*1000)
}
player2 = new qmediaplayer() {
setmedia(new qurl("2.mp4"))
setvideooutput(videowidget2)
setposition(23*60*1000)
}
player3 = new qmediaplayer() {
setmedia(new qurl("3.mp4"))
setvideooutput(videowidget3)
setposition(14.22*60*1000)
}
player4 = new qmediaplayer() {
setmedia(new qurl("4.avi"))
setvideooutput(videowidget4)
setposition(8*60*1000)
}
showfullscreen()
}
exec()
}
The application during the runtime
52.23. QVideoWidget and QMediaPlayer 461
5. Ring Documentation, Release 1.4.1
52.24 Using QFrame
In this example we will learn about using the QFrame class
Load "guilib.ring"
New qApp {
win1 = new qMainWindow() {
setwindowtitle("Using QFrame")
for x = 0 to 10
frame1 = new qframe(win1,0) {
setGeometry(100,20+50*x,400,30)
setframestyle(QFrame_Raised | QFrame_WinPanel)
}
next
showMaximized()
}
exec()
}
The application during the runtime
52.24. Using QFrame 462
6. Ring Documentation, Release 1.4.1
52.25 Display Image using QLabel
In this example we will learn about displaying an image using the QLabel widget
Load "guilib.ring"
New qApp {
win1 = new qMainWindow() {
setwindowtitle("QLabel - Display image")
new qlabel(win1) {
image = new qpixmap("b:/mahmoud/photo/advice.jpg")
setpixmap(image)
setGeometry(0,0,image.width(),image.height())
}
52.25. Display Image using QLabel 463
7. Ring Documentation, Release 1.4.1
showMaximized()
}
exec()
}
The application during the runtime
52.26 Menubar and StyleSheet Example
In this example we will learn about creating menubar and setting the window stylesheet
Load "guilib.ring"
New qApp {
52.26. Menubar and StyleSheet Example 464
8. Ring Documentation, Release 1.4.1
win1 = new qMainWindow() {
setwindowtitle("Menubar")
menu1 = new qmenubar(win1) {
sub1 = addmenu("File")
sub1 {
oAction = new qAction(win1) {
settext("New")
setenabled(false)
}
addaction(oAction)
oAction = new qAction(win1) {
settext("Open")
setcheckable(true)
setchecked(true)
setstatustip("open new file")
}
addaction(oAction)
oAction = new qAction(win1) {
settext("Save")
}
addaction(oAction)
oAction = new qAction(win1) {
settext("Save As")
}
addaction(oAction)
addseparator()
oAction = new qaction(win1)
oAction.settext("Exit")
oAction.setclickevent("myapp.quit()")
addaction(oAction)
}
}
status1 = new qstatusbar(win1) {
showmessage("Ready!",0)
}
setmenubar(menu1)
setmousetracking(true)
setstatusbar(status1)
setStyleSheet("color: black; selection-color: black;
selection-background-color:white ;
background: QLinearGradient(x1: 0, y1: 0, x2: 0, y2: 1,
stop: 0 #eef, stop: 1 #ccf);")
showmaximized()
}
exec()
}
The application during the runtime
52.26. Menubar and StyleSheet Example 465
9. Ring Documentation, Release 1.4.1
52.27 QLineEdit Events and QMessageBox
In this example we will learn about using QLineEdit Events and displaying a Messagebox
Load "guilib.ring"
MyApp = New qApp {
win1 = new qWidget() {
setwindowtitle("Welcome")
setGeometry(100,100,400,300)
label1 = new qLabel(win1) {
settext("What is your name ?")
setGeometry(10,20,350,30)
setalignment(Qt_AlignHCenter)
}
btn1 = new qpushbutton(win1) {
setGeometry(10,200,100,30)
settext("Say Hello")
setclickevent("pHello()")
}
btn1 = new qpushbutton(win1) {
setGeometry(150,200,100,30)
settext("Close")
setclickevent("pClose()")
}
lineedit1 = new qlineedit(win1) {
setGeometry(10,100,350,30)
settextchangedevent("pChange()")
setreturnpressedevent("penter()")
}
52.27. QLineEdit Events and QMessageBox 466
10. Ring Documentation, Release 1.4.1
show()
}
exec()
}
Func pHello
lineedit1.settext( "Hello " + lineedit1.text())
Func pClose
MyApp.quit()
Func pChange
win1 { setwindowtitle( lineedit1.text() ) }
Func pEnter
new qmessagebox(win1) {
setwindowtitle("Thanks")
settext("Hi " + lineedit1.text() )
setstylesheet("background-color : white")
show()
}
The application during the runtime
52.27. QLineEdit Events and QMessageBox 467
11. Ring Documentation, Release 1.4.1
52.28 Other Widgets Events
Each Qt signal can be used in RingQt, just add Set before the signal name and add event after the signal name to get
the method that can be used to determine the event code.
For example the QProgressBar class contains a signal named valueChanged() To use it just use the function setVal-
ueChangedEvent()
Example:
Load "guilib.ring"
New qApp {
win1 = new qMainWindow() {
setwindowtitle("QProgressBar valueChanged Event")
progress1 = new qprogressbar(win1) {
setGeometry(100,100,350,30)
setvalue(10)
setvaluechangedevent("pChange()")
}
new qpushbutton(win1) {
setGeometry(10,10,100,30)
settext("increase")
setclickevent("pIncrease()")
}
showMaximized()
}
52.28. Other Widgets Events 468
12. Ring Documentation, Release 1.4.1
exec()
}
func pIncrease
progress1 { setvalue(value()+1) }
func pchange
win1.setwindowtitle("value : " + progress1.value() )
The application during the runtime
Another example for the stateChanged event of the QCheckBox class
Load "guilib.ring"
New qApp {
win1 = new qMainWindow() {
setwindowtitle("QCheckBox")
new qcheckbox(win1) {
setGeometry(100,100,100,30)
settext("New Customer!")
setstatechangedevent("pchange()")
}
showMaximized()
}
exec()
}
Func pChange
new qMessageBox(Win1) {
setWindowTitle("Checkbox")
settext("State Changed!")
show()
}
The application during the runtime
52.28. Other Widgets Events 469
13. Ring Documentation, Release 1.4.1
52.29 Using the QTimer Class
In this example we will learn about using the QTimer class
Load "guilib.ring"
new qApp {
win1 = new qwidget() {
setgeometry(100,100,200,70)
setwindowtitle("Timer")
label1 = new qlabel(win1) {
setgeometry(10,10,200,30)
settext(thetime())
}
new qtimer(win1) {
setinterval(1000)
settimeoutevent("pTime()")
start()
}
show()
}
exec()
}
func ptime
label1.settext(thetime())
Func thetime
return "Time : " + Time()
The application during the runtime
52.29. Using the QTimer Class 470
14. Ring Documentation, Release 1.4.1
52.30 Using QProgressBar and Timer
In this example we will learn about using the “animated” QProgressBar class and Timer
###------------------------------------
### ProgressBar and Timer Example
Load "guilib.ring"
new qApp
{
win1 = new qwidget()
{
setgeometry(100,100,400,100)
setwindowtitle("Timer and ProgressBar")
LabelMan = new qlabel(win1)
{
setgeometry(10,10,200,30)
settext(theTime()) ### ==>> func
}
TimerMan = new qtimer(win1)
{
setinterval(1000)
settimeoutevent("pTime()") ### ==>> func
start()
}
BarMan = new qprogressbar(win1)
{
setGeometry(100,50,300,10) ### Position X y, Length, Thickness
setvalue(0) ### Percent filled
}
show()
}
exec()
}
func pTime
LabelMan.settext(theTime()) ### ==>> func
Increment = 10
if BarMan.value() >= 100 ### ProgressBar start over.
BarMan.setvalue(0)
ok
BarMan{ setvalue(value() + Increment) }
52.30. Using QProgressBar and Timer 471
15. Ring Documentation, Release 1.4.1
Func theTime
return "Time : " + Time()
52.31 Display Scaled Image using QLabel
In this example we will learn about displaying and scaling an image so that it looks “animated” using the QLabel
widget
Load "guilib.ring"
#----------------------------------------------------
# REQUIRES: image = "C:RINGbinstock.jpg"
# imageStock: start dimensions for growing image
imageW = 200 ; imageH = 200 ; GrowBy = 4
###----------------------------------------------------
### Window and Box Size dimensions
WinWidth = 1280 ; WinHeight = 960
BoxWidth = WinWidth -80 ; BoxHeight = WinHeight -80
###----------------------------------------------------
New qapp {
win1 = new qwidget() {
setgeometry(50,50, WinWidth,WinHeight)
setwindowtitle("Animated Image - Display Image Scaled and Resized")
imageStock = new qlabel(win1) {
image = new qpixmap("C:RINGbinstock.jpg")
AspectRatio = image.width() / image.height()
imageW = 200
imageH = imageH / AspectRatio
### Size-H, Size-V, Aspect, Transform
setpixmap(image.scaled(imageW , imageH ,0,0))
PosLeft = (BoxWidth - imageW ) / 2
PosTop = (BoxHeight - imageH ) / 2
52.31. Display Scaled Image using QLabel 472
16. Ring Documentation, Release 1.4.1
setGeometry(PosLeft,PosTop,imageW,imageH)
}
TimerMan = new qtimer(win1) {
setinterval(100) ### interval 100 millisecs.
settimeoutevent("pTime()") ### ==>> func
start()
}
show()
}
exec()
}
###------------------------------------------------------
### Fuction TimerMan: calling interval 100 milliseconds
func pTime
### Stop Timer when image is size of Window area
if imageW > BoxWidth
TimerMan.stop()
imageStock.clear() ### Will clear the image
ok
### Grow image
imageW += GrowBy
imageH = imageW / AspectRatio
### Scaled Image: Size-H, Size-V, Aspect, Transform
imageStock.setpixmap(image.scaled(imageW , imageH ,0,0))
### Center the image
PosLeft = (WinWidth - imageW ) / 2
PosTop = (WinHeight - imageH ) / 2
imageStock.setGeometry(PosLeft,PosTop,imageW,imageH)
52.32 Using the QFileDialog Class
Example
Load "guilib.ring"
New qapp {
win1 = new qwidget() {
setwindowtitle("open file")
setgeometry(100,100,400,400)
new qpushbutton(win1) {
setgeometry(10,10,200,30)
settext("open file")
setclickevent("pOpen()")
}
show()
}
52.32. Using the QFileDialog Class 473
17. Ring Documentation, Release 1.4.1
exec()
}
Func pOpen
new qfiledialog(win1) {
cName = getopenfilename(win1,"open file","c:","source files(*.ring)")
win1.setwindowtitle(cName)
}
The application during the runtime
52.33 Drawing using QPainter
In this example we will learn about drawing using the QPainter class
Load "guilib.ring"
New qapp {
win1 = new qwidget() {
setwindowtitle("Drawing using QPainter")
setgeometry(100,100,500,500)
label1 = new qlabel(win1) {
setgeometry(10,10,400,400)
settext("")
}
new qpushbutton(win1) {
setgeometry(200,400,100,30)
settext("draw")
setclickevent("draw()")
}
show()
}
52.33. Drawing using QPainter 474
18. Ring Documentation, Release 1.4.1
exec()
}
Func draw
p1 = new qpicture()
color = new qcolor() {
setrgb(0,0,255,255)
}
pen = new qpen() {
setcolor(color)
setwidth(10)
}
new qpainter() {
begin(p1)
setpen(pen)
drawline(500,150,950,450)
drawline(950,550,500,150)
endpaint()
}
label1 { setpicture(p1) show() }
The application during the runtime
52.33. Drawing using QPainter 475
19. Ring Documentation, Release 1.4.1
52.34 Printing using QPrinter
In this example we will learn how to print to PDF file using QPrinter
Load "guilib.ring"
new qApp {
win1 = new qwidget() {
setwindowtitle("Printer")
setgeometry(100,100,500,500)
myweb = new qwebview(win1) {
setgeometry(100,100,1000,500)
loadpage(new qurl("http://google.com"))
}
new qpushbutton(win1) {
setGeometry(20,20,100,30)
settext("Print")
setclickevent("print()")
}
showmaximized()
52.34. Printing using QPrinter 476
20. Ring Documentation, Release 1.4.1
}
exec()
}
func print
printer1 = new qPrinter(0) {
setoutputformat(1) # 1 = pdf
setoutputfilename("test.pdf")
painter = new qpainter() {
begin(printer1)
myfont = new qfont("Times",50,-1,0)
setfont(myfont)
drawtext(100,100,"test")
printer1.newpage()
drawtext(100,100,"test2")
endpaint()
}
}
printer1 = new qPrinter(0) {
setoutputformat(1)
setoutputfilename("test2.pdf")
myweb.print(printer1)
myweb.show()
}
system ("test.pdf")
system ("test2.pdf")
52.35 Creating More than one Window
The next example demonstrates how to create more than one window
Load "guilib.ring"
app1 = new qapp {
win1 = new qwidget() {
setwindowtitle("First")
setgeometry(100,100,500,500)
new qpushbutton(win1) {
setgeometry(100,100,100,30)
settext("close")
setclickevent("app1.quit()")
}
new qpushbutton(win1) {
setgeometry(250,100,100,30)
settext("Second")
setclickevent("second()")
}
showmaximized()
}
exec()
}
52.35. Creating More than one Window 477
21. Ring Documentation, Release 1.4.1
func second
win2 = new qwidget() {
setwindowtitle("Second")
setgeometry(100,100,500,500)
setwindowflags(Qt_dialog)
show()
}
The application during the runtime
52.36 Playing Sound
Example:
Load "guilib.ring"
new qapp {
win1 = new qwidget() {
setwindowtitle("play sound!") show()
}
new qmediaplayer() {
setmedia(new qurl("footstep.wav"))
setvolume(50) play()
}
exec()
}
52.37 Using the QColorDialog Class
Example:
52.36. Playing Sound 478
22. Ring Documentation, Release 1.4.1
Load "guilib.ring"
oApp = new myapp { start() }
Class MyApp
oColor win1
Func start
myapp = new qapp
win1 = new qMainWindow() {
setwindowtitle("Color Dialog")
setgeometry(100,100,400,400)
}
new qpushbutton(win1) {
setgeometry(10,10,100,30)
settext("Get Color")
setclickevent("oApp.pColor()")
}
win1.show()
myapp.exec()
Func pColor
myobj = new qcolordialog()
aColor = myobj.GetColor()
r=acolor[1] g=acolor[2] b=acolor[3]
win1.setstylesheet("background-color: rgb("+r+", " + g+ "," + b + ")")
The application during the runtime
52.37. Using the QColorDialog Class 479
23. Ring Documentation, Release 1.4.1
52.38 Using qLCDNumber Class
In this example we will learn about using the qLCDNumber class
Load "guilib.ring"
New qApp
{
win1 = new qWidget()
{
setwindowtitle("LCD Number")
setgeometry(100,100,250,120)
new qLCDNumber(win1)
{
setgeometry(10,10,100,40)
display(100)
}
new qLCDNumber(win1)
{
setgeometry(10,60,100,40)
display(80)
}
show()
}
exec()
}
The application during the runtime
52.39 Movable Label Example
Load "guilib.ring"
new qApp {
win1 = new qWidget()
{
52.38. Using qLCDNumber Class 480
24. Ring Documentation, Release 1.4.1
label1 = new qLabel(win1)
{
setText("Welcome")
setgeometry(10,10,200,50)
setstylesheet("color: purple ; font-size: 30pt;")
}
new qTimer(win1)
{
setInterVal(10)
setTimeOutEvent("pMove()")
start()
}
setWindowTitle("Movable Label")
setgeometry(100,100,600,80)
setStyleSheet("background-color: white;")
show()
}
exec()
}
Func pMove
label1
{
move(x()+1,y())
if x() > 600
move(10,y())
ok
}
The application during the runtime
52.40 QMessagebox Example
In this section we will learn how to check the output of the Message box
Load "guilib.ring"
new qApp {
win1 = new qWidget()
{
label1 = new qpushbutton(win1)
{
setText("Test")
setgeometry(10,10,200,50)
52.40. QMessagebox Example 481
25. Ring Documentation, Release 1.4.1
setstylesheet("color: purple ; font-size: 30pt;")
setclickevent("pWork()")
}
setWindowTitle("Messagebox")
setgeometry(100,100,600,80)
setStyleSheet("background-color: white;")
show()
}
exec()
}
func pWork
new qmessagebox(win1)
{
setwindowtitle("messagebox title")
settext("messagebox text")
setInformativeText("Do you want to save your changes?")
setstandardbuttons(QMessageBox_Yes | QMessageBox_No | QMessageBox_Close)
result = exec()
win1 {
if result = QMessageBox_Yes
setwindowtitle("Yes")
but result = QMessageBox_No
setwindowtitle("No")
but result = QMessageBox_Close
setwindowtitle("Close")
ok
}
}
The application during the runtime
52.41 Using QInputDialog Class
In the next example we will learn about using the QInputDialog class
52.41. Using QInputDialog Class 482
26. Ring Documentation, Release 1.4.1
Load "guilib.ring"
New QApp {
Win1 = New QWidget () {
SetGeometry(100,100,400,400)
SetWindowTitle("Input Dialog")
New QPushButton(win1)
{
SetText ("Input Dialog")
SetGeometry(100,100,100,30)
SetClickEvent("pWork()")
}
Show()
}
exec()
}
Func pWork
oInput = New QInputDialog(win1)
{
setwindowtitle("What is your name?")
setgeometry(100,100,400,50)
setlabeltext("User Name")
settextvalue("Mahmoud")
lcheck = exec()
if lCheck win1.setwindowtitle(oInput.textvalue()) ok
}
The application during the runtime
52.41. Using QInputDialog Class 483
27. Ring Documentation, Release 1.4.1
52.42 Dialog Functions
We have the next functions
SetDialogIcon(cIconFile)
MsgInfo(cTitle,cMessage)
ConfirmMsg(cTitle,cMessage) --> lResult
InputBox(cTitle,cMessage) --> cValue
InputBoxInt(cTitle,cMessage) --> nValue
InputBoxNum(cTitle,cMessage) --> nValue
InputBoxPass(cTitle,cMessage) --> cValue
Example
load "guilib.ring"
new qApp
{
SetDialogIcon("notepad.png")
msginfo(:Ring,:Welcome)
see confirmMsg(:Ring,"Are you sure?") + nl
see InputBoxNum(:Ring,"Enter Number(double) :") + nl
see InputBox(:Ring,"Enter Value :") + nl
see InputBoxInt(:Ring,"Enter Number(int)") + nl
see InputBoxPass(:Ring,"Enter Password") +nl
}
52.42. Dialog Functions 484
28. Ring Documentation, Release 1.4.1
52.43 KeyPress and Mouse Move Events
In this example we will learn how to use the Events Filter to know about KeyPress and Mouse Move Events
Load "guilib.ring"
new qApp {
win1 = new qWidget()
{
setWindowTitle("Test using Event Filter!")
setGeometry(100,100,400,400)
setmousetracking(true)
myfilter = new qallevents(win1)
myfilter.setKeyPressEvent("pWork()")
myfilter.setMouseButtonPressevent("pClick()")
myfilter.setmousemoveevent("pMove()")
installeventfilter(myfilter)
show()
}
exec()
}
func pWork
win1.setwindowtitle('KeyPress! : ' + myfilter.getkeycode())
func pClick
new qmessagebox(win1) {
setgeometry(100,100,400,100)
setwindowtitle("click event!")
settext("x : " + myfilter.getx() +
" y : " + myfilter.gety() + " button : " +
myfilter.getbutton() )
show()
}
func pMove
win1.setwindowtitle("Mouse Move , X : " + myfilter.getx() +
" Y : " + myfilter.gety() )
The application during the runtime
52.43. KeyPress and Mouse Move Events 485
29. Ring Documentation, Release 1.4.1
52.44 Moving Objects using the Mouse
In the next example we will learn how to program movable objects where the user can move a label
Load "guilib.ring"
lPress = false
nX = 0
nY = 0
new qApp {
win1 = new qWidget()
{
setWindowTitle("Move this label!")
setGeometry(100,100,400,400)
setstylesheet("background-color:white;")
Label1 = new qLabel(Win1){
setGeometry(100,100,200,50)
setText("Welcome")
setstylesheet("font-size: 30pt")
myfilter = new qallevents(label1)
myfilter.setEnterevent("pEnter()")
myfilter.setLeaveevent("pLeave()")
52.44. Moving Objects using the Mouse 486
30. Ring Documentation, Release 1.4.1
myfilter.setMouseButtonPressEvent("pPress()")
myfilter.setMouseButtonReleaseEvent("pRelease()")
myfilter.setMouseMoveEvent("pMove()")
installeventfilter(myfilter)
}
show()
}
exec()
}
Func pEnter
Label1.setStyleSheet("background-color: purple; color:white;font-size: 30pt;")
Func pLeave
Label1.setStyleSheet("background-color: white; color:black;font-size: 30pt;")
Func pPress
lPress = True
nX = myfilter.getglobalx()
ny = myfilter.getglobaly()
Func pRelease
lPress = False
pEnter()
Func pMove
nX2 = myfilter.getglobalx()
ny2 = myfilter.getglobaly()
ndiffx = nX2 - nX
ndiffy = nY2 - nY
if lPress
Label1 {
move(x()+ndiffx,y()+ndiffy)
setStyleSheet("background-color: Green;
color:white;font-size: 30pt;")
nX = nX2
ny = nY2
}
ok
The application during the runtime
52.44. Moving Objects using the Mouse 487
