What is GraphQL? How is the Java Ecosystem? What is the purpose of the MicroProfile GraphQL initative?

1. Boost Your API with
Running spqr and JNoSQL on Glassfish 5.1

2. What are we going to speak about?

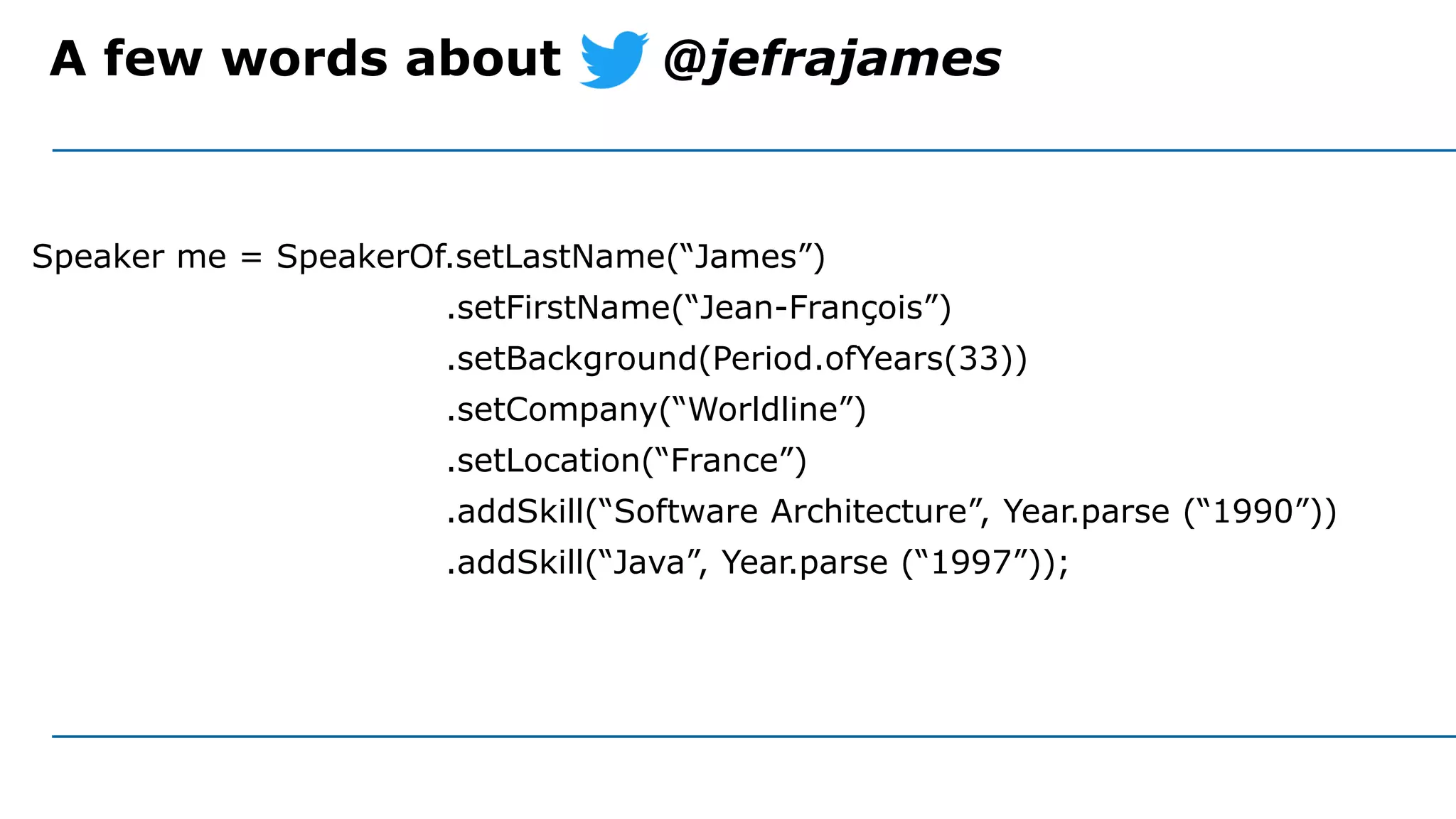

3. A few words about @jefrajames
Speaker me = SpeakerOf.setLastName(“James”)
.setFirstName(“Jean-François”)
.setBackground(Period.ofYears(33))
.setCompany(“Worldline”)
.setLocation(“France”)
.addSkill(“Software Architecture”, Year.parse (“1990”))
.addSkill(“Java”, Year.parse (“1997”));

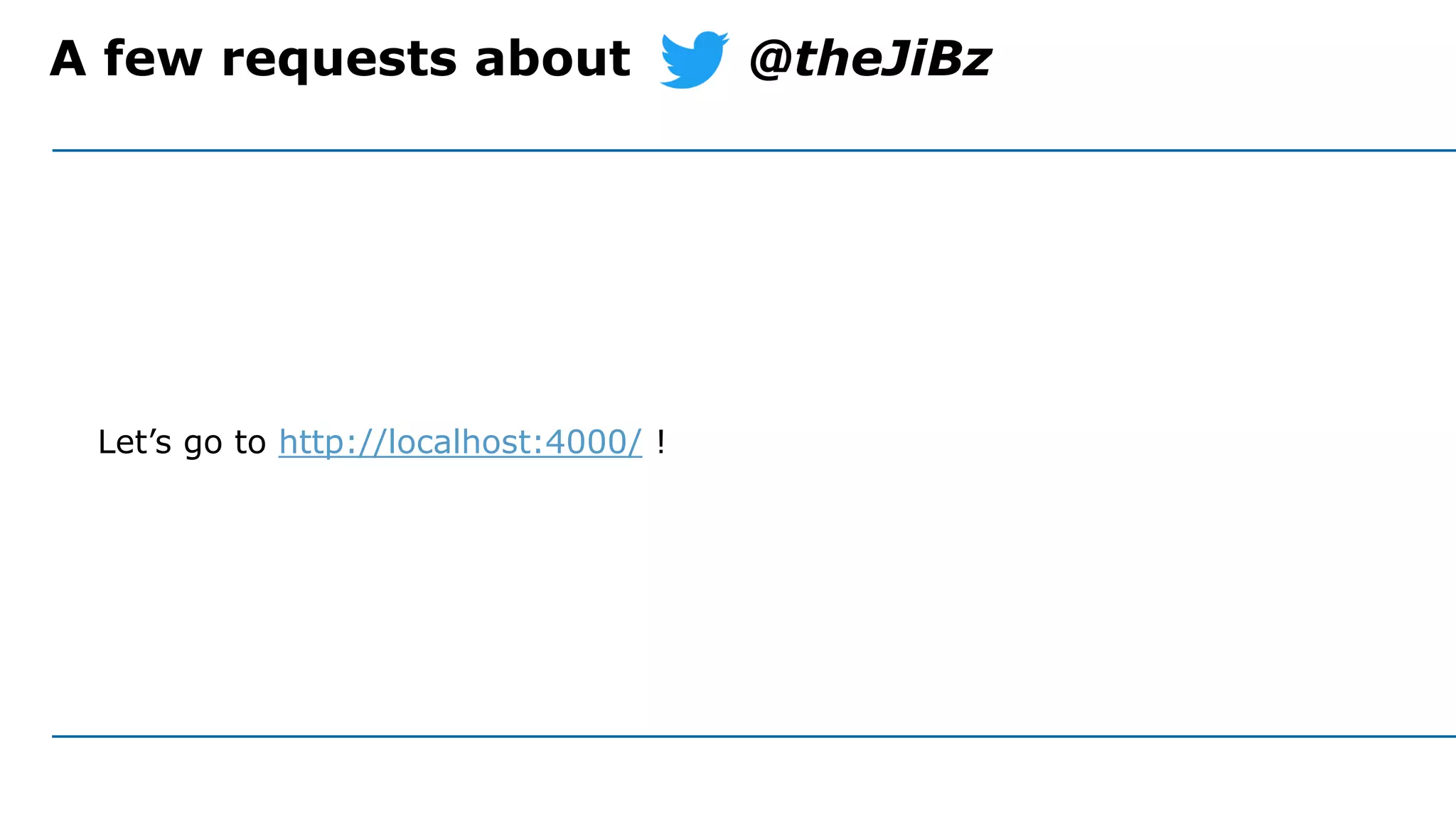

4. A few requests about @theJiBz
Let’s go to http://localhost:4000/ !

5. GraphQL – Not a silver bullet, again…

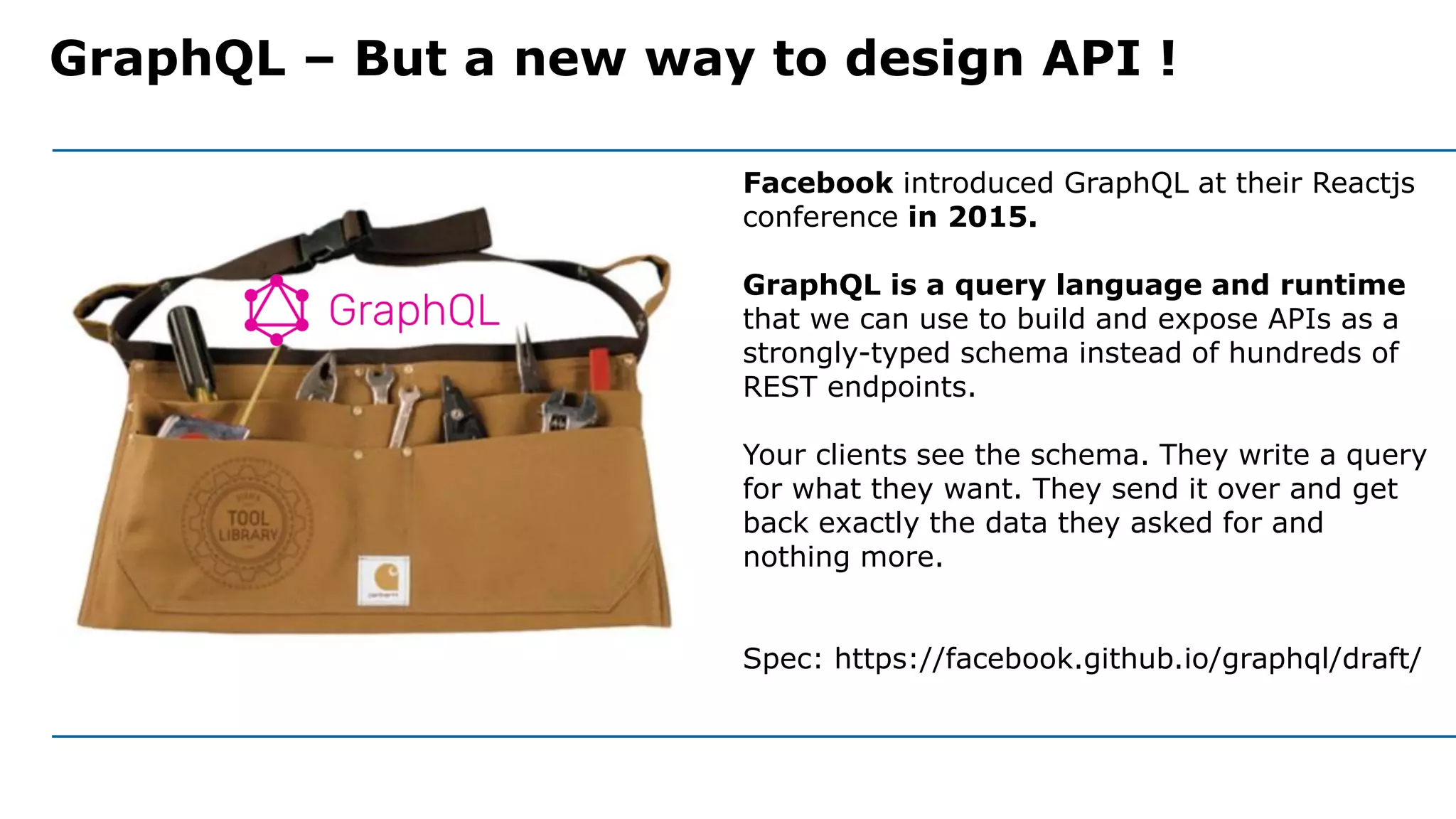

6. GraphQL – But a new way to design API !
Facebook introduced GraphQL at their Reactjs
conference in 2015.
GraphQL is a query language and runtime
that we can use to build and expose APIs as a
strongly-typed schema instead of hundreds of
REST endpoints.
Your clients see the schema. They write a query
for what they want. They send it over and get
back exactly the data they asked for and
nothing more.
Spec: https://facebook.github.io/graphql/draft/

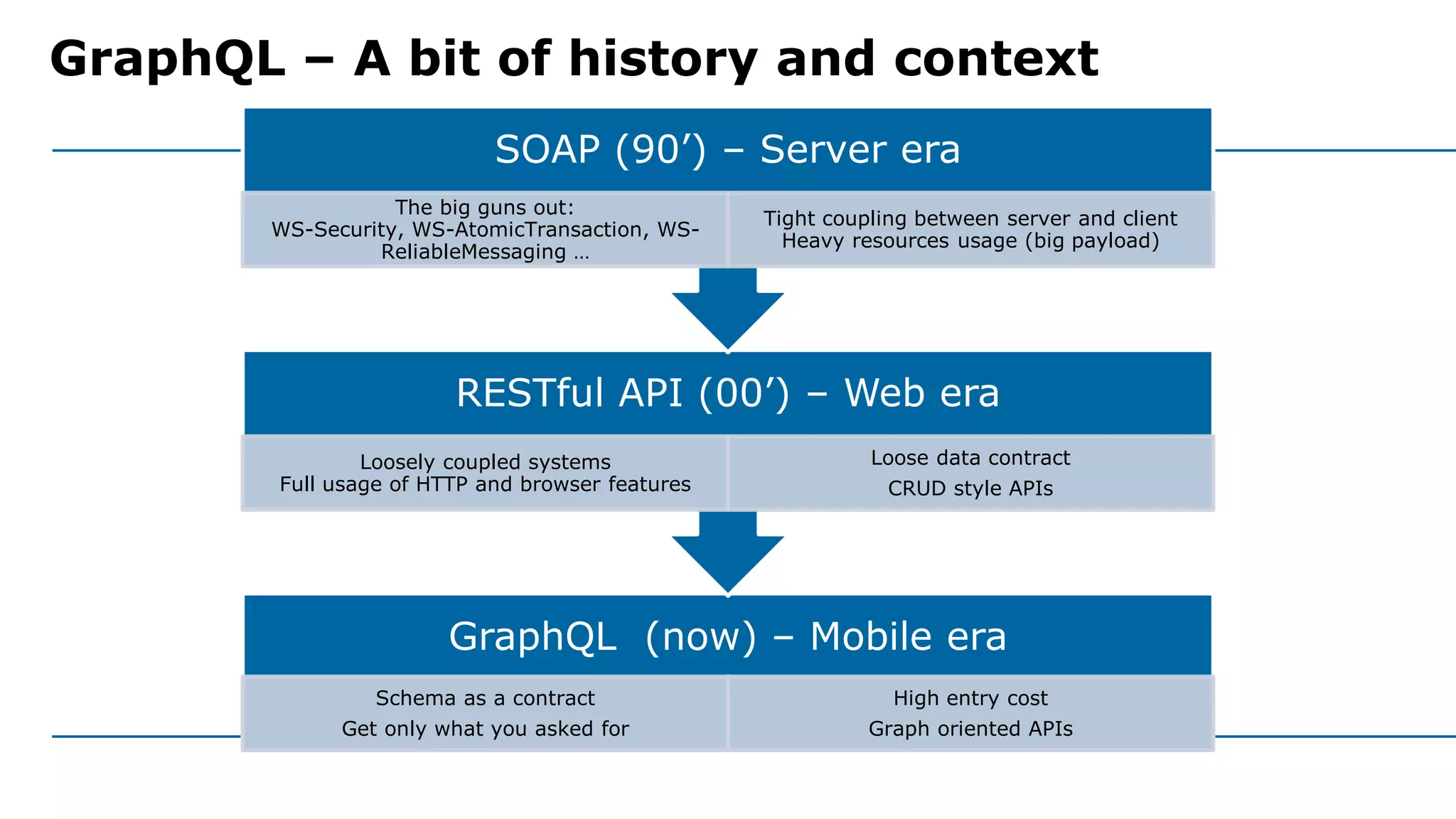

7. GraphQL – A bit of history and context
GraphQL (now) – Mobile era
Schema as a contract
Get only what you asked for
High entry cost
Graph oriented APIs
RESTful API (00’) – Web era
Loosely coupled systems
Full usage of HTTP and browser features
Loose data contract
CRUD style APIs
SOAP (90’) – Server era
The big guns out:
WS-Security, WS-AtomicTransaction, WS-
ReliableMessaging …
Tight coupling between server and client
Heavy resources usage (big payload)

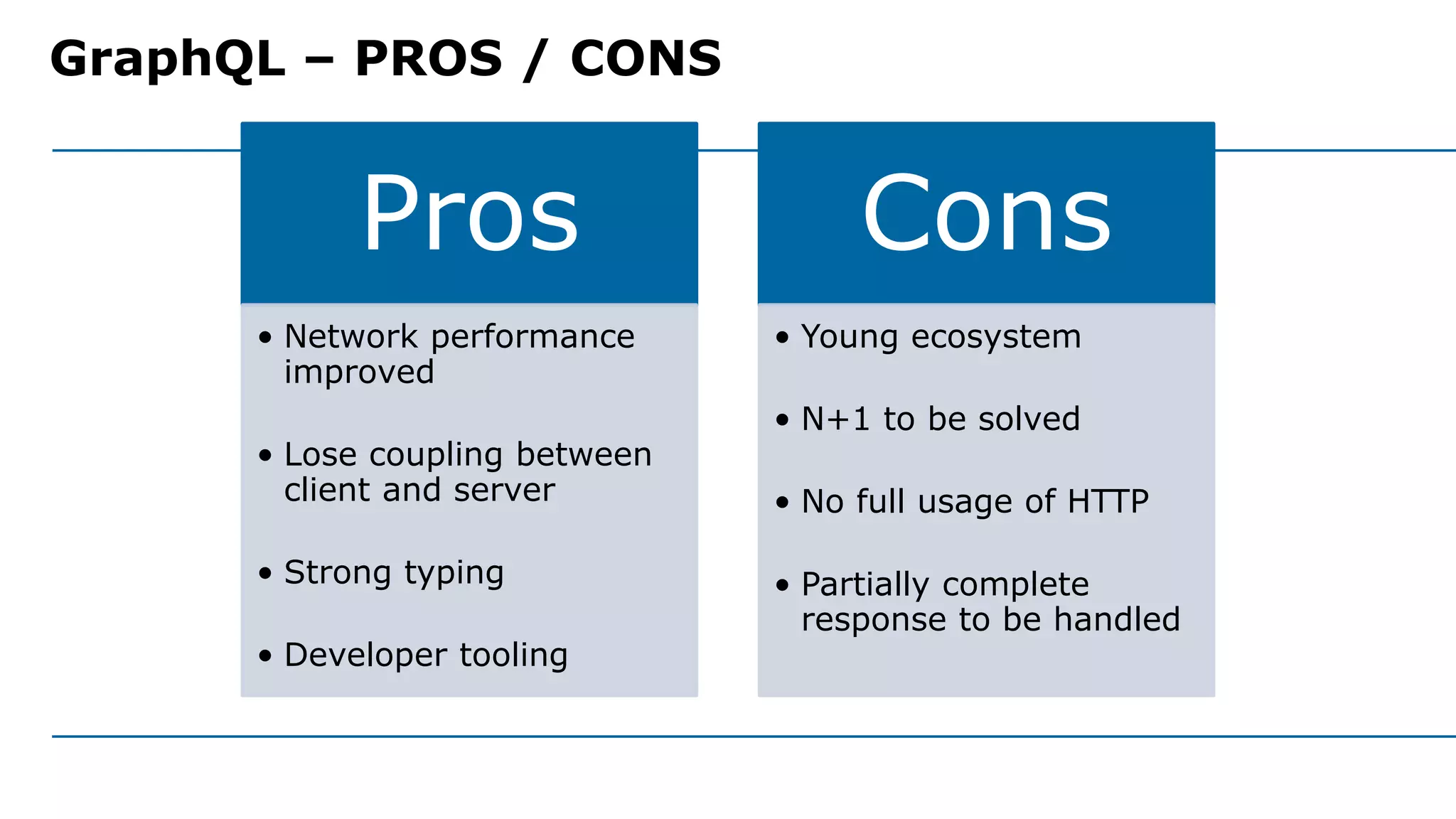

8. GraphQL – PROS / CONS
Pros
• Network performance
improved
• Lose coupling between
client and server
• Strong typing
• Developer tooling
Cons
• Young ecosystem
• N+1 to be solved
• No full usage of HTTP
• Partially complete
response to be handled

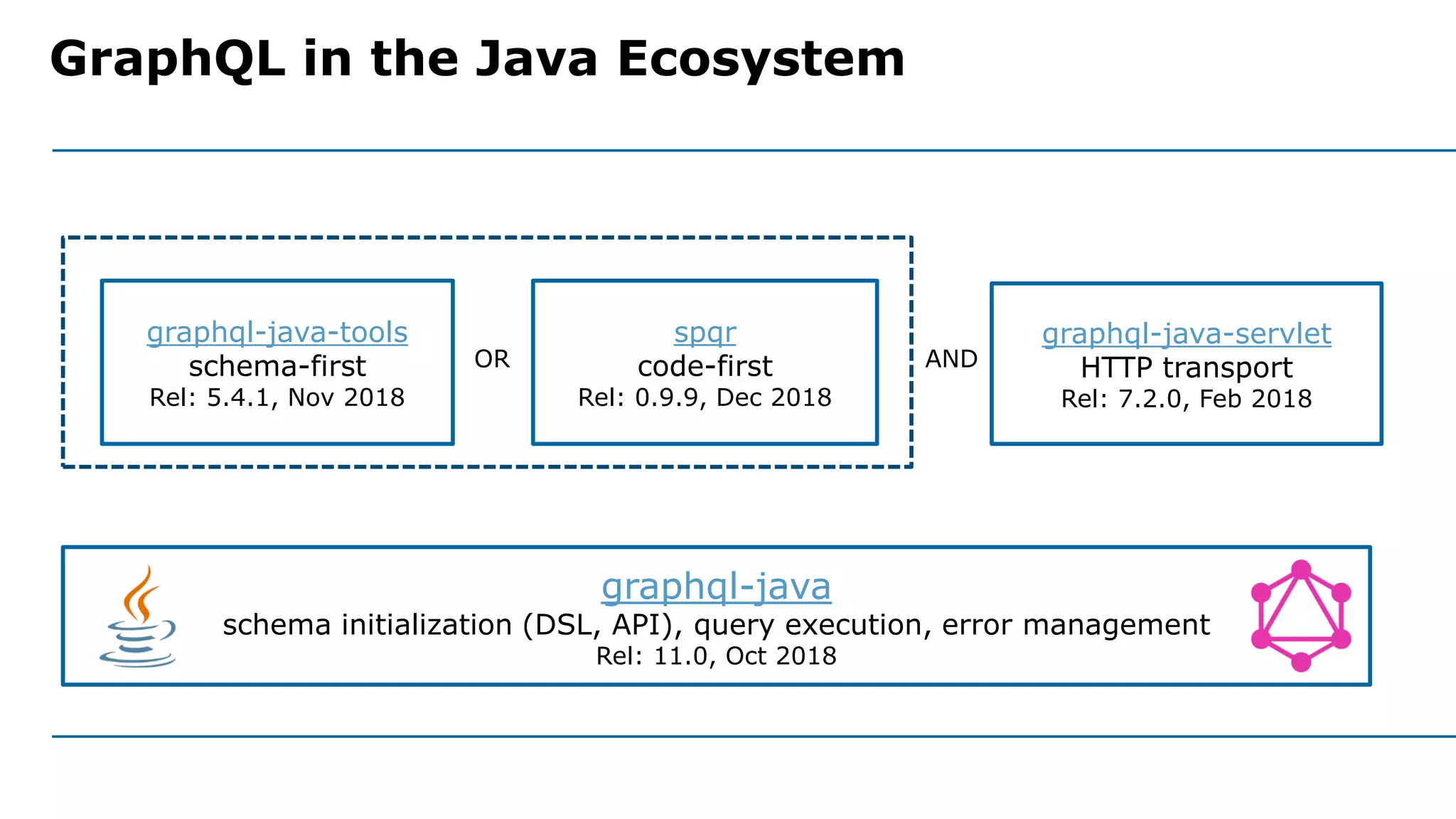

9. GraphQL in the Java Ecosystem
graphql-java
schema initialization (DSL, API), query execution, error management
Rel: 11.0, Oct 2018
graphql-java-tools
schema-first
Rel: 5.4.1, Nov 2018
spqr
code-first
Rel: 0.9.9, Dec 2018
graphql-java-servlet
HTTP transport
Rel: 7.2.0, Feb 2018
OR AND

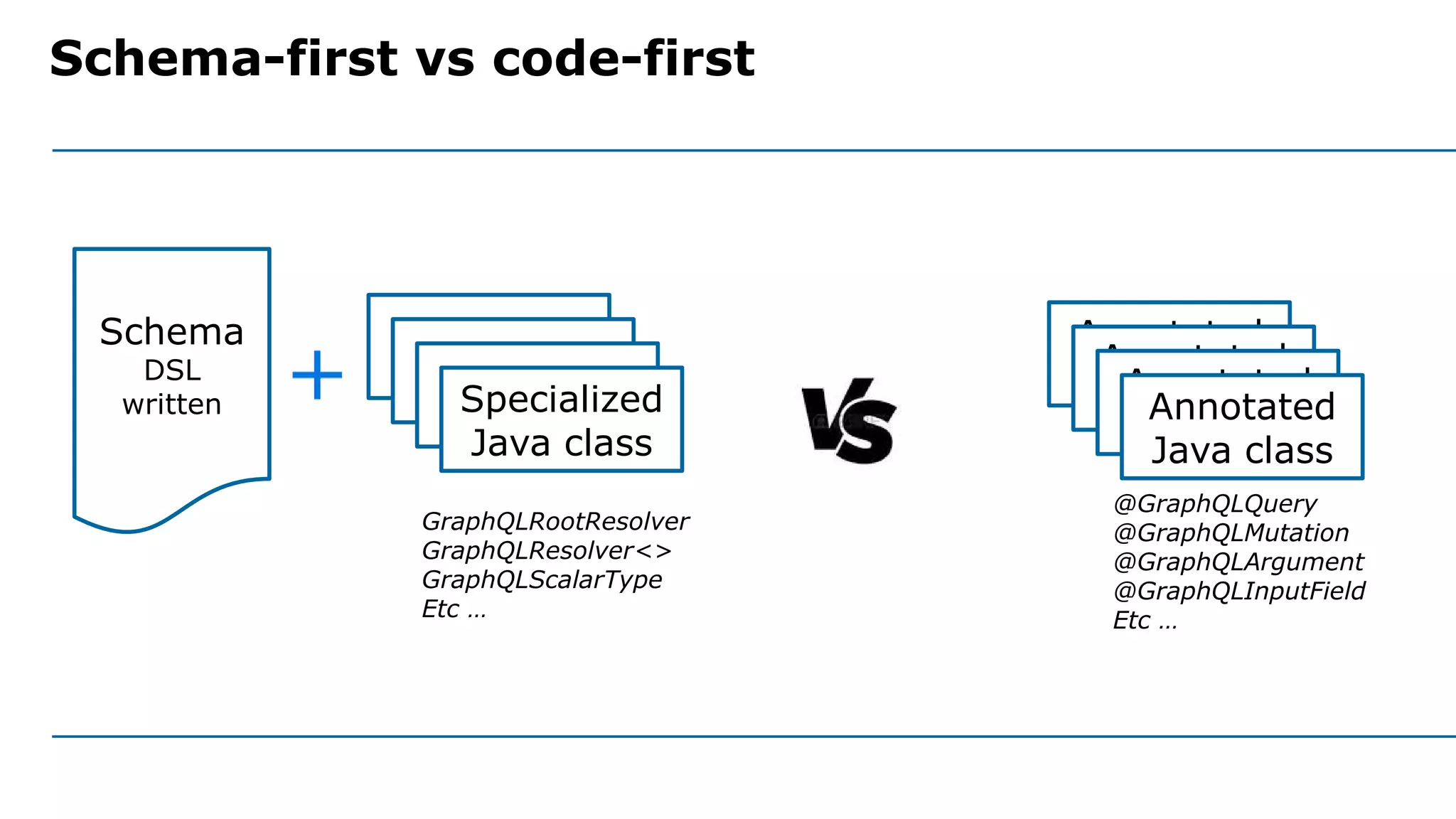

10. Schema-first vs code-first
Schema
DSL
written
Java class
Java class
Java classSpecialized
Java class
GraphQLRootResolver
GraphQLResolver<>
GraphQLScalarType
Etc …
Annotated
Java class
Annotated
Java class
Annotated
Java class
Annotated
Java class
@GraphQLQuery
@GraphQLMutation
@GraphQLArgument
@GraphQLInputField
Etc …

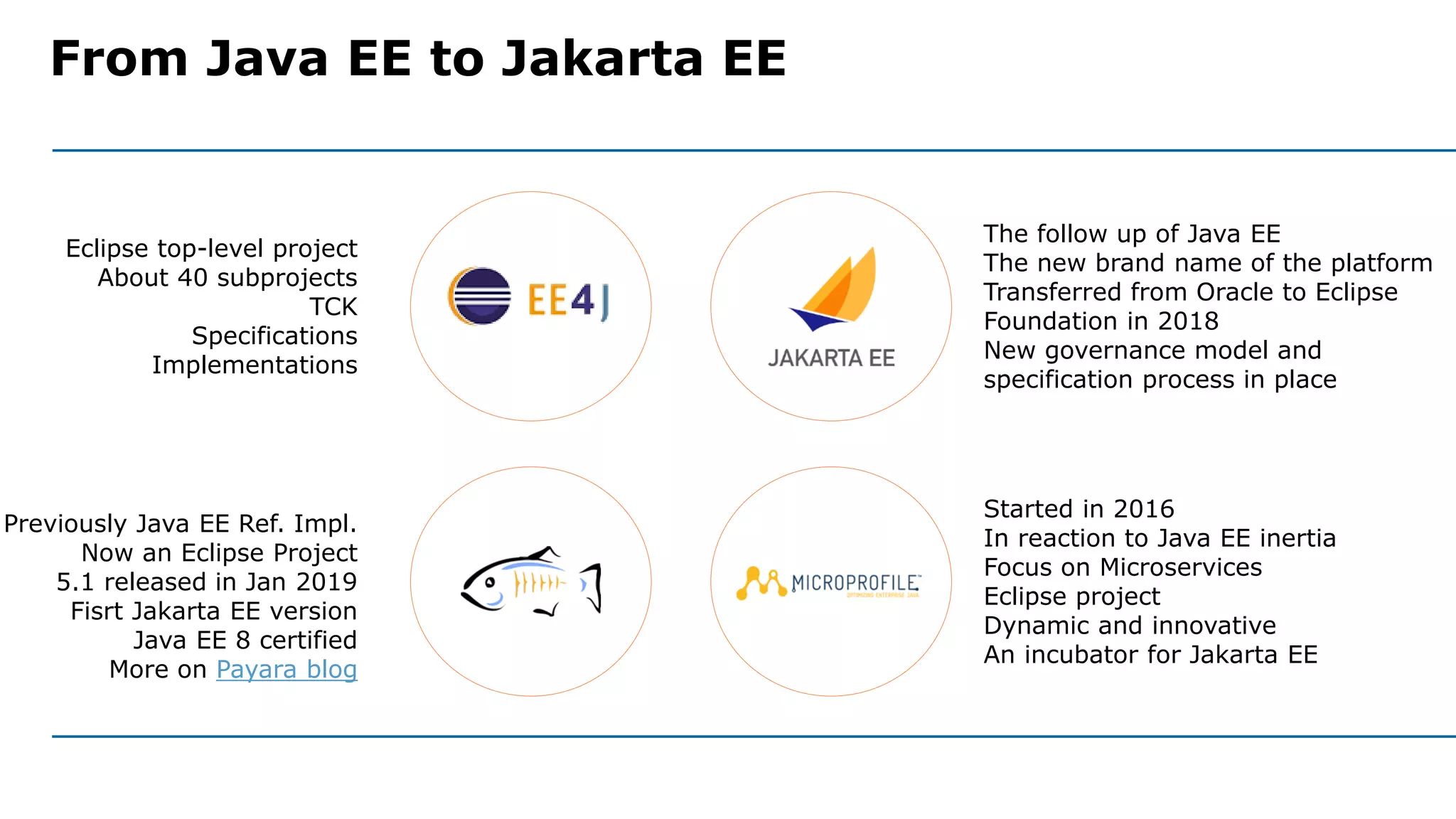

11. From Java EE to Jakarta EE
The follow up of Java EE
The new brand name of the platform
Transferred from Oracle to Eclipse
Foundation in 2018
New governance model and
specification process in place
Started in 2016
In reaction to Java EE inertia
Focus on Microservices
Eclipse project
Dynamic and innovative
An incubator for Jakarta EE
Previously Java EE Ref. Impl.
Now an Eclipse Project
5.1 released in Jan 2019
Fisrt Jakarta EE version
Java EE 8 certified
More on Payara blog
Eclipse top-level project
About 40 subprojects
TCK
Specifications
Implementations

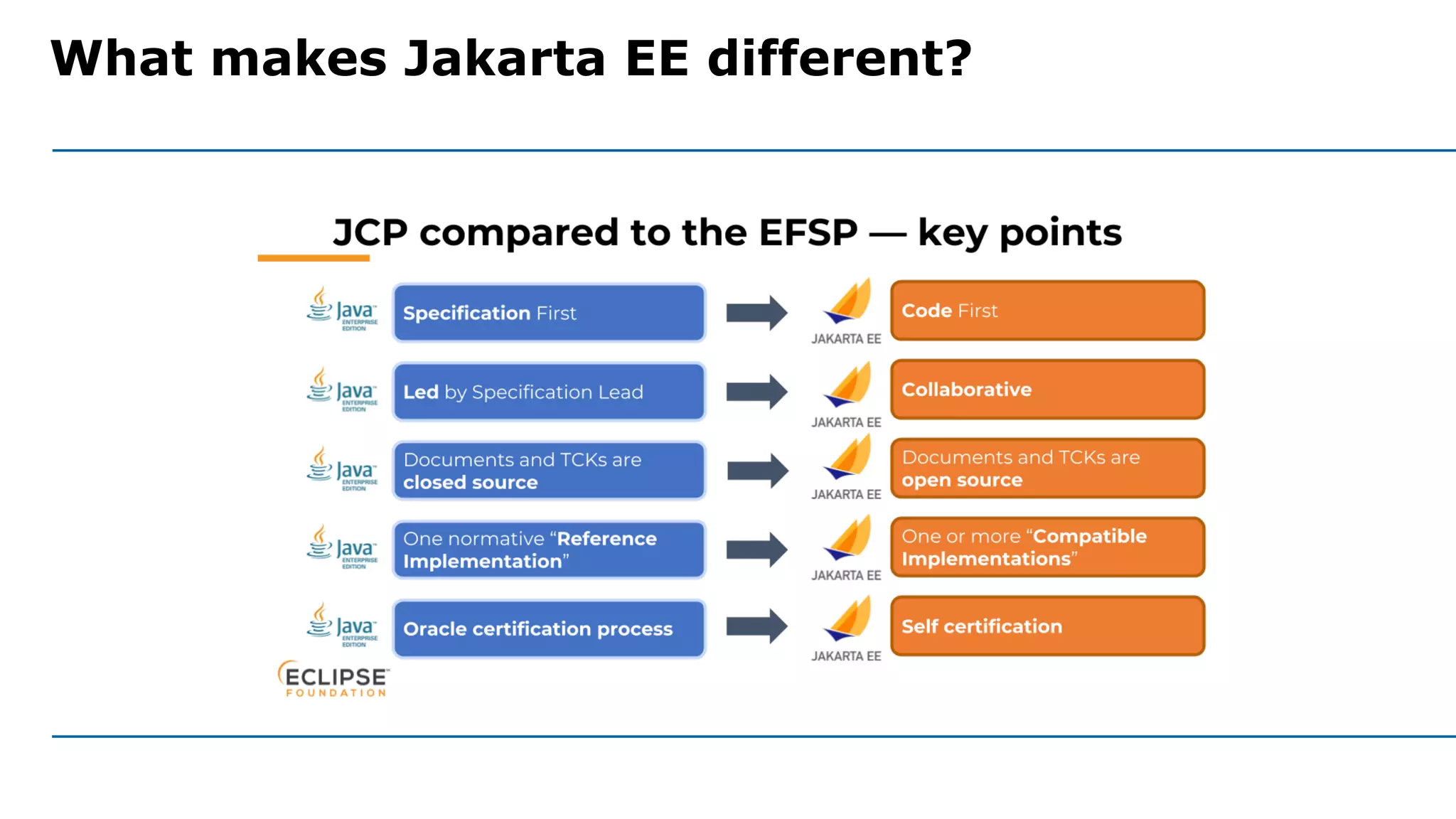

12. What makes Jakarta EE different?

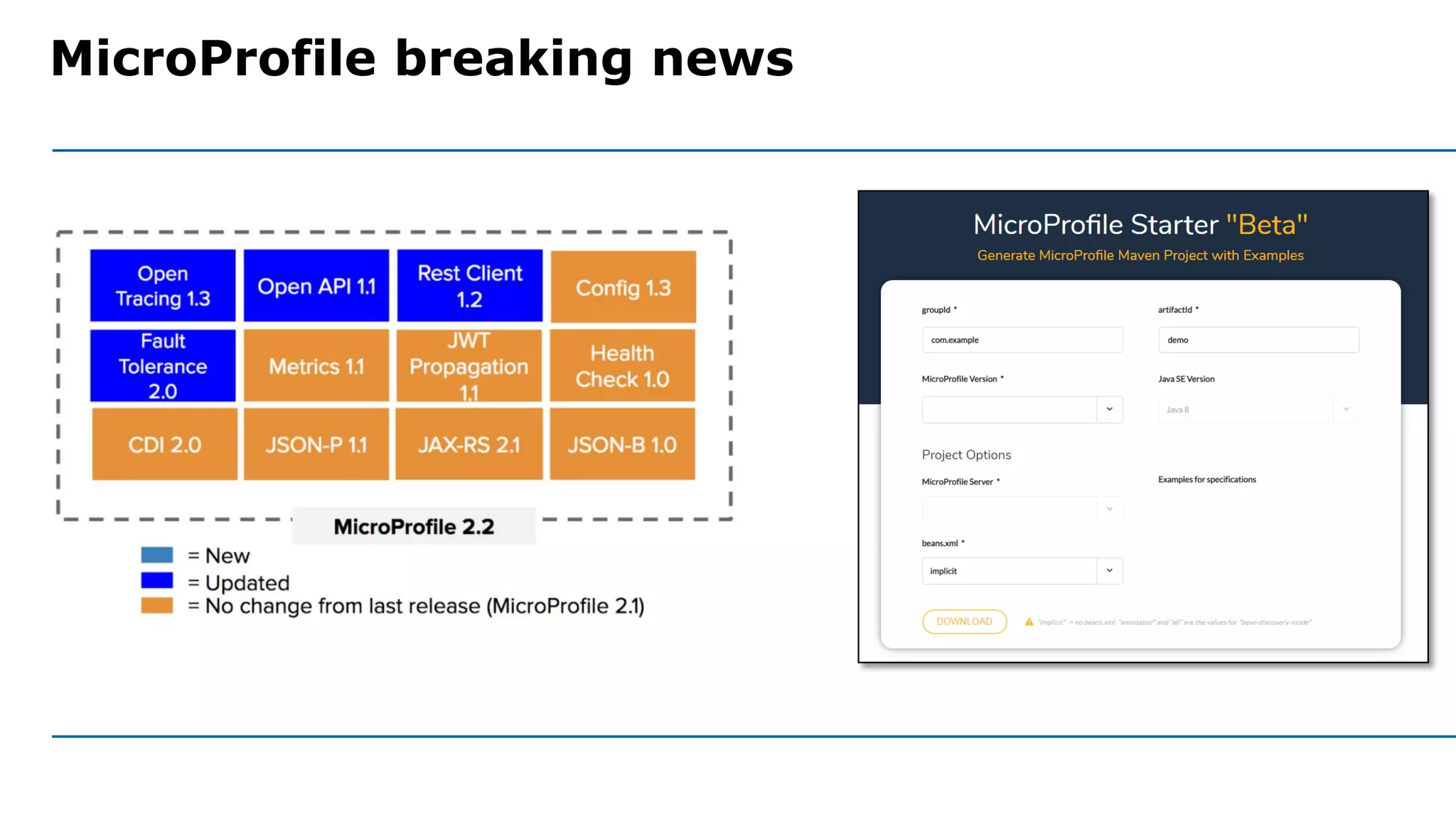

13. MicroProfile breaking news

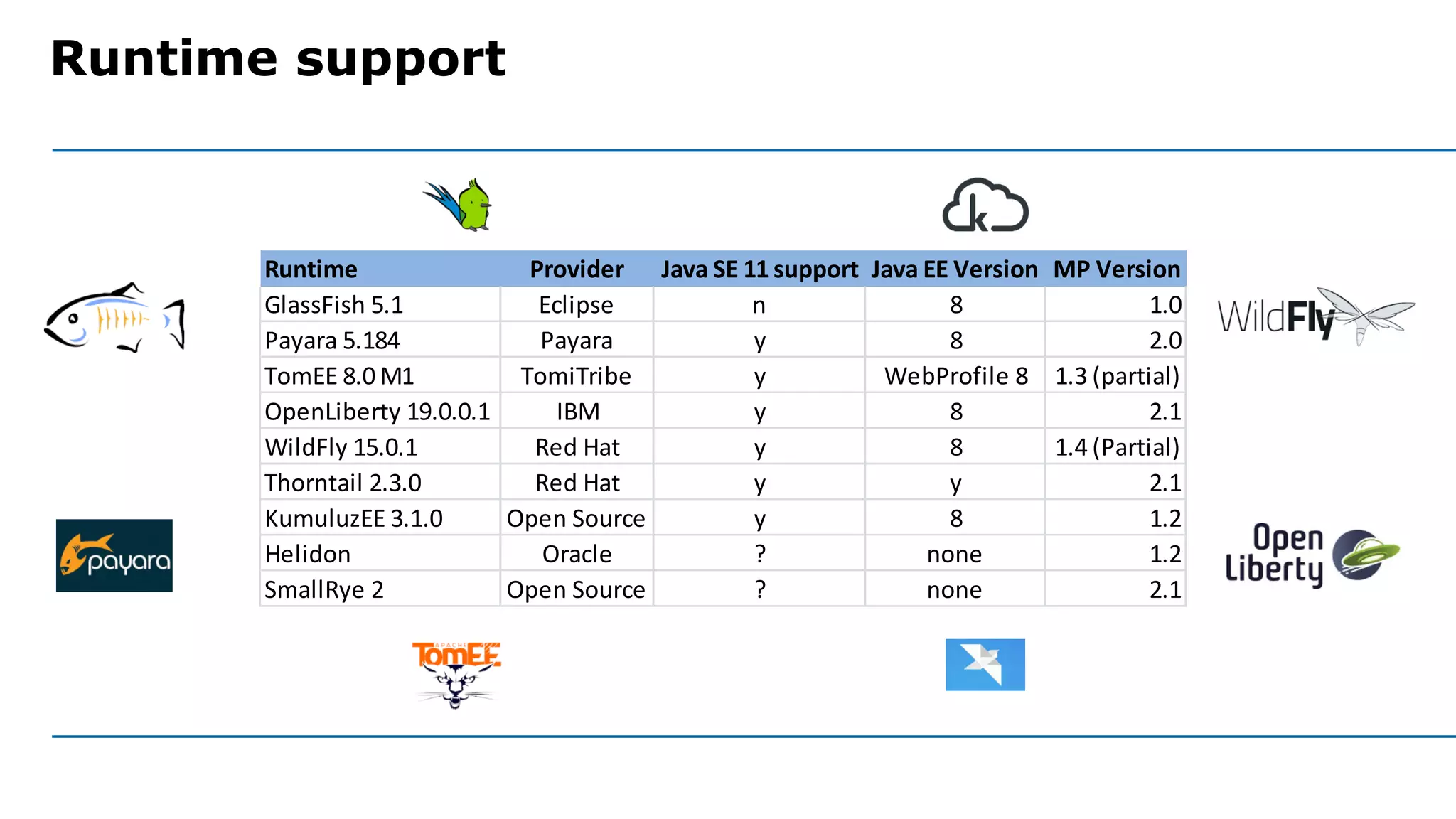

14. Runtime support
Runtime Provider Java SE 11 support Java EE Version MP Version
GlassFish 5.1 Eclipse n 8 1.0
Payara 5.184 Payara y 8 2.0
TomEE 8.0 M1 TomiTribe y WebProfile 8 1.3 (partial)
OpenLiberty 19.0.0.1 IBM y 8 2.1
WildFly 15.0.1 Red Hat y 8 1.4 (Partial)
Thorntail 2.3.0 Red Hat y y 2.1
KumuluzEE 3.1.0 Open Source y 8 1.2
Helidon Oracle ? none 1.2
SmallRye 2 Open Source ? none 2.1

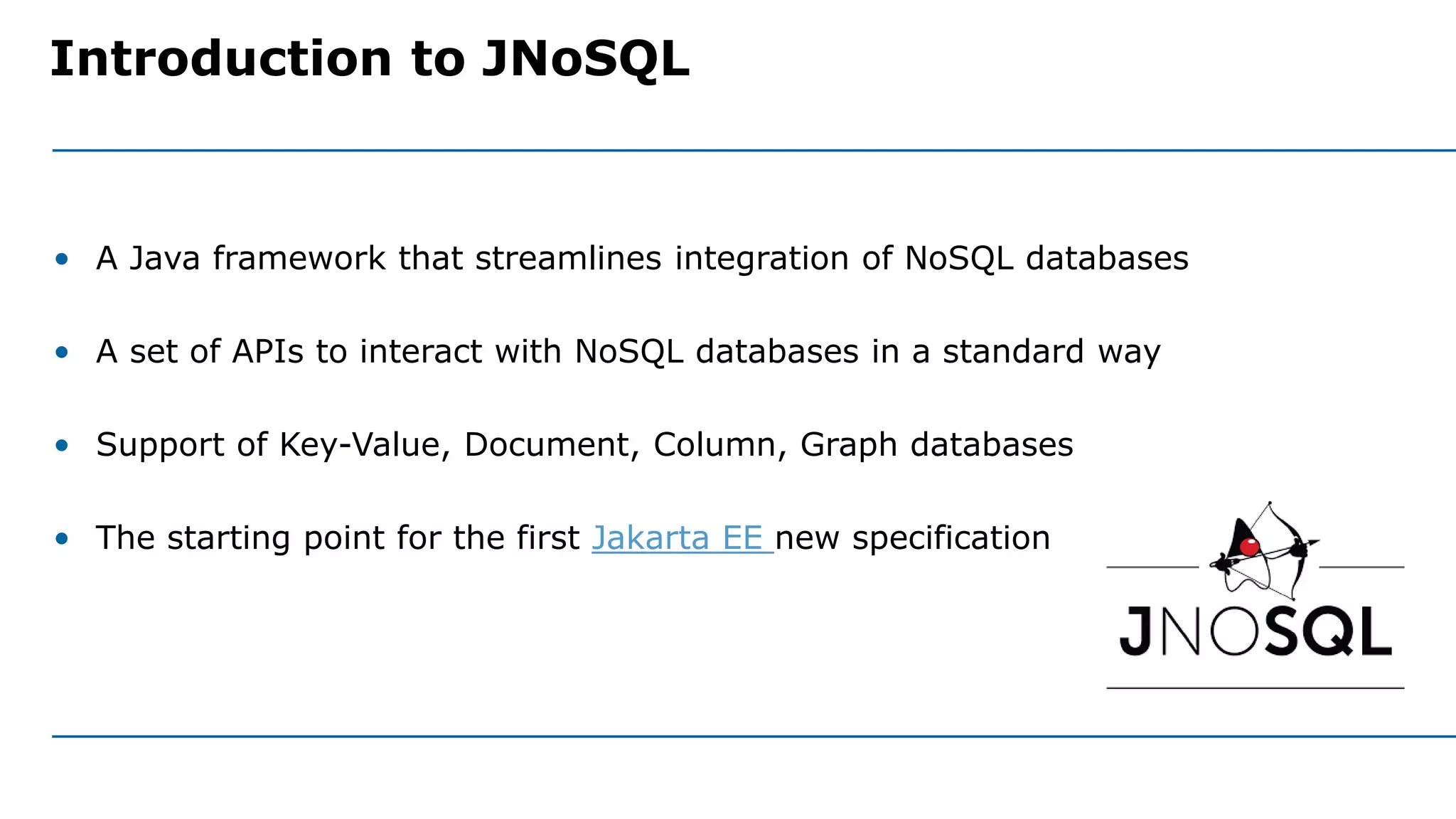

15. • A Java framework that streamlines integration of NoSQL databases
• A set of APIs to interact with NoSQL databases in a standard way
• Support of Key-Value, Document, Column, Graph databases
• The starting point for the first Jakarta EE new specification
Introduction to JNoSQL

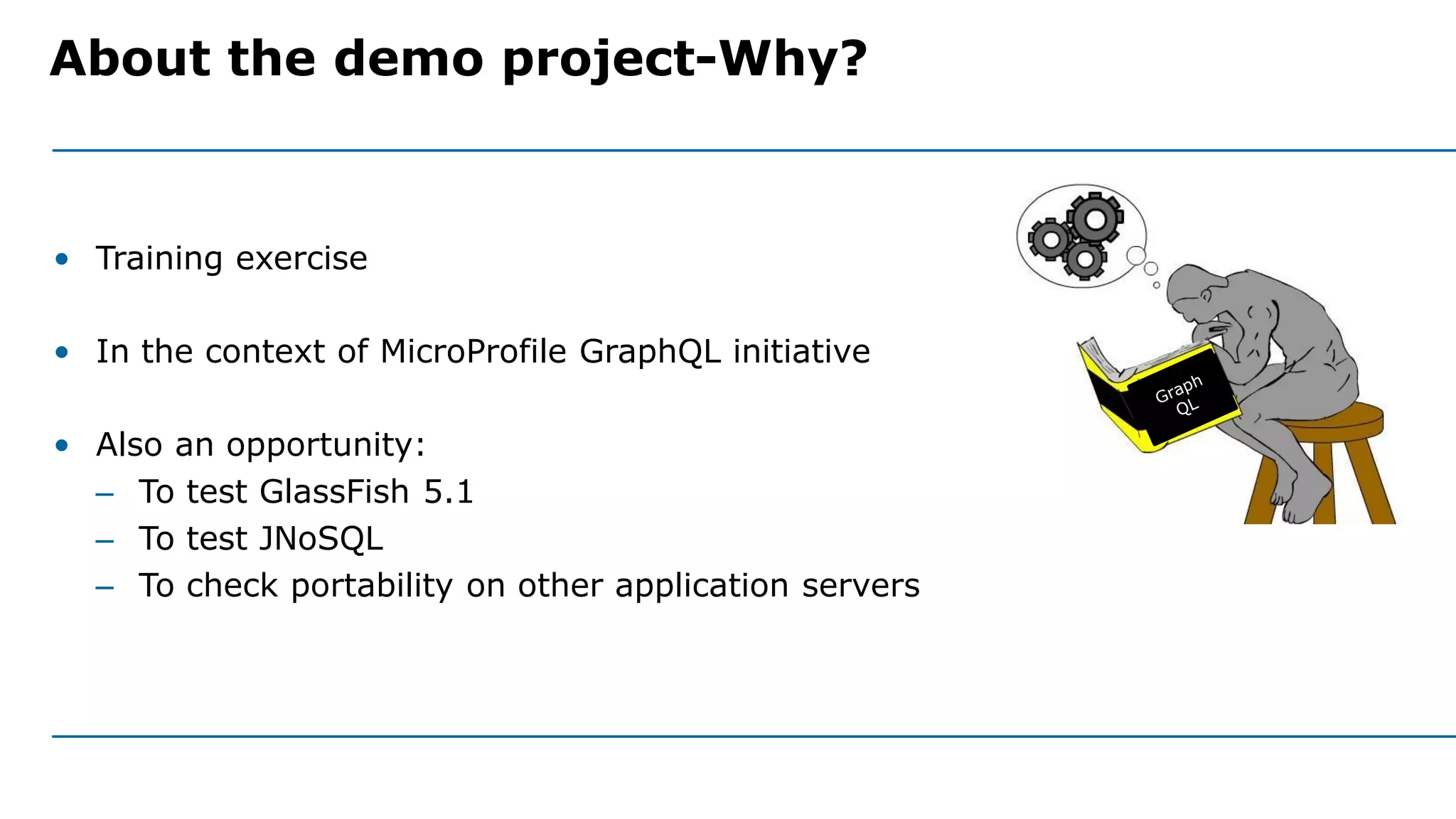

16. • Training exercise
• In the context of MicroProfile GraphQL initiative
• Also an opportunity:
– To test GlassFish 5.1
– To test JNoSQL
– To check portability on other application servers
About the demo project-Why?

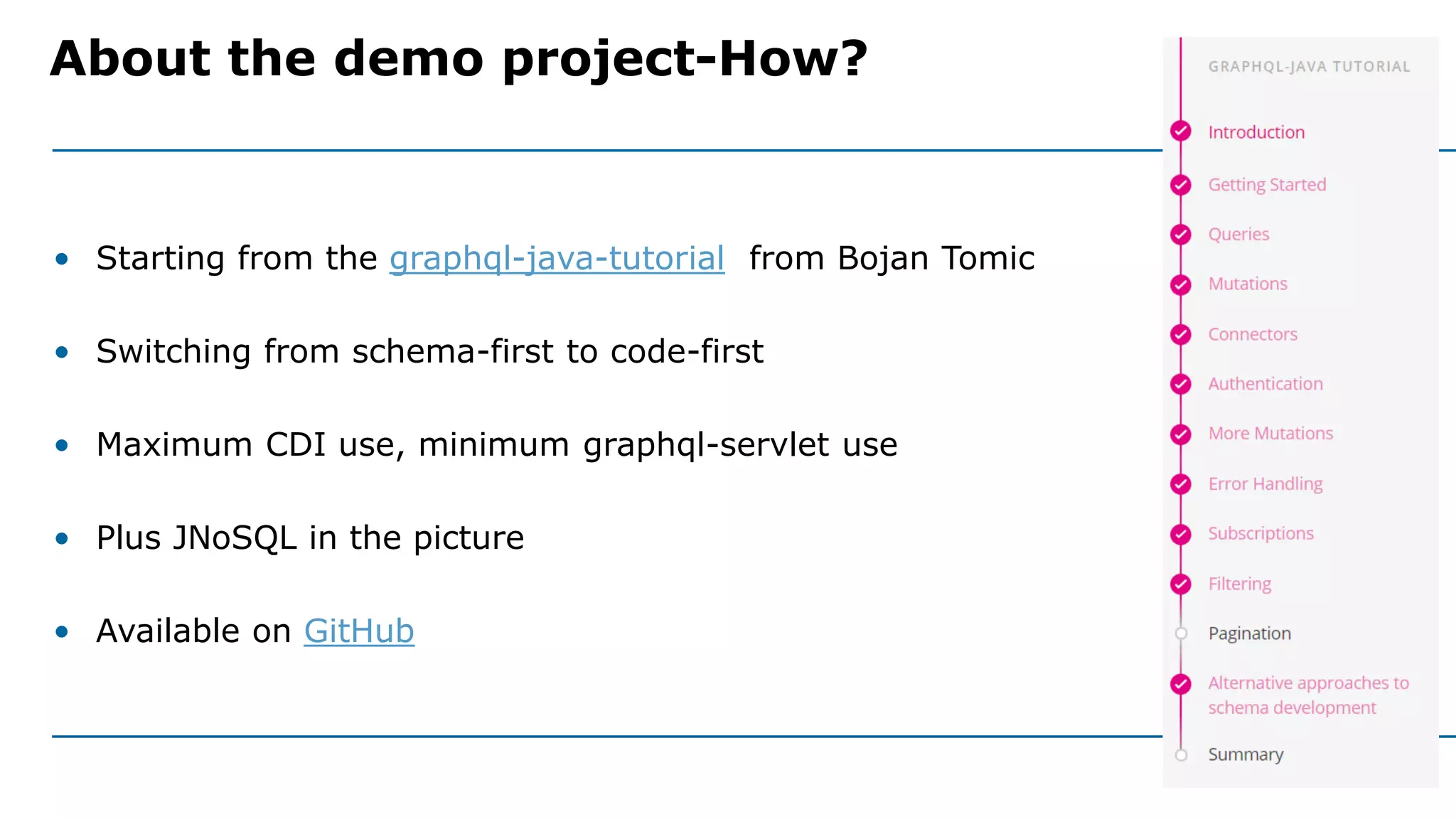

17. • Starting from the graphql-java-tutorial from Bojan Tomic
• Switching from schema-first to code-first
• Maximum CDI use, minimum graphql-servlet use
• Plus JNoSQL in the picture
• Available on GitHub
About the demo project-How?

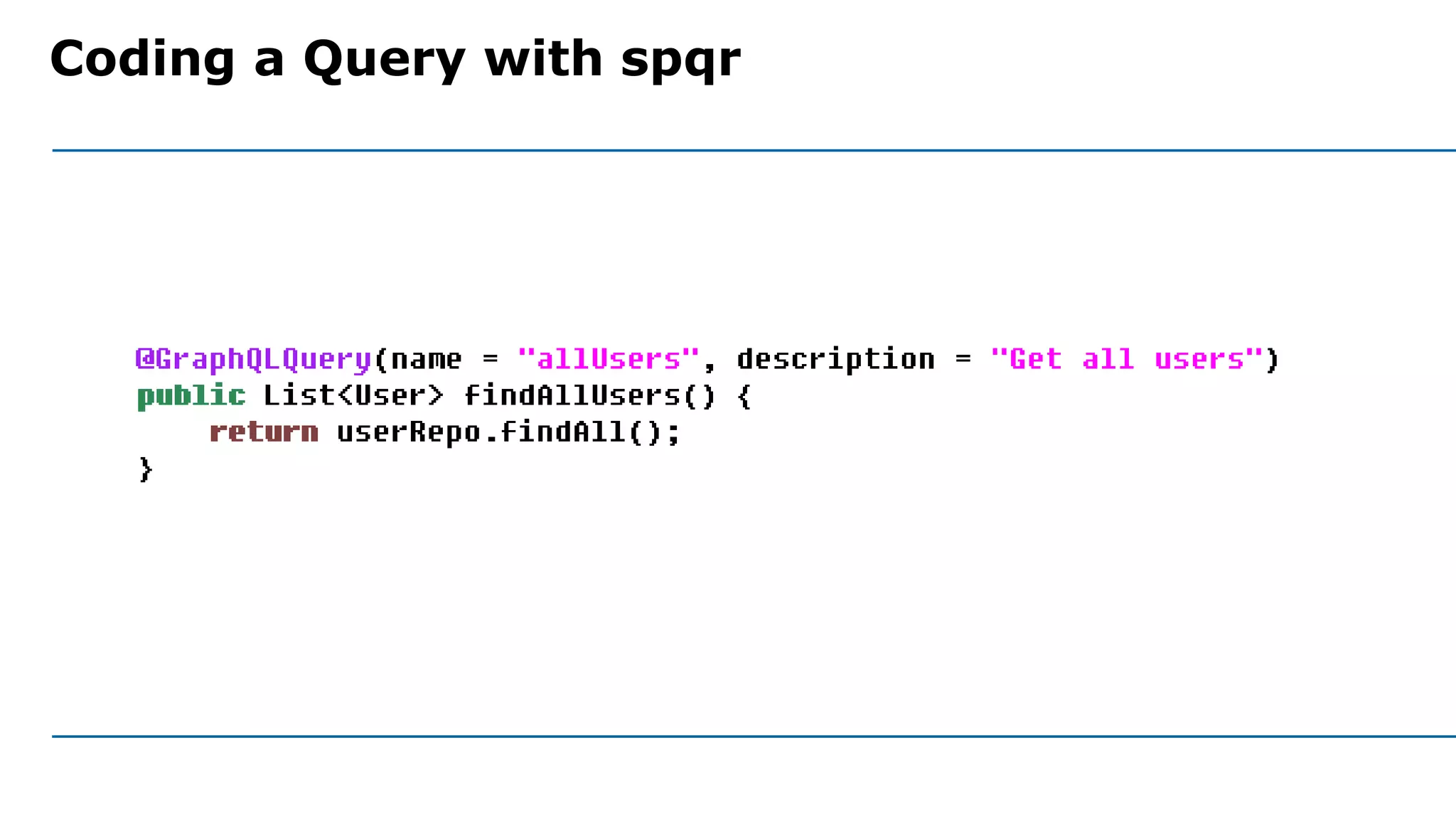

18. Coding a Query with spqr

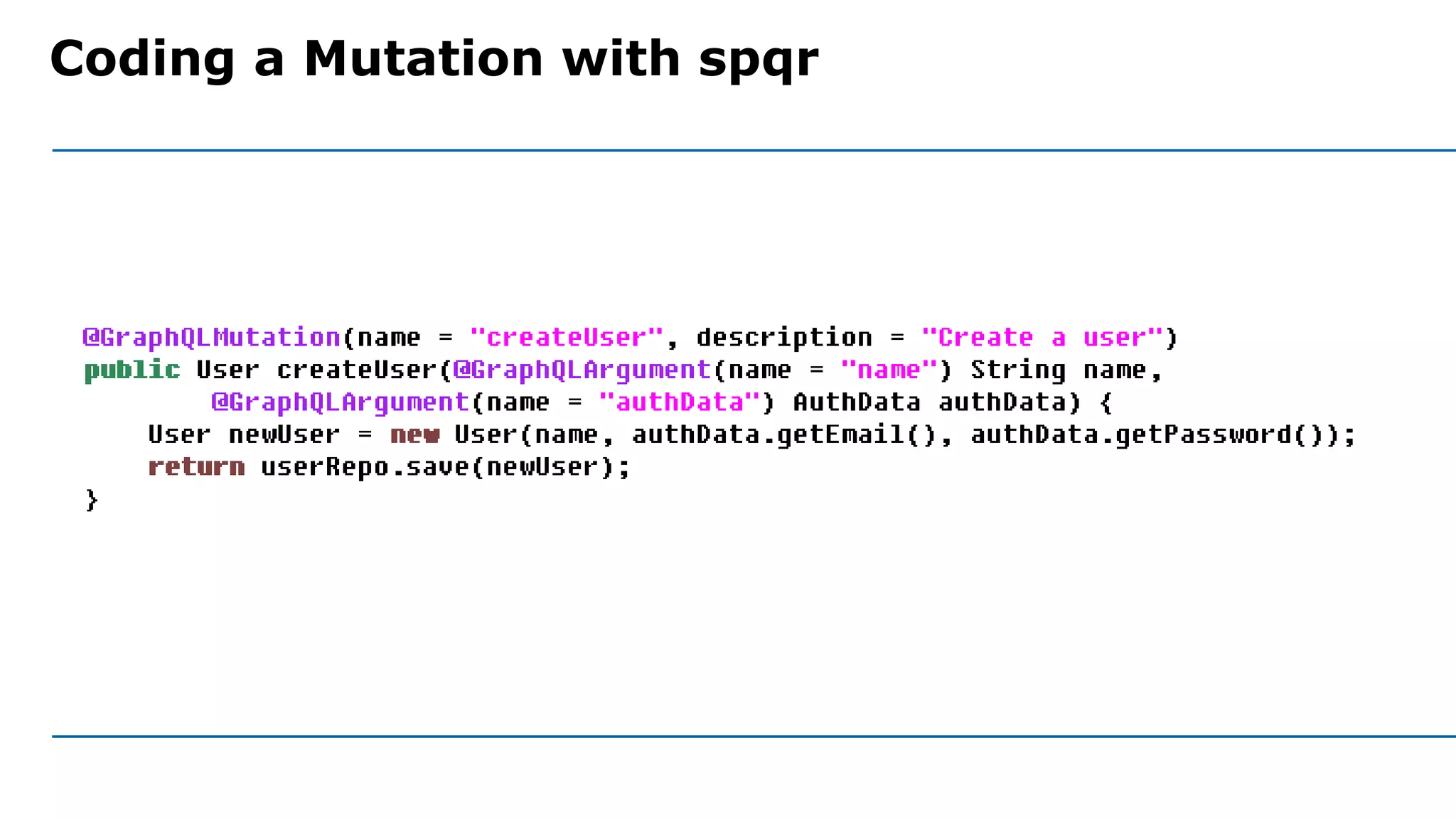

19. Coding a Mutation with spqr

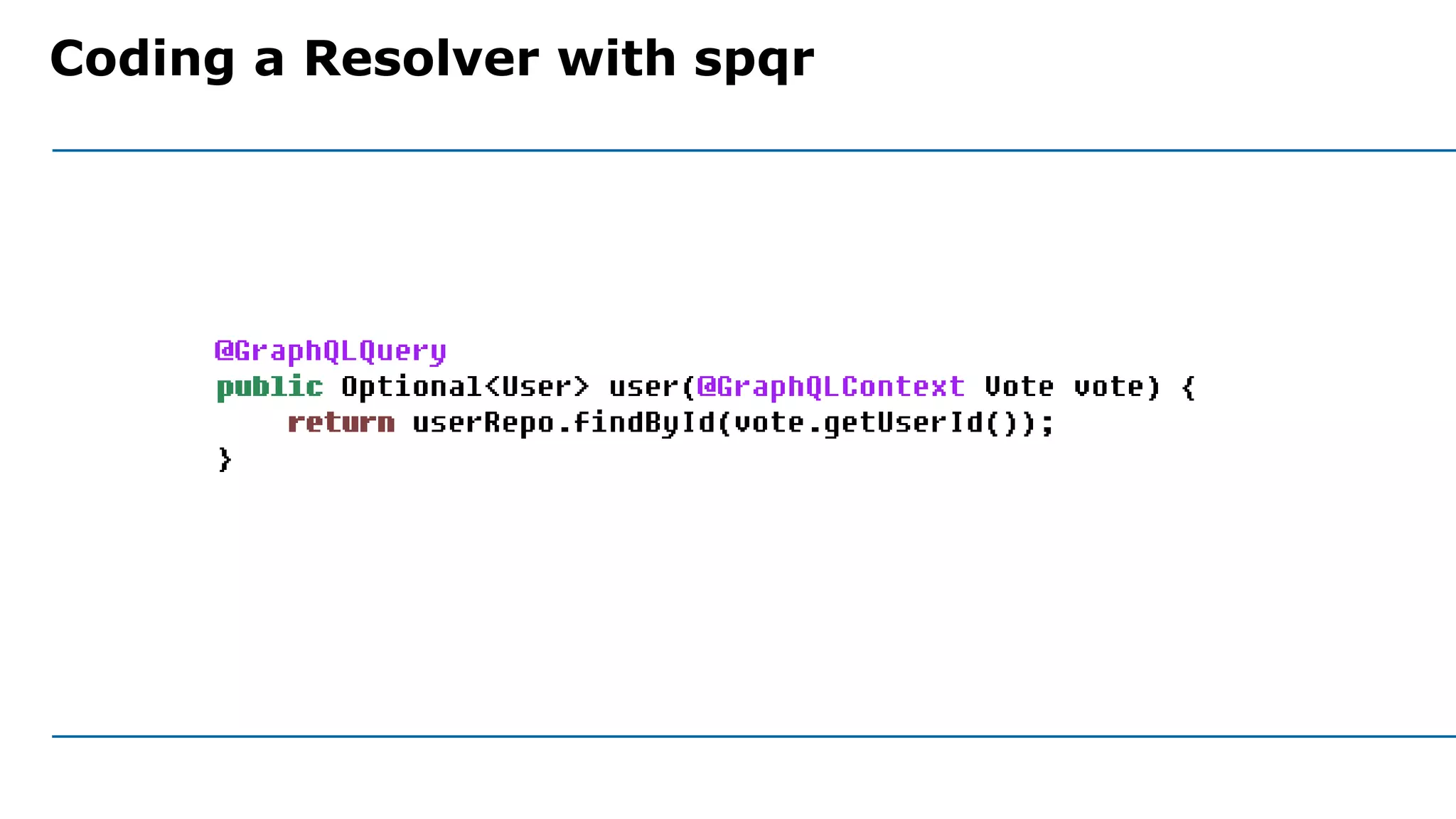

20. Coding a Resolver with spqr

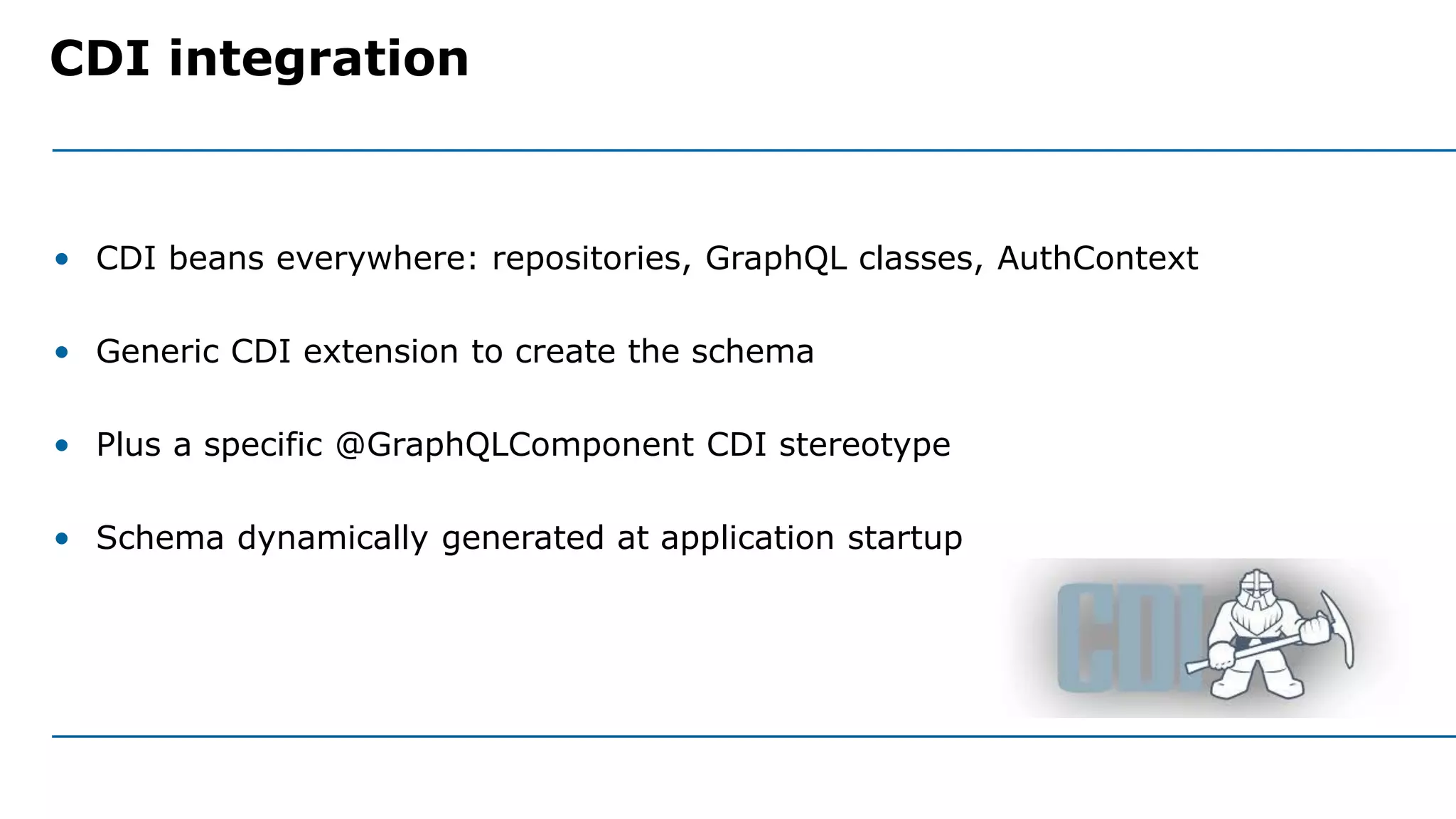

21. • CDI beans everywhere: repositories, GraphQL classes, AuthContext
• Generic CDI extension to create the schema
• Plus a specific @GraphQLComponent CDI stereotype
• Schema dynamically generated at application startup
CDI integration

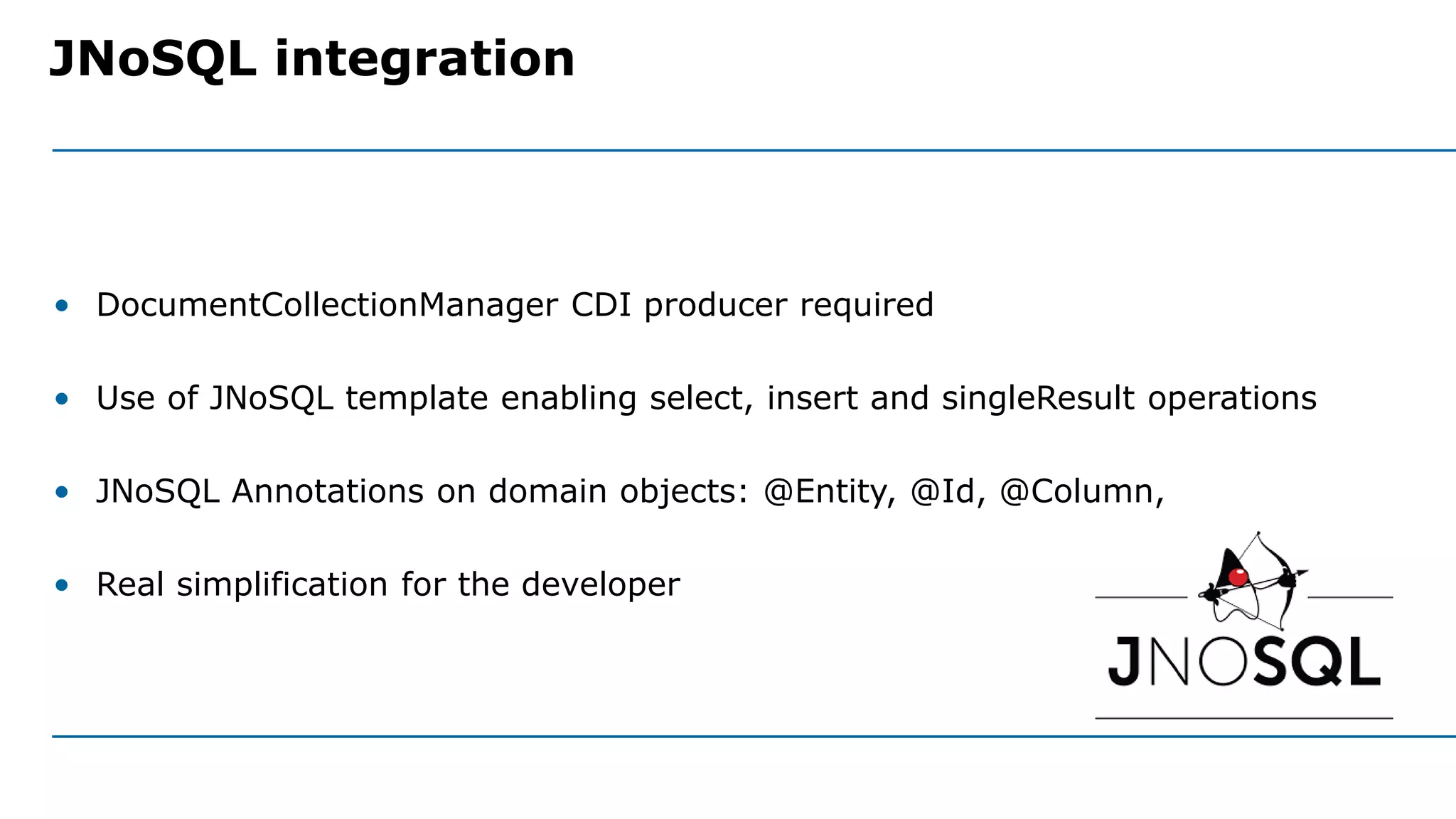

22. • DocumentCollectionManager CDI producer required
• Use of JNoSQL template enabling select, insert and singleResult operations
• JNoSQL Annotations on domain objects: @Entity, @Id, @Column,
• Real simplification for the developer
JNoSQL integration

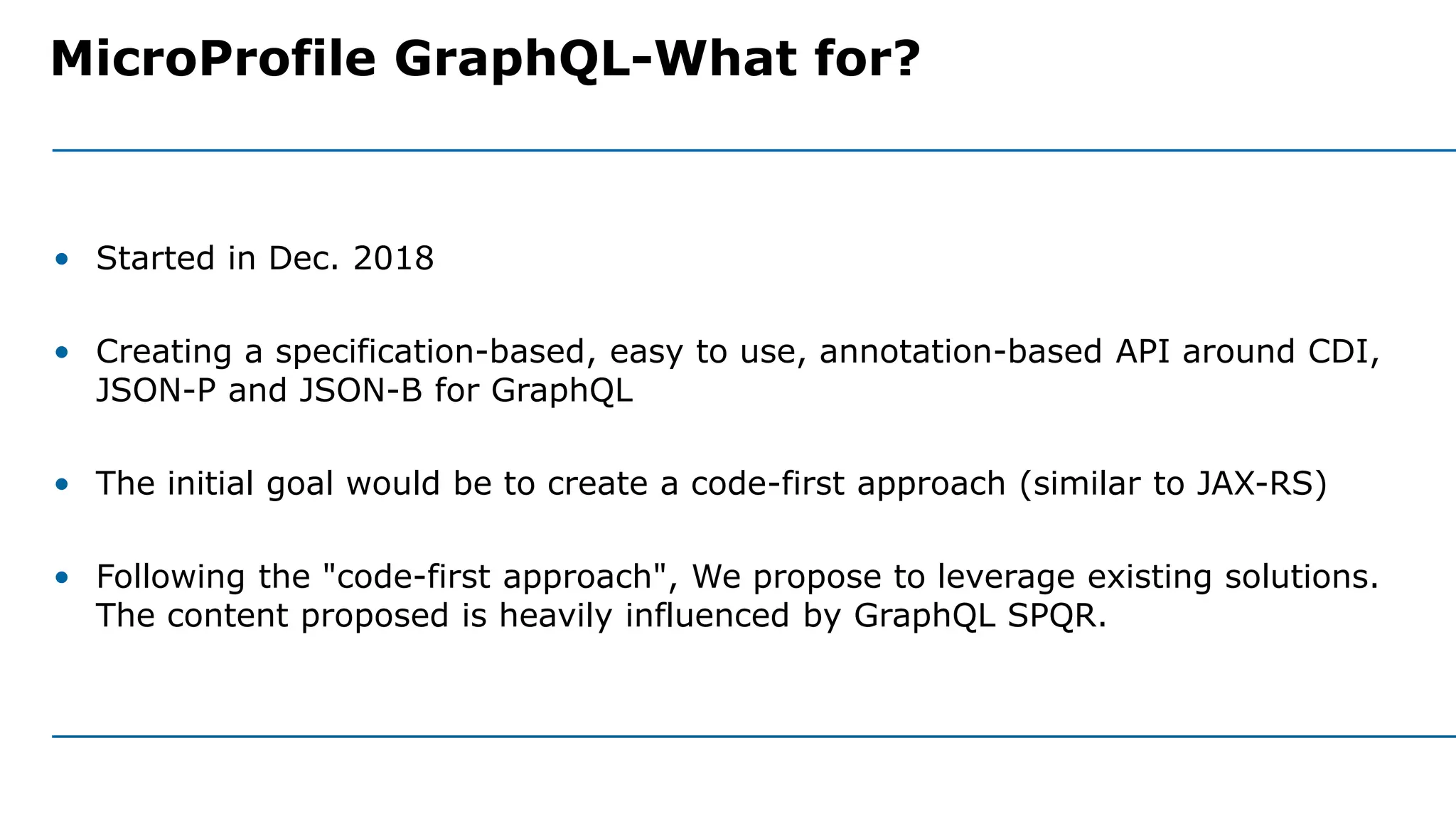

23. • Started in Dec. 2018
• Creating a specification-based, easy to use, annotation-based API around CDI,
JSON-P and JSON-B for GraphQL
• The initial goal would be to create a code-first approach (similar to JAX-RS)
• Following the "code-first approach", We propose to leverage existing solutions.
The content proposed is heavily influenced by GraphQL SPQR.
MicroProfile GraphQL-What for?

24. MicroProfile GraphQL-Who are we?
Andy McCright (IBM)
Phillip Kruger (Red Hat)
Jean-Baptiste Roux (Worldline)
Bojan Tomic (ServiceNow, spqr)
Jean-François James (Worldline)
Adam Anderson (IBM)
You are welcome!

25. Thank you!
