1. The Big Picture and How to Get Started
Jeff Scudder, Eric Bidelman
5/18/2010

2. Quick Poll

3. Google RESTful APIs

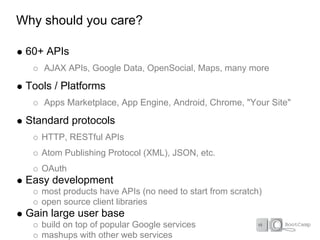

4. Why should you care?
60+ APIs
AJAX APIs, Google Data, OpenSocial, Maps, many more
Tools / Platforms
Apps Marketplace, App Engine, Android, Chrome, "Your Site"
Standard protocols
HTTP, RESTful APIs
Atom Publishing Protocol (XML), JSON, etc.
OAuth
Easy development
most products have APIs (no need to start from scratch)
open source client libraries
Gain large user base
build on top of popular Google services
mashups with other web services

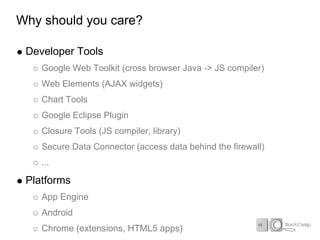

5. Why should you care?
Developer Tools
Google Web Toolkit (cross browser Java -> JS compiler)
Web Elements (AJAX widgets)
Chart Tools
Google Eclipse Plugin
Closure Tools (JS compiler, library)
Secure Data Connector (access data behind the firewall)
...
Platforms
App Engine
Android
Chrome (extensions, HTML5 apps)

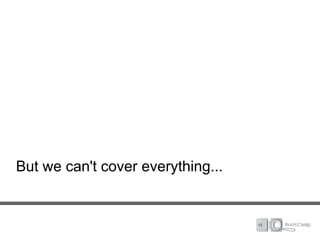

6. But we can't cover everything...

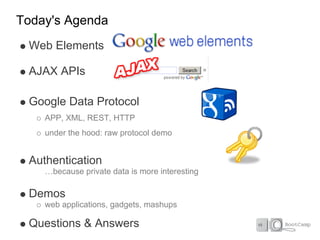

7. Today's Agenda
Web Elements
AJAX APIs
Google Data Protocol
APP, XML, REST, HTTP
under the hood: raw protocol demo
Authentication
…because private data is more interesting
Demos
web applications, gadgets, mashups
Questions & Answers

9. Google Ajax APIs

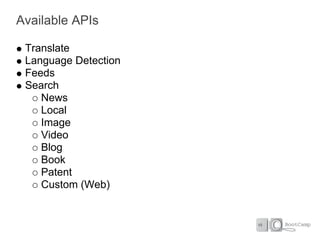

10. Available APIs
Translate
Language Detection
Feeds
Search
News
Local
Video
Blog
Book
Patent
Custom (Web)

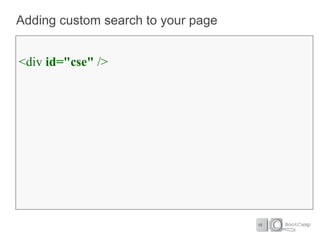

11. Adding custom search to your page
<div id="cse" />

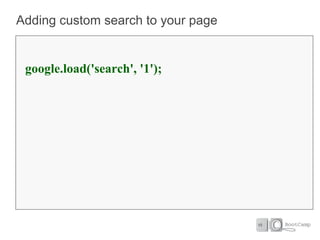

12. Adding custom search to your page
google.load('search', '1');

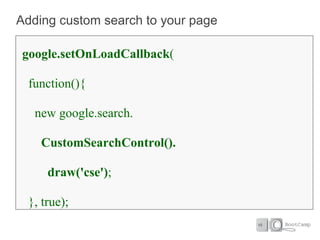

13. Adding custom search to your page
google.setOnLoadCallback(
function(){
new google.search.
CustomSearchControl().
draw('cse');
}, true);

14. Adding custom search to your page
<!-- Google Custom Search Element -->
<div id="cse" style="width:100%;">Loading</div>
<script src="http://www.google.com/jsapi" type="text/javascript">
</script>
<script type="text/javascript">
google.load('search', '1');
google.setOnLoadCallback(function(){
new google.search.CustomSearchControl().draw('cse');
}, true);
</script>

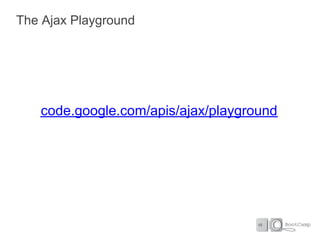

15. The Ajax Playground
code.google.com/apis/ajax/playground

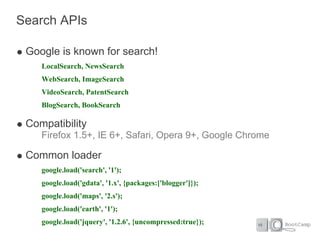

16. Search APIs
Google is known for search!
LocalSearch, NewsSearch
WebSearch, ImageSearch
VideoSearch, PatentSearch
BlogSearch, BookSearch
Compatibility
Firefox 1.5+, IE 6+, Safari, Opera 9+, Google Chrome
Common loader
google.load('search', '1');
google.load('gdata', '1.x', {packages:['blogger']});
google.load('maps', '2.s');
google.load('earth', '1');
google.load('jquery', '1.2.6', {uncompressed:true});

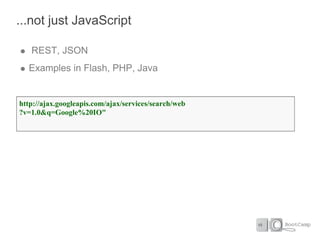

17. ...not just JavaScript
REST, JSON
Examples in Flash, PHP, Java
http://ajax.googleapis.com/ajax/services/search/web
?v=1.0&q=Google%20IO"

18. HTTP?
URL
Client request to server

19. Example: Translate API
Request
GET ajax.googleapis.com/ajax/services/language/translate?v=1.0&q=hello%
20world&langpair=en%7Cit
q = hello world
langpair = en|it
http://j.mp/translate-example

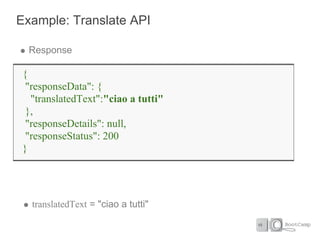

20. Example: Translate API
Response
{
"responseData": {
"translatedText":"ciao a tutti"
},
"responseDetails": null,
"responseStatus": 200
}
translatedText = "ciao a tutti"

21. REST
Create
POST /calendar/feeds/default/allcalendars/full
201 Created
Retrieve
GET /calendar/feeds/default/allcalendars/full
200 OK
Update
PUT /calendar/feeds/default/allcalendars/full/{ID}
200 OK
Delete
DELETE /calendar/feeds/default/allcalendars/full/{ID}
200 OK

22. Google Data APIs

23. Google Data Protocol Basics
HTTP, RESTful, ETags, OAuth
GET / POST / PUT / DELETE (e.g. CRUD)
Atom Publishing Protocol (XML), JSON, etc.
Feature Google Atom RSS 2.0
Extends the APP Data
authz for desktop/web/mobile Syndication Y Y Y
data model (<gd: Format
Queries Y N N
lastModifiedBy>)
batch operations Updates Y Y N
responses formats (json, jsonc, Optimistic Y N N
json-in-script) Concurrency
GData-Version: 2.0 Authenticatio Y N N
n

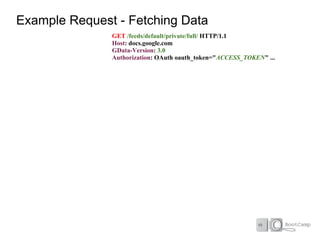

24. Example Request - Fetching Data
GET /feeds/default/private/full/ HTTP/1.1
Host: docs.google.com
GData-Version: 3.0
Authorization: OAuth oauth_token="ACCESS_TOKEN" ...

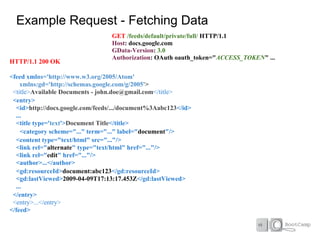

25. Example Request - Fetching Data
GET /feeds/default/private/full/ HTTP/1.1
Host: docs.google.com
GData-Version: 3.0
Authorization: OAuth oauth_token="ACCESS_TOKEN" ...
HTTP/1.1 200 OK
<feed xmlns='http://www.w3.org/2005/Atom'
xmlns:gd='http://schemas.google.com/g/2005'>
<title>Available Documents - john.doe@gmail.com</title>
<entry>
<id>http://docs.google.com/feeds/.../document%3Aabc123</id>
...
<title type='text'>Document Title</title>
<category scheme="..." term="..." label="document"/>
<content type="text/html" src="..."/>
<link rel="alternate" type="text/html" href="..."/>
<link rel="edit" href="..."/>
<author>...</author>
<gd:resourceId>document:abc123</gd:resourceId>
<gd:lastViewed>2009-04-09T17:13:17.453Z</gd:lastViewed>
...
</entry>
<entry>...</entry>
</feed>

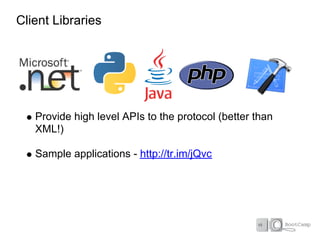

26. Client Libraries
Provide high level APIs to the protocol (better than
XML!)
Sample applications - http://tr.im/jQvc

27. "What Can I Build?"

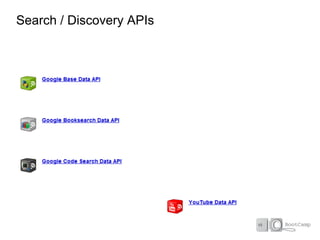

28. Search / Discovery APIs

29. Admin. / Data Management APIs

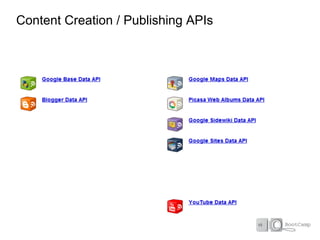

30. Content Creation / Publishing APIs

31. Apps / Office Productivity APIs

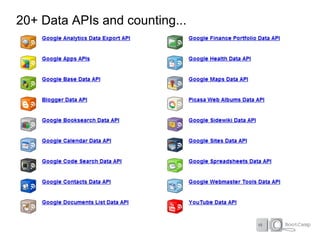

32. 20+ Data APIs and counting...

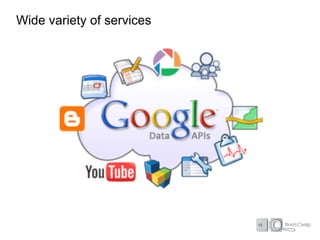

33. Wide variety of services

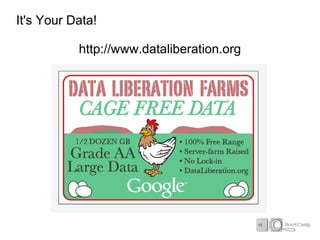

34. It's Your Data!
http://www.dataliberation.org

35. Authorization

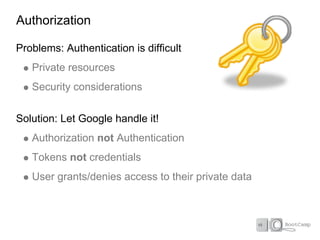

36. Authorization
Problems: Authentication is difficult
Private resources
Security considerations
Solution: Let Google handle it!
Authorization not Authentication
Tokens not credentials
User grants/denies access to their private data

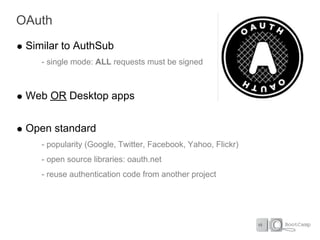

37. OAuth
Similar to AuthSub
- single mode: ALL requests must be signed
Web OR Desktop apps
Open standard
- popularity (Google, Twitter, Facebook, Yahoo, Flickr)
- open source libraries: oauth.net
- reuse authentication code from another project

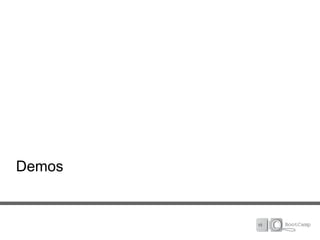

38. Demos

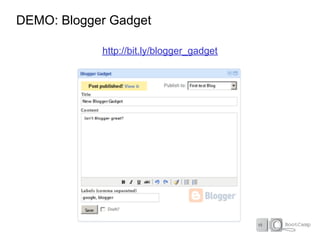

39. DEMO: Blogger Gadget
http://bit.ly/blogger_gadget

40. Read / Write JS Library
Handles the details of loading data from Google
Supports READ and WRITE operations
Multiple authentication methods (AuthSub/OAuth Proxy)
Works XD using iframe
Wraps the gadgets.io.makeRequest() function (in gadget
environments)
More info: http://bit.ly/js-client

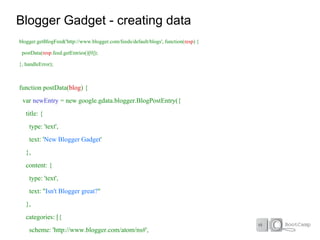

41. Blogger Gadget - creating data
blogger.getBlogFeed('http://www.blogger.com/feeds/default/blogs', function(resp) {
postData(resp.feed.getEntries()[0]);
}, handleError);
function postData(blog) {
var newEntry = new google.gdata.blogger.BlogPostEntry({
title: {
type: 'text',
text: 'New Blogger Gadget'
},
content: {
type: 'text',
text: "Isn't Blogger great?"
},
categories: [{
scheme: 'http://www.blogger.com/atom/ns#',

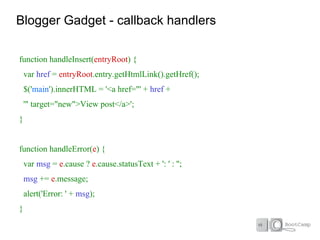

42. Blogger Gadget - callback handlers
function handleInsert(entryRoot) {
var href = entryRoot.entry.getHtmlLink().getHref();
$('main').innerHTML = '<a href="' + href +
'" target="new">View post</a>';
}
function handleError(e) {
var msg = e.cause ? e.cause.statusText + ': ' : '';
msg += e.message;
alert('Error: ' + msg);
}

43. "What Can I Build?"

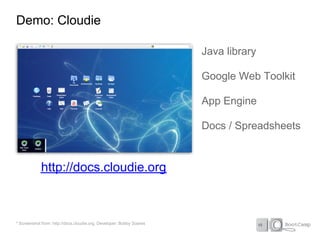

44. Demo: Cloudie
Java library
Google Web Toolkit
App Engine
Docs / Spreadsheets
http://docs.cloudie.org
* Screenshot from: http://docs.cloudie.org, Developer: Bobby Soares

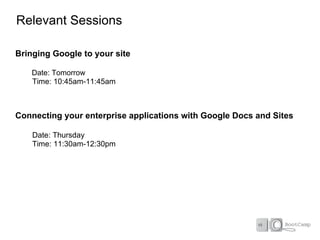

45. Relevant Sessions
Bringing Google to your site
Date: Tomorrow
Time: 10:45am-11:45am
Connecting your enterprise applications with Google Docs and Sites
Date: Thursday
Time: 11:30am-12:30pm

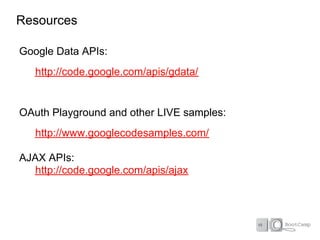

46. Resources
Google Data APIs:
http://code.google.com/apis/gdata/
OAuth Playground and other LIVE samples:
http://www.googlecodesamples.com/
AJAX APIs:
http://code.google.com/apis/ajax

47. Questions?
