The document describes various tensile testing instruments manufactured by Shanta Engineering, including hand operated, twin column universal, single column universal, and electronic tensile testing machines. The machines can test materials like rubber, plastics, cables, leather, paper, and metals under tension, compression, bending or flexural loads. Key features include digital load and displacement readouts, adjustable speeds, optional load cells and accessories for specific tests. Specifications include load capacities, resolutions, speeds, dimensions and power requirements.
We offer a comprehensive range of Strength of Material Lab Equipment, which are widely used in Schools, Colleges and Universities.
Mobile : +91-99710-77233, +91-98118-88915
Email : labtekindia@gmail.com, labequipments.in@gmail.com
Website : www.labtekindia.com
Southern Machinery has proven success in designing,
manufacturing, and integrating automated
assembly equipment in surface mount,
odd form, final assembly, advanced
semiconductor, through hole, and mixed
technology applications.
Universal Testing machine is used to test the tensile strength and compression of Steel(Specimen). This presentation will present various sensors suitable for Converting the pressure into electric signal.
We offer a comprehensive range of Strength of Material Lab Equipment, which are widely used in Schools, Colleges and Universities.
Mobile : +91-99710-77233, +91-98118-88915
Email : labtekindia@gmail.com, labequipments.in@gmail.com
Website : www.labtekindia.com
Southern Machinery has proven success in designing,
manufacturing, and integrating automated
assembly equipment in surface mount,
odd form, final assembly, advanced
semiconductor, through hole, and mixed
technology applications.
Universal Testing machine is used to test the tensile strength and compression of Steel(Specimen). This presentation will present various sensors suitable for Converting the pressure into electric signal.
HPA General Purpose Workshop/Straightening PressZachary Bennett
For many repair and assembly jobs
These general-purpose workshop/straightening presses come in 30 to 150-ton press power and are perfect for many repairs and assembly jobs, including the straightening of beams, shafts, axles, and profiles. They can also be used to remove and replace bearings, pins, and bushings. The H-Frame presses are steel welded and come with adjustable table heights.
<a href="https://kaast-usa.com/product/hpa-press/">Straightening Press</a>
We design and manufacture automatic machine for the PCBA/SMT and Thru-hole industries in Shenzhen China. We help companies looking to low cost equipment with smart, ROI-driven assembly equipment solutions. To watch the machine working video, please search: "Odd form insertion machine" in Youtube. Contact us today to learn how we can help you。 info@smthelp.com
DV Cranes specialises in Mini crawler crane hire to sites across Australia. All our cranes are hydraulic and mounted on a tracked undercarriage. Telescopic 4t cranes are ready for work immediately on arrival at the site. For more information on our hire packages and services,
We design and manufacture automatic machine for the PCBA/SMT and Thru-hole industries in Shenzhen China. We help companies looking to low cost equipment with smart, ROI-driven assembly equipment solutions.
shaoyong@smthelp.com
smthelp@vip.126.com
WhatsApp:+86 137 6048 1664
A universal testing machine, also known as a universal tester, materials testing machine or materials test frame, is used to test the tensile stress and compressive strength of materials.
Southern machinery board handling system catalog 2018 01Ming Gan
- Focus on AI SMT Machine & PCB auto Assembly.
- Offering comprehensive solution in Through Hole Technology for Radial component inserter, Axial component inserter, Bulk LED, Odd form component inserter & Eyelet/Pin Inserter.
- Provide High Quality Replacement Parts for SMT Pick & Place Equipment and Auto Insertion Machine: Vacuum Nozzles, Cutter Blades, Glue Dispense Nozzles, Feeder Accessories, Vacuum Pumps and Accessories, Filters, Springs, Lamps, Belts, and more!
- Provide full training for AI SMT processing, machine installation,repair,maintenance,upgrade.
- Provide pre-sales and after sales service.
(contact me :ming@smthelp.com
http://www.smthelp.com/)
Tranco model sdh 1452 core winding machineRobby Wills
Our newest model, the SDH 1452, is capable of producing a much larger core without compromising on quality, speed or reliability. This makes it the core-winding solution of choice for applications requiring a large-size finished core.
1.Tensile Tester Machine -
enquiry
Shambhavi Lab Instruments Universal Testing Machines are electro mechanical machine with digital display of load & displacement & pulley belt system for changing speeds. The machines are designed for testing various materials like rubber, plastic, cable, leather, paper, plywood and metal. Tension, compression, bend and flexural tests can be performed on these machines with suitable grips and fixtures. The machines are powder coated for elegant look. The critical components are plated for rust prevention and durability.
MAIN FEATURES :
- Selection of different speeds by pulley belt system
- Facility to mount different load cells.
- Facility to mount various grips / fixtures for different tests and
materials like rubber, plastics, cables, leather, paper, plywood and metals

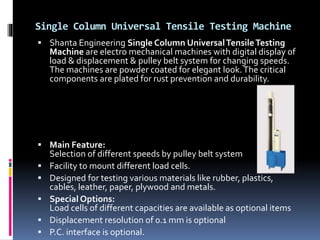

2. Single Column Universal Tensile testing Machine - Shambhavi Lab Instruments Universal Testing Machines are electro mechanical machines with digital display of load & displacement & pulley belt system for changing speeds. The machines are designed for testing various materials like rubber, plastics, cables, leather, paper, plywood and metals. Tension, compression, bend and flexural tests can be performed on these machines with suitable grips and fixtures. The machines are powder coated for elegant look. The critical components are plated for rust prevention and durability.
MAIN FEATURES :
Selection of different speeds by pulley belt system
Facility to mount different load cells.
Facility to mount various grips / fixtures for different tests and materials like rubber, plastics, cables, leather, paper, plywood and metals
For maximum tensile testing throughput and capability, Tinius Olsen offers a range of horizontal tensile testing machines in capacities of 5kN (1000lbf), 25kN (5000lbf), 150kN (30,000lbf) and 300kN (60,000lbf).
These horizontal testing machines offer unique benefits over vertically oriented testers by allowing a range of accessories to be mounted next to the machine to turn it into a fully automatic testing station.
They are designed primarily for production departments and are typically in constant use; however, the grips can be modified to accommodate different shaped samples and
alternate grips can be provided for customers when test requirements change.
Web: www.TiniusOlsen.com
The Bursting Strength Tester- Digital is the instrument that is mainly used in paper and packaging industries as well as the textile industries for ensuring the best quality of the packaging materials like leather, fabric, paper and corrugated sheets.
Polyfilms and laminates testing instrumentsPacorr Testing
Poly Films & Laminates Testing Instruments - Pacorr offers a wide range of highly accurate Poly Films & Laminates Testing Instruments that help the industries in testing the quality of their products. Call now for price: +91 8882149230
HPA General Purpose Workshop/Straightening PressZachary Bennett
For many repair and assembly jobs
These general-purpose workshop/straightening presses come in 30 to 150-ton press power and are perfect for many repairs and assembly jobs, including the straightening of beams, shafts, axles, and profiles. They can also be used to remove and replace bearings, pins, and bushings. The H-Frame presses are steel welded and come with adjustable table heights.
<a href="https://kaast-usa.com/product/hpa-press/">Straightening Press</a>
We design and manufacture automatic machine for the PCBA/SMT and Thru-hole industries in Shenzhen China. We help companies looking to low cost equipment with smart, ROI-driven assembly equipment solutions. To watch the machine working video, please search: "Odd form insertion machine" in Youtube. Contact us today to learn how we can help you。 info@smthelp.com
DV Cranes specialises in Mini crawler crane hire to sites across Australia. All our cranes are hydraulic and mounted on a tracked undercarriage. Telescopic 4t cranes are ready for work immediately on arrival at the site. For more information on our hire packages and services,
We design and manufacture automatic machine for the PCBA/SMT and Thru-hole industries in Shenzhen China. We help companies looking to low cost equipment with smart, ROI-driven assembly equipment solutions.
shaoyong@smthelp.com
smthelp@vip.126.com
WhatsApp:+86 137 6048 1664
A universal testing machine, also known as a universal tester, materials testing machine or materials test frame, is used to test the tensile stress and compressive strength of materials.
Southern machinery board handling system catalog 2018 01Ming Gan
- Focus on AI SMT Machine & PCB auto Assembly.
- Offering comprehensive solution in Through Hole Technology for Radial component inserter, Axial component inserter, Bulk LED, Odd form component inserter & Eyelet/Pin Inserter.
- Provide High Quality Replacement Parts for SMT Pick & Place Equipment and Auto Insertion Machine: Vacuum Nozzles, Cutter Blades, Glue Dispense Nozzles, Feeder Accessories, Vacuum Pumps and Accessories, Filters, Springs, Lamps, Belts, and more!
- Provide full training for AI SMT processing, machine installation,repair,maintenance,upgrade.
- Provide pre-sales and after sales service.
(contact me :ming@smthelp.com
http://www.smthelp.com/)
Tranco model sdh 1452 core winding machineRobby Wills
Our newest model, the SDH 1452, is capable of producing a much larger core without compromising on quality, speed or reliability. This makes it the core-winding solution of choice for applications requiring a large-size finished core.
1.Tensile Tester Machine -
enquiry
Shambhavi Lab Instruments Universal Testing Machines are electro mechanical machine with digital display of load & displacement & pulley belt system for changing speeds. The machines are designed for testing various materials like rubber, plastic, cable, leather, paper, plywood and metal. Tension, compression, bend and flexural tests can be performed on these machines with suitable grips and fixtures. The machines are powder coated for elegant look. The critical components are plated for rust prevention and durability.
MAIN FEATURES :
- Selection of different speeds by pulley belt system
- Facility to mount different load cells.
- Facility to mount various grips / fixtures for different tests and
materials like rubber, plastics, cables, leather, paper, plywood and metals
2. Single Column Universal Tensile testing Machine - Shambhavi Lab Instruments Universal Testing Machines are electro mechanical machines with digital display of load & displacement & pulley belt system for changing speeds. The machines are designed for testing various materials like rubber, plastics, cables, leather, paper, plywood and metals. Tension, compression, bend and flexural tests can be performed on these machines with suitable grips and fixtures. The machines are powder coated for elegant look. The critical components are plated for rust prevention and durability.
MAIN FEATURES :
Selection of different speeds by pulley belt system
Facility to mount different load cells.
Facility to mount various grips / fixtures for different tests and materials like rubber, plastics, cables, leather, paper, plywood and metals
For maximum tensile testing throughput and capability, Tinius Olsen offers a range of horizontal tensile testing machines in capacities of 5kN (1000lbf), 25kN (5000lbf), 150kN (30,000lbf) and 300kN (60,000lbf).
These horizontal testing machines offer unique benefits over vertically oriented testers by allowing a range of accessories to be mounted next to the machine to turn it into a fully automatic testing station.
They are designed primarily for production departments and are typically in constant use; however, the grips can be modified to accommodate different shaped samples and
alternate grips can be provided for customers when test requirements change.
Web: www.TiniusOlsen.com
The Bursting Strength Tester- Digital is the instrument that is mainly used in paper and packaging industries as well as the textile industries for ensuring the best quality of the packaging materials like leather, fabric, paper and corrugated sheets.
Polyfilms and laminates testing instrumentsPacorr Testing
Poly Films & Laminates Testing Instruments - Pacorr offers a wide range of highly accurate Poly Films & Laminates Testing Instruments that help the industries in testing the quality of their products. Call now for price: +91 8882149230
1.Modular design, optional assembly as per client’s requirement.
2.Rugged steel design, improves equipment stability .
3.Smooth stainless steel screw to adjust the width of the rail.
4.Variable speed control.
5.Circuit board testing mode.
6.Using a dedicated aluminum slot for transfer orbit to prevent PCB stuck.
7.Heavier bottom design, not easily shift.
8.Machine length can be customized.
9.Compatible with SMEMA interface.
*: Option: Dual rail
1.Strong,firm and stable design.
2.'soft touch' LED control panel or touch screen can be selected.
3.Top&bottom pneumatic clamps to secure magazine rack.
4.No PCB breakage guaranty because of special gas circuit design.
5.Automatical diagnosing fault code display function.
6.Wear-resistant cable and have long service life.
7.Compatible SMEMA interface.
Hi,Here is Shenzhen ETA Technology Co., Ltd.
We are manufacture reflow oven, stencil printer, pick and place ,wave slodering, Coveyor ,exporting SMT/DIP machines,can Customized.
We have owner SMT brand ,Samsung,Juki and have many years exprience.
We can help you build the factory and LED lighting solution.
We are looking forward to chance coopare with you.
Your attention will be appreciated.
Full SMT/DIP Solution for factory setup.
Shenzhen ETA Technology Co., Ltd.
www.smt11.com www.smtfactory.com
Email: eta5@eta-ele.com
Whatsapp/Wechat: +86 136 4149 2805
Skype: etasmt1
Chamunda DUO PRESS (Double Rotary) is developed to meet the R & D or production sector in the Tableting zone of the pharmaceutical industry. The aesthetic look and innovative compact design built on the principles of latest tablet technology further supports the consistency of the machine. This machine comes with the variant tooling such as “D”, “B”, “D + B” and “D + B + BB” to meet the customize requirements.
Tinius Olsen’s hydraulic testers have long been recognized as the standard for accuracy, dependability and versatility in universal testing machines. The many thousands of testers currently in use throughout the world attest to this fact.
Now more than ever, the SL Series represents the highest standard in hydraulically powered universal testing machines.
It features a patented dualpressure hydraulic loading system and a rugged four-column construction for exceptional load frame rigidity. In addition, it has a space-saving console with a smaller footprint and comfortable working height design.
A range of user interface options are available, including Bluetooth and/or tethered interfaces, to enable basic tests, comprehensive tests and everything in between, through Tinius Olsen’s Horizon materials testing software.
SL systems are guaranteed to meet ASTM, ISO, and other national and international specifications for accuracy. Accuracy is within +/- 0.1% of the indicated load from 0.2% to 100% of frame capacity. All equipment used to calibrate the weighing and indicating systems of the SL testers is traceable to the National Institute of Standards and Technology (NIST).
Web: www.TiniusOlsen.com
Multi Cell Ageing Oven will have Aluminum pipes with 100 mm ID and 300 mm length & each pipe will having stand to hang the samples.Each pipe will have arrangement of Timer,Temperature Controller and Rotameter.
Multi Cell Ageing Oven will have Aluminum pipes with 100 mm ID and 300 mm length & each pipe will having stand to hang the samples.Each pipe will have arrangement of Timer,Temperature Controller and Rotameter.
Extensometer for utm machine and muffle furnaceShantaEngg Rege
We are Manufacturing of Creating a niche of Extensometer for UTM Machine such as Electronic Extensometer and Mechanical Extensometer at its best, with utmost quality.
Shanta Engineering is incepted in the year 1978. We are one of the leading manufacturers and exporters of a wide range of products. We manufacture a wide range of Testing Instruments and Equipment's that are used to test rubber, plastic, cables and allied materials. Our product range includes Laboratory Testing Equipment, Cable Testing Instruments, Testing Machine and machines for agricultural application.
Our range of products are manufactured as per different standards used by our customers and also sometimes they are customized to satisfy special requirements of our customers.
With a group of experienced & talented personnel together our design & development of machine / instruments are at par with the imported testing equipment's on quality basis. Although we are offering the highest quality level to match with the imported Testing Equipment's, we always see to it that the cost of our all equipment's are affordable to a small budget buyers. We export our product to Indian Subcontinent country.
We manufacture and export Laboratory Testing Equipment using supreme quality material and the advanced technology. These are used in general laboratory, biotechnology/microbiology, pathology, entomology, pharmaceuticals, seed and soil testing, water testing, meteorology food processing. These entire laboratory testing equipment are available at the competitive prices.
Overview of the fundamental roles in Hydropower generation and the components involved in wider Electrical Engineering.
This paper presents the design and construction of hydroelectric dams from the hydrologist’s survey of the valley before construction, all aspects and involved disciplines, fluid dynamics, structural engineering, generation and mains frequency regulation to the very transmission of power through the network in the United Kingdom.
Author: Robbie Edward Sayers
Collaborators and co editors: Charlie Sims and Connor Healey.
(C) 2024 Robbie E. Sayers
Student information management system project report ii.pdfKamal Acharya
Our project explains about the student management. This project mainly explains the various actions related to student details. This project shows some ease in adding, editing and deleting the student details. It also provides a less time consuming process for viewing, adding, editing and deleting the marks of the students.
Explore the innovative world of trenchless pipe repair with our comprehensive guide, "The Benefits and Techniques of Trenchless Pipe Repair." This document delves into the modern methods of repairing underground pipes without the need for extensive excavation, highlighting the numerous advantages and the latest techniques used in the industry.
Learn about the cost savings, reduced environmental impact, and minimal disruption associated with trenchless technology. Discover detailed explanations of popular techniques such as pipe bursting, cured-in-place pipe (CIPP) lining, and directional drilling. Understand how these methods can be applied to various types of infrastructure, from residential plumbing to large-scale municipal systems.
Ideal for homeowners, contractors, engineers, and anyone interested in modern plumbing solutions, this guide provides valuable insights into why trenchless pipe repair is becoming the preferred choice for pipe rehabilitation. Stay informed about the latest advancements and best practices in the field.
About
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
• Remote control: Parallel or serial interface.
• Compatible with MAFI CCR system.
• Compatible with IDM8000 CCR.
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
• Easy in configuration using DIP switches.
Technical Specifications
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
Key Features
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
• Remote control: Parallel or serial interface
• Compatible with MAFI CCR system
• Copatiable with IDM8000 CCR
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
Application
• Remote control: Parallel or serial interface.
• Compatible with MAFI CCR system.
• Compatible with IDM8000 CCR.
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
• Easy in configuration using DIP switches.
Hierarchical Digital Twin of a Naval Power SystemKerry Sado
A hierarchical digital twin of a Naval DC power system has been developed and experimentally verified. Similar to other state-of-the-art digital twins, this technology creates a digital replica of the physical system executed in real-time or faster, which can modify hardware controls. However, its advantage stems from distributing computational efforts by utilizing a hierarchical structure composed of lower-level digital twin blocks and a higher-level system digital twin. Each digital twin block is associated with a physical subsystem of the hardware and communicates with a singular system digital twin, which creates a system-level response. By extracting information from each level of the hierarchy, power system controls of the hardware were reconfigured autonomously. This hierarchical digital twin development offers several advantages over other digital twins, particularly in the field of naval power systems. The hierarchical structure allows for greater computational efficiency and scalability while the ability to autonomously reconfigure hardware controls offers increased flexibility and responsiveness. The hierarchical decomposition and models utilized were well aligned with the physical twin, as indicated by the maximum deviations between the developed digital twin hierarchy and the hardware.
CFD Simulation of By-pass Flow in a HRSG module by R&R Consult.pptxR&R Consult
CFD analysis is incredibly effective at solving mysteries and improving the performance of complex systems!
Here's a great example: At a large natural gas-fired power plant, where they use waste heat to generate steam and energy, they were puzzled that their boiler wasn't producing as much steam as expected.
R&R and Tetra Engineering Group Inc. were asked to solve the issue with reduced steam production.
An inspection had shown that a significant amount of hot flue gas was bypassing the boiler tubes, where the heat was supposed to be transferred.
R&R Consult conducted a CFD analysis, which revealed that 6.3% of the flue gas was bypassing the boiler tubes without transferring heat. The analysis also showed that the flue gas was instead being directed along the sides of the boiler and between the modules that were supposed to capture the heat. This was the cause of the reduced performance.
Based on our results, Tetra Engineering installed covering plates to reduce the bypass flow. This improved the boiler's performance and increased electricity production.
It is always satisfying when we can help solve complex challenges like this. Do your systems also need a check-up or optimization? Give us a call!
Work done in cooperation with James Malloy and David Moelling from Tetra Engineering.
More examples of our work https://www.r-r-consult.dk/en/cases-en/
Industrial Training at Shahjalal Fertilizer Company Limited (SFCL)MdTanvirMahtab2
This presentation is about the working procedure of Shahjalal Fertilizer Company Limited (SFCL). A Govt. owned Company of Bangladesh Chemical Industries Corporation under Ministry of Industries.
Final project report on grocery store management system..pdfKamal Acharya
In today’s fast-changing business environment, it’s extremely important to be able to respond to client needs in the most effective and timely manner. If your customers wish to see your business online and have instant access to your products or services.
Online Grocery Store is an e-commerce website, which retails various grocery products. This project allows viewing various products available enables registered users to purchase desired products instantly using Paytm, UPI payment processor (Instant Pay) and also can place order by using Cash on Delivery (Pay Later) option. This project provides an easy access to Administrators and Managers to view orders placed using Pay Later and Instant Pay options.
In order to develop an e-commerce website, a number of Technologies must be studied and understood. These include multi-tiered architecture, server and client-side scripting techniques, implementation technologies, programming language (such as PHP, HTML, CSS, JavaScript) and MySQL relational databases. This is a project with the objective to develop a basic website where a consumer is provided with a shopping cart website and also to know about the technologies used to develop such a website.
This document will discuss each of the underlying technologies to create and implement an e- commerce website.

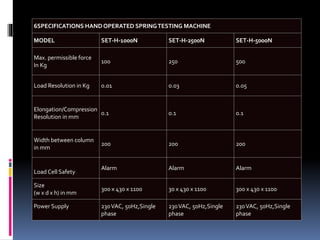

2. Hand Operated Tensile Testing System
Hand OperatedTensileTesting System, the two column frame with a hand
wheel operated lead screw is a perfect tool for tension, compression and
flexural testing of springs, rubber, paper, film etc., with apt
attachments.These are appreciated for their durability, accuracy of results
and high tensile strength. It is a betterTensileTester Machine having variety
of applications.
Features:
TableTop Model
Digital Display of load and Elongation.
Feather touche Key board operation.
Tare Facility for force and displacement.
Load display in Kg. Or Newton.
3. 6SPECIFICATIONS HAND OPERATED SPRINGTESTING MACHINE
MODEL SET-H-1000N SET-H-2500N SET-H-5000N
Max. permissible force
In Kg
100 250 500
Load Resolution in Kg 0.01 0.03 0.05
Elongation/Compression
Resolution in mm
0.1 0.1 0.1
Width between column
in mm
200 200 200
Load Cell Safety
Alarm Alarm Alarm
Size
(w x d x h) in mm
300 x 430 x 1100 30 x 430 x 1100 300 x 430 x 1100
Power Supply 230VAC, 50Hz,Single
phase
230VAC, 50Hz,Single
phase
230VAC, 50Hz,Single
phase
4. Twin Column Universal Tensile Testing Machine
Shanta Engineering Universal Testing Machines are electro mechanical machines with
digital display of load & displacement & pulley belt system for changing speeds. The
machines are designed for testing various materials like rubber, plastics, cables, leather,
paper, plywood and metals. Tension, compression, bend and flexural tests can be
performed on these machines with suitable grips and fixtures.The machines are powder
coated for elegant look.The critical components are plated for rust prevention and
durability.
Electronic Control Panel:
Front panel membrane type keyboard for test set up
7 segment digital display of load and displacement.
Storage of important parameters such as peak load,
braking
load and max. displacement
Facility to return of crosshead to home position for next test
Special Options:
Load cells of different capacities are available as optional items
Displacement resolution of 0.1 mm is optional
Compression, Bending & flexural attachment to suit specific
tests is available as optional.
A.C.Variable speed is available as optional
P.C. interface is optional
5. SPECIFICATIONS UTM TWIN COLUMN FIXED SPEED - BELT / PULLEY SYSTEM
Model No.
SET-T-5000N SET-T-10KN SET-T-20KN SET-T-30KN SET-T-50KN
Max.Capacity(Kg) 500 1000 2000 3000 5000
Load Resolution(N)
1:10000
0.5 1 2 3 5
Max. crosshead
displacement
900 900 900 900 900
without grips/fixtures
(mm)
Displacement resolution
(mm)
0.2 0.2 0.2 0.2 0.2
ColumnClearance (mm) 380 380 450 450 450
Test Speed (mm/min)
50, 100, 250 &
500
30, 50 & 100 30, 50 & 100 30, 50 & 100 30, 50 & 100
Machine Dimensions
W x D x H
1100 x 325 x
1800
1100 x 325 x
1800
1100 x 400 x
1800
1100 x 400 x
1800
1100 x 400 x
1800
Power Requirement 0.5 HP 1.0 HP 2.0 HP 2.0 HP 3.0 HP
Power Supply 415VAC10%, 3 Phase, 50 Hz with Neutral & Earth
6. Single Column Universal Tensile Testing Machine
Shanta Engineering Single Column UniversalTensileTesting
Machine are electro mechanical machines with digital display of
load & displacement & pulley belt system for changing speeds.
The machines are powder coated for elegant look.The critical
components are plated for rust prevention and durability.
Main Feature:
Selection of different speeds by pulley belt system
Facility to mount different load cells.
Designed for testing various materials like rubber, plastics,
cables, leather, paper, plywood and metals.
Special Options:
Load cells of different capacities are available as optional items
Displacement resolution of 0.1 mm is optional
P.C. interface is optional.
7. Electronic Tensile Testing Machine
We offer an extensive range of ElectronicTensileTesting Machine. These are manufactured with
quality raw materials in accordance to the specifications given by the client. Our range is well
known for easy installation and performance.These machines are used to perform tests on
various materials like rubber, plastics, leather etc.We export these machines at competitive
prices.
Special Options:
Variable Speed with the help of A.C. Drive Speed : 5 mm / min
. to 100 mm / min. OR 30 mm / min. to 500 mm / min.
Variable Speed with the help of A.C. Servo Drive Speed
: 1 mm / min. to 500 mm / min.
Following changes can be offered on specific inquires:
Load cell of different capacities are available as optional items.
Displacement resolution of 0.1 mm is optional.
Compression, Bending & flexural attachment to suit specific tests are available as optional.
8. Model No. SET-T-1000 N SET-T- 5000 N SET-T10 KN SET -T 20 KN SET -T 50 KN
Max. Capacity (Kn) 1 5 10 20 50
Load Resolution (N) 0.1 0.5 1.0 2.0 5.0
Max. Cross-head
displacement without grips
/ fixture (mm)
900 900 800 700 700
Displacement Res. (mm) 0.2 0.2 0.2 0.2 0.2
Column Clearance (mm) 450 450 450 450 450
Test Speeds (mm/min) 50,100,250,500 50,100,250,500 30,50,100 30,50,100 30,50,100
Machine Dimensions mm
(W x d x H)
900 x 600 x 2000 900 x 600 x 2000 900 x 600 x 2000 900 x 600 x 2000 900 x 600 x 2000
Power Requirement 0.3 KVA 0.5 KVA 0.1 KVA 2.0 KVA 2.5 KVA
Power supply 415 + /- 10%, 3 - Phase, 50Hz with Neutral & Earth
Specification:
