A look at options for achieving Change Data Capture from datastore into Apache Kafka, including open-source and commercial offerings.

1. Technology Choices for Kafka
and Change Data Capture
Kate Stanley and Andrew Schofield
Apache Kafka London Meetup October 2019
IBM Event StreamsApache Kafka

2. Change Data Capture identifies and
captures the changes to a data store
© 2019 IBM Corporation 2

3. Change Data Capture identifies and
captures the changes to a data store
as a stream of Kafka events
© 2019 IBM Corporation 3

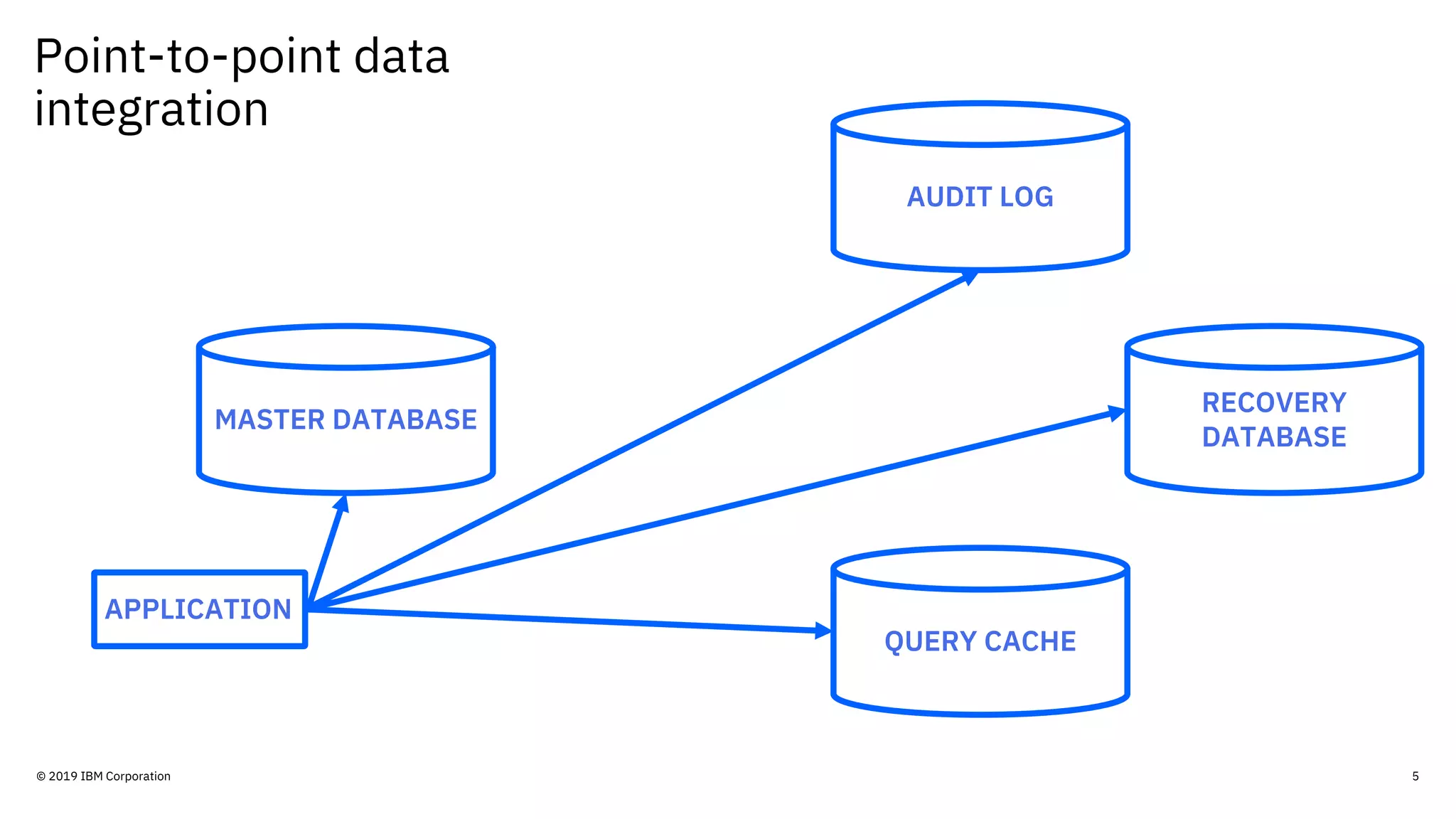

4. Point-to-point data
integration
© 2019 IBM Corporation 4
MASTER DATABASE
APPLICATION

5. Point-to-point data
integration
© 2019 IBM Corporation 5
MASTER DATABASE
RECOVERY
DATABASE
AUDIT LOG
QUERY CACHE
APPLICATION

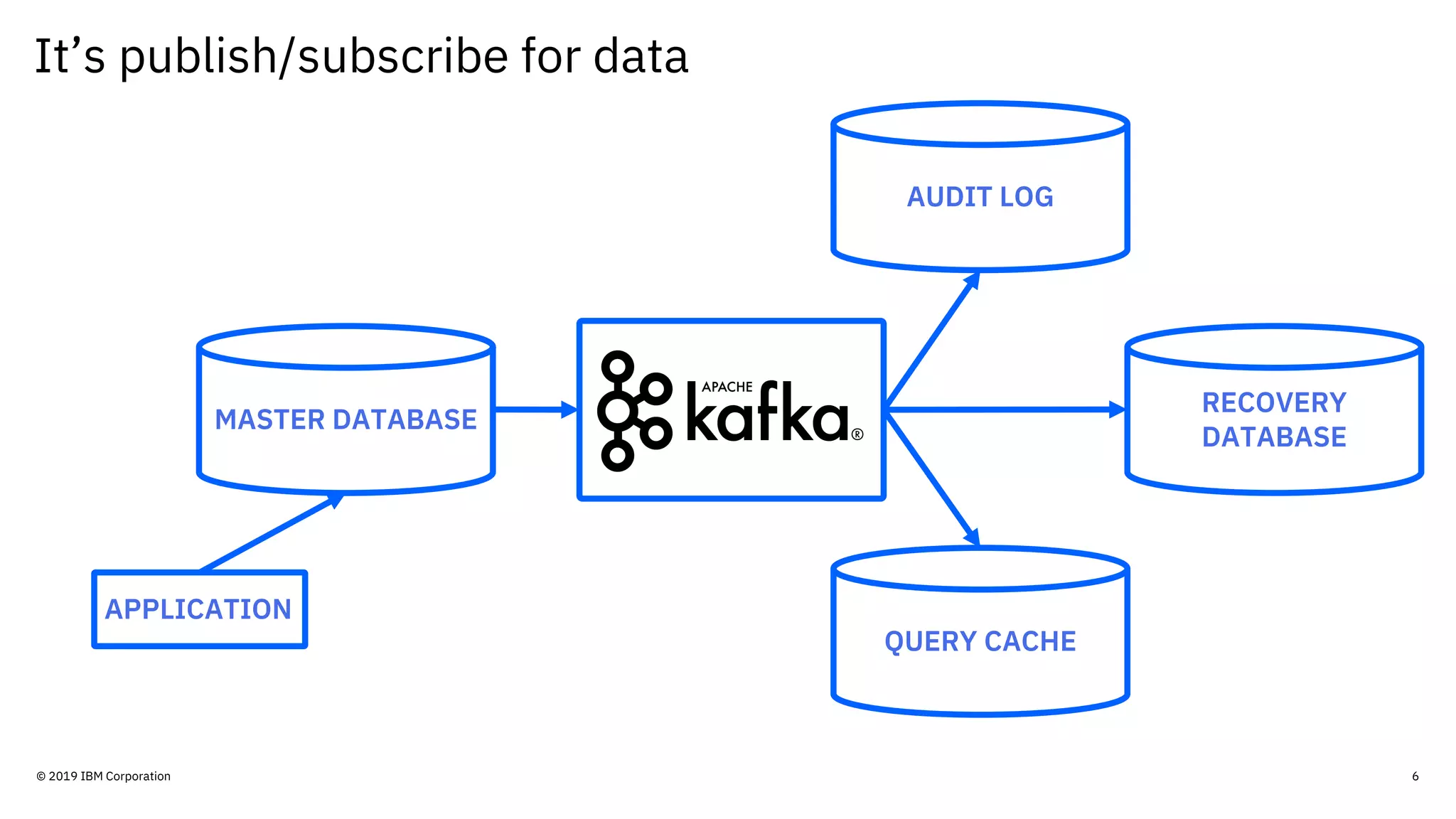

6. It’s publish/subscribe for data
© 2019 IBM Corporation 6
MASTER DATABASE
RECOVERY
DATABASE
AUDIT LOG
QUERY CACHE
APPLICATION

7. Technology choices
These different approaches have all been used successfully
1. Data store natively generates a feed of changes
2. Repeated queries, with optimization or restrictions
3. Log scanning
© 2019 IBM Corporation 7

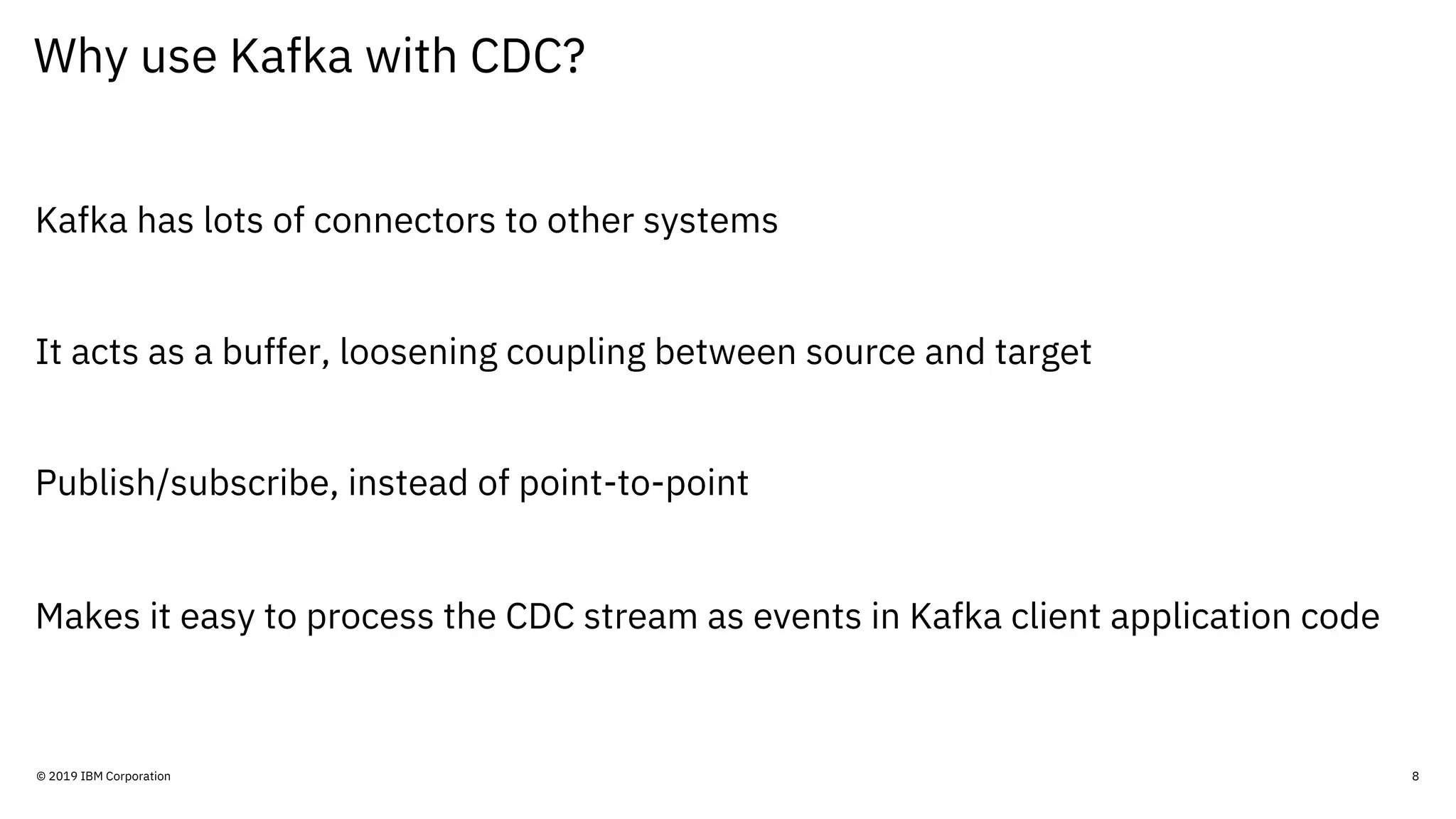

8. Why use Kafka with CDC?
Kafka has lots of connectors to other systems
It acts as a buffer, loosening coupling between source and target
Publish/subscribe, instead of point-to-point
Makes it easy to process the CDC stream as events in Kafka client application code
© 2019 IBM Corporation 8

9. Kafka Connect JDBC source
© 2019 IBM Corporation 9

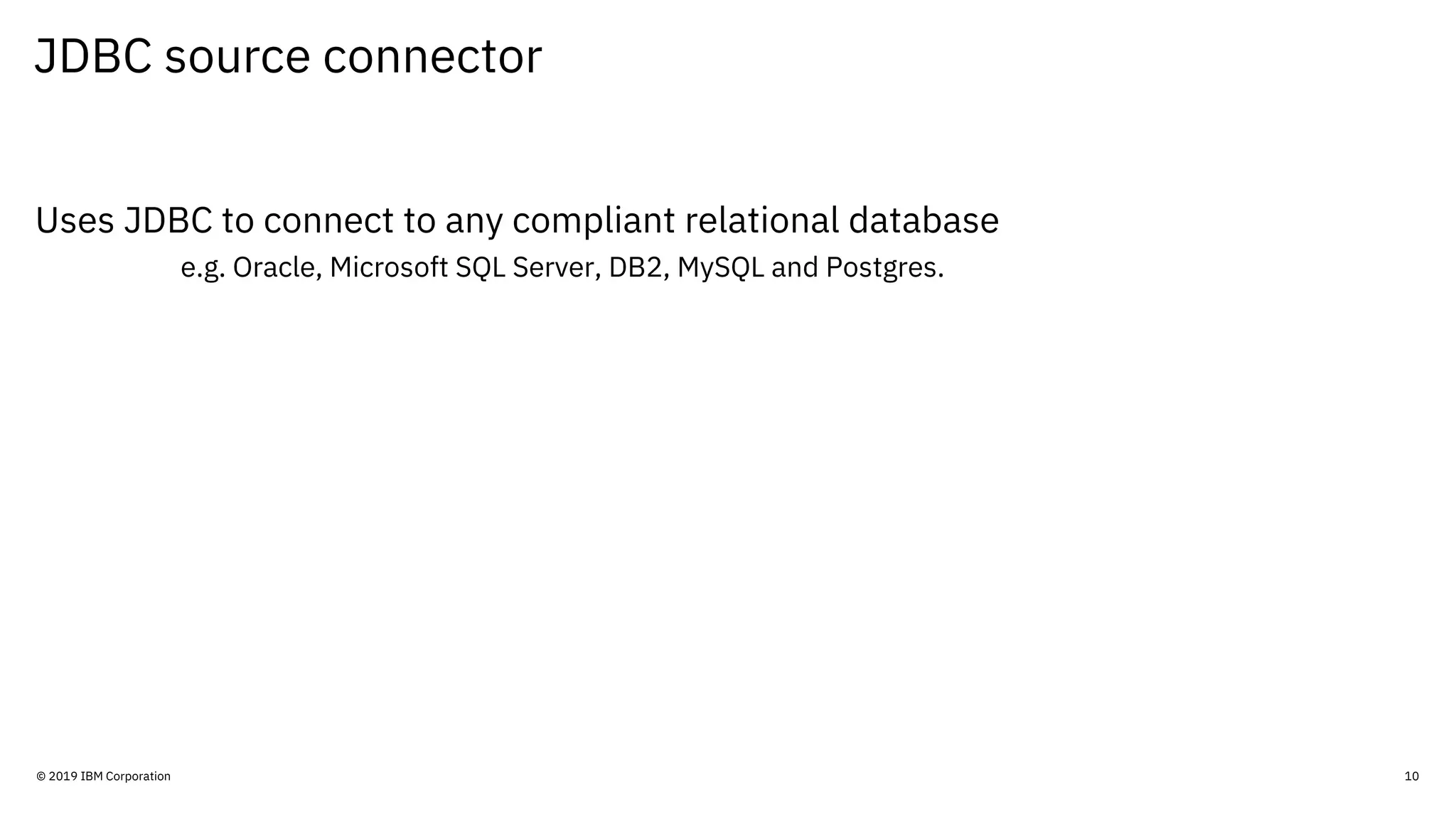

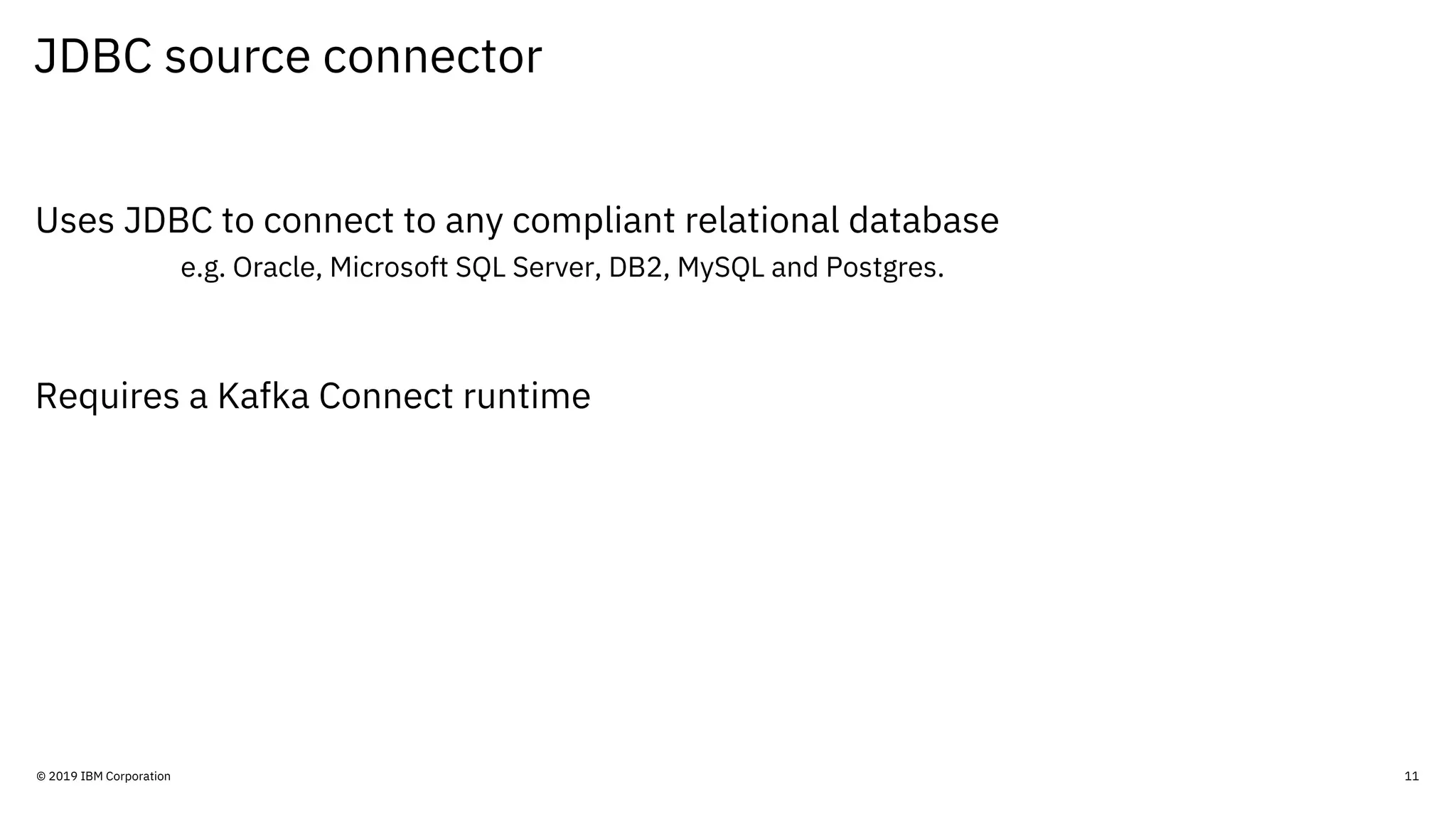

10. JDBC source connector
Uses JDBC to connect to any compliant relational database
e.g. Oracle, Microsoft SQL Server, DB2, MySQL and Postgres.
© 2019 IBM Corporation 10

11. JDBC source connector
Uses JDBC to connect to any compliant relational database
e.g. Oracle, Microsoft SQL Server, DB2, MySQL and Postgres.
Requires a Kafka Connect runtime
© 2019 IBM Corporation 11

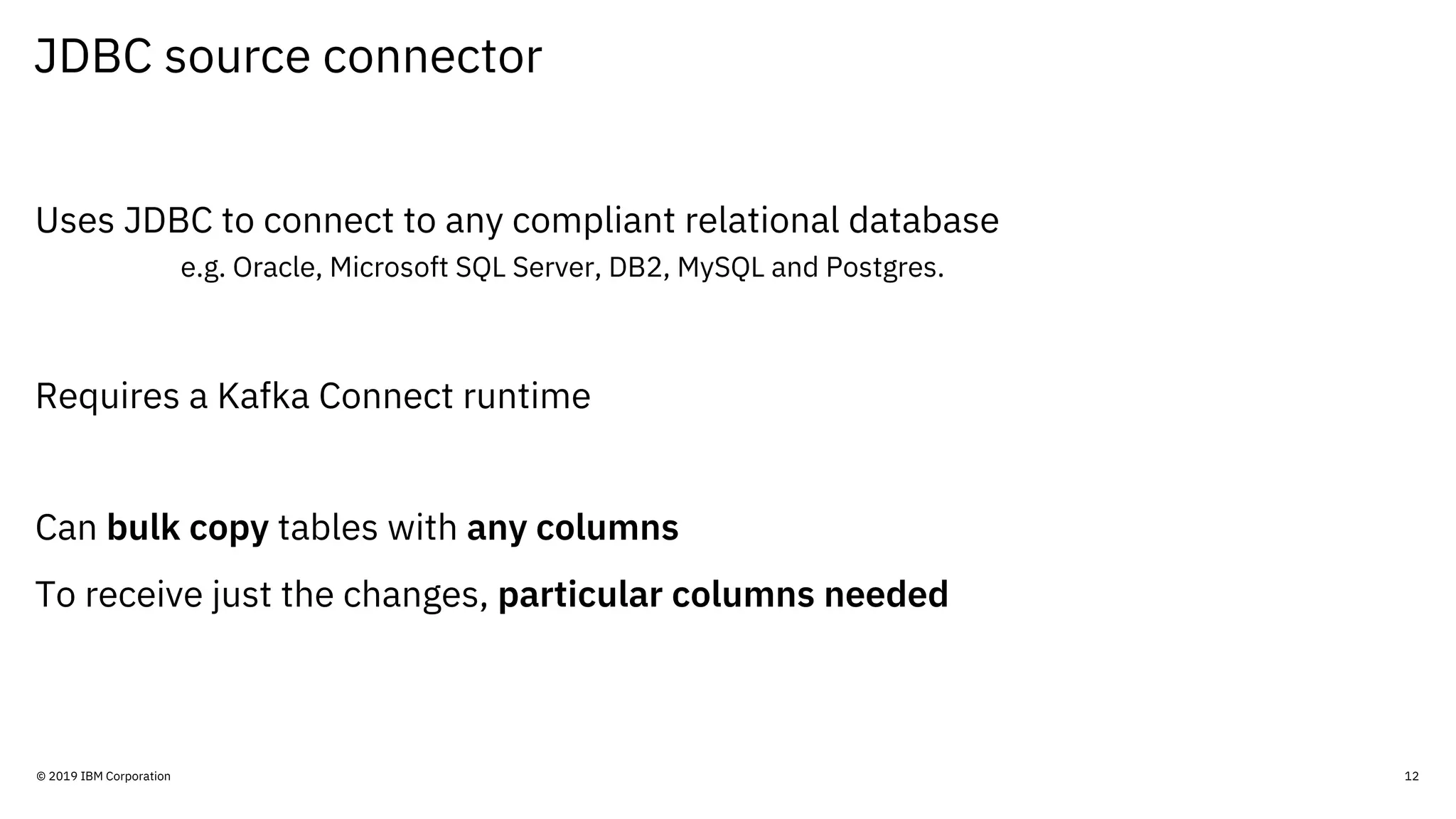

12. JDBC source connector
Uses JDBC to connect to any compliant relational database
e.g. Oracle, Microsoft SQL Server, DB2, MySQL and Postgres.
Requires a Kafka Connect runtime
Can bulk copy tables with any columns
To receive just the changes, particular columns needed
© 2019 IBM Corporation 12

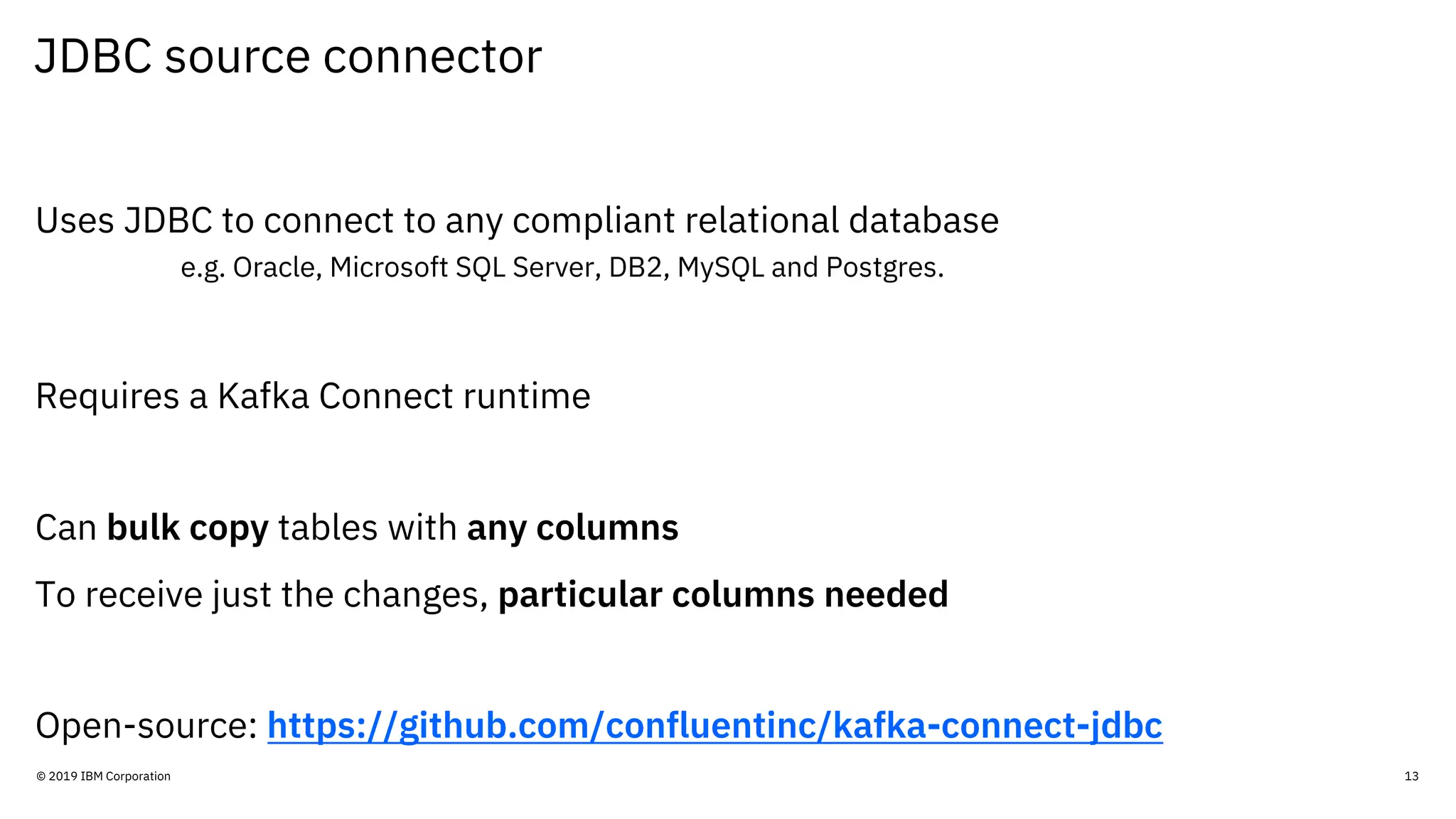

13. JDBC source connector
Uses JDBC to connect to any compliant relational database
e.g. Oracle, Microsoft SQL Server, DB2, MySQL and Postgres.
Requires a Kafka Connect runtime
Can bulk copy tables with any columns
To receive just the changes, particular columns needed
Open-source: https://github.com/confluentinc/kafka-connect-jdbc
© 2019 IBM Corporation 13

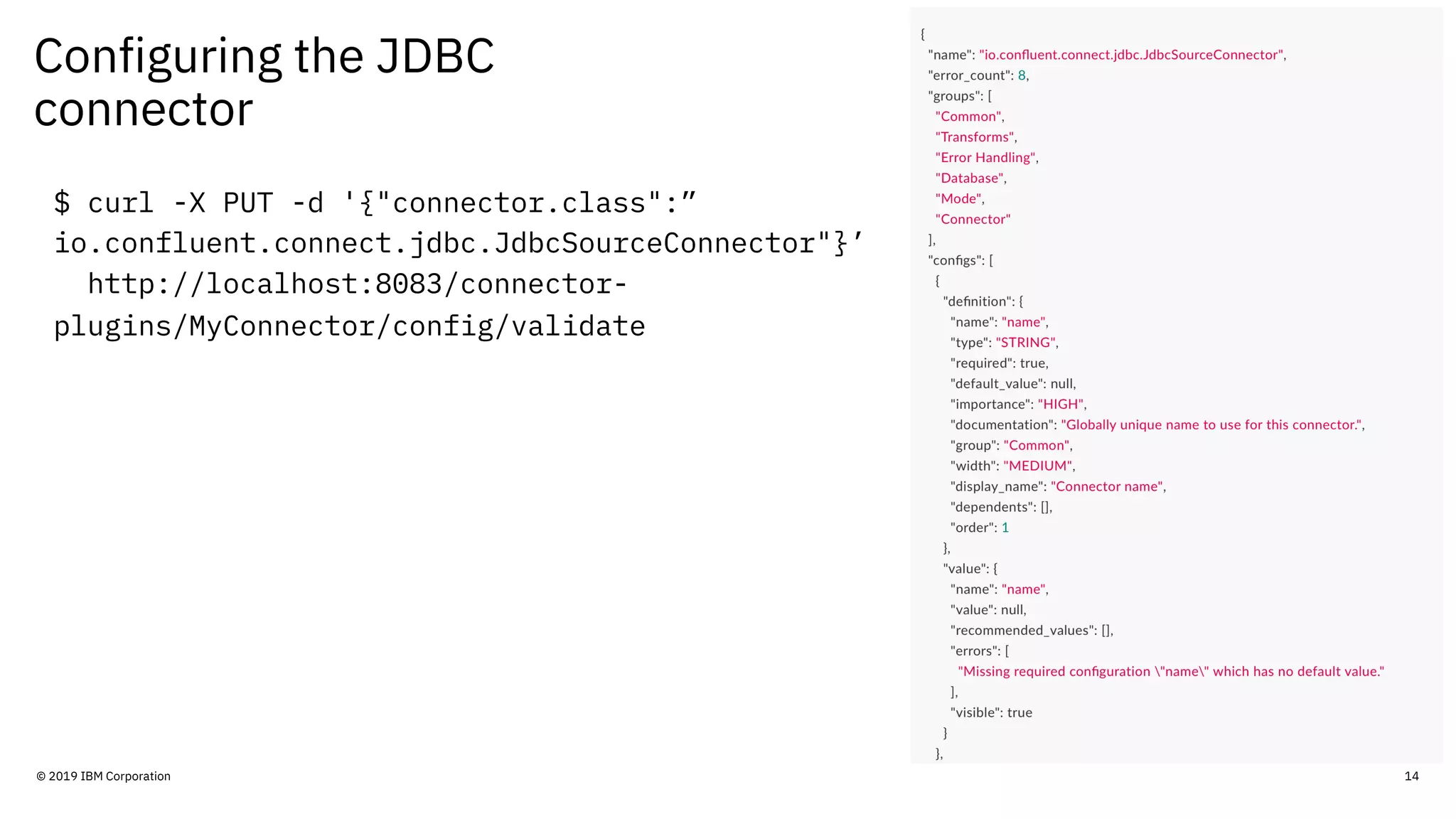

14. Configuring the JDBC
connector
© 2019 IBM Corporation 14
$ curl -X PUT -d '{"connector.class":”
io.confluent.connect.jdbc.JdbcSourceConnector"}’
http://localhost:8083/connector-
plugins/MyConnector/config/validate

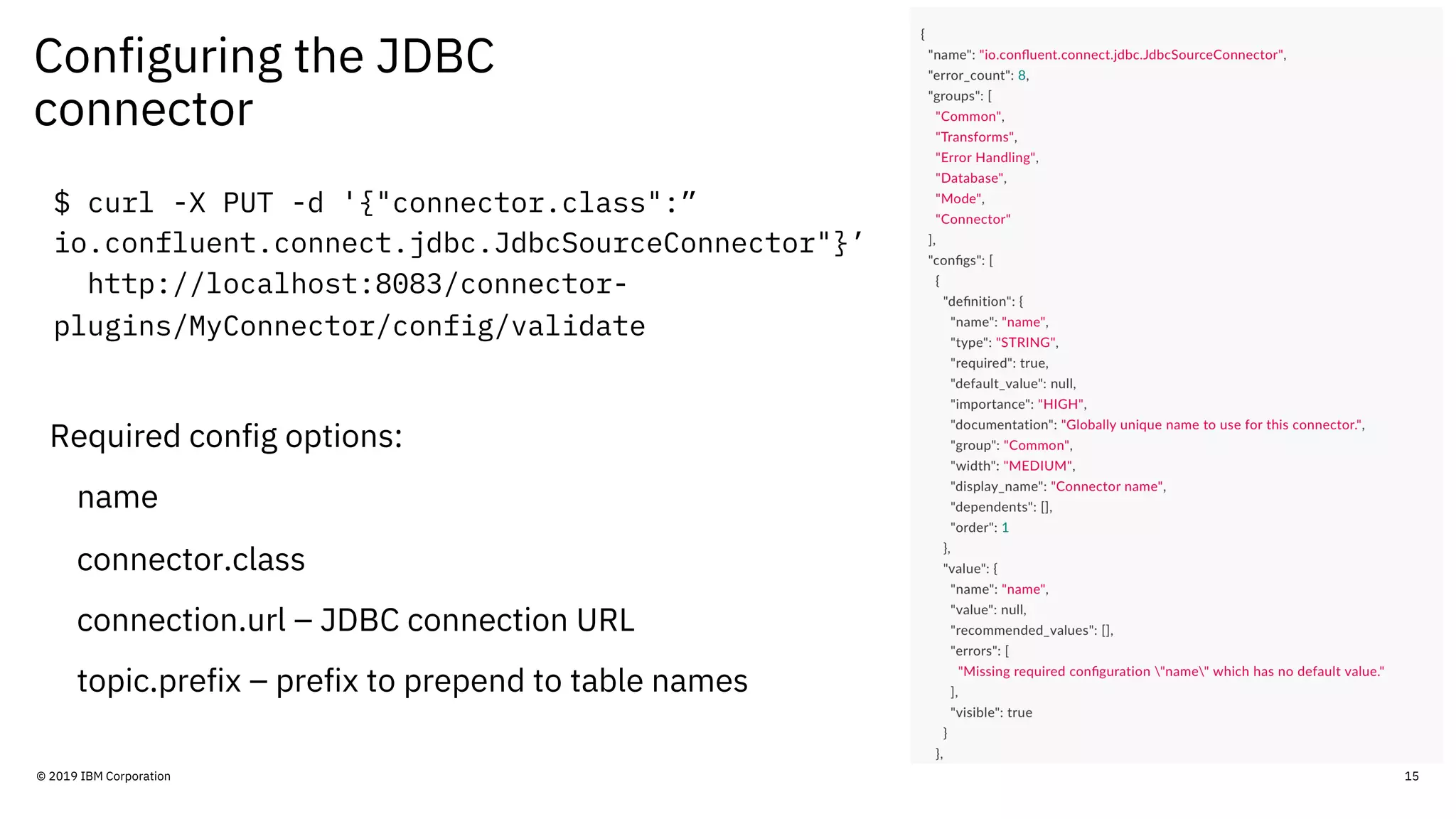

15. Configuring the JDBC
connector
© 2019 IBM Corporation 15
$ curl -X PUT -d '{"connector.class":”
io.confluent.connect.jdbc.JdbcSourceConnector"}’
http://localhost:8083/connector-
plugins/MyConnector/config/validate
Required config options:
name
connector.class
connection.url – JDBC connection URL
topic.prefix – prefix to prepend to table names

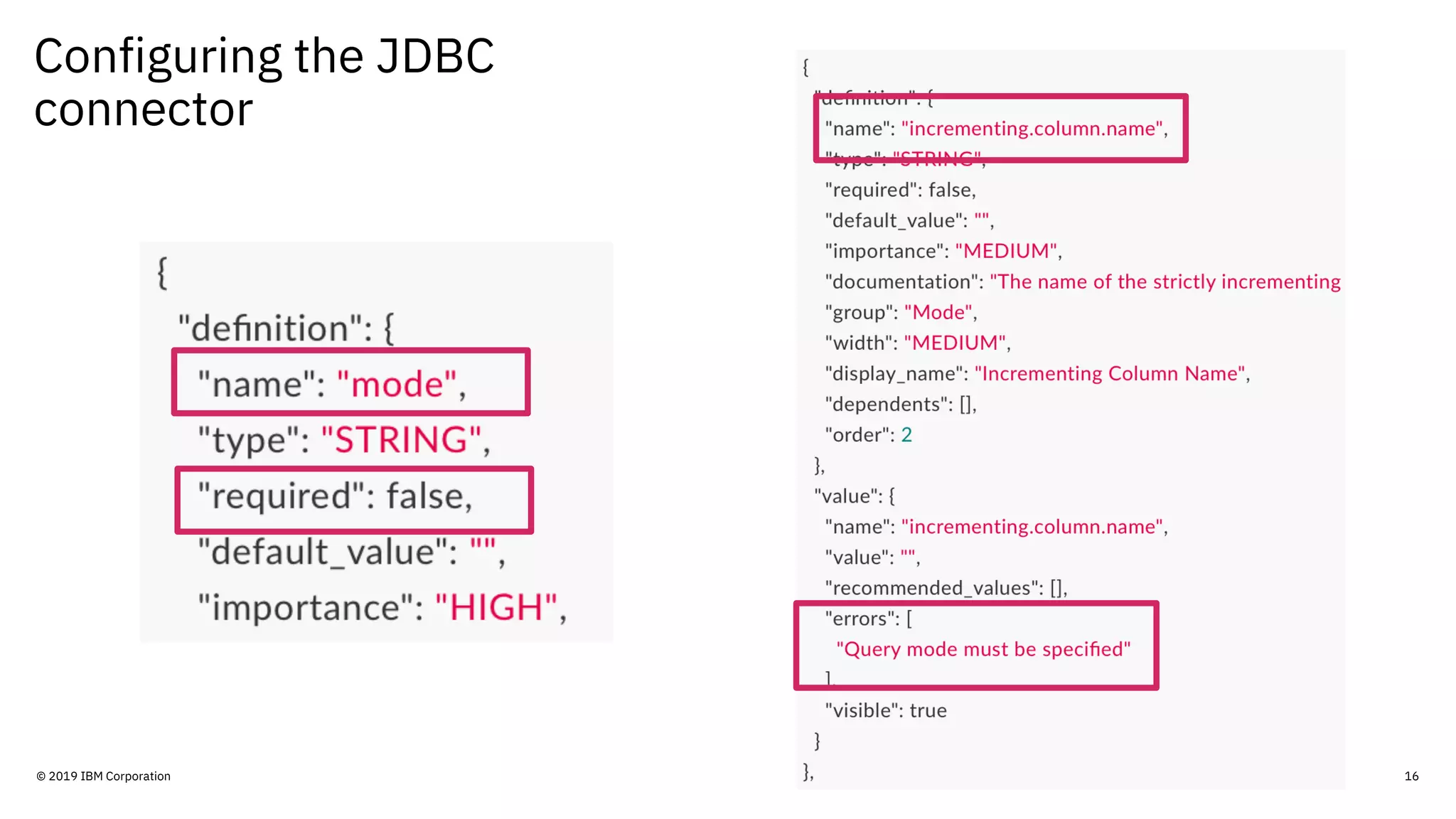

16. 16
Configuring the JDBC
connector
© 2019 IBM Corporation

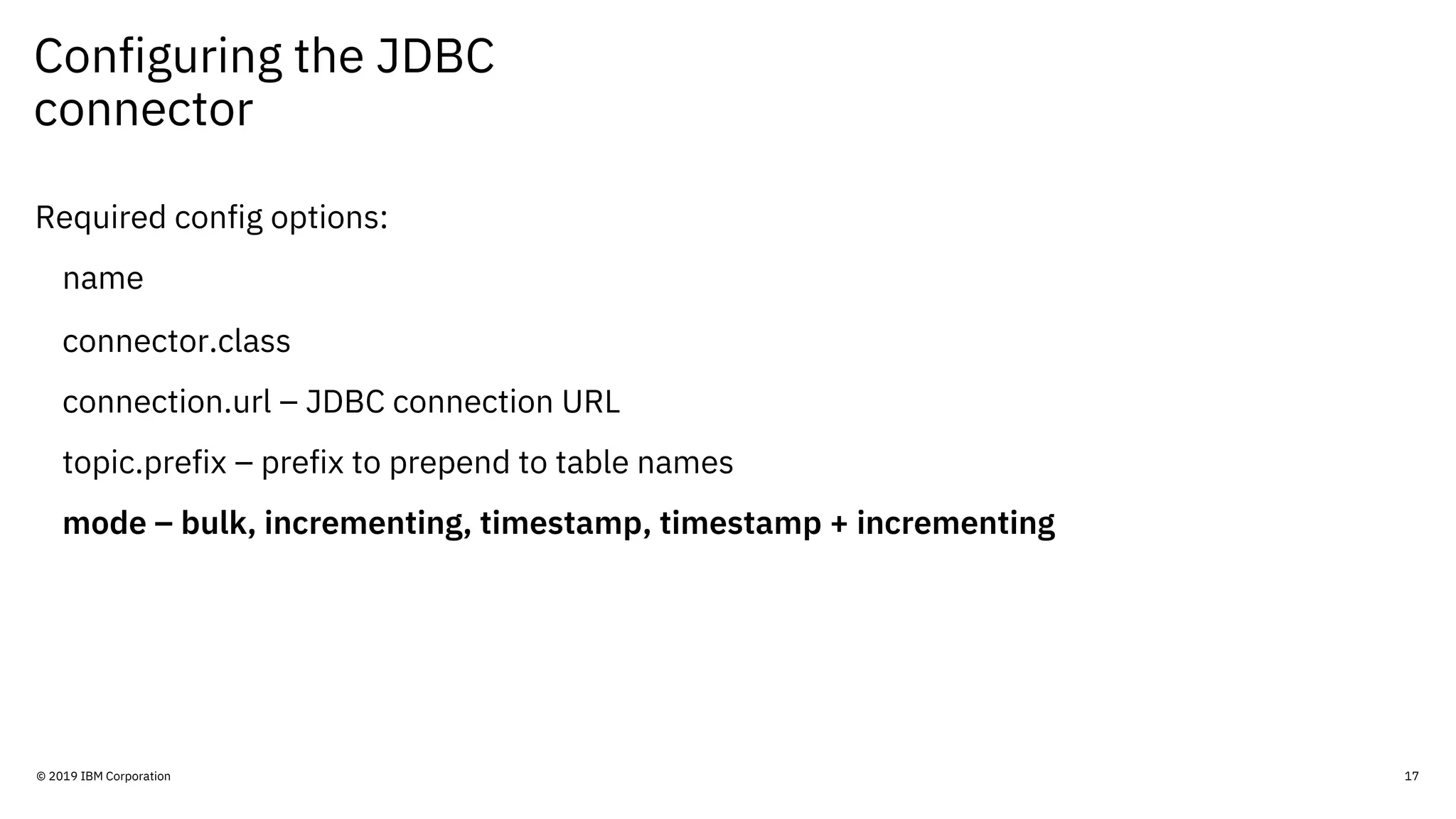

17. Configuring the JDBC
connector
Required config options:
name
connector.class
connection.url – JDBC connection URL
topic.prefix – prefix to prepend to table names
mode – bulk, incrementing, timestamp, timestamp + incrementing
© 2019 IBM Corporation 17

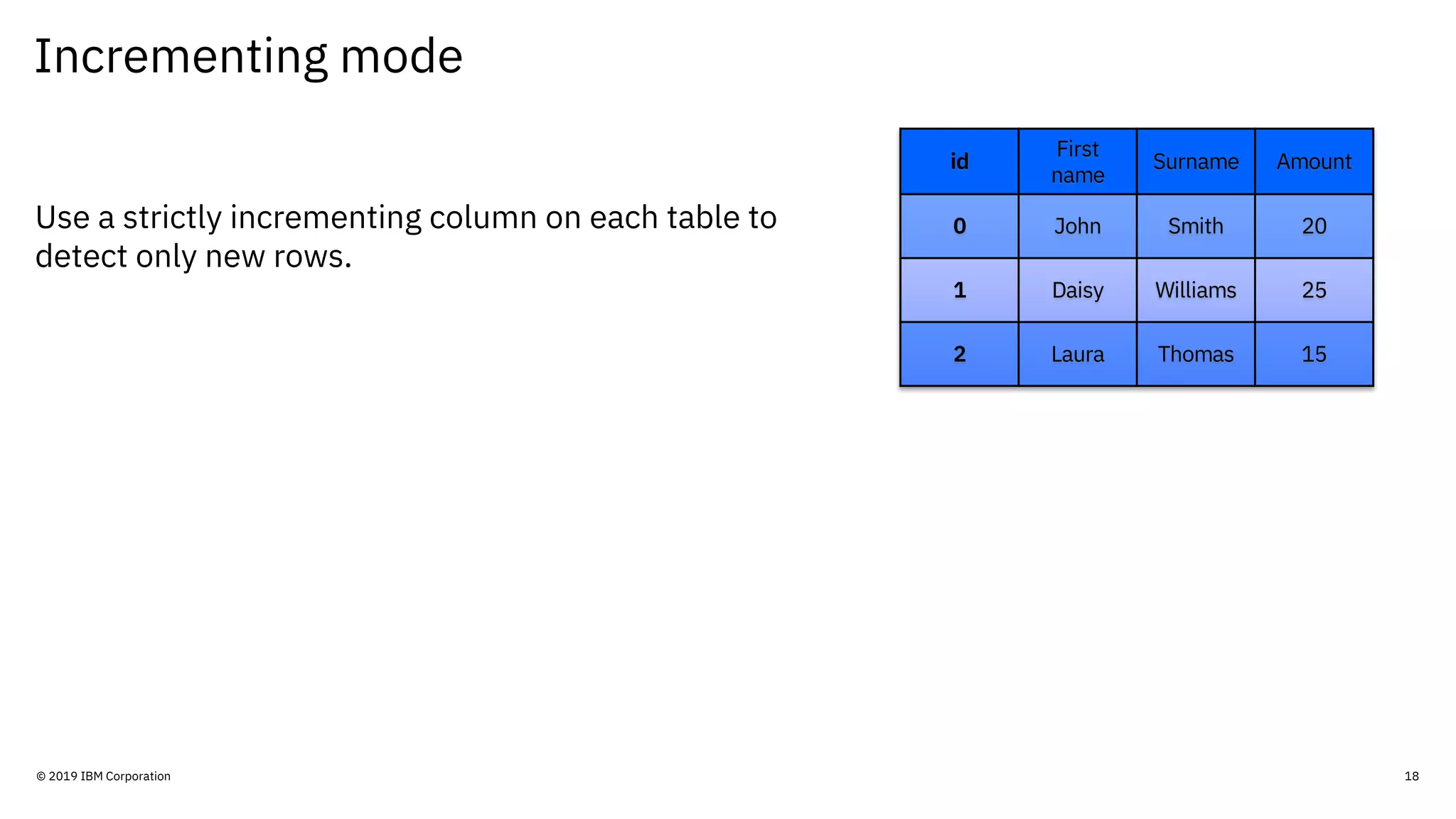

18. Incrementing mode
Use a strictly incrementing column on each table to
detect only new rows.
© 2019 IBM Corporation 18
id
First
name
Surname Amount
0 John Smith 20
1 Daisy Williams 25
2 Laura Thomas 15

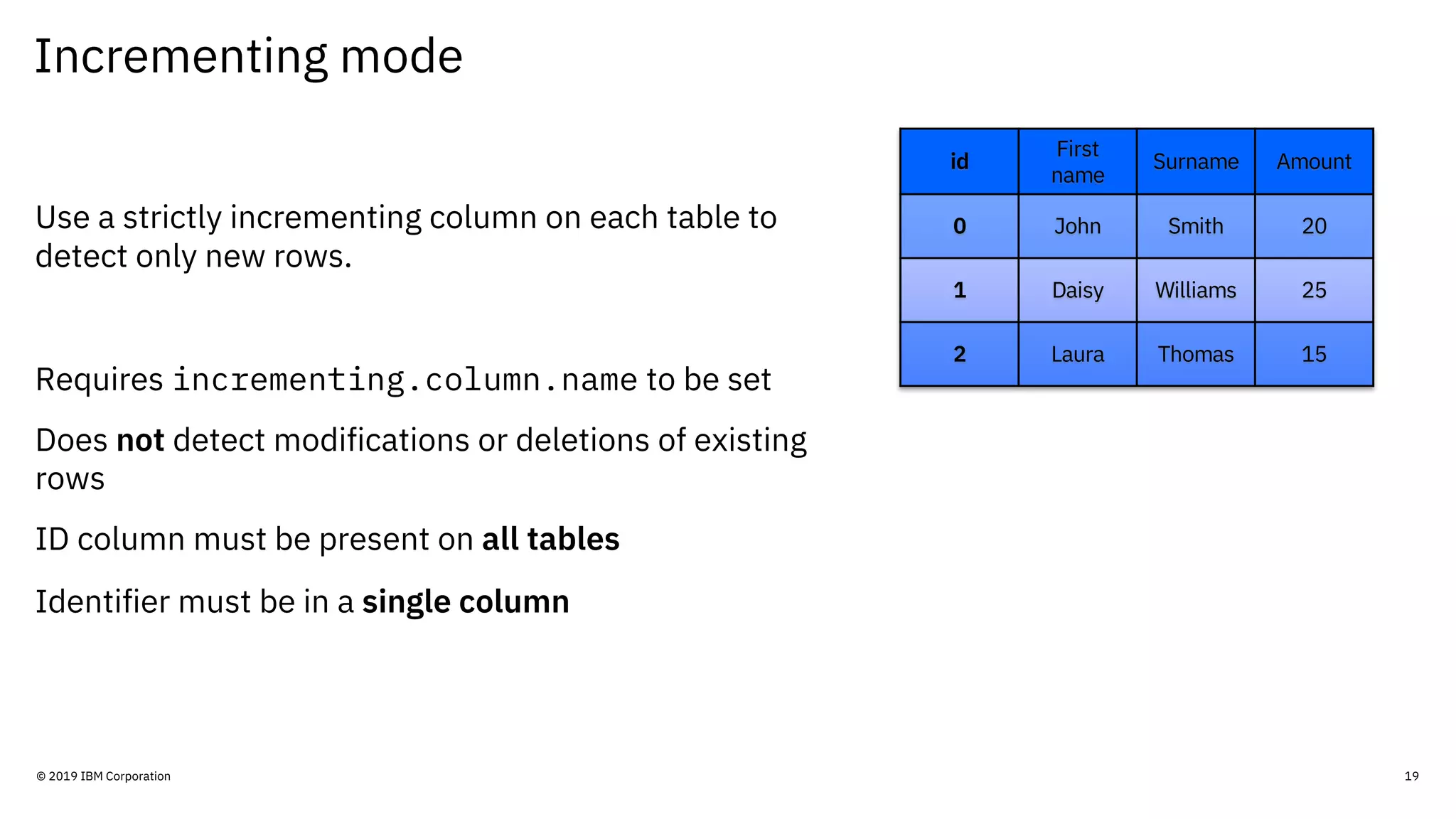

19. Incrementing mode
Use a strictly incrementing column on each table to
detect only new rows.
Requires incrementing.column.name to be set
Does not detect modifications or deletions of existing
rows
ID column must be present on all tables
Identifier must be in a single column
© 2019 IBM Corporation 19
id
First
name
Surname Amount
0 John Smith 20
1 Daisy Williams 25
2 Laura Thomas 15

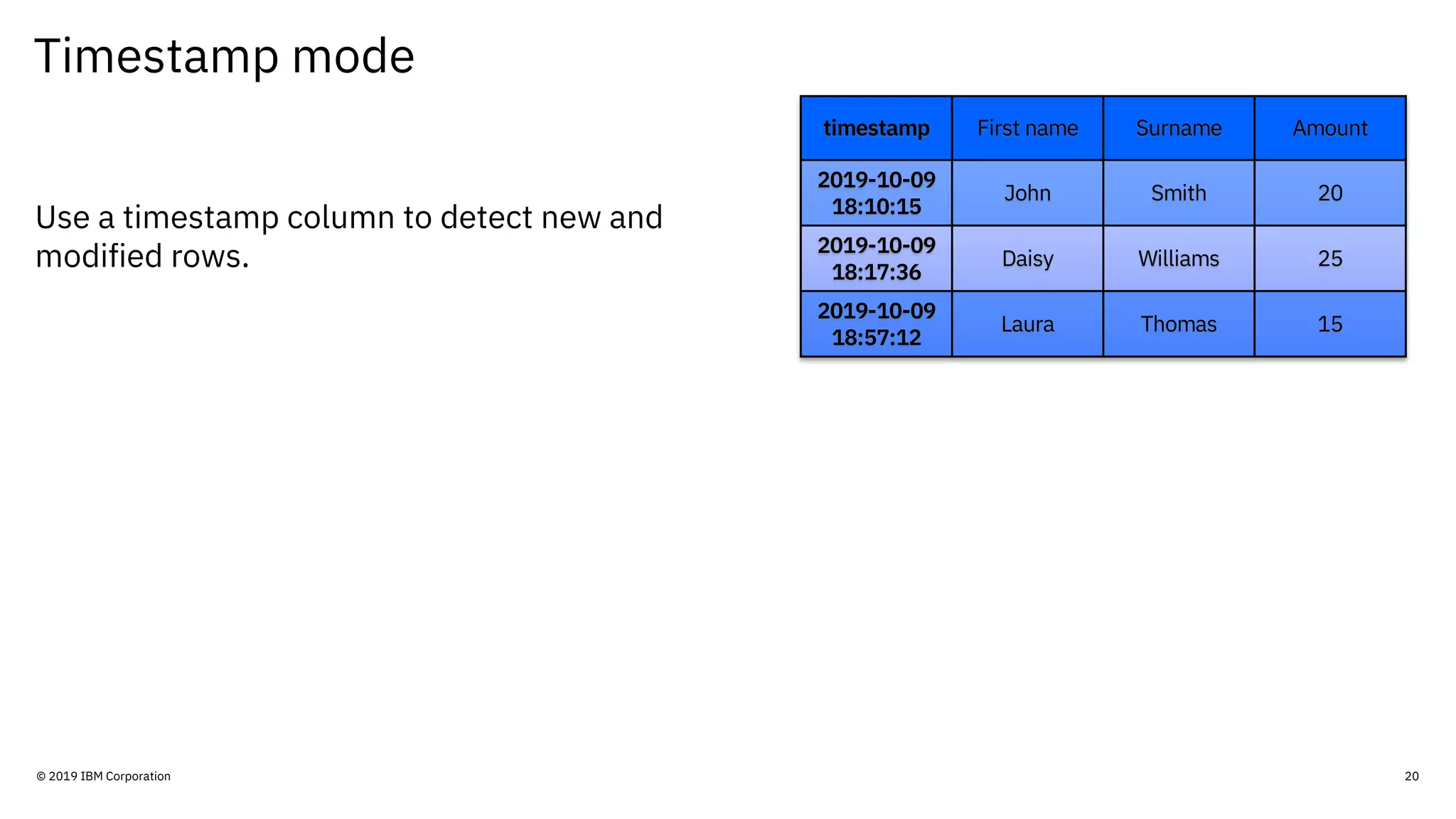

20. Timestamp mode
Use a timestamp column to detect new and
modified rows.
© 2019 IBM Corporation 20
timestamp First name Surname Amount
2019-10-09
18:10:15
John Smith 20
2019-10-09
18:17:36
Daisy Williams 25
2019-10-09
18:57:12
Laura Thomas 15

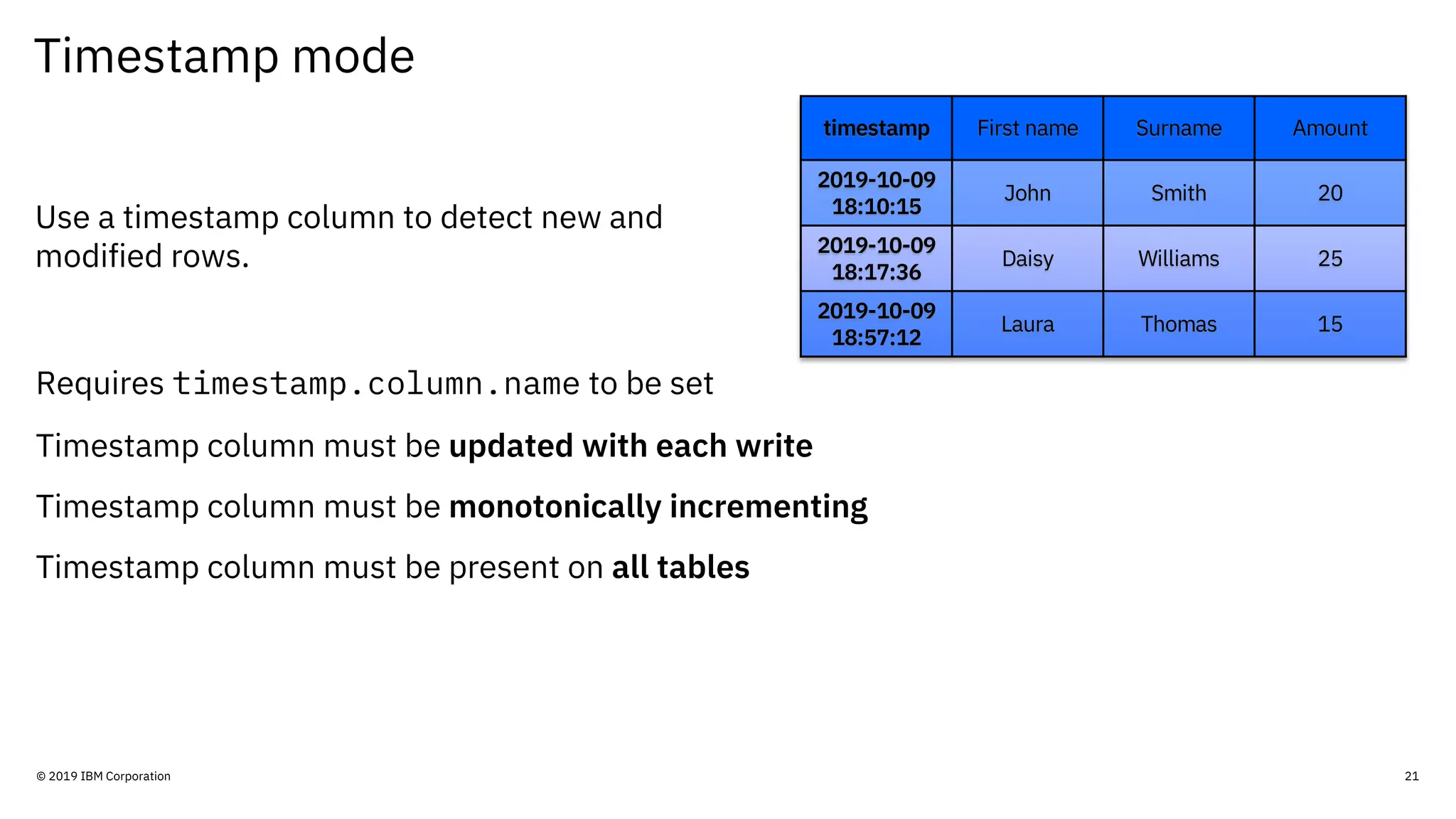

21. Timestamp mode
Use a timestamp column to detect new and
modified rows.
© 2019 IBM Corporation 21
timestamp First name Surname Amount
2019-10-09
18:10:15
John Smith 20
2019-10-09
18:17:36
Daisy Williams 25
2019-10-09
18:57:12
Laura Thomas 15
Requires timestamp.column.name to be set
Timestamp column must be updated with each write
Timestamp column must be monotonically incrementing
Timestamp column must be present on all tables

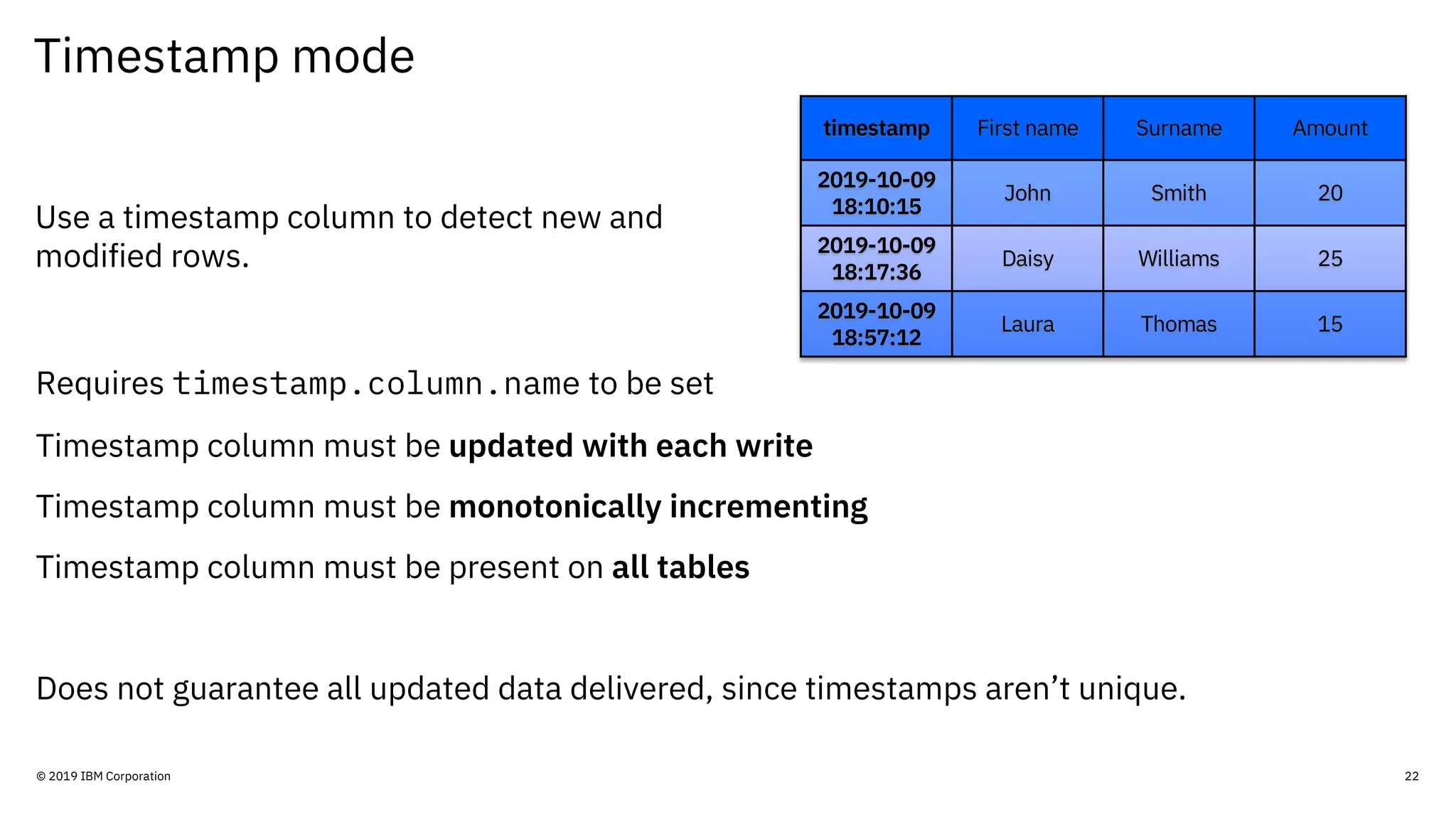

22. Timestamp mode
Use a timestamp column to detect new and
modified rows.
© 2019 IBM Corporation 22
timestamp First name Surname Amount
2019-10-09
18:10:15
John Smith 20
2019-10-09
18:17:36
Daisy Williams 25
2019-10-09
18:57:12
Laura Thomas 15
Requires timestamp.column.name to be set
Timestamp column must be updated with each write
Timestamp column must be monotonically incrementing
Timestamp column must be present on all tables
Does not guarantee all updated data delivered, since timestamps aren’t unique.

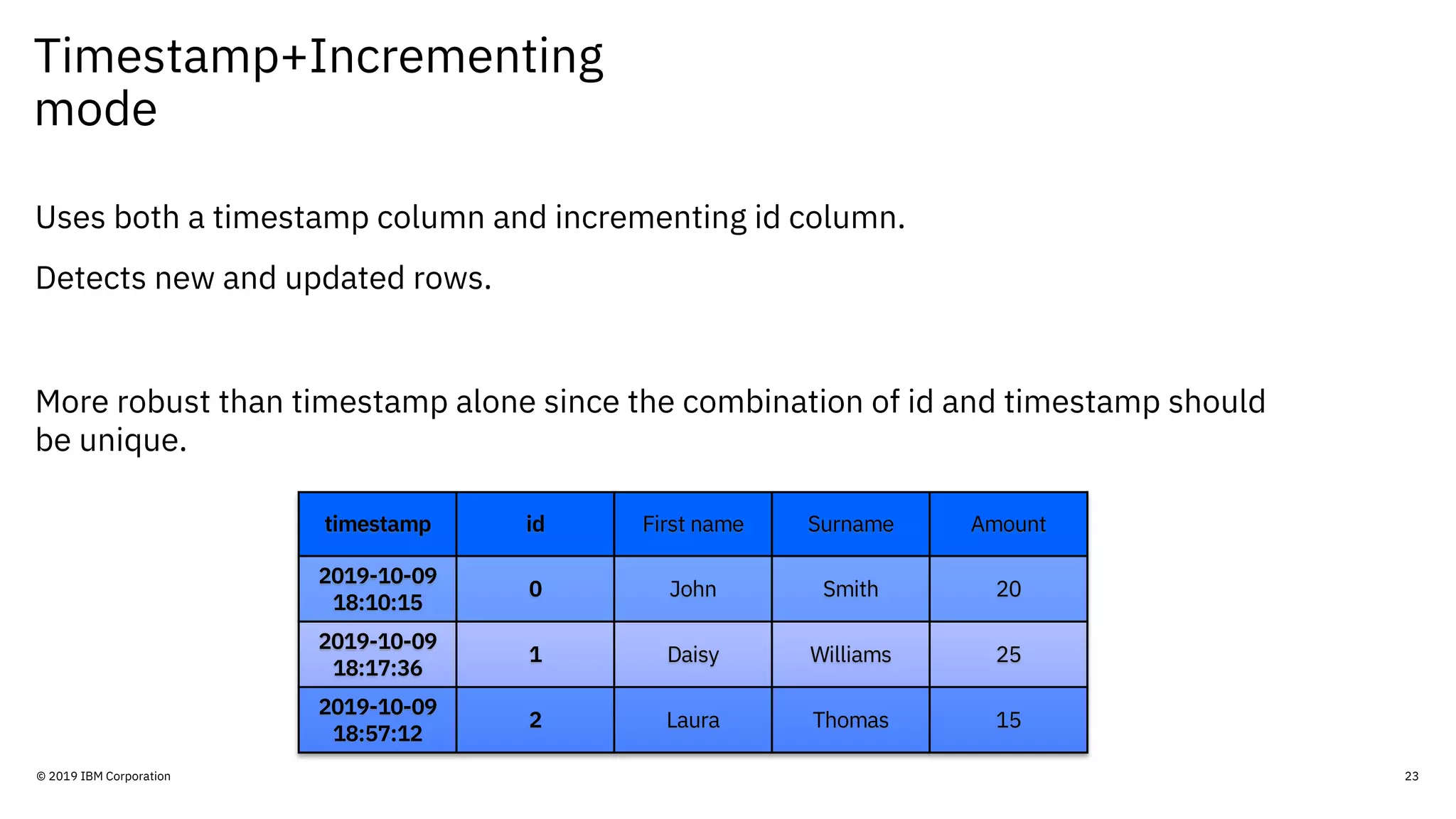

23. Timestamp+Incrementing
mode
Uses both a timestamp column and incrementing id column.
Detects new and updated rows.
More robust than timestamp alone since the combination of id and timestamp should
be unique.
© 2019 IBM Corporation 23
timestamp id First name Surname Amount
2019-10-09
18:10:15
0 John Smith 20
2019-10-09
18:17:36
1 Daisy Williams 25
2019-10-09
18:57:12
2 Laura Thomas 15

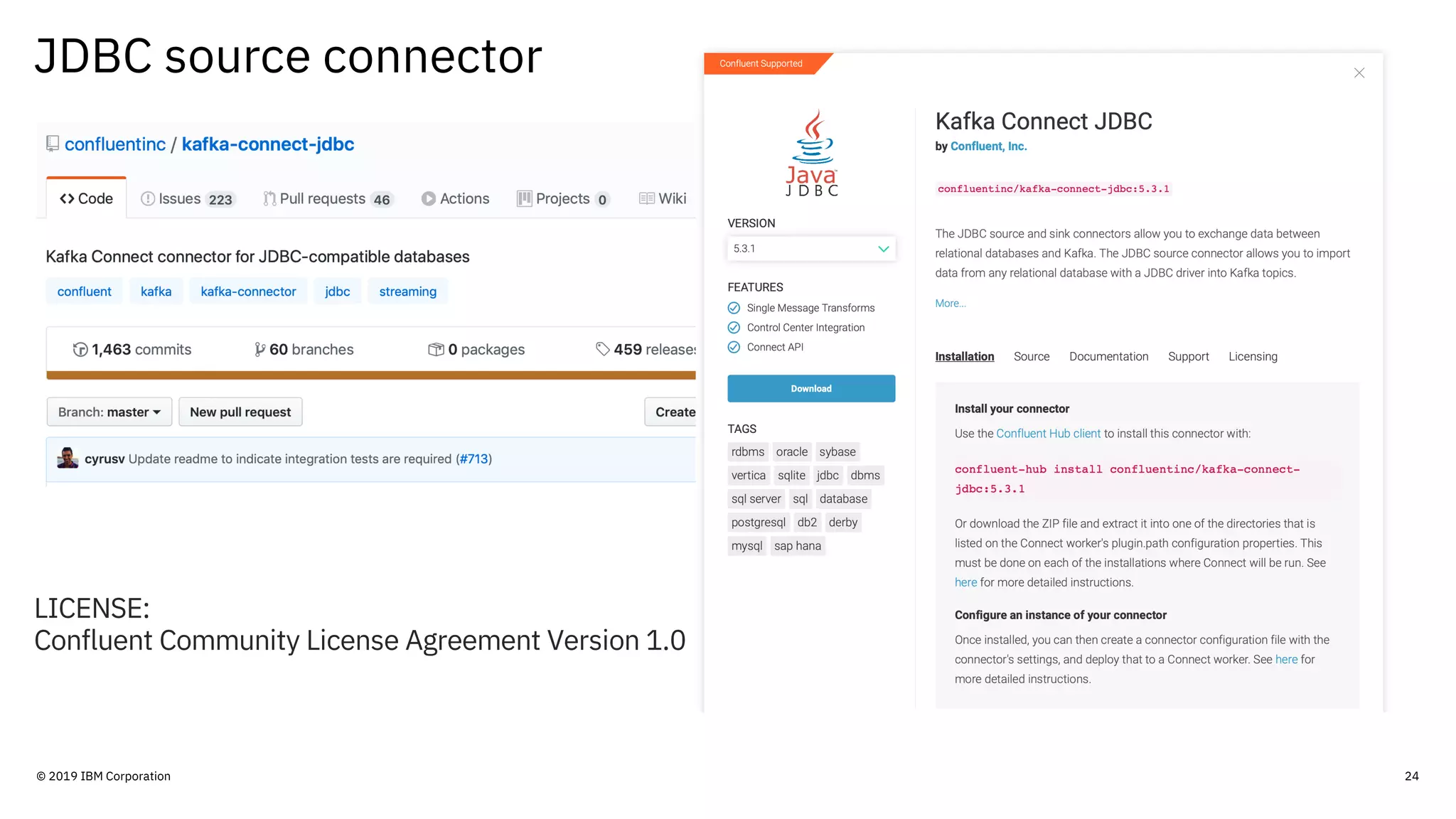

24. JDBC source connector
© 2019 IBM Corporation 24
LICENSE:
Confluent Community License Agreement Version 1.0

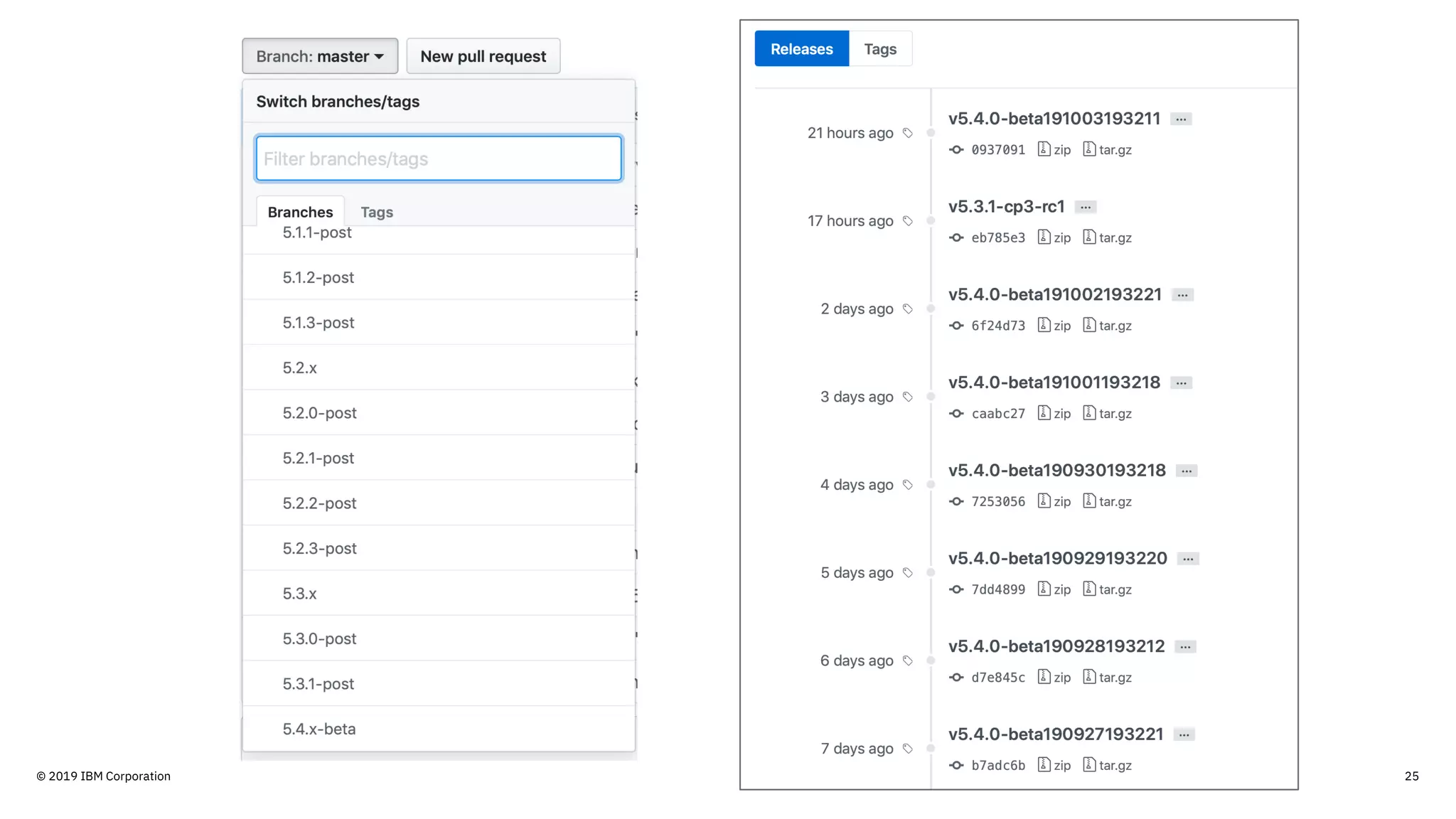

25. © 2019 IBM Corporation 25

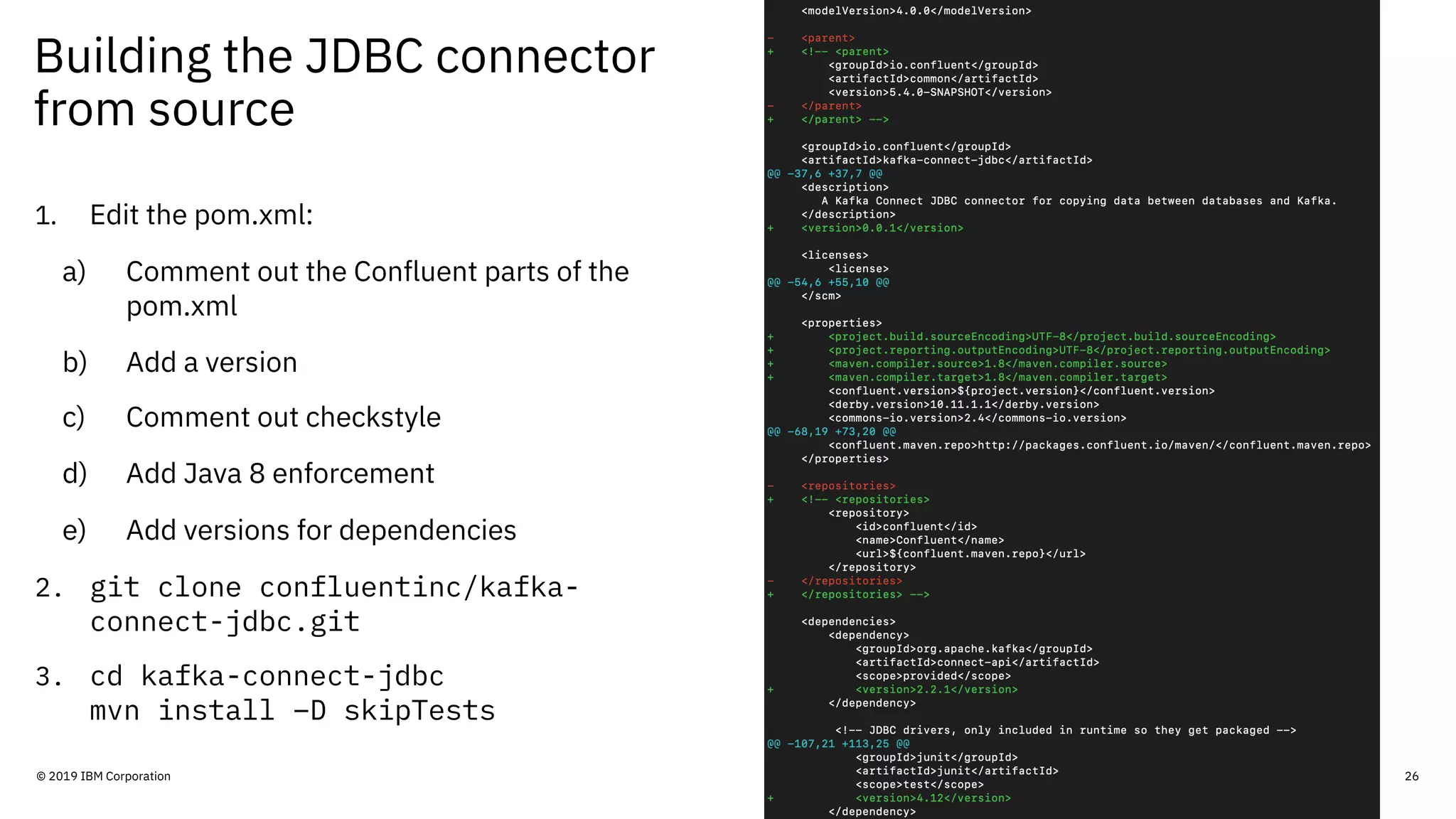

26. Building the JDBC connector
from source
1. Edit the pom.xml:
a) Comment out the Confluent parts of the
pom.xml
b) Add a version
c) Comment out checkstyle
d) Add Java 8 enforcement
e) Add versions for dependencies
2. git clone confluentinc/kafka-
connect-jdbc.git
3. cd kafka-connect-jdbc
mvn install –D skipTests
© 2019 IBM Corporation 26

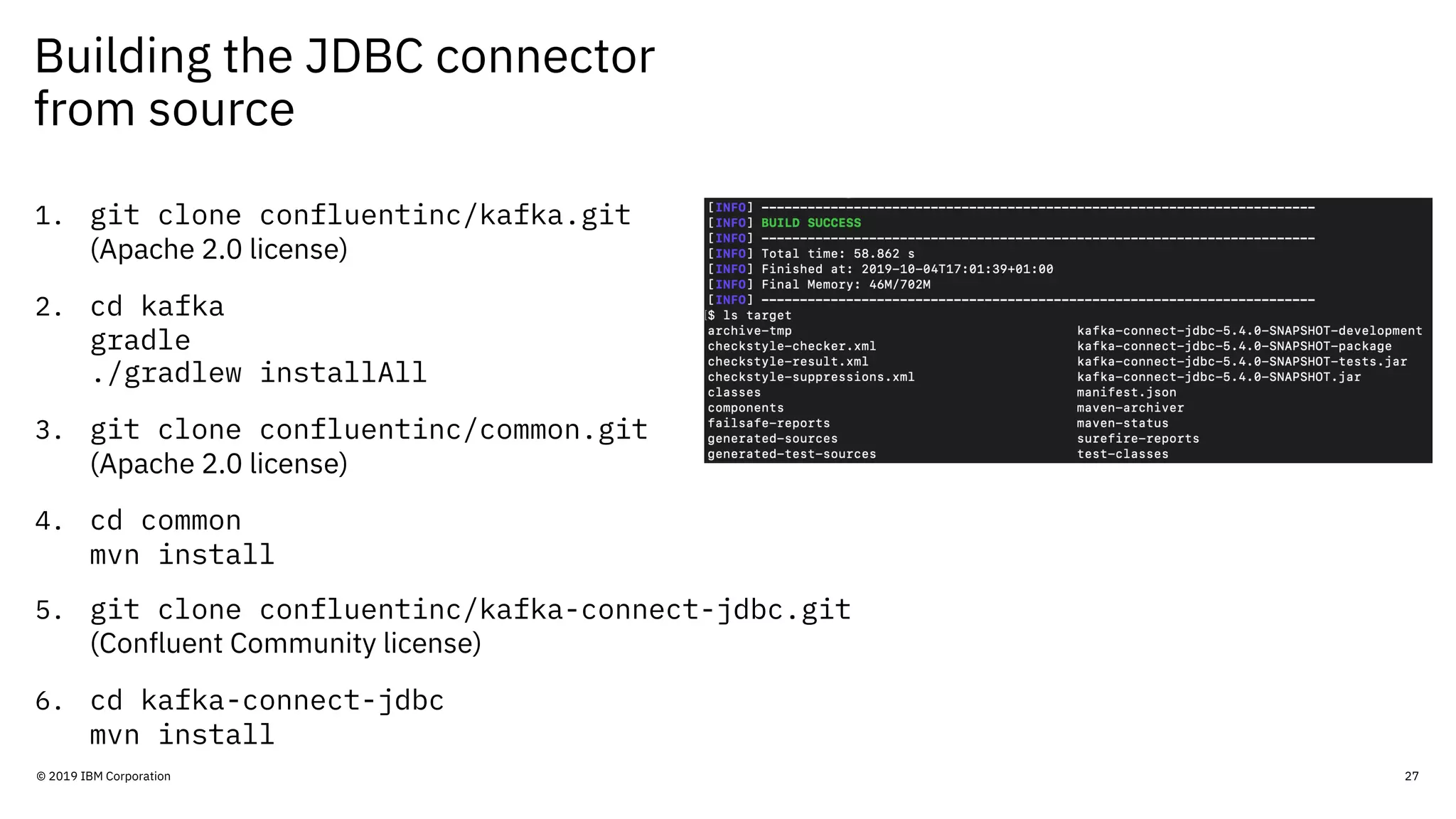

27. Building the JDBC connector
from source
1. git clone confluentinc/kafka.git
(Apache 2.0 license)
2. cd kafka
gradle
./gradlew installAll
3. git clone confluentinc/common.git
(Apache 2.0 license)
4. cd common
mvn install
5. git clone confluentinc/kafka-connect-jdbc.git
(Confluent Community license)
6. cd kafka-connect-jdbc
mvn install
© 2019 IBM Corporation 27

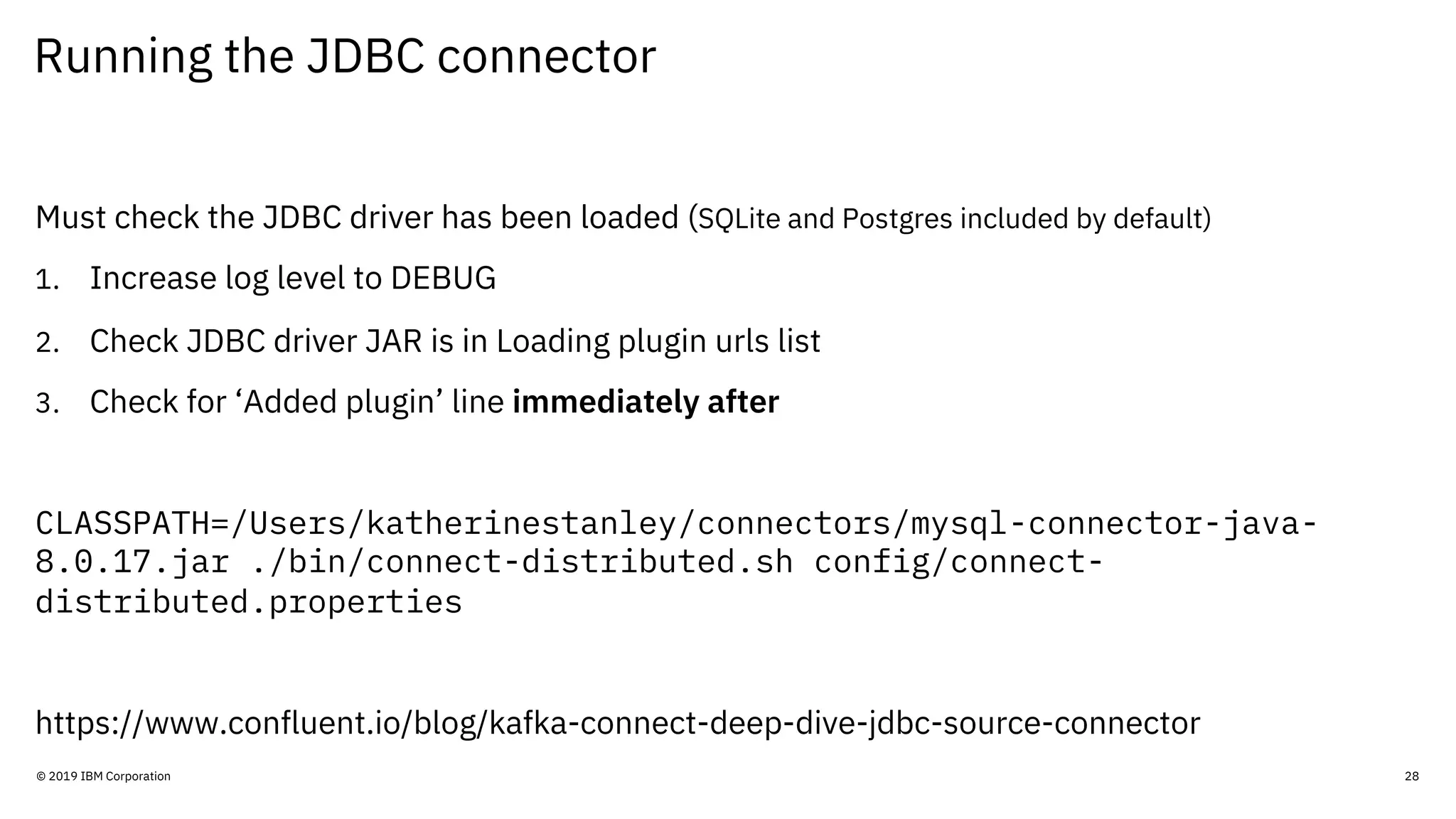

28. Running the JDBC connector
Must check the JDBC driver has been loaded (SQLite and Postgres included by default)
1. Increase log level to DEBUG
2. Check JDBC driver JAR is in Loading plugin urls list
3. Check for ‘Added plugin’ line immediately after
CLASSPATH=/Users/katherinestanley/connectors/mysql-connector-java-
8.0.17.jar ./bin/connect-distributed.sh config/connect-
distributed.properties
https://www.confluent.io/blog/kafka-connect-deep-dive-jdbc-source-connector
© 2019 IBM Corporation 28

29. Debezium
© 2019 IBM Corporation 29

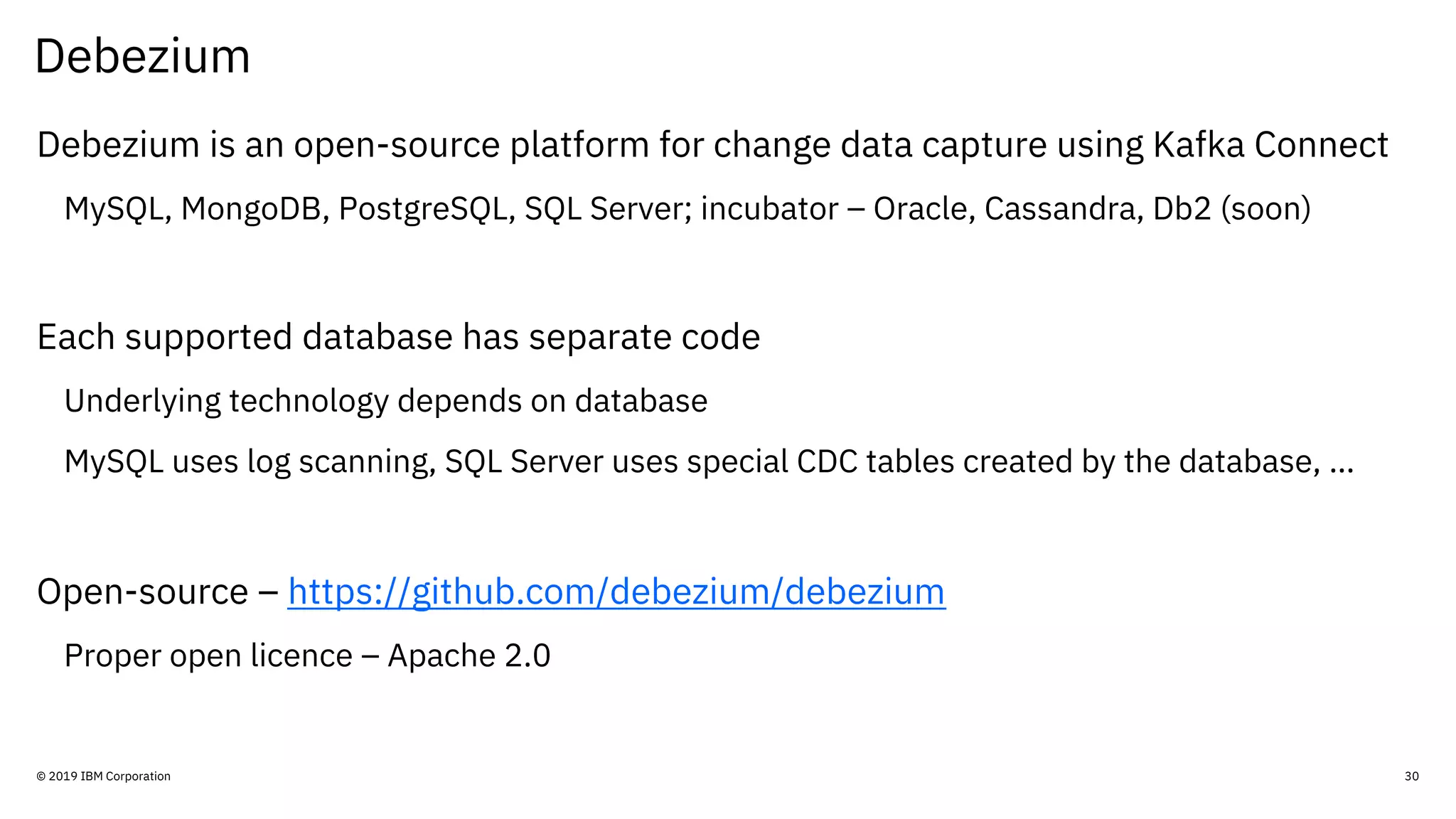

30. Debezium
Debezium is an open-source platform for change data capture using Kafka Connect
MySQL, MongoDB, PostgreSQL, SQL Server; incubator – Oracle, Cassandra, Db2 (soon)
Each supported database has separate code
Underlying technology depends on database
MySQL uses log scanning, SQL Server uses special CDC tables created by the database, …
Open-source – https://github.com/debezium/debezium
Proper open licence – Apache 2.0
© 2019 IBM Corporation 30

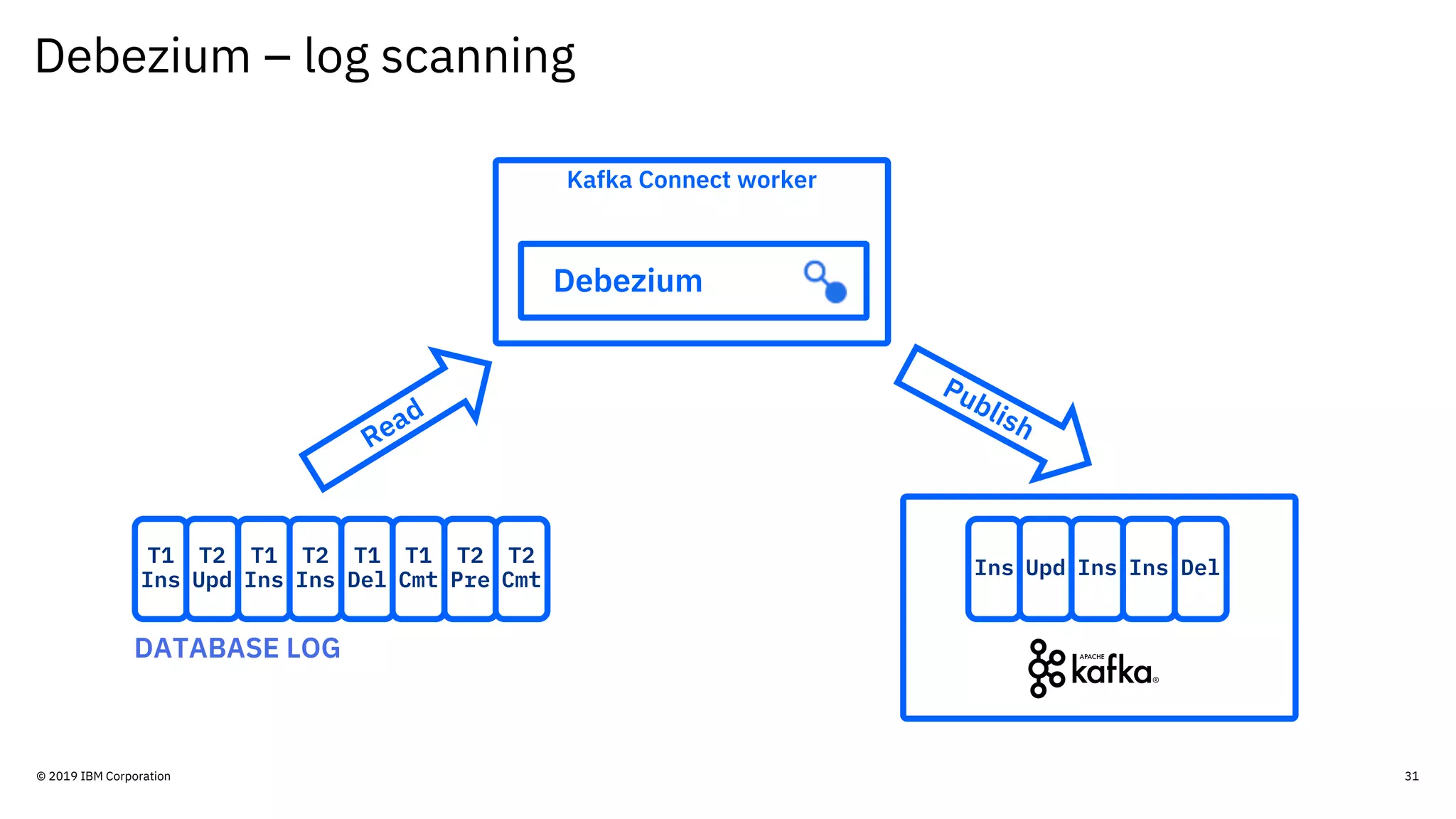

31. Debezium – log scanning
© 2019 IBM Corporation 31
Kafka Connect worker
T1
Ins
T2
Upd
T1
Ins
T2
Ins
T1
Del
T1
Cmt
T2
Pre
T2
Cmt
Debezium
Ins Upd Ins Ins Del
Read
Publish
DATABASE LOG

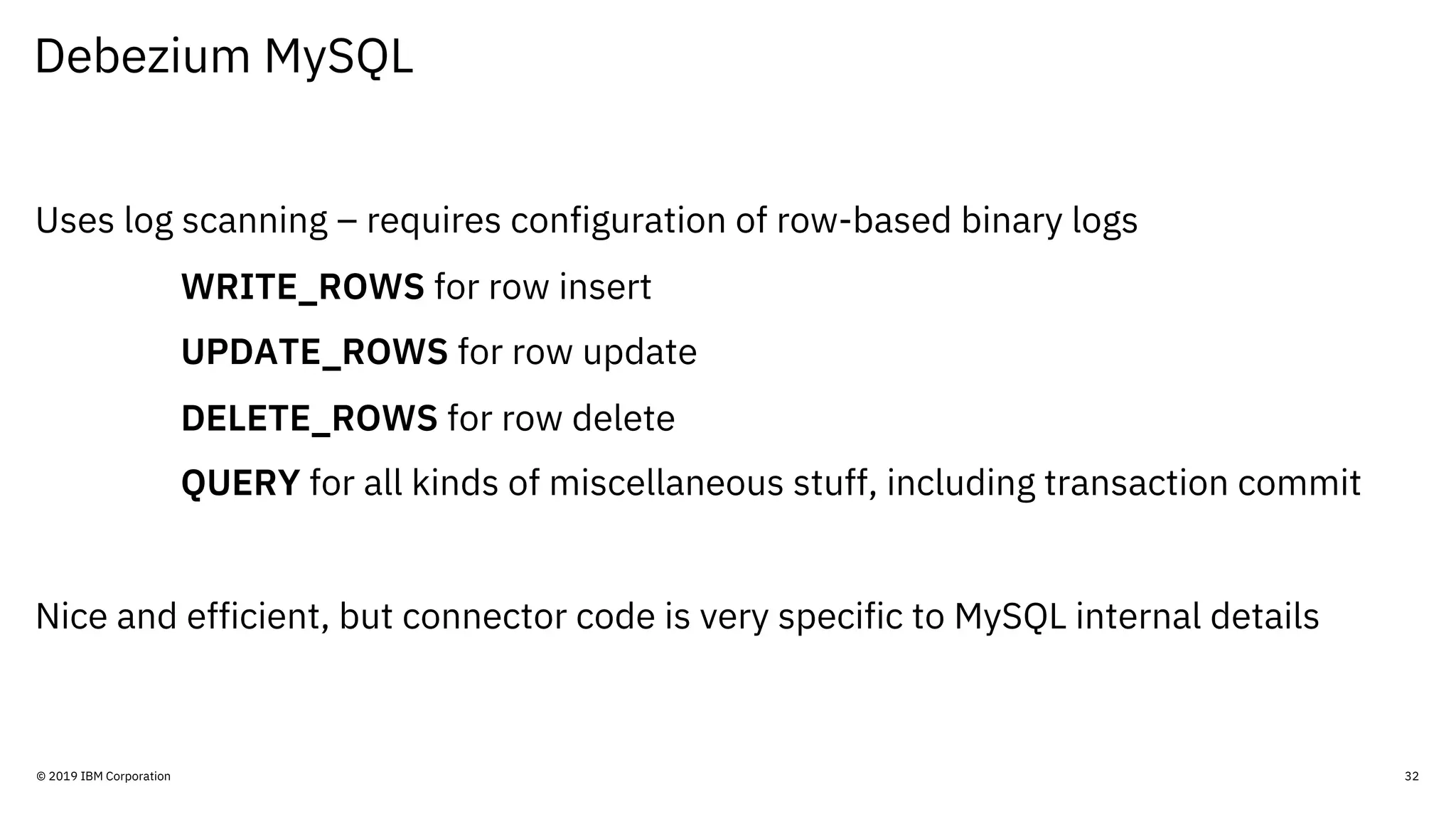

32. Debezium MySQL
Uses log scanning – requires configuration of row-based binary logs
WRITE_ROWS for row insert
UPDATE_ROWS for row update
DELETE_ROWS for row delete
QUERY for all kinds of miscellaneous stuff, including transaction commit
Nice and efficient, but connector code is very specific to MySQL internal details
© 2019 IBM Corporation 32

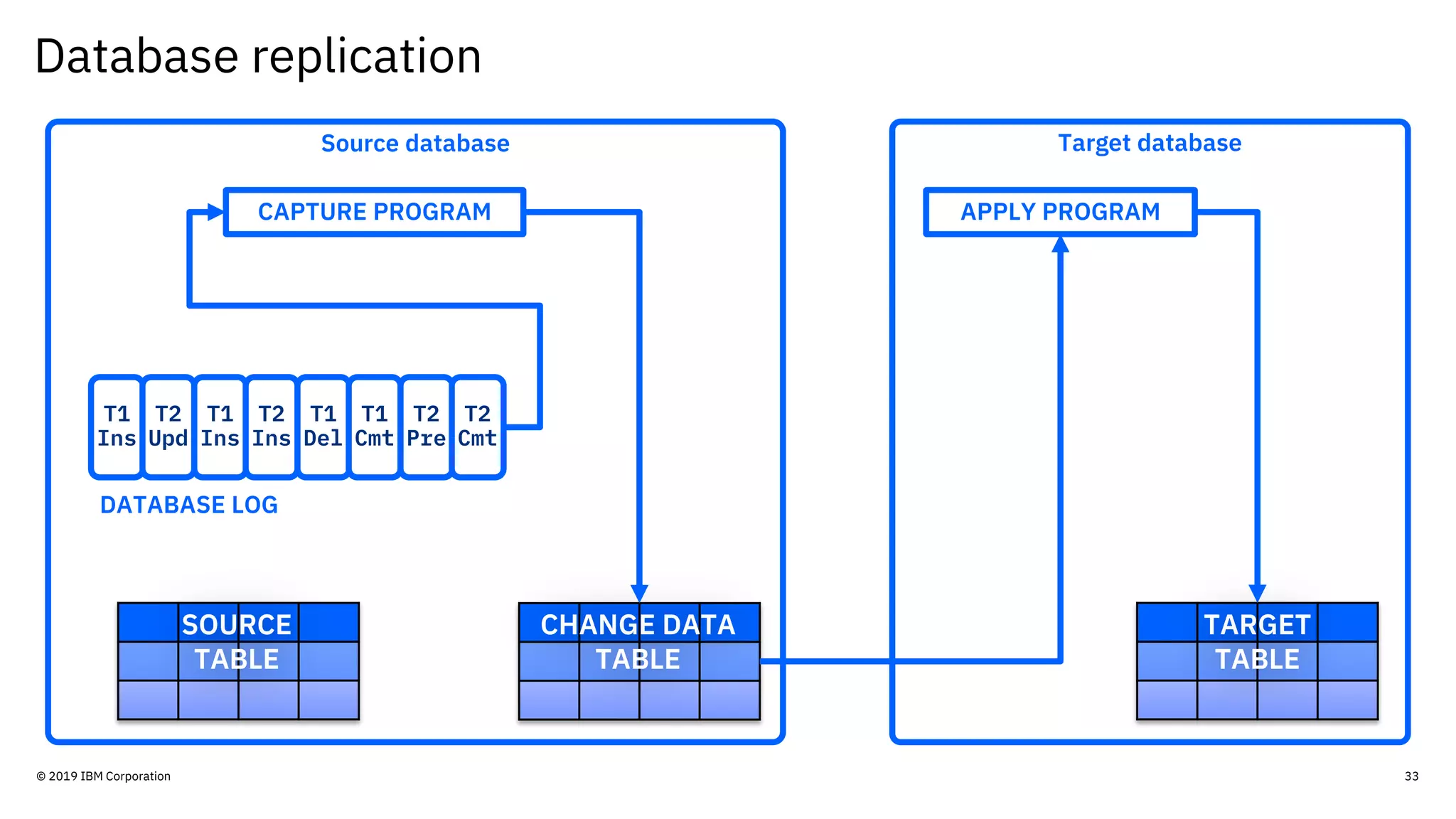

33. Database replication
© 2019 IBM Corporation 33
Source database
T1
Ins
T2
Upd
T1
Ins
T2
Ins
T1
Del
T1
Cmt
T2
Pre
T2
Cmt
CAPTURE PROGRAM
CHANGE DATA
TABLE
SOURCE
TABLE
Target database
TARGET
TABLE
APPLY PROGRAM
DATABASE LOG

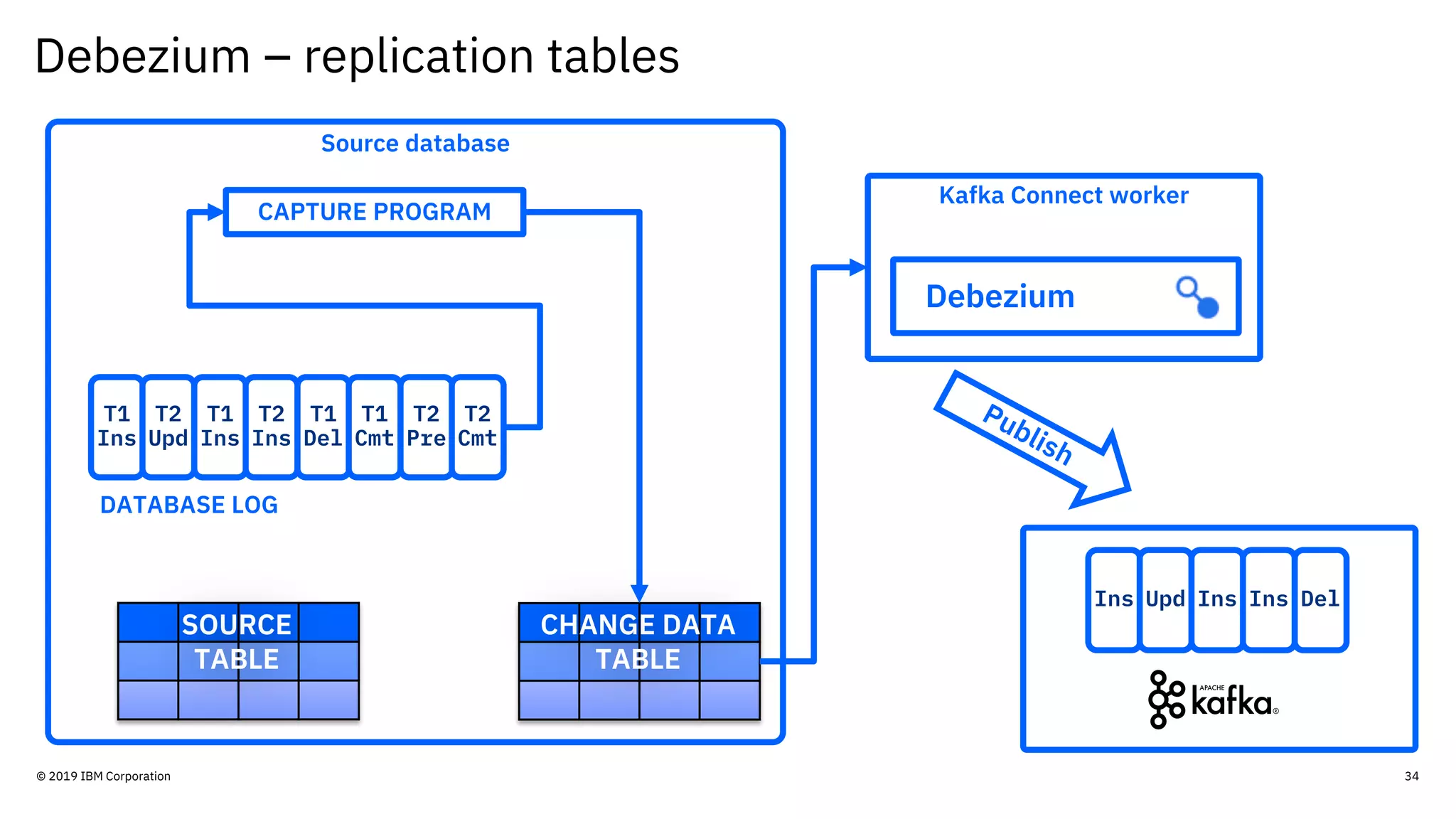

34. Debezium – replication tables
© 2019 IBM Corporation 34
Source database
T1
Ins
T2
Upd
T1
Ins
T2
Ins
T1
Del
T1
Cmt
T2
Pre
T2
Cmt
CAPTURE PROGRAM
CHANGE DATA
TABLE
SOURCE
TABLE
DATABASE LOG
Kafka Connect worker
Debezium
Ins Upd Ins Ins Del
Publish

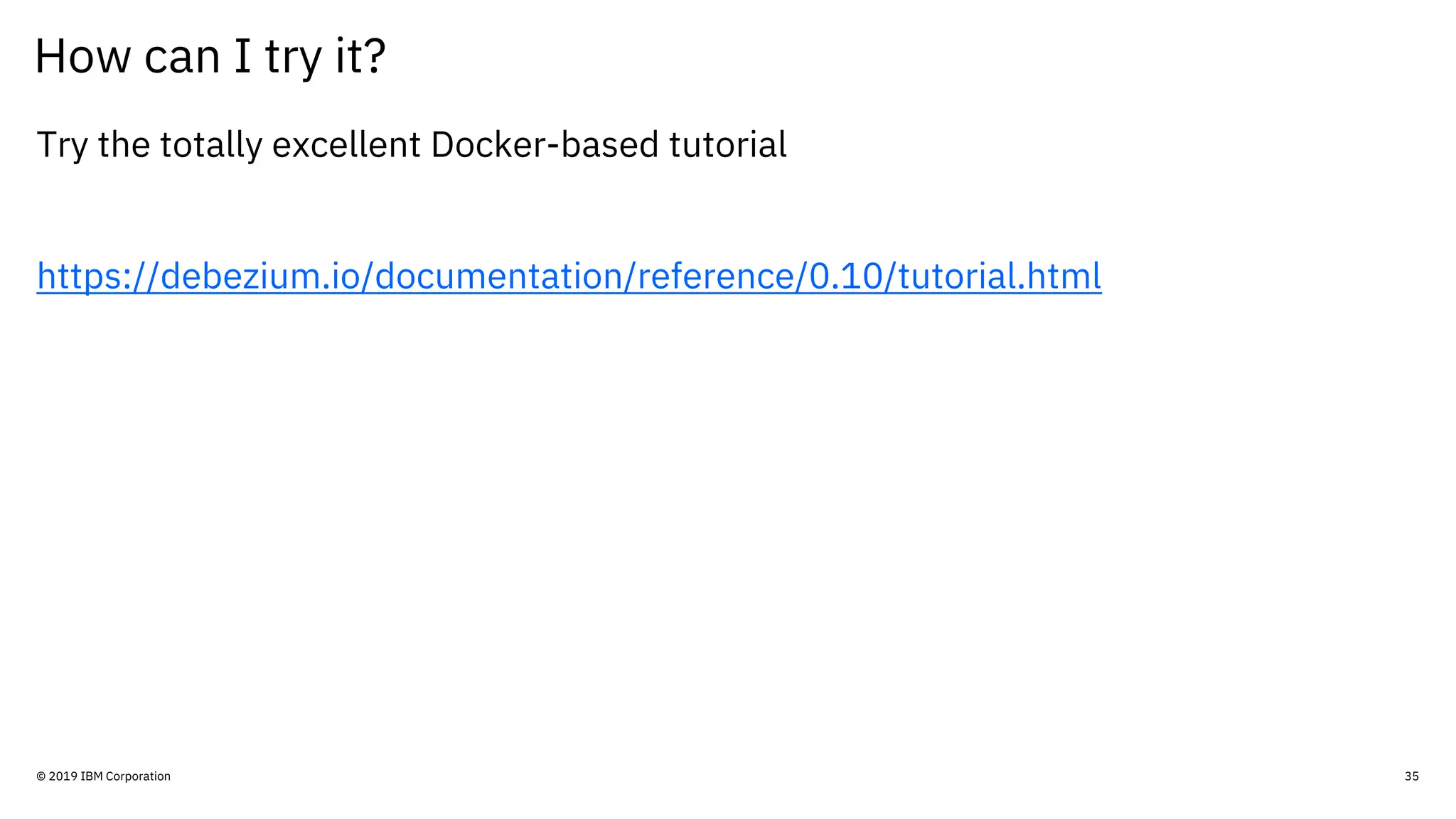

35. How can I try it?
Try the totally excellent Docker-based tutorial
https://debezium.io/documentation/reference/0.10/tutorial.html
© 2019 IBM Corporation 35

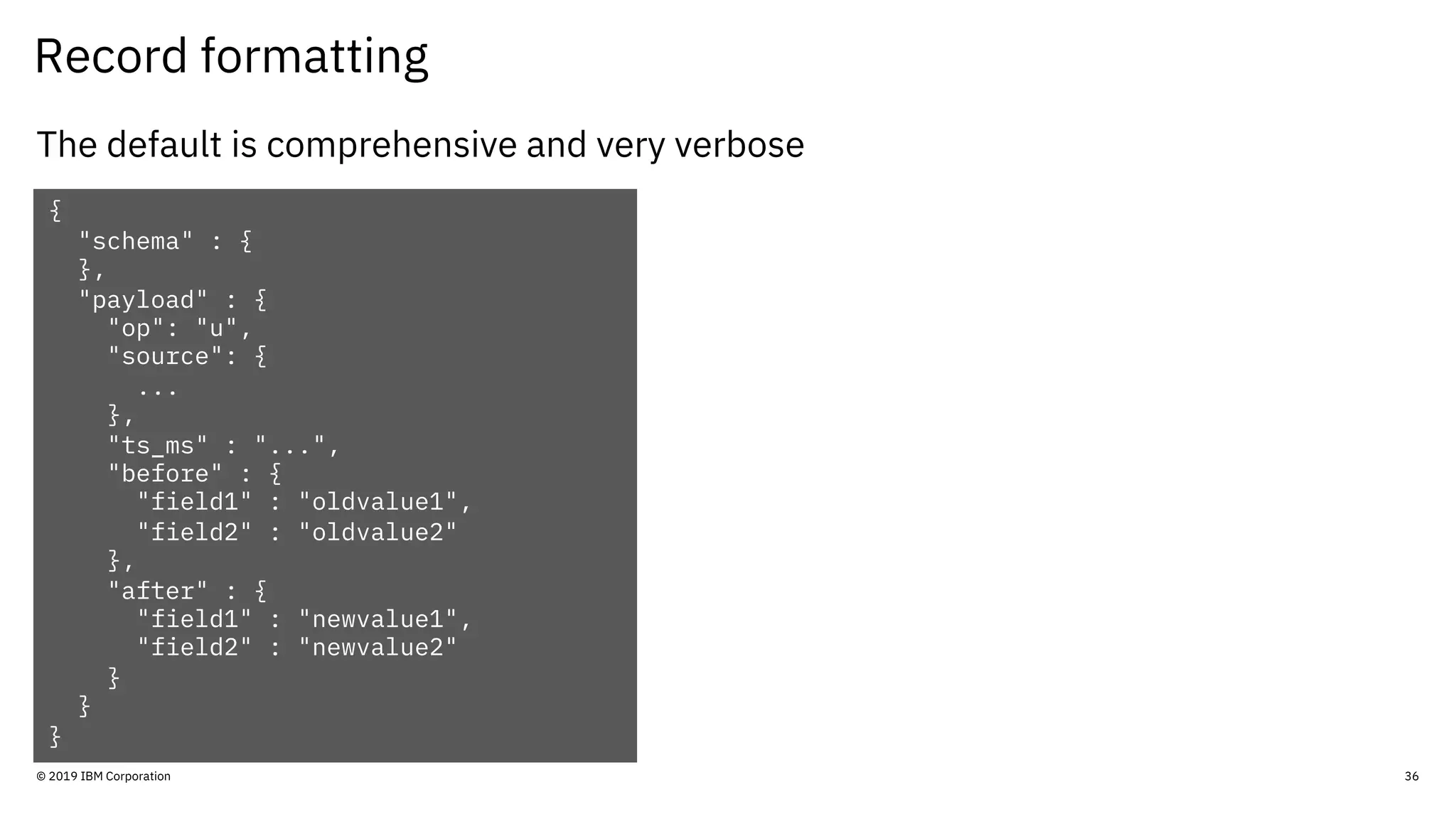

36. Record formatting
The default is comprehensive and very verbose
© 2019 IBM Corporation 36
{
"schema" : {
},
"payload" : {
"op": "u",
"source": {
...
},
"ts_ms" : "...",
"before" : {
"field1" : "oldvalue1",
"field2" : "oldvalue2"
},
"after" : {
"field1" : "newvalue1",
"field2" : "newvalue2"
}
}
}

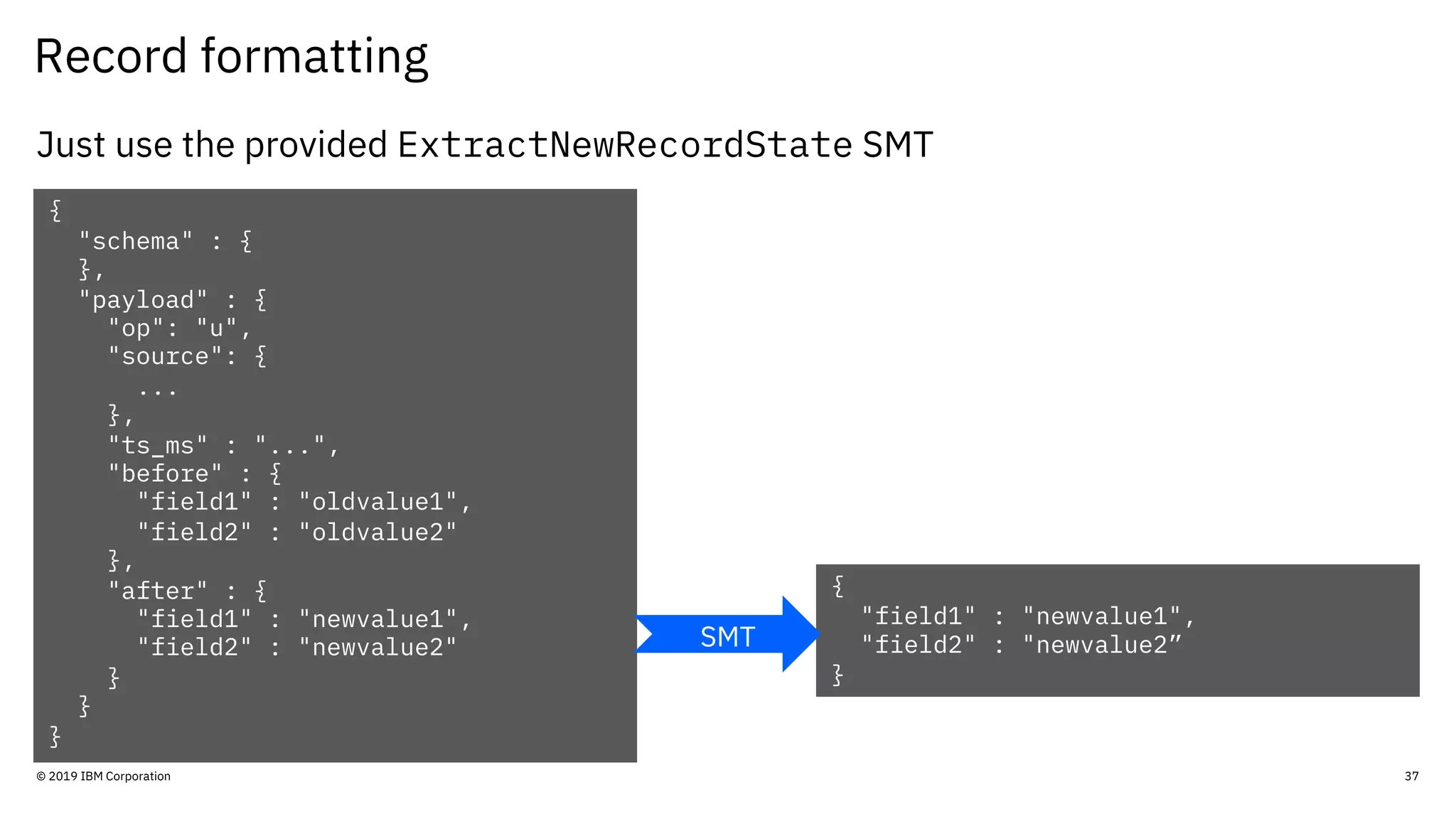

37. Record formatting
Just use the provided ExtractNewRecordState SMT
© 2019 IBM Corporation 37
{
"schema" : {
},
"payload" : {
"op": "u",
"source": {
...
},
"ts_ms" : "...",
"before" : {
"field1" : "oldvalue1",
"field2" : "oldvalue2"
},
"after" : {
"field1" : "newvalue1",
"field2" : "newvalue2"
}
}
}
{
"field1" : "newvalue1",
"field2" : "newvalue2”
}
SMT

38. IBM InfoSphere Data Replication
© 2019 IBM Corporation 38

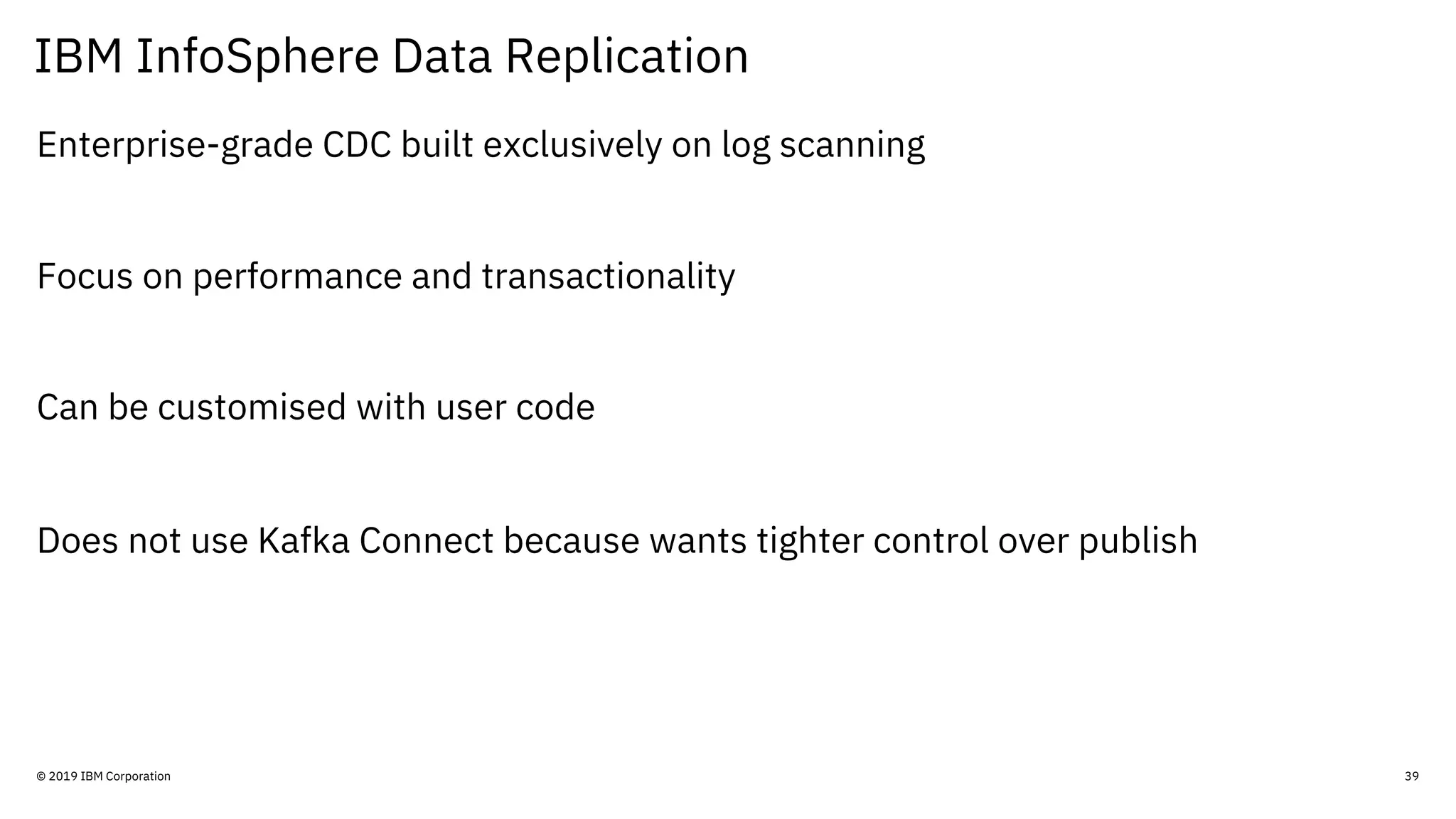

39. IBM InfoSphere Data Replication
Enterprise-grade CDC built exclusively on log scanning
Focus on performance and transactionality
Can be customised with user code
Does not use Kafka Connect because wants tighter control over publish
© 2019 IBM Corporation 39

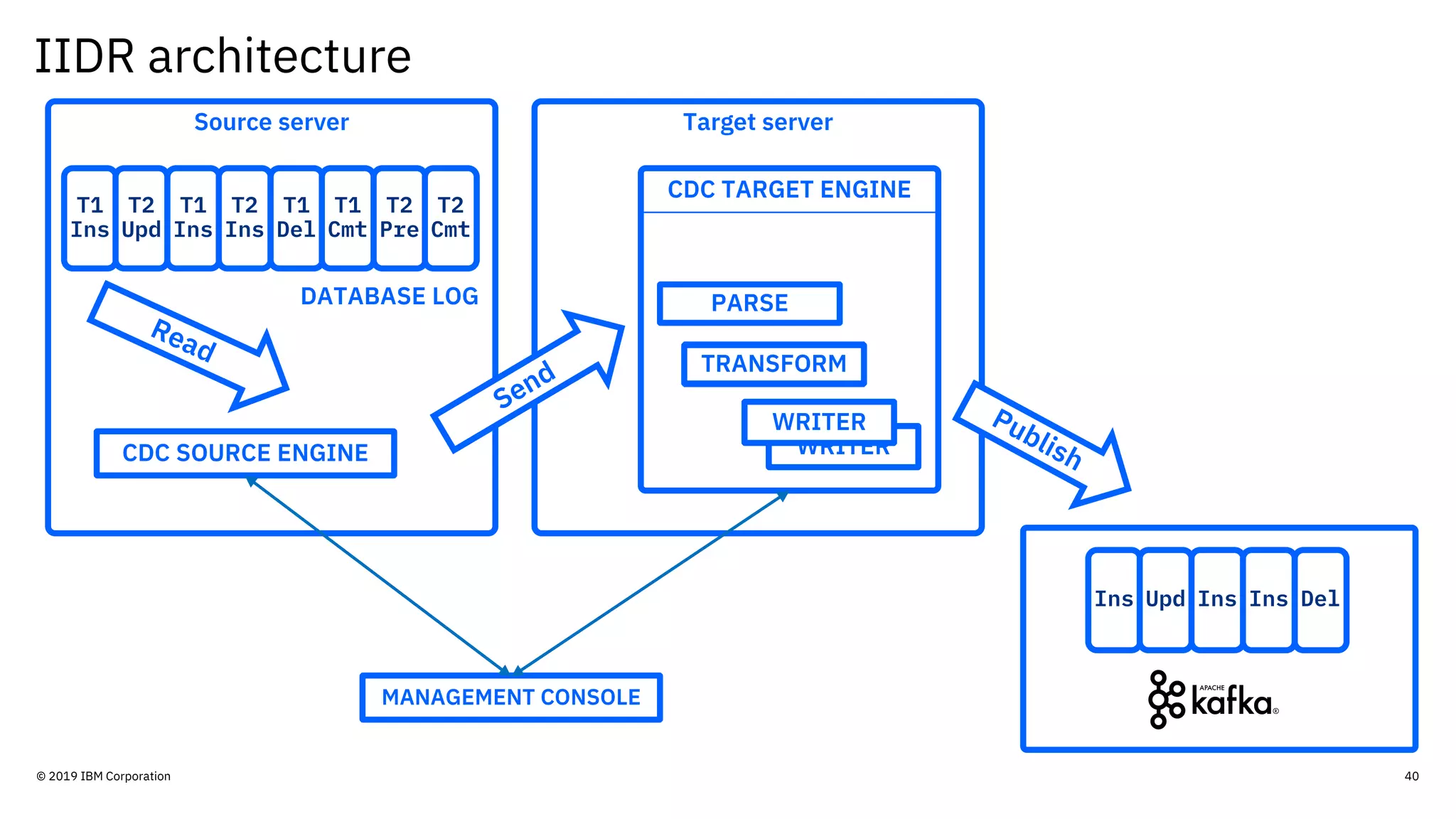

40. IIDR architecture
© 2019 IBM Corporation 40
Source server
T1
Ins
T2
Upd
T1
Ins
T2
Ins
T1
Del
T1
Cmt
T2
Pre
T2
Cmt
CDC SOURCE ENGINE
DATABASE LOG
Ins Upd Ins Ins Del
Target server
CDC TARGET ENGINE
PublishWRITER
WRITER
PARSE
TRANSFORM
MANAGEMENT CONSOLE
Read
Send

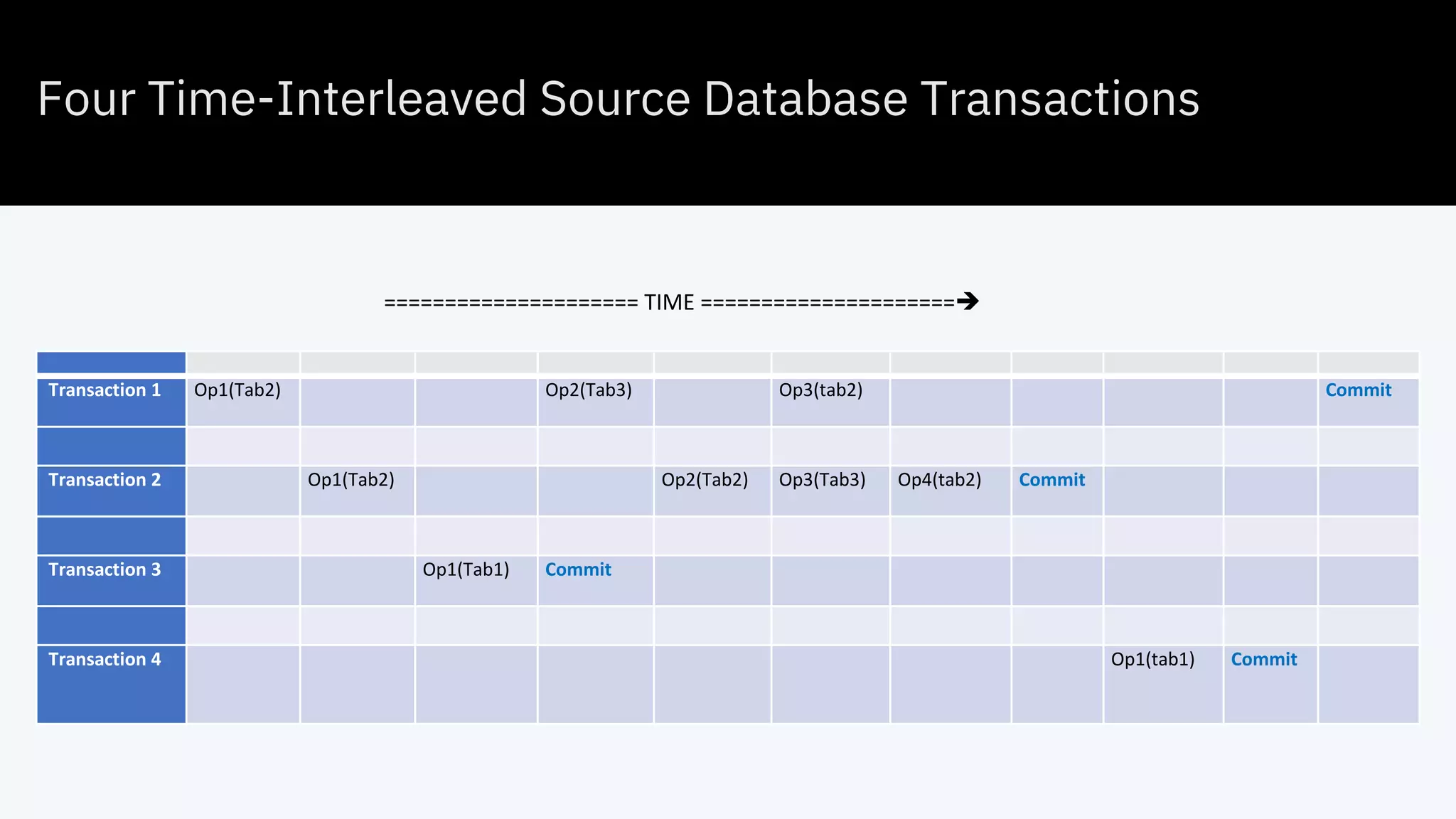

41. er 15, 2018 / © 2018 IBM Corporation
Four Time-Interleaved Source Database Transactions
Transaction 1 Op1(Tab2) Op2(Tab3) Op3(tab2) Commit
Transaction 2 Op1(Tab2) Op2(Tab2) Op3(Tab3) Op4(tab2) Commit
Transaction 3 Op1(Tab1) Commit
Transaction 4 Op1(tab1) Commit
===================== TIME =====================è

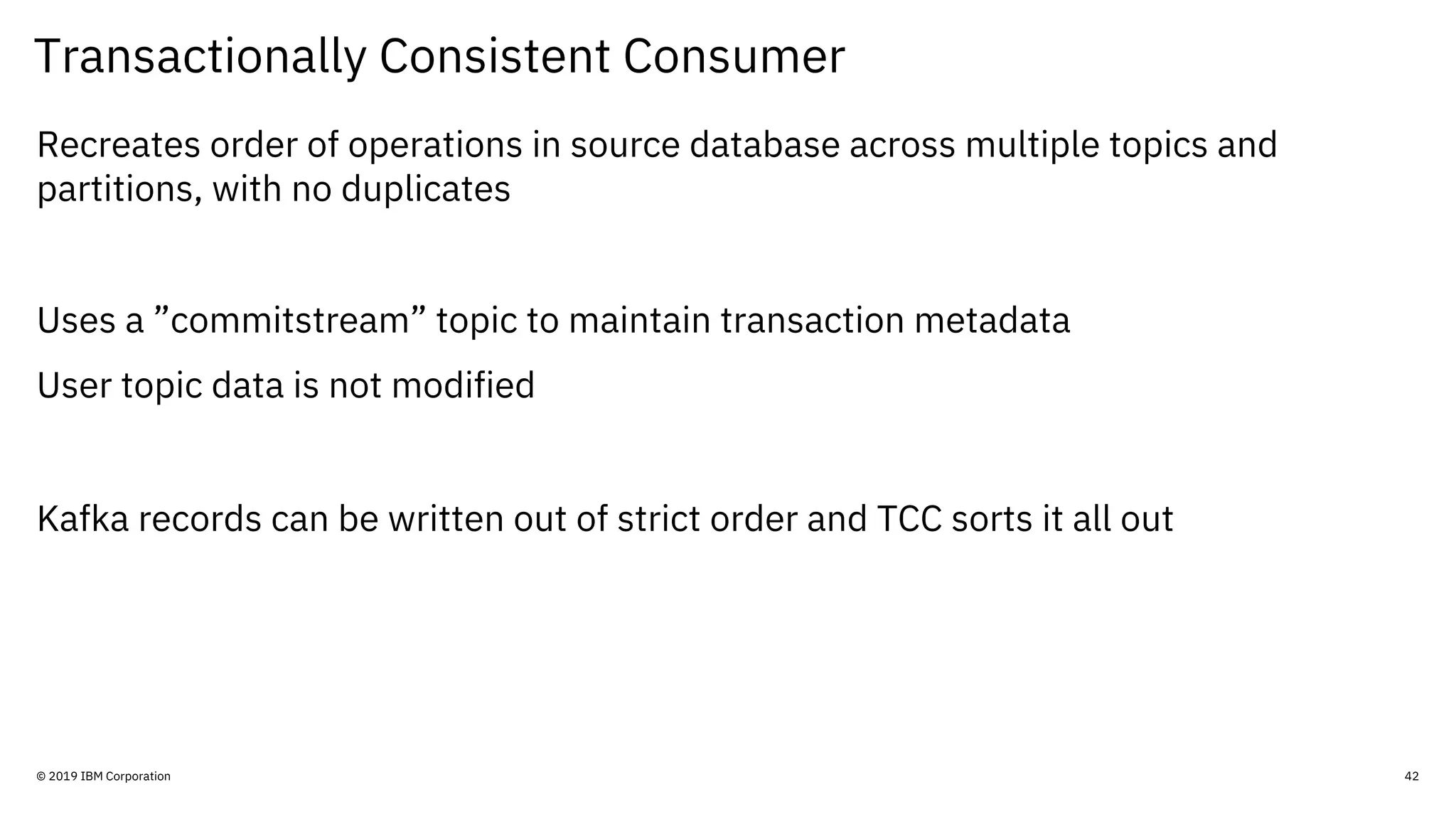

42. Transactionally Consistent Consumer
Recreates order of operations in source database across multiple topics and
partitions, with no duplicates
Uses a ”commitstream” topic to maintain transaction metadata
User topic data is not modified
Kafka records can be written out of strict order and TCC sorts it all out
© 2019 IBM Corporation 42

43. Summary
© 2019 IBM Corporation 43

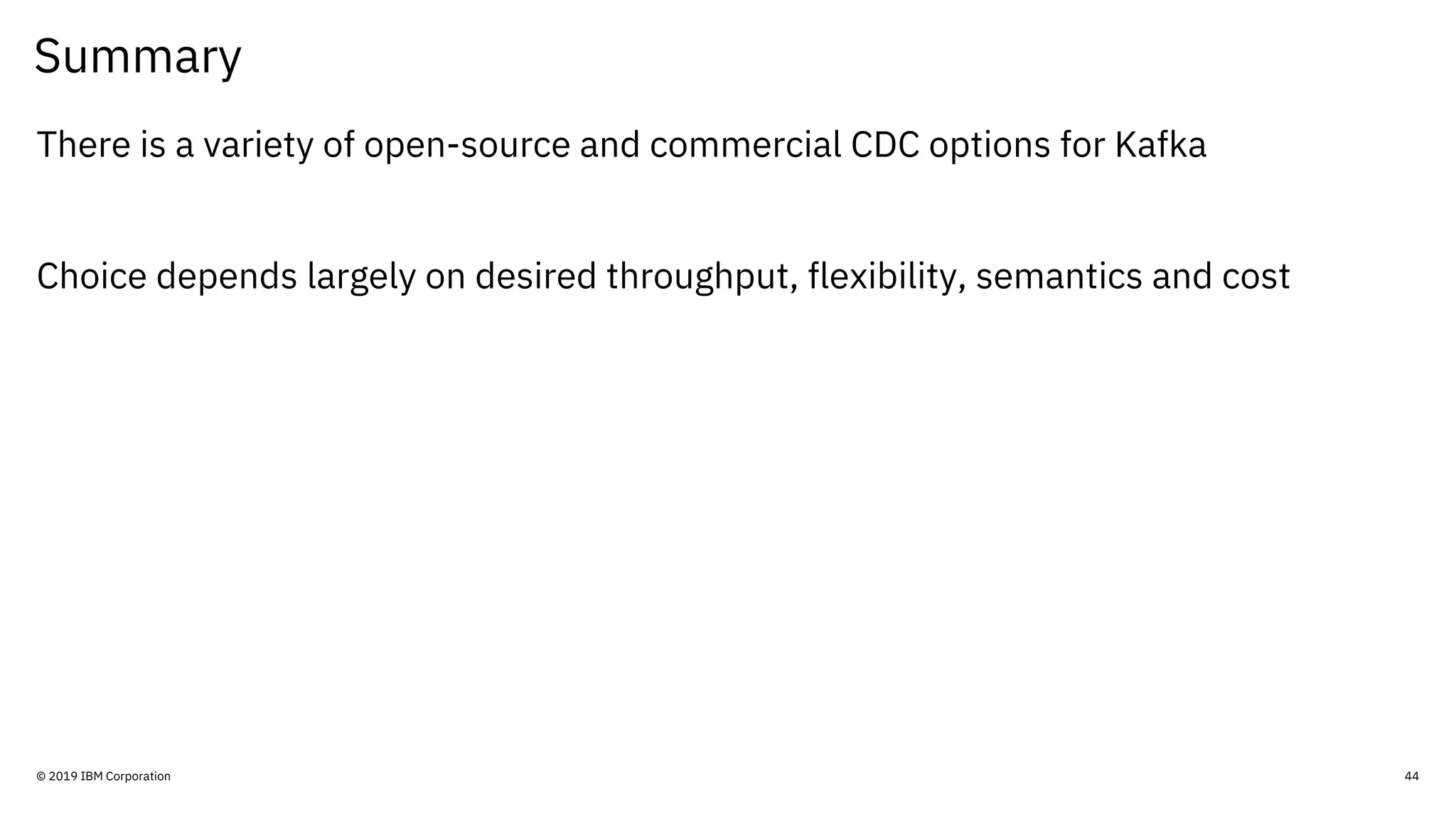

44. Summary
There is a variety of open-source and commercial CDC options for Kafka
Choice depends largely on desired throughput, flexibility, semantics and cost
© 2019 IBM Corporation 44

45. © 2019 IBM Corporation
IBM Cloud - London
This is a group for anyone interested in learning about
#IBMCloud, the cloud built for business. You can be an
existing #IBMCloud user, or someone who has never touched
the #IBMCloud before. Meetup topics will vary and can be of
interest to developers, administrators, or even business
leaders!
We are interested in using amazing tech to grow business and
make the world a better place. Some of the technology topics
that we will talk about are: cloud platforms, artificial
intelligence, blockchain, analytics, automation, cloud services
/ APIs, data science, integration, application development,
and governance.
Humanizing your chatbot,
how I digress!
Site Reliability
Engineer to the rescue!
Blockchain: The Good, The Bad and The Ugly!
Unlocking the power of
automation with AI and ML
Innovate with APIs (App
Mod #2)
Sign up at:
https://www.meetup.com/IBM-Cloud-London/
to come along and take part at our events!

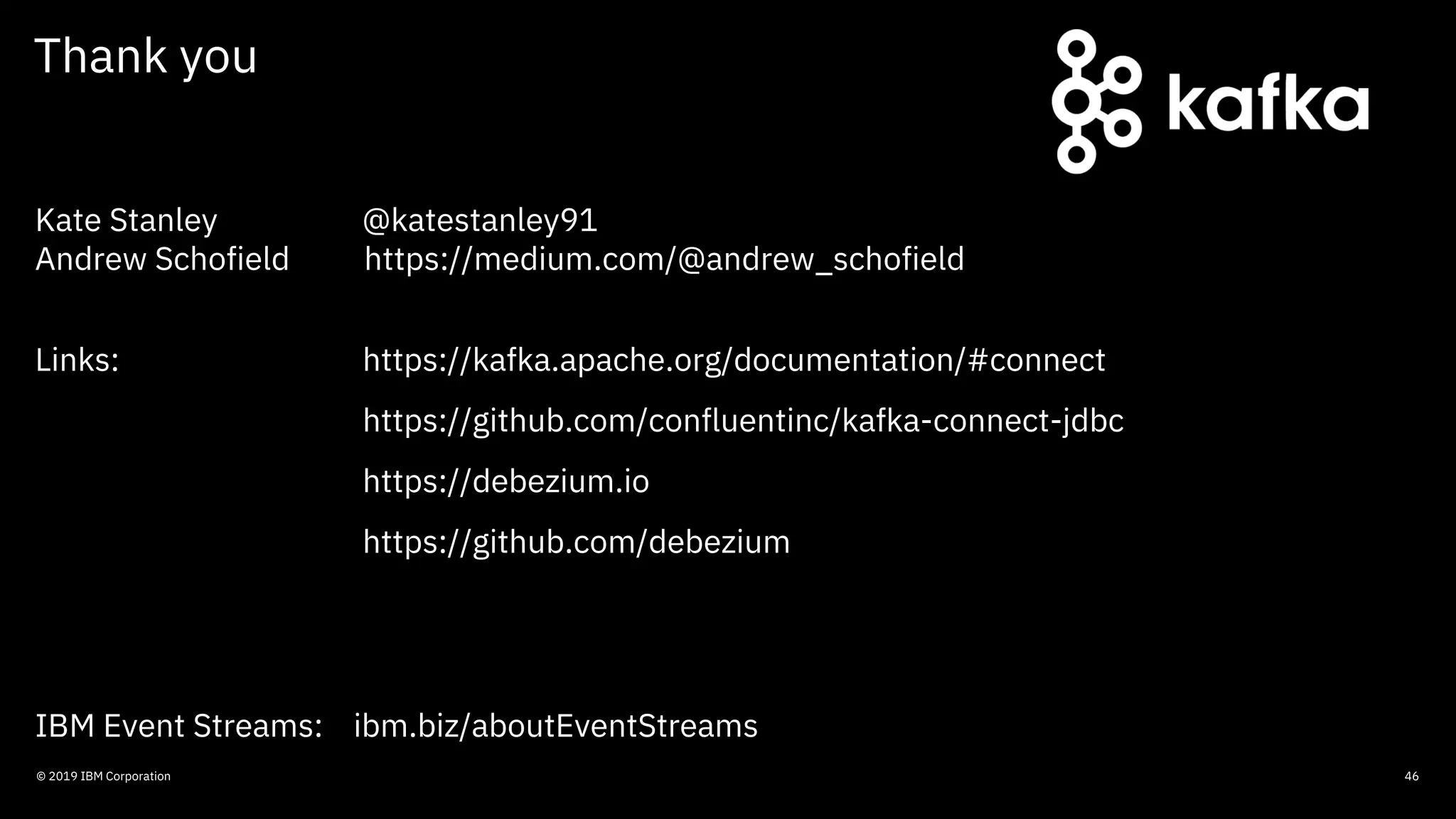

46. Thank you
Kate Stanley @katestanley91
Andrew Schofield https://medium.com/@andrew_schofield
Links: https://kafka.apache.org/documentation/#connect
https://github.com/confluentinc/kafka-connect-jdbc
https://debezium.io
https://github.com/debezium
IBM Event Streams: ibm.biz/aboutEventStreams
© 2019 IBM Corporation 46
