TechnoQuest is an electromechanical engineering company based in Surat, India that provides services related to electrical systems, automation, and instrumentation. It offers turnkey solutions for projects involving electrical equipment installation, testing, and commissioning. The company's services include HV/LV panel installation, cable laying and jointing, transformer commissioning, generator installation, structured cabling, fire alarms, security systems, and more.

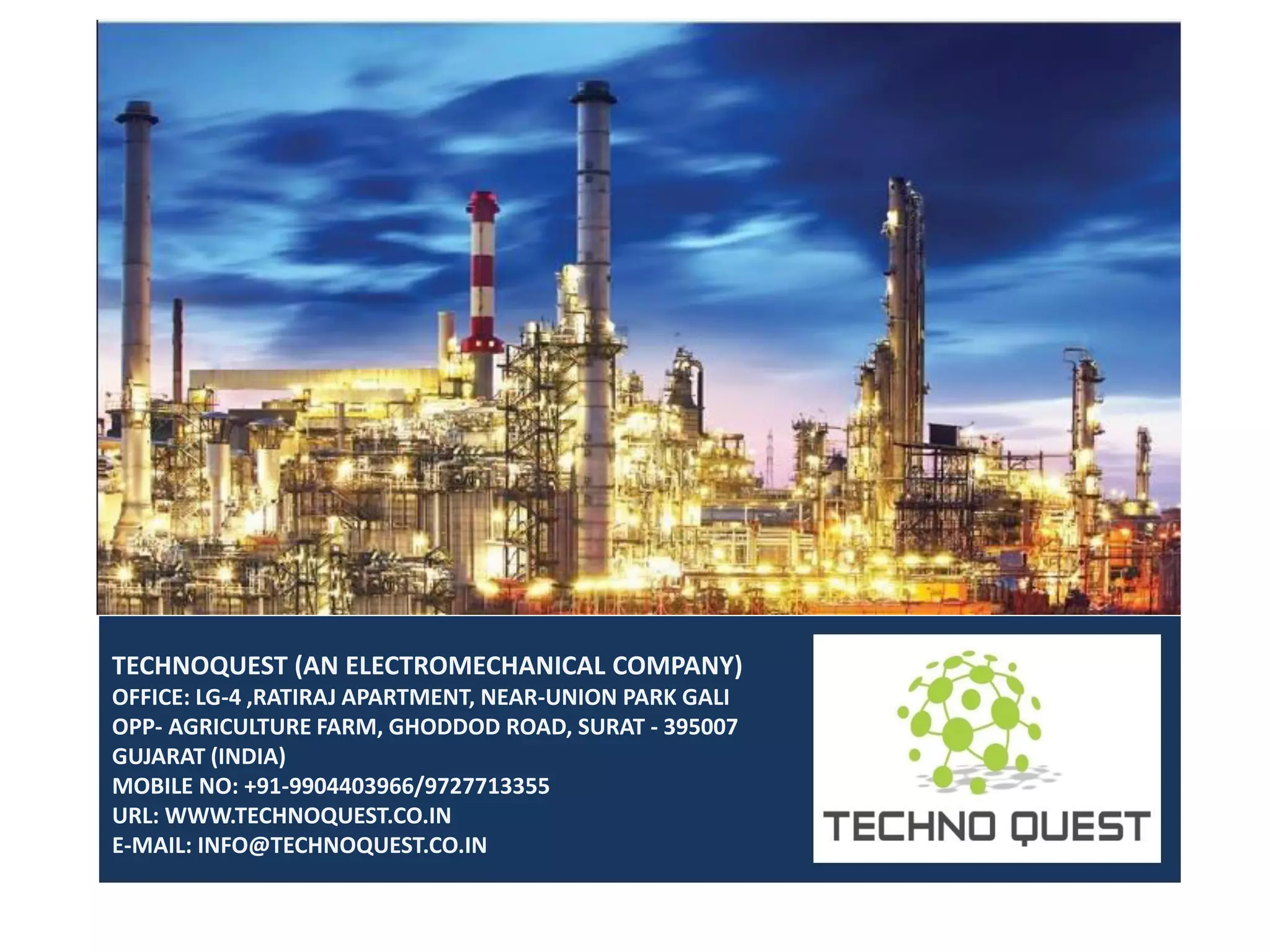

1. TECHNOQUEST (AN ELECTROMECHANICAL COMPANY)
OFFICE: LG-4 ,RATIRAJ APARTMENT, NEAR-UNION PARK GALI
OPP- AGRICULTURE FARM, GHODDOD ROAD, SURAT - 395007
GUJARAT (INDIA)
MOBILE NO: +91-9904403966/9727713355
URL: WWW.TECHNOQUEST.CO.IN
E-MAIL: INFO@TECHNOQUEST.CO.IN

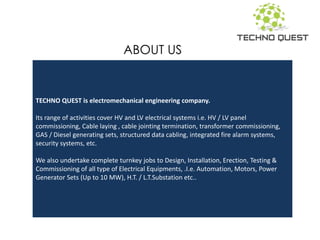

2. TECHNO QUEST is electromechanical engineering company.
Its range of activities cover HV and LV electrical systems i.e. HV / LV panel
commissioning, Cable laying , cable jointing termination, transformer commissioning,
GAS / Diesel generating sets, structured data cabling, integrated fire alarm systems,
security systems, etc.
We also undertake complete turnkey jobs to Design, Installation, Erection, Testing &
Commissioning of all type of Electrical Equipments, .I.e. Automation, Motors, Power
Generator Sets (Up to 10 MW), H.T. / L.T.Substation etc..
ABOUT US

3. QAULITY CONTROL
TECHNO QUEST exists to provide reliable, innovative and competitive
solutions to help its customers succeed. We can only succeed in our
mission by leading the projects we undertake within performance, time
and cost. We consequently have a "Quality" mission and we believe that
our customers are the authority in deciding whether we are living up to
our core purpose.

4. Vision
To be recognized as one of the major player in its field with continuous improvement
and customer satisfaction.
Mission
Work towards constant innovation, consistent quality, expert engineering and
creative solution to the challenges of our clients and invest in personnel to achieve
our targeted goal on time.
Values
Customer Satisfaction
Integrity and trustworthiness
Leverage to Intellectual upgradation in all spheares
Quality Management in all conditions
Continuous improvement

5. Electrical and Instrumentation
Division

6. Segment Served
Industrial Renewable EnergyExport
Construction
Transmission Lines
Oil & Gas Communications
Energy Distribution Projects - Turn Key

7. Solar Power Projects
(Grid Connected / Rooftop)
Wind Power Projects
New Electrical Systems
Retrofitting ,Upgrades & Renovations
Expansion & Alterations
HT / LT Cable Laying (up to 220 KV)
Cable Jointing & Termination
Power Wiring / Control Wiring
High Voltage Wiring
Control Automation
Home Automation
Building Automation
SCADA Systems
Substations Installations & Maintenance
HT / LT transmission Line erection
HT / LT relay Testing & commissioning
HT / LT breaker Testing & Commissioning
Infra-red Survey
Trouble Shooting, Testing and Repair
Transformer Maintenance
Emergency Service
HT / LT Power Panels
Motor Control Centers
Distribution Panels
Capacitor Panels
Chiller Panels
Bus Ducts
HT / LT Power & Control Cables
Shut down services / Maintenance Contracts
AREAS OF ACTIVITIES

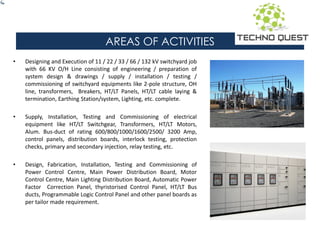

8. AREAS OF ACTIVITIES
• Designing and Execution of 11 / 22 / 33 / 66 / 132 kV switchyard job
with 66 KV O/H Line consisting of engineering / preparation of
system design & drawings / supply / installation / testing /
commissioning of switchyard equipments like 2-pole structure, OH
line, transformers, Breakers, HT/LT Panels, HT/LT cable laying &
termination, Earthing Station/system, Lighting, etc. complete.
• Supply, Installation, Testing and Commissioning of electrical
equipment like HT/LT Switchgear, Transformers, HT/LT Motors,
Alum. Bus-duct of rating 600/800/1000/1600/2500/ 3200 Amp,
control panels, distribution boards, interlock testing, protection
checks, primary and secondary injection, relay testing, etc.
• Design, Fabrication, Installation, Testing and Commissioning of
Power Control Centre, Main Power Distribution Board, Motor
Control Centre, Main Lighting Distribution Board, Automatic Power
Factor Correction Panel, thyristorised Control Panel, HT/LT Bus
ducts, Programmable Logic Control Panel and other panel boards as
per tailor made requirement.

9. AREAS OF ACTIVITIES
• Design, Schedule, Preparation and Laying of HT & LT power/control
cables, special instrument & control cables underground or on
trays, walls, structures, etc. as required.
• Cable end termination of HT & LT, Outdoor/Indoor types using Heat
Shrink/Push on type terminations and making of straight through
joints using Compound / Heat Shrink type kits.
• Detailed instrumentation design to suit process requirements. ,
Preparing of final P & ID tag nos, Selection of instruments & spares
requirement , Instruments list/ data sheets/ specification ,
Procurements of instruments including sensors, cables &
accessories , Procurements of junction boxes, tubing, cable trays,
etc , Installations & commissioning of instruments, sensors, cables,
transmitters including support fabrication , Supply & installation of
instrumentation control panels, Loop testing & calibration of
instrumentation system , Design development & installation of PC,
PLC, SCADA & DCS system

10. AREAS OF ACTIVITIES
• Designing, installation, testing and commissioning of illumination
systems in industrial plants, outdoor & indoor, consisting of
different types of lighting fixtures (normal/ flameproof
type/increased safety type) installation of walls, structures,
chimney, Offices, control etc.
• Designing, installation, testing and commissioning of Street Lighting
system using MH/HPMV/HPSV lighting fixtures, MS tubular/rail
poles, PSC poles incl. Tower lighting etc.
• Designing, installation, testing and commissioning of Earthing
system consisting of Pipe type/Plate type Earthing stations, incl.
Relevant civil works, installation of earth strips, grid formation,
interconnection, equipment Earthing.
• Designing and installation of Lightning protection systems incl.
Installation of lightning phenyls on high rise structures, buildings,
tanks, laying of strips, Earthing stations, etc.

11. AREAS OF ACTIVITIES
• Fabrication of structures, ladder type cable trays, joining of
readymade trays, accessories, frame work, heavy supports
structural work for the trays, base frames, etc.,
• D.G. set installation, testing & commissioning including
preparation of drawing & approval of Installation from the
Electrical Inspector as per Govt. Rules & Regulation.

12. AREAS OF ACTIVITIES
• Testing of Protective relays, Transformer Oil testing,
Calibration of Ammeter, Voltmeter as per ISO procedure,
Hypo test of cable etc.
• Round the clock maintenance in the field of Electrical
and instruments
• Providing man power services for Electrical &
Instrumentation Installation & commissioing

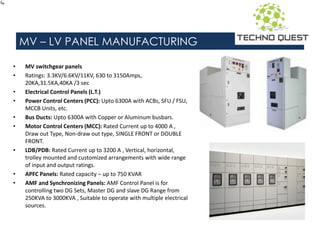

13. MV – LV PANEL MANUFACTURING
• MV switchgear panels
• Ratings: 3.3KV/6.6KV/11KV, 630 to 3150Amps,
20KA,31.5KA,40KA /3 sec
• Electrical Control Panels (L.T.)
• Power Control Centers (PCC): Upto 6300A with ACBs, SFU / FSU,
MCCB Units, etc.
• Bus Ducts: Upto 6300A with Copper or Aluminum busbars.
• Motor Control Centers (MCC): Rated Current up to 4000 A ,
Draw out Type, Non-draw out type, SINGLE FRONT or DOUBLE
FRONT.
• LDB/PDB: Rated Current up to 3200 A , Vertical, horizontal,
trolley mounted and customized arrangements with wide range
of input and output ratings.
• APFC Panels: Rated capacity – up to 750 KVAR
• AMF and Synchronizing Panels: AMF Control Panel is for
controlling two DG Sets, Master DG and slave DG Range from
250KVA to 3000KVA , Suitable to operate with multiple electrical
sources.

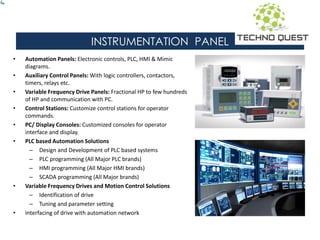

14. INSTRUMENTATION PANEL
• Automation Panels: Electronic controls, PLC, HMI & Mimic
diagrams.
• Auxiliary Control Panels: With logic controllers, contactors,
timers, relays etc.
• Variable Frequency Drive Panels: Fractional HP to few hundreds
of HP and communication with PC.
• Control Stations: Customize control stations for operator
commands.
• PC/ Display Consoles: Customized consoles for operator
interface and display.
• PLC based Automation Solutions
– Design and Development of PLC based systems
– PLC programming (All Major PLC brands)
– HMI programming (All Major HMI brands)
– SCADA programming (All Major brands)
• Variable Frequency Drives and Motion Control Solutions
– Identification of drive
– Tuning and parameter setting
• Interfacing of drive with automation network

15. SOLAR POWER DIVISION
• The Solar Business Vertical provides EPC solutions for building Solar
Power Plants based on Photovoltaic (PV) technology (Grid Connected
as well as off Grid). This vertical also provides solutions for providing
power from other renewable sources like Solar Thermal, Wind and
Biomass.
• Our Solar Business vertical provides complete EPC solutions for Solar
Power Generation including Site evaluation, Design for Solar farms,
HV/LV Panels, Inverters, Instrumentation, Power Evacuation, Power
distribution as well as Operation & Maintenance. Our existing vertical
provides cost effective, reliable O&M for solar energy projects utilizing
a large, wide spread network of skilled manpower across the country.

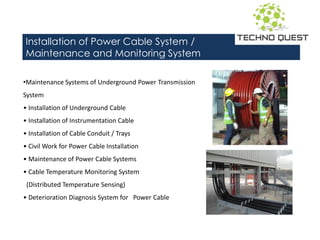

16. Installation of Power Cable System /
Maintenance and Monitoring System
•Maintenance Systems of Underground Power Transmission
System
• I stallatio of U dergrou d Ca le
• I stallatio of I stru e tatio Ca le
• I stallatio of Ca le Co duit / Trays
• Ci il Work for Po er Ca le I stallatio
• Mai te a e of Po er Ca le Syste s
• Ca le Te perature Mo itori g Syste
(Distributed Temperature Sensing)
• Deterioration Diagnosis System for Power Cable

17. Installation of Fiber Optic Cable Systems
•Single Mode Fiber Optics
•Multi Mode Fiber Optics
•Laying of FO Cables
•Terminations of FO Cables (Splicing)
•Installations of Patch Panels

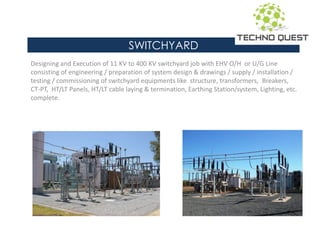

18. SWITCHYARD
Designing and Execution of 11 KV to 400 KV switchyard job with EHV O/H or U/G Line
consisting of engineering / preparation of system design & drawings / supply / installation /
testing / commissioning of switchyard equipments like structure, transformers, Breakers,
CT-PT, HT/LT Panels, HT/LT cable laying & termination, Earthing Station/system, Lighting, etc.
complete.

19. Testing & Reliability Services
We are pioneer in providing reliable and quick testing & commissioning services for
substations equipments and its protection system. Latest testing infrastructure and
experienced testing team providing testing services for new projects and during the routine
maintenance of running plant. High voltage testing facility up to 100KV AC and 60 KV DC
becomes handy when it comes to Testing of switchgears, Cables and other Medium Voltage
equipments.

20. Conditioning & Monitoring Services
• Benefits of On Line Monitoring:
• Obtain status information on equipment under
normal operating conditions.
• Detect developing faults or deterioration at the
earliest stages of inception.
• Plan outages to rectify faults at your convenience
and avoid unexpected and catastrophic
breakdowns.
• Extend time intervals between time based
shutdowns for inspections and testing.

21. Conditioning & Monitoring Services
• Equipment Monitored and Tested:
1. Batteries and Battery banks.
• Continuous Monitoring of individual batteries in a string to detect weak and defective units.
• Measurement and monitoring of Voltage, Impedance and Temperatures of each battery.
2. Power Transformers.
• Continuous On Line Monitoring and Measurement of dissolved Hydrogen and Water Content in
oil.
• On Site Dissolved Gas Analysis.
• Continuous On Line Monitoring and control of various parameters including On Load Tap Changer
(OLTC)
• Continuous or Periodic On Line measurement of Tan Delta / Power Factor of Bushings.
• Monitoring of Winding Temperatures with Fiber Optic Sensor Systems

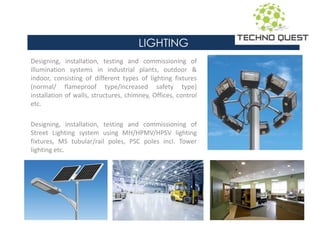

22. LIGHTING
Designing, installation, testing and commissioning of
illumination systems in industrial plants, outdoor &
indoor, consisting of different types of lighting fixtures
(normal/ flameproof type/increased safety type)
installation of walls, structures, chimney, Offices, control
etc.
Designing, installation, testing and commissioning of
Street Lighting system using MH/HPMV/HPSV lighting
fixtures, MS tubular/rail poles, PSC poles incl. Tower
lighting etc.

23. LIST OF CLIENTS
)
.

24. TECHNOQUEST (AN ELECTROMECHANICAL COMPANY)
OFFICE: LG-4 ,RATIRAJ APARTMENT, NEAR-UNION PARK GALI
OPP- AGRICULTURE FARM, GHODDOD ROAD, SURAT - 395007
GUJARAT (INDIA)
MOBILE NO: +91-9904403966/9727713355
URL: WWW.TECHNOQUEST.CO.IN
E-MAIL: INFO@TECHNOQUEST.CO.IN
