Technodrain India Pvt. Ltd.
Drainage Engineering
Research, development, production, sales & after
sales support from the same hand

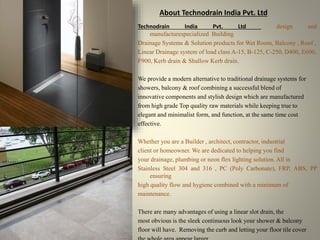

About Technodrain India Pvt. Ltd
Technodrain India Pvt. Ltd design and
manufacturespecialized Building
Drainage Systems & Solution products forWet Room, Balcony , Roof ,
Linear Drainage system of load class A-15, B-125, C-250, D400, E600,
F900, Kerb drain & Shallow Kerb drain.
We provide a modern alternative to traditional drainage systems for
showers, balcony & roof combining a successful blend of
innovative components and stylish design which are manufactured
from high grade Top quality raw materials while keeping true to
elegant and minimalist form, and function, at the same time cost
effective.
Whether you are a Builder , architect, contractor, industrial
client or homeowner. We are dedicated to helping you find
your drainage, plumbing or neon flex lighting solution.All in
Stainless Steel 304 and 316 , PC (Poly Carbonate), FRP, ABS, PP
ensuring
high quality flow and hygiene combined with a minimum of
maintenance.
There are many advantages of using a linear slot drain, the
most obvious is the sleek continuous look your shower & balcony
floor will have. Removing the curb and letting your floor tile cover
the whole area appear larger.

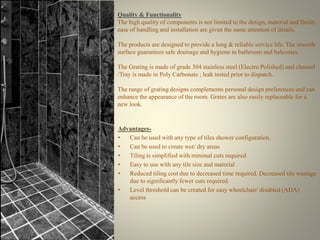

Quality & Functionality
The high quality of components is not limited to the design, material and finish;
ease of handling and installation are given the same attention of details.
The products are designed to provide a long & reliable service life. The smooth
surface guarantees safe drainage and hygiene in bathroom and balconies.
The Grating is made of grade 304 stainless steel (Electro Polished) and channel
/Tray is made in Poly Carbonate ; leak tested prior to dispatch.
The range of grating designs complements personal design preferences and can
enhance the appearance of the room. Grates are also easily replaceable for a
new look.
Advantages-
• Can be used with any type of tiles shower configuration.
• Can be used to create wet/ dry areas
• Tiling is simplified with minimal cuts required
• Easy to use with any tile size and material
• Reduced tiling cost due to decreased time required. Decreased tile wastage
due to significantly fewer cuts required.
• Level threshold can be created for easy wheelchair/ disabled (ADA)
access

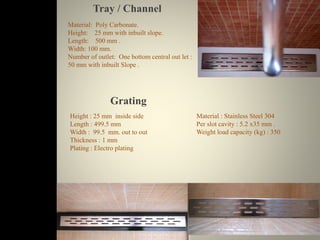

Tray / Channel
Material: Poly Carbonate.
Height: 25 mm with inbuilt slope.
Length: 500 mm .
Width: 100 mm.
Number of outlet: One bottom central out let :
50 mm with inbuilt Slope .
Grating
Height : 25 mm inside side
Length : 499.5 mm
Width : 99.5 mm. out to out
Thickness : 1 mm
Plating : Electro plating
Material : Stainless Steel 304
Per slot cavity : 5.2 x35 mm .
Weight load capacity (kg) : 350

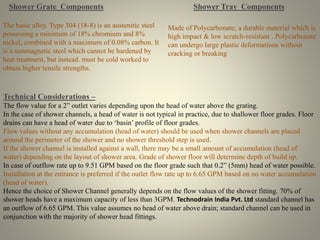

Shower Grate Components
The basic alloy. Type 304 (18-8) is an austenitic steel
possessing a minimum of 18% chromium and 8%
nickel, combined with a maximum of 0.08% carbon. It
is a nonmagnetic steel which cannot be hardened by
heat treatment, but instead. must be cold worked to
obtain higher tensile strengths.
Shower Tray Components
Made of Polycarbonate; a durable material which is
high impact & low scratch-resistant . Polycarbonate
can undergo large plastic deformations without
cracking or breaking
Technical Considerations –
The flow value for a 2” outlet varies depending upon the head of water above the grating.
In the case of shower channels, a head of water is not typical in practice, due to shallower floor grades. Floor
drains can have a head of water due to ‘basin’ profile of floor grades.
Flow values without any accumulation (head of water) should be used when shower channels are placed
around the perimeter of the shower and no shower threshold step is used.
If the shower channel is installed against a wall, there may be a small amount of accumulation (head of
water) depending on the layout of shower area. Grade of shower floor will determine depth of build up.
In case of outflow rate up to 9.51 GPM based on the floor grade such that 0.2” (5mm) head of water possible.
Installation at the entrance is preferred if the outlet flow rate up to 6.65 GPM based on no water accumulation
(head of water).
Hence the choice of Shower Channel generally depends on the flow values of the shower fitting. 70% of
shower heads have a maximum capacity of less than 3GPM. Technodrain India Pvt. Ltd standard channel has
an outflow of 6.65 GPM. This value assumes no head of water above drain; standard channel can be used in
conjunction with the majority of shower head fittings.
Shower Grate Shop

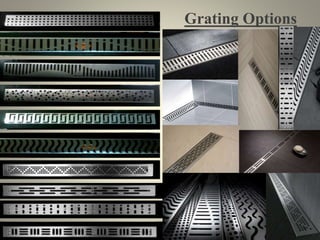

Grating Options
Stainless Shower Drains - SS Body
Tile Shower Drains

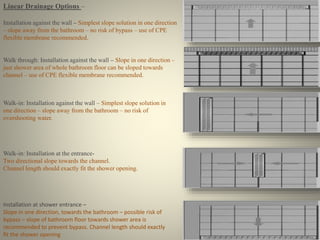

Linear Drainage Options –
Installation against the wall – Simplest slope solution in one direction
– slope away from the bathroom – no risk of bypass – use of CPE
flexible membrane recommended.
Walk through: Installation against the wall – Slope in one direction –
just shower area of whole bathroom floor can be sloped towards
channel – use of CPE flexible membrane recommended.
Walk-in: Installation against the wall – Simplest slope solution in
one direction – slope away from the bathroom – no risk of
overshooting water.
Walk-in: Installation at the entrance-
Two directional slope towards the channel.
Channel length should exactly fit the shower opening.
Installation at shower entrance –
Slope in one direction, towards the bathroom – possible risk of
bypass – slope of bathroom floor towards shower area is
recommended to prevent bypass. Channel length should exactly
fit the shower opening
Typical Drain Placement in Bathroom Floor Construction
Back of the Shower Location
ENTRANCE
Multi-Unit Shower Room
ENTRANCE ENTRANCE
Entrance Way (Curb or Curbless)
ENTRANCE

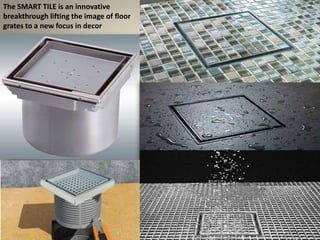

The SMART TILE is an innovative
breakthrough lifting the image of floor
grates to a new focus in decor
Balcony Drains
L
I
N
E
A
R
Ideal for bathroom, garden, balcony, front of garage,
around swimming pool, landscaping, everywhere,
where storm water control is needed.
-Made of plastic (optional with metal grate)
--Optional bottom outlet or side outlet
-- Have A15 , B125 standard. C125 standard with
metal grate
-Economical and decorative ,
- Light, movable and easy installation
- Impact resistant, Chemical resistance
- Easy water flow
- 2 color options (Black and white)
-- Comes with Child Protection System
Dimensions
125x80x500 mm
100x55x500 mm
200x120x500 mm
D
R
A
I
N

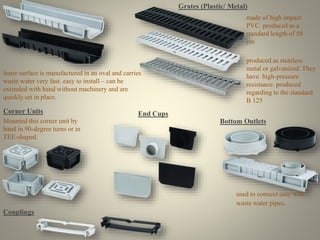

Inner surface is manufactured in an oval and carries
waste water very fast. easy to install – can be
extended with hand without machinery and are
quickly set in place.
Grates (Plastic/ Metal)
made of high impact
PVC. produced as a
standard length of 50
cm
produced as stainless
metal or galvanized. They
have high-pressure
resistance. produced
regarding to the standard
B 125
Corner Units
Mounted this corner unit by
hand in 90-degree turns or in
TEE-shaped.
Bottom Outlets
used to connect easy with
waste water pipes.
End Cups
Couplings
T Channel
+ Channel
90 Degree Reflexive Channel
In order to obtain easy flow, channels
designed with easy beak areas at its sides.

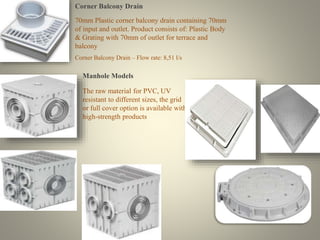

Corner Balcony Drain
70mm Plastic corner balcony drain containing 70mm
of input and outlet. Product consists of: Plastic Body
& Grating with 70mm of outlet for terrace and
balcony
Corner Balcony Drain – Flow rate: 8,51 l/s
Manhole Models
The raw material for PVC, UV
resistant to different sizes, the grid
or full cover option is available with
high-strength products
OFFICE INDIA)
Address:
Eco Drain (India) Pvt. Ltd
Plot No 7 A HSL/Ajanta/Road Aurangabad
Phone:+912065331100
+918856999493
Email Id: ecodrainn@gmail.com
