This document provides an introduction and overview of Hivemall, an open source machine learning library built as a collection of Hive UDFs. It begins with background on the presenter, Makoto Yui, and then covers the following key points: - What Hivemall is and its vision of bringing machine learning capabilities to SQL users - Popular algorithms supported in current and upcoming versions, such as random forest, factorization machines, gradient boosted trees - Real-world use cases at companies such as for click-through rate prediction, user profiling, and churn detection - How to use algorithms like random forest, matrix factorization, and factorization machines from SQL queries - The development roadmap, with upcoming features including NLP

1. Introduction to
New features and Use cases
of Hivemall
Research Engineer
Makoto YUI @myui
<myui@treasure-data.com>
1
2016/03/30
Treasure Data Techtalk
http://eventdots.jp/event/583226

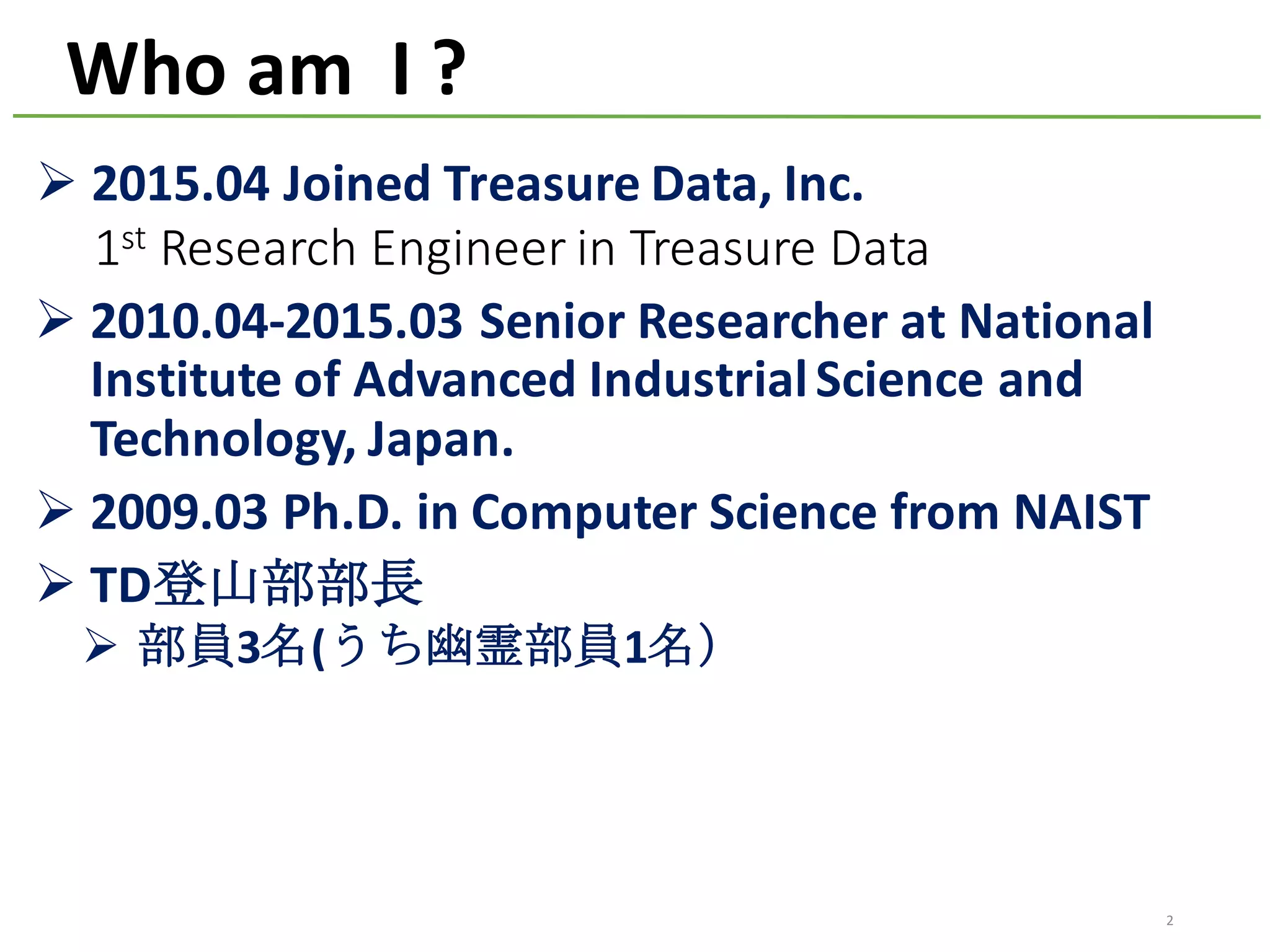

2. Ø 2015.04 Joined Treasure Data, Inc.
1st Research Engineer in Treasure Data
Ø 2010.04-2015.03 Senior Researcher at National
Institute of Advanced Industrial Science and
Technology, Japan.
Ø 2009.03 Ph.D. in Computer Science from NAIST
Ø TD登山部部長
Ø 部員3名(うち幽霊部員1名）
Who am I ?
2

3. Ø 2015.04 Joined Treasure Data, Inc.
1st Research Engineer in Treasure Data
Ø 2010.04-2015.03 Senior Researcher at National
Institute of Advanced Industrial Science and
Technology, Japan.
Ø 2009.03 Ph.D. in Computer Science from NAIST
Ø TD登山部部長
Ø 部員3名(うち幽霊部員1名）
Who am I ?
3

4. 4
Announcement
We finally replaced the Logo of
Hivemall J

5. 5

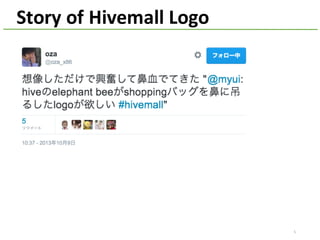

Story of Hivemall Logo

6. 6
Story of Hivemall Logo

7. 7
Hadoop
Logos of Hadoop-related Products

8. 8
Hadoop Hive
Logos of Hadoop-related Products

9. 9
Hadoop Hive Hivemall
Logos of Hadoop-related Products

10. 10
Logos of Hadoop-related Products
Hadoop Hive Hivemall

11. 11
We Open Source

12. 12
他製品連携
SQL
Server
CRM
RDBMS
Appログ
センサー
Webログ
ERP
バッチ型
分析
アドホック型
分析
API
ODBC
JDBC
PUSH
Treasure Agent
分析ツール連携
データ可視化・共有
Treasure Data Collectors
組込み
Embulk
モバイルSDK
JS SDK
Treasure Data supports ML-as-a-Service
Machine Learning

13. Agenda
1. Introduction to Hivemall
2. Industrial use cases
3. How to use Hivemall
4. Development roadmap
13

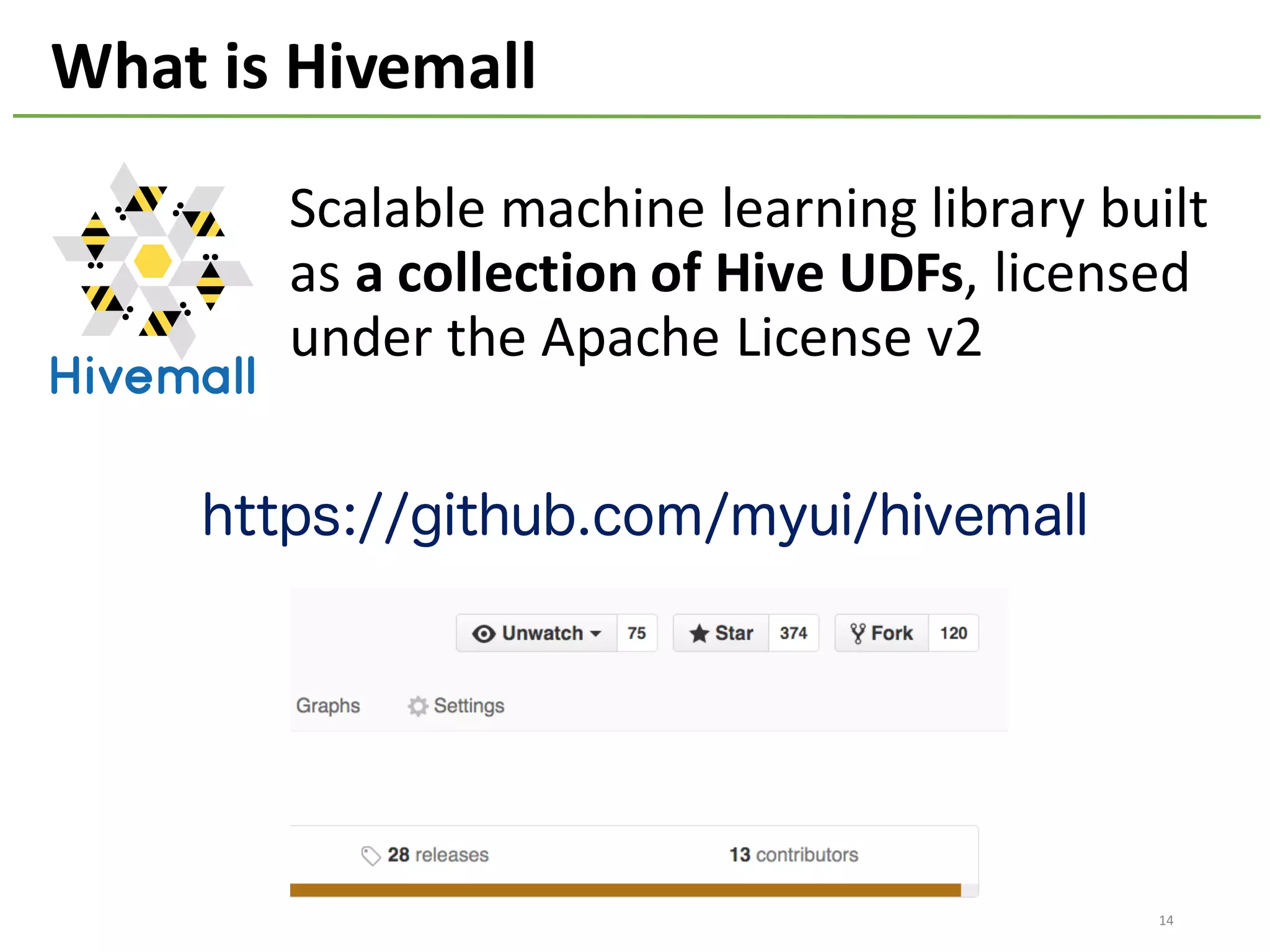

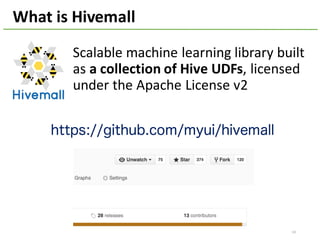

14. What is Hivemall
Scalable machine learning library built
as a collection of Hive UDFs, licensed
under the Apache License v2
14
https://github.com/myui/hivemall

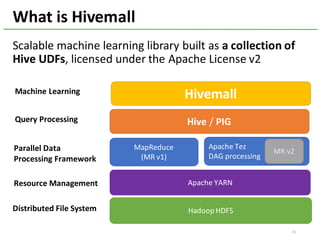

15. What is Hivemall
Hadoop HDFS
MapReduce
(MR v1)
Hive / PIG
Hivemall
Apache YARN
Apache Tez
DAG processing
MR v2
Machine Learning
Query Processing
Parallel Data
Processing Framework
Resource Management
Distributed File System
15
Scalable machine learning library built as a collection of
Hive UDFs, licensed under the Apache License v2

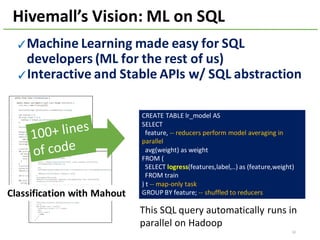

16. Hivemall’s Vision: ML on SQL
Classification with Mahout
CREATE TABLE lr_model AS
SELECT
feature, -- reducers perform model averaging in
parallel
avg(weight) as weight
FROM (
SELECT logress(features,label,..) as (feature,weight)
FROM train
) t -- map-only task
GROUP BY feature; -- shuffled to reducers
✓Machine Learning made easy for SQL
developers (ML for the rest of us)
✓Interactive and Stable APIs w/ SQL abstraction
This SQL query automatically runs in
parallel on Hadoop
16

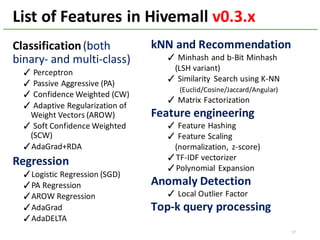

17. List of Features in Hivemall v0.3.x
Classification(both
binary- and multi-class)
✓ Perceptron
✓ Passive Aggressive (PA)
✓ Confidence Weighted (CW)
✓ Adaptive Regularization of
Weight Vectors (AROW)
✓ Soft Confidence Weighted
(SCW)
✓AdaGrad+RDA
Regression
✓Logistic Regression (SGD)
✓PA Regression
✓AROW Regression
✓AdaGrad
✓AdaDELTA
kNN and Recommendation
✓ Minhash and b-Bit Minhash
(LSH variant)
✓ Similarity Search using K-NN
(Euclid/Cosine/Jaccard/Angular)
✓ Matrix Factorization
Feature engineering
✓ Feature Hashing
✓ Feature Scaling
(normalization, z-score)
✓TF-IDF vectorizer
✓Polynomial Expansion
Anomaly Detection
✓ Local Outlier Factor
Top-k query processing
17

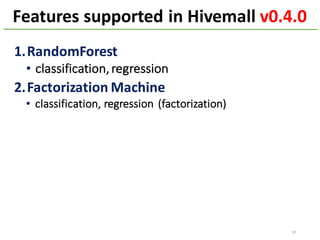

18. Features supported in Hivemall v0.4.0
18
1.RandomForest
• classification, regression
2.Factorization Machine
• classification, regression (factorization)

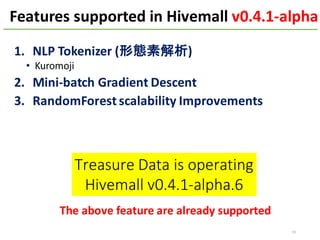

19. Features supported in Hivemall v0.4.1-alpha
19
1. NLP Tokenizer (形態素解析)
• Kuromoji
2. Mini-batch Gradient Descent
3. RandomForest scalability Improvements
Treasure Data is operating
Hivemall v0.4.1-alpha.6
The above feature are already supported

20. Agenda
1. Introduction to Hivemall
2. Industrial use cases
3. How to use Hivemall
4. Development roadmap
20

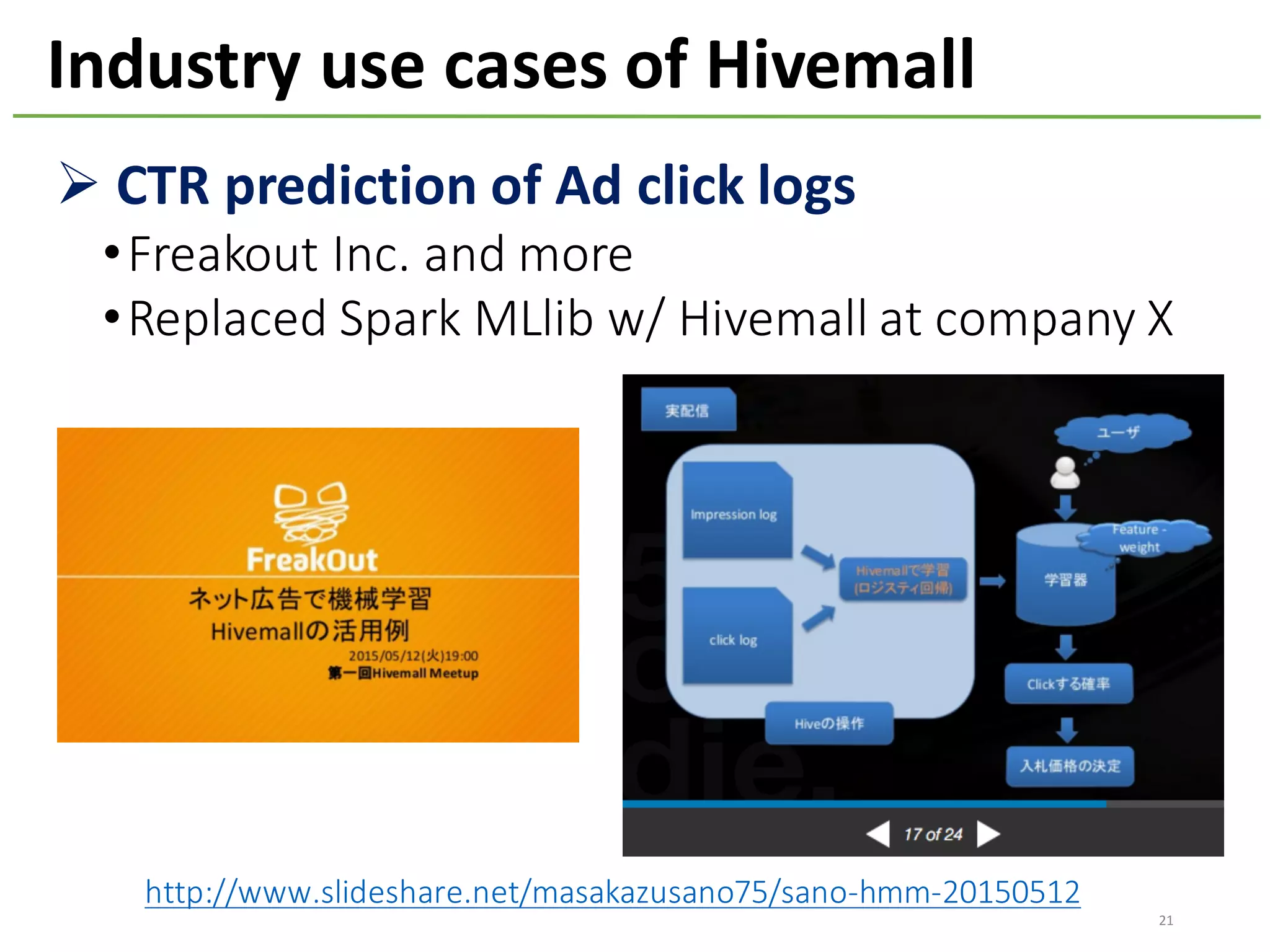

21. Ø CTR prediction of Ad click logs
•Freakout Inc. and more
•Replaced Spark MLlib w/ Hivemall at company X
Industry use cases of Hivemall
21
http://www.slideshare.net/masakazusano75/sano-hmm-20150512

22. 22

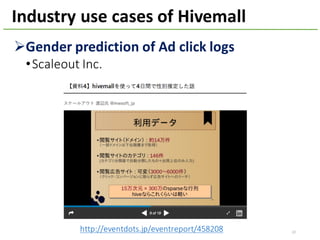

ØGender prediction of Ad click logs
•Scaleout Inc.
http://eventdots.jp/eventreport/458208
Industry use cases of Hivemall

23. 23

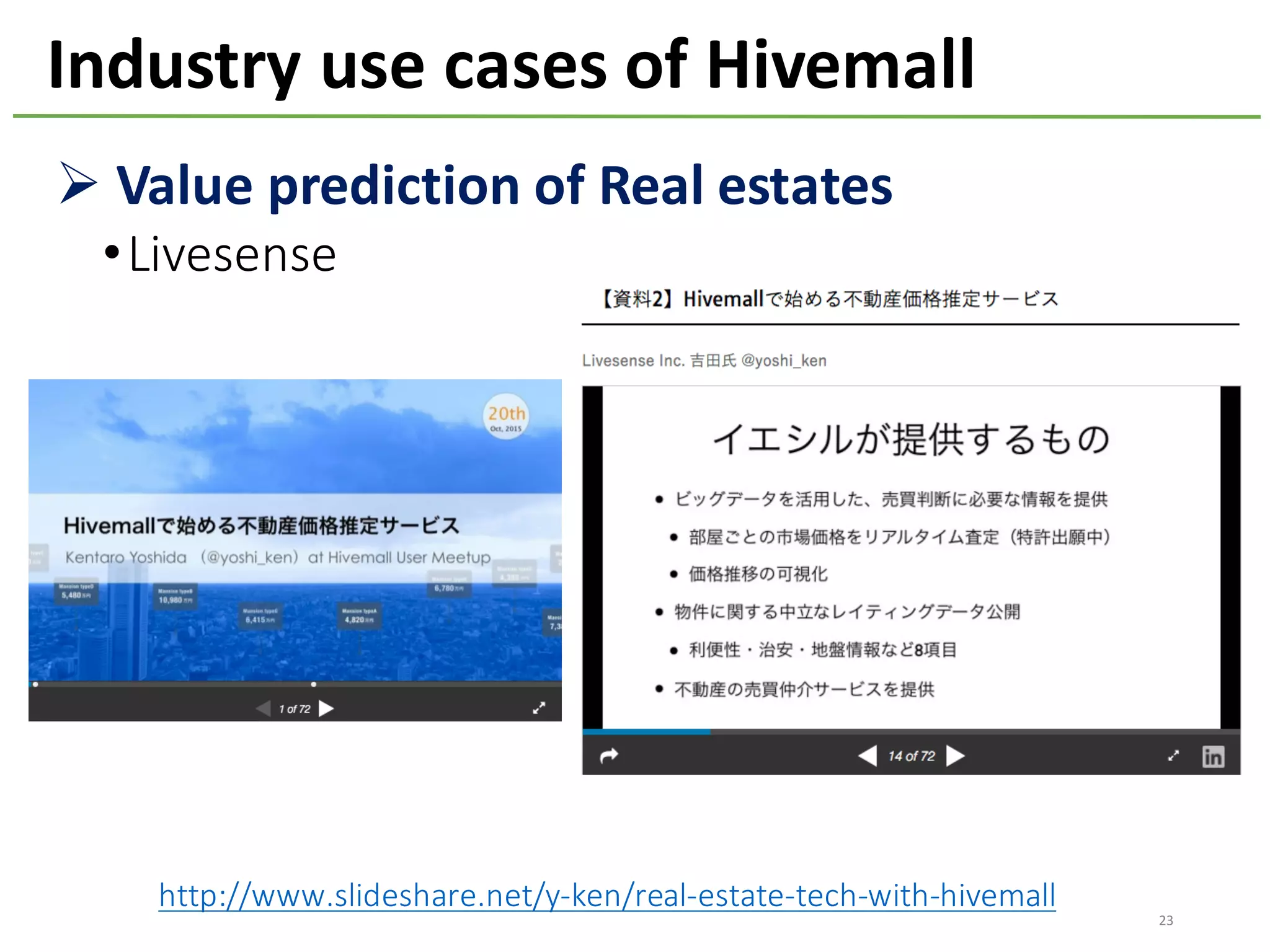

Industry use cases of Hivemall

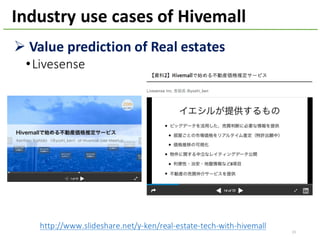

Ø Value prediction of Real estates
•Livesense
http://www.slideshare.net/y-ken/real-estate-tech-with-hivemall

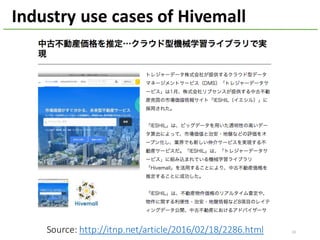

24. 24Source: http://itnp.net/article/2016/02/18/2286.html
Industry use cases of Hivemall

25. 25

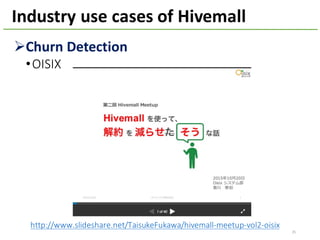

ØChurn Detection
•OISIX
Industry use cases of Hivemall
http://www.slideshare.net/TaisukeFukawa/hivemall-meetup-vol2-oisix

26. 26

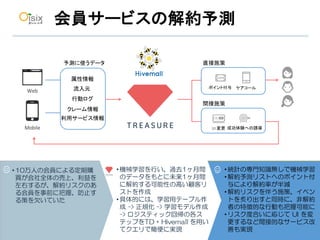

会員サービスの解約予測
•10万人の会員による定期購
買が会社全体の売上、利益を
左右するが、解約リスクのあ
る会員を事前に把握、防止す
る策を欠いていた
•統計の専門知識無しで機械学習
•解約予測リストへのポイント付
与により解約率が半減
•解約リスクを伴う施策、イベン
トを炙り出すと同時に、非解約
者の特徴的な行動も把握可能に
•リスク度合いに応じて UI を変
更するなど間接的なサービス改
善も実現
•機械学習を行い、過去1ヶ月間
のデータをもとに未来1ヶ月間
に解約する可能性の高い顧客リ
ストを作成
•具体的には、学習用テーブル作
成 -> 正規化 -> 学習モデル作成
-> ロジスティック回帰の各ス
テップをTD + Hivemall を用い
てクエリで簡便に実現
Web
Mobile
属性情報
行動ログ
クレーム情報
流入元
利用サービス情報
直接施策
間接施策
ポイント付与 ケアコール
成功体験への誘導UI 変更
予測に使うデータ

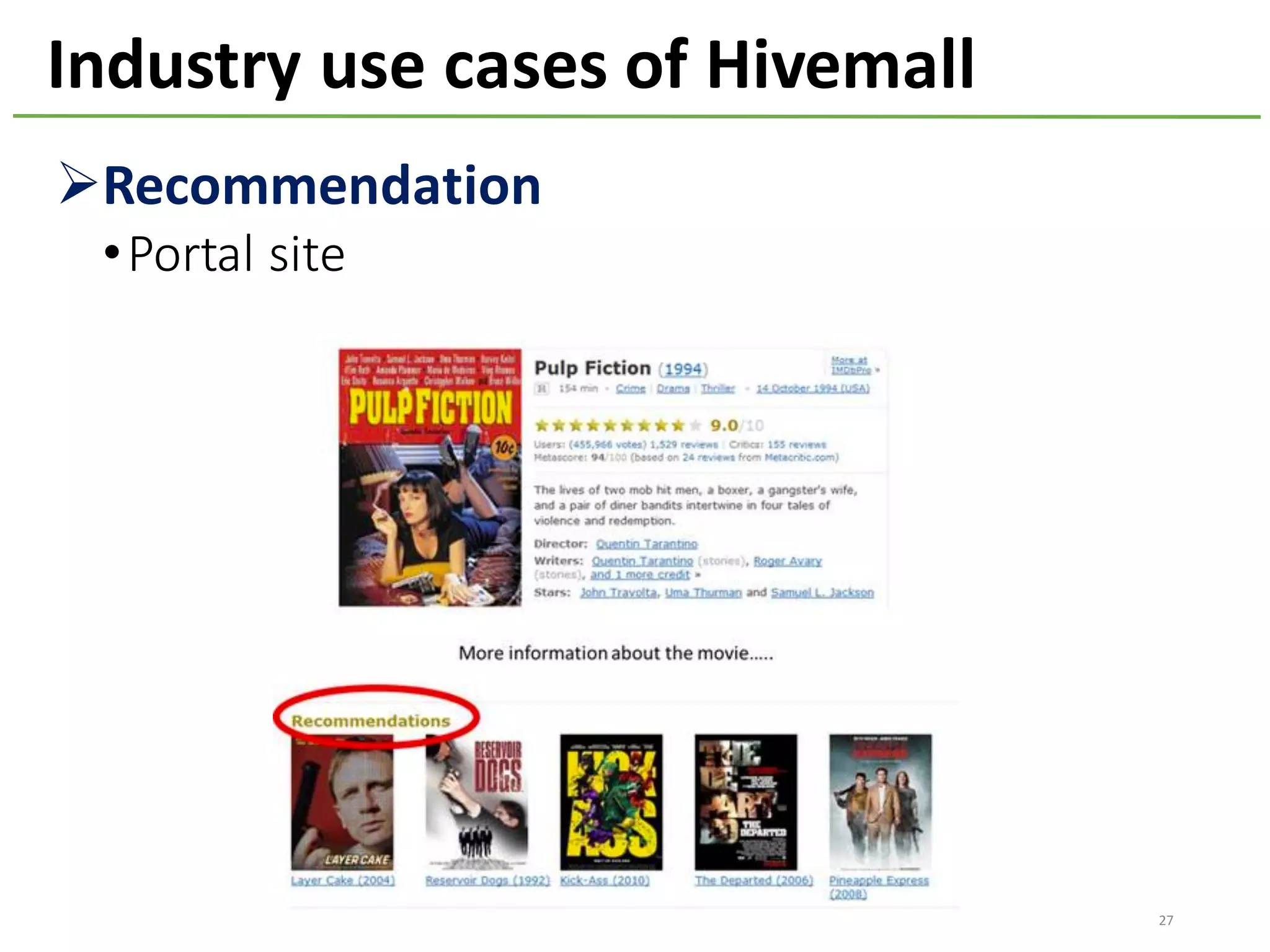

27. 27

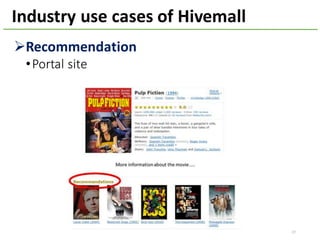

ØRecommendation
•Portal site
Industry use cases of Hivemall

28. Agenda
1. Introduction to Hivemall
2. Industrial use cases
3. How to use Hivemall
4. Development roadmap
28

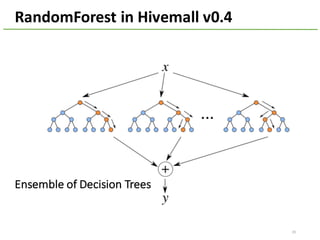

29. 29
RandomForest in Hivemall v0.4
Ensemble of Decision Trees

30. 30

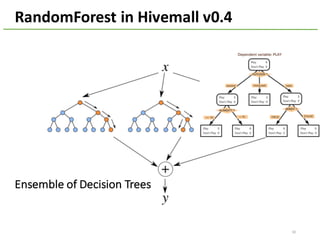

RandomForest in Hivemall v0.4
Ensemble of Decision Trees

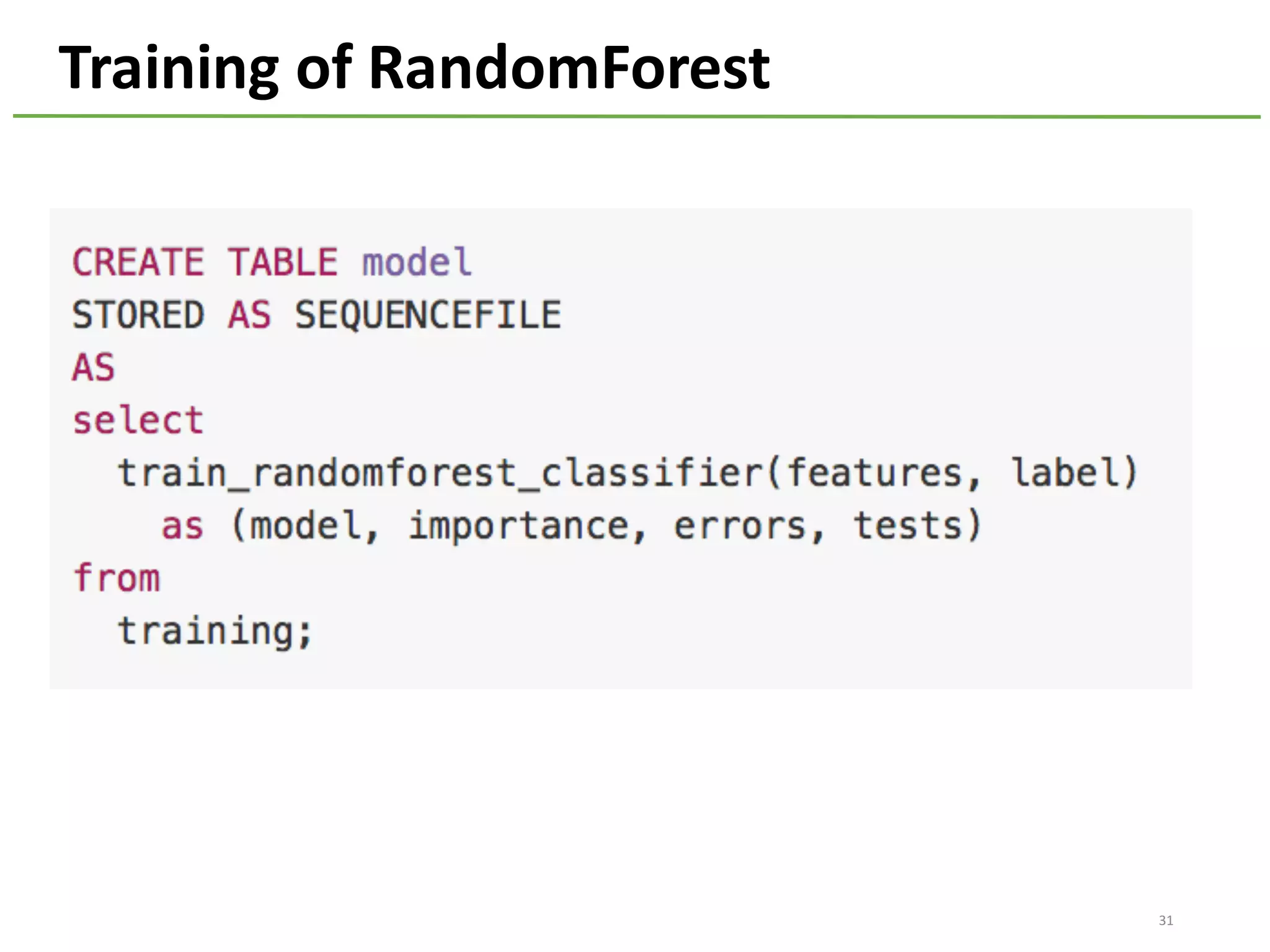

31. 31

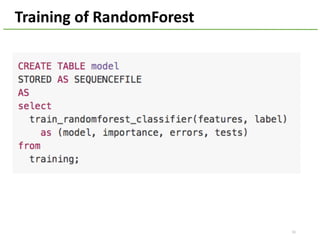

Training of RandomForest

32. 32

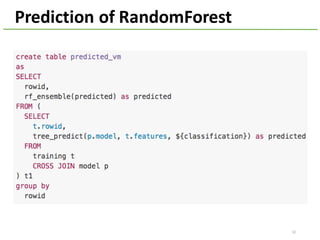

Prediction of RandomForest

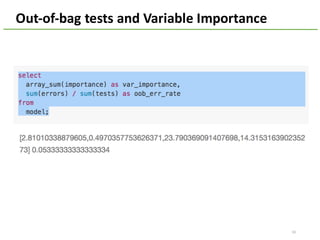

33. Out-of-bag tests and Variable Importance
33

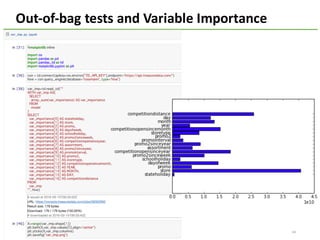

34. 34
Out-of-bag tests and Variable Importance

35. Recommendation
Rating prediction of a Matrix
Can be applied for user/Item Recommendation
35

36. 36

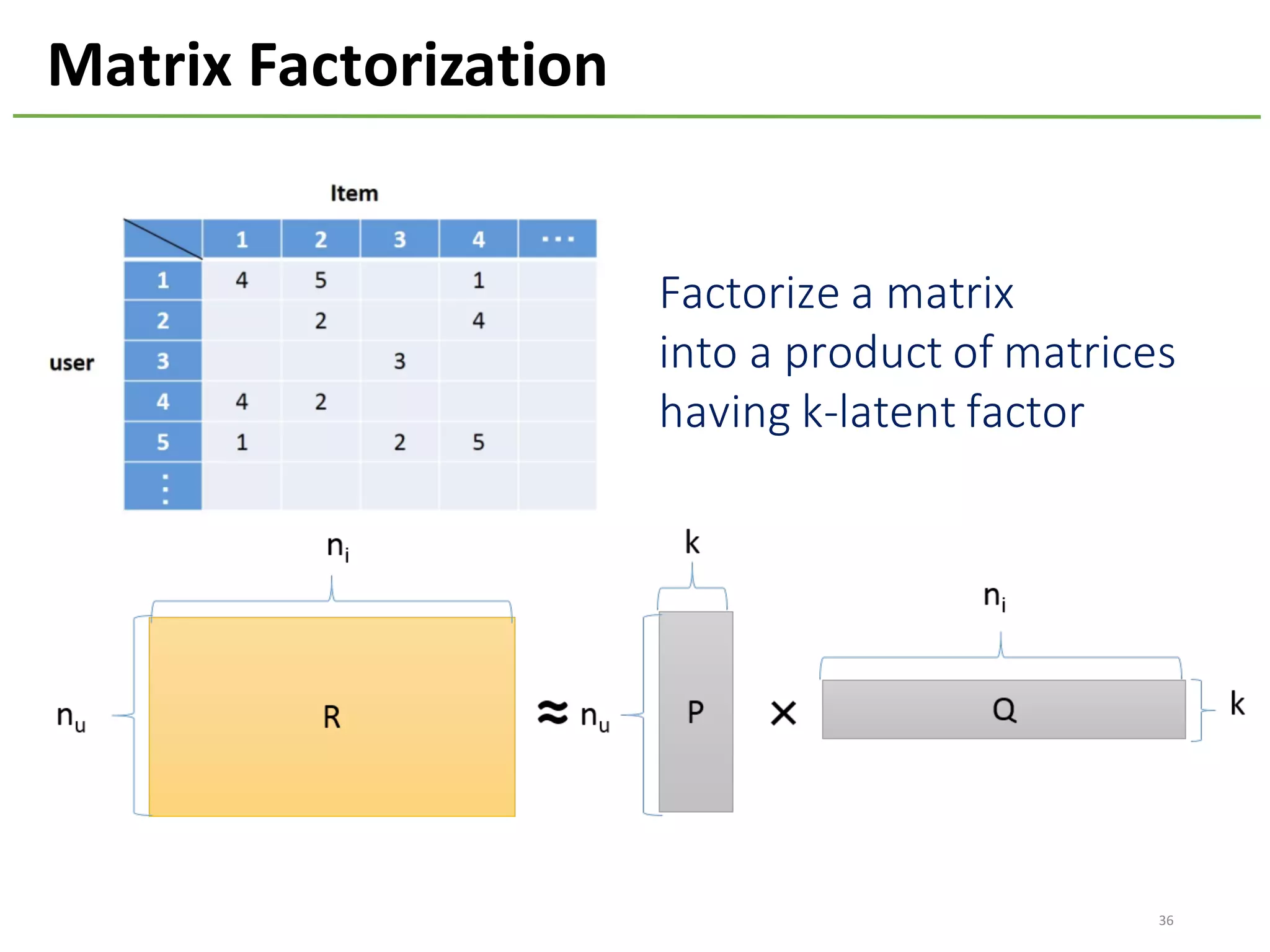

Matrix Factorization
Factorize a matrix
into a product of matrices
having k-latent factor

37. 37

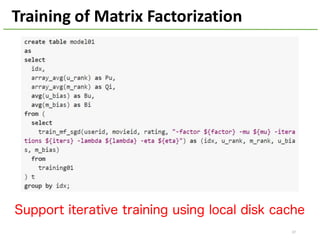

Training of Matrix Factorization
Support iterative training using local disk cache

38. 38

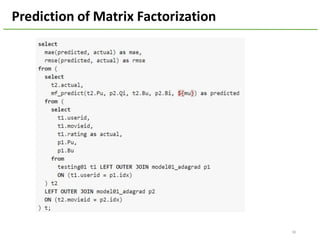

Prediction of Matrix Factorization

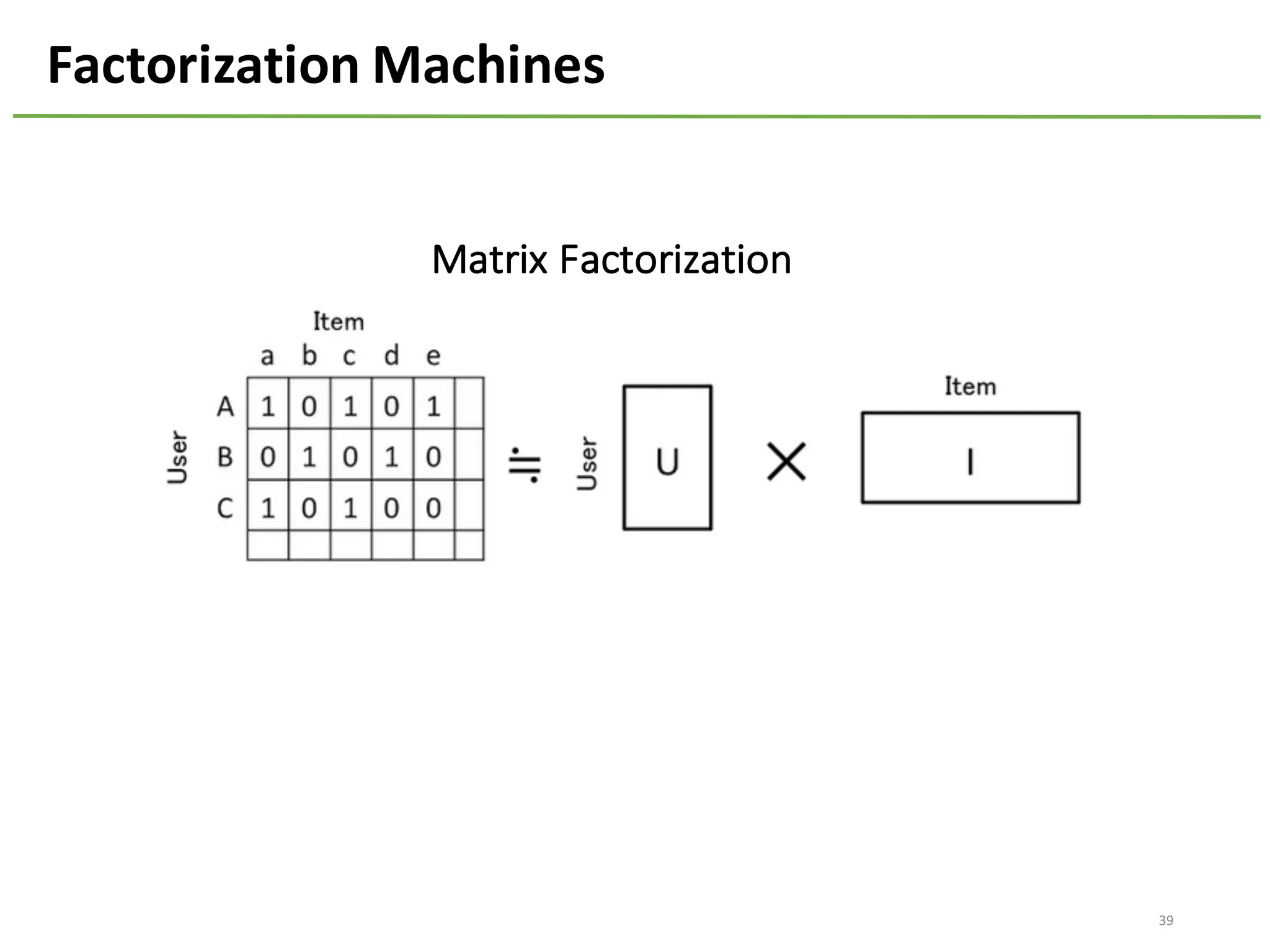

39. 39
Factorization Machines
Matrix Factorization

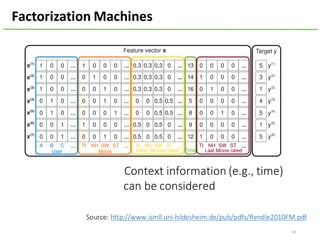

40. 40
Factorization Machines
Context information (e.g., time)
can be considered
Source: http://www.ismll.uni-hildesheim.de/pub/pdfs/Rendle2010FM.pdf

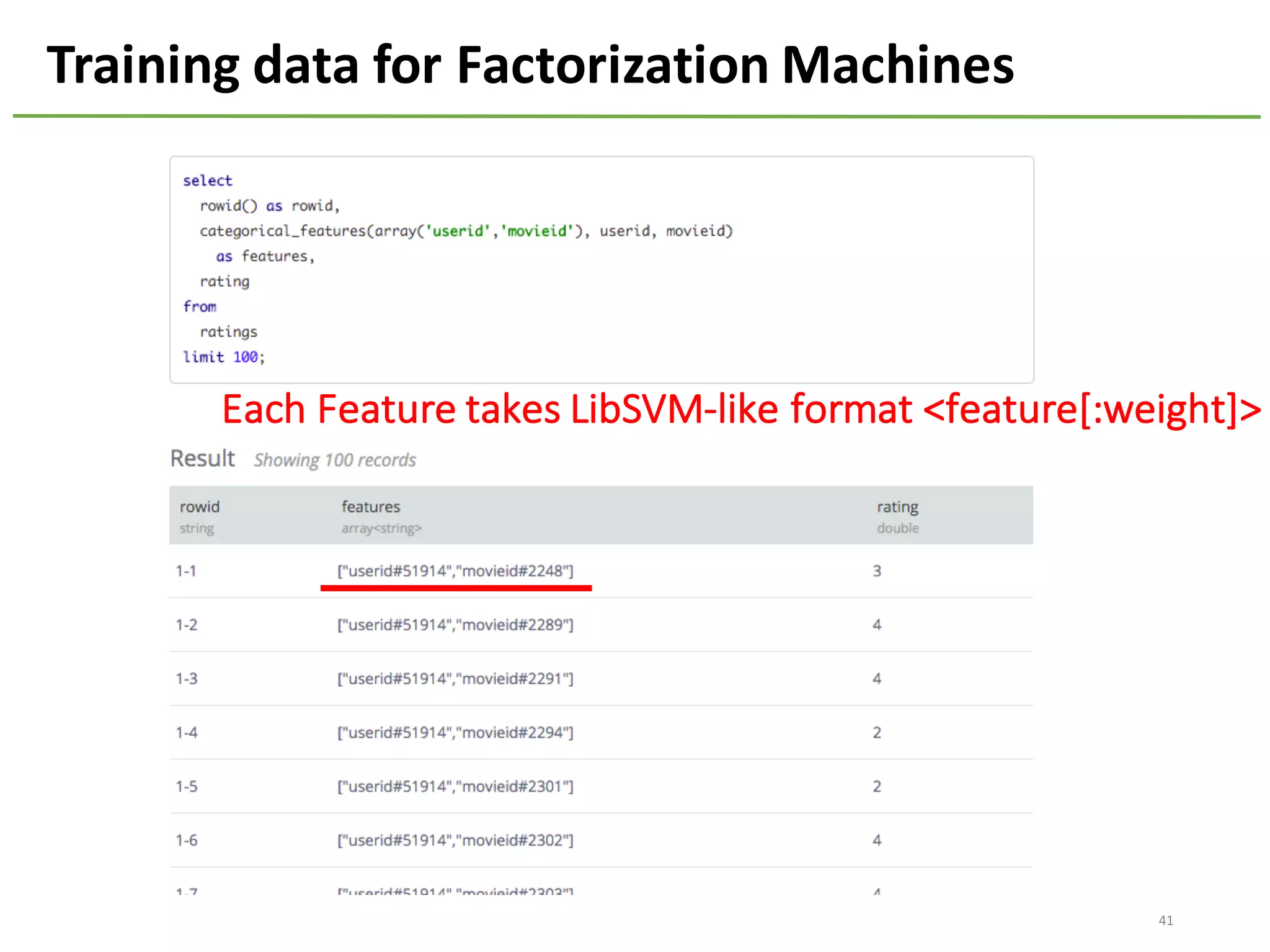

41. 41

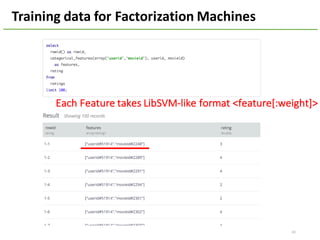

Training data for Factorization Machines
Each Feature takes LibSVM-like format <feature[:weight]>

42. 42

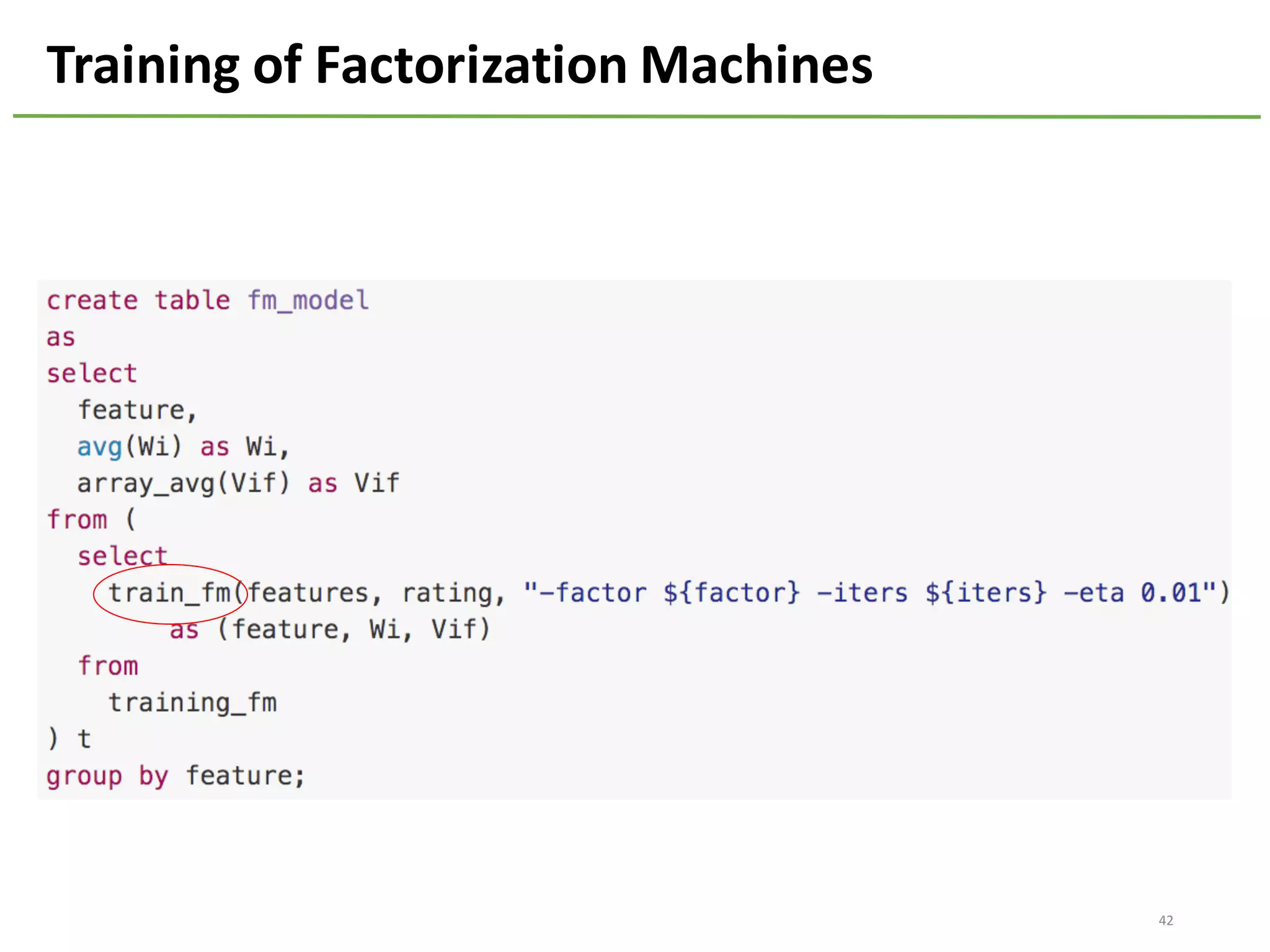

Training of Factorization Machines

43. 43

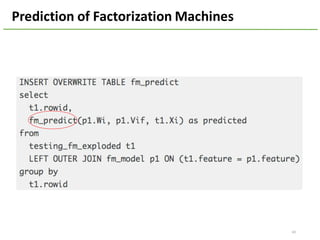

Prediction of Factorization Machines

44. 44

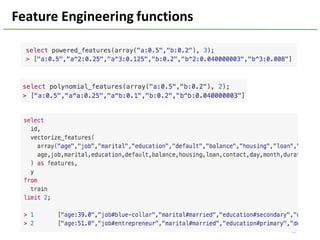

Feature Engineering functions

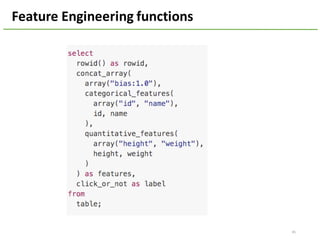

45. 45
Feature Engineering functions

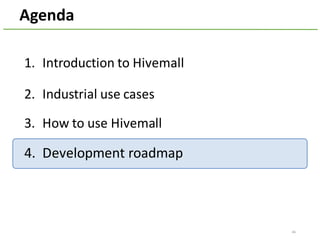

46. Agenda
1. Introduction to Hivemall
2. Industrial use cases
3. How to use Hivemall
4. Development roadmap
46

47. Features to be supported in Hivemall v0.4.1
47
1. NLP Tokenizer (形態素解析)
• Kuromoji integration was requested by Company R
2. Mini-batch Gradient Descent
3. RandomForest scalability Improvements
4. Recommendation for Implicit Feedback Dataset
• Useful where only positive-only feedback is available
• BPR: Bayesian Personalized Ranking from Implicit Feedback,
Proc. UAI, 2009.
Planned to release v0.4.1 in April.

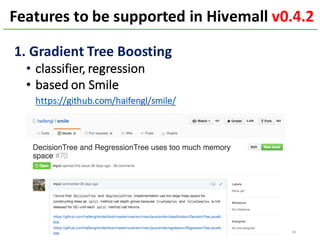

48. Features to be supported in Hivemall v0.4.2
48
1. Gradient Tree Boosting
• classifier, regression
• based on Smile
https://github.com/haifengl/smile/

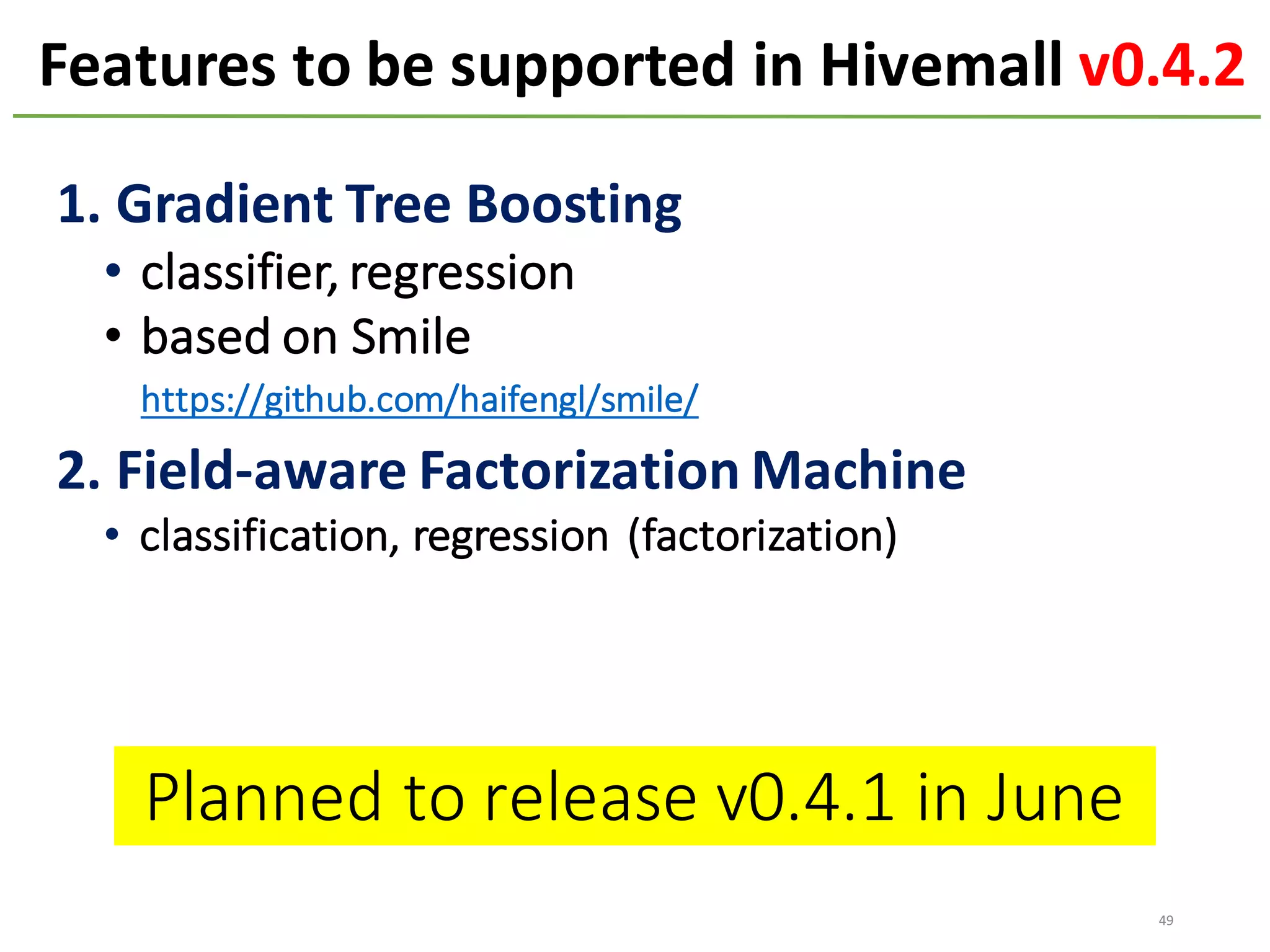

49. Features to be supported in Hivemall v0.4.2
49
1. Gradient Tree Boosting
• classifier, regression
• based on Smile
https://github.com/haifengl/smile/
2. Field-aware Factorization Machine
• classification, regression (factorization)
Planned to release v0.4.1 in June

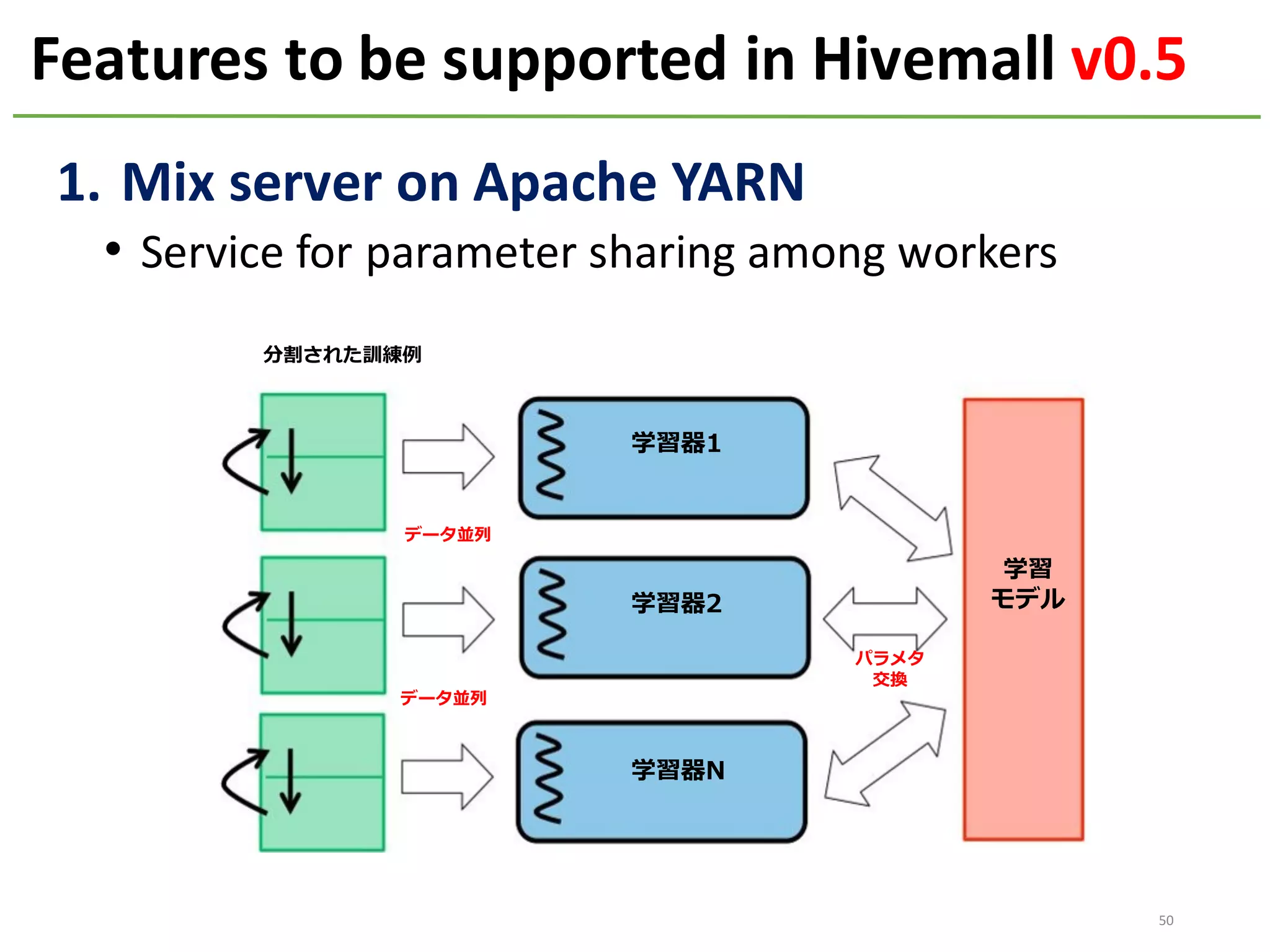

50. Features to be supported in Hivemall v0.5
50
1. Mix server on Apache YARN
• Service for parameter sharing among workers
学習器1
学習器2
学習器N
パラメタ
交換
学習
モデル
分割された訓練例
データ並列
データ並列

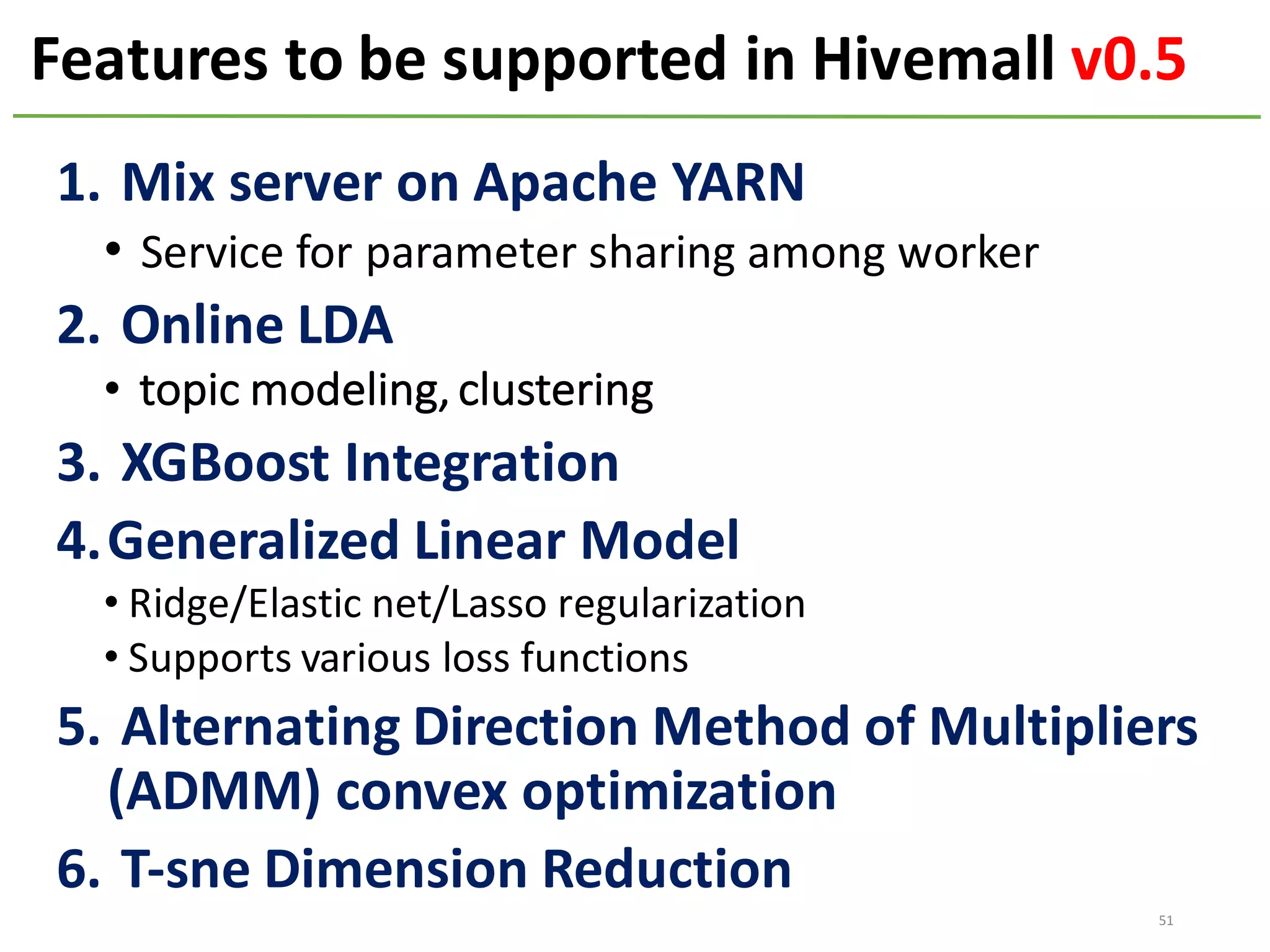

51. Features to be supported in Hivemall v0.5
51
1. Mix server on Apache YARN
• Service for parameter sharing among worker
2. Online LDA
• topic modeling, clustering
3. XGBoost Integration
4.Generalized Linear Model
• Ridge/Elastic net/Lasso regularization
• Supports various loss functions
5. Alternating Direction Method of Multipliers
(ADMM) convex optimization
6. T-sne Dimension Reduction

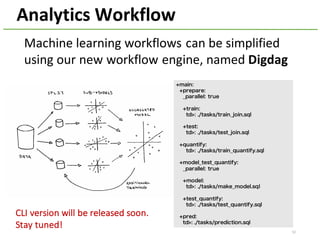

52. 52
Analytics Workflow
Machine learning workflows can be simplified
using our new workflow engine, named Digdag
+main:
+prepare:
_parallel: true
+train:
td>: ./tasks/train_join.sql
+test:
td>: ./tasks/test_join.sql
+quantify:
td>: ./tasks/train_quantify.sql
+model_test_quantify:
_parallel: true
+model:
td>: ./tasks/make_model.sql
+test_quantify:
td>: ./tasks/test_quantify.sql
+pred:
td>: ./tasks/prediction.sql
CLI version will be released soon.
Stay tuned!

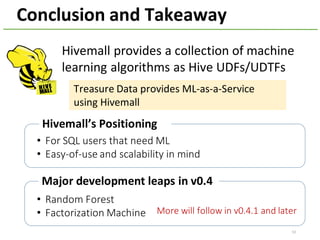

53. Conclusion and Takeaway
53
Hivemall provides a collection of machine
learning algorithms as Hive UDFs/UDTFs
Hivemall’s Positioning
Treasure Data provides ML-as-a-Service
using Hivemall
Major development leaps in v0.4
More will follow in v0.4.1 and later
• For SQL users that need ML
• Easy-of-use and scalability in mind
• Random Forest
• Factorization Machine

54. 54

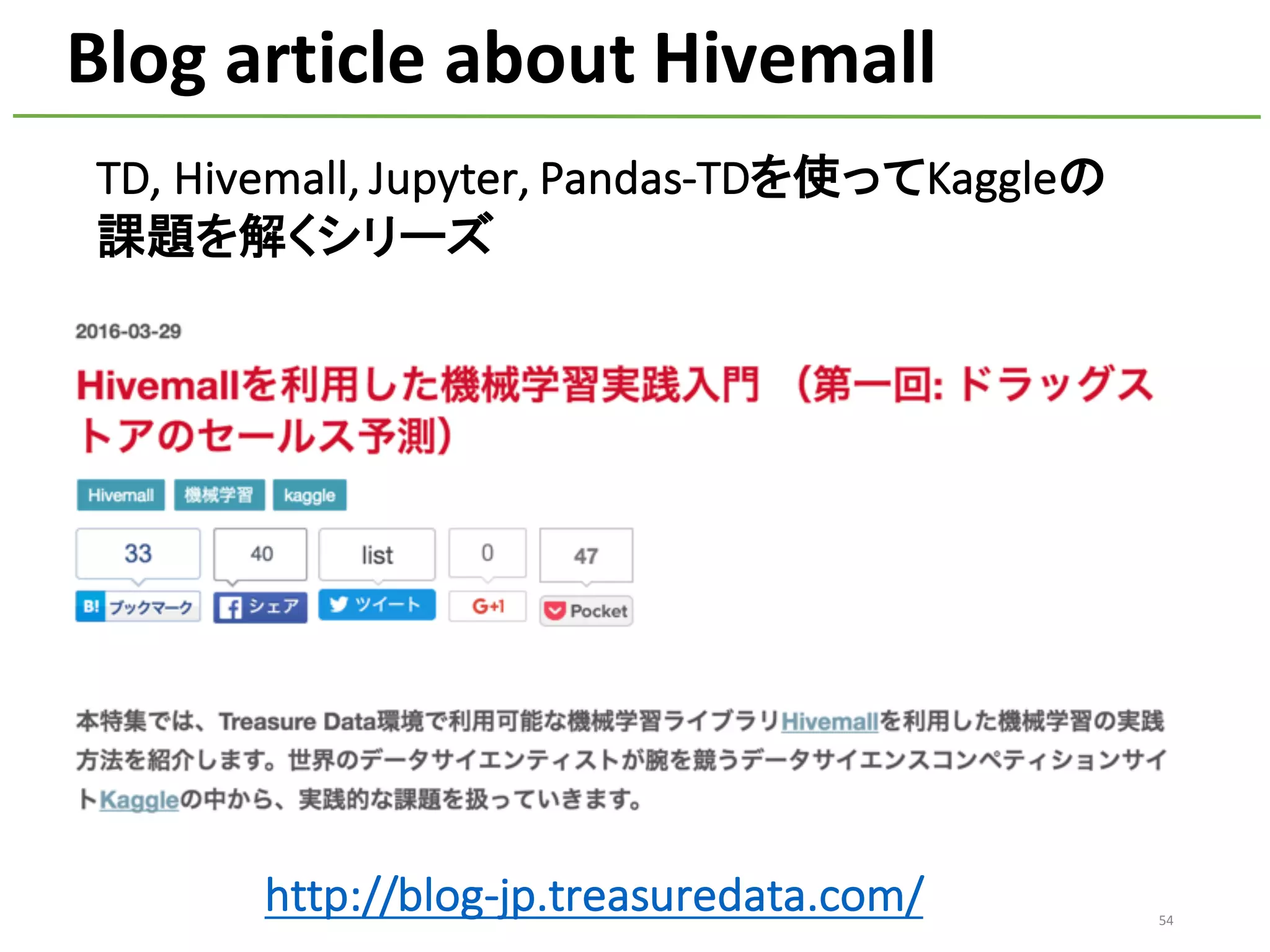

Blog article about Hivemall
http://blog-jp.treasuredata.com/
TD, Hivemall, Jupyter, Pandas-TDを使ってKaggleの
課題を解くシリーズ

55. 55
We support machine learning in Cloud
Any feature request? Or, questions?
